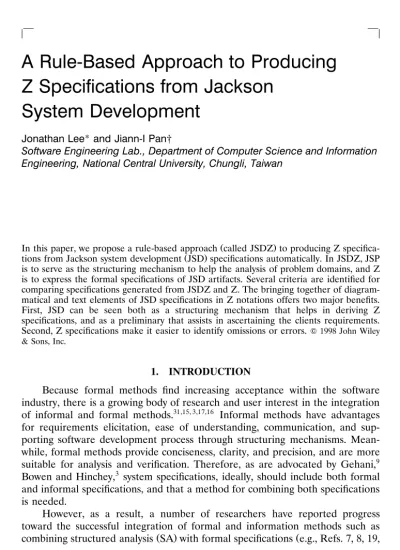

A Rule-Based Approach to Producing Z Specifications from Jackson

System Development

Jonathan Lee* and Jiann-I Pan†

Software Engineering Lab., Department of Computer Science and Information Engineering, National Central University, Chungli, Taiwan

Ž .

In this paper, we propose a rule-based approach called JSDZ to producing Z specifica-

Ž .

tions from Jackson system development JSD specifications automatically. In JSDZ, JSP is to serve as the structuring mechanism to help the analysis of problem domains, and Z is to express the formal specifications of JSD artifacts. Several criteria are identified for comparing specifications generated from JSDZ and Z. The bringing together of diagram- matical and text elements of JSD specifications in Z notations offers two major benefits.

First, JSD can be seen both as a structuring mechanism that helps in deriving Z specifications, and as a preliminary that assists in ascertaining the clients requirements.

Second, Z specifications make it easier to identify omissions or errors.Q 1998 John Wiley

& Sons, Inc.

1. INTRODUCTION

Because formal methods find increasing acceptance within the software industry, there is a growing body of research and user interest in the integration of informal and formal methods.31,15, 3,17,16

Informal methods have advantages for requirements elicitation, ease of understanding, communication, and sup- porting software development process through structuring mechanisms. Mean- while, formal methods provide conciseness, clarity, and precision, and are more suitable for analysis and verification. Therefore, as are advocated by Gehani,9 Bowen and Hinchey,3 system specifications, ideally, should include both formal and informal specifications, and that a method for combining both specifications is needed.

However, as a result, a number of researchers have reported progress toward the successful integration of formal and information methods such as

Ž . Ž

combining structured analysis SA with formal specifications e.g., Refs. 7, 8, 19,

*Author to whom correspondence should be addressed. E-mail: yjlee@se01.

csie.ncu.edu.tw.

†E-mail: pan@se01.csie.ncu.edu.tw.

Ž .

INTERNATIONAL JOURNAL OF INTELLIGENT SYSTEMS, VOL. 13, 587]611 1998 Q 1998 John Wiley & Sons, Inc. CCC 0884-8173r98r070587-25

(2)

. Ž .

24, 25 , integrating object-oriented analysis OOA and formal specifications Že.g., Refs. 10, 12, 2, 18 , as well as transforming JSD to formal notations e.g.,. Ž Refs. 28 ..

The focus of this paper is on the use of Z27 as the formal notation to express JSD requirements specifications, called JSDZ. The transformation in

Ž .

JSDZ is achieved using a rule-based approach in CLIPS Ref. 5 that enables the derivation of Z specifications from JSD artifacts automatically. The transfor- mation heuristics are outlined below.

In JSDZ, a model process in the modeling phase is treated as an active entity that requires an operation on its data store to add a new instance to the collection of existing instances. The model process is thus translated into a state schema, and its related operations are converted into the operation schemas with instances set that can be modified by the operations. State invariants are captured in the entity-action list as constraints, which are then described as state invariants in the state schema. The time-ordering relationship in the structure diagram is transformed into a collection of transition constraints using the axiomatic description to serve as a global constraint to restrict the ordering relationship of the related operations.

In the network phase, a function process in the network phase is manifested through an operation schema. State vectors and their related functions are treated as a collection of query operation schemas. Data streams are imple- mented by read and write operations. Cardinality relationships between pro- cesses are translated into Z notations based upon the notion of rough merges.

These are illustrated using the problem domain of the library system.30

We first give an overview of JSD in the next section. The proposed approach that guides the mapping from JSD specifications to Z notations is fully discussed in Section 3. Related work is introduced in Section 4. In Section 5, several important issues such as structuring mechanism, criteria for comparing specifications, etc. are discussed. Finally, we summarize the benefits of our approach and outline our future research plans.

2. JACKSON SYSTEM DEVELOPMENT OVERVIEW Ž .14

Jackson system development JSD is a method originated by Michael Jackson for software development. Variations of JSD have been proposed. We will base our discussion on the features discussed in Ref. 4. JSD specifications are mainly composed of a distributed network of sequential processes. Each process can have its own local data. The communication between processes is

Ž .

achieved by reading and writing messages data stream and by read-only access

Ž .

to one another’s data state vector . The JSD specification is initiated from a

Ž .

particular set of model processes or entities . New processes are added to the specification by connecting them to the model. There are three main phases in the JSD method.

v Modeling phase: Model processes or entities and their actions are selected andŽ . defined.

(3)

v Network phase: The relationships between model processes and function pro- cesses are established, and are represented by the system specification diagram ŽSSD ..

v Implementation phase: The processes and their data are fitted onto the available processor and storage devices.

In the following sections, we will only concentrate on the modeling and network phases. The library system is used as an example to illustrate both the JSD methodology and the proposed approach for transforming JSD specifica- tions to Z. The problem description of the library system is summarized below.30

Consider a small library database with the following transactions:

Ž .1 Check out a copy of a book. Return a copy of a book.

Ž .2 Add a copy of a book to the library. Remove a copy of a book from the library.

Ž .3 Get the list of books by a particular author or in a particular subject area.

Ž .4 Find out the list of books currently checked out by a particular borrower.

Ž .5 Find out what borrower last checked out a particular copy of a book.

There are two types of users: staff users and ordinary borrowers. Transac- tions 1, 2, 4, and 5 are restricted to staff users, except that ordinary borrowers can perform transaction 4 to find out the list of books currently borrowed by themselves. The database must also satisfy the following constraints:

Žc1. All copies in the library must be available for check-out or be checked out.

Žc2. No copy of a book may be available and checked out at the same time.

Žc3. A borrower may not have more than a predefined number of books checked out at one time.

2.1. Modeling Phase

The first step in the modeling phase is to find entities and actions related to each entity. An entity-action list is used to specify the entities, related actions and their attributes needed in a system. To extend JSD, we incorporate con- straints into the entity-action list so that the state invariant can be included in

Ž .

the state schema.‡ The second constraint c , for example, is defined as the2 exclusive or of INLIB and ONLOAN to indicate that no copy of a book can be both in the library and on loan at the same time. The entity-action lists for the entities Book and User in the library system are shown in Figure 1.

In JSD specifications, a model process is composed of a set of ordering actions and is denoted by a structure diagram. A structure diagram is a tree structure, the leaves are actions, all other components describe either sequence, iteration, or selection relationships between actions or between group of actions.

Iterations are denoted by the ‘‘*’’ in the top right corner of the constituent box, and the selections are denoted by the ‘‘8’’. Figure 2 a shows that A is a sequenceŽ .

‡Similar ideas about the inclusion of constraints in an object representation can be found in BON.22

(4)

Figure 1. Entity-action lists of the library problem.

component, which means that A contains one B action, followed by one C action, followed by one D action. Figure 2 b shows that A is a selectionŽ . component, which means that A consists of either exactly one B action or exactly one C action or exactly one D action. Figure 2 c shows that A is anŽ . iteration component, which means that A contains zero or more B actions.

Ž . Ž . Ž .

Figure 2. Structured diagrams: a sequence, b selection, c iteration.

(5)

Figure 3. Structure diagrams for the library system: a the structure diagram of book,Ž . Ž .b the structure diagram of user.

Notice that the first action associated with an entity in the structure diagram plays a role of creating instances of the associated entity; whereas, the last action is in charge of destroying all the instances of the entity.

Having built a model process, we need to define data items and basic operations to describe the detailed meaning of the model process. The actions define what happens and the data define what is to be remembered about what has happened. The model processes can then be transformed into the equivalent structure text. Figure 3 shows the result of the modeling phase, namely, struc- tured diagrams that include basic operations for the book and user entities.

2.2. Network Phase

The result of the modeling phase is a set of disconnected processes. In the network phase, input and output processes are added and connected to the

Ž .

model processes e.g., Book in Fig. 4 to build the network of potentially concurrent processes. The network is described in a system specification dia-

Ž .

gram SSD . The SSD notations are shown in Figure 5. In this phase, three

(6)

Figure 4. SSD for the library systems.

different types of function process can be included into the network: input function process, information function process, and interactive function process.

Input function processes collect data from the real world, check them for errors, and pass them on to the model process if they are correct, reject them by producing an error message otherwise. All the input processes together consti- tute the input subsystem.

Figure 5. SSD notations.

(7)

Information function processes extract information from the model in order to compute the required system outputs. The system’s outputs must be definable in terms of the model, namely, actions, action attributes, and entity attributes. If this is not possible, the model must be elaborated by defining new actions and entity attributes. In Figure 4, the Find books, Find user, Get list by subject,] ] ] ] ] and Get list by author are information function processes. Find books receives] ] ] ] a user identity and outputs the books list of books that the user borrowed.

Find user receives a book identity to find a particular user who has borrowed] the book. Get list by author gets all the books that were written by a particular] ] ] author. Get list by subject gets all the books that are associated with a particu-] ] ] lar subject.

Interactive function processes generate system actions. System actions can be considered as external actions that are created by the system itself. In most cases the interactive function process needs information from model processes to generate the system actions. Interactive function processes are like informa- tion function processes, except that they produce inputs into the model pro- cesses instead of system outputs. There are two communication mechanisms between processes in JSD.

v State vector: A state vector SV connection constitutes a read-only access from aŽ . process to the local data of another process.

v Data stream: A data stream DS is a first-in-first-out data queue with infiniteŽ . capacity.

In Figure 4, the fbu, gbs, etc. are state vectors, and the fbi, fbo, etc. are data streams. For example, a user identity is stored in the fbi data stream, and read in by the Find books. The Find books process inspects the data in User to] ] retrieve the user’s borrowed books list, and puts the list on the fbo data stream.

Ž .

The internals of a function process called a process structure are devel-

Ž .

oped with JSP see Fig. 6 . The process structure is deduced from its in and out

Ž .

data time structure. All the operations required to produce the output are first

Figure 6. Process structures in the library system.

(8)

defined in an operation list, and allocated to the appropriate components in the process structure. Conditions have to be specified for each iteration and selec- tion component. The cardinality relationship between processes could be either

Ž .

one-to-one, one-to-many, or many-to-many see Fig. 5 , which is to capture the

Ž .

notion of multiplicity of a process i.e., multiple instances . After completing all function processes and communicating them with modeling processes using SV and DS, an SSD is established see Fig. 4 for a complete SSD of the libraryŽ system ..

In the next section, the proposed approach JSDZ is fully discussed and is illustrated step-by-step using the library system.

3. EXPRESSING JACKSON SYSTEM DEVELOPMENT SPECIFICATIONS IN Z NOTATIONS

In JSDZ, a model process in the modeling phase is treated as an active entity that requires an operation on its data store to add a new instance to the collection of existing instances. The model process is thus transformed into a state scheme, and its related operations are converted into operation schemas with an instances set that can be modified by the operations. State invariants are captured in the entity-action list as constraints, which will then be described as state invariants in the state schema. The time-ordering relationship in a struc- ture diagram is transformed into a collection of transition constraints and then grouped under an axiomatic description. In the network phase, a function process in JSD specifications is manifested by an operation schema. Cardinality relationships between processes are translated into Z notations based upon the notion of rough merges.

JSDZ is implemented using JAVA and CLIPS, JAVA is used to build a uniform user interface. CLIPS is used to implement the proposed rule base to transform JSD artifacts into Z specifications. The inputs to the rule base are a collection of initial knowledge, represented as facts in CLIPS, based on the entity-action list, the structure diagram and the system specification diagram from the JSD artifacts. The outputs of JSDZ are Z specifications in LaTeX format. Windows of the JSDZ tool are shown in Figures 7 and 8.

3.1. Transferring the Jackson System Development Artifacts into CLIPS Facts

The rule base in JSDZ encompasses two main modules: modeling and networking module, each of which consists of a collection of heuristics de-Ž scribed in Sections 3.2 and 3.3 to facilitate the transformation. The JSD. artifacts are represented as facts to form the input for the JSDZ rule base. In JSDZ, the related information in an entity, such as the entity name, attributes, actions, basic operations, etc., are captured using a deffacts in CLIPS. Referring to our example, part of the information in the BOOK entity can be represented

(9)

Figure 7. A window of modeling phase in JSDZ tool.

in the Book deffacts as follows§:

(deffacts MAIN::Book

EntityActions (EntityName Book)

(ActionNames add check\ out give\ out give\ back] ] ] remove))

(EntityAttributes (EntityName Book)

(Attributes ID DATE\ ADDED TITLE SUBJECT AUTHOR] LAST\ BORROWER]

LEND\ DATE RETURN\ DATE INLIB ONLOAN] ] REMOVE\ DATE)]

(Types BOOK\ ID DATE TEXT TEXT SET- TEXT USER\ ID DATE] ] DATE BOOLEAN BOOLEAN DATE))

(Action (EntityName Book) (ActionName add)

(Attributes ID DATE\ OF\ ADDED TITLE SUBJECT AUTHOR)] ] (Types BOOK\ ID DATE TEXT TEXT SET- TEXT))]

(BasicOperation (EntityName Book) (ActionName add) (Op DATE\ ADDED " = " add.DATE\ OF\ ADDED))] ] ]

(BasicOperation (Entity Name Book) (ActionName add) (Op TITLE " = " TITLE))

: : )

§For details about the CLIPS rules and facts in JSDZ, see Appendix A.

(10)

Figure 8. An output of Z specifications.

3.2. Modeling Phase

1. Define given sets for all types of attributes based on the entity-action list.

Consider the library system, the types needed in the system are described as follows:

wBOOLEAN, BOOK ID, USER ID, TEXT , DATE] ] x

<

REPORT ::s 0 remo¨e date is unknown] 0 0 last borrower is unknown0]

<0 lend date is unknown0 0 return date is unknown0] < ]

2. Define a state schema, treated as a type for each entity where its signature is depicted using the attributes in the entity-action list. From the same example, the Book state schema is defined for the entity Book.

Book id: BOOK ID] date added : DATE] title : TEXT subject :F TEXT author :F TEXT

last borrower : USER ID] ] date lent : DATE] date returned : DATE] inlib : BOOLEAN onloan : BOOLEAN date remo] ¨ed : DATE

(11)

3. Create a data-store state schema to represent an instances set for each entity. In each data store, the schema defined for each entity in the previous step is treated as a type, and an identity is required to uniquely identify each instance. In the same example, there is a data-store state schema Book SET, where books is a] subset of the type BOOK and idbook is an identifier. Thus,

Book SET]

books :F Book 6 idbook : BOOK ID] Book

v y Ž .

;b : Book b g books « b.id s idbook 1 b ran idbooks books

4. Specify the state invariant in the data-store state schema. In JSD, the state invariant is not considered at all. Based on our enhanced version of the entity-action list, constraints in the list are utilized to specify the state invariants

Ž .

explicitly. In our example, the c2 constraint is converted into the formula ;b:

v ŽŽ . Ž

Book bg books « b.inlibs true n b.onloan s false k b.inlib s false n b.onloans true . Therefore,..

Book SET]

books :F Book 6 idbook : BOOK ID] Book

y Ž .

;b : Book (bg books « b. id s idbook 1 b ran idbooks books

 v 4

bookss D b : Book N b g books b.inlib s true

 v 4

jD b : Book N b g books b.onloan s true

;b : Book b g books «v

ŽŽb.inlibs true n b.onloan s false k b.inlib s false n b.onloan s true. Ž ..

5. Initialize the data-store schema for each entity to specify the initial state. The initialization of a system can be regarded as a special kind of operation that creates a state out of nothing; there is no before state, simply an after state with its variables decorated. The initial state is described by means of the schema Init Book SET] ] 9, where the schema Init Book SET is defined as follows,] ]

Init Book SET] ] books :F Book 6 idbook : BOOK ID] Book bookss B

idbooks B

6. Define an operation schema for each action of an entity, and its signature according to the entity-action list. If an action changes its associated data store, attach the D notation to its associated data store to indicate the change;

otherwise, use the J notation. If an action is shared by more than one entity, include all their related data stores in the declaration part. The signature portions of the operation schemas for add and remo¨e actions of the book entity

(12)

are described below, respectively, D Book SETadd ]

book : Book

rep remo] ¨e date! : Report] rep return date! : Report] ] rep lend date! : Report] ] rep last borrower! : Report] ] id? : BOOK ID]

date of added? : DATE] ] title? : TEXT

subject? : TEXT author? :F TEXT

remo¨e D Bo SET] book : Book id? : BOOK ID]

date of remo] ] ¨e? : DATE

7. Include the basic operations of the action in the predicate part of the operation schema to illustrate the postconditions of the operation. To reflect the semantics of the first and last actions of an entity, the creation and destruction of instances of the entity also need to be specified. For example, the add action is treated as an operation that can create new instances to be included into the existing

 4

instances set, BOOK SET, namely, books] 9 s books j book ; while, the remo¨e action will delete an instance from the instances set, that is, books9 s books _

book and idbook4 9 s id? 1 4 ] idbook. Hence, D Book SETadd ]

book : Book

rep remo] ¨e date! : Report] rep return date! : Report] ] rep lend date! : Report] ] rep last borrower! : Report] ] id? : BOOK ID]

date of added? : DATE] ] title? : TEXT

subject? : TEXT author? :F TEXT id?f dom idbook book.id9 s id?

book.date added] 9 s date of added?] ] book.title9 s title?

book.subject9 s subject?

book.author9 s author?

book.inlib9 s true book.onloan9 s false

 4

idbook9 s idbook [ id? ¬ book

 4

books9 s books j book

rep last borrower!] ] s 0 last borrower is unknown0] rep lend date!] ] s 0 lend date is unknown0] rep return date!] ] s 0 return date is unknown0] rep remo] ¨e date!s 0 remo] ¨e date is unknown0]

(13)

remo¨e D Book SET] book : Book id? : BOOK ID]

date of remo] ] ¨e? : DATE id?g dom idbook

Ž . books idbook id?

book.inlib9 s false

book.remo¨e date] 9 s date of remo] ] ¨e?

 4

books9 s books _ book

 4

idbook9 s id? 1] idbook

8. Convert the time-ordering relationship in each structure diagram into a collec- 5

tion of transition constraints and include these constraints in an axiomatic description to serve as a global constraint for restricting actions involved in each entity. For example, the time-ordering relationship for the book entity in Figure 3 can be represented using regular expressions as Add, Check out,Ž ]

. .

Gi¨e back *, Remo] ¨e , which can then be converted into three transition con- straints. That is, one constraint is an add action that performs the checkout or remo¨e actions that happened; another constraint is a checkout action that performs the remo¨e action that happened; the other constraint depicts a return action that performs the remo¨e or checkout actions that occurred. A basic type wSTATE and a free type Book actions are defined first. In the axiomaticx ] description, three formulas are specified in the predicate part to show the constraints on transitions of operations of the Book entity. Thus

wSTATEx

²² :: ²² ::

Book actions ::] s Add add ¬ Checkout checkout

²² :: ²² ::

Return return Remo¨e remo¨e

Ž .

R :P STATE = Book actions = STATE]

Ž . Ž .

;s0, s1 : STATE; 's2, s3 : STATE; s0, add, s1 , s1, checkout, s2 , Žs1, remo¨e, s3. g R

vŽs0, add, s1. « Žs1, checkout, s2.k s1, remoŽ ¨e, s3.

Ž . Ž .

;s1, s2 : STATE; s1, checkout, s2 , s2, return, s1 g R

vŽs1, checkout, s2. « Žs2, return, s1.

Ž . Ž .

;s1, s2 : STATE; 's3 : STATE; s2, return, s1 , s1, remo¨e, s3 , Žs1, checkout, s2. g R

vŽs2, return, s1. « Žs1, remo¨e, s3.k s1, checkout, s2Ž .

3.3. Network Phase Data Stream

A data stream is a first-in-first-out data buffer with infinite capacity, and two operations are defined in a data stream: read and write. To express the data stream in Z, we have distinguished two types of data stream: 1 if a data streamŽ .

5This technique is adopted from Ref. 29.

(14)

is connected to a function process, then the input]output variables are declared in the schema of the function process; and 2 if it is connected to a modelŽ .

Ž .

process an entity , then the information in the entity is included in the schema.

In Figure 4, for example, the data stream glai is connected to the function process get list by author, therefore, the schema for the function process] ] ]

Ž .

would include the input variable author? see below .

State Vector

A state vector connection implies that a read only access from a process to the local data of another process is performed, which does not change any of

Ž .

the state variables; and therefore, any process either model or function that performs the operation needs to attach the J notation to the related data stores. In addition, a gets¨ operation is performed implicitly using the identity function in the function process that is connected to the state vector. In our example, gba is an SV that inspects data from the Book entity for the function process get list by author. The get list by author operation schema includes] ] ] ] ] ]

Ž .

JBook SET in its signature part, and uses idbook bookid to retrieve all the]

Ž .

information about the Book see below .

Function Process

The transformation of a function process into an operation schema will consider its connected data streams and state vectors, as well as its process structure. Input and information function processes will not change the related state space, while interactive function processes will. Therefore, we usually attach J notation to the related data store for input and information function processes, and D for the interactive function process. Refer to the same

Ž .

example see Fig. 6 , the get list by author function process receives the user’s] ] ] query from the data stream glai, and answers the list of books by a particular author as an output. Thus

get list by author] ] ] JBook SET] author? : TEXT rep! :F BOOK ID]

 v Ž . 4

author? g D bookid : BOOK ID idbook bookid .author]

 Ž . 4

rep!s bookid : BOOK ID ¬ author? g idbook bookid .author]

Merge

In a data stream connection the initiative for the communication comes from the writing process. The reading process must consume the complete stream of data records. If a process reads data streams from different processes, the developer must specify how the data streams should be merged. The merge

(15)

strategy defines the sequence in which the receiving process reads the data records.

There are two types of merge: fixed and rough merges. In a fixed merge the reading sequence is defined by the reading process alone. In a rough merge the strategy is indeterminate.

For rough merges, we use a set as an internal buffer in the reading process to take in the data from each data stream. If all data streams are empty, the reading process is suspended, otherwise the set collects the data from all data streams, and clears each data stream. The output sequence of the data in the set is not determined until the implementation.

For fixed merges, we use a sequence as an internal buffer instead of a set to collect data. The output sequence of the data in the buffer is determined by the reading process. In general, if one of the data streams is empty the reading process is suspended. In particular, whether the reading process being sus- pended or not depends on the problem domain.

Note that due to the fact that data collected from data streams may be of

Ž .

different types, it is necessary that the internal buffer i.e., a set can assume different types as well.

Cardinality

In JSD, if a process communicates with several instances of another process, the notion of cardinality is applied. In Figure 5, the data streams from the processes of type A are rough merged to form a single input DS in the case of the many-to-one situation, or a multiple inputs DS for many-to-many into process B.

4. RELATED WORK

A number of researchers have reported progress toward the successful

Ž .

integration of formal and informal methods i.e., methods integration . Sem- mens et al. have conducted a comparative study of the related work.26 However, their study only concentrated on approaches in combining structured analysts and formal specification techniques. To provide a more comprehensive view of the state-of-the-art in this line of research, we have classified three categories for methods integration based upon the different informal analysis approaches used.

v From structured analysis SA to formal specifications: for example, Polack,Ž . 23

Mander and Polack,20and Semmens and Allen’s25work on integrating SA and Z;

Randell translated DFD into Z24; France combined SA and algebraic specifica- tions7; Fraser et al. integrated SA with VDM8; Liu combined extended DFD and VDM19; and Moulding and Smith combined CORE with VDM and CSP.21

v From object-oriented analysis and design OOAŽ rD to formal specifications:. typical examples are Giovanni and Iachini’s work on including Z in HOOD,10 Hammond integrated Shaler Mellor’s OOA with Z,12 Bourdeau and Cheng

(16)

provided a formal semantics for OMT models,2and Lee et al. combined Bailin’s OOS with Z.18

v From JSD to formal notations: Sridhar and Hoare transformed structure dia- grams to CSP.28

4.1. Structured Analysis to Formal Specifications

In Semmens and Allen’s work,25 there are two phases involved in the analysis. First, a data model of the system is developed, expressed first as an

Ž .

entity relationship diagram ERD and then as a Z state schema which is systematically derived from the ERD. In the second phase, the process model is built. A semiformal model is expressed using DFD, then the semantics of each of the processes in the DFD is specified using Z operation schemas. An entity is represented in an entity type schema and an entity instance set schema.

Attributes of an entity can be referred to in an entity dictionary. A relationship can be represented as a relationship schema. Partial function, partial injection, or relation are used to specify the cardinality and connectivity relationships between two entities. These schemas build the state space of the system in Z.

Data flows between processes in DFD can be shown as input and output variables in an operation schema.

Mander and Polack took a different view, seeing the systems analysis as an important but partially independent precursor to the formal definition.20 The Z specifications must not be a straight translation of the informal analysis, if it is to find requirements or errors overlooked by the analysts. It must be guided by the systems analysis, rather than being exclusively derived from it. The basic components of the Z definition: state and process specifications will be consid- ered separately. In the state specifications of Z, which are derived from ERD, constraints on data or conditions on relationships are included in the formal state model, and data attributes may be modeled in the entity definitions. In the process specifications, operations are formed from function definitions which are derived from function description, IrO structure, effect correspondence dia- gram, and entity life histories.

Randell focused on how to translate a data flow diagram into Z.24 The Z specification is generated by carrying out a sequence of steps: taking external entities, data stores and processes in turn to produce parts of the Z specifica- tion. Since ERD is not considered in the data modeling, the state specifications are directly translated from data stores. The operation schemas are translated from processes in DFD. Input and output variables indicate the data flow between the external entity and the process. Predicate information about the process does not appear in a DFD, which must be obtained from elsewhere.

France provided a semantically extended DFD as a control-extended DFD ŽC-DFD associated with an algebraic specification technique.. 7 The syntactic aspect is concerned with its pictorial representation of C-DFD, and the semantic aspect is about the behavioral interpretation of its C-DFD. A C-DFD’s data domain is defined by specifiers using a data description language. State specifi- cations and label specifications are defined to describe the data flow in DFD,

(17)

and DataStore state specifications are used to describe the data stores in DFD.

Operators in accessing these data stores are also discussed. Data transform specification is used to specify the behavior of a data transform. Algebraic state transition systems corresponding to the state transition diagram can be used to specify the behavior of external entity and the system behavior.

Fraser et al. integrated VDM and structured analysis.8 Two approaches were described in the paper: 1 structured analysis as a cognitive guide toŽ . developing VDM specifications, and 2 automated generation of VDM specifi-Ž . cations from SA models using a rule-based approach. The main difference in these two approaches is that the former is manual and the later is automated.

The information from the entity dictionary is used to build the information domain. Operators rd and wr indicate the data flow between processes. Precon- dition and postcondition are used to specify the process’s functionality.

Moulding and Smith focus on the use of the VDM with CORE and express the role of CORE in CSP.21 That is, a VDM specification to define the pro- cessing semantics of the actions, and a CSP specification to identify the real-time collective behavior of those actions. The data flows between viewpoints which identified in a CORE model form the global state of the VDM specification, and the VDM data types for these state variables are derived from the data- structuring information within the CORE model. The target system and all other viewpoints are expressed as the VDM-SL modules, in which the actions of the viewpoints are modeled as VDM operations. Internal data flows within a viewpoint were considered as the local state of the viewpoint module, and the triggering conditions for an action are expressed in the precondition of the corresponding operation. The control and sequencing behavior of operations

Ž .

was specified in single viewpoint modeling SVM and combined viewpoint

Ž .

modeling CVM stages of CORE. Each CORE action, channel, and pool was represented by a CSP process. Processes were combined using the CSP parallel

Ž5.

composition operator to specify the overall behavior of the SVM. A CVM was a process composed from the channels, pools, and actions. Similarly, the compositional features of CSP were used to describe a CVM.

4.2. Object-Oriented Analysis to Formal Specifications

Giovanni and Iachini combined HOOD and Z, in which HOOD was used as a structuring mechanism to guide the construction of Z specifications.10 In this article, WHAT, WithWHAT, and HOW specifications are used to build the formal specification. A WHAT specification may consist of more than one schema and is used to describe an object. These schemas can be partitioned into state schemas and operation schemas. A state schema is used to specify an object’s data model. However, information in specifying an object is insufficient.

Each method of an object is described in a separated operation schema.

Hammond integrated Shaler-Mellor’s OOA and Z.12 There are three

Ž . Ž .

phases in the OOA: 1 information modeling, 2 state transition modeling, and Ž .3 process modeling. ERD is used to express the information model in OOA.

Objects and relationships are specified in an entity type schema, an entity

(18)

instance set schema, and a relationship schema. In the state transition modeling, a schema event is to specify the generation or receipt of any event, and a state transition schema is used to specify state transitions. The predicates in a state transition schema should describe the precondition of an input event and the initial state, and the postcondition of components’ values of the after state and output events. An active object is defined to be an object that requires an operation on its data store to add a new instance to the collection of the existing instances. In the process modeling, processes accessors and event generators are identified from Z transition specifications.

Bourdeau and Cheng presented a formal semantics for the OMT object model notations.2 Object models and instance diagrams in OMT are formalized as algebraic specifications and algebras, respectively. Instance diagrams can be used to provide the semantics for object models, and algebraic specifications have algebras as their semantics. Finally, the set of algebras can be treated as the semantics of an object model. There are two ways to determine algebras:

Ž .1 to compute the algebraic specifications of the object model and look at a set of algebras that satisfy this specification, and 2 to determine the instanceŽ . diagrams consistent with the object model and compute their corresponding algebras. If the design is consistent, then either method for determining the

Ž .

algebras will yield the same results. The Larch shared language LSL was chosen as the algebraic specification language. A trait in LSL was used to represent an abstract data type in the object model, and an S-algebra was generated by this trait. Traits can be used to depict classes and associations. The related classes within an association was included in an association trait. The multiplicity constraints can be described in terms of four relational properties:

functional, injective, surjective, and total.

Lee et al.18 proposed an integration of Bailin’s object-oriented specification and Z, called OOSZ. In OOSZ, OOS was used as a structuring mechanism to guide the derivation of Z specifications. An entity process can be considered in two dimensions: 1 as an active entity that requires an operation on its dataŽ . store to add a new instance to the collection of existing instances, and 2 as anŽ . abstract operation which can be decomposed into operations related to the entity process. Therefore, an entity process is manifested through a state schema, and instance creation operation schema and an abstract operation schema, meanwhile, a function process is converted into an operation schema in Z specifications.

4.3. Jackson System Development to Formal Notations

Sridhar and Hoare demonstrated how to express JSD in CSP through Ž . several examples in Ref. 28. In their approach, only the structure diagram SD is considered in the transformation process. An entity modeled in the SD was described by its life history, and can be defined by two formulas in CSP: the first one to depict the creation of an entity, and the second one to describe the remainder of the history. Adding new actions into the second formula later is permitted. The iterative mechanism between CSP and JSD is provided. That is,

(19)

a new entity process can be defined in CSP, and then backward to modify the SD. No systematic transformation heuristics are provided.

Compared with all these approaches, JSDZ offers two important advan-

Ž . Ž .

tages: 1 artifacts generated from the informal method JSD are tightly coupled, and 2 the notion of an active entityŽ . ]object is manifested through a state schema, an instance creation operation schema and its operation schemas in the Z specifications.

5. DISCUSSION 5.1. Structuring Mechanism

One of the major criticisms of formal methods is that they are not so much

‘‘methods’’ as formal systems. They fail to support many of the methodological aspects of the more traditional structured-development methods. However, as a result, Woodcock32 proposes the use of schema language to structure Z specifi- cations. Diller6 proposes a step-by-step procedure in writing Z specifications.

However in these two approaches, little emphasis is placed on the underlying development model and little guidance is provided as to how development should proceed. Recently, D. Jackson and M. Jackson13 proposed the use of views for structuring Z specifications. The basic idea is to decompose a problem

Ž .

in parallel into several views subproblems to fit into their applicable problem frames, which are then used to guide the derivation of Z specifications.

Bowen and Hinchey3 claim that the integration of formal and informal methods leads to a ‘‘true’’ development method that fully supports the software life cycle and allows developers to use more formal techniques in the specifica- tion and design phase, supporting refinement to executable code and proof-of properties. JSDZ can be considered as one of the attempts to provide a systematic approach to supporting the structuring of Z specifications through JSD.

5.2. Criteria for Comparison

In Ref. 1, Bicarregui and Ritchie propose three criteria: invariants, frames, postconditions, for comparing VDM and B notations. Essentially, their criteria are for the comparison of different kinds of formal specification. To compare

Ž .

the same type of specification in our case, Z , we have identified four criteria;

state space, state invariants, operation definition, and operation interaction.

v State space: Comparing the representation of state space in both Z and JSDZ, the main difference is that: a state schema of an entity is treated as a type and a data-store state schema as an instances set, both of which constitute the state space in JSDZ.

v State invariants: To express state invariants explicitly in JSDZ, JSD is extended by incorporating constraints into the entity-action list to specify state invariants in the state schema.

(20)

v Operation definition: To define an operation schema in JSDZ, artifacts generated by JSD are very useful. For example, basic operations in SD and process structures form the postconditions and outputs for the operation schema. In Z, error handling schemas are generated based on the information gained from preconditions of each operation, which are included in the total specification to make complete the specification of each operation. However, the error handling schema is not part of the product of JSDZ, which is a limitation of JSDZ for future improvement.

v Operation interaction: Z does not provide any mechanism for describing the interactions among operations. In JSDZ, a global transition constraint, specified using the axiomatic description, is used to represent the time ordering relation- ship in each SD.

5.3. Representing an Object in Z Notations

It is of interest to note that there are a number of ways to represent the concept of an entity]object in Z notations. Hall,11 Hammond12 and JSDZ all

Ž .

provide a self identity an identifier for an entity]object identification. Data stores are generally used to indicate the connection between an entity]object and its operations. No distinction is made between active or passive entities] objects in Hall’s approach. Both JSDZ and Hammond’s approach distinguish active from passive entities]objects based on the creation operation.

6. CONCLUDING REMARKS

Ž .

In this paper, we proposed an integration of an informal method JSD with Ž .

a formal notation Z . In JSDZ, a model process is treated as an active entity that requires an operation on its data store to add a new instance to the collection of existing instances. The model process is thus translated into a state schema, and its related operations are converted into the operation schemas with instances set that can be modified by the operations. A structure diagram is transformed into an axiomatic description in Z specifications which is used to depict the global transition constraint. Cardinality relationships between pro- cesses are translated into Z notations based upon the notion of rough merges. Z specifications are automatically generated using a rule-based approach. In the network phase, a function process in JSD specifications is manifested through an operation schema.

The bringing together of diagrammatical and text elements of JSD specifi- cations in Z notations offers two major benefits: 1 JSD specifications canŽ . be seen both as a structuring mechanism that helps in deriving Z specifications and as a preliminary that assists in ascertaining the clients requirements, and Ž .2 Z specifications make it easier to identify omissions or errors.

We would like to thank C. K. Chang and J. Y. Kuo for their early work on this project, and Professor W. T. Huang for his invaluable comments on an earlier draft of

Ž .

this paper. This research was supported by National Science Council Taiwan, R.O.C.

under grant NSC85-2213-E-008-005.

(21)

References

1. J. Bicarregui and B. Ritchie, ‘‘Invariants, frames and postconditions: A comparison of the vdm and b notations,’’ IEEE Transactions on Software Engineering, 21 2 , 79Ž . ]89 Ž1995 ..

2. R.H. Bourdeau and B.H.C. Cheng, ‘‘A formal semantics for object model diagrams,’’

Ž . Ž .

IEEE Transactions on Software Engineering, 21 10 , 799]821 1995 .

3. J.P. Bowen and M.G. Hinchey, ‘‘Seven more myths of formal methods,’’ IEEE Soft-

Ž . Ž .

ware, 12 4 , 34]41 1995 .

4. J.R. Cameron, ‘‘An overview of jsd,’’ IEEE Transactions on Software Engineering,

Ž . Ž .

SE-12 2 , 222]240 1986 .

5. C. Culber et al., CLIPS Reference Manual, Volume I]III, Software Technology Branch, L. B. Johnson Space Center, NASA, June 1995.

6. A. Diller, Z: An Introduction to Formal Methods, 2nd edition Wiley, Chichester, 1994.

7. R.B. France, ‘‘Semantically extended data flow diagrams: A formal specification

Ž . Ž .

tool,’’ IEEE Transactions on Software Engineering, 18 4 , 329]346 1992 .

8. M.D. Fraser, K. Kumar, and V.K. Vaishnavi, ‘‘Informal and formal requirements specification languages: Bridging the gap,’’ IEEE Transactions on Software Engineer-

Ž . Ž .

ing, 17 5 , 454]466 1991 .

9. N. Gehani, ‘‘Specifications: Formal and informal}a case study,’’ in Software Specifi- cation Techniques, N. Gehani and A.D. McGettrick, Eds., Addison-Wesley, Reading, MA, 1986, pp. 173]185.

10. R. Di Giovanni and P.L. Iachini, ‘‘Hood and z for the development of complex software systems,’’ in VDM and Z}Formal Methods in Software De¨elopment, D.

Bjorner, C.A.R. Hoare, and H. Langmaack, Eds., Springer-Verlag, Berlin, Germany, 1990, pp. 262]289.

11. A. Hall, ‘‘Specifying and interpreting class hierarchies in z,’’ Proceedings of the Eighth Z User Meeting, Cambridge, 1994, pp. 120]138.

12. J.A.R. Hammond, ‘‘Producing z specifications from object-oriented analysis,’’ Pro- ceedings of the Eighth Z User Meeting, 1994, pp. 316]336.

13. D. Jackson and M. Jackson, ‘‘Problem decomposition for reuse,’’ Software Engineering

Ž .

Journal, Jan. 19]30 1996 .

14. M.A. Jackson, System De¨elopment, Prentice-Hall, Englewood Cliffs, NJ, 1983.

15. K. Kronlof. Ed., Method Integration: Concepts and Case Studies, Wiley, Chichester, 1993.

16. J. Lee and L.F. Lai, ‘‘Verifying task-based specifications in conceptual graphs,’’ In-

Ž . Ž .

formation and Software Technology, 39 14]15 : 913]923 1998 .

17. J. Lee, L.F. Lai, and W.T. Huang, ‘‘Task-based specifications through conceptual

Ž . Ž .

graphs,’’ IEEE Expert, 11 4 , 60]70 1996 .

18. J. Lee, J.I. Pan, and W.T. Huang, ‘‘Oosz: An integration of Bailin’s object-oriented analysis and formal specifications,’’ Journal of Information Science and Engineering, 13 ŽDec. , 517. ]542 1997 .Ž .

19. S. Liu, ‘‘A formal requirements specification method based on data flow analysis,’’

Ž .

Journal of Systems and Software, 21, 141]149 1993 .

20. K.C. Mander and F.A. Polack, ‘‘Rigorous specifications using structured systems

Ž . Ž .

analysis and z,’’ Information and Software Technology, 37 5]6 , 285]291 1995 . 21. M. Moulding and L. Smith, ‘‘Combining formal specification and core: an experimen-

Ž .

tal investigation,’’ Software Engineering Journal, Mar. 31]42 1995 .

22. J.-M. Nerson, ‘‘Applying object-oriented analysis and design,’’ Communications of the

Ž . Ž .

ACM, 35 9 , 63]74 1992 .

23. F. Polack, ‘‘Integrating formal notations and systems analysis: Using entity relation-

Ž . Ž .

ship diagrams,’’ Software Engineering Journal Sept. , 363]371 1992 .

24. G. Randell, ‘‘Data flow diagrams in z,’’ Proceedings of the Fifth Annual Z User Meeting, Oxford, 1991, Springer-Verlag, Berlin, Germany, 1991, pp. 216]227.

(22)

25. L.T. Semmens and P. Allen, ‘‘Using yourdon and z: an approach to formal speci- fication,’’ Proceedings of the Fifth Annual Z User Meeting, Oxford, 1990, Springer- Verlag, Berlin, Germany, pp. 228]253.

26. L.T. Semmens, R.B. France, and T.W. Docker, ‘‘Integrating structured analysis and

Ž . Ž .

formal specification techniques, The Computer Journal, 35 6 , 600]610 1992 . 27. J.M. Spivey, The Z-Notation: a Reference Manual, 2nd edition Prentice-Hall, Engle-

wood Cliffs, NJ, 1992.

28. K.T. Sridhar and C.A.R. Hoare, ‘‘Jsd expressed in csp,’’ in JSP and JSD: the Jackson Approach to Software De¨elopment, J. Cameron, Ed., 2nd edition IEEE Comput. Soc., Los Alamitos, CA, 1989, pp. 334]363.

29. K. Taguchi and K. Araki, ‘‘Extending z with state transition constraints,’’ Proceedings of COMPSAC’96, Seoul, 1996, pp. 254]260.

30. J.M. Wing, ‘‘A study of 12 specifications of the library problem,’’ IEEE Software ŽJuly , 66. ]76 1988 .Ž .

Ž .

31. J.M. Wing, ‘‘A specifier’s introduction to formal methods,’’ Computer Sept. , 8]21 Ž1990 ..

32. J.C.P. Woodcock, ‘‘Structuring specifications in z,’’ Software Engineering Journal ŽJan. , 51]66 1990 .. Ž .

APPENDIX: JSDZ RULE BASE (deffacts MAIN::Book

(EntityActions (EntityName Book)

(ActionNames add check\ out give\] ]back remove)) (EntityAttributes (EntityName Book)

(Attributes ID DATE\ ADDED TITLE SUBJECT AUTHOR] LAST\ BORROWER]

LEND\ DATE RETURN\ DATE INLIB ONLOAN] ] REMOVE\ DATE)]

(Types BOOK\ ID DATE TEXT SET-TEXT USER\ ID DATE DATE] ] BOOLEAN BOOLEAN DATE))

(Action (EntityName Book) (ActionName add) (Attributes ID DATE\ OF\ ADDED TITLE SUBJECT] ]

AUTHOR)(Types BOOK\ ID DATE TEXT TEXT SET- TEXT))] (BasicOperation (EntityName Book) (ActionName add) (Op

DATE\ ADDED " = " add. DATE\ OF\ ADDED))] ] ]

(BasicOperation (EntityName Book) (ActionName add) (Op TITLE " = " add.TITLE))

(BasicOperation (EntityName Book) (ActionName add) (Op AUTHOR " = " add.AUTHOR))

(BasicOperation (EntityName Book) (ActionName add) (Op SUBJECT " = " add.SUBJECT))

(BasicOperation (EntityName Book) (ActionName add) (Op LAST BORROWER " = " UNDEFINED))]

(BasicOperation (EntityName Book) (ActionName add) (Op LEND\ DATE " = " UNDEFINED))]

(BasicOperation (EntityName Book) (ActionName add) (Op INLIB " = " TRUE))

(BasicOperation (EntityName Book) (ActionName add) (Op ONLOAN " = " TRUE))

(BasicOperation (EntityName Book) (ActionName add) (Op RETURN\ DATE " = " UNDEFINED))]

(BasicOperation (EntityName Book) (ActionName add) (Op REMOVE\ DATE " = " UNDEFINED))]

(23)

(Action (EntityName Book) (ActionName check\ out)]

(Attributes ID BORROWER DATE\ OF\ LEND)(Types BOOK\ ID] ] ] USER\ ID DATE))]

(BasicOperation (EntityName Book) (ActionName check\ out) (Op LAST\ BORROWER " = "] ]

check\ out.BORROWER))]

(BasicOperation (EntityName Book) (ActionName check\ out) (Op LEND\ DATE " = "] ]

check\ out.DATE\ OF\ LEND))] ] ]

(BasicOperation (EntityName Book) (ActionName check\ out) (Op INLIB " = " FALSE))]

(BasicOperation (EntityName Book) (ActionName check\ out) (Op ONLOAN " = " FALSE))]

(Action (EntityName Book) (ActionName give\ back)]

(Attributes ID DATE\ OF\ RETURN)(Types BOOK\ ID DATE))] ] ] (BasicOperation (EntityName Book) (ActionName

give\ back) (Op INLIB " = " TRUE))]

(BasicOperation (EntityName Book) (ActionName give\ back) (Op ONLOAN " = " FALSE))]

(BasicOperation (EntityName Book) (ActionName give\ back) (Op LEND\ DATE " = " UNDEFINE))] ] (BasicOperation (EntityName Book) (ActionName

give\ back) (Op RETURN\ DATE " = "] ] give\ back.DATE\ OF\ RETURN))] ] ]

(Action (EntityName Book) (ActionName remove)

(Attributes ID DATE\ OF\ REMOVE)(Types BOOK\ ID DATE))] ] ] (BasicOperation (EntityName Book) (ActionName remove) (Op INLIB " = " FALSE))

(BasicOperation (EntityName Book) (ActionName remove) (Op REMOVE\ DATE " = " remove.DATE\ OF\ REMOVE))] ] ] )

(defrule MODELLING::DefineStateSchema (phase DefineStateSchema)

?att ¤(AttributesTemp ?af $?ar)

?typ ¤(TypesTemp ?tf $?tr)

?sch ¤(StateSchema $?n ?r1 ?r2 ?r3)

«

(retract ?att ?typ ?sch) (bind ?p :)

(assert (AttributeTemp $?ar)) (assert (TypesTemp $?tr))

(if (eq (sub- string 1 3 ?tf) "SET") then (assert (StateSchema $?n ?af ?p

(str- cat "\\finset" (sub-string 5 (str-length

?tf) ?tf))

?r1 ?r2 ?r3))

else (assert (StateSchema $?n ?af ?p ?tf ?r1 ?r2 ?r3)))) (defrule MODELLING::CreatDataStoreStateScheman

(phase PrintStateSchema)

(EntityAttributes (EntityName ?en) (Attributes ?af $?ar) (Types ?tf $?tr))

«

(bind ?sen (lowcase ?en))

(bind ?osen (sub- string 1 1 ?sen))

(24)

(printout DataFile crlf (str- cat \begin{schema} { ?en

"\\ SET") } crlf)]

(printout DataFile (str- cat ?sen s) ": \\finset " ?en "

\\\\crlf)

(printout DataFile (str- cat id ?sen) ":" ?tf " \\fun

?en crlf)

(printout DataFile "\\where" crlf)

(printout DataFile "\\forall " ?osen ":" ?en "\\spot "

?osen " \\in "

(str- cat ?sen s) " \\wedge " (str- cat ?osen .

?af) " = "

(str- cat id ?sen {ˆy1}) "(" ?osen ") \\\\crlf) (printout DataFile "\\ran " (str-cat id ?sen) " = "

(str- cat ?sen s) crlf)

(printout DataFile "\\end{schema}" crlf crlf)) (defrule MODELLING::DefineOperationSchemaSignature

(phase DefineOperationSchema)

?ata ¤(ActionAttributesTemp ?atf $?atrest)

?tta ¤(ActionTypesTemp ?ttf $?ttrest)

?osa ¤(OperationsSchema $?os ?r1 ?r2 ?r3)

«

(retract ?ata ?tta ?osa) (bind ?p ":")

(bind ?q "?") (bind ?s "")

(assert (ActionAttributesTemp $?atrest)) (assert (ActionTypesTemp $?ttrest)) (if (eq ?atf "y") then

(assert (OperationSchema $?os \where ?s ?s ?r1 ?r2

?r3))

else (if (eq (sub- string 1 3 ?ttf) "SET") then

(assert (OperationsSchema $?os (str- cat "atf ?q) ?p (str-cat "\\finset " (sub-string 5 (str-length

?ttf) ?ttf)) ?r1 ?r2 ?r3))

else (assert (OperationSchema $?os (str-cat ?atf ?q)

?p ?ttf ?r1 ?r2 ?r3)))))

(defrule MODELLING::DefineOperationSchemaPredicate (phase DefineOperationSchema)

?boa ¤(BasicOperation (EntityName ?a9) (ActionName ?a2) (Op ?bo1 ?bo2 ?bor))

?osa ¤(OperationSchema ?a1 ?a2 ?a3 ?a4 ?a5 ?a6 ?a7 ?a8

?a9 $?os ?r1 ?r2 ?r3) (test (neq ?bor UNDEFINED))

«

(retract ?boa ?osa) (if (lexemep ?bor) then

(assert (OperationSchema ?a1 ?a2 ?a3 ?a4 ?a5 ?a6 ?a7

?a8 ?a9 $?os

(str- cat ?a7 . ?bo1 ’) ?bo2 (filter ?bor (str- cat

?a2 .)) ?r1 ?r2 ?r3))

else (assert (OperationSchema ?a1 ?a2 ?a3 ?a4 ?a5 ?a6 ?a7

?a8 ?a9 $?os

(str- cat ?a7 . ?bo1 ’) ?bo2 ?bor ?r1 ?r2 ?r3))))

Figure

Updating...

References

Related subjects :
