10.3 (a) PUSH R1 (b) POP R0 (c) PUSH R3 (d) POP R7 10.4 This routine copies the value of the first element on stack into R0

(1)

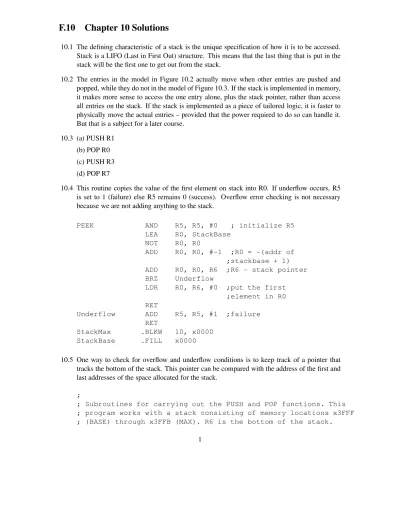

10.1 The defining characteristic of a stack is the unique specification of how it is to be accessed.

Stack is a LIFO (Last in First Out) structure. This means that the last thing that is put in the stack will be the first one to get out from the stack.

10.2 The entries in the model in Figure 10.2 actually move when other entries are pushed and popped, while they do not in the model of Figure 10.3. If the stack is implemented in memory, it makes more sense to access the one entry alone, plus the stack pointer, rather than access all entries on the stack. If the stack is implemented as a piece of tailored logic, it is faster to physically move the actual entries – provided that the power required to do so can handle it.

But that is a subject for a later course.

10.3 (a) PUSH R1 (b) POP R0 (c) PUSH R3 (d) POP R7

10.4 This routine copies the value of the first element on stack into R0. If underflow occurs, R5 is set to 1 (failure) else R5 remains 0 (success). Overflow error checking is not necessary because we are not adding anything to the stack.

PEEK AND R5, R5, #0 ; initialize R5

LEA R0, StackBase NOT R0, R0

ADD R0, R0, #-1 ;R0 = -(addr of

;stackbase + 1) ADD R0, R0, R6 ;R6 - stack pointer BRZ Underflow

LDR R0, R6, #0 ;put the first

;element in R0 RET

Underflow ADD R5, R5, #1 ;failure RET

StackMax .BLKW 10, x0000 StackBase .FILL x0000

10.5 One way to check for overflow and underflow conditions is to keep track of a pointer that tracks the bottom of the stack. This pointer can be compared with the address of the first and last addresses of the space allocated for the stack.

;

; Subroutines for carrying out the PUSH and POP functions. This

; program works with a stack consisting of memory locations x3FFF

; (BASE) through x3FFB (MAX). R6 is the bottom of the stack.

1

(2)

;

POP ST R1, Save1 ; are needed by POP.

ST R2, Save2 ST R3, Save3

LD R1, NBASE ; BASE contains -x3FFF.

ADD R1, R1, #-1 ; R1 contains -x4000.

ADD R2, R6, R1 ; Compare bottom of stack to x4000 BRz fail_exit ; Branch if stack is empty.

LD R1, BASE ;Iterate from the top of

;the stack

LDI R0, BASE ;Load the value from the NOT R3, R6 ;top of stack

ADD R3, R3, #1 ;Generate the

;negative of the

;bottom-of-stack pointer ADD R6, R6, #1 ;Increment the

;bottom-of-stack

;pointer

pop_loop ADD R2, R1, R3 ;Compare iterating

;pointer to

;bottom-of-stack pointer BRz success_exit;Branch if no more

;entries to shift

LDR R2, R1, #-1 ;Load the entry to shift STR R2, R1, #0 ;Shift the entry

ADD R1, R1, #-1 ;Increment the

;iterating pointer BRnzp pop_loop

PUSH ST R1, Save1 ; Save registers that ST R2, Save2 ; are needed by PUSH.

ST R3, Save3

LD R1, MAX ; MAX contains -x3FFB

ADD R2, R6, R1 ; Compare stack pointer to -x3FFB BRz fail_exit ; Branch if stack is full.

ADD R1, R6, #0 ;Iterate from the bottom

;of stack

LD R3, NBASE ;NBASE contains

;-x3FFF

ADD R3, R3, #-1 ; R3 = -x4000

(3)

push_loop ADD R2, R1, R3 ;Compare iterating

;pointer to

;bottom-of-stack pointer BRz push_entry ;Branch if no more

;entries to shift

LDR R2, R1, #0 ;Load the entry to shift STR R2, R1, #-1 ;Shift the entry

ADD R1, R1, #1 ;Decrement the

;iterating pointer BRnzp push_loop

push_entry ADD R6, R6, #-1 ;Increment the

;bottom-of-stack pointer STI R0, BASE ;Push a value onto stack BRnzp success_exit

success_exit LD R1, Save1 ;Restore original LD R2, Save2 ;register values LD R3, Save3

AND R5, R5, #0 ;R5 <--- success RET

fail_exit LD R1, Save1 ;Restore original LD R2, Save2 ;register values LD R3, Save3

AND R5, R5, #0

ADD R5, R5, #1 ;R5 <--- failure RET

BASE .FILL x3FFF

NBASE .FILL xC001 ; NBASE contains -x3FFF.

MAX .FILL xC005

Save1 .FILL x0000

Save2 .FILL x0000

Save3 .FILL x0000

10.6 This routine pushes the values in R0 and R1 onto the stack. R5 is set to 0 if operation is successful. If overflow occurs R5 is set to 1. This routine works with a stack consisting of memory locations x3FFF(BASE) to x3FFA(MAX).

PUSH ST R2, SaveR2

LD R2, MAX

NOT R2, R2

(4)

ADD R2, R2, #1 ; R2 = -addr of stackmax ADD R2, R6, R2

BRz Failure

STR R0, R6, #-1 STR R1, R6, #-2 ADD R6, R6, #-2 AND R5, R5, #0 LD R2, SaveR2 RET

Failure AND R5, R5, #0

ADD R5, R5, #1 LD R2, SaveR2 RET

MAX .FILL x3FFA

SaveR2 .FILL x0000

This routine pops the top two elements of the stack into R0 and R1. R5 is set to 0 if the operation is successful. If underflow occurs R5 is set to 1. This routine works with a stack consisting of memory locations x3FFF(BASE) to x3FFA(MAX).

POP ST R2, SaveR2

LD R2, EMPTY ; EMPTY <-- -x4000 ADD R2, R6, R2

BRz Failure ; Underflow

LDR R1, R6, #0 ; Pop the first value LDR R0, R6, #1 ; Pop the second value ADD R6, R6, #2

AND R5, R5, #0 RET

Failure AND R5, R5, #0

ADD R5, R5, #1 RET

EMPTY .FILL xC000

SaveR2 .FILL x0000

10.7 ; Subroutines for carrying out the PUSH and POP functions. This

; program works with a stack consisting of memory locations x3FFF

; (BASE) through x3FFB (MAX). R6 is the stack pointer. R3 contains

; the size of the stack element. R4 is a pointer specifying the

; location of the element to PUSH from or the space to POP to

;

(5)

POP ST R2, Save2 ; are needed by POP.

ST R1, Save1

ST R0, Save0

LD R1, BASE ; BASE contains -x3FFF.

ADD R1, R1, #-1 ; R1 contains -x4000.

ADD R2, R6, R1 ; Compare stack pointer to x4000 BRz fail_exit ; Branch if stack is empty.

ADD R0, R4, #0 ADD R1, R3, #0 ADD R5, R6, R3 ADD R5, R5, #-1 ADD R6, R6, R3

pop_loop LDR R2, R5, #0

STR R2, R0, #0 ADD R0, R0, #1 ADD R5, R5, #-1 ADD R1, R1, #-1 BRp pop_loop BRnzp success_exit

PUSH ST R2, Save2 ; Save registers that

ST R1, Save1 ; are needed by PUSH.

ST R0, Save0

LD R1,MAX ; MAX contains -x3FFB

ADD R2,R6,R1 ; Compare stack pointer to -x3FFB BRz fail_exit ; Branch if stack is full.

ADD R0, R4, #0 ADD R1, R3, #0 ADD R5, R6, #-1 NOT R2, R3 ADD R2, R2, #1 ADD R6, R6, R2

push_loop LDR R2, R0, #0

STR R2, R5, #0 ADD R0, R0, #1 ADD R5, R5, #-1 ADD R1, R1, #-1 BRp push_loop success_exit LD R0, Save0

LD R1, Save1 ; Restore original LD R2, Save2 ; register values.

(6)

AND R5, R5, #0 ; R5 <-- success.

RET

fail_exit LD R0, Save0

LD R1, Save1 ; Restore original LD R2, Save2 ; register values.

AND R5, R5, #0

ADD R5, R5, #1 ; R5 <-- failure.

RET

BASE .FILL xC001 ; BASE contains -x3FFF.

MAX .FILL xC005

Save0 .FILL x0000

Save1 .FILL x0000

Save2 .FILL x0000

10.8 (a) The stack looks like the following after each operation. Top of the stack is the rightmost element.

PUSH A : A PUSH B : A B

POP : A

PUSH C : A C PUSH D : A C D POP : A C PUSH E : A C E POP : A C

POP : A

PUSH F : A F

So the stack contains A F after the PUSH F operation.

(b) The stack looks like the following after each operation. Top of the stack is the rightmost element.

PUSH G : A F G PUSH H : A F G H PUSH I : A F G H I PUSH J : A F G H I J POP : A F G H I PUSH K : A F G H I K POP : A F G H I POP : A F G H POP : A F G PUSH L : A F G L POP : A F G POP : A F PUSH M : A F M

The stack contains the most elements after PUSH J and PUSH K operations.

(7)

(c) Now the stack contains A F M (M is at the top of stack).

10.9 (a) BDECJKIHLG (b) Push Z

Push Y Pop Y Push X Pop X Push W Push V Pop V Push U Pop U Pop W Pop Z Push T Push S Pop S Push R Pop R Pop T

(c) 14 different output streams.

10.10 For example, lets take the following program which adds 10 numbers starting at memory location x4000 and stores the result at x5000

.ORIG x3000 LD R1, PTR AND R0, R0, #0 LD R2, COUNT

LOOP LDR R3, R1, #0 ADD R0, R0, R3 ADD R2, R2, #-1 BRp LOOP

STI R0, PRES HALT

PTR .FILL x4000 PRES .FILL x5000 COUNT .FILL #10

If the condition codes were not saved as part of initiation of the interrupt service routine, we could end up with incorrect results. In this program, take the case when an interrupt occurred during the processing of the intruction at location x3005 and condition codes were not saved.

Let R2 = 5 and hence the condition codes be P=1, N=0, Z=0 before servicing the interrupt.

When control is returned to the instruction at location x3006, the BR instruction, the condition

(8)

codes depend on the processing within the interrupt service routing. If they are P=0, N=0, Z=1, then the Br is not taken. This means that result stored is just the sum of the first five values and not all ten.

10.11 Correction, The question should have read:

In the example of Section 10.2.3, what are the contents of locations 0x01F1 and 0x01F2?

They are part of a larger structure. Provide a name for that structure.

x01F1 - 0x6200 x01F2 - 0x6300

They are part of the Interrupt Vector Table.

10.12 (a) PC = x3006 Stack:

—–

xxxxx - Saved SSP (b) PC = x6200 Stack:

—–

PSR of Program A - R6 x3007

xxxxx

(c) PC = x6300 Stack:

—–

PSR for device B - R6 x6203

PSR of Program A x3007

xxxxx

(d) PC = x6400 Stack:

—–

(9)

PSR for device C - R6 x6311

PSR for device B x6203

xxxxx

(e) PC = x6311 Stack:

—–

PSR for device C x6311

xxxxx

(f) PC = x6203 Stack:

—–

xxxxx

(g) PC = x3007 Stack:

—–

(10)

xxxxx - Saved.SSP

10.13 (a) PC = x3006 Stack:

—–

xxxxx - Saved SSP (b) PC = x6200 Stack:

—–

xxxxx

(c) PC = x6300 Stack:

—–

xxxxx

(d) PC = x6203 Stack:

—–

xxxxx

(11)

(e) PC = x6400 Stack:

—–

xxxxx

(f) PC = x6204 Stack:

—–

xxxxx

(g) PC = x3007 Stack:

—–

xxxxx - Saved.SSP

10.14 Correction - If the buffer is full, a character has been stored in 0x40FE.

LDI R0, KBDR LDI R1, PENDBF LD R2, NEGEND ADD R2, R1, R2

BRz ERR ; Buffer is full

STR R0, R1, #0 ; Store the character ADD R1, R1, #1

STI R1, PENDBF ; Update next available empty

(12)

; buffer location pointer BRnzp DONE

ERR LEA R0, MSG

PUTS

DONE RTI

KBDR .FILL xFE02 PBUF .FILL x4000 PENDBF .FILL x40FF

NEGEND .FILL xBF01 ; xBF01 = -(x40FF)

MSG .STRINGZ "Character cannot be accepted; input buffer full."

10.15 Note: This problem introduces the concept of a data structure called a queue. A queue has a First-In-First-Out(FIFO) property - Data is removed in the order as it is inserted. By having the pointer to the next available empty location wrap around to the beginning of the buffer in this problem, the queue becomes a circular queue. A circular queue is space efficient as it makes use of entries which have been removed by the consuming program. These concepts will be covered in detail in a data structure or algorithms course.

LDI R0, KBDR LDI R1, PNUMCH LD R2, NMAXCH ADD R2, R1, R2

BRz ERR ; Buffer is full

ADD R1, R1, #1

STI R1, PNUMCH ; update char count LDI R1, PENDBF

STR R0, R1, #0 ; Store the character LD R2, NEGEND

ADD R2, R1, R2 ; Compare the next available empty location

; pointer with x40FC.

BRz RESETPTR ; If same, wrap around so that the next available

; empty location is x4000 ADD R1, R1, #1

BRnzp STPTR RESETPTR LD R1, PBUF

STPTR STI R1, PENDBF ; Update next available empty buffer

; location pointer BRnzp DONE

ERR LEA R0, MSG

PUTS DONE RTI

(13)

KBDR .FILL xFE02 PBUF .FILL x4000 PNUMCH .FILL x40FD PENDBF .FILL x40FF

NEGEND .FILL xBF04 ; xBF04 = -(x40FC) NMAXCH .FILL xFF03 ; xFF03 = -(xFD)

MSG .STRINGZ "Character cannot be accepted; input buffer full."

10.16 Correction - Consider the modified interrupt handler of Exercise 10.15.

The variable “number of characters in the buffer” is shared between both the interrupt handler which is adding numbers to the buffer and the program that is removing characters. So now if the program has just loaded the number of characters in the buffers value into a register when an interrupt occurs, the value in the register is going to be stale after the interrupt is serviced.

Hence when the program writes this value back to x40FD, it is writing a wrong value.

10.17 The Multiply step works by adding the multiplicand a number of times to an accumulator. The number of times to add is determined by the multiplier. The number of instructions executed to perform the Multiply step = 3 + 3*n, where n is the value of the multiplier. We will in general do better if we replace the core of the Multiply routine (lines 17 through 19 of Figure 10.14) with the following, doing the Multiply as a series of shifts and adds:

AND R0, R0, #0

ADD R4, R0, #1 ;R4 contains the bit mask (x0001)

Again AND R5, R2, R4 ;Is corresponding

BRz BitZero ;bit of multiplier=1 ADD R0, R0, R1 ;Multiplier bit=1

;--> add

;shifted multiplicand BRn Restore2 ;Product has already

;exceeded range

BitZero ADD R1, R1, R1 ;Shift the

;multiplicand bits

BRn Check ;Mcand too big

;--> check if any

;higher mpy bits = 1 ADD R4, R4, R4 ;Set multiplier bit to

;next bit position BRn DoRangeCheck ;We have shifted mpy BRnzp Again ;bit into bit 15

;-->done.

Check AND R5, R2, R4

BRp Restore2

(14)

ADD R4, R4, R4 BRp Check DoRangeCheck

10.18 To add the two numbers, convert the two characters from their ASCII representations to 2’s complement integers. After performing the addition, convert the result back to ASCII repre- sentation.

LD R2, NEGASCII

TRAP x23

ADD R1, R0, R2 ;Remove ASCII template

TRAP x23

ADD R0, R0, R2 ;Remove ASCII template ADD R0, R1, R0

LD R2, ASCII

ADD R0, R0, R2 ;Add the ASCII template

TRAP x21

TRAP x25

NEGASCII .FILL x-0030

ASCII .FILL x0030

10.19 This program assumes that hex digits are all capitalized.

LD R3, NEGASCII

LD R5, NEGHEX

TRAP x23

ADD R1, R0, R3 ;Remove ASCII template LD R4, HEXTEST ;Check if digit is hex ADD R0, R1, R4

BRnz NEXT1

ADD R1, R1, R5 ;Remove extra

;offset for hex

NEXT1 TRAP x23

ADD R0, R0, R3 ;Remove ASCII template ADD R2, R0, R4 ;Check if digit is hex BRnz NEXT2

ADD R0, R0, R5 ;Remove extra

;offset for hex

NEXT2 ADD R0, R1, R0 ;Add the numbers

ADD R1, R0, R4 ;Check if digit > 9 BRnz NEXT3

LD R2, HEX

ADD R0, R0, R2 ;Add offset for hex digits

(15)

NEXT3 LD R2, ASCII

ADD R0, R0, R2 ;Add the ASCII template

DONE TRAP x21

TRAP x25

ASCII .FILL x0030

NEGASCII .FILL x-0030

HEXTEST .FILL #-9

HEX .FILL x0007

NEGHEX .FILL x-7

10.20 ASCIItoBinary AND R0, R0, #0 ; R0 will be used for our result LEA R5, ASCIIBUFF

LD R4, NegASCIIOffset ; R4 gets xFFD0, i.e., -x0030 ADD R1, R1, #0 ; Test number of digits.

LOOP BRz DoneAtoB ;

LD R2, CNT

ADD R3, R0, #0

MUL10 ADD R0, R0, R3

ADD R2, R2, #-1

BRp MUL10

LDR R3, R5, #0 ;

ADD R3, R4, R3 ; Strip off the ASCII template ADD R0, R0, R3 ; Add digits contribution ADD R5, R5, #1

ADD R1, R1, #-1 BRnzp LOOP

DoneAtoB RET

NegASCIIOffset .FILL xFFD0

CNT .FILL #9

ASCIIBUFF .BLKW #10

10.21 ;

; R1 contains the number of digits including ’x’. Hex

; digits must be in CAPS.

ASCIItoBinary AND R0, R0, #0 ; R0 will be used for our result ADD R1, R1, #0 ; Test number of digits.

BRz DoneAtoB ; There are no digits

;

(16)

LD R3, NegASCIIOffset ; R3 gets xFFD0, i.e., -x0030 LEA R2, ASCIIBUFF

LD R6, NegXCheck LDR R4, R2, #0 ADD R6, R4, R6 BRz DoHexToBin ADD R2, R2,R1

ADD R2, R2, #-1 ; R2 now points to "ones" digit

;

LDR R4, R2, #0 ; R4 <-- "ones" digit

ADD R4, R4, R3 ; Strip off the ASCII template ADD R0, R0, R4 ; Add ones contribution

;

ADD R1, R1, #-1

BRz DoneAtoB ; The original number had one digit ADD R2, R2, #-1 ; R2 now points to "tens" digit

;

LDR R4, R2, #0 ; R4 <-- "tens" digit ADD R4, R4, R3 ; Strip off ASCII template

LEA R5, LookUp10 ; LookUp10 is BASE of tens values ADD R5, R5, R4 ; R5 points to the right tens value LDR R4, R5, #0

ADD R0, R0, R4 ; Add tens contribution to total

;

ADD R1, R1, #-1

BRz DoneAtoB ; The original number had two digits ADD R2, R2, #-1 ; R2 now points to "hundreds" digit

;

LDR R4, R2, #0 ; R4 <-- "hundreds" digit ADD R4, R4, R3 ; Strip off ASCII template LEA R5, LookUp100 ; LookUp100 is hundreds BASE ADD R5, R5, R4 ; R5 points to hundreds value LDR R4, R5, #0

ADD R0, R0, R4 ; Add hundreds contribution to total RET

DoHexToBin ; R3 = NegASCIIOffset

; R2 = Buffer Pointer

; R1 = Num of digits + x

;

ST R7, SaveR7 LD R6, NumCheck ADD R1, R1, #-1

(17)

ADD R2, R2,R1

;

LDR R4, R2, #0 ; R4 <-- "ones" digit

ADD R4, R4, R3 ; Strip off the ASCII template ADD R7, R4, R6

BRnz Cont1 LD R7, NHexDiff ADD R4, R4, R7

Cont1 ADD R0, R0, R4 ; Add ones contribution

;

ADD R1, R1, #-1

BRz DoneAtoB ; The original number had one digit ADD R2, R2, #-1 ; R2 now points to "tens" digit

;

LDR R4, R2, #0 ; R4 <-- "tens" digit ADD R4, R4, R3 ; Strip off ASCII template ADD R7, R4, R6

Cont2 LEA R5, LookUp16

ADD R5, R5, R4 LDR R4, R5, #0 ADD R0, R0, R4

;

ADD R1, R1, #-1

BRz DoneAtoB ; The original number had two digits ADD R2, R2, #-1 ; R2 now points to "hundreds" digit

;

LDR R4, R2, #0

ADD R4, R4, R3 ; Strip off ASCII template ADD R7, R4, R6

Cont3 LEA R5, LookUp256

ADD R5, R5, R4 LDR R4, R5, #0 ADD R0, R0, R4

;

DoneAtoB LD R7, SaveR7

(18)

RET

NegASCIIOffset .FILL xFFD0

NumCheck .FILL #-9

NHexDiff .FILL #-7

NegXCheck .FILL xFF88

SaveR7 .FILL x0000

ASCIIBUFF .BLKW 4

LookUp10 .FILL #0

.FILL #10 .FILL #20 .FILL #30 .FILL #40 .FILL #50 .FILL #60 .FILL #70 .FILL #80 .FILL #90

;

LookUp100 .FILL #0 .FILL #100 .FILL #200 .FILL #300 .FILL #400 .FILL #500 .FILL #600 .FILL #700 .FILL #800 .FILL #900

LookUp16 .FILL #0

.FILL #16

.FILL #32

.FILL #48

.FILL #64

.FILL #80

.FILL #96

.FILL #112

.FILL #128

.FILL #144

.FILL #160

.FILL #176

.FILL #192

.FILL #208

.FILL #224

(19)

.FILL #240

LookUp256 .FILL #0

.FILL #256

.FILL #512

.FILL #768

.FILL #1024

.FILL #1280

.FILL #1536

.FILL #1792

.FILL #2048

.FILL #2304

.FILL #2560

.FILL #2816

.FILL #3072

.FILL #3328

.FILL #3584

.FILL #3840

10.22 ;

BinarytoASCII AND R4, R4, #0 LD R5, ASCIIoffset

LEA R1, ASCIIBUFF ; R1 points to string being generated ADD R0, R0, #0 ; R0 contains the binary value

BRn NegSign ; BRnzp Begin100

NegSign LD R2, ASCIIminus ; First store ASCII minus sign STR R2, R1, #0

NOT R0, R0 ; Convert the number to absolute

ADD R0, R0, #1 ; value; it is easier to work with.

ADD R1, R1, #1

;

Begin100 AND R2, R2, #0 ; Prepare for "hundreds" digit

;

LD R3, Neg100 ; Determine the hundreds digit

Loop100 ADD R0, R0, R3

BRn End100 ADD R2, R2, #1 BRnzp Loop100

;

End100 ADD R2, R2, #0

BRz Post100

ADD R2, R2, R5

STR R2, R1, #0 ; Store ASCII code for hundreds digit

(20)

ADD R1, R1, #1

ADD R4, R4, #1 ; Stored a digit

Post100 LD R3, Pos100

ADD R0, R0, R3 ; Correct R0 for one-too-many subtracts

;

AND R2, R2, #0 ; Prepare for "tens" digit

;

Begin10 LD R3, Neg10 ; Determine the tens digit

Loop10 ADD R0, R0, R3

BRn End10

ADD R2, R2, #1 BRnzp Loop10

;

End10 ADD R4, R4, #0

BRp Store10

ADD R2, R2, #0 Brz Post10

Store10 ADD R2, R2, R5

STR R2, R1, #0 ; Store ASCII code for tens digit ADD R1, R1, #1

Post10 ADD R0, R0, #10 ; Correct R0 for one-too-many subtracts Begin1 LD R2, ASCIIoffset ; Prepare for "ones" digit

ADD R2, R2, R0 STR R2, R1, #0 RET

;

ASCIIplus .FILL x002B ASCIIminus .FILL x002D ASCIIoffset .FILL x0030

Neg100 .FILL xFF9C

Pos100 .FILL x0064

Neg10 .FILL xFFF6

ASCIIBUFF .BLKW 4

10.23 This program reverses the input string. For example, given an input of “Howdy”, the output is “ydwoH”.

10.24 Please correct the problem to read:

Suppose the keyboard interrupt vector is x34 and the keyboard interrupt service routine starts at location x1000. What can you infer about the contents of any memory location from the above statement?

Solution:

Memory location x0134 contains the address x1000.

(21)

9.7 Note: This problem belongs in chapter 10.

The three errors that arose in the first student’s program are:

1. The stack is left unbalanced.

2. The privilege mode and condition codes are not restored.

3. Since the value in R7 is used for the return address instead of the value that was saved on the stack, the program will most likely not return to the correct place.
