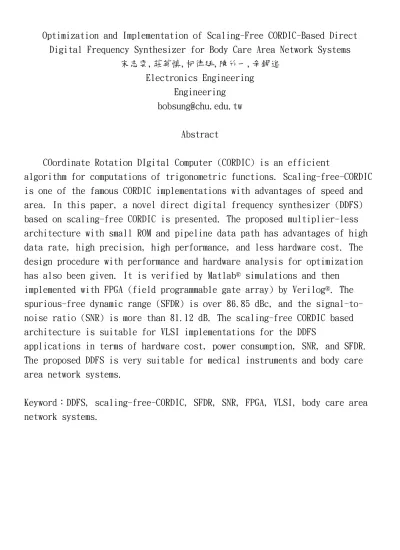

Optimization and Implementation of Scaling-Free CORDIC-Based Direct Digital Frequency Synthesizer for Body Care Area Network Systems
宋志雲,莊英慎,柯律廷,陳竹一,辛錫進 Electronics Engineering
Engineering [email protected]
Abstract
COordinate Rotation DIgital Computer (CORDIC) is an efficient
algorithm for computations of trigonometric functions. Scaling-free-CORDIC is one of the famous CORDIC implementations with advantages of speed and area. In this paper, a novel direct digital frequency synthesizer (DDFS) based on scaling-free CORDIC is presented. The proposed multiplier-less architecture with small ROM and pipeline data path has advantages of high data rate, high precision, high performance, and less hardware cost. The design procedure with performance and hardware analysis for optimization has also been given. It is verified by Matlab® simulations and then
implemented with FPGA (field programmable gate array) by Verilog®. The spurious-free dynamic range (SFDR) is over 86.85 dBc, and the signal-to- noise ratio (SNR) is more than 81.12 dB. The scaling-free CORDIC based architecture is suitable for VLSI implementations for the DDFS
applications in terms of hardware cost, power consumption, SNR, and SFDR.
The proposed DDFS is very suitable for medical instruments and body care area network systems.
Keyword：DDFS, scaling-free-CORDIC, SFDR, SNR, FPGA, VLSI, body care area network systems.
