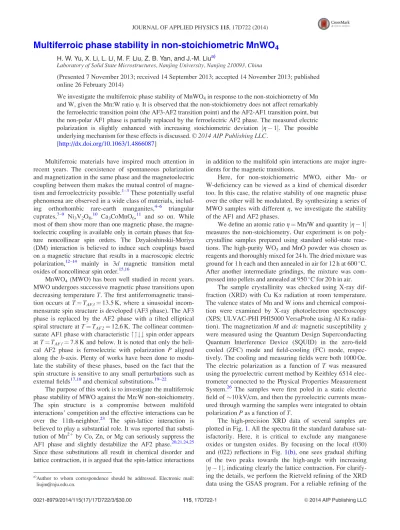

Multiferroic phase stability in non-stoichiometric MnWO
4H. W. Yu, X. Li, L. Li, M. F. Liu, Z. B. Yan, and J.-M. Liua)
Laboratory of Solid State Microstructures, Nanjing University, Nanjing 210093, China
(Presented 7 November 2013; received 14 September 2013; accepted 14 November 2013; published online 26 February 2014)
We investigate the multiferroic phase stability of MnWO4in response to the non-stoichiometry of Mn and W, given the Mn:W ratiog. It is observed that the non-stoichiometry does not affect remarkably the ferroelectric transition point (the AF3-AF2 transition point) and the AF2-AF1 transition point, but the non-polar AF1 phase is partially replaced by the ferroelectric AF2 phase. The measured electric polarization is slightly enhanced with increasing stoichiometric deviation jg1j. The possible underlying mechanism for these effects is discussed.VC 2014 AIP Publishing LLC.
[http://dx.doi.org/10.1063/1.4866087]
Multiferroic materials have inspired much attention in recent years. The coexistence of spontaneous polarization and magnetization in the same phase and the magnetoelectric coupling between them makes the mutual control of magne- tism and ferroelectricity possible.1–3These potentially useful phenomena are observed in a wide class of materials, includ- ing orthorhombic rare-earth manganites,4–6 triangular cuprates,7–9 Ni3V2O8,10 Ca3CoMnO6,11 and so on. While most of them show more than one magnetic phase, the magne- toelectric coupling is available only in certain phases that fea- ture noncollinear spin orders. The Dzyaloshinskii-Moriya (DM) interaction is believed to induce such couplings based on a magnetic structure that results in a macroscopic electric polarization,12–14 mainly in 3d magnetic transition metal oxides of noncollinear spin order.15,16
MnWO4(MWO) has been well studied in recent years.
MWO undergoes successive magnetic phase transitions upon decreasing temperatureT. The first antiferromagnetic transi- tion occurs atT¼TAF3¼13.5 K, where a sinusoidal incom- mensurate spin structure is developed (AF3 phase). The AF3 phase is replaced by the AF2 phase with a tilted elliptical spiral structure atT¼TAF2¼12.6 K. The collinear commen- surate AF1 phase with characteristic""##spin order appears atT¼TAF1¼7.8 K and below. It is noted that only the heli- cal AF2 phase is ferroelectric with polarization P aligned along theb-axis. Plenty of works have been done to modu- late the stability of these phases, based on the fact that the spin structure is sensitive to any small perturbations such as external fields17,18and chemical substitutions.19–22
The purpose of this work is to investigate the multiferroic phase stability of MWO against the Mn:W non-stoichiometry.
The spin structure is a compromise between multifold interactions’ competition and the effective interactions can be over the 11th-neighbor.23 The spin-lattice interaction is believed to play a substantial role. It was reported that substi- tution of Mn2þby Co, Zn, or Mg can seriously suppress the AF1 phase and slightly destabilize the AF2 phase.20,21,24,25
Since these substitutions all result in chemical disorder and lattice contraction, it is argued that the spin-lattice interactions
in addition to the multifold spin interactions are major ingre- dients for the magnetic transitions.
Here, for non-stoichiometric MWO, either Mn- or W-deficiency can be viewed as a kind of chemical disorder too. In this case, the relative stability of one magnetic phase over the other will be modulated. By synthesizing a series of MWO samples with different g, we investigate the stability of the AF1 and AF2 phases.
We define an atomic ratiog¼Mn/W and quantityjg1j measures the non-stoichiometry. Our experiment is on poly- crystalline samples prepared using standard solid-state reac- tions. The high-purity WO3and MnO powder was chosen as reagents and thoroughly mixed for 24 h. The dried mixture was ground for 1 h each and then annealed in air for 12 h at 600C.
After another intermediate grindings, the mixture was com- pressed into pellets and annealed at 950C for 20 h in air.
The sample crystallinity was checked using X-ray dif- fraction (XRD) with Cu Karadiation at room temperature.
The valence states of Mn and W ions and chemical composi- tion were examined by X-ray photoelectron spectroscopy (XPS; ULVAC-PHI PHI5000 VersaProbe using Al Karadia- tion). The magnetizationManddcmagnetic susceptibilityv were measured using the Quantum Design Superconducting Quantum Interference Device (SQUID) in the zero-field cooled (ZFC) mode and field-cooling (FC) mode, respec- tively. The cooling and measuring fields were both 1000 Oe.
The electric polarization as a function of T was measured using the pyroelectric current method by Keithley 6514 elec- trometer connected to the Physical Properties Measurement System.26 The samples were first poled in a static electric field of10 kV/cm, and then the pyroelectric currents meas- ured through warming the samples were integrated to obtain polarizationPas a function ofT.
The high-precision XRD data of several samples are plotted in Fig.1. All the spectra fit the standard database sat- isfactorily. Here, it is critical to exclude any manganese oxides or tungsten oxides. By focusing on the local (030) and (022) reflections in Fig. 1(b), one sees gradual shifting of the two peaks towards the high-angle with increasing jg1j, indicating clearly the lattice contraction. For clarify- ing the details, we perform the Rietveld refining of the XRD data using the GSAS program. For a reliable refining of the
