Modeling and Analysis of Core-Centric
Network Processors
YI-NENG LIN, YING-DAR LIN, and KUO-KUN TSENG National Chiao Tung University
and
YUAN-CHENG LAI
National Taiwan University of Science and Technology
Network processors can be categorized into two types, the coprocessors-centric model in which the data-plane is handled by coprocessors, and the core-centric model in which the core processes most of the data-plane packets yet offloading some tasks to coprocessors. While the former has been properly explored over various applications, researches regarding the latter remain limited. Based on the previous experience of prototyping the virtual private network (VPN) over the IXP425 net-work processor, this net-work aims to derive design implications for the core-centric model performing computational intensive applications. From system and IC vendors’ perspectives, the continuous-time Markov chain and Petri net simulations are adopted to explore this architecture. Analytical results prove to be quite inline with those of the simulation and implementation. With subse-quent investigation we find that appropriate process run lengths can improve the effective core utilization by 2.26 times, and by offloading the throughput boosts 7.5 times. The results also suggest single process programming since context switch overhead impacts considerably on the performance.
Categories and Subject Descriptors: C.3 [Special-Purpose and Application Based Systems]:
Real-Time and Embedded Systems, Microprocessor/Microcomputer Applications; C.4 [ Perfor-mance of Systems]: Design Studies, Modeling Techniques
General Terms: Performance, Verification
Additional Key Words and Phrases: Network processor, embedded system, modeling, core-centric, simulation
ACM Reference Format:
Lin, Y.-N., Lin, Y.-D., Tseng, K.-K., and Lai, Y.-C. 2009. Modeling and analysis of core-centric network processors. ACM Trans. Embedd. Comput. Syst. 8, 2, Article 13 (January 2009), 15 pages. DOI= 10.1145/1457255.1457260 http://doi.acm.org/10.1145/1457255.1457260
This work was supported in part by the Program for Promoting Academic Excellence of Universities of Taiwan National Science Council, and in part by Intel and Chung-Hua Telecom.
Authors’ addresses: Y.-N. Lin, Y.-D. Lin, and K.-K. Tseng, National Chiao Tung University; email: [email protected]; Y.-C. Lai, National Taiwan University of Science and Technology.
Permission to make digital or hard copies of part or all of this work for personal or classroom use is granted without fee provided that copies are not made or distributed for profit or direct commercial advantage and that copies show this notice on the first page or initial screen of a display along with the full citation. Copyrights for components of this work owned by others than ACM must be honored. Abstracting with credit is permitted. To copy otherwise, to republish, to post on servers, to redistribute to lists, or to use any component of this work in other works requires prior specific permission and/or a fee. Permissions may be requested from Publications Dept., ACM, Inc., 2 Penn Plaza, Suite 701, New York, NY 10121-0701 USA, fax+1 (212) 869-0481, or [email protected].
C
2009 ACM 1539-9087/2009/01-ART13 $5.00 DOI 10.1145/1457255.1457260 http://doi.acm.org/ 10.1145/1457255.1457260
circuitry designed for both networking and cryptographic processing. Nonethe-less, the lack of adaptability makes it less appealing.
Network processors [Lekkas 2003] have been embraced as an alternative to tackle the above-mentioned problems for their core-processor/coprocessors– based architecture, on which control and data-plane processing are separated for efficiency, and their reprogrammability for functional adaptations. The core processor can perform complicated operations, and is thus responsible for con-trol messages, while a number of multithreaded coprocessors, having specif-ically designed instructions for networking purposes, are employed for mass data-plane processing. This kind of architecture, referred to as the coprocessors-centric model, is frequently applied as a core device which requires moderate configurability but high scalability [Lin 2003; Clark et al. 2004; Comer and Martynov 2006; Lin et al. 2007; Tan et al. 2004]. When implementing an edge device that deals with relatively mild traffic volume, both control and data-plane packets are processed by the core processor. This is referred to as the core-centric model. Nonetheless, routinelike and computational intensive tasks such as receiving, transmission, and en/decyption can still be offloaded to cer-tain application-specific coprocessors [Lin et al. 2005].
Several studies have acknowledged the feasibility of adopting these mod-els in packet processing for applications such as DiffServ, VPN, Cryptographic algorithms, and intrusion detection and prevention (IDP). In addition to eval-uation through implementing both models to discover system bottlenecks [Lin 2003; Clark et al. 2004; Comer and Martynov 2006; Lin et al. 2007; Tan et al. 2004; Lin et al. 2005], mathematical modeling [Crowley and Bear 2002; Wolf and Franklin 2006; Lu and Wang 2006] is favored for the coprocessors-centric model in order to unveil design implications, which are unlikely to observe through real benchmarking. Though, analytical resort for the emerging core-centric model is yet unattempted.
In this article, we analyze the untapped core-centric network processors by modeling the IXP425 performing VPN. The IXP425 [Intel IXP425] employs an XScale core processor in charge of general packet processing and coproces-sors executing receiving, transmission, and cryptographic operations. Analyti-cal models of two schemes, the busy-waiting (BW) scheme and interrupt-driven (ID) scheme, are developed using the continuous time Markov chain, a method widely adopted for modeling complex systems. In the BW scheme, the core hands over the intermediate results to the coprocessor for application-specific processing and waits for the coprocessor to finish. This primitive approach, in which the core wastes a significant time waiting, is used by some operating
systems, for instance NetBSD, to cooperate with coprocessors. The BW scheme is then revised and extended to the ID scheme. In this scheme the multiprocess mechanism is incorporated and the core switches, with overhead in terms of delay, to another process when offloading certain task to a coprocessor or after a certain process run length. This technique is realized in NetBSD by enabling the OCF (Open Crypto Framework) option. Though busy-waiting overhead is significantly alleviated, efficiency of the core in this scheme is subject to not only the context switch overhead but also process run lengths among multiple processes. The inappropriate process run lengths could lead to poor allocation of computational resource.
Besides the analytical models, a simulation framework is developed for in-specting internal characteristics of the system, which oftentimes cannot be obtained from real implementations due to the limitation of the monitoring facilities and from mathematical analysis due to enormous state space. With these established analytical and simulation models, we try to reveal some de-sign implications for future core-centric NPs. Since the core is frequently found to be the bottleneck [Lin et al. 2005], the main track of the investigation focuses on mechanisms to improve (1) the core efficiency and (2) overall performance. We study techniques for the former by analyzing the process run length and context switch overhead, and for the latter through exploring the benefits from offloading. The modeling framework and design implications are believed to be useful in rapid system prototyping.
This article is organized as follows. Section 2 briefs the overview of the core-centric IXP425 network processor system and describes architectural assump-tions. We elaborate the analytical models and simulation design in Sections 3 and 4, respectively. Section 5 presents the results and observations. Some con-clusive remarks of this article are made in Section 6.
2. BACKGROUND
2.1 Performance Model Overview
The core of IXP425 is an XScale processor handling system initialization and software objects execution. Three buses interconnected by two bridges provide the connectivity among components on IXP425. To assist the XScale core in processing networking packets, two coprocessors, named network processor en-gines (NPEs), are used for providing functions such as MAC filtering and CRC checking/generation, in cooperate with an encryption/decryption coprocessor. Our analytical models for the processing flow are based on the implementation of VPN over the IXP425 network processor. As shown in Figure 1, the process-ing flow can be summarized into five processprocess-ing stages which are (1) receivprocess-ing, (2) IPSec preprocessing, (3) en/decryption, (4) IP processing, and finally (5) transmission. Notably the shadowed blocks (i.e., tasks #1, #3, and #5) are offloaded to corresponding coprocessors, namely, the receiving coprocessor, computational coprocessor, and transmission coprocessor, respectively, whereas tasks #2 and #4 are handled by the core through multiprogramming and context switching.

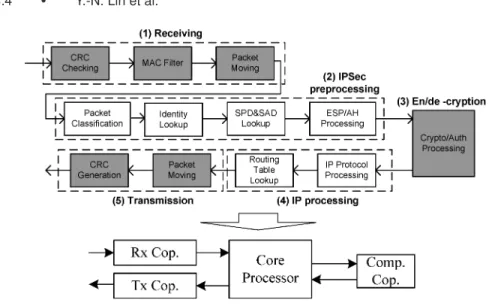

Fig. 1. Processing flow and task allocation of the VPN application over IXP425: physical and logical views.
2.2 Architectural Assumptions
Some coprocessors may incorporate multiple hardware threads [Intel IXP2400] to alleviate memory access latency by switching out the processor control from a thread to another when issuing a memory access. Nevertheless, hardware multithreading requires duplicate register sets which increase the cost, and is helpful only for memory-access intensive applications such as DiffServ and IDP. Therefore, in this work we assume single thread in each coprocessor since VPN is computational intensive, rather than memory-access intensive. Buffer space for each processing stage is also encompassed, except for the BW scheme, which needs no buffer between the core and the computational coprocessor. 3. ANALYTICAL MODEL
3.1 The Busy-Waiting Scheme
In this scheme, no buffer is present between the core and computational co-processor. Therefore, the core has to wait on the signal of completion before it can resume execution. For example, when the core finishes the IPSec prepro-cessing, the result is passed (offloaded) to the computational coprocessor for en/decryption and is thereafter again handed over to the core for IP process-ing. In this regards, the core and the computational coprocessor can be seen as different processes in a logical CORE processor, since only one of them can be active anytime. The scheme can further be simplified as a series of queues consisting of three servicing stations, as shown in Figure 2. In this abstrac-tion, all stations are independent M/M/1/∞ models, and the departure-time distribution from a queue is identical to the interarrival-time distribution of another. The utilizations of the receiving and transmission coprocessors are
Fig. 2. The BW scheme.
trivial, whereas for CORE it can be derived as UCORE=
μR
(TCore A+ Tcop+ TCore B)−1
, (1)
whereμRdenotes the mean arrival rate at the CORE which is the same with the
mean departure rate from the receiving coprocessor.TCore A, Tcop, and TCore B
represent the processing time for IPSec preprocessing, en/decryption and IP processing, respectively. Finally, we can obtain the utilizations for core and computational coprocessor as
UCore = UCORE×
TCore A+ TCore B
TCore A+ TCop+ TCore B
, and (2)
UCop = UCORE− UCore, respectively, (3)
since the CORE consists of the both Core processor and computational copro-cessor.
3.2 The Interrupt-Driven Scheme
Contrasted with BW, in the ID scheme the core passes the results from IPSec preprocessing to the computational coprocessor and resumes without being blocked. To realize this concept, two processes need to be forked in the core for IPSec preprocessing and IP processing, respectively, and buffer is required between the core and coprocessor. When the IPSec preprocessing is done and the packet is passed to the coprocessor’s buffer, the core switches, with a switching delayTD, to the other process for performing IP-related operations so that the
core is not stalled; context switches also occur after a certain period of process run length. To reflect this enhancement, a processor control switch, referred to as PCS, is adopted to capture activities of the two processes. According to the above descriptions we can formally define a state of the system as
ST= (R, A, C, B, T, S),
whereR, A, C, B, and T denote the queue lengths for the five processing stages, namely, receiving, IPSec preprocessing referred to as Core A, en/decryption re-ferred to as Cop, IP processing rere-ferred to as Core B, and transmission, while S denotes the PCS. As shown in Figure 3, S = 0/S = 1 means the core is processing packets at Core A/Core B; it then switches to an intermediate

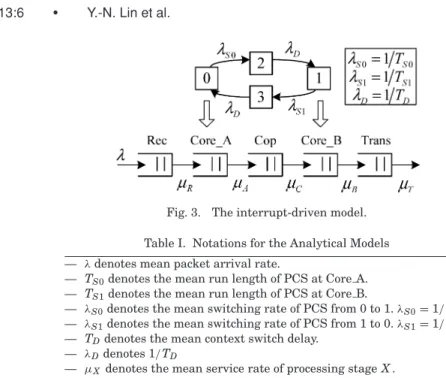

Fig. 3. The interrupt-driven model.
Table I. Notations for the Analytical Models — λ denotes mean packet arrival rate.
— TS0denotes the mean run length of PCS at Core A.
— TS1denotes the mean run length of PCS at Core B.
— λS0denotes the mean switching rate of PCS from 0 to 1.λS0= 1/TS0.
— λS1denotes the mean switching rate of PCS from 1 to 0.λS1= 1/TS1.
— TDdenotes the mean context switch delay.
— λDdenotes 1/TD
— μX denotes the mean service rate of processing stageX .
— bufX denotes the buffer size of processing stageX .
state S = 2/S = 3 after a run length of TS0/TS1, and waits for TD to finish
the context switch. Parameters used in the analytical model are described in Table I.
Even with the multiprocess mechanism, the core could still be busy-waiting for (1) packet arrivals from its predecessor and (2) available buffer slots in its successor to which the processing result is passed. In this way, theeffective core utilization, which is derived by subtracting the busy-waiting overhead from overall core utilization, suffers. Therefore, the PCS should be manipulated well to avoid these situations by (1) setting appropriate run lengthsTS0 andTS1so
that the processing resource is reasonably distributed, and (2) characterizing appropriate transition conditions so as to ensure that context switches are per-formed upon those conditions. All possible transitions are listed in Table II and explained as follows.
As presented in Table II, all transitions for the five processing stages can be classified into (1) arrival, in which packets are received from the network or predecessor, and (2) departure, in which packets are passed to the succes-sor or transmitted. The only stage having an arrival rate is the receiver (λ), while others do not because arrivals are activated by their predecessors. To hand over the processed result to the next thread, it is necessary that the suc-cessor has available buffer space (X < bufR) to accommodate the processed
results. Besides the buffer space requirement in the successor, when acting as a predecessor, the Core A and Core B have to additionally acquire the processor control, namely, the PCS, in order to perform packet processing. A PCS value of 0/1 means Core A/Core B controls the processor. The PCS starts to switch from 0 or 1 if (1) the run length has been reached (TS0 for Core A andTS1for
Table II. State transitions in the ID scheme
Component Transition Type Condition(s) Rate
Receiving arrival R< bufR λ
departure A< bufA μR
Core A arrival follower of Rec n/a
departure PCS= 0, C < bufC μA
Cop arrival follower of Core A n/a
departure B< bufB μC
Core B arrival follower of Cop n/a
departure PCS= 1, T < bufT μB
Transmission arrival follower of Core B n/a
departure n/a μT PCS 0=> 2 A> 0, B > 0 λS1 (A= 0, B > 0) or C = bufC ∞ (B= 0) or T = bufT 0 2=> 1 n/a λD 1=> 3 A> 0, B > 0 λS2 (A> 0, B = 0) or T = bufT ∞ (A= 0) or C = bufC 0 3=> 0 n/a λD
Fig. 4. Example state transitions of the interrupt-driven model.
the PCS resides) does not have any packet but the other does. No switching will occur if (1) the target stage to which PCS is going to switch has no packets or (2) the successor of the target stage has no buffer left. When the PCS switches from 0 to 1 or from 1 to 0, a context switch delayTD is counted.
Figure 4 depicts an example state whose buffer size equals to 3 for each stage, and the corresponding transitions in which five are transiting into the state and others are transiting out from the state. While the inbound and out-bound transitions are comprehensible, special note needs to be taken for the PCS, namely, the PCS in the example state never transits from 0 to 1. This is because the Core B cannot pass the processed packet to the transmission stage, which is already full. The transition of PCS from 0 to 1 simply con-tributes to the unnecessary overhead and, therefore, is considered an invalid transition.
4. PETRI NET SIMULATION ENVIRONMENT
Tools have been available for simulating architectures similar to NPs [Nussbaum et al. 2004; Davis et al. 2005]. Though accurate, they focus mainly

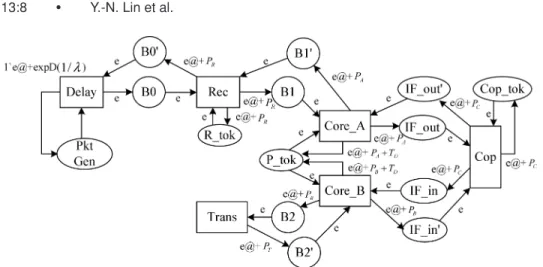

Fig. 5. Petri net for the ID scheme.
on the low-level configuration, such as cache structure, and lack flexibility in task allocation. In this section, we describe the construction of the simulation environment based on the timed and colored Petri nets (CPNs) [Murata 1989; Zuberek et al. 1998] which captures well component-level activities. It is used to validate the analytical model discussed in the previous section as well as to observe possible hints for future NP design.
We adopt the event-driven CPN-Tools [Ratzer 2003] as our simulator. The features it supports, including the colored tokens, stochastic functions, and hi-erarchical editing, provide efficiency in the construction of timed and colored Petri nets corresponding to our model. As shown in Figure 5, the net of the ID scheme contains five processing stages presented as transitions (Rec, Core A, cop, Core B, and Trans). Each of them is associated with a control token in-dicating the availability of the processing resource and equipped with a place representing buffers, namely, B0, B1, IF out, IF in, and B2. The size of the buffers is configured in other five places (i.e., B0, B1, IF out, IF in, and B2, respectively) by marking them with a number of initial tokens. The following description exemplifies a sample processing flow.
When a packet arrives at the receiving coprocessor, B0, with the interarrival time being exponentially distributed with mean 1/λ, one token in B0 is con-sumed indicating the occupation of a buffer slot. Once the receiving coprocessor is available (namely, the R tok place contains a token), the packet is processed for PRμsec and then passed to the Core A stage if room (B1 > 0), while the
tokens go back to R tok and B0, respectively. If the token in P tok is available, meaning Core B is not executing, Core A will start to process the packet for PAμsec and then offloads en/decryption operations to the computational
copro-cessor which takes forPCμsec. Notably, the token returning to P tok costs
addi-tionalTDμsec for context switch overhead. Similar procedures apply to Core B
and the transmission coprocessor which last for PB and PTμsec, respectively.
The net of the BW scheme can be built similarly except that no buffer is present between Core A and Cop and between Cop and Core B, i.e., both IF outand IF inare excluded from the net. Though the nets quite resemble the analytical
Table III. Processing Time of the Tasks Evaluated in a Real Implementation. Process Run Lengths and Context Switch are to
be Configured
Task Processing Time (μ sec /pkt)
(1) Receiving (Rec) 27.3
(2) IPSec preprocessing (Core A) 31 (3) En/decryption (Cop) 12.6 (4) IP processing (Core B) 49 (5) Transmission (Trans) 27.3
Fig. 6. Run length (TS0= TS1) vs. core utilization under an input load of 35 Mbps.
models, some differences exist. First, the processing time of each stage is de-terministic in simulation yet exponentially distributed in the analysis. Second, the run lengths of Core A and Core B cannot be configured due to the limitation of the tool in simulation.
5. EVALUATION
In this section we first validate the analytical model against simulations and implementation benchmark. We then evaluate the core-centric network proces-sors of the ID and BW schemes, trying to identify design implications.
5.1 System Parameter Determination
Parameter settings for the analytical model as well as the simulation are listed in Table III. Then we try to find the most appropriate process run length for PCS. To rule out the interference of context switch overhead,TDis configured to
a value close to zero. As Figure 6 presents, compared to the normal run length of 6,666μsec [Microsoft], when choosing 100μsec, we can have 2.26 times im-provement on the effective core utilization while consuming 20.5% less compu-tational resource. Busy-waiting overhead, which is the difference of the overall core utilization and the effective core utilization, is significantly alleviated. This is credited to the frequent switching that helps avoid much backlog, and therefore possible stall, at components.

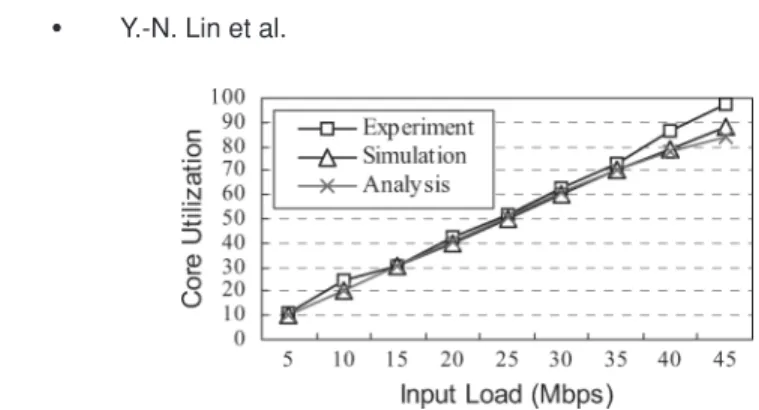

Fig. 7. Analytical model validation against the simulation and real implementation.
5.2 Validation of the Analytical Model
In order to make the behavior of the simulation inline, the analytical model and implementation, the context switch delay,TD, has been gradually adjusted.
We finally find that, with TD being very close to 0, the analytical results are
mostly within 1% of the simulation, as presented in Figure 7. The discrepancy comes from different assumptions between the analysis and simulation. The former assumes exponential distribution for the packet interarrival time and instruction processing time, while the latter uses deterministic ones in order to be realistic. It is implied that the context switch delay is minor in the im-plementation, which is quite unreasonable, indicating thatonly one process in the core is employed practically for both IPSec preprocessing and IP process-ing. The utilization of the implementation is slightly higher (3%–4%) than the analytical model due to the operating system overhead. The discrepancy no-ticeably increases when being overloaded. It is also surprisingly learned that the limited buffer size, which is configured to 3 in the analytical model, does not influence the model accuracy when the load is under system capacity. As the analytical model closely matches with the simulation and is configurable for parameters such as process run lengths, we conduct the investigation mostly through the former. The simulation is adopted only for large buffer sizes which are frequently not feasible in the analytical model due to state-space explosion. 5.3 Differentiated Run Lengths
Run lengths have been shown to be influent on the system performance. Rather than having the same run length for Core A and Core B, whose processing times are different, it is sensible to differentiate them so as to distribute the computational resource according to the load. Figure 8 presents the results of the differentiation, in whichTS0is configured as 100μsec found appropriate
previously. It is learned that the system performance improves asTS1increases.
While the largest advance occurs atTS1= 200, minor improvement continues
even whenTS1= 6,666. This is credited to the conditions that force the PCS to
switch from 1. For example, the PCS switches immediately if the transmission stage is full or if the Core B stage contains no packets, so that busy-waiting can be avoided.
The BW scheme is also involved in this comparison, in which single process is implemented in the Core, namely, no context switch occurs during execution.
Fig. 8. Benefits from differentiated run lengths for Core A and Core B. TS0 is configured as
100μsec.
Fig. 9. Core usage distribution for different context switch delays. The asterisk meansTS0and
TS1are configured to 100 and 200μsec.
Surprisingly, it outperforms the ID scheme since (1) context switch overhead is not present owing to the single process mechanism, and (2) the Cop is efficient enough so that the Core spends limited time waiting.
5.4 Effect of the Context Switch Overhead
Though context switching is helpful in alleviating the busy-waiting overhead and hiding memory access latency, for computational-intensive applications it could jeopardize the performance, as Figure 9 explains. From the figure, we can learn that a delay of 300μsec leads to low effective utilization (12%), but con-siderable context switching and busy-waiting burdens (38% and 47%). As the delay reduces, not only the core utilizes effectively, but also the overhead is less-ened. The burden from busy-waiting can even be annihilated whenTD= 10 and
TS0andTS1 are further configured to 100 and 200μsec, respectively. However,
since a context switch delay of 10μsec is quite unrealistic for current XScale core implementation (except for some coprocessors with hardware multithreads [Intel IXP2400]), this result is also advising that system vendors adopt single

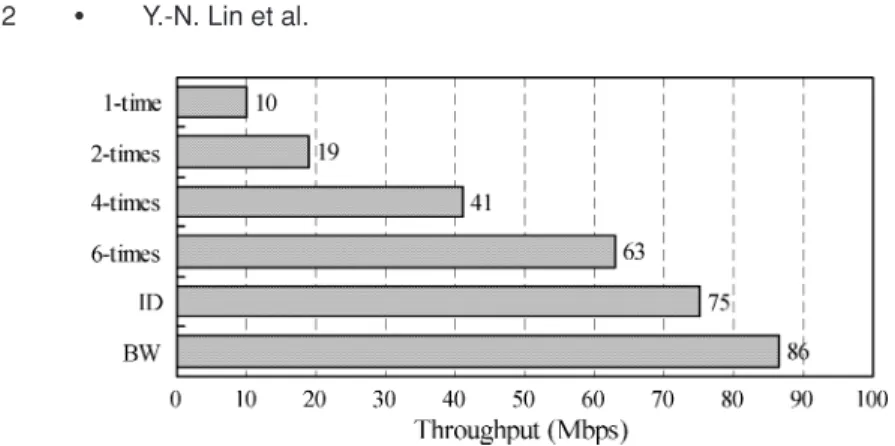

Fig. 10. Throughput of various offloading schemes. The clock rate of the XScale core in the imple-mentation is 533MHz, as a reference for comparison.
process for handling multiple tasks. Though the process occupies large mem-ory space, the cost is quite affordable for today’s memmem-ory technology, whereas context switch overhead is substantially alleviated.
5.5 Benefit from Offloading
Offloading complex and routine tasks to specially designed coprocessors has been an alternative to simply speeding up the core processor. However, the benefit from offloading is not well investigated. Figure 10 demonstrates the gain of doing cryptographic operations, which is the most time-consuming task, by (1) multiplying the core clock rate, and through (2) offloading to the computational coprocessor. The former includes (1) no speedup and (2) speedup for two, four, and six times for the core processor, while the latter involves both ID and BW schemes. As revealed in the figure, the throughput increases in direct proportion to the speedups. Nonetheless, the ID scheme still outperforms the unoffloaded one equipped with a core of six-time speedup resembling a 3.2GHz P4 processor. Finally, we can see that the BW scheme scores the highest throughput, as explained previously.
The performance figures can be validated as follows. Let the capability of the core bem cycles/sec, and the processing time for Core A, en/decryption and Core B bex, y, and z cycles/Mbits, respectively. We can have
m
x+ y + z = 10 (Mbps), (4)
since the throughput of an ordinary core without offloading is 10 Mbps. More-over, because the core, namely, XScale in the real implementation is the perfor-mance bottleneck [Lin et al. 2005], we can also have
m
x+ z = T (Mbps), (5)
where T represents the throughput of the core executing Core A and Core B, and therefore the throughput of the ID scheme as well. With Equations (4) and (5) we can have (5) (4) : z+ y + z x+ z = T 10. (6)
Fig. 11. Core utilization for two buffer sizes under different input loads.
Since y : (x+ z) = (31 + 49) : 12.6 ∼= 6.4, according to Table III, the throughput T can finally be derived as
T = 10 ×1+ 6.4
1 = 74 (Mbps), (7)
which is very close to the one from the analytical model. 5.6 Effect of Buffer Sizes
As pointed out earlier in this section, the buffer size does not impact much on the accuracy of the model. This is verified in Figure 11, which compares two significantly different sizes, 3 and 1,000 where the latter case is performed through simulation instead of analysis, due to large state space. From the figure we can see that the core utilization is the same for both sizes when the input load is below the system capability which is about 45 Mbps. This implies that buffer sizes need not be large, as long as the load does not go beyond the system capacity.
6. CONCLUSION AND FUTURE WORK
This work aims at deriving possible design implications for the core-centric network processors through analytical modeling as well as Petri net simula-tions. The computational intensive VPN application, which has some complex but routine tasks, is adopted to explore the benefits from offloading to coproces-sors. Two implementation schemes of the Core, namely, the busy-waiting and interrupt-driven schemes, are introduced and compared. To date, this work is the first research that practically models this emerging architecture.
The analytical model is verified to have behaviors closely inline with the simulation (within 1%) and the implementation (within 3%–4%). Detailed in-vestigations are then carried out on mechanisms that (1) exploit efficiently the core processor which is usually the bottleneck and (2) improve the system per-formance. Through both analytical and simulation measures, we observe that — by adopting appropriate process run lengths, 2.26 times improvement on the
effective core utilization and 20.5% less consumption on the computational resource can be achieved; better results can be obtained if run lengths of stages are further differentiated according to the processing time;
— incorporating coprocessors for the bottleneck task, namely the en/ decryption, boosts the throughput for 7.5 times compared to that of single core processor;
— buffer sizes need not be large, as long as the load has not gone beyond the system capacity.
We believe the first three findings are useful for system vendors while the oth-ers may interest IC vendors. Discovery and the modeling framework developed in this study should be applicable to network processors of similar architecture and beneficial to rapid system prototyping.
As a future direction, we plan to extend this approach by considering memory-access intensive applications such as IDP (Intrusion Detection and Prevention). In such extension, memory access operations can be offloaded to coprocessors specifically designed with a wide memory bus. To further analyze the potential memory bottleneck, the model can also involve multiple memory modules or multiport memory to accommodate concurrent accesses.
