HMM-based ball hitting event exploration system for broadcast baseball video

Hua-Tsung Chen

a,⇑

, Chien-Li Chou

b

, Wei-Chin Tsai

b

, Suh-Yin Lee

b

, Bao-Shuh P. Lin

a,b

a

Information and Communications Technology Lab, National Chiao Tung University, Hsinchu 300, Taiwan

b

Department of Computer Science, National Chiao Tung University, Hsinchu 300, Taiwan

a r t i c l e

i n f o

Article history: Received 25 May 2011 Accepted 16 March 2012 Available online 28 March 2012 Keywords:

Multimedia system Highlight detection Baseball even recognition Features extraction HMM

Scene classiﬁcation Sports video analysis Pattern recognition

a b s t r a c t

With the dramatic growth of fandom population, a considerable amount of research efforts have been devoted to baseball video processing. However, little work focuses on the detailed follow-ups of ball hit-ting events. This paper proposes a HMM-based ball hithit-ting event exploration system for broadcast base-ball video. Utilizing the strictly-defined layout of the basebase-ball field, the proposed system first detects the game-specific spatial patterns in the field, such as the field lines, the bases, the pitch mound, etc. Then, the play region—the currently camera-focused region of the baseball field is identified for frame type classification. Since the temporal patterns of presenting the game progress follow a prototypical order, we consider the classified frame types as observation symbols and recognize ball hitting events using HMM. Experiments conducted on broadcast baseball video show encouraging results in frame type clas-sification and ball hitting event recognition. Three practical applications, including highlight clip extrac-tion by user-designated query, storyboard construcextrac-tion, and similar event retrieval, are introduced to address the applicability of our system.

1. Introduction

The explosively increasing amount of digital videos motivates researchers to strive for various aspects of video analysis. In recent years, the amount of multimedia information has grown rapidly. This trend leads to the development of efﬁcient sports video anal-ysis in soccer[1–3], tennis[4–6], basketball[7–9], volleyball[10], baseball[11–24], etc. Automatic sports video analysis has attracted considerable attention, because sport video appeals to large audi-ences. The possible applications of sports video analysis have been found almost in all sports, among which baseball is a quite popular one. It is time-consuming to watch the whole game video in sequential way, while highlights abstract the game for quick browsing. In addition, highlights can be contributive to tactic infer-ence for coaches, players, and even professional sports fans. For these motivations, we aim at developing a highlight semantics exploring system for the baseball games.

Baseball video is characterized by a strictly-deﬁned structure containing a series of plays and each play starts with a pitch. Hence, PC (pitcher–catcher) shot detection and semantic shot classiﬁcation play an important role in baseball highlight detection[11,12]. Fur-thermore, various kinds of pitch analyses have been addressed to derive the correlation between the ball trajectory and the rotation by tracking the translation and rotation of a pitched ball[13], to extract the ball trajectory based on physical characteristics[14],

to reconstruct the 3D trajectory of the pitched ball with multiple cameras[15], and even to recognize the pitching style based on the pitcher’s posture[16].

Due to broadcast requirement, there has been an essential de-mand for highlight extraction which aims at abstracting a long game into a compact summary to provide the audience a quick browsing of the game. Moreover, highlight extraction/classification also contributes to many applications such as efficient event index-ing and retrieval, providindex-ing the reference for tactics inference to the coach and players, user-designated highlight clip extraction, etc. In the past few years, remarkable research has been devoted to baseball video content analysis. Hung and Hsieh[17]categorize shots into pitcher-catcher, infield, outfield, and non-field shots. Combining the detected scoreboard information with the obtained shot types as mid-level cues, Hung et al. use Bayesian Belief Net-work (BBN) structure for highlight classification. Chu and Wu

[18]consider most of the possible conditions in a baseball game based on the game-specific rules and extract the scoreboard infor-mation for event detection. Though both Hung and Hsieh[17]and Chu and Wu[18]achieve high accuracy in highlight classification due to the additional information from the scoreboard, their rough shot classification approaches are inadequate to analyze the ball movement and play region transitions for ball hitting events. Gong et al.[19]classify baseball highlights by integrating image, audio, and closed caption cues based on MEM (Maximum Entropy Mod-el). Fleischman et al.[20]use complex temporal features, such as field type, speech, camera motion start time and end time. Tempo-ral data mining techniques are exploited to discover a codebook of frequent temporal patterns for baseball highlight classification.

⇑ Corresponding author. Fax: +886 3 5721490. E-mail address:[email protected](H.-T. Chen).

Contents lists available atSciVerse ScienceDirect

J. Vis. Commun. Image R.

(2)

Based on the classiﬁed scenes serving as the observation symbol sequence, a 4-state ergodic HMM is applied to detect four baseball events: base hit, ground out, air out, and strike out. Though, good performance is achieved in Lien et al.[21], only four events are de-tected. It is not so realistic to provide only four events to general users, not to mention the professional players or the coach. Cheng and Hsu[22]fuse visual motion information with audio features, including zero crossing rate, pitch period and Mel-frequency ceps-tral coefﬁcients (MFCC), to extract baseball highlight based on hid-den Markov model (HMM). Mochizuki et al.[23]provide a baseball indexing method based on patternizing baseball scenes using a set of rectangles with image features and a motion vector. Chang et al.

[24]assume that most highlights in baseball games consist of cer-tain shot types and these shots have similar transitions in time. Each highlight is described by a HMM and each hidden state is rep-resented by its predeﬁned shot type. Some features are used as observations to train the HMM model for highlight recognition. In Mochizuki et al.[23]and Chang et al.[24], low accuracy and few highlight types are the main disadvantages because the infor-mation is too little to detect various highlights and to get high accuracy.

Even if the previous works claim good results on highlight classification, they do not analyze a variety of ball hitting event types and have no idea of the detailed batting process and ball movement within a shot, such as: ‘‘The ball batted into the left infield is picked up by an infielder and then thrown to the first baseman.’’ In nature, the first/second/third basemen, the short-stop as well as other players are important objects in terms of event understanding. However, when the camera focuses on a player, it is hard to recognize his fielding position. Hence, in this paper we explore field shots (the shots follow the batted ball in the field) and utilize the game-specific spatial patterns, e.g., the bases and the pitch mound, to identify the regions which the ball has passed through. With great success in speech recognition, HMMs are effective models for time-varying patterns and have been used widely in scene modeling for sports video [21–24]. Thus, we propose an HMM-based mechanism to detect and clas-sify up to 11 ball hitting events: (1) single, (2) double, (3) pop up, (4) fly out, (5) ground out, (6) two base hit, (7) foul ball, (8) foul out, (9) double play, (10) home run, and (11) home base out. In addition to providing the detailed description of each play, a baseball exploration system is also developed, so users can effi-ciently retrieve the batting clips desired. With the proposed framework, highlight extraction and event indexing in baseball video will be more powerful and practical, since comprehensive, detailed, and explicit information about the game can be pre-sented to users.

The rest of the paper is organized as follows. Section2describes the system overview of the proposed ball hitting event recognition. The processes of visual feature extraction and frame type classiﬁ-cation are explained in Sections 3 and 4, respectively. Section5

elaborates how to recognize ball hitting events using HMM. Exper-imental results and discussion are presented in Section6. Section7

introduces extensive applications based on the proposed system. Finally, Section8 concludes this paper and describes the future work.

out the uninteresting segments, e.g., commercials, the pre-process-ing procedures of shot boundary detection, shot classification, and PC shot detection[11,12,21,25]are required. The feature extraction module extracts significant colors—white, green (grass), and brown (soil), and then recognize the spatial patterns in the baseball field.

Fig. 2a shows the full view of a prototypical baseball ﬁeld, and

Fig. 2b shows the spatial patterns to be recognized. Based on the extracted visual features, the system performs frame classiﬁcation rather than shot classiﬁcation as in the previous works. The infor-mation of the ball movement and play region transitions within a single shot greatly assist the system in comprehending the ball hit-ting events. Taking the obtained frame types as observation sym-bols, a HMM-based approach is designed for ball hitting event recognition. Finally, extended applications such as highlight clip extraction by user-designated query, storyboard construction, and similar event retrieval can be implemented based on the pro-posed scheme.

Compared with the existing works on baseball video analysis, the main contributions of our proposed HMM-based ball hitting event exploration system are summarized as follows. Most of the existing works perform shot classification, and some works are capable of discriminating between infields and outfields at most. However, more explicit information within a field shot should be extracted to comprehend the detailed process of a ball hitting event. With the baseball domain knowledge, we recognize the game-specific spatial patterns and the field layout so as to explore the transition of the play region—the currently camera-focused gion of the baseball field. The explicit information of the play re-gion transition significantly facilitates extensive applications. 3. Visual feature extraction

In our proposed system, signiﬁcant colors and game-speciﬁc spatial patterns are extracted as visual features.

3.1. Signiﬁcant colors

As depicted in Fig. 2, the baseball field is characterized by a well-defined layout of specific colors. Moreover, important lines and the bases are in white color to provide visual assistance for players, umpires, and audience. Therefore, color is an effective vi-sual feature in baseball video analysis, especially the significant colors: white, green (grass), and brown (soil). The in-frame color of each baseball game might vary due to different viewing angles and lighting conditions. We propose to define dominant colors by histogram. To obtain the color distribution of grass and soil in video frames, several baseball clips from different video sources are input to compute the color histograms in RGB and HSI (Hue-Saturation-Intensity) color spaces.Fig. 3shows the color histograms of base-ball clips from different sources. The hue value in HSI color space is adequate to define the dominant colors for two reasons: (1) we have observed that the hue value is relatively stable within a single game despite the lighting conditions, and (2) the hue value has good discrimination since the grass and soil colors form salient peaks in the hue histogram.

(3)

In a field shot, the initial frames mainly contain the baseball field, while the later frames, which might zoom in on a player or move to the audience, contain less proportion of the field. There-fore, it is reasonable to compute the color histogram from the initial frames of a field shot and define the grass and soil colors.

Fig. 4demonstrates the spatial distribution of signiﬁcant colors.

Fig. 4a shows a field frame. In the hue histogram of Fig. 4b, significant colors can be defined: the peak of small hue value representing the soil color and the peak of large hue value rep-resenting the grass color. The regions segmented by significant colors are shown in Fig. 4c, where grass regions are shown in green, soil regions in brown, and others in black. The pixels of high intensity values are detected as white pixels, as presented inFig. 4d.

3.2. Spatial patterns

With the extracted significant colors (grass, soil, and white), we are ready to analyze the field shots and detect the spatial patterns: left line LL, right line RL, pitch mound PM, home base HB, first base 1B, second base 2B, third base 3B, back auditorium BA, left audito-rium LA, and right auditoaudito-rium RA. Please refer toFig. 2b.Figs. 5 and 6exemplify the detection of spatial patterns. The detailed detec-tion processes are elaborated as follows. For clarity, the names of the spatial patterns are abbreviated in italic type.

3.2.1. Field lines: left line LL and right line RL

For visual clarity, the field lines and important markers are in white color, as specified in the official game rules. However, there

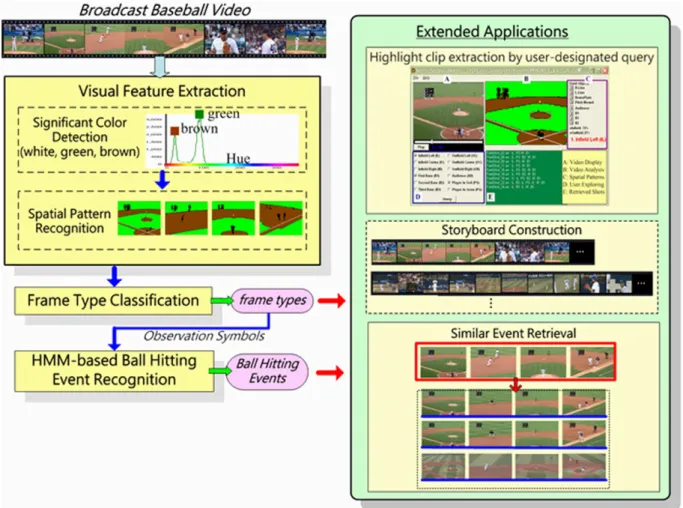

Fig. 1. Flowchart of the proposed HMM-based ball hitting event exploration system.

(4)

may be other white objects in frames such as advertisement logos, the uniforms of the players, and the clothes of the audience. Hence, additional criteria and constrains are applied to white line pixel detection[26,27]. As illustrated inFig. 7, each square represents one pixel and the central one drawn in gray is a candidate pixel. Assuming that white lines are typically no wider than

s

dpixels (

s

d= 4 in our system), we check the brightness of the four pixels, marked ‘d’ and ‘s’, at a distance of

s

wpixels away from the candi-date pixel on the four directions. The central candicandi-date pixel is identiﬁed as a white line pixel only if both pixels marked ‘d’ or

both pixels marked ‘s’ are with lower brightness than the candi-date pixel. This process prevents most of the pixels in white regions or white uniforms being detected as white line pixels.

Furthermore, we apply the line-structure constraint [26] to exclude the white pixels in ﬁnely textured regions. The structure matrix S[28]computed over a small window of size 2b + 1 (we use b = 2) around each candidate pixel (px, py), as deﬁned in Eq.

(1), is used to recognize texture regions, where I(x, y) represents the intensity component in HSI color space and rI(x, y) is the image gradient.

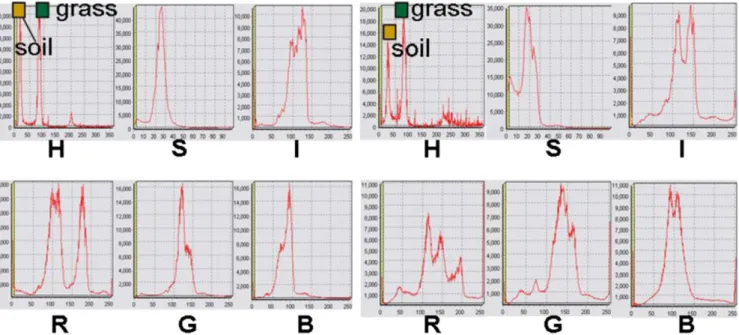

Fig. 3. Color space of RGB and HSI of baseball clips from different sources. (For interpretation of the references to color in this ﬁgure legend, the reader is referred to the web version of this article.)

Fig. 4. Spatial distribution of significant colors: (a) field frame; (b) hue histogram; (c) segmented regions: grass regions shown in green, soil regions in brown, and others in black; (d) detected white pixels. (For interpretation of the references to color in this figure legend, the reader is referred to the web version of this article.)

(5)

S ¼ PPxþb x¼Pxb

P Pyþb y¼Pyb

r

Iðx; yÞ ð

r

Iðx; yÞÞT

ð1Þ

Depending on the two eigenvalues of matrix S, called k1 and k2 (k1P k2), the texture can be classiﬁed into textured (k1, k2are large),

linear (k1 k2), and ﬂat (k1, k2are small). On the straight ﬁeld lines, the linear case will apply to retain the white pixels only if k1> ak2 (a = 4 in our system).Fig. 8demonstrates the sample result of white line pixel detection. The original frames are presented inFig. 8a.

Fig. 8b shows the high intensity pixels before white line pixel detec-tion. With the line-structure constraint, Fig. 8c shows that white line pixel candidates are retained only if the pixel neighbor shows a linear structure and the number of false detections is reduced.

With the white line pixels detected, a growing algorithm, which produces a vector representation of the line segments[29], is ap-plied to the extracted white pixels. Field lines LL and RL are then obtained by joining together the line segments which are close and collinear, as shown in Figs.5b, c and6.

3.2.2. Left auditorium LA, right auditorium RA, and back auditorium BA

The left, right, and top areas which contain high texture and no dominant colors are considered as the spatial patterns LA, RA, and

Fig. 5. Detection of spatial patterns: (a) back auditorium BA; (b) left line LL and left auditorium LA; (c) right line RL and right auditorium RA.

Fig. 6. Examples of spatial pattern detection.

(6)

BA, respectively, as exempliﬁed inFig. 6. InFig. 5a, the black area above the white horizontal line is detected as BA. InFig. 5b and c, left and right black areas outside the vertical lines are the de-tected LA and RA, respectively.

3.2.3. Pitch mound PM

An ellipse soil region surrounded by a grass region is recognized as PM as shown inFig. 6a and c. Some constraints are used reduce false detections: (1) PM cannot be on LL or RL; (2) PM should be on

Fig. 8. Sample result of white line pixel detection: (a) original frame; (b) high intensity pixels; (c) white line pixel candidates with the line-structure constraint.

(7)

the left/right side of RL/LL, if detected; (3) there should not be large difference in the number of soil pixels between the top half region and the bottom half region of the detected soil ellipse; (4) there should not be large difference in the number of soil pixels between the left half region and the right half region of the detected soil ellipse.

3.2.4. Home base HB

HB is located at the intersection of LL and RL if both ﬁeld lines are detected, as shown inFig. 6a.

3.2.5. First base 1B and third base 3B

The white square region located on RL, if detected, in soil region is identiﬁed as 1B, as shown inFig. 6a. Similarly, the white square region located on LL, if detected, in soil region is identiﬁed as 3B, as shown inFig. 6b.

3.2.6. Second base 2B

In a soil region, a white square region on neither ﬁeld line is identiﬁed as 2B, as shown inFig. 6a and c.

4. Frame type classification and annotation string generation In order to comprehend the detailed process of the ball hitting event, we have to recognize the play region, the currently cam-era-focused region in the baseball field, for frame type classifica-tion. Based on the detected spatial patterns, we classify each field frame into one of the 16 types: IL (infield left), IC (infield center), IR (infield right), B1 (first base), B2 (second base), B3 (third base), OL (outfield left), OC (outfield center), OR (outfield right), PS (player in soil), PG (player in grass), AD (audience), AL (audience left), AR (audience right), TB (touch base), and CU (close-up), as shown inFig. 9. Note that B1, B2, and B3 here represent ‘‘frame types’’ while 1B, 2B, and 3B in Section 3.2 represent ‘‘spatial patterns.’’

With the baseball domain knowledge, we deﬁne explicit rules for frame type classiﬁcation, as listed in Table 1. The function P(A) returns the percentage of the area A in a frame, and E(S) re-turns whether the spatial pattern S exists or not. In addition, we tri-partition a frame into left, center, and right parts. L(S) returns which part the spatial pattern S is located in. The thresholds

s

1

s

5are determined by training. We ask an experienced baseball expert to watch 122 training clips and label the frame types through a simple user interface. The thresholds

s

1

s

5are deter-mined by seeking for the values which best classify the frame types in the training data.

Each field frame is classified into one of the 16 types by apply-ing the rules on the spatial patterns. Take IL (infield left) as an example. A field frame would be identified as IR under the follow-ing conditions:

(1) The percentage of BA area in a frame is no more than

s

1%, PM exists and is located at the left one-third of a frame). (2) The percentage of BA area in a frame is no more than

s

1%, PM

does not exist, RL exists, and 1B does not exist.

(3) The percentage of BA area in a frame is no more than

s

1%, PM does not exist, RL exists, 1B exists, and the percentage of soil area is no more than

s

2%.

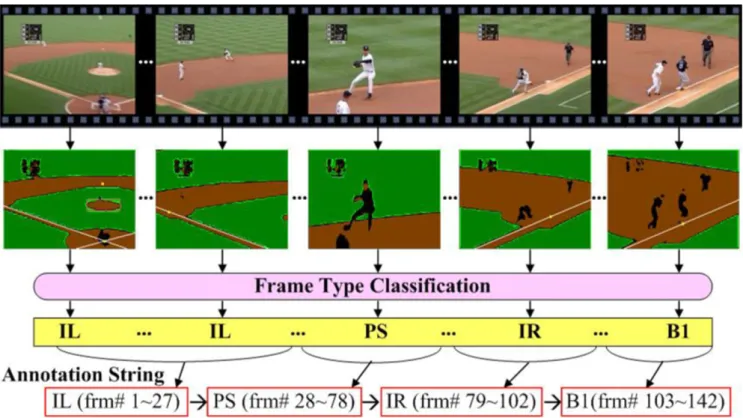

The scheme of frame type classification within a field shot is illustrated inFig. 10. The spatial patterns are first detected by the distribution of significant color pixels in field frames. According to the rules on the spatial patterns, each field frame is then classi-fied into one of the 16 typical play region types. To filter out instan-taneous misclassifications of frame types, a fixed length temporal

window and majority voting are applied. Thus, an annotation string which describes the transition of play regions contained in a ﬁeld shot can be generated. The content of the sample ﬁeld shot in

Fig. 10says that the ball is first batted into the left infield. Then, the shortstop picks up the ball and throws it to the first baseman. The batting process can be appropriately abstracted by the output annotation string: IL (infield left) ? PS (player in soil) ? IR (infield right) ? B1 (first base).

5. HMM-based ball hitting event recognition

This main objective of this paper is to develop a ball hitting event exploration system to trace the play region transition and recognize the ball hitting event. Regarding the classiﬁed frame types as the observation symbols, we propose a HMM-based ap-proach to recognize various ball hitting events, including: single, double, pop up, ﬂy out, ground out, two-base out, foul ball, foul out, double play, home run, and home base out.

Generally, HMM is expressed by a 3-tuple parameters k= {A, B,

p

}. The segmental K-means algorithm is used to create ini-tial HMM parameters and the standard Baum–Welch algorithm is used to optimize the model parameters [30]. The conventional implementation issues in HMM include: (1) number of states, (2) initialization, and (3) distribution of observation at each state. The essential HMM elements of our proposed system are summa-rized as follows.

State S: The state numbers are selected empirically depending on different baseball events.

Observation O: The classiﬁed frame types are taken as the obser-vation symbols.

Observation distribution matrix B: We use K-means algorithm and choose the Gaussian distribution at each state[31].

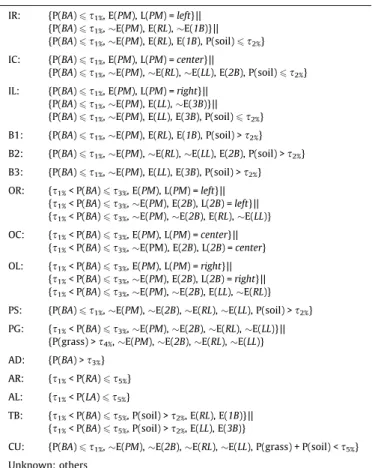

Table 1

Rules of frame type classiﬁcation.

IR: {P(BA) 6s1%, E(PM), L(PM) = left} ||

{P(BA) 6s1%, E(PM), E(RL), E(1B)} ||

{P(BA) 6s1%, E(PM), E(RL), E(1B), P(soil) 6s2%}

IC: {P(BA) 6s1%, E(PM), L(PM) = center} ||

{P(BA) 6s1%, E(PM), E(RL), E(LL), E(2B), P(soil) 6s2%}

IL: {P(BA) 6s1%, E(PM), L(PM) = right} ||

{P(BA) 6s1%, E(PM), E(LL), E(3B)} ||

{P(BA) 6s1%, E(PM), E(LL), E(3B), P(soil) 6s2%}

B1: {P(BA) 6s1%, E(PM), E(RL), E(1B), P(soil) >s2%}

B2: {P(BA) 6s1%, E(PM), E(RL), E(LL), E(2B), P(soil) >s2%}

B3: {P(BA) 6s1%, E(PM), E(LL), E(3B), P(soil) >s2%}

OR: {s1%< P(BA) 6s3%, E(PM), L(PM) = left} ||

{s1%< P(BA) 6s3%, E(PM), E(2B), L(2B) = left} ||

{s1%< P(BA) 6s3%, E(PM), E(2B), E(RL), E(LL)}

OC: {s1%< P(BA) 6s3%, E(PM), L(PM) = center} ||

{s1%< P(BA) 6s3%, E(PM), E(2B), L(2B) = center}

OL: {s1%< P(BA) 6s3%, E(PM), L(PM) = right} ||

{s1%< P(BA) 6s3%, E(PM), E(2B), L(2B) = right} ||

{s1%< P(BA) 6s3%, E(PM), E(2B), E(LL), E(RL)}

PS: {P(BA) 6s1%, E(PM), E(2B), E(RL), E(LL), P(soil) >s2%}

PG: {s1%< P(BA) 6s3%, E(PM), E(2B), E(RL), E(LL)} ||

{P(grass) >s4%, E(PM), E(2B), E(RL), E(LL)}

AD: {P(BA) >s3%}

AR: {s1%< P(RA) 6s5%}

AL: {s1%< P(LA) 6s5%}

TB: {s1%< P(BA) 6s5%, P(soil) >s2%, E(RL), E(1B)} ||

{s1%< P(BA) 6s5%, P(soil) >s2%, E(LL), E(3B)}

CU: {P(BA) 6s1%, E(PM), E(2B), E(RL), E(LL), P(grass) + P(soil) <s5%}

(8)

Transition probability matrix A: The state transition probability can be learned by the segmental K-means algorithm.

Initial state probability matrix

p

: The probability of occurrence of the ﬁrst state is initialized by segmental K-means algorithm after determining the number of states.

The idea behind using the HMMs is to construct a model for each ball hitting event that we want to recognize. HMMs give a state based representation for each event. Based on the classiﬁed frame types serving as the observation symbol sequence O, the parameters {A, B,

p

} for HMM are estimated using the Baum–Welch algorithm [30]. Given the observation symbol sequence O = [o1, o2, . . . , ow], the observation probability P(O|k) for each ball hit-ting event is computed via the forward–backward procedure

[30]. A forward variable

a

t(i) is deﬁned to compute the probability of partial observing sequence of state i at time t for the model k de-noted as P(o1o2. . .ow,qw= i|k). P(O|k) is computed as follows.

ðaÞ Initialization:

a

tðiÞ ¼

p

ibiðo1Þ ð2Þ ðbÞ Induction:

a

tþ1¼ P N i¼1

a

wðiÞaij bjðowþ 1Þ; 1 6 w 6 W 1 ð3Þ ðcÞ Termination: PðOjkÞ ¼P N i¼1

a

wðiÞ ð4Þ

Finally, we can then recognize the ball hitting event via ﬁnding the model with the highest probability.

6. Experimental results and discussion

To demonstrate the effectiveness of the proposed frame type classiﬁcation and ball hitting event recognition approaches, we conduct the experiments on the video data of MLB (Major League Baseball) and JPB (Japanese Professional Baseball) games. In total, we have 253 video clips recorded from live broadcast television programs and compressed in MPEG-2 video standard with frame resolution of 352 240 (29.97 fps). For the evaluation of our

proposed methods, 122 clips are randomly selected for training and the other 131 clips are for testing.

6.1. Frame type classiﬁcation

In order to comprehend the ball hitting event content and the region transition, we recognize the play region of each frame based on the detected spatial patterns. Each frame is classified into one of the 16 frame types: IL (infield left), IC (infield center), IR (infield right), B1 (first base), B2 (second base), B3 (third base), OL (outfield left), OC (outfield center), OR (outfield right), PS (player in soil), PG (player in grass), AD (audience), AL (audience left), AR (audience right), TB (touch base), and CU (close-up). Please refer toFig. 9

for the 16 frame types. The experimental result of frame type clas-sification is presented in theTable 2, where the column ‘‘total’’ indicates the total times of the frame type (designated in the first column) appearing. There are eight unknowns, which are regarded as misses in frame type classification. Note that a shot does not comprise only one frame type. The ground-truth frame types con-tained in each shot are manually identified. The ‘‘correct’’ and ‘‘false alarm’’ represent the number of correct detections and false alarms. The precision and recall are defined by Eqs.(5) and (6).

precision ¼ #correct

#correct þ #false alarm ð5Þ

recall ¼ #correct

#correct þ #miss;ð#correct þ #miss ¼ #totalÞ ð6Þ

As inTable 2, the obtained precision and recall rates are about 90%, except for the precision rates of B2 (second base) and AD (audience), and the recall rates of B2 (second base), PS (player in soil), and TB (touch base). By inspecting the experimental process, we have some observations. The low precision and recall rates of frame type B2 mainly result from the incorrect detection or false alarm of the spatial pattern 2B. For example, the ball in the soil re-gion may be detected as 2B, as shown inFig. 11. Moreover, the

(9)

missed detection of the spatial pattern B2 will cause a 2B frame to be classified into the frame type PS. We should set a search win-dow for B2. However, it is difficult to decide the threshold of the window size since the size of B2 varies in frames due to the camera zooming. The proposed system may confuse TB (touch base) and AD (audience) because a TB frame may contain high texture and no dominant colors, just like an AD frame. These problems can be improved by enhancing spatial pattern detection, refining the rules of frame type classification, and even adding the procedure of player detection. Overall, the proposed system achieves good performance in frame type classification, which facilitates the sub-sequent analyses.

6.2. Ball hitting event recognition

HMMs give a state-based representation for each ball hitting event which we want to recognize. Based on the classiﬁed frame types regarded as the observation symbols, we apply an HMM-based approach to recognize 11 ball hitting events, including: sin-gle, double, pop up, ﬂy out, ground out, two-base out, foul ball, foul out, double play, home run, and home base out. The performance of ball hitting event recognition is presented in theTable 3, where the terms ‘‘total,’’ ‘‘correct,’’ ‘‘false alarm,’’ ‘‘precision,’’ and ‘‘recall’’ have the same meanings as in Section6.1.

As shown inTable 3, the propose system is able to accurately recognize most of the ball hitting events, except for ‘‘double,’’ ‘‘foul out,’’ ‘‘double play,’’ and ‘‘two-base out.’’ The low recall rates of ‘‘double’’ and ‘‘two-base out’’ are mainly caused by the incorrect classiﬁcation of frame type B2. In addition, a ‘‘double’’ event and a ‘‘home run’’ event have almost the same transitions of play re-gions in the case of the batter hitting the ball to the auditorium wall. More ambiguous cases are discussed and illustrated in the

following. In Fig. 12, a ‘‘ground out’’ event and a ‘‘double play’’ event have almost the same transitions of play regions when the batter hits the ball toward the second base.Fig. 13shows an exam-ple of incorrect recognition between ‘‘foul ball’’ and ‘‘home run’’ due to the quite similar transitions of play regions. Fig. 14a–c shows the three events: ‘‘ground out,’’ ‘‘foul ball,’’ and ‘‘single,’’ respectively. However, the patterns of play region transition and camera motion are essentially the same in these cases. Actually, the players perform almost the same actions in the three cases: the batter runs to the first base, a fielder catches the ball and throw it to the first baseman. The only difference is that the umpire judges the ball hitting result as ‘‘ground out,’’ ‘‘foul ball,’’ or ‘‘sin-gle’’ according to what he has seen, subjectively and empirically.

In summary, the reasons causing errors in ball hitting event rec-ognition include: (1) similar shot transitions, (2) incorrect spatial pattern detection, and (3) ambiguity in umpire judgment. These problems could be overcome by detecting the ball and players or involving additional cues such as the scoreboard information. So far, we obtain encouraging experimental results and achieve an acceptable performance of the average precision and recall rates above 80%.

6.3. Comparison with existing algorithms of baseball event classiﬁcation

In the literature, many approaches of baseball event classiﬁcation have been developed. For performance comparison, two existing works including Lien’s HMM-based event classiﬁcation[21]and Fle-ischman’s temporal feature induction (TFI)-based method[20]are implemented and evaluated using the same data set, except for the ‘‘foul ball’’ cases, which are not dealt with in Lien et al. [21]

and Fleischman et al.[20]. Besides, our testing data set contains four ‘‘foul out’’ cases. They are regarded as the ‘‘air out’’ class when eval-uating[21], and for[22]three of them belong to the ‘‘inﬁeld out’’ class and the other one is ‘‘outﬁeld out.’’ On the other hand, our test-ing data set does not include the ‘‘strike out’’ and ‘‘walk’’ events,

Table 2

Performance of frame type classiﬁcation.

Frame type Total Correct False alarm Precision (%) Recall (%)

IL 66 60 5 92.3 90.9 IR 112 102 3 97.1 91.1 IC 92 84 4 95.5 91.3 OL 57 52 6 89.7 91.2 OR 81 78 6 92.9 96.3 OC 76 68 9 88.3 89.5 B1 323 306 6 98.1 94.7 B2 62 51 8 86.4 82.3 B3 43 42 5 89.4 97.7 PG 513 489 45 91.6 95.3 PS 381 328 35 90.4 86.1 AD 97 89 15 85.6 91.8 AR 84 84 4 95.5 100 AL 73 73 5 93.6 100 TB 84 68 5 93.2 81.0 CU 129 119 11 91.5 92.2 Overall 2273 2093 172 92.4 92.1

Fig. 11. Ambiguity in the spatial pattern 2B (second base). Table 3

Performance of ball hitting event recognition. Event type Total Correct False

alarm Precision (%) Recall (%) 1. Single 25 20 4 83.3 80.0 2. Double 8 2 1 66.7 25.0 3. Pop up 7 7 2 77.8 100 4. Fly out 22 18 6 75.0 81.8 5. Foul out 4 2 0 100 50.0 6. Ground out 29 27 4 87.1 93.1 7. Two-base out 4 2 0 100 50.0 8. Foul ball 18 18 3 85.7 100 9. Double play 4 4 2 66.7 100 10. Home run 6 5 1 83.3 83.3

11. Home base out 4 3 0 100 75.0

(10)

because our proposed system mainly focuses on the events when the ball is hit out by the batter (the so-called ‘‘ball hitting events’’).

With Lien’s work[21], the boundaries of 442 shots (out of the total 464 shots) are corrected detected, and the accuracy rate (#correct/#total) of shot boundary detection is 95.3%. Eight scene

types including pitching, base, running, other, close-up, player, in-field, and outfield are classified using the features of global motion, color distribution, and object information. As presented inTable 4, the experimental results show that all the pitching scenes can be correctly detected (recall rate = 100%) with a precision rate of

Fig. 12. Similar play region transitions in (a) ground out and (b) double play.

Fig. 13. Comparison between (a) foul ball and (b) home run.

(11)

90.4%, and the overall precision and recall rates of scene classifica-tion are about 85%. Despite the satisfying results of scene classifi-cation, the average precision and recall rates of baseball event classification for[21]are about 74%, as shown inTable 5. The crit-ical factor causing errors in the event classification is that only one key-frame extracted for each video shot is insufficient. A field shot following the ball batted out may contain more than one scene. The scene transitions within a shot bring significant information, but if only one key-frame is extracted for the shot, much informa-tion may be neglected. This is also why our proposed system per-forms within-shot frame type classification.

In Fleischman’s temporal feature induction (TFI)-based method

[20], temporal patterns are mined from the low-level features of scene types (pitch/field/other), camera motions (pan/tilt /zoom), and sound classes (speech/cheer/music) for baseball event classifi-cation. The maximum depth of the temporal pattern mined is set to five, which is verified by Fleischman et al.[20]to result in a peak performance. The results of the TFI-based baseball even classifica-tion of Fleischman et al.[20]are presented inTable 6, wherein the average precision and recall rates are about 64%. Compared with our proposed system, Fleischman’s work adds audio features and exams the temporal relations among features. However, only three scene types (pitch/field/other) used in Fleischman et al.[20]seem unable to bring sufficient information to classify various baseball events effectively. Overall speaking, our proposed system has the advantage of extracting the information of the ball movement and scene transitions within a single shot, which significantly assists in classifying various ball hitting events. The experimental results and comparison indicate that our proposed method

outperforms Lien’s HMM-based event classiﬁcation[21] and Fle-ischman’s temporal feature induction (TFI)-based method[20]. 7. Applications

7.1. Highlight clip extraction by user-designated query

We have implemented a preliminary prototype of the user interface of the proposed baseball exploration system, as shown inFig. 15. The video is displayed in area A and the visual presenta-tion of the video analysis is provided in B. Area C gives the informa-tion about the detected spatial patterns. Furthermore, users are allowed to designate play region types in D for exploration. The highlight clips containing the user-designated play region types are retrieved and listed in E with their respective annotation strings.

7.2. Storyboard production

To quickly browse numerous baseball video clips, a storyboard which provides a concise video content representation based on the video content would be really appreciated.Fig. 16shows some storyboard examples of baseball games. A storyboard allows the users to have an idea of the video content without having to watch the video entirely. Recently, storyboard production has been the goal of the so-called video summarization techniques, which compute the difference between frames and/or the importance of each frame based on visual features for extracting the relevant frames. In this section, we present an approach to produce compact and complete storyboards with high expressiveness and informa-tion for baseball video clips based on the annotainforma-tion strings gener-ated in Section4.

Storyboard production involves an important task: the selection of the relevant frames to be displayed. Since a pitch shot has little camera motion, the frames in a pitch shot are similar to each other. Thus, no matter which frame is chosen as the relevant frame for storyboard production, users are able to perceive that the shot is to convey the pitch action (please see the leading picture of each row inFig. 16). Similarly, users can have an idea that a shot is to present the overview of the audience or the close-up of the pitcher, batter or couch after seeing one of the frames in the idle shot. Hence, for computational simplicity, we select the ﬁrst frame of a pitch shot or an idle shot as the relevant frame to be displayed in the storyboard.

However, in a field shot, the camera tends to follow the ball moving in the field. Only one frame cannot provide adequate infor-mation for users to comprehend the route of the ball batted out. How to select as few relevant frames in a field shot as possible but to provide adequate information is the major problem we as-pire to work out. In Section4, we classify the frame types based on the visual features and spatial patterns in the baseball field. Thus, we can further divide a field shot into sub-shots in each of which the frames have the same play region type. We can say that the frames in a sub-shot are similar semantically and visually, since they contain the same spatial patterns and have similar vi-sual features. Hence, only one frame for each sub-shot needs to be displayed in the storyboard. Here, we select the middle frame in a sub-shot as the relevant frame because the middle frame is distinct from the frames in the neighboring sub-shots while the frames close to the boundaries of the sub-shot might be similar to the frames in the neighboring sub-shots. TakeFig. 10for exam-ple. The play regions appearing in the field shot are IL (infield left, frames #1–27), PS (player in soil, frame #28–78), IR (infield right, frames #79–102), and B1 (first base region, frames #103–142). Thus, the field shot is divided into four sub-shot, and the frames

Table 4

Scene classiﬁcation results of Lien et al.[21].

Scene type Total Correct False alarm Precision (%) Recall (%)

1. Pitching 113 113 12 90.4 100 2. Base 19 13 5 72.2 68.4 3. Running 44 38 17 69.1 86.4 4. Other 42 33 24 57.9 78.6 5. Close-up 101 71 4 94.6 70.3 6. Player 17 15 3 83.3 88.2 7. Inﬁeld 69 64 0 100 92.8 8. Outﬁeld 59 47 5 90.4 79.7 Overall 464 394 70 84.9 84.9 Table 5

Performance of HMM-based event classiﬁcation of Lien et al.[21].

Event type Total Correct False alarm Precision (%) Recall (%)

1. Base hit 41 27 8 77.1 65.9 2. Ground out 37 37 16 69.8 100 3. Air out 35 20 5 80.0 57.1 4. Strike out 0 – – – – Overall 113 84 29 74.3 74.3 Table 6

Performance of TFI-based event classiﬁcation of Fleischman et al.[20]. Event type Total Correct False alarm Precision (%) Recall (%)

1. Home run 6 3 3 50.0 50.0 2. Outfield hit 30 18 18 50.0 60.0 3. Outfield out 25 12 11 52.2 48.0 4. Infield hit 5 1 0 100 20.0 5. Infield out 47 38 9 80.9 80.9 6. Strike out 0 – – – – 7. Walk 0 – – – – Overall 113 72 41 63.7 63.7

(12)

#14, #53, #90, and #122 are selected to be displayed in the story-board. In this way, we are able produce a storyboard which uses as few frames as possible to provide adequate information and con-vey the video content.

7.3. Similar event retrieval

Usually, after viewing a highlight clip, users tend to view some other similar or relevant highlight clips. Furthermore, baseball fans

and professionals may have interests in some special events, high-lights or speciﬁc defense patterns. They would like to retrieve sim-ilar ball hitting events from different games for viewing and comparison. In this section, we propose an effective algorithm to retrieve similar ball hitting events based on the proposed spatial pattern detection and frame type classiﬁcation method.

Similar event retrieval involves two aspects: one is the choice of representation for the data and the other is the deﬁnition of simi-larity measurement. In Section4, we present a method to classify

Fig. 16. Storyboards of baseball games.

(13)

the frames of a ball hitting clip into 16 categories. Thus, each ball hitting event can be represented as a sequence of play region labels (one label per frame). Then, we can apply the dynamic program-ming algorithm of string-edit distance[32]to measure the distance (dissimilarity) between ball hitting events. The distance between two strings is deﬁned as the minimum number of edit operations. The edit operations include:

Insertion: IL B3 IR B1 ? IL B3 PS IR B1. Deletion: IC IL B3 IR B1 ? IL B3 IR B1. Substitution: IC IL B3 IR B1 ? IC IL PS IR B1.

Finally, similar sequences are listed according to their distances to the query sequence in ascending order, together with story-boards and play region strings. An example of similar batting event retrieval is shown inFig. 17.

To evaluate the effectiveness of the proposed similar event retrie-val approach, we use 40 randomly selected query sequences and cal-culate the average precision for top-k returned similar ball hitting events. Here, we select k = 1, 3, 5, and 10.Fig. 18illustrates the exper-imental results, where the horizontal axis indicates k and the verti-cal axis gives the precision. We can see that the precisions of top-3 and top-5 retrieved results are about 85% and 80%, respectively. Even

(14)

though the precision goes down to 64% for top-10 returned results, we still can say that the application of similar event retrieval indeed assists baseball fans and professionals in retrieving, viewing, and comparing similar ball hitting events from different games. 8. Conclusions and future work

In this paper, we propose a HMM-based ball hitting event exploration system for broadcast baseball video capable of spatial pattern detection, frame type classiﬁcation and event recognition. Convincing results and encouraging performance are obtained. Furthermore, the proposed system also facilitates extensive appli-cations, such as highlight clip extraction by user-designated query, storyboard construction and similar event retrieval.

Compared with existing works on baseball video analysis, the proposed system has some outstanding points. Based on the base-ball domain knowledge, we utilize the well-defined field layout and the game-specific spatial patterns to extract more explicit information within a field shot via frame classification, instead of the shot classification which most of the existing works execute. Up to 10 spatial patterns, 16 frame types, and 11 ball hitting events are analyzed and recognized to enhance the robustness and practi-cability of our system. Extensive applications can be developed based on our proposed spatial pattern detection, frame type classi-fication and event recognition.

There are some limitations in our scheme that open the doors for new exploration. First is that the spatial pattern B2 is easily missed or mis-detected, which might causes errors in the subse-quent processing of frame type classification and event recogni-tion. Since B2 is typically located on the vertical bisector of the field, it is a possible solution to utilize the symmetry of field layout to assist in detecting and identifying B2. Besides, we will apply the proposed system to the video sequences of higher resolution, in which spatial patterns are clearer, and it can be expected that high-er accuracy will be achieved. Second, our proposed system works well on MLB and JPB games with prototypical field/stadium outs. However, some baseball fields/stadiums have different lay-outs. For example, Koushien baseball stadium, which is one of the most famous baseball stadiums in Japan, has no grass in the in-field. Our proposed method may not be able to detect the pitch mound (PM) well for this type of baseball stadiums. We have ongo-ing research for more robust spatial pattern recognition so as to adapt our system to more kinds of baseball video sources. The last limitation is that the proposed system cannot distinguish two dif-ferent events of similar play region transitions. Possible solutions includes: (1) utilizing scoreboard information to solve some ambi-guities of baseball events, (2) locating players and tracking the ball to raise the accuracy of event classification. Furthermore, we will

Plan’’ of the National Chiao Tung University and Ministry of Educa-tion, Taiwan, R.O.C., and in part by National Science Council of R.O.C. under the Grant Nos. 98-2221-E-009-091-MY3 and 101-2218-E-009-004-.

References

[1] J. Wang, C. Xu, E. Chng, H. Lu, Q. Tian, Automatic composition of broadcast sports video, Multimedia Systems 14 (4) (2008) 179–193.

[2] X. Yu, H.W. Leong, C. Xu, Q. Tian, Trajectory-based ball detection and tracking in broadcast soccer video, IEEE Transactions Multimedia 8 (6) (2006) 1164– 1178.

[3] G. Zhu, C. Xu, Q. Huang, Y. Rui, S. Jiang, W. Gao, H. Yao, Event tactic analysis based on broadcast sports video, IEEE Transactions Multimedia 11 (1) (2009) 49–67.

[4] X. Yu, N. Jiang, L.F. Cheong, H.W. Leong, X. Yan, Automatic camera calibration of broadcast tennis video with applications to 3D virtual content insertion and ball detection and tracking, Computer Vision and Image Understanding 113 (5) (2009) 643–652.

[5] G. Zhu, C. Xu, Q. Huang, W. Gao, L. Xing, Player action recognition in broadcast tennis video with applications to semantic analysis of sports game, in: Proceedings 14th annual ACM International Conference on Multimedia, 2006, pp. 431–440.

[6] E. Kijak, G. Gravier, L. Oisel, P. Gros, Audiovisual integration for tennis broadcast structuring, Multimedia Tools and Applications 30 (3) (2006) 289– 311.

[7] H.-T. Chen, M.-C. Tien, Y.-W. Chen, W.-J. Tsai, S.-Y. Lee, Physics-based ball tracking and 3D trajectory reconstruction with applications to shooting location estimation in basketball video, Journal of Visual Communication and Image Representation 20 (2009) 204–216.

[8] M.-C. Hu, M.-H. Chang, J.-L. Wu, L. Chi, Robust camera calibration and player tracking in broadcast basketball video, IEEE Transactions on Multimedia 13 (2) (2011) 266–279.

[9] S. Liu, M. Xu, H. Yi, L.-T. Chia, D. Rajan, Multimodal semantic analysis and annotation for basketball video, EURASIP Journal on Applied Signal Processing (2006) 1–13.

[10] H.-T. Chen, H.-S. Chen, S.-Y. Lee, Physics-based ball tracking in volleyball videos with its applications to set type recognition and action detection, in: Proceedings of IEEE International Conference on Acoustics, Speech and, Signal Processing, 2007, pp. I-1097–I-1100).

[11] M. Kumano, Y. Ariki, K. Tsukada, S. Hamaguchi, H. Kiyose, Automatic extraction of PC scenes based on feature mining for a real time delivery system of baseball highlight scenes, in: Proceedings of IEEE International Conference on Multimedia and Expo, 2004, pp. 277–280.

[12] L.-Y. Duan, M. Xu, Q. Tian, A uniﬁed framework for semantic shot classiﬁcation in sports video, IEEE Transactions on Multimedia 7 (2005) 1066–1083.

[13] H. Shum, T. Komura, Tracking the translational and rotational movement of the ball using high-speed camera movies, in: Proceedings of IEEE International Conference on Image Processing, 2005, pp. 1084–1087.

[14] H.-T. Chen, H.-S. Chen, M.-H. Hsiao, Y.-W. Chen, S.-Y. Lee, A trajectory-based ball tracking framework with enrichment for broadcast baseball videos, in: Proceedings of International Computer Symposium, 2006, pp. 1145–1150. [15] A. Gueziec, Tracking pitches for broadcast television, Computer 35 (2002) 38–

43.

[16] H.-T. Chen, C.-L. Chou, W.-J. Tsai, S.-Y. Lee, J.-Y. Yu, Extraction and representation of human body for pitching style recognition in broadcast baseball video, in: Proceedings of IEEE International Conference on Multimedia Expo, 2011.

[17] M.-H. Hung, C.-H. Hsieh, Event detection of broadcast baseball videos, IEEE Transactions on Circuits and Systems for Video Technology 4 (2008) 3829– 3832.

[18] W.-T. Chu, J.-L. Wu, Explicit semantic events detection and development of realistic applications for broadcast baseball videos, Multimedia Tools and Applications 38 (1) (2007) 27–50.

[19] Y. Gong, M. Han, W. Hua, W. Xu, Maximum entropy model-based baseball highlight detection and classiﬁcation, Computer Vision and Image Understanding 96 (2004) 181–199.

[20] M. Fleischman, B. Roy, D. Roy, Temporal feature induction for baseball highlight classiﬁcation, in: Proc. ACM Multimedia Conference, 2007, pp. 333– 336.

(15)

[21] C.-C. Lien, C.-L. Chiang, C.-H. Lee, Scene-based event detection for baseball videos, Journal of Visual Communication and Image Representation 18 (2007) 1–14.

[22] C.-C. Cheng, C.-T. Hsu, Fusion of audio and motion information on HMM-based highlight extraction for baseball games, IEEE Transactions on Multimedia 8 (2006) 585–599.

[23] T. Mochizuki, M. Tadenuma, N. Yagi, Baseball video indexing using patternization of scenes and hidden Markov model, in: Proc. IEEE International Conference on Image Processing, 2005, pp. 1212-1215. [24] P. Chang, M. Han, Y. Gong, Extract highlights from baseball game video with

hidden Markov models, in: Proc. of the IEEE International Conference on Image Processing, 2002, pp. 609–612.

[25] A. Hanjalic, Shot-boundary detection: unraveled and resolved?, IEEE Transactions on Circuits and Systems for Video Technology 12 (2) (2002) 90–105

[26] D. Farin, S. Krabbe, P.H.N. de With, W. Effelsberg, Robust camera calibration for sport videos using court models, SPIE Storage and Retrieval Methods and Applications for Multimedia 5307 (2004) 80–91.

[27] D. Farin, J. Han, P.H.N. de With, Fast camera calibration for the analysis of sport sequences, in: Proc. IEEE International Conference on Multimedia and Expo, 2005, pp. 482–485.

[28] B. Jähne, Digital Image Processing, Springer Verlag, 2002.

[29] R.C. Nelson, Finding line segments by stick growing, IEEE Transactions on Pattern Analysis and Machine Intelligence 16 (1994) 519–523.

[30] L.R. Rabiner, A tutorial on hidden Markov models and selected applications in speech recognition, Proc. IEEE 77 (2) (1989) 257–286.

[31] R. Rabiner, B.H. Juang, An introduction to hidden Markov models, IEEE Signal Processing Magazine 3 (1) (1986) 4–16.

[32] E.S. Ristad, P.N. Yianilos, Learning string-edit distance, IEEE Transactions on Pattern Analysis and Machine Intelligence 20 (5) (1998) 522–532.

[33] H.-T. Chen, W.-J. Tsai, S.-Y. Lee, Contour-based strike zone shaping and visualization in broadcast baseball video: providing reference for pitch location positioning and strike/ball judgment, Multimedia Tools and Applications 47 (2) (2010) 239–255.
