Full-wave seismic illumination and resolution analyses:
A Poynting-vector-based method
Zhe Yan
1and Xiao-Bi Xie
2ABSTRACT
Illumination and resolution analysis provides vital information regarding the response of an imaging system to subsurface struc-tures. However, generating the resolution function is often com-putationally intensive, which prevents it from being widely used in practice. This problem is particularly severe for the time-domain migration method, such as reverse time migration (RTM). To solve this problem, we have developed a fast full-wave-based illumina-tion and resoluillumina-tion analysis method. The source- and receiver-side waves are extrapolated to the subsurface for simulating the imag-ing process. To create the relations linkimag-ing the incident and scat-tering directions to the target wavenumber components, we have adopted an efficient Poynting-vector-based method for wavefield
angle decomposition. By taking the approximation that the time-domain wavefield preserves the source spectrum during propaga-tion, massive input/output and trace-by-trace Fourier transform can be avoided and the finite-frequency calculated broadband sig-nal can be directly converted to the wavenumber domain for cal-culating the point spreading functions (PSFs). Combining these approaches, the resulting method avoids intensive calculations, massive input/output, and huge storage requirements commonly involved in generating the illumination and resolution functions. The method is highly efficient and particularly suitable to team with RTM for resolution analysis. Numerical examples are used to validate this method. We have determined how to calculate the acquisition dip response and PSFs, based on which, the quality of the depth image can be significantly improved.
INTRODUCTION
Illumination analysis has been widely used in optimizing the acquisition system design, evaluating the image quality, and cor-recting for the distorted depth image caused by uneven illumination. To calculate the illumination measurement, the source and receiver waves should be extrapolated to the subsurface target area. The illumination and resolution calculations are closely related to the propagation angles of incidence and scattering waves and the target structural dip angle. Therefore, the earlier illumination and resolu-tion analyses were built on ray-based methods because they naturally provided directional information (Hubral et al., 1999;
Schneider and Winbow, 1999; Bear et al., 2000; Muerdter and Ratcliff, 2001;Gelius et al., 2002). However, the ray-based methods are limited by the high-frequency asymptotic approximation ( Hoff-mann, 2001); thus, the wave-equation-based methods were adopted for the illumination calculation.
Because the wave-equation-based methods do not explicitly provide the propagation direction, several methods were developed to extract angle information from the wavefield. These methods can be separated under two categories. The first group uses the integral method, e.g., the local-plane wave decomposition and wavelet transform-based methods (Xie and Lay, 1994; Wu and Chen, 2002, 2006;Xie and Wu, 2002;Mao et al., 2010), local Fourier transform-based methods (Xu et al., 2010, 2011; Zhang et al., 2010), and methods that convert the local offset-domain image into local angle-domain image (de Bruin et al., 1990;Prucha et al., 1999;
Sava and Fomel, 2003). The second group uses the differential method, e.g., the Poynting-vector- or gradient-vector-based method (Yoon and Marfurt, 2006;Yoon et al., 2011;Zhang and McMechen, 2011). The differential type methods require only the calculation of spatial or temporal derivatives at given locations. Instead, the inte-gral type methods analyze the wavefield within a neighboring region with the dimension of a wavelength. Therefore, the latter
Manuscript received by the Editor 2 January 2016; revised manuscript received 9 July 2016; published online 07 September 2016.
1China University of Geosciences, Institute of Geophysics and Geomatics, Wuhan, China and University of California, IGPP, Santa Cruz, California, USA. E-mail: [email protected].
2University of California, IGPP, Santa Cruz, California, USA. E-mail: [email protected]. © 2016 Society of Exploration Geophysicists. All rights reserved.
S447
involves more calculations and is much more time consuming. However, compared with the differential method, the integral meth-od is physically sound, more reliable, and can handle cases such as multiply simultaneously arriving waves. Depending on the pur-poses, trade-offs between the accuracy and efficiency are often re-quired. Yan and Xie (2012)and Jin et al. (2014)review various angle decomposition methods. These methods have been combined with the one-way propagator and successfully used in illumination and resolution analyses (Wu and Chen, 2002,2006;Jin and Wal-raven, 2003;Xie et al., 2003,2006;Jin et al., 2006;Mao et al., 2010;Mao and Wu, 2011). Recently, along with the increasing ap-plications of the reverse time migration (RTM), there have been de-mands for the full-wave-based illumination analysis technique.Xie and Yang (2008)propose the illumination and resolution analysis method based on the time-domain local slowness analysis.Cao and Wu (2009a),Yan and Xie (2012), andYan et al. (2014)propose the illumination method based on the frequency-domain angle decom-position. An alternative method, which first calculates the point spreading function (PSF) by directly imaging a point scatter, fol-lowed by converting the PSF into the wavenumber domain for il-lumination analysis, was also proposed (Fletcher et al., 2012;Cao, 2013;Chen and Xie, 2015;Valenciano et al., 2015).
Illumination and resolution analysis provides useful information for image correction.Rickett (2003)applies wave-equation-based illumination analysis to normalize the depth image. Based on the ray-tracing method, Gelius et al. (2002), Sjoeberg et al. (2003), andLecomte (2008)derive the resolution function and use it to cor-rect the image in the wavenumber domain. Based on the one-way propagator,Xie et al. (2005)propose to correct the image using the PSF.Wu et al. (2004,2006),Cao and Wu (2009b), andMao and Wu (2010) use the wavelet transform for illumination and resolution analysis.Fletcher et al. (2012)use the resolution for post image in-version.Yang et al. (2013)use an illumination compensation strategy for wavefield tomography in the image domain.Cao (2013)andYan et al. (2014)test image correction for the full-wave RTM image.
In this paper, we propose an efficient illumination and resolution analysis method under the full-wave frame, in which the angle-domain information is extracted using the Poynting vector. We first briefly review the relationship between the seismic image and the illumination and resolution functions. Then, we present the method to calculate the local illumination matrix (LIM) and convert it to the PSF and the acquisition dip response (ADR). Numerical examples are used to demonstrate the proposed method in illumination and resolution analysis.
METHODOLOGY
Using a survey system composed of a source at xsand a receiver
at xg to investigate a small target region VðxÞ in the vicinity of
location x, the seismic data recorded at xg can be expressed as
(e.g.,Wu et al., 2007) Dðx;xg;xs;ωÞ¼sðωÞ Z VðxÞ k20Gðx0;xs;ωÞMðx0ÞGðx0;xg;ωÞdx0; (1) whereω is the frequency, x0is the local coordinate defined inside the VðxÞ, k0¼ ω∕c0ðxÞ is the local wavenumber, c0ðxÞ is the back-ground velocity, Mðx0Þ ¼ δcðx0Þ∕cðxÞ is the relative velocity
per-turbation, δcðx0Þ is the velocity perturbation, sðωÞ is the source spectrum, Gðx0; x
s;ωÞ is the Green’s function propagating the wave
from xsto the target at x0, and Gðx0; xg;ωÞ is the Green’s function
propagating the wave from the target to the receiver at xg. Both
these Green’s functions are calculated in the background model, and the reciprocity Gðx0; x
g;ωÞ ¼ Gðxg; x0;ωÞ is used. For an
ac-quisition system composed of multiple sources and receivers, the depth image at x0 0 can be expressed as
Iðx; x0 0;ωÞ ¼ sðωÞX xs X xg Gðx0 0; xs;ωÞ × Dðx; x g; xs;ωÞGðx0 0; xg;ωÞ: (2)
Substituting equation 1into equation 2, the depth image can be expressed as (e.g.,Xie et al., 2005;Yan et al., 2014)
Iðx; x0 0;ωÞ ¼ Z VðxÞ Mðx0ÞRðx; x0; x0 0;ωÞdx0; (3) where Rðx;x0;x00;ωÞ¼2k20sðωÞsðωÞ ×X xs X xg Gðx00;xs;ωÞGðx0;xs;ωÞGðx0;xg;ωÞGðx00;xg;ωÞ: (4) The resolution function Rðx; x0; x0 0Þ, through forward and
back-ward propagations, maps the velocity perturbation at x0to the image at x0 0. Because of the limitations of the system, e.g., the incomplete acquisition aperture or the error in migration velocity model, it may not exactly map the perturbation to its original location, causing the image smearing. Thus, Rðx; x0; x0 0Þ is also known as the PSF that is
the response of the imaging system to a point scatter (Chen and Schuster, 1999;Gelius et al., 2002;Gibson and Tzimeas, 2002;Xie et al., 2005). Equation3is similar to a convolution, i.e., the PSF convolving with the velocity perturbation to give the image. How-ever, Rðx; x0; x0 0Þ is localized; i.e., it is defined near location x and
varies in the space due to the variable illumination. Introducing the local Fourier transform over VðxÞ, the space convolution in equa-tion3can be converted into the multiplication in the wavenumber domain kd¼ ksþ kg (Gelius et al., 2002;Xie et al., 2005)
Iðx; kd;ωÞ ¼ Rðx; kd;ωÞ · Mðx; kdÞ; (5) where Mðx; kdÞ ¼ Z VðxÞ Mðx0Þeikd·x0dx0; (6) Rðx; kd;ωÞ ¼ 2k20sðωÞsðωÞ X xs X xg Aðx; kd; xs; xg;ωÞ; (7) and
Aðx;kd;xs;xg;ωÞ ← kd¼ksþkg
Gðx;ks;xs;ωÞGðx;kg;xg;ωÞGðx;ks;xs;ωÞGðx;kg;xg;ωÞ;
(8) where kd¼ ksþ kgis the wavenumber related to structural dip, ks
and kgare the incident and scattered wavenumbers near the image
point, and Rðx; kd;ωÞ is the wavenumber-domain PSF. The
map-ping in equation8converts the response fromðks; kgÞ, the
wave-number domain in acquisition coordinate, to kd, the wavenumber
domain in target coordinate (refer to Figure1).
Given the acquisition system and the overburden structure, meth-ods have been proposed to calculate Rðx; kdÞ or Rðx; x0Þ, followed
by using it in seismic illumination and resolution analyses (Xie et al., 2006;Lecomte, 2008). It is relatively straightforward to cal-culate the Rðx; kdÞ using the frequency-domain method. For a
time-domain method such as the finite difference, theoretically, one can use Fourier transform to convert the entire time-space wavefield into frequency domain. Then, the wavefield can be decomposed into its wavenumber component by using the local slant stacking or local fast Fourier transform (FFT), followed by calculating the PSF using equations7and 8(Yan et al. 2014). However, such a procedure often involves intensive calculations, huge input/output, and storage and is computationally inefficient. Instead, we propose using the Poynting vector to decompose the wavefield into its angle compo-nent directly in time domain. Then, by assuming the frequency con-tents are unchanged during the propagation, the broadband signal can be directly converted into its frequency component. Finally, this frequency-angle-domain information is used in equations7and8to create the PSF. The resulted method is highly efficient.
Given a broadband source time function, such as a Ricker wave-let, the finite-difference calculated wavefield can be expressed as
uðx; xs; tÞ ¼
Z
sðωÞGðx; xs;ωÞe−iωtdω: (9)
Using the Poynting vector method, the source wavefield can be decomposed into a superposition of local beams uðx; xs; tÞ ¼
P
θsuðx; θs; xs; tÞ, where θsis the local incident angle, and
uðx; θs; xs; tÞ ¼
Z
sðωÞGðx; θs; xs;ωÞe−iωtdω: (10)
We calculate the average mean square amplitude of equation10
within a short time intervalT 1 T Z u2ðx;θs;xs;tÞdt ¼ Z sðωÞsðωÞGðx;θs;xs;ωÞGðx;θs;xs;ωÞdω: (11)
Assuming that, during the propagation, the wavefield keeps its spectrum unchanged, we have
Gðx; θs; xs;ωÞGðx; θs; xs;ωÞ
¼ 1
TR½sðωÞsðωÞdω
Z
u2ðx; θs; xs; tÞdt: (12)
Similarly, for receiver-side wave, we have
Gðx; θg; xg;ωÞGðx; θg; xg;ωÞ
¼ 1
TR½sðωÞsðωÞdω
Z
u2ðx; θg; xg; tÞdt; (13)
whereθg is the local scattered angle.
From equations12and13, we can create the LIM for the acquis-ition system (Xie et al., 2006)
LIMðx;θs;θg;ωÞ¼2k20sðωÞsðωÞ X xs X xg Aðx;θs;θg;xs;xg;ωÞ; (14) where Aðx;θs;θg;xs;xg;ωÞ ¼Gðx;θ s;xs;ωÞGðx;θg;xg;ωÞGðx;θs;xs;ωÞGðx;θg;xg;ωÞ; ¼ 1 T2nR½sðωÞsðωÞdω o2Z u2ðx;θs;xs;tÞdt × Z u2ðx;θg;xg;tÞdt: (15)
TheLIMðx; θs;θg;ωÞ can be directly calculated from the
time-domain wavefield. We convert it to Rðx; kd;ωÞ for resolution
analy-sis. The LIM (equations14and15) is similar to the PSF in equa-tions7and8, except that the former decomposes the illumination into the incidence/scattering angle domainθsandθg, and the latter
decomposes the illumination into dip wavenumber domain kd.
In-tegrating their components sums up all angle-dependent illumina-tion together, and the two should be equivalent with each other. Therefore, we integrate equation15with respect to dθsdθgand then
convert variables fromðθs;θgÞ to ðkd;θdÞ
Z Aðx; θs;θg; xs; xg;ωÞdθsdθg ¼ Z Aðx; kd;θd; xs; xg;ωÞJ ∂ðθs;θgÞ ∂ðkd;θdÞ dkddθd; (16)
Figure 1. Cartoon showing the coordinate system.
where kd¼ jkdj and θdis the dipping angle, J½∂ðθs;θgÞ∕∂ðkd;θdÞ
is the Jacobian. The coordinate transforms involve first rotating the incident/scattering anglesðθs;θgÞ to dipping/reflection angles
ðθd;θrÞ with θd¼ ðθsþ θgÞ∕2 and θr¼ ðθs− θgÞ∕2 (refer to
Figure1), followed by converting them to the dipping wavenumber domainðkd;θdÞ with kd¼ 2k0cos θrandθd¼ θd(refer to
Alkha-lifah, 2015;Xie, 2015). The two transforms can be combined into ( θs¼ θdþ cos−1ð kd 2k0Þ; θg¼ θd− cos−1ð kd 2k0Þ: (17) The Jacobian is J ∂ðθ s;θgÞ ∂ðkd;θdÞ ¼ 1 k0 ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi 1 −kd 2k0 2 r : (18) Thus, we have Aðx;kd;xs;xg;ωÞ ¼A x; θdþcos−1 kd 2k0 ; θd−cos−1 kd 2k0 ;xs;xg;ω × 1 k0 ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi 1−kd 2k0 2 r : (19)
Substituting equation 15into equation19, and then into equa-tion7, the PSF can be calculated from the LIM
Rðx; kd;ωÞ ¼ 2sðωÞsðωÞk2 0 T2R½sðωÞsðωÞdω 2 ×X xs X xg Z u2 x; θdþ cos−1 kd 2k0 ; xs; t dt × Z u2 x; θd− cos−1 kd 2k0 ; xg; t dt × 1 k0 ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi 1 −kd 2k0 2 r : (20)
Illumination response for a locally planar reflector at target loca-tion x with a dipping angleθdis defined as the ADR (Wu et al.,
2003;Xie et al., 2006), which can be calculated from the LIM
ADRðx;θdÞ¼ Z LIM x;θdþθr 2 ; θd−θr 2 ;ω dθrdω: (21)
THE POYNTING VECTOR METHOD Poynting vector gives the wave energy flux direction. Therefore, by calculating the Poynting vector, we can obtain the wave
propa-gation direction at a given time and space location. For scalar wave equation, the Poynting vector can be calculated as (Yoon et al., 2004,2011;Yoon and Marfurt, 2006)
p¼ −∂u
∂t·∇u; (22)
whereu is the finite-difference calculated wavefield and ∇u is its spatial gradient. In a staggered-grid finite-difference scheme, the time deriva-tive and spatial gradient are intermediate variables that can be obtained without extra effort. Thus, the resulted method is highly efficient and widely used for several purposes.Yoon et al. (2004)andPestana et al. (2014)use the Poynting vector method to eliminate the low-wavenum-ber artifacts in the RTM image.Dickens and Winbow (2011)use this method to generate common angle image gathers in RTM.Wang et al. (2013)test the Poynting vector method in illumination analysis, and
Xie (2015)uses this method in the full-waveform inversion. To compare different angle measurement methods, we calculate the wave propagation directions in the BP salt model (Billette and Brandsberg-Dahl, 2005) using the local slowness analysis method (Xie and Lay, 1994;Yan and Xie, 2012;Yan et al., 2014) and the Poynting vector method, and the result is shown in Figure2. The locations of energy peaks from slowness analysis give the slowness vectors, which provide the wave propagation directions. The red arrows give propagation directions calculated using the Poynting vector method. At space-time locations where only one wavefront is encountered, the estimated directions by both methods are consis-tent. However, if more than one wavefront coexist, slowness analysis method can give propagation directions of individual waves, whereas the Poynting vector method can only provide one single propagation direction, which may be incorrect.Jin et al. (2014)indicate that the wave propagation direction estimated using the Poynting vector method may be unreliable under low amplitudes. To improve its reli-ability, certain methods were proposed, e.g., averaging the results over multiple time steps (Yoon et al., 2011), smoothing the Poynting vectors in the space domain (Dickens and Winbow, 2011), using a least-squares solution over the time or space (Yan and Ross, 2013), or using the optical flow method to stabilize Poynting vector directions (Vyas et al., 2011;Zhang, 2014). All these methods can improve the accuracy but often with large computation and/or storage cost.
Although the Poynting vector method can encounter certain dif-ficulties in a complicated wavefield, these situations usually only account for a very small portion in the entire space-time domain during the wave propagation process. Unlike in the migration, the illumination calculation does not involve the“data.” To simulate the propagation effect from the receiver side, we use the simple impulse as the“fictitious” data, which is injected from individual receiver locations one after another. Thus, the receiver-side extrapolation is simply calculating a Green’s function from the receiver location, exactly the same as dealing with a source. This largely relaxes the requirement of dealing with complex situations. To further improve the stability, we limit our measurement to within several time win-dows with most energetic arrivals. This can be easily accomplished by scanning the wavefield twice, locating the time windows in the first scan, and measuring the wave propagation directions and mean square amplitudes in located time windows in the second scan. In RTM imaging, to correlate with the time-reversed receiver wave-field, the source wavefield needs to be stored or regenerated. There-fore, the scanning procedure does not require additional calculation. In addition, this method only saves mean square amplitudes and
directions from a limited number of large-ampli-tude arrivals for later calculations, rather than save all possible directions at all space-time grids, thus tremendously reducing the input/output and stor-age requirements. By adopting the above ap-proaches, we largely avoid the weakness of the Poynting vector method.
NUMERICAL EXAMPLES Local illumination matrix
Equation 14 provides the illumination as a function in the incident/scattering angle domain ðθs;θgÞ called the LIM (Wu and Chen, 2002,
2003;Xie et al., 2006). Figure 3is a cartoon showing the structure of an illumination matrix in a 2D model. The horizontal and vertical axes denote the incidence angleθsand scattered angle
θg(refer to Figure1). As illustrated in the figure,
strips parallel to different axes or diagonals indi-cate different common angle gathers. Note that one-way propagators formulated under the Car-tesian coordinate can only handle the incident/ scattering angles between π∕2, the square circled by the dashed line, whereas the full-wave propagator used here can cover incident/scatter-ing angles up toπ.
As an example, we calculate LIMs in the 2D SEG/EAGE salt model (Aminzadeh et al., 1997). The acquisition system is composed of 325 shots
with an interval of 48.8 m. Each shot has 176 left-side receivers, with an interval of 24.4 m. The source time function is a 15 Hz Ricker wavelet. Figure4shows LIMs at selected locations, where the illumination is shown with normalized amplitudeðA∕AmaxÞ1∕2 and Amaxis the maximum illumination in the model. Because an off-end data acquisition system is used in the calculation, the energy occupies the upper-left corner in these illumination matrices. At shallow depth, the illumination covers a wide angle range, but with increasing depth, its coverage becomes narrower. At the subsalt re-gion, the illumination is weak and apparently misses certain dipping and scattering angle components because of the shadowing effect. The PSF
The PSF can be calculated using equation 20. Figure5 shows 15 Hz monochromatic PSFs calculated in the SEG/EAGE salt model, at the same locations as in Figure4. Figure6shows the broadband PSFs. Note, the maximum detectable wavenumber is proportional to 2k0. Therefore, in high-velocity region, the resolution is low and vice versa. Combining Figures4–6, we see that at shallow depth the il-lumination covers a wide angle range. However, under the salt body, the angle coverage is uneven. In Figure6g, the PSF shows very lim-ited illumination along upper-right to lower-left direction in wave-number domain, causing serious image problem to the fault along upper-left to lower-right direction in space domain.
Image correction for 2D SEG/EAGE salt model The PSF carries the full information regarding the image distor-tion, including those from the acquisition geometry and overburden

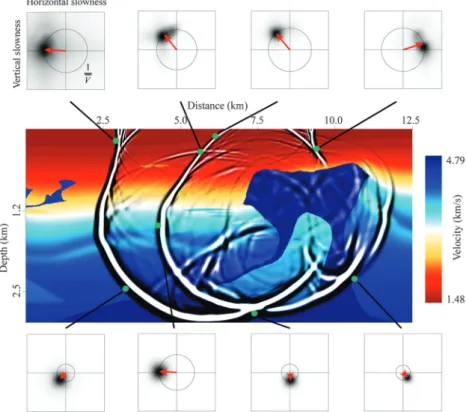

Figure 2. Comparison of wave propagation directions calculated using different methods. The energy peaks are calculated using the local slowness analysis method, and the red arrows are propagation directions calculated using the Poynting vector method.
Figure 3. Structure of a 2D LIM. The horizontal and vertical coor-dinates areθsandθg, respectively. The main and auxiliary diagonal
directions are reflection angleθrand dipping angleθd, respectively.
Different common angle gathers are shown as strips with different orientations. The square circled by the dashed line is the angle range covered by a one-way propagator.
structures. According to equation 5, the image can be seen as a convolution between the PSF and the velocity perturbation. Ideally, by decon-volving the PSF from the image in space domain or by dividing PSF from the image in wavenum-ber domain, the uneven illumination can be com-pensated, and the overall quality of the image can be improved.
As the first example, we apply the illumination and resolution analysis to the 2D SEG/EAGE salt model. To conduct the image correction, we first decompose the source and receiver waves into local beams using equations12and13. Then, use equations14and15to create LIMs as shown in Figure3. Using equations19and20, the LIMs are converted to PSFs, which are shown in Fig-ure6. Finally, by using a 2D sampling function with cosine tapers and the windowed FFT, the depth image is transformed to the local wave-number domain and corrected by the PSF. The above-mentioned process is demonstrated in Fig-ure 7. Figure 7ashows the conventional RTM image. The acquisition system is the same as that used in generating Figure4. The area marked by the white square is chosen to demonstrate the procedure of image correction. In the middle, from left to right are the conventional image sampled by the white square (Figure 7b), the wavenumber spectrum of the conventional image (Figure 7c), the wavenumber-domain PSF (Fig-ure7d), the corrected spectrum computed by di-viding panel (c) by panel (d) (Figure 7e), and corrected space-domain image (Figure7f). In Fig-ure7b, from upper left to lower right is the image of the fault. Along the upper-right to lower-left direction are several artifacts caused by internal multiples. In Figure7d, we see strong illumination along the upper-left to the lower-right direction in the wavenumber domain. The uneven illumination weakens the image of the fault and enhances artifacts. In Figure7e, after correction, the wave-number spectrum for the fault is enhanced, whereas the spectrum for the artifacts is effec-tively suppressed. After converting back to the space domain, the image for the fault is largely improved. Using the sampling window to scan the entire image and repeatedly using the correc-tion process mencorrec-tioned above, we obtain the corrected image shown in Figure7g. Comparing Figure 7a and7g, subsalt structures in the cor-rected image are more balanced, and several steep-dip structures are more emphasized. As a comparison, we apply automatic gain control (AGC) to the conventional RTM, and the result is shown in Figure7h. By comparing with Fig-ure7a, the AGC can raise the image amplitude at a deeper depth. However, comparing with Fig-ure7g, the AGC result cannot match the quality of the illumination corrected image. The image in the Figure 4. Local illumination matrices at selected locations in the 2D SEG/EAGE salt
model. At the shallow part, the target is illuminated by wide aperture, but the aperture becomes narrower with the increase of the depth. At the subsalt region, the energy is generally weak and apparently misses certain angle components due to the shadowing effect.

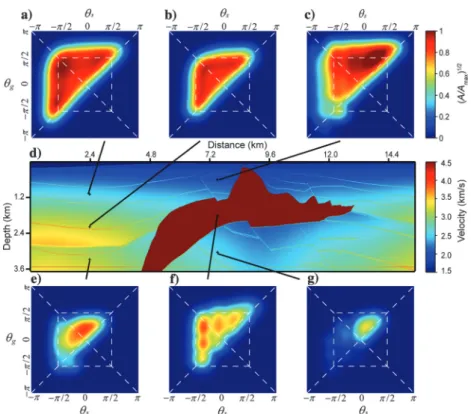

Figure 5. Wavenumber-domain PSF at selected locations in the 2D SEG/EAGE salt model, calculated using the single (dominant) frequency signal.
Figure 7. (a) The conventional RTM image for the 2D SEG/EAGE salt model, in which the area marked by a white square is chosen to demonstrate the correction procedure. (b) The original image, (c) its wavenumber spectrum, (d) wavenumber-do-main PSF, (e) corrected spectrum, and (f) corrected image. The entire corrected image is shown in (g). (h) The conventional RTM image with the AGC. Figure 6. Wavenumber-domain PSF at selected locations in the 2D SEG/EAGE salt model, calcu-lated using the broadband signal.
subsalt area is still weak, and some steeply dipping structures are missing.
The image can also be corrected using the ADR maps in the dip angle domain (Wu et al., 2004; Mao and Wu, 2011; Yan et al., 2014). First, we apply the FFT to transform the conventional RTM image shown in Figure7ato wavenumber domain, in which the image is divided into 24 equal-sized fan-shaped areas, each oc-cupying a 15° interval and using its center angle as the nominal dip angle. Using inverse FFT, the images in individual wedges are trans-formed back to space domain to form 24 common dip angle images. Figure8cand8dshows two examples atθd¼ 45°and 45°. Second,
we calculate ADR maps using equation21, and two corresponding examples are shown in Figure8aand8b. The common dip images are corrected by dividing the correspondent ADRs, and the results are shown in Figure8eand8f. Finally, sum up all 24 ADR corrected common dip images to obtain the corrected image, which is shown in Figure8g. Comparing Figures7gand8g, image corrected using the ADR is usually less accurate as that using the PSF because the former uses only the information in dip angleθd, but the latter
fur-ther uses the scale information in kd.
Image correction for the Sigsbee 2A velocity model In this example, we investigate the Sigsbee 2A salt model (Paffenholz et al., 2002). The acquisition system is composed of
500 shots with a source interval of 45.7 m. Minimum and maximum offsets are 0 and 7932 m, respectively, and the receiver interval is 22.9 m. The source is a 20 Hz Ricker wavelet. The conventional RTM image is shown in Figure 9a. Because subsalt structures are nearly horizontal, shown in Figure9bis the 0° ADR map, which is generated by half of the sources and receivers used for the RTM. From the ADR map, we see that near-horizontal structures below the overhang part of the salt body are poorly illuminated. These areas are responsible for the missing image in the RTM result (circled by ellipses). Similar to the previous example, we use the PSF to correct the RTM image, and the result is shown in Figure10a. Compared with the conventional RTM image in Figure9a, the im-age quality is significantly improved. In general, the amplitudes are more balanced, particularly in the subsalt region. By magnification in the areas labeled by white squares, Figure10band10dshows the enlarged details in the corrected image. Compared with the conven-tional images shown in Figure10cand10e, the corrected images have consistent layered structures that can be traced to closer to the salt flank, improved focusing to point like scatters, and generally sharper images. Comparing Figure10awith Figure9a, the correc-tion also removes long-wavelength artifacts in the image (can also be shown in Figure7). At shallow depth, the PSFs have very strong near-zero-wavenumber components generated by diving waves, the same source causing the low-wavenumber artifacts. After dividing
Figure 8. (a and b) The−45° and 45° ADR maps, (c and d) correspondent common-dip images, (e and f) common-dip images after ADR correction, and (g) the final image after summing up partial images for all dipping angles.
the PSF in wavenumber domain, low-wavenumber artifacts are ef-fectively eliminated from the image.
COMPUTATIONAL ISSUES AND THE EFFICIENCY OF THE METHOD
From the formulations of the illumination and resolution analy-sis, we see that intensive computations are required to calculate Green’s functions and decompose the wavefield into angle compo-nents. In RTM imaging, the wavefield needs to be extrapolated from sources to the subsurface. If the illumination and resolution analysis is accompanying the imaging (e.g., for related quality control or im-age correction purpose), we actually use the existing source wave-fields as the Green’s functions without having to recalculate them. In the resolution calculation, one of the important steps is converting the measurement from the incident/scattering angle domain to dip-ping wavenumber domain (equation 20). Because ðθs;θgÞ and
ðkd;θdÞ are defined in discretized grids, proper interpolations should
be adopted.
The illumination and resolution related functions, the LIM, PSF, and ADR, are all slowly varying functions. We can use a coarser grid to calculate these functions and use interpolation to extend them to the entire model. In addition because the illumination calculation is intrinsically a modeling, there is no noise being involved. Their
calculations usually do not need as much of sources and receivers used in a RTM. Taking the 2D SEG/EAGE salt model as an example, we calculate the 45° ADR map using different grid sizes and numbers of sources and receivers. The results are shown in Figure11, in which Figure11ashows the ADR calculated for all grid points using all sources and receivers as used in the RTM. Figure 11bshows the ADR calculated for a2 × 2 interval, and interpolated to every point. Figure11cshows the ADR calculated for a3 × 3 interval, and inter-polated to every point. We see even using the3 × 3 interval, the result is still acceptable. Note that in a 3D case, using the2 × 2 × 2 interval can cut the calculation and storage to one-eighth, and using the3 × 3 × 3 interval can cut the cost to 1/27. Figure 11dand11eshows ADRs calculated using one-half and one-quarter of the sources
Figure 9. (a) The conventional RTM image of the Sigsbee 2A model and (b) the ADR map for horizontal (zero dipping angle) reflector.

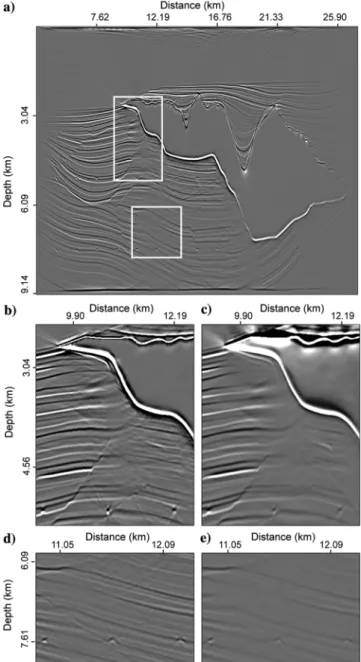

Figure 10. (a) Corrected RTM image by deconvolving with the PSF. To illustrate the details, (b and d) are enlarged corrected im-ages indicated by white squares in (a), and (c and e) are original images at the same area.
and receivers. The results show that, even with one quarter of the sources and receivers, the generated ADR maps are still reasonably accurate, except at very shallow depth. In correcting the RTM image using the PSF, we actually sample the image using a21 × 21 space window. After correction, we use5 × 5 corrected pixels at the center of the sampling window to reconstruct the corrected image. Then, move the sampling window according to a5 × 5 interval to scan the model and repeat the calculation. In this way, the PSFs are only calculated in a5 × 5 interval. All the above-mentioned parameters can be adjusted by trade-off between the quality and efficiency and the resulted method can be highly flexible.
The illumination and resolution analysis is a useful tool as a sup-plement to seismic imaging, but it usually demands intensive cal-culations and huge storage, which prevent it from being used in practice. This problem is particularly severe for the time-domain migration, such as the RTM. We introduce several techniques to mitigate the efficiency and storage problem encountered in the broadband analysis, i.e., (1) measuring the wave propagation direc-tion using the Poynting vector method, (2) selecting several most en-ergetic phases to calculate and store, instead of measuring the entire wave train, and (3) assuming the wavefield preserves the source spec-trum instead of actually calculating Fourier transforms of waveforms. For a typical 2D case, if the illumination analysis is conducted along
with the RTM, compared with the time spend by the RTM itself, the angle decomposition using the Poynting vector at a 1 × 1 interval takes approximately 10%–20% of extra time. Creating the LIM and ADR at a1 × 1 interval using all sources and receivers spends approximately 10% of extra time. Creating the PSF and conduct the image correction at a5 × 5 interval will take approximately 20% ad-ditional time. Although current numerical examples are all calculated in 2D models, extending the method to 3D is straightforward. Under the 3D case, the integral type methods for angle decomposition are extremely slow. Roughly speaking, to extend the problem from 2D to 3D, the differential type methods (e.g., the Poynting vector method) will increase computations by a factor of Ny, but the integral type
methods will increase computations by a factor of Ny× L, where
Nyis the model grid size in the third dimension and L is the grid
size for a dominant wavelength. Even worse, integral type methods often require to output local space-time wavefield for processing. The massive input/output and the storage can cause further problem. Therefore, the method proposed here will be even more attractive under the 3D case.
DISCUSSION
In the proposed method, the Poynting vector is adopted to de-compose the wavefield into its angle components. Compared with local slant stacking or local Fourier transform, the Poynting vector method is much more efficient, although less accurate when en-countered multiple incoming waves simultaneously. We use several approaches to mitigate its disadvantages. However, the effective-ness of these approaches under more complex environment may need further testing. To conduct the resolution analysis, the fre-quency information is required to convert the angle-domain infor-mation into the wavenumber-domain inforinfor-mation. To avoid saving the entire space-time wavefield and formally carry out Fourier trans-forms at all space locations, we assume that the wavefield keeps the spectrum of the source wavelet and directly convert the broadband signal into its spectrum. In an actual wave propagation process, fre-quency-dependent phenomena such as the attenuation, scattering, and diffraction may modify the original source spectrum. Thus, this approximation may generate certain errors in resolution analysis. However, compared with the huge savings in computations and storage, it is worth to adopt this approximation. If the analysis is conducted along with the RTM imaging, the source wavefield cal-culated for the image can be used as the Green’s functions for the sources and receivers in the resolution analysis. Because the reso-lution analysis uses much less sources and receivers than the actual imaging, we usually do not need calculate additional Green’s func-tions, and this can save a lot of computational effort. However, under certain cases, such as the 3D wide azimuth acquisition, cal-culating additional Green’s functions may be required.
CONCLUSION
A full-wave-equation-based broadband method is proposed for illumination and resolution analysis. By using the Poynting vector method to calculate the wave propagation direction, the proposed method is highly efficient and flexible. If the source wavefield gen-erated in the RTM is used as Green’s functions, the illumination and resolutions analysis only takes an extra time that is a fraction of the time used for the migration imaging. It is particularly suitable for illumination and resolution analysis, when teamed with the RTM Figure 11. (a-e) The 45° ADR maps generated using different
num-bers of sources and receivers (details refer to text).
imaging. We present several numerical examples to demonstrate how to calculate the LIM, ADR, and PSF, as well as correcting depth images using the PSF or ADR.
ACKNOWLEDGMENTS
The authors wish to thank the associate editor F. Liu, the assistant editor J. Shragge, and three anonymous reviewers for their com-ments that greatly improved the manuscript. This research is sup-ported by the WTOPI Research Consortium at the University of California, Santa Cruz. Author Z. Yan wishes to thank the China Scholarship Council for support to study abroad. Z. Yan is also par-tially supported by the National Natural Science Foundation of China under grant no. 41574115.
