dbPTM 2016: 10-year anniversary of a resource for

post-translational modification of proteins

Kai-Yao Huang

1

_{, Min-Gang Su}

1

_{, Hui-Ju Kao}

1

_{, Yun-Chung Hsieh}

1

_{, Jhih-Hua Jhong}

1

_,

Kuang-Hao Cheng

1

_{, Hsien-Da Huang}

2,3,*

_{and Tzong-Yi Lee}

1,4,*

1_{Department of Computer Science and Engineering, Yuan Ze University, Taoyuan 320, Taiwan,}2_{Department of} Biological Science and Technology, National Chiao Tung University, Hsinchu 300, Taiwan,3Institute of Bioinformatics and Systems Biology, National Chiao Tung University, Hsinchu 300, Taiwan and4Innovation Center for Big Data and Digital Convergence, Yuan Ze University, Taoyuan 320, Taiwan

Received September 16, 2015; Revised October 29, 2015; Accepted November 2, 2015

ABSTRACT

Owing to the importance of the post-translational modifications (PTMs) of proteins in regulating bi-ological processes, the dbPTM (http://dbPTM.mbc. nctu.edu.tw/) was developed as a comprehensive database of experimentally verified PTMs from sev-eral databases with annotations of potential PTMs for all UniProtKB protein entries. For this 10th an-niversary of dbPTM, the updated resource provides not only a comprehensive dataset of experimentally verified PTMs, supported by the literature, but also an integrative interface for accessing all available databases and tools that are associated with PTM analysis. As well as collecting experimental PTM data from 14 public databases, this update manu-ally curates over 12 000 modified peptides, including the emergingS-nitrosylation,S-glutathionylation and succinylation, from approximately 500 research arti-cles, which were retrieved by text mining. As the num-ber of available PTM prediction methods increases, this work compiles a non-homologous benchmark dataset to evaluate the predictive power of online PTM prediction tools. An increasing interest in the structural investigation of PTM substrate sites mo-tivated the mapping of all experimental PTM pep-tides to protein entries of Protein Data Bank (PDB) based on database identifier and sequence identity, which enables users to examine spatially neighbor-ing amino acids, solvent-accessible surface area and side-chain orientations for PTM substrate sites on tertiary structures. Since drug binding in PDB is an-notated, this update identified over 1100 PTM sites that are associated with drug binding. The update also integrates metabolic pathways and protein–

protein interactions to support the PTM network anal-ysis for a group of proteins. Finally, the web interface is redesigned and enhanced to facilitate access to this resource.

INTRODUCTION

Post-translational modification (PTM), which involves the attachment of chemical groups, such as phosphate, acetyl, methyl or oligosaccharides, to the amino acid side chains of proteins, is important in signal transduction and apopto-sis (as in phosphorylation), transcriptional regulation (by acetylation and methylation) and cell–cell and cell–matrix interactions (such as glycosylation) (1,2). Other types of PTM involve covalent linkage to ubiquitin or a ubiquitin-like protein, as in ubiquitylation and SUMOylation (3). The formation of disulfide bonds from cysteine residues may also be referred to as a post-translational modification (4). Contemporary research has implicated the dysregula-tion of PTMs in severe pathological events, including can-cer, disease and drug resistance, motivating a thorough in-vestigation of protein modification dynamics (5–10). Mass spectrometry (MS)-based experiments provide a practical means of the site-specific identification of PTMs in pro-teomics (11). High-throughput MS or MS/MS-based pro-teomics has motivated an increasing number of studies of large-scale modified proteomes (1). Thus, many databases of modified peptides for specific PTM types, including O-GLYCBASE (12), dbOGAP (13), PhosphoSitePlus (14), Phospho.ELM (15), PhosPhAt (16), UbiProt (17) and PupDB (18), have been developed. A growing number of proteomic studies have reported that the emerging oxidative modifications, a major class of PTMs that involve reactions between amino acid residues and reactive oxygen species or reactive nitrogen species (19), have crucial roles in the regu-lation of redox-related pathways (20). With this, two public databases, dbSNO (21,22) and dbGSH (23), were designed

*_{To whom correspondence should be addressed. Tel: +886 3 4638800 (Ext. 3007); Fax: +886 3 4638850; Email: [email protected]}

Correspondence may also be addressed to Hsien-Da Huang. Tel: +886 3 5712121 (Ext. 56952); Fax: +886 3 5739320; Email: [email protected] C

The Author(s) 2015. Published by Oxford University Press on behalf of Nucleic Acids Research.

This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0/), which

permits unrestricted reuse, distribution, and reproduction in any medium, provided the original work is properly cited.

at University of California, San Diego on March 6, 2016

http://nar.oxfordjournals.org/

(2)

by manually curating S-nitrosylated and S-glutathionylated peptides, respectively, from research articles.

Owing to the importance of PTMs in regulating cellu-lar processes, NetworKIN (24) and RegPhos (25,26) have utilized phosphoproteome data to gain insight into kinase-mediated signaling networks. In addition, given the biolog-ical significance of E3 ligases in ubiquitin-mediated pro-tein degradation (27), E3Net (28) is a collection of 1671 E3-substrate relations between 493 E3s and 1277 substrates in 42 organisms. Sakiyama et al. built a database of pro-teins that are involved in the ubiquitin signaling cascade across species (29). More than 200 different types of PTM have been identified by MS-based proteomics so several re-sources (30–33) have been developed to accumulate these multiple PTM types with functional annotations. Owing to the difficulty of collecting heterogeneous data from various PTM resources, dbPTM (34) was developed by systemat-ically integrating experimentally verified PTMs from vari-ous resources and comprehensively annotating the putative PTM substrate sites for all UniProtKB (35) protein entries. Since an increasing number of site-specific PTMs are be-ing obtained through high-throughput MS/MS-based pro-teomics, version 3.0 of dbPTM was extended as an informa-tive resource for investigating the substrate site specificity and functional association of PTMs (36).

In its 10th anniversary, dbPTM is updated as an inte-grated resource for PTMs, providing not only a comprehen-sive dataset of experimentally verified PTMs that are sup-ported by the literature but also an integrative platform for accessing all available databases and tools that are associ-ated with PTM analysis. In addition to collecting experi-mental PTM data from public databases, this update man-ually curates more than 12 000 PTM peptides, including the emerging S-nitrosylation, S-glutathionylation and succiny-lation, from approximately 500 research articles which were extracted by text mining. This update develops an integra-tive platform for PTM analyses by integrating all available databases and tools that are associated with over 20 PTM types. Given the availability of numerous PTM prediction methods, this update further compiles a non-homologous benchmark dataset to evaluate the predictive power of PTM prediction tools in an attempt to provide suggestions to users who need to predict PTM sites with high sensitivity (Sn), high specificity (Sp) or balanced Sn and Sp. In this update, all manually curated PTM peptides are mapped to protein entries of the Protein Data Bank (PDB) (37) based on UniProtKB ID and sequence identity, which enables dbPTM to provide information about spatial amino acid composition, solvent-accessible surface area, structurally neighboring amino acids and the orientation of side chains at PTM substrate sites on protein tertiary structures. In par-ticular, the side-chain orientations of the amino acids that structurally surround the PTM substrate sites were deter-mined to elucidate the functional roles and binding effects of the amino acids that neighbor the substrate sites. More-over, this update allows users to submit a group of proteins to construct a full map of regulatory network for a spe-cific PTM type. The updated dbPTM is now accessible at

http://dbPTM.mbc.nctu.edu.tw/.

IMPROVEMENTS

Figure1presents selected improvements and advances that are provided by the dbPTM update 2016, including (i) an update of the data on site-specific PTMs, (ii) the establish-ment of an integrative platform and benchmark dataset for PTM analysis, (iii) the development of an interactive viewer for the structural characterization of PTM substrate sites, (iv) data integration to elucidate diseases and drugs that are associated with PTM substrate sites and (v) the construc-tion of PTM regulatory networks using metabolic pathways and protein–protein interactions. To facilitate a study of PTMs and their functions, the web interface has been re-designed and enhanced. This resource also provides infor-mation on the literature related to PTMs, protein domains, functional associations and the substrate motifs of PTM sites. Details of each improvement follow.

Data update concerning site-specific PTMs

Supplementary Figure S1 presents the flowchart for data enhancement in dbPTM 2016. The large-scale site-specific identification of PTM peptides by MS/MS-based pro-teomics has motivated the development of databases that are dedicated to the accumulation of experimentally veri-fied data concerning a specific PTM or multiple PTMs. Ow-ing to the difficulty of collectOw-ing heterogeneous data from a variety of PTM databases, dbPTM has been developed as a systematic pipeline for automatically extracting ex-perimentally verified PTMs from all available PTM-related resources. Supplementary Table S1 summarizes 14 inte-grated PTM databases. This update manually curates more than 12 000 modified peptides, including the emerging S-nitrosylated, S-glutathionylated and succinylated peptides, from about 500 research articles, which were retrieved by text mining. Since various proteomic identification experi-ments have been conducted, a text-mining method was de-veloped to retrieve research articles that potentially describe the site-specific identification of modified peptides. Firstly, the PTM-related research or review articles were systemat-ically retrieved by querying PTM-related keywords against the fields ‘Title’ and ‘Abstract’ in the PubMed literature database. Then, the full-length articles were manually re-viewed to extract modified peptides along with the corre-sponding substrate residues. To determine the precise lo-cations of PTM substrate sites within a full-length protein sequence, all of the collected PTM peptides are mapped to UniProtKB protein entries based on database identi-fier (ID) and sequence identity. Finally, each mapped PTM site is associated with at least one article (PubMed ID). Modified peptides that could not be mapped to a protein sequence in UniProtKB were removed from the dbPTM database.

Establishment of integrative platform and benchmark dataset for PTM analysis

Owing to the biological significance of PTMs in regulat-ing cellular processes, an increasregulat-ing number of resources have been developed for PTM analysis, including the data warehousing of PTM sites, the computational prediction of

(3)

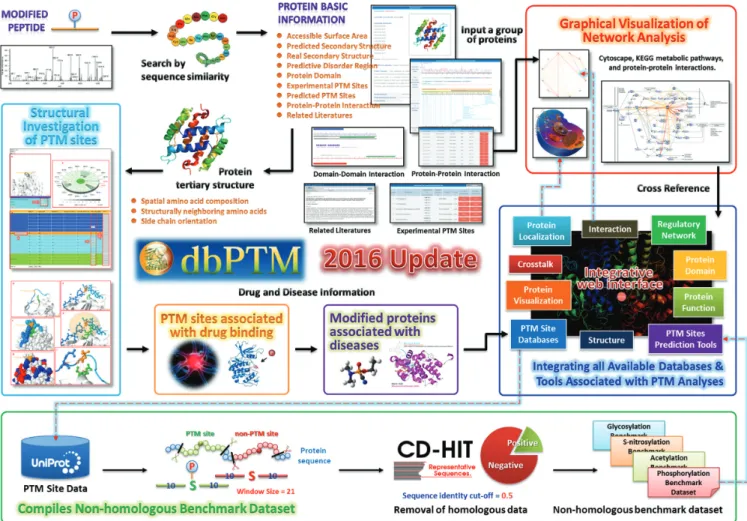

Figure 1. The highlighted improvements and advances in dbPTM update 2016.

PTM sites, the structural investigation of PTM substrate sites and the reconstruction of PTM regulatory networks. However, given a protein sequence of interest, users com-monly have difficulty in making a full study of PTMs by surveying suitable PTM-related databases or tools on the internet. Therefore, this update includes the design of an integrative web interface that enables users to access all on-line databases and tools that are associated with approxi-mately 20 types of PTM, such as phosphorylation, glyco-sylation, acetylation, methylation, ubiquitylation, sumoy-lation, palmitoylation and S-nitrosylation. Supplementary Table S2 lists the number of integrated databases, database names, number of integrated tools and tool names for each PTM type.

Since MS/MS-based experiments are labor-intensive, a range of computational methods (38–51) have been de-veloped to identify putative PTM sites based on protein sequences. Since numerous PTM prediction methods are available, determining the best prediction tool based on only cross-validation performance is difficult. Although most re-lated studies have provided independent results of tests of prediction methods, no standard dataset exists for the eval-uation of the predictive power of various PTM prediction tools. Therefore, this update provides a non-homologous benchmark dataset to evaluate the predictive power of PTM

sites prediction tools and thereby helps users to predict PTM sites with high Sn, high Sp or balanced Sn and Sp. Firstly, a window length of 2n + 1 was used to extract se-quence fragments that were centered at the experimentally verified PTM sites and contained n upstream and n down-stream flanking amino acids. For a modified protein, the sequence fragments that contain a window length of 2n + 1 (n= 10) amino acids and are centered at a specified modi-fied residue (such as an ubiquitylated lysine residue) were regarded as the positive dataset. The sequence fragments that contain a window length of 2n + 1 amino acids and are centered at a non-modified residue of the same type (such as a non-ubiquitylated lysine residue) were regarded as the negative dataset. Then, the CD-HIT program (52) was em-ployed to remove homologous sequence fragments from the positive and negative datasets. CD-HIT is an effective tool for clustering protein sequences based on a specified se-quence similarity value. One sese-quence was chosen herein to represent each cluster. Based on the analysis of sequence fragments, some negative data may have been identical to positive data, potentially leading to positive or false-negative predictions. Therefore, CD-HIT was applied a sec-ond time, by running cd-hit-2d across positive and negative training data with 100% sequence identity. Supplementary Table S3 presents statistics about the benchmark datasets

(4)

for several PTM types after the homologous fragments were eliminated using CD-HIT, based on a 50% sequence iden-tity.

Development of interactive viewer for structural characteri-zation of PTM substrate sites

With the steadily growing number of PTM sites that have been experimentally confirmed using high-throughput MS-based proteomic techniques, interest in the structural envi-ronment of PTM substrate sites (48,53), including spatial amino acid composition, solvent-accessible surface area, structurally neighboring amino acids and the orientation of side chains around PTM substrate sites, has been increas-ing. In this update, X-ray crystal protein structures with ex-perimental resolution of better than 2.5 ˚A were utilized to elucidate the spatial context of PTM substrate sites on pro-tein tertiary structures. Since only a few propro-tein structures involve the covalent attachment of chemical groups to the side chain of target residues, all of the experimentally veri-fied PTM peptides are mapped to the protein entries of the PDB to determine the exact PTM substrate sites on tertiary structures, based on UniProtKB cross-references and se-quence identity (with 100% similarity). As presented in Sup-plementary Table S4, a total of 25 835 PTM sites were thus mapped to the protein three-dimensional (3D) structures of PDB. Dictionary of protein secondary structure (DSSP) (54) was then adopted to calculate the solvent-accessible surface area and to standardize the secondary structure of PDB entries with the mapped PTM substrate sites. Some-times, identifying the substrate motif from linear sequences is difficult (44); therefore, this update uses a radial cumula-tive propensity plot (55) to represent the spatial amino acid composition of a specific PTM site, revealing the abundance of 20 amino acids in the spatial vicinity of PTM substrate sites. A spatial amino acid composition was determined for all mapped PTM sites by calculating the relative frequencies of the 20 amino acids within radial distances from 2 to 10

˚

A of the modified residues.

With respect to the structural characterization of PTM substrate sites, sequentially and spatially neighboring amino acids are displayed with different colors on PDB 3D structures using JSmol software (56). The side chain ori-entations of the amino acids that spatially surround the PTM substrate sites are determined to examine the func-tional roles and drug binding effects of the spatially neigh-boring amino acids to the substrate sites of PTMs (57). With respect to an N-linked glycosylation substrate site p and its spatially neighboring amino acid k, the vector Skfrom

the C␣ atom to the nitrogen of N-linked glycosylated as-paragine (p) is defined as:

Sk= XSGp − XCkα (1)

where XSG

p and XkCαdenote the crystallographic positions

of the nitrogen in glycosylated asparagine p and the C␣ atom in residue k, respectively. As displayed in Supplemen-tary Figure S2, the direction of the side chain of a spatially neighboring amino acid k is given by the vector Vkfrom its

C␣ atom to the functional atom (58):

Vk= XFk− XCkα (2)

where XF

k and XCkα are the crystallographic positions of the functional atom and the C␣ atom, respectively, in residue k. The angleθkbetween vectors Skand Vk, which

specifies the effect of the side chain of a spatially neigh-boring amino acid k on the substrate asparagine residue, is computed as,

θk= arccos

Sk· Vk

Sk Vk

(3) For a spatially neighboring amino acid k, if the angleθkis

less than 80◦, then the amino acid k is defined as a functional residue to the asparagine residue on the N-linked glycosyla-tion (58). To facilitate the structural investigation of protein modification sites, all of the structural characteristics were graphically represented in the JSmol program.

Integration of data on diseases and drugs associated with PTM substrate sites

Many proteins undergo PTMs that involve physical or chemical changes to their side chains, causing cancer or other diseases; other PTMs may be used diagnostically (5– 10). Accordingly, the disease annotations in the KEGG Dis-ease Database (59), the Online Mendelian Inheritance in Man database (OMIM) (60) and Human Protein Reference Database (HPRD) (61) were integrated to identify associa-tions between diseases and PTM-associated proteins. De-spite the fact that more than 60% of eukaryotic proteins undergo PTMs during or after protein biosynthesis, little is known about the frequency and local effects of PTMs close to drug or inhibitor-binding sites. A phosphorylation site within 12 ˚A of a small molecule-binding site is report-edly likely to alter the binding affinity of this small molecule (62). Therefore, the drug annotations in DrugBank (63) were combined with all available PDB entries that con-tained keywords ‘drug,’ ‘inhibitor,’ ‘agonist’ or ‘antagonist.’ After all experimentally verified PTM sites were mapped to PDB structures, the PTM sites whose side chains are located within 10 ˚A of a drug-binding site were regarded as drug binding-associated PTMs. Based on a large-scale screen-ing of PTM sites and drug-bindscreen-ing sites in PDB, over 1100 PTM sites that are associated with drug-binding sites were identified. Additionally, if a modified protein was found to contain the 3D structures with PTM sites and without PTM sites, a molecular docking tool could be utilized to calculate the binding effect of a drug to a specific PTM site based on a protein tertiary structure.

Construction of PTM regulatory networks using metabolic pathways and protein–protein interactions

Many studies (24–26,28–29) have suggested that protein modification is critical to the regulation of cellular signal-ing and metabolic pathways. Hence, one of the goals of this update is to present a full investigation of PTM reg-ulatory networks for a group of genes/proteins of interest. This update integrates information about metabolic path-ways and protein–protein interactions (PPIs) to perform a network analysis of a specific type of PTM. The infor-mation about metabolic pathway is taken from the path-way maps in KEGG. The information on experimentally

(5)

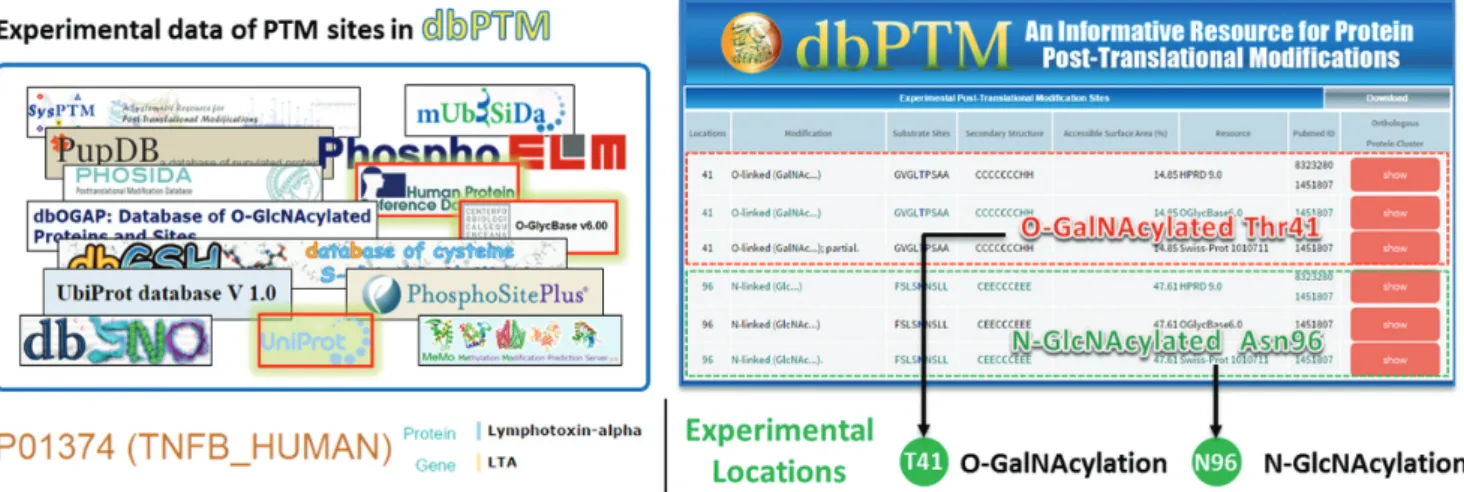

Figure 2. A case study of integrative protein glycosylation analyses for lymphotoxin-alpha (LTA).

verified physical interactions is taken from more than ten PPI databases (listed in Supplementary Table S5) and in-tegrated into dbPTM. With respect to the example of S-nitrosylation, presented in Supplementary Figure S3, the dbPTM was sought to identify S-nitrosylated annotations for a group of proteins of interest and the proteins were then mapped onto metabolic pathways using the Cytoscape pro-gram (64). The PPIs that are associated with the proteins of interest were utilized to discover new members that have the potential of being involved in a mapped metabolic pathway. To make the construction of PTM regulatory networks fea-sible, a graph theory (25) was applied to formalize the net-works based on a KEGG pathway map. In particular, the catalytic kinases were annotated by the network viewer to study the protein phosphorylation networks (Supplemen-tary Figure S4).

DATA CONTENT AND UTILITY

Statistics about PTM sites in dbPTM 2016

In an attempt to provide the most comprehensive data on PTM sites, this update not only accumulates experimen-tally verified PTMs from 14 external PTM-related databases but also includes manually curated MS/MS-identified PTM peptides from approximately 500 research articles. After the redundant data from these heterogeneous resources were eliminated, a total of 610 037 experimentally veri-fied PTM sites were stored in dbPTM using a structured database management system. The use of high-throughput MS/MS-based proteomics in the site-specific identifica-tion of modified peptides has motivated the obtaining of a rapidly rising number of experimental data concerning several types of PTM, including ubiquitylation, N-linked glycosylation, acetylation, palmitoylation, S-nitrosylation, S-glutathionylation and the emerging succinylation. Table

1provides the number of obtained experimental data con-cerning each PTM type. Protein phosphorylation is the most popular research object and is associated with the

(6)

Figure 3. A case study of exploring the spatial context of the phosphorylation substrate site of serine (Ser338) on the protein 3D structure (PDB ID: 2QCS) of cAMP-dependent protein kinase catalytic subunit alpha (UniProtKB ID: KAPCA MOUSE).

most abundant data on experimentally verified substrate sites (258 654 sites). The dbPTM includes not only the ex-perimental PTM sites, but also a total of 546 911 putative PTM sites that were taken from UniProtKB. Additionally, based on the investigation of disease associations with vari-ous PTMs, the distribution of the top ten diseases among six representative PTM types is provided. As presented in Sup-plementary Table S6, a total of 1690 phosphorylated pro-teins are associated with diseases, including mental retarda-tion (66 proteins), cardiomyopathy (42 proteins), immunod-eficiency (34 proteins), Charcot–Marie–Tooth disease (29 proteins), spinocerebellar ataxia (28 proteins), deafness (20 proteins), spastic paraplegia (20 proteins), diabetes melli-tus (19 proteins), amyotrophic lateral sclerosis (18 proteins), and retinitis pigmentosa (18 proteins).

An integrative platform for PTM analysis

In this update, the web interface is enhanced to enable users to browse and search efficiently for their proteins of in-terest. Supplementary Figure S5 presents the data content of a typical dbPTM query, including basic information, a graphical visualization of PTM sites with structural char-acteristics and functional domains, a table of experimental PTM sites with relevant literature, information on the or-thologous conservation of PTM substrate sites, PPIs and domain–domain interactions, and references to literature on PTMs. To provide an integrated resource for PTM anal-ysis, as displayed in Supplementary Figure S6, this update provides an integrative platform for accessing all online re-sources that are associated with PTM analysis, including

PTM databases, PTM site prediction tools, 3D structure viewers and network investigators. Supplementary Table S2 provides a total of 71 databases and 116 tools that are asso-ciated with over 20 PTM types. Given the protein sequence of lymphotoxin-alpha, dbPTM efficiently provides compre-hensive annotations of experimental PTM sites, including O-GalNAcylated Thr41 and N-GlcNAcylated Asn96, with references to supporting literature (65). The integrated gly-cosylation site prediction tools can be adopted to identify the putative substrate sites of protein glycosylation. In Fig-ure2, a total of 11 potential glycosylation sites, including the experimental O-GalNAcylated Thr41, are predicted by four eukaryotic glycosylation prediction tools––NetOGlyc (66), GPP (67), GlycoEP (68) and OGTSite (40). Eight of the 11 putative sites are detected by at least two prediction tools, which support a preliminary analysis for the further verification of protein glycosylation.

Enhanced web interface for structural investigation of PTM substrate sites

This update includes a newly designed interactive platform with which users can access the structural contexts of PTM substrate sites based on protein tertiary structures of PDB. Figure3presents a case study of the phosphorylation sub-strate site of serine (Ser338) on the protein 3D structure (PDB ID: 2QCS) of cAMP-dependent protein kinase cat-alytic subunit alpha (UniProtKB ID: KAPCA MOUSE). Figure3A shows an overview of the phosphorylation sub-strate site (Ser338) on the protein 3D structure. Figure3B presents a table of sequentially and structurally

(7)

PTM type sites sites from UniProtKB from UniProtKB Phosphorylation 258 654 41 083 96 915 Ubiquitylation 111 207 - -N-linked glycosylation 103 016 5172 100 846 Acetylation 35 527 8829 53 022 O-linked glycosylation 5729 1150 3204 Amidation 4449 1886 1309 Hydroxylation 3436 1504 5767 Methylation 8096 1263 23 070

Pyrrolidone carboxylic acid 1679 629 748

SUMOylation 1638 - -Gamma-carboxyglutamic acid 1262 - -4-carboxyglutamate 399 399 868 Palmitoylation 5576 - -Sulfation 1019 - -Sulfotyrosine 186 186 839 Myristoylation 1454 - -C-linked glycosylation 255 152 59 Prenylation 1459 - -Nitration 190 51 280 Deamidation 231 64 380 S-nitrosylation 4165 64 459 Oxidation 1126 - -ADP-ribosylation 314 17 1082 N6-succinyllysine 4637 1381 5571 Formylation 190 64 40 GPI anchoring 0 - -N6-lipoyllysine 19 19 6357 Methyl ester 87 87 914 N6-crotonyllysine 342 342 213 Methionine sulfoxide 52 38 305 N6-glutaryllysine 43 43 81 4-aspartylphosphate 29 29 8732 Pyridoxal phosphate 6371 23 148 475 Bromination 90 30 57 N6-malonyllysine 200 33 167 Citrullination 220 113 319 N6-carboxylysine 1608 37 20 848 Glutathionylation 4119 31 35 FAD 183 1 766 Pupylation 268 - -Others 40 512 370 65 183 Total 610 037 65 090 546 911

ing amino acids, including information on the orientations of the side chains. Figure3C provides a radial cumulative propensity plot of the spatial amino acid composition of the phosphorylation substrate site (Ser338). Arginine (Arg) is the most abundant amino acid in the spatial vicinity of the phosphorylation substrate site (Ser338). Figure3D displays the sequentially and structurally neighboring amino acids on the 3D structure. The sequentially upstream (from posi-tions -6 to -1) and downstream (from +1 to +6) amino acids are colored in blue and light blue, respectively. The struc-turally neighboring amino acids, whose radial distance to the side chain of Ser338 is less than 10 ˚A, are shown in green on the 3D structure. Figure3E presents the side chains of the sequentially and structurally neighboring amino acids on the 3D structure. Figure 3F shows the surface area of Ser338, as well as the sequentially and structurally neigh-boring amino acids, to support an analysis of solvent acces-sibility. In Figure3G, the acidic residues (K, R and H) and basic residues (D and E) are marked in blue and red, respec-tively, to elucidate the structural acid-based motif (69) that surrounds the PTM substrate site. Figure3H shows the spa-tial vicinity within 10 ˚A of the C-alpha atom of Ser338. Fig-ure3I presents the top three nearest amino acids (Asn113, Ser114 and Arg336) and information on the orientation of the side chains to support the investigation of the

struc-turally neighboring amino acids. For instance, the Ser114 residue, which is close to the phosphorylation site (Ser338), contains a side chain with an angle of 27.9◦. Ser114 residue may thus significantly influence the binding of phosphate to Ser338.

Case study of PTM sites associated with drug binding Based on a large-scale screening of PTM substrate sites and drug-binding sites in PDB, dbPTM includes over 1100 PTM substrate sites that are associated with drug binding. Sup-plementary Table S7 presents the number of PTM sites that are associated with drug binding for each PTM type. Pro-tein phosphorylation is the PTM with the most data con-cerning the association of substrate sites with drug bind-ing, and it is followed in this regard by protein ubiquityla-tion. Figure4presents a case study of a phosphorylation site (Ser843) that is associated with drug binding on the mineralocorticoid receptor (MCR). Since the side chain of Ser843 is located close to (6.4 ˚A) the binding site of both the agonist and the inhibitor of the MCR, according to the data in dbPTM the phosphorylation of Ser843 influences the binding affinity of drugs. The phosphorylation of MCR at Ser843 reportedly reduces binding affinity for the natu-ral agonist and inactivates itself (70). Figure 5provides a case study of an acetylation site (Lys199) that is associated

(8)

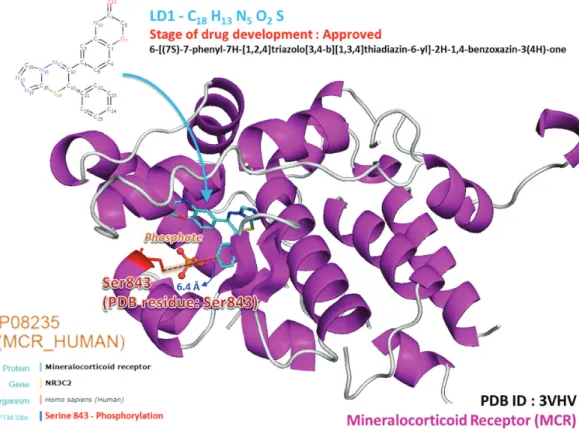

Figure 4. A case study of phosphorylation site (Ser843) associated with drug binding on mineralocorticoid receptor (MCR).

Figure 5. A case study of acetylation site (Lys199) associated with drug binding on human serum albumin (HSA).

with drug binding on human serum albumin (HSA). HSA is the most abundant plasma protein in the human body and is critically involved in drug transport and metabolism (71). According to the annotation from OMIM, HSA is re-lated to hyperthyroxinemia (OMIM ID: 615999) and anal-buminemia (OMIM ID: 616000). According to the data in dbPTM, acetyllysine (Lys199) is located near (6.19 ˚A) the binding site of salicylic acid (DrugBank ID: DB00936). Aspirin (DrugBank ID: DB00945) reportedly transfers an

acetyl group to Lys199 and is hydrolyzed into salicylic acid by HSA (71). This structural investigation not only reveals the conformational plasticity of HSA in drug binding but also the modulation of HSA drug interaction.

Case study of exploring protein O-glycosylation network for a group of proteins

This update includes a newly designed interactive inter-face for discovering a regulatory network of modified

(9)

Figure 6. A case study of exploring protein O-glycosylation networks for a group of 20 proteins.

teins based on information about both metabolic pathways and PPIs. Figure 6 presents a case study of protein O-glycosylation networks for a group of 20 proteins. In net-work visualization, the query proteins that can be mapped to a member of a metabolic pathway are represented as light blue squares. The query proteins that have O-glycosylation sites are shown with a small light blue square. In this case, most of query proteins have O-glycosylation sites and can be mapped to the Mitogen-activated protein kinases

(MAPK) signaling pathway. The query proteins that could not be mapped to a specific member of a metabolic pathway are represented by blue circles; they include BMP2, ASPH, GLA, ACE2 and AFM in this case. The PPIs that are as-sociated with the query proteins are displayed as yellow lines. Given that the query proteins interact with the mem-bers of a well-known signaling pathway, their upstream and downstream targets can be used to find new members that have the potential to be involved in the mapped pathway

(10)

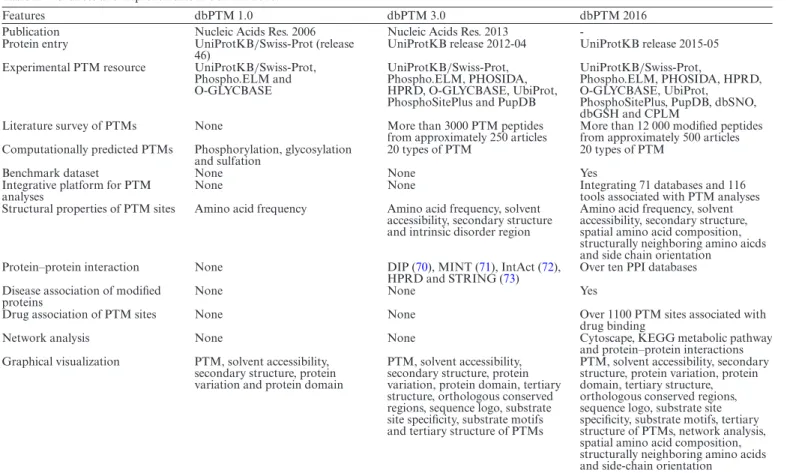

Table 2. Advances and improvements in dbPTM 2016.

Features dbPTM 1.0 dbPTM 3.0 dbPTM 2016

Publication Nucleic Acids Res. 2006 Nucleic Acids Res. 2013

-Protein entry UniProtKB_{/Swiss-Prot (release}

46)

UniProtKB release 2012-04 UniProtKB release 2015-05

Experimental PTM resource UniProtKB/Swiss-Prot,

Phospho.ELM and O-GLYCBASE

UniProtKB/Swiss-Prot,

Phospho.ELM, PHOSIDA, HPRD, O-GLYCBASE, UbiProt, PhosphoSitePlus and PupDB

UniProtKB/Swiss-Prot,

Phospho.ELM, PHOSIDA, HPRD, O-GLYCBASE, UbiProt,

PhosphoSitePlus, PupDB, dbSNO, dbGSH and CPLM

Literature survey of PTMs None More than 3000 PTM peptides

from approximately 250 articles

More than 12 000 modified peptides from approximately 500 articles

Computationally predicted PTMs Phosphorylation, glycosylation

and sulfation

20 types of PTM 20 types of PTM

Benchmark dataset None None Yes

Integrative platform for PTM

analyses None None Integrating 71 databases and 116tools associated with PTM analyses

Structural properties of PTM sites Amino acid frequency Amino acid frequency, solvent

accessibility, secondary structure and intrinsic disorder region

Amino acid frequency, solvent accessibility, secondary structure, spatial amino acid composition, structurally neighboring amino aicds and side chain orientation

Protein–protein interaction None DIP (70), MINT (71), IntAct (72),

HPRD and STRING (73) Over ten PPI databases

Disease association of modified proteins

None None Yes

Drug association of PTM sites None None Over 1100 PTM sites associated with

drug binding

Network analysis None None Cytoscape, KEGG metabolic pathway

and protein–protein interactions

Graphical visualization PTM, solvent accessibility,

secondary structure, protein variation and protein domain

PTM, solvent accessibility, secondary structure, protein variation, protein domain, tertiary structure, orthologous conserved regions, sequence logo, substrate site specificity, substrate motifs and tertiary structure of PTMs

PTM, solvent accessibility, secondary structure, protein variation, protein domain, tertiary structure, orthologous conserved regions, sequence logo, substrate site specificity, substrate motifs, tertiary structure of PTMs, network analysis, spatial amino acid composition, structurally neighboring amino acids and side-chain orientation

(22). Taken together, the O-glycosylated BMP2 and ASPH, which undergo many interactions with pathway members, may be involved in the MAPK signaling pathway by par-ticipating in an interplay between protein glycosylation and phosphorylation. This network investigation may support a preliminary analysis based on which the regulatory network of a specific protein modification can be mapped.

DISCUSSIONS AND CONCLUSION

The present expansion of the dbPTM database enhances its usefulness for researchers into the impact of PTMs on pro-tein function, disease association, drug binding and cellular processes. The improved web interface enables both wet-lab biologists and bioinformatics researchers efficiently to in-crease their knowledge of protein post-translational modi-fications. With the goal of developing an integrated resource for PTM analysis, a total of 71 databases and 116 tools that are associated with over 20 types of PTM were gathered to provide an integrative interface for users. However, the increasing number of PTM prediction tools raises a diffi-culty in comparing their predictive power based on differ-ent training datasets. Therefore, this update compiles a suf-ficiently large non-homologous benchmark dataset for nine types of PTMs. As in the example of the prediction of O-glycosylation site, presented in Supplementary Figure S7, the benchmark dataset concerning protein O-glycosylation, comprising 529 positive sites and 10 797 negative sites from 292 proteins, were used to test four tools––NetOGlyc, GPP, GlycoEP and OGTSite. The results of testing using the

benchmark dataset with unbalanced positive and negative sites indicate that GPP provides balanced Sn and Sp, while the other three tools yield high Sp and low Sn. Supplemen-tary Table S8 provides the testing results in detail. The non-homologous benchmark dataset can be utilized as an inde-pendent testing dataset in the prediction of PTM sites.

Table 2 lists advances and new features that are sup-ported in dbPTM 2016. Future work is likely to support the growth of dbPTM as more data in research articles on MS/MS-identified modified peptides becomes available. To provide more information for disease analysis, the associa-tions of diseases with PTM sites will be manually curated using an enhanced full-text mining system. Although this update supports a network analysis for a group of proteins, designing a uniform scheme that does so for all PTM types is difficult. Therefore, online resources for investigating the networks of a specific PTM type should be integrated into dbPTM. A future survey of how PTM sites affect the drug-binding affinity based on protein tertiary structures would significantly improve dbPTM.

AVAILABILITY

The data content in dbPTM will be maintained and updated quarterly by continuously surveying the public resources and research articles. Also, the PTM data involved in dis-eases and drug-binding sites will be semiannually updated by database screening. The updated resource is now freely accessed online athttp://dbPTM.mbc.nctu.edu.tw/. All of

(11)

SUPPLEMENTARY DATA

Supplementary Dataare available at NAR Online.

FUNDING

Ministry of Science and Technology of Taiwan [MOST 103-2221-E-155-020-MY3, 104-2221-E-155-036-MY2 to T.Y.L. and MOST 103-2628-B-009-001-MY3, 104-2627-M-009-008 to H.D.H.]. Funding for open access charge: Ministry of Science and Technology of Taiwan [MOST 103-2221-E-155-020-MY3, 103-2628-B-009-001-MY3 and 104-2627-M-009-008].

Conflict of interest statement. None declared.
