A rule-based CBR approach for expert finding and problem diagnosis

(1)

A rule-based CBR approach for expert ﬁnding and problem diagnosis

Yuan-Hsin Tung

a,c

, Shian-Shyong Tseng

a,b,*

, Jui-Feng Weng

a

, Tsung-Ping Lee

a

,

Anthony Y.H. Liao

b

, Wen-Nung Tsai

a

Department of Computer Science and Information Engineering, National Chiao Tung University, Taiwan, ROC b

Department of Information Science and Applications, Asia University, Taiwan, ROC

c_{R&D Supporting Department, Telecommunication Lab., Chunghwa Telecom Co., Ltd., Taiwan, ROC}

a r t i c l e

i n f o

Keywords: Rule-based CBR RBR CBR Expert ﬁnding

Role-based access control Problem diagnosis

a b s t r a c t

It is important to find the person with right expertise and the appropriate solutions in the specific field to solve a critical situation in a large complex system such as an enterprise level application. In this paper, we apply the experts’ knowledge to construct a solution retrieval system for expert finding and problem diagnosis. Firstly, we aim to utilize the experts’ problem diagnosis knowledge which can identify the error type of problem to suggest the corresponding expert and retrieve the solution for specific error type. Therefore, how to find an efficient way to use domain knowledge and the corresponding experts has become an important issue. To transform experts’ knowledge into the knowledge base of a solution retrieval system, the idea of developing a solution retrieval system based on hybrid approach using RBR (rule-based reasoning) and CBR (case-based reasoning), RCBR (rule-based CBR), is proposed in this research. Furthermore, we incorporate domain expertise into our methodology with role-based access control model to suggest appropriate expert for problem solving, and build a prototype system with expert finding and problem diagnosis for the complex system. The experimental results show that RCBR (rule-based CBR) can improve accuracy of retrieval cases and reduce retrieval time prominently.

1. Introduction

It is important to find the person with right expertise and the appropriate solutions in the specific field to solve a critical situ-ation in a large complex system such as an enterprise level application. To obtain the high reliability and availability of the information system in the enterprise environment, the multi-do-main architecture has been applied to system design extensively to enhance performance, flexibility and scalability of the infor-mation system (Eckerson, 1995; Schussel, 1995). However, it in-creases both the complexity of the system and the difficulty of problem diagnosis. Moreover, once the complex information sys-tem goes wrong, domain experts usually get together to look for solutions to fix the problem as soon as possible. In the enterprise environment, the expert finding and problem diagnosis of com-plex system is mission critical. In this paper, the customer rela-tionship management system (CRM system) for a telecom company is designed to receive and resolve customer com-plaints. The CRM system provides 24/7 services for about 3000 daily service calls by approximately 300 online operators. As

shown inFig. 1, the CRM system, a typical multi-domain system

for daily operation, connects several component applications to provide services of billing management system, human resource management and network maintenance system. To ensure the CRM system works well in daily operation, experts in different domain (e.g., DBAs, system maintainers, system administrators and developers etc.) should participate in maintaining the sys-tem. Therefore, how to utilize domain knowledge and the pro-files of experts during problem diagnosis processes to find the right persons to fix the problem of the complex system (multi-domain) has become an important issue.

As shown inFig. 2, the common scenario of problem diagnosis

processes in the multi-domain information system can be repre-sented as a multi-domain architecture, where the experts who have the specific domain knowledge and experiences on the oc-curred problem are requested to maintain the corresponding layers of complex system. Basically, the problem diagnosis and solution retrieval is an iterative process which should be repeatedly per-formed stage by stage until the problem is solved. When a system hanging error occurs, the related experts are asked to solve it, and the root cause of problem may be diagnosed by the rule of thumb of domain experts in the first stage, diagnosis phase. Experts can find out the appropriate layer that the causes may lie in; e.g., appli-cation table locks, database system process timeout, and physical disk space full may lie in the application layer, the system layer, or the hardware layer, respectively. After identifying the layer of

* Corresponding author. Address: Ofﬁce of the Vice President, Asia University, Taiwan, ROC. Tel.: +886 4 2332 3456ext1088; fax: +886 4 2331 6699.

E-mail addresses:yhdong.cs94g@nctu.edu.tw(Y.-H. Tung),sstseng@asia.edu.tw (S.-S. Tseng),roy@cis.nctu.edu.tw(J.-F. Weng),kelvin.lee@sti.com.tw(T.-P. Lee), liao@mail.isa.asia.edu.tw(A.Y.H. Liao),tsaiwn@csie.nctu.edu.tw(W.-N. Tsai).

Contents lists available atScienceDirect

Expert Systems with Applications

(2)

problem, experts come up with a solution obtained from existing similar solution cases in the second stage, retrieval phase. In the third stage, solving phase, the used solution is found out and do-main experts are requested to solve the problem. Based upon the processes of problem solving mentioned above, we can extract the idea that the efficiency of searching can be enhanced by adopt-ing experts’ knowledge in diagnosis phase because categorizadopt-ing similar problem types in advance is a good way to narrow down the searching spaces. Afterward we can locate a problem according to the classified categories in retrieval phase. Finally, based on do-main knowledge of personal profile, we can find an appropriate ex-pert to solve the problem. In this paper, we have to face two main challenges: one is how to imitate the problem solving processes of experts to mitigate the loading of experts, and the other is how to incorporate the appropriate domain experts into processes of prob-lem diagnosis.

As we have known, case-based reasoning (CBR) is an approach that solves new problems by retrieving existing successful solu-tions of similar problems from a knowledge source of cases, the so-called ‘‘case-base”. CBR has been broadly applied in various areas such as problem diagnosis, solution retrieval, help desk, assessment, decision support, design, and planning (Carswell, Wil-son, & Bertolotto, 2002; Spalazzi, 2001). However, the process of case-based reasoning is very time-consuming and the result might not be accurate when the case base is likely a large coarse-grained case base. Searching through the whole ‘‘case base” for a solution

in a sequential way is rather inefficient. Moreover, it is important to recommend an appropriate expert to solve the problem based on her/his domain knowledge, technical skill, experiences, and so on. Since role-based access control model can be used to solve such requirements of problem diagnosis and solution retrieval, we com-bine it with a hybrid case-based reasoning approach, the rule-based case-base reasoning (RCBR) methodology, to apply to the high-level knowledge for problem diagnosis and the concrete-level knowledge for solution retrieval. The high-level knowledge which is extracted by rule-based reasoning (RBR) can locate the problem in a specific category, and the concrete-level knowledge can re-trieve solution from the specific case base with case-based reason-ing (CBR).

In this paper, the problem diagnosis and solution retrieval sys-tem based upon a three-phase RCBR framework have been imple-mented. By using this system, we further construct a prototype system to assist on-duty IT employee in trouble-shooting. The experimental results show that RCBR can improve accuracy of re-trieval cases and reduce rere-trieval time dramatically. The rest of this paper is structured as follows. In Section2, we depict the

pre-liminary of RCBR methodology. Section3describes the

architec-ture of rule-based CBR. Section 4 introduces the system

implementation based upon RCBR methodology. In Section 5,

the experimental result demonstrates the efﬁciency of our

ap-proach. Section 6 presents the conclusion and proposes future

work. Network Maintenance System Customer Relationship Management Maintenance Database Oracle 9i Billing Management

System Billing Database

MySQL 4.23 Electronic Form System Customer Database MS SQL 2000 ODBC JDBC JDBC ODBC HTTP

Connected Middle Ware

API API

Business Process Management

Web Service Web Service LDAP Service LDAP ODBC JDBC JDBC ODBC JDBC Web Service Web DBA DBA DBA AP Maintainers AP Maintainers Developers System

Administrators _{Administrators}System

AP Maintainers

Service

Fig. 1. System architecture of CRM system.

Billing Management System Customer Relationship Management Network Maintenance System E-Form System Linux Windows AIX Solaris MySQL MS SQL

Storage Server Networking

Oracle Database WorkFlow Engine System Connection Middle Ware

DBAs AP Maintainers System Support Staffs Developers Network Administrators Application Layer Middle Ware Database Layer Operation System Layer Hardware Layer Stakeholders Step1. Diagnosis Phase Related Expert Step2. Retrieval Phase

Administrators

(3)

2. Preliminary

In the following, we will brief the preliminaries of the related work.

2.1. Problem diagnosis and solution retrieval

In (Rish et al., 2005), probabilistic reasoning techniques were used to solve the distributed system problem diagnosis. Other re-lated approaches such as applying data-mining algorithm with

ontology-based approach to fault diagnosis and analysis (Hou,

Gu, Shen, & Yan, 2005) based on neural network to detect the oper-ating machine fault (Zhang, Dai, Zheng, Zhang, & Mu, 2000; Hay-ashi & Zhang, 2002) were proposed. However, these approaches can not work well without providing appropriate solutions of the problem. Therefore, previous researches provide approximate solutions which are the solutions of similar problems by CBR (Aamodt & Plaza, 1994; Smyth, IEEE Computer Society, Keane, & Conningham, 2001; Wang & Liu, 2004; Chang, Wang, Hu, & Zheng, 2004; Kumar, Gopalan, & Sridhar, 2005; Lambert-Torres, Martins, Rossi, & da Silva, 2003; Gu, Tong, & Agnar, 2005; Hajar & Lee,

2005), but the system performance is poor due to the lack of a

proper decision making mechanism.

Dunker (1945) classiﬁed the broad sense of trouble-shooting tasks into the following four basic steps: (1) detection, (2) the test-ing of fault reason, (3) testtest-ing, and (4) maintenance and evaluation. By our observation, when system goes wrong, experts usually solve problems in two steps. In the ﬁrst step, according to the error logs and some system status information, experts use their domain knowledge to reduce the error space. In the second step, they com-pare the similarity among the current error instances with the existing solution cases which they solved before. Hence, the idea of developing a hybrid problem diagnosis and solution retrieval system based upon RBR and CBR approach is proposed.

2.2. Role-based access control model

The RBAC model (Ferraiolo, Sandhu, Gavrila, Kuhn, & Chandra-mouli, 2001; Sandhu, Coyne, Feinstein, & Youman, 1996; Enokido & Takizawa, 2008) is known as an ideal access control model for enterprise environment. The main concept of RBAC is to prevent users from accessing company information by direction. RBAC al-lows us to model the relationships of roles and responsibilities, users and roles. The major advantages of RBAC are the assignment of user and permissions to roles. Change in a user’s responsibility or role within an organization can be managed efﬁciently by assigning her/him a new role and revoking her/his assignment to any previous roles. Access rights are associated with roles in which users are assigned to appropriate roles. The RBAC model proposed by Ferraiolo et al. consists of four basic components: a set of users

Users, a set of roles Roles, a set of permissions Permissions, and a set of sessions Sessions as shown in Fig. 3. A role is a collection of permissions needed to perform a certain function within an organization. A user can be a human being or an autonomous agent. A permission refers to an access mode that can be exercised on an object in the system and a session relates a user to possibly many roles. In this paper, to incorporate domain experts into pro-cesses of problem diagnosis and solution retrieval, we applied the role-based access control (RBAC) model to our methodology in the assignments of users and responsibilities.

2.3. Ontology

In recent years, many researches have been carried out to inves-tigate the use of ontology to represent domain knowledge, and source data can be stored in an unstructured, semi-structured, or fully structured format. Ontology is a knowledge representation model that speciﬁes the concepts and relations of knowledge and has been used in various research domains, such as knowledge engineering, natural language processing, knowledge manage-ment, etc., to facilitate knowledge sharing and reuse.Aktas, Pierce, Fox, and Leake (2004)developed a well-deﬁned ontology to

sup-port CBR’s case representation.Yang and Chen (2006)constructed

the organization memory knowledge model with ontology. The ontology will remove the ambiguity, thus it can be used for the searching the browsing. An ontology can be used to represent the concepts and how they are related; it addresses the conceptu-alizations, no technical knowledge required and mostly with hier-archy of concepts structure. However, in the artificial intelligence area, there are many definitions of ontology. In this paper, we use ontology to define the experts’ knowledge of error type. 3. The architecture of rule-based CBR

In this section, we introduce the processes of problem diagnosis

and main components of RCBR approach. As shown inFig. 4, the

RCBR approach contains three main phases, knowledge bases con-structing phase, rule-based reasoning phase and case-based rea-soning phase. In knowledge bases constructing phase, diagnosis rule base is built for problem diagnosis and solution case base is built for solution retrieval. Furthermore, we construct user rule base and user base from user proﬁles provided by human resource department. Knowledge engineers and domain experts acquire knowledge ontology of system error types and RBAC ontology of expertise. Applying EMCUD and DRAMA technology to the trans-forming algorithm (Hwang & Tseng, 1990), knowledge and embed-ded rules of problem diagnosis can be acquired by rule-based format. In rule-based reasoning phase, the error type of query case can be determined by rule inference and then used to narrow down the case space to increase the performance in similarity calcula-tion. After splitting case space into several small case bases by rule inference, the efﬁciency and accuracy of solution retrieval in the case-based reasoning phase can be improved and then we can re-trieve most similar solutions from case bases.

3.1. Knowledge acquisition with ontology generation

Similar to the concept of object-oriented programming, we could treat all the entities in the real world as concepts and it is natural for us to model the world using concepts hierarchy. In knowledge acquisition phase, knowledge engineers acquire error type ontology with domain experts. The ontology is divided into two layers, the abstract layer ontology describes abstract catego-ries of error types, and the concrete layer ontology describes error

spaces of the speciﬁc domain. In Fig. 5, knowledge ontology of

Role1 Role2 Role3 User a Users User b User c Roles Resources

(4)

error spaces is excerpted from the oracle database that is designed by cooperation of the domain experts and knowledge engineers. The knowledge classes that include oval and rectangularity

repre-sent the concepts from domain experts. As shown inFig. 5, the

knowledge class ‘‘oracle DB”, consists of two KCs (knowledge clas-ses), ‘‘instance” and ‘‘database”, and the rectangle stands for knowledge class of the error type of cases. Two types of relation-ships are used in error type ontology to describe relationrelation-ships of problems. The first one is the ‘‘trigger” relationship between con-cepts. Some rule class is triggered when some specific conditions are satisfied. It means that a problem may be transformed into an-other problem. For example, ‘‘system error” can transform to ‘‘dat-abases error” when the root cause of error is identified in DB layer. The second one is ‘‘acquire” relationship, which could be used to describe the sub-problem may be solved by acquiring another rule class. For example, a ‘‘control file error” may acquire the expertise of ‘‘DB diagnosis”.

In addition, we model the relationships of knowledge classes and domain experts by modified RBAC model with expert profile that contains expertise, privileges and schedule arrangements. As shown inFig. 6, we create the technical role-hierarchy ontology to reflect the physical technique map of experts’ expertise and pro-fessional experiences. We link error category of error type ontology to corresponding role class of role-hierarchy ontology by relation-ship ‘‘Acquire”. For example, to solve the ‘‘DB crash” error, we may need expertise of ‘‘DB design”, ‘‘DB diagnosis” or ‘‘SQL tuning”. In the modified RBAC model, we map user to corresponding concept

classes with domain knowledge, schedule arrangements and priv-ileges. Peter and Dan are related experts in expertise ‘‘DB diagno-sis”. Afterward we can recommend corresponding experts by considering how the user proﬁles are related to the requested problem. In user base, work responsibility and schedule arrange-ment are stored in role-to-permissions table and role-to-user table in user databases as additional information for system.

The relationships of roles and permissions are illustrated in

Table 1, RPT. The technical roles on the horizontal edge ofTable 1are excerpted from technical role hierarchy. The value in the ma-trix stands for responsibilities of roles to reﬂect assignments of on-duty experts, PR is ‘‘primary responsibility”, SR is ‘‘secondary responsibility”, and N is ‘‘notify”.

The relationships of roles and permissions are illustrated in

Table 2, role-to-user table, RUT. Each element of the row repre-sents a role and each element of the column reprerepre-sents a user. Also, the grids could be ﬁlled up with schedule classes, and schedule class S is a set of schedule arrangements of user, S ¼Rsi. Moreover,

schedule arrangement si is a duration expression [begin_time,

end_time], e.g., [01/01/2008 08:00:00, 01/31/2008 17:30:00], it means that the role is authorized to work in time period between 8:00 am and 17:30 pm.

3.2. Ontology-to-rule algorithm

By acquiring knowledge from experts, error type ontology describing the relationships among system modules, system

Phase I. Knowledge Based Construction Phase Phase II. Rule-Based Reasoning Phase

Phase III. Case-Based Reasoning Phase

Fig. 4. The architecture of RCBR approach.

(5)

characteristics, system applications, and system status could be constructed. The ontology owns ‘‘trigger” and ‘‘acquire” relation-ships between rule classes depending on rule class features, where

NORM (new object-oriented rule-base model) (Tsai, 2002; Tsai,

Tseng, & Wu, 1999; Wu, 1999) is used as knowledge representation and EMCUD is applied to elicit embedded meaning of the error type.

Algorithm 1. Ontology-to-rule algorithm Input: Error Type Ontology, RBAC Ontology.

Output: Error Diagnosis Knowledge Class with facts and rules Step 1. Transfer Error Type Ontology concepts into Knowledge Classes: for each ontology concept, we could transfer the concept into the KC

Step 2. Choose exemplary attributes that could charac-terize the domain

Step 3. Deﬁne or identify the relationships between the KCs. For each relationship T:

Step 3.1. Interview domain experts to build the corresponding attribute tables, AT and AOT, for each knowledge classes

Step 3.2. Acquire domain experts’ inference with AT and AOT, and generate rules with facts Step 3.3. Generate the Certainty Factor of the rule Step 4. For each KCs, if the KC has corresponding Tech-nical Role. For each relationship T:

Step 4.1. Acquire domain experts’ inference with AT and AOT, and generate rules with facts Step 4.2. Generate the Certainty Factor of the rule Step 5. Verify the rules by domain experts and modify the rules if needed

The ontology-to-rule algorithm which can generate rules from knowledge ontologies is illustrated as follows. Acquisition table

(AT) and attribute ordering table (AOT) of EMCUD (Hou et al.,

2005) describe the relationships of objects and facts, the objects are put in columns, and facts are put in rows to build objects values and relationships. AT is a repertory grid of multiple data types to identify the relationships of objects and attributes. The corre-sponding object and fact have a value to identify the value of the

object feature. Besides, relative importance of each attribute to each object is represented as attribute ordering table (AOT). In AOT table, D stands for dominate the relationship, X represents no relationship, and Integer represents the strength of relationship (from 1 to 5, 5 is strongest relationship). We apply ontology-to-rule algorithm to transform knowledge ontology to ontology-to-rule sets, and the rules are generated by AT and AOT. When algorithm transform-ing the knowledge into the rules, the rules are generated by the format: if <condition> then<result>.

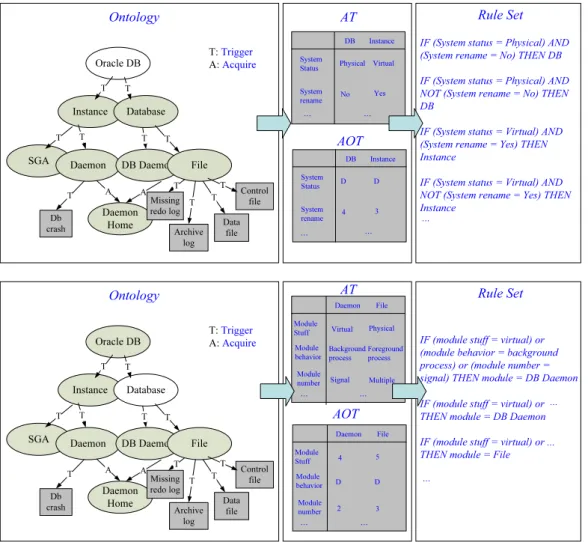

Example 1. (Ontology-to-rule:)

In this example, rules are generated from root class ‘‘oracle DB”

by ontology-to-rule algorithm. In the left part of Fig. 7, the

ontology is excerpted from oracle knowledge ontology. The root class ‘‘oracle DB” in ontology contains two classes, ‘‘instance” and ‘‘database”. Based on the features of the class ‘‘oracle DB”, we acquire objects and attributes from domain experts and construct AT and AOT in the middle part ofFig. 7. Objects in columns contain ‘‘database” and ‘‘instance”, and facts in rows include ‘‘system

Abstract Layer Concrete Layer T T System Error T Middle Ware Error Databases Error Oracle Problem MS SQL Problem T T T Oracle DB File Data file error Control file error T DB Daemon T Db crash T Database Expertise Oracle DB MS SQL DBA DB Design SQL Developer Resources (Error Ontology ) Technical Role Ontology

User Profiles DB Diagnosis SQL Tuning Rel. of User-to-Role SQL Execution DB Security Acquire Acquire Acquire T: Trigger A: Acquire Alan Peter Nicole Dan

User Base

Fig. 6. Role-based access control model for expert responsibilities assignment management.

Table 1

Example of a role-to-permissions table, RPT.

DB design DB diagnosis DB security

Nicole N N N

Alan PR SR

Dan PR

Peter SR

. . . .

PR: primary responsibility, SR: secondary responsibility, N: notify.

Table 2

Schedule arrangement in user-to-role table, URT.

DB design DB diagnosis DB security

Nicole Sn1 Sn2 Sn3 Alan Sa1 Sa2 Dan Sd Peter Sp . . . . S ¼Rsi.

(6)

status” and ‘‘system rename”. The input values physical, virtual, no, and yes in AT are listed from top to bottom, left to right in sequence to describe the feature values between each object and fact. Input values are D, D, 4, 3 in AOT to describe the relationships strength between each object and fact.

Each meaning-embedded rule extracted by EMCUD has a cer-tainty factor (CF), which is based upon a general repertory-grid-analysis method. For the inference process of each rule, the result may be affected by the rules in child knowledge objects. In other words, the CF of the inferred rule may be affected by the CFs of the rules in child knowledge objects. Therefore, a new formula of calculating CF based upon hierarchical grids is defined as follows. Since embedded rules with weak acceptable CF values (the CF val-ues below a user defined threshold) usually mean domain experts might lack strong confidence, objects matching weak embedded rules may be the candidates of new evolved objects.

Each embedded rule is assigned a certainty sequence (CS), the sum of each AOT values of the ignored attributes, and the CF

calcu-lated by formula(1)which is between 0 and 1 can represent the

degree of certainty for each embedded rule. Each of them is as-signed a CF between 0 and 1, and the CF value approaching to 1 means more important.

CFðRiÞ ¼ UBðRaÞ

CSðRiÞ

MAXðCSiÞ ðUBðRaÞ LBðRaÞÞ

ð1Þ

The Rais original rule, Riand CSðRiÞ are the ith embedded rule of the object and the CS values, respectively. The MAXðCSiÞ is the

maxi-mum CS value of the embedded rules generated from object. To de-cide the CF of each embedded rule Ri, the upper bound ðUBðRaÞ) and the lower bound ðLBðRaÞ) CF values of the object have been ﬁrstly deﬁned for accepted embedded rules. Accordingly, CF values of each rule can be automatically determined by the mapping function, for-mula(1). Therefore, the useful embedded rules with corresponding CF values could be used to cover more uncertainty cases.

In the right part ofFig. 7, the rules generated from AT and AOT are shown as follows.

IF ðSystem status ¼ PhysicalÞ AND ðSystem rename ¼ NoÞ THEN Oracle DB; CF ¼ 0:8

IF ðSystem status ¼ PhysicalÞ AND NOTðSystem rename ¼ NoÞ THEN Oracle DB; CF ¼ 0:4

IF ðSystem status ¼ VirtualÞ AND ðSystem rename ¼ YesÞ THENInstance; CF ¼ 0:4

IF ðSystem status ¼ VirtualÞ AND NOTðSystem rename ¼ YesÞ THEN Instance; CF ¼ 0:6

3.3. Rule-based error type inferring for problem diagnosis

Rule is a natural knowledge representation, in the form of the ‘‘If<condition> Then<result>” structure and rule-base system (RBS) is popular for real applications among expert systems. RBS has

many advantages (Reichgelt, 1991). The ﬁrst is naturalness of

expression since experts rely on rules rather than textbook

(7)

knowledge. The second is modularity that permits RBS easy to con-struct, to debug, and to maintain. Restricted syntax and ability of explanation are also the advantages of RBS. Consequently, we ap-plied rule-based reasoning approach to problem diagnosis pro-cesses for the representations of experts’ knowledge.

As shown inFig. 8, when facts are collected through sensors or other input sources, the facts will be inferred from a specific con-cept in a domain and other three concon-cepts can be associated according to their relationships. Nevertheless, people may not con-sider all relevant knowledge at the same time since too much effort is required to solve the problem. Some inference skills are widely used in human thoughts to improve the performance of knowledge inference. The inference process for problem diagnosis is described as follows. The first step is to select a rule base from multiple rule-bases. Because a knowledge system cannot contain all types of domain knowledge, it is necessary to specify a knowledge domain before inference. The second step is to collect the facts and specify a knowledge class (KC) (Lin, Tseng, & Tsai, 2003) con-taining the corresponding control knowledge for the problem to be solved. According to the specified KC, the inference engine will perform the reasoning process. Finally, interesting and useful information can be obtained from final fact value. Furthermore, the order of fired rules is decided by CF values, and the lower pri-ority rules have weak CF values. After the inference processes, the error type of the problem can be identified.

3.4. Case-based reasoning for solution retrieval

After the error type of the problem is diagnosed, we retrieve the solution from corresponding case base with case-based rea-soning approach. Case-based rearea-soning (CBR) is an approach that solves a new problem by recalling a previous similar situation and reusing information and knowledge of that situation. A process model of the CBR cycle may be described by the four processes: RETRIEVE the most similar case, REUSE the information and knowledge in that case to solve the problem, REVISE the proposed solution, and RETAIN the parts of this experience which it’s likely to be useful for future problem solving (Chen et al., 2002). A flex-ible combinatorial strategy makes RCBR possflex-ible to solve the mul-ti-domain problems without the need for huge case bases of complex mechanisms. Searching through the whole ”case base” for a solution in a sequential way is rather inefficient. Therefore,

the efficiency of searching can be enhanced by adopting catego-rized cases base in such situation since categorizing similar prob-lem types in advance is a good way to narrow down the searching spaces. Based on the classified categories, we can locate a solution retrieval problem according to experts’ experiences and only the required attributes are adopted. By searching solution cases in split case spaces, we can increase efficiency of inference in case-base reasoning.

Generally speaking, in typical retrieval systems, information is retrieved by a search engine in response to submitted queries. Tra-ditionally, a query is represented as a set of keywords that are used to specify the intended information, and almost all search engines treat the search keywords equally. However, it is sometimes not exact what the users want. To improve precision and efficiency of retrieval, we represent each categorized document with a spe-cific keyword set. Based upon the characteristics of separate error spaces, we define the case features to represent the solution cases of each error space. Each error space has its own features set, called local solution case features set, and the universal solution case fea-tures set is the union of all local feature sets. With local feature set, we can reduce keyword set for solution representation and com-pare the similarity between query and cases using case-based rea-soning for solution retrieval.

Deﬁnition 1. The universal solution case features set ðRÞ

X

¼[

n

i¼1

Fi

where n is number of error spaces,Ris universal solution case fea-tures set, and Fi is local solution case feafea-tures set.

Example 2. In the case bases, the original solution documents of error instances obtained from the experts and technical forums are retained as the attribute-based solution cases with attributes error type, subject, module, version, platform, publisher, date, and solution statement as described inTable 3. It is the example case of ‘‘redo log error”, and the case is represented as case vector by local solution case feature of error type ‘‘redo log error”.

Based upon local solution case feature of ‘‘redo log error”, the solution case can be represented as case vector.

‘‘Dropping redo logs not possible” Vector = {‘‘redo log error”, ‘‘dropping redo log”, ‘‘8.1.7”, ‘‘solaris”, ‘‘online redo log”, ‘‘corrupt

Corresponding

Expertise

Main concept

Error Type

Facts

transformation

Transforming

Associative

concept

Associative

concept

Associative

concept

Acquire

Rule-Base

Retrieve Retrieve

(8)

redo log file”, ‘‘ORA-1624”, ‘‘status = current”, ‘‘status = active”, ‘‘logfile”, ‘‘alter database clear logfile”,. . .}

The attributes subject, application, platform and version are used to compute the similarity between query and case in case base according to formula(2).

Sðq; cÞ ¼

a

Ssðq; cÞ þ ð1

a

ÞSaðq; cÞ; ð2Þ

where Sðq; cÞ is the similarity between query and case, Ssðq; cÞ is the similarity between query and case in subject and problem descrip-tion, Saðq; cÞ is auxiliary similarity for the application that contains application, platform, and version, and

a

is a control variable. The control variable

a

can be decided by domain experts. The similarity Ssðq; cÞ is deﬁned in Formula(3), and the auxiliary similarity Saðq; cÞ is deﬁned in formula(4)and formula(5).

In formula(3), Nqis subject keyword set of the given query, and Ncis subject keyword set of a case. As subject is the description of the solution case, meaningful keyword list is extracted from ‘‘sub-ject” and ‘‘description attributes”.

Ssðq; cÞ ¼ 2jNq[ Ncj jNqj þ jNcj ð3Þ Saðq; cÞ ¼ 1 n Xn i¼1 Siaðq; cÞ ð4Þ Siaðq; cÞ ¼ Dimax D i qc Dimax ð5Þ

Example 3. The similarity of formula(3)is computed based upon

the set of keywords of cases. Assume there are a query and two cases, Query = {timeout, space, resource, enqueue}, Case

1={time-out, space, management, resource, In queue}, and Case

2={resource, busy, NOWAIT, speiﬁed}. The Query is similar to Case 1, since they have the same set of keywords (timeout, space, and resource). Based upon Formula(3). Similarity of Query and cases are shown as below.

Similarity of Case 1: Ssðq; c1Þ ¼2 Nj q[Ncj Nq j jþ Nj cj¼ 2j3j 5þ4 ¼ 0:66 Similarity of Case 2: Ssðq; c2Þ ¼2 Nj q[Ncj Nq j jþ Nj cj¼ 2j1j 5þ4 ¼ 0:22

4. System implementation based on RCBR 4.1. System implementation

Based upon RCBR approach, we have constructed the prototype system of knowledge management for IT employees, called

Solu-tion Retrieval System (abbrev. SRS). SRS contains two main mod-ules, problem diagnosis module (rule-based reasoning) and solution retrieval module (case-based reasoning). The SRS system is a help desk platform to provide problem diagnosis and expert suggestion for IT employees and beginner employees. When prob-lem comes, IT employee can diagnose error type of the probprob-lem and retrieve the appropriate solution by SRS easily. We applied SRS system to CRM system that contains several sub-systems and

complex system architectures as shown inFig. 1. In SRS, users

can input query case by keyword, system logs or error description (Chang & Hsieh, 2004; Wai & Lau, 2003) and receive the response with the diagnosed error type and solution case from the system, as shown inFig. 9. In the following paragraph, we will describe the operation of SRS with the case of ‘‘database pending error”.

After submitting the query, the solution lists will be displayed in descending order of the similarity. Each solution contains sub-ject, brief solution description, similarity, and suggested expert, as shown inFig. 10. And users can choose the desired solution case according to similarity. Eventually, the solution will show the know-how and assist users step by step to solve system problems efﬁciently, as shown inFig. 11, and the suggested user proﬁle is shown inFig. 12.

4.2. Case maintenance

Case maintenance includes case retention and case revision. The solution case contains multi-attributes based upon characteristics of problem domain, e.g., in oracle DB error type, the attributes in

Table 4 are chosen as the representation of solution cases. The

descriptions of oracle DB error type are shown in Table 5. In

Table 3

Example case of dropping redo log not possible. Attributes Description

Error type Redo log error

Subject Dropping redo logs not possible Application File

Version 8.1.7 Platform Solaris

Description Could not drop the redo logs which may be needed for instance recovery The online redo logs could not be dropped if:

1. There are only two log groups

2. The corrupt redo log ﬁle belongs to the current group

Solution The error ORA-1624 will be produced, since an online redo log ﬁle with status = CURRENT or status = ACTIVE in v$log could not be cleared. The command erases all data in the logﬁle

Please note that ’alter database clear logﬁle’ should be used cautiously. If no archived log was produced, then it is impossible to conduct a complete recovery. Perform a backup immediately after completing this command

(9)

Table 6, an example case of the redo log error in case-base contains four attributes (subject, app, version, and platform), and has corre-sponding description and solution. Domain experts retain cases with complete descriptions and solutions to fulﬁll case attributes requirements and collect the cases into case bases. They also retain revised value into case base when the case is modiﬁed.

5. Experiments and evaluation

In this section, we try to evaluate the performance of the novel approach. The purpose of the proposed approach, RCBR is to sup-port problem diagnosis and solution retrieval. The SRS system is

proposed based upon rule-based CBR approach to provide solution retrieval service. The experimental results of SRS system compared to the original solution retrieval system called KM center, have been implemented based upon case-based reasoning approach which is a key component in knowledge management system. We have further defined six error categories, and extracted about 10,800 error inference rules, 360 real cases, and 27 expert profiles in SRS system. Besides, two experiments have been designed and implemented to evaluate the accuracy and efficiency of both rule-based CBR approach and case-based reasoning approach,

Fig. 10. Solution list in SRS.

Fig. 11. Solution description in SRS system.

Fig. 12. User proﬁle in SRS system.

Table 4

The attributes of solution case of oracle DB error types. Attribute

name

Data type Description

Error type Text The error type of solution case Subject Text The subject of case

Module Nominal The root cause module of system error Version Numerical The version of installed system

Platform Nominal The description of installed operating system Publisher Nominal The publisher of solution statement Date Date The date of solution document

Description Text The symptom description of error instance Solution

statement

Text The error recovery standard operation process (SOP) description as solution

Table 5

Descriptions of oracle DB error types. Error type Description

DB crash error DB crash means database crashed and unable to startup

Redo log error Redo log is a buffer saving data in memory or log ﬁles for data rollback

Archive log error Archive log is for providing 24-h availability and guaranteeing complete data recoverability Data file error Data file is a physical file for saving data

records that are committed in database Control ﬁle error Control ﬁle records all database information

and related database parameters setting System monitoring error System monitoring (SMON) performs instance

recovery after an instance crash

Table 6

Example case of redo log corruption. Attributes Description Error type Redo log error Subject Redo log corruption Application File

Version 8.1.7 Platform Solaris

Description Redo log corruption errors in one of the redo log ﬁles while the database is open

The redo log corruption could be any of these errors: ORA-16038 log%s sequence#%s cannot be archived ORA-354 corrupt redo log block header

ORA-353 log corruption near block<num> change<str>time<str>

ORA-367 checksum error in log ﬁle header ORA-368 checksum error in redo log block

Solution If an online redo log file has been corrupted while the database is open, the ’alter database clear logfile’ command can be used to clear the files without turning off the database

Clear the logﬁle having the problem: Syntax:

alter database clear<unarchived> logfile group<integer>; alter database clear<unarchived> logfile ’<filename>’; ie:

alter database clear logﬁle group 1; alter database clear unarchived logﬁle group 1

(10)

where ﬁve domain experts have participated in our experiments by inputting the query to both systems and then evaluating the re-sults. In Experiment 1, we evaluated the accuracy in solutions and expert suggestion between the KC center and the SRS. In Experiment 2, we calculated the efﬁciency of system in average query times.

Experiment 1: accuracy of solution retrieval and expert suggestion To evaluate the retrieval accuracy, in Experiment 1, 28 error problems have been dispatched to experts randomly for judging the correctness of suggested solutions from both systems, KC

cen-ter and SRS, and the evaluated results are shown in Table 7. In

addition, the SRS system suggested appropriate expert to solve the problem. In Evaluation 1, the average accuracy rate of RCBR (82.14%) is better than that of CBR (60.71%) as shown inFig. 13. InTable 8, the SRS system suggests domain expert for each test case. The average accuracy rate of RCBR is 78.57%.

Experiment 2. Efﬁciency: average query times in system diagnosis and solution retrieving

In Evaluation 2, with predeﬁned 28 questions of six categories, the average query times are listed inTable 9, where the query efﬁ-ciency of SRS system is quicker than that of KC Center and the aver-age query times of RCBR is 2.10, and CBR is 4.93. The diagram of

Table 9shown inFig. 14describes the comparison result between SRS and KM center for system diagnosis and solution retrieval in efﬁciency aspect.

6. Conclusion

The issues of information system problem diagnosis and expert finding are very important for IT service management. Most of nov-ices are unable to find an efficient way to solve the problem even though the relevant document center and the search engine are available. In this paper, we designed and implemented solution

Table 7

Accuracy evaluation between RCBR and CBR.

Error types Average hitness

Db crash Redo log Archive log Data ﬁle Control ﬁle System monitoring

Test cases 5 4 6 4 4 5 28

Accuracy of KM center (CBR) 3 3 4 2 2 3 17

Accuracy rate of KM center(CBR) 60% 75% 66% 50% 50% 60% 60.71%

Accuracy of SRS (RCBR) 4 4 5 3 3 4 23 Accuracy rate of SRS (RCBR) 80% 100% 83% 75% 75% 80% 82.14% 0% 20% 40% 60% 80% 100%

DB Crash Redo Log Archive Log Data File Control File System

Monitoring Error Type

Solution Accuracy KM(CBR)

SRS(RCBR)

Fig. 13. Accuracy evaluation between RCBR and CBR.

Table 8

Accuracy evaluation of expert suggestion.

Error types Average hitness

Test cases 5 4 6 4 4 5 28

Accuracy of expert suggestion 3 4 4 3 3 5 22

Accuracy rate of expert suggestion 60% 100% 67% 75% 75% 100% 78.57%

Table 9

Efﬁciency evaluation between RCBR and CBR.

Average times in solution retrieval Average times

SRS (RCBR) 1.60 2.20 2.00 1.20 2.40 3.20 2.10

(11)

retrieval system (SRS) to assist employee to discover and solve prob-lem in CRM system. Our main contributions are: (1) We proposed the RCBR methodology to improve the accuracy and efficiency of solving multi-domain solution retrieval problem. (2) We proposed RCBR methodology by providing hybrid architecture to solve sys-tem diagnosis problem in which hierarchical knowledge ontology is very easy to maintain. (3) We defined the architecture of RCBR for solution retrieval system to enhance process of diagnosis. (4) We incorporate domain expert profiles into our methodology with RBAC model.

According to the experimental results, the paradigm of using RCBR methodology and RBAC model to build SRS system works well and effective. RCBR will beneﬁt the inference on problem diagnosis, and incorporate domain experts into retrieval system with RBAC model by constructing expertise ontology. It is assumed that the same approach could be adaptively modiﬁed to other problem domains for knowledge base and user database construction.

In contrast to CBR, our proposed RCBR methodology using rule-based inference and case-rule-based reasoning can reﬁne rule base and revise case base very quickly. In the near future, we will try to en-hance the ability of the system to handle more complex problem, e.g., multi-category problem diagnosis. With imitating thinking models of experts, the architecture of RCBR system will also be en-hanced to solve similar problems in different category. Further-more, in our experiments, RCBR system can be supported by online or mobile service.

Acknowledgement

This work was partially supported by National Science Council of the Republic of China under contracts NSC96-2752-E009-006-PAE.

References

Aamodt, A., & Plaza, E. (1994). Case-based reasoning: Foundational issues, methodological variations, and system approaches. Artiﬁcial Intelligence Communications (Vol. 7 (5)). IOS Press. pp. 39–59.

Aktas, M. S., Pierce, M., Fox, G. C., & Leake, D. (2004). A web based conversational case-based recommender system for ontology aided metadata discovery, grid computing. In: Proceedings of the ﬁfth IEEE/ACM international workshop, 8 November (pp. 69–75).

Carswell, J. D., Wilson, D. C., & Bertolotto, M., (2002). Digital image similarity for geo-spatial knowledge management, advances in case-based reasoning. In: Proceedings of the sixth European conference, ECCBR, Aberdeen, Scotland, United Kingdom, September 4–7 (pp. 58–72).

Chang, Y. I., & Hsieh, W. H. (2004). An efﬁcient scheduling method for query-set-based broadcasting in mobile environments, distributed computing systems workshops. In: Proceedings of the 24th international conference (pp. 478–483). Chang, C. G., Wang, D. W., Hu, K.Y., & Zheng, B. L. (2004). Two stage case-based

reasoning application research on steel-making dynamic scheduling. In: Proceedings of the thrid international conference on machine learning and cybernetric, Shanghai (pp. 2116–2121).

Chen, Y. F., Huang, H., Jana, R., John, S., Jora, S., Reibman, A., & Wei, B. (2002). Personalized multimedia services using a mobile service platform. In: Wireless communications and networking conference, 17–21 March, WCNC2002, IEEE (Vol. 2, pp. 918–925).

Dunker, K. (1945). On problem solving. Psychological Monographs, 58.

Eckerson, W. W. (1995). Three tier client/server architecture: Achieving scalability, performance, and efﬁciency in client server applications. Open Information Systems, Vol. 10, 1 (January 1995): 3(20).

Enokido, T., & Takizawa, M. (2008). Role-based concurrency control for distributed systems. In: Proceeding of the IEEE ICDCS, June (pp. 24–29).

Ferraiolo, D. F., Sandhu, R., Gavrila, S., Kuhn, D. R., & Chandramouli, R. (2001). Proposed NIST standard for role-based access control. ACM Transactions on Information and System Security, 4, 224–274. August.

Gu, M., Tong, X., & Agnar, A. (2005). Comparing similarity calculation methods in conversational CBR, information reuse and integration, conference. In: IRI-2005 IEEE international conference, 15–17 August (pp. 427–432).

Hajar, M. J., & Lee, S. P., (2005). Applying machine learning using case-based reasoning (CBR) and rule-based reasoning (RBR) approaches to object-oriented application framework documentation, information technology and applications. In: ICITA, third international conference, 4–7 July (Vol. 1, pp. 52–57). Hayashi, S., Asakura, T., & Zhang, S. (2002). Study of machine fault diagnosis system using neural networks, neural networks. In: IJCNN ’02, proceedings of the 2002 international joint conference, 12–17 May (Vol. 1, pp. 956–961).

Hou, X., Gu, J., Shen, X., & Yan, W. (2005). Application of data mining in fault diagnosis based on ontology. In: Proceedings of the third international conference on information technology and applications (ICITA’05).

Hwang, G. J., & Tseng, S. S. (1990). EMCUD: A knowledge acquisition method which captures embedded meanings under uncertainty. International Journal of Man– Machine Studies, 33, 431–451.

Kumar, F. R., Gopalan, S., & Sridhar, V. (2005). Context enabled multi-CBR based recommendation engine for e-commerce, e-business engineering. ICEBE 2005. In: IEEE international conference, 12–18 October (pp. 237–244).

Lambert-Torres, G., Martins, H. G., Rossi, R., & da Silva, L. E. B. (2003). Using similarity assessment in case-based reasoning to solve power system substation problems, electrical and computer engineering, IEEE CCECE. In: Canadian conference, 4–7 May (Vol. 1, pp. 343–346).

Lin, Y. T., Tseng, S. S., & Tsai, C. F. (2003). Design and implementation of new object-oriented rule base management system. Expert Systems with Applications, 25, 369–385.

Reichgelt, H. (1991). Knowledge representation, an AI perspective. Norwood, NJ: Ablex Publishing Corporation.

Rish, I., Brodie, M., Ma, S., Odintsova, N., Beygelzimer, A., Grabarnik, G., et al. (2005). Adaptive diagnosis in distributed systems. IEEE Transactions on Neural Networks, 16(5). September.

Sandhu, R. S., Coyne, E. J., Feinstein, H. L., & Youman, C. E. (1996). Role-based access control models. IEEE Computer, 29, 38–47. February.

Schussel, G. (1995). Client/server past, present, and future.<http://news.dci.com/ geos/dbsejava.htm>.

Smyth, B., IEEE Computer Society, Keane, M. T., & Conningham, P. (2001). Hierarchical case-based reasoning integrating case-based and decompositional problem-solving techniques for plant-control software design. In: IEEE transactions on knowledge and data engineering (Vol. 13, pp. 793–812). 0 1 2 3 4 5 6 7

Db Crash Redo Log Archive Log Data File Control File System

Monitoring Error Type

Average Query Times KM(CBR)

SRS(RCBR)

(12)

Spalazzi, L. (2001). A survey on case-based planning. Artiﬁcial Intelligence Review, 16, 3–36.

Tsai, C.-F. (2002). Design and implementation of new object-oriented rule base management system. Master thesis, Department of Computer and Information Science, National Chiao Tung University.

Tsai, C. J., Tseng, S. S., & Wu, Y. C. (1999). A new architecture of objected-oriented rule base management system. In: Proceeding of international conference on TOOLS 31, Nanjing, China (pp. 200–203).

Wai, Y. L., & Lau, F. C. M. (2003). User-centric content negotiation for effective adaptation service in mobile computing. Software Engineering, IEEE Transactions, 29(12), 1100–1111. December.

Wang, H., & Liu, Y. (2004). Hierarchical case-based decision support system for power system restoration. Power Engineering Society General Meeting, 1, 1115–1119. Wu, Y. C. (1999). An approach to object-oriented rule base management system.

Master thesis, Department of Computer and Information Science, National Chaio Tung University.

Yang, K. J., & Chen, Y. M. (2006). Ontology-based knowledge retrieval in organizational memory, innovative computing, information and control. In: ICICIC’2006, 30 August (Vol. 1, pp. 566–569).

Zhang, D., Dai, S., Zheng, Y., Zhang, R., & Mu, P. (2000). Researches and application of a hybrid fault diagnosis expert system, intelligent control and automation. In: Proceedings of the third world congress, 28 June to 2 July (Vol. 1, pp. 215–219).
