Vacuum-free lamination of low work function cathode for efficient solution-processed organic light-emitting diodes

(1)

Vacuum-free lamination of low work function cathode for efﬁcient

solution-processed organic light-emitting diodes

Yu-Fan Chang

a

, Chun-Yu Chen

b

, Fang-Tsai Luo

b

, Yu-Chiang Chao

b

, Hsin-Fei Meng

b,⇑

,

Hsiao-Wen Zan

a

, Hao-Wu Lin

c

, Sheng-Fu Horng

d

, Teng-Chih Chao

e

, Han-Cheng Yeh

e

,

Mei-Rurng Tseng

e

a

Department of Photonics, National Chiao Tung University, Hsinchu 300, Taiwan b

Institute of Physics, National Chiao Tung University, Hsinchu 300, Taiwan c

Department of Materials Science and Engineering, National Tsing Hua University, Hsinchu 300, Taiwan d

Department of Electrical Engineering, National Tsing Hua University, Hsinchu 300, Taiwan

e_{Material and Chemical Research Laboratories, Industrial Technology Research Institute, Hsinchu 310, Taiwan}

a r t i c l e

i n f o

Article history: Received 30 May 2011

Received in revised form 6 November 2011 Accepted 17 November 2011

Available online 16 December 2011 Keywords:

Lamination Polyethylene glycol Low work function

a b s t r a c t

The low work function cathode of blade-coated organic light-emitting diode is transferred from a soft polydimethylsiloxane (PDMS) mold by lamination without vacuum. The cath-ode is a bilayer of polyethylene glycol (PEG) (<10 nm) and Al (100 nm). A sacriﬁcial layer of polystyrene with low Mw 1500 and melting point of 120 °C is inserted between the cath-ode and PDMS for the subsequent mold removal at 150 °C by melting polystyrene. Current efﬁciency of 3 cd/A (1.1%) and luminance of 2500 cd/m2_{are achieved for green}

polyﬂuo-rene ﬂuorescent emitter. 25 cd/A (8.2%) and 3200 cd/m2_{are achieved for green}

phospho-rescent tris[2-(p-tolyl)pyridine]iridium(III) (Ir(mppy)3) emitter in polymer blend host.

The efﬁciency is about 70% of the devices with thermally evaporated cathode. The turn-on voltage is about 5 V higher.

1. Introduction

One of the great advantages of organic semiconductor is the possibility to make large-area devices by solution pro-cess at low cost. The active polymer or small-molecule semiconductors can be deposited on indium-tin-oxide (ITO) glass as a large thin ﬁlm by spin coating, ink-jet lam-ination, slot die coating, or blade coating[1,2]for organic light emitting diode (OLED) as well as solar cell. The top electrode, however, in general requires the slow vacuum evaporation which becomes the bottleneck for the high volume fabrication. Vacuum-free lamination of top metal contact for solution-processed OLED and polymer solar cell is therefore a key subject. The lamination of anode is relatively easy because many conductors with high work

function are stable by itself. For example Au [3] and poly-(3,4-ethylenedioxythiophene) doped with poly-(sty-renesulfonate) (PEDOT:PSS) anode[4] are printed on the active layer in inverted polymer solar cell. Cathode lamina-tion is more challenging because of the low work funclamina-tion and high reactivity. In most of the high-efﬁciency OLED structure the cathode is on the top, and the demand on low work function is greater than solar cell. The vacuum-free cathode lamination has three requirements. (1) The resulting contact has a low enough work function for elec-tron injection. (2) It does not depend on chemical reactions as in the common cases of evaporated LiF or CsF where the alkaline metal ions are released by reactions during vacuum deposition[5]. (3) The material should not be very sensitive to water and moisture as the case of Cs2CO3[6],

since it is not deposited in the high vacuum in the evapo-ration chamber. Printed Au has been reported as the cathode for OLED, but the high work function around

⇑ Corresponding author.

E-mail address:[email protected](H.-F. Meng).

Contents lists available atSciVerse ScienceDirect

Organic Electronics

(2)

5.0 eV gives poor external quantum efﬁciency around 0.6%

[7]. Mg/Ag is also printed as the cathode, the work function around 3.8 eV is still not low enough and the resulting external quantum efﬁciency is only 0.16%[8].

In order to realize cathode lamination for organic de-vices with low work function and high stability, in this work we use PEG/Al as the cathode. The HOMO level of PEG and the work function of PEG/Al measured by air photo-emission are 5.55 eV and 3.55 eV. Due to the forma-tion of Al–O bond photovoltaic measurement shows that the work function of Al is signiﬁcantly reduced by a thin layer of polyethylene glycol (PEG) on top of the active layer

[9]. Performance of OLED with vacuum evaporation of Al on top of PEG suggests a work function comparable to that of Ca and LiF/Al which is about 2.9 eV[10]. Instead of evap-oration we use lamination of PEG/Al, previously deposited on a soft polydimethylsiloxane (PDMS) mold, on the active layer of OLED. The PDMS layer is subsequently removed by the melting of a sacrificial polystyrene inter-layer between the cathode and the PDMS mold. The molecular weight of polystyrene is deliberately chosen to be low in order to give a low melting point which is crucial for high reproduc-ibility and integrity of printed cathode after mold removal. The efficiency of our OLED is much higher than the pre-vious report on printed cathode. Multi-layers of organic semiconductors are deposited by blade coating without dissolution[1,2]. For green fluorescent device the external quantum efficiency is 1.1% with peak luminance of 2500 cd/m2_{, for green phosphorescent device the quantum}

efﬁciency is 8.2% with peak luminance of 3500 cd/m2_.

Because no highly reactive metals like Li, Cs, or Ca are in-volved, the OLED show remarkable stability in air exposure after the PDMS mold removal. All device data are taken without encapsulation, in sharp contrast to the ordinary OLED with vacuum deposited cathode. Even though Al on PDMS still requires vacuum deposition, it can be made sep-arately with high volume in advance and will not be a limit of the OLED process throughput. With such PEG/Al lamina-tion method OLED and organic solar cell with reasonable efﬁciency can be made by good reproducibility and stabil-ity entirely free of vacuum process.

2. Experimental

Before the cathode lamination the OLED is in two sepa-rate parts. One is on ITO glass substsepa-rate and the other is on elastomeric silicon rubber substrate. The ITO glass is cleaned with neutral detergent, acetone, and isopropyl alcohol, followed by ultraviolet ozone treatment for 15 min. A 500 Å layer of poly-(3,4-ethylenedioxythio-phene) doped with poly-(styrenesulfonate) (PEDOT:PSS, CLEVIOS™ P VP AI4083) is spin coated at 2000 rpm on the ITO glass, then annealed at 200 °C for 15 min in air. Poly [(9,9-dioctylﬂuorenyl-2,7-diyl)-co-(4,40

-(N-(4-sec-butylphenyl)) diphenylamine)] (TFB, American Dye Source ADS259BE) dissolved in toluene with 1 wt.% is spin coated on the PEDOT:PSS surface as the hole transport layer (HTL), then annealed at 180 °C for 40 min. TFB is ﬁnally spin-rinsed by toluene to remove the dissolvable part, whereas

PDMS

PS

Glass

ITO

PEDOT

Polymer

PS

PDMS

Heat

Glass

ITO

PEDOT

Polymer

PS

V

Lighting

Polyethylene glycol(PEG)

PDMS

PS

PEG

Al

(3)

the remaining thickness is below 10 nm. Both green fluo-rescent and phosphofluo-rescent emissive layers are deposited by blade coating on TFB[11]. For fluorescence, polyfluo-rene derivative (Green B by Dow Chemical) dissolve in tol-uene with 1.2 wt.% is blade coated with 60

l

m blade gap followed by spinning at 4000 rpm, resulting in 55 nm solid ﬁlm. Green B ﬁlm is then annealed at 130 °C for 30 min in vacuum. For phosphorescence the emission layer is a blend of tris[2-(p-tolyl)pyridine]iridium(III) (Ir(mppy)3), N,N0-bis

(3-methylphenyl)-N,N0_{-bis(phenyl)-benzidine (TPD),}

2-(4-Biphenylyl)-5-(4-tert-butylphenyl)-1,3,4-oxadiazole (PBD) and poly(vinylcarbazole) (PVK, Mw = 1,100,000) in the weight ratio of 6:9:24:61. The blend in chlorobenzene with 2 wt.% is blade coated with 60

l

m gap followed by spin-ning at 5000 rpm then annealed at 80 °C for 60 min in vac-uum, resulting in ﬁlm thickness of 60 nm. The electron transport layer (ETL), 2,20_,200

-(1,3,5-benzinetriyl)-tris(1-phenyl-1-H-benzimidazole) (TPBI) is dissolved in metha-nol with 0.5 wt.% and deposited onto the phosphorescent emissive layer by blade coating with 60

l

m gap followed by spinning at 3500 rpm, resulting in 20 nm thickness. Multi-layer of organic semiconductors can be made by such blade coating method without dissolution[1,2,11]. For the elastomeric substrate, a thermally stable silicon rubber polydimethylsiloxane (PDMS, Dow Corning Sylgard

184) is used. The PDMS precursor is drop cast on the ﬂat glass and cured at 80 °C for 1 h, resulting in rubber mold thickness of 0.6 mm. The PDMS mold is treated by oxygen plasma to make the surface hydrophilic. In order to trans-fer the cathode onto the other part, a sacriﬁcial polystyrene (PS) layer is deposited by spin coating in chlorobenzene with 25 wt.% at 800 rpm on plasma-treated PDMS surface. The PS layer is annealed at 80 °C for 20 min, resulting in thickness about 1

l

m. Three molecular weights Mw of 280,000, 35,000, and 1200 of polystyrene are used. Over the sacriﬁcial polystyrene layer 1000 Å of Al is thermally evaporated under 106_{torr with a rate of 2 Å/s. Finally}

polyethylene glycol (PEG) shown inFig. 1is dissolved with 0.3 wt.% in methanol then spin coated at 5000 rpm on Al, followed by annealed at 40 °C for 10 min. The PEG thick-ness is below 10 nm.

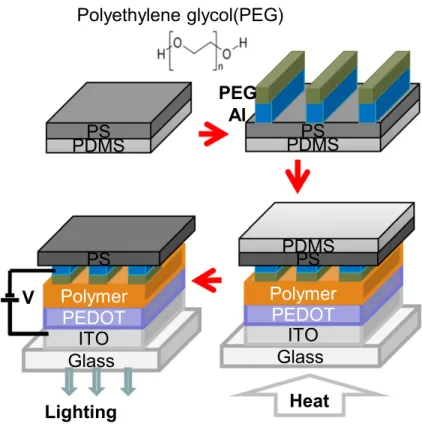

The transfer process of PEG/Al cathode to the other part of the device is illustrated inFig. 1. The ITO glass part with organic ﬁlm and PDMS part with PEG/Al cathode are lam-inated in nitrogen glove box. van der Waals force pulls them together when the two surfaces are in contact. The laminated device is then placed on a hot plate at 150 °C for 15 min without any external pressure other than grav-ity. The glass part is on the upper side for subsequent easy detachment of the PDMS mold from the rest of the sample.

Fig. 2. The images of printed cathode on top of the emissive layer. The molecular weight (Mw) of the sacriﬁcial PS layer is (a) 280,000, (b) 35,000, and (c) 1200. (d) The picture of a device without encapsulation under measurement.

(4)

Trapped gas bubbles between the two surfaces should be avoided in the lamination process. Baking on the hot plate not only melts the sacriﬁcial polystyrene layer but also en-hance the contact between the cathode and the organic semiconductors. Finally the PDMS substrate, now only connected to the rest of the sample by the liquid polysty-rene, is peeled off to ﬁnish the device. The transferred PEG/Al pattern covers the OLED active region of 2 by 2 mm2 _{and serves as connect to the ITO contact pad on}

the edge of the glass substrate. The device is taken out of the glove box and measured in air without encapsulation. For comparison, reference devices were fabricated with Al/PEG prepared by a regular method that PEG was spin coated on top the Green B and Al was thermally evaporated on top of PEG. PEG of standard device is made by blade coating followed by 5000 rpm using 0.3 wt.% solution in methanol on the organic surface. The standard evaporated device is encapsulated in the glove box and measured in air. The thickness of metal and organic layer was measured by surface roughness meter Kosaka ET4000. The current density–voltage (J–V) and luminance–voltage (L–V) charac-teristics of the devices are measured by Keithly 2400 source meter and spectrophotometer PR650.

3. Results and discussions

The molecular weight of the sacriﬁcial PS layer between the soft PDMS mold and the evaporated PEG/Al cathode is critical to the success of metal transfer and subsequent PDMS removal from the OLED by peeling-off. For high molecular weight the melting point is so high that it is impossible to melt it without damaging the OLED under-neath. The typical printed cathode on top of the active polyﬂuorene (PF) emissive layer is shown inFig. 2for var-ious PS molecular weight (Mw). For Mw = 280,000 more than half of the metal residues on PDMS after peel-off at 150 °C as shown in Fig. 2(a). When Mw is reduced to 35,000 most of the metal can be transferred to the PF layer after peel-off at 150 °C as shown inFig. 2(b). However the metal does not stick to the ITO contact at the edge of the glass substrate. When Mw is further reduced to 1200 the melting temperature becomes 120 °C which is below the hot plate temperature of 150 °C. As a result the metal can be transferred to not only the active layer but also the ITO contact without much remains on PDMS as shown in

Fig. 2(c). It is much easier to separate the PDMS mold and the rest of the sample by applying force to the hard glass side than to the soft PDMS side. The reason is that peeling from the PDMS side will cause bending of the mold which in turn cause metal cracks. The light emission of the resulting OLED in air without encapsulation is shown in

Fig. 2(d). The printed PEG/Al cathode connects the ITO con-tacts on the glass edge to the active region. The light is uni-form indicating the good contact throughout the active region of 2 by 2 mm2_.

The energy levels of the Green B device are shown in

Fig. 3. The hole can be injected from PEDOT:PSS anode to Green B highest occupied molecular orbital (HOMO) level through the TFB hole transport layer. The lowest unoccu-pied molecular orbital (LUMO) level of Green B is 3 eV

be-low vacuum so a cathode with work function close to 3 eV is required for easy electron injection. Consider vacuum deposited cathodes first. Ca cathode with work function 2.9 eV gives current efficiency of 3.5 cd/A at 7 V. Evapo-rated PEG/Al cathode gives slightly higher efficiency of 5.4 cd/A at 6 V with Green B layer thickness of 55 nm.

0 1 2 3 4 5 6 7 8 Current Efficiency(cd/A ) Applied Voltage(V) P:Printing E:Evaporation Al(P) Al(E) PEG/Al(P) PEG/Al(E) Ca/Al(E)

ITO/PEDOT/TFB/GreenB/cathode

0 2 4 6 8 10 12 14 0 500 1000 1500 2000 2500 Cu rrent Dens ity ( mA /cm 2) Applied Voltage(V) 0 5000 10000 15000 20000 Luminance (cd/m

)

₂ Applied Voltage(V) 2.3 5.3 PEDOT :PSS 5.2eV Al 3.62 PEG/Al 3.55 Green B 3.0 5.5 T F B

(a)

(b)

-2 0 2 4 6 8 10 12 14 -2 0 2 4 6 8 10 12 14 300 400 500 600 700 800 0.0 0.2 0.4 0.6 0.8 1.0

_Al(P)

Al(E)

PEG/Al(P)

PEG/Al(E)

Ca/Al(E)

Wavelength(nm) Normalized EL Intensity(a.u.)

(c)

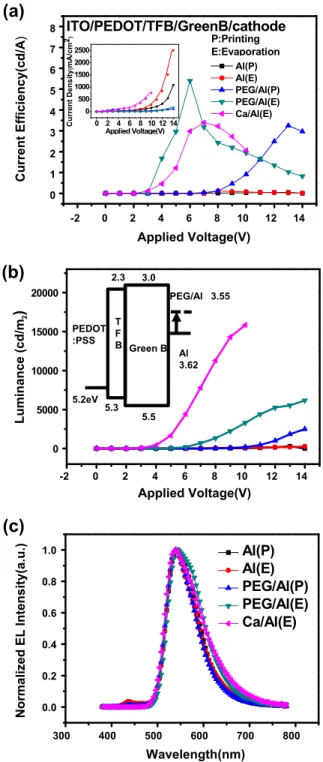

Fig. 3. The (a) efﬁciency, (b) luminance, and (c) electroluminance spectrum of the ﬂuorescence OLEDs with cathodes made by lamination and evaporation. The inset of (a) and (b) shows the current density and energy level diagram of these devices.

(5)

These values are roughly the optimal performance for TFB/ Green B combination. The efﬁciency drops to 3.2 cd/A and 1.5 cd/A when the thickness is changed to 40 nm and 75 nm respectively for evaporated PEG/Al. For devices with printed PEG/Al cathode the efﬁciency is 3.3 cd/A (1.1%) at 13 V with peak luminance of 2500 cd/cm2 _{achieved at}

14 V. Note that despite of the higher driving voltage the current efficiency of the printed devices is comparable to the evaporated devices. The increase of voltage may result from the higher work function of the printed PEG/Al cath-ode relative to the evaporated cathcath-ode. In evaporation pro-cess PEG is first deposited on Green B then Al is evaporated. The free Al atoms during evaporation in vac-uum facilitate the chemical reaction with PEG to form Al–O bond. In contrast for lamination process PEG is spin coated on the cold Al solid film and the temperature of all the subsequent process is below 150 °C. The degree of chemical reaction is therefore expected to be much lower than the evaporated cathode. Nevertheless the overall per-formance of the printed OLED satisfies the preliminary requirements for some applications. Pure Al cathode is deposited for comparison. As expected the efficiency is

about 100 times lower than the devices discussed above for both lamination and evaporation. The work function 4.3 eV of Al corresponds to 0.7 eV of high electron injection barrier. Such poor performance of pure Al cathode further demonstrate that the cold contact of PEG and solid Al does

0.0 0.5 1.0 1.5 2.0 2.5 P:Printing

Current Efficiency (cd/A)

Applied Voltage (V) PEG/Al(P) Al(P) ITO/PEDOT/TFB/GreenB/TPBI/cathode 0 5 10 15 20 0 100 200 Cu rr en t Den s ity ( mA/cm 2) Applied Voltage (V) -10 -5 0 5 10 15 20 0 5 10 15 20 0 500 1000 1500 P:Printing Luminance (cd/m 2) Applied Voltage (V) PEG/Al(P) Al(P) ITO/PEDOT/TFB/GreenB/TPBI/cathode 2.7 6.7 Al 3.62 2.3 5.3 PEDOT: PSS 5.2eV PEG /Al 3.55 Green B 3.0 5.5 T F B T P B I

(a)

(b)

Fig. 4. The (a) efﬁciency and (b) luminance of ﬂuorescence OLEDs with an electron transport layer. The cathodes are made by lamination. The inset of (a) and (b) shows the current density and energy level diagram of these devices. 0 5 10 15 20 0 10 20 30 C u rr ent Den sity ( mA /c m 2) Applied Voltage (V) 0 5 10 15 20 0 5 10 15 20 25 30 ITO/PEDOT/TFB/Ir(mppy)3/TPBI/cathode

Current Efficiency (cd/A)

Applied Voltage (V) PEG/Al(P) Al(P) P:Printing 0 5 10 15 20 0 1000 2000 3000 4000 Luminance (cd/m 2) Applied Voltage(V) PEDOT: PSS 5.2eV 2.3 2.7 5.3 6.7 Al 3.62 2.2 2.3 2.4 2.4 5.8 5.5 5.5 6.7 EML T F B T P B I PVK TPD Ir(mppy)3 PBD PEG/Al 3.55

(a)

(b)

300 400 500 600 700 800 0.0 0.2 0.4 0.6 0.8 1.0 P:Printing PEG/Al(P) Al(P) Normalized Intensity(a.u.) Wavelength (nm)

(c)

Fig. 5. The (a) efﬁciency, (b) luminance, and (c) spectrum of phospho-rescence OLEDs. The cathodes are made by lamination. The inset of (a) and (b) shows the current density and energy level diagram of these devices.

(6)

reduce signiﬁcantly the Al work function as in the case of hot contact of PEG and free Al atoms. The high driving voltage of the printed device cannot be reduced simply by decreasing the Green B thickness. The efﬁciency drops to 3.15 cd/A as the thickness is decreased to 40 nm, suggesting certain thickness is required for complete recombination.

An electron transport layer of TPBI is added between Green B and the cathode by blade coating [2,11] in the hope to reduce the voltage. The energy levels are shown inFig. 4. Al evaporation on PEG is impossible for this struc-ture because the solvent methanol of PEG will dissolve the TPBI layer. The device result for printed PEG/Al cathode on TFB/Green B/TPBI tri-layer is shown inFig. 4. The perfor-mance is roughly the same as the devices without TPBI shown in Fig. 3. Somehow the TPBI layer does not help the electron injection from the PEG/Al cathode. The reason may be that solution-deposited TPBI has the high tendency to crystallize[11]. During the 150 °C heating for PDMS re-moval the TPBI molecules may aggregate and no longer form a uniform thin ﬁlm to cover the entire emissive layer. Other electron transport molecules with low crystallinity may sustain the heating process and improve the driving voltage.

In addition to ﬂuorescent OLED cathode lamination is also applied to highly efﬁcient phosphorescent solution processed OLED. The emissive layer is a blend of PVK, TPD, PBD, and the emitter Ir(mppy)3. TPD is for hole

trans-port and PBD for electron transtrans-port in the emissive layer. TPBI electron transport layer is added by blade coating

[2,11]. Such emissive layer has current efﬁciency about 35 cd/A for evaporated LiF/Al cathode [11]. As shown in

Fig. 5 with the printed PEG/Al cathode the efﬁciency is 25 cd/A (8.2%) at 14 V with peak luminance of 3200 cd/ m2_{at 20 V. The driving voltage is about 5 V higher than}

the LiF/Al cathode, however the efﬁciency keeps about 70% of the standard LiF/Al device. Surprisingly 13 cd/A and 1000 cd/m2 _{can be reached by cathode lamination}

even without PEG for the phosphorescence devices. The emission spectrum shown inFig. 5is identical to the device with the evaporated LiF/Al device. The high efﬁciency of 25 cd/A by simple cathode lamination proves the feasibil-ity of this method for real applications. As in the case of Green B, the high voltage is expected to result from the relatively high work function in comparison with LiF/Al cathode. We speculate that the work function is between

3 eV and 3.5 eV. Further photoemission study is required to conﬁrm it.

4. Conclusion

A method for vacuum-free deposition of cathode with low work function is developed and demonstrated for solu-tion-processed organic light-emitting diode. Current effi-ciencies close to the ones of vacuum deposited cathode is achieved for both fluorescent and phosphorescent OLED. The OLED shows remarkable stability without encapsula-tion. In particular 25 cd/A corresponding to 8.2% external quantum efficiency is realized for green phosphorescent emitter. Air-stable bilayer of PEG and Al on a soft silicon rubber is transferred onto the semiconductor layer through the melting of a polymer sacrificial layer between the cathode and rubber. Combining this cathode lamination method and multi-layer blade coating of organic semicon-ductors, fabrication with very low cost and high volume can be realized for both OLED and organic solar cell.

Acknowledgement

This work is supported by the Ministry of Economic Af-fairs of Taiwan under Contract No. 99-EC-17-A-07-S1-157.
