Field-induced reorientation dynamics of a surface stabilized
ferroelectric liquid crystal mixture
WEN-TSE SHIH, JUNG Y. HUANG*
Institute of Electro-optical Engineering, National Chiao Tung University, Hsinchu, Taiwan ROC
and JING Y. ZHANG
Department of Physics, Georgia Southern University, Statesboro, Georgia, USA
(Received 2 May 2003; in final form 10 November 2003; accepted 18 November 2003 ) Time-resolved measurements of electro-optical response and Fourier-transform infrared absorption have been employed to study the submolecular motion of a surface stabilized ferroelectric liquid crystal (SSFLC) mixture during a field-induced reorientation process. All observed submolecular groups were found to rotate in unison about the layer normal in a steady d.c. field. In a transient situation, the FLC director can respond rapidly to a pulsed driving field. However, the orientation distribution was found to spread at first and then slowly converge to the new direction of the FLC director. When the field is switched off, all the core groups relax to a steady-state direction with varying relaxation times. The results reveal that submolecular fragments of different molecular species in the FLC mixture move correlatively in a steady d.c. field and during a field-induced reorientation process.
1. Introduction
Flat panel displays with ferroelectric liquid crystals (FLCs) exhibit the advantages of fast response, bi-stability and wide viewing angle [1, 2]. The memory-like behaviour of FLC materials also opens up new possibilities in their applications.
The design of new FLC materials often proves frustrating since it is necessary to obtain a material with both a chiral structure and a smectic C* (SmC*) phase. Although the former is often achievable by synthesis, the latter has seemed more a matter of luck. For practical applications a wide thermodynamically stable SmC* phase is generally required. A method for broadening the temperature range of thermodynami-cally stable SmC* phases is to obtain a eutectic by mixing several LC components. The design of new FLC components is therefore simplified to the doping of chiral compounds into a mixture with a wide thermo-dynamically stable SmC phase [3]. This approach gains significance in view of the fact that all commercial FLC materials are mixtures. The properties imparted to a mixture by the addition of a chiral component are more relevant to applications than are its properties as the neat liquid.
For the interests of both fundamental research and
industrial applications, many efforts have been made to investigate the switching behavior of FLC materials [4–6]. It is important to note that upon the reversal of the sign of an applied field, all the molecules in the ferroelectric phase switch by rotation about a tilt cone. This is basically because coupling with the applied field is through ferroelectric spontaneous polarization, not through coupling with any individual molecular dipoles. An understanding of the switching dynamics of FLC mixtures is therefore useful, not only for the development of novel flat panel displays, but also for the design of new FLC materials.
During the past decade, time-resolved Fourier-transform infrared absorption (trFTIR) spectroscopy has been shown to be a powerful tool for the investigation of orientation and conformation in complex molecular systems [7–10]. In this study, we report that interesting results on the switching dynamics of a surface stabilized FLC (SSFLC) mixture can also be obtained by combining trFTIR with second harmonic generation and time-resolved electro-optical (EO) measurements.
2. Experimental
The SSFLC cells used consist of two CaF2 plates
coated with indium tin oxide (ITO) conducting films and polyimide alignment layers rubbed unidirectionally. *Author for correspondence; e-mail: [email protected]
The substrates were assembled in a homogeneous geometry with 2 mm cell thickness to form a surface stabilized structure. The cell thickness is close to the half-wave thickness of dl/2~l/(2Dn)~1.9 mm, with
Dn~0.17 and l~0.633 mm.
A chevron-mode ferroelectric liquid crystal mixture FELIX 017/100 from Clariant was filled into a test cell at a temperature above the isotropic phase of the FLC mixture. This material is a mixture of homo-logues, with a fairly wide SmC* range from 73 to 228‡C, and is fairly promising for flat panel display applications. The test cells were slowly cooled to 35‡C and then inserted between a pair of crossed polarizers. All our SSFLC cells appear single domain under conoscopic examination.
For probing the electro-optical properties of the SSFLC cells, bipolar square-wave voltage pulses were applied and the optical transmission was measured as a function of time and rotation angle of the test cell about the optical beam propagation direction. A helium-neon laser with a wavelength of 6328 A˚ was used.
FTIR spectra from 900 to 3500 cm21with 8 cm21 resolu-tion were recorded with an Oriel MIR-8000 FTIR spectrometer equipped with a liquid nitrogen cooled HgCdTe detector. A bipolar square-wave pulse, similar to that in the EO measurements, was applied to excite the SSFLC cells during the trFTIR measurement [11].
3. Second harmonic generation and polarized Fourier-transform infrared absorption spectroscopy of
a surface stabilized ferroelectric liquid crystal The azimuthal absorption pattern of an infrared beam propagating through a sample can be expressed
as [12] A Wð Þ~Np 3c ð mð ÞgK: ^EEIR h i2 f Vð ÞdV ð1Þ where N denotes the number density of the Kth IR dipole moment mð ÞgK~Lmg
LQK, W is the angle between
the incident infrared polarization EIR and the
labora-tory X-axis, and f(V) represents the orientation distribution of mð ÞgK. For normal incidence on the
XY-plane (see figure 1), the integrated absorbance by an atomic group with IR dipole moment parallel to the molecular long axis (b~0) can be expressed as
A Wð Þ~ cos h cos Wz cos w sin h sin Wð Þ2 ð2Þ where h denotes the cone angle of FL C, and w the azimuthal angle of the molecular long axis relative to the layer normal X1. The chevron angle d of the SSFLC
is small and can be neglected in this discussion without causing significant difference.
For an atomic group with IR dipole moment perpendicular to the molecular long axis, we can derive a similar equation for the azimuthal pattern of integrated IR absorbance A Wð Þ~ 1 2sin 2ðW+hÞ, w~ 0 p 1
8 3{ cos 2hð Þ{2 cos2hcos 2Wð Þ
, w~p 2: 8 > < > : ð3Þ
Figure 2 presents the calculated IR absorbance patterns for parallel and perpendicular infrared dipole moments. Within the calculation we assume the IR dipoles to be collectively rotated along the layer normal from w~0 to p by the changing polarity of the applied field. Note that the angular shift of the azimuthal patterns is about twice the apparent cone angle.
The SSFLC structure shown in figure 1 exhibits a C2
Figure 1. Schematic diagram showing the relationship among the molecular frame (jgf), layer frame (X1Y1Z1) and laboratory
coordinates system (XYZ).
378 W.-T. Shih et al.
symmetry with the C2–axis along the Z-axis. The
non-vanishing second-order non-linear optical susceptibility components are: xð ÞZZZ2 , xð ÞXXZ2 ~xXZXð Þ2 ~xð ÞZXX2 , xð ÞYYZ2 ~ xð ÞYZY2 ~xð ÞZYY2 , xXYZð Þ2 ~xð ÞYXZ2 , xXZYð Þ2 ~xð ÞZXY2 , xð ÞYZX2 ~xð ÞZYX2 . We calculate the optical second harmonic signal with [13]
I2v~Iv2j^ee2v:xð Þ2 : ^eev^eevj2: ð4Þ
For a rod-shaped FLC molecule we assume that there is a single dominant non-linear polarizability component along the molecular long axis. From equation (4), we note that the chevron FLC structure cannot generate a non-zero SHG signal at normal incidence [14]. SH azimuthal patterns with various optical polarization combinations were therefore calcu-lated by using geometry with an inclined incidence, with the X-axis being along the cell rubbing direction. The results with an SSFLC at w~p/2 are presented in figure 3. No s-polarized SH output can be generated when the cell is excited with an s-polarized fundamental beam. SHG activity also disappears in an SSFLC at w~0‡ or 180‡.
4. Results and discussion
4.1. Steady state properties of an SSFLC An SSFLC cell was prepared and characterized by infrared absorption spectroscopy; the results are shown in figure 4. We should emphasize that these IR absorption peaks are composed of contributions from multiple molecular species of the FLC mixture. The observed simplicity of each IR absorption line profile indicates that these molecular species possess high structural similarity. If IR dipoles from different FLC species are not aligned, the resulting azimuthal pattern for each IR absorption line should reveal no clear
azimuthal anisotropy. This is also true in a field-induced reorientation process. A clear time-resolved FTIR azimuthal anisotropy indicates a correlated movement of IR dipoles among different FLC species. Therefore an FTIR study on an FLC mixture should yield useful information about the inter-species align-ment and field-induced reorientation dynamics which is not available from a study with neat FLC.
Our objective in this study is to determine whether the submolecular fragments of different FLC species in

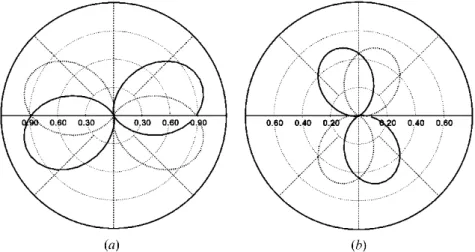

Figure 3. Theoretical curves of azimuthal patterns of second harmonic generation for an SSFLC cell with various optical beam polarization combinations.
Figure 2. Theoretical curves of the azimuthal FTIR patterns with (a) IR dipole moment pointing to b~0‡ or (b) b~90‡ of an SSFLC. Here w of the dipole moment is assumed to be 0‡ (dashed curve) or 180‡ (solid).
an FLC mixture move correlatively in a steady d.c. field or during a field-induced reorientation process. For this purpose, we categorize the observed FTIR absorption lines into two groups: the FLC core modes and modes associated with flexible alkyl chains. The detailed directions of IR dipoles in the molecular frame are therefore somewhat irrelevant. To help further discus-sion, an effective medium picture with a schematic molecular structure is presented in the inset of figure 4. The schematic structure is distinguished with a rigid core part and flexible alkyl chains. We found that the major features of the IR spectra shown in figure 4 can indeed originate from normal modes associated with the FLC cores at 1169, 1250, 1439, 1516, 1608 and 1763 cm21; and from the alkyl chains at 2851 and 2924 cm21[15]. The highest two peaks at 2851 and 2924 cm21are ascribed to the symmetric and anti-symmetric CH2stretching along the alkyl chains of the
FLC molecules. The peak at 1763 cm21 can be attributed to C~O stretching, and the features at 1608 and 1516 cm21 are mainly from the C~C stretching of the FLC core. The 1439 cm21 peak arises from the combination of the C–C stretch and the in-plane wag of the C–H on the LC core. The remaining normal modes at 1169 and 1250 cm21 are associated with the C–O–C motion.
In figure 4, the rubbing direction of the SSFLC cell is aligned with W~0. The measured azimuthal patterns show that the IR polarizations, which cause maximum absorption by functional groups associated with the FLC core, are all parallel to the averaged molecular long axis. However, for C~O and CH2 groups the
maximum IR absorption occurs with the IR polariza-tion being perpendicular to the averaged molecular long axis. A similar result has also been observed on neat FLC materials [16]. These azimuthal patterns carry information about the averaged direction of IR dipoles. The mutual perpendicularity between the azimuthal patterns of IR absorption lines from the core and alkyl chains can be explained with a zigzag molecular packing model [3] assuming the alkyl chains to be freely rotated about the core axis.
From equations (2) and (3) we note that, without an applied field, the averaged molecular long axis should lie on the XZ-plane with w~p/2 [17, 18]. When an electric field is applied, the averaged molecular long axis can rotate from the XZ-plane to w~0 or p depending on the polarity of the applied voltage. The resulting azimuthal patterns from each IR dipole are presented in figure 5. The table lists the deduced dichroic ratios D~AZ/A\ and the angular shift of
azimuthal patterns by the electric field. Note that with a positive applied field the dichroic ratio for IR absorption by atomic segments associated with the FLC core is larger than that with a negative applied field. This suggests that the orientation distributions of these atomic groups are more ordered with a positive voltage than with a negative voltage. For these FLC core groups, the observed angular shifts of the azimuthal patterns are fairly close to the effective cone angle of the FLC medium (y28‡) as shown by equation (2). For CH2 groups, the dichroic ratios with
positive and negative voltages are small and nearly identical. The IR absorption patterns shift only 21‡ Figure 4. FTIR spectra of an SSFLC measured without applied electric field, plotted as a function of the angle between the
incident IR polarization and the rubbing direction of the cell (i.e. the X-axis).
380 W.-T. Shih et al.
from z5 to 25 V, reflecting a flexible and less ordered alignment than the core groups. With a given applied voltage, all core group azimuthal patterns form approximately a single pattern, which indicates that none of these atomic groups change their relative orientation in the steady-state alignments with a steady d.c. voltage of opposite polarity. This also appears to
be true for CO and CH2groups. This is an interesting
result considering that each observed IR absorption line can originate from atomic groups which belong to different FLC species, and thus strongly supports that the submolecular fragments in the FLC mixture move in unison with a steady d.c. field.
The model of all FLC species rotating in unison can also be used to describe second harmonic generation. We note that the second harmonic intensity from our SSFLC cell is fairly weak at normal incidence [14]. In order to yield a better SH azimuthal anisotropy we fix the incident angle of the fundamental beam to be about 15‡. The resulting SH azimuthal patterns are presented in figure 6 without applying an electric field. The measured SHG patterns qualitatively agree with calculated curves shown in figure 3. The non-vanishing s-in/s-out SH intensity and asymmetric pattern with p-in/s-out suggest that the C2symmetry in our SSFLC
is partially broken.
As shown in the theoretical analysis, SHG activity from an SSFLC with w~0‡ or 180‡ disappears with a maximum SHG signal occurring at w~p/2. By rotating all FLC species in unison from w~0‡ to 180‡ with a triangular waveform, we found that the angular position for maximum SHG indeed occurs at w~p/2. The result is shown in figure 7 with a p-in/p-out polarization combination.
Figure 5. Normalized IR azimuthal patterns of various atomic groups associated with the FLC core (upper), and the alkyl chains and C~O moiety (lower) are presented. Curves with solid symbols are the azimuthal patterns obtained with negative voltage while open symbols indicate the result with positive voltage.
Table. Dichroic ratio D of infrared absorption peaks and angular shift DW of azimuthal patterns with a steady d.c. field of opposite polarity.
Peak/cm21 D(25 V) D(z5 V) DW/‡ 1169 5.77 7.30 27 1250 5.39 6.11 26 1439 9.15 9.27 27 1516 7.70 8.08 26 1608 11.30 13.99 27 1763 0.22 0.21 24 2851 0.60 0.57 22 2924 0.39 0.39 21
Figure 6. Azimuthal patterns of the second harmonic generation signal from an SSFLC with various polariza-tion combinapolariza-tions. The X-axis (the rubbing direcpolariza-tion) of the SSFLC cell is oriented to align with W~0.
4.2. Field-induced reorientation
We now analyse the time-resolved electro-optical response of the SSFLC cell to reveal information about the field-induced reorientation process of the FLC mixture. We insert the SSFLC cell into an optical set-up involving a crossed polarizer-analyser and orient the rubbing direction to align with the transmission axis of the input polarizer. Bipolar square-wave pulses are then
employed to excite the SSFLC cell. The field-on period with z10 V extends from 0 to 110 ms, followed by a field-free duration ranging from 110 to 500 ms. Then a 210 V period extends from 500 to 610 ms. The time-resolved optical transmission is monitored as a function of azimuthal angle of the SSFLC.
From the results presented in figure 8, it can be seen that during the field-on period the symmetry axis of the azimuthal pattern rotates rapidly with a reduction of modulation depth. During the field-free period, the orientation of the azimuthal pattern does not change significantly, instead a slow recovery of the modulation depth is detected. A better presentation can be achieved by fitting the measured patterns to A(W)~b(t)z a(t) sin2[W2v(t)]zc(t) sin2[2W22v(t)]. The resulting a(t), b(t), c(t), and v(t) are shown in figure 9. The switch-ing time course of the SSFLC director appears to be symmetric in both the positively and negatively driven periods. The contrast ratio of the optical transmission decreases during the field-on period, as shown by a rapid increase of the isotropic component b(t). The isotropic component then slowly decreases with an accompanying increase of a(t) and c(t) after the field is switched off. Note that the optical axis of the SSFLC cell can complete a field-induced rotation in 66 ms, but the molecular segments need a much longer time to adjust to the new optic axis. We believe a detailed Figure 7. The p-polarized second harmonic signal (filled

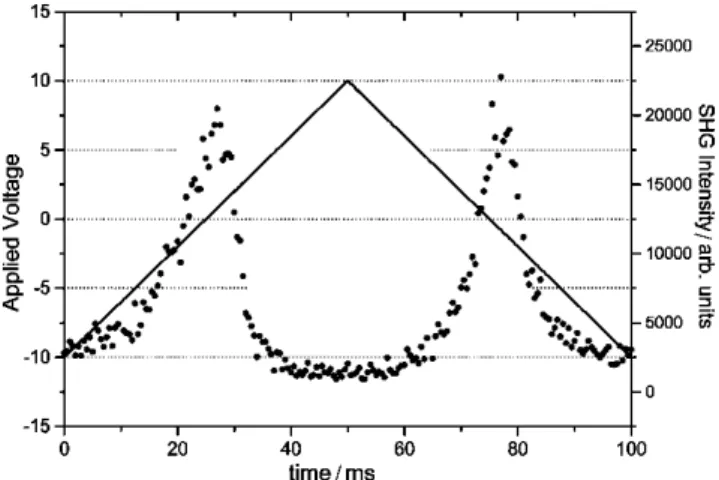

dots) from an SSFLC cell excited by a p-polarized fundamental beam. The SSFLC cell is driven by a triangular waveform shown by the solid line.
Figure 8. Electro-optical azimuthal patterns measured on an SSFLC during (a) the field-on, and (b) field-free durations. The direction of the incident polarizer is along the 0 degree. A square-wave voltage pulse of duration 110 ms and amplitude of 210 V (top) and z10 V (bottom) was used.
382 W.-T. Shih et al.
balance among various torques—from ferroelectric, dielectric, elastic and viscous forces—to be responsible for this complex behaviour.
The optical contrast can change with cell thickness, driving voltage and FLC cone angle. In our case, the cell thickness is close to the half-wave thickness of the FLC mixture. The cone angle of our SSFLC (28‡) is about 5‡ away from the desired 22.5‡. Therefore the optical contrast of the SSFLC cell is not in the optimum condition. However, based on the dichroic ratio of IR absorption lines listed in the table, we can conclude that the alignment quality of the SSFLC cell is either similar to or even better than results shown in the literature [16]. Furthermore all our SSFLC cells appear single domain under conoscopic examination.
The switching dynamics can be better understood by monitoring the field-induced reorientation of different molecular segments with trFTIR. The results with an SSFLC excited by z10 V from 0 to 110 ms are shown in figure 10.
We note that the orientation distribution of mole-cular segments with an applied d.c. voltage is narrower than for an SSFLC driven by a pulsed electric field. This reflects the fact that contrast ratio with a d.c. voltage is better than in the dynamic switching process. The FTIR azimuthal patterns of groups of atoms associated with the FLC core reorient, and the resulting angular orientation v(t) is shown in figure 11. All the groups of atoms selected are found to follow an almost identical field-on time course of field-induced reorienta-tion. This indicates that the LC cores in the FLC mixture behave somewhat as a rigid unit during the field-on period. However, when the applied field is switched off, all core segments immediately reverse their rotating direction. Then they relax from wy180‡ to the steady-state orientation (wy120‡) with slightly different speeds. This suggests that the core segments in Figure 9. (a) Fitting parameters (symbols) of the
electro-optical azimuthal patterns and the applied voltage (solid line) are plotted as a function of time. (b) The deduced orientation angle of the optic axis of FLC film is shown as open squares. Rubbing direction of the FLC cell is along the 0 degree.

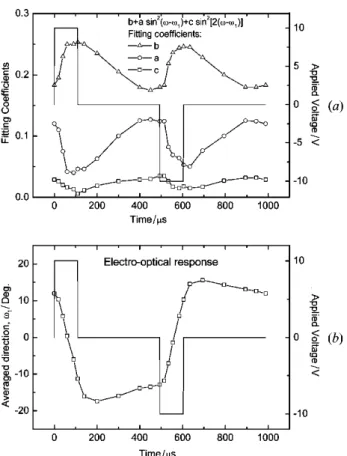

Figure 10. Time-resolved FTIR spectra taken from an SSFLC excited by a z10 V pulse extending from 0 to 110 ms.
the FLC mixture do not behave as a rigid unit in the field-free condition. Apparently, intermolecular inter-action among homologous species is not strong enough to forbid different relaxation pathways of the core segments. This behaviour is not seen in the EO measurement. Moreover, unlike the symmetric beha-viour in the EO response, our trFTIR study also reveals that the switching process of the core segments in the positively driven period is different from that driven by a negative pulse. The very rapid field-free relaxation observed after the negative driving pulse indicates that the clockwise–anticlockwise symmetry is no longer broken at the molecular level in this FLC mixture. The asymmetry might relate to the mirror symmetry broken in the chiral FLC mixture. Supporting data can also be obtained with SHG, as shown in figure 6, where the p-in/s-out SH azimuthal pattern exhibits asymmetry about the XZ-plane and a non-vanishing s-in/s-out SH activity was observed.
For all other groups of atoms not associated with the FLC cores, the time courses of field-induced reorienta-tion are presented in figure 12. As shown in figure 2, the IR polarization with maximum absorbance by these IR dipole moments is perpendicular to the FLC director. Except for the 90‡ difference, the C~O moiety behaves like the core groups shown in figure 11. For CH2on the
alkyl chains, a larger deviation from the time course of the core groups was observed, which reflects the more flexible nature of the alkyl chains during the field-induced reorientation process.
5. Summary
We have found from time-resolved electro-optical measurements that all FLC molecules rotate in unison about the layer normal. Although the rotational motion
of the FLC director can respond quickly to the applied field, the molecular orientation distribution is found to spread out at first and then slowly converge to the new direction of the FLC director. The azimuthal patterns of FTIR absorption lines associated with the FLC core follow the same time course as shown by the EO measurement with an electric field. When the applied field is switched off, all core segments immediately reverse their rotating direction, and then relax to their steady-state direction with varying relaxation speeds. However, unlike the symmetric behaviour observed with the EO measurement technique, the FTIR time-course reveals that the core segments behave differently in a positive driving field from when driven by a negative pulse. A more rapid field-free relaxation was observed for the core groups after the negative driving pulse. Among groups of atoms not associated with FLC cores, the C~O moiety behaves like those core groups, while CH2groups on the alkyl chains are more
flexible during the field-induced reorientation process. When the field is switched off, all the core groups relax to the steady-state direction with varying relaxation times. We conclude that submolecular fragments of different molecular species in the FLC mixture can move correlatively in a steady d.c. field and during the field-induced re-orientation process.
We acknowledge financial support from the National Science Council of the Republic of China under grant NSC 91-2112-M-009-037.
References
[ 1 ] CLARK, N. A., and LAGERWALL, S. T., 1980, Appl.
Phys. Lett., 36, 899. Figure 11. Transient orientations of several molecular
seg-ments associated with the FLC cores are presented as a function of delay time. Note that the azimuthal angle can be determined from w(t)~cos21[tan v(t)/tan h].

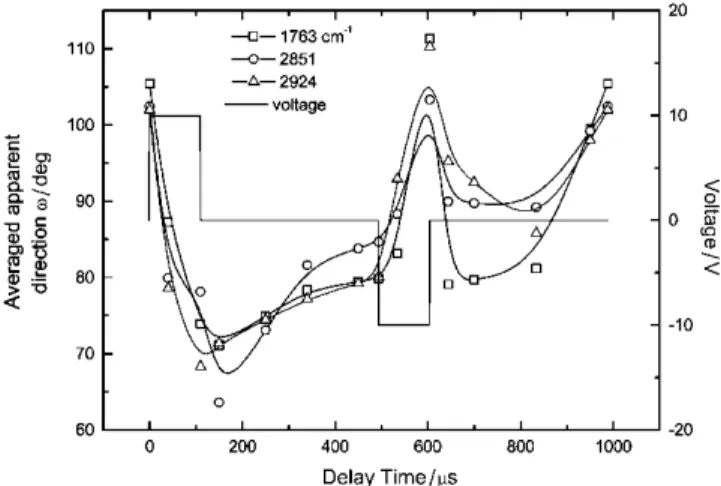

Figure 12. Transient orientations of several molecular seg-ments associated with the C~O moiety and alkyl chain are presented as a function of delay time. The solid lines are a guide for the eye.
384 W.-T. Shih et al.
[ 2 ] LAGERWALL, S. T., 1999, Ferroelectric and Antiferro-electric Liquid Crystals (Weinheim: Wiley-VCH). [ 3 ] WALBA, D. M., 1991, Ferroelectric Liquid Crystals: A
Unique State of Matter, in Advances in the Synthesis and Reactivity of Solids, vol. 1 (JAI Press Ltd.), pp.173–235.
[ 4 ] PARK, B., NAKATA, M., SEOMUN, S., TAKANISHI, Y.,
ISHIKAWA, K., and TAKEZOE, H., 1999, Phys. Rev. E,
59, R3815.
[ 5 ] JANG, W. G., PARK, C. S., and CLARK, N. A., 2000, Phys. Rev. E, 62, 5154.
[ 6 ] ZHAO, J. G., YOSHIHARA, T., SIESLER, H. W., and OZAKI, Y., 2002, Phy. Rev. E, 65, 0 217 104.
[ 7 ] HIDE, F., CLARK, N. A., NITO, K., YASUDA, A., and WALBA, D. M., 1995, Phys. Rev. Lett., 75, 2344. [ 8 ] SHILOV, S. V., SKUPIN, H., KREMER, F., WITTIG, T.,
and ZENTEL, R., 1997, Phys. Rev. Lett., 79, 1668. [ 9 ] VERMA, A. L., ZHAO, B., TERAUCHI, H., and OZAKI,
Y., 1999, Phys. Rev. E, 59, 1868.
[ 10 ] KOCOT, A., WZRALIK, R., ORGASINGKA, B., PEROVA, T.,
VIJ, J. K., and NGUYEN, H. T., 1999, Phys. Rev. E, 59, 551.
[ 11 ] MASUTANI, K., SUGISAWA, H., YOKOTA, A.,
FURUKAWA, Y., and TASUMI, M., 1992, Appl.
Spectrosc., 46, 560.
[ 12 ] SKUPIN, H., KREMER, F., SHILOV, S. V., STEIN, P., and
FINKELMANN, H., 1999, Macromolecules, 32, 3746.
[ 13 ] SHEN, Y. R. The Principles of Nonlinear Optics
(New York: John Wiley), pp. 67–87.
[ 14 ] FOKIN, Y. G., MURZINA, T. V., AKTSIPETROV, O. A., SORIA, S., and MAROWSKY, G., 2002, Appl. Phys. B, 74, 777.
[ 15 ] ZHAO, J. G., YOSHIHARA, T., SIESLER, H. W., and OZAKI, Y., 2001, Phys. Rev. E, 64, 031 704.
[ 16 ] VERMA, A. L., ZHAO, B., BHATTACHARJEE, A., and OZAKI, Y., 2001, Phys. Rev. E, 63, 051 704.
[ 17 ] BROWN, C. V., and JONES, J. C., 1999, Appl. Phys. Lett., 86, 3333.
[ 18 ] VAUPOTIC, N., GRUBELNIK, V., and COPIC, M., 2000, Phys. Rev. E, 62, 2317.
