適用於快閃記憶體之(9216,8195)拉丁方陣低密度奇偶校驗碼解碼器

國立交通大學

電子工程學系 電子研究所碩士班

碩 士 論 文

適用於快閃記憶體之(9216,8195)拉丁方陣

低密度奇偶校驗碼解碼器

A (9216,8195) LDPC Decoder based on Latin Square for

NAND Flash Memory

學生：曾士家

適用於快閃記憶體之(9216,8195)拉丁方陣

低密度奇偶校驗碼解碼器

A (9216,8195) LDPC Decoder based on Latin Square for

NAND Flash Memory

研 究 生：曾士家

Student：Shih-Jia Zeng

指導教授：張錫嘉 博士 Advisor：Hsie-Chia Chang

國 立 交 通 大 學

電子工程學系 電子研究所 碩士班

碩 士 論 文

Submitted to Department of Electronics Engineering & Institute Electronics College of Electrical and Computer Engineering

National Chiao Tung University In Partial Fulfillment of the Requirements

for the Degree of Master of Science

適用於快閃記憶體之(9216,8195)拉丁方陣

低密度奇偶校驗碼解碼器

學生：曾士家

指導教授：張錫嘉 博士

國立交通大學

電子工程學系 電子研究所碩士班

摘 要

我們使用拉丁方陣演算法建構出編碼率為0.89的(9216,8195) LDPC Codes， 並利用Area-Efficient Column Shuffle Decoding架構來降低硬體複雜度，解碼過程 中從行的方向把奇偶校驗矩陣分割成36組，每一組再從列的方向分割為4個小 組，這樣的架構能夠使檢查節點運算元被簡化為一個三對二的排序器。另外，我 們利用加權平均數的概念來達到二位元軟輸入之最佳化，在信噪比(Signal to

Noise Ratio) 5.0dB的情況下，我們所提出的LDPC Code位元錯誤率為

10

具有73個錯誤更正能力的BCH碼在此情況下的位元錯誤率為

10

90nm製程，所提出的解碼器邏輯閘數約為

605.3k，

A (9216,8195) LDPC Decoder based on Latin Square for

NAND Flash Memory

Student：Shih-Jia Zeng

Advisor：Dr. Hsie-Chia Chang

Department of Electronics Engineering

Institute of Electronics

National Chiao Tung University

Abstract

BCH code is mainly adopted in NAND flash memory system because of

its simple hardware architecture for hard input requirement. Although soft

input can be considered to improve the correcting capability, BCH code has

little improvement when soft input is provided. In this thesis, a 2-bit soft input

LDPC decoder is presented to outperform BCH code under same code rate.

The (9216, 8195) LDPC code with code rate 0.89 is constructed from

Latin square algorithm. An Area-Efficient Column Shuffled decoding

architecture is proposed to reduce hardware complexity. Columns in

parity-check matrix are divided into 36 groups, and all the rows of each column

group are divided into 4 subgroups. Following this architecture, a check node

update unit can be simplified as a 3-to-2 sorter. In addition, the concept of

weighted mean is applied to optimize 2-bit soft input quantization. At signal to

noise ratio (SNR) of 5.0dB, bit error rate (BER) of our proposed LDPC code is

誌 謝

Contents

1 Introduction 1

1.1 Motivation . . . 1

1.2 Thesis Organization . . . 2

2 NAND Flash Memory 3 2.1 Introduction of NAND Flash Memory . . . 3

2.1.1 Flash Memory System . . . 3

2.1.2 NAND Flash Cell Program . . . 5

2.1.3 NAND Flash Cell Erase . . . 6

2.1.4 NAND Flash Cell Read . . . 6

2.2 Reliability of NAND Flash Memory . . . 8

2.2.1 Program Disturb . . . 8

2.2.2 Read Disturb . . . 9

2.2.3 NAND Flash Multi-level Cell . . . 9

3 Construction of Low Density Parity Check Codes 11 3.1 Code Construction . . . 11

3.1.1 General Construction of QC-LDPC Codes . . . 11

3.1.2 Product QC-LDPC codes . . . 12

3.1.3 Latin Square QC-LDPC codes . . . 14

3.3 Proposed (9216,8195) QC-LDPC code . . . 21

4 LDPC Decoder Architecture 23 4.1 Decoding Algorithm . . . 23

4.1.1 Standard BP Algorithm . . . 23

4.1.2 Column Shuffled Decoding Algorithm . . . 25

4.2 Area-Efficient Column Shuffled Decoding Architecture . . . 28

4.3 Check Node Unit . . . 31

4.3.1 Accumulative Sorter . . . 31

4.3.2 Optimization Strategy . . . 32

4.4 Variable Node Unit . . . 35

4.5 Shifting Network . . . 36

5 Simulation and Implementation Results 38 5.1 Optimized Quantization . . . 38

5.2 Performance Evaluation . . . 42

5.3 Synthesis Results . . . 44

5.4 Implementation Results . . . 45

6 Conclusion and Future Work 48 6.1 Conclusion . . . 48

List of Figures

2.1 Floating gate memory cell its schematic symbol [1] . . . 3

2.2 NAND string . . . 4

2.3 Program operation in a NAND string . . . 5

2.4 Erase operation in a NAND cell . . . 6

2.5 Read operation in a NAND string . . . 7

2.6 Program disturb in a NAND string . . . 8

2.7 Read disturb in a NAND string . . . 9

2.8 Threshold voltage distribution of a 2bits/cell NAND flash cell . . . 10

3.1 Circulant Permutation Matrices with size 4 . . . 12

3.2 Illustration of Product QC-LDPC codes . . . 13

3.3 Illustration of Latin Square QC-LDPC codes . . . 14

3.4 Base matrix of Product QC-LDPC codes without mod operation . . . 15

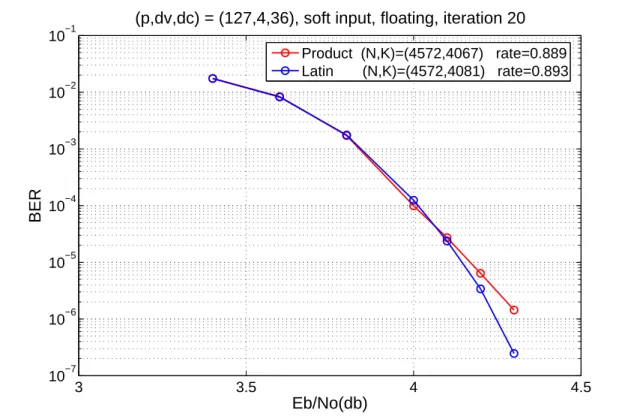

3.5 Performance comparison between Product and Latin Square QC-LDPC codes 16 3.6 An example of a tanner graph with cycle-4 . . . 18

3.7 Demonstration of cycle-4 in base matrix W and parity-check matrix H. . . 19

3.8 A base matrix W with p × p . . . 19

3.9 Performance of LDPC code with different column degree. . . 21

3.10 Performance of Proposed (9216,8195) QC-LDPC codes . . . 22

4.1 Illustration of standard BP. . . 24

4.6 Accumulative sorters with different replacing rules . . . 33

4.7 Performance for accumulative sorter with different replacing rules . . . 34

4.8 VNU architecture . . . 35

4.9 Illustration of networks between CNUs and VNUs . . . 37

4.10 Equivalent base matrices W1 and W2 . . . 37

5.1 2 bits (4 levels) non-linear quantization. . . 38

5.2 Received channel value distribution for (9216,8179) LDPC code . . . 39

5.3 Code performance with different (f, Vmin, Vmax), floating . . . 40

5.4 Code performance with different (f, Vmin, Vmax), Q(4,2) . . . 41

5.5 Converge Speed Comparison at SNR 4.4 . . . 42

5.6 Code performance . . . 43

5.7 Code performance simulated by FPGA . . . 43

5.8 BPSK Emulation using FPGA: Xilinx Virtex-5 LX330 with FF1760 package 46 5.9 Chip Layout in Place and Route . . . 47

List of Tables

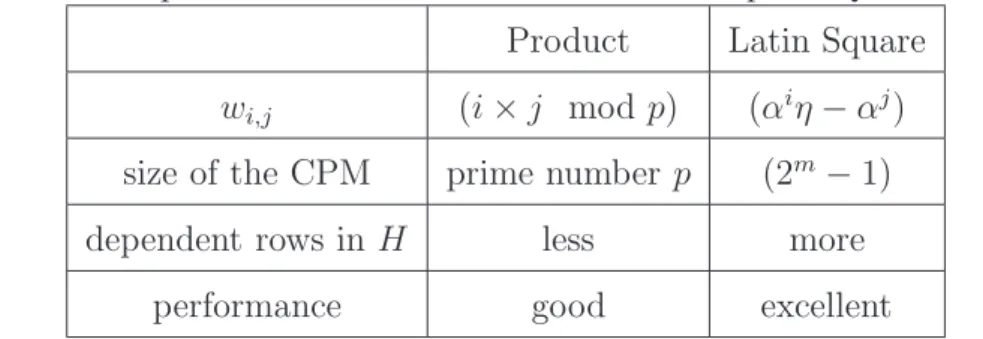

3.1 Comparison between Product and Latin Square QC-LDPC codes . . . 15

3.2 Codes from Product QC-LDPC codes . . . 17

5.1 Early Termination Simulation at different SNR, 105 _{codewords . . . 44}

5.2 Synthesis Results with technology UMC90. . . 44

5.3 Summary of implementation results (Place and Route). . . 45

Chapter 1

Introduction

1.1

Motivation

Modern NAND Flash momory system adopts error correction codes to improve device reliability [1] [2]. BCH code [3] [4] is mainly used in single level cell (SLC) NAND flash memory system because of its simple hardware architecture and hard input requirement. The area occupation of Multi-level cell (MLC) is only half compare with SLC. However, MLC also leads to degradation of reliability. More powerful error corrections codes for next generation NAND flash memory system is needed.

Soft-input is provided to improve the correcting capability of error correction code. However, BCH code has only little improvement when soft input is provided [5] [6]. LDPC code is a good candidate for its powerful correcting capability. 2-bit soft LDPC code can outperform BCH code with same code rate.

Low Density Parity Check (LDPC) codes were first discovered by Gallager in 1962 [7] and were rediscovered and generalized by MacKay in 1999 [8]. Well designed LDPC codes decoded with iterative decoding using belief propagation (BP) algorithm, achieve performance close to the Shannon limit [9]. Consequently, LDPC codes were widely adopted for error control in many communication and digital storage systems.

High code rate is a necessary condition for error correction code applied on NAND flash memory system. A high code rate LDPC code introduces high row degree. This makes implementation difficult due to the large number of inputs to sorter and the increased routing complexity. Column shuffled decoding [10] is a good solution to this problem.

Variable nodes are divided into 36 groups. Only 1st, 2nd min are stored to reduce the storage cost. With row divided into 4 groups, VNU can be simplified to a 2-input adder and a 2-input subtractor. Shifting networks are applied between CNUs and memories. The maximum throughput can achieve 1.581 Gbps with 4 iterations, using 90nm CMOS technology. The proposed LDPC code decoder has a better performance than BCH code with the same code rate when 2-bit soft input is provided.

1.2

Thesis Organization

The rest of this thesis is organized as follows. Chapter II gives the introduction of NAND flash memory. Chapter III introduces the column shuffled decoding algorithm and the code construction. In Chapter IV, decoder architecture is detailed explained. The simulation result is given in Chapter V and conclusion in Chapter VI.

Chapter 2

NAND Flash Memory

2.1

Introduction of NAND Flash Memory

2.1.1

Flash Memory System

Flash memory was invented by Dr. Fujio Masuoka of Toshiba Corp. in 1984. NAND Flash is employed for data storage in a variety of portable and mobile applications. Since flash memory is non-volatile, no power is needed to maintain the information stored. Flash memory cell is based on the Floating Gate (FG) illustrated in Fig. 2.1. The isolated gate constitutes an excellent ‘trap’ for electrons. The operations performed to inject and remove electrons from the isolated gate are called program and erase. More details of these operations will be presented in next section.

Figure 2.1: Floating gate memory cell its schematic symbol [1]

oc-as shown in Fig. 2.2. Two selection transistors are placed at the edges of the string, to ensure the connections to the source line and to the bit line. Each NAND string shares the bit line contact with another string. Control gates are connected through word lines.

    

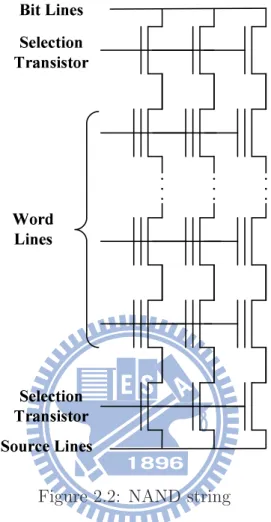

Figure 2.2: NAND string

A NAND memory is divided in pages and blocks. A block is the smallest erasable unit. Each block contains multiple pages. The number of pages within a block is typically a multiple of 16. A page is the smallest addressable unit for reading and writing. Each page is composed of main area and spare area. Main area can range from 4 to 8 kB or even 16 kB. Spare area can be used for ECC.

2.1.2

NAND Flash Cell Program

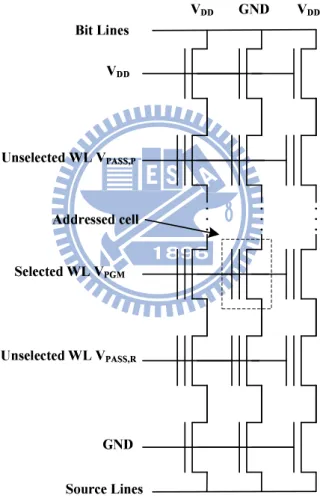

Programming of NAND memories exploits the quantum-effect of electron tunneling in the presence of a strong electric field. In order to trigger the injection of electrons into the floating gate, the following voltages are applied, as shown in Fig. 2.3. VP GM(20 − 25V ) is

applied on the selected gate to be programmed, and VP ASS,P(8 − 10V ) on the unselected

gates. VDD on the gate of the drain selector, and GND on the gate of the source selector.

GND on the bit line to be programmed, and VDD on other bit lines. When the bit lines

are driven to VDD, drain transistors are diode-connected and the corresponding bit lines

are floating. VP ASS,P is applied to the unselected word lines to inhibit the tunneling

phenomena.      ! "#$ %& ' '(% !"#$ % & ' '( ) ! "#$ %*+ $ ,,   $ , , $ , , -"" "!!

2.1.3

NAND Flash Cell Erase

Erasing of NAND memories is the inverse process of programming. When NAND flash Cell is earsed, 0V is applied to the Source, Drain and Gate. And high voltage V is applied to the Substrate. Electrons in Floating Gate are attracted to the Substrate and no more electrons are left in Floating Gate. Fig. 2.4 is a simple illustration for this operation.

Figure 2.4: Erase operation in a NAND cell

2.1.4

NAND Flash Cell Read

A Single Level Cell (SLC) means that only 1 bit data is stored per cell. Therefore, the threshold voltage region of a SLC is divided into two levels. Fig. 2.5(a) shows the threshold voltage distribution of SLC and we will use Fig. 2.5(a) to explain read operation. When we read a cell in Fig. 2.5(a), its gate is driven at VREAD(0V ) , while the other

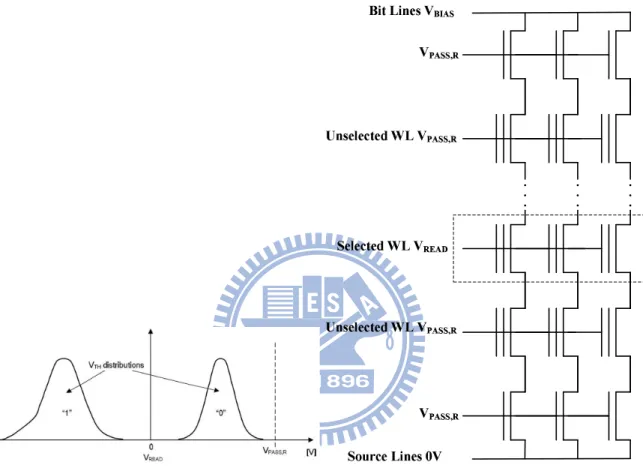

cells are biased at VP ASS,R(4 − 5V ), so that they can act as pass-transistors. In fact, an

erased SLC has a VT H smaller than 0 V; vice versa, a written SLC has a positive VT H

smaller than 4 V. In this example, biasing the gate of the selected cell with a voltage equal to 0 V, the series of all the cells will conduct current if the addressed cell is erased.

(a) Threshold voltage distribution of a Signle Level Cell 6789 5 : 899 ;< =>?@ A31/ 234B5 C 24 3D 3A0 3EF15 :89 9; < C 24 3D 3A0 3EF15 :89 9; < =3D3A03EF15 <G 8H 5 : 899 ;<

(b) NAND string biasing during read

2.2

Reliability of NAND Flash Memory

2.2.1

Program Disturb

Program operation in a NAND string described in 2.1.2 will cause disturb in other unselected cells. We use Fig. 2.6 to explain program disturb and pass disturb.

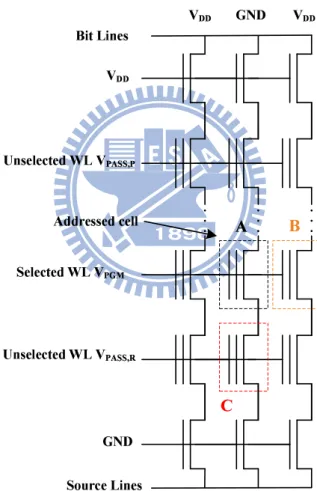

Cell A is the cell to be programmed. Cell B will suffer from the program disturb. The effective programming voltage for cells B is VP GM −Vch. Vch is the equivalent potential

in the channel. To lower the effective programming voltage, a high VP ASS,P is applied

in other cells. Pass disturb occurs in the cell C. It’s effective programming voltage is VP ASS,P. Therefore, the program disturb can be reduced by increasing VP ASS,P at the

expense of an increased pass disturb.

IJKLJ MN O PQR STUVWNLJMN O XMONYNWKNZ[L\ ] ^ _ _`] XMONYNWKNZ[L\ ] ^ __`a SNYNWKNZ[L\ ] bc \ d d PQR \ dd \ d d

eZZVNO ONZWNYY

f g

h

2.2.2

Read Disturb

Read disturbs are the most frequent source of disturbs in NAND architectures. This kind of disturb may occur when reading many times the same cell without any erase operation. Unselected cells in Fig. 2.7 will suffer from read disturb due to the VG = 4.5V

applied in unselected cells.

ijklj mn op qrs t uv wp xyz{|nlj mno}p ~monn|kn€luvwp ~monn|kn€luvwp xnn|kn€l‚ }p uv wp

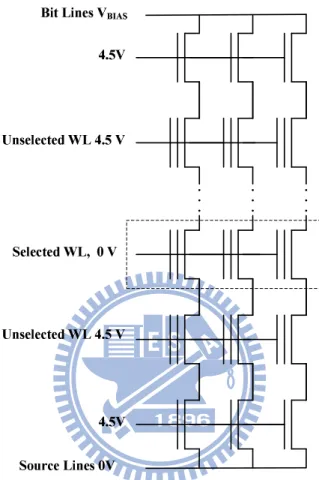

Figure 2.7: Read disturb in a NAND string

2.2.3

NAND Flash Multi-level Cell

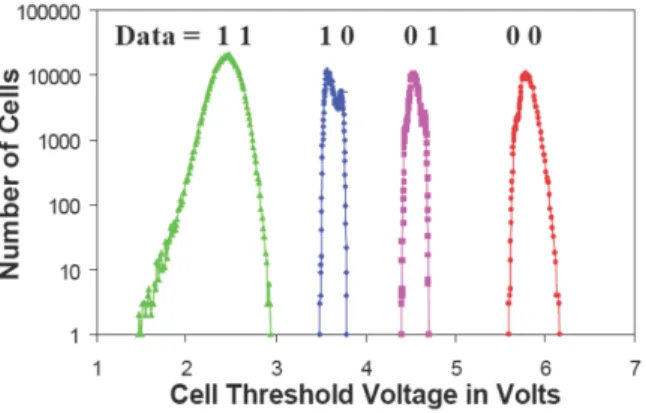

Fig. 2.8 shows a 2bits/cell NAND flash cell. The obvious advantage of a 2 bit/cell implementation (MLC) with respect to a 1 bit/cell device (SLC) is that the area occupa-tion of the matrix is half as much. On the other hand, the area of the periphery circuits increases. Threshold voltage region is divided into 4 levels and region for each level is nar-rower. Therefore, the probability of threshold voltage shifting to other level is increased and led to degradation of reliability.

Figure 2.8: Threshold voltage distribution of a 2bits/cell NAND flash cell

Advanced technology scale down and more bits of data stored per NAND flash cell will cause the degradation of reliability. More parity bits are required to improve the correcting capability of BCH code. The increase of spare area (area for parity bits storage) greatly degrades the data storage capacity and is infeasible to commerical product. To overcome this problem, NAND flash memory system will provide more information (soft input) in the next generation standard and much powerful error correcting code can be adopted. BCH code is feasible for its simple hardware architecture and only hard input requirement. However, BCH code has only little improvement when soft input is provided. LDPC code is probability-based and soft information can be well-used. Therefore, LDPC code is a good candidate for the next generation NAND flash memory system. Providing soft input will inrease reading latency in flash memory system. This is a trade-off between correcting capability and system latency. This thesis shows that only 2-bits soft input LDPC code can outperform BCH code under same code rate.

Chapter 3

Construction of Low Density Parity

Check Codes

Low Density Parity Check (LDPC) codes were first discovered by Gallager in 1962 [7] and were rediscovered and generalized by MacKay in 1999 [8]. Based on the methods of construction, LDPC codes can be classified into random-like codes and structured codes [11]. Well designed LDPC codes decoded with iterative decoding using belief propagation (BP) algorithm, achieve performance close to the Shannon limit. Consequently, LDPC codes were widely adopted for error control in many communication and digital storage systems.

In this chapter, structured code construction methods will be introduced. Code pa-rameters related to performance and implementation complexity will be discussed.

3.1

Code Construction

3.1.1

General Construction of QC-LDPC Codes

We start code construction from a base matrix W with size dv ×dc. dv represents

column degree and dc represents row degree. wi,j means the element located in i-th row

and j-th column in W . wi,j could be a numeral value or an element in finite field. The

algebra to determine wi,j is diverse and make constructed QC-LDPC codes have different

W =         w0,0 w0,1 · · · w0,dc−1 w1,0 w2,1 · · · w1,dc−1 .. . ... . .. ... wdv−1,0 wdv−1,1 · · · wdv−1,dc−1        

Let P be a circulant permutation matrix(CPM) with size p. It’s top row is given by the p-tuple (0 1 0 0 · · · 0). P consists of p-tuple first row and its p − 1 right cyclic shifts as other rows. Pi_{, the product of P with itself i times, is also a CPM whose top row has}

a single 1-component at the position i. Fig. 3.1 is a demonstration for CPMs with size 4.

0

0

1

0

0

0

0

1

1

0

0

0

0

1

0

0

P

P

= P

1

0

0

0

0

1

0

0

0

0

1

0

0

0

0

1

P

0

1

0

0

0

0

1

0

0

0

0

1

1

0

0

0

P

0

0

0

1

1

0

0

0

0

1

0

0

0

0

1

0

Figure 3.1: Circulant Permutation Matrices with size 4

Replacing elements in the base matrix W with CPMs will derive the parity-check matrix H. The correspondence between elements in the base matrix W and CPMs also diverse. We will introduce two kinds of algorithm to construct QC-LDPC codes.

3.1.2

Product QC-LDPC codes

The base matrix W of product QC-LDPC codes [11] is constructed in a prime field. Assume a prime number p is chosen, wi,j will be (i×j mod p) for 0 ≤ i, j < p. Maximum

size of the base matrix W will be p × p.

W =       0 0 · · · 0 0 1 · · · j − 1 ... ... . .. ...      

represents the element located in i-th row and j-th column in Wsub. The CPM size of

product QC-LDPC codes is p. Let P be a CPM with size p, elements in selected sub-matrix will be replaced by Pwsub i,j _{for 0 ≤ i < d}

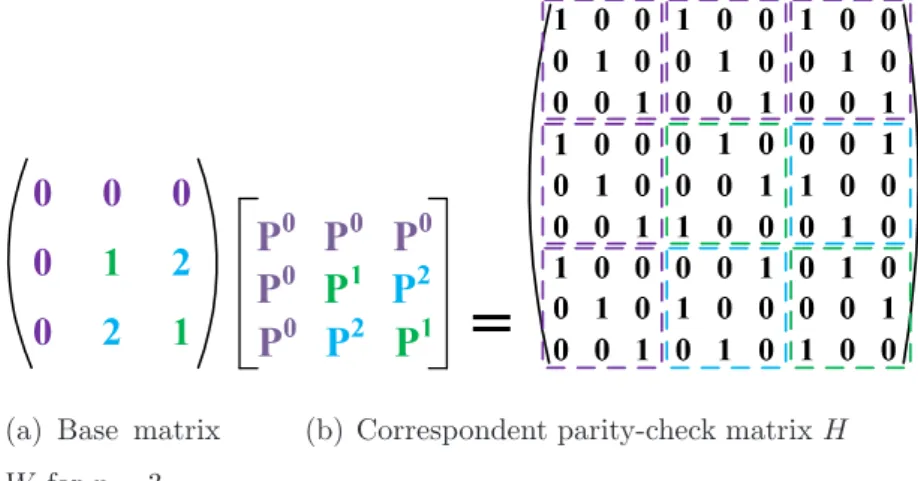

v, 0 ≤ j < dc. Fig. 3.2 illustrates a base

matrix and its correspondent parity-check matrix.

0

0

0

0

1

2

0

2

1

(a) Base matrix W for p = 3 ˆ ‰ ˆ ˆ ˆ ‰ ˆ ˆ ˆ ‰ ‰ ˆ ˆ ˆ ‰ ˆ ˆ ˆ ‰ ‰ ˆ ˆ ˆ ‰ ˆ ˆ ˆ ‰ ‰ ˆ ˆ ˆ ‰ ˆ ˆ ˆ ‰ ‰ ˆ ˆ ˆ ‰ ˆ ˆ ˆ ‰ ˆ ‰ ˆ ˆ ˆ ‰ ‰ ˆ ˆ ˆ ˆ ‰ ‰ ˆ ˆ ˆ ‰ ˆ ˆ ˆ ‰ ‰ ˆ ˆ ˆ ‰ ˆ ˆ ‰ ˆ ˆ ˆ ‰ ‰ ˆ

P

P

P

P

P

P

P

P

P

=

(b) Correspondent parity-check matrix H

3.1.3

Latin Square QC-LDPC codes

The base matrix W of Latin square QC-LDPC codes [12] is constructed in a galois

field GF (2m_{). Maximum size of the base matrix W is 2}m_×2m _{and size of the CPM is}

(2m_{−1) × (2}m_{−1). w} i,j is (αiη − αj) for 0 ≤ i, j < 2m ,α0 = 1, α−∞= 1. W =         α0_{η − α}0 _α0_{η − α}1 _{· · · α}0_{η − α}−∞ α1_{η − α}0 _α1_{η − α}1 _{· · · α}1_{η − α}−∞ ... ... . .. ... α−∞_{η − α}0 _α−∞_{η − α}1 _{· · · α}−∞_{η − α}−∞        

η is an element in GF (2m_{). Choosing different η only permutes the rows in W . We}

can also select a sub-matrix with size dv × dc from the base matrix W . However, the

sub-matrix Wsub should be chosen carefully without element α−1. wsub i,j represents the

element located in i-th row and j-th column in Wsub. Assume wsub i,j is αk, elements in

Wsub will be replaced by Pk. α−1 may exist in Wsub, but the CPM P−1 is not defined.

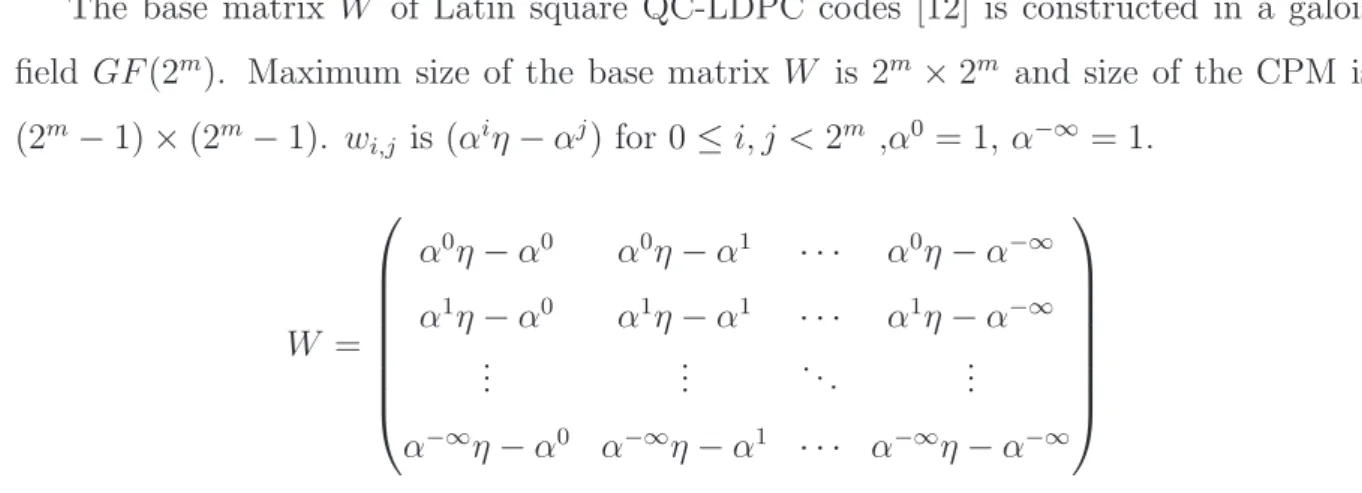

Fig. 3.3 illustrates a base matrix and a CPM of Latin Square QC-LDPC codes.

 Ž     ‘    Ž   ’  ‘  ’  Ž    “  ”  ”  •    ’  ‘    •  ”  “  “    •    ”  ’  “  •  ‘  ”      •  “  ”    “  •  Ž   ‘  •  ‘  Ž  “  •  “  Ž  ’        ’  ”  ’      ’    ”  Ž  ‘  ‘  Ž 

(a) Base matrix W for m = 3, η = α0

– — – – – — – – – – – – – – – – – – — – – – – – – – – — – – – – – – — – – – — – – – – – – – – — – (b) CPM with size (2m −1) × (2m −1)

3.1.4

Comparison between Product and Latin Square QC-LDPC

codes

In 3.1.2 and 3.1.3, the algebra of product and Latin square QC-LDPC codes were introduced. Comparison between product and Latin square QC-LDPC codes were showed in table 3.1.

Table 3.1: Comparison between Product and Latin Square QC-LDPC codes

Product Latin Square

wi,j (i × j mod p) (αiη − αj)

size of the CPM prime number p (2m₋₁₎

dependent rows in H less more

performance good excellent

The algebra of product QC-LDPC codes generates the base matrix W with the same column offsets in each row. Fig. 3.4 shows that the offsets between i-th column and i − 1-th column are 1-the same in each row. Regular offsets in 1-the base matrix can reduce 1-the complexity of the shifter in the decoder. Besides, product QC-LDPC codes is constructed in a prime field, but Latin square QC-LDPC codes should be constructed in a galois field

GF (2m_{). Product QC-LDPC codes is more flexible than Latin square QC-LDPC codes.}

˜ ˜ ˜ ˜ ™ š ˜ š › ˜ œ  ˜ › ž ˜ ˜ œ ›  ž Ÿ ™ š ™š ™ ˜ ™ š œ ›  ¡¡¢£¤

Figure 3.4: Base matrix of Product QC-LDPC codes without mod operation Dependent rows in parity-check matrix H will affect the code rate. With the same dv,

LDPC codes. Let dv = 4, dc = 36, CPM size = 127, a (4572, 4067) product QC-LDPC

code with code rate 0.8895 is constructed, and a (4572, 4081) Latin square QC-LDPC code with code rate 0.8926 is constructed. Code rate is also a important requirement for NAND flash memory.

Performance comparison between product and Latin square QC-LDPC codes is showed

in Fig. 3.5. They have the same (p,dv, dc) and approximately the same (N,K). At SNR

4.3, the BER of Latin square LDPC codes is 2.2 × 10−7 _{whereas the BER of product}

LDPC code is about 1.5 × 10−6_. 3 3.5 4 4.5 10−7 10−6 10−5 10−4 10−3 10−2 10−1

(p,dv,dc) = (127,4,36), soft input, floating, iteration 20

Eb/No(db)

BER

Product (N,K)=(4572,4067) rate=0.889 Latin (N,K)=(4572,4081) rate=0.893

3.1.5

Parameters in Code Construction

For a (N, K) QC-LDPC code, N is the codeword length and K is the information length. Denote M as the numbers of check equations in H. Consider a base matrix W with size dv×dc and CPMs with size p × p, equation (3.1) shows the relationship between

(N, K, M) and (p, dv, dc). Code rate is mainly decided by dv and dc (3.2).

N = dc×p

M = dv ×p

K = N − (M − numbers of dependent rows in H)

(3.1)

K

N =

(dc−dv)

dc

+ (numbers of dependent rows in H)

(dc×p)

(3.2) Given N around 9200 and code rate around 0.9, we take product QC-LDPC codes as an example. First, decide column degree dv and use equation (3.2) to calculate the dc

that meets the code rate requirement. Once dc is determined, use equation (3.1) to find

possible p. Table 3.2 lists some possible codes that meet the requirements. Table 3.2: Codes from Product QC-LDPC codes

dv dc p N K

3 30 307 9210 8291

4 40 229 9160 8247

6 60 151 9060 8159

3.2

Performance-Related Parameters

3.2.1

Cycles in Tanner Graph

A cycle in a graph of vertices and edges is defined as a sequence of connected edges which starts from a vertex and ends at the same vertex, and satisfies the condition that no vertex (except the initial and the final vertex) appears more than once. The number of edges on a cycle is called the length of the cycle. Fig. 3.6 illustrates a Tanner Graph with cycle-4 cycles and its corresponding parity check matrix. The length of the shortest cycle in a graph is called the girth of the graph.

V

V

V

V

V

V

C

C

C

(a) A tanner graph with cycle-4

« « ¬ ¬ « « « ¬ ¬ « ¬ ¬ ¬ ¬ « « « ¬

(b) Correspondent parity-check matrix H

Figure 3.6: An example of a tanner graph with cycle-4

While decoding a LDPC code with BP algorithm, these short cycles, especially cycles of length 4, make some variable nodes highly correlated and hence severely limit the decoding performance. Therefore, it is important to design codes without short cycles in their Tanner graphs, especially cycles of length 4. Because the parity-check matrix H is constructed from the base matrix W with CPMs, we can use base matrix W instead of parity-check matrix H to compute cycles in LDPC codes.

Fig. 3.7 illustrates cycle-4 produced from base matrix W . Note that the 1st row in W and the 2nd row in W produce the same check equations labeled with the same color in H. The value of the 2nd row in W is just the value of the 1st row in W added by 1. Due to the characteristic of CPM, adding a fixed value in a row in W will not change the

H = 1 0 0 0 0 1 0 0 0 0 1 0 0 0 0 1 0 1 0 0 0 0 1 0 0 0 0 1 1 0 0 0 0 1 0 0 0 0 1 0 0 0 0 1 1 0 0 0 0 0 1 0 0 0 0 1 1 0 0 0 0 1 0 0 0 0 1 0 0 0 0 1 1 0 0 0 0 1 0 0 0 0 0 1 1 0 0 0 0 1 0 0 0 0 1 0 0 1 2 1 2 3 W =

Figure 3.7: Demonstration of cycle-4 in base matrix W and parity-check matrix H. Subtract the value in m-th row by A and subtract the value in n-th row by C. Now, wm,s= wn,s = 0, wm,t = (B − A), wn,t= (D − C). If the equation (3.3) is satisfied, cycle-4

exist in correspondent sub-blocks produced by these 4 shift value. Equation (3.3) can be rewrite as equation (3.4).

...

B

A

C

D

.

..

.

..

...

..

.

..

.

...

...

...

...

...

...

...

...

0

s

...

t

p-1

0

.

..

m

..

.

n

...

p-1

Figure 3.8: A base matrix W with p × p

(B − A) = (D − C) mod p (3.3)

For product QC-LDPC codes, the shift value of wi,j is i × j mod p. Substitute this

equation wi,j into equation (3.4) we can derive equation (3.6).

(B − A) = m × (t − s) mod p

(C − D) = n × (s − t) mod p

(3.5)

(B − A + C − D) = (m − n) × (t − s) mod p = 0 (3.6)

Since p is a prime number and 0 < m < n < (p − 1), 0 < s < t < (p − 1), equation (3.6) will not be satisfied for product QC-LDPC codes.

For Latin square QC-LDPC codes, wi,j is defined as (αiη − αj). Assume wi,j = αk,

the shift value is k. We can not directly substitute the equation wi,j into equation (3.4),

because the numeral value of k is decided by i, j and η. It’s trivial that if A = C and B = D, cycle-4 exists in the QC-LDPC code. Add the shift value in m-th row by c and add the value in n-th row by l. Equation (3.7) is the new value of wm,s, wm,t, wn,s and

wn,t. Equation (3.8) is the condition for wm,s= wn,s, wm,t = wn,t.

wm,s= αc(αmη − αs), wm,t = αc(αmη − αt)

wn,s= αl(αnη − αs), wn,t= αl(αnη − αt)

(3.7)

(αm−αn) × (αt−αs) = 0 (3.8)

Since 0 < m < n < (p − 1), 0 < s < t < (p − 1), equation (3.8) will not be satisfied for Latin square QC-LDPC codes.

3.2.2

Column Degree

Column degree dv is defined as the numbers of check nodes connected to a variable

node. From equation (4.3), a variable node with higher dv receives more message from

different check nodes. For LDPC code, we call the performance degradation in water fall region, the error floor. A LDPC code with higher column degree has better performance in water fall region. It means that it can suppress the error floor in lower bit error rate

3.4 3.6 3.8 4 4.2 4.4 4.6 4.8 5 10−7 10−6 10−5 10−4 10−3 10−2 10−1

Product Code, AWGN, iteration = 50 ,NMS

Eb/No(db)

BER

(N,K)=(9210,8291) rate=0.900 s=0.8 (p,dv,dc)=(307,3,30) (N,K)=(9060,8159) rate=0.901 s=0.6 (p,dv,dc)=(151,6,60) (N,K)=(9153,8256) rate=0.902 s=0.5 (p,dv,dc)=(113,8,81)

Figure 3.9: Performance of LDPC code with different column degree.

from more disturbance. In Fig. 3.9, (9210,8291) is a product QC-LDPC code, with column degree 3. It has poor performance at waterfall region due to its low column degree. LDPC code with column degree 6 and 8 has better performance at waterfall region. But, we can still find that the bit error rate (BER) difference between SNR 4.8 and SNR 4.6 in LDPC code with column 8 is large than the BER difference between SNR 4.5 and SNR 4.3 in LDPC code with column 6.

3.3

Proposed (9216,8195) QC-LDPC code

The requirement for codes applied in NAND flash memory includes information length K >= 8192, code rate > 0.9, and no performance degradation down to bit error rate near

10−12_{. For good performance, we use Latin square algebra to construct the LDPC code.}

Although a LDPC code with higher column degree has better performance in water fall region, it also implies more hardware cost in variable node update units (VNUs). The selection of the column degree is a trade off between code performance and hardware cost. At first, a (9180,8179) Latin square QC-LDPC code with (dv, dc, p) = (4, 36, 255)

information length, we enlarge the size of CPM to 256 according to the equation (3.2). Hence, the constructed (9216,8195) code is not a traditional Latin square QC-LDPC code. The equation (3.6) helps us to find the code without cycle-4.

3.4 3.5 3.6 3.7 3.8 3.9 4 4.1 4.2 4.3 4.4 10−6 10−5 10−4 10−3 10−2 10−1

AWGN, iteration = 20, s=0.75, Normalized Min−Sum

Eb/No(db)

BER

(9216,8195), soft input , floating (9216,8195), 2 bits soft input, Q(4,2) (9153,8179), soft input , floating (9153,8179), 2 bits soft input, Q(4,2)

Figure 3.10: Performance of Proposed (9216,8195) QC-LDPC codes

Fig. 3.10 shows the performance of (9216,8195) and (9180,8179) LDPC codes. The lines with o (circle) are the performance with soft-input and no quantization in the de-coder. The lines with ∗ (star) are the performance with 2 bits soft-input and 4 bits quantization in the decoder. Their performance are very close. Hence, the decoder archi-tecture is designed for the (9216,8195) Latin square QC-LDPC code.

Chapter 4

LDPC Decoder Architecture

4.1

Decoding Algorithm

4.1.1

Standard BP Algorithm

The log-likelihood ratio (LLR) of intrinsic information of n-th variable node is denoted by Pn. The message from n-th variable node to m-th check node is denoted by zmn. The

message from m-th check node to n-th variable node is denoted by εmn. The a posteriori

LLR of n-th bit is denoted by zn. The standard BP is carried out as followed.

1. Initialization: Set i = 1,maximum number of iterations to IM ax. For each m, n,

set zmn(0) = Pn,

2. Iterative Decoding:

(a) Check node to variable node update step, for 1 ≤ n ≤ N and each m ∈ M(n), process ǫimn = 2 tanh −1 ( d Y n′_{∈N (m)\n} tanh(z i−1 mn′ 2 )) (4.1)

(b) variable node to check node update step, for 1 ≤ n ≤ N and each m ∈ M(n), process z_mn(i) = Pn+ X m′_{∈M (n)\m} ε(i−1)_m′_n (4.2) z_n(i) = Pn+ X ε(i−1)_mn (4.3)

3. Hard Decision: Let Xn be the n-th bit of decoded codeword. If zn(i) ≥0, Xn= 0,

else if zn(i) < 0, Xn= 1. If H(x(i))t= 0 or IM ax is reached, stop and output the code

word. Otherwise,set i = i + 1 and go to Iterative Decoding.

The iterative decoding processes for one iteration of standard BP is illustrated below. The messages are updated in parallel way between check nodes and variable nodes. The process are shown in Fig. 4.1(a) and 4.1(b). The arrows with purple color represent check node to variable node update message. The arrows with blue color represent variable node to check node update message.

V

V

V

V

V

V

V

ε

V

V

z

z

C

C

C

C

(a) check node to variable node update

( ) 11 i

z

P

ε

V

V

V

V

V

V

C

C

C

C

C

V

(b) variable nod to check node update

Figure 4.1: Illustration of standard BP.

Because of the numeral characteristic of tanh function, the absolute value of equation (4.1) will be dominated by min(

z

(i−1) mn′

). We can approximate (4.1) as following equation.

This is so called min-sum algorithm [13]. ε(i)mn≈(

Y

n′_{∈N (m)\n}

sign(z(i−1)_mn′ )) × min

n′_{∈N (m)\n}(   z (i−1) mn′   ) (4.4)

it reduces the computational complexity in check node to variable node update step. ε(i)mn ≈(

Y

n′_{∈N (m)\n}

sign(z_mn(i−1)′ )) × min

n′_{∈N (m)\n}(   z (i−1) mn′   )×β (4.5)

4.1.2

Column Shuffled Decoding Algorithm

From the equation (4.5), check node to variable node update step can be implemented by sorters and the number of inputs to sorters is determined by row degree. However, high code rate Quasi-Cyclic (QC) LDPC code constructed by Circulant Permutation Matrices introduce high row degree. The hardware cost and critical path of Check Node Unit (CNU) is greatly increased. Column shuffled decoding algorithm [10] divides received codeword into G groups and processes check node update step in G cycles. Thus, the number of inputs will be reduced.

In column shuffled decoding algorithm, the initialization, stopping criterion test, and output steps remain the same as the standard BP algorithm. The only difference between two algorithms lies in the updating procedure. Assume the N bits of a codeword are

divided into G groups, so each group contains N/G = NG bits. The messages are only

exchanged between one group of variable nodes and check nodes which are connected the group of variable nodes at a time. In addition, each group of messages is updated in order. Furthermore, it count one iteration when all groups have been updated. For G = 1, the column shuffled decoding becomes standard BP.

1. Initialization: z(0)mn = Pn

2. Iterative Decoding: For 0 ≤ g ≤ G − 1, perform the following two steps.

(a) Check node to variable node update step, for g · NG ≤n ≤ (g + 1) · NG−1 and

each m ∈ M(n), process ε(i)_mn≈ Y n′_{∈N (m)\n} n′_≤g·N G−1 sign(z(i)_mn′) × Y n′_{∈N (m)\n} n′_≥g·N G sign(z_mn(i−1)′ ) ×min    min n′_{∈N (m)\n} n′_≤g·N G−1 n  z (i) mn′    o , min n′_{∈N (m)\n} n′_≥g·N G n  z (i−1) mn′    o    ×β (4.6)

(b) variable node to check node update step, for g · NG ≤ n ≤ (g + 1) · NG−1, process zmn(i) = Pn+ X m′_{∈M (n)\m} ε(i−1)_m′_n (4.7) z(i) n = Pn+ X m∈M (n) ε(i−1) mn (4.8)

3. Hard Decision: Let Xn be the n-th bit of decoded codeword. If zn(i) ≥0, Xn= 0,

else if zn(i) < 0, Xn= 1.

The decoding processes for one iteration of column shuffled decoding is illustrated in Fig. 4.2 with G = 3 as example. The arrows with purple color represent check node to variable node messages to be updated. The arrows with blue color represent variable node to check node messages to be updated. On the other hand, gray arrows represent that messages are not updated.

V ¹ V º V » V ¼ V ½ V ¾ C » C º C ¹ V ¹ V º V » V ¼ V ½ V ¾ C » C º C ¹

(a) Update first group

V ¿ V À V Á V Â V Ã V Ä C Á C À C ¿ V ¿ V À V Á V Â V Ã V Ä C Á C À C ¿

(b) Update second group

V Å V Æ V Ç V È V É V Ê C Ç C Æ C Å V Å V Æ V Ç V È V É V Ê C Ç C Æ C Å

(c) Update third group

4.2

Area-Efficient Column Shuffled Decoding

Archi-tecture

Details of Column Shuffled decoding algorithm is introduced in previous chapter. Hardware architecture for the proposed (9216,8195) LDPC code will be fully explained in this section. Our design is focused on the hardware cost. Therefore, the decoder depicted in Fig. 4.4(a) is composed of partial-parallel CNUs and partial-parallel VNUs. Fig. 4.3 is proposed base matrix with dv = 4, dc = 36. Variable nodes are divided into 36 groups (G

= 36). There are 256 Check Node Units (CNUs) and 256 Variable Node Units (VNUs). Let α(i)g denotes the sorted messages sent from variable nodes in the g-th group to one

specific check node at i-th iteration, which is:

α(i)g = min n′_{∈N (m)\n} g·NG≤n′≤(g+1)·NG−1 n  z (i) mn′    o (4.9)

Then the magnitude part of check node to variable node message in (4.6) could be com-puted by the following equation:

 ε(i)_mn  = min  n α(i)j o j<g, α (i) g , n α(i−1)k o k>g  (4.10) Fig. 4.4(b) demonstrates the timing diagram of proposed decoder. There are G ini-tialization cycles required to calculate α0

g for 0 ≤ g ≤ G − 1. Since only one subgroup

of the message zmn(i) is updated in g-th cycle of one iteration, the main operation of CNU

could be simplified. Calculate α(i)g (local sorting) in each cycle and then perform global

sorting like equation (4.10).

To reduce the hardware cost, we choose G = dc = 36, so the process of local sorting

in equation (4.9) can be omitted. Furthermore, traditional column shuffled decoding completes a full variable node computation in 1 cycle. We divide the computation into dc, 4 cycles. Fig. 4.3 illustrate that how we divide the check nodes and variable nodes.

50 88 141 62 150 174 51 89 142 63 2 175 52 90 143 233 3 176 53 91 G Ë G Ì G Í 70 226 151 71 64 152 144 65 G Î G Ï G Ð G Ñ ...

...

Figure 4.3: Division on the nodes

In the propose architecture, only messages α(i)g and ε(i)mn are sorted. The sorted results

could be represented by 1st min value, 2nd min value, and the index of 1st and 2nd value in NMS algorithm. Therefore, the proposed decoder only latches 2 values, 2 index, and sign part of messages in each subgroup, while the variable node to check node message zmn(i) is on-the-fly calculated. The area-efficient column shuffled decoding architecture is

...

..

.

(a) LDPC decoder architecture

èé ê ëìíî ïìðí ñò óôõó ö÷÷õó øùúûüùý ñþ ÿôõ ó ö÷ ÷ õó ö÷ ÷ õó ö÷÷õ ó ö÷ ÷õ ó øùúûü ùý øù úûü ùý øùúûü ùý øùúûü ùý èéêëìíîïìð í ñòó ôõ ó ö÷ ÷õ ó øùúûüù ý ñþÿôõ ó è é ê ëìíî ïìð í ñò óôõ ó ö ÷÷õ ó øùúûü ùý ñþÿô õó èé êëìíî ïìð í ñò óô õó ö÷ ÷ õó øù úûüùý ñþÿô õó è éêëìí îïìð í ñòóô õó ö÷ ÷ õó øùúûü ùý ñþÿôõó  G
G  G  R R R R R R R R R

(b) Area-efficient Column Shuffled decoding scheduling

4.3

Check Node Unit

This section presents detail CNU architecture based on column shuffled decoding. The CNU architecture is further optimized to reduce storage requirement and the numbers of inputs to sorters. Different CNU architectures will affect the convergence speed and per-formance which will be discussed in the next chapter. The messages sent from VNU are converted from two’s complement format to sign-magnitude format for efficient compu-tation of CNU. Therefore, the operation of check node to variable node update could be divided into magnitude part and sign part.

4.3.1

Accumulative Sorter

For our proposed QC-LDPC codes with dc = 36, The column shuffled with G = 36

could divide 36 inputs of the CNU into 36 parts. Thus, a CNU receives only 1 input in g-th group update according to equation (4.9). In NMS algorig-thm, to implement operation in the equation (4.10) perfectly needs to store dc−1 z(i)mn, these dc−1 zmn(i) will be sorted

with α(i)g . The sorted 1st, 2nd min value will be sent as ε(i)mn in equation (4.2).

However, due to the large storage cost, to store dc −1 zmn(i) for the sorted 1st, 2nd

min value is impractical. Only 2 zmn(i) are stored in our CNU architecture. The inputs of

the sorter are 2 zmn(i) and 1 αg(i). It’s a simple 3 to 2 accumulative sorter. Proposed CNU

architecture reduces large storage cost and hardware cost. But, it suffer from performance loss, because it may lead to wrong results in sorted 1st, 2nd min value while reducing the numbers of stored z(i)mn.

Fig. 4.5 is an example for the operation of accumulative sorters. In this example, we assume row degree = 5 and G = 5. Follow the operation in the equation (4.10), the sorted 1st, 2nd min result in 1-th group in iteration 2 should be 0.75 and 0.75. Fig. 4.5(a) shows the sorted results with 2 z(i)mn stored. We get wrong sorted results in 1st, 2nd min value.

Fig. 4.5(b) shows the sorted results with 3 z(i)mn stored. The 1st min value is correct, but

2nd min value is still wrong. The problem resulted from the conflict between index of input value and the index of stored 1st, 2nd min value.

                              Group input 1 min 2 min                                   ∞

initialize iteation 1 iteation 2

(a) Reserve 2 z(i)mn

                             Group input 1 min 2!" min                                 ∞

initialize iteation 1 iteation 2



3# "

min

∞ ∞

(b) Reserve 3 zmn(i)

Figure 4.5: Accumulative sorters with different numbers of stored z(i)mn

4.3.2

Optimization Strategy

Increase the number of stored zmn(i) can reduce the index conflict problem at the cost of

more storage and gate count. In proposed CNU architecture, the sorter is a very simple 3 to 2 accumulative sorter. The rules in replacing 1st, 2nd min should be considered carefully in order to reduce the conflict problem. The main idea is to reserve the latest index if the sorted value are the same. Equation (4.11) and (4.12) will lead to different sorted results which are demonstrated in Fig. 4.6.

input < 1st min , input < 2nd min (4.11)

Group input 1$ % min 2&' min ( ) * + , (-*. (-/ . (-*. (-*. (-*. (-*. (-/ . (-*. (-*. (-/ . )-*. (-*. (-*. (-*. (-*. ---( ) * (-*. (-*. )-*. )-. )-/. )-*. )-*. )-. )-. ( ) * + , (-*. (-/ . (-*. (-*. (-*. (-*. (-/ . (-*. (-*. (-/ . (-*. (-*. (-*. (-*. (-*.

initialize iteation 1 iteation 2

(a) Equation (4.11) 0 1 2 3 4 0526 057 6 0526 0526 0526 0526 057 6 0526 0526 057 6 1526 0526 0526 0526 0526 555 Group input 18 9 min 2:; min 0 1 2 0526 0526 0526 156 1576 0526 0526 156 156 0 1 2 3 4 0526 057 6 0526 0526 0526 0526 057 6 0526 0526 057 6 0526 0526 0526 0526 0526

initialize iteation 1 iteation 2

(b) Equation (4.12)

Figure 4.6: Accumulative sorters with different replacing rules

The two different replacing rules result in different performance. In Fig. 4.7, red line shows the BER using equation (4.12) and green line shows the BER using equation (4.11). Using equation (4.12) can achieve better performance.

4 4.05 4.1 4.15 4.2 4.25 4.3 4.35 4.4 4.45 4.5 10−7 10−6 10−5 10−4 10−3 10−2

(9216,8195), AWGN, 2bit soft−input, Q(4,2), iteration = 20, s=0.75

Eb/No(db)

BER

1st,2nd min, proposed 1st,2nd min, index conflict

4.4

Variable Node Unit

Fig. 4.8 shows the VNU architecture, where SM to TC represents sign-magnitude to two’s-complement conversion, and TC to SM represent two’s-complement to sign-magnitude conversion. Since column degree is 4, the adder takes 4 cycles to compute the posteriori LLR zn(i) in g-th group. ε(i)mn used in the adder should be stored to calculate

the zmn(i) sent to (g + 1)-th group.

The bit width of messages passing between CNU and VNU is 4. Scaling factor 0.75 in NMS algorithm (4.5) is applied in our architecture. Small value 0.25 will not be multiplied by scaling factor in order to reserve its information. 2 bits channel value is mapped to 4 bits value by non-linear quantization. More details of non-linear quantization will be discussed in next chapter.

< =>?@A B C <D EF GH @I J KD E> G @A>?<= Subtractor & Scaler <J L>IE D >?I ?J>MBN Adder B B O PQ ?IR S T UVKW?I VKV>VE FXEF GMBN < => ?@ A B YZZGI?J>M[N [ \FZU VKMBN

4.5

Shifting Network

High compexity of routing network between Check Node Units (CNU) and Varible Node Units (VNU), is the main difficulty for hardware implementation of LDPC code. Shifting Network [15] [16] has been proposed to reduce the routing complexity. There are two routing networks between CNUs and VNUs. One is the direction from CNUs to VNUs, while another one is the direction form VNUs to CNUs.

Due to the quasi-cyclic character in Latin square QC-LDPC code, the shifting network can be simplified. The value computed by CNUs will be stored to memories. Operations of VNUs start with fetching the value from memories. The routing networks from mem-ories to VNUs are fixed. Therefore, shifting networks between CNUs and memmem-ories are needed. The idea is illustrated in Fig. 4.9. Green lines represent the routing networks from memories to VNUs. Purple lines represent shifting networks between CNUs and memories.

The shifting network in Fig. 4.9(b) in G0 can be ignored, because the sub-matrix in

G0 are two identity matrices. From previous discussion 3.2.1, adding a fixed value in a

row in base matrix W will not change the check equations produced by the row. W1 in

Fig. 4.10 is the original base matrix proposed. W2 is the equivalent base matrix to W1

with four identity matrices in G0. Thus, the shifting network on the initial cycle in G0

can be ignored.

However, the difference between cyclic shift amount of each group is a not constant. A table is constructed to record the difference between cyclic shift amount of each group. The shifting network in our design is a traditional Barrel shifter.

H = 1 0 0 0 0 1 0 0 0 0 1 0 0 0 0 1 0 1 0 0 0 0 1 0 0 0 0 1 1 0 0 0 1 0 0 0 0 1 0 0 0 0 1 0 0 0 0 1 0 0 1 0 0 0 0 1 1 0 0 0 0 1 0 0 0 0 1 0 0 0 0 1 1 0 0 0 0 1 0 0 0 0 0 1 1 0 0 0 0 1 0 0 0 0 1 0 G ] G ^ G _

(a) A QC-LDPC code divided into 3 groups

V ` V a V b V c C b C a C ` C d C e C f C g

G

G

(b) Shifting network for correspondent code

Figure 4.9: Illustration of networks between CNUs and VNUs

50 88 141 62 150 174 51 89 142 63 2 175 52 90 143 233 3 176 53 91 G j G k G l 70 226 151 71 64 152 144 65 G m G n G o G p ... ... R o R k R j R l 0 38 91 12 100 0 133 171 224 145 0 173 50 88 141 0 26 199 76 114 G j G k G l 20 176 233 153 62 150 167 65 G m G n G o G p ... ... R o R k R j R l W k W j

Chapter 5

Simulation and Implementation

Results

5.1

Optimized Quantization

Belief Propagation (BP) is a probability-based message passing algorithm. When soft input is available, LDPC code can provide powerful correcting ability. LDPC code with 2-bits soft input can outperform BCH code under same code rate. Additive White Gaussian Noise (AWGN) channel with Binary Phase Shift Keying Modulation (BPSK) are used for demonstration and simulation. We assume that bit ‘0’ is mapped to ‘1’ and bit ‘1’ is mapped to ‘−1’. 2-bits quantization can represents 4 levels. We select a threshold f to divide received channel value into 4 levels as shown in Fig. 5.1. A bit with channel value near 0 has a high probability to be an error bit. Therefore, a non-linear quantization is preferred.

-f

f

The value of f , Vmin and Vmax will affect the code performance severely. We use Fig.

5.2 to explain how to derive appropriate parameters for 2-bits quantization. Once the f is determined, received channel value is divided into 4 regions. The main idea is to find the value that can mostly represent all the value in the region. Therefore, the concept of weighted mean is applied.

xw =

P wixi

P wi

(5.1) In Fig. 5.2, given f = 0.35, SNR= 4.0, (Vmin, Vmax) = (0.2390, 1.0813) can be derived

from equation (5.1).

-f

f

0

Fig. 5.3 shows the performance with different (f, Vmin, Vmax). The bit width of input

LLR after non-linear quantization and messages passing between CNUs and VNUs in de-coder is floating. Decoding algorithm is Normalized Min-Sum algorithm. (f, Vmin, Vmax) =

(0.35, 0.25, 0.75) and (f, Vmin, Vmax) = (0.35, 0.5, 1.5) have the same performance, because

they have the same (Vmax/Vmin) ratio. However, the parameters from equation (5.1) can

appropriately represent the value in the divided region, it is not ensured that the param-eters provide the best decoding performance. The bit width and the algorithm used in the decoder will affect the final result, but the (Vmax/Vmin) ratio is still a good reference

for us. In Fig. 5.3, (Vmax, Vmin) with (Vmax/Vmin) ratio near the derived (Vmax, Vmin) have

good performance. 4 4.05 4.1 4.15 4.2 4.25 4.3 10−5 10−4 10−3 10−2

(9216,8195), 2 bits soft inputs, floating, NMS, iteration = 20

Eb/No(db) BER f=0.35 vmin=0.25 vmax=1.00 f=0.35 vmin=0.25 vmax=0.75 f=0.35 vmin=0.25 vmax=1.25 f=0.35 vmin=0.50 vmax=1.25 f=0.35 vmin=0.50 vmax=1.50 f=0.35 vmin=0.50 vmax=1.75 f=0.35 vmin=0.2390 vmax=1.0813 f=0.40 vmin=0.2700 vmax=1.0950

Fig. 5.4 also shows the performance with different (f, Vmin, Vmax), but the bit width of

input LLR after non-linear quantization and messages passing between CNUs and VNUs in decoder is 4. (f, Vmin, Vmax) = (0.35, 0.25, 0.75) and (f, Vmin, Vmax) = (0.35, 0.5, 1.5),

which have the same performance in Fig. 5.3, now have 0.15dB performance difference

at BER 10−3_{. Assume two sets of (V}

max, Vmin) with the same (Vmax/Vmin) ratio, larger

(Vmax, Vmin) provides better performance. Hence, (f, Vmin, Vmax) = (0.35, 0.5, 1.75) is

chosen. 4 4.05 4.1 4.15 4.2 4.25 4.3 4.35 4.4 4.45 4.5 10−6 10−5 10−4 10−3 10−2

(9216,8195), 2 bits soft inputs, floating, NMS, iteration = 20, f=0.35

Eb/No(db) BER (vmin,vmax)=(0.25,1.00) ratio 4.0 (vmin,vmax)=(0.25,0.75) ratio 3.0 (vmin,vmax)=(0.25,1.25) ratio 5.0 (vmin,vmax)=(0.50,1.25) ratio 2.5 (vmin,vmax)=(0.50,1.50) ratio 3.0 (vmin,vmax)=(0.50,1.75) ratio 3.5 (vmin,vmax)=(0.24,1.05) ratio 4.4 f=0.40 (vmin,vmax)=(0.27,1.06)

5.2

Performance Evaluation

Fig. 5.5 shows that the BER performance of proposed Area-Efficient Column Shuffle decoding algorithm converges faster than and NMS algorithm and the CNU with index conflict cases. 0 5 10 15 20 25 30 35 40 10−7 10−6 10−5 10−4 10−3 10−2 (9216,8195), AWGN, s=0.75, SRN=4.4, 3.9336*109 bits Iteration BER 2 bit soft, Q(4,2), NMS 2 bit soft, Q(4,2), index conflict 2 bit soft, Q(4,2), proposed

Figure 5.5: Converge Speed Comparison at SNR 4.4

In Fig. 5.6, there is 1.3dB performance gain of 2-bit non-linear soft input LDPC code over BCH code at BER 10−4_{. 2-bit non-linear soft input LDPC code has a great potential}

to replace BCH code for NAND flash memory system. The simulation parameters of LDPC code are 4-bit quantization (2-bit integer and 2-bit decimal fraction), with scaling factor 0.75. The bit width of messages passing between CNU and VNU is 4. Area-Efficient Column Shuffle decoding architecture with 36 group partition, 4 row partition reduce the amount of CNUs and VNUs, inputs to CNUs, and inputs to VNUs. Since the converge speed of proposed algorithm is faster than the converge speed of NMS algorithm. With 20 iterations, the performance of proposed algorithm is better than NMS algorithm.

3.5 4 4.5 5 5.5 6 10−7 10−6 10−5 10−4 10−3 10−2 10−1 (9216,8195), AWGN, s=0.75, iter=20 Eb/No(db) BER

soft input, floating, NMS 2 bits soft, floating, NMS 2 bits soft, Q(4,2), NMS 2 bits soft, Q(4,2), proposed 2 bits soft, Q(4,2), index conflict hard input, Q(4,2), NMS (9214,8192), BCH , t=73

Figure 5.6: Code performance

3.5 4 4.5 5 10−10 10−9 10−8 10−7 10−6 10−5 10−4 10−3 10−2 10−1 (9216,8195), AWGN, s=0.75, iteration=20 Eb/No(db) BER

soft input, floating, NMS 2 bits soft, floating, NMS 2 bits soft, Q(4,2), NMS 2 bits soft, Q(4,2), proposed 2 bits soft, Q(4,2), proposed, FPGA

5.3

Synthesis Results

The critical path of CNUs + Shifters + VNUs is 5ns. We assume that the critical path of control circuit is 1ns. Therefore the clock cycle after synthesis is 6ns. Clock period in Place and Route is 9ns.

According to the simulation result from Table 5.1, 4 decoding iteration is sufficient to decode most codewords in high SNR region.

Table 5.1: Early Termination Simulation at different SNR, 105 _codewords

SNR 4.5 4.75 5.0 5.25

Average decoding iterations 4.137 3.323 2.853 2.426

T hroughput = Inf ormationlength

Cycles per iteration · Numbers of iteration · Cycle period

= 8195

36 · 4 · 4 · 9 = 1.581Gbps.

Synthesis results is listed in Table. 5.2. Total gate count is 605.35k whereas the shifter accounts for 105.2k, 17.38% of total design.

Table 5.2: Synthesis Results with technology UMC90. Gate count Combinational circuits VNU (Adder,Substractor) 90.49k CNU (Sorter) 69.12k Shifter 105.20k Memory Channel value 80.80k Hard decision 40.40k Sign Bits 66.60k

Register 1st, 2nd min, idx 147.40k

5.4

Implementation Results

Table. 5.3 shows the postlayout results. Gate count after synthesis is 605.35k and

Core area is 3.74mm2 _{without IO pad. Using 90nm CMOS technology, the maximum}

throughput is 1.581 Gbps under clock period 9ns with 4 iterations.

Table 5.3: Summary of implementation results (Place and Route). Proposed LDPC Decoder Technology UMC 90nm 1P9M Code Spec (9216,8195) Code Rate 0.889 Column Degree 36 Row Degree 4

Algorithm Area-efficient Column Shuffle Decoding

Area 3.74mm2 (Without IO Pad)

Gate Count 605.35k

Iteration 20

Input Quantization 2 bits

Clock Period 9ns

Maximum Throughput 1.581 Gbps

The core density in this design is 69.83 %, but its density distribution is quite unbal-anced. The 256 bits Barrel Shifter results in serious congestion problems. Clock period must be increased to solve the congestion problems. The clock period after synthesis is 6ns. Clock period in Place and Route is 9ns.

In Table. 5.4, the gate count of our proposed design is approximate 3 times of the (9214,8192) BCH code design.

Table 5.4: Comparison with BCH codes

Proposed LDPC Code BCH Code

Code Spec (9216,8195) (9214,8192)

Code Rate 0.89 0.89

Column Degree 4 t=73

Throughput 1.581 Gb/s 2.41 Gb/s

Gate Count(No I/O Buffer) 484.2k 166.4k

Chapter 6

Conclusion and Future Work

6.1

Conclusion

This thesis proposes a (9216, 8195) LDPC code with code rate 0.89 for NAND flash memory system. (9216, 8195) LDPC code is constructed from the base matrix produced by Latin square algebra, with column degree 4, row degree 36. The size of CPM differ-ent from original Latin square is applied in order to make information length > 8192. Parameters for 2 bits quantization is calculated based on the concept of weighted mean. Simulations show that LDPC code with 2-bit soft input can outperform BCH code under same code rate. Therefore, LDPC code is a good candidate to replace BCH code in the next generation standard. High code rate LDPC code introduces high row degree. This makes implementation difficult due to the large number of inputs to sorter and the in-creased routing complexity. Area-efficient Column Shuffled decoding algorithm is a good solution to this problem. Variable nodes are divided into 36 groups. Check node update procedures are processed in 36 cycles, reducing the number of inputs to sorter. Only 1st, 2nd min are reserved to reduce the storage cost. Replacing rules in the accumulative sorter is further optimized for performance. With row divided into 4 subgroups, VNU can be simplified to a 2-inputs adder and a 2-input subtractor. Shifting networks are applied between CNUs and memories. The gate count of our design is 605.35k. The maximum

6.2

Future Work

The gate count of shifters account for 17.38% of total design. If we can further simplified the shifters, critical path and gate count of our design can be lowered, and the throughput can also be promoted. The study in the regulation of the base matrix may be a solution to this problem.

FPGA simulation shows that error floor appears at BER 10−9_{. Error correcting code}

applied on NAND flash memory system requires no performance degradation down to

BER near 10−12_{. The most probable reason resulting in performance degradation is that}

only 1st, 2nd min are stored. Wrong sorted results will propagate in iterative decoding process. The replacing rules in accumulative sorter should be modified to make the sorted result more accurately.

There is no standard flash memory channel for any simulation. Therefore, a standard flash memory channel is desired if we want to compare performances of different error correcting code on flash memory. We may use the unsymmetrical AWGN channel for more accurate simulation.

Bibliography

[1] A. M. R. Micheloni, L. Crippa, Inside NAND Flash Memories. Springer, 2010. [2] A. F. D. M. Greg Atwood and B. Reaves, “Intel strataflashtm memory technology

overview,” Intel Technology Journal, pp. 1–8, 4th Quarter 1997.

[3] R.C.Bose and D.K.Ray-Chaudhuri, “On a class of error-correcting binary group codes,” Inform. and Contr, no. 3, pp. 68–79, March 1986.

[4] A. Hocquenghem, “Codes correcterus derreurs,” Chiffres, no. 2, pp. 117–156, Septem-ber 1959.

[5] I. Reid, W.J., L. Joiner, and J. Komo, “Soft decision decoding of bch codes using error magnitudes,” IEEE Int. Symp. on Info. Theory, p. 303, June 1997.

[6] Y. M. Lin, C. L. Chen, H. C. Chang, and C. Y. Lee, “A 26.9 k 314.5 mb/s soft (32400,32208) bch decoder chip for dvb-s2 system,” IEEE Journal of Solid-State Circuits, vol. 45, no. 11, pp. 2330–2340, Nov. 2010.

[7] R. G. Gallager, Low-Density Parity-Check Codes. Cambridge, MA: MIT Press,

1963.

[8] D. J. C. MacKay, “Good error-correcting codes based on very sparse matrices,” IEEE Trans. Inform. Theory, vol. 45, no. 2, pp. 399–431, Mar. 1999.

[11] M. Fossorier, “Quasicyclic low-density parity-check codes from circulant permutation matrices,” IEEE Transactions on Information Theory, vol. 50, no. 8, pp. 1788–1793, aug. 2004.

[12] L. Zhang, Q. Huang, S. Lin, K. Abdel-Ghaffar, and I. Blake, “Quasi-cyclic ldpc codes: An algebraic construction, rank analysis, and codes on latin squares,” IEEE Transactions on Communications, vol. 58, no. 11, pp. 3126–3139, Nov. 2010.

[13] M. Fossorier, M. Mihaljevic, and H. Imai, “Reduced complexity iterative decoding of low-density parity check codes based on belief propagation,” IEEE Transactions on Communications, vol. 47, no. 5, pp. 673–680, may 1999.

[14] J. Chen and M. Fossorier, “Near optimum universal belief propagation based de-coding of low-density parity check codes,” IEEE Transactions on Communications, vol. 50, no. 3, pp. 406–414, mar 2002.

[15] H. C. C. C. H. Liu, C. C. Lin and C. Y. Lee, “Multi-mode message passing switch networks applied for qc-ldpc decoder,” IEEE Internatinal Symposium on Circuits and Systems, vol. 18, no. 1, pp. 85–94, Jan. 2010.

[16] D. Oh and K. Parhi, “Area efficient controller design of barrel shifters for reconfig-urable ldpc decoders,” IEEE Internatinal Symposium on Circuits and Systems, pp. 240–243, May 2008.
