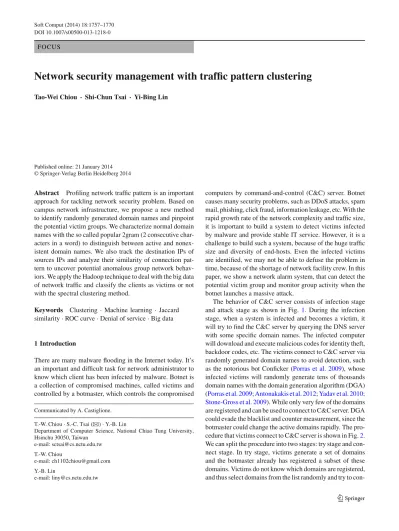

Network security management with traffic pattern clustering

DOI 10.1007/s00500-013-1218-0

F O C U S

Network security management with traffic pattern clustering

Published online: 21 January 2014 © Springer-Verlag Berlin Heidelberg 2014

Abstract Profiling network traffic pattern is an important approach for tackling network security problem. Based on campus network infrastructure, we propose a new method to identify randomly generated domain names and pinpoint the potential victim groups. We characterize normal domain names with the so called popular 2gram (2 consecutive char-acters in a word) to distinguish between active and nonex-istent domain names. We also track the destination IPs of sources IPs and analyze their similarity of connection pat-tern to uncover potential anomalous group network behav-iors. We apply the Hadoop technique to deal with the big data of network traffic and classify the clients as victims or not with the spectral clustering method.

Keywords Clustering · Machine learning · Jaccard similarity· ROC curve · Denial of service · Big data

1 Introduction

There are many malware flooding in the Internet today. It’s an important and difficult task for network administrator to know which client has been infected by malware. Botnet is a collection of compromised machines, called victims and controlled by a botmaster, which controls the compromised Communicated by A. Castiglione.

T.-W. Chiou· S.-C. Tsai (

B

Department of Computer Science, National Chiao Tung University, Hsinchu 30050, Taiwan e-mail: sctsai@cs.nctu.edu.tw T.-W. Chiou e-mail: ch1102chiou@gmail.com Y.-B. Lin e-mail: liny@cs.nctu.edu.tw

computers by command-and-control (C&C) server. Botnet causes many security problems, such as DDoS attacks, spam mail, phishing, click fraud, information leakage, etc. With the rapid growth rate of the network complexity and traffic size, it is important to build a system to detect victims infected by malware and provide stable IT service. However, it is a challenge to build such a system, because of the huge traffic size and diversity of end-hosts. Even the infected victims are identified, we may not be able to defuse the problem in time, because of the shortage of network facility crew. In this paper, we show a network alarm system, that can detect the potential victim group and monitor group activity when the botnet launches a massive attack.

The behavior of C&C server consists of infection stage and attack stage as shown in Fig. 1. During the infection stage, when a system is infected and becomes a victim, it will try to find the C&C server by querying the DNS server with some specific domain names. The infected computer will download and execute malicious codes for identity theft, backdoor codes, etc. The victims connect to C&C server via randomly generated domain names to avoid detection, such as the notorious bot Conficker (Porras et al. 2009), whose infected victims will randomly generate tens of thousands domain names with the domain generation algorithm (DGA) (Porras et al. 2009;Antonakakis et al. 2012;Yadav et al. 2010;

Stone-Gross et al. 2009). While only very few of the domains are registered and can be used to connect to C&C server. DGA could evade the blacklist and counter measurement, since the botmaster could change the active domains rapidly. The pro-cedure that victims connect to C&C server is shown in Fig.2. We can split the procedure into two stages: try stage and con-nect stage. In try stage, victims generate a set of domains and the botmaster already has registered a subset of these domains. Victims do not know which domains are registered, and thus select domains from the list randomly and try to

con-Fig. 1 The infect stage and

attack stage of

command-and-control server. a Infection stage, b attack stage

Fig. 2 Victims infected by DGA-based malware connect to C&C server. a Try stage, b connect stage

nect to C&C server one by one. Note that when these vic-tims try to find the registered domains, they might query the same unregistered domains (NXdomains). We extract from the NXdomains which look like DGA domains by using two features: popular 2gram and longest meaningful substring, and group these domains into a number of clusters called NX group. NXDomains in the same NX group indicate that these domains look like random string and are queried by common clients. After these victims find the active domains, domain name server would return one or multiple IPs which can con-nect to C&C server. Because these domains belong to the same botmaster, they might share some resolve IPs, because of the limit of available IPs. We consider the domains and IPs as a bipartite graph G= (D, P) where D is a set of domains and P is a set of IPs. If there is a query on domain d∈ D for it’s IP and the returned IP address is p ∈ P, then we con-struct an edge for(d, p). We perform a Hadoop job proposed byKang et al.(2009) on G to find connected components to

group active domains called active group. The domains in the same active group indicate that these domains belong to the same network. The detecting intuition is that only victims infected by the same malware connect to the same NXdo-mains (NXdoNXdo-mains queried by infected clients), and most of these victims would connect to the same active component which others clients never connect with. In other words, it can be observed that one NX group and one active group serve the same clients, which is an unusual event. We build a detec-tion system to analyze DNS log, find DGA-based domains and discover victims infected by the malware based on this observation. We will discuss the details in Sect.2.

Many malicious malwares, such as botnet, spyware, spam-mer etc., abuse DNS to carry out their misconduct. For exam-ple, the botmaster, such as Conficker (Porras et al. 2009) and Torpig (Stone-Gross et al. 2009), usually registers some domains and the compromised computer systems will con-nect to the C&C server through these domains and start a

Fig. 3 System overview

joint massive attack later. Many researchers (Antonakakis et al. 2010,2012;Fiore et al. 2013;Palmieri and Fiore 2009;

Yadav et al. 2010;Choi and Lee 2012;Dietrich et al. 2011) have applied machine learning techniques to identify these domains.Choi and Lee(2012) found that botnet generally acts as a group and they developed a system to identify mali-cious domains by capturing botnet’s group activities. Anton-akakis et al.(2010) proposed a dynamic reputation system for DNS by providing a reputation score from 35 features for each new domain.Yadav et al.(2010) determined malicious domains by domain’s zone features. Some of the domain names are generated by DGA. Yadav et al. also leveraged the fact that the alphanumeric distribution of algorithmically generated domain is very different from those generated by human.

After we got the victims, we consider botnet group activity during the attack stage, the infected computers will execute the instructions downloaded from C&C server and usually target at certain systems to block normal service, conduct click fraud, send spam mails, etc. It means that connection behaviors of these victims are similar because victims con-nect to the same destination. We build the Traffic log monitor system to capture the group activity and report the desti-nations where they want to connect and the corresponding source and destination ports. Then Network administrator could build the access control rules with the obtained infor-mation and block the botnet attack.

Xu et al.(2011) extracted source and destination IPs from backbone network traffic, and explored the behavior similar-ity of end-hosts with the same prefix and grouped together

the end-hosts with high similarity by the spectral clustering method (Luxburg 2007). The end-hosts in the same cluster means that these clients have similar connection behavior in the time window. Particularly, the cluster is very sensitive to massive activity, such as DDoS attack and scanning. Once we obtain the victim group after inspecting the DNS logs, we use spectral clustering method to analyze the relation between source and destination IPs. As in the work byXu et al.(2011), we can model the relation as a bipartite graph, where the analysis unit is the IPs of victim groups. Then we can identify effectively the security related problems, such as DDoS, scan activity. We will discuss it in Sect.3.

Since the size of DNS logs and traffic data is huge, it is already a challenge to move the big data around efficiently, let alone processing the data. To this end, we use Apache Hadoop (http://hadoop.apache.org) technique to handle the humon-gous data size. Hadoop is a Java-based platform, which sup-ports big data computation and storage. The MapReduce computation model is adopted in Hadoop, which processes a job in two phases, i.e., Map phase and Reduce phase. While in Map phase it splits input data into chunks and processes them in parallel, and in Reduce phase it collects outputs from Map phase and combines them into the final answer.

Our system overview is as shown in Fig. 3. We con-sider clients in campus network and network traffics pass through the firewall PA (Palo Alto Networks,https://www. paloaltonetworks.com) and the router, then directed to two collectors, i.e., DNS log collector and PA-Traffic collector. DNS log collector collects the log if a client requests to the domain name server on campus. DNS log collector records

Fig. 4 DGA detection

workflow

the client, queried domains and the corresponding timestamp. PA-Traffic collector collects packet information about source IP, destination IP, source port, and destination port, but PA-Traffic collector does not collect the payload. We apply the DNS Log Analyzer to detect victim group and malicious domains, and store them into Victim Group Database with MongoDB (http://www.mongodb.org). Finally we use net-work traffic log to monitor botnet group activity. Netnet-work administrator can leverage the information about victims’ malicious domains and results of victim behavior to construct control access rules or simply block the botnet activity.

We summarize our contributions as follows.

• We propose a new feature, popular two gram, to detect DGA domains.

• We propose a system for detecting (1) DGA-based mali-cious domains, (2) corresponding IPs, which can connect to C&C server, (3) the victims infected by these mal-wares, and (4) the victim behavior when acting together. The rest of the paper is organized as follows. In Sect.2, we show the details of capturing the victims, DGA-based domain names and victim groups from the DNS log. In Sect.3, we show the network behavior analysis with spectral clustering method. We conclude the paper in Sect.4.

2 Analysis of DNS log

In this section we introduce our DNS log analysis workflow. 2.1 Notations

First we introduce some notation. For a DNS record r , we define r.c as the client’s IP which was queried to

DNS server by the domain r.d. Note that we only focus on A type query. For example, a DNS record r is as in the following form 29-Oct-2013 15:14:53.722 queries: info: client 140.113.xx.xx#61974: query: ssl.gststic.com IN A +. It means client 140.113.xx.xx queries for domain ssl.gststic.com with port 61974, i.e., r.c = 140.113.xx.xx and r.d = ssl.gstatic.com.

A domain d can be separated into several parts by dot. The right most part of a domain is called top-level domain (TLD(d)), and the second part is called second-level domain (2LD(d)), and so on. For example, the top-level domain of mail.google.com is com, the second-level domain is google, and the third level domain is mail.

2.2 Workflow

Our DNS log analysis workflow is shown in Fig.4. There are seven stages: Unique Stage, DNS Query Stage, DGA domain detection Stage, Join Stage, Spectral Clustering Stage, Con-nected Component Stage, andVictim Group Detector. We now describe how they work.

(1) Unique Stage: This stage extracts the set of domains which have been queried in one day. The input of Unique Process is the raw data of DNS log and white list domains. For each record r in DNS log, this process removes duplicate records and records with r.d in the white list, then output a list of distinct domains queried in a day. The algorithm is shown in Fig. 5. In practice, we confront the problem of the huge size of DNS log. Therefore, we adopt Apache Hadoop (http://hadoop.apache.org) technique to parallelize this process. Mappers extract r.d from DNS log and send the (r.d, null) key/value to the Reducers. Reducers receive the domains list from Mappers, filter out the domains in white list and output the unique domain list.

Fig. 5 Unique stage pseudo

code

(2) DNS Query Stage: In this stage, we categorize the domains from Unique Stage into two classes: active domains and NX domains. For each domain d, we query world-wide domain name servers to resolve the domain. If we receive the IP list P = {p1, p2, . . . , pN} from world-wide domain name servers, it means that this domain is active domain, and we add this domain and the corresponding IPs into Active Domains List. On the other hand, if the domain is a failure domain or expired domain, then we add these domains into NX Domains List. Note that when we query to some domain name servers with NXDomains, the domain servers would return a specific IP. For example, OpenDNS (http://www. opendns.com) would return 67.215.65.132 if the domain is NXDomain. We prepare an IP list that represents the NXDomain from the report on the internet (http://f.00f.net/ PubDNS/redirecting.txt). If domain name server returns an IP appearing in the list, then we add the domain into NX Domains List.

(3) DGA Detection Stage: In NX Domains List, there are some type error domains like yqhoo.com or expired domains or DGA domains queried by victims. This stage is respon-sible for classifying the domains from DGA and other NX domains. To classify these domains, we choose six features and adopt the Alternating Decision Tree (ADT) (Freund and Mason 1999) to classify domains.Antonakakis et al.(2012) used a similar approach to classify domains from DGA and benign domains. Intuitively, legitimate domain names are usually easy to memorize or spell. While the names gen-erated by botnet, such as Conficker, are usually hard to pro-nounce. To quantify this observation, we use two features, popular 2-gram (two consecutive alphanumeric characters) and longest meaningful substring (longest substring which can be found in dictionary). For example, the longest mean-ingful substring of getsomeinformation is information. To determine the longest meaningful substring, we define that a string is meaningful if the string appears in English dictio-nary. Benign domains tend to have longer LMS than DGA domains. The idea of longest meaningful substring was pro-posed byBilge et al.(2011). They query strings on google search engine, and define a string to be meaningful, if the number of results returned by google is larger than a thresh-old. We use the English dictionary from Debain GNU/Linux

6.0.4 (/usr/share/dict/american-english). We build a trie data struct (Horowitz et al. 2006) to store and match words. Trie is a prefix tree which can be used to store a set of strings and can be looked up efficiently.

Google scanned over two trillions of English words and computed the frequency of each pair of consecutive letters (Lutkebohle 2013,http://norvig.com/mayzner.html). The frequency list of 2gram is shown on the webpage:http:// norvig.com/mayzner.html. We choose the top 250 most fre-quent 2gram as the so called popular 2grams. We will argue why 250 is a reasonable choice later. The popular 2grams help us pinpoint the random domains generated by algorithms. For example, consider a well known domain name word-press, whose 2gram set is: {wo, or, rd, dp, pr, re, es, ss} and popular 2gram set is {wo, or, rd, pr, re, es, ss}, i.e., over 80 % of the 2grams are popular. While the domain name jsgjeyxsko, generated by Conficker, has the popular 2gram set { je, ey, sk, ko}, which is less than 50 % of its 2gram set.

Note that there are 2grams not popular in English but may be popular in other countries. We include three non-popular 2grams: ku, ko, ao, which are common in Chinese and Japanese domain names.

For each domain d, we extract the following features for classification.

(1) Length of 2LD(d) (2) Length of 3LD(d)

(3) Ratio of popular 2gram in 2LD(d) (4) Ratio of popular 2gram in 3LD(d) (5) Longest meaningful substring in 2LD(d) (6) Longest meaningful substring in 3LD(d).

We collect many DGA-based domains from Threat Expert (http://www.threatexpert.com), and other malware reports (Porras et al. 2009; Technical details of Srizbis domain gen-eration algorithm, http://www.fireeye.com/blog/technical/ botnet-activities-research/2008/11/technical-details-of-srizb is-domain-generation-algorithm.html; File-Patching ZBOT Variants ZeuS 2.0 Levels Up, http://www.trendmicro.com/ cloud-content/us/pdfs/security-intelligence/white-papers/w p__file-partching-zbot-varians-zeus-2-9.pdf). We got domai-ns from Conficker, Zbot, Srizbis, Bobax, Kraken. We

ran-Table 1 Comparison of different

popular 2gram sizes Size ROC curve %

0 94.2 50 95.6 100 96.1 150 96.2 200 95.9 250 96.3 300 95.9 Use all 94.5

domly choose 4/5 of these domains as training DGA domains, and collect the top 10,000 domains from Alexa websitehttp:// www.alexa.com/as training benign domains, and build an ADT by these training data. To verify the classifier, we use Receiver operating characteristic (ROC) curves (Han et al. 2012) to measure the accuracy of a model. We used top 10,000–12,000 domains from alexa.com and the remaining 1/5 DGA domains as testing data. We measure the ROC curve for different popular 2gram definitions (used top 100, 150, 200, 250, 300 as popular 2gram). With the result shown in Table1, we choose the top 250 most frequent 2gram as our popular 2gram. The domain features extraction procedure is shown in Fig.6. The procedures for computing popular 2gram, building Trie and finding longest meaningful sub-string are shown in Figs.7,8,9respectively.

Recently,Antonakakis et al.(2012) proposed a method to classify a group of domains whose size is equal toγ as DGA domain group or benign group by ADT. We focus onγ = 1, because we want victims infected by the same malware to be grouped into the same cluster in the following Spectral Clustering Stage. Antonakakis et al. split a list of NXDo-mains into k groups with sizeγ and classify each group by 33 features. They allowed some of DGA domains to be clas-sified as benign domains (i.e., four from benign domains and one from DGA domains in one group and classify them as benign domain group), because they used the Hidden Markov Model (HMM) to find the C&C server based on the domain text string. In this work, we find the C&C server domains by victims’ connection behaviors. The DGA domains, which are connected by different clients, are extremely important (most of the DGA NXDomains are just queried by one client). If we usedγ > 1, the extremely important NXDomains might be dropped. So we useγ = 1.

Results of our experiments show that our features are bet-ter thanAntonakakis et al.(2012) whenγ = 1. We give the ROC curves of our approach and the one byAntonakakis et al.(2012) as shown in Fig.10. Note that several features fromAntonakakis et al.(2012) are not considered, such as the variance of length, variance of entropy etc, whenγ = 1. The 18 active features used inAntonakakis et al.(2012) are as follows:

(1) Ngram features: measure the frequency distribution of ngrams for the domain name strings, with n = 1, . . . , 4 and use median, average and standard deviation as fea-tures (3× 4 = 12 features).

(2) Measure entropy of character distribution from 2LD(d). (3) Measure entropy of character distribution from 3LD(d). (4) Number of distinct characters.

(5) TLD(d) is .com or not. (6) Length of domains. (7) Number of levels.

Comparing with the area under ROC curve,Antonakakis et al.(2012) has 0.918. and our approach has 0.963. We get a larger area, which is better under the measure of ROC curve. This will be helpful for detecting victim group as shown in Fig.11.

(4) Join stage: In the DGA Detection Stage, we collect the DGA-like NXDomains. In this stage we look up the raw data of DNS log and find the clients which had queried these domains. The task is similar to Unique Stage. Since the log size is huge, we use Hadoop technique to find all pairs of

(B, d), where B is a client and d is a DGA-like NXdomain.

The pseudo code is shown in Fig.12.

(5) Spectral Clustering Stage: The victims infected by the same malware will attempt to connect the same NXDomains. This is an unusual event. Two domains with higher similarity means that they have more common clients trying to connect to them. In this stage, we try to group DGA-like NXDomains into groups from Join Stage, which collects all the(B, d) pairs from DNS log. We compute the similarity by Ochiai (Cheetham and Hazel 1969) coefficient between domains. Definition 1 Ochiai coefficient: Let B1and B2be the set of clients IP and D1and D2be the two domains, which B1and B2connect with, respectively. The Ochiai coefficient of D1 and D2is:

Ochi ai(D1, D2) = √|B1∩ B2| |B1| × |B2|.

In this stage, we first build the similarity matrix M. Let M be the n× n matrix, where n is the number of domains. Mi j is the Ochiai coefficient of domain i and domain j . We apply spectral clustering algorithm to group domains. Spec-tral clustering is a popular clustering approach for graph par-tition. We use the approach proposed in Xu et al.(2011). Given a similarity matrix M and two parametersα = 0.95 andβ = 2, the spectral clustering works as follow:

(1) Let D be the diagonal matrix, and Dii = jMi j. (2) Compute the matrix L= D−1/2M D−1/2.

(3) Find all eigenvectors and corresponding eigenvalues

λ0≥ λ1≥ λ2≥ · · · ≥ λnfrom L.

(4) Find the maximumλkwherei_≤kλi ≥ α × i_≤nλiand (λk−1− λk) > β × (λk− λk−1).

Fig. 6 Domain extraction stage pseudo code

(5) Construct the matrix X = [u1u2· · · uk] where ui is the corresponding eigenvector of eigenvalueλi.

(6) Construct the normalized matrix Y , where Yi j = (jX_{i j}2)2.

(7) The i -th row of Y represents data point i , clustering rows with k-means, where the number of clusters k is already found at step 4.

In this stage, we find NX groups N X = {nx1, nx2, . . . , nxm}, where nx = {d1, d2, . . . , dn}. Each NX group consists of DGA-like NXDomains which were connected by common clients. This is an unusual event for general users. These groups of domains are called NX group. We collect all of the NX groups and send them to Victim Group Detector, which will be given later.

(6) Connected Component Stage: DGA-based virus gen-erates domains every day, and the botmaster only registers a subset of these domains. The victims will try to connect to these registered domains to reach C&C server. Because of the limited number of IP, we assume IPs used by one mali-cious domain could be also used by some other malimali-cious domains. In this stage we group the active domains from Active Domain List. Domains in the same group means these domains belong to the same network. Recalling DNS Query Process, Active Domain List consists of a list of tuple(d, P), where d is an active domain and P is the corresponding IP list. To illustrate how to group the domains, we build a bipar-tite graph G = (D, P), where D is a set of active domains and P is a set of IPs. For one domain d ∈ D and one IP p∈ P, there exists an edge iff IP address p is returned when

Fig. 7 Pseudo code for computing popular 2gram ratio

Fig. 8 Pseudo code for building Trie

we query domain d to the world wide domain name server in DNS Query Process. Because there are many active domains in the network, finding all connected components in G by a single machine is impractical. We use Hadoop cluster and the algorithm proposed byKang et al.(2009) to find connected components. Given a graph G, we first assign a unique index id for each node d. In the map phase, every node sends it’s index i to its neighbors. In reduce phase, every node receives an index list I = {i1, i2, . . . , in} sent from it’s neighbors, and updates it’s index by i_d(new) = min{id, i1, i2, . . . , in}. We repeat the map phase and reduce phase until no node can be updated. Nodes with the same index means they are in the same connected component. Figure13shows how to

find the connected components. We define the component as acti = {d1, d2, d3, . . . , dn} called active group, where i is the unique active group ID. Finally, we collect all of the active groups and send them to Victim Group Detector.

(7) Victim Group Detector: Recall that, in Spectral Clus-tering Stage, client infected by the same malware using the same DGA would attempt to connect the same DGA-like NXDomains. On the other hand, they might connect to the same active group which are extracted in Connected Compo-nent Stage. Consider the victims infected by one DGA-based malware, when the victims try to connect to C&C server. Victims attempt to connect the common NXDomains (in the same nx), and finally connect to the same act (active domains might share the same IPs). We compute the Jaccard (Han et al. 2012;Kiyomoto et al. 2012) similarity between each pair of(act, nx).

Definition 2 Jaccard similarity: Let Bacti be the set of client IPs which had queried to domains in acti, and Bnxj be the set of client IPs which had queried to domains in nxj. The Jaccard similarity of acti and nxjis:

J accar d(acti, nxj) =

|Bacti ∩ Bnxj| |Bacti ∪ Bnxj| .

For filtering noise, we filter out the NX group with size smaller than five(|nx| < 5), because the size of NXdomains generated by DGA-based malware is usually more than 100 in one day. We also filter out the act group if the number of clients which have queried to this act is less than four. The reason is if we do not set this threshold, we might clas-sify benign domains as domains of C&C server. Consider there are two compromised machines in the network and they all connect to benign.com every day. Our detection sys-tem would find that they all connect to the same NX group which is generated by a malware. In this situation, similarity between the NX group and benign.com is high, and our sys-tem would report such pair. It simply generates noise record with benign act and we will filter out such act group.

By the above filtering approach, now we show that it is an abnormal event if there exist nx, and act such that J accar d(nx, act) ≥ θ, where we choose θ = 0.7 empir-ically. Note that the θ depends on the network. Different networks might use differentθ. We show how we choose the suitableθ to detect victims behavior better. We performed an experiment on DNS log which was collected on 2013/09/07. We extracted 152,125 active groups and 458 NX groups. We measured Jaccard similarity for all possible(act, nx) pair and collect the(act, nx) pair if Jaccard(nx, act) ≥ θ. The relation betweenθ and the number of collected pairs is shown in Fig.14. It can be observed that it’s rare to find the act and nx with high Jaccard similarity. However, recall the obser-vation mentioned in Sect.1. Victims infected by the same malware attempt to connect to the NX groups and active

Fig. 9 Longest meaningful

substring

Fig. 10 The ROC curve for our approach and approach from Anton-akakis et al.(2012)

group, which other clients never connect. We can find the

(nx, act) pair with high similarity if clients in our network

have been infected. We simulate behaviors of victims infected by the well-known DGA-based malware to show that vic-tims’ group connection behavior would generate(act, nx) with relative high Jaccard similarity. We will discuss it later. We consider actmal as malicious domain group (domains direct to C&C server) if there exists nxmal ∈ N X such that J accar d(nxmal, actmal) ≥ θ, and we consider clients which had connected to actmalas victim group because these clients attempted to connect to C&C server. We store the victims

group and corresponding actmal, nxmalto victim group data-base.

To show that this detection mechanism works, we simu-late victims’ DNS activities and simusimu-late the DNS records when they try to connect to C&C server. We set up several connection parameters as follows:

(1) Maximum try: Conficker C generate 50000 domains per day and victims randomly choose 500 domains to connect to C&C server. If fail to connect to C&C server, these victims will sleep one day. On the other hand, some of victims infected by other malwares (i.e. Bobax) would try to connect until connect to C&C server or all of candidate domains have been tried. In our experiment, Maximum try parameter is set to “retry until connect” or “up to five hundred times trial”.

(2) Register Rate: Botmaster needs to register a subset of domains generated by DGA-based malware. This para-meter specifies the ratio of domains that are generated and registered. Victims would connect with more NXDo-mains, if the register rate is low.

(3) Number of victims: It is the number of victims in our network. The more victims are infected by the same mal-ware, the easier we could get more complete NX groups. (4) IP configuration: In active domains side, these domains might be resolved to one single IP (single IP) or to mul-tiple IPs. Botmaster might construct the botnet by apply-ing IP fast-flux technique. Domain name server might return different IPs in each query for one domain. IP fast-flux brings fragment when we construct the Active Domains Groups. The parameter IP configuration can be set to “single IP” or “IP flux”. To simulate IP fast-flux,

Fig. 11 Pseudo code for

Victim Group Detector

Fig. 12 Pseudo code for Join

Stage

we choose 50 IPs from one “5.2.10.1–5.2.10.50”. With a specific set of DNS log, we make sure that there is no domain queried by clients from our campus resolved to these 50 IPs. When one DGA domain is marked as active domain and “IP-flux”, we randomly choose 5 of 50 IPs as the answers in DNS Query Stage.

We first randomly choose clients on campus as fake vic-tims, and simulate DNS log as if these clients are com-promised by the same DGA-based malware. Second, we add these DNS log into original DNS query log and feed these log into our detection system to find these fake vic-tims. We measure with two DGA (Conficker C, Zbot) bots with different parameters setting as mentioned above. We implement the DGA algorithm for each malware by online malware reports or malware analysis paper (Porras et al. 2009; File-Patching ZBOT Variants ZeuS 2.0 Lev-els Up,http://www.trendmicro.com/cloud-content/us/pdfs/

security-intelligence/white-papers/wp__file-partching-zbot-varians-zeus-2-9.pdf). The simulation result is shown in Table 2. Capture number is the number of fake victims reported from our system. However, we can not detect fake victims infected by Conficker C, which generates 50,000 domains in one day and the similarity between NXdomains are relative low if there are very few victims in our network. With low similarity of NXdomains, our system cannot gen-erate the complete nx, which most of victims have queried. This is a limitation of our system. We leave the improvement as future works.

3 Traffic analysis

In DNS log analysis, we propose the methodology for detect-ing victims group. Because of false positive, machine learn-ing approach might recommend innocent client IPs as vic-tims. Furthermore, these victims may not attack any other

Fig. 13 Finding connected

components: a initial step, b send index to neighbors, c update index, d, e repeat until no node can be updated

Fig. 14 Theta measurement

machines directly. It’s difficult to block victims directly in practice. In this section, we use a system to monitor victims’ network behaviors on packet level, and extract the informa-tion for administrator to mitigate botnet attacks. Once the information of infected groups is available, we analyze the

Table 2 Simulation on Zbot

Maximum try Number of victims Register rate IP configu-ration Capture number

Retry Until Connect 10 0.01 Single 10 Try 500 times at most 10 0.01 Single 9 Retry Until Connect 25 0.01 Single 25 Try 500 times at most 25 0.01 Single 22 Retry Until Connect 10 0.002 Single 10 Try 500 times at most 10 0.002 Single 7 Retry Until Connect 25 0.002 Single 25 Try 500 times at most 25 0.002 Single 19 Retry Until Connect 10 0.01 Fast-Flux 10 Try 500 times at most 10 0.01 Fast-Flux 9 Retry Until Connect 25 0.01 Fast-Flux 25 Try 500 times at most 25 0.01 Fast-Flux 23

packet traffic in order to capture group activity. We use only four features, (srcIP, dstIP, srcPort, disPort), for similarity analysis. For this we adopt the approach byXu et al.(2011)

(a) (b)

(c)

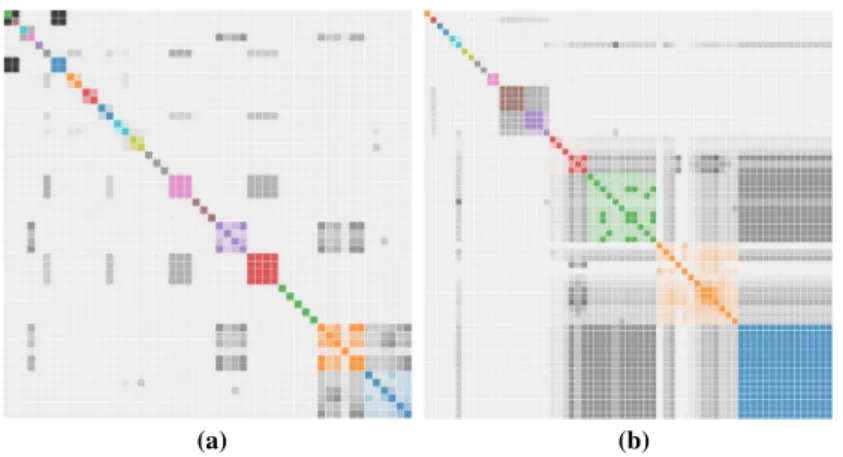

Fig. 15 Scan activity: a the ordinary clusters, b the clusters when scan happened, c the summary of one cluster

to cluster network behaviors by using spectral clustering method. For one network segment we track the similarity of end-hosts’ connections. If two end-hosts’ destination IPs are similar during a period of time, then they will be assigned to the same cluster. Jaccard similarity measurement is applied to this part of analysis. Figure15a shows one cluster result in one prefix. We can see Fig.15a is a similarity matrix and the deeper the color of(i, j) in the matrix, the higher the similar-ity of client i and client j . As we mentioned in the introduc-tion, clusters are sensitive with group activity such as DDoS attack or scan activity. Figure15shows the original cluster result and clusters when scan activity occurred. Figure15is one cluster result. After three minutes, scan activity started. An IP 212.xx.xx.xx scanned on the campus network at port 80, and campus network received packets and sent back to the scanner in a short time. The clusters become larger because many clients responded accordingly. The cluster summary is shown in Fig.15c. Network administrator can observe the common dstIP they sent (212.xx.xx.xx) and the correspond-ing port. We apply this method to capture group activity and report the information about the IPs that these victims want to connect and the corresponding ports. In our system, network administrator can build access control rules by monitoring the group dstIP or dstPort to block malware behavior before all victims are discovered.

We collect data from PA, a commercial security package (Palo Alto Networks, https://www.paloaltonetworks.com),

which stores traffic records of each IP. We apply Hadoop technique to handle the huge log. There are nearly 190GB traffic log in one day. We write Hadoop job which is respon-sible to collect the data in traffic log and build Json files to describe the clients connections behavior in each period. An example of Json file is shown in Fig. 16, where it can be observed that there are two active clients (sr cI P1, sr cI P2) in this period, and sr cI P1connect to dst I P1 and dst I P2. We can compress the traffic data and speed up the cluster procedure, when constructing the similarity matrix.

In the Sect. 2, we extract active connected components in Connected Component Stage, and some of active com-ponents would be reported as suspicious domains in Victim Group Detector. Note that we just query each domain one time, and we might get all of IPs poll for one domain. It brings fragment effect that is shown in Fig.17, where five victims, on the right hand side, connect to C&C server with five domains (d1, d2, . . . , d5), and the connection records are stored in DNS log. When we analyze the log, we get the map-ping of domains and corresponding IPs (i.e. d1to I P1, I P2) and build active components list. As shown in Fig.17, we might obtain two victim groups even if they actually belong to the same botnet. So Instead of treating one victim group as one network segment, we put all the victims reported from Victim Group Detector as one network segment and analyze the network connection behavior in the segment. The proce-dure is as follows:

Fig. 16 Json file to specify the connections behavior in one period

Fig. 17 Fragments of connected component

(1) For one time period (i.e. 5 min), collect the records with srcIP marked as victim.

(2) Build the similarity matrix M with these records. For each pair of victims (i, j), we compute the Jaccard sim-ilarity J accar d(i, j) = |A_|Ai∩Aj|

i∪Aj|, where Ai is a set of dstIP with which client i connects in the period. (3) Apply the spectral clustering, which is the same one used

in Spectral Clustering Stage.

(4) For each cluster we build a summary that specifies the dstIP, srcPort, disPort as shown in Fig.15c.

(5) After clustering, use Data-Driven Documents (http:// d3js.org) and Jquery (http://jquery.com) to present the results, such that network administrator can review on the web.

4 Conclusion

We propose a new method to determine the domains gener-ated by DGA-based malware, victims infected by the same DGA-based malware and active domains which direct to C&C server. Along the way, we use Hadoop technique and tools from machine learning for clustering. After finding the victim groups, we apply network behavior clustering tech-nique to monitor the victim’s group activity. Our works pro-vide network administrators valuable information to con-struct access control rules. Our system still cannot detect victims infected by Conficker C with the log within 24 h. It is possible to collect long term DNS log data for detecting. However, it will need more computing power for analyzing. We leave it as a future work.
