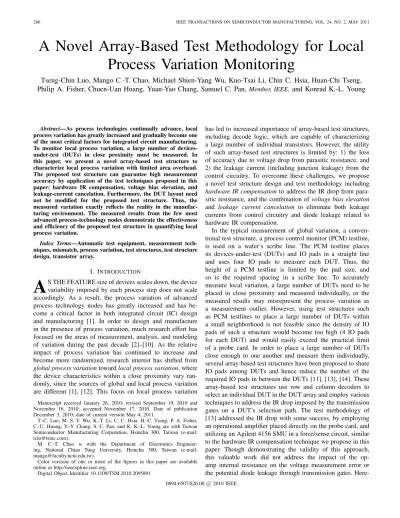

A Novel Array-Based Test Methodology for Local
Process Variation Monitoring
Tseng-Chin Luo, Mango C.-T. Chao, Michael Shien-Yang Wu, Kuo-Tsai Li, Chin C. Hsia, Huan-Chi Tseng,
Philip A. Fisher, Chuen-Uan Huang, Yuan-Yao Chang, Samuel C. Pan,
Member, IEEE,and Konrad K.-L. Young
Abstract—As process technologies continually advance, local
process variation has greatly increased and gradually become one of the most critical factors for integrated circuit manufacturing. To monitor local process variation, a large number of devices-under-test (DUTs) in close proximity must be measured. In this paper, we present a novel array-based test structure to characterize local process variation with limited area overhead. The proposed test structure can guarantee high measurement accuracy by application of the test techniques proposed in this paper: hardware IR compensation, voltage bias elevation, and leakage-current cancelation. Furthermore, the DUT layout need not be modified for the proposed test structure. Thus, the measured variation exactly reflects the reality in the manufac-turing environment. The measured results from the few most advanced process-technology nodes demonstrate the effectiveness and efficiency of the proposed test structure in quantifying local process variation.
Index Terms—Automatic test equipment, measurement
tech-niques, mismatch, process variation, test structures, test structure design, transistor array.
I. Introduction
A
S THE FEATURE size of devices scales down, the device variability imposed by each process step does not scale accordingly. As a result, the process variation of advanced process technology nodes has greatly increased and has be-come a critical factor in both integrated circuit (IC) design and manufacturing [1]. In order to design and manufacture in the presence of process variation, much research effort has focused on the areas of measurement, analysis, and modeling of variation during the past decade [2]–[10]. As the relative impact of process variation has continued to increase and become more randomized, research interest has shifted from global process variation toward local process variation, where the device characteristics within a close proximity vary ran-domly, since the sources of global and local process variation are different [1], [12]. This focus on local process variationManuscript received January 26, 2010; revised September 19, 2010 and November 16, 2010; accepted November 17, 2010. Date of publication December 3, 2010; date of current version May 4, 2011.
T.-C. Luo, M. S.-Y. Wu, K.-T. Li, C. C. Hsia, H.-C. Tseng, P. A. Fisher, C.-U. Huang, Y.-Y. Chang, S. C. Pan, and K. K.-L. Young are with Taiwan Semiconductor Manufacturing Corporation, Hsinchu 300, Taiwan (e-mail: [email protected]).
M. C.-T. Chao is with the Department of Electronics Engineer-ing, National Chiao Tung University, Hsinchu 300, Taiwan (e-mail: [email protected]).
Color versions of one or more of the figures in this paper are available online at http://ieeexplore.ieee.org.
Digital Object Identifier 10.1109/TSM.2010.2095891
has led to increased importance of array-based test structures, including decode logic, which are capable of characterizing a large number of individual transistors. However, the utility of such array-based test structures is limited by: 1) the loss of accuracy due to voltage drop from parasitic resistance, and 2) the leakage current (including junction leakage) from the control circuitry. To overcome these challenges, we propose a novel test structure design and test methodology including hardware IR compensation to address the IR drop from para-sitic resistance, and the combination of voltage bias elevation and leakage current cancelation to eliminate both leakage currents from control circuitry and diode leakage related to hardware IR compensation.
In the typical measurement of global variation, a conven-tional test structure, a process control monitor (PCM) testline, is used on a wafer’s scribe line. The PCM testline places its devices-under-test (DUTs) and IO pads in a straight line and uses four IO pads to measure each DUT. Thus, the height of a PCM testline is limited by the pad size, and so is the required spacing in a scribe line. To accurately measure local variation, a large number of DUTs need to be placed in close proximity and measured individually, or the measured results may misrepresent the process variation as a measurement outlier. However, using test structures such as PCM testlines to place a large number of DUTs within a small neighborhood is not feasible since the density of IO pads of such a structure would become too high (4 IO pads for each DUT) and would easily exceed the practical limit of a probe card. In order to place a large number of DUTs close enough to one another and measure them individually, several array-based test structures have been proposed to share IO pads among DUTs and hence reduce the number of the required IO pads in between the DUTs [11], [13], [14]. These array-based test structures use row and column decoders to select an individual DUT in the DUT array and employ various techniques to address the IR drop imposed by the transmission gates on a DUT’s selection path. The test methodology of [13] addressed the IR drop with some success, by employing an operational amplifier placed directly on the probe card, and utilizing an Agilent 4156 SMU in a force/sense circuit, similar to the hardware IR compensation technique we propose in this paper. Though demonstrating the validity of this approach, this valuable work did not address the impact of the op-amp internal resistance on the voltage measurement error or the potential diode leakage through transmission gates.
in, we explicitly consider the impact of the source/measure unit (SMU) internal resistance and introduce voltage bias elevation and leakage-current cancelation to minimize leakage through the transmission gates. The array-based structure of [14] suffers from large background leakage from the DUTs. Reference [12] used a ROM-like DUT-array design, which shares a common poly gate and a common drain among DUTs to avoid the usage of decoders. However, such a gate-sharing array design results in a DUT layout different from the device layout used in real products. Therefore, the measured process variation may not be representative of an actual product, which greatly limits the application of such ROM-like test structures. In addition, the ROM-like test structure may result in a large junction leakage current due to common drain/gate buses.
In this paper, we propose a novel array-based test structure utilizing decoders to access the DUT array, where all the peripheral circuits, such as decoders and latches, are im-plemented by I/O devices (thick gate oxide and long chan-nel devices) and thus are not sensitive to process variation. In the proposed test structure, we develop a hardware IR-compensation technique to eliminate the impact of the IR drop imposed by the selection circuits. Also, we apply a voltage-bias-elevation technique to eliminate a possible neg-ative voltage resulting from the IR-compensation hardware. Further, we develop a leakage-current-cancelation technique to reduce the background leakage when measuring a DUT’s off-state current. Experimental results based on advanced process technologies demonstrate that the proposed array-based test structure can effectively measure hundreds of DUTs within a close proximity and the measurement accuracy of each DUT is almost the same as that measured by the traditional testline, on which only 8–20 DUTs can be measured. These experimental results also demonstrate the significant improvement of the measurement accuracy achieved by applying the proposed techniques. Also, compared to a ROM-like array-based test structure, the measured results of the proposed test structure can indeed reflect the reality of a manufacturing environment. The DUTs used in the experiments include single devices for discrete transistor characterization, and paired, identical adjacent devices for measurement of local mismatch.
II. Background A. Traditional Testline (PCM)
Fig. 1 shows the overall architecture of a conventional PCM testline, which consists of DUTs and IO pads arranged in a straight line. Each DUT is connected to 4 IO pads (one each for source, drain, gate, and bulk connections). Each IO pad is connected to the forcing and sensing node of a SMU during testline measurement through the probe card (Fig. 2). In this architecture, the voltage at the connection of forcing and sensing paths, commonly referred to as the compensation point, must be equal to Vset since no current
runs through the sense path. Therefore, the IR drop caused by parasitic resistance from the tester to the compensation point is completely eliminated. However, the voltage at the drain node of the DUT may drop significantly because no voltage compensation exists between the compensation point
Fig. 1. Configuration of a conventional PCM testline.
Fig. 2. Voltage compensation mechanism used in a conventional PCM testline.
and the drain node of the DUT. This results in a degradation of the measured current, especially when the width of the DUT’s MOSFET is large (W > 2 µm). This degradation of the DUT’s measured current strongly depends on the parasitic resistance from the compensation point to the DUT. Four possible sources of parasitic resistances in a conventional PCM testline and their approximate values for the process technologies and test equipment of interest are listed below.
1) Cable resistance from tester switch matrix to probe card <1 .
2) Contact resistance between probe card needle and test-line pad = 1–20 , depending on factors such as: 1) probe-card cleanliness and quality; 2) whether the top surface of the probe pads on the wafer is Al or Cu; and 3) queue time and storage ambient before probing. 3) Metal routing resistance from testline pad to DUT source/drain. For a representative example, we con-sider 50 µm pad spacing, metal sheet resistance Rs = 0.2 /square (a typical value for M1), and routing layout consisting of 3 µm wide metal for most of the routing distance in series with three parallel metal lines 0.1 µm wide and 3 µm long to connect to the DUT. The routing resistance will then be of order 0.2 [25 µm/3 µm + 3 µm/(0.1 µm× 3)] ∼ –10 . Of course, the exact value for a given PCM depends on the specific metal process and routing layout.
4) Resistance from source/drain contact to active silicon. For example, for a contact process having contact resis-tance of 60 /contact and seven parallel contacts to a DUT with 1 µm channel width, this resistance will be of order 60/7 = 8–10 , where the exact value depends on details of the contact and salicidation processes. Typically, the total parasitic resistance from the compensa-tion point to a DUT is approximately 1–30 in a convencompensa-tional PCM testline configuration, and in the worse case a significant
error in the measured current can be generated. In addition, a large number of DUTs are required to monitor local process variation. However, this testline architecture can only contain around 8–20 DUTs in a∼60 × 2200 µm2 scribe line, which greatly limits the sample size of the measured DUTs and is hence not suitable for device variation modeling or process monitoring of advanced process technology nodes.
B. Transistor Array Test Structures and Adaptive Voltage Compensation
Test structures based on transistor arrays consistently must address two challenges: the IR drop along the electrical path to the DUT, and leakage current due to whatever DUT selection circuitry is employed. Here, we briefly review key representa-tive works in the field [11], [13]–[15] and describe past efforts to address these challenges in test structures utilizing transistor arrays. The test structure of [11] is array based, utilizing transmission gates; however its use of common gate and drain connections renders it susceptible to large leakage currents similar to the ROM-like architecture. The work of [13] ad-dressed the IR drop by placing an operational amplifier directly on the probe card, and utilizing an Agilent 4156 SMU in a force/sense circuit, similar to the hardware IR compensation technique we describe below; however, [13] did not address the impact of the op-amp internal resistance on the voltage measurement error or the diode leakage through transmission gates. Approaches to these issues will be discussed in our work in the sections that follow. The array-based structure of [14] suffers from large background leakage from the DUTs themselves. The voltage bias elevation and leakage current cancelation techniques we introduce substantially alleviate the leakage current issues suffered by the works list above. An innovative approach to voltage compensation was introduced by [15], where-in iterative adaptive voltage compensation was employed to compensate for the IR drop to the DUT. We describe this approach further below.
For array-based test structures, the IR drop from the com-pensation point to the DUT may become even larger due to the extra parasitic resistance of the added transmission gates and routing paths used for the decoding and selection scheme. To reduce the measurement error caused by this large IR drop, an adaptive voltage-compensation scheme was proposed in [15], which utilizes two SMUs for each node of the measured MOSFET, as shown in Fig. 3. For each terminal of the DUT, one SMU (e.g., SMU1 for D, SMU3 for G, SMU7 for S, and SMU5 for sub) is used for forcing the voltage, which is then sensed by the other SMU (e.g., SMU2 for D, SMU4 for G, SMU8 for S, and SMU6 for sub). Fig. 4 lists the adjustment algorithm for finding a proper compensation voltage at each measured node. The approach of this algorithm is to incrementally increase the forcing voltage each time by a small step, and stop when the sensed voltage is equal to the reference voltage. The number of sweep steps of the forcing voltage determines the runtime and the accuracy of the adaptive voltage-compensation scheme. A small sweep step may result in a more accurate measurement, but it will also require longer runtime.
Fig. 3. Schematic of the adaptive voltage compensation for one DUT.
Fig. 4. Pseudo code of adaptive voltage compensation algorithm for Ion measurement.
This adaptive voltage-compensation scheme is straightfor-ward and easy to implement. However, it requires 8 SMUs per DUT and results in a high test-hardware overhead. Also, its adjustment algorithm may require too much time to search for the proper compensation voltages and may even be unable to converge. In fact, this adaptive voltage-compensation scheme only converges easily when the number of measured nodes is equal to two, such as for a diode or resistor. The difficulty of convergence increases when the number of compensation nodes increases. However, most FET characterization such as SPICE modeling is performed on discrete transistors, meaning that all four FET terminals (drain, gate, source, and bulk) need to be compensated. Therefore, the adaptive voltage-compensation scheme may not be practical for the applications described in this paper.
C. ROM-Like Transistor Array
Several test structures using ROM-like transistor arrays have been proposed in the past to measure a large number of DUTs within a close proximity [6], [12]. A ROM-like transistor array requires no periphery circuit for DUT selection and can avoid the extra parasitic resistance of the transmission gates as described in the previous subsection. Fig. 5 shows a ROM-like transistor array design in which transistors on a given column share a common drain bus, while each row of transistors shares a common gate bus. All transistors’ source and bulk nodes are tied together with wide metal layers to minimize IR drop. The FET array layout permits each individual transistor to be accessed without periphery
Fig. 5. Architecture of a ROM-like transistor array using shared common gate and drain buses [12].
Fig. 6. Layout of a ROM-like DUT array using straight poly lines for gate connections [12].
circuitry. For example, while measuring FET T11, column 1 is biased and other drain columns are floating to reduce the diode leakage of the other transistors of columns 2 through 10. The voltages on other gate rows connected to T11 are biased at 0 V or a small negative voltage to turn off transistors and minimize the leakage in column 1 [12]. However, this design and biasing scheme still exhibits a major DC leakage current problem due to the use of common gate and drain busses, which results in an incorrectly measured value of Vt which is lower than the correct value obtained from a conventional single transistor testline. Traditionally, ROM-like open/short test structure arrays have been commonly used as test vehicles for defect monitoring during yield ramp [6]. The only ROM-like array structures which avoid this issue are open/short test structures evaluated by a strict pass/fail criteria, where the criteria for a short is a current level of order at least∼µA. In addition, the layout style of a ROM-like transistor array, as shown in Fig. 6, cannot represent the end shortening and rounding effects of a poly gate used in actual product devices. Therefore, its measurement results may substantially deviate from the reality encountered in a product circuit.
III. Design Methodology A. Design Architecture
Fig. 7 shows the proposed transistor array with 4× 64 = 256 test units. Each test unit consists of eight transmission gates and one DUT. The DUT (usually a MOSFET) can be measured by selecting the corresponding test unit through the X-decoders and Y-decoders. In total, 8 address inputs (X1-X2 and Y1-Y6) are used to select the 256 test units. Each test unit is designed with a stand-alone connection to its DUT,
which means each of the drain, gate, source, and bulk nodes is connected to a SMU. This stand-alone connection can be used for the measurement of Isoff, Iboff, Igoff, or body bias of a DUT. Therefore, this test-unit design can also be modified to adapt to any type of device such as diode, resistor, pMOS, or nMOS, as long as the number of terminals connected to pads is less than or equal to four. The terminals F1-F4 and S1-S4 are the SMU’s forcing and sensing ports which are connected to the drain, gate, source, and bulk of a DUT, respectively. The proposed test structure with 256 DUTs can fit into a regular 1× 22 pad frame used for a standard PCM testline. Also, the array size of the proposed test structure can be extended to 16× 64 = 1024 to increase the sample size for statistical SPICE modeling or other applications requiring large sample size. However, the extended array cannot be placed in the scribe line for production variation monitoring due to its larger area.
Fig. 8 shows the test-structure layout in a 60× 2200 µm2
region, where the size of each test unit is 30 × 10 µm2. Note that the shaded square in Fig. 8(c), representing the ∼10×10 µm2area immediately surrounding the DUT, may be
designed with a layout representing a typical circuit environ-ment, or with a layout deliberately varying one or more layout parameters. This can be accomplished without compromising the low series resistance of the wiring to the DUT terminals. Because most stress-related layout effects occur over length scales less than∼5 µm, the layout-induced stress on the DUT can easily be made identical to a typical circuit layout. In this proposed test structure, the circuit-under-pad (CUP) design technique is used to increase the number of DUTs placed in this 60× 2200 µm2 region. Note that this CUP design
technique requires a process with at least four metal layers. By using the CUP design, the bottom few metal and via layers (metal-1 to metal-4) in the pad frame are removed. The active circuitry including test devices are all placed under the bond pads. Using the CUP design, the number of placed DUTs is increased by a factor of 2.5. In addition, all periphery circuits, such as latches and decoders, are designed with I/O devices rather than core logic transistors so that their background leakage can be reduced and their performance will not be affected by the process variation of the advanced process under study. For the technologies under study, Vdd = 1.0 V for the
core logic transistors, and Vdd = 2.5 V (or optionally 1.8 V)
for the IO devices. In the examples discussed in this paper, we focus on the case where the DUT is a core logic transistor, but the techniques are equally applicable to the case where the DUT is a 2.5 V (or 1.8 V) IO device as long as the periphery circuits are overdriven to 3.3 V (or 2.5 V).
B. Hardware IR Compensation
A hardware IR-compensation technique is used in the proposed array-based test structure to reduce measurement error caused by the large parasitic resistance of the added transmission gates and routing paths. The key concept of this hardware IR compensation is to separate the forcing and sensing paths originally connected at the probe card (as shown Fig. 2), and reconnect them at a position very close to the DUT. Such a connection can reduce the parasitic resistances between
Fig. 7. Architecture of the proposed transistor array with 4× 64 DUTs for scribe-line-compatible footprints.
Fig. 8. Layout of the proposed test structure using circuit-under-pad design (CUP) for scribe-line compatible footprints. (a) Cross-section view of CUP design. (b) Top view of the proposed test structure. (c) Schematic inside each test unit.
a compensation point and its corresponding DUT. In our test structure, the approximate distance between the compensation point and DUT is less than 2 µm. Thus, the parasitic resistance between compensation point and DUT is significantly low-ered. For example, using typical metal resistance values, the parasitic resistance for each connection can easily be reduced to ∼ 0.2 which is substantially lower than 1–30 for a
conventional PCM test-line as described in Fig. 2. Fig. 9 shows the whole configuration of the proposed setup, which contains the enhanced Kelvin connection, Agilent 407X SMUs, and a redesigned compensation point. All the DUT’s terminals including drain, source, gate, and bulk are compensated by this enhanced Kelvin connection to ensure measurement accuracy. The measurement error for the configuration of Fig. 9 can be calculated by the following equations. We note that because Ri is much larger than Rsand Rf, to simplify the calculation,
the negligible current flowing through Ri is taken to be zero
Vsense= Vset (1)
Error= Vset− Vdut
= Vdrops = Vdropf · Rs Rs+ Ri = Idut· Rf· Rs Rs+ Ri . (2)
As (2) shows, the compensation error increases as Idut
in-creases. In order to address this compensation error when Idut
is high, we can either reduce the parasitic resistances Rs and
Rf by layout engineering, or increase the internal resistance
Ri at the SMU. To reduce Rs and Rf, we can increase the
size of a transmission gate such that its channel resistance is reduced, or increase the metal routing width. However, a larger transmission gate results in larger leakage [14], and wider metal routing requires more layout space. Therefore, in our hardware compensation, we choose to increase the SMU’s internal resistance Ri to limit the measurement error.
Increasing Ri lowers the difference between Vdut and Vset.
Typically, the SMU’s internal resistance in an Agilent 407X tester is a few kiloohms. For instance, with Vdut of 1 V,
Fig. 9. Schematic of the proposed hardware IR-compensation mechanism.
Fig. 10. Example of the negative node created without applying the proposed voltage bias elevation technique.
approximately 870 (Idut/1 V)%. This error percentage can
be reduced to 45 (Idut/1 V)% if Ri is increased to 200 k.
Since the maximum Idutfor most typical device measurements
is approximately 2 mA, the worst case error percentage can be improved from 1.57% to less than 0.09%, if Ri is increased
from 10 k to approximately 200 k. The error percentage slightly increases with Idut for wide device width (>2 µm).
However, a 2 mA maximum current level is adequate for most applications such as SPICE modeling, process diagnostics, stress, DFM, and variation characterization. For a worst case of DUT measurement with Idut = 10 mA, Ri = 200 k, and
Rs= Rf = 300 , the error will be smaller than 0.44%, which
is superior to either a conventional PCM or adaptive voltage compensation. However, increasing Riresults in larger voltage
convergence time. This technique should, therefore, be used with caution.
C. Voltage Bias Elevation for Measuring Ion
In the previous subsection, we introduced the use of the pro-posed hardware IR compensation to achieve high measurement accuracy, especially when Idut is high. However, as shown in
Fig. 11. No forward biased current on the transmission gate is generated after applying voltage bias elevation (Velv= 0.5 V).
Fig. 10, the proposed IR compensation technique may create a negative node Vsx beside the transmission gate on the force
path of the DUT’s source side. During the IR compensation, the value of Vsxdepends on Idut and the parasitic resistance of
metal routing and transmission gates, Rs. Vsx is in the range
of∼−0.2 to ∼−1.0 V in the example of Fig. 10. Thus, if Idut
or Rs become too large, Vsx at the transmission gate’s input
node will become a large negative voltage, which may turn on the diode from source to substrate on the transmission gate and result in malfunction if Vsx is below −0.6 V.
Considering the case of Ion measurement for a core logic
transistor with Vdd = 1.0 V for example, before the OP Amp
settles, the voltage at the drain compensation point would initially be below 1.0 V due to the IR drop. Vforce would
continue increasing until the voltage of the compensation point Vdut reaches 1.0 V. Vforce would be elevated to approximately
1.0 V + Idut*Rf. This does not present a problem on the
forcing path of the DUT’s drain side as long as Vdx is still
below Vdd (i.e., 2.5 V). However, it would cause a negative
node on the force path of the DUT’s source side. The source-voltage setting of the DUT is 0 V for Ion measurement. The voltage at the input of the transmission gate would thus be decreased below the diode’s turn-on voltage (about −0.6 V) due to the parasitic resistance of metal routing and transmission gates, especially when Idut is high. This would
turn on the transmission gate’s drain to bulk diode. As shown in the following equation, Vsx, and a corresponding “elevation”
voltage Velv, can be roughly calculated given Idut, the diode’s
turn-on voltage Vdt, and the transmission gate resistance RTG
Vsx= Idut· 2 · RTG>−Vdt
Velv=−Vsx. (3)
If Vsx < −Vdt, the current measured by the SMU would
be the diode’s forward biased current, not the DUT current. To prevent this, the voltage biases of all the DUT’s terminals are elevated to a positive voltage Velvduring Ionmeasurement
Fig. 12. Possible leakage paths in the proposed array-based test structure. The thick line indicates the selected path. The background leakage current includes the leakage from both the selected and unselected paths.
bias voltage Velv is applied to Vset (thus also increasing Vdx),
Vg, Vd, Vs, and Vb. The elevated voltage does not affect the
electrical behavior of the measured DUT because the same voltage elevation is applied to all terminals concurrently. In addition, the power supply of the periphery circuitry can be overdriven to 3.3 V to enlarge the compensation margin, i.e., 3.3/2.5 V VDD for a 2.5/1.8 V I/O process. Figs. 10 and 11,
respectively, show an example without and with application of voltage bias elevation.
D. Leakage-Current Cancelation for Measuring Ioff
Another important MOSFET parameter to be measured is the off-state leakage current Ioff. When measuring current,
a SMU senses not only the DUT current, Idut, but also the
leakage current from periphery circuitry. For Ionmeasurement,
the leakage current from peripheral circuitry does not affect the measurement accuracy since this leakage current is much smaller than Ion. However, this leakage current can
signifi-cantly affect the accuracy of Ioff measurement. The sources
of this leakage current include: 1) the leakage from peripheral circuitry transistors, and 2) the leakage from the transmission gates on selection paths. The second of these typically domi-nates the total leakage current. The leakage current from the transmission gates may result from the N+/PW and P+/NW junction leakage, and gate to drain leakage on both the pMOS and nMOS of the transmission gates. There are 64 + 4 leakage current paths created by the transmission gates in the proposed test structure as shown in Fig. 12 (64 gates for each column and 4 gates for each row).
In order to reduce the current from these leakage paths, we use I/O devices (having relatively thicker gate oxide and longer channel length) for designing the periphery circuitry. Also, we propose a leakage-current-cancelation technique for our array-based test structure. This leakage-current cancelation elevates all the DUT’s terminals to an optimal voltage, similar to the voltage elevation technique described in the previous subsection. The operating principle of this leakage-current cancelation is to set the voltage of the DUT’s drain node such that leakages from the nMOS and pMOS of each transmission gate on the 68 leakage paths can be balanced. Figs. 13 and 14, respectively, illustrate the leakage current before and after employing the voltage elevation technique. Before voltage elevation, the voltage difference from the DUT’s drain to both the nMOS gate and the pMOS substrate is 1.5 V, but the voltage difference from the DUT’s drain to both the nMOS substrate and the pMOS gate is only 1.0 V. This unbalanced voltage difference may result in a large current on this transmission gate as shown in Fig. 13. After the voltage of the DUT’s drain is elevated to an optimal value, the voltage differences from the DUT’s drain to each nMOS or pMOS gate, or to the substrate, are all equal, such that the leakage currents from this transmission gate cancel out one another as illustrated in Fig. 14.
If all transmission gates were perfectly fabricated, all nMOS and pMOS should be completely symmetric. In this ideal case, the optimized voltage at the DUT’s drain should be half of the transmission gate VDD, i.e., 1.25 V in our example.
Fig. 13. Larger background leakage due to unbalanced leakage paths before applying voltage bias elevation.
Fig. 14. Reducing the leakage current by balancing the leakage paths with optimized voltage bias elevation.
is also affected by process variation. Thus, when measuring Ioff, the values of both VDD and the elevated voltage at the
DUT’s terminals may be swept to find an optimal voltage to minimize the leakage current from the 68 leakage paths during the measurement. The background leakage can be optimized by offsetting the drain voltage slightly from half VDD. Fig. 15
plots Ioff as a function of the drain voltage offset from half
VDD for the 64 DUTs in the array for one wafer (9 die
tested on each wafer, with 1 array in each die). Typically, the minimum DUT off current can be obtained at a drain voltage fairly close to half VDD. In this example, the sweep
confirmed that the optimal voltage was quite close to half VDD,
as Ioff is observed to significantly increase with a non-zero
offset voltage. However, the optimal drain voltage might not be exactly half VDDfor all processes. It might be slightly above
or below half VDD for different processes depending on the
difference between the NMOS and PMOS gate and junction leakage in the transmission gates, and sweeping the offset voltage as done in Fig. 15 permits confirmation or correction of the optimal offset voltage. Of course depending on the range and resolution of the offset voltage sweep, additional test time will be required to obtain this data. In this example, based on the data of Fig. 15, a voltage of half VDD was determined
to be adequate. We further emphasize that because
long-Fig. 15. Background leakage reduction by offset voltage from half VDDfor
the 64 DUTs in the array for 1 wafer (9 die/wafer with 1 array/die).
channel thick-oxide IO transistors are used in the transmission gates, the offset voltage is relatively insensitive to process variation. In practical applications, a quick confirmation of the optimal offset voltage can be obtained with two additional Ioff
measurements, i.e., for positive and negative values of a single offset voltage. Further adjustment of the offset voltage needs only be performed if it is shown to be necessary by these two measurements, in which case the offset voltage can be adjusted iteratively to minimize Ioff to the desired precision, at the cost
of 2 additional Ioffmeasurements for each successive iteration.
Because the need for offset voltage adjustment results from leakage imbalance in the periphery circuits, and these are long wide IO devices relatively less susceptible to local process variation, if such adjustment is necessary, it is likely to only be needed once for each DUT array. Local process variation causes variation in Ioff for different DUTs in the same array,
but it is unlikely to affect the offset voltage which must be applied to the periphery to minimize the measured Ioff value.
IV. Experimental Results
A. Proposed Test Structure Versus Traditional PCM Testline In the first experiment, a traditional PCM testline is fabri-cated adjacent to the proposed array-based test structure in a mature, relatively old process technology. In traditional PCM testlines, several types of devices with different dimensions are fabricated, such as MOSFET, RC, RS, and diode. We choose a DUT from the proposed DUT array closest to the DUT with the corresponding device type and dimension in the PCM testline, and then measure both of these two DUTs. The electrical properties of these two DUTs should be sim-ilar since the local process variation of this mature process technology is small.
Fig. 16 plots the drain current (Id) versus the gate voltage
(Vg) of the chosen DUT measured by each test structure.
Curve A represents the Id measured by the traditional PCM
testline, which is considered as the reference measurement result. Curve B represents the Id measured by the proposed
Fig. 16. Id versus Vg measured by (a) a PCM testline and (b) proposed
array-based test structure with log scale (upper figure) and linear scale (lower figure).
measured by the proposed test structure closely matches the Id measured by the traditional testline when the normalized
Id is smaller than 10−3(A.U), which covers the Id range for
measuring both the threshold voltage Vth and the saturation
current Ion. Thus, the result shown in Fig. 16 demonstrates
the measurement accuracy of the proposed array-based test structure for measuring Vthand Ion. Note that the Id range for
measuring Ionis in general below 1 mA for advanced
technolo-gies. The proposed test structure can allow Id measurement up
to 2 mA.
Next, we fabricate both test structures on an advanced, newly developed process technology and measure 9 traditional PCM testlines and 9 replicates of the proposed test structure over a wafer as shown in Fig. 17, which represents the typical sampling distribution of measured PCM testlines. On each chip, the proposed test structure is placed adjacent to the measured PCM testline. Fig. 18 plots Ion versus Vth for
the DUTs measured from each PCM testline and from the proposed test structure. As shown by Fig. 18, the Ion and
Vth measured by PCM testlines are all within the distribution
of the Ion and Vth measured by the proposed test structure,
meaning that the measurement accuracy of the proposed test structure is very close to that of the traditional PCM testlines.
Fig. 17. Locations of measured test structures.
Fig. 18. Ion and Vth of each DUT measured by 9 PCM testlines and 9
proposed test structures. The curve is an elliptical fit of the 95% confidence interval of the data set.
Fig. 19. Ion and Vth of each DUT measured by only one PCM testline and
one proposed test structure. The curve is an elliptical fit of the 95% confidence interval of the data set.
In addition, by using only the PCM testlines, the extent of the global variation on this wafer can be roughly observed, which is also one of the objectives of traditional PCM testlines.
However, the traditional PCM testlines fail to capture the local process variation. Fig. 19 plots Ion versus Vth of
DUTs measured from only one PCM testline and its adjacent proposed test structure, demonstrating that the variation of
Fig. 20. Vthversus DUT column (x-axis) for all four rows of the structure,
with each row shifted by a fixed offset along the y-axis.
the DUT’s Ion and Vth within the proposed DUT array is
significant, but the PCM testline can only measure one sample from this distribution. This result further shows the necessity of an effective array-based test structure to measure a large number of DUTs in close proximity, such that local variation can be accurately characterized. In Fig. 20, we plot Vthversus
DUT column (x-axis) for all four rows of the structure. No spatial dependence is evident, indicating that the data truly characterizes the local random variation of the process. B. Effectiveness of Hardware IR Compensation

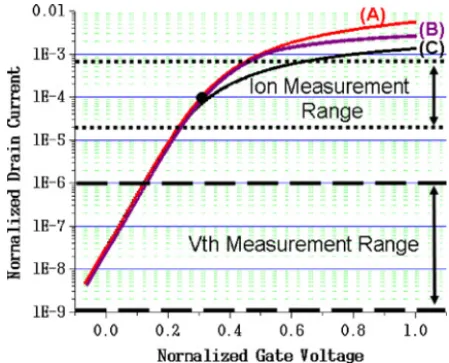

In the following experiment, we measure the same DUT using the same proposed array-based test structure as that in Fig. 21 but without applying the hardware IR compensation introduced in Section III-B, i.e., we use the SMUs’ connection shown in Fig. 9, but the internal resistance of the SMUs remains unchanged. In Fig. 21, curve C represents the Id
measured by the proposed test structure without hardware IR compensation. As curve C shows, its measured Id matches
the reference result in the sub-threshold region. However, its measured Id deviates from the reference result when the
normalized Id is larger than 10−4, which falls in the current
range required for measuring Ion. This measurement error
results from the parasitic resistance of the transmission gates on the selection paths. Thus, without applying hardware IR compensation, the measured error of Ion can be quite large.
Fig. 22 further illustrates this error in Ion by plotting Ion
versus Vth for each DUT measured by the proposed test
structures with and without applying hardware IR compen-sation. As shown in Fig. 22, the Vth distributions measured
with and without hardware IR compensation are similar (see their X-coordinates). However, the Ion values measured
with-out hardware IR compensation are significantly lower than those obtained using hardware IR compensation (see their Y-coordinates). This is because the Id for measuring Ion is
much higher than that for measuring Vth and may result in
a significant IR drop if no IR compensation is applied. The result shown in Fig. 22 again demonstrates the importance of applying the proposed IR-compensation scheme.
C. Effectiveness of Leakage-Current Cancelation
As discussed in Section III-D, the proposed leakage-current cancelation can significantly reduce the background leakage
Fig. 21. Idversus Vgmeasured by (A) a PCM testline, (B) a proposed
array-based test structure, and (C) a proposed array-array-based test structure without applying hardware IR compensation.
Fig. 22. Ionand Vthof each DUT measured by proposed test structures with
and without the hardware IR compensation. The curves are elliptical fits of the 95% confidence intervals of the two data sets.
from transmission gates by elevating the voltage at each terminal of a DUT to an optimized value. Fig. 23 plots the Ion and Ioff of each DUT measured by the proposed test
structures with and without applying the current-cancelation technique. As shown in Fig. 23, the Ioff measured with current
cancelation applied ranges over a wide interval (from−8 to −4 A.U.). However, the Ioff measured without current cancelation
is uniformly high, in a small interval (from−5 to −4 A.U.). This result shows that if the current-cancelation technique is not employed, the leakage current from the transmission gates may dominate the Ioff measurement and hence the true Ioff
distribution cannot be measured.
D. Proposed Array Versus ROM-Like Array
In the following experiment, we fabricate the proposed array-based test structure next to a ROM-like array-based test structure, using a mature, relatively old process technology. Both test structures can be placed into a standard scribe line for monitoring process variation. Similar to Fig. 16, we choose two nearby DUTs for measurement, one from each test
Fig. 23. Ion versus Ioff of each DUT measured by the proposed test
structures with and without applying the current-cancelation technique.
Fig. 24. Id versus Vgmeasured by a ROM-like DUT array and a proposed
DUT array.
structure. Fig. 24 plots the Id versus Vg of the chosen DUT
measured by each test structure. Compared to our proposed test structure, the Id measured by the ROM-like test structure
is larger, and hence its measured Vthis smaller. This difference
results from the larger leakage current of the common-gate and common-drain buses in the ROM-like transistor array, which shows the potential measurement error from modifying a DUT’s layout for characterization of process-variation.
Next, we fabricate these two array-based test structures in an advanced, newly developed process technology. Fig. 25 plots the Ionand Vthmeasured on each DUT of both test structures.
The median and variance of Vth measured by both test
struc-tures are listed in the upper-right corner of Fig. 25. Compared to the proposed test structure, the Vth measured by the
ROM-like test structure is approximately 10% smaller, which is con-sistent with the result shown in Fig. 24. Also, the Vthvariation
measured by the ROM-like test structure is about 12% smaller. This smaller Vth variation results from the fact that the long
straight poly line gate busses used in the ROM-like transistor array do not suffer the shortening and rounding effects which occur in the short poly gates of both the proposed transistor array and typical real product circuits. Therefore, the Vth
varia-tion measured from a ROM-like test structure may be unrealis-tically smaller than the variation which occurs in a real circuit. E. Hardware IR Compensation Versus Adaptive Voltage Com-pensation
Hardware IR compensation is one key technique to ensure the measurement accuracy of an array-based test structure. In
Fig. 25. Ion versus Vth of each DUT measured by a ROM-like DUT array
and a proposed DUT array.
TABLE I
Comparison Between Hardware IR Compensation and Adaptive Voltage Compensation
Adaptive Voltage Hardware IR Compensation Compensation # of SMU required 8 (each MOSFET) 4 (each MOSFET) Accuracy Depends on sweep step >99.991%
Convergence time Slow Fast
Testing time ∼500 ms ∼10 ms
this subsection, we compare the proposed hardware IR com-pensation with the adaptive voltage comcom-pensation introduced in Section II-B. Table I summarizes the comparison between the two IR compensation schemes. First, the hardware IR compensation requires half as many SMUs per DUT compared to adaptive voltage compensation. Second, the measurement accuracy of hardware IR compensation can be calculated by (2) and further controlled by modifying the internal resistance of the SMUs. The measurement accuracy of the adaptive voltage compensation is controlled by the size of the sweep step. A smaller sweep step can increase the measurement accuracy, but only at the cost of increased test time. Next, hardware IR compensation requires no sweeping of the forc-ing voltage and hence results in a faster convergence time. Last, the test time for measuring a DUT with hardware IR compensation is around 10 ms, which is 50× smaller than that with adaptive voltage compensation. This short test time and high measurement accuracy further demonstrates the efficiency and effectiveness of the proposed hardware IR-compensation scheme. To illustrate the impact of this reduction of test time, we note that to obtain the 256 data points for each data set in Fig. 21, 128 s is required for measurement using adaptive voltage compensation, as compared to only 2.56 s using hardware IR compensation.
F. Local Mismatch Measured by Proposed Test Structure Accurate matching of active and passive devices is critical for analog and mixed-signal circuits, which usually require a high level of precision. As process variation becomes larger in advanced process technologies, the degree of mismatch on devices actually determines and limits the performance of analog and mixed-signal circuits [16]–[18]. To measure mismatch in a process technology, two nominally identical
Fig. 26. Layout of a paired-transistor DUT.
Fig. 27. Vth mismatch of paired MOSFETs measured by the proposed test
structures for different W/L dimensions.
MOSFETs directly adjacent to each other are fabricated and then measured. The physical difference between these two nominally identical MOSFETs is defined as local mismatch. In this subsection, we utilize the proposed array-based test structure to collect mismatch data for a large number of pairs of adjacent MOSFETs.
In order to place a pair of identical MOSFETs into a test unit shown in Fig. 8, the number of DUT terminals connected to pads must be less than or equal to four. Fig. 26 shows the DUT design used in our array-based test structure for measuring local mismatch. As Fig. 26 shows, the two MOSFETs are symmetric and share a common gate and source. Also, the source and bulk of each MOSFET are tied together to save another terminal connection to a pad. When measuring the Vth of the left (right) MOSFET, we float Drain-2 (Drain-1),
apply voltages to the common gate in a sweep step, ground the common source/bulk, and sense the current at Drain-1 (Drain-2).
In the following experiment, we fabricate the proposed array-based test structures to measure local Vth mismatch on
an advanced process technology. Each test structure contains 256 paired MOSFETs, which include the following four device dimensions (listed in order of decreasing channel area): long-channel devices, standard-cell devices, on-rule devices, and sub-rule devices. For each dimension, 64 paired MOSFETs are included. Fig. 27 shows the difference of the normalized Vth
between each of the paired MOSFETs for each dimension. The
Fig. 28. Poly-CD mismatch of paired MOSFETs measured by scanning electron microscope for different W/L dimensions.
Fig. 29. Vth versus poly CD for all MOSFETs in the array of MOSFET
pairs.
Vth mismatch significantly increases when the channel area
decreases, consistent with the theoretical behavior of random dopant fluctuation [19].
Vthmismatch also depends strongly on the difference in the
poly gate critical dimension (CD) between the two devices. We use an in-line scanning electron microscope to physically mea-sure the poly CD difference between each of the paired MOS-FETs. Fig. 28 plots this physically measured mismatch of poly CD for the same group of paired MOSFETs shown in Fig. 27. Fig. 29 in turn plots Vthversus poly CD for all MOSFETs in
the group of MOSFET pairs. The physical poly-CD mismatch shown in Fig. 28 and the spread of the Vth populations in
Fig. 29 indeed correlates with the electrical Vth mismatch
shown in Fig. 27, which confirms that local poly CD difference is one of the sources of this Vthmismatch. The measurement
results in Figs. 27 and 28 demonstrate that the mismatch between paired MOSFETs may significantly vary within a close proximity (note that the distance between two DUTs, i.e., two MOSFET pairs, in the proposed test structure is 30 µm). In addition, the strong correlation between our electrical and physical measurements again demonstrates the accuracy and effectiveness of the proposed array-based test structure.
V. Conclusion
In this paper, we successfully developed an array-based test structure and a corresponding novel test methodology for overcoming the IR-drop from parasitic resistance and the leakage current from the control circuitry, which are challenges inherent to any array-based characterization technique. We introduced the technique of hardware IR compensation to ad-dress the parasitic IR drop, and the combination of voltage bias elevation and leakage current cancelation to perform efficient, highly accurate current measurements on a large device array. The proposed array-based test structure can fit into the pad frame of a traditional PCM testline and can be placed on a scribe line for production process monitoring. Measurements with the proposed structure have demonstrated accuracy com-parable to the PCM testline, but a much larger data volume can be gathered with the same pad frame area. Also, its DUT array size can be further extended for statistical SPICE modeling. A series of experiments were conducted on both mature and newly developed process technologies to validate the effectiveness and the superiority of the overall proposed test structure and methodology. As one example of the application of this technique to perform valuable process characterization, we demonstrate the use of a version of this structure to collect local Vth mismatch data for an array of MOSFET pairs.
Acknowledgment
The authors would like to thank S. Habu, A. C. S. Wu, and S.-L. Chang from Agilent, Tokyo, Japan, and Taiwan for their help on special SMU design and support.
References
[1] K. Bernstein, D. J. Frank, A. E. Gattiker, W. Haensch, B. L. Ji, S. R. Nassif, E. J. Nowak, D. J. Pearson, and N. J. Rohrer, “High-performance CMOS variability in the 65-nm regime and beyond,” IBM J. Res.
Develop., vol. 50, nos. 4–5, pp. 433–449, Jul. 2006.
[2] M. Kanno, A. Shibuya, M. Matsumura, K. Tamura, H. Tsuno, S. Mori, Y. Fukuzaki, T. Gocho, H. Ansai, and N. Nagashima, “Empirical characteristics and extraction of overall variations for 65-nm MOSFETs and beyond,” in Proc. IEEE Symp. VLSI Technol., Jun. 2007, pp. 88–89. [3] M. Orshansky, S. Nassif, and D. Boning, Design for Manufacturability
and Statistical Design, A Constructive Approach. Berlin, Germany:
Springer, 2008.
[4] B. E. Stine, D. S. Boning, and J. E. Chung, “Analysis and decomposition of spatial variation in integrated circuit processes and devices,” IEEE
Trans. Semicond. Manuf., vol. 10, no. 1, pp. 24–41, Feb. 1997.
[5] M. Orshansky, L. Milor, and C. Hu, “Characterization of spatial intrafield gate CD variability, its impact on circuit performance, and spatial mask-level correction,” IEEE Trans. Semicond. Manuf., vol. 17, no. 1, pp. 2–11, Feb. 2004.
[6] M. Yamamoto, H. Endo, and H. Masuda, “Development of a large-scale TEG for evaluation and analysis of yield and variation,” IEEE Trans.
Semicond. Manuf., vol. 17, no. 2, pp. 111–122, May 2004.
[7] N. Drego, A. Chandrakasan, and D. Boning, “A test-structure to effi-ciently study threshold-voltage variation in large MOSFET arrays,” in
Proc. 8th ISQED, Mar. 2007, pp. 281–286.
[8] S.-H. Lee, D.-Y. Lee, T.-J. Kwon, J. Hee, and Y.-K. Park, “An efficient statistical model using electrical tests for GHz CMOS devices,” in Proc.
5th Int. Workshop Statistical Metrol., 2000, pp. 72–75.
[9] K. Nagase, S. I. Ohkawa, M. Aoki, and H. Masuda, “Variation status in 100 nm CMOS process and below,” in Proc. ICMTS, Mar. 2004, pp. 257–261.
[10] H. Tsuno, K. Anzai, M. Matsumura, S. Minami, A. Honjo, H. Koike, Y. Hiura, A. Takeo, W. Fu, Y. Fukuzaki, M. Kanno, H. Ansai, and N. Nagashima, “Advanced analysis and modeling of MOSFET character-istic fluctuation caused by layout variation,” in Proc. IEEE Symp. VLSI
Technol., Jun. 2007, pp. 204–205.
[11] K. Agarwal, F. Liu, C. McDowell, S. Nassif, K. Nowka, M. Palmer, D. Acharyya, and J. Plusquellic, “A test structure for characterizing local device mismatches,” in Proc. Symp. VLSI Circuits Dig. Tech. Papers, 2006, pp. 67–68.
[12] Y. Z. Xu, C. S. Chen, and J. I. Watt, “Investigation of 65 nm CMOS transistor local variation using a FET array,” Solid-State Electron., vol. 52, no. 8, pp. 1244–1248, Aug. 2008.
[13] R. Lefferts and C. Jakubiec, “An integrated test chip for the complete characterization and monitoring of a 0.25 µm CMOS technology that fits into scribe line structures 150 µm by 5 000 µm,” in Proc. Int. Conf.
Microelectron. Test Structures, Mar. 2003, pp. 3–63.
[14] N. Izumi, H. Ozaki, Y. Nakagawa, N. Kasai, and T. Arikado, “Evaluation of transistor property variations within chips on 300-mm wafers using a new MOSFET array test structure,” IEEE Trans. Semicond. Manuf., vol. 17, no. 3, pp. 248–254, Aug. 2004.
[15] K. Y.-Y. Doong, T. J. Bordelon, L.-J. Hung, C.-C. Liao, S.-C. Lin, S. P.-S. Ho, S. Hsieh, and K. L. Young, “Field-configurable test structure array (FC-TSA): Enabling design for monitor, model, and manufactura-bility,” IEEE Trans. Semicond. Manuf., vol. 21, no. 2, pp. 169–179, May 2008.
[16] R. W. Gregor, “On the relationship between topography and transistor matching in an analog CMOS technology,” IEEE Trans. Electron
De-vices, vol. 39, no. 2, pp. 275–282, Feb. 1992.
[17] C. Abel, C. Michael, M. Ismail, C. S. Teng, and R. Lahri, “Characteri-zation of transistor mismatch for statistical CAD of submicron CMOS analog circuits,” in Proc. IEEE ISCAS, May 1993, pp. 1401–1404. [18] J. Bastos, M. Steyaert, B. Graindourze, and W. Sansen, “Matching of
MOS transistors with different layout styles,” in Proc. IEEE ICMTS, Mar. 1996, pp. 17–18.
[19] M. J. M. Pelgrom, A. C. J. Duinmaijer, and A. P. G. Welbers, “Matching properties of MOS transistors,” IEEE J. Solid-State Circuits, vol. 24, no. 5, pp. 1433–1439, Oct. 1989.
Tseng-Chin Luo received the M.S. degree in
ma-terial science and engineering from National Chiao-Tung University, Hsinchu, Taiwan, in 1994, and is currently pursuing the Ph.D. degree in electrical engineering from the same university.
He joined Winbond Electronics Corporation, Hsinchu, in 1996, and then transferred to World-wide Semiconductor Manufacturing Corporation, Hsinchu, in 1997. His major focus was parametric testing and process integration during this period. Since 1998, he has been developing processes for 0.18 µm and 0.13 µm technology with the Logic Technology Research and Development Division, Taiwan Semiconductor Manufacturing Corporation (TSMC), Hsinchu. More recently, he has focused on developing test structures as well as fast test methodology for process characterization, design manufac-turing, and yield optimization. Also, the corresponding infrastructures have been established to improve design effectiveness and analysis quality. He is currently the Project Manager of Fast Parametric Testing Solutions with TSMC.
Mango C.-T. Chao received the B.S. and M.S.
degrees from the Department of Computer and In-formation Science, National Chiao Tung Univer-sity, Hsinchu, Taiwan, in 1998 and 2000, respec-tively, and the Ph.D. degree from the Department of Electrical and Computer Engineering, University of California, Santa Barbara, in 2006.
He then joined the Department of Electronics Engineering, National Chiao Tung University, where he is currently an Assistant Professor. His current research interests include memory testing, on-chip test compression/decompression, WAT test-structure design, power-related testing, and physical design automation.
Michael Shien-Yang Wu received the Ph.D. degree
in electrical engineering from the University of Wisconsin-Madison, in 1992.
He has been with the Taiwan semiconductor indus-try for more than 18 years. After four years of work experience in the first DRAM joint venture of TI-Acer, Inc., Hsinchu, Taiwan, from 1993 to 1996, he joined the Research and Development Organization, Taiwan Semiconductor Manufacturing Corporation (TSMC), Hsinchu, participating in the development areas of device modeling and 130 nm/90 nm/65 nm advanced logic process technology. In 2004, he completed the EMBA Pro-gram in the Institute of Technology Management from National Tsing Hua University, Hsinchu. He is currently managing the 28 nm Low Power Process Technology Development Program, TSMC.
Kuo-Tsai Li, photograph and biography not available at the time of
publication.
Chin C. Hsia, photograph and biography not available at the time of
publication.
Huan-Chi Tseng was born in Hsinchu, Taiwan,
in 1964. He received the B.S. and M.S. degrees from the Department of Material Science and En-gineering, National Tsing Hua University, Hsinchu, in 1986 and 1991, respectively.
He was a Process Integration Engineer with Win-bond Electronic Corporation, Hsinchu, in 1992, and joined Taiwan Semiconductor Manufacturing Cor-poration (TSMC), Hsinchu, in 1993. From 1993 to 1998, he worked in the memory technology area as a Process Integration Engineer for 0.8 µm EPROM, 0.5 µm EPROM, 0.5 µm DRAM, and 0.45 µm DRAM. He was a Section Manager and led the Integration Team which implemented Fujitsu’s 0.22 µm DRAM technology in TSMC fab lines in 1998. In 1998, he served as a Section Manager of defectivity and supervised the Defect Technical Board. After 1999, he worked on CMOS logic process integration. He joined TSMC’s 300 mm Pilot Line as an Integration Manager in 2000 and helped to establish the first 0.13 µm CMOS technology in the F12 300 mm fab line. Since 2003, he transferred to the Product Engineering Division as an Advance Product Engineering Department Manager. In this role, he collaborated with research and development teams to establish C011, N90, N80, N65, N55, N45, N40, N32, and N28 technologies and his team is responsible for advance technology EFA/PFA yield enhancement, DRM, DFM, and process window characterization. He is currently the Deputy Director of the New Technology Product Engineering Division, TSMC.
Philip A. Fisher received the B.S. degree in physics
from the University of Washington, Seattle, in 1991, and the M.A. and Ph.D. degrees in physics from Harvard University, Cambridge, MA, in 1994 and 1999, respectively. For his Ph.D. work, he performed research on the development of a thermoelectric micro-refrigerator based on superconducting tunnel junctions, work which was also reviewed in The
Economist, March 21, 1998.
From 1999 to 2000, he was a Foundry Process Support Engineer with Analog Devices Corporation, Cambridge. From 2000 to 2008, he was employed in process integration and advanced silicon-on-insulator transistor development with Advanced Micro Devices Corporation, Sunnyvale, CA, during which time he advanced from a Senior Integration Engineer to a Senior Technical Staff Member in recognition of his contributions to the transistor development for the 130, 90, 65, 45, and 32 nm technologies. Since 2008, he has been a Manager with the Department of Advanced Device Technology, Taiwan Semiconductor Manufacturing Cor-poration, Hsinchu, Taiwan, where his work has focused on development and characterization of high performance and low power transistors. He is the author or co-author of 27 peer-reviewed publications and 27 U.S. patents.
Chuen-Uan Huang was born in 1974. He received
the B.S. degree in electrical engineering from Na-tional Cheng Kung University, Tainan, Taiwan, in 1996, the M.S. degree in electronics engineering from National Chiao Tung University, Hsinchu, Tai-wan, in 1999, and the Ph.D. degree in electronics engineering from National Tsing Hua University (NTHU), Hsinchu, in 2005.
He was a Post-Doctoral Researcher with the Nano Technology and MEMS Center, NTHU, from 2006 to 2007 for the development of microelectromechan-ical systems and nano imprinting technology. He joined Taiwan Semicon-ductor Manufacturing Company, Hsinchu, in August 2007, and is currently a Principle Engineer with the Department of Research and Development, where he works on the development of 28 nm high-K metal gate technology.
Yuan-Yao Chang was born in Pingtung, Taiwan,
in 1982. He received the B.S. degree from National Chiao-Tung University, Hsinchu, Taiwan, in 2004, and the M.S. degree in microelectromechanical sys-tem engineering from National Tsing-Hua Univer-sity, Hsinchu, in 2006.
He joined Taiwan Semiconductor Manufacturing Company, Hsinchu, in August 2006, and is currently a Senior Engineer with the Advanced Technology Infrastructure Program, working on the design of test structures for advanced process characterization.
Samuel C. Pan (S’83–M’87) received the B.S.
de-gree in electrical engineering from National Taiwan University, Taipei, Taiwan, in 1980, and the M.S. and Ph.D. degrees in electrical engineering from the University of Illinois, Urbana, in 1984 and 1986, respectively.
From 1983 to 1986, he was a Research Assistant with the Solid State Electronics Laboratory, Univer-sity of Illinois. In 1987, he joined Intel Corporation, Santa Clara, CA, as a Senior Device Physicist, working on 0.8 µm Flash EPROM development and 0.6 µm CMOS process development. In 1995, he became a Staff Circuit Designer and worked on the 0.25 µm Pentium/Pro microprocessor focusing on cache memory and programmable logic array design. At the end of 1996, he moved back to Taiwan and joined Macronix International Company, Ltd., Hsinchu, as the QR Deputy Director. In 1999, he was named the Technology Development Director to lead process development for the 0.18–0.15 µm Flash and mask ROM memory technologies. In June 2003, he joined Taiwan Semiconductor Manufacturing Company, Hsinchu, Taiwan, as the Director of Advanced Product Engineering, focusing on yield during next-generation silicon technology development and production ramp. His current research interests include SRAM Vccmin, device physics, device reliability, failure analysis techniques, and methodologies for technology development and yield enhancement.
Dr. Pan is a member of Phi Kappa Phi and Eta Kappa Nu.
Konrad K.-L. Young received the Ph.D. degree
in electrical engineering from the University of California, Berkeley, in 1986.
From 1986 to 1989, he was with the Lincoln Lab-oratory, where he worked on silicon-on-insulator de-vice technology and the 193 nm lithography project. He joined Hewlett Packard, Palo Alto, CA, in 1989 to develop the 0.5 µm and 0.35 µm CPU technolo-gies. In 1994, he was with Chartered Semiconduc-tor Manufacturing, Ltd., Singapore, managing Fab1 yield enhancement and product engineering. He joined Winbond Electronics Corporation, Hsinchu, Taiwan, as a Research and Development Memory Technology Director in 1995, and then transferred to Worldwide Semiconductor Manufacturing Corporation as a Fab Engineering Director. He has been with Taiwan Semiconductor Manufacturing Company (TSMC), Hsinchu, since 1998, in charge of 0.18 µm, 0.13 µm, and 65 nm plat-form technology development. He also established the TSMC Research and Development Infrastructure Program to improve operation effectiveness and SPICE model quality. He is currently the Director of Advanced Technology Support and Marketing with TSMC.
![Fig. 6. Layout of a ROM-like DUT array using straight poly lines for gate connections [12].](https://thumb-ap.123doks.com/thumbv2/9libinfo/7695299.144093/4.1263.214.509.473.650/fig-layout-rom-array-using-straight-lines-connections.webp)
