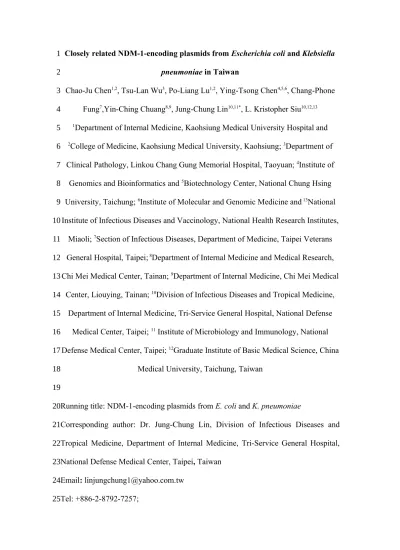

Closely related NDM-1-encoding plasmids from Escherichia coli and Klebsiella pneumoniae in Taiwan
Chao-Ju Chen1,2, Tsu-Lan Wu3, Po-Liang Lu1,2, Ying-Tsong Chen4,5,6, Chang-Phone Fung7,Yin-Ching Chuang8,9, Jung-Chung Lin10,11*, L. Kristopher Siu10,12,13 1Department of Internal Medicine, Kaohsiung Medical University Hospital and 2College of Medicine, Kaohsiung Medical University, Kaohsiung; 3Department of Clinical Pathology, Linkou Chang Gung Memorial Hospital, Taoyuan; 4Institute of
Genomics and Bioinformatics and 5Biotechnology Center, National Chung Hsing University, Taichung; 6Institute of Molecular and Genomic Medicine and 13National Institute of Infectious Diseases and Vaccinology, National Health Research Institutes,
Miaoli; 7Section of Infectious Diseases, Department of Medicine, Taipei Veterans General Hospital, Taipei; 8Department of Internal Medicine and Medical Research, Chi Mei Medical Center, Tainan; 9Department of Internal Medicine, Chi Mei Medical
Center, Liouying, Tainan; 10Division of Infectious Diseases and Tropical Medicine, Department of Internal Medicine, Tri-Service General Hospital, National Defense
Medical Center, Taipei; 11 Institute of Microbiology and Immunology, National Defense Medical Center, Taipei; 12Graduate Institute of Basic Medical Science, China
Medical University, Taichung, Taiwan
Running title: NDM-1-encoding plasmids from E. coli and K. pneumoniae
Corresponding author: Dr. Jung-Chung Lin, Division of Infectious Diseases and Tropical Medicine, Department of Internal Medicine, Tri-Service General Hospital, National Defense Medical Center, Taipei, Taiwan
Email: [email protected] Tel: +886-2-8792-7257; 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
Fax: +886-2-8792-7258;
E-mail: [email protected]
Keywords: NDM-1, plasmid, E. coli, K. pneumoniae 26
27 28 29
Objective: Two plasmids carrying blaNDM-1 isolated from carbapenem-resistant
Klebsiella pneumoniae (CR-KP) and carbapenem-resistant Escherichia coli (CR-EC)
were sequenced. CR-KP and CR-EC were isolated from two Taiwanese patients without travel histories.
Methods: Complete sequencing of the plasmids (pLK75 and pLK78) was conducted using a shotgun approach. Annotation of the contigs was performed using the RAST Server, followed by manual inspection and correction.
Results: These similar plasmids were obtained from two patients with overlapping stays at the same hospital. The pLK75 and pLK78 plasmids were 56,489 bp and 56,072 bp in length, respectively. Plasmid annotation revealed a common backbone similar to the IncN plasmid pR46. The regions flanking the blaNDM-1 genes in these plasmids were very similar to plasmid pNDM-HU01 in Japan, which contains a complex class 1 integron located next to an ISCR1 element. The ISCR1 element has been suggested to provide a powerful mechanism for mobilising antibiotic resistance genes.
Conclusion: Two indigenous NDM-1-producing Enterobacteriaceae cases were identified for the first time in Taiwan, highlighting the alarming introduction of NDM-1-producing Enterobacteriaceae in this region.
30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
Introduction
New Delhi metallo-β-lactamase 1 (NDM-1) is a novel metallo-β-lactamase (MBL) that was first identified in 2009 . Following the first case, NDM-1 positive bacteria have been detected in the UK, India, Pakistan and Bangladesh during 2008–2009 . Since August 2010, NDM-1 isolates have been reported worldwide, including the United States and Canada, Europe, China, Japan, South Asia, Africa and Australia. Because it has rapidly spread worldwide, NDM-1 has become a global public health concern in recent years.
Plasmids encoding blaNDM-1 were initially observed in Klebsiella pneumoniae and
Escherichia coli. However, these plasmids can be conjugatively transferred into other
species, which facilitates the rapid dissemination of blaNDM-1 into various bacteria. The
blaNDM-1 gene has been identified on different types of plasmids (IncA/C, IncF, IncL/M, or untypable), and plasmids carrying blaNDM-1 appear to have a broad host range . Many partial and complete plasmid sequences containing the blaNDM-1 gene have been published. Dissemination predominantly involves transfer of the blaNDM-1 gene among promiscuous plasmids and clonal outbreaks. Comparison of these plasmids shows that the regions neighbouring blaNDM-1 are quite variable, most likely reflecting multiple genetic modification events . Thus, an understanding of the genetic feature of various resistance determinants carried by these blaNDM-1 plasmids is important for understanding the evolution of blaNDM-1-carrying plasmids.
In Taiwan, the first case of NDM-1-producing Enterobacteriaceae colonisation was reported in 2010. The patient had been hospitalised for a gunshot injury in India and did not have symptoms or signs of infection during hospitalisation in Taipei . 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74
Complete sequencing of the blaNDM-1-carrying plasmid, pKPX-1, revealed a hybrid replicon of incR and incF genes [5]. The first episode of infection caused by NDM-1-producing K. pneumoniae appeared soon thereafter in 2010. The patient received a kidney transplant in China and was admitted to a Taiwan hospital due to abdominal pain and dysuria, and an NDM-1-carrying Klebsiella oxytoca strain was isolated from a pelvic abscess . The blaNDM-1 carrying plasmid, pKOX_NDM-1, was determined to carry a backbone with conjugation and replication genes similar to IncFIB and incFII [6]. Here, we report the sequence annotation of pLK75 and pLK78, two similar blaNDM-1-encoding plasmids, from two Taiwanese patients without travel histories to foreign countries. Notably, these two NDM-1-producing isolates represent the first indigenous cases in Taiwan .
75 76 77 78 79 80 81 82 83 84 85
Materials and Methods Patient Characteristics
The study protocol was reviewed and approved by the Institutional Review Board of Tri-Service General Hospital, National Defense Medical Center, Taipei, Taiwan. (TSGHIRB-100-05-205) Written informed consent to participants was provided in this study.
Patient 1 was an 82-year-old male with a history of hypertension, coronary artery disease, Parkinsonism, and pulmonary tuberculosis (under treatment for 3 months prior to the admission) and was a hepatitis B carrier. He was admitted for right lower lung pneumonia. CR-KP was isolated from his sputum specimen after two weeks of hospitalisation with antimicrobial therapy. The pneumonia was resolved after 3 days of ciprofloxacin followed by 6 days of ertapenem treatment.
Patient 2 was a 64-year-old female with a history of hypertension, diabetes mellitus, stroke, and end-stage renal disease with regular haemodialysis. She was admitted for respiratory failure and septic shock due to pneumonia. She received many classes of antimicrobial agents during the long hospitalisation period. CR-EC was isolated from the sputum for months after admission. However, she recovered after 14 days of cefepime treatment.
Because their hospital stays overlapped at the same hospital, a further genetic study and an outbreak investigation were performed.
Conjugation of plasmid and antimicrobial susceptibility of blaNDM-1 donors and
their transconjugants 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111
Plasmid transfer was carried out by conjugation. A rifampin-resistant strain of E. coli (strain JP-995) was used as the recipient . The recipient and donor strains were separately inoculated into brain heart infusion broth (Oxoid Ltd., Basingstoke, England) and incubated at 37°C for 4 h. The cells were then mixed at a ratio of 1:10 (by volume) and incubated overnight at 37°C. A 0.1-ml sample of the overnight broth mixture was then spread onto a MacConkey agar plate containing rifampin (100 g/ml) and imipenem (1 g/ml). We did the PCR for transconjugants to confirm for NDM-1. Only one plasmid was observed in each transconjugants.
Complete sequencing and annotation of plasmids pLK75 from CR-EC and pLK78 from CR-KP
Complete sequencing of the plasmids was conducted using a shotgun approach; sequencing of 8-kb pair-end and shotgun libraries prepared from purified plasmid DNA was carried out using a 454 GS Junior (Roche, US). Gap filling between the contigs was accomplished by adding Sanger reads with the aid of Consed . Annotation of the contigs was performed using the RAST Server, followed by manual inspection and correction. The complete nucleotide sequences and annotations of plasmids pLK75 and pLK78 were submitted to GenBank and assigned the sequence accession numbers KJ440076 and KJ440075, respectively (supplement 1 and 2). Multilocus sequence typing (MLST) performed for K. pneumoniae isolate was according to Diancourt et al. . Allele sequences and sequence types were verified at http://www.pasteur.fr/recherche/genopole/PF8/mlst/Kpneumoniae.html. MLST performed for E. coli isolate was according to the protocol described on the E. coli
MLST website
(http://mlst.warwick.ac.uk/mlst/dbs/Ecoli/documents/primersColi_html). The allele 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136
sequences and sequence types were verified at the http://mlst.warwick.ac.uk/mlst/dbs/Ecoli website.
Antimicrobial susceptibility testing
The MICs of antimicrobial agents were determined using the broth microdilution test according to the recommendations from the Clinical and Laboratory Standards Institute . The following antimicrobial agents were used: ampicillin, cefazolin, cefotaxime, ceftazidime, cefepime, aztreonam, cefoxitin, ertapenem, imipenem, meropenem, doripenem, ciprofloxacin, gentamicin, amikacin, colistin, tigecycline and trimethoprim-sulfamethoxazole (SXT). 137 138 139 140 141 142 143 144 145 146 147
Results and Discussion
The first indigenous NDM-1-producing bacteria in Taiwan
To our knowledge, only four NDM-1-positive Enterobacteriaceae isolates have been reported in Taiwan to date. These four isolates were recovered from two Taiwanese patients with travel histories to foreign countries . Because the patients in the present study had no such travel history, these 2 NDM-1-producing bacteria are thought to be indigenous.
The patients' characteristics of two NDM-1-producing strains
Tables 1 and 2 show the patient clinical features and antimicrobial susceptibility testing results of the blaNDM-1-carrying isolates. Both of the patients were elderly and immunocompromised. Both patients stayed in the same hospital for pneumonia, and NDM-1-producing bacteria were cultured from their sputum specimens after usage of several broad-spectrum antibiotics. These two isolates were hospital-acquired and suggested to be colonisation isolates because clinical improvement was achieved without effective antimicrobial therapy and no CR-EC or CR-KP was isolated from other sources of the patients. With strict infection and contact control practices, no further NDM-1-producing Enterobacteriaceae isolates were identified for one year. The isolation dates of these two patients’ NDM-1-producing Enterobacteriaceae were within in one week of each other. Moreover, their patterns of antimicrobial susceptibility were quite similar. The transconjugants with a plasmid harbouring NDM-1 showed resistance to all -lactams. The transconjugants converted from ciprofloxacin-resistant to ciprofloxacin-susceptible, indicating non-plasmid-mediated resistance in the donor strains. Both NDM-1-carrying E. coli and K. pneumoniae strains were susceptible to amikacin, colistin, and tigecycline (Table 2).
148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173
Genetic features
Complete sequencing was performed for the two circular blaNDM-1 plasmids: pLK75 from E. coli and pLK78 from K. pneumoniae. The pLK75 and pLK78 plasmids were 56,489 bp and 56,072 bp in length, respectively. Annotation of the plasmids revealed a common backbone similar to the IncN plasmid pR46 (Figure 1a, 1b). The majority of plasmid pR46 sequences (~72% of 50,969 bp) were preserved in both pLK75 and pLK78, including the repA gene for plasmid replication, tra genes for conjugal transfer, and genes responsible for plasmid stability. Although the tetA/tetR genes responsible for tetracycline resistance were also identified in these plasmids, a gene cluster responsible for arsenite resistance in pR46 was not found in pLK75 and pLK78. Plasmids pLK75 and pLK78 were similar to each other but contained a 26-kb inversion region located next to the sul1 gene of a class 1 integron downstream of the
repA replication origin (Figure 1a, 1b). At the other end of the inversion region were tetA/tetR tetracycline resistance genes flanked by two 244-bp repeat sequences
(Figure 1c). This 244-bp repeat region was flanked by inverted repeats (IRs) similar to the IRs of the Tn3 family (Figure 1c). Compared to pLK78, an additional copy of the 244-bp repeat was identified at the other end of the inversion region in pLK75 (Figure 1a). It is likely that the 244-bp Tn3-like repeat sequences may have facilitated the inversion of the 26-kb region. Both of the plasmids carried additional antimicrobial resistance genes to pR46, including blaNDM-1 (metallo-β-lactamase NDM-1), sul1 (sulphonamide resistance gene), aadA1 (aminoglycoside resistance gene), aadA16 (streptomycin-spectinomycin resistance gene), and ble (bleomycin resistance gene). The IncN plasmid has been shown to encode clinically important resistance determinants, such as blaCTX-M, blaIMP, blaNDM, and blaKPC. This type of plasmid is 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198
known to be involved in the transmission of VIM-1, KPC-2, CTX-M-1, and NDM-1 among K. pneumoniae isolates and has also been prevalent in E. coli . Highly efficient transmission of these plasmids may explain the diversity and worldwide spread of
blaNDM-1-carrying Enterobacteriaceae.
Genetic environment of blaNDM-1 in pLK75 and pLK78
The flanking region of the blaNDM-1 gene in these plasmids was very similar (~100% identity) to plasmid pNDM-HU01, of which the partially sequenced region, including
qacEdelta1, aadA, blaNDM-1, ble, trpF, ISCR1, and sul1, was reported from an E. coli isolate in Japan (GenBank AB769140). Additionally, the immediate region containing
blaNDM-1, including the upstream intergenic region of a truncated ISAba125, blaNDM-1, the ble bleomycin resistance gene, and the trpF phosphoribosylanthranilate isomerase gene, represents a ‘common neighbourhood’ to blaNDM-1, which is identical in almost all of the reported blaNDM-1-containing sequences thus far . This region was located next to an ISCR1 element in both plasmids. The genetic environment of the blaNDM-1 region represents a typical complex integron in pLK78 (Figure 2), with the blaNDM-1 ‘common neighbourhood’ region and the adjacent ISCR1 element located between two sul1 genes associated with a nearby class 1 integron (Figure 2). In pLK78, the gene annotation revealed a complex class 1 integron near the blaNDM-1. While the two plasmids are almost identical, the complex class1 integron structure in pLK75 is truncated due to a 26-kb inversion. Therefore it is likely that pLK75 and pLK78 are derived from the same molecular ancestor, but pLK75 was altered subsequently by the inversion, which resulted in the disruption of the integron structure.
199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223
ISCR1 elements may transpose adjacent DNA sequences by a mechanism termed rolling-circle transposition and are responsible for the mobilisation of antibiotic resistance genes . It is likely that the ISCR1 element mediated the acquisition of the
blaNDM-1 common region to the class 1 integron, presumably through recombination at the sul1 locus, to form the complex class 1 integron structure in pLK78 (Figure 2). Previous analysis reveal that there is an advantage of blaNDM-1 embedded within integron ISCR1 complex since this integron is one of widely used elements for the antibiotic resistant gene spreading or dissemination . We proved that our present isolates of contained this element contributed the blaNDM-1 transmission between K.
pneumoniae and E. Coli.
In conclusion, we obtained the first indigenous NDM-1-producing E. coli and K.
pneumoniae isolates from patients in Taiwan without travel histories. Comparative
analyses of the blaNDM-1-encoding plasmids from E. coli and K. pneumoniae revealed the importance of tra genes and ISCR1. Considering the clinical association and genetic information, the tight connection of these two carbapenem-resistant Enterobacteriaceae is not surprising. Clinicians should be aware of the possible emergence of an epidemic of carbapenem-resistant Enterobacteriaceae related to the level of plasmid transmission.
Funding support:
This work was funded by the project grants, DOH101-DC-1024 and DOH102-DC-1508, from Taiwan Centers for Diseases Control and National Health Research Institutes. The funding agencies have no role in study design, data collection and analysis, or decision in publishing.
224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249
Transparency declarations None to declare
Author Contributions:
Conceived and designed the study: CJC JCL LKS
Performed the experiment: CJC TLW PLL YTC JCL LKS Analyzed the data: CJC TLW PLL YTC CPF YCC JCL LKS
Contributed reagents/materials/analysis tools: CJC TLW PLL YTC CPF JCL LKS Interpreted data: CJC TLW PLL YTC CPF YCC LKS
Wrote the paper: CJC PLL YTC JCL LKS
Revised and approved the manuscript: CJC YTC JCL LKS 250 251 252 253 254 255 256 257 258 259 260 261
References
1. Yong D, Toleman MA, Giske CG, Cho HS, Sundman K, et al. (2009) Characterization of a new metallo-beta-lactamase gene, bla(NDM-1), and a novel erythromycin esterase gene carried on a unique genetic structure in Klebsiella pneumoniae sequence type 14 from India. Antimicrob Agents Chemother 53: 5046-5054.
2. Kumarasamy KK, Toleman MA, Walsh TR, Bagaria J, Butt F, et al. (2010) Emergence of a new antibiotic resistance mechanism in India, Pakistan, and the UK: a molecular, biological, and epidemiological study. Lancet Infect Dis 10: 597-602.
3. Rolain JM, Parola P, Cornaglia G (2010) New Delhi metallo-beta-lactamase (NDM-1): towards a new pandemia? Clin Microbiol Infect 16: 1699-1701. 4. Nordmann P, Poirel L, Walsh TR, Livermore DM (2011) The emerging NDM
carbapenemases. Trends Microbiol 19: 588-595.
5. Chen YT, Lin AC, Siu LK, Koh TH (2012) Sequence of closely related plasmids encoding bla(NDM-1) in two unrelated Klebsiella pneumoniae isolates in Singapore. PLoS One 7: e48737.
6. Huang TW, Chen TL, Chen YT, Lauderdale TL, Liao TL, et al. (2013) Copy Number Change of the NDM-1 sequence in a multidrug-resistant Klebsiella pneumoniae clinical isolate. PLoS One 8: e62774.
7. Wu HS, Chen TL, Chen IC, Huang MS, Wang FD, et al. (2010) First identification of a patient colonized with Klebsiella pneumoniae carrying blaNDM-1 in Taiwan. J Chin Med Assoc 73: 596-598.
262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285
8. Lai CC, Lin TL, Tseng SP, Huang YT, Wang JT, et al. (2011) Pelvic abscess caused by New Delhi metallo-beta-lactamase-1-producing Klebsiella oxytoca in Taiwan in a patient who underwent renal transplantation in China. Diagn Microbiol Infect Dis 71: 474-475.
9. Ma L, Siu LK, Lin JC, Wu TL, Fung CP, et al. (2013) Updated molecular epidemiology of carbapenem-non-susceptible Escherichia coli in Taiwan: first identification of KPC-2 or NDM-1-producing E. coli in Taiwan. BMC Infect Dis 13: 599.
10. Siu LK, Ho PL, Yuen KY, Wong SS, Chau PY (1997) Transferable hyperproduction of TEM-1 beta-lactamase in Shigella flexneri due to a point mutation in the pribnow box. Antimicrob Agents Chemother 41: 468-470. 11. Gordon D, Abajian C, Green P (1998) Consed: a graphical tool for sequence
finishing. Genome Res 8: 195-202.
12. Aziz RK, Bartels D, Best AA, DeJongh M, Disz T, et al. (2008) The RAST Server: rapid annotations using subsystems technology. BMC Genomics 9: 75. 13. Diancourt L, Passet V, Verhoef J, Grimont PA, Brisse S (2005) Multilocus sequence typing of Klebsiella pneumoniae nosocomial isolates. J Clin Microbiol 43: 4178-4182.
14. CLSI. Clinical and Laboratory Standards Institute. Performance standards for
antimicrobial susceptibility testing; 20th informational supplement M100-S17.
Wayne, PA: Clinical and Laboratory Standards Institute, 2010.
15. Wang SJ, Chiu SH, Lin YC, Tsai YC, Mu JJ (2013) Carbapenem resistant Enterobacteriaceae carrying New Delhi metallo-beta-lactamase gene (NDM-1) in Taiwan. Diagn Microbiol Infect Dis 76: 248-249.
286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309
16. Hall RM, Vockler C (1987) The region of the IncN plasmid R46 coding for resistance to beta-lactam antibiotics, streptomycin/spectinomycin and sulphonamides is closely related to antibiotic resistance segments found in IncW plasmids and in Tn21-like transposons. Nucleic Acids Res 15: 7491-7501.
17. Humphrey B, Thomson NR, Thomas CM, Brooks K, Sanders M, et al. (2012) Fitness of Escherichia coli strains carrying expressed and partially silent IncN and IncP1 plasmids. BMC Microbiol 12: 53.
18. Kim MN, Yong D, An D, Chung HS, Woo JH, et al. (2012) Nosocomial clustering of NDM-1-producing Klebsiella pneumoniae sequence type 340 strains in four patients at a South Korean tertiary care hospital. J Clin Microbiol 50: 1433-1436.
19. Huang TW, Wang JT, Lauderdale TL, Liao TL, Lai JF, et al. (2013) Complete sequences of two plasmids in a blaNDM-1-positive Klebsiella oxytoca isolate from Taiwan. Antimicrob Agents Chemother 57: 4072-4076.
20. Toleman MA, Bennett PM, Walsh TR (2006) ISCR elements: novel gene-capturing systems of the 21st century? Microbiol Mol Biol Rev 70: 296-316. 21. Chen YT, Liao TL, Liu YM, Lauderdale TL, Yan JJ, et al. (2009) Mobilization of
qnrB2 and ISCR1 in plasmids. Antimicrob Agents Chemother 53: 1235-1237. 22. Li J, Lan R, Xiong Y, Ye C, Yuan M, et al. (2014) Sequential isolation in a patient
of Raoultella planticola and Escherichia coli bearing a novel ISCR1 element carrying blaNDM-1. PLoS One 9: e89893.
310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332
Figure Legends
Figure 1
Schematic maps of (a) pLK75 and (b) pLK78. The black blocks on the outer circle are the coding DNA sequences of the positive strand, and the black blocks on the inner circle are the coding DNA sequences of the negative strand. The remarkable features are indicated. Consensus regions similar to other plasmids/replicons are marked with thick black lines inside the circles, with non-consensus sections between the conserved regions shown by thin lines. The 26-kb inversion regions are marked in the inner circles, and the flanking sequences are shown. The sequences at both ends of the inversion region are shown in bold. The positions of the 244-bp Tn3-like repeats (c) are marked by black arrowheads on the circles. The 244-bp repeat sequence is shown in (c). The putative inverted repeats flanking this sequence are shown in bold with an underline.
Figure 2
Integration of the ISCR1 element and its nearby sequences, including the blaNDM-1 gene region, into a class 1 integron. The circular transposition intermediate generated by ISCR1 is shown above. Integration at the sul1 locus of a class 1 integron resulted in the genetic environment identified as flanking the blaNDM-1 ‘common neighbourhood’ region in pLK75 and pLK78 (pLK78 is shown here). The remarkable features are indicated: IRs, inverted repeats; IntI, integrase gene of class 1 integron; ISCR1 (orf513), integrase gene of ISCR1; oriIS, origin of replication of the ISCR element. 333 334 335 336 337 338 339 340 341 342 343 344 345 346 347 348 349 350 351 352 353 354 355 356 357
Figure 1 (a) 358 359
(b) (c) 361 362 363 364 365
Figure 2 366
367
368 369
Table 1 Clinical features of patients carrying blaNDM-1.
Patient 1 (pLK-75, CR-KP) 2 (pLK-78, CR-EC)
Age 82 64
Gender Male Female
Underlying disease HTN, CAD, pulmonary TB, HBV, CKD,
Parkinsonism
HTN, DM, stroke and ESRD with HD, schizophrenia
Admission period 2012/09/05~2012/10/10 2012/05/28~2012/10/24
Clinical diagnosis Pneumonia Pneumonia, septic shock, respiratory
failure
NDM-1 bacteria isolation date 2012/09/24 2012/09/29
Source Sputum Sputum
Antibiotics Ceftriaxone (9/4~9/5), Piperacillin/Tazobactam
(9/6~9/20), Ciprofloxacin (9/24~9/26), Ertapenem (9/27~10/2) Isoniazid (6/28~), Rifampin (6/28~) Piperacillin/Tazobactam (9/4~9/19), Levofloxacin (9/14~9/27), Linezolid (9/19~10/1) Imipenem/Cilastatin (9/28~10/2), Ceftriaxone (10/3~10/11), Daptomycin (10/3~10/17), Cefepime (10/12~10/26)
Outcome Improved Improved
Abbreviations: HTN, hypertension; CAD, coronary artery disease; TB, tuberculosis; HBV, hepatitis B; CKD, chronic kidney disease; ESRD, end-stage renal disease; HD, haemodialysis
370
371 372

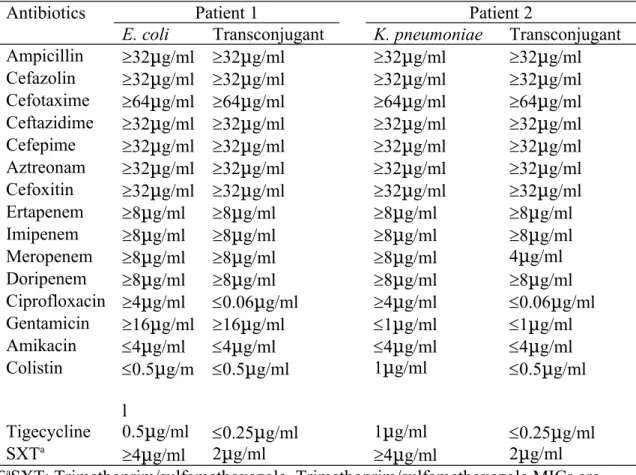

Table 2 Antimicrobial susceptibility testing among blaNDM-1-carrying isolates and their transconjugants.
Antibiotics Patient 1 Patient 2
E. coli Transconjugant K. pneumoniae Transconjugant
Ampicillin 32µg/ml 32µg/ml 32µg/ml 32µg/ml Cefazolin 32µg/ml 32µg/ml 32µg/ml 32µg/ml Cefotaxime 64µg/ml 64µg/ml 64µg/ml 64µg/ml Ceftazidime 32µg/ml 32µg/ml 32µg/ml 32µg/ml Cefepime 32µg/ml 32µg/ml 32µg/ml 32µg/ml Aztreonam 32µg/ml 32µg/ml 32µg/ml 32µg/ml Cefoxitin 32µg/ml 32µg/ml 32µg/ml 32µg/ml Ertapenem 8µg/ml 8µg/ml 8µg/ml 8µg/ml Imipenem 8µg/ml 8µg/ml 8µg/ml 8µg/ml Meropenem 8µg/ml 8µg/ml 8µg/ml 4µg/ml Doripenem 8µg/ml 8µg/ml 8µg/ml 8µg/ml Ciprofloxacin 4µg/ml 0.06µg/ml 4µg/ml 0.06µg/ml Gentamicin 16µg/ml 16µg/ml 1µg/ml 1µg/ml Amikacin 4µg/ml 4µg/ml 4µg/ml 4µg/ml Colistin 0.5µg/m l 0.5µg/ml 1µg/ml 0.5µg/ml Tigecycline 0.5µg/ml 0.25µg/ml 1µg/ml 0.25µg/ml SXTa 4µg/ml 2µg/ml 4µg/ml 2µg/ml
aSXT: Trimethoprim/sulfamethoxazole. Trimethoprim/sulfamethoxazole MICs are presented according to the concentration of trimethoprim.
