H.264/AVC 之碼率控制技術研究

A Study on Rate Control Techniques of

H.264/AVC

指導教授：王聖智 博士

研 究 生：蔣宗翰

H.264/AVC 之碼率控制技術研究

A Study on Rate Control Techniques of

H.264/AVC

研 究 生: 蔣宗翰

S t u d e n t: Tsung-Han Chiang

指導教授: 王聖智

A d v i s o r: Sheng-Jyh Wang

國 立 交 通 大 學

電子工程學系電子研究所碩士班

碩 士 論 文

Submitted to Department of Electronics Engineering & Institute of Electronics College of Electrical and Computer Engineering

National Chiao Tung University in partial Fulfillment of the Requirements

for the Degree of Master In Electronics Engineering

June 2006

HsinChu, Taiwan, Republic of China

H.264/AVC 之碼率控制技術研究

研究生: 蔣宗翰

指導教授: 王聖智 博士

國立交通大學

電子工程學系 電子研究所碩士班

摘要

ii

A Study on Rate Control Techniques of H.264/AVC

Student:

Tsung-Han Chiang

Advisor:

Dr.

Sheng-Jyh Wang

Institute of Electronics

National Chiao Tung University

Abstract

In this thesis, we study the rate control issue of a video compression system. The purpose of rate control is to adjust the encoder so that the number of encoded bits can match the number of desired bits. Here, we focus on the rate control of an H.264/AVC encoder. First, we analyze the relation between the quantization parameter, MAD, and the coded bit number. We also analyze the encoding of header bits. Based on these analyses, we build up a new rate-distortion model. The bit allocation of each picture is adaptively determined depending on the relations among the picture and its front and rear pictures. This adaptive change can improve the quality and stability of the coded videos. Finally, we use motion vectors to predict the MAD value, which is originally predicted by the JM model. By combining the above methods, we can improve the performance of the buffer in low bit-rate encoding. Especially, with a more accurate R-D model, we can better predict the quantization parameter. In experiments, we show that our approach not only improves the stability of encoder buffer but also makes an obvious improvement of visual quality.

誌謝

iv Contents 摘要...i Abstract...ii 誌謝... iii Figures ...v Tables...vii Chapter 1 Introduction...1 Chapter 2 Background...2

2.1 Introduction to video compression systems ...2

2.2 Introduction to H.264/AVC ...4

2.2.1 Highlights of H.264/AVC...5

2.2.2 Video Coding Layer (VCL)...6

2.2.3 H.264/AVC Profile ...12

2.3 Introduction to Rate Control...15

2.3.1 Rate Control of H.264/AVC ...16

2.3.2 H.264/AVC Rate Control Scheme ...19

Chapter 3 Modified Rate-Distortion Model for H.264/AVC...24

3.1 Previous R-D Models ...24

3.2 Our Rate-Distortion Model...27

3.3 The Relation between Header Bits and Macroblock Mode...49

3.4 Frame Level Header Bits Prediction ...51

Chapter 4 Bit allocation of H.264/AVC ...54

4.1 Frame Level...55

4.1.1 Frame Complexity...56

4.1.2 Frame Importance...59

4.1.3 Selection different QP causes the MAD change of next frame ...61

4.2 Macroblock Level...66

4.2.1 MAD prediction from forward frame (add motion vector) ...67

4.2.2 A solution of coding too many bits in picture level...70

Chapter 5 Conclusion ...74

Figures

Figure 2-1 Block diagram of a typical video encoder [2]... 3

Figure 2-2 Structure of H.264/AVC [3] ... 4

Figure 2-3 Scope of H.264/AVC standardization [3]... 4

Figure 2-4 Basic coding structure for H.264/AVC for a macroblock [3] ... 6

Figure 2-5 Possible subdivisions of a picture into slices [3] ... 7

Figure 2-6 Possible subdivisions of a picture into slices with FMO. ... 7

Figure 2-7 Switching streams using I-slice and SP-slices [4]... 8

Figure 2-8 Five of nine Intra 4×4 prediction modes [3] ... 9

Figure 2-9 Four Intra 16×16 prediction modes [5] ... 9

Figure 2-10 Decomposition of macroblock for motion compensation [3] ... 9

Figure 2-11 Filtering for fractional-sample accurate motion compensation [3]... 10

Figure 2-12 Package of the DCT DC values [5]... 11

Figure 2-13 H.264/AVC Profiles [3]... 13

Figure 2-14 Illustration of the H.264/MPEG4-AVC FRExt profiles [6]... 14

Figure 2-15 Block diagram of an encoder with rate control [1] ... 15

Figure 2-16 Block diagram of H.264/AVC Rate Controller [10] ... 17

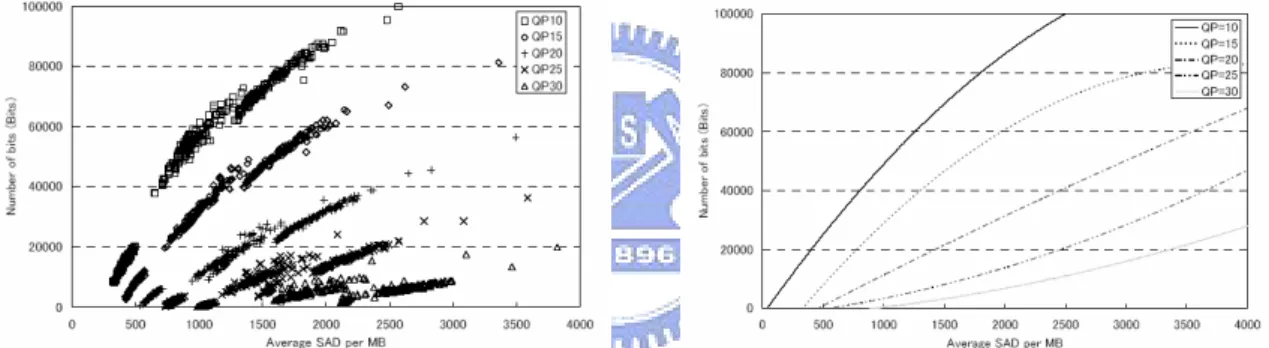

Figure 3-1 Relation between SAD and the number of generated bits [14]... 25

Figure 3-2 Approximated relation between SAD and the number of generated bits [14]. ... 25

Figure 3-3 The relation between the coded coefficient bits and 1/Qstep for “news” [15]... 26

Figure 3-4 The relation between the coded coefficient bits and 1/Qstep for “foreman” [15]... 26

Figure 3-5 (a) Relation between bits and QP, (b) Relation between bits and Qstep... 27

Figure 3-6 The relation between the number of coded bits and QP. The pink curves show the fitting of a second-order polynomial. (a)MAD=0.7695 (b)MAD=2.7383 (c)MAD=3.9297 ... 29

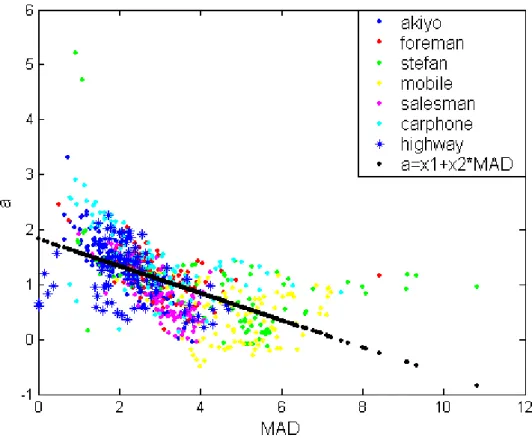

Figure 3-7 The relation between the coefficient “a” and MAD in different test sequences. .. 29

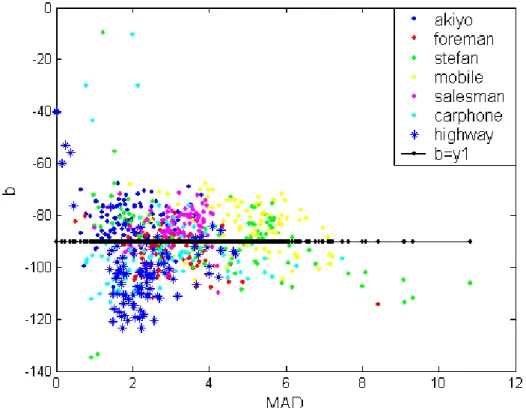

Figure 3-8 The relation between the coefficient “b” and MAD in different test sequences... 30

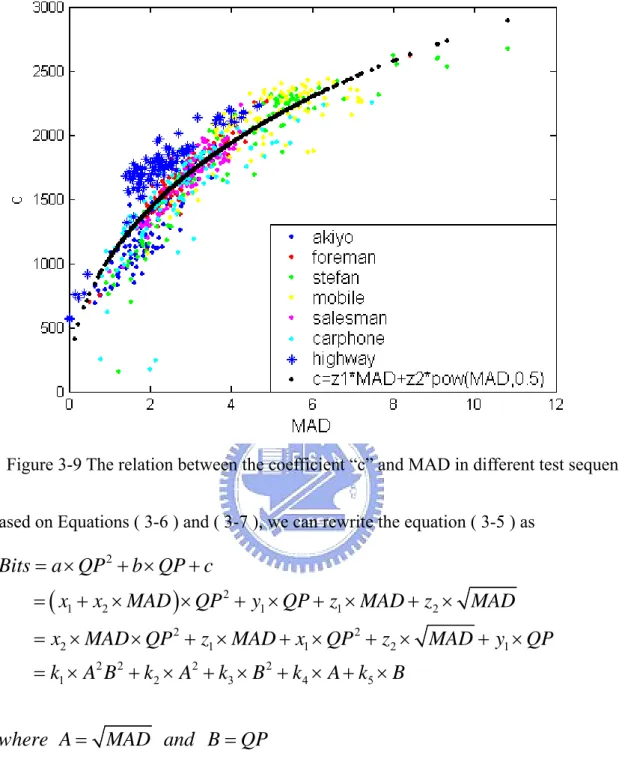

Figure 3-9 The relation between the coefficient “c” and MAD in different test sequences. .. 31

Figure 3-10 The relation between MAD and the “zero point” ... 32

Figure 3-11 The buffer fullness and target buffer level for the “bus” sequence when the bit rates are 64K and 128K... 34

Figure 3-12 The buffer fullness and target buffer level for the “flower” sequence when the bit rates are 64K and 128K... 34

Figure 3-13 The buffer fullness and target buffer level for the “highway” sequence when the bit rates are 64K and 128K. ... 35

Figure 3-14 The buffer fullness and target buffer level for the “Stefan” sequence when the bit rates are 64K and 128K... 35

vi

Figure 3-15. The number of basic units have no remaining target bits when the bit rate is

64K ...36

Figure 3-16 Compare the buffer fullness and the number of basic units that have no remaining target bits ...37

Figure 3-17 The PSNR(Y) of each frame in this experiment...39

Figure 3-18 Comparison of visual quality when the bit rate is 64K, ...40

Figure 3-19 The receiver timing analysis when the bit rate is 128K...41

Figure 3-20 Comparison of buffer fullness with RDO and without RDO as the bit rate is 64K. ...43

Figure 3-21 The buffer fullness when the period of I-frame is 30 ...45

Figure 3-22 The PSNR of each frame when the period of I-frame is 30 ...47

Figure 3-23 The relation between the header bits and the MAD value of the macroblock...49

Figure 3-24 The relation between the macroblock header bits and the macroblock MAD for different numbers of motion vectors. ...50

Figure 3-25 Proposed frame-level header bits prediction ...52

Figure 4-1 The diagram of the bit allocation for picture level and basic-unit level ...54

Figure 4-2 The relations between the number of coded bits and MAD ...56

Figure 4-3 The relations between the number of coded bits and the difference between the number of 8×8 macroblocks and the number of 16×16 macroblocks...57

Figure 4-4 The target buffer level control, (a) the normal target buffer level, (b) non-linear target buffer level...59

Figure 4-5 The experiment of change frame importance. (a)flower sequence (b)mobile sequence ...60

Figure 4-6 The data of the following pictures when coding the current picture with different QP’s. ...61

Figure 4-7 The flow chart of our strategy in QP decision ...62

Figure 4-8 The relation between the value of MAD and the value of QP...63

Figure 4-9 The relation between the value of m and MAD ...63

Figure 4-10 The PSNR of each pictures,. The sequence is “salesman” and the bit rate is 64K. ...64

Figure 4-11 The PSNR of each picture...65

Figure 4-12 The relation between the coded bits and MAD in macroblock level...66

Figure 4-13 The diagram of macroblock motion...67

Figure 4-14 Our method to predict the new MAD value ...68

Figure 4-15 The PSNR of each picture with the “silent” sequence when the bit rate is 16K .68 Figure 4-16 The buffer fullness with the “silent” sequence when the bit rate is 16K...69

Figure 4-17 Compare the buffer fullness and the number of macroblock that is coded without using R-D model...70

Figure 4-19 The buffer fullness ... 71 Figure 4-20 The PSNR of each picture... 72 Figure 4-21 The flow chart of our algorithm ... 73

viii

Tables

Table 2-1 Summary of Symbols ...20

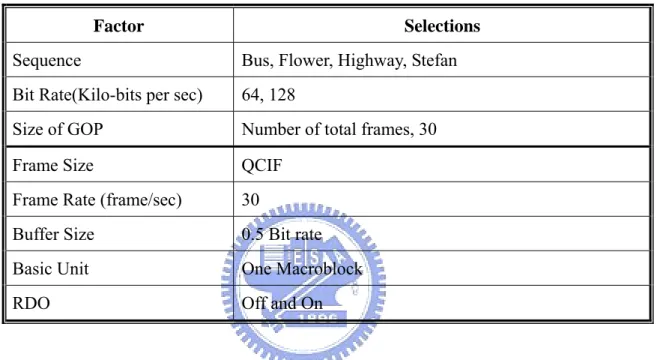

Table 3-1 Table of experiment factors ...33

Table 3-2 The delay for real time transmission ...41

Table 3-3 The precision of R-D model...42

Table 3-4 The precision of R-D model when execute RDO...44

Table 3-5 The delay for real time transmission when the period of I-frame is 30 ...48

Table 3-6 The precision of R-D model when the period of I-frame is 30 ...48

Table 3-7 The precision of R-D model in high and low bit rate...48

Table 3-8 The elements of macroblock header bit in P-slice ...50

Table 3-9 The experiment of the header bits prediction...53

Table 4-1 The correlation coefficients table ...58

Table 4-2 The PSNR of this experiment...64

Chapter 1 Introduction

Rate control plays an important role in video encoders. Without rate control, the client buffer may face underflow or overflow because of the mismatch between the source bit rate and the available channel bandwidth for delivering compressed bitstreams. Hence, without rate control, it would be hard to use the video coding encoder in practice Existing video coding standards usually have their own non-normative rate control schemes during the standardization process. For example, H.264/AVC has a rate control scheme, called JM (Joint Model).

Today, rate control has become one important research topic in the fields of video compression and transmission. In terms of the operational unit, rate control schemes can be classified into macroblock-, slice-, or frame–layer rate control. These rate control schemes usually resolve two main problems. The first problem is the bit allocation problem, which is used to predict the coded bits. The second problem is about how to properly adjust the encoder parameters, like the adjustment of the quantization parameter, to encode each unit with the allocated bits.

The rate allocation is usually associated with a buffer model, which is specified in the video coding standard. The hypothetical reference decoder (HRD) is usually a normative part to represent a set of normative requirements. An HRD-compliant bit stream must be decoded in the constant bit-rate (CBR) without overflow and underflow.

On the other hand, the quantization parameter adjustment is used to find the relation between the bitrates and the quantization parameter. This relation is usually defined as a rate-distortion (R-D) model.

In this thesis, we propose a more accurate R-D model to adjust the quantization parameter adjustment. In the bit allocation, we provide different bit allocation strategies in picture-level and macroblock-level encoding. This thesis is organized as follows. In Chapter 2, the backgrounds about H.264/AVC standard and rate control are briefly reviewed. In Chapter 3, our new R-D model is analyzed statistically and theoretically. Our bit allocation methods are discussed in Chapter 4. Finally, Chapter 5 concludes this thesis.

2

Chapter 2 Background

In this chapter, we’ll first introduce the basic elements of a video compression system. Second we’ll give an overview of the H.264/AVC video coding standard [1], which is a very efficient video codec. Our research will be built upon this video standard. Finally, we’ll introduce the rate control issue of H.264/AVC in details.

2.1 Introduction to video compression

systems

Why do we need video compression? Here we show a simple example. Assume a video sequence is of the QCIF size and is captured in the RGB format with the rate of 30 frames per second. Then, how many bits will a ten-minute video contain? The answer is

GB bits 1.3 000 , 608 , 948 , 10 8 3 144 176 30 60 10× × × × × × = = !!

On the other hand, after video compression encoding, the data size can be reduced to be around 10MB if based on the H.264/AVC standard. This example demonstrates the importance of a video compression system.

In video encoding, some typical techniques have been used. Here we list the major four techniques.

1. Prediction Coding:

This technique uses the information among frames to compress video data. The prediction coding could be classified into two major modes: intra prediction and inter prediction. The former uses the spatial information for prediction, while the latter uses the temporal information for prediction. A typical way for temporal prediction is the motion estimation operation.

2. Transform Coding:

This technique is based on the property that some suitable transformations may cause the energy of the transformed data to be more compact. At present, two most

commonly used transformations are the DCT transform and the wavelet transform. 3. Quantization:

The previous two techniques, prediction coding and transform coding, are usually designed to be lossless. This quantization operation, however, performs lossy coding. The technique converts the transformed data into quantized data. The quantization step size is usually determined by some control parameters, like the quantization parameter (QP).

4. Entropy Coding:

Entropy coding encodes the quantized data based on Shannon’s information theory. Two frequently used methods are Huffman Coding and Arithmetic Coding.

In summary, we show a general video coding scheme as below.

Figure 2-1 Block diagram of a typical video encoder [2]

Regarding video compression standards, there are two major organizations: ISO (International Organization for Standardization) and ITU-T (International Telecommunication Union Telecommunication Standardization Sector). In ISO, the major group working on the standardization of video coding is the MPEG (Moving Picture Experts Group) group. MPEG-I was their earliest standard, followed by MPEG-2, MPEG-4, and the latest MPEG-4 Part10 standards. The MPEG-4 Part 10 is also named as Advance Video Coding (AVC). In ITU-T, H.261 was the earliest video coding standard, followed by H.263, H.263+, and the latest H.264. Basically, the standardization of ITU-T focuses on applications in communications, while the standardization of MPEG focuses on multimedia applications.

4

However, in recent years, communication applications and multimedia applications get entangled together. Hence, the latest MPEG-4 Part 10 standard and the H.264 standard are actually a joint work from ISO and ITU-T. Hence, this new standard is also called H.264/AVC. In this paper, we are going to use this H.264/AVC standard as the framework of our study.

2.2 Introduction to H.264/AVC

Since 1988, the ITU-T Video Coding Experts Group (VCEG) prepared to set up a new video standard, called H.26L. Its purpose is to define an efficient coding scheme that could be twice more efficient than the state-of the–art coding standards at that time. In December 2001, VCEG and MPEG organized a new team, called JVT (Joint Video Team), to work on the new video coding standard. As mentioned above, this new standard was called H.264/AVC [1].

There are two major layers in H.264/AVC, the Video Coding Layer (VCL) and the Network Abstraction Layer (NAL). The VCL layer contains techniques for video compression, while the NAL layer provides “network friendly” transmissions and error resilience capability. Figure 2-2 show an illustration of the H.264/AVC coding structure.

Figure 2-2 Structure of H.264/AVC [3]

The marked block in Figure 2-3 is the video coding layer. In H.264/AVC, only the decoder side is standardized. The specifications of the encoder side are left open. In this thesis, we are going to discuss a specific part of the encoder: the rate control part.

2.2.1 Highlights of H.264/AVC

In this section, we will describe some highlights of H.264/AVC. Some of these highlights are used to increase compression ratio, while some others are for error resilience and network-friendly transmissions. Based on their objectives, these highlights could be partitioned into three major categories [3]:

a. Improve Prediction Coding：

z Variable block-size motion compensation with small block sizes z Quarter-sample-accurate MC

z MVs over picture boundaries z Multiple reference picture MC

z Decoupling of referencing order from display order

z Decoupling of picture representation methods from picture referencing capability z Weighted prediction

z Improved “skipped” and “direct” motion inference z Directional spatial prediction for intra coding z In-the-loop deblocking filtering

b. Increase compression rate：

z Small block-size transform：4x4 DCT Transform z Hierarchical block transform

z Short word-length transform：Only use 16-bits z Exact-match inverse transform

z Arithmetic entropy coding z Context-adaptive entropy coding

c. Help for error resilience and friendly network transmission： z Parameter set structure：

Separate important data into different part to promise the safe in transmission z NAL unit syntax structure：

6

A format of packet is used for network transmission z Flexible slice size

z Flexible macroblock ordering (FMO) z Arbitrary slice ordering (ASO) z Redundant pictures

z Data Partitioning

z SP/SI synchronization/switching pictures

2.2.2 Video Coding Layer (VCL)

Figure 2-4 shows a typical structure of an H.264/AVC encoder. Intra prediction or inter motion compensation is the first step, followed by the DCT transform of the residual data, quantization of the transformed data, and entropy coding of the quantized data. Then, the coded data are sent to the NAL unit to be packed into packages for transmission. At the decoder site, reversed operations are applied for data reconstruction. In the following sections, we will describe some details of the H.264/AVC VCL layer.

a. Pictures, Frames, and Fields

A video sequence consists of several pictures. One Picture could be either a frame or a field. In H.264/AVC, the coding of a macroblock could be either frame coding or field coding.

b. YCbCr Color Space and 4:2:0 Sampling

The color space of H.264/AVC is YCbCr. A typical sampling pattern of YCbCr is 4:2:0. However, in the earliest profile (High Profile), which is also called Fidelity-Range Extension (FRExt), 4:4:4 sampling is supported.

c. Division of a Picture into Macroblocks

The luma macroblock size is 16×16 and the chorma macroblock size is 8×8. For the FRExt Profile, the macroblock size is decided based on the color sampling size.

d. Slices and Slice Groups

Slices are a sequence of macroblocks that are processed in the order of raster scan, if not using FMO (Flexible Macroblock Ordering). Two examples are illustrated in Figure 2-5. If using FMO, pictures are partitioned into slices. Each slice is a set of macroblocks defined by a macroblock-to-slice-group map. Two examples of FMO are illustrated in Figure 2-6.

Figure 2-5 Possible subdivisions of a picture into slices [3]

Figure 2-6 Possible subdivisions of a picture into slices with FMO.

8

No matter whether using FMO or not, slices are coded by one of the following ways. z I slice: All macroblocks of a slice are coded by intra prediction.

z P slice: Slices are partitioned into several macroblocks. Some are coded based on motion-compensated prediction, while the others are coded based on intra prediction.

z B slice: similar to P slice, but some macroblocks may use bi-directional motion-compensation for prediction.

In addition to these three kinds of slices, there are two special types of slices: SI slice and SP slice. They are used in sequence switching. An illustration is shown in Figure 2-7.

Figure 2-7 Switching streams using I-slice and SP-slices [4]

e. Intra-Frame Prediction

In Intra Prediction, there are two modes that are different in block size. One is the 4×4 prediction mode, and the other is the 16×16 prediction mode. Usually, we use the 4×4 mode in complex regions while use the 16×16 mode in smooth regions. The 4×4 prediction mode is further divided into nine different sub-modes to handle different edge directions. Some examples are shown in Figure 2-8. On the other hand, the 16×16 mode has four different sub-modes.

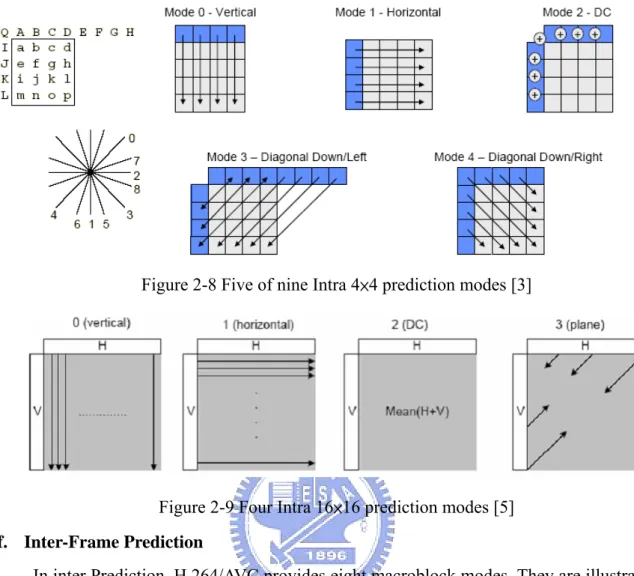

Figure 2-8 Five of nine Intra 4×4 prediction modes [3]

Figure 2-9 Four Intra 16×16 prediction modes [5] f. Inter-Frame Prediction

In inter Prediction, H.264/AVC provides eight macroblock modes. They are illustrated in Figure 2-10. First, in the selection of Macroblock Types, we have four choices: 16×16, 16×8, 8×16 and 8×8. If we have chosen the 8×8 mode, each 8×8 Type has four extra modes to select: 8×8, 8×4, 4×8 and 4×4. Hence, according to the complexity of image contents, we may have different choices of modes. For example, we may have chosen the 16×16 mode for regions with a global motion, but use the 8×8 mode for regions that contain individual moving objects.

10

In H.264/AVC, the accuracy of motion compensation is in units of one quarter of the distance between luma samples. The prediction values at half-sample positions are obtained by applying a one-dimensional 6-tap FIR filter horizontally and vertically. Prediction values at quarter-sample positions are generated by averaging samples at integer- and half-sample positions. This is illustrated in Figure 2-11.

Figure 2-11 Filtering for fractional-sample accurate motion compensation [3]

g. Transform and Quantization

H.264/AVC uses 4×4 integral DCT, whose transform matrix is

⎥ ⎥ ⎥ ⎥ ⎦ ⎤ ⎢ ⎢ ⎢ ⎢ ⎣ ⎡ − − − − − − = 1 2 2 1 1 1 1 1 2 1 1 2 1 1 1 1 H .

This is an exact-match inverse transform. This transformation doesn’t cause any miss match in the inverse transform.

shown in Figure 2-12, and then transformed by the 4×4 Hadamard transform. Similarly, the DC values of 4 chroma blocks will be packed and then transformed by the 2×2 Hadamard transform.

Figure 2-12 Package of the DCT DC values [5]

There are two major reasons for the use of the 4×4 DCT Transform. First, H.264/AVC has a great improvement in prediction coding. Hence, using a smaller size DCT transform may still obtain reasonable performance. Second, the computational complexity becomes lighter when a small-size DCT is used.

The QP values of H.264/AVC range from 0 to 51. An increase of 6 in the QP value will double the quantization step size.

h. Entropy Coding

There are two modes of entropy coding in H.264/AVC: Context-Adaptive Variable Length Coding (CAVLC) and Context-Adaptive Binary Arithmetic Coding (CABAC). CAVLC is a coding technique that is more efficient than VLC, but with higher complexity. On the other hand, CABAC uses Arithmetic Coding and is also more complex than VLC.

i. In-Loop Deblocking Filter

H.264/AVC is the first standard that uses in-loop deblocking filter. This means decoders would have a deblocking filter too. The use of the deblocking filter is to reduce blocking effect in the reference image. The use of the deblocking filter can improve the performance of

12

motion compensation and thus increase the coding efficiency.

2.2.3 H.264/AVC Profile

In previous sections, we briefly introduce the flow chart of H.264/AVC coding. Now, we will introduce the four profiles defined in H.264/AVC. These four profiles are

z Baseline Profile:

The main application of baseline profile is in low bit-rate transmission, e.g. cell phone transmission. This profile has low computational complexity and acceptable performance. In this paper, our algorithm is to be discussed on this Baseline Profile.

z Main Profile:

The difference between main profile and baseline profile is that the main profile contains interlaced coding. A main application of the main profile is for HDTV.

z Extension Profile:

This profile has error resilience tools and can be used in IP-TV or MOD. Figure 2-13 describes the different function units of the above three profiles.

Figure 2-13 H.264/AVC Profiles [3]

z High Profile:

Because H.264/AVC has a rather poor compression performance in high resolution, the Fidelity-Range Extensions (FRExt) Profile is proposed in July 2004. The major purpose of this profile is to resolve the distortion of human vision in the high–resolution domain. This FRExt profile is also called the High Profile. In this profile, there are three major changes:

„ 8x8 Intra Spatial Prediction

„ 8x8 and 4x4 Transform Adaptive:

There are flexible selections. According to the situation, the encoder can select either the 4×4 or the 8×8 DCT transform.

„ Various color spaces:

Besides the 4:2:0 chroma format, FRExt has additional 4:4:4 and 4:2:2 chroma formats. These formats perform better in high resolution.

14

2.3 Introduction to Rate Control

The purpose of Rate Control is to control the encoded bits count. Figure 2-15 is a block diagram of video encoding. Generally speaking, we adjust the QP value to control the size of compressed data. The factors that may affect the determination of the QP values include channel bandwidth, buffer fullness, and video complexity.

Figure 2-15 Block diagram of an encoder with rate control [1]

There exist several rate control algorithms for video coding standards, such as the TM5 [7] in MPEG-2, the TMN8 [8] in H.263, and the VM-18 [9] in MPEG-4. The scheme of rate control usually contains two parts. The first step is to determine the target bits based on buffer fullness or some other factors. The second step is to adjust the QP values to fit the target bits. There also exist several rate-distortion models for the determination of the QP value. A commonly used model is the quadratic rate-distortion model proposed by Chiang and Zhang [1] which uses the image complexity and the target bits to decide the QP value. Besides, many other methods have been provided to better predict the QP values, hoping to provide better coding performance and video quality [12],[13],[14]. In the following sections, we will describe the rate control scheme adopted in H.264/AVC JM 8.4.

16

2.3.1 Rate Control of H.264/AVC

Rate-distortion optimization (RDO) is a rate control process suggested for H.264/AVC. Its purpose is to find the optimal tradeoff between rate and distortion. The motion vectors and block modes aren’t decided according to the minimum distortion, but are decided by the RDO solution. The equations in RDO are as follows:

2 3 / , ) ( )) ( , ( ) ( ) , ( 2 85 . 0 ) | , , ( ) | , , ( ) , | , , ( MODE MOTION MOTION MOTION QP P MODE MODE MODE p m R m c s D T SA m J QP MODE c s R QP MODE c s SSD QP MODE c s J λ λ λ λ λ λ λ = − ⋅ + = × = ⋅ + = ( 2-1 ) ) | , , (s c MODE QP

SSD means the distortion between the original block s and the reconstructed block c when the value of QP is decided. R(s,c,MODE|QP) means the bits after variable-length coding. SA(T)D(s,c(m)) is the distortion after deciding the motion vector m, and R(m−p) is the bits when the motion vector is m and the predictive motion vector is p. According to the above equations, QP must be determined before executing the motion estimation. However, the determination of QP is to be performed at a later stage, after the MAD (mean of absolute difference) is calculated. Hence, this is actually a chicken and egg problem.

Figure 2-16 shows the block diagram of H.264/AVC rate controller. In the following sections, we will explain some major elements of this controller.

Figure 2-16 Block diagram of H.264/AVC Rate Controller [1]

z Basic Unit

One basic unit can be defined as one macroblock, one slice, or one frame. Assume there are Nmbpic macrocblocks (MB) in one frame, and Nmbuni is the total number of MBs in one

basic unit. If we denote the number of basic units as Nunit, then we have

z Rate-Quantization Model

Assume T denotes the number of target bits, which represents the predicted bits count before encoding. When the target bits had been determined, we need to decide the QP value for encoding. Using the quadratic rate-distortion model (R-D model), the QP value can be computed based on the following formula.

mbunit mbpic uint N N N = . _{( 2-2 )} ) ( ) ( ) ( ~ ) ( ) ( ~ ) ( _{2 ,} , 2 , 1 m j j Q j c j Q j c j T hi i step i i step i i = × + × + σ σ ( 2-3 ) ) ( j

T_i means the target bits, the GOP index is I and the picture index is j. M means the predicted header bits

σ means MAD (mean of absolute difference ) c1、c2 are coefficients

18

z A linear Model for MAD Prediction

The MAD value is used in the R-D model. However, as aforementioned, MAD value can be calculated only after the motion compensation process. Hence, we need to predict the MAD value beforehand. Here, the first-order linear model is used.

where a1 and a2 are two coefficients for the prediction model. The initial values of a1 and a2

are set to 1 and 0. They are updated after the coding of each basic unit. z ΔQP Limiter

The purpose of the ΔQP limiter is to avoid a dramatic change of the QP value between successive frames. A dramatic change in the QP value may cause unpleasant change of video quality. Normally, we constrain the difference between QP’s to be less than 2.

z Hypothetical Reference Decoder

In order to place a practical limit on the size of decoder buffer, a lower bound and an upper bound for the target bits of each frame are determined by considering the hypothetical reference decoder (HRD) [12]. Compliant encoders must generate bitstreams that meet the requirements of the HRD. The lower bound and upper bounds for the nth frame are denoted as L(ni,j) and U(ni,j), respectively. Let tr(ni,j) denote the removal time of the jth frame in the ith

GOP. Also let be(t) be the bit equivalent of the time t, with the conversion factor being the buffer arrival rate. The initial values of the upper bound and the lower bound are given as follows: ϖ × + = + = ))) ( ( ) ( ( ) ( ) ( ) ( ) ( 1 , 1 0 , 1 , 0 , 0 , 1 , n t be n Tr n U F n u n Tr n L r i i r i i i ( 2-5 )

where Tr(ni_,0) is the remaining bits of the (i-1)th GOP and Tr(n1,0)= 0. The value of ϖ is 0.9. Then, L(ni,j) and U(ni,j) are computed iteratively as follows:

ϖ × − + = − + = − − − − − − )) ( ) ( ( ) ( ) ( ) ( ) ( ) ( ) ( 1 , 1 , 1 , , 1 , 1 , 1 , , j i r j i j i j i j i r j i j i j i n b F n u n U n U n b F n u n L n L ( 2-6 ) 2 1 ( 1) ) ( ~ _{j a j a} i i = ×σ − + σ , ( 2-4 )

2.3.2 H.264/AVC Rate Control Scheme

In this section, we will introduce the rate control scheme of H.264/AVC. The rate control of H.264/AVC has three parts. The first part is the GOP-level rate control, where the initial QP and the definition of buffer fullness of this GOP will be determined. The second part is the picture-level rate control, where the QP of each frame, such as a P frame or a B frame, will be determined. Finally, the basic-unit-level rate control will determine the QP value of each basic unit. In Table 2-1, we list the symbols used in this section.

2.3.2.1 GOP-Level Rate Control

In the GOP-level rate control, the expected available bits for GOP encoding are computed. When the jth picture had been encoded in the ith GOP, the formulae are

and i i i i i i i i N j f j R j b j V j V other i N V V ,..., 3 , 2 ) 1 ( ) 1 ( ) 1 ( ) ( 1 ) ( 0 ) 1 ( 1 1 = − − − + − = ⎩ ⎨ ⎧ = = − − ( 2-8 ) The initial QP value of each GOP is determined as follows. If this is the first GOP of the video sequence, then the initial QP is determined according to channel bandwidth. The relation between QP and bandwidth is formulated as following.

⎪ ⎪ ⎩ ⎪ ⎪ ⎨ ⎧ > ≤ < ≤ < ≤ = 3 10 3 2 20 2 1 30 1 40 ) 1 ( 1 l bpp l bpp l l bpp l l bpp QP where pixel N f R bpp × = 1(1) ( 2-9 )

If the GOP is not the first GOP of the sequence, the initial QP value is determined according to the average QP value of the previous GOP. The formula is as follows.

⎪⎭ ⎪ ⎬ ⎫ ⎪⎩ ⎪ ⎨ ⎧ ⎪⎭ ⎪ ⎬ ⎫ ⎪⎩ ⎪ ⎨ ⎧ ⎭ ⎬ ⎫ ⎩ ⎨ ⎧ − − − + − = − − − 15 , 2 min ) 1 ( ) 1 ( , 2 ) 1 ( min , 2 ) 1 ( max ) 1 ( 1 1 1 i p i i i N i N i SumPQP QP QP QP ( 2-10 ) i i i i i i i i i i N j j j b j N f j R j R j B j V N f j R j B ,..., 3 , 2 1 ) 1 ( ) 1 ( ) 1 ( ) ( ) 1 ( ) ( ) ( ) ( = = ⎪ ⎪ ⎩ ⎪⎪ ⎨ ⎧ − − + − × − − + − − × = ( 2-7 )

20

Table 2-1 Summary of Symbols Parameter Name Definition

i The index of GOP

j The index of Picture in each GOP f Frame rate

L The number of successive non-stored pictures between two stored pictures.

Ri( j ) Channel bit rate

Ni Total number of pictures in the ith GOP

Np( i-1 ) Total number of stored pictures in the (i-1)th GOP

Initialization

Npixel The number of pixels in a picture

Bi( j ) The bits for the rest pictures in this GOP

W p,i ( j ) The average complexity weight of stored pictures

W b,i ( j ) The average complexity weight of non-stored

pictures

T~i ( j ) The delta target bits

Tˆi ( j ) The hat target bits

Ti ( j ) Target bits

Np,r The number of the remaining stored pictures

Nb,r The number of the remaining non-stored pictures

) ( j

Z_{i The lower bound of HRD requirement} )

( j

U_{i The upper bound of HRD requirement} Target Bit Estimation ) 1 ( 1 , r

t The removal time of the first picture from the coded picture buffer

) ( j

Vi Buffer fullness

Buffer

Control Si( j) Target buffer level )

1 (j−

b_{i Actual coded bits} )

( j

QP_i The jth picture’s QP of ith GOP Qstep,i(j) The jth picture’s quantization step size

) 1 (i−

SumPQP The sum of average picture QP for all stored picture in the (i-1)th GOP

σ~ The predictive MAD σ The actual MAD Encoding, Post-Encoding ) ( , j mhi

The total number of header bits and motion vector bits

2.3.2.2 Picture-Level Rate Control

This level is divided in to two stages, pre-encoding stage and post-encoding stage. They are explained as follows.

A. Pre-encoding stage

This stage contains two different cases: stored pictures (P frames) and non-stored pictures (B frames). Here, we describe them individually.

(a) Stored picture

Step 1: Determine the target bits of this picture

Step 1.1: determine the target buffer level of each picture Assume )S_i( j is the target buffer level. Then,

) 2 ( ) 2 ( i i V S = f j R L j W j W f j R L j W i N S j S j S i i b i p i i p p i i i ) ( ) ) ( ) ( ( ) ( ) 1 ( ) ( 1 ) ( ) 2 ( ) ( ) 1 ( , , , ₋ × + × × + × + − − = + ( 2-11 ) L means the number of the non-stored pictures between two stored pictures. The complexity weight of stored picture and non-stored picture are expressed as followings. pictures stored -non of weight complexity average the ) ( pictures stored of weight complexity average the ) ( 3636 . 1 ) ( ) ( ) ( ) ( ) ( ) ( 8 ) 1 ( 7 8 ) ( ) ( 8 ) 1 ( 7 8 ) ( ) ( , , , , , , , , , , , , j W j W j QP j b j W j QP j b j W j W j W j W j W j W j W i b i p i b i i b i p i i p i b i b i b i p i p i p × = × = − × + = − × + = ( 2-12 )

Step 1.2: compute the target bits of each picture

The target bits are predicted in two aspects. One is according to buffer fullness and channel bit rate; the other is determined by the remaining bits of this GOP.

22 5 . 0 )) ( ) ( ( ) ( ) ( ~ _{= +γ × − γ =} j V j S f j R j T i i i i ( 2-13 ) r b i b r p i p i i p i N j W N j W j B j W j T , , , , , ) 1 ( ) 1 ( ) ( ) 1 ( ) ( ˆ × − + × − × − = ( 2-14 ) The real target bits are computed by combiningT~_i(j)andTˆ j_i( ).

5 . 0 ) ( ~ ) 1 ( ) ( ˆ ) (j =β×T j + −β ×T j β = T_{i i i} ( 2-15 ) Finally, the target bits will satisfy the limit of HRD.

)} ( T ), ( min{ ) ( )} ( T ), ( max{ ) ( i i j j U j T j j Z j T i i i i = = ⎪ ⎪ ⎩ ⎪⎪ ⎨ ⎧ − + − = + = − − other j b f j R j Z j f j R N B j Z i i i i i i i ) ( ) ( ) 1 ( 1 ) ( ) ( ) ( 1 1 ⎪⎩ ⎪ ⎨ ⎧ × − + − = × + = − − other j b f j R j U j t N B j U i i i r i i i ϖ ϖ )) ( ) ( ( ) 1 ( 1 )) 1 ( ) ( ( ) ( 1 1 ,1 ( 2-16 ) Here, ϖ is a constant with a typical value of 0.9.

Step 2: Compute the QP value and perform the RDO process First the MAD value is estimated based on a linear model.

After this, th ) ( ) ( ) ( ~ ) ( ) ( ~ ) ( _{2 ,} , 2 , 1 m j j Q j c j Q j c j T hi i step i i step i i = × + × + σ σ

Finally, theΔQP Limiter will limit the difference between the current QP and the previous QP to be less than two.

(b) Non-stored picture

The mainly idea is to use the interpolation of the previous and the subsequent stored pictures.

B. Post-encoding

In this stage, the coefficients such as a1 and a2 in the MAD linear model will be updated.

2 1 ( 1 ) ) ( ~ _{j a j L a} i i = ×σ − − + σ ( 2-17 )

They will be updated by the linear regression method. The coefficients c1 and c2 of the R-D

model are also updated. Finally, this stage will add the actual encoded bits into the buffer and make sure whether the buffer overflows.

2.3.2.3 Basic-Unit-Level Rate Control

At this stage, we need to determine the QP value for each basic unit. Step 1: Predict the MAD of each basic unit according to the linear mode. Step 2: Compute the target bits of each basic unit.

Step 3: Determine the QP value of each basic unit. There are three different cases.

Case 1: If this is the first basic unit in this picture, the QP is the average value of the previous picture QP.

Case 2: If the remaining bits of this picture become negative, the QP value is determined by adding a small value onto the QP value of the previous basic unit.

Case 3: Apart from the above two cases, the QP value of the remaining basic units is determined according to the quadratic R-D model.

Step 4: Execute RDO in each macroblock and encode.

Step 5: The coefficients in the linear prediction model and in the quadratic R-D model are updated.

24

Chapter 3

Modified Rate-Distortion Model for

H.264/AVC

In this chapter, we discuss the relation between the rate-distortion (quantization) model and rate control. First, we will describe some existing R-D models. Then, we formulate a new R-D model according to the relation between bits and quantization parameters. Since the header bits are also important in the R-D model, we also find the relation between the header bits and the macroblock mode. Finally, we build a modified R-D model to provide an improved performance in rate control.

3.1 Previous R-D Models

There are several kinds of R-D models for different video standards. Chiang and Zhang proposed a quadratic rate-distortion model that is used in MPEG-4 [1]. In H.264/AVC, the Joint Model (JM) also uses this model [11]. However, since MPEG-4 and H.264/AVC do not use the same quantization, transform coding and entropy coding, this quadratic R-D model may not be suitable for H.264/AVC.

Tsai and Leou provided several choices for the estimation of QP [13]. These choices could be based on a quadratic formula, a logarithmic formula, or an exponential formula. These formulas are expressed as follows.

(

)

and B and Q are the number of bits and the QP value. The QP value is determined from one of these three equations that can have the minimum error.

Satoshi Muyaji and Yasuhiro Takishima observed the relation between SAD (Sum of Absolute Difference) and the number of generated bits [14]. Figure 3-1 shows that these two factors are highly correlated and the relation can be well approximated by the following quadratic polynomial:

2

bits= ×a S + × + , b S c

( 3-2 )

where “bits” is the number of generated bits and S is the average SAD in the macroblock. These coefficients a, b and c are calculated by the least squares method. Finally, based on ( 3-2 ), Muyaji and Takishima deduced a formula for the R-D model.

Figure 3-1 Relation between SAD and the number of generated bits [14].

Figure 3-2 Approximated relation between SAD and the number of generated bits [14]. On the other hand, Siwei Ma and Wen Gao draw a conclusion that the relation between R and 1/Qstep in H.264/AVC can be described by a linear model [15], as shown in Figure 3-3 and

Figure 3-4. Hence, they model the relation between rate and quantization stepsize (R-Qstep

model) as , , , t t i t i step i K SAD R C t I P B Q = + = ( 3-3 )

where R is the estimated number of coded bits of a macroblock; SAD is the sum of absolute _i difference (SAD) of a motion-compensated macroblock; C is the bits used to code the header information of a macroblock; and K is a coefficient of the model.

26

Figure 3-3 The relation between the coded coefficient bits and 1/Qstep for “news” [15]

Figure 3-4 The relation between the coded coefficient bits and 1/Qstep for “foreman”

[15]

In the following section, we will formulate a new R-D model that can better fit the relation between the number of coded bits and the quantization parameter.

3.2 Our Rate-Distortion Model

First, we are interested in modeling the relation between the number of coded bits and the quantization parameter when the residual MAD of the macroblock is fixed. Figure 3-5 shows the plots of the number of generated bits with respect to QP, Qstep, 1/QP, and 1/Qstep,

respectively. Here, the relation between QP and Qstep is expressed as follows. It can be easily

deduced that as the QP value increases by six, the step size is doubled.

( 4 / 6) 2QP step Q = − ( 3-4 ) (a) (b) (c) (d) Figure 3-5 (a) Relation between bits and QP, (b) Relation between bits and Qstep

28

It can be seen in Figure 3-5 that the relation between the number of generated bits and 1/Qstep doesn’t actually follow the linear model. Hence, we adopt the second-order polynomial

instead. That is, 2

Bits= ×a QP + ×b QP+ c ( 3-5 )

Figure 3-6 describes the curve fitting results based on the second order polynomial. It can be seen that the second order polynomial fits the relationship pretty well.

(a)

(c)

Figure 3-6 The relation between the number of coded bits and QP. The pink curves show the fitting of a second-order polynomial. (a)MAD=0.7695 (b)MAD=2.7383 (c)MAD=3.9297

Figure 3-7 The relation between the coefficient “a” and MAD in different test sequences.

After this, we will find the relation between MAD and the coefficients in ( 3-5 ). Figure 3-7 plots the relation between the coefficient “a” and MAD. Based on this experiment, we model the relation to be linear. The linear model is expressed as

30

(

)

max 0,

a= x + ×x MAD .

( 3-6 ) The lower bound 0 is to avoid a negative “a”, which does not match our assumed model.

Similarly, we can find the relationship between the coefficient “b” and MAD. Figure 3-8 shows that b is approximately equal to the constant -90 for various values of MAD. Even though the variance of b is actually not very small, we still treat “b” as a constant in our model to simplify the problem.

Figure 3-8 The relation between the coefficient “b” and MAD in different test sequences. Regarding the coefficient “c”, we can see in

Figure 3-9 that there is an apparent relationship between “c” and MAD. We have tried several curve models to fit this relationship and finally find the simple model expressed in Equation ( 3-7 ). The fitting result is shown in

Figure 3-9.

1 2

c= ×z MAD+ ×z MAD

Figure 3-9 The relation between the coefficient “c” and MAD in different test sequences. Based on Equations ( 3-6 ) and ( 3-7 ), we can rewrite the equation ( 3-5 ) as

(

)

Bits

a QP

b QP

c

x

x

MAD

QP

y

QP

z

MAD

z

MAD

x

MAD QP

z

MAD

x

QP

z

MAD

y

QP

k

A B

k

A

k

B

k

A k

B

where A

MAD and B

QP

Bits

k

MAD QP

k

MAD

k

QP

k

MAD

k

= ×

+ ×

+

=

+ ×

×

+ ×

+ ×

+ ×

= ×

×

+ ×

+ ×

+ ×

+ ×

= ×

+ ×

+ ×

+ × + ×

=

=

= ×

×

+ ×

+ ×

+ ×

+ ×QP

The equation ( 3-8 ) needs one extra constraint. This is because this model is used only for non-zero coded bits. Observing Figure 3-6, we can find that when the QP value is large enough, the number of coded bits become 0. For example, the number of coded bits become 0 when QP is 24 in Figure 3-6 (a). We name this turning point as the “zero point”. In Figure

32

3-10, we show the relationship between MAD and the “zero point”..

Figure 3-10 The relation between MAD and the “zero point”

Based on Figure 3-10, we describe the relation between MAD and the “zero point” as a linear model and express the relationship as

1 2

MAD= + ×h h QP_.

( 3-9 )

Then, we add on the constraint that MAD has to be larger than some value. The equation ( 3-8 ) is then rewritten as 2 2 1 2 3 4 5 1 2 1 2 1

Bits k MAD QP k MAD k QP k MAD k QP MAD h QP QP h QP MAD h QP QP h σ σ ′ ′ ′ = × × + × + × + × + × − ⎧ _{′ ′ ≤ ×} ⎪⎪ = ⎨ ₋ ⎪ _{′− ′> ×} ⎪⎩ _{( 3-10 )}

the model coefficients k1, k2, k3, k4 and k5. Here, we may use a linear regression technique to find these coefficients. Based on this model, we then formulate our R-D model for H.264/AVC at the macroblock level. In the following experiments, we will demonstrate the performance of the proposed R-D model. In Table 3-1, we first list some major factors in our experiments.

Table 3-1 Table of experiment factors

Here, we choose four different sequences. The available bit rate corresponds to the channel bandwidth. Because the tested frame size is QCIF, the PSNR of the QCIF sequences will be high enough when the bandwidth is wider than 128k bits/sec. Hence, we test only at two different bit rates. Moreover, the size of GOP corresponds to the period of I-frames and the basic unit is chosen to be one macroblock.

Factor Selections Sequence Bus, Flower, Highway, Stefan

Bit Rate(Kilo-bits per sec) 64, 128

Size of GOP Number of total frames, 30 Frame Size QCIF

Frame Rate (frame/sec) 30

Buffer Size 0.5 Bit rate Basic Unit One Macroblock RDO Off and On

34

Case A: The size of GOP is the number of total frames

Figure 3-11, Figure 3-12, Figure 3-13 and Figure 3-14 shows the situation of buffer fullness during the encoding of various sequences. The x-axis indicates the number of frames and the y-axis indicates the situation of buffer fullness. In theory, the buffer fullness must be close to the target buffer level. However, in low bit rate, there could be a large difference between the buffer fullness and the target buffer level. It can be seen that our model can reduce this difference. That is, in Figure 3-11, Figure 3-12, Figure 3-13 and Figure 3-14, we can see that our buffer fullness curve is closer to the expected curve.

(a) (b) Figure 3-11 The buffer fullness and target buffer level for the “bus” sequence when the bit

rates are 64K and 128K.

(a) (b) Figure 3-12 The buffer fullness and target buffer level for the “flower” sequence when the bit

(a) (b) Figure 3-13 The buffer fullness and target buffer level for the “highway” sequence when the

bit rates are 64K and 128K.

(a) (b) Figure 3-14 The buffer fullness and target buffer level for the “Stefan” sequence when the bit

rates are 64K and 128K.

An inaccurate R-D model in rate control will cause some serious problems. In Figure 3-12 and Figure 3-13, the buffer fullness is over 100%. It means the size of buffer is not large enough. In real transmission, the “frame skip” operation will happen to avoid buffer overflow and this will cause the decrease of video quality. Besides this, the visual quality of each frame may be decreased. When there are no remaining target bits in the current frame, the rest basic unit cannot use the R-D model to determine its QP value. Instead, the QP value will be determined by adding a positive delta value on the previous QP value. Hence, the rest basic units will have a decreased visual quality. Figure 3-15 describes the number of basic units that

36

have no remaining target bits. In theory, a larger number of this kind of basic units will cause a more serious overflow of the encoded bits. In Figure 3-11, the rising of the buffer fullness curve is because the coded bits are larger than the expected target bits.

(a) (b)

(c) (d) Figure 3-15. The number of basic units have no remaining target bits when the bit rate is

(a) (b) Figure 3-16 Compare the buffer fullness and the number of basic units that have no

remaining target bits

We can see in Figure 3-16 that the number of basic units that have no remaining target bits is proportional to the slope of the buffer fullness curve. That is because the overly coded bits will case the rise of buffer fullness. In Figure 3-17, we compare the PSNR (Peak Signal to Noise Ratio) of each frame. The left figure in Figure 3-17 corresponds to the bit rate of 64K, while the right figure corresponds to 128K.

38

(a)

(b)

(d)

Figure 3-17 The PSNR(Y) of each frame in this experiment.

In Figure 3-17(a), we can see our PSNR is flatter than the original PSNR. This is because ours buffer fullness curve is closer to the target buffer level. Besides the improvement of PSNR, there are also improvements on the visual quality. In Figure 3-18, we can find the obvious differences between the original images and our images. The differences usually happen at bottom half of the frame. The reason of this difference is caused by the fact that an incorrect model may cause the macroblocks in the bottom half frame to have no remaining target bits.

Original Our (a)

40 Original Our (b) Original Our (c) Original Our (d)

Figure 3-18 Comparison of visual quality when the bit rate is 64K, (a) The 145-th frame of bus, (b) The 220-th frame of flower, (c) The 300-th frame of highway, (d) The 50-th frame of stefan

Finally, we simulate the decoder delay in real-time transmission. A longer delay means that the decoder needs a larger buffer. In Figure 3-19, the green line denotes the expected receiver timing in real-time transmission. If the line is above the green line, it means the decoder needs a delay time to display this image. The experiments of the transmission delay is described in Table 3-2.

Table 3-2 The delay for real-time transmission Transmission Delay (sec) Sequence Bit Rate

JM Our Improvement 64K 0.1138 0.0984 0.0154 Bus 128K 0.1082 0.1082 0 64K 0.8438 0.5564 0.2874 Flower 128K 0.4082 0.1780 0.2302 64K 1.3820 0.2629 1.1191 Highway 128K 0.2709 0.1050 0.1659 64K 0.1020 0.1020 0 Stefan 128K 0.1054 0.1054 0

Finally, in Table 3-3, we compare the accuracy between the original JM R-D model and our model. Here, “error” means the mean of the absolute difference between the target bits and the actually coded bits for each frame.

(a) (b) Figure 3-19 The receiver timing analysis when the bit rate is 128K

42

Table 3-3 The accuracy of R-D model Error (MAD) Sequence Bit Rate

JM Our Improvement (JM-Our)/JM 64K 569.7 193.7 0.66 Bus 128K 224.2 150.5 0.33 64K 1185.9 995.2 0.16 Flower 128K 1965.9 700.7 0.64 64K 1320.2 572.9 0.57 Highway 128K 1947.4 624.3 0.68 64K 245.2 163.28 0.33 Stefan 128K 298.54 223.49 0.25

In the above experiments, videos are coded without RDO (Rate-Distortion Optimization). In the following experiments, we compare the situation of buffer fullness with RDO or without RDO. In Figure 3-20 we can find that with RDO our proposed model still make improvements. Table 3-4 describes the accuracy of the R-D model when executing RDO.

With RDO Without RDO (a)

With RDO Without RDO (b)

With RDO Without RDO (c)

With RDO Without RDO (d)

Figure 3-20 Comparison of buffer fullness with RDO and without RDO as the bit rate is 64K.

44

Table 3-4 The accuracy of R-D model when executing RDO Error (MAD)

Sequence Bit Rate

JM Our Improvement (JM-Our)/JM 64K 569.7 193.7 0.66 Bus 128K 224.2 150.5 0.33 64K 1185.9 995.2 0.16 Flower 128K 1965.9 700.7 0.64 64K 1320.2 572.9 0.57 Highway 128K 1947.4 624.3 0.68 64K 245.2 163.28 0.33 Stefan 128K 298.54 223.49 0.25

Case B. The size of GOP is 30

In the following experiments, we compare four aspects when encoding without RDO. These aspects are buffer fullness, PSNR, maximum delay for real time transmission, and the accuracy of R-D mode. As shown in Figure 3-21, our model has made improvements in avoiding buffer fullness. The improvements also cause the change of PSNR. As shown in Figure 3-22, the PSNR of our model is flatter than the original model.

64K 128K (a) bus

64K 128K (b) flower 64K 128K (c) highway 64K 128K (d) stefan

46 64K 128K (a) bus 64K 128K (b) flower 64K 128K (c) highway

64K 128K (d) stefan

Figure 3-22 The PSNR of each frame when the period of I-frame is 30

Table 3-5 shows the delay time of real-time transmission. Although the improvements are not as obvious as that in Table 3-2, we may still see the improvements. The accuracy of the R-D model is shown in Table 3-6. The improvement on accuracy is also obvious in this case. Finally we compare the accuracy of the R-D model from low bitrates to high bitrates. This verifies that our model is adaptive to different QP values. Here, when the basic unit is not a macroblock, we calculate the average MAD and target bits in macroblock size to determine the QP value for each basic unit.

48

Table 3-5 The delay for real-time transmission when the period of I-frame is 30 Transmission Delay (sec)

Sequence Bit Rate

JM Our Improvement 64K 0.2934 0.2180 0.0754 Bus 128K 0.2172 0.1704 0.0468 64K 0.3801 0.3849 -0.0048 Flower 128K 0.3138 0.3363 -0.0225 64K 0.3232 0.2841 0.0391 Highway 128K 0.2271 0.2267 0.0004 64K 0.2491 0.2433 0.0058 Stefan 128K 0.2087 0.2257 -0.017

Table 3-6 The accuracy of R-D model when the period of I-frame is 30 Error (MAD)

Sequence Bit Rate

JM Our Improvement (JM-Our)/JM 64K 990.6 614.2 0.38 Bus 128K 1163.0 743.7 0.36 64K 1579.1 1453.1 0.08 Flower 128K 2895.6 2436.5 0.16 64K 1496.4 1210.4 0.19 Highway 128K 2530.4 1396.4 0.45 64K 636.7 570.1 0.10 Stefan 128K 1079.4 955.9 0.11

Table 3-7 The accuracy of R-D model in high and low bit rates Error (MAD)

Sequence Bit Rate

JM Our Improvement (JM-Our)/JM 16K 602.4 600.4 0.003 32K 479.5 371.3 0.23 64K 990.6 614.2 0.38 128K 1163.0 743.7 0.36 256K 1047.2 989.3 0.06 Bus 512K 1353.3 1327.3 0.02

3.3 The Relation between Header Bits

and Macroblock Mode

In this section, we will analyze the header bits in different macroblock modes of P-frame. In H.264/AVC, inter-prediction coding has several macroblock modes. The number of macroblock header bits is variable in different macroblock modes. In Figure 3-23, we can see the header bits of 16×16, 16×8 and 8×16 macroblock modes are basically irrelative to MAD, but the header bits of the 8×8 mode are proportional to the MAD value of the macroblock. The variances of 16×16, 16×8 and 8×16 header bits are very small, but it is not the case in the 8×8 mode. Table 3-8 lists the elements of macroblock bits.

50

Table 3-8 The elements of macroblock header bits in P-slice

Elements Explanation Macroblock skip run The flag if this macroblock is skipped

Macroblock type The type of the macroblock mode Motion vector Motion vector data

CBP Coded Block Patterns to prevent the need for transmitting EOB (End Of Block) symbols in these zero coded block.

Delta QP The QP difference with respect to the previous macroblock

In the 8×8 mode, the motion vector data are variable. This is because that an 8×8 block can be divided into 8×4, 4×8, or 4×4 modes. A smaller block size causes more motion vectors Figure 3-24 The relation between the macroblock header bits and the macroblock

and thus more header bits are coded. In , we can observe such a relation. Hence, a larger MAD has a larger chance to encode more motion vectors. Based on this observation, we model the relation between the 8×8 header bits and the MAD value of the macroblock as a linear model ( 3-11 ).

8 8

Hbits_× = ×a MAD b+ _{( 3-11 )}

where a and b are the coefficients of this model. Besides the 8×8 mode, we take the header bits of other modes, such as 16×16, 16×8, and 8×16 modes, as the average values of previous macroblock. In the next section, we will use this relation to revise and experiment the R-D model.

3.4 Frame Level Header Bits Prediction

) ( ) ( ) ( ~ ) ( ) ( ~ ) ( _{2 ,} , 2 , 1 m j j Q j c j Q j c j T _hi i step i i step i i = × + × + σ σ .

In this section, we change the predicted number of header bits based on the observation discussed in Section 3.3. The header bits of a frame are actually a combination of the header bits from several macroblocks that can have different modes. Hence, we can divide the header bits in a frame into several parts, as shown in Figure 3-25. After dividing, we predict the number of each macroblock mode in the current frame and compute the average bits of each macroblock mode. Equation ( 3-12 ) formulates our header bits prediction.

52

Figure 3-25 Proposed frame-level header bits prediction

( )

( )

(

)

(

)

( )

( )

∑

pictures. The symbol t denotes the type of macroblock mode. N and N are the actual and

predicted macroblock number. Hence, we take a linear model to predict the number of macroblock mode and compute the total predicted number of frame-level header bits. In the following experiments, we compare the precision of header bits prediction. The error means the mean of absolute difference between the predicted number header bits and the actual number of coded header bits, with the GOP format being IPPPP….

Table 3-9 Experiments of the header bits prediction

Error (MAD) PSNR(Y) Sequence Bit Rate

JM Our Improvement (JM-Our)/JM JM Our 32K 102.28 118.88 -0.16 22.81 22.80 64K 230.50 195.20 0.15 25.85 25.84 128K 448.91 307.23 0.32 28.9 28.89 256K 455.74 341.97 0.25 32.35 32.35 Bus 512K 618.10 435.25 0.30 36.50 36.50 32K 149.36 117.82 0.21 23.03 23.00 64K 346.00 220.79 0.36 26.25 26.23 128K 466.33 303.87 0.34 29.65 29.63 256K 487.02 370.80 0.24 33.36 33.36 Flower 512K 437.03 327.30 0.25 37.54 37.54 32K 246.28 217.30 0.12 34.98 35.04 64K 406.40 308.47 0.24 37.14 37.15 128K 521.44 354.06 0.32 39.22 39.22 256K 661.20 423.24 0.36 40.86 40.86 Highway 512K 332.83 324.61 0.02 42.13 42.12 32K 213.48 263.36 -0.23 21.55 21.54 64K 370.37 279.81 0.24 24.62 24.63 128K 520.11 390.53 0.25 27.95 27.95 256K 498.20 456.32 0.08 31.58 31.56 Stefan 512K 609.49 562.51 0.08 35.73 35.74

In Table 3-9, we can see that there is an expectable improvement in common cases. However, the improvement of PSNR is not obvious, and sometimes we may even have worse results. In this experiment, we know that a complicated prediction may not necessarily provide a better result for rate control. Hence, we maintain the original header bits prediction in our rate control scheme and provide an option if an accurate prediction is desired.
