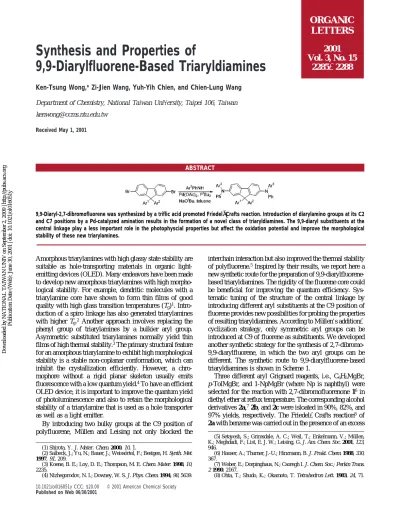

Synthesis and Properties of 9,9-Diarylfluorene-Based Triaryldiamines

(1)

Synthesis and Properties of

9,9-Diarylfluorene-Based Triaryldiamines

**Ken-Tsung Wong,* Zi-Jien Wang, Yuh-Yih Chien, and Chien-Lung Wang**

Department of Chemistry, National Taiwan UniVersity, Taipei 106, Taiwan [email protected]

Received May 1, 2001

ABSTRACT

9,9-Diaryl-2,7-dibromofluorene was synthesized by a triflic acid promoted Friedel−Crafts reaction. Introduction of diarylamino groups at its C2 and C7 positions by a Pd-catalyzed amination results in the formation of a novel class of triaryldiamines. The 9,9-diaryl substituents at the central linkage play a less important role in the photophyscial properties but affect the oxidation potential and improve the morphological stability of these new triarylamines.

Amorphous triarylamines with high glassy state stability are suitable as hole-transporting materials in organic light-emitting devices (OLED). Many endeavors have been made to develop new amorphous triarylamines with high morpho-logical stability. For example, dendritic molecules with a triarylamine core have shown to form thin films of good quality with high glass transition temperatures (Tg)1. Intro-duction of a spiro linkage has also generated triarylamines with higher Tg.2 Another approach involves replacing the phenyl group of triarylamines by a bulkier aryl group. Asymmetric substituted triarylamines normally yield thin films of high thermal stability.3_{The primary structural feature} for an amorphous triarylamine to exhibit high morphological stability is a stable non-coplanar conformation, which can inhibit the crystallization efficiently. However, a chro-mophore without a rigid planar skeleton usually emits fluorescence with a low quantum yield.4_{To have an efficient} OLED device, it is important to improve the quantum yield of photoluminescence and also to retain the morphological stability of a triarylamine that is used as a hole transporter as well as a light emitter.

By introducing two bulky groups at the C9 position of polyfluorene, Mu¨llen and Leising not only blocked the

interchain interaction but also improved the thermal stability of polyfluorene.5_{Inspired by their results, we report here a} new synthetic route for the preparation of 9,9-diarylfluorene-based triaryldiamines. The rigidity of the fluorene core could be beneficial for improving the quantum efficiency. Sys-tematic tuning of the structure of the central linkage by introducing different aryl substituents at the C9 position of fluorene provides new possibilities for probing the properties of resulting triaryldiamines. According to Mu¨llen’s addition-cyclization strategy, only symmetric aryl groups can be introduced at C9 of fluorene as substituents. We developed another synthetic strategy for the synthesis of 2,7-dibromo-9,9-diarylfluorene, in which the two aryl groups can be different. The synthetic route to 9,9-diarylfluorene-based triaryldiamines is shown in Scheme 1.

Three different aryl Grignard reagents, i.e., C6H5MgBr, p-TolMgBr, and 1-NpMgBr (where Np is naphthyl) were selected for the reaction with 2,7-dibromofluorenone 16 _in diethyl ether at reflux temperature. The corresponding alcohol derivatives 2a,7_{2b, and 2c were isloated in 90%, 82%, and} 97% yields, respectively. The Friedel-Crafts reaction8 _of 2a with benzene was carried out in the presence of an excess

(1) Shirota, Y. J. Mater. Chem. 2000, 10, 1.

(2) Salbeck, J.; Yu, N.; Bauer, J.; Weisso¨rtel, F.; Bestgen, H. Synth. Met.

1997, 91, 209.

(3) Koene, B. E.; Loy, D. E.; Thompson, M. E. Chem. Mater. 1998, 10, 2235.

(4) Nizhegorodov, N. I.; Downey, W. S. J. Phys. Chem. 1994, 98, 5639.

(5) Setayesh, S.; Grimsdale, A. C.; Weil, T.; Enkelmann, V.; Mu¨llen, K.; Meghdadi, F.; List, E. J. W.; Leising, G. J. Am. Chem. Soc. 2001, 123, 946.

(6) Hauser, A.; Thurner, J.-U.; Hinzmann, B. J. Prakt. Chem. 1988, 330, 367.

(7) Weber, E.; Dorpinghaus, N.; Csoregh I. J. Chem. Soc.; Perkin Trans.

2 1990. 2167.

(8) Ohta, T.; Shudo, K.; Okamoto, T. Tetrahedron Lett. 1983, 24, 71.

ORGANIC

LETTERS

2001

Vol. 3, No. 15

2285-2288

Downloaded by NATIONAL TAIWAN UNIV on September 2, 2009 | http://pubs.acs.org

(2)

amount of CF3SO3H for 6 h at 80°C to give

2,7-dibromo-9,9-diphenylfluorene (3a) with a yield of 88% (entry 1, Table 1). Under the same condition, the reaction of 2c with benzene

failed and led to the decomposition of the starting material. Only a low yield of 3b (less than 10%) was obtained when the same reaction mixture was stirred at room temperature overnight. However, 3b could be isolated in 56% yield after a reaction time of 30 min at 50°C (entry 4, Table 1). As a result of its electron richness, toluene reacted very efficiently with 2a, 2b, and 2c in a period of 10 min at 50°C. This led to the 9,9-diarylfluorene derivatives 3c, 3d, and 3e in good

yields (entries 2, 3, and 5, Table 1).9 _{The reactions of the}

9,9-diaryl-2,7-dibromofluorene derivatives 3a-3e with dif-ferent diarylamines were carried out in the presence of a catalytic amount of Pd(OAc)2and PtBu3in toluene at 100 °C with NaOt_{Bu as the base.}9,10 _{After column}

chromatog-raphy purification, the isolated yields for the products

4a-4g were good to excellent (Table 2). This synthetic strategy

allows us to tailor the desired properties of the products by the use of different combinations of aryl substituents at the C9 position and the diarylamino substituents at the C2 and the C7 positions of the central fluorene linkage.

The electronic absorption maxima (λmax), the emission

maxima (λem), and the quantum yields for the

9,9-diarylfluo-rene-based triaryldiamine derivatives 4 are summarized in Table 3. Triaryldiamines 4 with N-R-naphthyl-N-pheny-lamine as diarylamino substituents (4a-4e) have demon-Scheme 1

a_Et

2O, Ar1MgBr (2 equiv), reflux, 2-6 h.bCF3SO3H (2 equiv), Ar2_{H, 50}°_{C, 10-30 min; see text.}c_Pd(OAc)

2(5 mmol %), PtBu3 (20 mmol %), NaOt_{Bu (2 equiv), toluene, 100}°_{C, 4-8 h.}

Table 1. Isolated Yields for the CF3SO3H-Promoted Friedel-Crafts Reaction of the Alcohol Derivatives 2 with Benzene or Toluene

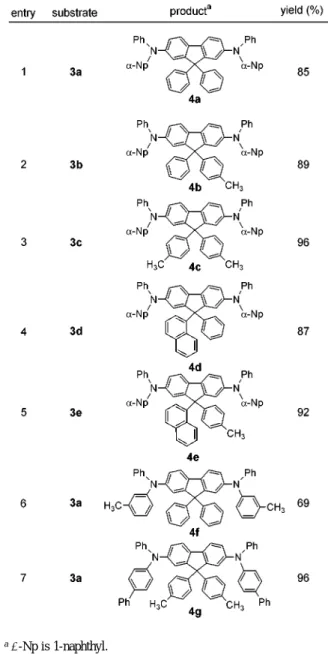

Table 2. Isolated Yields for the Pd-Catalyzed Reactions of 9,9-Diaryl-2,7-dibromofluorene 3 with Diarylamines
