Enhancing photoluminescence quenching and photoelectric properties
of CdSe quantum dots with hole accepting ligands†
I-Shuo Liu,
aHsi-Hsing Lo,
aChih-Tao Chien,
aYun-Yue Lin,
aChun-Wei Chen,
aYang-Fang Chen,*
bWei-Fang Su*
aand Sz-Chian Liou
cReceived 3rd October 2007, Accepted 10th December 2007 First published as an Advance Article on the web 3rd January 2008 DOI: 10.1039/b715253a
CdSe quantum dots have been encapped with aromatic ligands: a-toluenethiol, thiophenol, and p-hydroxythiophenol to enhance the photoluminescence (PL) quenching and photoelectric properties of the quantum dots. The aromatic ligand capped CdSe quantum dots are prepared through ligand exchange with trioctylphosphine oxide (TOPO) capped CdSe quantum dots. The XPS surface chemistry analysis and elemental analysis has confirmed the success of ligand exchange from TOPO to aromatic ligands. Both XRD and HRTEM-SAED studies indicate the crystalline structure of CdSe quantum dots not only remains but is also improved by the ligand exchange of TOPO with thiol molecules. Time resolved PL decay measurements indicate thiophenol and p-hydroxythiophenol ligands effectively quench the emission and have much shorter PL lifetimes than that of TOPO and that of a-toluenethiol. Thus, both thiophenol and p-hydroxythiophenol can act as an effective acceptor for photogenerated holes through aromatic p-electrons. Thiophenol also exhibits good charge transport behavior showing a 10-fold increase in short circuit current density (Isc) as compared with TOPO in the
photocurrent study of fabricated photovoltaic devices.
Introduction
Research concerning the size-dependent optical properties of colloidal semiconductor quantum dots has had increasing interest during the past decade because of their applications in photo-stable luminescent biological labels,1–3solar cells,4–12and
light-emitting devices.13–16The quantum dots are usually surrounded
by a ligand capping layer to prevent their coagulation. The nature of the ligand strongly affects the luminescent properties of quan-tum dots.17 Synthesized CdSe nanocrystals are covered with
organic ligands containing bulky (C8–C18) alkyl groups attached through the classic organometallic route18 and numerous
‘‘greener’’ modifications.19–27CdSe nanocrystals that are coated
with inorganic materials, such as CdS, ZnS or ZnSe layers for biological labeling applications, can improve the fluorescence quantum yield28and, in the case of ZnS or ZnSe, decrease the
toxi-city of the quantum dot. The use of a shell with higher bandgap materials such as CdS, ZnS, ZnSe, or long chain bulky alkyl group ligands (acting as a potential barrier) is not suitable for applica-tions involving charge transfer. Almost all common and readily accessible surfactants are alkyl thiols,19,29,30pyridine,31amines,19,26
phosphonic acid,32and phosphine oxides,33most of which are
electrical insulators with large bandgaps. In many examples, it is desirable to facilitate electron transfer access to the surface, while simultaneously controlling the dispersion or solubility of nanocrystals.32Earlier work has provided an interesting example
of surfactant facilitated electronic interaction, where conduction through a Au nanocrystal film was mediated by conjugated thiols with resonant energy levels, which displaced insulating alkyl thiols.34
Solar cells based on semiconductor nanocrystals are promising to be a new approach to improve the efficiency of photovoltaic devices.4–12They also show great promise for CdSe nanocrystals
of different shapes and sizes as active components of light emitting diodes13–16 and photovoltaic cells.4–12Charge transfer
at the organic/inorganic interface has been found to be enhanced because the inorganic semiconductors have greater electron affinities which are energetically favorable for the electron to transfer onto the organic materials. One problem that limits the efficiency of these devices is the bulky or insulating organic layer of the CdSe nanocrystals. Typically, the hydrophobic surface capping agents (usually consisting of long alkyl chain components) will hinder charge transfer.35A 1.1 nm thick
mono-layer of the TOPO surfactant on the surface of CdSe nanocrys-tals was sufficient to reduce electron transfer efficiency by a factor of 10 in the case of CdSe and poly(2-methoxy-5-(20 -ethylhexyloxy)-p-phenylenevinylene) (MEHPPV).4 Thus, there
is a significant need for a surfactant that can be controlled to disperse the semiconductor nanocrystals in a variety of solvents or polymers, while also permitting electron and hole transfer between nanocrystals and organic semiconductors. CdSe nano-crystals coated with an electroactive surfactant designed to facili-tate the charge transfer quickly between surroundings have been studied.32Some groups tried to wash out the bulky surfactants to
aDepartment of Materials and Engineering, National Taiwan University,
Taipei, Taiwan. E-mail: [email protected]; Fax: +886-2-33664078; Tel: +886-2-33664078
bDepartment of Physics, National Taiwan University, Taipei, Taiwan.
E-mail: [email protected]; Tel: +886-2-33665125
cCenter for Condensed Matter Sciences, National Taiwan University,
Taipei, Taiwan. E-mail: [email protected]; Tel: +886-2-33665210 † Electronic supplementary information (ESI) available: Details of crystalline structure of CdSe quantum dots after ligand exchange of TOPO with thiol molecules. See DOI: 10.1039/b715253a
form bare nanocrystals and they found that TOPO capped CdSe nanocrystals can be replaced with a hydrophilic moiety such as pyridine then dispersed into a conjugated polymer matrix.6,35
Pyridine capped CdSe nanocrystal/conjugated polymer nano-composites have been investigated extensively for their applica-tions in optoelectronics and photovoltaic devices.6
Despite the importance of surface exchange reactions with organic ligands for the application of semiconductor nanocrys-tals, the surfaces of nanocrystals are poorly understood. This is especially true with regard to how the organic capping layer influences the optical and photoelectric properties of CdSe nano-crystals. To our knowledge, most researchers studied the ligand effects on the optical properties of CdSe nanocrystals,36–46and
comparison of the photoelectric properties of different ligand-capped CdSe nanocrystals was rare.39In this paper, we examine
hole transfer from photoexcited CdSe quantum dots to hole accepting ligands: thiophenol and p-hydroxythiophenol and compare the results with none-hole accepting ligands: TOPO and a-toluenethiol. We analyzed these systems with PL spectra and time-resolved PL decay spectra. Our results suggest that thiophenol and p-hydroxythiophenol transfer the photogene-rated hole in CdSe very effectively. The results of current–voltage (I–V) measurements showed the short-circuit current density of thiophenol capped CdSe quantum dots to be an order higher than that of TOPO capped CdSe quantum dots.
Experimental
The materials used were all of the purest quality available and used as received. CdSe nanocrystals were prepared using the method described by Peng and Peng.21Briefly, CdO (0. 41 g,
99.99%, Aldrich), trioctylphosphine oxide (TOPO, 61 g, 90%, Aldrich), and hexadecylamine (HDA, 30.5 g, 90%, Tokyo Kasei) were loaded into a 250 ml flask. The mixture was then heated to about 320C under Ar flow with stirring. Once the color of the
solution changed from brick red to transparent, the temperature of the solution was cooled to 240C and a solution of Se powder
(0.25 g, 99%, Aldrich) dissolved in tri-n-butylphosphine (TBP, 5 ml 95%, Acros) was quickly injected into the flask. After the injection, the CdSe quantum dots were allowed to age at 240C
for 1 min before cooling to room temperature under Ar atmo-sphere. CdSe quantum dots were isolated by adding 15 ml of methanol (99.99%, Acros) to the cooled reaction vessel followed by centrifugation. Repeated methanol washings followed by centrifugation removed excess TOPO and obtained TOPO passi-vated CdSe quantum dot powder. This preparation typically yielded3 nm diameter CdSe quantum dots.
To modify the surface of CdSe quantum dots with different organic ligands, we employed a ligand exchange procedure. The TOPO ligand on the surface of the CdSe quantum dots was removed by repeat pyridine washing. The CdSe quantum dot powder containing TOPO was re-dispersed in pyridine (99%, Acros) to remove TOPO. Washed CdSe quantum dots were precipitated by adding excess hexane (99%, Fluka) and then isolated by centrifugation. This exchange procedure was re-peated 6 times. Most of the TOPO molecules on the surface of the CdSe quantum dots are exchanged by pyridine. To remove the surface pyridine, CdSe quantum dots were kept in vacuum overnight.
To passivate the surface of the quantum dot with thiophenol (99%, Acros) or a-toluenethiol (99%, Acros), bare CdSe quan-tum dots (0.2 g) were re-dispersed in a mixture of 25 g benzene (99%, Fluka) and 0.1 mole of either thiophenol or a-toluenethiol. The solution was left to stir for 1 day in Ar flow at 70C. At the
end of the exchange reaction, the nanocrystals were recovered as a precipitate by adding an excess of hexane to the solution. This ligand exchange cycle was repeated three times. Finally, the CdSe quantum dots passivated with thiophenol or a-toluenethiol were stored in Ar environment at10C.
For p-hydroxythiophenol capped quantum dots, bare CdSe nanocrystals (0.2 g) were re-dispersed in a mixture of 25 g methanol and 0.3 g p-hydroxythiophenol (99%, Tokyo Kasei). The reaction was left to stir for 1 day in Ar environment at 70
C. After the exchange reaction, nanocrystals were precipitated
by excess hexane. We repeated the above ligand exchange cycle three times. The nanocrystals passivated with p-hydroxythio-phenol were also stored in Ar atmosphere at10C. The yield
of the ligand exchange process was approximately 40%. The relatively low yield is due to the initial TOPO–CdSe quantum dots containing an excess amount of TOPO.
X-Ray photoelectron spectra (XPS) were recorded by using an electron spectroscope for chemical analysis system (VG Scientific ESCALAB 250). The experiments were performed under ultra-high vacuum. Both Mg and Al anodes driven at 400 W were used for this study. All scans were obtained using the 0.5 cm2
aperture. Typical surveys were collected for 5 min.
The amounts of C, H, N, and S atoms were measured by using a Perkin-Elmer 2400 Heraeus varioIII-NCSH for elemental analysis.
The crystalline structure of the quantum dots was studied using X-ray diffraction (XRD) (Philips PW3040) with filtered Cu Ka radiation (l ¼ 1.54056 A˚ ) and a JOEL JEM-1230 high resolution transmission electron microscope (HRTEM) at 200 keV.
UV-Visible absorption spectra were obtained using a Perkin-Elmer Lambda 35 UV/VIS Spectrometer. The steady-state PL spectra were measured by using a Perkin-Elmer FS-55 spectro-fluorometer. Time-resolved PL spectroscopy was performed with a time-correlated single photon counting (TCSPC) spec-trometer (Picoquant, Inc.). A pulse laser (375 nm) with an average power of 1 mW operating at 40 MHz with a duration of 70 ps was used for excitation.
Photovoltaic devices were fabricated using a sandwich structure of ITO/PEDOT : PSS (Aldrich)/CdSe quantum dots/ Al. The PEDOT : PSS was spin coated onto a pre-cleaned, patterned ITO substrate and was subsequently dried at 120C.
The CdSe quantum dots were dissolved in chlorobenzene and then spin coated on top of the dried PEDOT : PSS. The thickness of the PEDOT : PSS layer was kept at about 100 nm. The thicknesses of the TOPO capped CdSe quantum dot, a-toluenethiol capped CdSe quantum dot, and thiophenol capped CdSe quantum dot layers were 47 nm, 51 nm, and 55 nm respectively. The aluminium electrode layer was thermal evaporated onto the active layer and the electrode layer was kept at a thickness of 130 nm. The current–voltage characteriza-tion (I–V) (Keithley 2400 sourcemeter) was performed under vacuum, at 103Torr, with monochromatic illumination at a
Results and discussion
High-resolution XPS spectra were used to study the surface chemistry of ligand encapped CdSe nanoparticles (Fig. 1). The TOPO capped CdSe quantum dot has the Cd 3d5/2 peak in the range from 405 to 406eV, with a normal distribution centered at 405.6 eV which agrees with previously reported data47of 405.6
0.2 eV (Fig. 1(a)); the Se 3d peak ranged from 53 to 56 eV, with a normal distribution centered at 54.4 eV which also agrees with the literature data47of 54.6 0.2 eV (Fig. 1(b)). The Cd 3d5/2
and Cd 3d3/2 XPS spectra of different ligand capped CdSe quan-tum dots (a-toluenethiol, thiophenol, and p-hydroxythiophenol) deviate from those of the TOPO capped CdSe quantum dots. This implies their surface states are different from those of the TOPO capped CdSe quantum dots. However, their Se 3d peak positions rarely deviate from those of the TOPO capped CdSe quantum dots. It has been reported that the thiol functional groups of ligands will complex with the Cd atoms of the CdSe surfaces to form Cd–S structures.19,29–30Puzder et al. calculated
the binding energy of phosphine oxide to the CdSe quantum dot facets.48,49They found that the dominant binding interaction
is between oxygen atoms in the ligands and cadmium atoms on the quantum dot surfaces. Our results imply the ligands TOPO, thiophenol, a-toluenethiol, and p-hydroxythiophenol bind much stronger to the Cd atoms than to the Se atoms of the CdSe quantum dots. Oxide peaks as a doublet near 55 eV for Se 3d50 and 405 eV for Cd 3d47 were not observed for
exchanged ligands on CdSe quantum dots. This indicates that the ligand exchange on the quantum dots is successful and the exchanged quantum dots are in good quality. In order to check that the exchanged ligands really bond on the surfaces of CdSe quantum dots, XPS spectra of the C region were taken. The C atoms of saturated aliphatic TOPO were monitored for the C 1s peak position and found to range from 284 to 287 eV, with a normal distribution centered about 285.3 eV.51 The
C atoms of aromatic ligands were monitored for the C 1s peak positions of thiophenol, a-toluenethiol, and p-hydroxythio-phenol, and found to center about 284.7 eV.52These results imply
that the thiophenol, a-toluenethiol, and p-hydroxythiophenol were successfully capped on the surfaces of CdSe quantum dots. The 282.8 eV peak positions of thiophenol and a-toluenethiol represent the C–Si bond53from using a silicon substrate in the
XPS experiment.
The FTIR spectra of the TOPO capped CdSe quantum dots, thiophenol capped CdSe quantum dots, a-toluenethiol capped CdSe quantum dots, and p-hydroxythiophenol capped CdSe quantum dots are presented in Fig. 2. The OH vibration peak at 3430 cm1 comes from the water. Water adsorbs on the
surfaces of CdSe quantum dots because of its high surface-to-volume ratio. From Fig. 2(a), the P]O stretch of the TOPO
Fig. 1 XPS peaks of CdSe quantum dots in three regions: (a) Cd 3d, (b) Se 3d, and (c) C 1s.

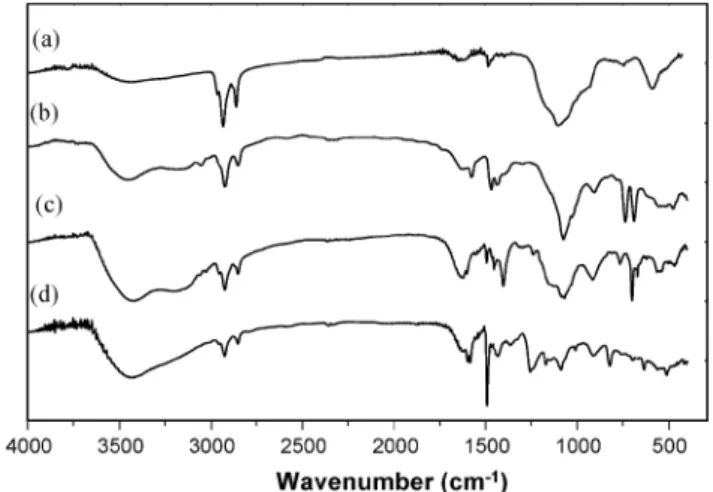

Fig. 2 FTIR spectra of (a) TOPO capped, (b) thiophenol capped, (c) a-toluenethiol capped, and (d) p-hydroxythiophenol capped CdSe quantum dots.
capped CdSe quantum dots at 1082 cm1is in agreement with the
literature.47The splitting with a shift to lower energy of the band
could imply some multidentate coordination through occupation of bridging positions over the Cd sites.47The bands at around
2925 cm1and 2850 cm1in Fig. 2(a) to (d) can be assigned as
a C–C–H stretching that implies there are still small amounts of TOPO on the CdSe quantum dots after ligand exchange. There is a band at around 3055 cm1in Fig. 2(b) to (d) which
can be interpreted as the aromatic C]C–H stretching. This implies that the ligands (thiophenol, a-toluenethiol, and p-hydroxythiophenol) cap on the CdSe quantum dot surfaces. The three peaks between 1750 cm1and 1250 cm1(thiophenol:
1575 cm1, 1469 cm1, and 1433 cm1; a-toluenethiol: 1620
cm1, 1452 cm1, and 1400 cm1; p-hydroxythiophenol: 1583
cm1, 1492 cm1, and 1435 cm1) in Fig. 2(b) to (e) come from
the aromatic C]C bending. The 1076 cm1peak in Fig. 2(b),
the 1068 cm1 peak in Fig. 2(c), and the 1081 cm1 peak in
Fig. 2(d) come from the remnants of TOPO. In Fig. 2(b) to (d), we do not observe the S–H peak at about 2572 cm1. This implies
that the thiol bond breaks and the sulfur then bonds to the Cd atom, –S–Cd.54
To determine the amount of ligands per weight of CdSe quan-tum dots, elemental analysis was performed. Because there is only one S atom per each molecule of thiophenol, a-toluenethiol, and p-hydroxythiophenol respectively, we can determine the concentration of ligand by moles of S atoms per 100 g CdSe quantum dots (Table 1). If we assume that the TOPO ligands on the surface of CdSe quantum dots were completely replaced by thiophenol, a-toluenethiol, and p-hydroxythiophenol ligands respectively, then the amount of CdSe per mole of each ligand can be determined. Finally, the moles of S atoms for each ligand on the surface of CdSe quantum dots should be the same. Table 1 shows that the concentration of S atoms for each ligand is simi-lar. This result also indicates the ligand exchange between TOPO and the other ligand is quite complete. The crystalline structures and morphologies of CdSe quantum dots with different ligands were studied by XRD and high-resolution transmission electron microscopy (HRTEM). The results show the crystalline structure of CdSe quantum dot not only remains but is also improved by the ligand exchange of TOPO with thiol molecules. The details are summarized and discussed in the ESI.†
The optical properties of CdSe quantum dots with different ligands were studied by UV-Vis absorption spectroscopy and PL spectroscopy. To avoid thickness and geometry effects, the optical density of absorption and PL intensity were measured in solution within cuvette cells at the same quantum dot concen-tration. The samples were prepared by dissolving quantum dots at 0.05% by weight in chlorobenzene except for p-hydroxythio-phenol capped CdSe which was dissolved in ethanol. The exci-tonic absorption peak at about 560 nm (Fig. 3) exhibits a blue shift with respect to that of the bulk CdSe due to the quantum
confinement effect. The p-hydroxythiophenol capped CdSe quantum dots in ethanol showed a higher absorption than other ligand capped CdSe quantum dots in chlorobenzene, due to their different solubility behaviors. The total absorption of colloid particles consists of two contributions: absorption and scatter-ing. The relatively poor solubility of hydrophilic p-hydroxythio-phenol capped CdSe quantum dots results in greater scattering than the other quantum dots which results in greater absorption. The absorption intensities of CdSe quantum dots with different ligands remain similar, while the yield of the PL emission behaves significantly differently (Fig. 4). The PL intensity of CdSe quantum dots is affected by the type of ligand with a decreasing order of TOPO > a-toluenethiol > thiophenol > p-hydroxythiophenol. From the research, the decrease of PL intensity of thiol capped CdSe quantum dots compared to TOPO capped CdSe quantum dots can be explained by the lower energetic position of the valence band for CdSe resulting in hole trapping of the photogenerated hole on the thiol molecule.46As
we compare thiophenol and p-hydroxythiophenol with a-tolue-nethiol, PL quenching is observed. p-Hydroxythiophenol has the largest PL quenching effect. Since the aromatic rings in thiophenol and p-hydroxythiophenol are effective quenchers of CdSe emission, this suggests that they are capable of directly intercepting one of the charge carriers, thus disrupting the radiative recombination process as shown in eqn 1 and 2.
CdSe + hv / CdSe(h + e) / CdSe + hv0 (1)
Table 1 Mole concentration of S atom per 100g CdSe for different ligands
Ligand Moles of S per 100 g CdSe
Thiophenol 0.1489
a-Toluenethiol 0.1339
p-Hydroxythiophenol 0.1373

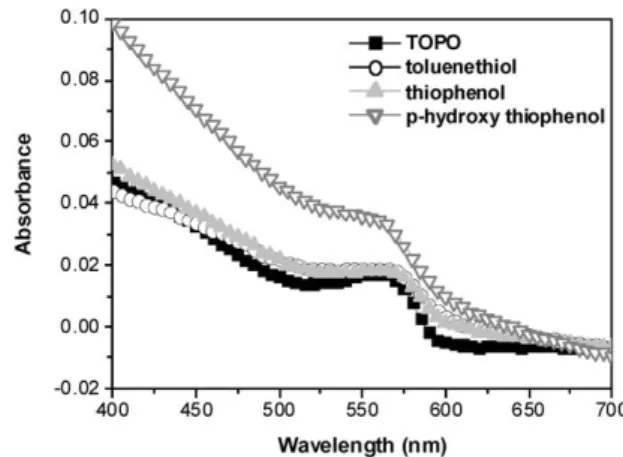

Fig. 3 Absorption spectra of CdSe quantum dots with different ligands.
CdSe(h) + thiophenol or p-hydroxythiophenol / CdSe + thiophenol+or p-hydroxythiophenol+ (2)
Since the reduction potential of thiophenol is 0.006 V vs. NHE,55,56 it can effectively scavenge the photogenerated holes
from the CdSe surface. The valence band edge of CdSe quantum dots is expected to be around + 1.2 V vs. NHE. Both the size quantization effect and surface bound ligands are expected to shift the valence band to a more positive potential which will be a stronger oxidant than the bulk. This shift in valence band is likely to be #0.5 V. Thus, from eqn (1), when the photon is absorbed by the CdSe quantum dot, an excited electron–hole pair exciton will form. The photogenerated hole in the CdSe quantum dot will transfer to the ligand, thiophenol or p-hydroxy-thiophenol (eqn (2)). The electron will be located in the CdSe region and the hole will be located in the thiol region as shown in Fig. 5. When the hole is trapped on the thiol ligands, radiative recombination of the exciton is not possible resulting in a strongly reduced PL intensity. If the valence band of the semiconductor nanocrystal is situated at lower energies than the thiol redox energy level, the hole trapping from the semiconductor nanocrys-tal to a thiol will be energetically favorable. CdSe can efficiently convert thiols into disulfides by a photocatalytic reaction.57First,
a thiol molecule that is strongly adsorbed at the CdSe surface will trap a photogenerated hole. Hole trapping on a thiol molecule results in the creation of a thiyl radical, and then two thiyl radicals can be converted into a disulfide.
We further probed the interaction between CdSe and ligands by monitoring the emission decay using a 375 nm laser pulse as the excitation source. The emission intensity recorded at the emission maximum (Fig. 6) exhibited a multiexponential decay and was analyzed using biexponential decay kinetics which can be expressed by eqn (3).
F(t)¼ a1exp(t/t1) + a2exp(t/t2) (3)
The explanation for the origin of multiexponential emission decay of metal chalcogenides has been studied in detail from the trapping sites within the nanocrystal.58–63 Surface defects
give rise to trap states that lie within the bandgap and complicate the emission dynamics. Excitation of CdSe promotes an electron
high in the conduction band, and then the excited electron relaxes quickly to the bottom of the conduction band. The exciton emission arises from radiative relaxation of these elec-trons to the ground state and contributes to the fastest lifetime decays. However, these conduction band electrons may be loca-lized in shallow trap states. These electrons in shallow trap states may repopulate the conduction band or thermalize into deeper trap states. From the former case, the lifetime is extended; the latter contributes to nonradiative mechanisms. A combination of all of these processes along with differences between the indi-vidual nanocrystals in a population gives rise to multiexponen-tial emission dynamics that occur over a nanosecond time scale and were observed in this experiment. For the TOPO ligand, the CdSe quantum dots exhibit a lifetime of 2.79 ns (a1 ¼
0.402) and 16.73 ns (a2¼ 0.523), respectively. For the other three
ligands, the emission lifetimes (t1 and t2) were decreased. Of
these, thiophenol and p-hydroxythiophenol showed the most significant decrease. Therefore, the charge separations at the interfaces between ligands and CdSe quantum dots for thio-phenol and p-hydroxythiothio-phenol are quicker than for TOPO and a-toluenethiol interfaces. From eqn (2), photogenerated holes will transfer from quantum dot to thiophenol or p-hydroxy-thiophenol ligands very quickly. a-Toluenethiol contains an insulating methylene linkage between the aromatic ring and the thiol. This linkage cannot transfer charge for excitons obtained from a-toluenethiol capped CdSe quantum dots. However, the lifetime of a-toluenethiol capped CdSe is shorter than that of TOPO capped CdSe. This implies that a small amount of charge separation is available through the tunnel effects of aromatic ring p-electrons in a-toluenethiol which are unavailable in TOPO. These results are consistent with the reported phenomenon that the radiative lifetimes of thiol capped CdSe quantum dots are much smaller than those of TOPO capped CdSe quantum dots.46
To compare the emission lifetimes of the different ligand capped CdSe quantum dots, we determined their average life-times (hti) using eqn (4).
hti ¼Paiti2/Paiti (4)
By substituting the values of a1, a2, t1, and t2into eqn (4), we
obtained the average lifetime of each quantum dot. The results are summarized in Table 2. The emission lifetimes of these three ligand capped CdSe quantum dots in ascending order
Fig. 5 A schematic diagram of the energy levels and charge separation of excitons at the surface of a thiol capped CdSe quantum dot.
are: p-hydroxythiophenol capped CdSe quantum dots (3.36 ns) < thiophenol capped CdSe quantum dots (5.79 ns) < a-toluene-thiol capped CdSe quantum dots (11.49 ns) < TOPO capped CdSe quantum dots (16.73 ns). The observed decrease in the PL intensity and emission lifetime is indicative of the fact that the ligand interaction with CdSe quantum dots results in charge transfer quenching. Thus, the sequence of the charge separation rates among the ligands is in the reverse order of their emission lifetimes.
To demonstrate that efficient hole transfer and charge trans-port are present in aromatic ligand capped CdSe quantum dots, we fabricated a photovoltaic device by spin-coating a solu-tion of 2% by weight CdSe quantum dots onto an indium tin oxide glass substrate coated with PEDOT : PSS, then vacuum deposited an aluminium electrode (Fig. 7(a)). Three photovoltaic devices were fabricated using an active layer consisting of TOPO capped CdSe quantum dots, a-toluenethiol capped CdSe quan-tum dots, and thiophenol capped CdSe quanquan-tum dots. Since the p-hydroxythiophenol ligand capped CdSe quantum dots were dissolved in ethanol that redissolved the PEDOT : PSS layer and caused the device to fail, we have no photovoltaic device results of p-hydroxythiophenol ligand capped CdSe quantum dots shown here. Fig. 7(b) shows a schematic energy level dia-gram for an ITO/PEDOT : PSS/CdSe/Al device, assuming that CdSe quantum dot acts as intrinsic materials. The ionization potential and electron affinity of CdSe quantum dots are estimated from the bulk values.64 As the electron–hole pairs
are generated by incident light, electrons move toward the aluminium electrode and holes move toward the ITO electrode. Fig. 7(c) shows the corresponding external quantum efficiency (EQE) of the CdSe quantum dot photovoltaic devices with different ligands. The EQE spectral response matches the lowest energy feature in the absorption spectrum for each sample.65The
device begins absorbing below 600 nm, and the shape of the photocurrent spectral response follows the absorption spectrum. No photocurrent is observed for excitation below the band edge suggesting that optical excitation of charges directly out of sub-bandgap trap states makes a negligible contribution to the photocurrent. The spectral response is clear evidence that photo-generated carriers originate from electron–hole pairs created within individual quantum dots. The EQEs of thiophenol capped CdSe quantum dots, a-toluenethiol capped CdSe quantum dots, and TOPO capped CdSe quantum dots at 560 nm are 11.6%, 3.6%, and 1.7% respectively, consistent with the charge transfer efficiency of thiophenol > a-toluenethiol > TOPO. The charge transport improves substantially to yield an enhancement by a factor of approximately 10, as the bulky ligand (TOPO) capped CdSe quantum dots were replaced by aromatic ligand (thio-phenol) capped CdSe quantum dots. The low EQE found using TOPO capped CdSe quantum dots is primarily a consequence of
Table 2 Emission lifetimes of CdSe quantum dots with different ligands
Ligand t1(a1) t2(a2) Avg lifetime/ns
TOPO 2.79 (0.402) 18.36 (0.523) 16.73
a-Toluenethiol 1.66 (0.648) 14.21 (0.273) 11.49
Thiophenol 0.81 (0.822) 8.51 (0.143) 5.79
p-Hydroxythiophenol 0.62 (0.909) 5.29 (0.151) 3.36

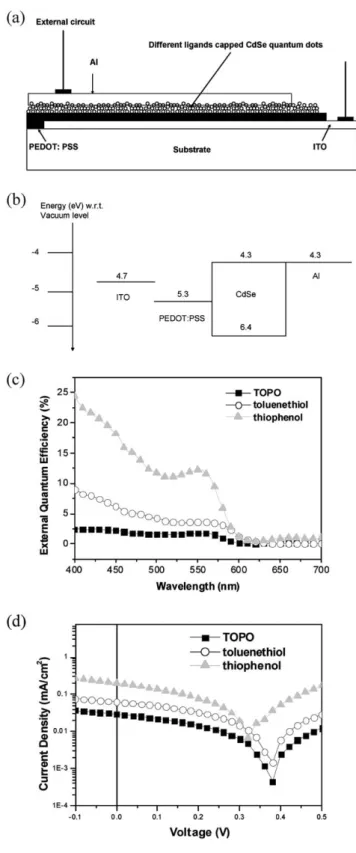

Fig. 7 (a) The device structure consists of an active layer of CdSe quan-tum dots with different ligands sandwiched between an aluminium elec-trode and a hole transport layer of PEDOT : PSS, which was deposited on an indium tin oxide glass substrate. (b) Energy level diagram for an ITO/PEDOT : PSS/CdSe/Al device. (c) External quantum efficiencies of CdSe quantum dots with different ligands. (d) The current–voltage char-acteristics of the devices containing CdSe quantum dots with different ligands under monochromatic illumination of 560 nm at 2.64 mW cm2.
the fact that charge transfer is low compared to that in the aromatic ligand capped CdSe quantum dots. The TOPO barrier inhibits transport from quantum dot to quantum dot before recombination occurs. I–V characteristics of fabricated devices were generated under monochromatic illumination of 560 nm (at the first exciting peak of CdSe quantum dots) at 2.64 mW cm2, and shown in Fig. 7(d). The I
scvalues of different ligands
in increasing order are: thiophenol > a-toluenethiol > TOPO. These results are consistent with the lifetime and EQE data described above. p-Electrons in the thiophenol can facilitate efficient charge transport and charge separation, thus an order increase in Iscwas observed as compared with the Iscof
insulat-ing TOPO. The efficiency of charge separation at the interface between thiophenol ligand and CdSe quantum dot can be further enhanced by a factor of 3 with respect to that in the Isc of
a-toluenethiol. In the thiophenol capped CdSe quantum dot device, the fill factor is 0.26, and the open-circuit voltage is approximately 0.32 V, giving a power conversion efficiency of 0.62% at 2.64 mW cm2. Although there are no conjugated
poly-mers in our active layer, the short-circuit current density is compa-rable to literature results on organic bilayer or hybrid structure photovoltaic cells.66–69This implies that our device made from
thiophenol capped CdSe quantum dots exhibited the highest Isc
indicating efficient hole transfer and charge transport. However, the electron transport in the device is limited by the small size of the quantum dots. In principle, the efficiency of the device can be further optimized by increasing the size and changing the shape of the nanocrystals. Our different ligand capped CdSe quantum dots will be mixed with organic semiconductors as an active layer to study their photovoltaic properties in the future.
Conclusion
We have successfully synthesized aromatic ligand capped CdSe quantum dots through ligand exchange with TOPO capped CdSe quantum dots. The hole transfer behavior between colloidal CdSe quantum dots and ligands was studied by PL and time-resolved PL decay. We find that thiophenol and p-hydroxy-thiophenol effectively scavenge the photogenerated hole in CdSe, quenching quantum dot luminescence. The exciton lifetimes of both thiophenol and p-hydroxythiophenol are shorter than that of TOPO indicating the photogenerated holes in CdSe are effectively scavenged through the aromatic p-electrons. The exciton lifetime of a-toluenethiol is shorter than that of TOPO, but larger than those of both thiophenol and p-hydroxythio-phenol. Thus, the electron still can transfer from the aromatic ring to the CdSe quantum dots by tunneling through the methy-lene linkage between the aromatic ring and CdSe. Photovoltaic devices made of CdSe quantum dots with different ligands under monochromatic illumination at 560 nm (at the first exciting peak of CdSe quantum dots) at 2.64 mW cm2show that the
short-circuit current density of thiophenol capped CdSe quantum dots is 10 times larger than that of TOPO capped CdSe quantum dots and about 3 times larger than that of a-toluenethiol capped CdSe quantum dots, which indicates effective hole transport with aromatic ligands and quick charge separation at the inter-face of CdSe quantum dots. We have demonstrated that directly linking ligands to CdSe quantum dots will enhance their PL quenching and photoelectric properties.
Acknowledgements
This work was supported by the National Science Council of Republic of China (NSC95-2120-M-002-004) and US Air force (AOARD064-044). Mr An-Jey Su of University of Pittsburgh helped us to edit this manuscript.
