中文摘要

關鍵字：資訊檢索伺服器, 資料庫更新, 工作量管理隨著網際網路的蓬勃發展，其資訊流通的速度與使用者造成的工作量使資訊檢索系統面臨新的問題：資料庫的更新無法隨著資料本身的特性或使用者的需求而動態地調整，以及系統的資源，無法在資料更新的工作量與使用者查詢所需的工作量之間，有效地交叉利用。這使得現今的資訊檢索系統很難在不停止服務的前提下完成資料庫更新。本計劃將以轉置檔案(inverted file)為基礎索引架構，設計一個可動態擴充的資訊檢索系統, 使其具備動態管理儲存資料 (content) 和工作量 (workload) 的機制，並在一定的效能保證下，完成資料庫更新的需求。其中的議題有: (1) 可動態擴充的資訊儲存結構 (2) 動態配置與更新資料庫內容 (3) 儲存資料的時效性與回收策略 (4) 動態工作量分析與工作排程

(4)

英文摘要

Keywords: Information Retrieval System, database update, workload management

The rapid growth of the Internet brings new challenges for the designers of an information retrieval system. First, the system cannot dynamically update database contents according to the characteristics of data itself or to the demands of Web users. Second, the system resource cannot be fully utilized among the workload of database updates and the workload of users’ retrieval. These challenges make the database update a difficult job under the condition that the system keeps serving on-line users.

We investigate an inverted-file-based information retrieval system which can be dynamically updated and expanded under the certain guarantee of retrieval-performance. In this system, we design the content manager and the workload manager with

(1) incremental data structures to store expanded data,

(2) disk placement and refreshing mechanism for the database content, (3) identification and collection for the stale data, and

(5)

1. Introduction

The explosive growth in Web uses has brought new challenges for most information retrieval (IR) systems. One of the challenges is that a large document collection requires a specialized indexing structure for efficient information retrieval. Equally important is that such an indexing structure requires an efficient incremental-update mechanism.

1.1 Current methods and problems

An indexing structure used by many IR systems is the inverted file [5]. In an inverted file, for each distinct word (also known as “term”) t in the text collection, there is a corresponding list (called the inverted list) of the form <t;f_t;D₀,D₁,D₂,...,D_f_t₋₁>, where identifier Di indicates the

document that contains t, and frequency ft indicates the total number of documents in which t

appears. When a user sends a request containing some query terms to an IR system, the system searches for these query terms in the inverted file to see which documents satisfy the request, and returns these documents’ identifiers to the user. Zobel et al. [5] showed that in terms of the querying time, used space, and functionality, inverted files perform better than other indexing structures.

The inverted file, however, does not support efficient incremental updates [2]. When new documents are added to an existing collection, the inverted lists of the terms appearing in those documents must be updated, ideally incrementally, by appending the new documents’ identifiers to the tails of the lists. This update process is difficult for an inverted file because the inverted lists in the file are typically laid out sequentially and contiguously on disk with no free space between each other [2]. Any increase in length of an inverted list requires complex storage relocation and expensive free-space management.

Most conventional IR systems update the inverted file by periodically re-indexing the entire collection or by periodically merging the old, dated inverted file with the new, batched inverted files for newly arrived documents. However, as the rate of new document arrival grows rapidly in most applications today, rebuilding or merging the inverted files becomes too expansive and inefficient.

Sparing free space at the end of each inverted list for future expansion has been proposed [2][3]. In [2], the sizes of the allocated free space are determined by powers of 2 bytes (e.g., 24, …, 213), whereas in [3], the sizes of the free space are determined by the multiple of current list length (e.g., 1.5x, 2x). In case the pre-allocated free space of an inverted list is used up, a larger space is allocated and the contents of the old list are removed to the new space; the frequency of relocations can hence be reduced. Both of these approaches, however, result in much wasted space in an inverted file, and also poor performance in information retrieval.

In fact, the size of the free space allocated for each inverted list cannot be determined easily due to a complex trade-off between relocation reduction and space utilization. If too much free space is allocated, the possibly wasted space enlarges the inverted file and slows down the file accesses. Conversely, if the free space is insufficient, frequent relocations cause high update costs. The best policy allocates the free space for each inverted list according to the individual space

(6)

requirement.

1.2 Research goal

In this report, we propose a statistics-based approach to allocate the free space for an inverted list when it is relocated. This approach is based on the estimation of the space requirement in a time window. The time window for an inverted list is defined as the time interval between two sequential relocations; that is, from the time a free space is allocated to the time the list needs to be relocated again. Whenever a time window exhausts, a suitable size of the free space for the next allocation is predicted based on the space usage and update request rate in this time window. The goal of the prediction is to best guarantee that an inverted list has sufficient reserved space to amortize relocation frequency, and also to keep space utilization high. Simulation results show that the proposed space-sparing approach significantly avoids reorganization for an inverted file, and in the meantime, the wasted space can be well controlled such that the performance of file accesses would not be affected.

This report is organized as follows. In Section 2, we model the relocation frequency and space utilization in this inverted file problem, and show how to allocate the spare space for a growing inverted list. In Section 3, we present the simulation results. Finally, Section 4 presents our conclusions.

2. Allocating spare space for a growing inverted list

To study the spare space allocation problem for a growing inverted list, we use relocation frequency and wasted space to model the update cost and space utilization.

2.1 Relocation frequency and wasted space

For a growing inverted list, relocation frequency represents how often the relocation occurs, and wasted space represents how much allocated space is unused over time. Figure 1 shows an example of relocation occurrences and space usage in the ith time window for an inverted list. In Figure 1(a), the horizontal axis represents time, and we assume that the ith time window starts from ti to ti+1. A vertical mark represents a relocation occurrence. If RFi denotes the

relocation frequency in the ith time window for an inverted list, we have

t t RF i i i = ₋ +1 1 _. ₍₁₎

In Figure 1(b), horizontal axis represents time, and ∆ti ,k represents the time between the kth and

the (k+1)th identifier arrivals in the ith time window. The vertical axis represents unused free space, which starts from ni down to 0. Without lost of generality, we assume that the unit of ni

is number of slots and each slot stores an identifier. The identifier arriving at ti triggers the

relocation, causing ni slots to be allocated for the list growth. At this time, the first identifier is

placed in the first slot, and the free space remained is n_i−1 slots until the second identifier arrives. Each incoming identifier is placed in a slot, causing the free space to be used up after the

i

(7)

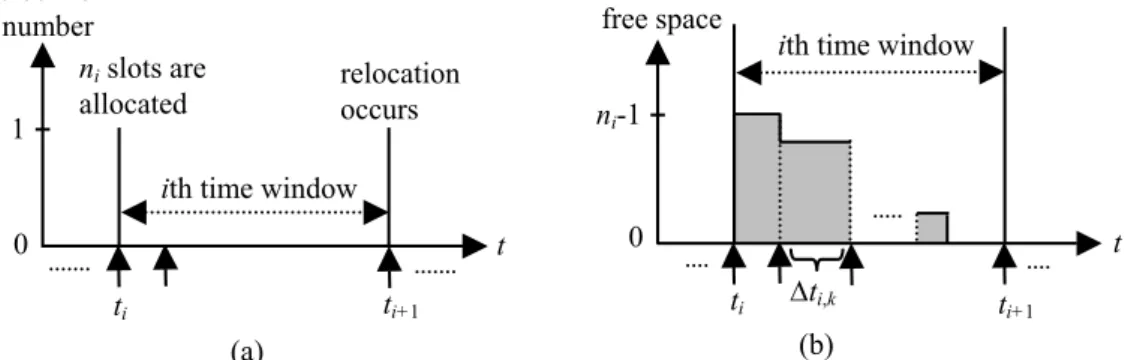

Figure 1. For a growing inverted list: (a) the relocation occurrences in the ith time

window, (b) the space usage in the ith time window.

incoming identifier is arrived. Let WSi denote the accumulated free space (i.e., wasted space)

over the ith time window, we have

∑ − ×∆ = − = 1 1( ) , i n k i i k i n k t WS . (2)

Assume that identifier arrivals in a time window follow a Poisson distribution pattern. Then the expected relocation frequency is

[ ]

i i i n RF E = λ , (3) where λi (arrivals/second) denotes the rate of identifiers being added to an inverted list over the

ith time window. Similarly, the expected wasted space in the ith time window can be expressed as

[ ]

λi i i i n n WS E 1 2 ) ( 2 × − = (4)

by taking expected values on both sides of Equation (2). From Equations (3) and (4), if we can predict λi and assign reasonable values to E[RFi] and E[WSi] at the start of the ith time

window, then the value of ni can be determined at the same time.

To give reasonable values to λi, E[RFi] and E[WSi], we collect the statistics from last two

time windows for prediction. The statistics include the identifier arrival rates, relocation frequency and wasted space over the (i-2)th and (i-1)th time windows.

For λi, we assign a predicted value, λi' , to it by

   +∆ +∆ > = − − − − − − − otherwise 0 if 1 2 , 1 1 2 , 1 1 ' i i i i i i i i λ λ λ λ λ λ , (5)

where ∆λi−1 ,i−2=λi−1−λi−2. In (5), if the identifier arrival rate is increasing (or decreasing)

between the last two time windows, i.e., ∆λ_i_{− i}₁_,₋₂ >0 (or <0), it is assumed that the arrival rate will continue to increase (or decrease) by the same amount. This is the case for λ_i₋₁+∆λ_i₋₁_,_i₋₂ >0 . Or when the arrival rate drops to λ_i₋₁+∆λ_i₋₁_,_i₋₂ ≤0, the arrival rate is assumed unchanged in the next time window.

For E[RF_i] and E[WS_i], we assign predicted values, E[RFi]p and E[WSi]p respectively, to

them by ) , min( ] [RF_i _p = RF_i₋₁ RF_i₋₂ E , and (6) t ni-1

ith time window free space

0

∆ti,k

(b) ni slots are

allocated relocation _occurs

ti ti+1

ith time window relocation number 1 0 (a) t ti ti+1

(8)

) , min( ] [WS_i _p = WS_i₋₁WS_i₋₂ E . (7)

Note that E[RFi] is inversely proportional to n (see Equation (3)). If the identifier arrival rate _i

tends to increase in the ith time window, assigning a smaller value to E[RF_i] (as shown in Equation (6)) will result in either ni >ni−1 or ni >ni−2. This makes RFi likely to be reduced in

the future. On the other hand, E[WSi] is proportional to (ni2−ni) (see Equation (4)). If the

identifier arrival rate tends to decrease in the ith time window, assigning a smaller value to

] [WS_i

E (as shown in Equation (7)) will result in either ni <ni−1 or ni<ni−2. This makes WSi

likely to be reduced in the future.

There are two reasons to predict λi, E[RFi], and E[WSi] based on statistics collected in last

two time windows. First, collecting more recent data can help to measure the space requirement more accurately. In fact, the identifier arrival behavior fluctuates in the real world; using dated information is harmful for prediction. Second, using statistics from more time windows requires more storage for each inverted list. This makes the space usage inefficient. In the next section, we will present how n can be determined by using these predicted values. _i

2.2 Determining ni

By applying Equations (5), (6), and (7) to Equations (3) and (4), we have two candidate values of ni, say ni,(3) and ni,(4), respectively. The first candidate is derived from the consideration of

reducing relocation frequency, and the latter from the consideration of reducing wasted space. To determine ni, we define a weighted function

) 4 ( , ) 3 ( , i i i n n n =α⋅ +β⋅ (8) where α+β =1, and (α ,β) can be determined adaptively by system demands. For the systems which have intensive arrivals of database updates, we suggest ≥1

β

α _{to favor larger} i n for

reducing the frequency of updating inverted lists. Contrarily, for the systems which have intensive arrivals of information retrieval, we suggest <1

β

α _{to favor smaller} i

n for reducing the

time of retrieving inverted lists.

To support the approach described above, new fields are added into an inverted list as shown in Table 1. These new fields are used to store the statistical data from the (i-1)th and (i-2)th time windows. By these data and with a run-time clock t_Now, all variables in Equations (3)-(8) can be derived. (Due to space limit, we omit the details.)

3. Simulation and evaluation

Simulation is used to generate performance data. In performance evaluation, factors to be examined include relocation occurrences, storage space, and retrieval time for an inverted file.

(9)

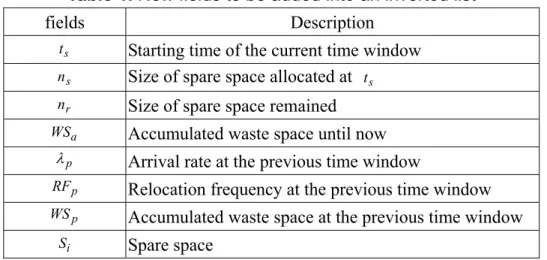

Table 1. New fields to be added into an inverted list

fields Description

s

t _{Starting time of the current time window} s

n Size of spare space allocated at ts r

n _{Size of spare space remained} a

WS _{Accumulated waste space until now} p

λ _{Arrival rate at the previous time window} p

RF _{Relocation frequency at the previous time window} p

WS _{Accumulated waste space at the previous time window} i

S _{Spare space}

3.1 Simulation environment

We use parts of WT10g, about 460,000 documents, to be our test collection. (WT10g is a widely distributed collection and has been included in TREC Web Test Collections [6].) We implement a Poisson arrival model to simulate the behavior of those documents being incrementally added into the depository. Then the proposed statistics-based space sparing approach is applied in constructing the inverted file for indexing those documents. The relocation occurrences and unused free space are monitored over time for performance evaluation.

3.2 Simulation results

Figure 2 shows the relocation counts and space utilization in constructing the inverted files by three approaches. The relocation count denotes the number of relocations occurred in related inverted lists when adding new documents, whereas the space utilization denotes the ratio of actual used space size to total inverted file size (containing those unused spare space and statistical data). To examine that the spare space affects the time of retrieving an inverted list, we compare our statistics-based approach within (α,β)=(1/4,3/4) against the approach proposed in [2] (denoted as “2x” in the figure), and the approach within 1.5 times of current list length as

Figure 2. Simulation results in constructing the inverted file for indexing parts of WT10g: (a)

relocation count, (b) space utilization. 0 100 200 300 400 500 1 6 11 16 21 26 31 36 41 46 Number of documents (x104) Rel oc at io n count ( x10 3 ) 1.5x 2.0x proposed(1/4,3/4) 0 20 40 60 80 100 1 6 11 16 21 26 31 36 41 46 Number of documents (x104₎ Sp ac e ut il izat io n ( % ) 1.5x 2.0x proposed(1/4,3/4) (a) (b)

(10)

spare-space size proposed in [3] (denoted as “1.5x” in the figure).

Figure 2(a) shows that the relocation counts of our proposed approach with (α,β)=(3/4,1/4)

approximate those of the “2.0x” approach, but smaller than those of the “1.5x” approach. In Figure 2(b), however, the space utilization of the statistics-based approach is better than that of the “2.0x” approach by about 16%, and also better than that of the “1.5x” approach by about 10%. According to our simulation, the decrease in space utilization for the “2.0x” approach causes the average time of retrieving an inverted list to be increased by about 42% compared with the inverted file without spare space, and for the “1.5x” approach by about 34%. (The average retrieving time for our proposed approach increases only about 10%).

We examine the simulation data, and determine if the proposed statistics-based space allocation approach has its advantages. Simulation data say that the statistics-based approach requires about 10% more relocations than the “2.0x” approach does. Although more relocations look like a disadvantage, this is really transparent to the user. What the user really cares are: the inverted file constructing time, the inverted file look-up time, and the storage space required. The proposed statistics-based approach outperforms the “1.5x” and “2.0x” approaches in these three metrics: For the overall time of constructing an inverted file (assume the documents are processed one by one), the increasing ratios of the statistics-based approach versus the other two approaches are

Time statistics-based : Time1.5x : Time2.0x

=54.22 hrs : 62.54 hrs : 61.67 hrs=1 : 1.15 : 1.14.

While for the average time of retrieving an inverted list, the speed ratios of the statistics-based approach versus the other two approaches are

Speed statistics-based : Speed 1.5x : Speed2.0x

= ms 5.61 1 _: ms 6.79 1 _: ms 7.18 1 _{=1.28 : 1.06 : 1.}

And, finally, for the storage space, the space requirement ratios of the statistics-based approach versus the other two approaches are

Space statistics-based : Space2.0x : Space 1.5x

=135 MB : 152MB : 166 MB=1 : 1.13 : 1.23.

All of these advantages come from the fact that while the “2.0x” or “1.5x” approach suggests a simple way of increasing the storage space for an expanding full inverted list, this simplicity may result in too generous allocations for slow growing inverted lists, but too short-sighted allocations for other lists of the fashion terms. The experiment data show that most allocations are too generous performed. With this improperly wasted storage space, its side effect is even most devastating.

The statistics-based approach provides not only flexibility, but also stability, in spare space allocation. The flexibility is due to that each and every inverted list, upon its running out of expansion space, can be allocated new spare space tailored all for its specific needs. And the stability comes from the fact that:

1. The newly allocated spare space is determined by both the previous allocation amount, and how soon this amount was consumed. With these considerations, we are able to control the amount of allocated spare space (or space utilization in turn) and how soon we expect the next

(11)

allocation to occur (or relocation frequency).

2. This space is also determined based on the size of two previous allocations. Referencing back to two time windows has the following characteristics. It gives more accurate allocation log data. It also reveals the tendency of change in allocation space requirements. While more trace-back data may be difficult to analyze and even confusing, two sets of data are very suggestive. And finally, the incurred calculation in making decisions is so simple that the overhead is negligible.

4. Conclusion

We propose a run-time, statistics-based approach to allocate spare space in an inverted file for future updates. The approach determines the size of spare space according to the trade-offs between space efficiency and space utilization. By adaptively balancing the trade-offs, the proposed approach can incrementally update an inverted file as new documents arrive, and in the meantime, the size of unused free space can be well controlled such that the performance of file access would not be affected. The extractive of the proposed approach is to use simple statistical data to meet the space requirements for an inverted file. This is particularly suitable for in-place updating the indexing structure of all kinds of modern large-scale IR systems, e.g., search engines, or in real-time information systems, e.g., news servers.

5. References

[1] T. King, Dynamic Data Structure, Academic Press, Inc. 1992.

[2] E. W. Brown, J. P. Callan, W. B. Croft, “Fast Incremental Indexing for Full-Text Information Retrieval,” Proc. of the 20th International Conference of Very Large Databases, Sep. 1994, pp. 192-202.

[3] A. Tomasic, H. Garcia-Molina, K. Shoens, “Incremental Updates of Inverted Lists for Test Document Retrieval,” In R. T. Snodgrass and M. Winslett, editors, Proceedings of the 1994. [4] K. Shoens, A. Tomasic, H. Garcia-Molina, “Synthetic workload performance analysis of

incremental updates,” Proc. of the 17th Inter. ACM SIGIR Conf. on Research and Development in Information Retrieval, July 1994, pp. 329-338.

[5] J. Zobel, A. Moffat, K. Ramamohanarao, “Inverted Files Versus Signature Files for Text Indexing,” ACM Transactions on Database Systems. Vol. 23, No. 4, 1998, pp. 453-490.

[6] TREC Web Test Collections, http://trec.nist.gov/data.html [7] S. Ross, Stochastic Processes, John Wiley & Sons, Inc. 1996.

[8] Witten, I. H., Moffat, A., and Bell, T.C., Managing Gigabytes - Compressing and Indexing Documents and Images. 2nd Ed., Morgan Kaufmann Publishers, Inc. 1999.

[9] M. Ester, J. Kohlhammer, H.-P. Kriegel, “The DC-Tree: A Fully Dynamic Index Structure for Data Warehouses,” Proceeding of the 16th International Conference on Data Engineering, 2000, pp. 379-388.
