GaN-based surface-emitting lasers using high contrast grating

(1)

GaN-based surface-emitting lasers using

high contrast grating

Tien-Chang Lu*, Shing-Chung Wang, Tzeng-Tsong Wu, Shu-Hsien Wu and Yu-Cheng Syu

Department of Photonics & Institute of Electro-Optical Engineering, National Chiao Tung

University,

Hsinchu 30050, Taiwan

*[email protected]

ABSTRACT

GaN-based surface-emitting lasers (SELs) using high contrast grating (HCG) with AlN/GaN distributed Bragg reflectors were reported. The laser device achieved a threshold energy density of about 0.56 mJ/cm2_{and the lasing} wavelength was at 393.6 nm with a high degree of polarization of 73% at room temperature. The resonant mode and polarization characteristics matched to the theoretical prediction. GaN-based SELs using HCG supported by the Fano resonance can be potential for development of blue surface emitting laser sources

Keywords- GaN, surface-emitting laser, high contrast grating, Fano resonance.

1. INTRODUCTION

In recent years, sub-wavelength high contrast grating (HCG) has been widely investigated owing to its advantageous optical properties. By changing the HCG parameters such as grating period, height and width, high reflectivity reflectors with broad stopband width and specific polarization characteristics could be obtained and are useful for many applications [1-5]. Based on the superior properties, HCGs not only serve as high reflectivity reflectors for vertical cavity surface-emitting lasers (VCSELs) but also provide unique characteristics including polarization selection, wavelength tuning and fast modulation speed [2, 5].

On the other hand, for development of high power surface-emitting lasers (SELs), sub-wavelength HCGs could be employed for high-quality factor (Q) resonators with in-plane oscillation over a large area [6, 7]. In 2008, Zhou et al. have demonstrated the GaAs-based membrane HCG high-Q resonators at low temperature, where the GaAs-based membrane HCGs were fabricated by selectively etching and e-beam lithography. High Q factor supported by the Fano resonance was obtained to be 14000 by optical pumping at 4K. However, the lasing action was not achieved in GaAs-based membrane HCGs [6].

In the development of SELs toward to the short wavelength region, GaN-based VCSELs and photonic crystal surface emitting lasers (PCSELs) have received much attention recently [8-14]. The simple geometry of membrane HCG high-Q resonators can be applied for realizing high power SELs. However, it is still challenge to fabricate GaN-based membrane HCG structures due to the immature etching process and specifically epitaxial structure [15]. In this report, GaN-based SELs using HCG with AlN/GaN distributed Bragg reflectors (DBRs) were designed, fabricated and demonstrated. Without using the suspended membrane structure, the AlN/GaN DBRs can play an important role as the low refractive index layer for confining the optical mode in the HCG cavity. Finally, the specific lasing mode was compared to the band diagram and mode pattern calculated by plane wave expansion (PWE) [16] and finite element methods (FEM) [17].

2. SIMULATION

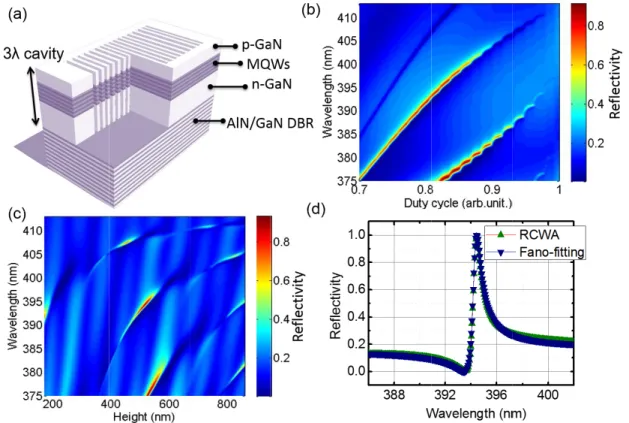

Schemes of GaN-based SELs using HCG are shown in Fig. 1(a). We used rigorous coupled-wave analysis (RCWA) to calculate the corresponding asymmetric reflectivity spectra with respect to the different duty cycle (the grating width divided by the grating period) and the grating height for the TE polarization of the GaN-based HCG. First, the grating period was designed to be 345 nm to bring the Fano resonance approaching to the gain peak of multiple quantum wells (MQWs). Figure 1(b) shows the calculated reflectivity spectra mapping with respect to the duty cycle. To meet the target wavelength of about 400 nm, the duty cycle was set to be around 0.8 to 0.86 for fabrication tolerance. Figure 1(c) shows the calculated reflectivity spectra mapping versus the grating height. The calculated results show the number of reflectivity peaks would increase while increasing the grating height due to the onset of higher order Fabry-Perot modes. In order to fit

Invited Paper

CCC code: 0277-786X/14/$18 · doi: 10.1117/12.2042064 Proc. of SPIE Vol. 8995 89950E-1

(2)

0 0 0 0 N A c) co Reflectivity Reflectivity 0 s 0 5 0 5 0 5 0.7 0.8 Duty 1.0 ).8 ).s ).4 ).2 ).0 388 V 0.9 cycle (arb.unit.) w - RCWA - Fano -fitting 400 m) ,avity L10 405 00 ;95 ;90 25 20 i75200 4(00 600 Height (nm)

- p-Ga

e- MQ

-.n-C

--AIN/Ga

&00 (b) 411 IN 40: WS c 401

3a

-6539: 391 )N DBR 5 38: 381 37: (rl1 our target wav

1(d) shows th cavity) and 0. of Fano reson in lateral dire optical chann scattering wou an asymmetri in a high Q fa Fano resonanc where ω0 an factor of the c curve based o case was calcu

Figure 1 (a width divi grating wi by RCWA

The GaN-plane 2-in sap 10 pairs of photolumines fabrication ste deposition (P structure was velength, the g he reflectivity .82. The reflec nance [5]. For ection, the Br nel is the Fab

uld generate a c line shape o actor which is ce equation: nd γ are the ce cavity can be c on Eq. (1) ma ulated to be 53 a) Schemes of G ided by the grat ith period: 345n A and fitting res

-based SELs u pphire substra f InGaN/GaN scence (PL) sp

eps, the as-gro PECVD) as th patterned by grating height spectrum wh ctivity spectru GaN-based S ragg scattering bry-Perot sca a flat band spe of the spectrum s beneficial fo enter frequenc calculated by u atches quite w 33. GaN-based SEL ting period). (c) nm, filling facto ults by the Fano

using HCG we ate. The epitax N multiple q pectrum of M own sample w he hard mask electron-beam t was selected hen the grating um shows an a SELs using HC g would cause attering induc ectrum. These m. This phenom or the laser ope

F Ω

cy and the wi using Q = ω0/ well to the sim

Ls using HCG. ( ) Reflectivity sp or: 0.82, grating o resonance equ 3. E ere grown by a xial structure c quantum well MQWs had a p

was first depos and spin-coa m lithography to be around g period, heig asymmetric li CG, the first o e the narrow ed by index e two different menon could c eration. The c and Ω dth of the nar /γ. The olive c mulated reflecti (b) Reflectivity pectra mapping g height: 520 nm uation. EXPERIM a metal-organi consisted of a ls (MQWs), peak centered sited a 300 nm ated the

poly-on the PMMA 490 to 530 nm ght and duty c ne shape from optical channel band width s difference in t channels wo confine the op calculated refl Ω , rrowband, q i urve in Fig. 1 ivity spectra o y spectra mappin versus grating h m. The olive and

ENT ic chemical va a 25-pair AlN/ and a 100 d at 405 nm w m-thick SiNx la -methyl metha A, and then et m which was c cycle were set m 0 to 1 which

l is the Bragg spectrum. On n the vertical ould reach the ptical mode in ectivity spectr (1) s the Fano as (b) representin obtained by R ng as a function height. (d) The d navy curves sh apor depositio /GaN DBR, a nm-thick p with a linewid ayer by plasm acrylate (PMM tched by react closed to a 3λ t to be 345 nm h was referred scattering ind the other han direction, th same final sta the structure w rum can be co symmetry para ng the fitted F RCWA. The Q n of duty cycle ( reflectivity spe how the simula

on (MOCVD) 320 nm-thick p-GaN layer. dth of about ma-enhanced c MA) photores tive ion etchin

λ cavity. Figure m, 520 nm (3λ d to the feature duced by HCG nd, the second he Fabry-Pero ate resulting in well and resul ompared to the

ameter. The Q Fano resonance Q factor in thi

(the grating ectra for the ation results system on a c k n-GaN layer The typica 25 nm. In the chemical vapo sist. The HCG ng (RIE) down e λ e G d ot n lt e Q e s c-r, al e or G n

Proc. of SPIE Vol. 8995 89950E-2

(3)

a -4 345 hm

06

08

J Energy Dais (b: 1.0

ty

(m1/ani) 490 nm (b) -2 1.7 360 380 Wa)

tool

'5Eth h diuWJIIYVI,LALVda, 375Eth

f40

400 420 440 velength (nm) to the SiNx l inductively co and tilted ang height of HC pulse width o the experimen of about 20 μ surface or by coupled devi measurement. Figure 2 T HCG were Figure 3 ( GaN-base 0.875 Eth, The input observed whe condition of G VCSELs of a perfect mode SELs using H found that the energy density nm. The emis layer. Then, t oupled plasma gle scanning e CG were estim f ~0.5 ns at a nts were carrie μm to cover th y a fiber with ce (Jobin-Yv .

The (a) planar an e estimated to b

(a) The input-o d SELs using H Eth and 1.75 Eth -output charac en the thresho GaN-based H about 1.15 mJ confinement HCG was abov e lasing area c y. When it wa ssion spectrum the HCG patt a (ICP) dry etc electron micro mated to be 34 repetition rate ed out at room he HCG patte a 600 μm cor on IHR320 S nd (b) tilted ang be 345 nm, 0.82 output character HCG was abov h. The full width

4. cteristics curv old energy de HCG SELs wa J/cm2 _{[9]. The} in HCG stru ve the thresho covered most as above the th m right below

terns were etc ching. The tot oscope (SEM) 45 nm, 0.82 a e of 1 kHz was m temperature ern. The μ-PL re in the norm Spectrometer)

gle SEM images and 490 nm, re ristics of GaN-e thGaN-e thrGaN-eshold h at half maxim RESULT ve of GaN-bas ensity was ab as superior to e low threshol uctures. The ri old condition. of the HCG p hreshold cond the threshold ched down to tal area of HC images of the and 490 nm, r s used as the o . The laser be signal was co mal plane of t . The spectra s of GaN-based espectively. based SELs us condition. (b) mum (FWHM) o TS AND DI

sed SELs usin out 0.56 mJ/c the GaN-base ld condition c ight inset of F The white da pattern. Figure dition, one dom d condition of o penetrate th CG region was e device. It ca espectively. T optical pumpin am pumped o ollected by a the sample an al resolution d SELs using HC sing HCG. The The measured of lasing peak at SCUSSION g HCG is sho cm2_{. Compare} ed PCSELs o can be attribut Fig. 3(a) show ash line repres

e 3(b) shows t minated lasing f GaN-based S he MQWs lay s about 20 μm2 an be seen tha The 355 nm p ng source in th obliquely onto 15X objective nd fed into a s was about 0. CG. The period inset shows th spectra with di t 1.75 Eth is 0.88 NS own in Fig. 3( ed to the prev of about 2.7 m ted to the Fan ws the CCD i ents the whol the lasing spe g peak was ob SELs using HC yer of about 4 2_{. Figure 2 sho} at the period, d pulse Nd:YVO he measureme the devices w e lens normal spectrometer w .07 nm for s

d, duty cycle and

he CCD images fferent pumpin 8 nm. (a). A clear thr vious reports, mJ/cm2_{[12] an} no resonance image when t le HCG area a ectra with diff bserved and lo

CG is plotted

490 nm using ows the plana duty cycle and O4 laser with a ent system. Al with a spot size

to the sample with a charge spectral outpu d height of s when the g power of reshold can be , the threshold nd GaN-based supporting the he GaN-based and it could be ferent pumping ocated at 393.6 in Fig. 4. The g ar d a ll e e e-ut e d d e d e g 6 e

(4)

1 I I .

O

co

cc)

.,-O .,-O .,-O

1

Il i

. .

N O

O O

i.... .- .... ....N

t...-...-- ..

388 <

CO CO

(D N

(D

cn

=xperimi

=ano-fitti

400

spectrum with can thus be es is shown in F value. In order t (DOP) and di DOP results. of the lasing p to the resona measured outp on the rotation The divergenc Figure 4 T curve show Since the the photonic b experimental the lower ban approached to be identified a bar.In additio The mode pat also indicates electric field would provid coupling [7]. ultralow thres h navy curve stimated by fit Figure 4 as the to further com ivergence angl The DOP is d peak. The DO ance direction tput intensity. nal stage. The ce angle of Ga The PL spectra ws the fitting re HCG structur band structure lasing mode o nd-edge positio o zero in the f as the anti-sym on, the FEM w ttern shows se s the AlN/GaN is parallel to de perfectly m The perfect shold condition which exhibit tting the spect e olive curve. mprehend the le were measu defined as (Ima OP can be calcu n of electrical The output in e angle resolut aN-based SEL (navy curve) o esult by Fano-re re can be treat e of our GaN-of GaN-based on in Fig. 6(a fourth order ba mmetric mode was used to ca everal nodes a N DBRs could the grating b ode confinem mode confine n of GaN-base ts an asymme trum with the The extracted laser characte ured at the nor ax-Imin)/(Imax+Im ulated to be 73 fields only p ntensity was co tion of the rot Ls using HCG

of GaN-based S esonance equatio

ted as one dim -based SELs u d SELs using H a). The Bragg

and. The lowe e. On the cont

alculate the m and antinodes d provide the bar which can ment in HCG, r ement suppor ed SELs using

etric line shape Fano resonanc d Q factor wa eristics of GaN rmal direction

min) where Imax 3%. The high parallel to the ollected by a tation stage wa was measured ELs using HCG on. The Q facto mensional pho using HCG as HCG was loca scattering of er band-edge p trary, the symm mode pattern o s which can be e mode confin n confirm the resulting in de rted by Fano g HCG achiev e is the charac ce as the equa s estimated to N-based SEL n to the sample x and Imin are t DOP of GaN-e grating bar. fiber with a 6 as about 0.5 d d to be 12˚. G when it was or was calculate otonic crystal, s shown in Fi ated at 0.877, surface emissi position revea metric mode w of GaN-based e referred to t nement in the e DOP results estructive inte resonance co ved in this exp

cteristic of Fa ation described o be 394 whic s using HCG e surface. Figu the maximum -based SELs u . Figure 5(b) 600 μm core n degree for dive

below the thres ed to be 394.

we can use th ig. 6(a). The n corresponding ion would occ als the resonan would only sh SELs using H the anti-symm HCG cavity. s. Furthermore erference in th ould facilitate eriment. ano resonance d in Eq. (1). T ch was close to , the degree o ure 5(a) shows m and the mini

using HCG ca describes the normal to the s ergence angle shold condition he PWE meth normalized fre g to the fourth cur when the nce mode in th how the nodes HCG, as show metric mode. T The resonanc e, the anti-sym he far-field wi the high Q . The Q facto The fitted curve

o the designed of polarization s the measured imum intensity an be attributed e angle versu sample surface measurement n. The olive hod to simulate equency of the h order band in group velocity he HCG could in one grating wn in Fig. 6(b) The simulation ce direction o mmetric mode ith little outpu

factor and the or e d n d y d us e t. e e n y d g ). n of e ut e

(5)

2000 1500 1000 500 0 -15 -1'

e

(b)

)5 F

-5 0 Angle 5 11 (Deg) 320 300 280 260 240 220

0

00

t

Frequency (a/2) v

O O O 0

-A. -A. N O 00 ,,,_ O N) .. I_1 I l

J_ N

' 1 .

;.

1 . , 4 M ".../ 340 0

order

.,-.-::

0.1 C 20 40 6 140 160 1 ) 2 0.3 Kx IV O -1 03 O O O O Intensity (arb.unit.)

cr

0.4 Figure 5 ( above the DOP and d Figure 6 ( represents (b) The ca grating pe In summa temperature. S lasing wavele phenomenon angle and deg lasing mode c drawn much a

(a) The degree o threshold cond divergence ang

(a) The calcula s the light line. T

alculated mode riod.

ary, GaN-bas Supporting by ength was loc and the qualit gree of polari conformed to attention due

of polarization dition. The dete

le were measur

ated band struct The red dot line e pattern of GaN

sed SELs usin y the Fano reso cated at 393.6 ty factor was e ization were m

the one dime to many prac (DOP) and (b) ection direction ed to be 73% an ture of GaN-ba es represent the aN-based SELs 5. C ng HCG wit onance, the lo nm. The asy extracted to b measured to b ensional photo tical applicati the divergence n was normal to nd 12°, respecti

ased SELs usin different order using HCG us CONCLUS th AlN/GaN ow threshold e ymmetric PL s e 394. Further be 12˚ and 73 onic band dia ions such as la

e angle of the G o the surface o ively.

ng HCG using r bands and the sing the finite e SION

DBRs were energy density spectrum was rmore, the las 3%, respective agram and mo aser display, l

GaN-based SEL of the GaN-base

the PWE meth blue circle indi element method demonstrated y was measure observed ind ing characteri ely. Finally, th ode pattern. Si laser printer, h Ls using HCG w ed SELs using

hod. The blue d cates the forth o d. The paramet d and investig ed to be 0.56 m dicating the F istics such as t he specific su ince GaN-bas high density o when it was HCG. The dashed line order band. ter a is the gated at room mJ/cm2_{and the} ano resonance the divergence urface emitting sed SELs have optical storage m e e e g e e, and the next generation micro/pico-projectors, we believe the GaN-based SELs using HCG have the great potential for accomplishment of low threshold, high power short wavelength coherent light sources in the near future.

(6)

ACKNOWLEDGMENT

The authors would like to gratefully acknowledge Prof. Koyama at Tokyo Institute of Technology for his fruitful suggestion. This work was supported in part by the Ministry of Education Aim for the Top University program and by the National Science Council of Taiwan under Contract No. NSC99-2622-E009-009-CC3 and NSC98-2923-E-009-001-MY3.

REFERENCES

[1] Mateus, C. F. R., Huang, M. C. Y., Deng, Y., Neureuther, A. R., and Chang-Hasnain, C. J., “Broad-band mirror (1.12-1.62 μm) using a subwavelength grating,” IEEE Photon. Technol. Lett 16, 518 (2004).

[2] Huang, M. C. Y., Zhou, Y., and Chang-Hasnain, C. J., “A surface-emitting laser incorporating a high-index-contrast subwavelength grating,” Nat. Photonics 1, 119 (2007).

[3] Huang, M. C. Y., Zhou, Y., and Chang-Hasnain, C. J., “A nanoelectromechanical tunable laser,” Nat. Photonics 2, 180 (2008).

[4] Karagodsky, V., Pesala, B., Chase, C., Hofmann, W., Koyama, F., and Chang-Hasnain, C. J., “Monolithically integrated multi-wavelength VCSEL arrays using high-contrast gratings,” Opt. Express 18, 694 (2010).

[5] Chase, C., Rao, Y., Hofmann, W., and Chang-Hasnain, C. J., “1550 nm high contrast grating VCSEL,” Opt. Express 18, 15461 (2010).

[6] Zhou, Y., Huang, M. C. Y., Chase, C., Karagodsky, V., Moewe, M., Pesala, B., Sedgwick, F. G., and Chang-Hasnain, C. J., “High-index-contrast grating (HCG) and its applications in optoelectronic devices,” IEEE J. Sel. Top. Quantum Electron. 15, 1485 (2009).

[7] Zhou, Y., Moewe, M., Kern, J., Huang, M. C. Y., and Chang-Hasnain, C. J., “1550 nm high contrast grating VCSEL,” Opt. Express 16, 17282 (2008).

[8] Lu, T. C., Chen, S. W., Wu, T. T., Tu, P. M., Chen, C. K., Chen, C. H., Li, Z. Y., Kuo, H. C., and Wang, S. C., “Continuous wave operation of current injected GaN vertical cavity surface emitting lasers at room temperature,” Appl. Phys. Lett. 97, 071114 (2010).

[9] Lu, T. C., Wu, T. T., Chen, S. W., Tu, P. M., Li, Z. Y., Chen, C. K., Chen, C. H., Kuo, H. C., Wang, S. C., Zan, H. W., and Chang, C. Y., “Characteristics of Current Injected GaN-Based Vertical-Cavity Surface-Emitting Lasers,” IEEE J. Sel. Top. Quantum Electron. 17, 1594 (2011).

[10] Kasahara, D., Morita, D., Kosugi, T., Nakagawa, K., Kawamata, J., Higuchi, Y., Matsumura, H., and Mukai, T., “Demonstration of Blue and Green GaN-Based Vertical-Cavity Surface-Emitting Lasers by Current Injection at Room Temperature,” Appl. Phys. Express 4, 072103 (2011).

[11] Matsubara, H., Yoshimoto, S., Saito, H., Jianglin, Y., Tanaka, Y., and Noda, S., “GaN photonic-crystal surface-emitting laser at blue-violet wavelengths, ” Science 319, 445 (2008).

[12] Lu, T. C., Chen, S. W., Lin, L. F., Kao, T. T., Kao, C. C., Yu, P., Kuo, H. C., Wang, S. C., and Fan, S. H., “GaN-based two-dimensional surface-emitting photonic crystal lasers with AlN/GaN distributed Bragg reflector,” Appl. Phys. Lett. 92, 011129 (2008).

[13] Wu, T. T., Weng, P. S., Hou, Y. J., and Lu, T. C., “GaN-based photonic crystal surface emitting lasers with central defects,” Appl. Phys Lett. 99, 221105 (2011).

[14] Kawashima, S., Kawashima, T., Nagatomo, Y., Hori, Y., Iwase, H., Uchida, T., Hoshino, K., Numata, A., and Uchida, M., “GaN-based surface-emitting laser with two-dimensional photonic crystal acting as distributed-feedback grating and optical cladding,” Appl. Phys. Lett. 97, 251112 (2010).

[15] Kim, J., Kim, D. U., Lee, J. H., Jeon, H. S., Park, Y. S., and Choi, Y. S., “AlGaN membrane grating reflector,” Appl. Phys. Lett. 95, 021102 (2009).

[16] Kwon, S. H., Ryu, H. Y., Kim, G.-H., Lee, Y. H., and Kim, S. B., “Photonic bandedge lasers in two-dimensional square-lattice photonic crystal slabs,” Appl. Phys. Lett. 83, 3870 (2003).

[17] Jin, J., [The Finite Element Method in Electromagnetics], Wiley, New York, (2002).

[18] Moharam, M. G., and Gaylord, T. K., “Rigorous coupled-wave analysis of planar-grating diffraction,” J. Opt. Soc. Am. 71, 811 (1981)

[19] Fano, U., “Effects of Configuration Interaction on Intensities and Phase Shifts, ” Phys. Rev. 124, 1866 (1961). [20] Rybin, M. V., Khanikaev, A. B., Inoue, M., Samusev, A. K., Steel, M. Yushin, J., G., and Limonov, M. F., “Bragg

scattering induces Fano resonance in photonic crystals,” Photonics and Nanostructures–Fundamentals and Applications 8, 86 (2010).

[21] Chua, S. L., Chong, Y. D., Douglas Stone, Soljačić, A., M., and Bravo-Abad, J., “Low-threshold lasing action in photonic crystal slabs enabled by Fano resonances,” Opt. Express 19, 1539 (2011).
