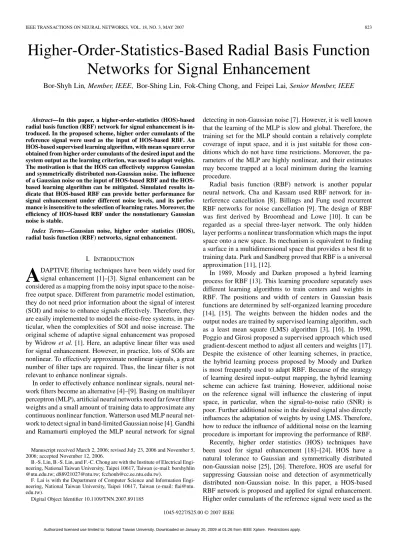

Higher-Order-Statistics-Based Radial Basis Function Networks for Signal Enhancement

Higher-Order-Statistics-Based Radial Basis Function

Networks for Signal Enhancement

Bor-Shyh Lin, Member, IEEE, Bor-Shing Lin, Fok-Ching Chong, and Feipei Lai, Senior Member, IEEE

Abstract—In this paper, a higher-order-statistics (HOS)-based radial basis function (RBF) network for signal enhancement is in-troduced. In the proposed scheme, higher order cumulants of the reference signal were used as the input of HOS-based RBF. An HOS-based supervised learning algorithm, with mean square error obtained from higher order cumulants of the desired input and the system output as the learning criterion, was used to adapt weights. The motivation is that the HOS can effectively suppress Gaussian and symmetrically distributed non-Gaussian noise. The influence of a Gaussian noise on the input of based RBF and the HOS-based learning algorithm can be mitigated. Simulated results in-dicate that HOS-based RBF can provide better performance for signal enhancement under different noise levels, and its perfor-mance is insensitive to the selection of learning rates. Moreover, the efficiency of HOS-based RBF under the nonstationary Gaussian noise is stable.

Index Terms—Gaussian noise, higher order statistics (HOS), radial basis function (RBF) networks, signal enhancement.

I. INTRODUCTION

A

DAPTIVE filtering techniques have been widely used for signal enhancement [1]–[3]. Signal enhancement can be considered as a mapping from the noisy input space to the noise-free output space. Different from parametric model estimation, they do not need prior information about the signal of interest (SOI) and noise to enhance signals effectively. Therefore, they are easily implemented to model the noise-free systems, in par-ticular, when the complexities of SOI and noise increase. The original scheme of adaptive signal enhancement was proposed by Widrow et al. [1]. Here, an adaptive linear filter was used for signal enhancement. However, in practice, lots of SOIs are nonlinear. To effectively approximate nonlinear signals, a great number of filter taps are required. Thus, the linear filter is not relevant to enhance nonlinear signals.

In order to effectively enhance nonlinear signals, neural net-work filters become an alternative [4]–[9]. Basing on multilayer perceptron (MLP), artificial neural networks need far fewer filter weights and a small amount of training data to approximate any continuous nonlinear function. Watterson used MLP neural net-work to detect signal in band-limited Gaussian noise [4]. Gandhi and Ramamurti employed the MLP neural network for signal

Manuscript received March 2, 2006; revised July 23, 2006 and November 5, 2006; accepted November 12, 2006.

B.-S. Lin, B.-S. Lin, and F.-C. Chong are with the Institute of Electrical Engi-neering, National Taiwan University, Taipei 10617, Taiwan (e-mail: borshyhlin @ntu.edu.tw; [email protected]; [email protected]).

F. Lai is with the Department of Computer Science and Information Engi-neering, National Taiwan University, Taipei 10617, Taiwan (e-mail: flai@ntu. edu.tw).

Digital Object Identifier 10.1109/TNN.2007.891185

detecting in non-Gaussian noise [7]. However, it is well known that the learning of the MLP is slow and global. Therefore, the training set for the MLP should contain a relatively complete coverage of input space, and it is just suitable for those con-ditions which do not have time restrictions. Moreover, the pa-rameters of the MLP are highly nonlinear, and their estimates may become trapped at a local minimum during the learning procedure.

Radial basis function (RBF) network is another popular neural network. Cha and Kassam used RBF network for in-terference cancellation [8]. Billings and Fung used recurrent RBF networks for noise cancellation [9]. The design of RBF was first derived by Broomhead and Lowe [10]. It can be regarded as a special three-layer network. The only hidden layer performs a nonlinear transformation which maps the input space onto a new space. Its mechanism is equivalent to finding a surface in a multidimensional space that provides a best fit to training data. Park and Sandberg proved that RBF is a universal approximation [11], [12].

In 1989, Moody and Darken proposed a hybrid learning process for RBF [13]. This learning procedure separately uses different learning algorithms to train centers and weights in RBF. The positions and width of centers in Gaussian basis functions are determined by self-organized learning procedure [14], [15]. The weights between the hidden nodes and the output nodes are trained by supervised learning algorithm, such as a least mean square (LMS) algorithm [3], [16]. In 1990, Poggio and Girosi proposed a supervised approach which used gradient-descent method to adjust all centers and weights [17]. Despite the existence of other learning schemes, in practice, the hybrid learning process proposed by Moody and Darken is most frequently used to adapt RBF. Because of the strategy of learning desired input–output mapping, the hybrid learning scheme can achieve fast training. However, additional noise on the reference signal will influence the clustering of input space, in particular, when the signal-to-noise ratio (SNR) is poor. Further additional noise in the desired signal also directly influences the adaptation of weights by using LMS. Therefore, how to reduce the influence of additional noise on the learning procedure is important for improving the performance of RBF. Recently, higher order statistics (HOS) techniques have been used for signal enhancement [18]–[24]. HOS have a natural tolerance to Gaussian and symmetrically distributed non-Gaussian noise [25], [26]. Therefore, HOS are useful for suppressing Gaussian noise and detection of asymmetrically distributed non-Gaussian noise. In this paper, a HOS-based RBF network is proposed and applied for signal enhancement. Higher order cumulants of the reference signal were used as the

Fig. 1. RBF networks for signal enhancement.

input of HOS-based RBF to reduce the influence of additional noise on clustering of the input space, such that an HOS-based supervised learning algorithm for weights is developed. The mean square error obtained from HOS of the desired signal and the system output was used as the learning criterion. Therefore, the influence of additional noise on adaptation of weights can be effectively reduced.

This paper is organized as follows. RBF network for signal enhancement is introduced in Section II. In Section III, the defi-nition and several properties of HOS are introduced. HOS-based RBF is also introduced here. Sequentially, the implement of HOS-based RBF for the third-order statistics is illustrated. In Section IV, simulated results and discussions for the efficien-cies of signal enhancement of RBF and HOS-based RBF are provided. Finally, conclusions are drawn in Section V.

II. RBF NETWORKS FORSIGNALENHANCEMENT

Consider the measured signal of the primary sensor, satisfying

(1) where and , respectively, denote SOI and uncorrelated Gaussian noise at iteration . The estimate of can be obtained by using the scheme of signal enhancement derived by Widrow et al. [1], [3], shown in Fig. 1. In this scheme, RBF can be treated as a noise-free model. The delayed version of is commonly used as the reference signal , i.e.,

(2) In general, the unit of sampling period is used as the predic-tion depth [2], [3]. Other ways of selecting prediction depth

were discussed in [2].

(4) where denotes the Euclidean norm, denotes the center in the th hidden node, and

is the input vector of RBF. Here, denotes the width of centers and can be defined as the variance of the input vector [3], i.e.,

(5) where denotes the mean of .

The center can be obtained by self-organized learning procedure, such as -means clustering algorithm [14], [15], which is given in (6), shown at the bottom of the page.

Here, is the learning rate for centers. Because the reference vector contains , it is straightforward that the centers obtained by -mean algorithm are directly influenced by , in particular, when the SNR of the input vector is poor.

The weight vector is commonly adapted by LMS al-gorithm [3]. In LMS alal-gorithm, the mean square output error is defined as the learning criterion. The normalized LMS algorithm is given by

(7) where denotes the learning rate for weights. However, the system output noise is also correlated with , i.e.,

(8) From (8), we found that (7) will be affected directly by . Moreover, will also be amplified when increases. It can be viewed as a gradient noise amplification problem. Thus, using LMS algorithm to adapt weights may become inefficient under poor SNR.

III. HOS-BASEDRBF NETWORKS

A. Basic Scheme of HOS-Based RBF Network

Higher order cumulants are defined as the coefficients in the Taylor series expansion of the joint characteristic

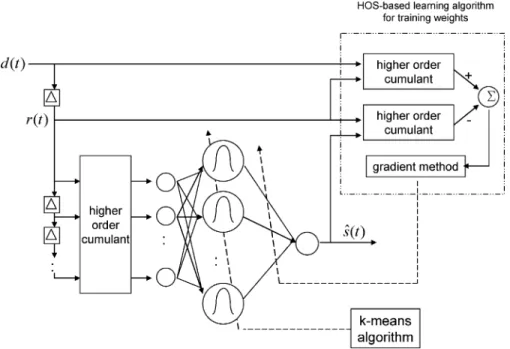

Fig. 2. Basic scheme of HOS-based RBF networks.

function of a random process [26]. For a set of real variables , their joint cumulant of order

can be defined by Cumulant

(9) where

is their joint characteristic function and denotes the expec-tation operation.

For a set of real stationary variables , , the th-order cross cumulant of can be represented by

Cumulant

(10) If the random variables , can be di-vided into any two or more statistically independent groups,

then . If is a Gaussian

process, then all cumulants of , whose order , are identical to zero [25], [26].

Since and are independent, under the assumption that there exists th-order cumulant of the reference signal and it is not identically zero, it can be represented by

(11) If is a Gaussian noise, then

. Therefore, higher order cumu-lant of the reference signal can effectively close to that of SOI. By this property, the basic idea behind HOS-based RBF, shown in Fig. 2, is that the higher order cumulant of the reference

signal is used as the input of HOS-based RBF to reduce the influence of on clustering. The output of the th hidden node in HOS-based RBF can be represented by

(12) where denotes the matrix of higher order cumulants of . Here, the width of centers is defined as the variance

of .

B. HOS-Based Learning Algorithm for Weights

In the HOS-based learning algorithm, the mean square error of the two higher order cumulants of and is used as the learning criterion to reduce the influence of on the adaptation of weights

Equation (13) can be rewritten in a matrix form

(14) Here, and are, respectively, a matrix and a column vector, and denotes the number of

points in the set . In order to minimize , the gradient-descent method was used. The gradient of is given by

Fig. 3. Pattern of ECG in MIT/BIH database and its power spectrum.

Finally, the adaptation formula of HOS-based learning algo-rithm can be given by

(16) From (13), under the assumption of that approximates to , the learning criterion will be close to optimal. Moreover, from (13), the influence of on can be eliminated. Therefore, in HOS-based learning algorithm, the gradient noise amplification problem can be effectively reduced.

C. Implementation of HOS-Based RBF Network

In this paper, HOS-based RBF with the third-order statistics was used for the signal enhancement. To implement HOS-based RBF, the estimate of the third-order cumulant [26] can be recur-sively computed by

(17) If is a zero-mean signal, the estimate of the third-order cumulants can be simplified to

(18) Here, the operation is defined as

(19) where is a forgetting factor. The implementation of the HOS-based RBF with the third-order statistics is summarized in Table I.

IV. RESULTS ANDDISCUSSION

A. For Stationary Gaussian Noises

In this section, several simulations are considered to compare the performance of the RBF with the normalized LMS (RBF-NLMS) algorithm [3] and HOS-based RBF with the third-order statistics for the signal enhancement under Gaussian noise. The electrocardiogram (ECG) pattern at the Massachusetts Institute of Technology/Boston’s Beth Israel Hospital (MIT/BIH) data-base, shown in Fig. 3, was used as SOI. Its power spectrum dis-tributes mainly in less than 150 Hz. To generate simulated trials,

the colored Gaussian noise distributed from 90 to 135 Hz was superimposed on SOI.

Fig. 4 is the result of the signal enhancement obtained by

RBF-NLMS ( , , , and )

and HOS-RBF ( , , , ,

, , and ) under the SNR of 10 dB. In this paper, the definition of SNR is given by

(20) where and , respectively, denote the magnitudes of SOI and noise. Fig. 4(a) is the noisy simulated trial and its power spectrum. It shows that the additional Gaussian noise heavily overlapped SOI. However, as we expected, Fig. 4(b) and (c) clearly shows that the HOS-based RBF can effectively enhance SOI under colored Gaussian noise. In this case, RBF-NLMS provides about 20-dB reduction for Gaussian noise, whereas HOS-based RBF can provide about 30-dB reduction. Obviously, the performance for signal enhancement can be effectively im-proved by HOS techniques.

To investigate the effect of using the higher order cumulants of the reference signal as the input of HOS-based RBF, compar-ison of performance for various methods with different learning rates was carried out. Here, the average of mean square error of 50 randomly selected results was used to present per-formance. As shown in Fig. 5, under a fixed learning rate , HOS-based RBF can provide the better performance. Moreover, the performance of HOS-based RBF is more insensitive to the selection of learning rate . This result indicates that using higher order cumulants of the reference signal as the input of HOS-based RBF can provide more stable clustering of training data under poor SNR.

Next, the effect of using the HOS-based learning algorithm for weights on signal enhancement was investigated. Fig. 6 shows the comparison of the performance of RBF-NLMS and HOS-based RBF with different learning rate . Under a fixed learning rate , it shows that HOS-based RBF can provide the better performance for signal enhancement, and its per-formance obviously is more insensitive to . The simulated result fits our expectation that the gradient noise amplification problem can be effectively improved by using HOS-based learning algorithm. The influence of additional noise on the LMS algorithm increases, in particular, when the learning rate is large. Although a small learning rate on both RBF-NLMS and HOS-based RBF can provide more stable performance, it also may cause heavy distortion of the estimate

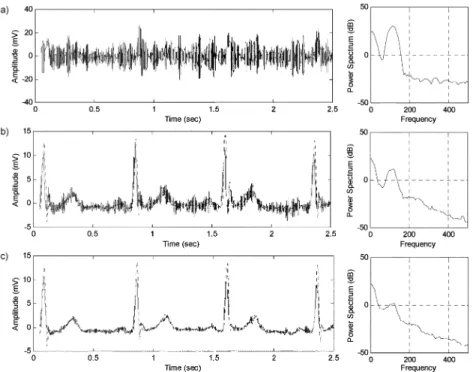

Fig. 4. (a) Noisy simulated trial with SNR of010 dB. (b) Result obtained by RBF-NLMS. (c) Result obtained by HOS-based RBF.

Fig. 5. Comparison of performance of RBF-NLMS and HOS-based RBF with different learning rate .

of SOI due to the slow adaptation. Therefore, the performances of both RBF-NLMS and HOS-based RBF become poor when the learning rate is less than 0.05.

To investigate the efficiency of RBF-NLMS and HOS-based RBF in different noise levels, several simulated trials with different SNRs from 2.5 to 25 dB were generated. Fig. 7 is the comparison of the performances between RBF-NLMS and HOS-based RBF under different noise levels. It shows that HOS-based RBF provides a better performance against dif-ferent noise levels. The performance of RBF rapidly becomes very poor, in particular, when the SNR is less than 10 dB. Al-though the performance of HOS-based RBF is also influenced by the variation of SNR of input signals, it is more insensitive than that of RBF-NLMS.

Fig. 6. Comparison of the performances of RBF-NLMS and HOS-based RBF with different learning rate .

Fig. 7. Comparison of the performance of various methods under different noise levels.

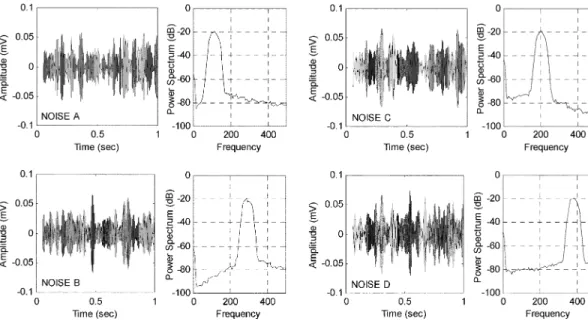

Fig. 8. Four types of Gaussian noises and their power spectrum.

Fig. 9. (a) Noise-free pattern for case I. (b) Noisy simulated trial under nonstationary noises. (c) Result obtained by RBF-NLMS. (d) Result obtained by HOS-based RBF.

B. For Nonstationary Gaussian Noise

In this section, the performance of HOS-based RBF for signal enhancement under nonstationary Gaussian noise is investigated. We assume that both the magnitude and the frequency of the additional noise are time-varying. Four types of additional Gaussian noise distributed in different frequency ranges were generated, shown in Fig. 8. The SNR and noise type of additional Gaussian noise were randomly varied every 1.4 ms. The varying range of SNR of additional noise is from 2.5 to 10 dB. Figs. 9–11 are, respectively, the simulated

re-sults obtained by RBF-NLMS ( , , ,

and ) and HOS-based RBF ( , ,

, , , , and ) for

the three types of nonlinear signals. It shows that HOS-based RBF can effectively enhance signals under nonstationary noise. The influence of the variation of frequency of Gaussian noise seems negligible to both RBF-NLMS and HOS-based RBF. Therefore, RBF also can be a good approach for a signal enhancement, except under poor SNR. The influence of the variation of magnitude of the additional noise on the performance of HOS-based RBF is small in these cases. The average of mean square error of 50 randomly selected results was used to present performance, and the performance of various methods under nonstationary Gaussian noise was listed in Table II. It shows that HOS-based RBF can provide better performance of signal enhancement under the nonstationary noise in these cases.

Fig. 10. (a) Noise-free pattern for case II. (b) Noisy simulated trial under nonstationary noises. (c) Result obtained by RBF-NLMS. (d) Result obtained by HOS-based RBF.

Fig. 11. (a) Noise-free pattern for case III. (b) Noisy simulated trial under nonstationary noises. (c) Result obtained by RBF-NLMS. (d) Result obtained by HOS-based RBF.

TABLE II

COMPARISON OFPERFORMANCE BYUSINGRBF-NLMSANDHOS-BASED

RBFFORTHREEDIFFERENTCASES

The computational complexity for an algorithm is an impor-tant aspect. The comparison of computational complexity for normalized LMS algorithm and HOS-based learning algorithm was shown in Table III. Here, the number of multiplications per iteration was used to present the computational complexity. From Table III, it shows that the computational complexity of HOS-based learning algorithm is very large. Therefore, the im-provement of the performance of HOS-based RBF is achieved at the expense of more computations.

V. CONCLUSION

In this paper, HOS-based RBF networks have been presented and employed for signal enhancement. By using HOS to sup-press Gaussian noise, higher order cumulants of the reference

TABLE III

COMPARISON OFCOMPUTATIONALCOMPLEXITY OFNORMALIZEDLMS ALGORITHM ANDHOS-BASEDLEARNINGALGORITHM

signal were used as the input of HOS-based RBF to reduce the influence of additional noise on clustering of input space. Simulations show that using HOS techniques provides more stable clustering on input space and an HOS-based supervised learning algorithm is developed to adapt weights. In this algo-rithm, the mean square error of two higher order cumulants of and is defined as the learning criterion. As we ex-pected, the influence of additional Gaussian noise on the adap-tation of weights can be reduced and the gradient noise amplifi-cation problem on LMS algorithm can be effectively solved by using HOS-based learning algorithm. Moreover, the simulated results show that the performance by using HOS-based learning algorithm is stable and superior to that of LMS algorithm under different noise levels. In fact, RBF is also a good approach for signal enhancement under the nonstationary Gaussian noise, ex-cept under poor SNR. HOS-based RBF can effectively over-come this drawback, although HOS-based RBF needs more ex-pensive computational complexity. Overall, HOS-based RBF is practicable for signal enhancement under the stationary and nonstationary Gaussian noise with different SNR.
