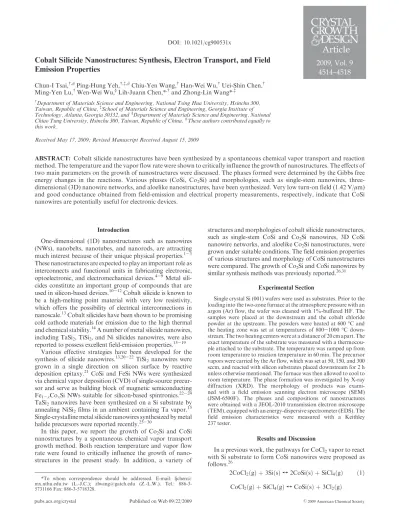

Cobalt Silicide Nanostructures: Synthesis, Electron Transport, and Field
Emission Properties
Chun-I Tsai,†,#Ping-Hung Yeh,†,‡,#Chiu-Yen Wang,†Han-Wei Wu,†Uei-Shin Chen,† Ming-Yen Lu,†Wen-Wei Wu,§Lih-Juann Chen,*,†and Zhong-Lin Wang*,‡
†
Department of Materials Science and Engineering, National Tsing Hua University, Hsinchu 300, Taiwan, Republic of China,‡School of Materials Science and Engineering, Georgia Institute of
Technology, Atlanta, Georgia 30332, and §Department of Materials Science and Engineering, National Chiao Tung University, Hsinchu 300, Taiwan, Republic of China.#These authors contributed equally to
this work.
Received May 17, 2009; Revised Manuscript Received August 15, 2009
ABSTRACT: Cobalt silicide nanostructures have been synthesized by a spontaneous chemical vapor transport and reaction method. The temperature and the vapor flow rate were shown to critically influence the growth of nanostructures. The effects of two main parameters on the growth of nanostructures were discussed. The phases formed were determined by the Gibbs free energy changes in the reactions. Various phases (CoSi, Co2Si) and morphologies, such as single-stem nanowires,
three-dimensional (3D) nanowire networks, and aloelike nanostructures, have been synthesized. Very low turn-on field (1.42 V/μm) and good conductance obtained from field-emission and electrical property measurements, respectively, indicate that CoSi nanowires are potentially useful for electronic devices.
Introduction
One-dimensional (1D) nanostructures such as nanowires (NWs), nanobelts, nanotubes, and nanorods, are attracting much interest because of their unique physical properties.1-3 These nanostructures are expected to play an important role as interconnects and functional units in fabricating electronic, optoelectronic, and electromechanical devices.4-9Metal sili-cides constitute an important group of compounds that are used in silicon-based devices.10-12Cobalt silicide is known to be a high-melting point material with very low resistivity, which offers the possibility of electrical interconnections in nanoscale.13Cobalt silicides have been shown to be promising cold cathode materials for emission due to the high thermal and chemical stability.14A number of metal silicide nanowires, including TaSi2, TiSi2, and Ni silicides nanowires, were also
reported to possess excellent field-emission properties.15-19 Various effective strategies have been developed for the synthesis of silicide nanowires.13,20-22TiSi2 nanowires were
grown in a single direction on silicon surface by reactive deposition epitaxy.21 CoSi and FeSi NWs were synthesized via chemical vapor deposition (CVD) of single-source precur-sor and serve as building block of magnetic semiconducting Fe1-xCoxSi NWs suitable for silicon-based spintronics.22-24
TaSi2nanowires have been synthesized on a Si substrate by
annealing NiSi2films in an ambient containing Ta vapor.15
Single-crystalline metal silicide nanowires synthesized by metal halide precursors were reported recently.25-30
In this paper, we report the growth of Co2Si and CoSi
nanostructures by a spontaneous chemical vapor transport growth method. Both reaction temperature and vapor flow rate were found to critically influence the growth of nano-structures in the present study. In addition, a variety of
structures and morphologies of cobalt silicide nanostructures, such as single-stem CoSi and Co2Si nanowires, 3D CoSi
nanowire networks, and aloelike Co2Si nanostructures, were
grown under suitable conditions. The field emission properties of various structures and morphology of CoSi nanostructures were compared. The growth of Co2Si and CoSi nanowires by
similar synthesis methods was previously reported.26,31 Experimental Section
Single crystal Si (001) wafers were used as substrates. Prior to the loading into the two-zone furnace at the atmosphere pressure with an argon (Ar) flow, the wafer was cleaned with 1%-buffered HF. The samples were placed at the downstream and the cobalt chloride powder at the upstream. The powders were heated at 600°C and the heating zone was set at temperatures of 800-1000 °C down-stream. The two heating centers were at a distance of 20 cm apart. The exact temperature of the substrate was measured with a thermocou-ple attached to the substrate. The temperature was ramped up from room temperature to reaction temperature in 60 min. The precursor vapors were carried by the Ar flow, which was set at 50, 150, and 300 sccm, and reacted with silicon substrates placed downstream for 2 h unless otherwise mentioned. The furnace was then allowed to cool to room temperature. The phase formation was investigated by X-ray diffraction (XRD). The morphology of products was exami-ned with a field emission scanning electron microscope (SEM) (JSM-6500F). The phases and compositions of nanostructures were obtained with a JEOL-2010 transmission electron microscope (TEM), equipped with an energy-dispersive spectrometer (EDS). The field emission characteristics were measured with a Keithley 237 tester.
Results and Discussion
In a previous work, the pathways for CoCl2vapor to react
with Si substrate to form CoSi nanowires were proposed as follows.26
2CoCl2ðgÞ þ 3SiðsÞ T 2CoSiðsÞ þ SiCl4ðgÞ ð1Þ
CoCl2ðgÞ þ SiCl4ðgÞ T CoSiðsÞ þ 3Cl2ðgÞ
*To whom correspondence should be addressed. E-mail: ljchen@ mx.nthu.edu.tw (L.-J.C.); [email protected] (Z.-L.W.). Tel.: 886-3-5731166 Fax: 886-3-5718328.
The reactions for the formation of Co2Si nanowires are likely
to follow similar pathways.
2CoCl2ðgÞ þ 2SiðsÞ T Co2SiðsÞ þ SiCl4ðgÞ ð2Þ
2CoCl2ðgÞ þ SiCl4ðgÞ T Co2SiðsÞ þ 4Cl2ðgÞ
The growth processes of cobalt silicide (CoSi, Co2Si)
nano-wires include two steps. First, the silicide particles were formed on the substrate. Second, self-catalyzed nanowires were grown from the silicide particles.25(see the Supporting Information, S1) By controlling the vapor pressure of the precursor and the temperature of the substrate, we can obtain a variety of structures and morphologies of the cobalt silicide (CoSi, Co2Si) nanostructures. The morphologies are quite
different at various substrate temperatures. At 610°C, only particles and very short nanowires were observed. At 790°C, because of the fast growth rate, the micrometer-sized particles were formed. A high density of single-stem CoSi nanowires was formed at 750°C, as shown in Figure 1a. The diameters and lengths of the synthesized nanowires are 40-80 nm and tens of micrometer, respectively. Compared with nanowires formed at 790°C with a diameter of about 100 nm, moderate reaction temperature is more conducive to the nucleation and growth of nanowires.
By adjusting the carrier gas flow rate, similar reaction products were obtained at the three temperatures with differ-ent Ar flow rates. In particular, the diameter of nanowires was not affected significantly by the Ar flow rate. The variation in Ar flow rates only affects the densities and lengths of nano-wires. For example, decreasing Ar flow rate from 300 to 50 sccm led to the lower density and shorter nanowires. By controlling the two main parameters, the Ar flow rate and the temperature of substrate, the various morphologies of cobalt silicide (CoSi, Co2Si) nanostructures can be obtained. The
morphologies of the nanostructures and the diameter of nanowires were influenced by reaction temperature. The densities and lengths of nanowires were affected by Ar flow rate. The nanostructures formed at various temperature and flow rate are shown in the Supporting Information, S2.
The optimum synthesis condition for single-stem CoSi nanowires was realized with the heating zone set at 900°C and Ar flow rate maintained at 300 sccm. A string of Si substrates was placed horizontally in the furnace. The tem-peratures of three regions in the heating zone were measured with a thermocouple attached to the samples. Apparently, the nanostructures of cobalt silicides (CoSi, Co2Si) were
influenced by a slight variation in vapor flux with the location in the furnace. The nanostructures formed at different regions

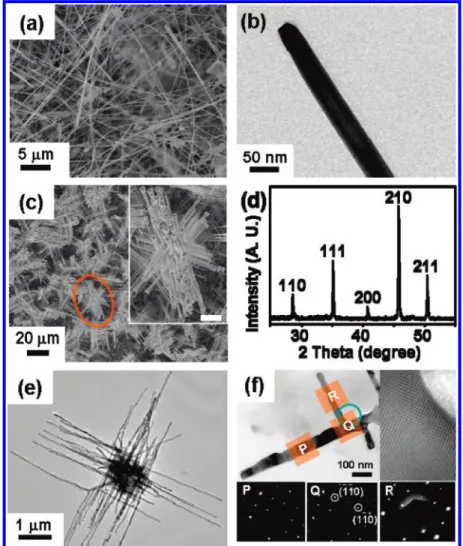

Figure 1. (a) Representative SEM image of CoSi nanowires grown at 750°C in region A. (b) TEM image of a CoSi nanowire grown at 750 °C in region A. (c) Low-magnification SEM images of the CoSi nanowire networks grown at 780°C in region A. Inset: High-magnification SEM image. The scale bar is 5μm. (d) XRD pattern from a sample of CoSi nanowire networks grown at 780 °C in region A. TEM images (e) showing a complete 3D nanowire network and (f) a broken nanowire network segment grown at 780°C in region A. Insets are the SAEDs from the regions P, Q, and R as well as HRTEM image of an intersection.
4516 Crystal Growth & Design, Vol. 9, No. 10, 2009 Tsai et al.
in the furnace with the heating zone set at 900°C and the Ar flow rate maintained at 300 sccm are depicted in the Support-ing Information, S3. Region A is the closest among the three regions to the source boat, and the vapor flux is expected to be the highest. The region at the heating center with a decreased vapor flux and the highest temperature is referred to as region B. Region C is far away from the source boat with the lower vapor flux; the temperature is close to that of A.
The samples in region A near the source boat encountered the highest vapor pressure at a temperature range of 750 -830°C. The TEM image of a single-stem nanowire grown at 750°C in region A is illustrated in Figure 1b. The diffraction spots in the SAED pattern (not shown) can be ascribed to the cubic B20 type CoSi. The CoSi nanowire networks were synthesized at the particular zone with a higher temperature (780°C) than that for single-stem nanowire growth. The high yield of 3D nanowire networks can be observed from the low-magnification SEM image and the morphology of 3D nano-wire networks can be clearly demonstrated in a high-magni-fication image, as shown in Figure 1c. The size of each network is about 10-30 μm. The constituents of 3D network structure are nanowires with diameters around 100 nm in width and they intercross with each other to form the 3D networks. The peaks of the XRD from the 3D nanowire networks grown at 780°C in region A shown in Figure 1d can all be ascribed to the CoSi phase. The TEM images of a complete 3D nanowire network and a broken nanowire net-work segment are shown in panels e and f in Figure 1, respectively. The angle of the junction is nearly equal to 90°. The SAED patterns were obtained from regions P, Q, and R, indicating that the entire network is single-crystalline CoSi. The nanowires P and R are grown along the [110] and [110] directions, respectively, and rotate by 90° with each other. HRTEM image of the intersections of the network further revealed that no dislocations were present to influence the branching growth, as shown in the inset of Figure 1f. In a previous work, branched morphology of nanowires was correlated with the high supersaturation ratio.25Accordingly,
as the Ar flow rate was decreased from 300 to 50 sccm, 3D nanowire networks were no longer grown.
The substrate in region B was positioned at the compara-tively high temperature zone (880-900 °C). Two kinds of nanostructures were produced in the same area: single-stem nanowires and aloelike nanostructures. The diameter and length of the single-stem nanowires are 50-100 nm and several micrometers, respectively, as illustrated in Figure 2a. A TEM image and a SAED of single-stem nanowire are shown in Figure 2b. The SAED pattern reveals that the nanowire is single-crystalline and could be ascribed to the orthorhombic Co2Si structure. The size of each aloelike
nanostructures and the diameter of its branch are about 10μm and 80-120 nm, respectively. The TEM image and a SAED pattern of aloelike nanostructures are shown in Figure 2c. The SAED patterns obtained for the trunk, the head and the branch of the aloelike nanostructures can also be ascribed to orthorhombic Co2Si structure. The branches and trunk of the
aloelike nanowires were found to grow along [111] and [220] directions, respectively. Notably, the discontinuous single-crystalline structure at the intersection was replaced by an amorphous layer, which suggests that amorphous silicon oxide was formed at the local regions. The results differ from the branch structure obtained at region A. The region B where aloelike nanostructures formed is located in the highest temperature zone with a diminished vapor flux compared to that of region A. The trunks of aloelike nanostructures formed first and the branches evolved from the trunk with the vapor achieving the sufficient degree of supersaturation to facilitate the growth. As the branches growth continued, amorphous silicon oxide was formed at the roots of the branches with the decreased supply of CoCl2vapor.
More-over, as the vapor pressure was decreased with the diminished supply of the source vapor, the branched nanowires became trimmed and appeared to be terminated with spherical end to form aloelike nanostructures. A similar morphology of nano-wires with a large head was previously observed for the TiSi nanopins. The varied size of the nanopins was also explained
Figure 2. (a) SEM image of Co2Si nanowires formed in region B. TEM images of (b) a single-stem nanowire and (c) aloelike nanostructures.
in terms of the diminishing source flux with time.32 The amorphous silicon oxide seen in Figure 2 is related to residual oxygen in the processing chamber. Cobalt silicide (CoSi, Co2Si) nanostructures were synthesized in the diffusion
fur-nace with flowing Ar. It was therefore inevitable that residual oxygen was involved in the reactions.
The Gibbs free energies of the substances are shown in the Supporting Information, S4. The Gibbs free energies of the reaction 1 at the temperatures of 750°C (region A) and 880 °C (region B) are-1166 kJ/mol and -1158 kJ/mol, respectively. The Gibbs free energies of the reaction 2 at the temperatures of 750°C (region A) and 880 °C (region B) are -1125 kJ/mol and -1255 kJ/mol, respectively. Consequently, reaction 1, which has the lower Gibbs free energy at a temperature at 750°C, is the main reaction to lead to the formation of CoSi nanowires. On the other hand, Co2Si nanowires were produced at 880°C
following the reaction 2. The phases formed were determined by the Gibbs free energy changes in the reactions.
Region C was far away from the source boat and the temperature was close to that of region A. With lower vapor pressure, straggled single-stem nanowires were formed as revealed by the SEM image. No particles and etching marks on the flat substrate surface were observed. However, the density of the smooth and straight nanowires of 40-80 nm in diameter and 4-6 μm in length was rather low, as illustrated in Figure 2d. The diameter of nanowires is identical to that in region A but somewhat shorter. The nanowires in region C are also of CoSi phase. Co2Si nanowires were synthesized only in
the region B. XRD spectrum (not shown) of products ob-tained from region A showed that all peaks can be ascribed to cubic structure CoSi. The result indicated that only CoSi nanowires were formed on Si substrate. No XRD data were obtained from the products in the region C because the density of straggled nanowires is very low. On the other hand, TEM analyses, including selected area electron diffraction pattern, high-resolution TEM, and energy-dispersive spectrum, of several nanowires obtained in the region C all indicated that the nanowires are single-crystalline CoSi.
Field-emission measurements were carried out in a vacuum chamber pumped to∼1.0 10-5torr in pressure at room temperature and with an anode to sample distance of 180μm. The turn-on field and threshold field are defined to be the fields required to produce a current density of 10 and 100μA/ cm2, respectively. The three types of CoSi nanostructure are the high density single-stem nanowires, the 3D nanowire networks, and the straggled single-stem nanowires. The field emission data were taken from samples of 1 cm2in size and represented the average effects from different nanostructures. For 3D nanowire networks, the distances between the NW emission tips to the anode were less than 180μm. For the same samples, the measurements were made repeatedly. Stable and reproducible J-E characteristics were only obtained for single-stem CoSi nanowires. The emission current density, J, as a function of applied field, E, is depicted in Figure 3. The turn-on fields of the high-density single-stem nanowires and the 3D nanowire networks are 1.42 and 2.20 V/μm. The threshold field of the high density single-stem nanowires is 2.05 eV. The values are much lower than the reported values of TaSi2, TiSi2, and Ni silicides nanowires.15-19The turn-on field
of the straggled single-stem nanowires was not stable and the best profile is shown in Figure 3. Compared to the 3D network structure, the turn-on field is lower and the emission current is higher for the single-stem nanowires. The Fowler-Nordheim (FN) plot of ln(J/E2)- 1/E of the single-stem CoSi nanowires
is shown in the inset of Figure 3. By determining the slope of the FN plot, the field enhancement factorβ of single-stem nanowires was calculated to be 1 103, which is higher than other silicide nanowire emitters mentioned above.15-19The field emission of single-stem nanowires is more efficient, homogeneous, and stable, as illustrated in Figure 3. The 3D network structure appeared to be less efficient than single-stem nanowires in current emission. For the 3D network, the sharp tips for emission are relatively scarce. Furthermore, the distribution of the electric charge in the 3D network structure may impede the emission of current at the tips as shown in Figure 3. It is worthwhile to mention that CoSi nanowires were sheathed with 3-5 nm silicon oxide. Dilute HF was used to remove the amorphous silicon oxide. However, the oxide regrew rapidly in air ambient. Therefore, the measurements of field emission properties were made for CoSi nanowires with silicon oxide sheath. The oxide coatings are expected to influence the field emission properties of nanowires. Measure-ment of field emission properties of Co2Si nanowires was
attempted. However, the density of nanowires was so low that no current could be detected by the instrument. Therefore, the measurements of field emission properties were limited to the CoSi nanowires with different morphologies.
In addition to the field-emission properties, the electrical properties of the CoSi single-stem nanowires were also mea-sured. The electrical measurements were carried out for single nanowires with various diameters. Pt electrodes were depo-sited at both ends of nanowires with a focus ion beam system. The resistivity reduces with decreasing radius of nanowires as illustrated in Figure 4. The resistivities and diameters of the nanowires are 287, 181, 100, 27μΩ cm and 43, 34, 23, 15 nm, respectively. The increase in conductivity with the decreasing diameter of nanowires is rather intriguing. It is attributed to the enhanced surface conductivity since the surface-to-volume ratio increases with the decreasing diameter. A previous work
Figure 3. Field emission curves of the three type nanostructures: high density single-stem nanowires (HD NWs), the 3D nanowires networks, and the straggled single-stem nanowires. Inset: the FN plot of high density single-stem nanowires.
Figure 4. The curve depicting resistivity versus diameter of nano-wires. Insets: the SEM image of the measurement structure.
4518 Crystal Growth & Design, Vol. 9, No. 10, 2009 Tsai et al.
showed that the resistivity of Pt2Si NWs is about half the
reported resistivity of thick Pt2Si films. Additional conduction
paths through surface or interface states on NWs were suggested to lead to the decrease in resistivity.33
Summary and Conclusions
A variety of cobalt silicide (CoSi, Co2Si) nanostructures were
grown by a chemical vapor transport method. Notably, novel three-dimensional (3D) CoSi nanowire networks and aloelike Co2Si nanostructures were grown under specific conditions in
addition to nanowires. Both reaction temperature and vapor flow rate were found to critically influence the growth of nanostructures. The variation in Ar flow rates affected the densities and lengths of nanowires. On the other hand, the morphologies of the nanostructures and the diameter of nano-wires were influenced by reaction temperature. Furthermore, the phases formed were determined by the Gibbs free energy changes in the reactions. Field-emission and electrical property measurements of CoSi nanowires show excellent performance with low turn-on field and good conductance. The CoSi nanowires are potentially useful in nanoelectronics devices.
Acknowledgment. The research was supported by the Republic of China National Science Council Grants NSC 96-2221-E-007-169-MY3 and NSC97-2120-M-007-003.
Note added after ASAP Publication. An earlier version of this paper was posted ASAP to the web on September 22, 2009, with an incorrect journal name in ref 10a. The reference has been corrected in this new version posted October 7, 2009.
Supporting Information Available: Additional information (PDF). This material is available free of charge via the Internet at http://pubs.acs.org.
