Adaptive-level memory caches on World Wide Web servers
Da-Wei Chang
a, Hao-Ren Ke
b,*, Ruei-Chuan Chang
aaDepartment of Computer and Information Science, National Chiao Tung University, Hsinchu, Taiwan, ROC bLibrary, National Chiao Tung University, 1001 Ta-Hsueh Road, Hsinchu, Taiwan, ROC
Abstract
Owing to the fast growth of World Wide Web (WWW), web trac has become a major component of Internet tracs. Consequently, the reduction of document retrieval latency on WWW becomes more and more important. The latency can be reduced in two ways: reduction of network delay and improvement of web serversÕ throughput. Our research aims at improving a web serverÕs throughput by keeping a memory cache in a web serverÕs address space.
In this paper, we focus on the design and implementation of a memory cache scheme. We propose a novel web cache management policy named the adaptive-level policy that either caches the whole ®le content or only a portion of it, according to the ®le size. The experimental results show three things. First, our memory cache is bene®cial since, under our experimental workloads, the throughput improvement can achieve 32.7%. Second, our cache management policy is suitable for current web trac. Third, with the increasing popularity of multimedia ®les, our policy will outperform others currently used in WWW. Ó 2000 Elsevier Science B.V. All rights reserved.
Keywords: Web server; Memory cache; Cache management policy; Adaptive-level policy
1. Introduction
With the popularity of World Wide Web (WWW), web trac has become the fastest growing component among all kinds of Internet tracs. However, large volumes of trac causes the document retrieval latency perceived by web users becomes longer. Many researchers notice the problem and have made eorts on improving WWW latency.
Generally speaking, WWW latency comes from two sources.
1. Network delay. In HTTP 1.0, retrieving a ®le from a web server needs at least two round trips between the client and the server.
2. Request processing time. For each requested ®le, a web server has to read it from its disks into a memory buer and then sends the buer to the client.
Thus, to reduce document retrieval latency, we must either reduce network delay or serverÕs re-quest processing time.
Researches that aim at the reduction of network delay focus on improvement of HTTP and devel-opment of caching strategies on proxy servers and clients. Other researches improve the web serversÕ throughput in the following ways:
1. Cooperative servers [10]. Instead of a single web server, multiple cooperative servers can be used to serve users' requests.
2. Caching documents at server side [12]. In order to cope with the high request rate, Markatos [12] suggests caching documents in a web
www.elsevier.com/locate/comnet
*Corresponding author.
1389-1286/00/$ - see front matter Ó 2000 Elsevier Science B.V. All rights reserved. PII: S 1 3 8 9 - 1 2 8 6 ( 9 9 ) 0 0 1 3 1 - 0
serverÕs address space (which is called memory caching).
In this paper, we focus on the design and im-plementation of memory caches in web servers. We propose a novel web cache management policy that is named adaptive-level policy (i.e. ®le-level as well as chunk-level). All of the previous web cache management policies use ®le-level caches. That is, given a ®le, these kinds of cache policies keep all its content or nothing of it. However, we consider the ®le size while we are caching it. If a ®le is smaller than a chunk (i.e. a block with a prede®ned size), it can totally be cached. Otherwise, only a chunk of the ®le will be cached. We show that memory caching in web servers is bene®cial since it im-proves throughput of web servers. In addition, we show that our cache management policy is suitable for current web trac and outperforms other ex-isting policies when accesses to large ®les become more and more popular.
The rest of this paper is organized as follows. In Section 2 we discuss the related works. Section 3 presents the motivation of the adaptive-level memory cache. Section 4 shows the design and implementation. The experiment results are pre-sented in Section 5. Conclusions and future works are given in Section 6.
2. Related works
There are lots of research eorts focusing on improving WWW latency. In general, these eorts fall into three categories: improvement of HTTP, prefetching, and caching. In this section, we will brie¯y discuss the works on these three categories. 2.1. HTTP improvement
HTTP is a simple protocol layered over TCP. However, as shown in [16], several features of HTTP interact badly with TCP. Two such features are that HTTP establishes a new connection for each request and HTTP transfers only one object per request. Mogul [13,14] also noticed the prob-lems and proposed two mechanisms, long-lived connections and request pipelining, to improve HTTP latency.
2.2. Prefetching
Instead of reducing WWW latency between clients and servers, Padmanabhan and Mogul [15] use prefetching to ``hide'' the latency. The bene®t of prefetching comes from that there is a period of time between two adjacent requests from the same user, and this time can be used to prefetch next document that the user wants to read. Thus, with prefetching, when a client requests a document, it may be already in clientÕs local cache.
2.3. Caching
The most common technique on reduction of data retrieval time is caching. Researches on WWW caching can be divided into three classes: the client-side caching, the network caching (i.e. proxy caching), and the server-side caching. In the following, we shall brie¯y describe these WWW caching eorts.
2.3.1. Client-side caching
Cunha et al. [7] analyzed the access patterns of individual users, and he found two access patterns. The ®rst is that WWW clients tend to access small ®les. The second is that, keeping small ®les in cli-entÕs cache is better than keeping large ones since the former has a larger latency-savings-per-byte. Bestavros et al. [4] compared three caching levels at the client side: the session level, the host level, and the LAN level. According to their experiments, the LAN-level caching is the most cost-eective policy among the three policies. This is not a surprising result. Given a speci®c document, a LAN cache keeps at most one copy of it. However, each session or host cache may keep one copy of the document in its own cache, and therefore waste the cache space. 2.3.2. Proxy caching
Abrams et al. [1] evaluated the limitations and potentials of proxy caches and showed that the upper bound of hit ratio of a proxy cache, re-gardless the cache replacement policy, is only about 30±50%. Since a basic idea for caching is to move the data that clients need closer to them. Some proxy-cache researches [3,9] take geographic distribution of client requests into account.
While many researchers proposed their own proxy caching policies, Williams et al. [19] provided a performance comparison among these policies and showed that the widely-used WWW caching policy, LRU, results in poor performance. In ad-dition to the analysis of the trac of WWW proxy servers and the invention of proxy cache strategies, there are some proxy cache implementations, such as the CERN cache [8], the Lagoon cache [6], the Harvest cache [5], and the Squid cache [17]. 2.3.3. Server-side caching
While the purpose of caching at client-sides and proxies is to reduce data retrieval latency caused by the network, server-side caching strategies fo-cus on the reduction of serversÕ response time and the improvement of serversÕ throughput.
Arlitt and Williamson [2] analyzed access logs from dierent web servers and identi®ed ten in-variance among these workloads. Kwan et al. [10,11] described the research eorts on web cach-ing made by NCSA that use AFS to cache docu-ments in web serversÕ local disks. In contrast to the work of NCSA, Markatos [12] proposed the notion of memory caching of web documents. The bene®t of memory caching comes mainly from that it re-duces the number of disk accesses. By keeping most frequently accessed ®les in main memory, many of the requests can be served without touching the ®le system, and therefore the access latency is reduced. Markatos also presented a cache replacement pol-icy. However, he only showed the performance of his policy in terms of hit ratio by trace-driven simulation and no implementation results. The improvement of serversÕ throughput contributed by memory caching is still left unknown.
Our work diers from others in that, we pur-pose and implement an adaptive-level memory cache policy, and we also measure the performance improvement by a popular benchmark, WebStone [20].
3. Motivation
In this section, we describe the motivation of memory caching in web servers and the adaptive-level cache management policy.
3.1. Motivation of memory caching in web servers There are fewer researches aiming at improving web serversÕ throughput than reducing the net-work delay. The reason is simple: the netnet-work delay currently dominates the document retrieval latency perceived by web users and thus reducing network delay eectively shortens the document retrieval latency. However, in contrast to most of the related researches, we focus on improving a web serverÕs throughput because of the following reasons.
1. High request rate. Even with client-side and proxy caches that reduce the amount of trac coming to a web server, a previous research [12] shows that the peak request rate for a busy server remains high.
2. Improvement of network speed. With the fast improvement of network speed, the situation that network delay dominates the document retrieval latency is changing. It is very possi-ble that web servers will become the bottle-neck in web document retrieval in the near future.
3. Ratio of local to remote requests. Preliminary data [7,12] present that the ratio of local to remote requests is about 1:4. This means that there are still 20% of the total requests coming from local sites. For these requests, the clients and the server are almost connect-ed by high-speconnect-ed network which has short delay and high bandwidth. Therefore, im-proving the serverÕs throughput will cause a noticeable reduction in document retrieval la-tency.
Due to the reasons mentioned above, we know that it is eective to reduce document retrieval latency by improving a serverÕs throughput. To improve a serverÕs throughput, we focus on re-ducing the number of disk accesses by maintaining the most frequently accessed documents in a web serverÕs address space. Generally speaking, the operating system underlying the web server maintains a buer cache and hence prevents some ®le system requests from really going to the disk. However, we additionally maintain a separate cache instead of only using the original buer cache provided by the operating system. The
reason is that, as shown in a previous research [12], approaches that manage buer caches are not suitable for web server trac. Furthermore, even with buer caches, web servers also need to call read() system calls to read data from the buer caches. It costs at least one kernel-to-user data copy.
3.2. Motivation of adaptive-level caching
Previous cache implementations for WWW use ®le-level caches because the accesses for web doc-uments are all-or-none accesses. That is, if a user makes a request for a ®le, he or she will receive the total content of it (if success) or nothing of it (if some errors occur). However, there is a drawback for this kind of caching mechanism. Since the cache size is limited, putting a whole large ®le in the cache may cause many other small ®les be ¯ushed out. The situation is worse especially for web caches, because web users tend to access small ®les and therefore the ®les ¯ushed out are usually popular ones. This will result in poor cache per-formance.
To overcome the drawback, ®le-level caches always equip with a threshold and never cache ®les larger than this threshold. It avoids the situation mentioned above. However, it causes another problem. A large ®le will never be cached although it may be the most popular one. This will also degrade the performance.
Due to the above reasons, we propose the idea of adaptive-level caching. When a ®le is to be ca-ched, we consider its size. If it is smaller than a threshold, we cache its total content. Otherwise, only the ®rst chunk of it is cached. Clearly, it avoids the ®rst problem since caching only a chunk of a large ®le does not require too much room. Therefore, fewer small but popular ®les will be ¯ushed out. At the same time, if a large ®le is popular, it is better to cache a portion of it than do nothing at all. In addition, caching the ®rst chunk enables a server to respond to its clients quickly since the ®rst chunk can be sent immediately from the cache without involving disk accesses and the server can read the rest of the ®le from the disk at the same time.
4. Design and implementation of the memory cache The design goals of our memory cache are to improve the throughput of a WWW server so that it can handle more requests concurrently and to minimize the overhead due to the maintenance of the memory cache. In the following two sections, we shall present the design and implementation of the memory cache.
4.1. Design of the memory cache 4.1.1. MIME header caching
For each client request, the web server sends a response to the client. The response normally contains a MIME header followed by the quested ®le. This MIME header contains the re-turn code, the information related to that server, and the attributes of the requested ®le. Generally, MIME headers are generated on the ¯y, which means the server has to reconstruct the MIME header of a ®le each time when it is requested. This imposes overheads on a busy web server. Howev-er, this overhead can be reduced by caching MIME headers in advance, since they seldom change due to the following reasons. First, most of the ®elds (except for the ®le attributes) do not change. Second, most web pages are seldom modi®ed. Therefore, the ®le attributes usually re-main unchanged, too. Third, WWW is a weakly consistent access system.
With MIME header caching, the server does not need any more to spend its time on dynami-cally constructing a ®leÕs MIME header. Instead, it can send the cached MIME header directly to the client. This reduces some overheads that are im-posed to the server. However, if a ®le is updated, the server should recognize it and invalidate the cached copy of that ®le as well as its MIME header. This can be achieved by attaching a timestamp to each MIME header to record the time that the ®le is inserted into the cache. After doing that, the server can ensure the freshness of the cached copy of a ®le by comparing the time-stamp with the last-modi®ed time of that ®le. If the cached copy is not fresh, the server can just discard it or re-load the ®le to into the cache. It should be noted that, since WWW is a weakly consistent
system, the timestamp-comparing task does not have to be performed frequently. Instead, servers can perform this task during their idle periods so that it will not degrade the performance of servers. Currently, we do not incorporate such a time-stamp-comparing task into our server. The reason is that we only concern the bene®t of a memory cache at normal and heavy server loads.
4.1.2. Adaptive-level caching
As we describe earlier, we use an adaptive-level cache. We use a prede®ned threshold, say MAX_FILE_SIZE, to determine if we should put the total content of a ®le into the cache. If the total size of a ®le and its MIME header is less than MAX_FILE_SIZE, we cache its total content and its MIME header (this is called completely ca-ched). Otherwise, we allocate a cache space with size MAX_FILE_SIZE and put the MIME header and a portion of the ®le into the cache space (this is called incompletely cached).
Fig. 1 illustrates the cases of completely and incompletely cached. In the case of incompletely cached, we cache the ®rst k bytes of the ®le where k equals to the MAX_FILE_SIZE minus the size of the ®le's MIME header.
4.1.3. Cache replacement policy
In addition to decide whether to cache a ®le completely or not, we still have to determine which ®les should be removed from the cache when the room of the cache is not enough. That is, we must choose a cache replacement policy.
We use least frequently used (LFU) as our cache replacement policy. The reasons are as
fol-lows. First, due to the fact that some web pages are popular (i.e. frequently referenced) and others are not, it is straightforward to use LFU as the cache replacement policy. Second, previous researches [2] show that about one-third of ®les and bytes recorded in a web server's access log ®le are ac-cessed only once. These ®les are seldom acac-cessed and therefore keeping them in cache gains almost nothing at all. By using LFU, these ®les will not be cached even they are referenced recently, because the access frequencies of these ®les will generally smaller than those of the cached ®les. Third, its implementation is straightforward. By keeping a reference count for each ®le in the local web site, we can easily implement the policy.
4.1.4. Cache lookup
For each request, the server has to ®nd whether the requested ®le is in the cache. This overhead should be minimized since it happens frequently. To achieve this, we use a hash table to locate ®les in the cache. Each time when a ®le is requested, its name is used as input of the hash function to lo-cate the cached data.
4.1.5. Free list handling
In order to save memory space, cache buers are allocated on demand. That is, cache buers are allocated only when we need to insert data into the cache. When we remove a ®le from the cache, its buer is released immediately. However, it is possible that a ®le is requested and inserted into the cache soon after it has just been removed. In this case, if we free the buer immediately, we have to allocate the buer, copy in the ®le content and link the buer into the cache again. This causes unnecessary overheads when a ®le is needed im-mediately after it has been removed.
Therefore, we use an alternative approach. We maintain a free list to hold the corresponding buers for ®les removed from the cache. When we remove a ®le, we unlink the buer from the cache and link it into the free list. On the other hand, when we try to insert a ®le into the cache, we search for the free list ®rst. If the ®le is in the free list, we unlink it from the list and re-link it into the cache. Otherwise, the ®le can only be read from the ®le system.
Fig. 1. (a) The case of completely cached, and (b) the case of incompletely cached.
Because a free list is only an auxiliary tool that gives ®les a second chance from freeing their buf-fers, it should not impose too much pressure to a server. Speci®cally, it should not consume too much memory space. In order to achieve this, we ¯ush the entire free list periodically.
4.2. Implementation of the memory cache
In this section we shall describe the implemen-tation of the memory cache. Instead of developing a whole new web server, we modify an existing one. We choose a tiny web server, named Thttpd [18], which is a freeware developed by ACME Laboratories [18], and, for simplicity, we only handle the ``GET'' requests. That is, the server does not provide any other services except for sending ®les to the clients.
In the following subsections, we shall ®rst de-scribe Thttpd. And then, we present our
modi®-cations to it, including the data structures and the cache maintenance procedures.
4.2.1. Overview of Thttpd
Thttpd is a tiny web server that can run on many UNIX variants. It is a single-processed web server and uses the select() system call to multi-plex concurrent requests (i.e. connections). To handle multiple connections concurrently, a ®xed-size connection table is maintained in it. Each non-free entry represents an active connection and re-cords the information about that connection. The information includes the socket ®le descriptor for that connection, the ®le descriptor of the requested ®le, total bytes to be sent, total bytes have been sent, etc.
Fig. 2 shows the control ¯ow of Thttpd. After initialization, the server enters an in®nite loop. In the loop, it ®rst calls select() to poll every con-nections.
There are three sets of ®le descriptors (i.e. FD_SETs) in select(), read, write and exception FD_SETs. The former two FD_SETs are used in Thttpd. The web serverÕs socket descriptor (i.e. the WWW socket descriptor that usually listens at port 80) is the only ®le descriptor in the read FD_SET. It is used for accepting new connections. In other words, there are new connections coming to the server if the read FD_SET gets ready. For each active connection, the server has to send the ®le to the peer client by writing data to the socket descriptor of that connection. These socket de-scriptors are inserted into the write FD_SET. Therefore, if one of the ®le descriptors in the write FD_SET gets ready, the server can write data to that connection.
When a new connection arrives, the following steps are taken:
1. The server ®nds a free entry in the connection table to record the information about the new connection.
2. The MIME header for the requested ®le is con-structed on the ¯y and sent to the client. 3. The socket descriptor for the connection is
in-serted into the write FD_SET.
4. The control ¯ow goes back to select(). Notice that none of the ®le content has been sent to the client yet.
After all the new connections are processed, the server starts to send data for existing connections. For each ready ®le descriptor in the write FD_SET, the server reads one block of the cor-responding ®le into a memory buer and then writes the buer to the client. After all the ready write ®le descriptors are served, the control ¯ow goes back to select().
From the above description, we can see that the server gives a higher priority to accept new con-nections than to serve existing ones. The reason is that, for each connection which has ®nished the TCPÕs three-way handshaking procedure, the op-erating system inserts an entry corresponding to that connection into a queue. And the server process can dequeue the entries by calling accept() system calls. However, most operating systems impose a limit on the length of this queue and a new connection is dropped when the queue length exceeds the limit. Therefore, the server gives a
higher priority to accept new connections so that it can process the new connections as quickly as possible and hence shortens the length of the queue.
4.2.2. The control ¯ow of the modi®ed web server Fig. 3 shows the control ¯ow of the web server after our memory cache is added. Similar to the original web server, the modi®ed version gives a higher priority to accept new connections.
When a new connection arrives, the server ®rst checks whether the requested ®le is cached. If it is not cached, the server attempts to insert it. In our current implementation, the cache space needed to insert a ®le is the total size of its MIME header and the ®le content or the predetermined thresh-old: MAX_FILE_SIZE, depending on which is smaller. If the available room of the cache is not smaller than the needed space, the ®le can be in-serted without removing any other ®les out of the cache. Otherwise, the cache replacement procedure must be taken.
If the cache insertion (or cache replacement) procedure fails, which means that the ®le cannot be inserted, the following steps are taken. First, the MIME header is sent to the client. Second, the ®leÕs descriptor is inserted into the write FD_SET and then the control ¯ow goes back to the se-lect(). The data of the ®le will be sent in later iterations.
If the cache insertion procedure successes or the ®le is already cached, the server checks further to see if the ®le is completely cached or not. If it is completely cached, the server writes the cached data directly to the client, closes the connection (since the request is completely served), and the control ¯ow goes back to the select(). Otherwise, the server ®rst writes the cached data to the client. Then, it opens the ®le and arranges the read header of that ®le to the beginning of the rest of the ®le data by calling lseek() function. At last, the con-trol ¯ow goes back to the select() again. Thus, the rest of the data can be sent in later iterations. 4.2.3. The data structures of the memory cache
In this section we present the data structures used in the memory cache. There are four kinds of data structures in it: the ®le header, the hash table,
the frequency list, and the free list. Below we de-scribe them in more detail.

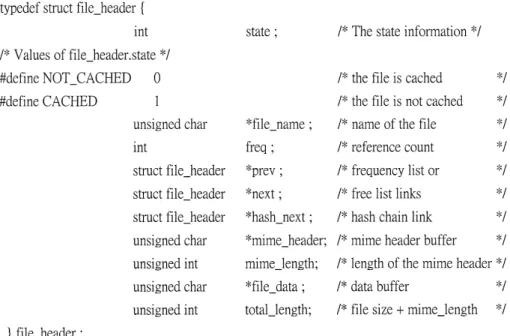

4.2.3.1. The ®le header. The ®le header is the cen-tral data structure in our web cache implementa-tion. Each ®le that can be served by the web sever has a corresponding ®le header which, in our current implementation, is loaded into the memory by the web cache initialization procedure. The ®elds of a ®le header are shown in Fig. 4. These include:
1. state. This ®eld indicates whether the ®le is ca-ched or not. The value of this ®eld is either CA-CHED or NOT_CACA-CHED.
2. ®le_name. The URL of the ®le. It is used as an ad hoc tool for locating the ®le header that cor-responds to a given ®le.
3. freq. The access frequency (i.e. reference count) of the ®le. Each time when a ®le is requested, its access frequency is increased by 1.
4. prev, next. They are two pointers linking to the previous and the next ®le header in the frequen-cy list or the free list. Because each ®le header is located in at most one of the two lists, only one pair of link ®elds is enough. The frequency list and the free list will be described later.
5. hash_next. A link to the next ®le header in the hash chain, which will be described later.
6. mime_header. A pointer to a buer that holds the MIME header of the ®le.
7. mime_length. The length of the MIME header corresponding to the ®le.
8. ®le_data. A pointer to a buer that holds the MIME header and the content (either totally or partially) of the ®le. The buer itself is the cache space of this ®le. That is, the actual oper-ations to insert a ®le into the cache are allocating a buer to hold the ®leÕs MIME header and con-tent (may be partially), and linking the buer in-to this ®eld. The reason for putting the MIME header in the buer is that the server can send the MIME header together with the ®le content in a single write() system call. If we do not do so, the server has to send the MIME header and the ®le content in separate system calls, or use a more complicated interface, writev() to send them in a single system call.
9. total_length. The total size of the ®leÕs MIME header and content. This ®eld is used to deter-mine whether a ®le is, or can be, completely cached or not. If it is larger than MAX_FILE_ SIZE, the ®le cannot be completely cached. Otherwise, it can be cached completely.
Because each ®le served by the web server has a corresponding ®le header, its size should be small enough so as not to impose large space overheads to the web server. From Fig. 4, we can see that the size of a ®le_header entry is 40 bytes. If a web site has one thousand ®les, the total size used by the ®le header structures is 40 K, which is ac-ceptable.
4.2.3.2. The hash table. Each time when a new re-quest arrives, the ®rst task of the web server is to see if the requested ®le is in the cache or not. It can be done by simply checking the state ®eld of the corresponding ®le header. To locate the corre-sponding ®le header, a hash table is used. The key of the hash table is the name of a ®le. All ®le headers hashing to the same entry in the hash table are chained by their hash_next ®elds. Al-though they are in the same hash chain, they can still be identi®ed easily according to their ®le_name ®elds.
Notice that the hash table is used to locate all the ®le headers in the web server, not just the ®le headers corresponding to the cached ®les. All the ®le headers are inserted into the hash table by the
initialization procedure and kept there all the time when the server executes.
4.2.3.3. The frequency list. The frequency list is an ordered list of the ®le headers corresponding to all the cached ®les. The ®rst ®le header of the list has the least frequency (among all cached ®les) and the last has the most frequency. The reason for keep-ing a frequency order in the list is for the eciency of the cache replacement procedure. Since we use LFU, the least frequently cached ®les will be re-moved from the cache ®rst. Thus, by keeping a frequency order, we can easily ®nd which ®les should be removed ®rst when we perform the cache replacement procedure.
4.2.3.4. The free list. The free list is a doubly linked list that starts with a pointer: free_start and stops at another pointer: free_end. When a ®le is re-moved from the cache, the web server ®rst removes its ®le header from the frequency list (since it is not cached any more). Then, the ®le header is ap-pended into the free list. Notice that the cached
data (i.e. pointed by the ®le_data ®eld) is not re-leased in case that the ®le may be re-inserted into the cache soon.
When a ®le is in the free list, to re-insert it into the cache is quite simple: removing the ®le header from the free list, inserting it to the frequency list and setting the state information of the ®eld header as CACHED. It is also ecient since the overheads of allocating memory buers and data copy are eliminated.

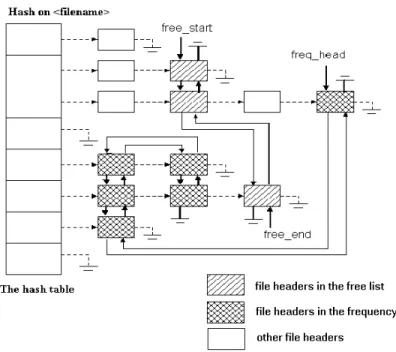

Fig. 5 gives a global view of the web cache data structures. All ®le headers can be located by the hash table keyed on ®le names. When a ®le is in-serted into the cache, its ®le header is inin-serted into the frequency list. When it is removed from the cache, the ®le header is moved to the free list.
To prevent the free list from growing too large, we should ¯ush the free list periodically. In the current implementation, we perform this task ev-ery one hundred accesses. We choose number of accesses, instead of absolute time, as the ¯ush pe-riod because the memory size of the free list is related to the former, not the later.
4.2.4. The procedures of the memory cache
In this section we describe the procedures of our memory cache in detail. We focus on the initial-ization and the cache replacement procedures. 4.2.4.1. The initialization procedure. The ®rst step of this procedure is to initialize the ®le headers of all the ®les that can be served by the web server. To achieve this, in our current implementation, we use a ®le (named ®le_list) to record all the names of those ®les. At initialization, the server reads the ®le_list, counts the number of ®les in it, and allo-cates an array of ®le headers for these ®les ac-cording to that number. The server then initializes all ®le headers by constructing their MIME headers. At last, the server constructs the hash table and inserts all the initialized ®le headers into hash chains.
4.2.4.2. The cache replacement procedure. The cache replacement procedure works as follows: 1. Suppose that we want to insert a ®le, say p, into
the cache. We say that a cached ®le q can be ``removed'' by p if and only if the frequency of p is larger than that of q.
2. We check whether the total cache space of the smallest frequency cached ®les that can be re-moved by p is larger than or equal to the cache space of ®le p. If it is, the cache replacement procedure can proceed. Otherwise, the ®le p cannot be inserted into the cache and the proce-dure stops.
3. Move the least frequency cached ®les to the free list repeatedly until the accumulated cache space of these ®les are larger than or equal to the cache space needed by ®le p. Then, insert the ®le p into the cache. The data of p may come from two sources: the free list and the
disk. The server ®rst checks whether ®le pÕs da-ta are in the free list by checking the ®le_dada-ta ®eld. If it is (i.e. the ®le_data ®eld is not null), the server then removes pÕs ®le header from the list and inserts it into the frequency list. Other-wise, the server loads the data from the disk in-to a memory buer, sets the ®le_data pointing to it, and inserts the ®le header into the fre-quency list. Notice that, the size of the buer is, as we describe earlier, one of the total size of the ®leÕs MIME header and its content, or MAX_FILE_SIZE, depending on which is smaller.
5. Experimental results
To evaluate the performance of our memory cache and cache management policy, we perform the following three experiments. First, we measure the performance and the throughput of our memory cache. Second, the eciency of MIME header caching is evaluated. Third, we compare the performance of our cache management policy with others used in WWW. Below we ®rst describe the experimental methodology, and then, the ex-perimental results are shown.
5.1. Experimental methodology 5.1.1. The environment
The experimental environment is shown in Fig. 6. The modi®ed web server runs on top of the server host whose OS is FreeBSD Release 2.2.5 and has 80 Mbytes physical memory. On the cli-ent host, a popular web performance benchmark, WebStone [20], is used for the performance mea-surement of our web server. It is con®gured to
fork 16 child processes that access the WWW documents on the server host simultaneously. The client and server hosts are isolated from other machines and connected directly with a 10 M bits/ s Ethernet.
5.1.2. The workload
The workload in our experiments was gathered from the access log of the web site: www.bvi.-com.tw, which has 3022 ®les and the size is 281 Mbytes in total. We collected the access log that started at 7 July 1997 and stopped at 30 July 1997. During this period, there were 34 372 accesses to the server. We refer the workload as current workload since it represents the current WWW access pattern. Table 1 shows the distribution of access frequency according to the ®le sizes in the current workload.
5.2. Performance of the memory cache
In this section we present the performance of our memory cache in terms of byte hit ratio (BHR) and throughput. Fig. 7 shows the BHR which is computed using the following formula:
BHR number of bytes requestednumber of bytes cached 100%: Fig. 8 shows the throughput. In these experi-ments, we set the threshold, MAX_FILE_SIZE, as one-forth of the cache size. From these ®gures, we can see that with a 64 Mbytes cache, the BHR is about 70% and the throughput improvement is about 32.7%.
5.3. Eciency of MIME header caching
To evaluate the eciency of MIME header caching, we compare the MIME header processing time under two conditions: with and without MIME header caching. Table 2 shows the results. Without MIME header caching, the MIME header processing time is used to construct the MIME header and send it to the client. With MIME header caching, the time is used to lookup the MIME header and send it to the client. From the table we can see that, MIME header caching reduces 44.6% of the MIME header processing time.
5.4. Comparison with other cache management policies
In this section we compare the performance of our cache management policy with others used in WWW. All these policies use LFU as their cache
Table 1
The ®le sizes and their corresponding access frequencies in the current workload
File size (bytes) Access frequency
(times) Accesspercentage (%) 0±1 K 3748 10.9 1±10 K 16 367 47.6 10±100 K 13 419 39.1 100 K±1 M 443 1.3 1±10 M 208 0.6 10 M 187 0.5
Fig. 7. The BHR of the memory cache.
replacement strategy, and they are described in Table 3.
We ®rst compare the BHR of the three policies under the current workload. The performance result is shown in Fig. 9. From this ®gure, we can see that there are no obvious dierences among these policies. This is because the three policies dier only when the ®les processed are large, but the current WWW trac tends to access small ®les.
Due to the improvement of network speed, multimedia objects such as audio and video ®les, will become more and more popular. Since these ®les are large, the increasing popularity of them will aect the current WWW trac and may result in performance dierences among the three cache management policies. In order to see how the
changing of WWW trac impacts the perfor-mance of the three cache management policies, we choose the largest three ®les in the current work-load, increase their access frequencies, and mea-sure the BHRs (we refer to this workload as the modi®ed workload). The result is shown in Fig. 10. From this ®gure, it is clear that our cache man-agement policy noticeably outperforms others in BHR by 15±20%.
Furthermore, because we use memory cache and the memory size is limited, it is very possible that a multimedia ®le is larger than the total cache size. Thus, to investigate the performance of the three policies under this condition, we set the cache size as 32 Mbytes which is smaller than each of the three largest ®les and measure the BHRs. Fig. 11 shows the experimental result. From this Figure,
Table 3
Descriptions of the three WWW cache policies Policy Description
Total A ®le can be cached totally as long as its size is smaller than the cache size Small A ®le can be cached only if its size is smaller than a prede®ned threshold
Adaptive This is our cache management policy. A ®le can be completely cached if its size is smaller than a threshold (i.e. the size of a chunk). Otherwise, only a chunk of it can be cached
Fig. 9. BHR comparison of the three cache policies (current
workload). Fig. 10. BHR comparison of the three cache policies (modi®edworkload). Table 2
The performance improvement of MIME header caching
MIME header processing time Performance improvement Without MIME header caching 387.687 ls 44.6%
we can see that our policy is signi®cantly better than others since their BHRs are less than 2% when the access frequency of the three largest ®les is larger than 8% while the BHR of our policy remains on 33%. Obviously, our policy outper-forms others in this experiment. The reason is that, other policies never caches a ®le larger than the cache size even though the ®le is the most popular one. However, our policy does cache a portion of it and therefore results in a better BHR.
6. Conclusions and future works 6.1. Conclusions
Due to the large retrieval latency of WWW documents, many researches pay attention to the reduction of the latency by either reducing net-work delay or improving the throughput of WWW servers. In this paper, we use a memory cache to improve the throughput of a web server. By caching the most frequently accessed WWW doc-uments in the serverÕs address space, lots of WWW requests can be served without touching the ®le system on the server host and hence improves the serverÕs throughput. We implement the memory cache by modifying an existing WWW server, Thttpd. From the experimental results, we have shown that the throughput improvement of our memory cache can achieve 32.7%
In addition to the implementation of the memory cache, we also propose a new web cache
management policy named the adaptive-level pol-icy, which takes the ®le size into account when caching a ®le. The policy has been proved, by our experiments, to be suitable for current web trac. Besides, with the increasing popularity of multi-media ®les, our policy will outperform other pol-icies that are currently used in WWW.
It should be noted that, although we chose a tiny web server (i.e. Thttpd) for our implementa-tion, we believe that similar results will also apply to a practical server such as an Apache HTTP server. This is because that Thttpd diers with other popular servers only in that the latter put more eorts on managing and customizing them-selves. For example, they provide APIs for users to implement modules to extend the original servers. This makes their servers more manageable and ¯exible. However, it has little in¯uence on the throughput of servers.
6.2. Future works
In this paper, we add a memory cache in a web serverÕs address space. This makes the operating systemÕs (speci®cally, the ®le systemÕs) buer cache becomes a second-level cache. We will investigate the performance in¯uence of this two-level caching in the future.
Moreover, Padmanabhan and Mogul [15] show that accesses to WWW documents are predictable. Therefore, prefetching documents into web serv-erÕs address space may further improve the throughput. In the future, we will evaluate the performance bene®t of prefetching and try to de-sign an eective prefetching mechanism.
Although we cache web documents in a web serverÕs memory space, accesses to cached data may sometimes involve disk reads, which will result in performance degradation. This is because most operating systems support virtual memory. All the memory held by a web server may be paged out to the disks at any time. In our experiments, we did not consider the impact of the virtual memory. Clearly, dierent page replacement policies will have dierent impacts on our web server. In the future, we will identify them on our web server.
The web server is currently a user-level process. It requires many user±kernel data copies when serving

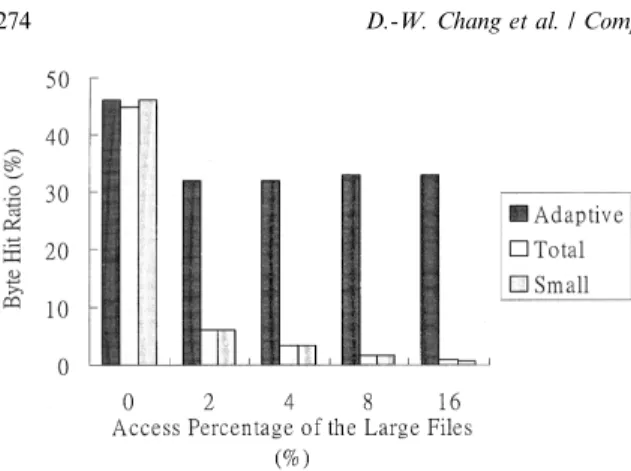

Fig. 11. BHR comparison of the three cache policies (when the total cache size is smaller than a requested ®le).
requests and hence degrades the performance. In the future, we will try to move the web server into the kernel so as to reduce all user±kernel copies. References
[1] M. Abrams, C.R. Standridge, G. Abdulla, S. Williams, E.A. Fox, Caching proxies: limitations and potentials, in: Proceedings of the Fourth International World Wide Web Conference, Boston, December 1995.
[2] M.F. Arlitt, C.L. Williamson, Web sever workload char-acterization: the search for invariants, in: Proceedings of the SIGMETRICS, Philadelphia, PA, April 1996. [3] H. Braun, K. Clay, Web trac characterization: an
assessment of the impact of caching documents from NCSAÕs web server, in: Proceedings of the Second World Wide Web Conference, Chicago, October 1994.
[4] A. Bestavros, R.L. Carter, M.E. Crovella, C.R. Cunha, A. Heddaya, S.A. Mirdad, Application-level document cach-ing in the Internet, in: Proceedcach-ings of the Second Interna-tional Workshop on Services in Distributed and Networked Environments (SDNEÕ95), Whistler, Canada, June 1995.
[5] C.M. Bowman, P.B. Danzig, D.R. Hardy, U. Manber, M.F. Schwartz, The Harvest information discovery and access system, in: Proceedings of the Second World Wide Web Conference, Chicago, October 1994.
[6] P.M.E. De Bra, R.D.J. Post, Information retrieval in the world-wide web: making client-based searching feasible, in: Proceedings of the First World Wide Web Conference, Geneva, Switzerland, May 1994.
[7] C.R. Cunha, A. Bestavros, M.E. Crovella, Characteristics of WWW client-based traces, Technical Report BU-CS-95-010, Computer Science Department, Boston University, July 1995.
[8] The CERN Proxy Cache, available at http://www.w3.org/ pub/WWW/Daemon/User/Con®g/Caching.html.
[9] J. Gwertzman, M. Seltzer, The case for geographical push-caching, in: Proceedings of the HOTOS Conference, 1994. [10] T.T. Kwan, R.E. McGrath, D.A. Reed, NCSAÕs world wide web server: design and performance, IEEE Computer 28 (11) (1995).
[11] T.T. Kwan, R.E. McGrath, D.A. Reed, User access patterns to NCSAÕs world wide web server, Technical Report UIUCDCS-R-95-1934, Department of Computer Science, University of Illinois, February 1995.
[12] E.P. Markatos, Main memory caching of web documents, in: Proceedings of the Fifth International World Wide Web Conference, May 1996.
[13] J.C. Mogul, Improving HTTP latency, in: Electronic Proceedings of the Second World Wide Web Conference: Mosaic and the Web, Chicago, IL, October 1994. [14] J.C. Mogul, The case for persistent-connection HTTP, in:
Proceedings of the ACM SIGCOMMÕ95 Conference on Communications, Architectures, and Protocols, Boston, August 1995.
[15] V.N. Padmanabhan, J.C. Mogul, Using predictive pre-fetching to improve world wide web latency, Computer Communication Review 26 (3) (1996).
[16] S.E. Spero, Analysis of HTTP performance problems, available at http://metalab.unc.edu/mdma-release/http-prob.html, July 1994.
[17] Squid internet object cache, available at http://www.squid-cache.org/.
[18] Thttpd software, available at http://www.acme.com/soft-ware/thttpd/.
[19] S. Williams, M. Abrams, C.R. Standridge, G. Abdulla, E.A. Fox, Removal policies in network caches for world-wide web documents, in: Proceedings of the ACM SIGCOMMÕ96 Conference, Stanford University, August 1996.
[20] WebStone benchmark, available at http://www.mind-craft.com/benchmarks/ webstone/.
Da-Wei Chang is a Ph.D. student in Computer and Information Science Department, National Chiao Tung University, Taiwan, ROC. He received his B.S. (1995) degree and Master (1997) degree both from the Computer and Information Science Department, National Chiao Tung University, Tai-wan, ROC. His main interests are in operating systems, embedded systems, world-wide web, and Java.
Hao-Ren Ke was born on 29 June 1967 in Taipei, Taiwan, ROC. He received the B.S. degree in 1989 and his Ph.D. degree in 1993, both in Computer and Information Science, from National Chiao Tung University. Now he is an associate professor in Library, Na-tional Chiao Tung University, Taiwan, ROC. His main interests are in digital library, virtual reality, and knowledge discovery.
Ruei-Chuan Chang was born on 30 January 1958 in Keelung, Taiwan, ROC. He received his B.S. degree (1979), M.S. degree (1981), and Ph.D. degree (1984), all in Computer Engi-neering from National Chiao Tung University. Now he is a professor in Computer and Information Science Department, National Chiao Tung University, Taiwan, ROC. His main interests are in operating systems, wireless communication, embedded systems, world-wide web, and Java.
