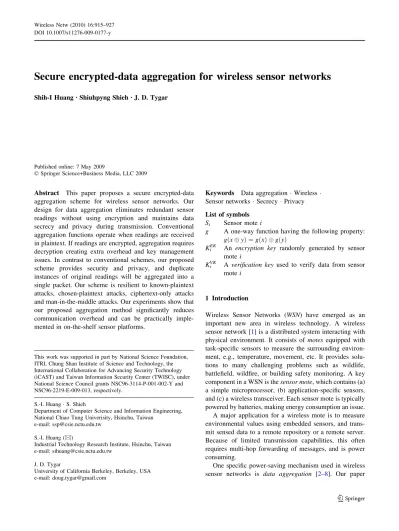

Secure encrypted-data aggregation for wireless sensor networks
Shih-I HuangÆ Shiuhpyng Shieh Æ J. D. Tygar
Published online: 7 May 2009
Springer Science+Business Media, LLC 2009
Abstract This paper proposes a secure encrypted-data aggregation scheme for wireless sensor networks. Our design for data aggregation eliminates redundant sensor readings without using encryption and maintains data secrecy and privacy during transmission. Conventional aggregation functions operate when readings are received in plaintext. If readings are encrypted, aggregation requires decryption creating extra overhead and key management issues. In contrast to conventional schemes, our proposed scheme provides security and privacy, and duplicate instances of original readings will be aggregated into a single packet. Our scheme is resilient to known-plaintext attacks, chosen-plaintext attacks, ciphertext-only attacks and man-in-the-middle attacks. Our experiments show that our proposed aggregation method significantly reduces communication overhead and can be practically imple-mented in on-the-shelf sensor platforms.
Keywords Data aggregation Wireless Sensor networks Secrecy Privacy List of symbols
Si Sensor mote i
g A one-way function having the following property: g xð yÞ ¼ g xð Þ g yð Þ
KiEK An encryption key randomly generated by sensor
mote i Ki
VK
A verification key used to verify data from sensor mote i
1 Introduction
Wireless Sensor Networks (WSN) have emerged as an important new area in wireless technology. A wireless sensor network [1] is a distributed system interacting with physical environment. It consists of motes equipped with task-specific sensors to measure the surrounding environ-ment, e.g., temperature, moveenviron-ment, etc. It provides solu-tions to many challenging problems such as wildlife, battlefield, wildfire, or building safety monitoring. A key component in a WSN is the sensor mote, which contains (a) a simple microprocessor, (b) application-specific sensors, and (c) a wireless transceiver. Each sensor mote is typically powered by batteries, making energy consumption an issue. A major application for a wireless mote is to measure environmental values using embedded sensors, and trans-mit sensed data to a remote repository or a remote server. Because of limited transmission capabilities, this often requires multi-hop forwarding of messages, and is power consuming.
One specific power-saving mechanism used in wireless sensor networks is data aggregation [2–8]. Our paper This work was supported in part by National Science Foundation,
ITRI, Chung Shan Institute of Science and Technology, the International Collaboration for Advancing Security Technology (iCAST) and Taiwan Information Security Center (TWISC), under National Science Council grants NSC96-3114-P-001-002-Y and NSC96-2219-E-009-013, respectively.
S.-I. Huang S. Shieh
Department of Computer Science and Information Engineering, National Chiao Tung Univerisity, Hsinchu, Taiwan
e-mail: [email protected] S.-I. Huang (&)
Industrial Technology Research Institute, Hsinchu, Taiwan e-mail: [email protected]
J. D. Tygar
University of California Berkeley, Berkeley, USA e-mail: [email protected]
proposes a novel method for eliminating duplicate encrypted data during aggregation without decryption. Data aggregation [9–16] has been put forward as an essential paradigm in sensor networks. The aggregator uses specific functions, such as addition, subtraction or exclusive-or, to aggregate incoming readings, and only aggregated result are forwarded [17–23]. Therefore, communication overhead can be reduced by decreasing the number of transmitted packets [24–30]. Without encryption, adversar-ies can monitor and inject false data into the network. Encryption can solve this problem, but how can we aggregate over encrypted data [31]?
Adversaries can use the following attacks:
• Adversaries can deploy sensors near existing sensors to determine their likely value.
• Adversaries can use common key encryption systems (which always encrypt common sensor data in the same way) to see when two readings are identical. By using nearby sensors under the adversaries’ control, adver-saries can conduct a known-plaintext attack.
• Adversaries can tamper with sensors to force them to predetermined values (such as heating a temperature sensor) and thus conduct a chosen-plaintext attack. • Adversaries can inject false readings or resend logged
readings from legitimate sensor motes to manipulate the data aggregation process, conducting a man-in-the-middle attack.
Table1 presents encryption policies, possible attacks, and vulnerabilities in data aggregation schemes.
This paper proposes a new method for determining and eliminating duplicate data while protecting privacy (using encryption) without excessive key-management or power management issues. Our scheme has the following contri-butions. First, we provide a lightweight data aggregation mechanism which protects data when data are processed in aggregators. Aggregators can help to eliminate redundant data without decrypting data. Thus, aggregators do not need to spend extra power in data decryption, and more network lifetime can be guaranteed. Second, our proposed
scheme is resilient to known-plaintext attacks, chosen-plaintext attacks, ciphertext-only attacks, and man-in-the-middle attacks. The rest of the paper is organized as follows: Sect. 2 provides background on related work. In Sect.3, we describe our system architecture and proposed aggregation protocol.Security analysis and performance evaluation are given in Sects. 5 and6 offers conclusions and future directions.
2 Related work
Previous work in data aggregation assumes that every mote is honest and only transmits their correct readings. Intan-agonwiwat, Govindan, Estrin, and Heidemann [17] pro-posed a data-centric diffusion method to aggregate data. Their method enables diffusion to achieve energy savings by selecting empirically good paths and by caching and processing data in-network. Though their method can achieve significant energy savings, security is not put into consideration in their design.
Hu and Evans [13] further examined the problem that a single compromised sensor mote can render the networks useless, or worse, mislead the operator into trusting a false reading. They proposed an aggregation protocol that is resilient to both intruder devices and single device key compromises, but their scheme suffers a problem that the aggregated data will be expanded every time when it was aggregated and forwarded by any intermediate sensor mote.
Przydatek et al. [30] proposed a secure information aggregation protocol to answer queries over the data acquired by the sensors. In particular, their proposed pro-tocols are designed especially for secure computation of the median and the average of the measurements, for the estimation of the network size and for finding the minimum and maximum sensor reading. Even though their scheme provided data authentication to provide secrecy, the data is still delivered in plaintext format which provides no pri-vacy during transmission.

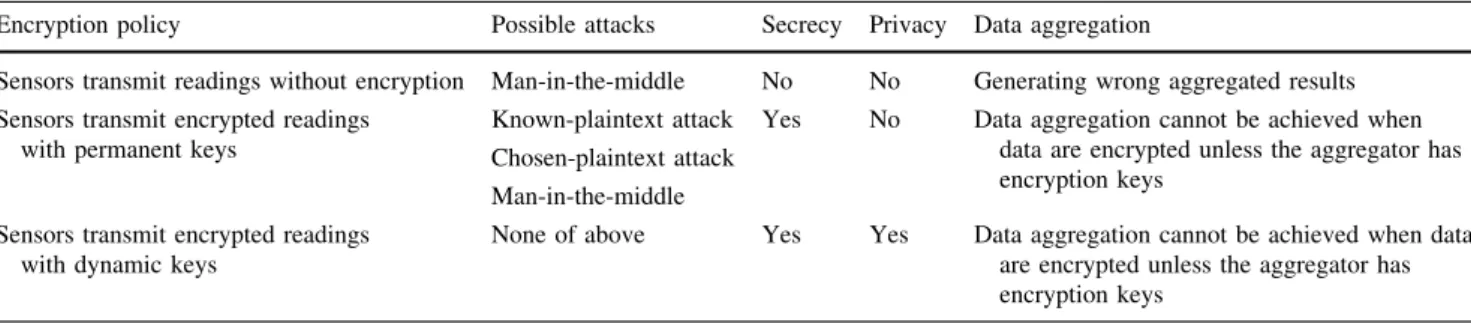

Table 1 Encryption plicies, attacks and vulnerabilities in data aggregation schemes
Encryption policy Possible attacks Secrecy Privacy Data aggregation
Sensors transmit readings without encryption Man-in-the-middle No No Generating wrong aggregated results Sensors transmit encrypted readings
with permanent keys
Known-plaintext attack Yes No Data aggregation cannot be achieved when data are encrypted unless the aggregator has encryption keys
Chosen-plaintext attack Man-in-the-middle Sensors transmit encrypted readings
with dynamic keys
None of above Yes Yes Data aggregation cannot be achieved when data are encrypted unless the aggregator has encryption keys
Wagner [14] presented a paper studying related attacks on data aggregation in sensor networks. He thoroughly examined current aggregation functions and proved that these aggregation functions are vulnerable and insecure under several attacks. He also proposed a theoretical framework for evaluating data aggregation resiliently in sensor networks and in its security against these attacks. Still privacy is not guaranteed in his scheme.
Acharya and Girao [2] proposed an end-to-end encryp-tion algorithm supporting operaencryp-tions over ciphertexts for wireless sensor networks. Their scheme uses a special class of encryption functions, Privacy Homomorphisms (PH) [32–35,16], that allow end-to-end encryption and provide aggregation functions that are applied to ciphertexts. PH is an encryption transformation that allows direct computa-tions on encrypted data. Two funccomputa-tions E and D are addi-tively homomorphic encryption and decryption if the following property is satisfied: for plaintext operands x and y and key k, xþ y ¼ DkðEkð Þ þ Ex kð ÞyÞ: However, privacy
homomorphisms have exponential bound in computation. It is too computationally expensive to implement in wire-less sensor networks. Moreover, it has been proved that privacy homomorphism is insecure even against ciphertext only attacks which are commonly encountered in wireless sensor networks.
Cam et al. [6] proposed a secure energy-efficient data aggregation (ESPDA) to prevent redundant data transmis-sion in data aggregation. Unlike conventional techniques, their scheme prevents the redundant transmission from sensor motes to the aggregator. Before transmitting sensed data, each sensor transmits a secure pattern to the aggre-gator. The secure pattern is generated by associating ori-ginal data with a random number. Instead of transmitting ‘‘real’’ data, the sensor mote transmits the secure patter to the cluster-head before transmitting it. The cluster-head then uses these secure patterns to check which sensors have same readings. Then, the cluster-head notifies certain sen-sor motes to transmit their data. Only sensen-sors with different data are allowed to transmit their data to the cluster-head. However, since each sensor at least needs to transmit a packet containing a pattern once, power cannot be signif-icantly saved. In addition, each sensor mote uses a fixed encryption key to encrypt data; data privacy cannot be maintained in their scheme.
Perrig and Tygar [36] proposed several secure broadcast schemes suitable for wireless sensor networks. The com-putation overhead for their schemes is affordable for tiny sensor motes. They proposed a hashed key-chain scheme to sequentially generate encryption/decryption keys for sensor motes without notifying others. Przydatek, Song and Perrig [30] further extended these schemes and proposed a secure data aggregation scheme for sensor network. Their scheme provided an efficient random sampling mechanisms and
interactive proofs to enable the querier to verify that the answer given by the aggregator is a good approximation of the true value, even when the aggregator and some sensor motes were compromised.
3 Problem statement and proposed data aggregation
Data aggregation uses primitive functions, such as mean, average, addition, subtraction, and exclusive or to elimi-nate identical readings, and only unique results are be forwarded, reducing the cost of data transmission.
Figure1 depicts an overview of data aggregation flow.
3.1 Proposed data aggregation method
3.1.1 Architecture
There are two commonly used network topologies in sensor networks. One is the self-organized sensor network (Fig.2). A self-organized network is a multi-hop, tempo-rary autonomous system composed of sensor motes with wireless transmission capability. It is easy to form such networks but every mote in such networks consumes sig-nificant amounts of power in data transmission as each node must spend power to transmit/forward data to other sensor nodes because of the dynamic network topology. The other network topology is the clustered sensor network (Fig.3). In this architecture, the entire network is parti-tioned into non-overlapping clusters. Each cluster has an aggregator (or cluster head) to receive readings from other sensor motes and to forward these readings to the remote server. To extend operation lifetime, we choose the clus-tered topology as our network architecture [29]. In a clustered sensor network, each mote temporarily belongs to a cluster, and sensors in this cluster will receive and for-ward data for sensors in the same cluster. Since a mote only transmits data for several motes instead of all motes, it can obviously reduce its power consumption for data transmission.
In a clustered WSN, we assume the network is divided into clusters. Each cluster owns an aggregator having a more powerful wireless transceiver that can transmit data
directly to the backend server. In our framework, we also assume each sensor transmits data only to the aggregator; hence, each sensor mote can reduce overhead in forwarding data packets. We also assume sensor motes have no mobility, i.e., they are fixed in a position and will not be moved forever. The question of how to best deploy sensor motes and how to cluster these sensor motes is interesting to consider but is beyond the scope of this paper.
Using a clustered network to reduce power consumption, we propose a data aggregation method which maintains both secrecy and privacy. In terms of secrecy, each sensor mote encrypts its reading and transmits the encrypted data to the aggregator (Fig.4). Adversaries will not be able to recognize
what reading it is during data transmission. In terms of pri-vacy, our design aims to eliminate redundant reading for data aggregation but this reading remains secret to the aggregator, i.e., the aggregator cannot know anything about these read-ings. Besides, our design can also prevent known-plaintext attacks, chosen-plaintext attacks and ciphertext-only attacks.
3.1.2 System setup
Before deploying a wireless sensor network, we have to set up three roles: the sensor mote, the aggregator, and the remote database.

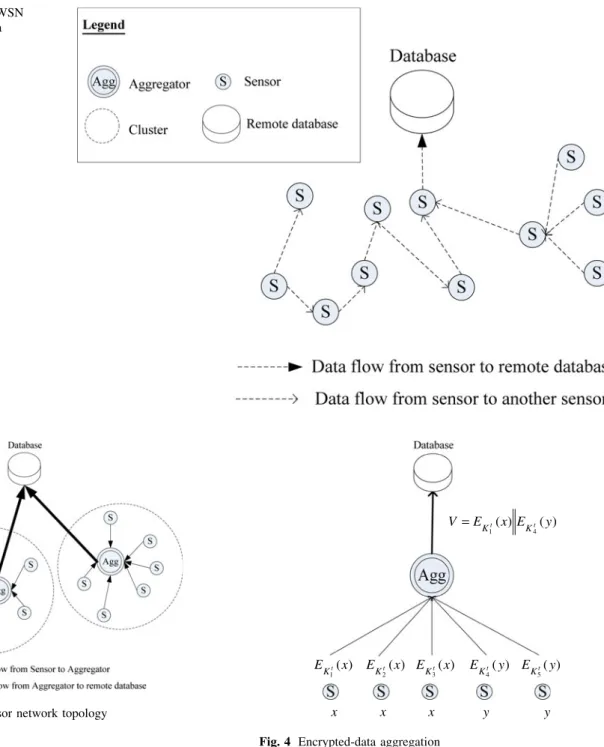

Fig. 2 Self-organized WSN architecture and its data aggregation flow
Fig. 3 A clustered sensor network topology
) ( 1 x EKt x x x y ) ( 2 x EKt y ) ( 3 x EKt ( ) 4 y EKt ( ) 5 y EKt ) ( ) ( 4 1 x E y E V = Kt Kt
1. The sensor mote: each sensor mote i is assigned an one-way function g, and a verification key KiVK.
2. The aggregator: the aggregator is given the one-way function g, and all KVK
i Kiþ1VK Vi. Hereafter, these
keys are referred as aggregation verification keys. 3. The remote database: The remote database needs to
decrypt aggregated data, and thus we need to store the one-way hash function f, the one-way function g, and all verification key KVK
i for all i.
Necessary keys, identities, and functions are pre-dis-tributed in the sensor mote, the aggregator, and the remote database before they are physically deployed and used. Table2lists all pre-installed elements in individual roles.
Key pre-distribution is a scheme where keys are dis-tributed among all sensor motes prior to deployment. Our proposed key pre-distribution scheme does not rely on prior deployment knowledge. Sensor motes are installed with random keys for encryption. These encryption keys have no mandatory relations between each other, and this makes system setup more flexible.
Random keys can be generated by using random source of data, such as values based on CPU clock, radioactive decay, or atmospheric noise. The question of how to gen-erating random numbers is interesting to consider but is beyond the scope of this paper.
3.1.3 Proposed scheme
There are two phases in our proposed scheme: data encryption phase and data aggregation phase. The encryption phase provides a lightweight encryption algo-rithm that supports data aggregation property, and provides secrecy and privacy for data transmission. The data aggregation phase provides a method to eliminate redun-dant readings from sensor motes without decrypting them. Since the aggregator cannot decrypt incoming packets, the aggregator cannot know anything about the plaintext, and therefore more power can be saved.
Data encryption phase Our encryption design aims to provide lightweight encryption overhead and secrecy while providing data aggregation property.
When a sensor mote i has a reading mi and wishes to
transmit this reading to the aggregator, it first randomly generates a new key KEK
i ; which will be used as the
next-round encryption key. By using g, KEK
i ; and KiVK; the
corresponding ciphertext Ei(mi) is defined in Eq. 1.
Eið Þ ¼ mmi i g KiEK KEK i K EK i K VK i ; ð1Þ
wherek indicates data concatenation.
Our proposed scheme is very close to the one-time pad method [37] as each mote changes to a different key for encrypting data but provides more capabilities. It is obvi-ous that the length of data is required to be at least as long as the length of encryption key in our proposed scheme. When the length of data is shorter than the length of the key, extra padding must be appended to the data so that the appended data can be encrypted. As the message mi is
xored with g KEK i
KEK
i ; it does not matter if we pad
random values or fixed values (e.g., all 0’s or 1’s). It does not reduce any security strength in our scheme.
Next, we will introduce how to find out redundant readings among these ciphertexts without decrypting them in our data aggregation phase.
Data aggregation phase Our data aggregation method provides a pair-wise method to identify if two readings are identical. Although the goal of our data aggregation scheme is to find redundant readings among n incoming encrypted packets in the aggregator, our aggregation scheme can be further extended by pairing off these n incoming encrypted packets. By iteratively performing pair-wise comparisons we can eliminate all redundant readings among them. If n same readings are encrypted and transmitted to the aggre-gator, the aggregator needs to check n - 1 times to verify these inputs and save n - 1 packet transmission. It needs computation overhead for data aggregation but saves more energy from fewer data transmissions.
In the following section, first we will introduce our approach to find redundant readings in two packets; then, we will introduce how to extend our approach to find redundant readings among n packets.
Assume sensor mote i and j sends two encrypted read-ings to the aggregator, and these encrypted readread-ings can be expressed by the following equations:
Eið Þ ¼ mmi i g KiEK KEK i K EK i K VK i ; ð2Þ Ej mj ¼ mj g KjEK KEK j K EK j K VK j : ð3Þ
First, the aggregator XOR the first parts of these two ciphertexts, and it can be expressed by the following equation: mi g KiEK KEK i mj g KEKj KEK j ð4Þ
Next, since the aggregator is pre-installed with KVK i Kiþ1VK8i;KVK i K VK j can be obtained by K VK i K VK iþ1 KVK iþ1 Kiþ2VK KVK j1 KjVK
; the aggregator can XOR the last two parts of Eqs.2 and3 to obtain:
Table 2 Pre-installed elements in three roles
Role Pre-installed elements
The sensor mote SIDi,g, and KiVK
The aggregator g, and KVK
i Kiþ1VK Vi.
KiEK KVK i K EK j K VK j K VK i K VK j ¼ KEK i K EK j ð5Þ
It can be found that the aggregator can use Ei(mi) and
Ej(mj) to retrieve KiEK KjEK; but cannot retrieve KiEK or
Kj EK
separately; therefore, the aggregator cannot decrypt Ei(mi) and Ej(mj).
Next, we define a check value V, and V is calculated by XOR Eqs.4and5and g KiEK KEK
j
: The check value is used to distinguish if two encrypted readings are the redundant in their plaintext format. As a result, the check value V can be expressed by the following equation:
Vð Þi;j ¼ mi g KiEK KEK i mj g KjEK KEK j K EK i K EK j g K EK i K EK j ð6Þ
By using the properties of function g, Eq.6can be further reduced to: Vð Þi;j ¼ mi g KiEK KEK i mj g KjEK KEK j K EK i K EK j g K EK i K EK j ¼ mi mj ð7Þ
It is easier observed that if mi is equal mj, Vð Þi;j ¼ mi
mj¼ 0; and vice versa. We can formally describe V(i,j)by
the following equations:
if Vði;jÞ¼ 0; then mi¼ mj Vði;jÞ6¼ 0; otherwise
(
ð8Þ
Figure5depicts the data aggregation phase.
If these two readings are the same, the aggregator just needs to send either Ei(mi) or Ej(mj) to the remote server. If
these two readings are different, the aggregator then sends
Ei(mi)||Ej(mj) to the remote server. Since remote server is
pre-installed with the verification key KVK
i ; the remote
server therefore can use KiVK to obtain KiEKby: KiEK ¼ ðKEK
i K VK i Þ K
VK
i : Then, the original data mi can be
recovered by: mi¼ mi g KiEK KEK i g KEK i KiEK: In above case, the aggregator only needs to examine two incoming ciphertexts, but in general cases, the aggre-gator usually receives more than two incoming ciphertexts. When the aggregator receive n (n [ 2) incoming cipher-texts Eð 1; E2; . . .; EnÞ; our proposed scheme can be easily
extended. First, we group these ciphertexts into pairs, i.e., Ei; Ej
8i: Then, we can repeat above steps to generate their check value V. Next, we can use V to check if Eihas
the same reading with Ej. Finally, if Vð1;2Þ ¼ Vð2;3Þ¼ ¼
Vðn1;nÞ; then we can conclude that E1; E2; . . .; En has the
same reading. Figure 6depicts necessary comparisons for data aggregation when n = 5. It can be observed that
Si Agg
S
j VK j VK i K K ⊕ EK i VK i EK i EK i i i i m m K g K K K E( )= ⊕ ⊕ ( ) ⊕ EKj VK j EK j EK j j j j m m K g K K K E ( )= ⊕ ⊕ ( ) ⊕ EK j VK j EK i VK i VK j VK i EK j EK i K K K K K K K K ⊕ = ⊕ ⊕ ⊕ ⊕ ⊕ j i EK j EK i EK j EK i EK j EK j j EK i EK i i j i m m K K g K K K g K m K g K m V ⊕ = ⊕ ⊕ ⊕ ⊕ ⊕ ⊕ ⊕ ⊕ ⊕ == ( ) ( ) ( ) ) , ( Step 1: Step 2:Fig. 5 Data aggregation phase
these comparisons can be viewed as all edges in a com-plete graph, and we will discuss this property in next section.
Preliminaries: When the aggregator receives n encrypted readings, the minimum number of comparisons is n - 1 under the condition that all these readings (when unen-crypted) are the same. The maximum number of compari-sons isnðn1Þ2 when all these readings (when unencrypted) are totally different from each other.
4 Threat models
The goals of the adversaries are to read, insert, and even modify sensor readings. We consider several possible threats, classified according to the capabilities of the adversaries.
4.1 Known-plaintext attacks
To implement known-plaintext attacks, no capabilities are need except the ability to deploy malicious sensors close to legitimate sensors. In this scenario, an adversary can • Collect all readings from all sensors, calculated
aggre-gated values, know their routing paths, and inject wrong readings or aggregated values to the network. • Collect abundant encrypted readings to enhance the
compromise of encryption keys.
In practice, known-plaintext attacks can be easily achieved by deploying same sensor very close to legitimate sensors. The goal of these attacks is merely to read readings and to record corresponding responses of a sensor mote.
4.2 Chosen-plaintext attacks
• Adjust the sensors by changing physical conditions, such as temperature or moisture.
• Log all plaintext-ciphertext mappings without knowing what the encryption keys are.
In practice, adversaries can take some physical methods to adjust the sensing environment in order to make sensor motes generate false readings the adversaries desired. For example, adversaries can use heaters to raise the temper-ature to a certain degree, and tempertemper-ature sensors will send the false temperature readings making the aggregators generate incorrect results.
4.3 Man-in-the-middle attacks
• Read, insert, or modify messages between sensor motes.
• Inject false readings or resend logged readings on behalf of legitimate sensor motes to malfunction data aggregation.
Significantly, we assume that an adversary cannot retrieve encryption keys from a sensor mote by physically com-promising it. Otherwise, there will be no security at all.
5 Security analysis and performance evaluation
In this section, we evaluate our proposed scheme according to two aspects: theoretical and practical. In theoretical aspect, we use random oracle model to justify our protocol is secure in terms of provable security. We firstly built an ideal random oracle model and show that our proposed encryption algorithm is an implementation of the ideal random oracle. Then, we use the random oracle model to justify that it can resist know-ciphertext attacks. In prac-tical aspect, we estimate necessary time for compromising our proposed scheme using different key lengths. The result shows that using encryption keys longer than 80 bits would be considerable secure enough even if the adversary uses 1,000,000 4 GHz PCs running simultaneously to compromise our scheme. Then, we show that our proposed scheme can resist known-plaintext attacks, chose-plaintext attacks, and know-ciphertext attacks.
Before we proceed to theoretical proof, we first describe the security requirement specifying the adversary’s abili-ties and when the latter is considered successful. The abilities and disabilities of the adversary include:
• The adversary has an arbitrary polynomial-time com-putation power.
• The adversary can eavesdrop on messages in the air. • The adversary can know the original readings of any
sensor.
• The adversary cannot access the encryption keys. An attack is considered to be successful if the adversary can compromise the encryption keys. In terms of system security, we adopt the idea in [38]. A system is considered secure if any adversary with the given abilities has only a negligible probability of success.
A random oracle is a theoretical black box that replies to queries with random response chosen uniformly in its output domain. A methodology for designing a crypto-graphic protocol can be divided into two steps. In first step, one designs an ideal system in which all participants as well as adversaries have oracle access to a truly random function, and proves the security of the ideal system. In second step, we replace the random oracle by a ‘‘good cryptographic hashing function’’. We can therefore obtain an implementation of the ideal system in a real-word where
random oracles do not exist. This methodology is referred to as the random oracle methodology.
Before we build our ideal system, we first describe the notion.
{0, 1}* the space of finite binary strings {0, 1}? the space of infinite binary strings G: 0; 1f g! 0; 1f g1 a random generator
f a trapdoor permutation with
inverse f-1
k the security parameter
H: 0; 1f g! 0; 1f gk a random has function
GðrÞ x the bitwise XOR of x with the first |x| bits of the output of G(r)
5.1 Preliminaries
Definition A function e(k) is negligible if for every c there exists a kcsatisfying e(k) B k-cfor every k C k-c.
Definition If APis a probabilistic algorithm, then for any
inputs m1, m2,…, AP(m1, m2,…) is the probability space
which to the sting r assigns the probability that APoutputs r.
For probabilistic spaces S, T,…, Pr[x / S; y / T;…:p(x,
y,…)] denotes the probability that the predicate p(x, y,…) is true after the execution of the algorithms x / S, y / T, etc. Definition A random oracle R is a map from {0, 1}* to {0, 1}?chosen by selecting each bit of R(x) uniformly for every x. Without lost of generosity, our proposed scheme can be formulated as the following oracle:
EGrð Þ ¼ m G rm ð Þ f rk ð Þ. . . ð9Þ 5.2 Known-plaintext security
For known-plaintext attacks, the adversary knows some m, and Pr½The attacker successfully guesses G rð Þ1 can be
described as:
Pr½r1 G rð Þ ¼ 1
2j jr1 0; when r1is large enough.
We suggest that |r1| C 88 is adequate and mathematical
induction will be given later. 5.3 Chosen-plaintext security
We adapt the notion of CP-adversary (chosen-plaintext adversary) in [39] to the random oracle model. A CP-adversary A is a pair of non-uniform polynomial algorithms (F, A1), each with access to an oracle. For an encryption
algorithm # to be secure, it requires that
P Chosen½ Plaintext Fails¼PrR 21; E;Dð Þ # 1k
; ðm0;m1Þ FRðEÞ; b 0;1f g;r ERðmbÞ:
AR1ðE;m0;m1;aÞ¼b0:5þkwð1Þ: ð10Þ
Proof The proof is by contradiction. Let A = (F, A1) be
an adversary that defeats our protocol. Often, the adversary
gains advantage k(k) for some inverse polynomial k. We construct an algorithm M(f, d, y) that, when ðf ;f1;dÞ
#ð1kÞ;r dð1kÞ;y f ðrÞ; manages to compute f-1
(y). It simulates the oracle G and samples (m0, m1) / FG(E). If G
is asked an r such that f(r) = y, then Moutputs r and halts; otherwise, the F(E) terminates and M chooses a yjjs for s f0;1gjm0j: Then M simulates AG
1ðE;m0;m1;aÞ; watching
the oracle queries that A1makes to see if there is any oracle
query r for which f(r) = y. Let Akbe the event that A1does
not ask for the image of G at r. It satisfies that 1=2þ kðkÞ ¼ Pr½A succeeds jAK Pr½Ak þ Pr
½A succeeds jAk Pr½Ak:
Thus, Eq.10is satisfied.
5.4 Chosen-ciphertext security
The chosen-ciphertext attack is defined as: the adversary can adaptively choose ciphertexts and access to the decryption algorithm to get the corresponding plaintexts. Though it is usually occurred in asymmetric cryptographic systems, it can also be happened in our scheme as the adversary can know both ciphertexts and plaintexts (by using same sensors) in the same time. We adapt the defi-nition of [39,40] to the random oracle [38] setting. An RS-adversary (‘‘Rackoff-Simon RS-adversary’’) A is a pair of non-uniform algorithms A = (F, A1), each with access to an
oracle R and a black box implementation of DR. The algorithm F is used to generate two messages m0and m1
such that if A1is given the encryption a, A1won’t be able
to guess well whether a comes m0 or m1. Formally, an
encryption scheme # is secure against RS-attack if the following equation is satisfied:
P½Chosen Ciphertext Fails
¼ Pr½R 21;ðE; DÞ #ð1kÞ; ðm0; m1Þ
FR;DR
ðEÞ; b 0; 1f g; a ERðm bÞ :
AR;D1 RðE; m0; m1;aÞ ¼ b 0:5 þ kwð1Þ ð11Þ
Proof To see our scheme is secure against chosen ciphertext attacks, we prove the above equation is satisfied. Let Akdenotes the event that akb FðEÞ; for some a and
b. Let A = (F, A1) be an RS-adversary that succeeds with
probability12þ kðkÞ for some non-negligible function k(k). The adversary A can make some oracle call of G(r1) or
HðGðr1ÞÞ: Let Lk denotes the event that A1 asked DG;H
some queries where a¼ m f1ðr1Þ Hðf1ðr1ÞÞ; but A1
never asked its H-oracle for Hðf1ðr
1ÞÞ. Let n(k) denotes
the total number of oracle queries made. It is easy to see that Pr½Lk nðkÞ2k and Pr½A succeeds LK\ AK ¼ 0:5
according to [39].
Thus Pr½A succeeds] ¼ Pr½Choosen Cipher Attack
succeeds]¼1
Pr½A succeeds LKPr½ Lk þ Pr½A succeedsj Lk\ AkPr½Lk\ Ak þ Pr½A succeedsj Lk\ AkPr½Lk\ Ak n kð Þ2kþ Pr½Ak þ 1 2:
Therefore, our proposed scheme satisfies Eq.11, and is chosen-ciphertext-attack resistant.
In practice aspect, we evaluate the difficulties to brute force our proposed scheme. To brute force our proposed scheme, first the adversary need to spend time generating all possible keys and test the result with every possible key. We assume that the adversary can generate an encryption key and test the result in one duty cycle, our proposed scheme uses r-bit keys to encrypt data, and the adversary uses a g G-Hz PC to brute force our propose scheme. To completely test all possibilities by exhaustive search, the adversary would need to spend
2rðcyclesÞ
g 10; 000; 000 86400 365 years to compromise our scheme.
Assume the adversary uses a 4G-Hz PC to brute force our scheme which uses a 64-bit encryption key, the adversary needs to generate all 264keys and uses these keys to test the result. If we assume that the adversary can test our encryption scheme within one duty cycle, the total computation time to test all 264keys is:
264=4G=86400=365 14; 624 years:
However, the adversary can use more PCs simultaneously to compromise our algorithm. If the adversary uses 1,000,000 PCs running simultaneously to compromise our scheme, the total computation time to test all conditions is
264=4G=86400=365=1M 0:01 years:
In this case, it takes about 3–4 days to compromise our scheme which is unacceptably insecure. Table3 lists esti-mated time to brute force our proposed scheme with dif-ferent key lengths. To maintain acceptable security while using minimal key length, we suggest use 80-bit keys to encrypt data as the adversaries need about 958 years to
compromise our scheme even if they use 1,000,000 PCs to attack our scheme in parallel.
Moreover, using longer encryption keys can dramati-cally increase difficulties to compromise our scheme as it exponentially expend the key space which makes adver-saries spend more time to brute force the proposed scheme. Figure7 illustrate the growth rate of key size (2r) and the growth rate (g) of PCs.
Assume the adversary know sensor reading m and cor-responding ciphertext
EiðmiÞ ¼ mi gðKiEKÞ KEKi KiEK KiVK
; the
adver-sary can therefore know gðKEK
i Þ KiEK and KiEK XVKi :
Without knowing KiVK in advance, the adversary cannot compromiseKEK
i : Furthermore, since the encryption keys
will be arbitrarily changed, our scheme can hence resist known-plaintext attacks. Even adversary can generate designate data m to confuse sensor motes, still the adver-sary cannot learn anything about the encryption keys. Therefore, our scheme can resist know-ciphertext attacks and chosen-ciphertext attacks.
One workload we have to pay is the number of com-parisons it takes to verify encrypted-data from n motes. Our proposed scheme can reduce the number of comparisons as it has transitive property. The transitive property is described as: Given Eh(mh), Ei(mi), and Ej(mj), if V(h,i)= 0
and V(i,j)= 0, then V(h,j)= 0. This is pretty simple to
prove. If V(h,i)= 0 and V(i,j)= 0, then mh= mi and
mi= mjIt can therefore be easily seen that mh= mi= mj.
With this transitive property, if all readings are the same, the minimum number comparisons for verifying data from n sensor motes is n - 1. And, according to Fig.6, the maximum number comparisons for verifying data from n
Table 3 Estimated time (years) to brute force our proposed scheme with different key lengths
Key length One 4 GHz PC 10,000 4 GHz PCs 100,000 4 GHz PCs 1 M 4 GHz PCs
64 bits 14624 1.5 0.15 0.01 72 bits 374363 374.4 37.4 3.74 80 bits 958369660 95837 9583.7 958.37 88 bits 2.45E?11 24534263 2453426.3 245342.6 0 40 80 120 160 200 240 1 2 3 4 5 6 7 8 9 10 Key size Number of PCs
sensor motes is equal to the number of edges in a n-com-plete graph which is nðn1Þ2 : It is shown in Fig.8 that our computation bound is limited between O(n) and O(n2), and this can be affordable for off-the-shelf sensor platforms.
In comparison with other schemes, our encryption algorithm uses XOR and a hash function. Our encryption algorithm is more lightweight. Our proposed encryption algorithm changes its encryption key whenever there’s a reading that needs to be transmitted. This makes our scheme more feasible for wireless sensor networks. Table4lists the differences between our scheme and other schemes.
Key Compromise One major issue in our scheme is the key compromise problem. As the aggregator stored KiVK KVK
iþ1Vi, once an encryption key KiVK is been compromised,
all other encryption key KjVK 8j 6¼ i will be compromised.
Therefore, the aggregator must have stronger security protection than sensor motes. One way to enhance the hardware security strength in the aggregator is to install a TPM (Trust Platform Module) chip inside the sensor mote, and all paired encryption keys KVK
i K VK
iþ1 Vi are stored
inside TPM. It can significantly reduce the possibility that adversaries compromise the aggregators.
Data Size Variation Here we discuss the storage requirement when the length of data is increased. When the length of data is increased, the encryption key must be increased correspondingly. Assume the length of data is increased by l0, the length of key as well will increase l0 bits. As each sensor mote stores KiVKonly, it requires more
l0bits to store the encryption key. For the aggregator, as the aggregator stores all paired encryption keys KVK
i K VK iþ1Vi,
it requires more h l0bits where h is the number of sensor
motes in the cluster. It can be seen that when the length of data is increased linearly, the storage requirement for storing keys is also increased linearly.
Efficiency Here we discuss the efficiency caused from our proposed scheme. Our proposed saves power by eliminating redundant packets. Thus, the more packets are eliminated, the more power can be saved. As we mentioned earlier, the minimum number of comparisons is n-1 under the condition that all these readings (when unencrypted) are the same, amd the maximum number of comparisons is
nðn1Þ
2 . For the best case, it reduces (n-1) packet
transmis-sions. For the worst case, it does not reduce any packet transmission overhead. For average case, assume that there totally n packets and m of them are the same, the number of comparisons is ðm 1Þ þ ðn mÞðn m 1Þ=2: It redu-ces n - m packets in average case. Table5 lists the effi-ciency comparisons for the best, average, and the worst cases.
6 Conclusion and future directions
In this paper, we proposed a secure encrypted-data aggre-gation scheme for wireless sensor networks. Our scheme has the following enhancements: (1) the aggregator does
0 5 10 15 20 25 30 35 40 45 50 1 2 3 4 5 6 7 8 9 10 n(n-1)/2 n-1
Fig. 8 The number of comparisons for verifying n encrypted-data

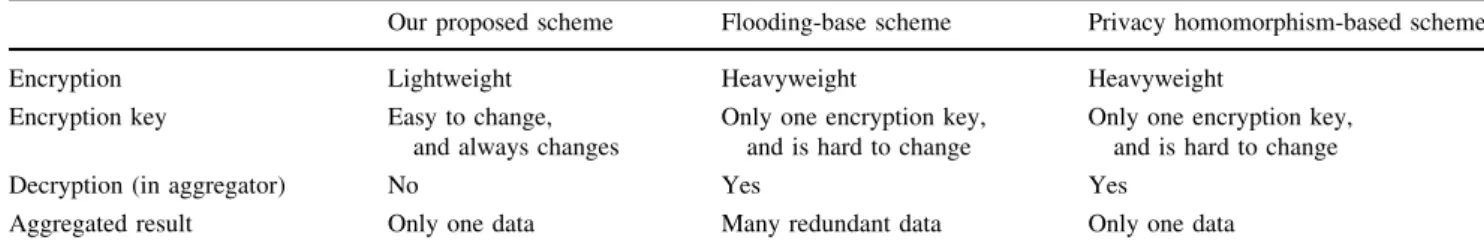

Table 4 Performance evaluations compared with other schemes
Our proposed scheme Flooding-base scheme Privacy homomorphism-based scheme
Encryption Lightweight Heavyweight Heavyweight
Encryption key Easy to change,
and always changes
Only one encryption key, and is hard to change
Only one encryption key, and is hard to change
Decryption (in aggregator) No Yes Yes
Aggregated result Only one data Many redundant data Only one data
Table 5 Efficiency comparisons for the best, average, and the worst case
Best case Average case Worst case
Number of comparison n - 1 ðm 1Þ þ ðn mÞðn m 1Þ=2 nðn 1Þ=2
not need to decrypt its received encrypted-data to verify if these data are the same; no extra power are wasted in data decryption, (2) the aggregator does not have decryption keys and therefore cannot know anything about the data, and (3) our proposed scheme uses random keys to encrypt data; this property makes our scheme resilient to known-plaintext attacks, chosen-known-plaintext attacks, ciphertext-only attacks, and man-in-the-middle attacks. Moreover, com-pared with conventional PH-based data aggregation schemes, received data can be recovered and decrypted to be further analyzed. Our proposed scheme provides secrecy and privacy in the sense that each sensor mote randomly generates a new encryption key each time providing semantic security for data encryption phase proposed data aggregation, and the intermediate aggregators cannot decrypt these encrypted-data. Aiming at secrecy and pri-vacy, our proposed scheme is resilient to several attacks in sensor networks, and makes data aggregation more prac-tical in these environments.
Our proposed scheme extends one-time pad to provide a secure encrypted-data aggregation paradigm for wireless sensor. Though it supports secrecy and privacy, our scheme provides only equality check. More general mathematical operations, such as addition, subtraction, and so on, should be further investigated under the same condition: the encryption keys are always changing and the aggregator cannot decrypt data through it. Except these mathematical operands, operands for strings, such as finding substring, should also be provided.
Currently, our scheme is workable in a one-level clus-tered network environment, i.e., the aggregator can one-hop to the base station. However, in real deployment, it is usually not the case. Our future work toward this problem is to extend our scheme to multi-level cluster environment. Another problem in our scheme is that our experimental sensor motes must be fixed to a cluster and can no longer be moved to another cluster. We will also address this issue in our future work.
For key management, our proposed scheme pre-installs keys for verification and data aggregation in the aggregator before deployment. This limits the flexibility of system deployment and aggregation. In future work, we expect to modify our key management method so that these keys will not be stored in aggregators in advance but will be exchanged and retrieved when necessary. We also look forward to extending privacy homomorphism functions to support dynamic key management to bring more flexibility in data aggregation.
Our protocol uses only XOR operations and an irre-versible hash function to encrypt data. The security strength is not as strong as block cipher encryption algo-rithms, such as AES, DES, etc. We also expect to extend
our scheme to adopt block-cipher encryption algorithms to provide higher security strength for aggregation.
References
1. Akyildiz, I., Su, W., Sankarasubramaniam, Y., & Cayirci, E. (2002). A survey on sensor networks. IEEE Communications Magazine, 40, 102–114. doi:10.1109/MCOM.2002.1024422. 2. Acharya, M., & Girao, J. (2005). Secure comparison of encrypted
data in wireless sensor networks. In 3rd international symposium on modeling and optimization in mobile, ad hoc, and wireless networks (pp. 47–53).
3. Al-Karaki, J., Ul-Mustafa, R., & Kamal, A. (2004). Data aggre-gation in wireless sensor networks—exact and approximate algorithms. In proceedings of the workshop on high performance switching and routing (pp. 241–245).
4. Atonishi, T., & Matsuda, T. (2006). Impact of aggregation effi-ciency on GIT routing for wireless sensor networks. In pro-ceedings of IEEE international conference oon parallel processing workshops.
5. Buttyan, L., Shaffer, P., & Vajda, I. N. (2006). Resilient aggre-gation with attack detection in sensor networks. In proceedings of the fourth annual IEEE international conference on pervasive computing and communications workshops (p. 332).
6. Cam, H., Ozdemir, S., Nair, P., Muthuavinashinappan, D., & Ozgur Sanli, H. (2006). ESPDA: Energy-efficient secure pattern based data aggregation for wireless sensor networks. Computer Communication, 29, 446–455.
7. Chen, Y., Liestman, A., & Liu, J. (2006). A hierachical energy-efficient framework for data aggregation in wireless sensor net-works. IEEE Transactions on Vehicular Technology, 55, 789– 796. doi:10.1109/TVT.2006.873841.
8. Choi, J., Lee, J., Lee, K., Choi, S., Kwon, W., & Park, H. (2006). Aggregation time control algorithm for time constrained data delivery in wireless sensor networks. In proceedings of vehicu-lare technology (pp. 563–567).
9. Considine, J., Li, F., Kollios, G., & Byers, J. (2004). Approximate aggregation techniques for sensor databases. In proceedings of IEEE conference on data engineering (p. 449).
10. Gatani, L., Lo Re, G., & Ortolani, M. (2006). Robust and efficient data gathering for wireless sensor networks. In proceedings of the 39th Hawaii international conference on system sciences (p. 235). 11. Girao, J., Westhoff, D., & Schneider, M. (2005). CDA: Con-cealed data aggregation for reverse multicast traffic in wireless sensor networks. In proceedings of 40th international conference on communications (pp. 3044–3049).
12. Girao, J., Westhoff, D., & Scheneider, M. (2004).Concealed data aggregation in wireless sensor networks. In proceedings of ACM WiSe conference.
13. Hu, L., & Evans, D. (2003). Secure aggregation for wireless networks. In proceedings of applications and internet workshops (pp. 27–31).
14. Wagner, D. (2004). Resilient aggregation in sensor networks. In proceedings of the 2nd ACM workshop on security of ad hoc and sensor networks (pp. 78–87).
15. Westhoff, D., Girao, J., & Acharya, M. (2006).Concealed data aggregation for reverse multicast traffic in sensor networks: Encryption, key distribution and routing adaptation. In proceed-ings of IEEE transactions on mobile computing (pp. 1417–1431). 16. Wu, K., Dreef, D., Sun, B., & Xiao, Y. (2006). Secure data aggregation without persistent cryptographic operations in
wireless sensor networks. In proceedings of performance, com-puting, and communications conference (p. 6).
17. Intanagonwiwat, C., Govindan, R., Estrin, D., & Heidemann, J. (2003). Directed diffusion for wireless sensor networking. In IEEE/ACM transactions on networking (pp. 2–16).
18. Jiang, H., & Jin, S. (2006). Scalable and robust aggregation techniques for extracting statistical information in sensor net-works. In proceedings of the 26th IEEE international conference on distributed computing systems (p. 69).
19. Krishnamachari, L., Estrin, D., & Wicker, S. (2002). The impact of data aggregation in wireless sensor networks. In proceedings of distributed computing systems workshops.
20. Li, H., Yu, H., & Liu, A. (2006). A tree based data collection scheme for wireless sensor network. In proceedings of the IEEE international conference of networking (p. 119).
21. Raina, M., Ghosh, S., Patro, R., Viswanath, G., & Chadrashekhar, T. (2006). Secure data aggregation using commitment schemes and quasi commutative functions. In proceedings of 1st interna-tional symposium on wireless pervasive computing (pp. 16–18). 22. Shin, S., Lee, J., Baek, J., & Seo, D. (2006). Reliable data
aggregation protocol for ad-hoc sensor network environments. In proceedings of the 8th international conference on advanced technology.
23. Shrivastava, N., Buragohain, C., Agrawal, D., & Suri, S. (2004). Medians and beyond: New aggregation techniques for sensor networks. In proceedings of the 2nd international conferece on embedded networked sensor systems (pp. 239–249).
24. Li, Z., Li, K., Wen, C., & Soh, Y.(2003). A new chaotic secure communication system. In proceedings of IEEE transactions on communications (pp. 1306–1312).
25. Li, T., Wu, Y., & Zhu, H. (2006). An efficient scheme for encrypted data aggregation on sensor networks. In proceedings of vehicular technology conference (pp. 831–835).
26. Madden, S., Franklin, M. J., Hellerstein, J. M., & Hong, W. (2002). TAG: A tiny aggregation service for ad-hoc sensor net-works. In proceedings of 5th symposium on operating systems design and implementation.
27. Mahimkar, A., & Rappaport, T. (2004). SecureDAV: A secure data aggregation and verfication protocol for sensor networks. In proceedings of global communication.
28. Misra, R., & Mandal, C. (2006). Ant-aggregation: Ant colony algorithm for optimal data aggregation in wireless sensor net-works. In proceedings of international conference on wireless and optical communication networks (p. 5).
29. Moussaoui, O., Ksentini, A., Naimi, M., & Gueroui, M. (2006). Efficient energy saving in wireless sensor networks through hierarchical-based clustering. In proceedings of the seventh IEEE international symposium on computer networks.
30. Przydatek, B., Song, D., & Perrig, A. (2003). SIA: Secure information aggregation in sensor networks. In proceedings of ACM SenSys conference (pp. 255–265).
31. Chandramouli, R., Bapatla, S., & Subbalakshmi, K. P. (2006). Battery power-aware encryption. In proceedings of ACM trans-actions on information and system security (pp. 162–180). 32. Bao, F. (2003). Cryptoanalysis of a provable secure additive and
Multiplicative Privacy Homomorphism. In proceedings of the international workshop on coding and cryptography (pp. 43–50). 33. Benaloh, J. (1986). Secret sharing homomorphisms: Keeping shares of a secret sharing. In Advances in Cryptology—CRYPTO (pp. 251–260).
34. Cramer, R., Damgard, I., & Nielsen, J. B. (2001). Multiparty computation from threshold homomorphic encryption. In advances in cryptology—EUROCRYPT (pp. 280–299).
35. Domingo-Ferrer, J. (2002). A provably secure additive and multiplicative privacy homomorphism. In proceedings of infor-mation security conference (pp. 471–483).
36. Perrig, A., & Tygar, J. D. (2002). Secure boradcast communi-cation in wired and wireless networkss. Dordrecht: Kluwer Academic Publisher.
37. Schneider, M., & Felten, E. (2000). Efficient commerce protocols based on one-time pads. In proceedings of 16th annual computer security applications conference (p. 317).
38. Canetti, R., Goldreich, O., & Halevi, S. (1998). The random oracle methodology, revisited. In proceedings of the 30th annual ACM symposium on the theory of computing (pp. 209–218). 39. Bellare, M., & Rogaway, P. (1993). Random oracles are practical:
a paradigm for designing efficient protocols. In proceedings of 1st conferendce on computer and communications security (pp. 62– 73).
40. Rackoff, C., & Simon, D. (1991). Non-interactive zero-knowl-edge proof of knowlzero-knowl-edge and chosen ciphertext attack. In pro-ceedings of advances in cryptology.
Author Biographies
Shih-I Huangreceived B.S. and M.S. degrees in Applied Math-ematics from National Sun-Yat Sen University, and he’s work-ing toward his Ph.D. in EECS in National Chiao Tung Univer-sity. He’s also currently a R&D engineer and project leader in Industrial Technology Research Institute in Taiwan. His research interests include network secu-rity, information secusecu-rity, wire-less sensor network, data protection, and data privacy.
Shiuhpyng Shieh received the M.S. and Ph.D. degrees in Elec-trical and Computer Engineering from the University of Maryland, College Park, respectively. He is a professor of the Department of Computer Science, National Chiao Tung University (NCTU), and the Director of Taiwan Information Security Center at NCTU. He served in the past as the Computer Science Depart-ment Chair of NCTU, Director of GSN-CERT/CC, Advisor to National Information and Communication Security Task Force, and Advisor to National Security Bureau. Dr. Shieh currently serves as the Chair of IEEE Reliability Society Taipei and Tainan Chapter, and a steering committee member of ACM SIGSAC. He is also an associate editor of IEEE Transactions on Dependable and Secure Computing, IEEE Transactions on Reliability, ACM Transactions on Information and System Security, Journal of Computer Security, former editor of Journal of Information Science and Engineering, and guest editor of IEEE Internet Computing, respectively. He was the former President of Chinese Cryptology and Information Security Association (CCISA), the largest non-profit academic organization for security research. He was on the organizing committees of numerous conferences, such as Steering Committee Chair of ACM Symposium on Information, Computer and Communications Security. Dr. Shieh has published over a hundred academic articles, including papers, patents, and books.
Recently he received ACM Award for his contribution to ACM, and Distinguished Information Technology Award for his contribution to computer security research. His research interest includes network and system security, wireless security, and cryptography.
J. D. Tygar is Professor of Computer Science at UC Berkeley and also a Professor of Information Management at UC Berkeley. He works in the areas of computer security, privacy, and electronic commerce. His current research includes pri-vacy, security issues in sensor webs, digital rights manage-ment, and usable computer security. His awards include a National Science Foundation Presidential Young Investigator Award, an Okawa Foundation Fellowship, a teaching award from Carnegie Mellon, and invited keynote addresses at PODC, PODS, VLDB, and many other conferences. Doug Tygar has written three books; his book Secure Broadcast Communication in Wired and Wireless Networks (with Adrian Perrig) is a standard reference and has been translated to Japanese. He designed cryptographic postage standards for the US Postal Service and has helped build a number of
security and electronic commerce systems including: Strongbox, Dyad, Netbill, and Micro-Tesla. He served as chair of the Defense Department’s ISAT Study Group on Security with Privacy, and was a founding board member of ACM’s Special Interest Group on Elec-tronic Commerce. He helped create and remains an active member of TRUST (Team for Research in Ubiquitous Security Technologies). TRUST is a new National Science Foundation Science and Tech-nology Center with headquarters at UC Berkeley and involving fac-ulty from Berkeley, Carnegie Mellon, Cornell, Stanford, and Vanderbilt. Before coming to UC Berkeley, Dr. Tygar was tenured faculty at Carnegie Mellon’s Computer Science Department, where he continues to hold an Adjunct Professor position. He received his doctorate from Harvard and his undergraduate degree from Berkeley.
