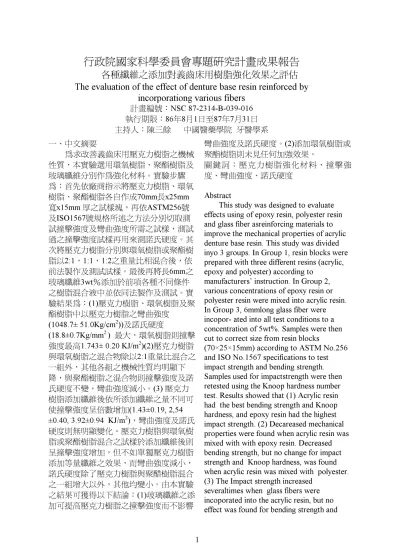

!"# $%&'()*+,-./ 01 23456789: !";<*=70mm>x25mm ?x15mm @ABCD5ASTM256E #ISO1567EFGHIJK()LMN AOP+Q#RS+QHTABNA UOP+QABDVNWXYQ/Z [:()\ ]!" ^2:11:11:2_`abcde5 fKg*#NAAB/heD:>6mm $%&'3wtijklfm;nopqr cdst5pKg*#NA/ uv2(1) #! "^RS+Q (1048.7± 51.0Kg/cm2))#WXYQ (18.8±0.7Kg/mm2 ) hw xOP +Qhy1.743± 0.20 KJ/m2)(2) \ cdz{^2:1_`acd |}Z~;| \!"cdzxOP+Q#W XYQoRS+Q /(3) jk&'e5Hjk&'`op OP+Qk(1.43±0.19, 2,54 ±0.40, 3.92±0.94 KJ/m2)RS+Q#WX YQx,/\ ]!"cdABljk&'ex OP+Qko jk`&'vRS+Q WXYQ{\!cd |w^}Z~/ uv^u2(1)$%&'j kyOP+Qo RS+Q#WXYQ/(2)jk ] !"x ¡k+v/ ¢£¤2+,-.OP+ QRS+QWXYQ Abstract
This study was designed to evaluate effects using of epoxy resin, polyester resin and glass fiber asreinforcing materials to improve the mechanical properties of acrylic denture base resin. This study was divided inyo 3 groups. In Group 1, resin blocks were prepared with three different resins (acrylic, epoxy and polyester) according to
manufacturers’ instruction. In Group 2, various concentrations of epoxy resin or polyester resin were mixed into acrylic resin. In Group 3, 6mmlong glass fiber were incopor- ated into all test conditions to a concentration of 5wt%. Samples were then cut to correct size from resin blocks
(70×25×15mm) according to ASTM No.256 and ISO No.1567 specifications to test impact strength and bending strength. Samples used for impactstrength were then retested using the Knoop hardness number test. Results showed that (1) Acrylic resin had the best bending strength and Knoop hardness, and epoxy resin had the highest impact strength. (2) Decareased mechanical properties were found when acrylic resin was mixed with with epoxy resin. Decreased bending strength, but no change for impact strength and Knoop hardness, was found when acrylic resin was mixed with polyester. (3) The Impact strength increased
severaltimes when glass fibers were incoporated into the acrylic resin, but no effect was found for bending strength and
The evaluation of the effect of denture base resin reinforced by
incorporationg various fibers
¥¦§E2NSC 87-2314-B-039-016 ¨©ª«286¬81®¯87¬731® °±²2³´µ ¶·¸¹º »·¹¼
Knoop hardness. The incorporation of glass fiber into the resin mixture also increased the impact strength but decreased the bending strength and Knoop hardness significantly. We thus conclude that (1) by incorporating an appropriate volume of 6mm long glass fibers, the impact strength of resins could be increased remarkably without changes in bending strength and Knoop hardness. (2) There was no improvement in the mechanical properties by mixing epoxy or polyester resins with acrylic resin.
Key words: acrylic resin, impact strength, bending strength, Knoop hardness,
½¾\¿À »ÁÂÃÄ g*¿fÅ ^-.°Æ Ãhw ÇÈÉl ÊËÌ-.Í+Qo ÎÏÌÐd(Ño]MÒÓÔÕ oÖ×ØÙÚ(1)ÛÆÜnÝÞß !dàDád(2,3,4,5)Ì-op âãläÙÚå_æÚç/¿fèV éêÜÇÈJKwÏ(=´n2(1) jk,¹zÞ=ë!dì^k+Q (6)/(2)íîïk+]ðñuòí îMó(7,8,9)/(3)jk;n&'-.l -.(10,11,12)/ônJKÛõ;n
ö÷Êøùúû(cross linking agent)]ü ì(lastomer) VkZYQ]ý YQkÕþbwpÕý yvo(13,14) âto( /ô½nJK¬VÛ (press denture plate)] íîç Ì g*HTb= yo(15,16)/¯ljk íîïJKxT *to /ô´nJKxö¬V;n&'-. 2!&'$%&'];n&'" #èU+Q$ k% ÅÌ *#&'ÇÈK() ,*Q(17,18,19)/+Ã,²#-A ./]0&'142=o>Q t5op_`jkl ^ k+Q#3&'# *Ç È uv9ÛÆ&'ÇÈ ^éêlRS+Q4+ Q5X67YQ8 +v(20)/'9NAU:;Ù 7 <jk&'tÙ=>?è@ AVÜBÙkÊ C&'\-.DEFoG]H NAK6<ÒZvâ !"\ *+,ût NA\ÂH ¢CIJ D×ØÝÞOP+Q]K4ÐdH LMÞRS+Q#\NOP ¢ WX67YQªÊQk+ -.Í+Q^ RÙÚ S/ ´uv (1)øNA õÌTU(V#Weö_X Y()OP+QRS+Q#WXYQ Z[;nNAuv\OP +Q^ (1.74±0.20KJ/m2)F] (p<0.001) aZ~+Zµ½% (1.29±0.16 KJ/m2)!" (1.28±0.06 KJ/m2)^ÜDt_U/ RS+Qx^ (1048.7±51.0Kg/cm2)](p<0.001)aZ ~|yZ[5` (864.6±61.6Kg /cm2)#!" (696.8±49.1 Kg/cm2)/WX67YQx^ hw(21.8±1.0Kg /mm2)Z[ !"(20.0±1.0Kg/mm2)# (17.8±0.9Kg/mm2)/ (2)cd, -.abcdeÀ,uv9 jk!"eZOP+Q$ k(1.47±0.15~1.21±0.06KJ /m2)RS +bx< cd(951.1±55.9~ 572.3 ±17.1Kg/cm2) WXYQx, (22.5±1.3~20.5±1.2Kg/mm2)/jk uvxOP+Q,ow(1.15+ 0.02 ~1.08+0.18KJ/m2)RS+Qxo]
<e(1130.2 ±39.3 ~ 698.41±53.6Kg/cm2) WXYQ (19.9±1.1~18.1±0.8Kg/mm2)$f/ (3)jk&', jk1wt%3wt%,5wt% eZOP+Qk (1.459±0.171, 2.36±0.37, 4.26+0.76 KJ/m2) RS+Qx,(1080.2±2.3 1111.3±59.31 65.1 ± 73.2kg/cm2)WX YQx$],ow(17.0±1.8, 19.6±0.8, 19.1±1.3Kg/ mm2)/ jk!"] Djk 3wt%$%&'uvÛÆOP+Qa gHy(2.01±0.57~ 1.35 ±0.13KJ/cm2)ojk `&'uv/RS+Qxwh< ÝÞ(1005.0+72.0 ~ 518.4±31.5kg/cm2)WXYQxjk!" #&'%w,}(22.1±0.6~ 18.6 ±2.3Kg/mm2)jk #&'%$ i(19.8±1.0~ 16.8±0.8Kg /mm2)/ j[ <1937¬çkèll g*^VÌmn&' * op¯qÅrès(21)tÆ3 ãÌuvÐdw]ÌoÖ×ØHx SÙÚÝÞ yz^g*ë !dì#jk$%&'J{V / |}~.92!"\ m +ý#Nop(22) ?&'+,ã-.(23)â[ Ü n-.jkû{()Z[ Z;<Àø}t^op_`a \bcdD^k!dJ { w!dulH!dz5bp qrg*OP+QRS+Q#67Y QABOP+QNAV é-.|=eJDkK4 pÕZRS+QÀ,?ÅÉ ADA Specification H } ÌOP+Q\þ ¢þ\YQ ¢âpÕNA67YQ^*-. ? / 0 uv\2 a mHwOP+QRS+Q xHWXYQa !"OP+Q\WXYQ\ _oöRS+Qxw> /Z[ \!" ] HxSë!dvâ: sì\ abcdek!d HuvÛÆ\!"cdeOP+ Q$k\Àb a8? iZ~cduv kÜ]Ì[H !"] øÃîãß!dà Hz=\ cdek!dJ{ZY,Ï ulçkûjk`oèxSo ¡!duv]Ìk!dqro ] -.nÇÈ(24)ÜpÅ ¢£0Z[/Ì H !" # -.ʤ£ -.âD^jk$%&' JKy Z+Q/ ÛÆ<1960¬óM¥ ²;n &'-.jkl(25)Z^ !&'hrèsÆÌ&'ÇÈ Ïèr¦E§(26,27,28,29)/~à )$%&''@&'!¨ ©&'Zuvhª 8«# ,(30,31,32)ZäÌÊ *¬# &'ÇÈh®_ ¯lÜ[ °/0>Q6mm$%&'V ±jkû²õ³´cdµ:¶ ·sì#&'´n=ñpÕcdÌÜ *¸² cd¹&'ÇÈ éê/ɺ»Ãg*&'+, Õ!"\ ãèV* $%&'+,û(33)âÅ5ô½m 01|=qr¼^*aH/ jk1wti3wti5wt i$%&'eOP+Q<À kRS+Q\WXYQxw, &'jkUöx LM&'# *¬
ÇÈâZ~cd|=qr ^jk3wti$%&'V±aH/H uv <ë!dzjk&'eÛÆ ao½&'ÕOP+QHw¾\ gjk`&'baO P+QÅ?Hi²RS+Q\WXYQ Å?iÜ<e\ ô½ m 01uvb/NAJKVa HRS+QNAC¿Àk}â zì|=uòud+Q¢CHw ¾Á\&'DudÂ+ <oÒ+vu Ìo¢C z/OP+QNAÌC JDwÃ}¢CÛÆA e: ;Ù7Ä)&'ÀÅèAÆÅ 9ÒÀ+,*/[ ÛÆõ ë!dJ{oÇjk$ %&'ekOP+QvÈ É/ Z~ÊË 6~\ 1985¬Yazdanie² 6!&'jk` kxRS+Qk(34) °/?ÇÈ/1988¬Braden²ÌÍ yl!¨©&'kO P+QRS+Qyx v(35)/p¬Guterid- ge ÎÌÍ+l !¨©&'kOP+Qjk`Í U3wt iÏo *â>jk1wtiÏ (36)/1992¬Golderg#Burstone 6$ %&'jkyOP+Q(37)1993¬ Ladizesky 6!¨©&'jkyO P+Qjk`UöxRS+Q i(38)/^ÃuvÛ?&'n ÞÐ#NAqr\[ oÑbp uwÏh\[ bdâ [ uv)^u2(1)$% &'Ò`jkyOP +Q²oRS+Q#WXYQ/(2) !"] jkÊÌ n]Ìs!dJKopâo YÊy/(3)Z ~n&'?\$%&'m bp v:D±£0X[/ Ó¥¦=v<Ô [¥¦l Õ Ö×Øâ L£©Ùõ¿fÊ:ZÚÛtÜ ZðñHmÝÞ}ß=àrá 6»·¹Ëâ/ ° <ÛÆ=ãÃä \!"k +Q[ uv8åW ÃtÁYÜ/_p <´nN Am¿OP+QkRS+Qo WXYQ8 â[ æ]çoÊè5nVBÙx Ê)éêu/ ë~
1. Darbar UR, Huggett R, Harrison A. Denture fracture: a survey. Br Dent J ,176: 4342-345 ,1994.
2. Beyli MS, von Fraunhofer JA. Repair of fracture acrylic resin. J Prosthet Dent ,44:497 -503, 1980.
3. Harison A,Belton EL,Meades K. Do self-curing acrylic resin repairs gain strength with age? J Dent ,5:334-338, 1977.
4. Stipho HD, Stipho AS. Effectiveness and durability of repaired acrylic resin Joints. J Prosthet Dent ,58:249-253,1987.
5. Norma O., Waldemar G. de Rijk. Effect of surface treatments on the repair strength of a light activated denture repair resin using censord data. Dent Mater, 10:122-127,1994. 6. Matsukawa S. , Hayakawa T., Nemoto K. Development of high-toughness resin for dental applications. Dent Mater, 10:343- 346 ,1994.
7. Carrol CE, von Fraunhofer JA.Wire reinforcement of acrylic resin prostheses. Jn prosthet Dent,52:639-641, 1984.
8. Ruffino AR. Effect of steel strengtheners on fracture resistance of the acrylic resin complete denture base. J Prosthet Dent ,54:75-78, 1985.
9. Vallittu PK. Effect of some properties of metal strengtheners on the fracture resistance of acrylic denture base material construction. J Oral Rehabil ,20:241-248, 1993.
10. Grave AM, Chandler HD, Wolfaadt JF. Denture base acrylic reinforced with high modulus fiber. Dent Mater, 1:185-187,1985. 11. Manley TR, Bowman AJ,Cook M. Denture base reinforced with carbon fibers. Br Dent J ,146:25-28, 1979.
12. Goldberg AJ, Burstone CJ. The use of continuous fiber reinforcement in dentistry. Dent Mater 8:197-202,1992.
13 . Robinson, McCabe JF. impact strength of acrylic resin denture base materials with surface defects. Dent Mater 9:355-360,1993. 14. Craig RG. Restorative dental materials. Mosby 8th edition P.515, 1989.
15. Vallittu PK , Lassila VP. Effect of metal strengthener,s surface roughness on fracture resistance of acrylic denture base material. J Oral Rehabil ,19:225-230, 1992.
16. Hero H, Ruyter IE, Waarli ML,Hultquist. Adhesion of resins to Ag-Pd alloys by means of the silicoating technique. J Dent Res, 66: 1380- 1385, 1987.
17. Nikos GK, Robin H, Alan H,Richard WV. The effect of esthetic fibers on the properties of an acrylic resin denture base material. Dent Mater ,10:2-5,1994. 18. Vallitu PK,BOdont DT,Lassila VP, Lappalai- nen R. Acrylic resin-fiber composite-Part ì:The effect of fiber concentration on fracture resistance. J Prosthet Dent,71:607-612,1994.
19. Vallitu PK.Comparison of two diffferent silane compounds use for improving adhesion between fibres and acrylic denture base material. J Oral Rehabil ,20:533-539, 1993. 20. ³´µ. &'+,É l /¶·¸¹ºÎ¬íôîª pp.184-195, 1991.
21. Jean-Framcois Roulet. Degredation of Dental Polymers. Basel; New York: Karger, pp.4 ,1987. 22. ïðñòóôõö÷øù ú =û(üý)¶,ºÎH §þ pp.127-137, 1976. 23.rõûz (=àkº )/ Òý þ pp.118, 1984.
24.Vallitu PK, Miettinen V, Alakuijala P. Residual content and its release into water from denture base materials. Dent Mater, 11:338-342, 1995.
25. Grant AA, Greener EH. Whisker reinforce- ment of polymethyl methacrylate denture base resin Aust Dent J ,12:29,1967. 26. Schreiber CK.Polymethyl methacrylate reinforced with carbon fibers. Br Dent J ,130:29-30, 1971.
27. Wylegala RT,Reinforcing denture base material with carbon fiber. Dent
technol ,26:97-100 , 1973.
28. Bowman AJ,Maneley TR. The elimination of breakage in upper dentures by reinforce- ment with carbon fiber. Br Dent J;156:87-89, 1984.
29. De Boer J, Vermilyea SG,Brady RE. The effect of carbon fiber orientation on the fatique resistance and bending properties of two denture resins. J Prosthet Dent; 51:119 - 121, 1984.
30. Inamura M, Nagato H, Aide E, Adachi T, Isiguro H, Ono T, Kurosu K. Self-cure denbtal acrylate resin reinforced with glass fiber - Part 1:Bending and tensile test. Jpn J Pedodontics 26;328-335 ,1988.
31. Berrong JM, Weed RM, Young JM. Fracture resistance of Kevlar-reinforced polymethyl methacrylate resin: a preliminary study. int J Prosthodont;3:391-395 ,1990. 32. Gutteridge DL. Reinforcement of polymethyl methacrylate with ultra-high- modulis polyethyl- ene fiber. J Dent Res 20:50-54, 1992.
33. g. :FRP¥/ãÒ ý/P.9, 1975.
34. Yazdanie N, Mahood M. Carbon fiber acrylic resin composite: An investigation of transverse strength. J Prosthet Dent 54: 543- 5471985.
35. Braden M,Davy KWM,Parker S, Ladizeskyn NH, Ward IM. Denture base poly(methyl methacrylate) reinforced with ultra-high modulus polyethylene fibers.Br Dent J ;164:109-113,1988.
36. Gutteridge DL . The effect of including Ulttra-high modulis polyethylene fiber on the
impact strength of acrylic resin. Br Dent J 164:177-180 ,1988.
37. Goldberg AJ, Burstone CJ. The use of continous fiber reinforcement in denbtistry. Dent Mater 8:197-202,1992.
38. Ladizesky NH, Cheng YY, Chow TW Ward IM. Acrylic rresin reinforced with chopped high performance polyethylene fiber-properties and denture construction. Dent Mater 9:128-135, 1993.
