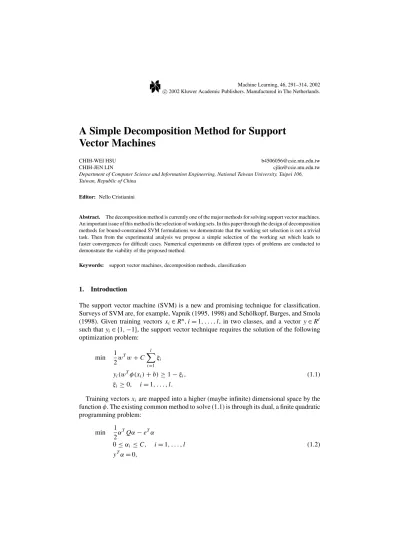

A Simple Decomposition Method for Support
Vector Machines
CHIH-WEI HSU b4506056@csie.ntu.edu.tw
CHIH-JEN LIN cjlin@csie.ntu.edu.tw
Department of Computer Science and Information Engineering, National Taiwan University, Taipei 106, Taiwan, Republic of China
Editor: Nello Cristianini
Abstract. The decomposition method is currently one of the major methods for solving support vector machines. An important issue of this method is the selection of working sets. In this paper through the design of decomposition methods for bound-constrained SVM formulations we demonstrate that the working set selection is not a trivial task. Then from the experimental analysis we propose a simple selection of the working set which leads to faster convergences for difficult cases. Numerical experiments on different types of problems are conducted to demonstrate the viability of the proposed method.
Keywords: support vector machines, decomposition methods, classification
1. Introduction
The support vector machine (SVM) is a new and promising technique for classification. Surveys of SVM are, for example, Vapnik (1995, 1998) and Sch¨olkopf, Burges, and Smola (1998). Given training vectors xi∈ Rn, i = 1, . . . , l, in two classes, and a vector y ∈ Rl
such that yi∈ {1, −1}, the support vector technique requires the solution of the following
optimization problem: min 1 2w Tw + C l i=1 ξi yi(wTφ(xi) + b) ≥ 1 − ξi, (1.1) ξi ≥ 0, i = 1, . . . , l.
Training vectors xi are mapped into a higher (maybe infinite) dimensional space by the
functionφ. The existing common method to solve (1.1) is through its dual, a finite quadratic programming problem: min 1 2α TQα − eTα 0≤ αi ≤ C, i = 1, . . . , l (1.2) yTα = 0,
where e is the vector of all ones, C is the upper bound of all variables, Q is an l by l positive semidefinite matrix, Qi j ≡ yiyjK(xi, xj), and K (xi, xj) ≡ φ(xi)Tφ(xj) is the kernel.
The difficulty of solving (1.2) is the density of Q because Qi jis in general not zero. In this
case, Q becomes a fully dense matrix so a prohibitive amount of memory is required to store the matrix. Thus traditional optimization algorithms such as Newton, Quasi Newton, etc., cannot be directly applied. Several authors (for example, Osuna, Freund, & Girosi, 1997; Joachims, 1998; Platt, 1998; Saunders et al., 1998) have proposed decomposition methods to conquer this difficulty and reported good numerical results. Basically they separate the index{1, . . . , l} of the training set to two sets B and N, where B is the working set and N= {1, . . . , l}\ B. If we denote αB andαNas vectors containing corresponding elements,
the objective value is equal to 12αTBQBBαB− (eB− QBNαN)TαB +12αTNQNNαN − eTNαN.
At each iteration,αNis fixed and the following sub-problem with the variableαBis solved:
min 1 2α T BQBBαB− (eB− QBNαN)TαB 0≤ (αB)i ≤ C, i = 1, . . . , q, (1.3) yTBαB= − yTNαN, where [QBB QBN
QNB QNN] is a permutation of the matrix Q and q is the size of B. The strict decrease of the objective function holds and under some conditions this method converges to an optimal solution.
Usually a special storage using the idea of a cache is used to store recently used Qi j.
Hence the computational cost of later iterations can be reduced. However, the computational time is still strongly related to the number of iterations. As the main thing which affects the number of iterations is the selection of working sets, a careful choice of B can dramatically reduce the computational time. This will be the main topic of this paper.
Instead of (1.1), in this paper, we decide to work on a different SVM formulation:
min 1 2w Tw +1 2b 2+ C l i=1 ξi yi(wTφ(xi) + b) ≥ 1 − ξi, (1.4) ξi≥ 0, i = 1, . . . , l.
Its dual becomes a simpler bound-constrained problem:
min 1
2α
T(Q + yyT)α − eTα
(1.5) 0≤ αi ≤ C, i = 1, . . . , l.
This formulation was proposed and studied by Friess, Cristianini, and Campbell (1998), and Mangasarian and Musicant (1999). We think it is easier to handle a problem without general linear constraints. Later on we will demonstrate that (1.5) is an acceptable formulation in terms of generalization errors though an additional term b2/2 is added to the objective function.
As (1.5) is only a little different from (1.2), in Section 2, naturally we adopt existing working set selections for (1.5). Surprisingly we fail on such an extension. Then through different experiments we demonstrate that finding a good strategy is not a trivial task. That is, experiments and analysis must be conducted before judging whether a working set selection is useful for one optimization formulation or not. Based on our observations, we propose a simple selection which leads to faster convergences in difficult cases. In Section 3, we implement the proposed algorithm as the softwareBSVMand compare it with SVMlight
(Joachims, 1998) on problems with different size. After obtaining classifiers from training data, we also compare error rates for classifying test data by using (1.2) and (1.5). We then apply the proposed working set selection to the standard SVM formulation (1.2). Results in Section 4 indicate that this selection strategy also performs very well. Finally in Section 5, we present discussions and conclusions.
The softwareBSVMis available at the authors’ homepage.1
2. Selection of the working set
Among existing methods, Osuna, Freund, and Girosi (1997), and Saunders et al. (1998) find the working set by choosing elements which violate the KKT condition. Platt (1998) has a special heuristic but his algorithm is mainly on the case when q = 2. A systematic way is proposed by Joachims (1998). In his software SVMlight, the following problem is solved:
min ∇ f (αk)Td (2.1a) yTd= 0, −1 ≤ d ≤ 1, di≥ 0, if (αk)i= 0, di ≤ 0, if (αk)i= C, (2.1b) |{di| di = 0}| ≤ q, where we represent f(α) ≡ 12αTQα − eTα, α
kis the solution at the kth iteration,∇ f (αk)
is the gradient of f(α) at αk. Note that|{di | di = 0}| means the number of components
of d which are not zero. The constraint (2.1b) implies that a descent direction involving only q variables is obtained. Then components ofαkwith non-zero di are included in the
working set B which is used to construct the sub-problem (2.7). Note that d is only used for identifying B but not as a search direction. Joachims (1998) showed that the computational time for solving (2.1) is mainly on finding the q/2 largest and q/2 smallest elements of yi∇ f (αk)i, i = 1, . . . , l with yidi= 1 and yidi= −1, respectively. Hence the cost is at most
O(ql) which is affordable in his implementation.
Therefore, following SVMlight, for solving (1.5), a natural method to choose the working
set B is by a similar problem of (2.1): min ∇ f (αk)Td
(2.2a) −1 ≤ d ≤ 1,
di≥ 0, if (αk)i= 0, di ≤ 0, if (αk)i= C, (2.2b)
where f(α) becomes12αT(Q + yyT)α − eTα. Note that SVMlight’s working set selection
violates the feasibility condition 0≤ αk+ d ≤ C. Therefore, instead of (2.2a)–(2.2c), we
can consider other types of constraints such as
0≤ αk+ d ≤ C, |{di | di = 0}| = q. (2.3)
The convergence of using (2.3) is guaranteed under the framework of Chang, Hsu, and Lin (2000). For SVMlight’s selection (2.2), the convergence is more complicated and has just
been proved by Lin (2000) very recently.
Note that solving (2.2) is very easy by calculating the following vector:
vi= min(∇ f (αk)i, 0) if(αk)i= 0, −|∇ f (αk)i| if 0< (αk)i < C, − max(∇ f (αk)i, 0) if (αk)i= C. (2.4)
Then B contains indices of the smallest q elements of v. Interestingly, for the bound-constrained formulation, solving (2.2) is the same as finding maximal violated elements of the KKT condition. Note that elements which violate the KKT condition are
∇ f (αk)i < 0 if (αk)i= 0,
∇ f (αk)i > 0 if (αk)i= C,
∇ f (αk)i = 0 if 0 < (αk)i < C.
Hence, the q maximal violated elements are the smallest q elements ofv. A similar relation between the KKT condition of (1.2) and (2.1b) is not very easy to see as the KKT condition of (1.2) involves the number b which does not appear in (2.1b). An interpretation is given by Laskov (1999) where he considers possible intervals of b and select the most violated points through end points of these intervals. These approaches are reasonable as intuitively we think that finding the most violated elements is a natural choice.
However, unlike SVMlight, this selection of the working set does not perform well. In the
rest of this paper we name our implementationBSVM. In Table 1, by solving the problem
heartfrom the Statlog collection (Michie, Spiegelhalter, & Taylor, 1994), we can see that
BSVMperforms much worse than SVMlight.
SVMlighttakes only 63 iterations butBSVMtakes 590 iterations. In this experiment, we use K(xi, xj) = e−xi−xj
2/n
, q= 10, and C = 1. Both methods use similar stopping criteria and the initial solution is zero. The column “#C” presents the number of elements ofαk
which are at the upper bound C. Columns yi= ± 1 report number of elements in B in two
different classes. Note that here for easy experiments, we use simple implementation of SVMlightandBSVMwritten in MATLAB.
We observe that in each of the early iterations, all components of the working set are in the same class. The decrease of objective values of BSVM is much slower than that of SVMlight. In addition, the number of variables at the upper bound after seven SVMlight
iterations is more than that ofBSVMwhileBSVMproduces iterations with more free vari-ables. We explain this observation as follows. First we make some assumptions for easy description:
Table 1. Problem heart: Comparison in early iterations.
BSVM SVMlight
Iter. Obj. #free #C yi= 1 −1 Iter. Obj. #free #C yi= 1 −1
1 0.00 0 0 4 6 1 0.00 0 0 5 5 2 −6.68 3 7 10 0 2 −7.22 0 10 5 5 3 −7.69 8 7 0 10 3 −14.49 4 16 5 5 4 −9.57 14 7 10 0 4 −23.24 8 22 5 5 5 −11.12 19 7 0 10 5 −30.78 11 27 5 5 6 −12.58 25 7 10 0 6 −38.33 12 33 5 5 7 −13.91 28 7 0 10 7 −42.86 18 36 5 5 590 −100.94 24 107 9 1 63 −100.88 25 107 7 3
1. α and α + d are solutions of the current and next iterations, respectively.
2. B is the current working set, where all elements are from the same class with yi= 1,
that is, yB= eB. In other words, we assume that at one iteration, the situation where all
elements of the working are in the same class happens. 3. αB= 0.
We will show that it is more possible that components with yi= −1 will be selected in
the next working set. Note that dN= 0 and since αB= 0, dB≥ 0. Since d ≥ 0, yB= eB,
(Q + yyT) i j= yiyj(e−xi−xj 2/n + 1) and (e−xi−xj2/n+ 1) > 0, ((Q + yyT)d) i= j∈ B yiyj e−xi−xj2/n+ 1d j ≥ 0, if yi= 1, (2.5) ≤ 0, if yi= −1. (2.6)
We also know that
∇ f (α + d) = ∇ f (α) + (Q + yyT)d.
In early iterations, most elements ofα are at zero. If for those nonzero elements, viof (2.4)
are not too small, (2.2) is essentially finding the smallest elements of∇ f (α + d). For the next iteration, sincevi= 0, i ∈ B, elements in B will not be included the working set again.
For elements in N , from (2.5) and (2.6), we have ∇ f (α + d)i≥ ∇ f (α)i, if yi= 1,
∇ f (α + d)i≤ ∇ f (α)i, if yi= −1.
Therefore, if((Q + yyT)d)
iis not small, in the next iteration, elements with yi= −1 tend
observe that the sign of most∇ f (α)iis changed in every early iteration. The explanation
is similar if yB= −1.
We note that (2.5) and (2.6) hold because of the RBF kernel. For another popular kernel: the polynomial kernel(xT
i xj/n)d, if all attributes of data are scaled to [−1, 1], (xiTxj/n)d+
1> 0 still holds. Hence (2.5) and (2.6) remain valid.
Next we explain that when the above situation happens, in early iterations, very few variables can reach the upper bound. Since we are solving the following sub-problem:
min 1 2α T B QBB+ yByBT αB− eB− QBN + yByTN αN T αB (2.7) 0≤ αB ≤ C,
it is like that the following primal problem is solved:
min 1 2w Tw +1 2b 2+ C i∈B ξi yi(wTφ(xi) + b) ≥ 1 − j∈ N Qi jαj− ξi, i ∈ B, (2.8) ξi≥ 0, i ∈ B.
If components in B are in the same class, (2.8) is a problem with separable data. Hence ξi= 0, i ∈ B implies that αB are in general not equal to C. Thus the algorithm
has difficulties to identify correct bounded variables. In addition, the decrease of the objective function becomes slow. On the other hand, the constraint yTd= 0 in (2.1) of SVMlight provides an excellent channel for selecting the working set from two differ-ent classes. Remember that SVMlight selects the largest q/2 and smallest q/2 elements of yi∇ f (αk)i, i = 1, . . . , l with yidi= −1 and yidi= 1, respectively. Thus when most
(αk)i are zero, di≥ 0 so the largest elements of yi∇ f (αk)i are mainly from indices with
yi= −1 and ∇ f (αk)i< 0. Conversely, the smallest elements of yi∇ f (αk)i are from data
with yi= 1 and ∇ f (αk)i< 0. This can be seen in the columns of the number of yi= ± 1
in Table 1.
Another explanation is from the first and second order approximations of the optimization problem. If [αB, αN] is the current solution which is considered as a fixed vector and d is
the variable, problem (1.3) is equivalent to solving
min 1 2d T QBBd− (eB− QBNαN− QBBαB)Td 0≤ αB+ d ≤ C, (2.9) yTBd= 0. Since −(eB− QBNαN− QBBαB) = ∇ f (α)B,
(2.1) is like to select the best q elements such that the linear part of (2.9) is minimized. Similarly, (2.7) is equivalent to solving
min 1 2d T QBB+ yByTB d−eB− QBN+ yByTN αN− QBB+ yByTB αB T d 0≤ αB+ d ≤ C. (2.10)
Clearly a main difference between (2.9) and (2.10) is that yBinvolves in a term dT(yByBT)d =
(yT
Bd)2in the objective value of (2.10) but for (2.9), yB appears in one of its constraints:
yT
Bd= 0. Therefore, since we are now using a linear approximation for selecting the working
set, for (2.10), dT(y
ByBT)d is a quadratic term which is not considered in (2.2). Thus (2.2)
does not know that(yT
Bd)2should not be too large. On the other hand, for (2.1), yTBd= 0
remains as a constraint so it is like that(yT
Bd)2is implicitly minimized. In one word, (2.1)
and (2.2) both come from the linear approximation but one contains more information than the other.
Based on this observation, we try to modify (2.2) by selecting a d which contains the best q/2 elements with yi= 1 and the best q/2 elements with yi= −1. The new result is
in Table 2 where a substantial improvement is obtained. Now after seven iterations, both algorithms reach solutions which have the same number of components at the upper bound. Objective values are also similar.
However, in Table 2,BSVMstill takes more iterations than SVMlight. We observe very
slow convergence in final iterations. To improve the performance, we analyze the algorithm in more detail. In figure 1, we present the number of free variables in each iteration. It can be clearly seen thatBSVMgoes through points which have more free variables. Since the weakest part of the decomposition method is that it cannot consider all variables together in each iteration (only q are selected), a larger number of free variables causes more difficulty. In other words, if a component is correctly identified at C or 0, there is no problem of numerical accuracy. However, it is in general not easy to decide the value of a free variable
Table 2. Problem heart: A new comparison in early iterations.
BSVM SVMlight
Iter. Obj. #free #C Iter. Obj. #free #C
1 0.00 0 0 1 0.00 0 0 2 −7.19 1 9 2 −7.22 0 10 3 −13.68 5 14 3 −14.49 4 16 4 −21.99 9 20 4 −23.24 8 22 5 −28.77 12 24 5 −30.78 11 27 6 −36.21 10 33 6 −38.33 12 33 7 −41.93 15 36 7 −42.86 18 36 388 −100.94 24 107 63 −100.88 25 107
Figure 1. Number of free variables (line: BSVM, dashed: SVMlight).
if all free variables are not considered together. Comparing to the working set selection (2.1) of SVMlight, our strategy of selecting q/2 elements with y
i= 1 and q/2 elements with
yi= −1 is not very natural. Therefore, in the middle of the iterative process more variables
are not correctly identified at the upper bound so the number of free variables becomes larger. This leads us to conjecture that we should keep the number of free variables as small as possible. A possible strategy to achieve this is by adding some free variables in the previous iteration to the current working set.
The second observation is on elements of the working set. When we use (2.2) to select B, in final iterations, components of the working set are shown in Table 3. In Table 4, working sets of running SVMlight are presented. From the last column of Table 3, it can
be seen that the working set of the kth iteration is very close to that of the (k + 2)nd iteration. However, in Table 4, this situation is not that serious. For this example, at
Table 3. Working sets of final iterations: BSVM.
Iter. B # in iter.+2 382 [16 30 53 23 5 228 130 200 7 90] 8 383 [168 24 245 197 119 51 134 108 7 90] 8 384 [16 23 30 53 266 200 130 228 51 90] 8 385 [24 195 25 119 197 108 134 7 51 90] 8 386 [16 30 53 5 23 200 228 130 51 7] 8 387 [197 245 24 119 195 108 90 134 51 228] 388 [16 30 23 53 5 200 130 7 134 108]
Table 4. Working set in final iterations: SVMlight. Iter. B # in iter.+2 57 [245 16 108 90 119 230 7 195 51 49] 7 58 [266 130 51 230 195 25 5 30 53 197] 3 59 [245 16 108 119 90 195 30 266 49 24] 5 60 [168 7 130 228 19 200 230 73 5 197] 3 61 [245 16 108 30 119 230 19 7 228 5] 5 62 [25 30 19 119 7 168 53 73 195 197] 63 [245 108 90 16 24 7 30 25 195 168]
final solutions, there are 24 free variables by using (1.5) and 25 by (1.2). For BSVM, in the second half iterations, the number of free variables is less than 30. Note that in final iterations, the algorithm concentrates on deciding the value of free variables. Since in each iteration we select 10 variables in the working set, after the sub-problem (2.7) is solved, gradient at these 10 elements become zero. Hence for the next iteration the solution of (2.2) mainly comes from the other free variables. This explains why working sets of the kth and(k + 2)nd iterations are so similar. Apparently a selection like that in Table 3 is not an appropriate one. We mentioned earlier that the weakest part of the decomposition method is that it cannot consider all variables together. Now the situation is like two groups of variables are never considered together so the convergence is extremely slow.
Based on these observations, we propose Algorithm 2.1 for the selection of the working set. We have q/2 elements from a problem of (2.2) but the other q/2 elements are from free components with the largest−|∇ f (αk)i|. Since free variables in the previous working set
satisfy∇ f (αk)i= 0, if there are not too many such elements, most of them are again
in-cluded in the next working set. There are exceptional situations where all(αk) are at bounds.
When this happens, we choose q/2 best elements with yi= 1 and q/2 best elements with
yi = −1 following the discussion for results in Table 2. Algorithm 2.1: Selection of the working set
Let r be the number of free variables atαk
If r > 0, then
Select indices of the largest min(q/2, r) elements in v, where (αk)iis free, into B
Select the(q − min(q/2, r)) smallest elements in v into B. else
Select the q/2 smallest elements with yi= 1 and q/2 smallest elements with
yi= −1 in v into B.
The motivation of this selection is described as follows: consider minimizing f(α) = 1
2α
TAα − eTα, where A is a positive semidefinite matrix and there are no constraints.
This problem is equivalent to solving∇ f (α) = Aα − e = 0. If the decomposition method is used, Bk−1 is the working set at the(k − 1)st iteration, and A is written as [AABk−1
Figure 2. Number of free variables (line: BSVM, dashed: SVMlight).
we have ABk−1αk= e. Therefore, similar to what we did in (2.2), we can let Bk, the next
working set, contain the smallest q elements of∇ f (αk) = Aαk− e. In other words, elements
violate KKT condition are selected. Thus Bkwill not include any elements in Bk−1where
∇ f (αk)i= 0, for all i ∈ Bk−1. However, ABk−1αk− e = 0 only holds at the kth iteration.
Whenα is updated to αk+1, the equality fails again. Hence this is like a zigzaging process.
From the point of view of solving a linear system, we think that considering some inequalities and equalities together is a better method to avoid the zigzaging process. In addition, our previous obervations suggest the reduction of the number of free variables. Therefore, basically we select the q/2 most violated elements from the KKT condition and the q/2 most satisfied elements at whichαiis free.
Using Algorithm 2.1,BSVMtakes about 50 iterations which is fewer than that of SVMlight.
Comparing to the 388 iterations presented in Table 2, the improvement is dramatic. In figure 2, the number of free variables in both methods are presented. It can be clearly seen that inBSVM, the number of free variables is kept small. In early iterations, each time q elements are considered and some of them move to the upper bound. For free variables, Algorithm 2.1 tends to consider them again in subsequent iterations soBSVM has more opportunities to push them to the upper bound. Since now the feasible region is like a box, we can say thatBSVMwalks closer to walls of this box. We think that in general this is a good property as the decomposition method faces more difficulties on handling free variables.
3. Computational experiments
In this section, we describe the implementation ofBSVMand present the comparison be-tweenBSVM(Version 1.1) and SVMlight(Version 3.2). Results show thatBSVMconverges
faster than SVMlightfor difficult cases. The computational experiments for this section were done on a Pentium III-500 using thegcccompiler.
SVMlightuses the following conditions as the termination criteria: (Qα)i− 1 + byi≥ − , ifαi< a,
(Qα)i− 1 + byi≤ , ifαi> C − a,
− ≤ (Qα)i− 1 + byi ≤ , otherwise,
(3.1)
wherea= 10−12. To have a fair comparison, we use similar criteria inBSVM:
− ≤ ((Q + yyT)α) i− 1 ≤ , if 0< αi< C, (3.2) ((Q + yyT)α) i− 1 ≥ −, if αi= 0, (3.3) ((Q + yyT)α) i− 1 ≤ , ifαi= C. (3.4)
Note that now there is no b in the above conditions. For both SVMlightandBSVM, we set = 10−3.
We solve the sub-problem (2.7) by modifying the software TRONby Lin and Mor´e (1999).2 TRON is designed for large sparse bound-constrained problems. Here the sub-problem is a very small fully dense sub-problem so we cannot directly use it.
As pointed out in existing work of decomposition methods, the most expensive step in each iteration is the evaluation of the q columns of the matrix Q. In other words, we maintain the vector Qα so in each iteration, we have to calculate Q(αk+1− αk) which
involves q columns of Q. To avoid the recomputation of these columns, existing methods use the idea of a cache where recently used columns are stored. InBSVM, we now have a very simple implementation of the least-recently-used caching strategy. In the future, we plan to optimize its performance using more advanced implementation techniques. For experiments in this section, we use 160 MB as the cache size for bothBSVMand SVMlight.
We test problems from different collections. Problemsaustraliantosegmentare from the Statlog collection (Michie et al., 1994). Problemfourclassis from Ho and Kleinberg (1996). Problems adult1andadult4are compiled by Platt (1998) from the UCI “adult” data set (Murphy & Aha, 1994). Problemsweb1toweb7are also from Platt. Note that all problems from Statlog (exceptdna) andfourclassare with real numbers so we scale them to [−1, 1]. Some of these problems have more than 2 classes so we treat all data not in the first class as in the second class. Problemsdna,adult, andwebare with binary representation so we do not conduct any scaling.
We test problems by using RBF and polynomial kernels. For the RBF kernel, we use K(xi, xj) = e−xi−xj
2/n
for Statlog problems andfourclass. We use K(xi, xj) = e−0.05xi−xj
2 foradultandwebproblems following the setting in Joachims (1998). For the polynomial kernel, similarly we have K(xi, xj) = (xiTxj/n)3 and K(xi, xj) = (0.05xiTxj)3. For each
kernel, we test C= 1 and C = 1000. Usually C = 1 is a good initial guess. As it is difficult to find out the optimal C, a procedure is to try different Cs and compare error rates obtained by cross validation. In Saunders et al. (1998), they point out that plotting a graph of error rate on different Cs will typically give a bowl shape, where the best value of C is somewhere
Table 5. RBF kernel and C= 1.
BSVM SVMlight(without shrinking)
Problem n SV(BSV) Mis. Obj. Iter. Time SV(BSV) Mis. Obj. Iter. Time australian 690 245(189) 98 − 201.64 200 0.39 245(190) 98 − 201.64 504 0.99 diabetes 768 447(434) 168 − 413.57 131 0.44 447(435) 168 − 413.56 105 0.39 german 1000 599(514) 189 − 502.84 247 1.41 599(512) 189 − 502.77 311 1.24 heart 270 130(107) 36 − 100.94 53 0.08 132(107) 36 − 100.88 66 0.09 vehicle 846 439(414) 210 − 413.27 171 0.79 439(414) 210 − 413.02 332 0.94 satimage 4435 380(367) 56 − 286.85 121 8.40 378(365) 60 − 285.35 102 5.36 letter 15000 569(542) 104 − 451.18 235 26.24 564(531) 103 − 446.98 349 24.38 shuttle 43500 6188(6184) 1117 − 5289.17 3036 484.36 6164(6152) 1059 − 5241.41 1120 449.27 dna 2000 695(540) 50 − 427.91 334 8.99 697(533) 50 − 427.38 253 6.14 segment 2310 392(376) 7 − 239.99 149 2.53 381(366) 7 − 233.17 108 1.58 fourclass 862 411(403) 168 − 383.87 189 0.64 408(401) 167 − 383.58 124 0.41 adult1 1605 691(586) 228 − 567.85 293 2.33 691(584) 228 − 567.79 266 2.17 adult4 4781 1888(1655) 700 − 1637.58 841 22.07 1888(1651) 700 − 1637.56 976 23.11 web1 2477 441(85) 54 − 116.59 402 2.30 451(85) 54 − 116.45 557 3.70 web4 7366 845(288) 123 − 326.12 850 14.86 869(281) 126 − 326.07 876 19.82 web7 24692 2021(927) 301 − 939.70 2045 171.58 2084(909) 301 − 939.71 2384 210.90
in the middle. Therefore, we think it may be necessary to solve problems with large Cs so C = 1000 is tested here. In addition, the default C of SVMlightis 1000.
Numerical results using q = 10 are presented in Tables 5 to 8. The column “SV(BSV)” represents the number of support vectors and bounded support vectors. The column “Mis.” is the number of misclassified training data while the “Obj.” and “Iter.” columns are objective values and the number of iterations, respectively. Note that here we present the objective value of the dual (that is, (1.2) and (1.5)). We also present the computational time (in seconds) in the last column. SVMlight implements a technique called “shrinking” which drops out some variables at the upper bound during the iterative process. Therefore, it can work on a smaller problem in most iterations. Right now we have not implemented similar techniques in BSVMso in Tables 5–8 we present results by SVMlight without using this shrinking technique. Except this option, we use all default options of SVMlight. Note that here
we do not use the default optimizer of SVMlight(version 3.2) for solving (1.2). Following the
suggestion by Joachims (2000), we link SVMlightwith LOQO (Venderbei, 1994) to achieve
better stability. To give an idea of effects on using shrinking, in Table 9 we present results of SVMlight using this technique. It can be seen that shrinking is a very useful technique
for large problems. How to effectively incorporate shrinking inBSVMis an issue for future investigation.
From Tables 5 to 8, we can see that results obtained byBSVM, no matter number of support vectors, number of misclassified data, and objective values, are very similar to
T able 6 . RBF k ernel and C = 1000. BSVM SVM light (without shrinking) Problem n SV(BSV) Mis. Obj. Iter . T ime SV(BSV) Mis. Obj. Iter . T ime austr alian 690 222(55) 28 − 81212.20 12609 5.99 222(55) 28 − 81199.76 101103 199.12 diabetes 768 377(273) 128 − 302471.03 21908 10.83 377(273) 128 − 302463.71 75506 166.09 ger man 1000 508(15) 3 − 39910.32 16874 12.55 509(15) 3 − 39908.72 43411 113.96 hear t 270 101(1) 0 − 4815.87 1230 0.35 101(1) 0 − 4815.72 5772 7.56 v ehicle 846 284(172) 47 − 179603.67 10238 5.98 284(173) 47 − 179593.77 177188 418.53 satimage 4435 136(30) 8 − 44228.55 3717 15.94 136(30) 8 − 44147.44 32466 249.04 letter 15000 149(53) 6 − 55845.30 7636 110.93 152(52) 6 − 55325.74 27290 815.87 shuttle 43500 1487(1470) 137 − 1188526.85 4446 318.04 1491(1468) 137 − 1188414.63 24587 2713.42 dna 2000 404(0) 0 − 1454.02 1263 7.18 408(0) 0 − 1453.15 778 6.84 segment 2310 27(8) 5 − 9165.45 160 1.02 25(7) 5 − 9087.98 606 2.92 fourclass 862 91(76) 2 − 54642.66 505 0.55 89(74) 2 − 53885.73 11191 20.83 adult1 1605 649(24) 14 − 41925.38 9098 10.65 656(20) 14 − 41925.47 17339 64.83 adult4 4781 1811(162) 97 − 279114.93 85103 276.57 1854(144) 97 − 279116.00 163209 1702.13 w eb1 2477 354(16) 9 − 19276.98 1090 3.03 373(12) 9 − 19276.98 2036 11.07 w eb4 7366 770(56) 31 − 64313.28 3280 27.15 820(48) 31 − 64313.24 5679 87.26 w eb7 24692 1660(231) 126 − 260147.98 9884 633.83 1814(213) 126 − 260147.88 24538 1483.80
T able 7 . Polynomial k ernel and C = 1. BSVM SVM light (without shrinking) Problem n SV(BSV) Mis. Obj. Iter . T ime SV(BSV) Mis. Obj. Iter . austr alian 690 283(241) 95 − 227.98 112 0.35 284(238) 95 − 227.93 188 diabetes 768 539(532) 231 − 499.41 128 0.47 538(532) 230 − 499.24 99 ger man 1000 626(528) 202 − 516.42 238 1.43 625(527) 203 − 516.24 236 hear t 270 177(151) 38 − 131.81 51 0.10 177(151) 38 − 131.80 62 v ehicle 846 436(415) 212 − 422.69 94 0.69 443(403) 212 − 422.18 217 satimage 4435 2126(2109) 839 − 1827.68 308 37.20 2131(2104) 839 − 1827.21 391 letter 15000 1038(1019) 172 − 783.91 196 35.11 1040(1015) 172 − 783.05 223 shuttle 43500 17699(17698) 7248 − 15560.58 3705 1083.50 17700(17694) 7248 − 15560.17 3008 1118.19 dna 2000 1102(775) 464 − 906.09 229 13.94 1103(772) 464 − 905.58 216 segment 2310 581(566) 19 − 379.98 149 3.28 582(566) 19 − 379.20 130 fourclass 862 485(480) 195 − 444.25 228 0.53 485(479) 195 − 443.76 125 adult1 1605 762(623) 241 − 599.84 234 2.26 761(623) 242 − 599.55 216 adult4 4781 2007(1716) 721 − 1684.41 743 22.36 2011(1716) 721 − 1684.09 647 w eb1 2477 539(88) 57 − 123.85 442 2.73 552(88) 57 − 123.35 492 w eb4 7366 1110(284) 176 − 373.41 1009 18.85 1143(273) 176 − 372.90 1458 w eb7 24692 2647(1027) 577 − 1214.22 2474 266.33 2755(1005) 577 − 1213.73 3993
T able 8 . Polynomial k ernel and C = 1000. BSVM S VM light (without shrinking) Problem n SV(BSV) Mis. Obj. Iter . T ime SV(BSV) Mis. Obj. Iter . austr alian 690 217(64) 31 − 88213.03 6987 3.41 216(64) 31 − 88208.01 40630 diabetes 768 387(311) 138 − 332791.89 6324 3.28 387(311) 138 − 332791.88 16976 ger man 1000 484(17) 3 − 43186.83 14083 10.54 485(17) 3 − 43186.40 30546 hear t 270 105(1) 0 − 6118.35 760 0.25 105(1) 0 − 6117.89 2943 v ehicle 846 339(258) 81 − 247281.87 2002 1.65 340(258) 81 − 247279.97 6716 satimage 4435 307(232) 54 − 200995.69 427 9.51 307(232) 54 − 200995.34 1292 letter 15000 258(144) 50 − 142509.32 1396 32.35 259(144) 50 − 142508.03 3718 shuttle 43500 4626(4613) 615 − 3789837.97 3312 399.35 4630(4606) 615 − 3789835.86 1327 dna 2000 1051(0) 0 − 17293.01 1097 14.64 1062(0) 0 − 17292.62 493 segment 2310 34(9) 4 − 11416.39 185 1.12 37(9) 4 − 11403.03 1610 fourclass 862 364(359) 177 − 360720.39 435 2.22 365(358) 177 − 360720.34 6817 adult1 1605 668(24) 14 − 41990.62 5830 7.53 672(20) 14 − 41990.39 9898 adult4 4781 1759(167) 100 − 288125.96 60938 201.75 1799(153) 100 − 288125.21 102111 w eb1 2477 356(36) 16 − 41713.78 672 2.43 362(32) 16 − 41713.26 658 w eb4 7366 805(87) 43 − 102103.18 2387 22.61 881(78) 43 − 102102.62 2923 w eb7 24692 1683(294) 147 − 343024.14 6470 432.96 1857(270) 147 − 343023.74 15697
T able 9 . RBF k ernel: Using SVM light with shrinking. C = 1 C = 1000 Problem n SV(BSV) Mis. Obj. Iter . T ime SV(BSV) Mis. Obj. Iter . T ime austr alian 690 245(190) 98 − 201.64 504 0.75 223(55) 28 − 81199.77 119658 176.44 diabetes 768 447(435) 168 − 413.56 105 0.38 377(273) 128 − 302463.70 75141 115.26 ger man 1000 599(512) 189 − 502.77 311 1.17 509(15) 3 − 39908.72 43411 93.13 hear t 270 132(107) 36 − 100.88 66 0.09 101(1) 0 − 4815.72 5772 7.01 v ehicle 846 439(414) 210 − 413.02 332 0.82 284(173) 47 − 179593.77 177188 268.53 satimage 4435 378(365) 60 − 285.35 102 5.35 136(30) 8 − 44147.44 32466 71.68 letter 15000 564(531) 103 − 446.98 349 20.36 152(52) 6 − 55325.74 27290 135.39 shuttle 43500 6164(6152) 1059 − 5241.41 1120 478.28 1488(1467) 137 − 1188414.66 24699 1243.39 dna 2000 697(533) 50 − 427.38 253 6.15 408(0) 0 − 1453.15 778 5.93 segment 2310 381(366) 7 − 233.17 108 1.56 25(7) 5 − 9087.98 606 1.87 fourclass 862 408(401) 167 − 383.58 124 0.41 89(74) 2 − 53885.74 11866 19.41 adult1 1605 691(584) 228 − 567.79 266 2.11 656(20) 14 − 41925.47 17339 49.85 adult4 4781 1888(1651) 700 − 1637.56 976 19.25 1854(144) 97 − 279116.00 163209 1109.83 w eb1 2477 451(85) 54 − 116.45 557 3.05 373(12) 9 − 19276.98 2036 7.87 w eb4 7366 869(281) 126 − 326.07 876 15.22 808(48) 31 − 64313.24 5547 56.35 w eb7 24692 2084(909) 301 − 939.71 2384 154.10 1819(213) 126 − 260147.88 24643 971.40
those by SVMlight. This suggests that usingBSVM, a formula with an additional term b2/2 in the objective function, does not affect the training results much. Another interesting property is that the objective value ofBSVMis always smaller than that of SVMlight. This is due to the properties that yTα = 0 in (1.2) and the feasible region of (1.2) is a subset
of that of (1.5). To further check the effectiveness of using (1.5), in Tables 10 and 11, we present error rates by 10-fold cross validation or classifying original test data. Among all problems, test data ofdna,satimage,letter, andshuttleare available so we present error rates by classifying them. Results suggest that for these problems, using (1.5) produces a classifier which is as good as that of using (1.2). In addition, we can see that the best rate may happen at different values of C.
When C = 1,BSVMand SVMlight take about the same number of iterations. However,
it can be clearly seen that when C= 1000, both decomposition methods take many more iterations. For most problems we have tested, not only those presented here, we observe slow convergence of decomposition methods when C is large. There are several possible reasons which cause this difficulty. We think that one of them is that when C is increased, the number of free variables in the iterative process is increased. In addition, the number of free variables at the final solution is also increased. Though both the numbers of support and bounded support vectors are decreased when C is increased, in many cases, bounded variables when C = 1 become free variables when C = 1000. When C is increased, the separating hyperplane tries to to fit as many training data as possible. Hence more points (i.e. more freeαi) tend to be at two planes wTφ(x) + b = ±1. Since the decomposition

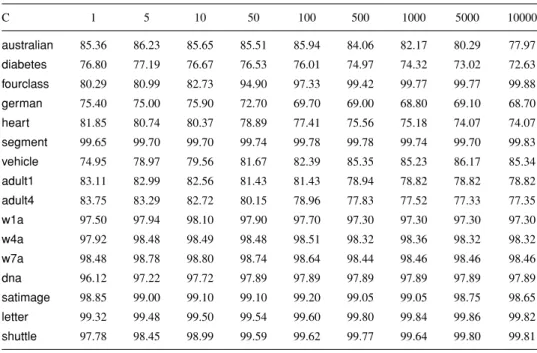

Table 10. SVMlight: Accuracy rate by 10-fold cross validation or classifying test data.
C 1 5 10 50 100 500 1000 5000 10000 australian 85.36 86.23 85.65 85.51 85.94 84.06 82.17 80.29 77.97 diabetes 76.80 77.19 76.67 76.53 76.01 74.97 74.32 73.02 72.63 fourclass 80.29 80.99 82.73 94.90 97.33 99.42 99.77 99.77 99.88 german 75.40 75.00 75.90 72.70 69.70 69.00 68.80 69.10 68.70 heart 81.85 80.74 80.37 78.89 77.41 75.56 75.18 74.07 74.07 segment 99.65 99.70 99.70 99.74 99.78 99.78 99.74 99.70 99.83 vehicle 74.95 78.97 79.56 81.67 82.39 85.35 85.23 86.17 85.34 adult1 83.11 82.99 82.56 81.43 81.43 78.94 78.82 78.82 78.82 adult4 83.75 83.29 82.72 80.15 78.96 77.83 77.52 77.33 77.35 w1a 97.50 97.94 98.10 97.90 97.70 97.30 97.30 97.30 97.30 w4a 97.92 98.48 98.49 98.48 98.51 98.32 98.36 98.32 98.32 w7a 98.48 98.78 98.80 98.74 98.64 98.44 98.46 98.46 98.46 dna 96.12 97.22 97.72 97.89 97.89 97.89 97.89 97.89 97.89 satimage 98.85 99.00 99.10 99.10 99.20 99.05 99.05 98.75 98.65 letter 99.32 99.48 99.50 99.54 99.60 99.80 99.84 99.86 99.82 shuttle 97.78 98.45 98.99 99.59 99.62 99.77 99.64 99.80 99.81
Table 11. BSVM: Accuracy rate by 10-fold cross validation or classifying test data. C 1 5 10 50 100 500 1000 5000 10000 australian 85.36 86.23 85.65 85.51 85.94 84.06 82.17 80.15 77.97 diabetes 76.93 77.19 76.93 76.53 76.01 74.97 74.32 73.02 72.63 fourclass 80.29 81.22 82.38 94.32 97.33 99.42 99.77 99.77 99.88 german 75.30 75.00 75.90 72.70 69.50 69.00 68.80 69.10 68.70 heart 82.22 80.74 80.00 78.52 77.41 75.93 75.18 74.07 74.07 segment 99.65 99.70 99.70 99.74 99.78 99.78 99.74 99.74 99.83 vehicle 74.95 78.97 79.68 81.79 82.50 85.23 85.23 86.41 85.34 adult1 83.18 82.99 82.62 81.43 81.43 78.94 78.82 78.82 78.82 adult4 83.75 83.29 82.72 80.17 78.96 77.83 77.52 77.30 77.30 w1a 97.50 97.94 98.10 97.90 97.70 97.30 97.30 97.30 97.30 w4a 97.92 98.48 98.49 98.48 98.51 98.32 98.32 98.32 98.32 w7a 98.48 98.78 98.80 98.74 98.64 98.44 98.46 98.46 98.46 dna 96.12 97.30 97.64 97.81 97.81 97.81 97.81 97.81 97.81 satimage 98.85 99.00 99.10 99.10 99.20 99.05 99.05 98.75 98.65 letter 99.32 99.48 99.50 99.56 99.60 99.80 99.84 99.86 99.82 shuttle 97.62 98.21 98.99 99.59 99.62 99.77 99.64 99.80 99.81
method has more difficulties on handling free variables, if the problem is ill-conditioned, more iterations are required. As our selection of the working set always try to push free variables to be bounded variables, the number of free variables is kept small. Therefore, the convergence seems faster. It can be clearly seen that for almost all cases in Tables 6 and 8,
BSVMtakes fewer iterations than SV Mlight.
Problemfourclassin Table 6 is the best example to show the characteristic ofBSVM. For this problem, at the final solution, the number of free variables is small. In the iterative process of decomposition methods, many free variables of iterates are in fact bounded variables at the final solution.BSVMconsiders free variables in subsequent iterations so all bounded variables are quickly identified. The number of free variables is kept small so the slow local convergence does not happen. However, SVMlight goes through an iterative process with more free variables so it takes a lot more iterations. We use figure 3 to illustrate this observation in more detail. It can be seen in figure 3(a) that the number of free variables in SVMlightis increased to about 70 in the beginning. Then it is difficult do identify whether
they should be at the bounds or not. Especially in final iterations, putting a free variable on a bound can take thousands of iterations. On the other hand, the number of free variables ofBSVMis always small (less than 50).
We also note that sometimes many free variables in the iterative process are still free in the final solution. HenceBSVMmay pay too much attention on them or wrongly put them as bounded variables. Therefore, some iterations are wasted so the gap betweenBSVMand SVMlightis smaller. An example of this isadultproblems.
(a) (b)
Figure 3. Problem fourclass: number of SV(line) and free SV(dashed). (a) SVMlight; (b) BSVM.
Next we study the relation between number of iterations and q, the size of the working set. Using the RBF kernel and C = 1000, results are in Tables 12 and 13. We find out that by usingBSVM, number of iterations is dramatically decreased as q becomes larger. On the other hand, using SVMlight, the number of iterations does not decrease much. Since
optimization solvers costs a certain amount of computational time in each iteration, this result shows that SVMlightis only suitable for using small q. On the other hand, Algorithm
2.1 provides the potential of using different q in different situations.
Table 12. Iterations and q: BSVM, C= 1000.
q= 10 q= 20 q= 30 q= 40 australian 12609 2840 1398 688 diabetes 21908 3716 1044 531 german 16874 6511 3558 2120 heart 1230 356 186 89 vehicle 10238 2186 748 309
Table 13. Iterations and q: SVMlight, C= 1000.
q= 10 q= 20 q= 30 q= 40 australian 101103 71121 62120 34491 diabetes 75506 43160 37158 41241 german 43411 31143 28084 24529 heart 5772 3321 3068 1982 vehicle 177188 113357 107344 90370
4. Using algorithm 2.1 for standard SVM formulation
We can modify Algorithm 2.1 for standard SVM formulation (1.2).
Algorithm 4.1: Selection of the working set
Let r be the number of free variables atαk
Let q= q1+ q2, where q1 ≤ r and q2is an even number
For those 0< (αk)i < C, select q1elements with the smallest|∇ f (αk)i+ byi|
Select q2elements from the rest of the index set by SVMlight’s working set selection. Here we describe Algorithm 4.1 in a more general way. If under a similar setting of Algorithm 2.1, we choose q1≈ q2≈ q/2. Now if (αk)i is a free variable and i is in the
previous working set, we have ∇ f (αk)i+ byi= 0.
This is different from the bounded case where we have∇ f (αk)i= 0. Therefore, unlike
Algorithm 2.1 where q/2 free elements with the smallest |∇ f (αk)i| are chosen, here we
select the smallest|∇ f (αk)i+ byi|. Note that b is not a constant and must be recalculated
in each iteration.
As in previous sections we focus on using Algorithm 2.1 for bounded formulation (1.5), we wonder whether the concept of reducing the number of free variables could also work for the regular formulation (1.2). Note that the experience in Section 2 tells us that with-out experiments and analysis it is difficult to judge whether a working set selection is useful for one formulation or not. Thus in this section we will conduct some preliminary experiments.
We implement Algorithm 4.1 with q= 10, q1= 6, and q2= 4. All other settings such as stopping criteria are the same as in the previous section. Results using MATLAB for small problems are in Tables 14 and 15. The RBF kernel is used so we compare them with Tables 5 and 6. It can be clearly seen that the number of iterations is smaller than that of SVMlight
and is competitive withBSVM.
Table 14. BSVM: RBF kernel and C= 1.
Problem SV(BSV) Mis. Obj. Iter.
australian 244(190) 98 −201.64 211 diabetes 447(435) 168 −413.56 102 german 600(512) 189 −502.77 330 heart 132(107) 36 −100.88 63 vehicle 438(415) 210 −413.02 131 fourclass 408(401) 167 −383.58 89
Table 15. BSVM: RBF kernel and C= 1000.
Problem SV(BSV) Mis. Obj. Iter.
australian 222(55) 28 −81198.78 17302 diabetes 377(274) 128 −302470.21 24299 german 509(15) 3 −39909.12 26128 heart 101(1) 0 −4815.73 1742 vehicle 284(172) 47 −179597.77 13191 fourclass 89(74) 2 −53886.61 383
This experiment confirms the importance of choosing free variables into the working set. A full implementation using Algorithm 4.1 for (1.2) will be an important research topic. A good linear-constrained optimization software must be chosen in order to solve (1.3).
5. Discussions and conclusions
From an optimization point of view, decomposition methods are like “coordinate search” methods or “alternating variables method” (Fletcher, 1987, Chapter 2.2). They have slow convergences as the first and second order information is not used. In addition, if the working set selection is not appropriate, though the strict decrease of the objective value holds, the algorithm may not converge (see, for example, Powell, 1973). However, even with such disadvantages, the decomposition method has become one of the major methods for SVM. We think the main reason is that the decomposition method is efficient for SVM in the following situations:
1. C is small and most support vectors are at the upper bound. That is, there are not many free variables in the iterative process.
2. The problem is well-conditioned even though there are many free variables.
For example, we do not think thatadultproblems with C= 1000 belong to the above cases. They are difficult problems for decomposition methods.
If for most applications we only need solutions of problems which belong to the above situations, current decomposition methods may be good enough. Especially a SMO type (Platt, 1998) algorithm has the advantage of not requiring any optimization solver. However, if in many cases we need to solve difficult problems (for example, C is large), more optimiza-tion knowledge and techniques should be considered. We hope that practical applicaoptimiza-tions will provide a better understanding on this issue.
Regarding the SVM formulation, we think (1.5) is simpler than (1.1) but with similar quality for our test problems. In addition, in this paper we experiment with different im-plementation of the working set selection. The cost is always the same: at most O(ql) by selecting some of the largest and smallest∇ f (αk). This may not be the case for regular SVM
simple because (2.1) is very special. If we change constraints of (2.1) to 0≤ αk+ d ≤ C,
the solution procedure may be more complicated. Currently we add b2/2 into the objective function. This is the same as finding a hyperplane passing through the origin for separating data [φ(xi), 1], i = 1, . . . , l. It was pointed out by Cristianini and Shawe-Taylor (2000) that
the number 1 added may not be the best choice. Experimenting with different numbers can be a future issue for improving the performance ofBSVM.
From a numerical point of view, there are also possible advantages of using (1.5). When solving (1.2), a numerical difficulty is on deciding whether a variable is at the bound or not because it is generally not recommended to compare a floating-point number with another one. For example, to calculate b of (1.2), we use the following KKT condition
yi(Qα)i+ b − 1 = 0 if 0 < αi < C. (5.1)
Therefore, we can calculate b by (5.1) where i is any element in B. However, when imple-menting (5.1), we cannot directly compareαito 0 or C. In SVMlight, a smalla= 10−12> 0
is introduced. They consider αi to be free if αi≥ a andαi ≤ C − a. Otherwise, if a
wrongαiis considered, the obtained b can be erroneous. On the other hand, if the bounded
formulation is used and appropriate solvers for sub-problem (2.7) are used, it is possible to directly compareαi with 0 or C without needing ana. For example, in Lin and Mor´e
(1999), they used a method called “project gradient” and in their implementation all values at bounds are done by direct assignments. Hence it is safe to compareαiwith 0 or C. To be
more precise, for floating-point computation, ifαi ← C is assigned somewhere, a future
floating-point comparison between C and C returns true as they both have the same internal representation.
In Platt (1998), a situation was considered where the bias b of the standard SVM formu-lation (1.2) is a constant instead of a variable. Then the dual problem is a bound-constrained formulation soBSVMcan be easily modified for it.
In Section 2, we demonstrate that finding a good working set is not an easy task. Some-times a natural method turns out to be a bad choice. It is also interesting to note that for different formulations (1.2) and (1.5), similar selection strategies (2.1) and (2.2) give to-tally different performance. On the other hand, both Algorithms 2.1 and 4.1 are very useful for (1.2) and (1.5), respectively. Therefore, for any new SVM formulations, we should be careful when applying existing selections to them.
Finally we summarize some possible advantages of Algorithm 2.1:
1. It keeps the number of free variables as low as possible. This in general leads to faster convergences for difficult problems.
2. It tends to consider free variables in the current iteration again in subsequent iterations. Therefore, corresponding columns of these elements are naturally cached.
Acknowledgments
This work was supported in part by the National Science Council of Taiwan via the grant NSC 89-2213-E-002-013. The authors thank Chih-Chung Chang for many helpful discussions
and comments. Part of the software implementation benefited from his help. They also thank Thorsten Joachims, Pavel Laskov, John Platt, and anonymous referees for helpful comments.
Notes
1. BSVM is available at http://www.csie.ntu.edu.tw/~cjlin/bsvm. 2. TRON is available at http://www.mcs.anl.gov/~more/tron
References
Blake, C. L. & Merz, C. J. (1998). UCI repository of machine learning databases. Irvine, CA. (Available at http://www.ics.uci.edu/∼mlearn/mLRepository.html)
Chang, C.-C., Hsu, C.-W., & Lin, C.-J. (2000). The analysis of decomposition methods for support vector machines.
IEEE Trans. Neural Networks, 11:4, 1003–1008.
Cristianini, N. & Shawe-Taylor, J. (2000). An introduction to support vector machines. Cambridge, UK: Cambridge University Press.
Fletcher, R. (1987). Practical methods of optimization. New York: John Wiley and Sons.
Friess, T.-T., Cristianini, N., & Campbell, C. (1998). The kernel adatron algorithm: A fast and simple learning procedure for support vector machines. In Proceeding of 15th Intl. Conf. Machine Learning. San Francisco, CA: Morgan Kaufman Publishers.
Ho, T. K. & Kleinberg, E. M. (1996). Building projectable classifiers of arbitrary complexity. In Proceedings of
the 13th International Conference on Pattern Recognition (pp. 880–885). Vienna, Austria.
Joachims, T. (1998). Making large-scale SVM learning practical. In B. Sch¨olkopf, C. J. C. Burges, & A. J. Smola (Eds.). Advances in kernel methods—support vector learning. Cambridge, MA: MIT Press.
Joachims, T. (2000). Private communication.
Laskov, P. (2002). Feasible direction decomposition algorithms for training support vector machines, Machine
Learning, 46, 315–349.
Lin, C.-J. (2000). On the convergence of the decomposition method for support vector machines (Technical Report). Department of Computer Science and Information Engineering, National Taiwan University, Taipei, Taiwan. To appear in IEEE Trans. Neural Network.
Lin, C.-J. & Mor´e, J. J. (1999). Newton’s method for large-scale bound constrained problems. SIAM J. Optim., 9, 1100–1127. (Software available at http://www.mcs.anl.gov/˜more/tron)
Mangasarian, O. L. & Musicant, D. R. (1999). Successive overrelaxation for support vector machines. IEEE Trans.
Neural Networks, 10:5, 1032–1037.
Michie, D., Spiegelhalter, D. J., & Taylor, C. C. (1994). Machine learning, neural and statistical classification. Englewood Cliffs, N.J.: Prentice Hall. (Data available at anonymous ftp: ftp.ncc.up.pt/pub/statlog/)
Osuna, E., Freund, R., & Girosi, F. (1997). Training support vector machines: An application to face detection. In
Proceedings of CVPR’97.
Platt, J. C. (1998). Fast training of support vector machines using sequential minimal optimization. In B. Sch¨olkopf, C. J. C. Burges, & A. J. Smola (Eds.). Advances in kernel methods—support vector learning. Cambridge, MA: MIT Press.
Powell, M. J. D. (1973). On search directions for minimization. Math. Programming, 4, 193–201.
Saunders, C., Stitson, M. O., Weston, J., Bottou, L., Sch¨olkopf, B., & Smola, A. (1998). Support vector
ma-chine reference manual (Technical Report No. CSD-TR-98-03). Egham, UK: Royal Holloway, University of
London.
Sch¨olkopf, B., Burges, C. J. C., & Smola, A. J. (Eds.). (1998). Advances in kernel methods—support vector
learning. Cambridge, MA: MIT Press.
Vanderbei, R. (1994). LOQO: An interior point code for quadratic programming (Technical Report No. SOR 94-15). Statistics and Operations Research, Princeton University. (revised November, 1998)
Vapnik, V. (1995). The nature of statistical learning theory. New York, NY: Springer-Verlag. Vapnik, V. (1998). Statistical learning theory. New York, NY: John Wiley.
Received February 23, 2000 Revised February 20, 2001 Accepted February 21, 2001 Final manuscript July 20, 2001
![Table 4. Working set in final iterations: SVM light . Iter. B # in iter. +2 57 [245 16 108 90 119 230 7 195 51 49] 7 58 [266 130 51 230 195 25 5 30 53 197] 3 59 [245 16 108 119 90 195 30 266 49 24] 5 60 [168 7 130 228 19 200 230 73 5 197] 3 61 [245 16 108](https://thumb-ap.123doks.com/thumbv2/9libinfo/8655977.194415/9.892.284.605.244.418/table-working-final-iterations-svm-light-iter-iter.webp)
