Study on Gd and Mg co-doped ceria electrolyte for intermediate temperature solid oxide fuel cells

(1)

Study on Gd and Mg co-doped ceria electrolyte for

intermediate temperature solid oxide fuel cells

Feng-Yun Wang

a,b,

*

, Songying Chen

a

, Qin Wang

a

,

Shuxin Yu

a

, Soofin Cheng

c

a_{Institute of Catalysis, Zhejiang University (Xixi Campus), Hangzhou 310028, PR China} b_{Chemistry Department, Foshan University, Foshan 528000, PR China} c

Chemistry Department, National Taiwan University, Taipei 106, Taiwan

Received 18 November 2003; received in revised form 4 February 2004; accepted 2 April 2004 Available online 3 August 2004

Abstract

A Gd and Mg co-doped ceria electrolyte Ce0.85Gd0.1Mg0.05O1.9(CGM) was prepared by sol–gel method. Its conductivity behavior was studied and compared with those of singly doped ceria electrolytes Ce0.9Mg0.1O1.9(CM10) and Ce0.9Gd0.1O1.95(CGO). By using CGM as the electrolyte, a fuel cell was fabricated with a Ni/CGM anode and a La0.6Sr0.4Co0.2Fe0.8O3(LSCF)/CGM composite cathode. Its performance was compared with that of CGO based fuel cells. Both the CM10 and CGM electrolytes were ceria based solid solutions. The dopant Mg2+ might be situated in the interstitials of the crystal lattice of CeO2. The co-doped CGM showed a higher conductivity in air at 773–973 K in comparison to that of CGO and CMO. The CGM based fuel cell also showed higher open circuit voltage (OCV) and higher maximum power density (MPD) than the CGO based cell at 773–973 K. The MPD of the fuel cells were improved further by using composite cathode of LSCF/ CGO (or CGM). With Ni/CGM anode and LSCF/CGM cathode, the MPD of the CGM based fuel cell at 873 K reached 202.5 mW cm 2. # 2004 Elsevier B.V. All rights reserved.

Keywords: Solid oxide fuel cell; Electrolyte; Gd and Mg co-doped ceria; Conductivity

1. Introduction

Fuel cells have received great attention as environmen-tally friendly and efficient means to generate electric power for both stationary and mobile applications[1]. Among the various fuel cells investigated, solid oxide fuel cells (SOFCs) have the following advantages [1–3]: (1) ease use and durability of the solid (rather than liquid) electrolyte materials, (2) high energy conversion efficiency (up to 60– 80%), (3) wide variety of fuels (including hydrocarbons and oxygenates), (4) non-noble-metal electrode, and (5) no threat from CO poisoning. However, the conventional SOFCs incorporating yttria stabilized zirconia (YSZ) as the electrolyte are operated at very high temperatures, ca.

1173–1273 K. This places considerable constraints on the materials that can be used for interconnects and balance of plant (e.g. the interconnect material LaCrO3 is prone to

degradation during long-term operation) [2]. Also, it requires more time and energy to start-up[3]. If the operat-ing temperature can be lowered down to 773–973 K, which is termed the intermediate temperature (IT) range, it will be possible to use stainless steel for interconnects and balance of plant [2]. This would make the fabrication of SOFCs much more cost-effective, particularly for vehicular appli-cations. However, in the IT range, YSZ shows low con-ductivity, which leads to high inner resistance of the fuel cells. In order to develop fuel cells having low inner resistance at IT, three research routes have been adopted: (1) reducing the thickness of the electrolyte (especially YSZ) film [1,3]; (2) developing new electrolyte materials of higher ionic conductivity for operation at IT[1–4]; and (3) improving the electrodes and catalysts to reduce the

over-www.elsevier.com/locate/cattod

* Corresponding author. Present address: Chemistry Department, National Taiwan University, Taipei 106, Taiwan. Fax: +886 2 23636359.

E-mail address: [email protected] (F.-Y. Wang).

(2)

potentials[3,5,6]. So far, the thickness of electrolytes can be reduced to 1–10 mm[2–3]. Further reduction would lead to reliability problem with electrolyte integrity. Studies on new electrolytes have led to the discovery of Ce1 xGdxO2 y(0.1

x 0.2, CGO)[7]and La0.9Sr0.1Ga0.8Mg0.2O2.85(LSGM)

[4,8,9], which showed higher ionic conductivities than YSZ in the IT range. LSGM showed a wider ionic domain than CGO, but was not as stable and compatible as

CGO [9]. In many studies on CGO based fuel cells,

La1 xSrxCo1 yFeyO3 z (LSCF) was used as the cathode

[1,2,10], and Ni/YSZ[1,2]or Ni/CGO[3,10]as the anode.

For example, Sahibzada et al.[2] fabricated a fuel cell by using a 5 mm thick film of CGO as the electrolyte, Ni/YSZ as the anode, and LSCF as the cathode. Its maximum power density (MPD), using 67.5%H2/CO2as fuel, was 126, 65,

and 32 mW cm 2at 923, 873, and 823 K, respectively. Although much progress has been made, the CGO based fuel cells reported so far has not met the commercial requirement yet. In order to further improve the electrolytes, co-doping method has been used in recent years and was found effective [11,12]. Although many co-doped ceria have been investigated, such as Ce1 x yGdxPryO2 z[13];

Ce1 x ySmxLayO2 z [12]; Ce1 x yYxLayO2 z [14], and

Ce1 x y zGdxSmyYzO2 d [11], etc., to the best of our

knowledge there is no studies reported on Gd and Mg co-doped Ceria. Considering the low cost and high stability of MgO and possible co-doping effect, Gd and Mg co-doped ceria (CGM) was prepared and characterized in this research. Its conductivity was compared with singly doped CGO and Ce1-xMgxO2-y(CMO). A fuel cell fabricated with CGM and

the electrodes was studied and compared with other two fuel cells with different electrolyte or/and electrodes.

2. Experimental 2.1. Powder synthesis 2.1.1. CGM powder

Electrolyte powder was synthesized by sol–gel method. According to the given composition (Ce0.85Gd0.1Mg0.05O1.9),

nitrates of Ce, Gd, and Mg (A.R.) were weighed and dissolved in distilled water in which a little citric acid and polyethylene glycol was added. The obtained solution was evaporated on a water bath at 353 K until it was gradually gelled. The gel was dried at 378 K, ground and calcined at 973 K for 4 h, and then ground again to fine powder.

2.1.2. CGO powder

Ce0.9Gd0.1O1.95(CGO) powder was prepared in a similar

way as that for CGM but without Mg. 2.1.3. CMO powder

Ce1 xMgxO2 y(x = 0.05–0.2) powders were prepared in

a similar way as that for CGM but without Gd. The Ce0.9Mg0.1O1.9compound is termed as CM10.

2.1.4. LSCF powder

LSCF powder was prepared by solid-state reaction. According to the given composition (La0.6Sr0.4Co

0.2-Fe0.8O3), reagent graded La2O3, Fe2O3, 2CoCO3

.3-Co(OH)2nH2O, and SrCO3 were mixed, and ball milled

for 2 h in ethanol. After drying, it was calcined at 1273 K for 10 h and 1473 K for 5 h, and then ground into powder. 2.2. Electrode preparation

2.2.1. Ni/CGM anode

Ni/CGM anode was made by a mixture of CGM electro-lyte powder (42 vol.%), NiO powder (A.R. 42 vol.%), and carbon/graphite powder (16 vol.%). The mixture was ball milled for 2 h and then pressed into a pellet. The pellet was sintered at 1273 K for 5 h and 1673 K for 2 h to remove the carbon/graphite and form a porous structure composite anode (diameter: 10–12 cm, thickness: 0.5–1.2 mm). 2.2.2. LSCF/CGM cathode

The LSCF/CGM cathode was prepared in a way similar to that of Ni/CGM anode, but NiO powder and the sintering temperature of 1673 K were replaced by the LSCF powder and 1573 K. The prepared cathode material was then ball milled into powder.

2.3. Fuel cell fabrication

The Ni/CGM anode pellet was used as a physical support for the CGM electrolyte film. A suspension of CGM, con-taining an organic solvent and a plasticizer, was tape-cast onto one side of the anode support. The assembly was sintered at 1723 K for 5 h to form a dense impermeable CGM film of approximately 15–25 mm in thickness. On top of the CGM film, the powder LSCF/CGM cathode material suspending in an organic solvent, was tape-cast on it. After drying and sintering at 1523 K for 4 h, two pieces of Pt mesh were attached, with Pt paste, to the cathode and anode surfaces to act as current collectors. After drying and calcining at 1073 K for 1 h, electrical connections to the cell were made by spot welding Pt wire to the Pt mesh current collectors. The whole assembly was placed, like a cap, over one end of an open ceramic pipe (8 mm in inner diameter) with the cathode facing outwards in order to be exposed to air and the anode facing into the pipe in order to be exposed to fuel contained within the pipe. A ceramic adhesive was applied between the cell edge and pipe rim, and subsequently heated gradually from 353 K to 973 K to form a gas tight seal. The fuel cell was denoted as LC-CGM-NC. Here, LC and NC stand for LSCF/CGM composite cathode and NiO/CGM composite anode, respectively.

For comparison, two other fuel cells were fabricated similarly. One was fabricated with CGO electrolyte, Ni/ CGO anode, and LSCF cathode, denoted as L-CGO-NC. Another, denoted as LC-CGO-NC, was fabricated in the same way, but LSCF cathode was replaced by LSCF/CGO

(3)

cathode. Here L, LC, and NC stand for LSCF cathode, LSCF/CGO composite cathode and NiO/CGO composite anode, respectively.

2.4. Characterization

2.4.1. Electrolyte characterization

The crystal structure of the electrolytes were character-ized by X-ray diffraction (XRD, Rigaku D/max-IIB). For conductivity measurement, electrolyte powder was pressed into raw pellets with a die of 13 mm diameter. The raw pellets were sintered at 1723 K for 5 h into dense pellets. The relative densities of the dense pellets were measured with Archimedes’ method and found to be higher than 95%. On both sides of the dense pellets, Pt paste was applied, and then sintered at 1073 K for 1 h to form Pt electrodes. Pt wires were attached to the electrodes using Pt paste and then sintered again at 1073 K for 1 h. After 40 min equilibrium at a constant temperature between 673 and 973 K, the total resistances of the dense pellets were measured with an electric-bridge (QJ31), and were used to calculate the con-ductivities of the dense pellets.

2.4.2. Fuel cell characterization

The cell-pipe assembly was placed into a tubular furnace with the cathode exposed to air in the furnace. A piece of long thin steel feed line was inserted through the open end of the pipe, running concentric along the inside of the pipe. This allowed a fuel feed to be preheated to the furnace temperature before passing through a diffuser that dispersed the fuel across the anode. After the reaction at the anode, the spent fuel flowed back in the opposite direction between the outside of the feed line and inside of the pipe (all the piping materials had been tested in the absence of the fuel cell and no pre- or post-reaction was detected). Electromotive forces (EMFs) of fuel cells were measured using a potentiometer. I–V characteristics were determined by measuring current and voltage under variable loads. The temperature of the sample was measured with a thermocouple attached close to the sample and controlled by a temperature-programmed controller.

3. Results and discussion

3.1. Crystal structures of electrolytes

Fig. 1a–c showed the XRD patterns of pure CeO2and the

CM10 electrolyte before and after heat treatment in 1– 6%H2/N2 at 300–973 K for 1–10 h. Both patterns of

CM10 are similar to that of pure ceria except that the 2u values in the three patterns shifted in an order of a > b > c. This result indicated that the CM10 electrolyte was ceria based solid solution whether being heat-treated or not. The dopant Mg2+in CM10 might be seated in the lattice inter-stitials rather than substituting the lattice site of Ce4+.

Otherwise, the 2u for CM10 should be greater than those of pure CeO2 because Mg2+ is much smaller than Ce4+.

Through the heat-treatment in reducing atmosphere, a few Ce4+ions in CM10 were probably reduced to Ce3+of larger size[2], which led to an increase in lattice constant and in turn, smaller 2u in the XRD pattern (Fig. 1c).

Fig. 2a and b show the XRD patterns of CGO and CGM electrolytes. They are all similar to that of ceria (Fig. 1a) except a slight shift in 2u, indicating that both CGO and

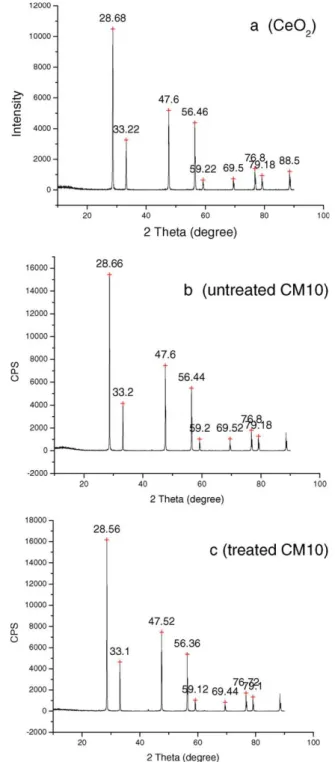

Fig. 1. XRD patterns of pure CeO2(a) and CM10 electrolytes before (b) and

(4)

CGM are ceria based solid solutions. Because the sizes of Gd3+and Mg2+are different from that of Ce4+, the 2u values inFig. 2are slightly different from those of ceria. 3.2. Conductivities of electrolytes

In the case of doped ceria compounds, most of the conductivity in air is oxide ionic conductivity (>99.5%) [15], and the contribution of electronic conductivity is very small[16]. In this study, the conductivity in air was taken as the oxide ionic conductivity.

The conductivities of CM10 in air before and after the heat treatment are given in Fig. 3a and b. Before the heat treatment, the conductivity of CM10 was very low and reached 1.4 10 5_{S cm} 1_{at 973 K, which is very close}

to the value of 1.46 10 5_{S cm} 1_{reported in the literature}

[17]. However, after the heat treatment, the conductivity of CM10 increased a lot, and reached 2 10 3_{S cm} 1 _at

973 K, which is much higher than that before the treatment. This dramatic increase in conductivity probably resulted from the formation of extra oxygen vacancies and a portion of Ce4+ions being reduced to Ce3+during the heat treatment [12,18]. The stability of CM10 electrolyte was also inves-tigated by in situ monitoring the changes of conductivity at 973 K as a function of time for 70 h. It was found that, at 973 K, the conductivity of CM10 electrolyte after the heat

treatment did not change apparently with time, indicating that the electrolyte is very stable. The above heat-treatment effect, however, was not detectable for Ca-doped CeO2,

Sr-doped CeO2, and CGO electrolytes. This implies that the

heat-treatment effect might be related to the special structure of CM10.

The effect of Mg content on the heat-treatment effect was also investigated. It was found that the heat-treatment effect changed with Mg content and reached its maximum at Mg content of ca. 10 mol%. This is consistent with the conductivity results [10], i.e., the conductivity of Ce1 xMgxO1 yreaches the maximum at x = 0.1. The effect

of gas atmosphere on the heat-treatment effect was inves-tigated too. It was found that the concentration of H2must be

less than 6 mol%, otherwise, the reverse results would be observed.

Fig. 4shows the conductivity of CGM and CGO

electro-lytes in air. CGO gives a little higher conductivity, 0.077 S cm 1 at 973 K, than the literature data (0.058 S cm 1)

Fig. 2. XRD patterns of different electrolytes: (a) CGO; (b) CM10.

Fig. 3. Effect of temperature on conductivity in air of CM10 electrolyte before (circle) and after (solid square) the heat treatment in 6%H2/N2at

973 K.

Fig. 4. Effect of temperature on conductivities (s) of electrolytes in air (open square: CGM, solid square: CGO).

(5)

[19], and CGM shows even higher conductivity than CGO, especially at low temperature range. This result might be due to co-doping effect and the formation of extra oxygen vacancies caused by the addition of MgO. Furthermore, the Mg content in CGM was varied in 2–10 mol% and it was found that about 5 mol% is the best. This is because the content of oxygen vacancies in the electrolyte also needs an optimum value.

3.3. Fuel cell performance

Since CGM has higher conductivity than CGO, a fuel cell fabricated with it was studied. Fig. 5 shows the current– voltage characteristics of the single fuel cells at 773 K and 873 K using 6%H2/N2as the fuel and air as the oxidant. The

results are summarized as follows: (1) all the open circuit voltages (OCV) of the fuel cells are lower than those predicted by the Nernst Equation (about 1V) [7]; (2) the OCV value of CGM-NC is larger than those of LC-CGO-NC and L-LC-CGO-NC; and (3) the temperature increase has a negative effect on the OCV.

A trace amount of gas leakage through micropores in the electrolyte film and more possibly through the ceramic adhesive seals may have caused some of the loss of OCV. Another possible reason of the OCV loss is that in addition to the higher ionic conductivity, ceria based electrolytes have some electronic conductivity[3]. Hence, under open circuit conditions there would be some short-circuiting, which leads to the loss of OCV. Because CGM has higher ionic conductivity and possibly higher compaction than CGO, CGM based fuel cell showed higher OCV than the CGO based one. The electronic conductivity of electrolytes would increase with the increase in temperature, and that in turn caused the loss of the OCV.

The linear current–voltage relationship inFig. 5indicates ohmic behavior, and the cell resistances can be calculated from the slope of the lines. Of the three cells, LC-CGM-NC

cell is of the minimum total cell resistance of 1.0 V cm2at 873 K.

Fig. 6shows the current–power profiles of the single fuel cells at 773 K and 873 K with 6%H2/N2as the fuel and air as

the oxidant. The MPD of LC-CGM-NC cell reached 168.3 and 202.5 mW cm 2 at 773 K and 873 K, respectively, higher than those of the other two comparative fuel cells and some other results reported in the literatures[1–8]. The MPD of the fuel cells changes in an order of LC-CGM-NC > LC-CGO-NC > L-CGO-NC. This suggests that using co-doped electrolyte and composite cathode could enhance the power output of the fuel cells. This is because the co-doped electrolyte usually shows higher ionic conductivity [11], and the composite cathode usually shows lower polarization [3].

4. Conclusions

CGM electrolyte was found to be a ceria based solid solution. It showed higher conductivity at IT (773–973 K) than the singly doped CGO and CM10. Co-doping was found to effectively enhance the conductivity. Because of this effect, the MPD of CGM based fuel cells at IT was found to be higher than that of CGO based ones, and it might be improved further by using composite cathode of LSCF/ CGM. The CM10 electrolyte was also a ceria based solid solution, but its dopant might be located in the interstitials of the CeO2lattice, rather than on the Ce4+sites. After a

heat-treatment in mild reducing atmosphere, the conductivity of CM10 in air increased dramatically.

References

[1] M. Sahibzada, B.C.H. Steele, K. Zheng, R.A. Rudkin, I.S. Metcalfe, Catal. Today 38 (1997) 459.

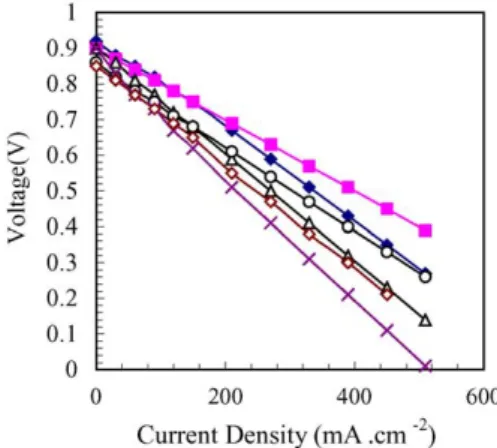

[2] M. Sahibzada, B.C.H. Ssteele, K. Hellgardt, D. Barth, A. Effendi, D. Mantzavinos, I.S. Metcalfe, Chem. Eng. Sci. 55 (2000) 3077. Fig. 5. Dependence of voltage on current density of fuel cells (fuel: 6%H2/

N2; oxidant: air). (^) LC-CGM-NC 773 K, (&) LC-CGM-NC 873 K, (~)

LC-CGO-NC 773 K, (*) LC-CGO-NC 873 K, () L-CGO-NC 773 K, (^) L-CGO-NC 873 K.

Fig. 6. Dependence of power density on current density of fuel cells (fuel: 6%H2/N2; oxidant: air). (^) LC-CGM-NC 773 K, (&) LC-CGM-NC

873 K, (~) LC-CGO-NC 773 K, (*) LC-CGO-NC 873K, () L-CGO-NC 773K, (^) L-CGO-L-CGO-NC 873 K.

(6)

[3] R. Doshi, V.L. Richards, J.D. Carter, X. Wang, M. Krumpelt, J. Electrochem. Soc. 146 (1999) 1273.

[4] T. Fukui, S. Ohara, K. Marata, H. Yoshida, K. Miura, T. Inagaki, J. Power Sources 106 (2002) 142.

[5] M.T. Colomer, B.C.H. Steele, J.A. Kilner, Solid State Ionics 147 (2002) 41.

[6] C. Xia, M. Liu, Solid State Ionics 144 (2001) 249. [7] B.C.H. Steele, J. Power Sources 49 (1994) 1.

[8] Feng, J.B. Goodenough, Eur. J. Solid State Inorg. Chem. 31 (1994) 663.

[9] K. Yamaji, T. Horita, M. Ishikawa, N. Sakai, H. Yokokawa, Solid State Ionics 108 (1998) 415.

[10] S.J.A. Livermore, J.W. Cotton, R.M. Ormerod, J. Power Sources 86 (2000) 411.

[11] J.V. Herle, D. Seneviratne, A.J. McEvoy, J. Eur. Ceram. Soc. 19 (1999) 837.

[12] T. Mori, J. Drennan, J.-H. Lee, J.-G. Li, T. Ikegami, Solid State Ionics 154/155 (2002) 461.

[13] S. Lubke, H.-D. Wiemhofer, Solid State Ionics 117 (1999) 229. [14] H. Yoshida, H. Deguchi, K. Miura, M. Horiuchi, Solid State Ionics 140

(2001) 191.

[15] H. Inaba, H. Tagawa, Solid State Ionics 83 (1996) 1.

[16] G.M. Christie, F.P.F. van Berkel, Solid State Ionics 3 (1996) 17. [17] H. Yahiro, T. Ohuchi, K. Eguchi, H. Arai, J. Mater. Sci. 23 (1988)

1036.

[18] R.M. Ormerod, Chem. Soc. Rev. 32 (2003) 17.

[19] Q.X. Fu, S.W. Zha, W. Zhang, D.K. Peng, G.Y. Meng, B. Zhu, J. Power Sources 104 (2002) 73.
