Scan-Cell Reordering for Minimizing

Scan-Shift Power Based on

Nonspecified Test Cubes

YU-ZE WU and MANGO C.-T. CHAO

National Chiao Tung University

This article presents several scan-cell reordering techniques to reduce the signal transitions dur-ing the test mode while preservdur-ing the don’t-care bits in the test patterns for a later optimization. Combined with a pattern-filling technique, the proposed scan-cell reordering techniques can uti-lize both high response correlations and pattern correlations to simultaneously minimize scan-out and scan-in transitions. Those scan-shift transitions can be further reduced by selectively using the inverse connections between scan cells. In addition, the trade-off between routing overhead and power consumption can also be controlled by the proposed scan-cell reordering techniques. A series of experiments are conducted to demonstrate the effectiveness of each of the proposed techniques individually.

Categories and Subject Descriptors: B.7.3 [Integrated Circuits]: Reliability and Testing— Testability

General Terms: Algorithms, Design

Additional Key Words and Phrases: Scan testing, DFT, low-power testing ACM Reference Format:

Wu, Y.-Z. and Chao, M. C.-T. 2010. Scan-cell reordering for minimizing scan-shift power based on nonspecified test cubes. ACM Trans. Des. Autom. Electron. Syst. 16, 1, Article 10 (November 2010), 29 pages. DOI = 10.1145/1870109.1870119.

http://doi.acm.org/10.1145/1870109.1870119.

1. INTRODUCTION

By enhancing circuit’s controllability and observability, scan design has been a widely used DFT technique to achieve high fault coverage for a complex circuit [Bushnell et al. 2000]. However, with the scan design, the Circuit-Under-Test (CUT) consumes much more power in its test mode than that in its functional mode Zorian [1993] due to the following reasons. First, when

Authors’ address: Y.-Z. Wu and M. C.-T. Chao (corresponding author), Department of Electronics Engineering, National Chiao Tung University, Hsinchu, Taiwan; email:

mango@faculty.nctu.edu.tw.

Permission to make digital or hard copies part or all of this work for personal or classroom use is granted without fee provided that copies are not made or distributed for profit or commercial advantage and that copies show this notice on the first page or initial screen of a display along with the full citation. Copyrights for components of this work owned by others than ACM must be hon-ored. Abstracting with credit is permitted. To copy otherwise, to republish, to post on servers, to redistribute to lists, or to use any component of this work in other works requires prior specific per-mission and/or a fee. Perper-missions may be requested from the Publications Dept., ACM, Inc., 2 Penn Plaza, Suite 701, New York, NY 10121-0701 USA, fax +1 (212) 869-0481, or permissions@acm.org.

c

 2010 ACM 1084-4309/2010/11-ART10 $10.00 DOI: 10.1145/1870109.1870119. http://doi.acm.org/10.1145/1870109.1870119.

(2)

using the scan design to shift in test patterns and shift out test responses, a large number of signal transitions may occur along the scan paths, which induce even more signal transitions on the CUT and hence consume higher power. Also, the clock-gating logics, which has been a popular design technique to reduce the power consumption by selectively updating only part of the flip-flops, are forced to turn off during the scan-shift cycles. Therefore, all the flip-flops are updated simultaneously in the test mode, which leads to higher power consumption as well.

This excessive power consumption during the scan-based testing may result in physical damage or reliability degradation to the CUT, and in turn decreases the yield and product lifetime [Girard 2002]. As the number of scan cells keeps on growing in modern designs, this increasing power consumption has become one of the biggest barriers to effective scan-based testing.

A common practice to lower the power consumption during scan-based testing is to reduce the number of scan cell’s signal transitions, which can be classified into the following three types: (1) capture transitions, generated by the same scan cell’s value difference between the scan-in pattern and the corresponding captured response; (2) scan-out transitions, generated by two adjacent scan cells’ value difference between their scan-out response; and (3) scan-in transitions, generated by two adjacent scan cells’ value difference between the scan-in patterns. The first transition type is associated with the capture power and the last two types are associated with the scan-shift power.

In order to reduce the capture transitions, specialized ATPG techniques [Chandra et al. 2008; Sankaralingam et al. 2002; Remersaro et al. 2006; Wen et al. 2005] are proposed to generate test-pattern vectors which have a minimal hamming distance with their corresponding test-response vectors. Because the don’t-care bits in their test cubes are fully specified for minimizing the cap-ture transitions, the preceding ATPGs preclude the possibility for further test compaction or compression, and hence may result in a larger test set.

Methods are proposed to utilize the don’t-care bits to minimize the scan-in transitions for a given test set [Mrugalski et al. 2007; Li et al. 2008; Lscan-in et al. 2006; Sankaralingam et al. 2000; Sinanoglu et al. 2003]. Sankaralingam et al. [2000] proposed a don’t-care-filling technique, named MT-fill, guarantee-ing that the scan-in transitions generated by its filled patterns are minimum for the given test set and scan-cell ordering. The methods in Sankaralingam et al. [2000], Mrugalski et al. [2007], Lin et al. [2006] reduced the test power as well as the test data volume based on built-in decompression hardware. Sinanoglu et al. [2003] added Xor gates or inverters along the scan paths to minimize the scan-in transitions. Li et al. [2008] proposed a don’t-care-filling technique which can simultaneously reduce the scan-in, scan-out, and capture transitions.

Another technique to reduce the scan-shift power is to partition the scan cells into multiple groups and activate only one group at a time during the scan-shift cycles [Bonhomme et al. 2001; Huang et al. 2001; Rosinger et al. 2004; Sankaralingam et al. 2001; Saxena et al. 2001; Whetsel 2000]. It can limit the concurrent transitions in a small portion of the CUT. The partition

(3)

Scan-Cell Reordering for Minimizing Scan-Shift Power

·

10: 3

methods require special control architectures to the scan designs, such as gated clocks [Bonhomme et al. 2001], central control unit for each group’s clock signal [Rosinger et al. 2004; Whetsel 2000], or specialized scan cells along with multiphase generator [Huang et al. 2001]. Sankaralingam et al. [2001] further minimize the capture power by only capturing responses for certain selected groups of scan cells. It requires a customized ATPG and discards a significant portion of responses.

Methods in Bonhomme et al. [2002], Dabholkar et al. [1998], Sinanoglu et al. [1998] change the order of scan cells along the scan paths to minimize both scan-in and scan-out transitions based on given test patterns and responses. This scan-cell-reordering technique saves the scan-shift power, but sacrifices the opportunity of optimizing the wire length of scan paths during the APR stage [Makar 1998; Hirech et al. 1998]. Methods in Bonhomme et al. [2003, 2004] further consider the routing overhead during the reordering process such that the imposed routing overhead can be limited. However, one seri-ous disadvantage in the scan-chain-reordering techniques [Bonhomme et al. 2002, 2003, 2004; Dabholkar et al. 1998] is that the exact test patterns and responses need to be obtained in advance. As the result, no don’t-care bits can be utilized for a further reduction to scan-in transitions or test data volume, such as Sankaralingam et al. [2000], Mrugalski et al. [2007], Lin et al. [2006], Sinanoglu et al. [2003], Li et al. [2008]. Sinanoglu et al. [1998] can reorder the scan cells based on the test set with don’t-care bits. However, Sinanoglu et al. [1998] relies on the controllability measures to approximate the response correlation between scan cells, which may not be able to reflect the reality. Also, Sinanoglu et al. [1998] did not consider the impact of any don’t-care-filling technique.

In this article, we attempt to develop a scan-cell-reordering scheme which can minimize the scan-out transitions while preserving the don’t-care bits in the test cubes for a later optimization of scan-in transitions using MT-fill [Sankaralingam et al. 2000]. To achieve this goal, we first need to pre-dict the correlation between the response values before specifying don’t-care bits. This response correlation is an index to the possible scan-out transitions between scan cells and can be used as a guidance to the reordering process (Section 4). Second, we consider the impact of scan-cell reordering on the re-sult of MT-fill and simultaneously optimize the scan-in and scan-out transitions (Section 6). Next, we selectively inverse some connections between scan cells such that a low response correlation (or pattern correlation) between two scan cells can be turned into a high correlation, which in turn reduces the proba-bility that scan-shift transitions occur along the scan paths (Section 7). Last, we consider the routing overhead of scan paths during the scan-cell reordering process, and thus the trade-off between scan-shift power and routing overhead can be properly controlled (Section 8). In addition, we propose a pattern re-ordering scheme to minimize the signal transitions resulted from the value dif-ference between the first bit of a scan-in pattern and the last bit of its previous scan-out response after the scan-cell reordering scheme is applied (Section 5). All the proposed methods are validated through large ISCAS and ITC bench-mark circuits.

(4)

2. MOTIVATION

During the scan-based testing, the total power consumption of the CUT is highly correlated with the total number of signal transitions on the scan cells [Sankaralingam et al. 2000]. In this article, we use the number of signal transitions occurring on scan cells to represent the power of the whole CUT. The proposed cell-reordering scheme focuses on reducing the total scan-shift power, that is, reducing the total scan-scan-shift transitions. The capture power is not considered in the proposed scheme since the number of capture transi-tions generated for a test pattern depends only on the filling of the test pat-tern. Changing the scan-cell ordering does not change the hamming distance between the test-pattern vector and its corresponding test-response vector.

From the discussions in Section 1, the scan-in transitions can be minimized by properly filling the don’t-care bits of a test set once the scan-cell order in the scan paths is given [Sankaralingam et al. 2000]. This reduction could be more significant as the percentage of don’t-care bits increases. Therefore, our scan-cell reordering scheme attempts to first minimize the scan-out transition count without specifying the don’t-care bits, leaving the don’t-care bits for a later minimization of scan-in transition, such as MT-fill [Sankaralingam et al. 2000]. However, before specifying the don’t-care bits, the value of some re-sponses cannot be known, implying that no explicit information for estimating the possible number of scan-out transitions can be used during the scan-cell reordering process.

We first use a simple experiment (reported in Table I) to show that certain pairs of scan cells tend to have the same response value in most cases of the random don’t-care filling. Thus, even without knowing the exact test responses, the reordering scheme can still avoid the possible scan-out transitions by con-necting those correlated pairs of scan cells next to each other. We first define this tendency between two scan cells as the response correlation, which is the probability that the two scan cells have the same response value by a random fill of don’t-care bits. Please note that the similar concept of response corre-lation has already been used in previous works [Bonhomme et al. 2002; Chen et al. 2003; Dabholkar et al. 1998; Sinanoglu et al. 1998], but the method and assumptions for obtaining this response correlation are different from work to work.

In the experiment, we use a commercial tool [Synopsys 2010] to generate stuck-at-fault patterns with don’t-care bits. By randomly filling the don’t-care bits and simulating the corresponding responses for 1-million times, the statistic of the response correlation between any two scan cells can then be collected. Table I lists the range of response correlations (Columns 1 and 4), the number of scan-cell pairs whose sampled response correlation falls in the range (Columns 2 and 5), and its corresponding percentage to the total scan-cell pairs (Columns 3 and 6), for the largest ISCAS benchmark circuit s38584. The don’t-care bit percentage of this test set is 78.01%. As the results show, while majority of the scan-cell pairs have a response correlation around 0.5, still 21595 scan-cell pairs (2%) have a response correlation higher than 0.75. Those 21595 scan-cell pairs could form a fair-sized solution space when reordering

(5)

Scan-Cell Reordering for Minimizing Scan-Shift Power

·

10: 5

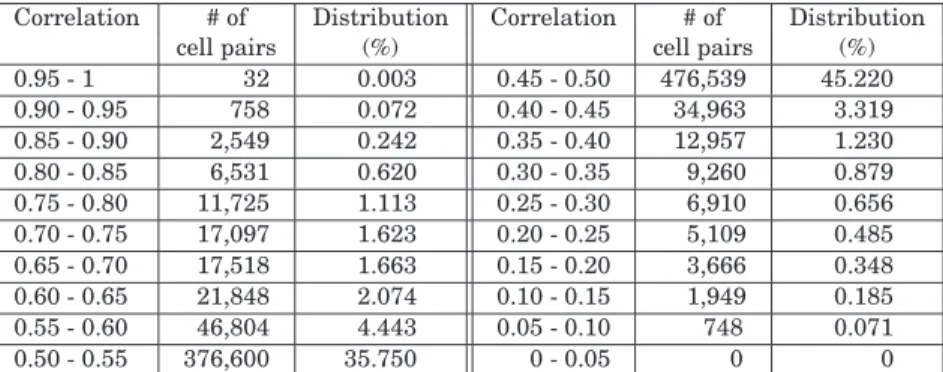

Table I. Response Correlation of ISCAS Benchmark s38584

Correlation # of Distribution Correlation # of Distribution

cell pairs (%) cell pairs (%)

0.95 - 1 32 0.003 0.45 - 0.50 476,539 45.220 0.90 - 0.95 758 0.072 0.40 - 0.45 34,963 3.319 0.85 - 0.90 2,549 0.242 0.35 - 0.40 12,957 1.230 0.80 - 0.85 6,531 0.620 0.30 - 0.35 9,260 0.879 0.75 - 0.80 11,725 1.113 0.25 - 0.30 6,910 0.656 0.70 - 0.75 17,097 1.623 0.20 - 0.25 5,109 0.485 0.65 - 0.70 17,518 1.663 0.15 - 0.20 3,666 0.348 0.60 - 0.65 21,848 2.074 0.10 - 0.15 1,949 0.185 0.55 - 0.60 46,804 4.443 0.05 - 0.10 748 0.071 0.50 - 0.55 376,600 35.750 0 - 0.05 0 0

Table II. Response Correlation of ITC Benchmark b17

Correlation # of Distribution Correlation # of Distribution

cell pairs (%) cell pairs (%)

0.95 - 1 52 0.052 0.45 - 0.50 19,016 18.940 0.90 - 0.95 247 0.246 0.40 - 0.45 699 0.697 0.85 - 0.90 340 0.339 0.35 - 0.40 70 0.071 0.80 - 0.85 407 0.406 0.30 - 0.35 24 0.024 0.75 - 0.80 541 0.539 0.25 - 0.30 13 0.014 0.70 - 0.75 810 0.807 0.20 - 0.25 2 0.002 0.65 - 0.70 1360 1.355 0.15 - 0.20 1 0.001 0.60 - 0.65 2343 2.334 0.10 - 0.15 1 0.001 0.55 - 0.60 6512 6.486 0.05 - 0.10 0 0 0.50 - 0.55 67964 67.690 0 - 0.05 0 0

the 1452 scan cells in s38584. This experimental result also indicates that, even with 78.01% of don’t-care bits, the response correlations are not purely random.

The same trend can be observed on other ISCAS and ITC benchmark circuits as well. Table II shows the result of a similar experiment on the largest ITC benchmark circuit, where the don’t-care bit percentage of its test set is 89.98% and 1.58% of scan-cell pairs have a response correlation higher than 0.75. 3. PROBLEM FORMULATION

Our problem definition of the scan-cell reordering for reducing scan-shift power is given as follows.

Input:

—A circuit under test with scan cells inserted, and —ATPG test patterns with don’t-care bits (X’s).

Output:

—An ordering of scan cells, and

—Test patterns with all don’t-care bits specified by MT-Fill based on the de-rived cell ordering.

(6)

Objective:

—Generate the minimum number of scan-shift transitions for the given test patterns.

In this article, the proposed scan-cell-reordering scheme only discusses the sit-uation of one scan chain in a design. However, the concept of the proposed reordering scheme could be extended to multiple-scan-chain architectures as well.

Given a test pattern and the scan-cell order for the scan chain, we can use the Weighted Transition Count (WTC) [Sankaralingam et al. 2000] to cal-culate the number of scan-in and scan-out transitions generated during the scan-shift cycles. The WTC considers not only the value difference between the patterns or responses of two adjacent scan cells, but also the number of transitions that this value difference generates during the scan-shift cy-cles. Eqs. (1) and (2) define the W TCin(i) and W TCout(i) to calculate the scan-in transitions and scan-out transitions generated by the ith pattern, respectively. W TCin(i) = s−1  j=0 PD( j)× WPD( j) (1) W TCout(i) = s−1  j=0 RD( j)× WRD( j) (2)

In Eqs. (1) and (2), s denotes the total number of scan cells; PD( j) (RD( j)) denotes the value difference between the scan-in pattern (scan-out response) of the jth cell and the j + 1 cell; WPD( j) denotes the number of scan-in tran-sitions generated by the pattern-value difference PD( j) when shifting in the corresponding pattern values from the scan-chain input to the j+ 1 cell; WRD( j) denotes the number of scan-out transitions generated by the response-value difference RD( j) when shifting out the responses from the j cell to the scan-chain output.

In the WTC calculation, WPD( j) = j, implying that a pattern-value difference can generate more scan-in transitions if this value difference occurs closer to the scan-chain output. On the contrary, WRD( j) = s− 1 − j, implying that a response-value difference can generate more scan-out transitions if this value difference occurs closer to the scan-chain input. Figure 1 shows an example of the WTC computation on a 6-cell scan chain, assuming that three value differences occur between cells (C1, C2) , (C2, C3), and (C5, C6) for both the test pattern and its response.

Eq. (3) calculates the total number of transitions, W TCtotal, generated by a given test set with m test patterns.

W TCtotal= m

i=1

W TCin(i) + W TCout(i)

(7)

Scan-Cell Reordering for Minimizing Scan-Shift Power

·

10: 7

Fig. 1. Calculation of scan-in and scan-out WTC.

Fig. 2. Main steps of the proposed reordering scheme RORC.

4. SCAN-CELL REORDERING CONSIDERING ONLY RESPONSE CORRELATION

4.1 Detailed Steps of Reordering Scheme

We introduce a scan-cell reordering scheme, named RORC (ReOrdering con-sidering Response Correlation), which first reduces the scan-out transitions by minimizing the response correlations while preserving all don’t-care bits in the test patterns. Then, the scan-in transitions are further minimized by specify-ing the don’t-care bits with MT-fill. Figure 2 shows the flow of RORC, which consists of five main steps. The detail of each step is described in the following subsections.

4.1.1 Obtain Response Correlations. A simulation-based method is applied to sample the response correlations between each pair of scan cells. However,

(8)

Fig. 3. Construction of a response-correlation graph.

the filling of don’t-care bits in RORC is not purely random since the MT-fill tech-nique will be applied later in RORC. Therefore, in this step, we randomly gen-erate the scan-cell ordering multiple times, specify don’t-care bits using MT-fill based on each generated scan-cell ordering, and then collect the response cor-relations by simulating the filled patterns. The number of random-generated cell orderings used in simulation will determine the accuracy of the sampled response correlations. We use the following empirical equation to determine this number of random-generated cell orderings. We have

Simulation Times = (G Counts/50) × P Counts, (4) where G Counts and P Counts denote the circuit gate count and the number of given test patterns, respectively.

4.1.2 Construct the Correlation Graph. After obtaining the response corre-lations, we construct a nondirected graph, named response-correlation graph, in which a vertex represents a scan cell and the weight of each edge represents the response correlation between the adjacent vertices. Because any pair of scan cells could be placed next to each other, the response-correlation graph is a complete graph. Figure 3 shows an example of constructing a response-correlation graph with four scan cells.

4.1.3 Find a Maximal Hamiltonian Cycle. A higher response correlation between two scan cells implies a lower probability that a response-value dif-ference occurs between the two cells. Based on this concept, the maximum Hamiltonian cycle on the response-correlation graph implies a scan-cell order-ing on which the number of value differences generated between adjacent cells is statistically minimum. Finding the maximum Hamiltonian cycle is known as the Traveling Salesman Problem (TSP), which is NP-complete. We use a greedy TSP algorithm which orders one vertex at a time to form the cycle. The selection criterion for the new ordered vertex is to find the vertex which has the maximum weight with the previous ordered vertex. In addition, we select the first N largest edges as the initial searching points and report the best result out of these N trials, where N denotes the total number of scan cells. The time complexity of this algorithm is Q(N3).

4.1.4 Determine Cell Ordering with Minimal WTC. In the previous step, we obtained a maximal Hamiltonian cycle on the response-correlation graph so

(9)

Scan-Cell Reordering for Minimizing Scan-Shift Power

·

10: 9

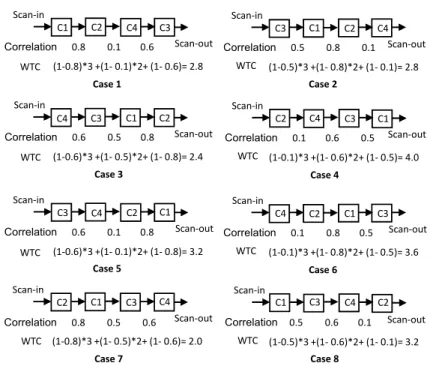

Fig. 4. Estimated W TCoutof different scan-chain input/output.

that the number of potential response-value differences between adjacent cells can be minimized. However, to minimize the W TCout, we need to consider not only the number of response-value differences but also the positions of those value differences in the cell ordering (as discussed in Section 3). In step 4, we break the given maximal Hamiltonian cycle into a Hamiltonian path which forms the final scan-cell ordering. The breaking of the Hamiltonian cycle will affect the positions of the response-value differences and, in turn, affect the W TCout. Here, we estimate the W TCoutgenerated by each possible breaking of the given Hamiltonian cycle and use the breaking with the minimum W TCout to form the final cell ordering.

The estimated W TCout here is obtained by replacing the RD( j) in Eq. (2) with 1 minus the response correlation between cell j and j + 1. For example, the maximal Hamiltonian cycle in Figure 3 is C1-C2-C4-C3-C1. Figure 4 shows the estimated W TCout for all eight cases of the possible cycle breaking. The final cell ordering of the scan chain is C2-C1-C3-C4.

4.1.5 Apply MT-Fill to Specify Don’t-Care Bits. After the scan-cell ordering is decided in the previous step, we apply the MT-fill technique to fill the don’t-care bits of the test patterns so that the in transitions based on the scan-cell ordering can be minimized. The rule of MT-fill is that a don’t-care bit is filled with the value of the first encountered specified bit when traversing from the don’t-care bit toward the scan-chain output. Refer to Sankaralingam et al. [2000] for more details of MT-fill.

(10)

Table III. Statistics of the Benchmark Circuits and Their ATPG Patterns

circuit gate count PI PO # of # of ATPG don’t-care-bit total coverage scan cell pattern percentage(%) faults (%)

s13207 7,951 31 121 669 108 79.65 21,190 100 s15850 9,772 14 87 597 117 75.35 23,244 100 s35932 16,065 35 320 1,728 24 37.36 57,084 100 s38417 15,106 28 106 1,636 167 78.94 61,754 100 s38584 19,253 12 278 1,452 148 78.01 71,278 100 b17 22,645 37 97 1,415 778 89.98 128,886 99.57 b20 8,875 32 22 490 539 73.37 47,040 99.56 b21 9,259 32 22 490 543 74.41 47,548 99.77 b22 14,282 32 22 735 530 75.51 70,750 99.91 4.2 Experimental Results

We conduct experiments on ten ISCAS and ITC benchmark circuits. Table III first shows the statistics of the benchmark circuits and their ATPG patterns generated by Synopsys [2010].

The following experiment compares RORC with another scan-cell reordering scheme presented in Bonhomme et al. [2002], which requires fully-specified test patterns before the reordering. Since RORC applies MT-fill to minimize the scan-in transitions, we apply MT-fill for Bonhomme et al. [2002] as well. In the following experiment of Bonhomme et al. [2002], we first randomly gen-erate an initial scan-cell ordering and specify the don’t-care bits using MT-fill according to that initial ordering. Then the reordering scheme in Bonhomme et al. [2002] is applied to obtain the final scan-cell ordering based on the filled patterns. We repeat the aforesaid steps 100 times and report the best results for Bonhomme et al. [2002]. Also, we use the same TSP algorithm in both RORC and Bonhomme et al. [2002] to make a fair comparison.

In Table IV, Columns 3, 4, and 5 list the numbers of scan-in transitions, scan-out transitions, total scan-shift transitions, respectively. Column 6 lists the peak number of scan-shift transitions at a single scan-shift cycle. Col-umn 7 lists the runtime in seconds. The results show that RORC can out-perform Bonhomme et al. [2002] with an average 43.68% and 49.50% reduc-tion to the number of scan-in transireduc-tions and scan-out transireduc-tions, respectively. The reduction to scan-in transitions first demonstrates the advantages of pre-serving don’t-care bits for later minimization. Also, the reduction to scan-out transitions demonstrates the effectiveness of using sampled response correla-tions to guide the reordering process. The reduction to peak transicorrela-tions is a by product of the reduction to total scan-shift transitions. Note that the result reported for Bonhomme et al. [2002] is selected from 100 trials of random ini-tial cell ordering. It implies that, even with MT-fill, specifying all don’t-care bits before reordering will significantly decrease the opportunity in minimizing scan-shift transitions later on and, in turn, lead to a local optimum. It also implies that the optimal cell ordering obtained by RORC is hard to be achieved by randomly assigning the initial cell ordering of Bonhomme et al. [2002] for multiple times.

Note that the runtime of Bonhomme et al. [2002] listed in Table IV is the runtime for only one trial, but the reported result of Bonhomme et al. [2002] is the best result from 100 trails. Therefore, the runtime for the

(11)

Scan-Cell Reordering for Minimizing Scan-Shift Power

·

10: 11

Table IV. Comparisons of Generated Scan-Shift Transitions between RORC and Bonhomme et al. [2002]

circuit method scan-in scan-out total peak runtime

trans. trans. trans. trans. (sec)

[Bonhomme et al. 2002] 3,951,373 4,188,819 8,173,642 289 4 s13207 RORC 1,312,934 2,847,104 4,204,192 233 35 improv. 66.77% 32.03% 48.56% 19.38% -[Bonhomme et al. 2002] 2,800,025 4,904,948 7,736,017 277 3 s15850 RORC 1,497,065 2,157,662 3,685,771 211 36 improv. 46.53% 56.01% 52.36% 23.83% -[Bonhomme et al. 2002] 4,543,209 4,934,478 9,524,285 525 3 s35932 RORC 5,388,270 4,363,125 9,772,131 680 107 improv. -18.60% 11.58% -2.60% -29.52% -[Bonhomme et al. 2002] 29,942,845 58,416,311 88,478,584 713 41 s38417 RORC 11,453,864 27,547,170 39,127,006 529 601 improv. 61.75% 52.84% 55.78% 25.81% -[Bonhomme et al. 2002] 22,827,002 41,743,137 64,667,423 714 31 s38584 RORC 12,489,481 27,615,042 40,223,587 694 543 improv. 45.29% 33.85% 37.80% 2.80% -[Bonhomme et al. 2002] 95,302,661 230,963,547 326,795,418 700 62 b17 RORC 24,619,742 41,550,664 66,500,101 570 3,611 improv. 74.17% 82.01% 79.65% 18.57% -[Bonhomme et al. 2002] 7,680,415 12,332,467 20,133,912 237 5 b20 RORC 4,823,088 4,662,118 9,623,386 171 138 improv. 37.20% 62.20% 52.20% 27.85% -[Bonhomme et al. 2002] 7,351,208 11,834,023 19,330,271 229 6 b21 RORC 4,546,521 4,590,188 9,266,069 205 476 improv. 38.15% 61.21% 52.068% 10.48% -[Bonhomme et al. 2002] 17,200,814 23,447,118 40,809,632 362 12 b22 RORC 9,997,996 10,844,186 21,036,957 276 154 improv. 41.87% 53.75% 48.45% 23.76% -Ave. improv. 43.68% 49.50% 47.13% 13.67%

-result of Bonhomme et al. [2002] is actually longer than that of RORC. In addition, please also note that the comparison of total scan-shift transitions shown in Table IV also represents the comparison of the average scan-shift transitions per cycle, which can be computed by dividing the total number of shift transitions by the total number of shift cycles.

Table V reports RORC’s runtime distribution and memory usage for each benchmark circuit. Column 2 to 4 lists the runtime spent in the response-correlation sampling (Column 2), TSP algorithm (Column 3), and other com-putation (Column 4), respectively. Column 5 lists the total runtime. Column 6 lists the ratio of the runtime spent in correlation sampling over the total run-time. In average, 90% of the total runtime is spent on sampling the response correlations, which is actually the efficiency bottleneck of the proposed scan-cell reordering scheme. At last, Column 7 lists the memory usage of RORC. The largest memory usage among the benchmark circuits is 21.2M.

In Table IV, the total number of scan-shift transitions is actually slightly larger than the sum of scan-in transitions and scan-out transitions. This is because we omitted the in-between transitions in Table IV, which are generated by the value difference between the first bit of a scan-in pattern and the last bit of its previous scan-out response. The percentage of in-between transitions is low compared to scan-in and scan-out transitions. It can be further reduced by a pattern-reordering scheme proposed in the next section.

(12)

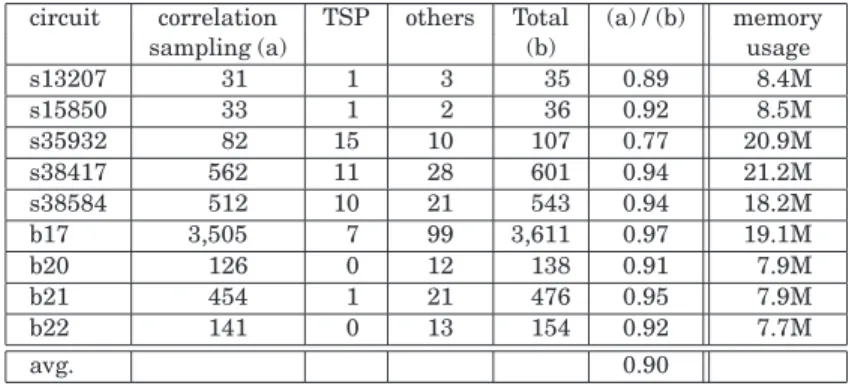

Table V. Runtime Distribution of RORC (in seconds) and Its Memory Usage circuit correlation TSP others Total (a) / (b) memory

sampling (a) (b) usage

s13207 31 1 3 35 0.89 8.4M s15850 33 1 2 36 0.92 8.5M s35932 82 15 10 107 0.77 20.9M s38417 562 11 28 601 0.94 21.2M s38584 512 10 21 543 0.94 18.2M b17 3,505 7 99 3,611 0.97 19.1M b20 126 0 12 138 0.91 7.9M b21 454 1 21 476 0.95 7.9M b22 141 0 13 154 0.92 7.7M avg. 0.90

Table VI. Classification of Patterns type first scan-in bit last scan-out bit

T A 0 0

T B 0 1

TC 1 0

T D 1 1

5. PATTERN REORDERING FOR MINIMIZING IN-BETWEEN TRANSITIONS 5.1 Detailed Steps of Pattern Reordering

We first divide test patterns into four types, A, B, C, and D, according to the first scan-in bit of a pattern and the last scan-out bit of its response. The other bits in a pattern and its response cannot affect the number of in-between tran-sitions. Table VI lists the classification rules for each type of patterns.

Next, we denote the Aias the ith pattern in type A. The same suffix notation is applied to pattern type B, C, and D. The numbers of patterns of type A, B, C, and D are w, x, y, and z, respectively. If x > y, we reorder the patterns according to the following ordering.

A1∼ AwB1C1B2C2∼ ByCyBy+1∼ BxD1∼ Dz (5)

If x< y, then we apply the following ordering.

D1∼ DzC1B1C2B2∼ CxBxCx+1∼ CyA1∼ Az (6) The preceding two pattern orderings both attempt to alternately arrange one type-B pattern next to one type-C pattern as often as possible, such that the last bit of more responses can be the same as the first bit of their next pattern. Both aforesaid pattern orderings also consecutively arrange all type-A patterns or all type-D patterns next to each other. There is no in-between transition among such a consecutive sequence of type-A patterns or type-B pat-terns. Please also note that putting all consecutive type- A patterns or type-D patterns in the middle of the sequence can also result in the same total number of in-between transitions as the aforesaid two listed pattern orderings.

(13)

Scan-Cell Reordering for Minimizing Scan-Shift Power

·

10: 13

Table VII. Comparison of in-between Transitions between Using and Without Using Pattern Reordering

circuit without pattern reordering with pattern reordering

in-btwn total ratio in-btwn total ratio

trans. trans. transition trans.

s13207 44,154 4,204,192 1.050% 33,450 4,193,488 0.798% s15850 26,268 3,680,995 0.714% 4,776 3,659,503 0.131% s35932 20,736 9,772,131 0.212% 12,096 9,763,491 0.124% s38417 114,520 39,115,554 0.293% 3,272 39,004,306 0.008% s38584 92,928 40,197,451 0.231% 31,944 40,136,467 0.080% b17 408,935 66,579,341 0.614% 16,980 66,187,386 0.026% b20 138,180 9,623,386 1.436% 70,560 9,555,766 0.738% b21 99,960 9,236,669 1.082% 19,600 9,156,309 0.214% b22 188,160 21,030,342 0.895% 10,290 20,852,472 0.049% avg. 0.915% 0.241%

Table VII compares the results with and without applying the proposed pat-tern reordering. Column 2, 3, and 4 list the number of in-between transitions, the number of total transitions, and the ratio of in-between transitions over the total transitions, respectively, without applying the proposed pattern reorder-ing. Column 5, 6, and 7 list the corresponding results with applying the pro-posed pattern reordering. As the results show, the average ratio of in-between transitions can be reduced from 0.915% to 0.241% by applying the proposed pattern reordering. Also, the runtime of this pattern reordering is fast (less than 1 second for all benchmark circuits).

Since the percentage of in-between transitions is much lower than that of scan-in transitions or scan-out transitions (0.241% in average), we will not in-dividually list the number of in-between transitions in later experiments so that the focus of our scan-cell reordering schemes can be on the scan-in and scan-out transitions. We will still count in-between transitions in the total number of scan-shift transitions.

6. SCAN-CELL REORDERING CONSIDERING BOTH RESPONSE AND PATTERN CORRELATIONS

As the results show in Table IV, RORC generates a lower number of total scan-shift transitions than Bonhomme et al. [2002] in all circuits but s35932. This exception may contribute to its low don’t-care bit percentage of 37.36%. From our internal experiments, we found that a cell ordering will affect the results of the MT-fill more significantly when the don’t-care bit percentage becomes lower. However, RORC can only reduce scan-out transitions by minimizing the response correlations between adjacent cells. It ignores the impact of the cell ordering on the number of scan-in transitions resulted from the MT-fill patterns.

In this section, we introduce another scan-cell reordering scheme, named ROBPR (ReOrdering considering Both Pattern and Response correlation), which can simultaneously optimize the pattern correlations and response cor-relations during the reordering process.

(14)

Fig. 5. Main steps of the proposed reordering scheme ROBPR.

Table VIII. Different Cases of Pattern Correlations between Two Adjacent Cells case value of cell i value of cell j PCk(i, j)

1 0 0 1 2 0 1 0 3 0 X S0/(S0+ S1) 4 1 0 0 5 1 1 1 6 1 X S1/(S0+ S1) 7 X 0 1 8 X 1 1 9 X X 1

6.1 Detailed Steps of Reordering Scheme

Figure 5 shows the flow of ROBPR consisting of four main steps. The details of steps 1–3 are described in the following subsections. The detail of step 4 is the same as the step 5 in RORC and hence omitted in this section.

6.1.1 Obtain Pattern and Response Correlations. In order to measure the impact of a scan-cell ordering on the number of scan-in transitions, we first define the pattern correlation between cell i and cell j as the probability that the pattern values on these two cells are the same when the output of cell i is connected to the input of cell j. Note that this pattern correlation is dependent on the order of cells. For a test pattern k, Table VIII considers each combination of pattern values between cell i and cell j, and lists its corresponding pattern correlation after MT-fill (denoted as PCk(i, j)).

In cases 1, 2, 4, and 5, both values of cell i and j are specified bits and hence their pattern correlations can be determined immediately for test pattern k. In cases 7, 8, and 9, a don’t-care bit is placed prior to a specified bit and hence the don’t-care bit will be filled with the same value as the specified bit. In cases 3 and 6, a specified bit is placed prior to a don’t-care bit. Hence, the value of this don’t-care bit cannot be derived immediately and has to be determined by its first encountered specified bit when traversing toward the scan-chain output. We use S0/(S0+ S1) (S1/(S0 + S1)) to represent the probability that its first encountered specified bit is a 0 (1), where S0and S1 denote the total numbers of specified 1s and 0s in the test pattern, respectively.

(15)

Scan-Cell Reordering for Minimizing Scan-Shift Power

·

10: 15

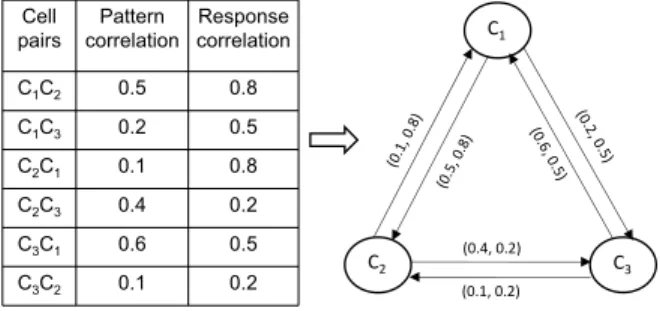

Fig. 6. Construction of the directed graph based on pattern and response correlations.

After calculating the PCk(i, j) for each pattern k, the pattern correlation be-tween cell i and cell j for the entire test set can be obtained by averaging the PCk(i, j) for each pattern k.

As to the response correlations, we use the same simulation-based method described in Section 6.1.1 to estimate them.

6.1.2 Construct the Directed Correlation Graph. The correlation graph con-structed in ROBPR is a revised version of the correlation graph in Section 4.1.2. First, this correlation graph is directed. Second, an edge in this correlation graph has two weights (Wp, Wr), where Wp and Wrrepresent the pattern cor-relation and response corcor-relation, respectively. Figure 6 shows an example of constructing such a directed correlation graph given the pattern and response correlations between three scan cells.

6.1.3 Find the Hamiltonian Path with Minimal WTC. Unlike RORC which finds a Hamiltonian cycle first and then breaks the Hamiltonian cycle to obtain a Hamiltonian path with minimal estimated W TCout, ROBPR uses an integrated algorithm to directly obtain the Hamiltonian path with minimal estimated W TCtotal on the correlation graph. Figure 7 shows the proposed greedy-based algorithm which also ordered one new vertex at a time to form such a Hamiltonian path.

When adding the nth nonordered vertex Vnonfor the Hamiltonian path, this algorithm uses a cost function Cost(Vlast, Vnon, n) to measure the impact of the new-added edge (Vlast, Vnon) on W TCtotal, which is defined in Eq. (3). In the definition of Cost(Vi, Vj, n) in Figure 7, the Wp(Vi, Vj) (Wr(Vi, Vj)) actually rep-resents the probability that a pattern-value (response-value) difference occurs between Vi and Vj. The n in the cost function actually represents the WPD(n) described in the WTC Eq. (1). The N− 1 − n in the cost function actually rep-resents the WRD(n) described in the WTC Eq. (2).

This cost function will guide the algorithm to emphasize more on the re-sponse correlation in the beginning of the ordering process and then gradually move its emphasis to the pattern correlation in the later stage of the reordering process, which exactly reflects the WTC definition in Eqs. (1) and (2).

(16)

Fig. 7. The proposed algorithm for finding a Hamiltonian path with minimal W TCtotal.

6.2 Experimental Results

We conduct experiments for ROBPR on the same benchmark circuits and test patterns as in Section 4.2. Table IX compares the results of ROBPR with the results of RORC, which considers only the response correlation during the re-ordering. The experimental results show that, in average, ROBPR can generate 34.87% less scan-in transitions but only 6.33% more scan-out transitions com-pared to RORC. This significant reduction in scan-in transitions first demon-strates the advantage of adding the pattern correlations into consideration during the ordering process. It also shows the effectiveness of the pattern-correlation estimation listed in Table VIII.

The average reduction to the total scan-shift transitions is 12.38% by ROBPR. The 7.52% reduction to the number of peak transitions is a by-product of the reduction to total scan-shift transitions as well. The overall result again demonstrates the benefit of considering pattern correlations and response cor-relations simultaneously during the reordering. In addition, the reported run-time of ROBPR is almost the same as RORC, even though ROBPR needs to collect additional information for pattern-correlations calculation. It is because the proposed algorithm in step 3 (Figure 7) can directly find the Hamiltonian path with minimal W TCtotal, saving a step of breaking a Hamiltonian cycle to obtain the final ordering, such as the step 4 in RORC.

Table X further compares ROBPR with another scan-cell reordering scheme [Sinanoglu et al. 1998], which can also reorder the scan cells based on a test set with nonfilled don’t-care bits. As the result shows, RORC can generate 42.69% less scan-in transitions and 68.15% less scan-out transitions compared to Sinanoglu et al. [1998]. The total number of scan-shift transi-tions and the number of peak transitransi-tions generated by RORC are 64.18% and 31.24% less than that generated by Sinanoglu et al. [1998], respectively. This

(17)

Scan-Cell Reordering for Minimizing Scan-Shift Power

·

10: 17

Table IX. Comparisons of Generated Scan-Shift Transitions between RORC and ROBPR circuit method scan-in scan-out total peak runtime

trans. trans. trans. trans. (sec) RORC 1,312,934 2,847,104 4,193,488 233 40 s13207 ROBPR 882,926 2,780,763 3,665,027 168 40 improv. 32.75% 2.33% 12.60% 27.90% -RORC 1,497,065 2,157,662 3,659,503 211 43 s15850 ROBPR 1,029,107 1,944,970 2,994,375 179 43 improv. 31.26% 9.86% 18.18% 15.17% -RORC 5,388,270 4,363,125 9,763,491 680 110 s35932 ROBPR 1,963,178 5,356,284 7,329,830 641 133 improv. 63.57% -22.76% 24.93% 5.74% -RORC 11,453,864 27,547,170 39,004,306 529 631 s38417 ROBPR 9,599,399 29,676,522 39,396,985 521 632 improv. 16.19% -7.73% -1.01% 1.51% -RORC 12,489,481 27,615,042 40,136,467 694 583 s38584 ROBPR 10,064,216 27,385,766 37,493,542 580 585 improv. 19.42% 0.83% 6.58% 16.43% -RORC 24,619,742 41,550,664 66,187,386 570 3,464 b17 ROBPR 16,202,102 46,655,210 63,096,447 563 3,469 improv. 34.19% -12.29% 4.67% 1.23% -RORC 4,823,088 4,662,118 9,555,766 171 144 b20 ROBPR 3,491,947 4,835,560 8,357,887 181 146 improv. 27.60% -3.72% 12.54% -5.85% -RORC 4,546,521 4,590,188 9,156,309 205 154 b21 ROBPR 2,914,102 4,960,108 7,887,930 195 158 improv. 35.90% -8.06% 13.85% 4.88% -RORC 9,997,996 10,844,186 20,852,472 276 504 b22 ROBPR 5,603,864 11,233,009 16,878,768 261 508 improv. 43.95% -3.59% 19.06% 5.43% -Ave. improv. 34.87% -6.33% 12.38% 7.52%

-result first demonstrates that the traditional controllability measures used by Sinanoglu et al. [1998] may not be able to accurately predict the response corre-lations. Also, not considering the impact of the input-pattern filling technique in Sinanoglu et al. [1998] may fail to effectively minimize the scan-in transi-tions as RORC does.

7. SCAN-CELL REORDERING USING SCAN-DATA INVERSION

To reduce potential signal transitions, both RORC and ROBPR arrange the scan cells with a high response (or pattern) correlation next to each other. It is because a high correlation between two scan cells represents a high proba-bility that their response (or pattern) values are the same. On the contrary, a low correlation between two scan cells means that their response (or pattern) values are most likely inverse to each other. In such a low-correlation case, if we can inverse the value of a cell before it propagates to the scan-in port of the other cell, this low correlation can be turned into a high correlation and become helpful for minimizing scan-shift transitions.

(18)

Table X. Comparisons of Generated Scan-Shift Transitions between Sinanoglu et al. [1998] and ROBPR

circuit method scan-in scan-out total peak runtime

trans. trans. trans. trans. (sec)

[Sinanoglu et al. 1998] 1,274,101 10,267,563 11,541,664 344 1 s13207 ROBPR 882,926 2,780,763 3,665,027 168 40 improv. 30.70 % 72.92 % 68.25 % 51.16% -[Sinanoglu et al. 1998] 1,581,270 7,202,685 8,783,955 293 9 s15850 ROBPR 1,029,107 1,944,970 2,994,375 179 43 improv. 32.92 % 73.00% 65.91 % 38.91% -[Sinanoglu et al. 1998] 6,035,857 11,660,765 17,696,622 859 6 s35932 ROBPR 1,963,178 5,356,284 7,329,830 641 133 improv. 67.47 % 54.07 % 58.58 % 25.38% -[Sinanoglu et al. 1998] 16,645,507 90,369,301 107,014,808 812 7 s38417 ROBPR 9,599,399 29,676,522 39,396,985 521 632 improv. 42.33 % 67.16 % 63.19 % 35.84% -[Sinanoglu et al. 1998] 12,873,474 62,334,043 75,207,517 752 9 s38584 ROBPR 10,064,216 27,385,766 37,493,542 580 585 improv. 21.82 % 56.07% 50.15 % 22.87% -[Sinanoglu et al. 1998] 25,829,926 360,611,858 386,441,784 765 82 b17 ROBPR 16,202,102 46,655,210 63,096,447 563 3,469 improv. 37.27 % 87.06% 83.67 % 26.41% -[Sinanoglu et al. 1998] 6,419,110 15,654,059 22,073,169 261 8 b20 ROBPR 3,491,947 4,835,560 8,357,887 181 146 improv. 45.60 % 69.11 % 62.14 % 30.65% -[Sinanoglu et al. 1998] 6,018,821 15,514,204 21,533,025 247 9 b21 ROBPR 2,914,102 4,960,108 7,887,930 195 158 improv. 51.58 % 68.03% 63.37 % 21.05% -[Sinanoglu et al. 1998] 11,801,093 33,014,920 44,816,013 367 18 b22 ROBPR 5,603,864 11,233,009 16,878,768 261 508 improv. 52.51 % 65.98 % 62.34 % 28.88% -Ave. improv. 42.69% 68.15% 64.18% 31.24%

-In this section, we introduce a scan-cell-reordering scheme named SIRO (Scan-data-Inversion ReOrdering). SIRO selectively applies the inversion con-nection between two scan cells and hence can take advantage of both high correlations and low correlations between responses and patterns. This in-verse connection between adjacent cells has also been utilized in some previ-ous works, such as Sinanoglu et al. [1998, 2003], to minimize the number of scan-shift transitions.

7.1 Detailed Steps of Reordering Scheme

Figure 8 shows the overall flow of SIRO, which consists of the following four steps.

7.1.1 Obtain Inverse Pattern and Response Correlations. In SIRO, when connecting a scan cell i to its next scan cell j, two types of connections can be made. One is direct connection, which connects the value Q of i to the scan-in port SI of j. The other type is the inverse connection, which connects the inverse value Q of i to the scan-in port SI of j. In RORC and ROBPR, we already discussed how to estimate the response and pattern correlations when using the direct connection. The focus here is to estimate the response correlations and pattern correlations when using the inverse connection.

(19)

Scan-Cell Reordering for Minimizing Scan-Shift Power

·

10: 19

Fig. 8. Main steps of the proposed reordering scheme SIRO.

Table XI. Different Cases of Inverse Pattern Correlations between Two Adjacent Cells case value of cell i value of cell j I PCk(i, j)

1 0 0 0 2 0 1 1 3 0 X S1/(S0+ S1) 4 1 0 1 5 1 1 0 6 1 X S0/(S0+ S1) 7 X 0 1 8 X 1 1 9 X X 1

The response correlation for an inverse connection can be simply estimated by 1 minus the response correlation calculated for a direct connection. How-ever, it is more complicated to estimate the pattern correlations for an inverse connection. This is because the MT-fill can adjust its filling of don’t-care bits according to the inverse connection or the direct connection. We first define the inverse pattern correlation between cell i and cell j for pattern k as I PCk(i, j), which is the probability that the pattern values on these two cells are the same when cell i is inversely connected to cell j. Table XI shows the inverse pattern correlation for different combinations of pattern values between cell i and cell j after MT-fill. The derivation of Table XI is similar to Table VIII. The only difference is that, for an inversely connected cell pair, a transition is generated when the specified values of both cells are the same. The definition of S0and S1are the same as that in Table VIII.

7.1.2 Construct the Directed Correlation Graph. The correlation graph con-structed in SIRO is a revised version of the correlation graph in ROBPR. The difference is that an edge in this correlation graph has two sets of weights: noninverse set (Wp, Wr) and inverse set (IWp, IWr), where Wp and Wr rep-resent the direct pattern correlation and response correlation as calculated in ROBPR, and IWp and IWr represent the inverse pattern correlation and re-sponse correlation as calculated in previous step. Figure 9 shows an example of constructing such a directed correlation graph given the inverse and nonin-verse correlation sets between three scan cells.

(20)

Fig. 9. Construction of the directed graph based on inverse and noninverse correlation sets.

Fig. 10. An example of the MT-fill performed in SIRO.

7.1.3 Find the Hamiltonian Path with Minimal WTC. The algorithm in

this step is similar to the algorithm in Figure 7, except two types of connec-tions can be chosen in SIRO. When selecting the nth ordered cell, SIRO needs to evaluate both the cost function for a direct connection Cost(Vi, Vj , n) and the cost function for an inverse connection Costinv(Vi, Vj, n). Cost(Vi, Vj, n) is defined in ROBPR. Costinv(Vi, Vj, n) is defined as follows.

Costinv(Vi, Vj, n) = IWp(Vi, Vj)× n +

IWr(Vi, Vj)× (N − 1 − n) (7)

The cell with the highest cost function will be selected and the selected cell is directly or inversely connected to the next cell according to the type of the highest cost function (Cost(Vi, Vj, n) or Costinv(Vi, Vj, n)).

7.1.4 Determine the Scan-In Patterns Based on Derived Cell Ordering. Un-like the RORC and ROBPR which directly use the traditional MT-fill to deter-mine patterns based on the derived cell ordering, the MT-fill in SIRO needs to apply a different filling rule to handle inverse connections. First, the value of a specified bit is inverse if an odd number of inverse connections are encountered before the specified bit. The specified bits remain the same if an even number of inverse connections are encountered. Next, the don’t-care bits between the modified specified bits are filled using the traditional MT-fill. Figure 10 shows an example of the revised MT-fill to handle inverse connections.

(21)

Scan-Cell Reordering for Minimizing Scan-Shift Power

·

10: 21

Fig. 11. Implement inverse techniques with traditional scan-chain architecture.

In Figure 10, the scan chain contains six scan cells, and three inversions oc-cur on cell pairs (C1,C2), (C4,C5), and (C5,C6), respectively. Because C2, C3, C4, and C6 pass through odd times of inversions (1 or 3 times) during scan-in operation, the specified values are scan-inverse before MT-fill. Then the MT-fill is applied to fill all the don’t-care bits according to the modified specified bits. Figure 11 shows the inverse connections of scan cells corresponding to the ex-ample in Figure 10. In Figure 11, the differences with traditional architecture is that Q connects to SI while the inversions occur.

7.2 Experimental Results

We conduct experiments for SIRO on the same benchmark circuits and test patterns as those used in Section 4.2. Table XII compares the results of SIRO with that of ROBPR, which considers only the noninverse pattern and response correlation during the reordering process. As the results show in Table XII, SIRO in average can generate 1.23% less total scan-shift transitions with al-most the same runtime compared to ROBPR. However, even though RISO can generate a smaller or at least an even number of scan-shift transitions for each circuit, this 1.23% average reduction is still less than our expectation before the experiment.

After further analysis, we found that the number of inverse connections used in each circuit is actually small (as listed in the last column of Table XII). For s35932 and b17, even no inverse connection is used by SIRO. This low usage of inverse connection means that the low correlations between scan cells in those benchmark circuits are not low enough, so that the corresponding in-verse correlations cannot produce a high score for the cost function Costinv(Vi, Vj, n) used in step 3’s greedy algorithm. This argument is further supported by the response-correlations distribution reported in Table I, where 2.05% of response correlations are larger than 0.75 but only 1.09% of response correla-tions are smaller than 0.25 for s38584. This trend is even more obvious for b17 as shown in Table II, where 1.58% of response correlations are larger than 0.75 but only 0.004% of response correlations are smaller than 0.25. Table XIII lists the probability distributions of response correlations for each benchmark circuit. Overall, SIRO can further reduce the scan-shift transitions for 7 out of 9 benchmark circuits.

From the preceding experiments, we can conclude that using the inverse con-nections can indeed help the reduction on scan-shift transitions since the only a small number of inverse connections can achieve a 1.23% average reduction in

(22)

Table XII. Comparisons of Generated Scan-Shift Transitions between SIRO and ROBPR circuit method scan-in scan-out total peak runtime inverse

trans. trans. trans. trans. (sec) times

ROBPR 882,926 2,780,763 3,665,027 170 40 -s13207 SIRO 884,607 2,754,677 3,641,960 170 40 4 improv. -0.19% 0.94% 0.63% 0.00 - -ROBPR 1,029,107 1,944,970 2,994,375 179 43 -s15850 SIRO 1,039,313 1,823,428 2,880,651 180 43 10 improv. -0.99% 6.25% 3.80% -0.56% - -ROBPR 1,963,178 5,356,284 7,329,830 641 133 -s35932 SIRO 1,963,178 5,356,284 7,329,830 641 133 0 improv. 0% 0% 0% 0% - -ROBPR 9,599,399 29,676,522 39,396,985 521 632 -s38417 SIRO 9,244,689 29,641,440 38,905,761 536 633 18 improv. 3.70% 0.12% 1.25% -2.88% - -ROBPR 10,064,216 27,385,766 37,493,542 580 585 -s38584 SIRO 10,154,228 26,438,593 36,656,709 577 586 18 improv. -0.89% 3.46% 2.23% 0.52% - -ROBPR 16,202,102 46,655,210 63,096,447 563 3,464 -b17 SIRO 16,202,102 46,655,210 63,096,447 563 3,467 0 improv. 0.00% 0.00% 0.00% 0.00% - -ROBPR 3,491,947 4,835,560 8,357,887 181 146 -b20 SIRO 3,095,170 5,103,108 8,224,248 176 146 2 improv. 11.36% -5.53% 1.60% 2.76% - -ROBPR 2,914,102 4,960,108 7,887,930 195 158 -b21 SIRO 2,643,470 5,179,474 7,832,744 189 158 4 improv. 9.29% -4.42% 0.70% 3.08% - -ROBPR 5,603,864 11,233,009 16,878,768 261 508 -b22 SIRO 5,188,530 11,457,397 16,657,687 259 509 8 improv. 7.41% -2.00% 1.31% 0.77% - -Ave. improv. 3.30% -0.13% 1.23% 0.41% -

-Table XIII. Probability Distribution of High and Low Response Correlations

circuit Response correlation

0∼ 0.5 0.5∼ 1 0∼ 0.25 0.75∼ 1 s13207 30.136% 69.671% 0.6055% 3.90434% s15850 10.9135% 89.0682% 0.7638% 3.9022% s35932 0.8342% 99.1520% 0% 16.867% s38417 51.4924% 48.4794% 0.1156% 0.6776% s38584 52.3962% 47.6056% 1.0907% 2.0526% b17 19.7490% 80.2549% 0.0038% 1.5825% b20 12.4669% 87.5379% 0.0025% 0.8771% b21 6.5426% 93.4586% 0.0041% 1.0550% b22 5.116% 93.4586% 0.001% 0.7047% avg. 21.0718% 78.7429% 0.2874% 3.5136%

the total scan-shift transitions. However, the amount of this reduction is deter-mined by the ratio of low response or pattern correlations over the high ones, which is highly circuit dependent. The reduction could be more significant if this ratio is higher.

(23)

Scan-Cell Reordering for Minimizing Scan-Shift Power

·

10: 23

8. SCAN CELL REORDERING CONSIDERING BOTH POWER AND ROUTING FACTORS

All aforesaid reordering schemes, such as RORC, ROBPR, and SIRO, focus on reducing the power consumption during scan-based testing. However, these reordering schemes may result in long wire length of scan paths since the con-nection of scan cells is determined by cells’ response or pattern correlations, not cells’ physical distance. In this section, we proposed a scan-cell reorder-ing scheme, named PRORO (Power and Routreorder-ing-Overhead ReOrderreorder-ing), which combines the ROBPR with routing consideration. The same idea can be applied to SIRO as well.

8.1 Detail Steps of Reordering Considering both Power and Routing Overhead In PRORO, we reorder the scan cells after the placement is done. Based on the placement result, we use the Manhattan distance between two scan cells to approximate the wire length between the two cells. When selecting the next ordered scan cell, we incorporate this approximated wire length into the cost function and hence can limit the routing overhead. In our implementation, the placement is done by a commercial back-end tool and the position of each scan cell is obtained by parsing its DEF file.

Basically, PRORO contains almost the same five steps as that of ROBPR, except some modifications to the step 2 and 3. Therefore, this subsection only shows the details of step 2 and 3. The rest of the steps all follow the steps in ROBPR.

8.1.1 Construct a Directed Multiple-Weight Graph Based on Response/ Pattern Correlations and Routing Overhead. As mentioned, the Manhattan distance between two cells is used to represent their routing overhead. In or-der to make the quantity of routing overhead compatible with the quantity of the cost function regarding scan-shift power, we normalize two cells’ routing overhead (represented by the Manhattan distance) to a value between 0 to 1, which is defined as the routing weight between the two cells. We set the longest distance between any two cells as a routing weight of 1, and the shortest dis-tance as a routing weight of 0.

The directed graph constructed in this section is a revised version of the directed graph introduced in ROBPR (step 2 in Section 6.1.2). An edge in the graph contains three weights (Wp, Wr, Wl), where Wp, Wrand Wlrepresent the pattern correlation, the response correlation, and the routing weight between the two cells, respectively. Figure 12 shows an example of constructing such a directed graph given the correlation and routing weight between three scan cells.

8.1.2 Find the Hamiltonian Path with the Minimum WTC. We use a sim-ilar greedy TSP algorithm as shown in Figure 7 except its cost function CT, which is modified as follows to control the trade-off between scan-shift power and routing overhead.

(24)

Fig. 12. Construction of the directed graph based on correlations and routing effects.

CR(Vi, Vj) represents the routing weight between cells Vi and Vj. CP(Vi, Vj, n) represents the cost function of scan-shift power when selecting the nth cell and ranges from 0 to 1 as well. The value of CP(Vi, Vj, n) is computed by the value of Cost(Vi, Vj, n) divided by the maximum value of Cost(Vi, Vj, n) between any two cells, where Cost(Vi, Vj, n) is defined in ROBPR (see Figure 7). The parameterβ in CT(Vi, Vj, n) is call the optimization factor, which is used to control the trade-off between scan-shift power and routing overhead. The value ofβ ranges from 0 to 1. If β increases, this TSP algorithm focuses more on reducing routing overhead. Ifβ decreases, this TSP algorithm focuses more on reducing scan-shift transitions. Figure 13 shows the details of this TSP algorithm.

8.2 Experimental Results

We conduct the following experiments to compare the results of PRORO us-ing different optimization factors with the results of ROBPR and a scan-cell reordering scheme supported by a commercial back-end tool [Cadence 2006], where ROBPR only focuses on minimizing the scan-shift transitions and Cadence’s [2006] scan-cell reordering only focuses on minimizing the rout-ing overhead of scan paths after the placement is done. In the followrout-ing ex-periments, we first use ROBPR to obtain a scan-cell ordering and apply the APR tool in Cadence [2006] to get its placement. Then both PRORO and Cadence’s [2006] scan-cell reordering are performed based on this placement of ROBPR. Cadence’s [2006] scan-cell reordering is performed by using the

com-mand “scanreorder” in Cadence [2006]. A TSMC 0.18μm CMOS technology

with 5 metal layers is used in the experiments.

Table XIV first lists the total number of scan-shift transitions generated by different scan-cell reordering schemes. For the convenience of result compar-ison, Table XIV normalizes the total number of scan-shift transitions of each reordering scheme by dividing it with the total number of scan-shift transitions of ROBPR, which is supposed to be the reordering scheme generating the least scan-shift transitions in this experiment.

Table XV lists the estimated wire length of the scan paths (inμm) generated by different scan-cell reordering schemes. This estimated wire length of scan paths is measured by the summation of the Manhattan distance between any two adjacent scan cells. Similar to Table XIV, Table XV also normalizes the

(25)

Scan-Cell Reordering for Minimizing Scan-Shift Power

·

10: 25

Fig. 13. The proposed algorithm for finding a Hamiltonian path optimizing power and routing overhead in PRORO.

Table XIV. Comparisons of Scan-Shift Transitions Generated by Different Scan-Cell Reordering Schemes

circuit method ROBPR PRORO [Cadence 2006]

β = 0.25 β = 0.5 β = 0.75 reordering s13207 total trans. 3,665,027 3,895,618 4,074,157 4,324,338 8,490,452 normalized 1.00 1.06 1.11 1.18 2.32 s15850 total trans. 2,994,375 3,034,897 3,533,745 3,729,978 7,013,465 normalized 1.00 1.02 1.19 1.25 2.36 s35932 total trans. 7,329,830 7,491,731 8,165,155 9,500,240 16,994,567 normalized 1.00 1.02 1.12 1.30 2.32 s38417 total trans. 39,396,985 40,505,086 41,866,409 43,820,365 82,459,089 normalized 1.00 1.03 1.07 1.12 2.10 s38584 total trans. 37,493,542 37,527,256 38,305,451 39,692,049 60,049,467 normalized 1.00 1.00 1.02 1.06 1.60 b17 total trans. 63,096,447 64,846,104 68,542,710 84,217,531 295,180,622 normalized 1.00 1.03 1.09 1.34 4.70 b20 total trans. 8,357,887 8,913,037 9,275,721 11,098,671 16,092,439 normalized 1.00 1.07 1.11 1.33 1.93 b21 total trans. 7,887,930 9,169,859 9,383,991 10,140,868 17,417,163 normalized 1.00 1.16 1.19 1.29 2.21 b22 total trans. 16,878,768 18,206,365 19,318,666 22,159,697 34,902,204 normalized 1.00 1.08 1.15 1.32 2.07 avg. normalized 1.00 1.05 1.12 1.24 2.40

(26)

Table XV. Comparisons of Scan Path’s Wire Length (μm) after Global Route Generated by Different Scan-Cell Reordering Schemes

circuit method ROBPR PRORO [Cadence 2006]

β = 0.25 β = 0.5 β = 0.75 reordering s13207 scan wire length 23,494 20,366 20,240 17,939 8,769

normalized 2.68 2.32 2.31 2.05 1.00

s15850 scan wire length 20,628 17,235 16,787 15,017 8,204

normalized 2.51 2.10 2.05 1.83 1.00

s35932 scan wire length 174,595 115,435 81,122 64,720 24,551

normalized 7.11 4.70 3.30 2.64 1.00

s38417 scan wire length 65,372 57,655 49,622 47,316 22,605

normalized 2.89 2.55 2.20 2.09 1.00

s38584 scan wire length 91,460 64,784 56,182 54,412 21,361

normalized 4.28 3.03 2.63 2.55 1.00

b17 scan wire length 60,729 56,566 54,437 51,740 23,657

normalized 2.57 2.39 2.30 2.19 1.00

b20 scan wire length 20,838 19,821 18,599 18,278 8,814

normalized 2.36 2.25 2.11 2.07 1.00

b21 scan wire length 21,032 20,502 17,915 16,812 8,371

normalized 2.51 2.45 2.14 2.01 1.00

b22 scan wire length 36,080 31,928 30,083 28,120 13,139

normalized 2.75 2.43 2.29 2.14 1.00

avg. normalized 3.30 2.69 2.37 2.17 1.00

Table XVI. Comparisons of Total Wire Length (μm) after Detailed Route Generated by Different Scan-Cell Reordering Schemes

circuit method ROBPR PRORO [Cadence 2006]

β = 0.25 β = 0.5 β = 0.75 reordering s13207 total wire length 179,304 150,990 140,076 132,945 132,240

normalized 1.35 1.14 1.06 1.01 1.00

s15850 total wire length 166,007 148,994 140,033 144,092 132,585

normalized 1.25 1.12 1.06 1.09 1.00

s35932 total wire length 822,755 533,494 513,903 481,645 398,855

normalized 2.06 1.34 1.29 1.21 1.00

s38417 total wire length 493,421 429,109 432,452 409,148 397,568

normalized 1.24 1.08 1.09 1.03 1.00

s38584 total wire length 786,806 656,511 673,550 667,683 658,329

normalized 1.20 1.00 1.02 1.01 1.00

b17 total wire length 1,269,029 1,245,434 1,239,651 1,255,198 1,245,979

normalized 1.02 1.00 0.99 1.01 1.00

b20 total wire length 376,651 371,546 378,538 375,255 358,385

normalized 1.05 1.04 1.06 1.05 1.00

b21 total wire length 397,848 380,094 375,095 380,892 364,586

normalized 1.09 1.04 1.03 1.04 1.00

b22 total wire length 579,858 566,337 562,492 550,547 549,135

normalized 1.06 1.03 1.02 1.00 1.00

avg. normalized 1.26 1.09 1.07 1.05 1.00

wire length of scan paths of each reordering scheme by dividing it with that of Cadence’s [2006] reordering scheme, which is supposed to be the reordering scheme generating the shortest wire length of scan paths in this experiment. Table XVI further lists the total wire length (including the routing for both scan paths and CUT) generated by each reordering scheme after detailed route.

(27)

Scan-Cell Reordering for Minimizing Scan-Shift Power

·

10: 27

As the results show in Table XIV, if only minimizing the wire length of scan paths such as tool Cadence’s [2006] reordering scheme, 2.4 times the scan-shift transitions of ROBPR are generated, where ROBPR only minimizes scan-shift transitions. On the other hand, ROBPR requires 3.3 times the wire length of scan paths of tool Cadence’s [2006] reordering scheme as shown in Table XV. In fact, the wire length spent on CUT’s routing is much more than the wire length spent on scan paths’ routing. Thus, after detailed route, the total wire length of ROBPR is 1.26 times the total wire length of Cadence’s [2006] reordering scheme as shown in Table XVI.

Also, the experimental results in Tables XIV, XV, and XVI show that the trade-off between scan-shift transitions and scan path’s wire length can be con-trolled by PRORO with different optimization factors. Using a larger optimiza-tion factor, PRORO can reduce more wire length of scan paths but generate more scan-shift transitions. When the optimization factor equals 0.5, PRORO generates 12% more scan-shift transitions compared to ROBPR but only re-quires 7% total wire length after detailed route, which is an acceptable level of routing overhead as long as the design is not intensively routing-congested.

Another reason to sacrifice the wire length of scan paths for the scan-shift power is that the for advanced process technologies, the violation of hold-time constraints on scan paths occurs more often than the violation of setup-time constraints. Designers even intentionally increase the wire length of some scan paths to meet the hold-time constraint instead of applying a scan-cell reordering to reduce its wire length. Therefore, the motivation of reducing wire length on scan paths may not be as strong as that in the old process technologies.

9. CONCLUSIONS

In this article, we first presented a scan-cell reordering technique which can si-multaneously reduce scan-shift transitions based on the response correlations and preserve don’t-care bits in the test patterns for a later minimization of scan-in transitions using MT-fill (Section 4). Second, we considered both the re-sponse correlation and pattern correlations during the cell reordering process to further reduce the scan-in transitions generated by MT-fill (Section 6). Next, we utilized the inverse connection between scan cells to turn a low correlation into a high one and developed a corresponding scan-cell reordering scheme to consider those inverse correlations (Section 7). Last, we incorporated the rout-ing overhead of scan paths into the cost function of our scan-cell reorderrout-ing and hence the trade-off between scan path’s routing overhead and the number of scan-shift transitions can be controlled by a user-specified factor. In addition, a postprocess pattern-reordering scheme was also proposed to minimize the in-between transitions (Section 5). A series of experiments were conducted to compare the proposed schemes with a previous reordering scheme [Bonhomme et al. 2002] and a commercial tool’s reordering scheme [Cadence 2006]. The experimental results demonstrated the effectiveness and efficiency of each of the proposed scan-cell reordering schemes.

(28)

REFERENCES

BONHOMME, Y., GIRARD, P., GUILLER, L, LANDRAULT, C., PRAVOSSOUDOVITCH, S, AND

VIRAZEL, A. 2004. Design of routing-constrained low power scan chains. In Proceedings of the Conference on Design, Automation, and Test in Europe (DATE’04). 62-67.

BONHOMME, Y., GIRARD, P., LANDRAULT, C.,ANDPRAVOSSOUDOVITCH, S. 2002. Power driven chaining of flip-flops in scan architectures. In Proceedings of the IEEE International Test Confer-ence. 796-803.

BONHOMME, Y., GIRARD, P., GUILLER, L., LANDRAULT, C.,ANDPRAVOSSOOUDOVITCH, S. 2001. A gated clock scheme for low power scan testing of logic ics or embedded cores. In Proceedings of the IEEE Asian Test Symposium. 253-258.

BONHOMME, Y., GIRARD, P., GUILLER, L., LANDRAULT, C.,ANDPRAVOSSOUDOVITCH, S. 2003. Efficient scan chain design for power minimization during scan testing under routing constraint. In Proceedings of the IEEE International Test Conference. 488-493.

BUSHNELL, M. AND AGRAWAL, V. 2000. Essentials of Electronic Testing. Kluwer Academic Publishers.

CHANDRA, A.,ANDKAPUR, R. 2008. Bounded adjacent fill for low capture power scan testing. In Proceedings of the IEEE VLSI Test Symposium.

CHEN, X.ANDHSIAO, M.-S. 2003. Energy-Efficient logic BIST based on state correlation analysis. In Proceedings of the IEEE VLSI Test Symposium. 267-272.

DABHOLKAR, V., CHAKRAVARTY, S., POMERANZ, I.,ANDREDDY, S. 1998. Techniques for mini-mizing power dissipation in scan and combinational circuits during test application. IEEE Trans. Comput.-Aid. Des., 1325-1333.

GIRARD, P. 2002. Survey of low-power testing of vlsi circuits. IEEE Des. Test Comput. 19, 3, 82-92. HIRECH, M., BEAUSANG, J.,ANDGU, X. 1998. A new approach to scan chain reordering using physical design information. In Proceedings of the IEEE International Test Conference. 348-355. HUANG, T.ANDLEE, K.-J. 2001. A token scan architecture for low power testing. In Proceedings

of the IEEE International Test Conference. 660-669.

LI, J., XU, Q., HU, Y., AND LI, X. 2008. iFill: An impact-oriented x-filling method for shift-and capture-power reduction in at-speed scan-based testing. In Proceedings of the ACM/IEEE Conference on Design, Automation, and Test in Europe (DATE’08). 1184-1189.

LIN, S. P., LEE, C. L., CHEN, J. E., CHEN, J.-J., LUO, K.-L.,ANDWU, W.-C. 2006. A multilayer data copy scheme for low cost test with controlled scan-in power for multiple scan chain designs. In Proceedings of the IEEE International Test Conference.

MAKAR, S. 1998. A layout-based approach for ordering scan chain flip-flops. In Proceedings of the IEEE International Test Conference. 341-347.

MRUGALSKI, G., RAJSKI, J., CZYSZ, D.,ANDTYSZER, J. 2007. New test data decompressor for low power applications. In Proceedings of the ACM/IEEE Design Automation Conference (DAC’07). 539-544.

REMERSARO, S., LIN, X., ZHANG, Z., REDDY, S. M., POMERANZ, I.,ANDRAJSKI, J. 2006. Pre-ferred fill: A scalable method to reduce capture power for scan based designs. In Proceedings of the IEEE International Test Conference.

ROSINGER, P., AL-HASHIMI, B. M.,ANDNICOLICI, N. 2004. Scan architecture with mutually exclusive scan segment activation for shift and capture-power reduction. IEEE Trans. Comput.-Aid. Des. 23, 1142-1153.

SANKARALINGAM, R. ANDTOUBA, N.-A. 2002. Controlling peak power during scan testing. In Proceedings of the IEEE VLSI Test Symposium. 153-159.

SANKARALINGAM, R., ORUGANTI, R. R.,ANDTOUBA, N. A. 2000. Static compaction techniques to control scan vector power dissipation. In Proceedings of the IEEE VLSI Test Symposium. 35-40. SANKARALINGAM, R., POUYA, B., ANDTOUBA, N. A. 2001. Reducing power dissipation during

test using scan chain disable. In Proceedings of the IEEE VLSI Test Symposium. 319-324. SAXENA, J., BUTLER, K. M.,ANDWHETSEL, L. 2001. An analysis of power reduction techniques

(29)

Scan-Cell Reordering for Minimizing Scan-Shift Power

·

10: 29

SINANOGLU, O. AND ORAILOGLU, A. 2003. Modeling scan chain modifications for scan-in test power minimization. In Proceedings of the IEEE International Test Conference.

SINANOGLU, O., BAYRAKTAROGLU, I.,ANDORAILOGLU, A. 1998. Scan power reduction through test data transition frequency analysis. IEEE Trans. Comput.-Aid. Des., 1325-1333.

WEN, X., YAMASHITA, Y., KAJIHARA, K., WANG, L.-T., SALUJA, K. K., AND KINOSHITA, K. 2005. On low-capture-power test generaion for scan testing. In Proceedings of the IEEE VLSI Test Symposium. 265-270.

WHETSEL, L. 2000. Adapting scan architectures for low power operation. In Proceedings of the IEEE International Test Conference. 863-872.

ZORIAN, Y. 1993. A distributed bist control scheme for complex vlsi devices. In Proceedings of the IEEE VLSI Test Symposium. 4-9.

Figure

Table I. Response Correlation of ISCAS Benchmark s38584

Table I.

Response Correlation of ISCAS Benchmark s38584 p.5
Table II. Response Correlation of ITC Benchmark b17

Table II.

Response Correlation of ITC Benchmark b17 p.5
Fig. 1. Calculation of scan-in and scan-out WTC.
Fig. 1. Calculation of scan-in and scan-out WTC. p.7
Fig. 3. Construction of a response-correlation graph.
Fig. 3. Construction of a response-correlation graph. p.8
Fig. 4. Estimated W TC out of different scan-chain input/output.
Fig. 4. Estimated W TC out of different scan-chain input/output. p.9
Table III. Statistics of the Benchmark Circuits and Their ATPG Patterns

Table III.

Statistics of the Benchmark Circuits and Their ATPG Patterns p.10
Table IV. Comparisons of Generated Scan-Shift Transitions between RORC and Bonhomme et al

Table IV.

Comparisons of Generated Scan-Shift Transitions between RORC and Bonhomme et al p.11
Table VI. Classification of Patterns type first scan-in bit last scan-out bit

Table VI.

Classification of Patterns type first scan-in bit last scan-out bit p.12
Table V. Runtime Distribution of RORC (in seconds) and Its Memory Usage circuit correlation TSP others Total (a) / (b) memory

Table V.

Runtime Distribution of RORC (in seconds) and Its Memory Usage circuit correlation TSP others Total (a) / (b) memory p.12
Table VII. Comparison of in-between Transitions between Using and Without Using Pattern Reordering

Table VII.

Comparison of in-between Transitions between Using and Without Using Pattern Reordering p.13
Fig. 5. Main steps of the proposed reordering scheme ROBPR.
Fig. 5. Main steps of the proposed reordering scheme ROBPR. p.14
Fig. 6. Construction of the directed graph based on pattern and response correlations.
Fig. 6. Construction of the directed graph based on pattern and response correlations. p.15
Fig. 7. The proposed algorithm for finding a Hamiltonian path with minimal W TC total .
Fig. 7. The proposed algorithm for finding a Hamiltonian path with minimal W TC total . p.16
Table IX. Comparisons of Generated Scan-Shift Transitions between RORC and ROBPR circuit method scan-in scan-out total peak runtime

Table IX.

Comparisons of Generated Scan-Shift Transitions between RORC and ROBPR circuit method scan-in scan-out total peak runtime p.17
Table X. Comparisons of Generated Scan-Shift Transitions between Sinanoglu et al. [1998] and ROBPR

Table X.

Comparisons of Generated Scan-Shift Transitions between Sinanoglu et al. [1998] and ROBPR p.18
Fig. 8. Main steps of the proposed reordering scheme SIRO.
Fig. 8. Main steps of the proposed reordering scheme SIRO. p.19
Fig. 9. Construction of the directed graph based on inverse and noninverse correlation sets.
Fig. 9. Construction of the directed graph based on inverse and noninverse correlation sets. p.20
Fig. 10. An example of the MT-fill performed in SIRO.
Fig. 10. An example of the MT-fill performed in SIRO. p.20
Fig. 11. Implement inverse techniques with traditional scan-chain architecture.
Fig. 11. Implement inverse techniques with traditional scan-chain architecture. p.21
Table XII. Comparisons of Generated Scan-Shift Transitions between SIRO and ROBPR circuit method scan-in scan-out total peak runtime inverse

Table XII.

Comparisons of Generated Scan-Shift Transitions between SIRO and ROBPR circuit method scan-in scan-out total peak runtime inverse p.22
Table XIII. Probability Distribution of High and Low Response Correlations

Table XIII.

Probability Distribution of High and Low Response Correlations p.22
Fig. 12. Construction of the directed graph based on correlations and routing effects.
Fig. 12. Construction of the directed graph based on correlations and routing effects. p.24
Fig. 13. The proposed algorithm for finding a Hamiltonian path optimizing power and routing overhead in PRORO.
Fig. 13. The proposed algorithm for finding a Hamiltonian path optimizing power and routing overhead in PRORO. p.25
Table XIV. Comparisons of Scan-Shift Transitions Generated by Different Scan-Cell Reordering Schemes

Table XIV.

Comparisons of Scan-Shift Transitions Generated by Different Scan-Cell Reordering Schemes p.25
Table XV. Comparisons of Scan Path’s Wire Length ( μm) after Global Route Generated by Different Scan-Cell Reordering Schemes

Table XV.

Comparisons of Scan Path’s Wire Length ( μm) after Global Route Generated by Different Scan-Cell Reordering Schemes p.26
Table XVI. Comparisons of Total Wire Length ( μm) after Detailed Route Generated by Different Scan-Cell Reordering Schemes

Table XVI.

Comparisons of Total Wire Length ( μm) after Detailed Route Generated by Different Scan-Cell Reordering Schemes p.26

References
