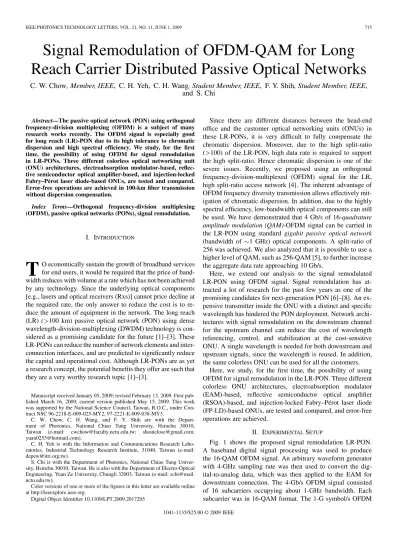

IEEE PHOTONICS TECHNOLOGY LETTERS, VOL. 21, NO. 11, JUNE 1, 2009 715
Signal Remodulation of OFDM-QAM for Long
Reach Carrier Distributed Passive Optical Networks
C. W. Chow, Member, IEEE, C. H. Yeh, C. H. Wang, Student Member, IEEE, F. Y. Shih, Student Member, IEEE,
and S. Chi
Abstract—The passive optical network (PON) using orthogonal
frequency-division multiplexing (OFDM) is a subject of many research works recently. The OFDM signal is especially good for long reach (LR)-PON due to its high tolerance to chromatic dispersion and high spectral efficiency. We study, for the first time, the possibility of using OFDM for signal remodulation in LR-PONs. Three different colorless optical networking unit (ONU) architectures, electroabsorption modulator-based, reflec-tive semiconductor optical amplifier-based, and injection-locked Fabry–Pérot laser diode-based ONUs, are tested and compared. Error-free operations are achieved in 100-km fiber transmission without dispersion compensation.
Index Terms—Orthogonal frequency-division multiplexing (OFDM), passive optical networks (PONs), signal remodulation.
I. INTRODUCTION
T
O economically sustain the growth of broadband services for end users, it would be required that the price of band-width reduces with volume at a rate which has not been achieved by any technology. Since the underlying optical components [e.g., lasers and optical receivers (Rxs)] cannot price decline at the required rate, the only answer to reduce the cost is to re-duce the amount of equipment in the network. The long reach (LR) ( 100 km) passive optical network (PON) using dense wavelength-division-multiplexing (DWDM) technology is con-sidered as a promising candidate for the future [1]–[3]. These LR-PONs can reduce the number of network elements and inter-connection interfaces, and are predicted to significantly reduce the capital and operational cost. Although LR-PONs are as yet a research concept, the potential benefits they offer are such that they are a very worthy research topic [1]–[3].Manuscript received January 05, 2009; revised February 13, 2009. First pub-lished March 16, 2009; current version pubpub-lished May 15, 2009. This work was supported by the National Science Council, Taiwan, R.O.C., under Con-tract NSC 96-2218-E-009-025-MY2, 97-2221-E-009-038-MY3.
C. W. Chow, C. H. Wang, and F. Y. Shih are with the Depart-ment of Photonics, National Chiao Tung University, Hsinchu 30010, Taiwan (e-mail: cwchow@faculty.nctu.edu.tw; shoutclose@gmail.com; yuan0253@hotmail.com).
C. H. Yeh is with the Information and Communications Research Labo-ratories, Industrial Technology Research Institute, 31040, Taiwan (e-mail: depew@itri.org.tw).
S. Chi is with the Department of Photonics, National Chiao Tung Univer-sity, Hsinchu 30010, Taiwan. He is also with the Department of Electro-Optical Engineering, Yuan Ze University, Chungli 32003, Taiwan (e-mail: schi@mail. nctu.edu.tw).
Color versions of one or more of the figures in this letter are available online at http://ieeexplore.ieee.org.
Digital Object Identifier 10.1109/LPT.2009.2017205
Since there are different distances between the head-end office and the customer optical networking units (ONUs) in these LR-PONs, it is very difficult to fully compensate the chromatic dispersion. Moreover, due to the high split-ratio ( 100) of the LR-PON, high data rate is required to support the high split-ratio. Hence chromatic dispersion is one of the severe issues. Recently, we proposed using an orthogonal frequency-division-multiplexed (OFDM) signal for the LR, high split-ratio access network [4]. The inherent advantage of OFDM frequency diversity transmission allows effectively mit-igation of chromatic dispersion. In addition, due to the highly spectral efficiency, low-bandwidth optical components can still be used. We have demonstrated that 4 Gb/s of 16-quadrature
amplitude modulation (QAM)-OFDM signal can be carried in
the LR-PON using standard gigabit passive optical network (bandwidth of 1 GHz) optical components. A split-ratio of 256 was achieved. We also analyzed that it is possible to use a higher level of QAM, such as 256-QAM [5], to further increase the aggregate data rate approaching 10 Gb/s.
Here, we extend our analysis to the signal remodulated LR-PON using OFDM signal. Signal remodulation has at-tracted a lot of research for the past few years as one of the promising candidates for next-generation PON [6]–[8]. An ex-pensive transmitter inside the ONU with a distinct and specific wavelength has hindered the PON deployment. Network archi-tectures with signal remodulation on the downstream channel for the upstream channel can reduce the cost of wavelength referencing, control, and stabilization at the cost-sensitive ONU. A single wavelength is needed for both downstream and upstream signals, since the wavelength is reused. In addition, the same colorless ONU can be used for all the customers.
Here, we study, for the first time, the possibility of using OFDM for signal remodulation in the LR-PON. Three different colorless ONU architectures, electroabsorption modulator (EAM)-based, reflective semiconductor optical amplifier (RSOA)-based, and injection-locked Fabry–Pérot laser diode (FP-LD)-based ONUs, are tested and compared, and error-free operations are achieved.
II. EXPERIMENTALSETUP
Fig. 1 shows the proposed signal remodulation LR-PON. A baseband digital signal processing was used to produce the 16-QAM OFDM signal. An arbitrary waveform generator with 4-GHz sampling rate was then used to convert the dig-ital-to-analog data, which was then applied to the EAM for downstream connection. The 4-Gb/s OFDM signal consisted of 16 subcarriers occupying about 1-GHz bandwidth. Each subcarrier was in 16-QAM format. The 1-G symbol/s OFDM
716 IEEE PHOTONICS TECHNOLOGY LETTERS, VOL. 21, NO. 11, JUNE 1, 2009
Fig. 1. Experimental setup of signal remodulation DWDM-PON. SMF: single-mode fiber.
signal occupied the radio-frequency spectrum from 62.5 to 1125 MHz, with data pattern consisted of 8192 OFDM sym-bols. The cyclic prefix was 1/32 symbol time. The detail OFDM signal generation was described in [5]. The downstream signal was at wavelength of 1548 nm, with average input power to the feeder fiber of 5 dBm. The signal was then propagating through 90 and 10 km of feeder and distribution/drop fibers, respec-tively, via a pair of arrayed waveguide grating (AWG) [Gaussian shaped, 100-GHz channel spacing] and an erbium-doped fiber amplifier (EDFA), which is used to compensate the loss during transmission. At the ONU, 10% of downstream power was tapped out and detected by an optically preamplified Rx, which consisted of a low-noise EDFA, optical bandpass fiber to remove the out-of-band amplified spontaneous emission, and a PIN photodiode. An analog-to-digital converter, which is a real-time 10-GHz sampling oscilloscope, converted the downstream signal detected by the optically preamplified Rx to digital signal for demodulation. The demodulation was performed using computer software, and it consisted of a syn-chronizer to extract the carrier phase and aligned the OFDM symbol boundaries, a fast Fourier transform to translate signal from time to frequency domain, and a QAM decoder to analyze the symbol on each subcarrier to make the final decision. The bit-error rate (BER) was calculated from the measured error vector magnitude [9], [10].
The remaining downstream signal was then launched into the colorless modulator at the ONU. The optical amplifier was placed in front of the colorless modulator in each ONU to com-pensate the loss and to provide enough optical power for the colorless modulator. In this research, we analyzed three dif-ferent kinds of colorless modulators: EAM, RSOA, and FP-LD. In each case, a 2.5-Gb/s nonreturn-to-zero (NRZ) data, pseudo-random binary sequence pattern length of , was used to directly modulate the colorless modulator. Then the upstream signal was launched back to the head-end Rx for BER measure-ments through the second feeder fiber.
III. RESULTS ANDDISCUSSION
We first study the optimum extinction ratio (ER) of the down-stream OFDM-QAM signal for both downdown-stream and updown-stream links. The ER is defined as , where and are the maximum and minimum power of the OFDM signal, respectively. The input power to each ONU was 3 dBm. As shown in Fig. 2, by decreasing the ER of the OFDM signal,
Fig. 2. Power penalties of downstream OFDM and upstream NRZ signals generated by different kinds of ONUs against different ER of the downstream OFDM signal.
Fig. 3. BER measurements of different signals. Insets: constellation diagrams of OFDM signal at ER= 3:7 dB at (a) B2B, (b) 100 km, output remodulated NRZ eye diagrams of FP-LD at (c) B2B, (d) 100 km; and RSOA at (e) B2B, (f) 100 km, when downstream OFDM at ER= 3:7 dB.
higher residual background light can be provided for the up-stream remodulation. When an EAM-based ONU is used, the intercepting point is at the position where the ER of OFDM is equal to 3.7 dB, and it means 4 dB of power penalty will be introduced to both the upstream and downstream signals. We can see that RSOA-based and FP-LD-based ONUs performed better. By using the gain-saturation property of the RSOA or the injection locking property of the FP-LD, the downstream OFDM signal can be significantly suppressed, and these can in-crease the intercepting point to 4.7 dB. This shows a power penalty improvement of 1 dB in the OFDM signal.
Then, we tested the three kinds of colorless ONUs for the signal remodulation LR-PON. Since each modulator has its optimum condition, in the comparison, we selected the ER dB for the downstream OFDM signal. Fig. 3 shows the BER measurements of each signal at back-to-back (B2B) and after the 100-km LR transmission. Insets show the con-stellation diagrams of OFDM signal at ER dB, output remodulated NRZ eye diagrams of FP-LD, and RSOA when
CHOW et al.: SIGNAL REMODULATION OF OFDM-QAM FOR LONG REACH CARRIER DISTRIBUTED PONs 717
Fig. 4. Time traces from the real-time oscilloscope of (a) the OFDM, output of (b) the RSOA and (c) FP-LD when the ER of the input OFDM signal is 3.7 dB.
Fig. 5. Output optical powers against different input optical powers for the (a) RSOA- and (b) FP-LD-based ONU under different dc biases.
downstream OFDM at ER dB. We can observe clear open eyes after 100-km single-mode fiber transmission without dispersion compensation in each case. Error-free BER opera-tion can be achieved for the proposed remodulaopera-tion LR system. In this proof-of-concept experiment, only a single ONU was studied.
We further compared the performance of the RSOA-based and FP-LD-based colorless ONU for the remodulation system. In Fig. 2, we observe that the threshold property of the injection locking can provide a better upstream NRZ signal (less power penalty in the BER analysis) for the same downstream OFDM signal. For better understanding, we then observed using time traces. Fig. 4 show the time traces from the real-time oscillo-scope of (a) the downstream OFDM ER dB , output of (b) the RSOA and (c) FP-LD when the ER of the input OFDM signal is 3.7 dB. The electrical data applied to the RSOA or FP-LD was switchedOFF and only dc bias was used. We ob-serve clearly that the injection locking can suppress the down-stream OFDM signal much higher than in the case of RSOA. After this, we studied the nonlinear transmission characteris-tics of the RSOA- and FP-LD-based colorless ONUs. Different continuous-wave optical powers were launched into them at dif-ferent biases, and we measured the output optical powers using a power meter, as shown in Fig. 5(a) and (b), respectively, for the RSOA and FP-LD. We can observe that the nonlinear transfer function of the RSOA-based ONU is less steep than that of the FP-LD-based ONU; and the shape of the RSOA curves are sim-ilar under different dc biases. For the injection-locked FP-LD-based ONU, when the FP-LD is biased below the threshold rent (10 mA), the response is quite linear. When the biased cur-rent is much above threshold (35 mA), the nonlinear transfer
function is much steeper than that of the RSOA-based ONU. Hence, the downstream OFDM signal can be highly suppressed by the injection-locking of the FP-LD-based ONU to produce a better upstream NRZ signal. However, it is also worth men-tioning that since injection-locking depends on input polariza-tion, and the random birefringence of buried optical fiber net-works typically causes slow fluctuations in the polarization an-gles of the propagating signals [11], a slow dynamic polarization control may be used to compensate the change in polarization state [12].
IV. CONCLUSION
PON using OFDM is a subject of many research works re-cently. The OFDM signal is a promising candidate for LR-PON due to its high tolerance to chromatic dispersion. Here, we studied the possibility of using OFDM for signal remodulation in the LR-PON. Three different colorless ONU architectures, EAM-based, RSOA-based, and FP-LD-based, were tested and compared, showing that despite the polarization controlling issue, FP-LD can provide a greater downstream OFDM sup-pression and produce better upstream data.
REFERENCES
[1] D. P. Shea, A. D. Ellis, D. B. Payne, R. P. Davey, and J. E. Mitchell, “10 Gbit/s PON with 100 km reach and x1024 split,” in Proc. ECOC, Rimini, Italy, 2003, Paper We.P.147.
[2] P. D. Townsend, G. Talli, C. W. Chow, E. M. MacHale, C. Antony, R. Davey, T. De Ridder, X. Z. Qiu, P. Ossieur, H. G. Krimmel, D. W. Smith, I. Lealman, A. Poustie, S. Randel, and H. Rohde, “Long reach passive optical networks,” in IEEE LEOS Annual Meeting, Florida, 2007.
[3] G. Talli, C. W. Chow, E. K. MacHale, and P. D. Townsend, “Long reach hybrid DWDM-TDM PON with high split ratio employing centralized light source,” J. Opt. Netw., vol. 6, pp. 765–776, 2007.
[4] C. W. Chow, C. H. Yeh, C. H. Wang, F. Y. Shih, Y. M. Lin, and S. Chi, “Demonstration of high spectral efficient OFDM-QAM long reach pas-sive optical networks,” in Proc. ECOC, Belgium, 2008, Paper Th.2.F.5. [5] C. W. Chow, C. H. Yeh, C. H. Wang, F. Y. Shih, C. L. Pan, and S. Chi, “WDM extended reach passive optical networks using OFDM-QAM,”
Opt. Express, vol. 16, pp. 12096–12101, 2008.
[6] L. Y. Chan, C. K. Chan, D. T. K. Tong, F. Tong, and L. K. Chen, “Upstream traffic transmitter using injection-locked Fabry–Perot laser diode as modulator for WDM access networks,” Electron. Lett., vol. 38, pp. 43–45, 2002.
[7] W. Hung, C. K. Chan, L. K. Chen, and F. Tong, “An optical network unit for WDM access networks with downstream DPSK and upstream remodulated OOK data using injection-locked FP laser,” IEEE Photon.
Technol. Lett., vol. 15, no. 10, pp. 1476–1478, Oct. 2003.
[8] C. W. Chow, “Wavelength remodulation using DPSK down-and-up-stream with high extinction ratio for 10-Gb/s DWDM-passive optical networks,” IEEE Photon. Technol. Lett., vol. 20, no. 1, pp. 12–14, Jan. 1, 2008.
[9] Y. M. Lin, “Demonstration and design of high spectral efficiency 4 Gb/s OFDM system in passive optical networks,” in Proc. OFC, Ana-heim, CA, 2007, Paper OThD7.
[10] V. J. Urick, J. X. Qiu, and F. Bucholtz, “Wide-band QAM-over-fiber using phase modulation and interferometric demodulation,” IEEE
Photon. Technol. Lett., vol. 16, no. 10, pp. 2374–2376, Oct. 2004.
[11] G. Nicholson and D. J. Temple, “Polarization fluctuation measurements on installed single-mode optical fiber cables,” J. Lightw. Technol., vol. 7, no. 8, pp. 1197–1200, Aug. 1989.
[12] F. Heismann and M. S. Whalen, “Fast automatic polarization control system,” IEEE Photon. Technol. Lett., vol. 4, no. 5, pp. 503–505, May 1992.
