以HMAC強化WEP加密機制

H M A C

W E P

Enhance WEP Protocol with HMAC

HMAC

WEP

Enhance WEP Protocol with HMAC

Student

Chia-Ming Cheng

Advisor

Dr. Shih-Kun Huang

Dr. Yi-Shiung Yeh

A Thesis

Submitted to Institute of Network Engineering

College of Computer Science

National Chiao Tung University

in partial Fulfillment of the Requirements

for the Degree of

Master

in

Computer Science

June 2008

HMAC

WEP

( )

WEP

Enhance WEP Protocol with HMAC

Student

Chia-Ming Cheng Advisor

Dr. Shih-Kun Huang

Dr. Yi-Shiung Yeh

Institute of Network Engineering College of Computer Science

National Chiao Tung Tuiversity

Abstract

The mobility offered by wireless networks enables users to have the

access to related network resources if they are within served area of access

points. Owing to the convenience of wireless networks, the population of it

users are getting more and more. In addition, network security is always a vital

issue for either the Ethernet or wireless networks. This paper presented an

optimized solution to eliminate the security holes of WEP (Wired Equivalent

Privacy) which includes the plaintext transmission of IV, vulnerable to replay

attacks and the reliability problem. As compared with WPA (Wi-Fi Protected

Access) which complies.

2007 !! !!

Contents

...III

Abstract...IV

...V

Figure List...VIII

Table List...IX

Chapter 1

Introduction...1

1.2 Motivation and Purpose...2

1.3 Structure...3

Chapter 2

Related Works………5

2.1 Wired Equivalent Privacy (WEP)………..5

2.1.1 Concepts……….5

2.1.2 WEP Cryptographic Operations……….7

2.2 The Keyed-Hash Message Authentication Code (HMAC)...11

2.2.1 Concepts………11

2.2.2 HMAC Specification……….12

2.2.3 HMAC Algorithm………..15

Chapter 3

Overview of WEP………...22

3.1 WEP Weakness………...22

3.2 Brief Review of eWEP Scheme………..26

Chapter 4

Optimized WEP Scheme (O-WEP)………...30

4.1 Notation and Nomenclature in O-WEP………...30

4.2 O-WEP Cryptographic Operations………..33

Chapter 5

Security Analyses………36

6.1 Conclusion………40

6.2 Future works………..40

Figure List

Figure 2.1 stream cipher schematic drawing...7

Figure 2.2 Encryption process in WEP...9

Figure 2.3 Decryption process in WEP...10

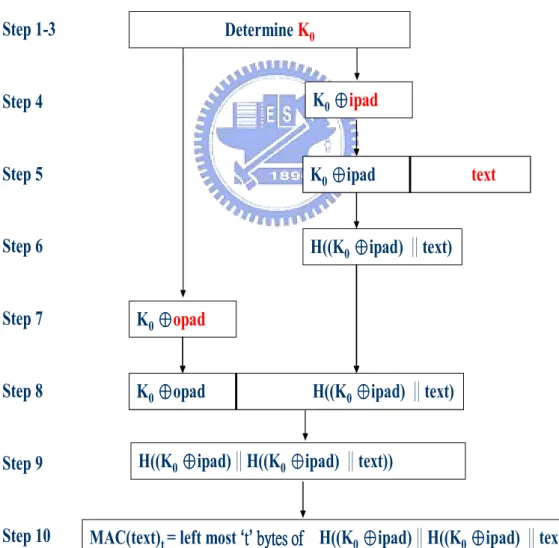

Figure 2.4 Illustrates Construction of HMAC...15

Figure 3.1 Encryption process of eWEP...27

Figure 3.2 cipher principle of eWEP...28

Figure 4.1 transmission processes of O-WEP packets...32

Figure 4.2 Encryption process in O-WEP...34

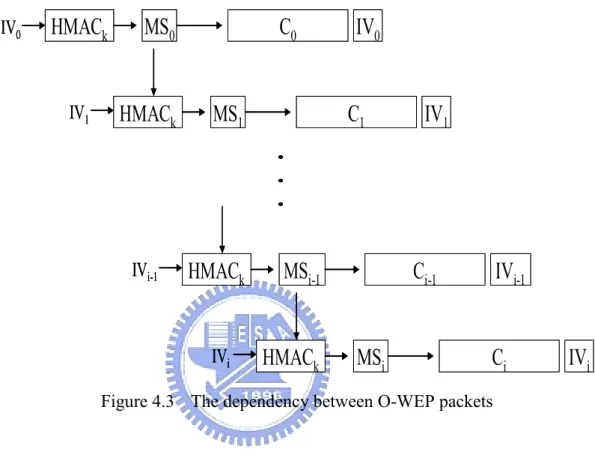

Figure 4.3 the dependency between O-WEP packets...35

Table List

Table 1.1 Encryption methods for wireless network...1

Table 2.1 notation and nomenclature...8

Table 2.2 the throughout in HMAC standard...13

Table 2.3 the HMAC algorithm...16

Chapter 1 Introduction

1.1 Background

Over the past several years, the appearance of wireless network

enables users to access network resources immediately and rapidly.

Therefore the populations of wireless network users are getting more

and more since then. The table 1.1 [4] shows a survey of encryption

methods found in the middle of German in March 2007. Another

survey was performed in September 2006. According to the table 1.1,

Wired Equivalent Privacy (WEP) and Wi-Fi Protected Access

(WPA)[5] are adopted by 46.3% and 19.6% users of wireless network

in March 2007. Both data sets proved that WEP is still the most

popular mechanism for securing wireless network.

Time No Encryption WEP WPA WPA2

March 2007 21.8% 46.3% 19.6% 7.3% Middle of 2006 23.3% 59.4% 14.5% 3.3%

Table 1.1 Encryption methods for wireless network

WEP is defined in the second edition of IEEE 802.11, and it also

authentication. Wireless networks broadcast messages using radio and

are thus more susceptible to eavesdropping than wired networks.

When introduced in 1999, WEP was intended to provide

confidentiality comparable to that of a traditional wired network.

Beginning in 2001, several serious weaknesses were identified by

cryptanalysts with the results that today a WEP connection can be

cracked with readily available software within minutes.

Within a few months the IEEE created a new 802.11i task force

to solve the problem. In the later, Fluhrer, Mantin, and Shamir

designed a census attack against WEP called the “FMS attack”. It

used initial vector (IV) and RC4 properties to collect enough packets

in wireless network and then focused on a specific weak key in the form of (B+3) FF N. Due to this, FMS attacks can recover RC4 keys.

By 2003, the Wi-Fi Alliance announced that WEP has been

superseded by WPA, which was a subset of then upcoming 802.11i

amendment.

Finally in 2004, with the ratification of the full 802.11i standard,

the IEEE declared that WEP has been deprecated as they fail to meet

their security goals. Despite its weaknesses, WEP is still widely in use.

Up to now, there are lots of developed hacker tools based on F.M.S

Although WEP is known to be insecure and has replaced by

Wi-Fi Protected Access (WPA), it is still widely used. In this paper,

we present an optimized solution to eliminate the security holes of

WEP using “The Keyed-Hash Message Authentication Code”

(HMAC).[3] As compared with WPA, optimized WEP (O-WEP) can

withstand replay attack and FMS attack without modifying any

hardware equipments. In addition, O-WEP can be regarded as the best

alternative before hardware update (chipset, access point).

1.3 Structure

There are six chapters in this thesis. The content of each chapter in this paper is organized in the follow ways

Chapter 1 Introduction

Chapter 1 describes the motivation, purpose and the structure of the

thesis.

Chapter 2 Related Works

Due to WEP, it is a security mechanism of wireless network, and there

is a lot of relative security information used in wireless network, this

chapter introduces this knowledge briefly such as HMAC, WEP

Chapter 3 Technicalities Overview of WEP

In this chapter, we are going to briefly analyze the weakness of WEP

and describe the eWEP scheme offered by Hani Ragab Hassan. The

encryption and decryption process of eWEP are described in this

chapter step by step. Besides, we are going to propose a brand-new

scheme called O-WEP in the following section.

Chapter 4 Optimized WEP Protocol (O-WEP)

In this chapter, we propose the O-WEP scheme and the detail

encryption and decryption process are presented. The brand-new

scheme aims to withstand the threat of WEP with the least

modification. Hence, the scheme is called “Optimized” WEP.

Chapter 5 Security Analyze

The major motive of this chapter is to compare the security between

WEP and O-WEP. We analyze the security holes of WEP and then

make a discussion of the original security mechanism. The improved

mechanism, O-WEP, can overcome these security holes of WEP

without any hardware modification.

Chapter 6 Conclusion and Future work

This chapter is going to make a conclusion on this thesis and describe

Chapter 2 Related Works

2.1Wired Equivalent Privacy (WEP)

This section describes the concepts and cryptographic operations of

WEP[2].

2.1.1

_Concepts

Wireless network is an open medium, and the risk of using it is

greatly increased if without cryptographic protection can be applied

on the link. In 1999 September, WEP was intended to provide secure

information comparable to a traditional wired network. However,

researchers present several cases to prove WEP was insecurity in the

following four years. Today, WEP is still available 46.3% (Table 1.1)

users of wireless network. In many case, it is the only security support

particular devices. Although WEP is not powerful as later

cryptographic protocols, it does not require the computational power,

either. In addition, older devices may lack processing ability to run

anything better, and WEP is the best option.

In order to protect secret data, WEP requires the RC4 cipher,

which is a symmetric stream cipher. In generally, RC4 does not

require the use of any specific key length, and WEP can be used with

keys of any size. But the only key size present in the 802.11 standard

access point and 24 bits are initial vector (IV). There is also another

longer key length called “128-bit WEP”. Similarly, 128-bit WEP

include 104 bits secret data and 24 bits IV such as “104+24 – bit

WEP”. In a designed cryptographic system, we can obtain additional

security by using a long key. However, WEP is not a well-designed

cryptographic system, and extra bits can not acquire any additional

security. On the contrary, additional bits may condense decryption

time.

RC4 Algorithm

RC4 [1] is the most widely used stream cipher in software

applications. Ron Rivest designed the RC4 algorithm for RSA

Security Company in 1987. It kept as a trade secret until it leaked out

in 1994. Up to now, many papers have published to analyze “how to attack RC4”. (e.g. [KNUD98] [8] [MIST98] [9] [FLUH00] [7]

[MANT01] [1]). [FLUH01] has recorded a thornier problem; the

author proves that secure mechanism of WEP is easy cracked by

specific attack style. Basically, the problem is not in RC4 itself, but

the way of generate secret key as RC4 input. The problem has not

certainly occurred in other uses RC4 in the application formula. It also

Figure 2.1 stream cipher schematic drawing.

Form figure 2.1, we can see the result of pseudorandom

generator is decided by secret key, and the generator needs enough

length to avoid brute force attack. If the length of secret key is similar,

well-designed pseudorandom generator may make stream cipher as

secure as block cipher. The major advantages of stream cipher are

quick speed and few source codes (e.g. RC4).

2.1.2

_{WEP Cryptographic Operations}

On this section, we will describe the process that packets

encrypted and decrypted by WEP on the wireless networks. First we define the nomenclature that will be used in the paper

k The secret key of WEP

Plaintext stream M Pseudorandom bit generator Secret key K k Encryption Ciphertext stream C Pseudorandom bit generator Secret key K k Decryption Plaintext stream M Plaintext stream M Pseudorandom bit generator Secret key K k Encryption Ciphertext stream C Pseudorandom bit generator Secret key K k Decryption Plaintext stream M

KS Keystream produced by k and IVi using RC4

algorithm

Mi The ith message to send

Ci The ith cipher text

IVi The ith initial vector

CRC Cyclic Redundancy Check widely used in

network protocol

RC4 A stream cipher

Table 2.1 notation and nomenclature.

Let S be a source which sends messages M to a receiver R. k is the

secret key of WEP, and both communication entities share the secret

key k.

(1). RC4 is a stream cipher and it uses two inputs to generate a

keystream KS

The 40 bits secret key which shared between S and R
An initialization vector(IV)

(2). Using CRC(Cyclic Redundancy Check) to calculate check sum of

transited messages and let CRC concatenate M note as T(=M ||

RC4 k IV_i

KS

M

C

IV

(4). IV concatenates after cipher text C (note that IV is sent as clear

text without any encryption).

(5). finally, sender S can transmit the encrypted packets to receiver

R.

Figure 2.2 Encryption process in WEP.

In Figure 2.1, numbers show the different steps of encryption

process in WEP. After processing, an encrypted frame is ready for

transmission over an un-trusted network with enough information to

enable decryption at the remote end. Similarly, decryption happens in

Figure 2.3 Decryption process in WEP.

As R receives the packet from S, we can see the decryption process in Figure 2.2

(1). R receives the encryption packets include cither text and IV.

(2). Using the IV that was appended to cipher text and k to generate

the keystream by RC4 algorithm.

(3). Next, let cipher text XOR with keystream to recover and then

gets original message and its CRC check sum.

(4). Last, using the CRC check sum to verify message M if it was

modified by someone or not.

The encrypted process of WEP can ensure data privacy, data

integrity and authentication. In general, the meaning of data privacy is

4

C

IV

KS

M

decrypt them. In addition, data integrity and authentication can

achieve by the check sum verified. Thus, all modified message can be

detected.

2.2The Keyed-Hash Message

Authentication Code (HMAC)

This standard describes a key-hash message authentication code

(HMAC), the mechanism for message authentication using

cryptographic hash functions. HMAC is defined in Federal

Information Processing Standards Publication (FIPS PUB 198) that is

issued by the National Institute of Standard and Technology (NIST).

In the later chapter, we are going to provide an improved WEP

scheme called O-WEP. O-WEP uses the HMAC to keep the security

of information transmitted over sender and remote end.

2.2.1

_Concepts

HMAC is a standard that specifies an algorithm for applications

require message authentication. In addition, message authentication is

achieved via the construction of a message authentication code

(MAC). MAC based on hash function is known as HMAC. MAC is

used to authenticate both the source of message and its integrity

without using any extra mechanisms. HMAC has the major factor;

a message input and secret key are known only to the sender of

compute a value (MAC) that is formed by the secret and the message

input. Then the remote receiver uses the same secret key and hash

function as sender to compute the MAC on the received message. If

the two match, the message has been received correctly or message

has been modified.

2.2.2

_{HMAC Specification}

Glossary of Terms

The following definitions are used throughput by HMAC algorithm

Approved FIPS-approved or NIST recommended. A technique that is

(1) specified in FIPS or NIST Recommendation, (2) adopted in FIPS

or NIST Recommendation and specified either FIPS or NIST

Recommendation, or in the document referenced by the FIPS or NIST

Recommendation.

Cryptographic key A parameter used in conjunction with a cryptographic algorithm that determines the operation of the algorithm.

The cryptographic key is used by the HMAC algorithm to produce a

MAC on the data in this standard.

Hash functions An approved mathematical function that maps a string of arbitrary length to a fixed length string. It may be used to

Keyed-hash based message authentication code (HMAC) a message authentication code that uses a cryptographic key in

conjunction with a hash function.

Message Authentication Code(MAC) A cryptographic checksum that result from passing data through a message authentication

algorithm. In this standard, the message authentication algorithm is

called HMAC, while the result of applying HMAC is called the MAC.

Secret key a cryptographic key that is uniquely associated with one or more entities. The use of the term “secret” in the text does not

imply a classification level; rather the term implies that need to protect

the key from discloser or substitution.

Acronyms

The following acronyms are used throughout in HMAC standard

FIPS Federal Information Processing Standard

FIPS PUB FIPS Publication

HMAC Keyed –Hash Message Authentication Code

Table 2.2 The throughout in HMAC standard

HMAC Symbols and Parameters

HMAC uses the following parameters

B Block size (bytes) of the input to the hash function.

H An approved hash function.

ipod Inner pad.

K Secret key shared between sender and remote receiver.

K0 K after some preprocessing to form a B byte key.

L Block size (bytes) of the output to the hash function.

Opad Outer pad.

t The number of byte of MAC.

text The data which the HMAC is calculated.

|| Concatenation.

2.2.3

_{HMAC Algorithm}

The following operation is performing that to compute a MAC of the

data “text” by using the HMAC algorithm.

MAC(text)t = HMAC(K, text)t = H((K0 opad)||H((K0 ipad) ||

text))t

Figure 2.3 and Table 2.2 describe the step by step process in the

HMAC algorithm.

Figure 2.4 Illustrates Construction of HMAC.

K

ipad

H((K

ipad) text)

K

opad

H((K

ipad) H((K

ipad) text))

MAC(text)

= left most

_{‘ ’}

H((K

ipad) H((K

ipad) text))

K

ipad text

K

ipad text

K

opad H((K

ipad) text)

K

opad H((K

ipad) text)

Determine K

Step 1-3

Step 4

Step 5

Step 6

Step 7

Step 8

Step 9

Step 10

Steps Description of each step

Step1~Step3 Determine the pre-processing of K0

Step4 Exclusive Or K0 with ipad

Step5 Append the text to the result of Step4

Step6 Using the result of Step5 as input of H

Step7 Exclusive Or K0 with opad

Step8 Append the result of Step6 to the result of Step7

Step9 Using the result of Step8 as input of H

Step10 The MAC is the leftmost t bytes of the result of

Step9

Table 2.3 The HMAC algorithm

HMAC Examples Text "Sample #3" Key 50515253 54555657 58595a5b 5c5d5e5f 60616263 64656667 68696a6b 6c6d6e6f 70717273 74757677 78797a7b 7c7d7e7f

90919293 94959697 98999a9b 9c9d9e9f

a0a1a2a3 a4a5a6a7 a8a9aaab acadaeaf

b0b1b2b3

Hash (Key)

a4aabe16 54e78da4 40d2a403 015636bf

4bb2f329

K0

a4aabe16 54e78da4 40d2a403 015636bf

4bb2f329 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 K0 ⊕ ipad 929c8820 62d1bb92 76e49235 37600089 7d84c51f 36363636 36363636 36363636

36363636 36363636 36363636 36363636 (Key ⊕ ipad)||text 929c8820 62d1bb92 76e49235 37600089 7d84c51f 36363636 36363636 36363636 36363636 36363636 36363636 36363636 36363636 36363636 36363636 36363636 53616d70 6c652023 33

Hash ((Key ⊕ ipad) ||text):

d98315c4 2152bea0 d057de97 84427676

2a1a5576

K0 ⊕ opad

f8f6e24a 08bbd1f8 1c8ef85f 5d0a6ae3

17eeaf75 5c5c5c5c 5c5c5c5c 5c5c5c5c

(K0 ⊕ opad) || Hash ((Key ⊕ ipad) ||text):

f8f6e24a 08bbd1f8 1c8ef85f 5d0a6ae3

17eeaf75 5c5c5c5c 5c5c5c5c 5c5c5c5c

5c5c5c5c 5c5c5c5c 5c5c5c5c 5c5c5c5c

5c5c5c5c 5c5c5c5c 5c5c5c5c 5c5c5c5c

d98315c4 2152bea0 d057de97 84427676

2a1a5576

HMAC (Key, Text) = Hash ((K0 ⊕ opad) || Hash ((Key ⊕ ipad)

||text)):

bcf41eab 8bb2d802 f3d05caf 7cb092ec

f8d1a3aa

20-byte HMAC (Key, Text):

bcf41eab 8bb2d802 f3d05caf 7cb092ec

In general, the type of SHA hash functions is not designed for

MAC. These hash functions can’t use to MAC directly because they

don’t rely on secret key. Up to now, the HMAC algorithm is widely

used to add secret key to hash function. And it also included in several

national standards such as RFC 2104, IP security, SSL, and NIPS 198.

A Limitation of MAC Algorithms

The successful verification of a MAC does not completely guarantee that the accompanying message is authentic There is a

chance that a source with no knowledge of the key can present a

purported MAC on the plaintext message that will pass the

verification procedure. For example, an arbitrary purported MAC of t

bits on an arbitrary plaintext message may be successfully verified

with an excepted probability of (1/2) t. this limitation is inherent in any

MAC algorithm.

Design goal of HMAC

HMAC uses a secret key for the calculation and verification of the MAC. The main goals behind the HMAC construction are

To use available hash functions without modifications.

If needs more efficient hash functions, it is easy to replace hash function which inlays.

without incurring a significant degradation.

To use and handle secret keys in a simple way.

To have a well-understood cryptographic analysis of the strength of the authentication mechanism.

First two items are the reasons that HMAC algorithm is

widespread using. If the original hash function has not secured, we

can replace the one by another secure hash function to improve the

security of HMAC. The last item is a vital excuse that HMAC

superior to other method. If the security of hash function is power

Chapter 3 Technicalities Overview of

WEP

3.1

_{WEP Weakness}

Previous chapter has introduced the step processing of WEP, and

in this section we are going to make a discussion on WEP weaknesses.

Security Holes Analysis

The WEP packets are encrypted by RC4 algorithm. And

designers specified the use of RC4, which is extensively accepted as a

cryptographic algorithm. However, attackers can attack any weak

points in the cryptographic system. The techniques of defeating WEP

come from all angles. Once the RC4 secret text is decrypted, there is

no security service can be guaranteed. In general, CRC is not verified

by source. Thus attacker can decrypt and then arbitrarily modify or

forge the original message.

All WEP security holes can define as four main conception flaws

corresponds the specific RC4 weak secret key to start the attack.

(2). Second, data source authentication

The WEP has not designed a mechanism to guarantee data source

authentication. WEP uses the CRC check to ensure integrity of

transmitted data. If the check of integrity is not complete, these

transmission messages have the possibility to be able to forge by the

attacker in the transmission process. Then attackers may recomputed

the integrity check value (is called ICV) but was not realized.

(3). Third, reuse secret keystream

Stream ciphers are vulnerable to analysis when the keystream is

reused. WEP selects IV method, lets attacker be able to discover

something in the repetition use secret keystream. Two packets that

share the same IV almost certainly use the same secret key and keystream. As WEP selects 24 bits IV (224 16,“““,216), by the

birthday attack law knew that every 4,096 packets will have the

redundant situation to be bigger than one half.

(4). Fourth, using Cyclic Redundancy Check

Due to CRC check value decrypted by RC4 keystream, CRC still has

not security in cryptography. If data integrity can not assured by CRC,

attackers could modify frames and not realized. 802.11 standard

defines retransmission when frames lost occur, and attackers could

RC4 Key Recovery against WEP

In 2001, Scott Fluhrer, Itsik Mantin and Adi Shamir present

several weaknesses in the key scheduling algorithm of RC4, and

describe their cryptanalytic significance. They identify a large number

of weak keys, in which knowledge of a small number of key bits

suffices to determine many state and output bits with non-negligible

probability. They also use these weak keys to construct new

distinguishers for RC4, and to mount related key attacks with practical

complexities. And show that RC4 is completely insecure in a common

mode of operation which is used in the widely deployed WEP.

The Fluhrer, Mantin and Shamir (FMS) attack takes advantage of

a weakness in the RC4 key scjeduling algorithm to reconstruct the key

from a number of collected encrypted messages. The FMS attack

gained popularity in tools such as AirSont and aircrack[4], both of

which attack WEP encrypted wireless networks. For this discussion,

they use the blow RC4 key scheduling algorithm (KSA) and

pseudo-random generation algorithm (PRGA).

Key scheduling algorithm (KSA)

begin ksa(with int keylength, with byte key[keylength])

for i from 0 to 255

S[i] := i

end for

j := ( j + S[i] + key[i mod keylength]) mod 256

swap(S[i] , S[j])

end for

end

Pseudo-Random Generation Algorithm (PRGA)

begin prga(with byte S[256])

i := 0 j := 0 while GenerationOutput i := ( i + 1 ) mod 256 j := ( j + S[i] ) mod 256 swap( S[i], S[j])

output S[( S[i] + S[j] ) mod 256]

end while

end

Key Recovery Defense

Longer secret keys can not defend against key recovery attacks.

The time required to recovery a secret key can be broken up into the

gathering time required to collect enough packets for the attack, and

the computational time required to run the program and get the secret

computational time is only a few seconds. Longer keys require

slightly more computational time, but gathering time still maintained

invariably. As the key length increase, more weak IVs are caught.

Many vendors adopt the defense is to avoid using weak IVs.

Most vendors have changed their products for each IV to be checked,

and all weak IVs are replaced non-weak IVs. However, reducing the

size of the IV space may cause IV reuse earlier.

3.2

_{Brief Review of eWEP Scheme}

The eWEP scheme is proposed by Hani Ragab Hassan. eWEP [6]

aims to solve WEP flows without hardware modification while

keeping a good interoperability with existing WEP.

Encryption principle of eWEP

eWEP is similar to WEP. The difference between them is that

eWEP encrypts the concatenation of the message and IV with RC4.

Encrypting IV aims to avoid eavesdropping. As shown in Figure 3.1

and Figure 2.2, let’s focus on Mi. In WEP, IV transmitted as plaintext

and concatenate after Ci. Eavesdrops can use the security hole to

gather enough initial vector and then crash the whole WEP secure

and CRC check value and then XOR with keystream.

We can see step5 of Figure 3.1, include message and IV are send

as cipher text. Now, eavesdrops try to gather IV is not easy. They

have to decrypt each packet before gather initial vector. That can

increase mostly security of WEP.

Figure 3.1 Encryption process of eWEP.

As shown in Figure 3.2, eWEP sender uses IVi to encrypt the

concatenation of Mi and IVi+1. Thus, it is sufficient for the receiver to

know the initial IV (e.g. IV1) to decrypt the first packet which

contains IV2 used to decrypt second packet and so on. The

dependency between frame and frame is a vital property. This means

that remote end has to receive first initial packet and then the

following packet could be decrypted.

On the other hand, attacker attempts to modify or forge frame

RC4

KS

1

M

2

CRC

3

4

5

C

RC4

KS

1

M

2

CRC

3

4

5

C

lost during transmission process; the following packet can’t be

decrypted, either. We can also achieve the replay detection by

verifying whether the received packet is decrypt able or not. If the

packet is a replay, it can’t be decrypted by the current IV because it

changes for every packet.

Figure 3.2 cipher principle of eWEP.

eWEP Analysis

We compare WEP with eWEP according three criteria. The first

is level of security; the second is the packet format and finally the

computational overhead.

iv

Frame 1

C

IV

C

IV

C

IV

Frame i-1

Frame i

iv

iv

Frame 1

C

IV

C

IV

C

IV

Frame i-1

Frame i

(1). Security

Security mechanism of WEP has already broken, as shown Figure 3.1

and Figure 3.2, privacy of eWEP is resistant against instructors.

(2). Packet Format

According to eWEP packets, the format of eWEP is different from

original WEP packet. In fact, the difference of packet format will

impact the performance of interoperability between WEP and eWEP.

(3). Computational Overhead

In general, using keystream allows separate computation in two

different sections. The first one is generating keystream and it is done

off-line. The second is the XOR of the message to the keystream.

Although eWEP maintains the principle, it still needs to encrypt

additional 24 bits initial vectors.

From all of the above, we have a conclusion on eWEP. It could

improve the secure level, but packet format and computational

overhead are new problems. Next chapter we are going to provide a

new scheme called Optimized WEP Protocol (O-WEP). O-WEP is

Chapter 4 Optimized WEP Scheme

(O-WEP)

The protection offered by WEP enables users to have the

convenience and the security. However, the paper described Weakness in the Key Scheduling Algorithm of RC4 was

published in 2001 August. The paper presents the famous FMS attack

against WEP. In this chapter, we provide the new WEP scheme is

called Optimized WEP Protocol (O-WEP).

4.1

_{Notation and Nomenclature in O-WEP}

provide the O-WEP mechanism. O-WEP aims to resolve the problem

of WEP without changing or adding hardware but merely software

updating. O-WEP also keeps original packet format to have a great

interoperability with WEP. In this section, all components of O-WEP

are described in the following Table 4.1.

k The secret key of WEP.

MSi MSi is similar to IVi of WEP. it also used to

generate key stream (KSi) dynamically.

KSi The dynamical key stream that is produced by

MSi and IVi.

Mi The ith transmitted message.

Ci The ith encrypted packet.

CRC Cyclic Redundancy Check widely used in

network protocol.

Table 4.1 Notation in O-WEP

MSi and KSi can be written as following functions

MS0 = HMACk(IV0) (1)

MSi = HMACk(IVi, MSi−1) ∀i ≥ 1 (2)

KSi = RC4(k, MSi) ∀i ≥ 0 (3)

C_i = M_i ⊕ KS_i (4)

The HMACk used in the function (1) and function (2) is a

message authentication code (MAC) that constructed by secure hash

algorithms. The purpose of using HMAC is computing the Mi (see the

function (1) and (2), MS can be computed by HMAC algorithm). In

addition, the k of HMAC is a secure key (In initial, the secret key is

The HMAC has included in several international standard such as

SSL protocol and NIST. Besides, IP security also requests that MAC

must implement by HMAC algorithm. In addition, HMAC can use

embedded hash functions without any revision. (In this paper, we

recommend using the SHA2 hash function) The function (3) means

that secret key k and MSi (MSi replaces the original IVi in WEP)

produce key stream KSi by RC4 algorithm. The function (4) explains

that how to produce cipher text Ci by Mi and KSi.

Figure 4.1 transmission processes of O-WEP packets. C₀ CRCCRC IV₀

Sender

Receiver

C_i CRCCRC IV_i Transmitted the 0_thpacket

Transmitted the i_th packet C₀ CRCCRC IV₀

Sender

Receiver

C_i CRCCRC IV_i Transmitted the 0_thpacket

Figure 4.2 explains the process of packets transmitted between

sender and receiver. The transmitted packet can be distinguished into

the initial packet and non-initial packets. The initial packet uses MS0

to encrypt packet and others use MSi to do. The detailed encryption

and decryption processes will make a discussion in the following

section.

4.2

_{O-WEP Cryptographic Operations}

In this section, we will show the detailed process of O-WEP. See

the Figure 4.3, the encryption process of O-WEP is similar to WEP.

O-WEP has the same encryption processing as WEP except that

O-WEP replaces IVi with MSi as the input of RC4 (MS is defined in

function (1) and function (2)). In the following words, we are going to

consider two different situations of O-WEP encryption and decryption

process between sender and receiver. First, the encrypted packet is

initial packet, and the second is that the encrypted packet is non-initial

Figure 4.2 Encryption process in O-WEP.

First, to encrypt the initial packet

When sender transmits the initial packet, he is able to acquire MS0 by

function (2) and then computes RC4 algorithm to acquire KS0 by

function (3) and secret key. Using KS0 to encrypt transmitted packet

and then concatenate the IV0 that has used in function (2) to encrypted

packet and transmit together. If remote end receives the encrypted

packet, receiver uses IV0 to acquire MS0 by function (1) and computes

the KS0 to decrypt the packet.

Second, to encrypt the non-initial packet

If sender transmits the non-initial packet (e.g. i > 0), MSi is going to

generate by function (2) then. However, to produce MSi needs IVi and

MSi-1(which used by previous packet). This means that each computed

MSi has to keep for next transmitted packet to encrypt. Similarly,

RC4 k MS_i

KS

M

C

IV

receiver should keep least continuous two MS to generate later MS.

Figure 4.3 The dependency between O-WEP packets

According to the special mechanism, we can observe the rule of

the packet encryption. Figure 4.4 is showing that the dependency

around O-WEP packets. The relation of packets that links with each

other is like chain architecture. Due to the chain architecture of

O-WEP, each packet needs the packet previous to itself to encrypt and

decrypt. The advantages of this chain architecture are going to have a

detailed conclusion in the following chapter.

HMAC

MS

C

IV

HMAC

_C

IV

MS

HMAC

_C

IV

MS

HMAC

_C

IV

MS

HMAC

MS

C

IV

HMAC

_C

IV

MS

HMAC

_C

IV

MS

HMAC

_C

IV

MS

Chapter 5 Security Analyze

In the above chapter, we use HMAC to improve the security of

WEP, and the following content of this chapter is going to show that

the security analysis of O-WEP.

5.1

_{Security Improved}

We point out that several weakness in the chapter three such as

initialization vector is transmitted as plain text, data source

authentication, reuse secret key stream ,and using Cyclic Redundancy Check and so on. Now, we are going to have the conclusion in the

following words.

(1). Initialization vector is transmitted as plain text Although

packets still transmitted as plain text in the O-WEP, the key

stream (KSi) used to encrypt packets is not produce by IVi and k

but MSi-1 and IVi. Considering that attackers attempt to deliver

FMS attack to gather lots packets, and try to analyze the

encrypted key stream for guessing the original secret key.

However, FMS attack still needs MSi-1 to find initial vector in the

decryption processing. Comparing to WEP, O-WEP can improve

(2). Data source authentication According to Figure 4.4, we can

observe that the dependency around O-WEP packets. When

O-WEP suffers reply attack, the resend or fake packets can not

be decrypted and verified CRC check value. Due to this, the

process of illegal deliver could be detected.

(3). Reuse secret key stream WEP uses 24 bits initial vector (about

16 millions types) and secret key to produce key stream. In a

busy network transmission process, the 24 bits IV too easy to

cause repeated use. (By birthday attack law known that every

4,096 packets will have the redundant situation to be bigger than

one half) In addition, O-WEP uses the MSi that generate by

HMACk (MSi-1, IVi) to produce secret key. If HMACk adopts the

SHA-256 hash function, the length of generated MSi-1 is 256 bits.

However, the probability of repeat using key stream will drop

largely. (By birthday attack law, every 2140 packets will have the

redundant situation to be bigger than one half)

(4). Reliability we are going to make a discussion on this part

How to solve the problem that packets lose during the

transmission? According to Figure 4.4 should simply realize that

O-WEP has the feature of packets dependency. When occur that

packet losing and then the following packet can not be decrypted.

Due to this, if the receiver R detects packets losing, R is going to

receives the special message, S is going to retransmit the packet.

According to above analysis, the security strength of O-WEP

merely depends on the hash function which HMACk adopted. As to

SHA-256, when attacker uses birthday attack to crack 256 bits

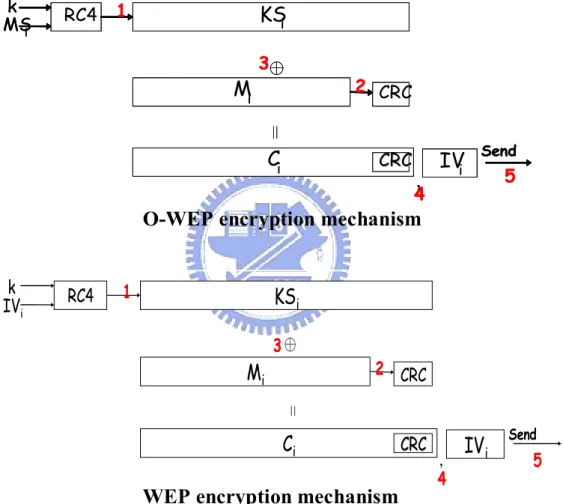

Figure 5.1 the comparison between WEP and O-WEP

message digest, it needs 2(256+24)/2 time complexity to meet one

collision. This makes attackers pay the very great price if they attempt

RC4 k MS i

KS

M

C

IV

KS

M

C

IV

KS

M

C

IV

O-WEP encryption mechanism

In addition, from Figure 5.1 knows that the packet format of

O-WEP is the same as WEP and the only difference between them is

that WEP uses IVi and k to produce KSi but O-WEP uses MSi and k to

do. In addition, O-WEP does not add any extra fields. Due to this,

O-WEP does not use additional network band. As to additional

computation quantity, O-WEP needs that is the part used by HMACk.

In fact, HMACk is included in lots international standard such as RFC

2104, IP security, SSL, and NIPS 198. Besides, HMACk is a special

algorithm that could be support by most hardware. Due to this, the

Chapter 6 Conclusion and future work

6.1

_Conclusion

In this paper, we describe the security holes of WEP working

architecture. In order to eliminate the security holes, we offer the

optimized WEP security mechanism called O-WEP. The great

advantage of O-WEP is that O-WEP does not need any other

hardware renew. Due to this, O-WEP can be the optimized

replacement case of WEP. To compare to original WEP, O-WEP has

the great improvement in security. Although O-WEP increases

neglected additional computation, the extra computation overhead is

the available scope of computer system.

6.2

_{Future work}

Future works should focus on the problem of interoperability.

Indeed, deploying mixed networks will be an unavoidable step

towards deploying O-WEP. Thus, security threat in this case is the

Reference

[1] S. Fluhrer, I. Mantin and A. Shamir, “Weaknesses in the key scheduling algorithm of RC4”, Selected Areas in Cryptography, pp. 1-24, 2001.

[2] M. S. Gast, 802.11 Wireless Networks: The Definitive Guide, 2e, 2005.

[3] H. Krawczyk, M. Bellare and R. Coretti, “The key-hash massage authentication code (HMAC)”, Federal Information Processing Standards Publication 198, 2002.

[4] E. Tews, R. Weinmann and A. Pyshkin, “Breaking 104 bit WEP in less than 60 seconds”, http://www.aircrack-ng.org.

[5] Wi-Fi Alliance, “Wi-Fi Protected Access (WPA)”, http://www.wi-fi.org.

[6] H. Ragab Hassan, and Y. Challal, “Enhanced WEP: An efficient solution to WEP threats”

[7] S. Fluhrer, and D. McGrew, “Statistical Analysis of the Alleged RC4 Key Stream Generator.” Proceeding, Fast Software Encryption 2000.

[8] L. Knudsen, et al. “Analysis Method for Alledged RC4.” Proceedings, ASIACRYPT’98, 1998

[9] S. Mister and S. Tavares. “Cryptanalysis of RC4-Like Ciphers.” Proceedings, Workshop in Selected Areas of Cryptography, SAC’98. 1998.
