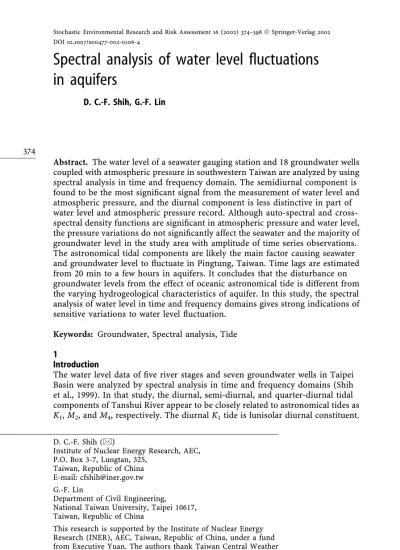

Spectral analysis of water level fluctuations
in aquifers
D. C.-F. Shih, G.-F. Lin
Abstract. The water level of a seawater gauging station and 18 groundwater wells coupled with atmospheric pressure in southwestern Taiwan are analyzed by using spectral analysis in time and frequency domain. The semidiurnal component is found to be the most significant signal from the measurement of water level and atmospheric pressure, and the diurnal component is less distinctive in part of water level and atmospheric pressure record. Although auto-spectral and cross-spectral density functions are significant in atmospheric pressure and water level, the pressure variations do not significantly affect the seawater and the majority of groundwater level in the study area with amplitude of time series observations. The astronomical tidal components are likely the main factor causing seawater and groundwater level to fluctuate in Pingtung, Taiwan. Time lags are estimated from 20 min to a few hours in aquifers. It concludes that the disturbance on groundwater levels from the effect of oceanic astronomical tide is different from the varying hydrogeological characteristics of aquifer. In this study, the spectral analysis of water level in time and frequency domains gives strong indications of sensitive variations to water level fluctuation.
Keywords: Groundwater, Spectral analysis, Tide 1
Introduction
The water level data of five river stages and seven groundwater wells in Taipei Basin were analyzed by spectral analysis in time and frequency domains (Shih et al., 1999). In that study, the diurnal, semi-diurnal, and quarter-diurnal tidal components of Tanshui River appear to be closely related to astronomical tides as K1, M2, and M4, respectively. The diurnal K1tide is lunisolar diurnal constituent. Stochastic Environmental Research and Risk Assessment 16 (2002) 374–398 Springer-Verlag 2002 DOI 10.1007/s00477-002-0106-4
D. C.-F. Shih (&)
Institute of Nuclear Energy Research, AEC, P.O. Box 3-7, Lungtan, 325,
Taiwan, Republic of China E-mail: cfshih@iner.gov.tw G.-F. Lin
Department of Civil Engineering,
National Taiwan University, Taipei 10617, Taiwan, Republic of China
This research is supported by the Institute of Nuclear Energy Research (INER), AEC, Taiwan, Republic of China, under a fund from Executive Yuan. The authors thank Taiwan Central Weather Bureau and Taiwan Provincial Government Water Resources Department for providing useful data.
This constituent, with O1, expresses the effect of the Moon’s declination. They account for diurnal inequality and, at extremes, diurnal tides. With P1, it ex-presses the effect of the Sun’s declination. Its speed equals to 15.0410686 per solar hour. The semidiurnal M2tide is principal lunar semidiurnal constituent. This constituent represents the rotation of the Earth with respect to the Moon. Its speed equals to 28.9841042 per solar hour. The quarter-diurnal M4tide is a shallow water overtide of principal lunar constituent. Its speed equals to 57.9682084 per solar hour. Shih et al. (1999) reports that these phenomena could be caused by the local variation of river channel topography. The diurnal com-ponent reveals a reversed phase angle in the middle section of Tanshui River; the phase of quarter-diurnal component is also reversed at stations in the upstream of Tanshui River and Hsintienhsi river. The autospectrum and cross-spectrum be-tween groundwater elevation and nearby river stages were observed to highly correlate to the frequency of astronomical tide K1, M2, and M4. From that study, the tidal effects of diurnal, semidiurnal, and quarter-diurnal components are significantly different. The water level data at sixteen groundwater wells and two sea water gauging stations, coupled with atmospheric pressure measurements in an alluvial plain in the central-west region of Taiwan, are analyzed by using spectral analysis in the time and frequency domains (Shih et al., 2000). The semi-diurnal component in water level is observed to be the most noticeable signal while the diurnal component is the less distinct signal recorded at the water level stations. The spectral analysis indicates that both the raw, and the atmospheric pressure adjusted water levels are almost in phase and retain the same amplitude in this area. It implies that the effect of pressure variations is not significant for sea water and groundwater level nearby; the astronomical tidal components, as expected, are the main factor causing fluctuation of seawater and groundwater levels in Choshuihsi alluvial plain (Shih et al., 2000).
The purposes of this study are to analyze fluctuations of groundwater levels, seawater level, and nearby atmospheric pressure data in Pintung county, Taiwan. The results of spectral analysis in the study area are systematically described and the significance of fluctuations in water level is also discovered. Data of main astronomical tidal components (Godin, 1972) and atmospheric pressure charac-teristics are presented to demonstrate the tidal phenomena in this study.
2
Background information
In Fig. 1, the study area is located in southern Taiwan. Kaopinghsi, Tung-kanghsi, and Linpienhsi rivers flow through the plain and enter to Taiwan Strait. Laonunghsi and Ailiaohsi, and Lilihsi rivers are in the north and south of plain, respectively. The water level data are collected from eighteen groundwater wells, one seawater level station (KOS), and one atmospheric pressure station (KOSp) for this study (Fig. 1 and Table 1). The construction well boring logs show the aquifer layer and the screen interval of the well (Table 1). The ob-served periodic fluctuations of water level and semi-diurnal band passed water level and clearly appear in most gauging stations (Fig. 2a–e). The oceanic to-pography data indicates the depth of sea floor reaches about 100 m at a distance 20 km from shoreline (Chinese Navy Chart, 1995). The studied aquifers were tapped by groundwater wells of TAC, TTN, NPU, FNL, TNK, KNT, and WNU are above the sea floor elevation while others are partly above or below sea bottom (Table 1).
3
Spectral analysis
Spectral analysis is an effective method to evaluate the characteristics of periodic wave motion in frequency domain (Bendat and Piersol, 1991; Shih et al., 1999; Shih, 1999a, b; Shih et al., 2000). The basic mathematical and statistical calcula-tion procedures of spectral analysis are presented in this seccalcula-tion as a review.
Considering a random variable in the time domain x ¼ x(t), the complex Fourier components in the frequency domain can be expressed as
Xð f Þ ¼ Z1 1
xðtÞe2pftidt ; ð1Þ
where x is a random variable in the time domain; t is the elapsed time; f is cyclical frequency; X is the complex Fourier components in the frequency domain; and i is pffiffiffiffiffiffi1(Bendat and Piersol, 1991).
In a practical application, let the finite time be incorporated in Eq. (1), which can be rewritten as
Fig. 1. Map of locations of groundwater well, seawater gauging station, and atmospheric pressure station in the Pingtung, Taiwan
Table 1. Groundwater well station, seawater gauging station, and atmospheric pressure station Symbol Station name N orth East Altitude (m) Type Material Aquifer top Aquifer bottom Screen top Screen bottom LNY Linyuan 22 30 ¢34.0 ¢¢ 120 23 ¢5.00 ¢¢ 2.214 ) 37.786 ) 19.786 ) 37.786 Con fi ned Fine sand SYN H sinyuan 22 31 ¢32.0 ¢¢ 120 26 ¢37.0 ¢¢ 0.194 ) 21.306 ) 0.806 ) 18.806 Con fi ned Coarse sand with fi ne gravel CHL Chaoliao 22 34 ¢1.40 ¢¢ 120 24 ¢59.8 ¢¢ 8.167 ) 13.833 2.167 ) 12.833 Uncon fi ned Medium sand, fi ne gravel with coarse sand SNC H sinchuang 22 33 ¢53.0 ¢¢ 120 28 ¢16.0 ¢¢ 5.724 ) 22.276 0.724 ) 26.276 Multiple con fi ned Coarse sand, sandy silt, fi ne sand TNK Tungkang 22 28 ¢20.5 ¢¢ 120 26 ¢51.4 ¢¢ ) 1.783 ) 18.783 ) 6.783 ) 15.783 Con fi ned Medium sand KNT Kanting 22 30 ¢59.6 ¢¢ 120 30 ¢12.8 ¢¢ ) 5.603 ) 19.603 ) 9.603 ) 21.603 Con fi ned Medium sand CHC Chaochou 22 32 ¢9.50 ¢¢ 120 32 ¢8.20 ¢¢ 15.805 ) 5.695 3.805 ) 8.195 Con fi ned Medium sand, fi ne gravel with coarse sand WNU Wanluan 22 34 ¢22.0 ¢¢ 120 35 ¢13.0 ¢¢ ) 31.184 ) 68.184 ) 37.184 ) 61.184 Con fi ned Medium gravel with muddy coarse sand CHF Chifeng 22 25 ¢38.0 ¢¢ 120 29 ¢13.0 ¢¢ 2.706 ) 23.294 ) 11.294 ) 23.294 uncon fi ned Fine sand TTN Tatan 22 27 ¢30.0 ¢¢ 120 29 ¢17.0 ¢¢ ) 41.373 ) 88.373 ) 45.373 ) 57.373 Con fi ned Fine sand SNP H sinpei 22 28 ¢20.0 ¢¢ 120 32 ¢35.0 ¢¢ 1.472 ) 12.528 ) 0.528 ) 12.528 Con fi ned Fine gravel with coarse sand WNL Wanlung 22 30 ¢36.0 ¢¢ 120 34 ¢48.0 ¢¢ 12.108 ) 23.892 2.108 ) 21.892 Con fi ned Fine gravel with coarse sand TAC Tachuang 22 23 ¢53.3 ¢¢ 120 32 ¢29.8 ¢¢ ) 22.011 ) 38.011 ) 26.011 ) 38.011 Con fi ned Fine sand FNL Fangliao 22 24 ¢40.0 ¢¢ 120 35 ¢12.8 ¢¢ ) 4.294 ) 63.294 ) 9.294 ) 63.294 Con fi ned Coarse gravel with muddy sand TSN Tahsiang 22 25 ¢52.3 ¢¢ 120 36 ¢48.3 ¢¢ 44.359 ) 24.641 ) 2.641 ) 20.641 Uncon fi ned Coarse gravel SHS Shishih 22 37 ¢25.0 ¢¢ 120 31 ¢2.00 ¢¢ 8.314 ) 19.186 2.314 ) 15.686 Con fi ned Coarse sand and medium sand NPU N eipu 22 36 ¢40.3 ¢¢ 120 33 ¢29.1 ¢¢ ) 71.733 ) 89.733 ) 71.733 ) 119.733 Con fi ned Coarse gravel with coarse sand LOP Laopei 22 37 ¢57.4 ¢¢ 120 35 ¢11.7 ¢¢ 10.042 ) 10.458 10.542 ) 7.458 Con fi ned Medium gravel KOS Kaoshung 22 37 ¢09 ¢¢ 120 16 ¢50 ¢¢ KOSp # Kaoshung 22 34 ¢4.04 ¢¢ 120 18 ¢28.92 ¢¢ Seawater gauging station; # Atmospheric pressure station 377
Fig. 2a–e. Time series of groundwater and seawater level. a KOS, LNY, SYN, CHL, SNC. bKOS, TNK, KNT, CHC, WNU. c KOS, CHF, TTN, SNP, WNL. d KOS, TAC, FNL, TSN. eKOS, SHS, NPU, LOP
Fig. 2. (Continued)
Fig. 2. (Continued)
Xð f ; TÞ ¼ ZT 0
xðtÞe2pftidt ; ð2Þ
where T is a finite time interval.
The transformed component X is not only a function of frequency but also of the finite time length. For a small time period, Eq. (2) cannot be satisfied due to the lack of statistical significance. As a result, the effect of related physical property of water level fluctuations is ignored.
Consider a stationary time series x(t) of total length T, and let the time record be divided into ndcontiguous segments, such as length Ts, it follows that a
two-Fig. 2. (Continued)
sided autospectral density function (Bendat and Piersol, 1991) for each segment can be estimated by Sxx¼ 1 Ts Xð f ; TsÞ j j2 : ð3Þ
By averaging each of the resulting components, we obtain a final ‘‘smooth’’ component to be satisfied with required statistical significant level (Bendat and Piersol, 1991).
Given Dt as the sampling rate in time domain, the discrete frequency is defined as
Fig. 2. (Continued)
fk¼ k Ts
¼ k
NDt; k ¼ 0; 1; 2; . . . ; N 1 ð4Þ
where N is the length of segments.
The smoothed, one-sided autospectral density function is expressed as
Fig. 3a–e. Auto-spectral density function of groundwater and seawater level. a KOS, LNY, SYN, CHL, SNC. b KOS, TNK, KNT, CHC, WNU. c KOS, CHF, TTN, SNP, WNL. d KOS, TAC, FNL, TSN. e KOS, SHS, NPU, LOP
Gxx¼ 2 ndNDt Xnd i¼1 Xið fkÞ j j2; k ¼ 0; 1; 2; . . . ;N 2 : ð5Þ
In order to obtain the cross-spectral density function in frequency domain for two time series, for example x(t) and y(t), the raw estimate of cross-spectral density function for each sub-record is computed through Fourier components X( fk) and Y( fk) by using
Fig. 3. (Continued)
Gxy ¼ 2 ndNDt
½Xð fkÞYð fkÞ ð6Þ
where X( fk) is the complex conjugate of X( fk), and k ¼ 0; 1; 2; . . . ; N=2. As previously mentioned, the smooth estimate of cross-spectral density func-tions for ndblocks of time series can be expressed as
~ G Gxyð fkÞ ¼ ~CCxyð fkÞ i~QQxyð fkÞ ¼ ~GGxyð fkÞ ei ~hhxyð fkÞ ð7Þ Fig. 3. (Continued) 385
~ h hxyð fkÞ ¼ tan1½~QQxyð fkÞ=~CCxyð fkÞ ð8Þ and ~ cc2xyð fkÞ ¼ ~ G Gxyð fkÞ 2 ~ G Gxxð fkÞ~GGyyð fkÞ ; ð9Þ
where ~CCxyð fkÞ; ~QQxyð fkÞ; ~hhxyð fkÞ; ~cc2
xyð fkÞ are co-spectrum, quadrature-spectrum, phase lag and squared coherence, respectively for k ¼ 0; 1; 2; . . . ; N=2.
The autospectral density function using 95% confidence interval is then given as n~GGxxð fkÞ v2 n;0:05=2 ^GGxxð fkÞ n~GGxxð fkÞ v2 n;10:05=2 ; ð10Þ where v2
n;ais the Chi-square distribution such that probability ½v2n>v2n;a ¼ a for a percentage a with n degree of freedom, n ¼ 2nd(Bendat and Piersol, 1991).
Fig. 3. (Continued)
The coherence with 95% confidence interval for small random error approx-imately given by Bendat and Piersol (1991) is then
1 2 ffiffiffi 2 p ð1 ~cc2ð f kÞÞ ~ ccð fkÞ j j ffiffiffiffiffind p ^cc 1 þ2 ffiffiffi 2 p ð1 ~cc2ð f kÞÞ ~ ccð fkÞ j j ffiffiffiffiffind p : ð11Þ
Therefore, the 95% non-zero coherence significant level (NZC; Shih et al., 1999; Shih, 1999a, b, 2000) is derived as
~ ccð fkÞ ¼ ~jccð fkÞj ¼ ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi ndþ 32 p ffiffiffiffiffind p 4pffiffiffi2 : ð12Þ 4 Data analysis
The water level of sea water gauging station, groundwater well, and atmospheric pressure stations are collected hourly from 1999/02/04 01 h to 1999/10/31 24 h.
Fig. 3. (Continued)
There are 6480 data points collected at TTN, SYN, CHF, TAC, TNK, LNY, CHL, KNT, SNC, SNP, CHC, SHS, FNL, NPU, WNU, TSN, LOP and WNL for
groundwater level measurements, at KOS for seawater level measurements, and at KOSp for atmospheric pressure data (Fig. 1; Table 1). In order to study the extent of atmospheric pressure effect on the water level in groundwater wells and sea water, a comparison of atmospheric pressure with the observed water level in well and sea water gauging station is adopted. The Nyquist frequency is then
Fig. 4a–e. Cross-spectral density function of groundwater and seawater level. a KOS to LNY, SYN, CHL, SNC. b KOS to TNK, KNT, CHC, WNU. c KOS to CHF, TTN, SNP, WNL. dKOS to TAC, FNL, TSN. e KOS to SHS, NPU, LOP
computed by 1/2Dt ¼ 0.5 cycles/hour (cph). In order to reduce random error of estimation of the spectral density function, the data are divided into six sub-records to obtain a smooth estimate by using Eqs. (5) and (6). The sample length for each hourly sub-record is 1080 h or approximately 45 days. To suppress a leakage problem, the Hanning window is applied for each sub-record (Bloomfield, 1976). By using Fast Fourier Transform, 1080 samples will generate 540 discrete frequencies, of which the resolution of the discrete frequency is
0.92593 · 10)3cph. The autospectral density function of 95% confidence interval has the lower and the upper extremes of 0.514 and 2.725, respectively, and the
Fig. 4. (Continued)
non-zero coherence significant level (NZC) is calculated to be 0.657. Although the confidence interval of cross-spectral density function is dependent on coherence at each discrete frequency interval, it is acceptable that the significant peak in cross-spectral density function is evaluated by non-zero coherence rather than by confidence interval. The autospectral and cross-spectral density functions are analyzed and plotted in Figs. 3a–e and 4a–e, respectively. In order to analyze the relationships between atmospheric pressure and water level, the autospectrum and cross-spectrum of atmospheric pressure are computed and shown Fig. 6a and
Fig. 4. (Continued)
b. Finally, the phase angle and time lag are discussed to summarize the charac-teristics of the spectral analysis (Tables 2 and 3, Figs. 7 and 8).
5
Discussion
The autospectrum of seawater levels (Fig. 3a) indicates that the distinctive peak in spectrum at frequencies of 0.041667 and 0.08333300 cph are noted with signifi-cance over 95% confidence interval for KOS. These frequencies are related to periods of diurnal (24 h), semi-diurnal (12 h), respectively. There are 4 weak peaks at 0.12037, 0.16204, 0.20463, and 0.24352 (cph) with spectrum under 10)2m2/cph, related to period 8.3077, 6.1714, 4.8869, and 4.1065 (h). For the semi-diurnal component, significant peaks of auto-spectral density function of sea levels at KOS, and groundwater levels at LNY, SYN, SNC, TNK, KNT, CHC, WNU, CHF, TTN, WNL, TAC, FNL, TSN, SHS, NPU, and LOP are discovered (Fig. 3a–e); while CHL, SNC, CHF, TTN, SNP, WNL, TSN, and LOP have weak peak spectrum under 10)2m2/cph. For the diurnal component, the significant peaks of auto-spectral density function of sea levels at KOS, and groundwater levels at LNY, SYN, CHL, SNC, TNK, KNT, CHC, WNU, CHF, TTN, SNP, WNL,
Fig. 4. (Continued)
TAC, FNL, TSN, SHS, NPU, and LOP are discovered (Fig. 3a–e). Among them, the spectrum of groundwater levels at CHL and SNC show weak peak under 10)2m2/cph. The periods lower than diurnal and semidiurnal components, at 8.3077, 6.1714, 4.8869, and 4.1065 (h), are shown at SYN, WNU SNP, WNL, TAC, FNL, SHS, and NPU. The cross-spectral density function of semi-diurnal com-ponents, between pairs KOS to LNY, SYN, SNC, TNK, KNT, WNU, CHF, TTN, WNL, TAC, FNL, TSN, SHS, NPU, and LOP, have significant coherence (exceed NZC) and spectrum (Fig. 4a–e). For diurnal component, spectrums for KOS to LNY, SYN, SNC, TNK, KNT, WNU, CHF, TTN, WNL, TAC, FNL, TSN, SHS, NPU, and LOP, show peaks in cross-spectral density function, but with low level coherence (below NZC).
The variations in atmospheric pressure at ocean surface can induce sea level up or down to a certain degree. The increase in atmospheric pressure will depress water level by approximately 1 cm per millibar (mb) of pressure change (Gill, 1982). The autospectrum of atmospheric pressure at KOSp shows three distinct peaks to appear at semidiurnal and diurnal frequencies (Fig. 6a). However, the range of pressure changes were within 5 mb (»5 cm on oceanic water level) at KOSp pressure station, and the change is considered to be small as compared to
Fig. 4. (Continued)
the fluctuation of sea level and that of water level in some of groundwater wells (Fig. 5), although the spectral peaks (Fig. 6a) and high coherence (Fig. 6b) are noted in atmospheric pressure, sea level, and groundwater level for semidiurnal and diurnal components.
Table 3. Time lag of water level between KOS and groundwater
Frequency 0.041667 0.083333 0.120370 0.162040 0.204630 0.243520 Period 24.0000 12.0000 8.3077 6.1714 4.8869 4.1065 KOS–LNY )5.791 )1.720 0.603 1.304 1.748 )1.977 KOS–SYN )3.010 3.109 )0.487 )1.452 0.470 0.281 KOS–CHL 6.308 5.243 )2.707 )1.540 )1.877 )1.049 KOS–SNC 6.006 )5.275 3.079 )0.622 )1.882 )0.434 KOS–TNK 1.356 1.289 2.447 0.912 0.393 )1.323 KOS–KNT )5.384 )0.369 0.696 2.093 0.003 0.885 KOS–CHC )1.348 3.492 0.674 )1.885 0.039 0.423 KOS–WNU )6.690 )4.287 )0.141 0.172 0.726 )1.990 KOS–CHF 3.787 5.142 3.021 )0.694 1.425 )1.796 KOS–TTN 1.151 )2.274 2.321 )2.868 )1.560 0.225 KOS–SNP )7.101 )3.575 )0.688 0.604 1.222 )1.463 KOS–WNL )8.248 )5.838 1.734 2.591 )1.613 0.869 KOS–TAC 1.522 )3.576 0.079 1.786 )0.645 )1.042 KOS–FNL 5.194 )5.195 )2.229 0.588 0.490 0.953 KOS–TSN )4.406 )4.475 3.049 0.832 )0.152 )0.203 KOS–SHS 2.875 1.103 2.180 1.662 2.266 0.639 KOS–NPU )3.634 )3.314 1.478 0.508 )1.329 1.591 KOS–LOP )6.500 )4.732 2.676 )1.337 0.941 )1.594
(Time lag: hour; Frequency: cph; Period: hour)
Table 2. Phase of water level between KOS and groundwater
Frequency 0.041667 0.083333 0.120370 0.162040 0.204630 0.243520 Period 24.0000 12.0000 8.3077 6.1714 4.8869 4.1065 KOS–LNY )86.86 )1.72 26.12 76.08 128.75 )173.32 KOS–SYN )45.15 93.26 )21.11 )84.70 34.60 24.63 KOS–CHL 94.62 157.29 )117.31 )89.81 )138.25 )91.93 KOS–SNC 90.09 )158.26 133.40 )36.30 )138.63 )38.08 KOS–TNK 20.34 38.68 106.05 53.17 28.95 )116.00 KOS–KNT )80.76 )11.07 30.15 122.07 0.20 77.57 KOS–CHC )20.23 104.76 29.22 )109.97 2.88 37.09 KOS–WNU )100.35 )128.60 )6.09 10.01 53.48 )174.42 KOS–CHF 56.80 154.27 130.90 )40.46 104.98 )157.47 KOS–TTN 17.26 )68.21 100.58 )167.32 )114.88 19.69 KOS–SNP )106.52 )107.25 )29.80 35.23 90.02 )128.29 KOS–WNL )123.72 )175.14 75.16 151.16 )118.80 76.19 KOS–TAC 22.83 )107.28 3.40 104.19 )47.52 )91.35 KOS–FNL 77.90 )155.84 )96.58 34.27 36.07 83.52 KOS–TSN )66.09 )134.25 132.11 48.50 )11.16 )17.83 KOS–SHS 43.12 33.09 94.48 96.95 166.95 56.02 KOS–NPU )54.50 )99.43 64.06 29.65 )97.92 139.45 KOS–LOP )97.50 )141.96 115.97 )77.96 69.33 )139.77
(Phase: degree; Frequency: cph; Period: hour)
The semidiurnal signals are discovered with high coherence between water level and atmospheric pressure at KOSp (Fig. 6b). The similar phenomena are clearly correlative between atmospheric pressure and groundwater level for some stations (Fig. 6b). The variations in time series of atmospheric pressure, seawater level, and groundwater level seem to be in a similar fluctuation pattern (Fig. 5). Furthermore, from time series observation, the phase of atmospheric pressure at KOSp is in phase with water level fluctuation of groundwater well at NPU, WNU, SHS, CHC, SNP, FNL, KNT, TNK and TAC, and seawater at KOS (Fig. 5). It is suggested that pressure variations do not significantly affect sea water and groundwater level but probably dominated by astronomical tidal effect in KOS.
Godin (1972) reports that the astronomical tides for semidiurnal M2 and di-urnal M1, S1, and K1tides are at frequencies 0.08051, 0.04027, 0.04167, and 0.04188 cph, respectively. From the above-mentioned results of spectral re-sponses, the astronomical tidal components may be the main factor causing fluctuations in both sea water and groundwater levels. To further study the actual astronomical tidal components, a harmonic analysis and longer time series are recommended to be adopted in the future.
Fig. 5. Time series of atmospheric pressure and water level
The phase and time lag for water level at KOS to groundwater level are shown in Fig. 7, Table 2 and Fig. 8, Table 3. For semi-diurnal component, the maximum and minimum time lag is 5.838 and 0.369 h for WNL and KNT (Table 3), respectively. Both WNL and KNT lead KOS for semi-diurnal component (Table 2). For different phase and time lag distribution, such relationship is resulted from the fact that the groundwater flowing through the aquifer is dominated by characteristics of the aquifer matrix. Time lags are estimated from twenty minutes to a few hours in aquifers.
From the above analysis, the groundwater level in the coast of the study area fluctuated in a similar pattern with astronomical tide. Therefore, by assuming that the external disturbance can affect the groundwater fluctuation, the aquifer characteristics must be the one to dominate the change in amplitude. The purpose
Fig. 6. aAuto-spectral density function of atmospheric pressure, groundwater and sea-water level (KOSp, CHC, KNT, TNK, KOS). b Cross-spectral density function between atmospheric pressure and water level (KOSp to KOS, CHC, KNT, TNK)
of this study is to evaluate the general characteristics of groundwater fluctuation by spectral analysis and to explore the relationship between frequency and am-plitude variation caused by the water level fluctuation in southwestern Taiwan. This study demonstrates in a fact that spectral analysis is a useful method to study periodical fluctuation of groundwater and tidal water.
6
Conclusion
Water level of seawater gauging station and eighteen groundwater wells in southwestern Taiwan are analyzed by using spectral analysis in time and
Fig. 6. (Continued)
frequency domain. The autospectral and cross-spectral density function, co-herence, phase angle, and the associated statistic parameters are studied through 270 days of hourly data collected. The semidiurnal component is found to be the most significant signal from the measurement of water level and atmospheric pressure, and the diurnal component is less distinctive in part of water level and atmospheric pressure record. Although auto-spectral and cross-spectral density functions are significant in atmospheric pressure and water level, the pressure
Fig. 7. Phase of water level between seawater at KOS and groundwater for semi-diurnal component
Fig. 8. Time lag of water level between seawater at KOS and groundwater for semi-diurnal component
variations do not significantly affect the seawater and the majority of groundwater level in the study area from amplitude of time series observations. It concludes that astronomical tidal components are likely to be the main factor causing seawater and groundwater level to fluctuate in Pingtung, Taiwan. The time lags are estimated from 20 min to a few hours in aquifers. In this study, the spectral analyses of water level in time and frequency domains give strong indications of sensitive variations to water level fluctuation.
