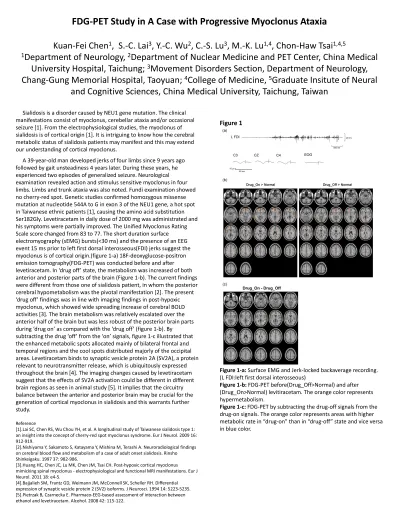

FDG-PET Study in A Case with Progressive Myoclonus Ataxia
Kuan-Fei Chen
1
, S.-C. Lai
3
, Y.-C. Wu
2
, C.-S. Lu
3
, M.-K. Lu
1,4
, Chon-Haw Tsai
1,4,5
1
Department of Neurology,
2
Department of Nuclear Medicine and PET Center, China Medical
University Hospital, Taichung;
3
Movement Disorders Section, Department of Neurology,
Chang-Gung Memorial Hospital, Taoyuan;
4
College of Medicine,
5
Graduate Insitute of Neural
and Cognitive Sciences, China Medical University, Taichung, Taiwan
Figure 1-a: Surface EMG and Jerk-locked backaverage recording.
(L FDI:left first dorsal interosseous)
Figure 1-b: FDG-PET before(Drug_Off>Normal) and after
(Drug_On>Normal) levitiracetam. The orange color represents hypermetabolism.
Figure 1-c: FDG-PET by subtracting the drug-off signals from the
drug-on signals. The orange color represents areas with higher
metabolic rate in “drug-on” than in “drug-off” state and vice versa in blue color.
Sialidosis is a disorder caused by NEU1 gene mutation. The clinical
manifestations consist of myoclonus, cerebellar ataxia and/or occasional seizure [1]. From the electrophysiological studies, the myoclonus of
sialidosis is of cortical origin [1]. It is intriguing to know how the cerebral metabolic status of sialidosis patients may manifest and this may extend our understanding of cortical myoclonus.
A 39-year-old man developed jerks of four limbs since 9 years ago followed by gait unsteadiness 4 years later. During these years, he
experienced two episodes of generalized seizure. Neurological
examination revealed action and stimulus sensitive myoclonus in four
limbs. Limbs and trunk ataxia was also noted. Fundi examination showed no cherry-red spot. Genetic studies confirmed homozygous missense
mutation at nucleotide 544A to G in exon 3 of the NEU1 gene, a hot spot in Taiwanese ethnic patients [1], causing the amino acid substitution
Ser182Gly. Levetiracetam in daily dose of 2000 mg was administrated and his symptoms were partially improved. The Unified Myoclonus Rating
Scale score changed from 83 to 77. The short duration surface
electromyography (sEMG) bursts(<30 ms) and the presence of an EEG event 15 ms prior to left first dorsal interosseous(FDI) jerks suggest the myoclonus is of cortical origin.(figure 1-a) 18F-deoxyglucose-positron emission tomography(FDG-PET) was conducted before and after
levetiracetam. In ‘drug off’ state, the metabolism was increased of both anterior and posterior parts of the brain (Figure 1-b). The current findings were different from those one of sialidosis patient, in whom the posterior cerebral hypometabolism was the pivotal manifestation [2]. The present ‘drug off’ findings was in line with imaging findings in post-hypoxic
myoclonus, which showed wide spreading increase of cerebral BOLD activities [3]. The brain metabolism was relatively escalated over the
anterior half of the brain but was less robust of the posterior brain parts during ‘drug on’ as compared with the ‘drug off’ (figure 1-b). By
subtracting the drug ‘off’ from the ‘on’ signals, figure 1-c illustrated that the enhanced metabolic spots allocated mainly of bilateral frontal and temporal regions and the cool spots distributed majorly of the occipital
areas. Levetiracetam binds to synaptic vesicle protein 2A (SV2A), a protein relevant to neurotransmitter release, which is ubiquitously expressed
throughout the brain [4]. The imaging changes caused by levetiracetam suggest that the effects of SV2A activation could be different in different brain regions as seen in animal study [5]. It implies that the circuitry
balance between the anterior and posterior brain may be crucial for the generation of cortical myoclonus in sialidosis and this warrants further study.
Reference
[1].Lai SC, Chen RS, Wu Chou YH, et al. A longitudinal study of Taiwanese sialidosis type 1: an insight into the concept of cherry-red spot myoclonus syndrome. Eur J Neurol. 2009 16: 912-919.
[2].Nishiyama Y, Sakamoto S, Katayama Y, Mishina M, Terashi A. Neuroradiological findings on cerebral blood flow and metabolism of a case of adult onset sialidosis. Rinsho
Shinkeigaku. 1997 37: 982-986.
[3].Huang HC, Chen JC, Lu MK, Chen JM, Tsai CH. Post-hypoxic cortical myoclonus
mimicking spinal myoclonus - electrophysiological and functional MRI manifestations. Eur J Neurol. 2011 18: e4-5.
[4].Bajjalieh SM, Frantz GD, Weimann JM, McConnell SK, Scheller RH. Differential
expression of synaptic vesicle protein 2 (SV2) isoforms. J Neurosci. 1994 14: 5223-5235. [5].Pietrzak B, Czarnecka E. Pharmaco-EEG-based assessment of interaction between ethanol and levetiracetam. Alcohol. 2008 42: 115-122.
