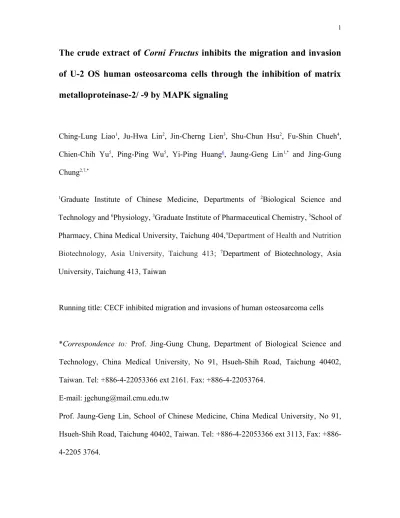

The crude extract of Corni Fructus inhibits the migration and invasion
of U-2 OS human osteosarcoma cells through the inhibition of matrix
metalloproteinase-2/ -9 by MAPK signaling
Ching-Lung Liao1, Ju-Hwa Lin2, Jin-Cherng Lien3, Shu-Chun Hsu2, Fu-Shin Chueh4, Chien-Chih Yu5, Ping-Ping Wu5, Yi-Ping Huang6, Jaung-Geng Lin1,* and Jing-Gung Chung2,7,*
1Graduate Institute of Chinese Medicine, Departments of 2Biological Science and Technology and 6Physiology, 3Graduate Institute of Pharmaceutical Chemistry, 5School of Pharmacy, China Medical University, Taichung 404,4Department of Health and Nutrition
Biotechnology, Asia University, Taichung 413; 7Department of Biotechnology, Asia University, Taichung 413, Taiwan
Running title: CECF inhibited migration and invasions of human osteosarcoma cells
*Correspondence to: Prof. Jing-Gung Chung, Department of Biological Science and Technology, China Medical University, No 91, Hsueh-Shih Road, Taichung 40402, Taiwan. Tel: +886-4-22053366 ext 2161. Fax: +886-4-22053764.
E-mail: [email protected]
Prof. Jaung-Geng Lin, School of Chinese Medicine, China Medical University, No 91, Hsueh-Shih Road, Taichung 40402, Taiwan. Tel: 4-22053366 ext 3113, Fax: +886-4-2205 3764.
E-mail: [email protected]
Abstract. Osteosarcoma is the most common primary malignancy of the bone cancers. In the Chinese population, the crude extract of Corni Fructus (CECF) has been used as Traditional Chinese medicine (TCM) to treat several different diseases for hundreds of years. In the present study, effects of CECF on inhibition of migration and invasion in U-2 OS human osteosarcoma cells were examined. CECF significantly inhibited migration and invasion of U-2 OS human osteosarcoma cells. We also found that CECF inhibited activities of matrix metalloproteinases-2 (MMP-2) and matrix metalloproteinases-9 (MMP-9). CECF decreased protein levels of FAK, PKC, SOS1, MKK7, MEKK3, GRB2, NF-κB p65, COX-2, HIF-1α, PI3K, Rho A, ROCK-1, IRE-1α, JNK1/2, ERK1/2, p-p38, Ras, p-PERK, MMP-2, MMP-9 and VEGF in U-2 OS cells. Results of this study indicate that CECF may have potential as a novel anti-cancer agent for the treatment of osteosarcoma by inhibiting migration and invasion of cancer cells
Key word: Crude extract of Corni Fructus (CECF), U-2 OS human osteosarcoma cells,
Introduction
It is well known that in adolescents and children, osteosarcoma is the most common primary malignant tumor in bone . In human neoplasm, primary bone tumors are relatively uncommon and account for only 0.2% but osteosarcoma is easily allied with other malignancies . Osteosarcoma has a poor prognosis due to distal metastases that are usually developed prior to diagnosis. It was reported that patients with osteosarcoma who have five-year survival rates are not >30% after the detection of lung metastasis .
Cancer cell invasion and metastasis involve changes in the physical coupling of cells to their microenvironment, activation/degradation of extra-cellular matrix (ECM) and break-down of ECM by proteinases . Metastatic cells need to detach from the primary tumor and then attach to a metastatic site through tissue-specific microvessel cell adhesion molecules . Matrix metalloproteinases (MMPs), a family of ECM degrading proteinases, are a group of zinc dependent endo-peptidases involved in mammalian angiogenesis, wound healing, and tissue remodeling, and they play an important role in cell invasion and metastasis through controlling degradation of the ECM . Several studies have been focused on identifying MMP inhibitors as anti-cancer agents .
In Asia, individual from rural communities have used a crude substance from Corni
fructus, the fruit of Cornus officinalis Sieb. Et Zucc. (family Cornaceae) for treatment of
different diseases (tuberculosis, urination, allergy, asthma, hepatitis, lumbago, and chronic nephritis) . The crude substance of Corni fructus has biological activities such as anti-microbial, anti-diabetic in animal models (diabetes rats induced by streptozotocin), and the ability to protect against skin injury induced by X- irradiation in mice . There is no information on crude extract of Corni fructus (CECF) affecting migration and
invasion of cancer cells. In the present study, we investigated the effects of CECF on migration and invasion in U-2 OS human osteosarcoma cell line. We found that CECF inhibited migration and invasion by reduction of gene and protein expression of MMP-2 and -9.
Materials and Methods
Chemicals and reagents. Dimethyl sulfoxide (DMSO), propidium iodide (PI), Tris-HCl
Trypsin, and Trypan blue were purchased from Sigma Chemical Co. (St. Louis, MO, USA). McCoy’s 5A medium, L-glutamine, fetal bovine serum, penicillin-streptomycin, and trypsin-EDTA were purchased from Gibco BRL (Grand Island, NY, USA). Crude extract of Corni Fructus (CECF) was kindly provided by Dr. Chien-Chih Yu (School of Pharmacy, China Medical University, Taichung, Taiwan). All chemicals and reagents
were of analytical grade. DMSO (0.5%) was used as the carrier solvent and vehicle control.
U-2 OS cell culture. The U-2 OS human osteosarcoma cell line was purchased from the
Food Industry Research and Development Institute (Hsinchu, Taiwan). U-2 OS cells were maintained in 90% McCoy’s 5A medium with 10% FBS, 2 mM L-glutamine, 100
Units/ml penicillin and 100 g/ml streptomycin and placed onto 75 cm2 tissue culture flasks. Cells were cultured at 37 C under a humidified 5% CO2 atmosphere as described previously .
density of 2×105 cells/well. Cells were treated with different CECF concentrations (0, 50, 100, 250, 500 and 750 g/ml) or 0.5% DMSO (as a vehicle control) for 24 hours. Cells were then harvested stained with PI (5 g/ml) and analyzed using a PI exclusion method by flow cytometry (BD Biosciences, FACSCalibur, San Jose, CA, USA) as previously described .
Wound healing assay. U-2 OS cells at a density of 5×105 cells/well were maintained in 10 cm petri dishes until they were completely confluent. Cell monolayers were then scraped with a sterile yellow micropipette tip and washed with PBS three times. Cells in each well were then cultured in medium containing 0-500 g/ml of CECF for 24 hours, then random fields were photographed using an inverted microscope as described previously .
Cell invasion and migration assay. Cell mobility (migration and invasion) assay was
conducted using Matrigel Cell Migration Assay and Invasion System as described previously . Cell migration was determined using transwell (BD Biosciences, Franklin Lakes, New Jersey, USA) cell culture chambers (8 mm pore size; Millipore, Billerica, Massachusetts, USA). U-2 OS cells were maintained in serum-free medium for 24 h and then were trypsinized and resuspended in serum-free McCoy’s 5A medium and placed in the upper chamber of the transwell insert (5 x104 cells/well). Cells were then incubated with 0.5% DMSO or CECF (250 and 500 g/ml), and 90% McCoy’s 5A medium containing 10% FBS was added to the lower chamber and incubation for 24 or 48 hours. Non-migrating cells in the upper chamber were removed by wiping with a cotton swab and migrating cells in the lower surface of the filter were fixed with 4% formaldehyde in
PBS and stained with a gap between 2% and crystal violet in 2% ethanol and then were counted under a light microscope at x200. The invasion assay was performed as described for the cell migration assay except that the filter membrane was coated with Matrigel from a BioCoat Matrigel invasion kit. Cells located on the underside of the filter were counted with a light microscope at x200.
Gelatin zymographic assay for MMPs activity. Gelatin zymography were performed to measure the secretions of MMP-2 and MMP-9 into the media from U-2 OS after exposure to CECF as described previously . U-2 OS cells (5x105 cells/well) were maintained in 12-well plates for 24 hours then were treated with CECF (50 - 500 g/ml)
and incubated at 37ºC for 24 hours. Cells were harvested and the supernatant from each concentrated culture was re-suspended in non-reducing loading buffer and incubated at 37ºC for 15 min and then placed on 10% SDS-PAGE cast with 0.1% gelatin electrophoresed. Gels were then incubated in re-naturing buffer (2.5% Triton X-100) for 30 min, followed by incubation for 24 h at 37°C in a developing buffer (50mM Tris-HCl (pH 7.8) 10 mM CaCl2, 150 mM NaCl). Coomassie Brilliant Blue R 250 was used for staining and destained by using 30% methanol, 10% acetic acid in order to detect gelatinase secretion .
Western blotting analysis. Levels of proteins associated with cell migration and invasion
were determined in U-2 OS cells. U-2 OS cells at a density of 1x106 cells/well were placed in 6-well plates for 24 hours. Each well was incubated with 500 g/ml of CECF or DMSO (solvent) alone and incubated at 37 ºC for 0, 6, 12, 24 and 48 hours. Cells were
harvested and lysed with ice-cold 50 mM potassium phosphate buffer (pH 7.4) containing 2 mM EDTA and 0.1% Triton X-100, sonicated and then was centrifuged at 13,000g for 10 min at 4ºC. The supernatant was collected and total protein was determined using a Bio-Rad protein assay kit (Hercules, California, USA) with bovine serum albumin (BSA) as the standard. At the end of electrophoresis, proteins were electro transferred to nitrocellulose membranes, blotted with the relevant primary antibodies such as anti-FAK, PKC, SOS1, MKK7, MEKK3, GRB2, NF-κB p65, COX-2, HIF-1α, PI3K, GRB2, Rho A, ROCK-1, IRE-1α, p-JNK1/2, p-ERK1/2, p-p38, Ras, p-PERK, MMP-2, MMP-9 and VEGF, then were washed and were stained with secondary antibody. Detection of the bands was accomplished using an enhanced chemiluminescence reagent (Amersham Biosciences ECLTM) and quantified using a NIH Image analyzer (NIH, Bethesda, MD) .
Statistical analysis. All data are represented as the means ± standard deviation (S.D.) from at least three independent experiments. Statistical analyses of data were done by Student's t-test, the differences between the CECF-treated and control groups are *P < 0.05, **P < 0.01, ***P < 0.001 that were considered significant.
Results
CECF affects the percentage of viable U-2 OS human osteosarcoma cells. U-2 OS cells
were treated with 0, 50, 100, 250, 500 and 750 g/ml of CECF for 24 h, and the percentage of viable cells was measured. Figure 1 shows that CECF did not significantly decrease the percentage of viable cells at concentrations between 50-750 g/ml.
used for determining if migration of U-2 OS cells would be inhibited after incubation with CECF (0, 250 and 500 g/ml). It can be seen in Figure 2 that CECF inhibited the migration of U-2 OS cells in a dose- and time-dependent manner.
CECF inhibited the migration and invasion of U-2 OS cells in vitro. To confirm and
extend effects of CECF on migration and invasion of U-2 OS cells, cells were treated with 0, 250 and 500 g/ml for 24 and 48 h and seeded on Millicell chambers with uncoated (for migration) or matrigel-coated (for invasion) filters. After incubation, cell migration activity and invasive potential of U-2 OS cells were measured and results are shown in Figure 3 and 4. CECF significantly inhibited migration of U-2 OS cells (Fig. 3) and that finding is consistent with data shown in Figure 2. Figure 4 shows that CECF significantly inhibited the invasion of U-2 OS cells.
CECF inhibited activity of the matrix metalloproteinases-2 and -9 in U-2 OS cells. In
order to examine whether CECF induced inhibited migration and invasion of U-2 OS cells are associated with activity of MMP-2 and -9 gelatin zymography was used and results are shown in Figure 5. CECF treatment of U-2 OS cells significantly reduced activity of both MMP-2 and MMP-9 (Fig. 5).
CECF alters levels of proteins associated with migration and invasion of U-2 OS cells.
Cells were treated with CECF for 24 h and levels of the proteins NF-κB p65, Rho A and ROCK-1were examined by immuno-staining. CECF inhibited NF-κB p65 (Figure 6A), Rho A (Figure 6B) and ROCK-1 (Figure 6C) protein levels in the cytosol. We also
observed that levels of FAK, PKC, SOS1, MKK7, MEKK3, GRB2 (Figure 7A), NF-κB p65, COX-2, HIF-1α, PI3K, GRB2, Rho A, ROCK-1 (Figure 7B), p-JNK1/2, p-ERK1/2, p-p38, Ras, p-PERK (Figure 7C), MMP-2, MMP-9 and VEGF (Figure 7D) were significantly lower in CECF-treated cells than control cells.
Discussion
Several studies showed that CECF has biological activity cytotoxicity and reducing cell numbers. CECF has anti-cancer activity . In the present study we determined if CECF would alter cancer cell migration and invasion. CECF reduced cell migration (Figure 2 and 3) and invasion (Figure 4) of U-2 OS human osteosarcoma cancer cells in vitro. We also investigated the key factors and signaling pathways that are acted upon by CECF and that are associated with U-2 OS cancer cell motility. CECF inhibited the activity of both MMP-2 and -9 as determined by gelatin zymography(Fig. 5). Both enzymes (MMP-2, -9) play important roles in cancer cell migration and invasion . A number of recent studies have demonstrated a correlation between MMPs (a family of zinc containing proteolytic enzymes) and cell migration and invasion implications in cancer cell invasion .
Results from Western blotting showed that CECF reduced the levels of FAK and it also led to affect the down-stream kinases ERK1/2, JNK and p38 in U-2 OS cells.It was reported that FAK/Src signaling plays an important role in tumor metastasis by increasing cell migration and invasion . Our findings suggest that the cooperation of FAK/Src with ERK1/2 may play an important role in CECF-mediated inhibition of cell migration in U-2 OS cells. CECF also inhibited the levels of PI-3K. in U-2 OS cells. In cancer cells it has been reported that activated FAK (Tyr 397)/Src (Tyr 416) may stimulate transduction
signaling through multiple down-stream targets, such as PI-3K/AKT and Ras/ERK1/2. We found that CECF decreased the levels of NF-kB and inhibited MMP-2 and -9 activities that may occur via involved in both ERK1/2MAPK and NF-kB signaling pathways for causing the reduced protein levels of MMP-2 and -9.
CECF protein levels of growth factor receptor-bound protein 2 (GRB2), FAK, Src and Rho A which may also contribute to the down-stream inhibition of MMP-2 and -9. Formation of FAK/Src complex allows Src to phosphorylate FAK and then to mediate its interaction with GRB2 then to activate the Ras-ERK signaling pathway . The aberrant regulation of Rho A proteins is associated with metastasis by promoting tumor cell motility . CECF may act as an effective inhibitor of ERK/Rho signaling in U-2 OS cells.
In conclusion, we show for the first time that CECF in U-2 OS cancer cells inhibits migration and invasion by regulating FAK, PKC, SOS1, MKK7, MEKK3, GRB2, NF-κB p65, COX-2, HIF-1α, PI3K, GRB2, Rho A, ROCK-1, IRE-1α, JNK1/2, ERK1/2, p-p38, Ras, p-PERK and VEGF expression and inhibition of MMP-2 and -9 activities. These results provide the foundation for further and more detailed CECF studies on inhibition of cell migration and invasion bothin vitro and in vivo.
Acknowledgement
This work was supported by grant DOH102-TD-C-111-005 from the Taiwan Department of Health, China Medical University Hospital Cancer Research Center of Excellence.
References
Lind EF, Silvester J, Fleming CK and others. 2012. The interaction between caveolin-1 and Rho-GTPases promotes metastasis by controlling the expression of alpha5-integrin and the activation of Src, Ras and Erk. Oncogene 31(7):884-96. Benayahu D, Shur I, Marom R, Meller I, Issakov J. 2001. Cellular and molecular
properties associated with osteosarcoma cells. J Cell Biochem 84(1):108-14. Berge G, Pettersen S, Grotterod I, Bettum IJ, Boye K, Maelandsmo GM. 2011.
Osteopontin--an important downstream effector of S100A4-mediated invasion and metastasis. Int J Cancer 129(4):780-90.
Bianchi-Smiraglia A, Paesante S, Bakin AV. 2012. Integrin beta5 contributes to the tumorigenic potential of breast cancer cells through the Src-FAK and MEK-ERK signaling pathways. Oncogene.
Bolos V, Gasent JM, Lopez-Tarruella S, Grande E. 2010. The dual kinase complex FAK-Src as a promising therapeutic target in cancer. Onco Targets Ther 3:83-97. Campbell PG, Wines K, Yanosick TB, Novak JF. 1994. Binding and activation of
plasminogen on the surface of osteosarcoma cells. J Cell Physiol 159(1):1-10. Chen CC, Hsu CY, Chen CY, Liu HK. 2008. Fructus Corni suppresses hepatic
gluconeogenesis related gene transcription, enhances glucose responsiveness of pancreatic beta-cells, and prevents toxin induced beta-cell death. J Ethnopharmacol 117(3):483-90.
Chen KT, Hour MJ, Tsai SC, Chung JG, Kuo SC, Lu CC, Chiu YJ, Chuang YH, Yang JS. 2011. The novel synthesized 6-fluoro-(3-fluorophenyl)-4-(3-methoxyanilino) quinazoline (LJJ-10) compound exhibits anti-metastatic effects in human osteosarcoma U-2 OS cells through targeting insulin-like growth factor-I receptor.
Int J Oncol 39(3):611-9.
Chiu YJ, Hour MJ, Lu CC, Chung JG, Kuo SC, Huang WW, Chen HJ, Jin YA, Yang JS. 2011. Novel quinazoline HMJ-30 induces U-2 OS human osteogenic sarcoma cell apoptosis through induction of oxidative stress and up-regulation of ATM/p53 signaling pathway. J Orthop Res 29(9):1448-56.
Choi WH, Chu JP, Jiang MH, Baek SH, Park HD. 2011. Effects of fraction obtained from Korean Corni Fructus extracts causing anti-proliferation and p53-dependent apoptosis in A549 lung cancer cells. Nutr Cancer 63(1):121-9.
Chueh FS, Chen YY, Huang AC, Ho HC, Liao CL, Yang JS, Kuo CL, Chung JG. 2011. Bufalin-inhibited migration and invasion in human osteosarcoma U-2 OS cells is carried out by suppression of the matrix metalloproteinase-2, ERK, and JNK signaling pathways. Environ Toxicol.
Dittmer KE, French AF, Thompson DJ, Buckle KN, Thompson KG. 2012. Primary bone tumors in birds: a review and description of two new cases. Avian Dis 56(2):422-6.
Fossey SL, Bear MD, Kisseberth WC, Pennell M, London CA. 2011. Oncostatin M promotes STAT3 activation, VEGF production, and invasion in osteosarcoma cell lines. BMC Cancer 11:125.
Huang WW, Chiu YJ, Fan MJ, Lu HF, Yeh HF, Li KH, Chen PY, Chung JG, Yang JS. 2010. Kaempferol induced apoptosis via endoplasmic reticulum stress and mitochondria-dependent pathway in human osteosarcoma U-2 OS cells. Mol Nutr Food Res 54(11):1585-95.
jaw in children and young adults. Head Neck 34(7):981-4.
Hwang JH, Kim JD. 2011. Inhibitory effects of corni fructus extract on angiogenesis and adipogenesis. Korean J Physiol Pharmacol 15(1):43-51.
Ishikawa M, Kondo H, Onuma M, Shibuya H, Sato T. 2012. Osteoblastic osteosarcoma in a rabbit. Comp Med 62(2):124-6.
Kaste SC. 2011. Imaging pediatric bone sarcomas. Radiol Clin North Am 49(4):749-65, vi-vii.
Korpi JT, Hagstrom J, Lehtonen N, Parkkinen J, Sorsa T, Salo T, Laitinen M. 2011. Expression of matrix metalloproteinases-2, -8, -13, -26, and tissue inhibitors of metalloproteinase-1 in human osteosarcoma. Surg Oncol 20(1):e18-22.
Kwon SH, Park HY, Kim JY, Jeong IY, Lee MK, Seo KI. 2010. Apoptotic action of ursolic acid isolated from Corni fructus in RC-58T/h/SA#4 primary human prostate cancer cells. Bioorg Med Chem Lett 20(22):6435-8.
Leow PC, Tian Q, Ong ZY, Yang Z, Ee PL. 2010. Antitumor activity of natural compounds, curcumin and PKF118-310, as Wnt/beta-catenin antagonists against human osteosarcoma cells. Invest New Drugs 28(6):766-82.
Liao CL, Lai KC, Huang AC, Yang JS, Lin JJ, Wu SH, Gibson Wood W, Lin JG, Chung JG. 2012. Gallic acid inhibits migration and invasion in human osteosarcoma U-2 OS cells through suppressing the matrix metalloproteinase-2/-9, protein kinase B (PKB) and PKC signaling pathways. Food Chem Toxicol 50(5):1734-40.
Liu H, Xu H, Shen C, Wu C. 2012. Effect of the best compatibility of components in Corni Fructus on WT1 expression in glomerular podocytes of type 2 diabetic rats with early nephropathy. Am J Chin Med 40(3):537-49.
Mohseny AB, Machado I, Cai Y, Schaefer KL, Serra M, Hogendoorn PC, Llombart-Bosch A, Cleton-Jansen AM. 2011. Functional characterization of osteosarcoma cell lines provides representative models to study the human disease. Lab Invest 91(8):1195-205.
Park CH, Noh JS, Tanaka T, Uebaba K, Cho EJ, Yokozawa T. 2011. The effects of corni fructus extract and its fractions against alpha-glucosidase inhibitory activities in vitro and sucrose tolerance in normal rats. Am J Chin Med 39(2):367-80.
Park CH, Tanaka T, Kim HY, Park JC, Yokozawa T. 2012. Protective Effects of Corni Fructus against Advanced Glycation Endproducts and Radical Scavenging. Evid Based Complement Alternat Med 2012:418953.
Poon TY, Ong KL, Cheung BM. 2011. Review of the effects of the traditional Chinese medicine Rehmannia Six Formula on diabetes mellitus and its complications. J Diabetes 3(3):184-200.
Puri A, Gulia A, Jambhekar N, Laskar S. 2012. The outcome of the treatment of diaphyseal primary bone sarcoma by resection, irradiation and re-implantation of the host bone: extracorporeal irradiation as an option for reconstruction in diaphyseal bone sarcomas. J Bone Joint Surg Br 94(7):982-8.
Roh C, Jung U. 2012. Screening of crude plant extracts with anti-obesity activity. Int J Mol Sci 13(2):1710-9.
Sangle NA, Layfield LJ. 2012. Telangiectatic osteosarcoma. Arch Pathol Lab Med 136(5):572-6.
Shen J, Xu L, Owonikoko TK, Sun SY, Khuri FR, Curran WJ, Deng X. 2012. NNK promotes migration and invasion of lung cancer cells through activation of
c-Src/PKCiota/FAK loop. Cancer Lett 318(1):106-13.
Smeds S, Walz T, Blomquist L, Larsson SE. 1991. Cell proliferation rate and tumor volume in human osteosarcoma during exposure to methotrexate. A study on tissue transplants in nude mice. APMIS 99(10):898-904.
Sun D, Wang X, Zhang H, Deng L, Zhang Y. 2011. MMP9 mediates MICA shedding in human osteosarcomas. Cell Biol Int 35(6):569-74.
Sun Z, Su YH, Yue XQ. 2008. [Professor Ling Changquan's experience in treating primary liver cancer: an analysis of herbal medication]. Zhong Xi Yi Jie He Xue Bao 6(12):1221-5.
Thompson L, Wang S, Tawfik O, Templeton K, Tancabelic J, Pinson D, Anderson HC, Keighley J, Garimella R. 2012. Effect of 25-hydroxyvitamin D3 and 1 alpha,25 dihydroxyvitamin D3 on differentiation and apoptosis of human osteosarcoma cell lines. J Orthop Res 30(5):831-44.
Tian YF, Li LY, Wang J, Zhang BR, Wang GH, Xie BX, Yuan Y. 2010. [Effects of herbal cake-separated moxibustion on the expression of erythrocyte CD58 in different ages of healthy people]. Zhongguo Zhen Jiu 30(11):933-5.
Tingting R, Wei G, Changliang P, Xinchang L, Yi Y. 2010. Arsenic trioxide inhibits osteosarcoma cell invasiveness via MAPK signaling pathway. Cancer Biol Ther 10(3):251-7.
Toth M, Sohail A, Fridman R. 2012. Assessment of gelatinases (MMP-2 and MMP-9) by gelatin zymography. Methods Mol Biol 878:121-35.
Tsubaki M, Satou T, Itoh T, Imano M, Ogaki M, Yanae M, Nishida S. 2012. Reduction of metastasis, cell invasion, and adhesion in mouse osteosarcoma by
YM529/ONO-5920-induced blockade of the Ras/MEK/ERK and Ras/PI3K/Akt pathway. Toxicol Appl Pharmacol 259(3):402-10.
Vrdoljak DV, Sitic S, Stanec M, Oresic T, Balja MP, Ramljak V, Gutesa I, Ramic S, Knezevic F. 2012. Primary Ewing's sarcoma of the kidney: a case report. Coll Antropol 36(2):673-6.
Wang MY, Zhao FM, Peng HY, Lou CH, Li Y, Ding X, Yu XY, Yang GM, Xu DQ, Jiang LH and others. 2010. Investigation on the morphological protective effect of 5-hydroxymethylfurfural extracted from wine-processed Fructus corni on human L02 hepatocytes. J Ethnopharmacol 130(2):424-8.
Wu Y, Wang X, Shen B, Kang L, Fan E. 2012. Extraction, Structure and Bioactivities of the Polysaccharides from Fructus Corni. Recent Pat Food Nutr Agric.
Yokozawa T, Kang KS, Park CH, Noh JS, Yamabe N, Shibahara N, Tanaka T. 2010. Bioactive constituents of Corni Fructus: The therapeutic use of morroniside, loganin, and 7-O-galloyl-D-sedoheptulose as renoprotective agents in type 2 diabetes. Drug Discov Ther 4(4):223-34.
Figure legends
Figure 1. CECF affects the percentage of viable U-2 OS human osteosacroma cells. U-2 OS cells were incubated with 0, 50, 100, 250, 500 and 750 g/ml of CECF for 24 h, then cells were examined and harvested for determination the percentage of viable cells by flow cytometry as described in Materials and Methods. *p < 0.05, significant difference between CECF-treated groups and the control as analyzed by Student’s t test.
Figure 2. Wound healing examination for the effects of CECF on the migration of U-2 OS cell. Cells were maintained on the dish for 24 h then a wound was introduced by scraping confluent cell layers with a pipette tip. Various concentrations of CECF were added to the cells at the final concentration were 0, 250 and 500 g/ml then incubation for 24 and 48 h. Some of the representative photographs of invading treated and untreated cells are presented.
Figure 3. CECF suppressed the migration of U-2 OS cells in vitro. U-2 OS cells (5 x104 cells/well) that penetrated through to the lower surface of the filter were stained with crystal violet and were photographed under a light microscope at x200. Quantification of cells in the lower chambers was performed by counting cells at x200. Columns repeat the mean from three independent experiments. *p<0.05, ***p<0.001, significant difference between CECF-treated groups and the control as analyzed by Student’s t test.
Figure 4. CECF suppressed the migration and invasion of U-2 OS cells in vitro. U-2 OS cells (5 x104 cells/well) that penetrated through with the Matrigel to the lower surface of
the filter were stained with crystal violet and were photographed under a light microscope at x200. Quantification of cells in the lower chambers was performed by counting cells at x200. Columns repeat the mean from three independent experiments. *p<0.05, ***p<0.001, significant difference between CECF-treated groups and the control as analyzed by Student’s t test.
Figure 5. CECF affects the activities of matrix metalloproteinases (MMPs) activities in U-2 OS cells. Representative zymogram to detect the activity of secreted MMP-2 and MMP-9 using conditioned medium from U-2 OS cells. The different activity of MMP-2 and MMP-9 were determined by densitometric analysis and results are expressed as a percentage of the control (100%).
Figure 6. CECF affects the NF-κB p65, Rho A and ROCK-1 expression in U-2 OS cells. Cells placed on 6-well chamber slides were treated with 500 g/ml of CECF for 24 h, fixed and stained using anti-NF-κB p65, Rho A and ROCK-1 antibodies (1:100) overnight and then stained with a secondary antibody (FITC-conjugated goat anti-mouse IgG at 1:100 dilution) (green fluorescence) followed by nuclear counterstaining individually performed with PI (red fluorescence). Photomicrographs were obtained using a Leica TCS SP2 confocal spectral microscope as described in Materials and methods.
Figure 7. CECF affect the levels of associated proteins in migration and invasion of U-2 OS cells. U-2 OS cells were treated with CECF at 500 g/ml for different periods of time
and then cells were collected and the total protein extracts were prepared and determined as described in materials and methods section. The levels of FAK, PKC, SOS1, MKK7, MEKK3, GRB2 (A), NF-κB p65, COX-2, HIF-1α, PI3K, Rho A, ROCK-1 (B), p-JNK1/2, p-ERK1/2, p-p38, Ras, p-PERK (C), MMP-2, MMP-9 and VEGF (D) expressions were estimated by Western blotting as described in materials and methods.
Figure 8. The possible signaling pathways for CECF inhibited cell invasion and migration in U-2 OS human osteosacroma cells.
Figure 2 (A)
Figure 3
(B) (A)
Figure 4 (A)
Figure 6 (A)
(B)
Figure 7 (A)
(C) (D)
