Optimal Design of CMOS Pseudoactive Pixel
Sensor (PAPS) Structure for Low-Dark-Current
and Large-Array-Size Imager Applications
Yu-Chuan Shih, Student Member, IEEE, and Chung-Yu Wu, Fellow, IEEE
Abstract—In this paper, a pixel structure called the optimal pseudoactive pixel sensor (OPAPS) is proposed and analyzed for the applications of CMOS imagers. The shared zero-biased-buffer in the pixel is used to suppress both dark current of photodiode and leakage current of pixel switches by keeping both biases of pho-todiode and parasitic pn junctions in the pixel bus at zero voltage or near zero voltage. The factor of photocurrent-to-dark-cur-rent ratio per pixel area (PDRPA) is defined to characterize the performance of the OPAPS structure. It is found that a zero-bi-ased-buffer shared by four pixels can achieve the highest PDRPA. In addition, the column sampling circuits and output correlated double sampling circuits are also used to suppress fixed-pattern noise, clock feedthrough noise, and channel charge injection. An experimental chip of the proposed OPAPS CMOS imager with the format of 352 288 (CIF) has been designed and fabricated by using 0.25- m single-poly-five-level-metal (1P5M) -well CMOS process. In the fabricated CMOS imager, one shared zero-biased-buffer is used for four pixels where the PDRPA is equal to 47.29 m 2. The fabricated OPAPS CMOS imager has a pixel size of 8.2 8.2 m, fill factor of 42%, and chip size of 3630 3390 m. Moreover, the measured maximum frame rate is 30 frames/s and the dark current is 82 pA cm2. Additionally, the measured optical dynamic range is 65 dB. It is found that the proposed OPAPS structure has lower dark current and higher optical dynamic range as compared with the active pixel sensor (APS) and the conventional passive pixel sensor (PPS). Thus, the proposed OPAPS structure has high potential for the applications of high-quality and large-array-size CMOS imagers.
Index Terms—CMOS imagers, dark current, optimal pseudoac-tive pixel sensor (OPAPS), photodiode, pn junctions.
I. INTRODUCTION
C
MOS imagers which consist of optical collections of photons (e.g., microlens), wavelength discrimination of photons (e.g., color filter), detectors for conversion of pho-tons to electrons (e.g., a photodiode), timing control, color processing, analog readout circuits [1]–[5], analog-to-digital conversion, and other interface electronics [6], [7] have been used in various applications. Several important factors con-tribute to the emergence of CMOS imagers at this time rather than 10 to 20 years ago. The primary reason is recent demandManuscript received December 11, 2003; revised May 21, 2004. This work was supported by the National Science Council (NSC), Taiwan, R.O.C. The associate editor coordinating the review of this paper and approving it for pub-lication was Dr. M. Nurul Abedin.
The authors are with the Nanoelectronics and Giga-Scale Systems Labo-ratory, Department of Electronics Engineering and Institute of Electronics, National Chiao-Tung University, Hsinchu, 300, Taiwan, R.O.C. (e-mail: [email protected]; [email protected]).
Digital Object Identifier 10.1109/JSEN.2004.841429
for portable, low voltage [8], [9], low power consumption [10], and miniaturized digital image systems. Moreover, the second important reason is that CMOS technology offers a submicron feature size with low defeat and permits cost-effective pixel size [1]. Generally, small pixel size and low dark current are required in the design of high-resolution and high-quality CMOS imagers [1].
Temporal noise is the fundamental limitation on image sensor performance [11]. The dominant source of temporal noise in high illumination is the shot noise that is proportional to the sum of photocurrent and dark current in a photodiode [11]. Large dark current in the photodiode array of a CMOS imager could lead to high noise, nonuniformity, low scalability, and reduced dynamic range. Therefore, reducing dark current in the photo-diode also eliminates noise in the CMOS imager.
Dark current is dominantly generated from reverse-biased photodiode and parasitic pn junctions in the pixel. Generally, higher (lower) reverse-biased voltage leads to larger (smaller) dark current. In the conventional active pixel sensor (APS) [1], the dark current is dominantly generated from the photodiode, which is different in every pixel due to both process variations and different reverse-biased voltages of photodiodes caused by different intensity of the incident light on every pixel. Thus, the bias effect of the dark current cannot be reduced even by using the dummy photodiode in the pixel. In the passive pixel sensor (PPS) [1], the dark current is generated from both photodiode and parasitic pn junctions in the column bus. Due to the same reasons, the dark current is also different in every pixel and cannot be reduced.
To design a low-dark-current and high-signal-to-noise-ratio CMOS imager, several techniques have been proposed. Among them, the phototransistor pixel sensor with dark current can-cellation [12] is proposed to reduce dark current by using one dummy shielded photodiode in each pixel. However, the total dark current still cannot be effectively cancelled because the re-verse-biased voltage between the photodiode and the dummy shielded photodiode is different. In addition, the increased pixel size in this structure may degrade the image resolution and in-crease cost in the design of imagers with large array size. The structure of differential passive pixel imager with fixed-pattern noise (FPN) reduction [13] is also proposed to cancel dark cur-rent. However, it still cannot effectively reduce dark current due to the mismatch between the photodiode in the photodiode array and that in the dummy shielded pixel outside the array.
Another factor in the design of high-resolution and large-array-size CMOS imagers is the requirement of small pixel size.
low dark current. In the proposed optimal PAPS (OPAPS) structure, a buffer circuit called the zero-biased-buffer direct injection (ZBBDI) is shared by limited number of pixels to keep the photodiodes at zero or near zero bias and readout the selected pixel current [5]. Then the integration of readout current is performed by using an APS-like circuit. A new factor called the photocurrent-to-dark-current ratio per pixel area (PDRPA) is defined and optimized for the OPAPS structure. In the OPAPS design, both column sampling circuit and output correlated double sampling (CDS) circuit are used to reduce FPN, clock feedthrough noise, and the noise from the effect of channel charge injection. The experimental results successfully verified the function of the proposed OPAPS structure and its performance.
In Section II, the new structure of the proposed optimal PAPS (OPAPS) is described and the principles to decrease dark current and optimize the factor of PDRPA are presented. In Section III, chip architecture and simulation results are described. In Sec-tion IV, chip layout and experimental results are presented and analyzed. Finally, the conclusion is given.
II. OPAPS
The general structure of the proposed OPAPS with -well photodiode is shown in Fig. 1 where one zero-biased buffer is shared by pixels and each pixel has a pixel select switch device where . The gate of is connected to the pixel select signal . More-over, the cathode of photodiode is connected to the pixel bias voltage of 1.8 V, whereas the anode is connected to the shared zero-biased-buffer through the pixel select switch . The inverting input of a gain stage G1 with the gain is connected to the pixel bus of node D in Fig. 1 and its noninverting input is connected to the bias voltage . The output of the gain stage is connected to the gate of Min as a common-gate input stage. In the OPAPS circuit, the gain stage is implemented by a single CMOS differential pair to reduce the chip area.
The use of shared zero-biased-buffer in the OPAPS struc-ture is the same as the buffer-direct-injection (BDI) [14], [15] readout structure. Through the shared zero-biased-buffer, the bias of pixel bus is controlled by the input voltage of the gain stage G1. The value of is set to 1.8 V by a low-noise constant voltage source to maintain the voltage of pixel bus at 1.8 V or near 1.8 V. Thus, the effective voltage drop across the photodiode is zero or near zero when the pixel select switch of
is on.
The MOSFET of t and the parasitic capacitor are used to integrate the photocurrent at the node C of Fig. 1. More-over, the gate control signal of Reset is used to reset the voltage
Fig. 1. OPAPS circuit withP + =N-well photodiode.
of node C at zero voltage. The source follower, composed of Mp1, Mrsel, and Mp2 is used as a buffer to transfer the voltage at the node C to the column sampling stage without interference. The gate control signal where is used as the row selection. The gate of Mp2 is connected to the biased signal .
The interconnections of pixels, shared zero-biased-buffers, and column sampling stages in the OPAPS CMOS imager are shown in Fig. 2. The shared zero-biased-buffers are contained in the entire sensor array as shown in Fig. 2. The pixels connected to the same shared-zero-biased-buffer and controlled by the pixel select switch where in one set of OPAPS circuit are put in the same column. sets of OPAPS circuit controlled by the set select switch where are also put in the same column. Thus, the total number of pixels in the same column of the OPAPS CMOS im-ager are equal to . When both pixel select switch and set select switch of are on, the image information of pixels in the th row at the th set of the OPAPS circuit in all columns are readout to the column sampling stage simultaneously. With both the pixel select switch on and set select switches of Rsel1 to on sequentially, frames of image information are transferred to the column sampling stage. Then the pixel select switch is set to off and the next pixel select switch is on to transfer another frames of image information to the column sampling stage. The readout of the total image is com-pleted after the transformations of frames.
In additional to maintain the stable bias at the node D of Fig. 1, the input impedance seen from the node D is decreased by a factor of due to the negative-feedback structure. The in-jection current from the pixel is mainly drained toward the node D due to the low input impedance. The current injection effi-ciency of the OPAPS readout structure is expressed as [16]
m
m (1)
m

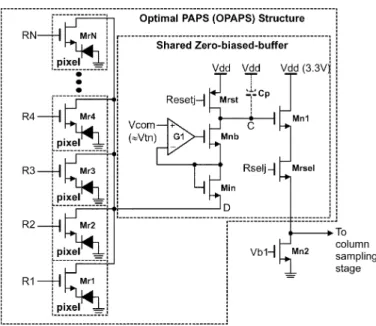

Fig. 2. Interconnections of pixels, shared zero-biased-buffers, and column sampling stages in the OPAPS CMOS imager.
where is the gain of the buffer, m is the transconductance of Min, is the capacitance at the node D, and is the output resistance of . From (1), the current injection efficiency is increased by the gain of the buffer. In this design, the gain of is about 100, which makes the injection efficiency close to 1.
In order to decrease the pixel area and reduce power dissipa-tion, the use of MOSFETs in the pixel must be minimized. In ad-dition, the power consumption of the shared zero-biased-buffer often becomes intolerable in the large-array-size CMOS im-ager. To solve the above problems, the same technique in the shared-buffer direct injection (SBDI) [17] is used. Thus, the gain stage in the OPAPS circuit is composed of only one half of the differential pair [17]. The additional power consumption of the gain stage can be reduced by proper design of the gain stage with low bias current. The effective total device number in the OPAPS circuit of Fig. 1 is ( ) and one pixel is composed of only ( ) MOSFETs.
The OPAPS circuit can be modified for the applications to the -substrate photodiode which has lower dark current and higher quantum efficiency. The modified OPAPS circuit for the -substrate photodiode is shown in Fig. 3 where an extra NMOS device Min is added. In Fig. 3, the modified OPAPS circuit is composed of the buffer-direct-injection (BDI) [14], [15] readout structure, the PMOS transistor as the reset switch, the APS-like structure with the NMOS source follower 1, , and 2, and a parasitic capacitor . The value of is set to be slightly larger than the threshold voltage of Min. Thus, the bias at the node D is equal to near zero voltage. The photodiode is biased at zero or near zero voltage
Fig. 3. Modified OPAPS circuit withN + =P -substrate photodiode.
when the pixel select switch of is on. The impedance seen from the node D to is increased by where is the transconductance of Min. To avoid the degraded injection efficiency, the channel geometric ratio of Min should be large enough to increase .
In the -well CMOS technology, the -well pn junc-tion is used as the photodiode. From the measurement results, it is found that the ratio of the photocurrent to the dark cur-rent under the reverse bias of 0 V is much larger than that under the reverse bias of 3 V. Thus, biasing the photodiode at zero or near zero voltage can achieve lower dark current, lower shot noise [11], and higher ratio of the photocurrent to the dark current.
From the above results, it is shown that both photodiode and all the parasitic pn junctions in the pixel select switch must be operated under the reverse bias of 0 V to effectively reduce the dark current. Thus, the voltage difference between the cathode of the photodiode and the node D of Fig. 1 is operated at 0 V in the proposed OPAPS structure in order to maintain the zero bias of both photodiode and parasitic pn junctions as shown in Fig. 1. When the pixel select switch of is on, the voltage at the source of is the same as that of node D which is 1.8 V. The photodiode, the parasitic pn junction between the source and substrate of , and the parasitic pn junction between the drain and substrate of are all operated under the reverse-biased voltage of 0 V. The photocurrent is then delivered to the node C for charge integration while both the dark current of the photodiode and the leakage current of the parasitic pn junctions are decreased to near 0 A.
When the pixel select switch of is turned off by set-ting the signal of at , the diagram of pixel circuit in OPAPS is shown in Fig. 4. In Fig. 4, the source of , -well, and the drain of form the parasitic lateral pnp BJT device Q1 with base and collector connected to 1.8 V and pixel bus, respectively, and emitter connected to node A. Moreover, the source of , -well, and -substrate form the parasitic ver-tical pnp BJT device Q2 with the -substrate collector con-nected to ground. Under incident light, the photodiode is for-ward-biased with the voltage drop equal to and is operated
Fig. 4. Diagram of pixel circuit in OPAPS when the pixel select switch ofMri is off.
as a solar cell. With as the forward substrate bias between source and body of , the threshold voltage of is de-creased due to the body effect. But the row select switch device is still kept off because the voltage at the node A which is , is smaller than . However, the collector current of Q1 flows into the pixel bus as the dark current. As shown in Fig. 4, the current of in the photodiode is equal to the sum of the emitter current of Q1 and of Q2. Thus, we have
s s (3)
where , s , and s are the reverse saturation current of pho-todiode, parasitic lateral BJT device Q1, and parasitic vertical BJT device Q2, represents the photocurrent when the pho-todiode is biased at 0 V, and is the voltage equivalent of tem-perature. From (3), the total equivalent dark current from the parasitic BJT device Q1 flowing into the pixel bus can be expressed as
s s s
(4) where is the number of pixels connected to the same pixel bus and is the common-base current gain of Q1.
The values of , s , s , and in the proposed OPAPS CMOS imager with 0.25- m CMOS technology and channel width(length) of are given in Table I. From (4), the ratio of is larger than that of the APS CMOS imager if is smaller than 2000. Thus, the dark current contributed by the current in the proposed OPAPS CMOS imager is smaller than the dark current of the APS CMOS imager if is smaller than 2000. Consequently, the proposed OPAPS CMOS imager can be applied to the large-array-size imager with the dark cur-rent contributed by in (4) smaller than the dark current of the APS CMOS imager.
The photocurrent generated from the selected pixel is inte-grated on the node C of Fig. 1 after the reset operation with off. After the integration, the row select switch signal Rsel is on and the integrated photo-signal voltage is transferred to
C m 1P5M
N-the photo-signal sampling circuit in N-the column sampling stage through the source follower. At the end of integration, the reset switch is turned on and the reset-signal voltage at the node C is also transferred to the reset-signal sampling circuit in the column sampling stage to perform the operation of double delta sampling (DDS) [4].
In the OPAPS structure, as the number of pixels connected with the same shared-zero-biased-buffer is increased, the total pixel area (TPA) is decreased if the photodiode area is kept constant. However, the PDR is decreased because the dark cur-rents from the deselected pixels are increased. Thus, the optimal number of pixels connected with the shared zero-biased-buffer can be determined from the factor of PDRPA. The TPA in the OPAPS structure is expressed as
(5) where is the area of pixel select switch, is the area of photodiode, is the average area of devices spacing and signal routing channel in a pixel, and is the area of the shared zero-biased-buffer.
The PDR at the node D of Fig. 1 is expressed as s
(6) where and are the photocurrent and dark current per unit area in photodiode, respectively, when it is biased at zero voltage, is the total equivalent dark current from the para-sitic BJT device Q1 in Fig. 4 flowing into node D of Fig. 1, is the dark-current ratio of the parasitic pn junctions between the source/drain and substrate of in Fig. 1 and photodiode under the same area, s is the source area of , and is the drain area of .
All the values of these parameters in 0.25 m CMOS tech-nology are listed in Table II where the photodiode area is 28.04 m which is nearly equal to that in a conventional APS
Fig. 5. Factor of PDRPA in the OPAPS circuit.
Fig. 6. Block diagram of the OPAPS CMOS imager.
pixels of 8.5 8.5 m. Using the parameter values, the factor of PDRPA can be rewritten as
(7) The calculated values of the factor PDRPA in (7) versus is shown in Fig. 5. As shown in Fig. 5, the factor of PDRPA has the maximum value when the value of is equal to 4. Thus, the optimized number of pixels connected with the shared zero-bi-ased-buffer in the OPAPS structure is equal to 4 and the opti-mized factor of PDRPA is equal to 47.29 m . Under this cir-cumstance, the factor of PDR in the OPAPS structure is equal to 3179.86 which is much larger than that of APS.
For different CMOS technologies, the optimal value may not be equal to 4. It can be calculated by using (5) and (6) to generate the maximum value of PDRPA.
III. CHIPARCHITECTURE ANDSIMULATIONRESULTS
The block diagram of the proposed optimal OPAPS CMOS imager is shown in Fig. 6 where , i.e., four pixels share the same zero-biased-buffer. The 352 288 (CIF) format of CMOS
Fig. 7. Major timing diagram of the OPAPS circuit.
imager is taken as an example to realize the proposed OPAPS structure. As shown in Fig. 6, the proposed OPAPS circuit is composed of four pixels and one shared zero-biased-buffer. The row decoder and row counter on the left side of pixel array are used to generate the control signals to the row switches. In ad-dition, the column decoder and column counter on the top side of pixel array are used to generate the control signals for the reset operation and those to the column switches, the output correlated double sampling (DDS) circuit, and the row counter. Each column of the pixel array has a column sampling circuit to reduce FPN. The column readout circuit generates two analog output voltages. One is the signal proportional to the gray scale intensity of the image whereas the other is the signal propor-tional to the reset voltage at the integration capacitor. The output DDS circuit is used to drive the external loads and perform the DDS operation.
The photo-signal and reset-signal are used for the operation of DDS. The two signals generated in the output DDS circuit are delivered to the programmable gain amplifier (PGA), A/D converter, and display system outside the chip to generate the raw image.
The major operational timing diagram of the proposed OPAPS circuit is shown in Fig. 7. At first, the pixel select switch of r1 is low and the photocurrent of this pixel is in-tegrated on the node C of Fig. 1 after the reset operation at the node C. After the photocurrent integration, the row select switches of Rsel1 to Rsel72 are on sequentially to transfer 1/4 frames of image information to the column sampling stage. Then the pixel select switch of r1 is switched off and the next pixel select switch of r2 is switched on to transfer another 1/4 frames of image information to column sampling stage. The readout of the total image is completed after the four transformations of 1/4 frames.
The HSPICE simulation results of the voltage at node C of the OPAPS circuit in Fig. 1 and the voltage difference between and s of the output DDS circuit in Fig. 6 for the input photocurrent from 200 to 800 fA under the frame rate of 30 frames/s are shown in Fig. 8(a) and (b), respectively. As may be seen from Fig. 8, the linearity of the readout circuit is 92% and the maximum output swing is 0.9 V. The 0.25- m 1P5M CMOS technology used in the design of the imager chip has the mask of deep -well beneath the -well. In other words, the potential of the -well at the top of deep -well can be set to any value. Thus, the substrates of NMOSFETs can be connected to their

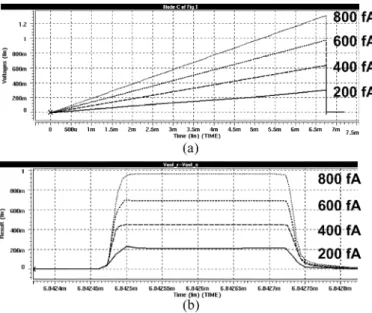

Fig. 8. HSPICE simulation results of (a) the voltage at node C of Fig. 1 and (b) the voltage difference betweenVout r and Vout s of Fig. 6 for the input photocurrent from 200 fA to 800 fA.
Fig. 9. Layout of eight pixels in the OPAPS CMOS imager chip.
source and the gain in the NMOS source follower is not atten-uated by the body effect. Thus, the linearity of the readout chip will be improved by using the NMOS source follower without the body effect.
IV. EXPERIMENTALRESULTS
In the experimental chip, a 352 288 (CIF) CMOS imager based on the proposed OPAPS structure is designed and fab-ricated by using 0.25 m 1P5M -well CMOS process. The pixel size is 8.2 8.2 m. The layout diagram of eight pixels in two OPAPS circuits is shown in Fig. 9 where the source of pixel select transistor is connected directly to the P+ diffusion of the photodiode without contacts to increase sensor area and fill factor. The corner of the photodiode is clipped 135 to reduce the effect of leakage current at the right angle. The fill factor in the OPAPS pixel is 42%. The fill factor can be designed larger by moving the -well contact outside the pixel.
Fig. 10. Die photograph of the test chip.
Fig. 11. (a) Original image and (b) grayscale image captured by the test chip underVcom of 1.79 V.
To obtain the uniform characteristics of the sensor array, two layers of dummy photodiodes are added around the active sensor array. The P regions of the dummy photodiodes are connected to -well to maintain zero bias such as the photodiodes in the active sensor array. The dummy photodiodes are completely shielded by metal5. In addition, double guard rings are inserted around the sensor cell array to reduce substrate coupling of the digital switching noise.
The analog-to-digital converter is not implemented to sim-plify the design in the test chip. The photograph of the fabri-cated imager chip is shown in Fig. 10 where the area except the regions of sensor and capacitor are covered by metal5 for light shielding. The total chip size is 3630 3300 m.
To test the fabricated CIF OPAPS CMOS imager chip, a data acquisition card with the function of A/D converter is utilized to capture the image. The original image and the measured grayscale image captured by the fabricated CIF OPAPS CMOS imager chip under of 1.79 V is shown in Fig. 11. More-over, the measured raw images captured by the fabricated CIF OPAPS CMOS imager chip under different values of are shown in Fig. 12(a)–(d). When the value of is 1.79 V, the image quality in Fig. 12(a) is good and no observable fixed-pattern noise (FPN) is presented. With the decrease of from 1.79 to 1.35 V, as shown in Fig. 12(b)–(d), the image quality is degraded by the effect of leakage current in the parasitic pn junctions of the deselected row switches.
Fig. 12. Images captured by the test chip of OPAPS structure under the integration time of 6.5 msec andVcom of (a) 1.79 V, (b) 1.65 V, (c) 1.50 V, and (d) 1.35 V and those captured by the test chip of PAPS structure under Vcom of (e) 1.79 V, (f) 1.65 V, (g) 1.50 V, and (h) 1.35 V.
TABLE III
MEASUREMENTRESULTS OF THEPROPOSEDOPAPS CMOS IMAGERWITH THEVALUE OFVcom EQUAL TO1.79 VAND ITSCOMPARISONS
WITHTHAT OFPAPS [4]ANDAPS CMOS IMAGER[18]
The images captured by the fabricated CIF PAPS CMOS im-ager chip [14] under different values of are also shown in Fig. 12(e)–(h). Comparing the images of Fig. 12(a)–(d) to the corresponding images of Fig. 12(e)–(h), respectively, it can be realized that the OPAPS structure has smaller dark current than that of PAPS structure because the leakage current from the par-asitic pn junctions of deselected pixels in the OPAPS structure is smaller than that in the PAPS structure. Thus, the function of the proposed OPAPS CMOS imager is successfully verified. It can be used in the high-resolution applications by keeping the value of equal to 1.8 V or slightly smaller than 1.8 V.
The measurement results of the proposed CIF OPAPS CMOS imager with the value of equal to 1.79 V are summarized in Table III, where the corresponding measurement results of the PAPS [4] and APS [18] CMOS imager are also given for comparisons. The dark current in the OPAPS CMOS imager is equal to 82 pA cm which is smaller than that of the PAPS [4], APS [18], [19], and PPS CMOS imager. In addition, the optical dynamic range of 65 dB in the OPAPS CMOS imager is larger than that of the APS [18], [19] and PPS CMOS imagers because the dark current in the OPAPS structure is the smallest.
The sensitivity of 0.25 s under the monochrome light source in the OPAPS CMOS imager is smaller than that of the APS and PPS CMOS imagers due to the low quantum efficiency
of -well photodiode. To achieve the same sensitivity and quantum efficiency as that of the APS and PPS CMOS im-agers, the OPAPS circuit can be modified for the applications to the -substrate photodiode as shown in Fig. 3. FPN caused by device mismatch and process variation was evaluated using a dark image created by averaging 100 frames [19]. There are two sources of FPN, namely, pixel FPN, which is caused by mismatch in the pixel circuit, and column FPN, caused by mis-match in the column readout circuit [20]. The FPN in the OPAPS CMOS imager is 6.2 mV (peak-to-peak) which is smaller than that of the APS CMOS imager with DDS circuits [20]. But the FPN in the OPAPS CMOS imager is slightly larger than that of the PAPS CMOS imager due to the larger pixel FPN in OPAPS CMOS imager. This is because the shared zero-biased-buffers in the OPAPS CMOS imager are put in the sensor array and the mismatches among them increase the pixel FPN. In the PAPS CMOS imager, only one shared zero-biased-buffer is used per column and is put outside the sensor array. However, the FPN of both OPAPS and PAPS CMOS imagers is smaller than that of the APS CMOS imagers with DDS circuits [20]. The total power dissipation of the fabricated CMOS imager chip is equal to 30 mW under the power supply of 3.3 V.
V. CONCLUSION
A pixel structure called the optimal OPAPS structure, has been proposed and analyzed for the applications of CMOS im-agers. In the OPAPS structure, the zero-biased buffer is shared by several pixels to increase fill factor, suppress dark current of photodiodes, and decrease the leakage current of parasitic pn junctions. The factor of PDRPA is defined and optimized in the OPAPS structure. It is found that one zero-biased-buffer shared by four pixels in 0.25- m 1P5M -well CMOS technology can achieve the maximum PDRPA factor and, thus, represents the best choice. The available integration time is divided by four for a fixed frame rate. In imagers with the OPAPS structure, the DDS circuits are also used to suppress FPN, clock feedthrough noise, and channel charge injection. An experimental chip of CIF OPAPS CMOS imager is designed, fabricated, and mea-sured. The measurement results have verified the performance of the proposed OPAPS structure. Thus, the proposed OPAPS CMOS imager can be used in low-dark-current and high-reso-lution imager applications by keeping the value of equal to 1.8 V or slightly smaller than 1.8 V.
It has been found from the experimental results that dark cur-rent of 82 pA cm and optical dynamic range of 65 dB in the fabricated CIF OPAPS CMOS imager are superior than those of the APS and PPS CMOS imagers. In addition, the number of transistors in the pixel of the OPAPS CMOS imager is smaller than that of the APS CMOS imager. With the advantageous characteristics of low dark current, high dynamic range, and high fill factor, it is expected that the proposed OPAPS CMOS imager structure can be applied to the design of high-quality and large-array-size CMOS imagers.
