Nonparametric Statistics

Vol. 18, No. 1, January 2006, 33–43

On power and sample size determinations for the

Wilcoxon–Mann–Whitney test

GWOWEN SHIEH†, SHOW-LI JAN‡ and RONALD H. RANDLES*§

†Department of Management Science, National Chiao Tung University, Hsinchu, Taiwan 30050, R.O.C.

‡Department of Applied Mathematics, Chung Yuan Christian University, Chungli, Taiwan 32023, R.O.C.

§Department of Statistics, University of Florida, Gainesville, FL 32611-8545, USA

(Received June 2004; in final form November 2005)

This article considers power and sample size calculations for the Wilcoxon–Mann–Whitney test. An exact variance large-sample method is introduced and explicit formulas are derived for the uniform, normal, double exponential and exponential shift models. A Monte Carlo simulation study is conducted to evaluate the exact variance procedure and compare its performance with some other large sample methods. The results show the remarkable accuracy of the suggested formula and the fundamental limitations of the other approximations. Practical considerations in determination of sample size for the two-sample location problem are also discussed.

Keywords: Large-sample approximation; Nonparametric method; Two-sample location problem

1. Introduction

In the two-sample location problem, the Wilcoxon–Mann–Whitney test is a strong competitor to the two-sample t-test because it has good Pitman efficiencies and makes minimal assump-tions about the underlying populaassump-tions. For example, the Wilcoxon–Mann–Whitney test has a null distribution that does not depend on the common distribution of the error terms, the only requirement being that the distribution is continuous. See ref. [1, section 2.4] for a general comparison of the Wilcoxon–Mann–Whitney test with the classical two-sample t-test.

To evaluate the power of the Wilcoxon–Mann–Whitney test, it is necessary to specify the alternatives to the null hypothesis and to derive the corresponding exact distribution of the possible rankings. This tends to be difficult and only a few such computations have been per-formed. For example, Milton [2], Haynam and Govindarajulu [3], and Ramsey [4] obtained the power of the Wilcoxon–Mann–Whitney test with normal, uniform, exponential and double exponential shift alternatives for rather limited selections of sample size. In view of the diffi-culty of computing the probabilities of different rankings for most alternatives of interest, one

*Corresponding author. Email: rrandles@stat.ufl.edu

Nonparametric Statistics

DOI: 10.1080/10485250500473099

(4)

may wish to use good, simple approximations. It appears that useful results can be obtained from asymptotic normal approximations to the exact distribution of the Wilcoxon–Mann– Whitney statistic. Lehmann [1, section 2.3] and Noether [5] proposed some simplifications to the large sample distribution to avoid the calculations of certain quantities in the asymptotic power function. It is important to note that these two simplifications are only justified when the location shift is small. However, there is no simple guideline that indicates when the loca-tion shift is sufficiently small, so that the results are valid. Specifically, Lehmann’s [1] power approximation was studied only for normal shift alternatives with one selected set of sample sizes. Essentially, little is known about the performance of the approximation of Lehmann [1] for different sample size settings and non-normal distributions. On the other hand, the accuracy of the modified normal approximation by Noether [5] was studied by Vollandt and Horn [6]. However, their evaluation was made by comparing Noether’s approximation with an alternative procedure based on the upper bound for the variance of the Wilcoxon–Mann– Whitney statistic. They concluded that Noether’s method is sufficiently reliable with small, medium and large deviations from the null hypothesis. These conclusions may be question-able because Noether’s method is only justified for sufficiently small location shift alternatives and may become quite unreliable as the location shift increases. Consequently, comparative analysis of Noether’s method and an exact variance large-sample approach can reveal unique types of information impossible to obtain from comparing Noether’s procedure with other approximations. More importantly, no research to date has compared the two approximations of Lehmann [1] and Noether [5] together with an exact variance large-sample method on common ground. For a more complete comparison, it is of interest to consider two alternative approaches based on the general lower and upper bounds for the variance of the Wilcoxon– Mann–Whitney statistic given by Birnbaum and Klose [7]. It turns out that these formulas yield markedly different results.

The objectives of this article are to provide a clear understanding and demonstration of various competing approaches to power and sample size determinations for the Wilcoxon– Mann–Whitney test and to offer useful and well-supported recommendations on the most reliable approach for use by researchers. In the process, we also hope to account for some incon-sistent findings in the literature. We investigate the exact variance formula for power and sample size calculations based on the asymptotic normal distribution of the Wilcoxon–Mann–Whitney statistic. Accordingly, closed form expressions are provided for the prominent cases studied in the literature: uniform, normal, double exponential and exponential distributions. Numerical analysis is performed to assess the accuracy of the exact variance large-sample method and to explore the impact of various modifications of the suggested asymptotic formula for several location shifts and sample allocation schemes under the four prescribed distributions.

The rest of this paper is organized as follows. Section 2 describes the important details of power and sample size considerations for the Wilcoxon–Mann–Whitney test. In section 3, the estimated sample sizes are provided and a Monte Carlo simulation study is reported that compares the finite-sample performance of both exact variance and approxi-mate methods. Finally, the important implications of the results are summarized in the last section.

2. Power and sample size determinations

Let X1, . . . , Xm and Y1, . . . , Yn be two independent samples from continuous cumulative distribution functions F and G, respectively. We restrict our attention to the simple but important location shift situation where F and G are of the same shape and G(x)= F (x − θ)

(5)

Power and sample size determinations for the Wilcoxon–Mann–Whitney test 35

for all x and θ ≥ 0. We wish to test the hypothesis that the two samples have come from the same population against the alternative that G is stochastically larger than F . That is, we wish to test H0: θ = 0 versus H1: θ > 0. The Mann–Whitney form of the Wilcoxon–Mann–Whitney

statistic is defined as follows.

W = m i=1 n j=1 ϕ(Yj − Xi),

where ϕ(Yj − Xi)= 1 if Yj − Xi >0 and 0 otherwise. Obviously, the formulation requires the computation of mn differences. Although the exact null distribution of W is available, the asymptotic null distribution is commonly used to provide critical values. Assume m/N approaches c as the sample sizes m and n tend to infinity, where N = m + n and 0 < c < 1. It follows that (W− µ0)/σ0has a limiting standard normal distribution under H0: θ = 0 where

µ₀=mn 2 and σ 2 0 = mn(N+ 1) 12 . (1)

See ref. [8, Theorem 3.2.4] for a detailed proof. Suppose that the sample sizes are large enough so that the critical value can be determined from the standard normal approximation rather than the exact null distribution. Then, the test is carried out by rejecting H0: θ = 0 if

the standardized value (W − µ0)/σ0is greater than zα, where α is the specified significance

level and zαis the 100(1− α)th percentile of the standard normal distribution.

For the purpose of power calculation, it is crucial to derive the distribution of the ranks when

F is continuous and θ > 0. This is considerably more complicated than the exact distribution of W for the case of θ= 0 (i.e. F = G). However, useful results can be obtained from the normal approximation to the power. The approximation corresponds to the fact that the dis-tribution of (W− µ)/σ tends to the standard normal distribution as m and n tend to infinity [1, section 2.3] where µ= mnp1, σ2= mnp1(1− p1)+ mn(n − 1)(p2− p21)+ mn(m − 1)(p3− p21), (2) p1 = P (X1< Y1)= FdG, p2= P (X1< Y1∩ X1< Y2)= (1− G)2dF and p3= P (X1< Y1∩ X2< Y1)=

F2dG. When the distributions are symmetric, it can be shown that p2= p3. Hence, if the hypothesis H0: θ = 0 is rejected with specified significance level α, then the power of the test against any fixed alternative θ > 0 is approximated by the probability P{W > µ0+ zασ0} . =  µ− µ0− zασ0 σ , (3)

where (·) is the cumulative distribution function of the standard normal distribution. Application of formula 3 involves the values of p1, p2 and p3. In principle, the

approxi-mate power can be computed for any alternative. However, there are some important cases typically of great interest. For illustrative purposes, explicit analytical forms are presented for

G(x)= F (x − θ) where F (x) has the following continuous distributions.

(i) Uniform (−1/2, 1/2): p1 = 1 2 + θ 1−θ 2 and p2 = p3= 1 3 + θ − θ3 3 for θ ≤ 1. (ii) Standard normal N (0, 1):

p₁=  θ √ 2

and p₂ = p₃= E[{(Z + θ)}2], where Z ∼ N(0, 1).

(6)

(iii) Double exponential (0, 1): p₁= 1 −1 2 1+θ 2 e−θ and p₂= p₃ = 1 − 7 12+ θ 2 e−θ− 1 12e −2θ_. (iv) Exponential (1): p1= 1 − 1 2e −θ_, _p 2= 1 − 2 3e −θ _and _p 3= 1 − e−θ+ 1 3e −2θ_.

These expressions are employed to examine the accuracy of the exact variance method in the subsequent section.

Note that the computations of p2and p3are typically more involved than that of p1. These

can be avoided by the following two alternative approximations by Lehmann [1] and Noether [5]. They are motivated by the fact that when θ is sufficiently close to zero, the asymptotic variance σ2of W can be approximated well by the null variance σ₀2. Consequently, application of the two methods is confined to the models with small location shifts. The modification of the power function by Lehmann [1, equation 2.29] is

P{W > µ0+ zασ0} . =  12mn N+ 1θf ∗₍₀₎_{− zα} , (4)

where f∗(0) is the density of F∗ evaluated at zero and F∗ denotes the distribution of the difference of two independent variables, each with distribution F . It can be shown that

f∗(0)= E[f (X1)]. Specifically, f∗(0)= 1, 1/(2

√

π ), 1/4 and 1/2 for uniform (−1/2, 1/2),

standard normal, double exponential (0, 1) and exponential (1) distributions, respectively. Noether [5] considered an alternative approximation:

P{W > µ0+ zασ0} . =  12mn N p1− 1 2 − zα . (5)

Along the same line of providing simplified power approximation, the lower and upper bounds for the variance of the Wilcoxon–Mann–Whitney statistic furnish the basis for two other potential approaches. It was shown in Birnbaum and Klose [7] that σ_L2 ≤ σ2≤ σ_U2, where

σ_L2= mn [N + 1 + 2(m− 1)(m − n)(2p1− 1)3] 3 − [mp 2 1+ n(1 − p1)2+ p1(1− p1)] if n− 1 m− 1 ≤ 2(1 − p1), = mn 4(1− p1) 3 2(m− 1)(n − 1)(1 − p1)−(m + n − 2)(1 − p1)2+ p1(1− p1) if 2(1− p1) < n− 1 m− 1 ≤ 1 2(1− p1) , = mn [N + 1 + 2(n− 1)(n − m)(2p1− 1)3] 3 − [m(1 − p1) 2_{+ np}2 1+ p1(1− p1)] if 1 2(1− p1) < n− 1 m− 1,

(7)

Power and sample size determinations for the Wilcoxon–Mann–Whitney test 37 and σ_U2 = mn v k 3 − (1 − p1) 2 + u _−2k 3 + 1 − p 2 1 +k 3− p1(1− p1) ,

with u= min(m, n), v = max(m, n) and k = 1 − (2p1− 1)3/2. Therefore, the corresponding

power approximations based on the general lower and upper bounds are

P{W > µ0+ zασ0} . =  µ− µ₀− zασ₀ σL (6) and P{W > µ0+ zασ0}= . µ− µ0− zασ0 σU (7) respectively. It is easily seen that the application of formulas (4)–(7) circumvent the evaluation of p2and p3and only necessitate specifying the quantity f∗(0) and/or the probability p1. The

impact of these simplifications and the accuracy of the exact variance large-sample method (3) are investigated in the subsequent numerical examinations.

There are also many situations when it is desirable to determine the sample size needed to adequately achieve a given power. All the aforementioned power formulas (3)–(7) can be modified to derive sample size estimates required for testing a specified alternative hypothesis with significance level α and power 1− β. To be specific, the sample size estimate based on the exact variance method (3) is the minimum N which satisfies (µ− µ0)≥ (zασ0+ zβσ )and m/N = c. Similarly, one can perform the sample size calculations for the other four formulas.

(4)–(7).

3. Numerical study

To illustrate the application of various competing approaches to sample size and power determi-nations presented in the preceding section, we begin by considering sample size requirements to detect a specified location shift for a given power at the significance level α= 0.05. Then we examine their accuracy for power computations through a Monte Carlo simulation study.

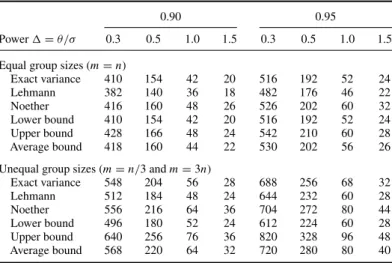

Table 1. Sample sizes required to attain power levels 0.90 and 0.95 for uniform shift alternatives.

0.90 0.95

Power = θ/σ 0.3 0.5 1.0 1.5 0.3 0.5 1.0 1.5 Equal group sizes (m= n)

Exact variance 410 154 42 20 516 192 52 24 Lehmann 382 140 36 18 482 176 46 22 Noether 416 160 48 26 526 202 60 32 Lower bound 410 154 42 20 516 192 52 24 Upper bound 428 166 48 24 542 210 60 28 Average bound 418 160 44 22 530 202 56 26 Unequal group sizes (m= n/3 and m = 3n)

Exact variance 548 204 56 28 688 256 68 32 Lehmann 512 184 48 24 644 232 60 28 Noether 556 216 64 36 704 272 80 44 Lower bound 496 180 52 24 612 224 60 28 Upper bound 640 256 76 36 820 328 96 48 Average bound 568 220 64 32 720 280 80 40

(8)

Table 2. Sample sizes required to attain power levels 0.90 and 0.95 for normal shift alternatives.

0.90 0.95

First, we summarize the estimated sample sizes corresponding to both equal and unequal group sizes (m= n, m = n/3 and m = 3n) for uniform, normal, double exponential and expo-nential shift alternatives in tables 1–4, respectively. The power levels are set at 0.90 and 0.95 and a total of four selected values of location shift in terms of = θ/σ are considered: 0.3, 0.5, 1.0 and 1.5. For example, when = 0.3, the distribution is uniform, and group sizes are balanced, the exact variance method gives the sample size estimate 410 in order to achieve power level 0.90. In the same situation, the sample size estimates of the other four approxi-mations defined in (4)–(7), denoted by Lehmann, Noether, lower bound and upper bound, are 382, 416, 410 and 428, respectively. As expected, the results in the tables reveal the general relation that sample sizes increase and decrease with increasing power and shift, respectively. Comparatively, the equal-group-sizes design yields a smaller total of the sample sizes than the other two unbalanced designs. This shows that a balanced design is the optimal sample allo-cation scheme to maximize the overall power. Analytically, it can be shown that σ2

L = σ2for

uniform distribution with equal group sizes (m= n). Hence, in this case the exact variance

Table 3. Sample sizes required to attain power levels 0.90 and 0.95 for double exponential shift alternatives.

0.90 0.95

(9)

Power and sample size determinations for the Wilcoxon–Mann–Whitney test 39 Table 4. Sample sizes required to attain power levels 0.90 and 0.95 for

exponential shift alternatives.

0.90 0.95

Exact variance 166 70 26 16 210 88 30 18 Lehmann 128 48 14 6 162 60 16 8 Noether 170 74 30 20 216 94 38 24 Lower bound 164 68 24 14 206 86 28 16 Upper bound 176 76 28 16 224 96 34 20 Average bound 170 72 26 16 214 90 32 18 Unequal group sizes (m= n/3)

Exact variance 240 104 40 24 308 132 48 28 Lehmann 172 64 20 8 216 80 24 12 Noether 228 100 40 28 288 128 52 32 Lower bound 196 80 28 20 240 100 36 20 Upper bound 272 120 44 24 348 156 56 32 Average bound 236 100 36 24 296 128 44 28 Unequal group sizes (m= 3n)

method and the lower bound method give the identical sample sizes as shown in table 1. It is clear that the exact variance method gives identical sample size estimates for the two unbalanced designs with respective sample ratio m/n= 1/3 and 3 under the symmetric shift alternatives in tables 1–3. This is due to the fact that p2= p3, provided the distribution is

symmetric. In addition, all four approximate formulas give the same sample sizes for the two unbalanced designs throughout the four different distributions. Such phenomena shall continue to exist between unbalanced designs with reverse sample ratios in other continu-ous settings. It is worthwhile to note that the ordering of sample size estimates is consistently upper bound > Noether > exact variance method. The methods of Lehmann and Lower bound tend to produce small sample sizes without a conclusive order between the two approaches. Lehmann’s approximation may seriously underestimate the sample size and can therefore be misleading in some cases. As suggested by a referee, we also evaluate the ‘average bound’ approach that employs the simple mean (σ2

L+ σU2)/2 for the exact variance σ2. It appears that

the resulting sample sizes are not accurate as expected.

In order to identify the most reliable method, we proceed to evaluate the performance of these formulas in terms of the discrepancy between their nominal power and the estimated actual power, where they all use the same sample size. The sample sizes of the exact variance method presented in tables 1–4 at the power value of 0.90 are utilized as the basis in the simulation study. Accordingly, the nominal (approximate) powers are computed for all six approaches and the results are presented in tables 5–8 for the four shift models, respectively. The nominal values of the exact variance method are slightly larger than the pre-specified nominal level 0.90, whereas those associated with the other approaches vary around 0.90. Estimates of actual power for the given sample sizes and model configurations are then com-puted through Monte Carlo simulation using 10,000 replicate data sets. For each replicate, m and n observations are generated from the selected distributions F and G, respectively. Then the standardized Wilcoxon–Mann–Whitney test statistic (W− µ0)/σ0 is computed and the

(10)

Table 5. Nominal power and simulated power at specified sample size for uniform shift alternatives.

= θ/σ 0.3 0.5 1.0 1.5

Sample sizes (m, n) (205, 205) (77, 77) (21,21) (10, 10)

Simulated power 0.8985 0.8995 0.9032 0.9086

Nominal power (percentage error)

Exact variance 0.9003 (0.20) 0.9018 (0.25) 0.9084 (0.57) 0.9181 (1.05) Lehmann 0.9175 (2.12) 0.9261 (2.96) 0.9403 (4.11) 0.9483 (4.37) Noether 0.8963 (−0.24) 0.8913 (−0.91) 0.8703 (−3.64) 0.8372 (−7.86) Lower bound 0.9003 (0.20) 0.9018 (0.25) 0.9084 (0.57) 0.9181 (1.05) Upper bound 0.8899 (−0.96) 0.8829 (−1.85) 0.8697 (−3.71) 0.8627 (−5.05) Average bound 0.8950 (−0.39) 0.8920 (−0.83) 0.8878 (−1.70) 0.8879 (−2.27) Sample sizes (m, n) (137, 411) (51, 153) (14, 42) (7, 21) Simulated power 0.9000 0.8967 0.9020 0.9262

Exact variance 0.9011 (0.12) 0.9005 (0.42) 0.9102 (0.91) 0.9362 (1.08) Lehmann 0.9182 (2.03) 0.9251 (3.16) 0.9414 (4.37) 0.9584 (3.48) Noether 0.8970 (−0.34) 0.8896 (−0.79) 0.8703 (−3.51) 0.8527 (−7.94) Lower bound 0.9273 (3.03) 0.9329 (4.03) 0.9428 (4.52) 0.9596 (3.61) Upper bound 0.8616 (−4.27) 0.8443 (−5.84) 0.8258 (−8.44) 0.8343 (−9.93) Average bound 0.8910 (−0.99) 0.8822 (−1.62) 0.8729 (−3.23) 0.8850 (−4.45) Sample sizes (m, n) (411, 137) (153,51) (42, 14) (21, 7) Simulated power 0.8998 0.9005 0.9075 0.9252

Exact variance 0.9011 (0.14) 0.9005 (0.00) 0.9102 (0.30) 0.9362 (1.19) Lehmann 0.9182 (2.05) 0.9251 (2.73) 0.9414 (3.74) 0.9584 (3.59) Noether 0.8970 (−0.32) 0.8896 (−1.21) 0.8703 (−4.10) 0.8527 (−7.84) Lower bound 0.9273 (3.05) 0.9329 (3.59) 0.9428 (3.89) 0.9596 (3.72) Upper bound 0.8616 (−4.25) 0.8443 (−6.24) 0.8258 (−9.00) 0.8343 (−9.83) Average bound 0.8910 (−0.97) 0.8822 (−2.03) 0.8729 (−3.81) 0.8850 (−4.35)

Table 6. Nominal power and simulated power at specified sample size for normal shift alternatives.

= θ/σ 0.3 0.5 1.0 1.5

Sample sizes (m, n) (200, 200) (73, 73) (19, 19) (9, 9)

Simulated power 0.8994 0.8986 0.9081 0.9012

Exact variance 0.9005 (0.12) 0.9033 (0.52) 0.9096 (0.16) 0.9173 (1.78) Lehmann 0.9003 (0.10) 0.9027 (0.45) 0.9079 (−0.02) 0.9165 (1.69) Noether 0.8971 (−0.26) 0.8937 (−0.54) 0.8716 (−4.02) 0.8335 (−7.51) Lower bound 0.9011 (0.19) 0.9048 (0.69) 0.9142 (0.67) 0.9248 (2.62) Upper bound 0.8906 (−0.98) 0.8853 (−1.48) 0.8736 (−3.80) 0.8670 (−3.80) Average bound 0.8957 (−0.41) 0.8948 (−0.42) 0.8926 (−1.71) 0.8933 (−0.88) Sample sizes (m, n) (133, 399) (48, 144) (13, 39) (6, 18) Simulated power 0.8986 0.8981 0.9105 0.9110

Exact variance 0.9000 (0.16) 0.9001 (0.22) 0.9185 (0.88) 0.9220 (1.21) Lehmann 0.8998 (0.13) 0.8996 (0.16) 0.9158 (0.59) 0.9195 (0.93) Noether 0.8964 (−0.25) 0.8901 (−0.90) 0.8790 (−3.46) 0.8335 (−8.51) Lower bound 0.9271 (3.17) 0.9342 (4.02) 0.9528 (4.64) 0.9535 (4.66) Upper bound 0.8607 (−4.22) 0.8443 (−5.99) 0.8372 (−8.05) 0.8223 (−9.73) Average bound 0.8904 (−0.91) 0.8827 (−1.71) 0.8846 (−2.84) 0.8739 (−4.07) Sample sizes (m, n) (399, 133) (144, 48) (39, 13) (18, 6) Simulated power 0.9008 0.8941 0.9122 0.9121

Exact variance 0.9000 (−0.09) 0.9001 (0.67) 0.9185 (0.69) 0.9220 (1.09) Lehmann 0.8998 (−0.11) 0.8996 (0.61) 0.9158 (0.40) 0.9195 (0.81) Noether 0.8964 (−0.49) 0.8901 (−0.45) 0.8790 (−3.64) 0.8335 (−8.62) Lower bound 0.9271 (2.92) 0.9342 (4.48) 0.9528 (4.45) 0.9535 (4.54) Upper bound 0.8607 (−4.45) 0.8443 (−5.57) 0.8372 (−8.22) 0.8223 (−9.84) Average bound 0.8904 (−1.15) 0.8827 (−1.27) 0.8846 (−3.02) 0.8739 (−4.18)

(11)

Power and sample size determinations for the Wilcoxon–Mann–Whitney test 41 Table 7. Nominal power and simulated power at specified sample size for double exponential shift alternatives.

= θ/σ 0.3 0.5 1.0 1.5

Sample sizes (m, n) (132, 132) (50, 50) (15, 15) (8, 8)

Simulated power 0.8996 0.8984 0.8976 0.9053

Exact variance 0.9015 (0.21) 0.9028 (0.49) 0.9122 (1.63) 0.9174 (1.33) Lehmann 0.9090 (1.04) 0.9195 (2.35) 0.9510 (5.95) 0.9726 (7.43) Noether 0.8975 (−0.24) 0.8917 (−0.75) 0.8707 (−2.99) 0.8324 (−8.06) Lower bound 0.9036 (0.45) 0.9079 (1.06) 0.9259 (3.15) 0.9384 (3.66) Upper bound 0.8900 (−1.07) 0.8837 (−1.64) 0.8806 (−1.89) 0.8785 (−2.96) Average bound 0.8967 (−0.33) 0.8953 (−0.34) 0.9018 (0.46) 0.9060 (0.07) Sample sizes (m, n) (88, 264) (33, 99) (10, 30) (5, 15) Simulated power 0.9032 0.9052 0.9046 0.8819

Exact variance 0.9018 (−0.16) 0.9007 (−0.49) 0.9145 (1.09) 0.9008 (2.14) Lehmann 0.9092 (0.66) 0.9178 (1.39) 0.9524 (5.28) 0.9661 (9.55) Noether 0.8975 (−0.63) 0.8890 (−1.79) 0.8707 (−3.74) 0.8108 (−8.07) Lower bound 0.9328 (3.28) 0.9393 (3.77) 0.9558 (5.66) 0.9478 (7.47) Upper bound 0.8575 (−5.06) 0.8412 (−7.08) 0.8306 (−7.59) 0.8109 (−8.05) Average bound 0.8907 (−1.38) 0.8825 (−2.51) 0.8848 (−2.18) 0.8633 (−2.11) Sample sizes (m, n) (264, 88) (99, 33) (30, 10) (15, 5) Simulated power 0.9087 0.8970 0.9036 0.8883

Exact variance 0.9018 (−0.76) 0.9007 (0.42) 0.9145 (1.20) 0.9008 (1.41) Lehmann 0.9092 (0.06) 0.9178 (2.31) 0.9524 (5.40) 0.9661 (8.76) Noether 0.8975 (−1.23) 0.8890 (−0.89) 0.8707 (−3.64) 0.8108 (−8.73) Lower bound 0.9328 (2.65) 0.9393 (4.71) 0.9558 (5.77) 0.9478 (6.70) Upper bound 0.8575 (−5.64) 0.8412 (−6.23) 0.8360 (−7.48) 0.8109 (−8.71) Average bound 0.8907 (−1.98) 0.8825 (−1.62) 0.8848 (−2.08) 0.8633 (−2.81)

simulated power is the proportion of the 10,000 replicates whose values exceed the critical value zα. Consequently, the adequacy of the power approximations is determined by the dif-ference between their nominal power and the simulated power. The results of both simulated power and percentage error are presented in tables 5–8 where percentage error is defined as

Percentage error= nominal power− simulated power

simulated power × 100%.

Examination of these tables shows that the performance of the exact variance approach is excellent over the whole range of conditions that were considered. The accuracy of the four approximate methods varies considerably with the structures of the shift alternatives. It is easily seen that the nominal powers of Lehmann’s [1] approach tend to be higher than the simulated powers while Noether’s [5] method shows the opposite pattern, namely that the nominal powers are generally lower than the simulated powers. Specifically, the approximation of Lehmann [1] gives satisfactory results for = 0.3 and 0.5 and is surprisingly accurate for all normal shift alternatives. In contrast, its percentage errors for exponential shift models are too large to be acceptable. On the other hand, the simplified formula of Noether [5] is reliable for ≤ 0.5 throughout the simulation except in the last unbalanced setting of the exponential shift models. For the two methods based on the general lower and upper bounds of the non-null variance, the results suggest that both are extremely vulnerable to error when the sample sizes are unbalanced. Note that the upper bound approach frequently gives the largest errors among the formulas. The only situations where both variance bound methods maintain a reasonable magnitude of errors are with small location shifts and balanced designs. Unsurprisingly, the percentage errors of the average bound method are always between those

(12)

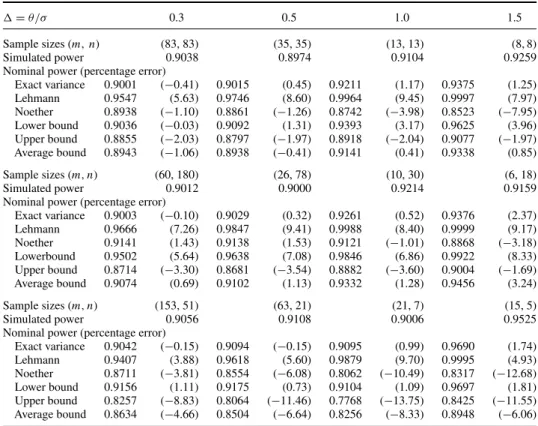

Table 8. Nominal power and simulated power at specified sample size for exponential shift alternatives.

= θ/σ 0.3 0.5 1.0 1.5

Sample sizes (m, n) (83, 83) (35, 35) (13, 13) (8, 8)

Simulated power 0.9038 0.8974 0.9104 0.9259

Exact variance 0.9001 (−0.41) 0.9015 (0.45) 0.9211 (1.17) 0.9375 (1.25) Lehmann 0.9547 (5.63) 0.9746 (8.60) 0.9964 (9.45) 0.9997 (7.97) Noether 0.8938 (−1.10) 0.8861 (−1.26) 0.8742 (−3.98) 0.8523 (−7.95) Lower bound 0.9036 (−0.03) 0.9092 (1.31) 0.9393 (3.17) 0.9625 (3.96) Upper bound 0.8855 (−2.03) 0.8797 (−1.97) 0.8918 (−2.04) 0.9077 (−1.97) Average bound 0.8943 (−1.06) 0.8938 (−0.41) 0.9141 (0.41) 0.9338 (0.85) Sample sizes (m, n) (60, 180) (26, 78) (10, 30) (6, 18) Simulated power 0.9012 0.9000 0.9214 0.9159

Exact variance 0.9003 (−0.10) 0.9029 (0.32) 0.9261 (0.52) 0.9376 (2.37) Lehmann 0.9666 (7.26) 0.9847 (9.41) 0.9988 (8.40) 0.9999 (9.17) Noether 0.9141 (1.43) 0.9138 (1.53) 0.9121 (−1.01) 0.8868 (−3.18) Lowerbound 0.9502 (5.64) 0.9638 (7.08) 0.9846 (6.86) 0.9922 (8.33) Upper bound 0.8714 (−3.30) 0.8681 (−3.54) 0.8882 (−3.60) 0.9004 (−1.69) Average bound 0.9074 (0.69) 0.9102 (1.13) 0.9332 (1.28) 0.9456 (3.24) Sample sizes (m, n) (153, 51) (63, 21) (21, 7) (15, 5) Simulated power 0.9056 0.9108 0.9006 0.9525

Exact variance 0.9042 (−0.15) 0.9094 (−0.15) 0.9095 (0.99) 0.9690 (1.74) Lehmann 0.9407 (3.88) 0.9618 (5.60) 0.9879 (9.70) 0.9995 (4.93) Noether 0.8711 (−3.81) 0.8554 (−6.08) 0.8062 (−10.49) 0.8317 (−12.68) Lower bound 0.9156 (1.11) 0.9175 (0.73) 0.9104 (1.09) 0.9697 (1.81) Upper bound 0.8257 (−8.83) 0.8064 (−11.46) 0.7768 (−13.75) 0.8425 (−11.55) Average bound 0.8634 (−4.66) 0.8504 (−6.64) 0.8256 (−8.33) 0.8948 (−6.06)

of the two procedures based on the lower and upper bounds. However, the performance of the average bound method is not as satisfactory as anticipated. Overall, the exact variance method has a clear advantage over the approximate counterparts.

4. Conclusion

In this article, we discuss power and sample size calculations for the Wilcoxon–Mann– Whitney test within the framework of location shift models. The asymptotic normal property is employed to obtain an approximation to the power function of the Wilcoxon–Mann–Whitney statistic. Extensive numerical study of power and sample size determinations is conducted to evaluate the impact of certain simplifications made by various competing approximations. A major criterion for the selection of an appropriate method is how well the nominal power matches the actual power corresponding to a given sample size and model configuration. The modifications of the exact mean and variance made in previously proposed large-sample approximations appear to affect and degrade the accuracy of sample size and power calcu-lations in significant and distinctive ways. The application of these approximations should be restricted to shift models with relatively small departures from the null hypothesis. The findings in our numerical study suggest that the methods of Lehmann [1] and Noether [5] may be quite inaccurate for location shifts = θ/σ > 0.5. In contrast to previous results in the literature, we find that the use of Noether’s approximation for medium and large shift alternatives is problematic.

(13)

Power and sample size determinations for the Wilcoxon–Mann–Whitney test 43

The sample sizes produced by the exact variance method are not only based on a more realis-tic mean and variance structure than the other approximate approaches, they also give smaller power discrepancies than the other approximations with the same sample size. Although com-putation is slightly more involved when using the exact variance formula, the extra complexity is outweighed by its superiority in accuracy. The normal approximation to the power of the Wilcoxon–Mann–Whitney test can be further improved through an Edgeworth expansion. However, the empirical results of this study show a simple normal approximation is adequate for most purposes. We feel that the method advocated in this paper is a practical way to investi-gate power and sample size selection, important issues that are often overlooked in discussions of the Wilcoxon–Mann–Whitney test.

References

[1] Lehmann, E.L., 1998, Nonparametrics: Statistical Methods Based on Ranks (Upper Saddle River, New Jersey: Prentice Hall).

[2] Milton, R.C., 1970, Rank Order Probabilities: Two-Sample Normal Shift Alternatives (New York: Wiley). [3] Haynam, G.E. and Govindarajulu, Z., 1966, Exact power of Mann–Whitney test for exponential and rectangular

alternatives. Annals of Mathematical Statistics, 37, 945–953.

[4] Ramsey, F.L., 1971, Small sample power functions for nonparametric estimates of location in the double exponential family. Journal of the American Statistical Association, 66, 149–151.

[5] Noether, G.E., 1987, Sample size determination for some common nonparametric tests. Journal of the American

Statistical Association, 82, 645–647.

[6] Vollandt, R. and Horn, M., 1997, Evaluation of Noether’s method of sample size determination for the Wilcoxon– Mann–Whitney test. Biometrical Journal, 39, 823–829.

[7] Birnbaum, Z.W. and Klose, O.M., 1957, Bounds for the variance of the Mann–Whitney statistic. Annals of

Mathematical Statistics, 28, 933–945.

[8] Hettmansperger, T.P., 1984, Statistical Inference Based on Ranks (New York: Wiley).
