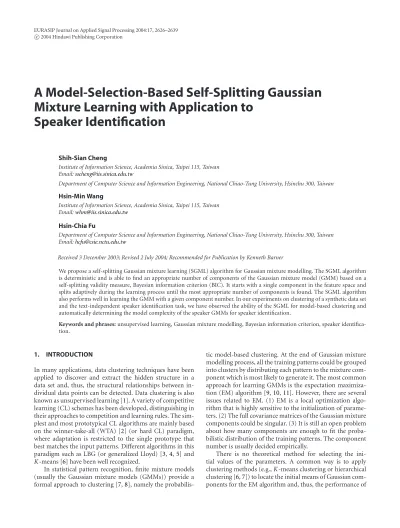

A Model-Selection-Based Self-Splitting Gaussian
Mixture Learning with Application to
Speaker Identification
Shih-Sian ChengInstitute of Information Science, Academia Sinica, Taipei 115, Taiwan Email:[email protected]
Department of Computer Science and Information Engineering, National Chiao-Tung University, Hsinchu 300, Taiwan
Hsin-Min Wang
Institute of Information Science, Academia Sinica, Taipei 115, Taiwan Email:[email protected]
Hsin-Chia Fu
Department of Computer Science and Information Engineering, National Chiao-Tung University, Hsinchu 300, Taiwan Email:[email protected]
Received 3 December 2003; Revised 2 July 2004; Recommended for Publication by Kenneth Barner
We propose a self-splitting Gaussian mixture learning (SGML) algorithm for Gaussian mixture modelling. The SGML algorithm is deterministic and is able to find an appropriate number of components of the Gaussian mixture model (GMM) based on a self-splitting validity measure, Bayesian information criterion (BIC). It starts with a single component in the feature space and splits adaptively during the learning process until the most appropriate number of components is found. The SGML algorithm also performs well in learning the GMM with a given component number. In our experiments on clustering of a synthetic data set and the text-independent speaker identification task, we have observed the ability of the SGML for model-based clustering and automatically determining the model complexity of the speaker GMMs for speaker identification.
Keywords and phrases: unsupervised learning, Gaussian mixture modelling, Bayesian information criterion, speaker
identifica-tion.
1. INTRODUCTION
In many applications, data clustering techniques have been applied to discover and extract the hidden structure in a data set and, thus, the structural relationships between in-dividual data points can be detected. Data clustering is also known as unsupervised learning [1]. A variety of competitive learning (CL) schemes has been developed, distinguishing in their approaches to competition and learning rules. The sim-plest and most prototypical CL algorithms are mainly based on the winner-take-all (WTA) [2] (or hard CL) paradigm, where adaptation is restricted to the single prototype that best matches the input patterns. Different algorithms in this paradigm such as LBG (or generalized Lloyd) [3,4,5] and K-means [6] have been well recognized.
In statistical pattern recognition, finite mixture models (usually the Gaussian mixture models (GMMs)) provide a formal approach to clustering [7,8], namely the
probabilis-tic model-based clustering. At the end of Gaussian mixture modelling process, all the training patterns could be grouped into clusters by distributing each pattern to the mixture com-ponent which is most likely to generate it. The most common approach for learning GMMs is the expectation maximiza-tion (EM) algorithm [9,10,11]. However, there are several issues related to EM. (1) EM is a local optimization algo-rithm that is highly sensitive to the initialization of parame-ters. (2) The full covariance matrices of the Gaussian mixture components could be singular. (3) It is still an open problem about how many components are enough to fit the proba-bilistic distribution of the training patterns. The component number is usually decided empirically.
There is no theoretical method for selecting the ini-tial values of the parameters. A common way is to apply clustering methods (e.g.,K-means clustering or hierarchical clustering [6,7]) to locate the initial means of Gaussian com-ponents for the EM algorithm and, thus, the performance of
EM highly depends on the clustering result. Instead of find-ing better initial values for the parameters, Ueda et al. [12] proposed an SMEM (split and merge EM) algorithm that performs split and merge operations simultaneously (i.e., the number of components is kept, some components split while some components merge) after the regular EM training to escape the condition that there are too many components in some clusters and too few to well fit the other clusters. How-ever, the SMEM algorithm only makes improvements to the estimation of the parameters with a given component num-ber but does not contribute to the selection of the numnum-ber of components.
EM breaks down when any of the covariance matrices of the Gaussian components becomes singular or nearly sin-gular. In general, the singularity condition occurs especially when clusters contain a few observations or when too many components are used to fit the data set where there are actu-ally fewer clusters. Ormoneit and Tresp [13] proposed some Bayesian regularization methods to deal with the singularity condition.
The selection of the number of components is an impor-tant issue in Gaussian mixture modelling. With too many components, the mixture model would overfit the data; on the other hand, with too few components, it would be not flexible enough to describe the structure of the data. Sev-eral model selection criteria have been proposed to select the number of components of a mixture model among a set of candidate models, such as Akaike’s information crite-rion (AIC) [14], Bayesian information criterion (BIC) [15,
16,17], minimum description length (MDL) [18] (which is formally identical to BIC), and minimum message length (MML) [19]. These criteria are also well known as penal-ized likelihood criteria. In the previous studies, the model-selection-based approaches first defined the upper bound kmaxof the component number of the candidate models, and
then the best model was the one that has the minimum value of the specific model selection criterion (MSC) among these candidate models; that is,
k=arg min
k
MSCwk, k=1, 2,. . . , kmax, (1)
where wk is the maximum likelihood estimate of
parame-ters of a mixture model that hask components. MSC(wk)= −logp(X| wk) + Penalty(k), where log p(X| wk) is the
log-likelihood value of the training data set X for wk, and
Penalty(k) is a monotonically increasing function of k that penalizes more for more complicated models.
There are two major issues with these model-selection-based approaches. First, they need to define the upper bound of the component number kmax beforehand. Ifkmax is too
large (much larger than the best component number deter-mined by the MSC), the training process will require a high computation cost. On the other hand, ifkmaxis too small, the
selected model may not be flexible enough to describe the structure of the training data. Second, MSC(wk) is calculated
from logp(X| wk), in whichwk is usually estimated by EM.
In order to obtain a more robust calculation of MSC(wk),
one may use the SMEM or the other learning algorithms to obtain a better estimation ofwk, but the training process may
require a higher computation cost and the problem of defin-ingkmaxstill remains unsolved.
In this paper, we propose a self-splitting Gaussian mix-ture learning (SGML) algorithm that starts with a single component and successively splits the selected component into two new components until the most appropriate com-ponent number is found. Both the selection of comcom-ponent to be split and the determination of appropriate compo-nent number are based on BIC. The proposed approach has several advantages. (1) It provides a better initialization for EM. In the conventional Gaussian mixture learning (GML) process, the clustering phase often results in ill-initial mix-ture models with too many components in one part of the space and too few in another widely separated part of the space. The following EM phase often fails to escape from this configuration and falls into an ill-local maximum. In the splitting process of the proposed SGML, the BIC-MSC is used to determine which part of the space should be di-vided into two parts. In this way, the ill-initialization situ-ation can be avoided to some extent and, thus, a better es-timation of logp(X| wk) can be obtained. (2) It
automati-cally determines the appropriate component number with-out the need to define the upper bound of the component number beforehand. The SGML algorithm stops when a “sig-nificant maximum” in the learning curve (i.e., the BIC plot here) is found, and then outputs the model yielding the max-imum BIC valve. The term “significant maxmax-imum” will be defined inSection 3.1. (3) It is deterministic. The output of the SGML algorithm is always the same in different runs on the same data set, since there is no randomization in the learning rules.
We have evaluated the proposed learning algorithm on two tasks. The first task involves applying the SGML algo-rithm in automatic clustering of a synthetic data set. The sec-ond task involves using the SGML algorithm to train speaker GMMs for the NIST 2001 speaker recognition evaluation. In both tasks, we have observed a noticeable improvement in Gaussian mixture modelling.
The rest of this paper is organized as follows. The EM algorithm, model selection, BIC, and the use of GMMs for speaker identification are reviewed in Section 2. Then, the proposed SGML algorithm is described in detail inSection 3, and the experimental results are discussed inSection 4. Fi-nally, conclusions are drawn inSection 5.
2. REVIEWS
2.1. Gaussian mixture distribution and EM algorithm
A random vector x ∈Rd is said to follow anR-component
Gaussian mixture distribution if its probability density func-tion (pdf) is p(x|w)= R r=1 pΘr px|Θr , (2)
where p(Θr) ≥ 0, r = 1, 2,. . . , R, and R
r=1p(Θr) = 1.
p(x|Θr) is the rth Gaussian component of p(x|w),Θr = {µr,Σr}. p(Θr), µr, and Σr denote, respectively, the prior
probability, mean vector, and covariance matrix of p(x|Θr).
w ≡ {p(Θr),Θr | r = 1, 2,. . . , R} is the complete set of
parameters needed to specify the Gaussian mixture distribu-tion.
Given a set of independent samples X = {x(t); t =
1, 2,. . . , N}from a Gaussian mixture distribution, the esti-mation of the parameters is often carried out with the EM algorithm [9,10,11] in the maximum likelihood sense. The log-likelihood function of X under w can be computed by
L(X|w)= N
t=1
logpx(t)w. (3)
The EM algorithm iteratively reestimates the parameters of w through the following closed-form solutions and guarantees that the value of L(X|w) will monotonically increase after each iteration: p Θ(rj+1) = 1 N N t=1 p Θ(rj)x(t) , µ(rj+1)= N t=1p Θ(j) r x(t) x(t) N t=1p Θ(j) r x(t) , Σ(j+1) r = N t=1p Θ(j) r x(t) x(t)−µ(rj+1) x(t)−µ(rj+1) T N t=1p Θ(j) r x(t) , (4) where p(Θ(rj)|x(t)) is the posterior probability of Θ(rj) given
x(t), which can be computed by
p Θ(rj)x(t) = p Θ(j) r p x(t)Θ(rj) px(t) . (5)
The following reestimation rule based on the Bayesian regularization can be used to avoid the singularity condition of a covariance matrix [13] Σ(j+1) r = N t=1p Θ(j) r x(t) x(t)−µ(rj+1) x(t)−µ(rj+1) T +λId N t=1p Θ(j) r x(t) + 1 , (6) whereIdis ad-dimensional identity matrix and λ is a
regu-larization constant determined by some validation data.
2.2. The Bayesian approach for
model selection and BIC
Given a set of patterns X = {x(t); t = 1, 2,. . . , N}and a set of candidate models M = {Mk | k = 1,. . . , L}, each
model associated with a parameter set wkand the posterior
probability p(Mk|X) can be used to select a proper model fromM to represent the distribution of X. By applying Bayes’ theorem,p(Mk|X) can be expressed as follows:
pMkX = p Mk pXMk p(X) , (7)
wherep(Mk) is the prior probability of modelMk.p(X) can
be eliminated because it is identical for all models and will not affect the model selection. Furthermore, because the way to estimate the probability p(Mk) is still unknown, we may
simply assume each model is equally likely (i.e., p(Mk) =
1/L). As a result, p(Mk|X) is proportional to the probabil-ity that the data conform to the modelMk,p(X|Mk), which
can be computed by pXMk = pXwk,Mk pwkMk dwk. (8)
The calculation of logp(X|Mk) can be achieved by the
Laplace approximation [16,20], which gives logpXMk ≈logpXwk,Mk −1 2·d Mk ·logN, (9) wherewkis the maximum likelihood estimate of wk,d(Mk)
is the number of free parameters in modelMk, andN is the
number of training patterns. In [17], the BIC value of model Mkover the data set X, BIC(Mk, X), is defined as follows:1
BICMk, X ≡2 logpXwk,Mk −dMk ·logN. (10) Accordingly, the larger the value of BIC, the stronger the ev-idence for the model is. In other words, the model with the maximum BIC value will be selected. The BIC can be used to compare models with different parameterizations, different numbers of components, or both.
2.3. GMM-based text-independent
speaker identification
In a GMM-based speaker identification system [22,23], a group of speakers {S1,S2,. . . , SM} are represented by a set
of GMMs{w1, w2,. . . , wM}. Given a feature vector sequence
X = {x(t); t = 1, 2,. . . , N}, the objective is to find the speaker model which has the maximum log-likelihood value with X. The problem can be formally formulated as follows:
S=arg max k logp Xwk . (11)
If the individual observations are assumed to be indepen-dent,p(X|wk) can be decomposed as a product ofp(x(t)|wk), 1Kass and Raftery [21] defined BIC as minus the value given in (10); Fra-ley and Raftery [17] used the definition of (10) to make it easier to interpret the plots of BIC values. We follow what Fraley and Raftery did and, thus, the model with the maximum BIC value in fact corresponds to the model with the minimum MSC in (1).
Input data set: X= {x(t); t=1,. . . , N}
Output parameter set: w= {p(Θr),Θr|r=1, 2,. . . , bestNum}, wherep(Θr) is the prior probability
of therth Gaussian component, and Θr= {µr,Σr}are the mean vector and covariance matrix of the
rth Gaussian component. BEGIN (1) Initialization: SRange=5; compoNum=1; w= {p(Θ1),Θ1= {µ1,Σ1}}, wherep(Θ1)=1,µ1, andΣ1are the sample mean vector and sample covariance matrix of X;
BIC set(1)=BIC(GMM1, X); GMM set(1)=w;
//BIC set(compoNum): the BIC value of GMMcompoNumover X. //GMM set(compoNum): the parameter set of GMMcompoNumover X. (2) Data clustering:
EM cluteri=φ, for i=1, 2,. . . , compoNum;
for each pattern x(t):
j=arg maxr{p(Θr|x(t))}; EM clusterj=EM clusterj
x(t); //add x(t) to EM clusterj.
(3) Splitting (splitting one component into two new components): whichSplit=arg maxi{∆BIC21(EM clusteri)};
suppose the parameters of GMM2corresponding to EM clusterwhichSplitare ¯λ1= {p( ¯Θ1), ¯Θ1}, ¯λ2= {p( ¯Θ2), ¯Θ2}, where
¯
Θr= {¯µr, ¯Σr}, forr=1, 2.
Let
p( ¯Θ1)=p( ¯Θ2)=12p(ΘwhichSplit);
w=w\ {p(ΘwhichSplit),ΘwhichSplit};//remove{p(ΘwhichSplit),ΘwhichSplit}from w, w=w {λ¯1, ¯λ2}; //add{λ¯1, ¯λ2}to w;
compoNum=compoNum + 1; (4) Global EM learning:
perform EM learning on all the clusters with w as the initial parameters, then w would be fine-tuned;
GMM set(compoNum)=w;
BIC set(compoNum)=BIC(w, X);
if compoNum> SRange and BIC set(compoNum-SRange) is the maximum value in the learning curve,
bestNum=compoNum−SRange; w=GMM set(bestNum); goto END; else
goto 2; END
Algorithm 1: The SGML algorithm.
t=1, 2,. . . , N, and (11) can be rewritten as follows:
S=arg max k N t=1 logpx(t)wk . (12)
The observation-independence assumption has been widely used in speaker recognition as well as speech recognition sys-tems.
3. THE BIC-BASED SGML
3.1. The SGML
Given a set of training patterns X= {x(t); t=1, 2,. . . , N}, we can partition X into k clusters after applying the EM
algorithm to learn the k-component GMMk. Here, we
call the cluster defined by EM the EM cluster. The self-splitting algorithm starts with a single component (i.e., sin-gle EM cluster) in the feature space (i.e., X) and splits the selected component adaptively during the learning pro-cess until the most appropriate number of components (EM clusters) is found. The details of the proposed learn-ing algorithm are illustrated inAlgorithm 1. There are three main aspects with respect to our self-splitting learning rules.
(I1) How to group the training patterns into clusters? (I2) Which component should be split into a pair of new
components?
(I3) How many components are enough for representing the distribution of the training patterns?
On issue (I1)
After EM, each x(t) ∈ X is distributed to the EM cluster whose Gaussian component has the largest posterior prob-ability given x(t); that is, let x(t) belong to EM clusterj if
j=arg maxrp(Θr|x(t)). On issue (I2)
For each EM cluster, we need to calculate the value of ∆ BIC21(EM cluster) (∆ BIC21(EM cluster)= BIC(GMM2,
EM cluster)−BIC(GMM1, EM cluster)). GMM1models the
EM cluster with a single Gaussian component while GMM2
models the EM cluster with a mixture of two Gaussian com-ponents. The mean vector and covariance matrix of GMM1
can be optimally estimated in an analytic way (respectively, the sample mean vector and sample covariance matrix of EM cluster) while those of GMM2 must be estimated by
the EM algorithm. We first use K-means clustering (here, K = 2) to find two initial mean vectors of GMM2, and
then apply EM learning to fine-tune the parameters. Sup-poseµ is the mean vector of GMM1, we useµ−ε and µ + ε
as the initial centroids of the K-means clustering, where ε is a constant vector. The component which corresponds to the EM cluster that has the largest value of∆ BIC21is split
into two new components. According to the definition of BIC, the larger the∆ BIC21is, the higher the confidence that
GMM2fits the corresponding EM cluster better than GMM1
does. On issue (I3)
After the jth split, the number of components grows to j + 1 and these Gaussian components are used as the ini-tial values of EM to train the GMMj+1over X. The value of
BIC(GMMj+1, X) is estimated at the end of EM training. The
BIC values of GMMs with an increasing number of mixture components form a learning curve (i.e., the BIC plot). The learning process stops when a “significant maximum” in the learning curve is found. Given that the SGML has generated {GMM1, GMM2,. . . , GMMM}, if BIC(GMMM−SRange, X) is
the maximum among the BIC values from BIC(GMM1, X) to
BIC(GMMM, X), the “significant maximum” in the learning
curve is found and the SGML will stop and output the model corresponding to the “significant maximum,” GMMM−SRange;
otherwise, the SGML will continue to train GMMM+1. Here, SRange is a positive integer, and around 5 is a reasonable choice according to our experience.
3.1.1. Complexity analysis of SGML
To simplify the analysis, we assume that bothK-means and EM stop when a predefined iteration number is reached. Let TKM(k, D) denote the computation needed to apply the
K-means clustering algorithm in the data setD for initializing the parameters of a GMMk and letTEM(GMMk,D) denote
the computation needed to use EM for learning GMMkfrom D given an initial model parameter set. The computation needed to train GMMkfrom X using the conventional
learn-ing process; that is,K-means followed by EM, is TKM(k, X) +
TEM(GMMk, X) (random mean selection for initialization of
K-means) or ki=1TKM(i, X) + TEM(GMMk, X)
(incremen-tal mean splitting for initialization ofK-means). Therefore, the total amount of computation required to select the best model by incrementing the Gaussian component number is roughly kmax
k=1[TKM(k, X) + TEM(GMMk, X)]. Young and
Woodland [24] proposed to successively increment the mix-ture component from a single one. Their method split the mean vector of the Gaussian component with the largest weight into two new ones in each splitting step, and then per-formed EM to update all Gaussian components. Since there is noK-means involved in their method, the total computa-tion iskmax
k=1TEM(GMMk, X).
For the proposed SGML, as shown inAlgorithm 1, the computation needed in the splitting step for incrementing GMMR to GMMR+1 is the computation needed to
com-pute the sample mean vectors and sample covariance ma-trices for all clusters, Rj=1TEM(GMM1, EM clusterj), plus
the computation needed to apply K-means (K = 2) fol-lowed by EM to train GMM2 for all clusters,
R
j=1[TKM(2,
EM clusterj) +TEM(GMM2, EM clusterj)], while the
com-putation needed in the global EM learning step is TEM(GMMR+1, X).
R
j=1TEM(GMM1, EM clusterj) is
al-most equal to TEM(GMM1, X). From (4), it is
obvi-ous that TEM(GMMk, X) is proportional to the
com-ponent number k and the amount of the training data X. TKM(k, X) has the same property too.
There-fore, Rj=1TKM(2, EM clusterj) can be approximated by TKM(2, X), while
R
j=1TEM(GMM2, EM clusterj) can be
ap-proximated by TEM(GMM2, X). In comparison with the
method proposed by Young and Woodland [24], the SGML has an overhead of TEM(GMM1, X) +TKM(2, X) +
TEM(GMM2, X) in each splitting step. TEM(GMM1, X) is
much smaller than (1/2)TEM(GMM2, X) because no
like-lihood calculation is involved in estimating GMM1.
Fur-thermore,TKM(2, X) is much smaller than TEM(GMM2, X)
too. Therefore, the overhead is just slightly higher than TEM(GMM2, X). In other words, when R 2, the
over-head for incrementing GMMRto GMMR+1is negligible since TEM(GMM2, X) is much smaller thanTEM(GMMR+1, X).
3.2. The fast SGML
The computation requirement becomes an important issue when the training set is very large. A fast learning procedure is therefore desirable. Since we can validate whether GMM2
fits a cluster better than GMM1does via the BIC, a
straight-forward idea is to split all the clusters whose ∆BIC21
val-ues are larger than a splitting confidence; that is, the con-fidence threshold for splitting, in each splitting step. The learning process stops when the ∆BIC21 of all clusters are
less than the splitting confidence. We call this approach the fast SGML. The fast SGML needs a much lower compu-tation requirement than the SGML because it allows mul-tiple splits in the splitting step. The fast SGML resembles the LBG algorithm [5], but a crucial difference is that the LBG algorithm successively splits each of the clusters into two clusters until a given cluster number is reached and no validation measure is applied while splitting. To avoid the
BEGIN
(1) Initialization: same as the SGML. (2) Data clustering: same as the SGML. (3) Splitting components:
(a) for each EM clusteri:
if∆BIC21(EM clusteri)> splitting confidence,
split the component corresponding to EM clusteriinto two components;
compoNum=compoNum + 1; (b) if no component is split in (a),
return GMM set(compoNum); goto END. (4) Global EM learning:
perform EM learning to fine-tune the Gaussian components obtained at Step 3; if the learning curve starts to go down
let bestNum be the component number which has the maximum value in the learning curve;
return GMM set(bestNum); goto END; else
goto 2; END
Algorithm 2: The fast SGML algorithm.
overfitting condition caused by a too small splitting con-fidence, the fast learning procedure stops not only when the ∆BIC21 of all clusters are less than the splitting
confi-dence but also when the learning curve starts to go down. The details of the fast learning algorithm are illustrated in
Algorithm 2.
4. EXPERIMENTAL RESULTS
We have evaluated the proposed learning algorithms on two tasks. The first task involves applying the SGML algorithm in automatic clustering of a synthetic data set. The second task involves using the SGML algorithm to train speaker GMMs for the text-independent speaker identification appli-cation. In each task, the performance of the proposed learn-ing algorithm was compared with that of the other EM-based learning approaches whose initial mean vectors of GMMs were located by hierarchical clustering-based or K-means clustering-based techniques, including the following.
(1) Hier-ComLink method. The initial Gaussian mean vectors in EM were determined by complete-link hi-erarchical clustering.
(2) Hier-SLink method. The initial Gaussian mean vec-tors in EM were determined by single-link hierarchical clustering.
(3) Hier-CenLink method. The initial Gaussian mean vec-tors in EM were determined by centroid-link hierar-chical clustering.
(4) K-means-random method. The initial Gaussian mean vectors in EM were determined byK-means cluster-ing, in which the initial centroids of the K-means clustering algorithm were randomly selected from the training patterns.
(5) K-means-BinSplitting method [5]. The initial Gaus-sian mean vectors in EM were determined by the LBG
algorithm, in which each mean vector was split into two new ones in each splitting step until the desired number of clusters was reached.
(6) K-means-IncSplitting method [25]. The initial Gaus-sian mean vectors in EM were determined by the in-cremental splittingK-means algorithm, in which only the mean vector of the cluster with the largest total er-ror was split into two new ones in each splitting step until the desired number of clusters was reached. (7) EMSplitByMaxWeight method [24]. This method split
the mean vector of the Gaussian component with the largest weight into two new ones in each splitting step, and then performed EM to update all Gaussian com-ponents. The number of mixture component was in-cremented from one to a predefined number.
4.1. The synthetic data clustering task
The synthetic data set, as shown in Figure 1a, was drawn from a distribution of six Gaussian clusters, and each clus-ter contains 100 samples. Figure 1 depicts how a full co-variance GMM with six mixture components was learned in stages from the above synthetic data set by the SGML al-gorithm. The SGML algorithm stopped at GMM11 and
ob-tained a “significant maximum” at GMM6. The result
indi-cates that the SGML algorithm performed very well in au-tomatic clustering of the synthetic data set. We have also tested the other methods on the same synthetic data set. In this experiment, all the Gaussian components are of full covariance and the number of mixture components of all methods is limited to an upper bound of 13. Figure 2
shows the learning curves obtained by various methods. We found that, except for the K-means random, all the methods could estimate the parameters of GMMk (k =
1, 2,. . . , 13) almost as well as the SGML on the synthetic data set.
100 80 60 40 20 0 0 20 40 60 80 100 1 2 3 4 5 6 (a) GMM1. 100 80 60 40 20 0 0 20 40 60 80 100 After splitting (b) Initial of GMM2. 100 80 60 40 20 0 0 20 40 60 80 100
After EM and clustering
(c) GMM2. 100 80 60 40 20 0 0 20 40 60 80 100 After splitting (d) Initial of GMM3. 100 80 60 40 20 0 0 20 40 60 80 100
After EM and clustering
(e) GMM3. 100 80 60 40 20 0 0 20 40 60 80 100 After splitting (f) Initial of GMM4. 100 80 60 40 20 0 0 20 40 60 80 100
After EM and clustering
(g) GMM4. 100 80 60 40 20 0 0 20 40 60 80 100 After splitting (h) Initial of GMM5. 100 80 60 40 20 0 0 20 40 60 80 100
After EM and clustering
(i) GMM5. 100 80 60 40 20 0 0 20 40 60 80 100 After splitting (j) Initial of GMM6. 100 80 60 40 20 0 0 20 40 60 80 100
After EM and clustering
(k) GMM6. 100 80 60 40 20 0 0 20 40 60 80 100 0.005 0.01 0.015 0.02 pdf val u e Probability model (l) 3D plot of GMM6. Figure 1: The learning process of applying the SGML in the synthetic data, in which full covariance GMMs were used.
When we used the diagonal covariance GMMs for the same task, as shown inFigure 3, the SGML grouped the syn-thetic data into ten clusters. From the perspective of “Gaus-sian mixture modelling” instead of the perspective of “data clustering,” the learning process could be divided into three phases.
(1) The cluster-capturing phase (GMM1–GMM6). In this
phase, the SGML captures the locations of all the clus-ters of the training data in the feature space roughly by the self-splitting rules.
(2) The shape-smoothing phase (GMM7–GMM10). A
14 12 10 8 6 4 2 0 Number of components −1.15 −1.1 −1.05 −1 −0.95 −0.9 −0.85×10 4 BIC values Hier-ComLink Hier-SLink Hier-CenLink SGML (a) 14 12 10 8 6 4 2 0 Number of components −1.15 −1.1 −1.05 −1 −0.95 −0.9 −0.85×10 4 BIC values K-means-random K-means-BinSplitting K-means-IncSplitting EMSplitByMaxWeight SGML (b)
Figure 2: The learning curves of applying various methods in the synthetic data to learn full covariance GMMs.
14 12 10 8 6 4 2 0 Number of components −1.15 −1.1 −1.05 −1 −0.95 −0.9 −0.85×10 4 BIC values SGML
Figure 3: The learning curve of applying the SGML in the synthetic data to learn diagonal covariance GMMs.
model a cluster which has a complex shape, and this kind of cluster needs to be modelled by a mixture of Gaussians. For example, as shown inFigure 1a, clus-ters 3, 4, 5, and 6 are all oblique ellipses and each of them needs to be modelled by a mixture of two Gaus-sians. As a result, the learning curve inFigure 3has the highest BIC value at GMM10. It is obvious that the
in-crease of BIC value in the shape smoothing phase is much smaller than that in the cluster-capturing phase.
(3) The overfitting phase (GMM11–). After reaching the
component number with the highest BIC value, the SGML tends to overfit the training data in each split-ting step and makes the learning curve go down pro-gressively.
4.2. The text-independent speaker identification task
In the past several years, Gaussian mixture modelling has been a predominant method used in speaker recognition ap-plications [22,23,26,27], out of its ability to provide smooth approximations to arbitrarily shaped densities of long-term spectrum that are considered related to the characteristics of the speaker’s voice rather than the specific linguistic mes-sage. More recently, the universal background model (UBM) [27], which is a large GMM with many mixtures (e.g., 512), has been successfully applied in GMM-UBM speaker recog-nition systems.2Conventionally, the component number of
the GMM is decided empirically. Both the issues of “How to train the GMM?” and “How many components should a GMM have?” have not yet been well addressed. The pro-posed SGML algorithm aims to handle both issues simul-taneously. This section investigates if the SGML is capable of automatically determining model complexity for speaker GMMs according to the amount and characteristics of train-ing data. Without lostrain-ing generality and for ease of discus-sion, the speaker identification experiments were conducted
2In the GMM-UBM speaker recognition systems, the UBM is trained by a lot of speech data from a large population, while the speaker GMMs are adapted from the UBM by applying speaker adaptation techniques, such as maximum a posteriori (MAP), on the speaker specific training data.
using the conventional GMM method. From the perspec-tive of data fitting, the SGML should be applicable to other speaker recognition tasks such as speaker verification using the GMM-UBM method.
4.2.1. Database description and feature selection
We have applied the proposed SGML to the text-independent speaker identification task. The NIST 2001 cellular speaker recognition evaluation database was used (see the bench-mark tests at http://www.nist.gov/speech/tests/index.htm). There are 74 male speakers and 100 female speakers in the database, and each speaker has about 2 minutes of training data and 10 test segments on average. The duration of the test segments lies within the range of 2–54 seconds. In this paper, 50 male speakers and 50 female speakers were used for speaker identification experiments. Both the training data and test data were first processed by a voice activity detec-tor (VAD) to discard silence noise frames (see the VIMAS speech codec at http://www.vimax.com and also [26,27]). After passing the VAD, the amount of training data for each speaker lies within the range of 85–122 seconds, while the duration of the corresponding test segments ranges from 3 to 54 seconds. There are 615 test segments for the selected 50 male speakers, and 596 test segments for the selected 50 female speakers.
In the front-end of speech processing, spectral analysis was applied to a 32 millisecond frame of speech waveform ev-ery 10 millisecond. For each speech frame, 24 mel-frequency cepstral coefficients (MFCCs) were extracted as the observa-tion feature vector.3Cepstral mean substraction (CMS) was
applied in both training and test data for channel normaliza-tion.
4.2.2. Results in training of speaker GMMs
In this section, we compared the performance of the SGML and the other existing methods based on the training of GMMs for speaker identification.Figure 4shows the learn-ing curves obtained by various methods on 15 second speech data (corresponding to 1500 24-dimensional feature vectors) from one particular male speaker in the NIST 2001 cellular data. Figures4aand4bdepict the full covariance case, while Figures4cand4ddepict the diagonal covariance case. Their upper bounds of component number were limited to 15 and 40, respectively (in fact, the SGML stopped at GMM9 and
GMM21, respectively). The corresponding “significant
max-imum” of the learning curves of SGML are, respectively, at GMM4and GMM16, which are also, respectively, the global
maximum in the respective learning curves of SGML. We can see that the learning curves of SGML are smoother than those of the other methods. The self-splitting learning pro-cess splits the cluster with the largest∆ BIC21 value in each
splitting step, and makes the learning curve go up steadily before reaching the most appropriate component number. After reaching the best component number, the learning
3We did not use energy information and delta MFCC in this work.
process tends to split a well-modelled cluster in each split-ting step, and makes the learning curve go down progres-sively. As shown in Figure 4, the BIC values of the GMMs trained by the SGML are almost always higher than those of the GMMs trained by the other methods at any component number. As discussed in Section 2.2, with the same model complexity, the higher BIC value indicates the higher log-likelihood value. Therefore, the SGML also outperforms the other methods in learning the GMM with a given component number.
In many statistical pattern recognition tasks, the diago-nal covariance GMM was used to model the probabilistic distribution of the training patterns [10,22,28,29]. In the high dimension feature space case, the number of parame-ters of a diagonal covariance Gaussian component is much less than that of a full covariance one and, thus, a diagonal covariance GMM often needs more components to model the distribution of the training patterns than a full covari-ance GMM does. In the following, we further investigate into the learning of diagonal covariance GMMs from 60-second speech data of one particular male speaker in the NIST 2001 cellular data. Figure 5shows the learning curves of SGML, fast SGML, andK-means-BinSplitting. The splitting confi-dence of the fast SGML is 150 (fast SGML-150), 100 (fast SGML-100), and 50 (fast SGML-50), respectively. The best component numbers determined by SGML, fast SGML-150, fast SGML-100, and fast SGML-50 were 40, 27, 37, and 43, respectively, and hence,K-means-BinSplitting was forced to stop at GMM43. It seems that fast 150 and fast
SGML-100 underfit the training data while fast SGML-50 overfit them. From the learning curve of SGML, we can see that the GMMs with 30 to 50 components have similar BIC values to GMM40(the best model selected by the SGML). The fast
SGML can obtain a GMM with a very close BIC value and a very close component number to the best GMM trained by the SGML when the splitting confidence is defined appropri-ately. Given a component number, theK-means-BinSplitting always results in smaller BIC values than the fast SGML.
4.2.3. Results of speaker identification
Extensive speaker identification experiments were performed in the gender dependent mode. All the GMMs used diagonal covariance matrices. In each gender, 30-, 60-, and 90-second speech data were used for training the GMMs. We run the ex-periments in both the variable-length test utterance case and the fixed-length test utterance case. In the variable-length case, there are 615 test segments from male speakers and 596 test segments from female speakers. These test segments range from 3 to 54 seconds as described inSection 4.2.1. In the fixed-length case, each test segment was divided into ut-terances of 3, 5, and 8 seconds, which yielded a total of 4714, 2706, and 1577 test utterances for male speakers, and 5583, 3234, and 1903 test utterances for female speakers. Notice that dividing utterances into short fixed-length pieces might result in nonindependent identification trials. However, the experimental results can still show the performance of the identification system being tested by short utterances.
15 10 5 0 Number of components −1.64 −1.62 −1.6 −1.58 −1.56 −1.54 −1.52 −1.5 −1.48 −1.46×10 5 BIC values Hier-ComLink Hier-SLink Hier-CenLink SGML (a) 15 10 5 0 Number of components −1.62 −1.6 −1.58 −1.56 −1.54 −1.52 −1.5 −1.48 −1.46×10 5 BIC values K-means-random K-means-BinSplitting K-means-IncSplitting EMSplitByMaxWeight SGML (b) 40 35 30 25 20 15 10 5 0 Number of components −1.62 −1.6 −1.58 −1.56 −1.54 −1.52 −1.5 −1.48×10 5 BIC values Hier-ComLink Hier-SLink Hier-CenLink SGML (c) 40 35 30 25 20 15 10 5 0 Number of components −1.62 −1.6 −1.58 −1.56 −1.54 −1.52 −1.5 −1.48×10 5 BIC values K-means-random K-means-BinSplitting K-means-IncSplitting EMSplitByMaxWeight SGML (d)

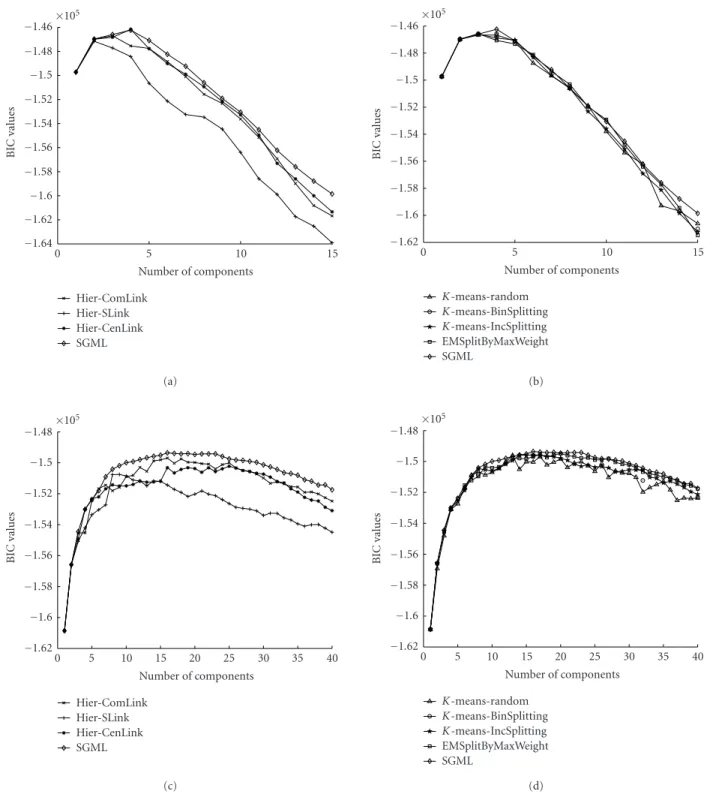

Figure 4: The learning curves of applying various GMM learning methods in the 15-second speech data of one particular male speaker in the NIST 2001 cellular data. (a) and (b) depicts the full covariance case, while (c) and (d) depict the diagonal covariance case.
Tables1and2summarize the mean and standard devia-tion of the component number of the male speaker GMMs and female speaker GMMs, respectively, obtained by the SGML and fast SGML on various amounts of training data. The splitting confidence within the range of 100 to 150 seems to be applicable for these two speaker identification tasks since, based on which, the fast SGML yielded similar model
complexity of speaker GMMs compared to the SGML. Fur-thermore, it is interesting to find that, on average, a fe-male speaker GMM needs more Gaussian components than a male speaker GMM, with the same amount of training data. It seems that the distribution of training feature vec-tors of a female speaker is more diverse than that of a male speaker.
60 50 40 30 20 10 0 Number of components −6.5 −6.4 −6.3 −6.2 −6.1 −6 −5.9×10 5 BIC values Fast SGML-150 Fast SGML-100 Fast SGML-50 K-means-BinSplitting SGML
Figure 5: The learning curves of applying SGML, fast SGML, and K-means-BinSplitting in the 60-second speech data of one partic-ular male speaker in the NIST 2001 cellpartic-ular data to learn diagonal covariance GMMs. The splitting confidence of the fast SGML was 150, 100, and 50, respectively, and theK-means-BinSplitting was forced to stop at GMM43.
Reynolds and Rose [22] concluded that there was no significant difference in speaker identification performance between K-means with randomly selected initial means and binary-splittingK-means clustering for initialization of GMM parameters. In this study, theK-means-BinSplitting was applied in the baseline GMM-based speaker identifica-tion system. Tables3and4show, respectively, the identifica-tion performance of the male and female speakers, in which theK-means-BinSplitting, SGML, and fast SGML methods were performed on various amounts of training speech data. In Table 3, in the male speaker case of 30 second training speech, the identification accuracy ofK-means-BinSplitting was first improved by increasing the component number from 8 to 16, and then degraded by further increasing the component number to 32 and 64 due to the overfitting of the training process. In this case, the SGML yielded 23.92 Gaussian components on average for each male speaker, as shown inTable 1. InTable 4, for the female speaker case, it seems that the overfitting phenomenon is not as obvious as that in the male case. For example, in the female speaker case of 30 second training speech, a similar trend was ob-served, and the baseline system achieved the best identifi-cation accuracy with the component number 32. This con-forms to the observation from Tables1and2that a female speaker GMM in general needs more Gaussian components than a male speaker GMM. In this case, the SGML yielded 29.44 components on average for each female speaker, as shown in Table 2. In the cases of 60 second and 90
sec-ond training speech in Tables 3 and 4, we can also ob-serve that the SGML could automatically capture the ade-quate model complexity for speaker GMMs according to the amount and characteristics of training data, though no sig-nificant difference was found between the results of SGML and the best accuracies ofK-means-BinSplitting under var-ious training and testing conditions. We have also observed that there is a huge performance gap between the female case and the male case. This gap is obviously due to the diversity of feature vectors of a female speaker. For the female case, more training data are needed to cover the diverse feature space.
We have also conducted the same experiments using K-means-random and EMSplitByMaxWeight [24]. The exper-imental results have the same trend as that of the K-means-BinSplitting method and no significant difference in identifi-cation accuracy was found between these three methods. For example, as shown inTable 3, for the male speaker case of 90 second training speech and 64 Gaussian mixtures, the iden-tification accuracies are 68.62, 61.99, 65.67, and 68.36, re-spectively, when the speaker identification system trained by theK-means-BinSplitting method was tested with variable-length, 3 second, 5 second, and 8 second test utterances. The accuracies are 69.92, 61.94, 65.34, and 68.67, respectively, when the EMSplitByMaxWeight method was evaluated un-der the same experimental condition, while they are 67.64, 60.54, 64.15, and 67.72, respectively, when the K-means-random method was applied.
From Tables3and4, we can find that the fast SGML in general yielded as good performance as the SGML. Though the fast SGML with different splitting confidence might re-sult in GMMs with different numbers of components as shown in Tables1and2, there was no significant difference in
identification accuracy between these models. The splitting confidence within the range of 100 to 150 seems to be appli-cable for these two speaker identification tasks since, based on which, the fast SGML yielded similar model complexity of speaker GMMs and identification accuracy compared to the SGML.
To further assess the statistical significance of the above experimental results, we applied a bootstrap resampling pro-cedure [30] to the case of 90-second training speech and variable-length testing speech. The error bars obtained with 10 000 replications are shown in Figure 6, where the length of the error bars represents the standard deviation above and below the mean accuracy. It can be found that the error bars of the SGML and the fast SGML overlap with the error bars of the K-means-BinSplitting with 32 mixture components, either in the male case or the female case.
From the speaker identification experimental results, we can see that the proposed SGML and fast SGML could au-tomatically find the appropriate component number for the GMMs, though the identification accuracy was not signifi-cantly improved as expected, compared to the best accuracies of the baseline system. The fast SGML is almost as effective as the SGML in the training of GMMs, but at a much lower computation cost.
Table 1: The mean and standard deviation of the component number of the diagonal covariance male speaker GMMs obtained by the SGML and fast SGML on various amounts of training data. The first number in parentheses is the mean value while the second number after “/” is the standard deviation.
Amount of training speech SGML Splitting confidence (fast SGML)
150 100 50
30 s (23.92/5.07) (20.58/5.31) (25.32/6.63) (27.16/5.99)
60 s (35.96/6.90) (31.72/7.68) (38.22/9.26) (41.50/9.42)
90 s (46.70/9.23) (41.30/9.48) (48.58/11.13) (53.00/10.65)
Table 2: The mean and standard deviation of the component number of the diagonal covariance female speaker GMMs obtained by the SGML and fast SGML on various amounts of training data. The first number in parentheses is the mean value while the second number after “/” is the standard deviation.
Amount of training speech SGML Splitting confidence (fast SGML)
150 100 50
30 s (29.44/4.59) (26.32/5.25) (31.70/5.97) (33.34/5.97)
60 s (45.06/7.18) (42.22/6.93) (50.26/7.85) (52.60/10.40)
90 s (58.26/7.63) (55.82/9.15) (65.16/10.16) (70.18/11.56)
Table 3: Speaker identification accuracy (%) for the male speakers. Amount of
training speech
Length of test utterance
Number of components (K-means-BinSplitting)
SGML Splitting confidence (fast SGML)
8 16 32 64 150 100 50 30 s Variable length 61.46 62.28 61.46 59.35 61.95 61.46 62.76 61.79 3 s 51.68 54.41 54.41 52.38 54.09 53.67 53.86 54.07 5 s 56.91 58.39 57.02 55.99 57.98 57.58 57.80 57.91 8 s 59.80 60.68 60.24 58.47 61.88 60.11 61.19 60.49 60 s Variable length 63.25 66.02 66.34 65.85 66.67 66.67 67.15 66.83 3 s 54.29 58.38 58.91 59.29 59.10 59.65 59.80 59.16 5 s 58.94 61.90 62.82 62.12 63.45 62.75 63.19 62.75 8 s 61.95 65.25 66.14 65.88 66.39 66.65 67.22 66.77 90 s Variable length 65.53 68.78 69.11 68.62 70.08 70.57 71.06 70.24 3 s 55.28 59.10 61.03 61.99 61.69 61.96 61.79 61.75 5 s 60.01 63.34 65.59 65.67 65.78 64.56 65.37 65.78 8 s 63.86 66.01 68.55 68.36 69.93 69.75 69.37 68.29

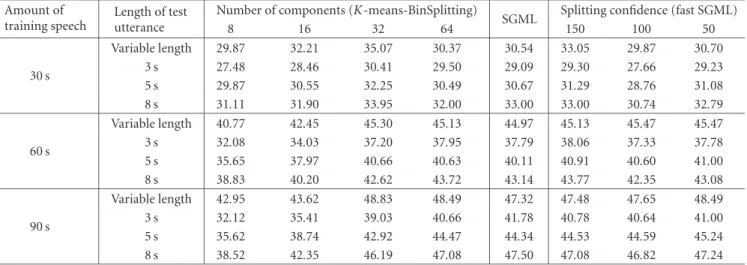

Table 4: Speaker identification accuracy (%) for the female speakers. Amount of
training speech
Length of test utterance
Number of components (K-means-BinSplitting)
SGML Splitting confidence (fast SGML)
8 16 32 64 150 100 50 30 s Variable length 29.87 32.21 35.07 30.37 30.54 33.05 29.87 30.70 3 s 27.48 28.46 30.41 29.50 29.09 29.30 27.66 29.23 5 s 29.87 30.55 32.25 30.49 30.67 31.29 28.76 31.08 8 s 31.11 31.90 33.95 32.00 33.00 33.00 30.74 32.79 60 s Variable length 40.77 42.45 45.30 45.13 44.97 45.13 45.47 45.47 3 s 32.08 34.03 37.20 37.95 37.79 38.06 37.33 37.78 5 s 35.65 37.97 40.66 40.63 40.11 40.91 40.60 41.00 8 s 38.83 40.20 42.62 43.72 43.14 43.77 42.35 43.08 90 s Variable length 42.95 43.62 48.83 48.49 47.32 47.48 47.65 48.49 3 s 32.12 35.41 39.03 40.66 41.78 40.78 40.64 41.00 5 s 35.62 38.74 42.92 44.47 44.34 44.53 44.59 45.24 8 s 38.52 42.35 46.19 47.08 47.50 47.08 46.82 47.24
70 60 50 40 30 20 10 0 Number of components 27 28 29 30 31 32 33 34 35 36 37 Er ro r rat e o f sp eak er identification (%) K-means-BinSplitting SGML Fast SGML-150 Fast SGML-100 Fast SGML-50 (a) 80 70 60 50 40 30 20 10 0 Number of components 48 50 52 54 56 58 60 Er ro r rat e o f sp eak er identification (%) K-means-BinSplitting SGML Fast SGML-150 Fast SGML-100 Fast SGML-50 (b)
Figure 6: The error bars obtained by applying a bootstrap resampling procedure to the case of 90-second training speech and variable-length testing speech. (a) The male speaker case. (b) The female speaker case.
5. CONCLUSIONS
In this paper, we have presented the SGML algorithm for the learning of GMMs. The SGML algorithm tries to tackle two long standing critical problems in the EM-based Gaussian mixture modelling; namely, (1) the difficulty in determining the number of Gaussian components and (2) the sensitivity to prototype initialization. The SGML algorithm is based on a splitting validity criterion, BIC. During the learning pro-cess, according to the splitting validity criterion (BIC), the prototype with the largest∆ BIC21value is split into two
pro-totypes. The learning process automatically terminates when a significant maximum in the learning curve (i.e., the BIC plot) is observed.
A fast version of the SGML, named fast SGML, was also presented in this paper. The fast SGML splits multiple pro-totypes in each splitting step and, thus, needs a much lower computation requirement than the SGML. The fast SGML is somewhat like the LBG algorithm [5], but a crucial di ffer-ence is that there is no validation measure to decide whether a cluster should be split into two clusters and how many clus-ters should be generated in the LBG algorithm.
We have conducted extensive experiments on clustering of a synthetic data set and text-independent speaker iden-tification. Compared to the other EM-based Gaussian mix-ture modelling approaches, both the SGML and fast SGML achieved a noticeable improvement in the training of GMMs. In the speaker identification, the proposed algorithms could automatically find out the suitable model complexity for the speaker GMMs though no significant improvements in iden-tification accuracy were obtained compared to the best per-formance of the baseline system.
ACKNOWLEDGMENTS
This work was funded by Academia Sinica and the National Science Council of the Republic of China under Grant no. NSC 93-2213-E-001-017. We are grateful to Dr. Wei-Ho Tsai, Mr. Yi-Hsiang Chao, and Mr. Cheng-Lung Tseng for their helpful discussions and assistance in running the ex-periments. Useful comments and suggestions made by the anonymous referees are also greatly appreciated.
REFERENCES
[1] J.-M. Jolion, P. Meer, and S. Bataouche, “Robust clustering with applications in computer vision,” IEEE Trans. on Pattern Analysis and Machine Intelligence, vol. 13, no. 8, pp. 791–802, 1991.
[2] J. Hertz, A. Krogh, and R. G. Palmer, Introduction to the The-ory of Neural Computation, Addison-Wesley, New York, NY, USA, 1991.
[3] E. Forgy, “Cluster analysis of multivariate data: Efficiency vs. interpretability of classifications,” Biometrics, vol. 21, no. 3, pp. 768, 1965.
[4] S. P. Lloyd, “Least squares quantization in PCM,” IEEE Trans-actions on Information Theory, vol. 28, no. 2, pp. 129–137, 1982.
[5] Y. Linde, A. Buzo, and R. M. Gray, “An algorithm for vector quantizer design,” IEEE Trans. Communications, vol. 28, no. 1, pp. 84–95, 1980.
[6] J. MacQueen, “Some methods for classification and analysis of multivariate observations,” in Proc. 5th Berkeley Symposium on Mathematical Statistics and Probability, vol. 1, pp. 281–297, University of California Press, Berkeley, Calif, USA, 1967. [7] A. K. Jain, M. N. Murty, and P. J. Flynn, “Data clustering: a
review,” ACM Computing Surveys, vol. 31, no. 3, pp. 264–323, 1999.
[8] G. McLachlan and D. Peel, Finite Mixture Models, John Wiley & Sons, New York, NY, USA, 2000.
[9] A. P. Dempster, N. M. Laird, and D. B. Rubin, “Maximum likelihood from incomplete data via the EM algorithm,” Jour-nal of the Royal Statistical Society: Series B, vol. 39, no. 1, pp. 1–38, 1977.
[10] X. Huang, A. Acero, and H.-W. Hon, Spoken Language Pro-cessing: A Guide to Theory, Algorithm, and System Develop-ment, Prentice-Hall, Upper Saddle River, NJ, USA, 2001. [11] R. A. Redner and H. F. Walker, “Mixture densities, maximum
likelihood and the EM algorithm,” SIAM Review, vol. 26, no. 2, pp. 195–239, 1984.
[12] N. Ueda, R. Nakano, Z. Ghahramani, and G. Hinton, “SMEM algorithm for mixture models,” Neural Computation, vol. 12, no. 9, pp. 2109–2128, 2000.
[13] D. Ormoneit and V. Tresp, “Improved Gaussian mixture den-sity estimates using Bayesian penalty terms and network aver-aging,” in Advances in Neural Information Processing Systems, D. S. Touretzky, M. C. Mozer, and M. E. Hasselmo, Eds., vol. 8, pp. 542–548, MIT Press, Cambridge, Mass, USA, 1996. [14] K. P. Burnham and D. R. Anderson, Model Selection and
In-ference: A Practical Information-Theoretic Approach, Springer-Verlag, New York, NY, USA, 1998.
[15] G. Schwarz, “Estimation the dimension of a model,” Annals of Statistics, vol. 6, no. 2, pp. 461–464, 1978.
[16] A. E. Raftery, “Bayesian model selection in social research,” Sociological Methodology, vol. 25, pp. 111–196, 1995. [17] C. Fraley and A. E. Raftery, “How many clusters? which
clustering method? Answers via model-based cluster analysis,” Computer Journal, vol. 41, no. 8, pp. 578–588, 1998.
[18] J. Rissanen, “Modeling by shortest data description,” Auto-matica, vol. 14, no. 5, pp. 465–471, 1978.
[19] J. J. Oliver, R. A. Baxter, and C. S. Wallace, “Unsupervised learning using MML,” in Proc. 13th International Conference on Machine Learning (ICML ’96), pp. 364–372, San Francisco, Calif, USA, 1996.
[20] B. D. Ripley, Pattern Recognition and Neural Networks, Cam-bridge University Press, CamCam-bridge, UK, 1996.
[21] R. E. Kass and A. E. Raftery, “Bayes factors,” Journal of the American Statistical Association, vol. 90, no. 430, pp. 773–795, 1995.
[22] D. A. Reynolds and R. C. Rose, “Robust text-independent speaker identification using Gaussian mixture speaker mod-els,” IEEE Trans. Speech, and Audio Processing, vol. 3, no. 1, pp. 72–83, 1995.
[23] L. Wang, K. Chen, and H. S. Chi, “Capture interspeaker in-formation with a neural network for speaker identification,” IEEE Transactions on Neural Networks, vol. 13, no. 2, pp. 436– 445, 2002.
[24] S. J. Young and P. C. Woodland, “State clustering in hidden Markov model-based continuous speech recognition,” Com-puter Speech & Language, vol. 8, no. 4, pp. 369–384, 1994. [25] S.-C. Chu and J. F. Roddick, “Pattern clustering using
in-cremental splitting for non-uniformly distributed data,” in Proc. 5th International Conference on Knowledge-Based Intelli-gent Information Engineering Systems and Allied Technologies, N. Baba, L. C. Jain, and R. J. Howlett, Eds., vol. 69 of Frontiers in Artificial Intelligence and Applications, pp. 1037–1041, IOS Press, Osaka, Japan, 2001.
[26] D. A. Reynolds, “Speaker identification and verification using Gaussian mixture speaker models,” Speech Communication, vol. 17, no. 1, pp. 91–108, 1995.
[27] D. A. Reynolds, T. F. Quatieri, and R. B. Dunn, “Speaker veri-fication using adapted Gaussian mixture models,” Digital Sig-nal Processing, vol. 10, no. 1–3, pp. 19–41, 2000.
[28] H.-C. Fu, H.-Y. Chang, Y. Y. Xu, and H.-T. Pao, “User adaptive handwriting recognition by self-growing probabilis-tic decision-based neural networks,” IEEE Transactions on Neural Networks, vol. 11, no. 6, pp. 1373–1384, 2000. [29] S.-H. Lin, S.-Y. Kung, and L.-J. Lin, “Face
recogni-tion/detection by probabilistic decision-based neural net-work,” IEEE Transactions on Neural Networks, vol. 8, no. 1, pp. 114–132, 1997, Special issue on artificial neural network and pattern recognition.
[30] B. Efron and R. J. Tibshirani, An Introduction to the Bootstrap, Chapman & Hall, New York, NY, USA, 1993.
Shih-Sian Cheng received the B.S. degree in
mathematics in 2000 from National Kaoh-siung Normal University, Taiwan, and the M.S. degree in computer science and infor-mation engineering in 2002 from National Chiao Tung University, Taiwan. In 2002, he has joined the Spoken Language Group of the Chinese Information Processing Lab-oratory, Institute of Information Science, Academia Sinica, Taiwan, as a Research
As-sistant. He is currently pursuing the Ph.D. degree in the Depart-ment of Computer Science and Information Engineering, National Chiao Tung University. His research interests include pattern recog-nition, speech processing, and neural networks.
Hsin-Min Wang received the B.S. and Ph.D.
degrees in electrical engineering from Na-tional Taiwan University in 1989 and 1995, respectively. Since then, he joined the In-stitute of Information Science, Academia Sinica, as a Postdoctoral Fellow. He was promoted to Assistant Research Fellow and then Associate Research Fellow in 1996 and 2002, respectively. He is an Adjunct Asso-ciate Professor at National Taipei University
of Technology and National Chengchi University. His major re-search interests include speech processing, natural language pro-cessing, spoken dialogue propro-cessing, multimedia information re-trieval, and pattern recognition. He is a Member of IEEE and ISCA.
Hsin-Chia Fu received the B.S. degree from
the National Chiao-Tung University in elec-trical and communication engineering in 1972, and the M.S. and Ph.D. degrees from New Mexico State University, both in elec-trical and computer engineering in 1975 and 1981, respectively. From 1981 to 1983, he was a member of the technical staff at Bell Laboratories. Since 1983, he has been on the faculty of the Department of
Com-puter science and Information engineering, National Chiao-Tung University, Taiwan. He is also the Taiwan Representative of TEI Consortium since 2003. His research interests include digital sig-nal/image processing, multimedia information processing, and neural networks. He has been in the the Technical Committee on Neural Networks for Signal Processing, IEEE Signal Processing So-ciety, from 1997 to 2000. He has authored more than 100 technical papers, and two textbooks PC/XT BIOS Analysis, and Introduction to Neural Networks, by Sun-Kung Book Co. and Third Wave Pub-lishing Co., respectively. Dr. Fu is a Member of the IEEE Signal Pro-cessing and Computer Societies, Phi Tau Phi, and the Eta Kappa Nu Electrical Engineering Honor Society.
