Brazing of Ti-6Al-4V and Niobium Using Three Silver-Base
Braze Alloys
D.W. LIAW and R.K. SHIUE
Evaluations of the (infrared)-brazed Ti-6Al-4V and niobium joints using three silver-base braze alloys have been extensively studied. According to the dynamic wetting angle measurement results, the niobium substrate cannot be effectively wetted by all three braze alloys. Because the dissolution of Ti-6Al-4V substrate causes transport of Ti into the molten braze, the molten braze dissolved with Ti can effectively wet the niobium substrate during brazing. For infrared-brazed Ti-6Al-4V/Ag/Nb joint, it is mainly comprised of the Ag-rich matrix. The TiAg reaction layer is observed at the interface between the braze and Ti-6Al-4V substrate. In contrast, Ti-rich, Ag-rich, and interfacial TiAg phases are found in the furnace-brazed specimen. The dominated Ti-rich phase in the joint is caused by enhanced dissolution between the molten braze and 4V substrate. The infrared-brazed Ti-6Al-4V/72Ag-28Cu/Nb joint is mainly comprised of the Ag-rich matrix and Ag-Cu eutectic. With increas-ing the brazincreas-ing temperature or time, the amount of Ag-Cu eutectic is decreased, and the interfacial Cu-Ti reaction layer(s) is increased. The infrared brazed joint has the highest average shear strength of 224.1 MPa. The averaged shear strength of the brazed joint is decreased with increasing brazing temperature or time, and its fracture location changes from the braze alloy into the interfacial reac-tion layer(s) due to excessive growth of the Cu-Ti intermetallics. The infrared-brazed Ti-6Al-4V/95Ag-5Al/Nb joint is composed of Ag-rich matrix and TiAl interfacial reaction layer. With increasing the brazing time, the amount of Ag-rich phase is greatly decreased, and the interfacial reaction layer becomes Ti3Al due to enhanced dissolution of Ti-6Al-4V substrate into the molten braze. The aver-age shear strength of the infrared-brazed joint is 172.8 MPa. Additionally, the existence of an inter-facial Ti3Al reaction layer significantly deteriorates the shear strength of the furnace-brazed specimen.
I. INTRODUCTION
TITANIUM alloys are one of the most popular metals
for aerospace applications due to their high strength-to-weight ratio, excellent corrosion resistance, and moderate high-tem-perature strength.[1,2,3]Ti-6Al-4V is a type of - titanium alloy, which can be strengthened by solution and aging heat treatments.[2]Refractory metals are metals with exceptional high melting points above 2450 °C.[4] The niobium metal belongs to a type of refractory metals with the melting point of 2468 °C, and it has the lowest density of 8.57 g/cm3 among all refractory metals. Accordingly, niobium alloys may be selected for their corrosion resistance in chemical and nuclear applications or for their low density and high melting point in aerospace and propulsion applications.[3,4] Joining of dissimilar metals has become increasingly important during the past 2 decades because of the service requirements for structures used in missiles and rockets, supersonic aircraft, nuclear equipment, marine systems, and chemical-processing infrastructure.[5,6,7]The application of brazing Ti-6Al-4V and niobium is possible in production of missiles and rockets. Titanium is considered highly reactive, and it combines readily with oxygen at elevated tempera-tures. Additionally, titanium becomes embrittled by theinter-stitial absorption of oxygen, hydrogen, and nitrogen. There-fore, it must be brazed in a vacuum or dry inert-gas atmos-phere.[6]Ti-6Al-4V is usually fabricated to obtain fine-grain equiaxed duplex microstructure to produce maximum duc-tility. It is desirable to maintain this microstructure by requir-ing that the brazrequir-ing temperature does not exceed the beta-phase transformation temperature, which varies from 900 °C to 1040 °C.[6]Additionally, it is widely reported that titanium also reacts to form brittle intermetallics with many other metals, e.g., Ni, Al, and Cu.[6,8–15] Filler metals with high content of such elements should be avoided in brazing titanium and its alloys.
Silver-based braze alloys are featured with low melting points, and they have been successfully applied in brazing Ti-6Al-4V and TZM alloy in the previous studies.[16,17,18] Accord-ingly, it is possible to braze Ti-6Al-4V and niobium metal using the silver-base braze alloy. As discussed earlier, it is highly preferred that the brazing temperature of Ti-6Al-4V alloy is below its transus temperature. The melting point of pure silver is 961 °C, which exceeds the transus tem-perature of the Ti-6Al-4V alloy.[4,16] It was chosen in the experiment for comparison purposes. In contrast, the liquidus temperatures of 78Ag-28Cu and 95Ag-5Al in weight per-cent are as low as 780 °C and 810 °C, respectively.[17,18] Con-sequently, they are suitable in brazing Ti-6Al-4V and niobium. The development of high-intensity quartz lamps and the avail-ability of suitable reflectors have made infrared heating an important generator of heat for brazing.[5]Infrared heating is a way of rapidly heating the joint by infrared rays generated from the heated tungsten filament in the quartz lamp.[12]Compared with the conventional furnace brazing, infrared brazing is
D.W. LIAW, Graduate Student, is with the Department of Materials Sci-ence and Engineering, National Dong Hwa University, Hualien 974, Taiwan. R.K. SHIUE, Associate Professor, is with the Department of Materials Science and Engineering, National Taiwan University, Taipei 106, Taiwan. Contact e-mail: [email protected]
featured with a rapid heating rate as high as 3000 °C/min.[12,19–21] Decreasing the brazing temperature or time is usually preferred in order to achieve desired properties of the joint, e.g., decreased interfacial reactions, erosion of both substrates, and contami-nations.[16–18,22,23]Accordingly, infrared brazing is a highly poten-tial process in joining dissimilar materials.
The purpose of this investigation is concentrated on vac-uum brazing of Ti-6Al-4V and niobium using three silver-base braze alloys for low and medium temperature applications. The wettability of braze alloy on the substrate, microstructural evolution, and shear strength of the brazed joint are experimentally evaluated.
II. EXPERIMENTAL PROCEDURES
The base metal used in the experiments was Ti-6Al-4V plate with the dimension of 10 10 3 mm. The chemical com-position of Ti-6Al-4V substrate in weight percent was 5.76Al, 4.03V, 0.28Fe, 0.06C, and balance Ti. The pure niobium sub-strate was in the form of disks with 25-mm diameter and 3-mm thickness. Both substrates were polished with SiC papers, and subsequently cleaned using an ultrasonic bath with acetone as solvent prior to brazing. Pure silver, 72Ag-28Cu, and 95Ag-5Al in weight percent were selected as the brazing filler metals. They are in the form of foils with the thickness of 50 m and width of 50 mm throughout the experiments. Based on the Ag-Ti binary alloy phase diagram, the melting point of Ag alloy is not significantly affected by the Ti addition up to 2 wt pct, and the liquidus temperatures of the Ag-based alloys are increased with increasing the Ti content above 2 wt pct.[24]The melting ranges of these braze alloys are shown in Table I.
The dynamic wetting angle measurements were performed using a conventional vacuum furnace with the temperature range between 800 °C and 1000 °C for 0 to 1800 seconds.[23]The heating rate of the furnace was set at 30 °C/min. The braze alloy with near spherical shape used in the dynamic wetting angle test was prepared from the braze alloy foils by vacuum arc remelting with the operation voltage of 60 V and the cur-rent of 130 to 150A. The weight of each spherical ball was approximately 0.12 g.[22,23]The spherical braze alloy was placed on the niobium substrate, and the image of the molten braze on the substrate was recorded simultaneously by using a digi-tal camera during the wetting angle measurement. The wetta-bility experiments for Ag-based alloys were performed at 1000 °C. For Ag-Cu–based braze alloys, wettability experiments are performed at 800 °C and 850 °C, respectively. For Ag-Al–based braze alloys, wettability experiments are performed at 850 °C,
900 °C, and 950 °C. Accordingly, selected temperatures of wet-tability tests are consistent with those of brazing experiments. Both furnace and infrared vacuum brazing were performed in the experiment. Furnace brazing was tested in a vacuum of 5 105mbar at temperatures between 800 °C and 1050 °C for various time periods, and its heating rate was kept at 30 °C/ min. Infrared brazing was made in a vacuum of 5 105 mbar between 850 °C and 1000 °C for 60 seconds. The heating rate of infrared brazing was kept at 600 °C/min throughout the experiment. Additionally, both infrared and furnace-brazed specimens were preheated at 600 °C for 600 seconds before the brazing temperature was reached.
The heating rate basically has little effect on the brazing operation if the braze alloy has a narrow melting range between solidus and liquidus temperatures. For the brazing filler alloy with a wide range of solidus and liquidus tem-peratures, the composition of the melt will gradually change as the temperature increases from the solidus to liquidus. If the portion that melts first is allowed to flow out, the remain-ing solid may not melt and may retain behind as a residue, which is called liquation.[5,7]Accordingly, a filler metal with a wide melting range needs rapid heating cycles to minimize separation during brazing.[25]Table I summarizes all brazing process variables used in the experiment.
The brazed specimen was cut by a low-speed diamond saw, and subsequently processed by a standard metallo-graphic procedure prior to inspection. The cross section of the brazed specimens was examined using a HITACHI* 3500H
*HITACHI is a trademark of Hitachi, Ltd., Tokyo, Japan.
scanning electron microscope (SEM) with an accelerating voltage of 15 kV. Quantitatively, chemical analysis was per-formed using a JEOL* JXL-8800M electron probe
micro-*JEOL is a trademark of Japan Electron Optics Ltd., Tokyo.
analyzer (EPMA) with an operation voltage of 20 kV and spot size of 1 m.
Shear tests were performed in order to evaluate the bond-ing strength of selected brazed specimens.[12,21,22]A Shimadzu AG-10 universal testing machine with a constant speed of 0.5 mm/min compressed the brazed specimens. The fractured surfaces after shear tests were examined by using an SEM. After the shear test, the brazed specimen was fractured into Ti-6Al-4V and Nb pieces. Because the brazed joint was frac-tured roughly along the braze alloy, the fracfrac-tured surface of the Ti-6Al-4V piece was further analyzed using an X-ray dif-fractometer. A Rigaku RINT 2100 X-ray diffractometer was applied for structure analysis, and the Cu Kawas chosen as
the X-ray source. The X-ray scan rate was set at 4 deg/min, and its range was between 25 and 90 deg. The X-ray diffraction pattern was recorded and identified using the Powder Dif-fraction File data bank. Finally, the cross sections of the above fractured specimens are mounted in an epoxy, and examined by an SEM in order to locate the crack site of the brazed joint.
III. RESULTS AND DISCUSSION A. Ti-6Al-4V/Ag/Nb Brazed Joint
According to the previous study, the molten silver can effec-tively wet Ti-6Al-4V substrate at 1000 °C for 1200 seconds,
Table I. Summary of the Process Variables Used in the Experiment
Composition of Braze Alloys
(Wt Pct) 100Ag 72Ag-28Cu 95Ag-5Al
Solidus/liquidus
temperature (°C) 961/961 780/780 780/810
Furnace brazing
temperature (°C) 1000, 1050 800, 850 850, 900 Furnace brazing time (s) 600, 1200 600, 1200 600, 1200 Infrared brazing
temperature (°C) 1000 850 950
and complete spreading of the molten silver on the Ti-6Al-4V substrate at 1050 °C for 150 seconds.[16]Figure 1 shows the dynamic wetting angle measurements of pure Ag and 97.6Ag-2.4Ti (wt pct) on the niobium substrate at 1000 °C for 0 to 1800 seconds, respectively. Based on the figure, the molten silver braze cannot effectively wet the niobium sub-strate, and its wetting angle is as high as 110 deg, even increas-ing the time period to 1800 seconds. In contrast, the wettincreas-ing angle of the molten 97.6Ag-2.4Ti (wt pct) braze on the nio-bium substrate is drastically decreased to 25 deg at 1000 °C for 1800 seconds. It is obvious that minor addition of 2.4 wt pct Ti into the silver braze can greatly improve its wettability on the niobium substrate.
According to the Ag-Nb binary alloy phase diagram, the solubility of Nb substrates in molten silver is extremely low, and no intermediate compound has been reported for the Ag-Nb system.[24]In contrast, the niobium substrate and Ti are completely miscible, and there is no intermediate compound in the Nb-Ti binary phase diagram.[24]The dissolution of Ti-6Al-4V substrate into the molten braze primarily dominates
the mass transport of Ti into braze during brazing. For the thin layer of molten braze, the effect of gravity or thermosolute convection is much less than that of interfacial surface tension determined by wetting angle measurements of the molten braze on the substrate.[7] Because the molten silver-rich braze dis-solves little niobium, it is expected that high wetting angle is observed for the pure molten silver on the niobium substrate, as demonstrated in Figure 1. In contrast, the -Ti is completely miscible with the niobium substrate. Accordingly, the addition of minor Ti into the silver-rich braze alloy can greatly improve its wettability on the substrate due to the niobium alloyed with minor Ti during the wetting angle test (Figure 1). Consequently, it is reasonable to conclude that wettability of the silver-base braze alloy on the Nb substrate can be greatly improved with the addition of minor Ti. The dissolution of Ti-6Al-4V sub-strate during brazing may result in mass transport of Ti into the molten silver, and the niobium substrate alloyed with Ti from the molten braze is driven by the concentration gradient of Ti in the molten braze and niobium substrate. Accord-ingly, the Ag-rich braze alloyed with Ti can easily wet the nio-bium substrate in the experiment. It is further demonstrated in the following chemical analysis experiments.
In the case of infrared heating, there may be temperature gradients in the system. However, thermal conductivities of metals are high as compared with those of many other non-metals. It is expected that the initial transient temperature pro-file of the infrared brazed specimen will quickly approach equilibrium. Additionally, the mass transfer in the brazed joint is not prominent until the braze alloy melts due to slow solid-state interdiffusion. Therefore, both brazing temperature and time dominate the mass transfer during brazing. The initial tran-sient temperature gradient in the specimen caused by infrared brazing places little effect on the mass transfer of brazed joint. Figure 2 shows the SEM secondary electron image (SEI), backscattered electron image (BEI), and EPMA chemical analy-sis results of the infrared-brazed Ti-6Al-4V/Ag/Nb joint at 1000 °C for 60 seconds. The infrared-brazed joint is mainly comprised of the Ag-rich phase, as marked by “B” in Figure 2. The TiAg reaction layer at the interface between the braze
Fig. 1—The dynamic wetting angle measurements of pure Ag and 97.6Ag-2.4Ti (wt pct) on the niobium substrate at 1000 °C for 0 to 1800 s.
and Ti-6Al-4V substrate is observed, as marked by “D” in the figure. Additionally, it is observed that there is a Ti-rich phase alloyed with Nb between the braze and Nb substrate, as marked by “C” in Figure 2. It is in accordance with the previous dis-cussion. The dissolution of Ti-6Al-4V substrate results in Ti transport into the molten braze, so the Ag-rich braze alloyed with Ti can readily wet the niobium substrate during brazing. Based on the Ag-Ti binary alloy phase diagram, the solu-bility of Ti in Ag is about 2 wt pct at 960 °C and 1 wt pct at room temperature, respectively.[24]Additionally, there is a eutec-tic reaction right away to form Ag and TiAg compounds. Both interfacial TiAg and Ag-rich phases are observed in the SEM
observations, as shown in Figure 2. The Ag-rich phase is alloyed with minor Ti. The formation of interfacial TiAg phase results in retarding the transport of Ti from the Ti-6Al-4V substrate into the molten rich braze, so the eutectic TiAg and Ag-rich phases are not observed in the figure. However, there are some black spots in the Ag-rich matrix, as displayed in Figure 2(b). Precipitates found in the Ag-rich matrix are primarily caused by decreased solubility of Ti in the Ag-rich phase after brazing. However, they cannot be accurately analyzed by EPMA due to their sizes being much lower than 1 m.
Figure 3 shows SEM images of the furnace-brazed speci-men for various brazing conditions. The microstructure of
Fig. 3—The SEM images and EPMA chemical analysis results of the furnace-brazed specimens: (a) SEI, (b) BEI (1000 °C 600 s), (c) SEI, (d) BEI (1000 °C 1200 s), (e) SEI, and ( f) BEI (1050 °C 600 s).
the furnace-brazed joint is different from that of the infrared-brazed one. The dissolution of Ti-6Al-4V substrate during infrared brazing is minimized due to its rapid thermal cycle. In contrast, both dissolution of the Ti-6Al-4V into the molten braze and diffusion of the braze alloy into the substrates are greatly enhanced for all furnace-brazed specimens. Ti-rich (marked by A, D, and E), Ag-rich (marked by C), and TiAg (marked by B) phases are observed in Figure 3. With increas-ing the brazincreas-ing temperature or time, the Ag-rich phase is dissolved into Ti-6Al-4V substrate, and results in decreas-ing the amount of both TiAg and Ag-rich phases in the brazed joint. Accordingly, the Ti-rich phase dominates the microstructure of all furnace-brazed specimens, as illustrated in Figure 3.
The brazing process is technically different from the tran-sient-liquid-phase (TLP) bonding process.[5,6,7] The TLP bonding process usually contains a homogenization stage resulting in a chemically homogeneous joint. For the TLP bonding process, the chemical composition of the filler metal must be carefully selected in order to avoid formation of brittle stable intermetallic phase(s) in the joint. In contrast, the brazing process lacks the homogenization stage of the
brazed joint. The filler metal is not necessarily isothermally solidified during brazing. The dissolution of the base metal into the molten braze may simultaneously lead to both isothermal solidification of the molten braze and erosion of the base metal. However, excessive erosion of the base metal and formation of brittle phase(s) in the brazing process should be avoided in order to obtain a sound brazed joint. There-fore, it is expected that the rapid infrared brazed joint per-forms better than the furnace-brazed joint due to its fast thermal history.
Table II displays the shear strength of all brazed speci-mens. The average shear strength of the infrared-brazed Ti-6Al-4V/Ag/Nb joint is 173.0 MPa, and it is much higher than that of the furnace-brazed specimen (117.5 MPa). Figure 4 displays the SEM cross section of the Ti-6Al-4V/Ag/Nb joint after shear test. For the infrared-brazed specimen, the crack propagates along the Ag-rich matrix in the brazed joint (Fig-ure 4(a)). In contrast, the furnace-brazed specimen is frac-tured primarily along the Ti-rich phase (Figure 4(b)). Based on the experimental observation, the presence of the Ti-rich phase in the furnace-brazed specimen deteriorates its joint strength.

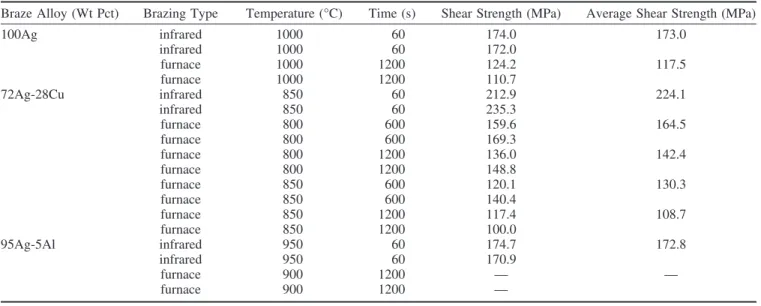

Table II. Shear Strengths of All Brazed Specimens
Braze Alloy (Wt Pct) Brazing Type Temperature (°C) Time (s) Shear Strength (MPa) Average Shear Strength (MPa)
100Ag infrared 1000 60 174.0 173.0 infrared 1000 60 172.0 furnace 1000 1200 124.2 117.5 furnace 1000 1200 110.7 72Ag-28Cu infrared 850 60 212.9 224.1 infrared 850 60 235.3 furnace 800 600 159.6 164.5 furnace 800 600 169.3 furnace 800 1200 136.0 142.4 furnace 800 1200 148.8 furnace 850 600 120.1 130.3 furnace 850 600 140.4 furnace 850 1200 117.4 108.7 furnace 850 1200 100.0 95Ag-5Al infrared 950 60 174.7 172.8 infrared 950 60 170.9 furnace 900 1200 — — furnace 900 1200 —
Fig. 4—SEM cross section of Ti-6Al-4V/Ag/Nb joint after shear test: (a) BEI, 1000 °C 60 s (infrared brazing) and (b) BEI, 1000 °C 1200 s (furnace brazing).
Figure 5 shows the SEM fractographs and X-ray analysis of the Ti-6Al-4V/Ag/Nb joint after shear test. The dimple-dom-inated fractured surface is widely observed for the infrared-brazed specimen, and the major X-ray characteristic peaks of Ag are also obtained in Figure 5(a). Because the crack is pri-marily located at the Ag-rich matrix of the infrared-brazed joint, as illustrated in Figure 4(a), the dimple-dominated fractured surface is consistent with the microstructural observation.
The fractograph of the furnace-brazed specimen (Figure 5(b)) is very different from that of the infrared-brazed specimen (Figure 5(a)). Characteristic peaks of Ti, Ag, and TiAg are all identified from the X-ray structural analysis of the frac-tured surfaces, and it is in accordance with the previous EPMA chemical analysis results. Additionally, the dendritic mor-phology with solidification defects is also extensively observed in Figure 5(b). For the infrared-brazed specimen, the crack propagates along the Ag-rich matrix. In contrast, the furnace-brazed specimen is fractured primarily along the Ti-rich phase. The dominated Ti-rich phase in the joint is caused by enhanced dissolution between the molten braze and Ti-6Al-4V substrate. The average shear strength of the furnace-brazed joint is sig-nificantly deteriorated by the existence of shrinkage porosity. B. Ti-6Al-4V/72Ag-28Cu/Nb-Brazed Joint
According to the previous study, the Ag-Cu eutectic braze can effectively wet Ti-6Al-4V substrate at 850 °C for 600 seconds, and complete spreading of the molten braze on
the Ti-6Al-4V plate is achieved at 850 °C for 1200 sec-onds.[17] Figure 6 shows the dynamic wetting angle mea-surements of both 72Ag-28Cu and 68.8Ag-26.7Cu-4.5Ti on the niobium substrate for 800 °C and 850 °C between 0 and 1800 seconds, respectively. It is noted that poor wettability of the molten Ag-Cu eutectic braze on the niobium metal is observed for temperatures below 850 °C. Both Ag and Cu are completely insoluble with the Nb substrate, and there is no intermediate compound available for Ag-Nb and Cu-Nb systems.[24]In contrast, excellent wetting of the niobium

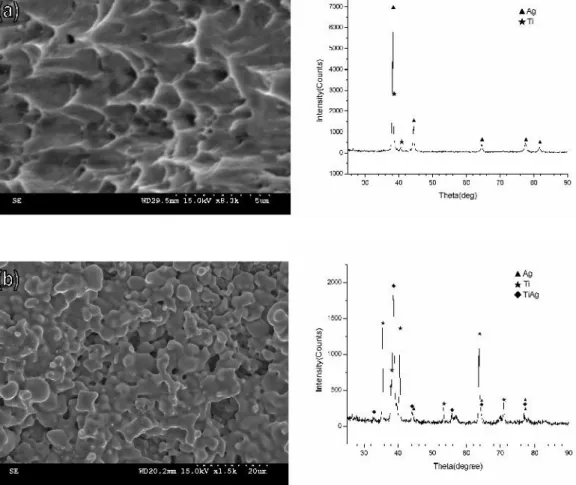

Fig. 5—SEM fractographs and X-ray analysis of Ti-6Al-4V/Ag/Nb joint after shear test: (a) 1000 °C 60 s (infrared brazing) and (b) 1000 °C 1200 s (furnace brazing).
Fig. 6—The dynamic wetting angle measurements of 72Ag-28Cu and 63Ag-35.25Cu-1.75Ti brazes on the niobium substrate at 800 °C and 850 °C for 0 to 1800 s.
substrate is observed for the molten 63Ag-35.25Cu-1.75Ti (wt pct) alloy. With minor addition of active ingredient (Ti) into Ag-Cu braze, its wettability on the Nb substrate is significantly increased. Accordingly, dissolution of Ti-6Al-4V substrate into the molten braze during brazing can read-ily improve the wettability of 72Ag-28Cu braze on the niobium substrate.

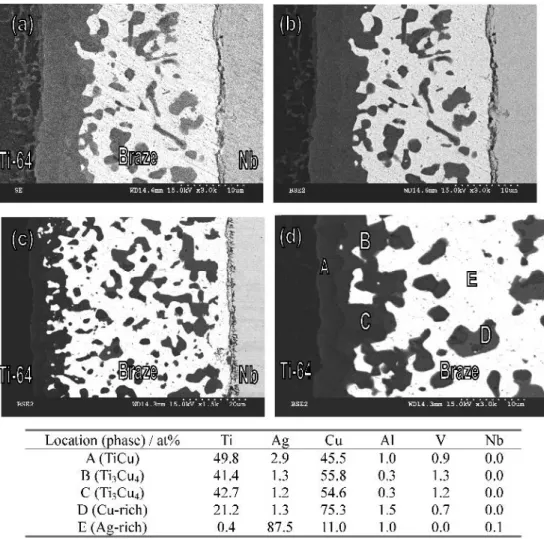

Figure 7 shows the SEM images and EPMA chemical analysis results of the infrared-brazed Ti-6Al-4V/72Ag-28Cu/Nb joint at 850 °C for 60 seconds. Based on the isother-mal section of Ag-Cu-Ti ternary alloy phase diagrams at 700 °C, Ti3Cu4, TiCu, and Ag-rich phases form the com-position triangle.[17,25]This demonstrates that the Ti prefer-entially interacts with the Cu instead of Ag from the molten braze. According to the EPMA chemical analysis results, the Ti interacts with the Cu, and forms Ti3Cu4 interfacial reaction layer, as marked by “C” (Figure 7). The continu-ous Ti3Cu4 interfacial reaction layer has a thickness of approximately 3 m. Additionally, the depletion of copper from the molten braze results in braze alloy composition deviating from Ag-Cu eutectic toward the Ag-rich compo-sition.[17]Consequently, the infrared-brazed joint mainly con-sists of primary Ag-rich phase (marked by B) and Ag-Cu eutectic.

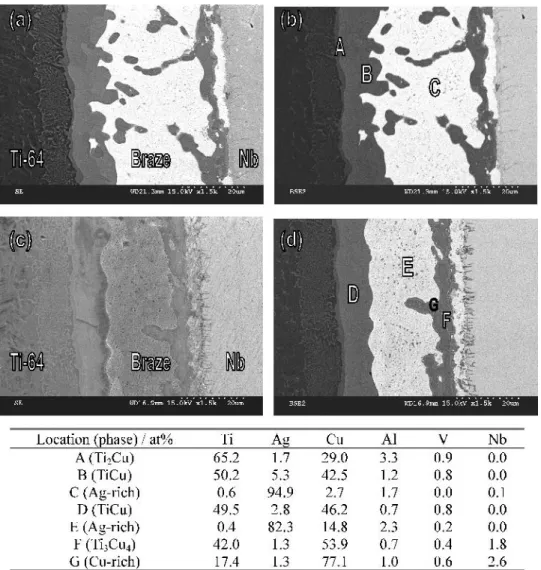

Figure 8 shows SEM images and EPMA chemical analy-sis results of the furnace-brazed specimen at 800 °C for 600 and 1200 seconds. With increasing brazing temperature or time, the interfacial reaction is greatly enhanced. There are two interfacial reaction layers identified in the figure. Their stoichiometric ratios between Ti and Cu are close to TiCu (point A in Figure 8(d)) and Ti3Cu4(points B and C in Fig-ure 8(d)), respectively. This is similar to a previous study on brazing Ti-6Al-4V and TZM alloy using the 72Ag-28Cu braze alloy.[17]
Figure 9 shows SEM images and EPMA chemical analy-sis results of the furnace-brazed specimens. Similar to the aforementioned result, the growth of the TiCu interfacial reaction layer results in depletion of the copper content from the molten braze. Therefore, the Ag-Cu eutectic is consumed from the brazed joint, and the Ag-rich matrix dominates
the brazed joint, as illustrated in Figures 9(b) and (d). With increasing the brazing temperature to 850 °C, the thickness of the TiCu reaction layer is increased to about 10 m, as shown in Figure 9(d). It is noted that the copper contents in the Ag-Cu eutectic braze are consumed due to formation of interfacial Cu-Ti intermetallics. Therefore, the eutectic microstructure can only be obtained from the infrared-brazed specimen due to its rapid thermal cycle, as illustrated in Fig-ure 7. In contrast, the eutectic microstructFig-ure is not obvi-ous for all furnace-brazed specimens (Figures 8 and 9), especially for the specimen furnace brazed at 850 °C for 1200 seconds.
According to the experimental results, the application of the infrared brazing cannot completely avoid the formation of interfacial reaction layer(s). However, it provides an effec-tive way to inhibit excessive growth of interfacial reaction layer(s). Additionally, it is also noted that the interfacial Ti2Cu phase is observed in the furnace-brazed specimen, as marked by A in Figure 9(b). According to the Cu-Ti binary alloy phase diagram, there are no other phases except Ti2Cu between Ti and TiCu.[24]It is reasonable to conclude that the Ti2Cu phase with the smooth interface results from inter-diffusion between TiCu and Ti-6Al-4V substrate.[17]
Table II lists the shear strength of all brazed Ti-6Al-4V/72Ag-28Cu/Nb joints. According to Table II, the infrared-brazed specimen demonstrates the highest average shear strength up to 224.1 MPa among all specimens. The averaged shear strength of brazed Ti-6Al-4V/72Ag-28Cu/Nb joint is decreased with increasing brazing temperature or time. The specimen furnace brazed at 850 °C for 1200 seconds demon-strates the lowest shear strength, 108.7 MPa.
Figure 10 displays the SEM cross section of Ti-6Al-4V/72Ag-28Cu/Nb joint after shear test. The crack location of the brazed joint is also indicated in the figure. There are interesting results with reference to deformation of the brazed layer. For example, the eutectic in the infrared-brazed spec-imen has different morphology, and it shows extensive defor-mation compared to those of furnace-brazed specimens. For the infrared-brazed specimen, the crack propagates along the Ag-Cu eutectic braze (Figure 10(a)). Additionally, the
distortion of Ag-Cu eutectic braze due to high flow stress is also observed in Figure 10(a). For the specimen furnace brazed at 800 °C, the joint is fractured along the braze alloy (Figures 10(b) and (c)). However, the fracture location changes from the braze alloy into the interfacial reaction layer for the specimen furnace brazed at 850 °C, as shown in Figures 10(d) and (e). It is clear that the presence of thin Cu-Ti reaction layer(s) has little effect on its shear strength. However, excessive growth of the interfacial Cu-Ti reaction layer(s) is usually detrimental to the bonding strength of the brazed joint.
C. Ti-6Al-4V/95Ag-5Al/Nb–Brazed Joint
Figure 11 shows the dynamic wetting angle measurements of 95Ag-5Al and 92.6Ag-5Al-2.4Ti (wt pct) on the niobium substrate for various temperatures. According to Figure 11(a), the 95Ag-5Al braze alloy cannot wet the niobium substrate even increasing the test temperature from 850 °C to 950 °C. On the other hand, 92.6Ag-5Al-2.4Ti can wet the niobium substrate as the test temperature increased from 850 °C to 950 °C. It is also noted that the improvement of wettability on the niobium substrate for the 92.6Ag-5Al-2.4Ti braze alloy is not as effective as 97.6Ag-2.4Ti and 63Ag-35.25Cu-1.75Ti braze alloys.
Figure 12 displays SEM images and EPMA chemical analysis results of the infrared-brazed Ti-6Al-4V/95Ag-5Al/Nb joint at 950 °C for 60 seconds. The infrared-brazed joint is mainly composed of Ag-rich phase, as marked by “C” in Figure 12. The dissolution of Nb substrate is very limited based on the EPMA chemical analysis results. Addi-tionally, the TiAl interfacial reaction layer between Ti-6Al-4V and the braze alloy is observed, as marked by “A” and “B” in Figure 12. There is also an interfacial layer between the braze alloy and Nb substrate. However, it cannot be accu-rately analyzed due to its thickness below 1 m.
Figure 13 illustrates the SEM images and chemical analy-sis results of the furnace-brazed Ti-6Al-4V/95Ag-5Al/Nb joint at 850 °C for 600 seconds. Similar to the previous infrared-brazed specimen, the brazed joint consists of Ag-rich and interfacial TiAl phases. The microstructure of furnace-brazed specimens is significantly changed as the brazing tem-perature increases from 850 °C to 900 °C (Figure 14). Both dissolution of Ti-6Al-4V substrate into the molten braze and interfacial reaction(s) are significantly enhanced. The amount of Ag-rich phase is greatly decreased, and the thickness of the interfacial reaction layer is increased. Because dissolution of the Ti-6Al-4V substrate is greatly increased, the interfacial reaction layer becomes Ti3Al instead of TiAl as marked by “A”, “B”, “D”, and “E” in Figure 14. Additionally, further
Fig. 8—The SEM images and EPMA chemical analysis results of the furnace-brazed specimens: (a) SEI and (b) BEI (800 °C 600 s); and (c) and (d ) BEI (800 °C 1200 s).
Fig. 9—The SEM images and EPMA chemical analysis results of the furnace-brazed specimens: (a) SEI and (b) BEI (850 °C 600 s); and (c) SEI, and (d) BEI (850 °C 1200 s).
X-ray structural analysis will be performed in the following experiment.
Table II lists shear strengths of brazed Ti-6Al-4V/95Ag-5Al/Nb joints. According to Table II, the average shear strength of the infrared-brazed specimen is 172.8 MPa. In contrast, the shear strength of the furnace-brazed joint can-not be obtained from the test due to its low bonding strength. Figure 15 displays the SEM cross section of Ti-6Al-4V/95Ag-5Al/Nb joint after shear test. For the infrared-brazed specimen, the crack is located at the Ag-rich matrix. In contrast, the furnace-brazed specimen is fractured along the interfacial Ti3Al layer. It is reasonable to conclude that the coarsening of the Ti3Al reaction layer significantly deteriorates the bonding strength of the furnace-brazed joint.
Figure 16 shows the SEM fractographs and X-ray analy-sis of Ti-6Al-4V/95Ag-5Al/Nb joint after shear test. For the infrared-brazed joint, ductile dimple fracture is widely observed in the fractured surface (Figure 16(a)). This find-ing is consistent with the aforementioned microstructural observation. On the other hand, cleavage-dominated frac-ture is observed for the furnace-brazed specimen, as demon-strated in Figure 16(b). The characteristic X-ray peaks of
Ti3Al are also identified from the fractured surface of the furnace-brazed specimen. Accordingly, the existence of the inherently brittle Ti3Al reaction layer is detrimental to the shear strength of the brazed joint.
Based on this study, application of infrared brazing can effectively inhibit the interfacial reaction between the braze alloy and substrate due to its very rapid thermal cycle. Min-imum erosion of the base metal is expected during infrared brazing. In contrast, the metallurgical reaction among the braze alloy and substrates is greatly enhanced for the fur-nace-brazed specimen due to its longer thermal history.
IV. CONCLUSIONS
The brazing of Ti-6Al-4V and niobium metal using three silver-base braze alloys has been accessed in the experiment. The primary conclusions are summarized as follows.
1. According to the dynamic wetting angle measurement results, the niobium substrate cannot be effectively wet-ted by all three braze alloys. The dissolution of Ti-6Al-4V substrate during brazing results in transport of Ti into
Fig. 11—The dynamic wetting angle measurements of (a) 95Ag-5Al and (b) 92.6Ag-5Al-2.4Ti (wt pct) on the niobium substrate for various temperatures between 0 to 1800 s.
Fig. 10—SEM cross section of Ti-6Al-4V/72Ag-28Cu/Nb joint after shear test: (a) 850 °C 60 s (infrared), (b) 800 °C 600 s (furnace), (c) 800 °C 1200 s (furnace), (d) 850 °C 600 s (furnace), and (e) 850 °C 1200 s (furnace).
Fig. 12—The SEM (a) SEI, (b) BEI, and EPMA chemical analysis results of the infrared-brazed Ti-6Al-4V/95Ag-5Al/Nb joint at 950 °C for 60 s.
Fig. 13—The SEM (a) SEI, (b) BEI, and EPMA chemical analysis results of the furnace-brazed Ti-6Al-4V/95Ag-5Al/Nb joint at 850 °C for 600 s.
Fig. 15—SEM cross section of the Ti-6Al-4V/95Ag-5Al/Nb joint after shear test: (a) 950 °C 60 s (infrared brazing), and (b) 900 °C 1200 s (furnace brazing).
the molten braze, so the molten braze can effectively wet the niobium substrate during brazing.
2. The infrared-brazed Ti-6Al-4V/Ag/Nb joint is mainly comprised of Ag-rich matrix. The TiAg reaction layer at the interface between the braze alloy and Ti-6Al-4V substrate is also observed. With increasing the brazing temperature or time, the dissolution of the Ti-6Al-4V substrate into the molten braze is greatly enhanced, and the Ti-rich phase dominates the furnace-brazed joint. 3. The average shear strength of the infrared-brazed
Ti-6Al-4V/Ag/Nb joint is 173.0 MPa, and it is much higher than that of the furnace-brazed one (117.5 MPa). For the
infrared-brazed specimen, the crack propagates along the Ag-rich matrix. In contrast, the furnace-brazed specimen is fractured primarily along the Ti-rich phase. The presence of shrinkage porosity in the furnace-brazed specimen deteriorates its joint strength.
4. The infrared-brazed Ti-6Al-4V/72Ag-28Cu/Nb joint is mainly comprised of the Ag-rich matrix and Ag-Cu eutectic. With increasing the brazing temperature or time, the amount of Ag-Cu eutectic is greatly decreased and the interfacial Cu-Ti reaction layer(s) is increased. 5. The infrared-brazed Ti-6Al-4V/72Ag-28Cu/Nb specimen has the highest average shear strength of 224.1 MPa among
Fig. 16—SEM fractographs and X-ray analysis of Ti-6Al-4V/95Ag-5Al/Nb joint after shear test: (a) 950 °C 60 s (infrared brazing) and (b) 900 °C 1200 s (furnace brazing).
all specimens. The average shear strength is decreased with increasing brazing temperature or time. Both the infrared-brazed specimen and 800 °C furnace-infrared-brazed specimen are fractured at the braze alloy. In contrast, the fracture location changes from the braze alloy into the interfacial reaction layer for the specimen furnace brazed at 850 °C due to excessive growth of the interfacial Cu-Ti reaction layer(s). 6. The Ti-6Al-4V/95Ag-5Al/Nb joint infrared brazed at 950 °C for 60 seconds is mainly composed of Ag-rich matrix and TiAl interfacial reaction layer. With increasing the brazing time, the amount of Ag-rich phase is greatly decreased, and the thickness of the interfacial reaction layer is increased. Because dissolution of the Ti-6Al-4V substrate is greatly enhanced for longer brazing times, the interfacial reaction layer becomes Ti3Al instead of TiAl for the furnace-brazed specimen above 900 °C.
7. The average shear strength of the infrared-brazed Ti-6Al-4V/95Ag-5Al/Nb joint is 172.8 MPa. In contrast, the shear strength of the furnace-brazed joint cannot be obtained from the test due to its low bonding strength. The existence of the Ti3Al reaction layer significantly deteriorates the bonding strength of the furnace-brazed joint.
