Investigation of bubble effect in micro

ﬂuidic fuel cells by a simpliﬁed

micro

ﬂuidic reactor

Jin-Cherng Shyu

a,*

_{, Chung-Sheng Wei}

b

_{, Ching-Jiun Lee}

c

_{, Chi-Chuan Wang}

d

a_{Department of Mechanical Engineering, National Kaohsiung University of Applied Sciences, Kaohsiung 80778, Taiwan} b_{Nanya Technology Corporation, Taoyuan 33859, Taiwan}

c_{Institute of Applied Mechanics, National Taiwan University, Taipei 10617, Taiwan}

d_{Department of Mechanical Engineering, National Chiao Tung University, Hsinchu 30010, Taiwan}

a r t i c l e i n f o

Article history:

Received 16 November 2009 Accepted 23 April 2010 Available online 4 May 2010 Keywords:

Microﬂuidic Solubility

Gas/liquid two-phaseﬂow Fuel cell

a b s t r a c t

This study experimentally examines the influence of two-phase flow on the fluid flow in membraneless microfluidic fuel cells. The gas production rate from such fuel cell is firstly estimated via corresponding electrochemical equations and stoichiometry from the published measured currentevoltage curves in the literature to identify the existence of gas bubble. It is observed that O2bubble is likely to be generated in Hasegawa’s experiment when the current density exceeds 30 mA cm2_{and 3 mA cm}2_{for volumetric}_flow rates of 100mL min1and 10mL min1, respectively. Besides, CO2bubble is also likely to be presented in the Jayashree’s experiment at a current density above 110 mA cm2_{at their operating volumetric liquid}_flow rate, 0.3 mL min1. Secondly, a 1000-mm-width and 50-mm-depth platinum-deposited microfluidic reactor is fabricated and tested to estimate the gas bubble effect on the mixing in the similar microchannel at different volumetricflow rates. Analysis of the mixing along with the flow visualization confirm that the membraneless fuel cell should be free from any bubble, since the mixing index of the two inlet streams with bubble generation is almostfive times higher than that without any bubble at the downstream.

1. Introduction

In recent years, much attention has been focused on fuel cells because of their attractive advantages, such as higher efficiency of energy conversion and no carbon dioxide emission, over the conventional combustion of gasoline and other fossil fuels. Among all kinds of current fuel cells being studied, polymer electrolyte membrane (PEM) fuel cell employing perfluorosulfonic acid poly-mer membranes, such as NafionÒ, yields the best performance for stationary and transportation applications. As a consequence, researches associated with the PEM fuel cells development had been well elaborated.

Despite the cited promising features, the PEM has certain intrinsic problems, such as tearing, deterioration, and inefﬁcient prevention of fuel crossover as stated by Savadogo [1]. Besides, decreasing the membrane thickness results in higher ionic conductivity but is susceptible to the fuel crossover. Moreover, in order to avoid the dehydration of the PEM for a better performance, PEM fuel cell systems like that proposed by Nguyen and White[2],

Ferng et al.[3], and Williams et al.[4]as well as Wang et al.[5]are rather complex for incorporating both an external humidiﬁcation system and a heat exchanger, leading to some concerns in well managing a PEMFC system.

With the advance of microfabrication technology, it has become possible to fabricate a novel microfluidic fuel cell operated without a PEM by transporting the aqueous fuel, oxidant and/or electrolyte streams in a single microchannel through different inlets under laminarflow condition. In recent years, the so-called microfluidic membraneless fuel cell has been proposed and tested by several research groups such as Ferrigno et al.[6], Choban et al. [7e9], Cohen et al.[10,11], Jayashree et al.[12], Hasegawa et al.[13], and Sun et al.[14]. Various designs of some published researches per-taining to membraneless microfluidic fuel cell are summarized in

Table 1andFig. 1. With this smart design, both fuel crossover and water management could be avoided due to the nature of laminar liquidflow. Furthermore, adjustments of flow rates and channel dimensions allow more precise control of the electrochemical processes that are taken place at the catalyst-covered electrodes. Such microfluidic fuel cells are considered as a feasible micropower sources for miniature and portable devices. These portable devices include not only cell phones and laptop computers, but also clinical and diagnostic tests, microanalytical systems for field tests, and global positioning systems[7].

* Corresponding author. Tel.: þ886 7 3814526x5343; fax: þ886 7 3831373. E-mail address:[email protected](J.-C. Shyu).

Contents lists available atScienceDirect

Applied Thermal Engineering

j o u r n a l h o m e p a g e : w w w . e l s e v i e r . c o m/ l o ca t e / a p t h e r m e n g

(2)

Table 1

Summary of various design parameters for some published membraneless microﬂuidic fuel cell researches.

Authors Aqueous reactant Catalyst/position Catalyst deposition Channel size (mm) Flow rate (mL/min)

Fuel Oxidant Anode Cathode

Choban et al.[7] HCOOH KMnO4 Pt-black Pt-black Electrodeposition W H ¼ 0.5 0.5 0.3e0.8

O2/H2SO4 W H ¼ 1.0 1.0

Opposite sidewalls L¼ 30 mm

Cohen et al.[11] H2/KOH O2/H2SO4 Pt Pt E-beam evaporation W H ¼ 1.0 0.25

H2/H2SO4 O2/KOH W H ¼ 1.0 0.38 0. 5e2.0

Opposite sidewalls L¼ 50 mm

Choban et al.[9] Pt/Ru Apply the catalyst suspension on the electrode and dry it 0.15e0.4

CH3OH O2/H2SO4 Ptþ Ru Pt-black W H ¼ 0.75 1.0

CH3OH/H2SO4 Pt-black L¼ 29 mm

Opposite sidewalls

Hasegawa et al.[13] H2O2/NaOH H2O2/H2SO4 Pt Pt Argon ion sputter W H ¼ 1.0 0.05 1.44

The same surface

Cohen et al.[10] HCOOH/H2SO4 O2/H2SO4 Pt Pt E-beam evaporation W H ¼ 1.0 0.25 0.5

W H ¼ 1.0 0.38

Opposite sidewalls L¼ 50 mm 0.5

Choban et al.[8] CH3OH/H2SO4 O2/H2SO4 Pt/Ru Pt-black Dry the catalyst suspension applied on the electrode W H ¼ 0.75 1.0 0.3

CH3OH/KOH O2/KOH L¼ 29 mm Opposite sidewalls Fig. 1 . Two typical designs of published membraneless micro fl uidic fuel cell with two inlets: (a) anode cataly st and cathode cataly st are on the opposite sidew alls, (b) both anode cataly st and cathode cataly st are on the same surface. Fig. 2. Schematic illustration of the present Y -shaped micro fl uidic react or design, whose cataly st is used to catalyze the H 2_O 2 decomposition to imitate the bubble gener ation at one electrode of the membraneless micro fl uidic fuel cell. J.-C. Shyu et al. / Applied Thermal Engineer ing 30 (20 10) 1863 e 1871 18 6 4

(3)

Although such microﬂuidic fuel cells have numerous advantages as abovementioned, some challenges as mentioned by Kjeang et al.

[15]must be overcome to realize such fuel cell in practical appli-cations. Among them, low energy output per system volume or mass of current microﬂuidic fuel cells is the major shortcoming. In order to lessen the inﬂuence of its shortcoming, searching for new fuel and oxidant combination and increasing fuel utilization are regarded as effective solutions. Moreover, exploitation of inde-pendently multiple stack unit cells has also been proven to be feasible as reported in the literature[6,10,11]. However, volumetric power density of such devices would be limited due to the sealing volume and structural elements separating the cells[15].

By a careful examination of the recent researches on such membraneless microfluidic fuel cell, depending on the selection of the aqueous reactants, one would observe that gaseous product would usually be produced on one of the electrodes in the elec-trochemical reaction. Choban et al.[7]performed a membraneless microfluidic fuel cell experiment employing a Y-shaped micro-channel with a square cross-section of either 0.5 mm 0.5 mm or 1.0 mm 1.0 mm. The formic acid was chosen as fuel fed at flow rates ranging from 0.1 to 0.8 mL min1. The authors mentioned that the presence of carbon dioxide bubbles would hinder the perfor-mance of the membraneless fuel cell considerably. However, they declared that carbon dioxide bubbles were never observed in their Fig. 3. (a) Schematic illustration of the present experimental system, (b) Y-shaped microfluidic reactor, (c) SEM showing the 0.2-mm-apart Pt catalysts in the microfluidic reactor. J.-C. Shyu et al. / Applied Thermal Engineering 30 (2010) 1863e1871 1865

(4)

experiments due to the high solubility of CO2 in water at room

temperature. Similar statement was also made by Sun et al.[14]. They also employed formic acid as fuel catalyzed by platinum electrodes in a microchannel with 500

m

m in width and 50

m

m in depth.

In addition to carbon dioxide being generated from the oxida-tion of formic acid and methanol, other kinds of gaseous product might also be produced during the operation of membraneless microﬂuidic fuel cells with different aqueous reactants. Hasegawa et al.[13]proposed a novel membraneless microfuel cell using the hydrogen peroxide in alkaline/acid bipolar electrolyte as both fuel and oxidant catalyzed by platinum electrodes that were separately deposited on the channel undersurface in a Y-shaped micro-channel. According to the electrochemical reaction described in their study, the electron-losing reaction at the anode is

H2O2þ OH/HO2þ H2O

HO₂ þ OH/O2þ H2Oþ 2e (1) Besides, the electron-gaining reaction at the cathode is H2O2þ 2Hþþ 2e/2H2O (2)

The overall electrochemical reaction is

2H2O2þ 2Hþþ 2OH/4H2Oþ O2 (3) Besides water and salt, oxygen is also being produced at the anode. However, there is only one ﬁgure showing the corre-sponding performance at different H2O2concentrations subjected

to a particularly huge ﬂow rate of 24

m

L s1, operated in an extremely ﬂat microchannel, and no further discussion on the effect of oxygen on its performance was made.

It is worth noting that the solubility of oxygen in water is much less than that of carbon dioxide. In this regard, theflow character-istics may become unpredictable and uncontrollable with the presence of oxygen bubble. Accordingly, it would be interesting to examine related parameters affecting the performance of such membraneless microfluidic fuel cells. This information is especially Fig. 4. The schematic illustration of the fabrication process of the microfluidic reactor in this study: (a) Etch silicon wafer by ICP-RIE to form microchannel; (b) Back side etching to form through-holes; (c) E-beam evaporation for Pt deposition; (d) Seal the inlets and outlet with PDMS after anodic bonding.

Table 2

Experimental conditions of the present study.

Depth of the microchannel 50mm Width of the microchannel 1000mm Length of the microchannel 30 mm Catalyst dimension 0.4 mm 10 mm Inletﬂow rates (mL/min)

Corresponding Re No.

1, 10, 100, 1000 0.06, 0.63, 6.35, 63.49 Liquids used 18.3Ucm Millipore water

Hydrogen peroxide H2O2concentration 0.1 M, 1.0 M

Gaseous product Oxygen

Density: 1.43 103_{g cm}3

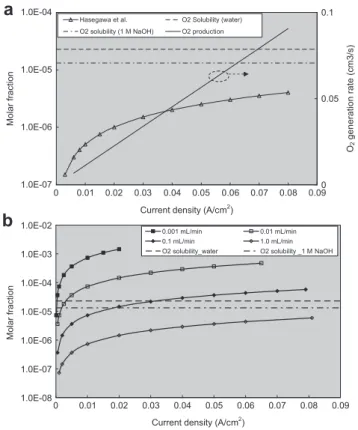

Fig. 5. Comparison of analysis results of oxygen molar fraction with oxygen solubility in water or NaOH of 1 M in the Y-shaped microchannel at different current density; (a) Hasegawa case and calculated oxygen production rate, (b) different liquid volu-metricﬂow rate ranged from 0.001 to 1 mL min1_.

J.-C. Shyu et al. / Applied Thermal Engineering 30 (2010) 1863e1871 1866

(5)

vital for numerical simulation without taking into consideration of the inﬂuence of two-phase ﬂow as performed by Bazylak et al.[16]

and Chen et al. [17] since it may mislead the physical insight provided the oxygen bubbles is being generated in the microchannel. Therefore, the objective of the present study is to clarify the in_{fluence of bubble flow on the fluid flow in membraneless} microfluidic fuel cells based on the published results. This is made byfirstly predicting the bubble being engendered from the electric generation process of the membraneless microfluidic fuel cell published in the literature using a theoretical analysis based on stoichiometry and the solubility of the gaseous product at the operating condition. Secondly, in order to realize the oxygen bubbles effect on such fuel cell performance,flow visualization is performed for a platinum-deposited Y-shaped microfluidic reactor as shown inFig. 2. The dimension is the same as that of Hasegawa et al. [13]. Oxygen is produced due to the decomposition of hydrogen peroxide catalyzed by platinum to simulate the similar flow conditions of the aforementioned microfluidic fuel cell proposed by Hasegawa et al.[13]. Based on theflow visualization results, effect of the generated bubble on the performance of such membraneless microfluidic fuel cell will also be discussed. 2. Experimental apparatus

A schematic of the presentﬂow ﬁeld visualization is shown in

Fig. 3, it consists of three major components, including a micro-ﬂuidic reactor with a Y-shaped microchannel, a ﬂuid delivery system and an image recording and acquisition system.

A single sided polished silicon wafer having a thickness of 500

m

m was used to fabricate the microﬂuidic reactor with a Y-shaped microchannel. The fabrication process shown in Fig. 4

contains three photolithography and etched steps, as well as the anodic bonding, for the wafer to achieve the essential features of the micro_{ﬂuidic reactor.}

In order to form a 50-

m

m-depth and 1000-

m

m-width Y-shaped microchannel by ICP-RIE (Inductively Coupled Plasma Reactive Ion Etching, MESC Multiplex ICP, Surface Technology Systems) etching, thefirst photolithography step was conducted with photoresist AZ-P4620 by a conventional i-line aligner. Subsequently, a lithography process followed by the other ICP etching was carried out on the backside of the wafer to introduce three 3-mm-diameter through holes as thefluid inlets and outlet, as shown inFig. 4(b). Thefinal lithography step incorporates platinum catalyst by lift-off process on the bottom surface of the Y-shaped microchannel. This was achieved by employing E-beam evaporation to deposit a layer of platinum adhered to a titanium layer on silicon wafer after patterning the photoresist (AZ-P4620) on the wafer, as shown in

Fig. 4(c). The photoresist for all lithography processes in the forgoing processes was removed by soak in acetone followed by DI water rinse. Note that the platinum catalyst was deposited on either one single side or two sides of the microchannel in length and width of 10 mm and 0.4 mm, respectively.

After the fabrication processes of the Y-shaped microﬂuidic reactor for a silicon wafer, anodic bonding of the wafer with a 500

m

m thick Pyrex 7740 glass wafer was carried out to seal the microchannel. The assembly was then diced to produce individual Fig. 6. Both H2O2of 0.1 M and water with red dye were driven into the Y-shaped microfluidic reactor for flow visualization, volumetric flow rate for cases: (a)e(c) is 1mL min1; (d)e(f) is 10mL min1; (g)e(i) is 100mL min1; (j)e(l) is 1000mL min1.

(6)

chip. Each through hole was sealed by PDMS, as shown inFig. 4(d). The working fluids can flow in and out through the needles connected to thefluid delivery system.

For the ﬂuid delivery system, a syringe pump (KDS 210, KD Scientiﬁc Inc.) with two syringes was employed. Polyethylene tubing is used to deliver liquid into the Y-shaped microchannel and to guide the waste stream out of the channel. Both 18.3 M

U

-cm Millipore water and hydrogen peroxide with concentrations of 0.1 M or 1 M were simultaneously pumped into the Y-shaped microchannel via individual inlet having the same volumetricﬂow rate. During the experiment, we also conduct ﬂow visualization using red dye (new coccine) injection into the Y-shaped microchannel. The experimental conditions are summa-rized inTable 2.

The image recording and acquisition system comprises an inverted optical microscope with a 10 object lens, a digital camera (Nikon D70) with 3008(H) 2000(V) pixels, a quartz halogen illuminator (Dolan-Jenner Industries, 170D), and a personal computer for image acquisition.

For further examining the bubble effect on the concentration distribution of the two streams, all pictures were analyzed for mixing index estimation in the following equation[18]:

MI ¼ 1 ffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffiffi 1 N XIðjÞ I I 2 s (4)

where N is the number of total pixels, I denotes the intensity of each pixel, and I is the mean intensity value of all pixels.

3. Results and discussion

According to the electrochemical reaction described in Eq.(1)

and stoichiometry, a transfer of two mole electrons accompanies the production of one mole oxygen in the alkaline electrolyte, and the oxygen generation rate could be exactly estimated at different current densities for the fuel cell proposed by Hasegawa et al.[13]

as shown inFig. 5(a) based on the given active electrode area and the cross-sectional area of the microchannel, namely 0.026 cm2and 1 mm_{0.05 mm, respectively. Meanwhile, one could also calculate} the molar fraction of oxygen (Xg) and the oxygen production rate

(Qg) at various current densities in the microchannel per unit time

interval based on the given volumetricﬂow rate of the aqueous reactants as shown inFig. 5(a).

Qg ¼ CdA 2F ðmol=sÞ ¼ C_dA 2F Mg

r

g cm3=s (5) Xg ¼ Qgrg Mg Q_l

r

_l Ml þ Qg

r

g Mg (6)

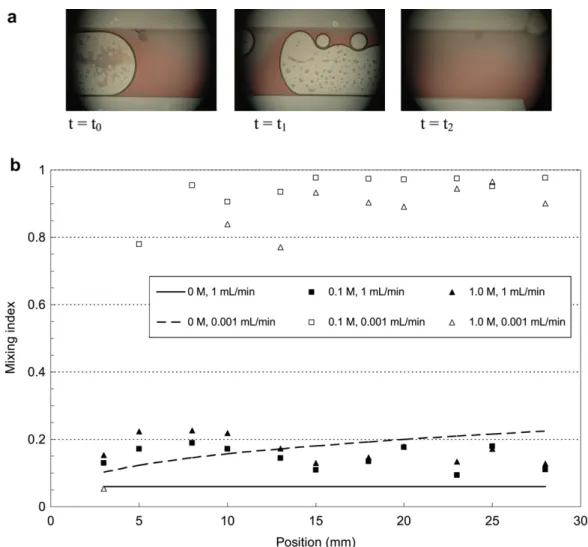

Fig. 7. (a) The downstream concentration distribution and bubble characteristics for case of [H2O2]¼ 0.1 M and water with red dye with volumetric flow rate of 1mL min1, t0< t1< t2; (b) the mixing between two streams in the present microfluidic reactor with [H2O2]¼ 0, 0.1 M and 1 M at volumetric flow rates of 0.001 mL min1and 1 mL min1.

(7)

where Q, Cd, A, F, M,

r

are volumetric ﬂow rate, current density,

active electrode area, Faraday constant, molecular weight, and density, respectively. Besides, the subscripts g and l denote the gas and liquid. Note that the volumetric_{flow rate in all figures of this} study represents the inlet volumetricflow of one single stream, and the total volumetricflow rate in microchannel is twice of the value. It is an identical expression with all published data cited below.

From the aforementioned analyzed result, one could observe that oxygen bubble is unlikely to form with a current generation being less than 80 mA cm2, since the molar fraction of oxygen produced in that fuel cell is less than its solubility in water or in the

alkaline electrolyte ([NaOH]¼ 1 M) obtained from handbook[19]. This is due to a particularly huge amount of supplied volumetric ﬂow rate (24

m

L s1).

In fact, as can be seen fromFig. 5(b), oxygen bubbles will be generated provided oxygen molar fraction produced in the memebraneless microfluidic fuel cell is higher than the solubility of oxygen in water or in 1 M NaOH solution (horizontal dashed line) at a specific current density. Therefore, oxygen bubbles would be generated in the microchannel when the current density exceeds 30 mA cm2 and 3 mA cm2 for volumetric flow rates of 100

m

L min1 and 10

m

L min1, respectively. Besides, when operated at a larger volumetricflow rate, bubble generation entails a higher threshold current density as shown inFig. 5(b). According to the results shown in Fig. 5, it is found that with the larger volumetricflow rate, lesser oxygen molar fraction is produced at a given current density. In addition, more oxygen could be produced with the increase of current density at a given volumetric flow rate. The results implicate that gas bubbles in such micro-fluidic fuel cell would be easier to be formed either at the condition of higher current production or at a lower volumetric_{flow rate of} the reactant.

For further clarification of the influence of the gas/liquid two-phaseflow effect on the flow field of such membraneless micro-fluidic fuel cell, flow visualization is then carried out for a Y-shaped microfluidic reactor in accordance with the same dimension of Hasegawa et al. [13]. In such microfluidic reactor, oxygen is produced on one of the catalyst in contact with H2O2 solution

through the catalytic decomposition of hydrogen peroxide as follows:

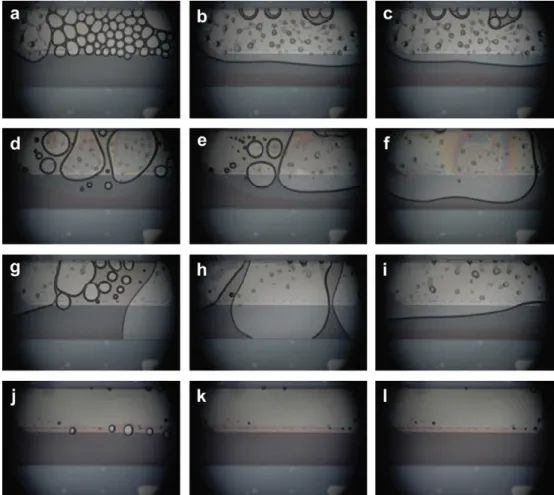

Fig. 8. Both H2O2of 1.0 M and water with red dye were driven into the Y-shaped microfluidic reactor for flow visualization, volumetric flow rate for cases: (a)e(c) is 1mL min1; (d)e(f) is 10mL min1; (g)e(i) is 100mL min1; (j)e(l) is 1000mL min1.

Fig. 9. Comparison of analysis results of CO2molar fraction with CO2solubility in water in the membraneless microﬂuidic fuel cell proposed by Jayashree et al.[12]with volumetric liquidﬂow rate ranged from 0.1 to 1.0 mL min1_.

(8)

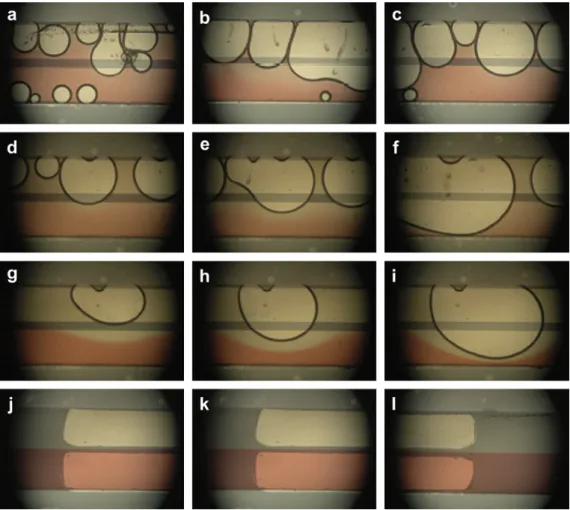

2H2O2/2H2Oþ O2 (7) Photos that represent hydrogen peroxide and water with injection of red dye in the Y-shaped microﬂuidic reactor at 0.1 M subjected to various volumetric ﬂow rates are shown in Fig. 6, where (a)e(c) is 1

m

L min1; (d)e(f) is 10

m

L min1; (g)e(i) is 100

m

L min1; and (j)e(l) is 1000

m

L min1. As is clearly shown in theﬁgure, bubble is generated when the volumetric ﬂow rate is less or equal to 100

m

L min1. A calculation of the corresponding gas superficial velocity and liquid superficial velocity suggests the two-phase flow patterns fall with the slug/bubbly region of the corresponding microchannel based on the_{flow pattern proposed} by Kawaji and Chung[20]. Note that in microchannel, the size of the detached bubble is comparable or much larger than the micro-channels, this is especially applicable when the system pressure is low or moderate like present case. In this regard, the bubble/slug being generated can easilyfill up the channel, significantly altering the interface of the two streams, or even mixing up the two streams completely as shown inFig. 7(a). In either case, it would doom the performance of fuel cell due to less effective electrode area or crossover phenomenon. Actually, compared to the case without any addition of H2O2, denoted as 0 M, the mixing index estimated by Eq. (4)of the two inlet streams due to the effect of bubble generation in the microchannel is almost fivefold as compared to that at the downstream shown inFig. 7(b) with a lower volumetricflow rate, 0.001 mL min1.

In addition, the periodic generation and detachment of the bubble/slug_{flow pattern result in intermittent flow field along the} microchannel, which eventually lead to an unstable fuel cell oper-ation. This can be made clear from the progress offlow pattern (e.g.

Fig. 6(a)e(c), (d)e(f) or (g)e(i)) where the generated small bubbles agglomerated with each other to become larger slug/plug, yet the detachment of larger slug give way to liquid refilling. The cyclic intermittent process caused by the slugflow inevitably offset the performance of required laminarflow. In the meantime, the two-phaseflow pattern is no longer in existence when the volumetric flow rate is raised to 1000

m

L min1. This again agrees with the foregoing discussion that no bubble will be observed provided that it is within the solubility threshold. Analogous observation prevails for a concentration of 1.0 M as seen in Fig. 8. However, higher concentration results in more violent reaction. Hence, a number of bubbles being generated and agglomeration of these bubbles becomes more pronounced, leading to an even worse performance of the fuel cell at this situation. In addition, theﬂow pattern shown in bothFig. 6(j)e(l) andFig. 8(j)e(l) at a volumetric ﬂow rate of 1000

m

L min1indicated that the mixing performance between two streams would be close to that without any addition of H2O2, as

denoted as 0 M inFig. 7(b), since there is almost no bubble presence in the microchannel.

Similar analysis was also made for two different kinds of mem-braneless microﬂuidic fuel cells that also produce carbon dioxide

[7,12]. It is found in Fig. 9 that carbon dioxide produced in the electrochemical reaction can be completely dissolved into the liquid stream in the Choban_{’s experiment whereas the carbon dioxide} produced in the Jayashree’s experiment is normally below the threshold value of solubility at their operating volumetric liquidflow rate, 0.3 mL min1. It is only at a current density above 110 mA cm2, as shown inFig. 9, two-phaseflow may be likely to occur. Such critical value is almost identical to the limiting value observed by Jayashree et al.[12]. Beyond this limiting current density, the authors suggested that crossover of formic acid to the cathodic stream would happen. In view of the foregoing discussions andflow visualization, it is therefore concluded that the influence of the gas/liquid two-phaseflow on the performance of such membraneless microfluidic fuel cell may be quite crucial, and it is recommended that checking

the threshold solubility with an operatedﬂow rate is needed prior to conducting numerical simulation or experimental study for such membraneless microﬂuidic fuel cell.

4. Conclusions and suggestions

This study presents an analysis and aflow visualization exper-iment to examine the influence of two-phase flow on the fluid flow in membraneless microfluidic fuel cells. Prior the flow visualization experiment, an analysis is performed based on the comparison of the solubility of the gaseous product with the gas generation rate obtained by stoichiometry (Eqs.(5) and (6)) via their corresponding chemical equations.

The calculated results show that oxygen bubble is likely to be generated in Hasegawa’s experiment[13]when the current density exceeds 30 mA cm2and 3 mA cm2for volumetric ﬂow rates of 100

m

L min1and 10

m

L min1, respectively. Besides, it is found that the CO2 bubble is also likely to be presented in the Jayashree’s

experiment [12] at current density above 110 mA cm2 at their operating volumetric liquidflow rate, 0.3 mL min1. According to those calculation results, it is demonstrated that larger bubble in such microfluidic fuel cell would be easier to be formed either at the condition of higher current production or at a lower volumetric flow rate of the reactant.

For further clariﬁcation of this observation, a ﬂow visualization using a 1000-

m

m-width and 50-

m

m-depth platinum-deposited Y-shaped microchannel is also conducted under laminar flow condition. Based on theflow visualization results, it is found that the presence of bubbles/slug is strongly connected with threshold solubility. When the operation is above the limit, two-phase_flow prevails and the generated bubble/slugs can easilyfill up the whole microchannel, thereby altering the flow field completely. Such bubble generation in the microchannel causes the mixing enhancement of the two inlet streams. Compared to the case without any H2O2 addition, the mixing index of the two inlet

streams due to the effect of bubble generation in the microchannel is almostﬁvefold at the downstream when operated at a lower volumetricﬂow rate,1

m

L min1. By contrast, there are no detectable bubbles/slugs when theﬂow is being operated below the solubility limit. Hence, as theﬂow rate increases, 1000

m

L min1, the mixing enhancement in the present study is insignificant due to no visible bubble formed in the microchannel. It is therefore concluded that the influence of the gas/liquid two-phase flow on the performance of such membraneless microfluidic fuel cell may be quite crucial.

A microfluidic membraneless fuel cells with high-aspect-ratio microchannel had been fabricated for observation of the bubble formation during the electric generation process. Measurements of the relevant polarization curve along withflow field visualization and related in-depth discussion of bubble effect on the perfor-mance of such microfluidic membraneless fuel cell is now being carried out. The gas bubble is indeed generated during the electric generation process. Both polarization measurement andflow fluid observation results will be presented in the near future.

Acknowledgement

Theﬁnancial support provided to this study from the National Science Council of Taiwan under the Contract No. NSC 98-2221-E-151-056 is gratefully acknowledged.
