(1)國立交通大學資訊科學系碩士論文. 自動化建構虛擬說話人臉與其相關應用之研究 A Study on Automatic Construction of Virtual Talking Faces and Applications. 研究生：賴成駿指導教授：蔡文祥. 中華民國. 教授. 九十三. 年六月.

(2) 自動化建構虛擬說話人臉與其相關應用之研究 A Study on Automatic Construction of Virtual Talking Faces and Applications. 研究生：賴成駿. Student：Cheng-Jyun Lai. 指導教授：蔡文祥. Advisor：Wen-Hsiang Tsai. 國立交通大學資訊科學研究所碩士論文. A Thesis Submitted to Institute of Computer and Information Science College of Electrical Engineering and Computer Science National Chiao Tung University in partial Fulfillment of the Requirements for the Degree of Master in. Computer and Information Science June 2004 Hsinchu, Taiwan, Republic of China. 中華民國九十三年六月.

(3) 自動化建構虛擬說話人臉與其相關應用之研究. 研究生：賴成駿. 指導教授：蔡文祥博士. 國立交通大學資訊科學研究所. 摘要. 本論文提出了一套自動化建構虛擬說話人臉的系統。這個系統以二維臉部影像為基礎，包含了三個階段：錄影學習、特徵值學習與動畫製作。在錄影學習階段，我們提出了一個包含所有種類的中文注音的稿子，模特兒只要唸上面的句子就可以完成學習，而不用單獨唸每個音。在特徵值學習階段，語音特徵、臉部特徵與背景影像序列等資訊系統都會自動學習，並以自動斷句來輔助學習語音特徵。另本系統亦能產生自然搖頭效果的背景影像序列，基於影像比對方法學習臉部特徵的位置。在達到次像素精準度的同時，這個方法也可以適用在搖動的人臉上。在動畫製作階段，我們提出了幾個方法來增進動畫的精細度。首先提出了一個達成語音與影像同步的方法。為了建立更流暢的動畫，我們分析了相連音間所轉折畫格數目，也提出了一個自動決定嘴巴影像與背景影像最佳整合方式的方法。為了建立更真實的虛擬人臉，我們研究並模擬了真人說話和唱歌時的行為。最後我們實作出三種有趣的應用。良好的實驗結果證實本論文所提出方法之可行性。. i.

(4) A Study on Automatic Construction of Virtual Talking Faces and Applications Student: Cheng-Jyun Lai. Advisor: Dr. Wen-Hsiang Tsai. Institute of Computer and Information Science National Chiao Tung University. ABSTRACT In this study, a system for automatic creation of virtual talking faces is proposed. The system is based on the use of 2D facial images and includes three processes: video recording, feature learning, and animation generation. In the video recording process, a transcript containing all classes of Mandarin syllables is proposed, so that a model can read sentences on it instead of reading all the syllables separately. In the feature learning process, audio features, facial features, and base image sequences are all learned automatically. A sentence segmentation algorithm is proposed to help the learning of syllables. Base image sequences that can exhibit natural head shaking actions are generated. An image matching method is proposed to learn the positions of facial features in a face image with sub-pixel precision. The method also can be applied to shaking faces. In the animation generation process, several methods are proposed to improve the quality of animations. A method is proposed to synchronize a speech and image frames. To create smoother animations, the number of proper transition frames between successive visemes is analyzed. Also proposed is method to find the best way for integration of a mouth image and a base image. To create more natural virtual faces, a method is proposed to simulate the behaviors of real talking persons and singing persons. Three kinds of interesting applications are implemented. Good experimental results show the feasibility of the proposed methods. ii.

(5) ACKNOWLEDGEMENTS. The author is in hearty appreciation of the continuous guidance, discussions, support, and encouragement received from his advisor, Dr. Wen-Hsiang Tsai, not only in the development of this thesis, but also in every aspect of his personal growth. Thanks are due to Mr. Chih-Hsuan Tzeng, Mr. Chang-Chou Lin, Mr. Chih-Jen Wu, Mr. Tsung-Yuan Liu, Ms. Yen-Lin Chen, Mr. Yen-Chung Chiu, Mr. Nan-Kun Lo, Mr. Wei-Liang Lin, Mr. Yi-Chieh Chen and Mr. Kuei-Li Huang for their valuable discussions, suggestions, and encouragement. Appreciation is also given to the colleagues of the Computer Vision Laboratory in the Department of Computer and Information Science at National Chiao Tung University for their suggestions and help during his thesis study. Finally, the author also extends his profound thanks to his family for their lasting love, care, and encouragement. He dedicates this dissertation to his parents.. iii.

(6) CONTENTS ABSTRACT (in Chinese) ......................................................................... i ABSTRACT (in English)......................................................................... ii ACKNOWLEDGEMENTS ................................................................... iii CONTENTS............................................................................................. iv LIST OF FIGURES ............................................................................... vii LIST OF TABLES.................................................................................... x. Chapter 1 Introduction ..........................................................................1 1.1 Motivation.......................................................................................................1 1.2 Survey of Related Studies ...............................................................................3 1.3 Overview of Proposed Methods......................................................................4 1.3.1 Definitions of Terms ...........................................................................4 1.3.2 Assumptions........................................................................................5 1.3.3 Brief Descriptions of Proposed Methods............................................6 1.4 Contributions...................................................................................................6 1.5 Thesis Organization ........................................................................................7. Chapter 2 System Overview ..................................................................9 2.1 System Organization and Processes................................................................9 2.2 Video Recording Process ..............................................................................10 2.2.1 Environment Setup............................................................................10 2.2.2 Transcript Reading............................................................................12 2.2.3 Recording Process.............................................................................13 2.3 Feature Learning Process..............................................................................14 2.3.1 Feature Classification........................................................................15 2.3.2 Learning Process...............................................................................15 2.4 Animation Generation Process .....................................................................16 2.4.1 Properties of Animations...................................................................16 2.4.2 Animation Generation Process .........................................................17. Chapter 3 Automatic Learning of Audio Features and Base Image Sequences ............................................................................19 3.1 Learning of Audio Features ..........................................................................19 3.1.1 Descriptions of Audio Features.........................................................19 3.1.2 Segmentation of Sentences by Silence Features...............................20 iv.

(7) 3.1.2.1 Idea of Segmentation ...........................................................20 3.1.2.2 Segmentation Process ..........................................................21 3.1.3 Review of Alignments of Mandarin Syllables ..................................23 3.2 Learning of Base Image Sequences ..............................................................24 3.2.1 Descriptions ......................................................................................24 3.2.2 Learning Process...............................................................................26 3.3 Experimental Results ....................................................................................27 3.4 Summary and Discussions ............................................................................31. Chapter 4 Automatic Learning of Facial Features ...........................32 4.1 Introduction...................................................................................................32 4.2 Review of Knowledge-Based Face Recognition Techniques .......................34 4.3 Learning of Base Regions.............................................................................35 4.3.1 Review of Image Matching Techniques............................................35 4.3.2 Learning by Image Matching with Sub-Pixel Precision ...................37 4.3.3 Handling Rotated Faces ....................................................................39 4.3.3.3 Problems of Rotated Faces...................................................40 4.3.3.4 Image Matching on Rotated Faces.......................................41 4.3.4 Learning by Image Matching with Sub-Pixel Precision on Rotated Faces .................................................................................................43 4.3.5 Correcting Erroneous Matching Results...........................................43 4.4 Experimental Results ....................................................................................46 4.5 Summary and Discussions ............................................................................49. Chapter 5 Virtual Talking Face Animation Generation ...................50 5.1 Introduction...................................................................................................50 5.2 Synchronization Between Frames And Speech ............................................52 5.3 Frame Generation by Interpolation...............................................................52 5.3.1 Speaking Case...................................................................................53 5.3.2 Singing Case .....................................................................................55 5.4 Smoothing Between Visemes .......................................................................57 5.5 Integration of Mouth Images and Base Images ............................................59 5.6 Experimental Results ....................................................................................61 5.7 Summary and Discussions ............................................................................64. Chapter 6 Examples of Applications ..................................................66 6.1 Introduction...................................................................................................66 6.2 Virtual Announcers .......................................................................................66 6.2.1 Description........................................................................................66 6.2.2 Process of Creation ...........................................................................67 6.3 Virtual Singers ..............................................................................................67 v.

(8) 6.4. 6.5 6.6 6.7. 6.3.1 Description........................................................................................67 6.3.2 Process of Creation ...........................................................................68 Emails with Virtual Talking Faces ................................................................69 6.4.1 Description........................................................................................69 6.4.2 Process of Sending Emails................................................................70 6.4.3 Process of Receiving Emails.............................................................71 Other Applications ........................................................................................72 Experimental Results ....................................................................................73 Summary and Discussions ............................................................................76. Chapter 7 Experimental Results and Discussions.............................78 7.1 Experimental Results ....................................................................................78 7.2 Discussions ...................................................................................................84. Chapter 8 Conclusions and Suggestions for Future Works .............85 8.1 Conclusions...................................................................................................85 8.2 Suggestions for Future Works.......................................................................86. References ..............................................................................................88. vi.

(9) LIST OF FIGURES Fig. 1.1: Fig. 2.1: Fig. 2.2: Fig. 2.3: Fig. 2.4: Fig. 2.5: Fig. 2.6: Fig. 3.1: Fig. 3.2: Fig. 3.3: Fig. 3.4: Fig. 3.5: Fig. 3.6: Fig. 3.7:. Fig. 3.8: Fig. 3.9:. Flowchart of proposed system. ....................................................................7 Flowcharts of three main processes. (a) Video recording process. (b) Feature learning process. (c) Animation generation process. ....................10 Scene of proposed environment setup. (a) The model. (b) The transcript. (c) The recorded scene ....................................................................................11 A flowchart of the video recording process ...............................................14 A diagram showing the audios and images of the recorded video, and the corresponding actions taken.......................................................................14 A flowchart of the feature learning process ...............................................16 A flowchart of the animation generation process ......................................18 A diagram that shows the audios, the corresponding actions taken, and the silence periods in a recorded video............................................................21 Flowchart of the sentence segmentation process. ......................................23 An example of sentence segmentation results. The time of head shaking is 5 seconds, and the time of pausing between sentences is 1 second...........23 Example of base images. (a) A base image. (b) A base image with a new mouth pasted on .........................................................................................25 A diagram that shows the generation process of base image sequences....27 Flowchart of the learning process of base image sequences......................28 An example of entire audio data of a transcript. The duration of head shaking is 5 seconds, and the duration of pausing between sentences is 1 second ........................................................................................................28 The audio data in Fig. 3.7 is segmented into 17 parts................................28 An audio that contains a Mandarin sentence “好朋友自遠方來”.............29. Fig. 3.10: The result of syllable alignment of the audio in Fig. 3.9 ...........................29 Fig. 3.11: An audio that contains a Mandarin sentence “熟能生巧”.........................29 Fig. 3.12: The result of syllable alignment of the audio in Fig. 3.11 .........................29 Fig. 3.13: A base image sequence produced with the proposed method....................30 Fig. 4.1: Example of base images. (a) A base image. (b) The base image with a new mouth pasted onto the correct position. (c) The base image with a new mouth pasted onto an incorrect position ....................................................32 Fig. 4.2: Flowchart of the learning process of facial features ..................................34 Fig. 4.3: Facial features. (a) The eyebrows. (b) The eyes. (c) The nose. (d) The mouth. (e) The jaw.....................................................................................34 vii.

(10) Fig. 4.4: Fig. 4.5:. Fig. 4.6: Fig. 4.7: Fig. 4.8:. Fig. 4.9:. Fig. 4.10: Fig. 4.11:. Fig. 4.12: Fig. 4.13:. Fig. 4.14:. Fig. 4.15: Fig. 5.1: Fig. 5.2: Fig. 5.3: Fig. 5.4:. Fig. 5.5: Fig. 5.6: Fig. 5.7:. Fig. 5.8: Fig. 5.9:. Block diagram of common image matching techniques............................36 Example of image matching results. (a) The first frame of a video. The base region position is (346, 280). (b) The 2617th frame of the video. The base region position is (353, 283) ..............................................................36 A diagram of converting a continuous image into a digitized form ..........38 A diagram of the adopted bilinear interpolation technique........................38 Example of results of image matching with sub-pixel precision. (a) The 2597th frame of a video. The base region position is (354.5, 284.0). (b) The 2598th frame of the video. The base region position is (354.5, 284.5) ......40 A diagram that shows the problem of rotated faces. (a) A straight face with its mouth position determined correctly by the spatial relation. (b) A rotated face. (c) A rotated face with its mouth position determined incorrectly by the spatial relation...............................................................41 Flowchart of the proposed image matching method on rotated faces. ......42 Example of results of image matching on rotated faces. (a) The rotated angle is 6 degrees clockwise. (b) The rotated angle is –1 degree clockwise. ....................................................................................................................43 Flowchart of image matching with sub-pixel precision on rotated faces. .44 Example of erroneous matching results. (a) The x- and y-axis and rotated angle detected by image matching techniques. (b) The trajectories of the x-axis, the y-axis, and the rotated angle.....................................................45 Example of corrected matching results. (a) The values in Fig. 4.13(a) are corrected. (b) The corrected trajectories of the x-axis, the y-axis, and the rotated angle...............................................................................................46 A sequence of image frames in a recorded video. .....................................47 Block diagram of proposed animation generation process. .......................50 Diagram of frame generation process proposed by Lin and Tsai [6].........51 Diagram of re-synchronization on every syllable......................................53 Idea of frame interpolation. (a) The number of original frames is larger than that of desired frames. (b) The number of original frames is smaller than that of desired frames.........................................................................54 Frame generation of speaking cases ..........................................................55 The two phases while singing a long syllable............................................56 The duration of the mouth-opening phase of syllables of a same sentence using different beats. (a) The sentence is “紅紅的花開滿了木棉道”. (b) The sentence is “你和我不常聯絡也沒有彼此要求” ..............................56 Frame generation of singing cases.............................................................57 Integration of a base image and a mouth image. (a) A base image. (b) A viii.

(11) mouth image. (c) The integrated image .....................................................60 Fig. 5.10: Example of mouth regions found using the proposed method. (a) The intersection region of skin parts. (b) A trapezoid inside the intersection region .........................................................................................................61 Fig. 5.11: Result of frame generation of a speaking case. The person is speaking the sentence “夕陽” .........................................................................................61 Fig. 5.12: Result of frame generation of a singing case. The person is speaking the sentence “如果雲知道”. The frames shown are part of “知道”................63 Fig. 6.1: Fig. 6.2: Fig. 6.3: Fig. 6.4: Fig. 6.5: Fig. 6.6: Fig. 6.7: Fig. 6.8: Fig. 6.9: Fig. 6.10: Fig. 6.11: Fig. 6.12:. Examples of real news reporters ................................................................67 Block diagram of creation of virtual announcers.......................................68 Example of a virtual announcer .................................................................68 Block diagram of creation of virtual singers..............................................69 Comparisons among three kinds of emails ................................................70 Structure of an attachment file ...................................................................71 Process of sending emails with a virtual talking face ................................71 Process of receiving an email with a virtual talking face ..........................72 The program interface of animation generation.........................................74 The email attachment is created.................................................................74 The attachment is received along with the email text................................75 Setting of the file relationship between the attachment file and the program ....................................................................................................................75 Fig. 6.13: The animation generation process is generating the animation .................76 Fig. 6.14: The generated animation. (a) A frame of the animation. (b) The size of the generated animation ...................................................................................76 Fig. 7.1: The audio data are segmented into seventeen sound parts ........................78 Fig. 7.2: The result of syllable alignment of the sentence “好朋友自遠方來” .......79 Fig. 7.3: Fig. 7.4: Fig. 7.5:. The base region determined is displayed with a blue rectangle.................80 Learning of the position of the base region for every frame......................80 The result of syllable alignment of the input speech “熟能生巧” ...........81. Fig. 7.6: Fig. 7.7:. The middle result of the frame generation process....................................81 The result of the animation generation process .........................................81. ix.

(12) LIST OF TABLES Table 2.1 The proposed transcript that contains 115 classes of Mandarin syllables .12 Table 3.1 Descriptions of audio features ...................................................................20 Table 4.1 Positions and rotated angles of base regions of frames in Fig. 4.15. (a) Uncorrected values. (b) Corrected values..................................................48 Table 5.1 Relationship between the distance of two visemes and the number of required transition frames ..........................................................................59. x.

(13) Chapter 1 Introduction 1.1 Motivation In recent years, communication technologies have been improved a lot, inspired by the exploding amount of communication activities on the Internet. Much more information can be transmitted through networks, and so promotes improvement of multimedia technologies. People are now used to watching high-quality films and playing computer games with pretty appearances. However, these technologies do not make computers friendlier. More and more people feel unsatisfied and want their computers to have more human natures. Due to this expectation, more and more researchers start to invest their efforts in improvements of interfaces between humans and computers. One of the research topics, called virtual talking faces, concentrates on reconstructions of human faces on computer screens. With the technologies of virtual talking faces, people can watch, listen, or even speak to virtual humans on their computer screens. Since people are used to interacting with others with their faces being seen, this research topic is of great use. The first famous character created by the technologies of virtual talking faces is Ananova, a television announcer. She is able to report news in fluent English, just like she were a real television announcer. Although her face is not real and pretty enough, she still attracts much attention on the Internet. Before the appearance of Ananova, news reports on the Internet were written in texts. It is unprecedented for people to listen and watch real-time news reporting by a virtual announcer on the Internet.. 1.

(14) Encouraged by the success of Ananova, the technologies of virtual talking faces are being applied to more areas. For example, navigation software uses virtual characters to help illustrate tour maps and give traveling suggestions. Web masters use virtual characters to help illustrate their web sites, goods, and services. Corporations use virtual characters to help handle calls on telephone exchanges. Besides improvements on interaction between computers and humans, virtual talking faces have other functions. One of them is to save required bandwidth while transmitting videos of talking persons by networks, for example, video conferencing. Since videos of virtual talking faces can be transmitted by networks with only a small data amount and then be reconstructed by receivers without the need of transmitting all image frames of animations, the requirement of the bandwidth is much lower than those required for transmissions of normal movies. Virtual faces are also used in Rickel and Marsella [1] as tutors. In order to achieve the above-mentioned goals, virtual faces at least must have two properties, namely, realistic appearances and fluent speaking capabilities. To create virtual faces with realistic appearances, there are two main approaches. The first is to create virtual faces using 3D head models. One advantage of this approach is that created virtual faces have fewer limits on head movements. However, they bear the disadvantage of yielding rougher facial appearances, which is usually not acceptable. In the second approach, virtual faces are constructed using 2D image samples. Though producing better facial appearances, they have the disadvantage of imposing more limits on possible applications. Speaking fluently is another important and essential property of a good virtual talking face. This property relies on the help of many technologies, such as speech recognition and synthesis. Language is another important issue. Virtual faces that are able to speak various kinds of languages are preferred, however, hard to implement. 2.

(15) In this study, we want to design an effective system for automatic creation of virtual talking faces for the Mandarin speech, which possesses the above-mentioned good properties. First, we want to establish a database of essential features. Users can then input their speech, and the system will create an animated virtual face with moving lips uttering the input Mandarin speech synchronously.. 1.2 Survey of Related Studies As mentioned above, there are two main approaches to creation of virtual faces. In the first, virtual faces are created by the use of 3D head models. For example, a generic 3D face is used in Zhang and Cohen [2]. Multiple image views of a human face are utilized to morph the generic face into specific face structures. In Goto, Kshirsagar, and Thalmann [3], two orthogonal pictures of a human are taken, and a generic 3D face model is then modified to fit the pictures. In the second approach, virtual faces are created by the use of 2D image samples. In Ezzat, Geiger, and Poggio [4], images are processed to synthesize new and previously unseen mouth configurations with the help of a multidimensional morphable model. Trajectories corresponding to desired utterances are synthesized. Then these mouth configurations are pasted onto background images to synthesize animations. In Cossato and Graf [5], trajectories of lips of recorded videos are analyzed to select best mouth images for the utterances. In Lin and Tsai [6], animations are created by rearrangements of recorded image frames. Image sequences of syllables are stretched to fit in the final animations. In order to let virtual faces be able to sing songs, differences between speech and songs must be analyzed. In [7], King and Parent believed that the motion between the visemes become extremely important while singing songs. In this study, we also 3.

(16) investigate the topic of virtual singers, but with emphasis on Mandarin song synchronization that is less studied in the past.. 1.3 Overview of Proposed Methods Overviews of the proposed methods are described in this section. First, some terms used in this study are defined in Section 1.3.1. And some assumptions made for this study are listed in Section 1.3.2. And at last, some brief descriptions of the proposed methods are described in Section 1.3.3.. 1.3.1 Definitions of Terms The definitions of some terms used in this study are listed as follows. (1). Animation: An animation is a video created by a system as a final result. In the video, a realistic virtual face speaks some sentences or sings some songs.. (2). Base Image Sequence: A base image sequence is a sequence of images containing faces onto which some variable facial features may be pasted to form final animations.. (3). Facial Feature: A facial feature is a particular region on a face, which can be used as a mark, such as an eye, a nose, a mouth, etc.. (4). Hidden Markov Model (HMM): The HMM is used to characterize the spectral properties of the frames of a speech pattern.. (5). Mandarin Speech Database across Taiwan (MAT): The MAT is a database that collects voices through telephone networks from Mandarin speakers of different genders and ages in Taiwan.. (6). Model: A model is a person, either male or female, whose actions are recorded. 4.

(17) in the learning stage. Faces of the model are used to create final animations. (7). Phoneme: A phoneme is a basic enunciation of a language, like ㄅ, ㄊ, ㄨ, ㄤ in Mandarin.. (8). Speech Analyzer: A speech analyzer accepts a speech and a script as input, and utilizes speech recognition techniques to get the timing information of every syllable.. (9). Syllable: A syllable consists of one or more phonemes like ㄅㄨ, ㄉㄠ in Mandarin.. (10). Transcript: A transcript is a text file that contains the corresponding content of a speech.. (11). Viseme: A viseme is the visual counterpart of a syllable.. 1.3.2 Assumptions In the proposed system, video and audio data are acquired from a single camera. The properties of these data may be influenced by many factors. For example, noise in the audio might affect the result of syllable segmentation severely. And variations in lighting sometimes will cause complicated changes in the images. In order to reduce the complexity of processing works in the proposed system, some assumptions are made in this study, which are described as follows. (1) The environment is noiseless. (2) The speech is spoken at a steady speed and in a loud voice. (3) The lighting of the environment is constant. (4) The face of the model always faces the camera and is located on the center of the recorded frame. (5) The motions of the model are slight and slow. 5.

(18) 1.3.3 Brief Descriptions of Proposed Methods The proposed system consists of three main processes: video recording, feature learning, and animation generation. First, a model is asked to read aloud a pre-designed transcript with all Mandarin syllables on it, and the process is recorded into a video. Secondly, the video is analyzed to extract necessary feature information. At last, the feature information and the speech data together are used to generate the final animation. The animation may have many forms, such as a virtual announcer, a virtual singer, a virtual teacher, etc. The proposed methods make efforts in simplifying the video recording process, automating the feature learning process, enhancing the qualities of the resulting animation generation process, and expanding possible applications. A brief flowchart of the proposed system is illustrated in Fig. 1.1. The details of the principle behind the system and its configuration will be explained in Chapter 2.. 1.4 Contributions Some major contributions of this study are listed as follows. (1) A complete system for creating virtual talking faces automatically is proposed. (2) A transcript containing all Mandarin syllables is proposed. (3) Some methods for gathering audio features automatically are proposed. (4) Some methods for gathering facial features automatically are proposed. (5) A method for gathering base image sequences is proposed. (6) Several methods for improving the qualities of the final animations are proposed. (7) Several new applications are proposed of the proposed system and implemented.. 6.

(19) Video Recording Process. Recorded Video. Feature Learning Process. Learned Features. Animation Generation Process. Speech Data. Virtual Announcer. Virtual Singer. Others. Fig. 1.1 Flowchart of proposed system.. 1.5 Thesis Organization The remainder of this thesis is organized as follows. Chapter 2 describes an overview of the proposed system and processes. Chapter 3 presents the proposed methods for learning audio features automatically. Chapter 4 presents the proposed methods to locate base regions automatically and precisely. Chapter 5 describes the proposed methods to locate other facial features automatically. Chapter 6 presents the 7.

(20) proposed methods to generate smooth animations. In Chapter 7, some applications using the proposed methods are presented. Finally, conclusions and some suggestions for future research are included in Chapter 8. Experimental results and discussions are given. in. each. 8. chapter..

(21) Chapter 2 System Overview 2.1 System Organization and Processes As illustrated in Fig 1.1, the proposed system consists of three main processes: video recording, feature learning, and animation generation. In this section, relations between those processes are described. For the video recording process, an output of a video containing a speaking model (a person) is desired. The process must be designed carefully, so that following processes can gather enough information from the video for creation of virtual talking faces. The process must also be simple and reasonable. Otherwise, the model may feel uncomfortable. Fig 2.1(a) illustrates the proposed video recording process. For the feature learning process, an output of facial feature information is desired. The output of the video recording process is used as the only input. In order to reduce artificial interferences, several methods for automatic extraction of different kinds of features are proposed. Fig 2.1(b) illustrates the feature learning process. For the animation creation process, outputs of animations containing virtual talking faces are desired. Sound tracks of speech are used as inputs, which control timing information of spoken syllables. Feature information from the feature learning process is also used as an input to help generate final animations. The generated animations must be smooth and realistic. Otherwise, viewers will not be satisfied. The animations may have different forms, such as virtual announcers, virtual singers, virtual teachers, etc. Fig 2.1(c) illustrates the animation creation process.. 9.

(22) Learned Features. Recorded Video. Video Recording Process. Feature Learning Process. Speech Data. Learned Features. Virtual Announcer. Animation Generation Process. Recorded Video. (a). Virtual Singer. (b). Virtual Face Email. (c). Fig. 2.1 Flowcharts of three main processes. (a) Video recording process. (b) Feature learning process. (c) Animation generation process.. In the following sections, contents of these processes will be described in detail.. 2.2 Video Recording Process In the following sections, matters needing attention in the video recording process are described in detail. In Section 2.2.1, setups of recording environments are discussed. In Section 2.2.2, a transcript for learning of Mandarin syllables is proposed. In Section 2.2.3, a detailed recording process is proposed.. 2.2.1 Environment Setup The arrangement of the recording environment affects impressions of models severely. Since the models may not be familiar friends of system operators, the recording process should be as simple as possible, so that they will not feel confused or impatient. A too lengthy or complicated recording process is not acceptable. A scene of our environment setup is shown in Fig 2.2. The proposed recording environment setup is rather simple. The model is seated in front of a camera. A 10.

(23) pre-designed transcript is shown on a screen right behind the camera, and its position is adjusted so that the model can read the transcript without obstacles. As we can see in Chapter 8, the process takes about 2 minutes only, which is quite short.. (b). (a) (c) Fig. 2.2 Scene of proposed environment setup. (a) The model. (b) The transcript. (c) The recorded scene.. In order to capture videos of better qualities, some extra devices are adopted in our environment setup. Introducing these devices doesn’t affect the simplicity of the process, but only add a little workload on system operators. For example, instead of normal webcams, a DigitalVideo device, which is capable of grabbing frames of 720×480 dimensions on a frame rate of 29.97/sec, is used to record videos. Two spotlights are also used. They not only brighten the model, but also reduce blinking effects of fluorescent lamps. Since final animations are generated from recorded frames, an environment with steadier lighting makes the resulting animations look smoother. 11.

(24) 2.2.2 Transcript Reading In this study, we make efforts to create virtual faces that are capable of speaking Chinese words. In [6], Lin and Tsai classified the 411 kinds of Mandarin syllables into 115 classes according to mouth shape similarities. For virtual faces that are able to speak all Mandarin words, learning of these 115 classes of Mandarin syllables is necessary. However, speaking these syllables one by one singly is a somewhat boring work for models. Therefore, we propose a transcript that contains the 115 classes of syllables by 17 sentences, which is shown in Table 2.1. These sentences are designed to be meaningful and short, so models can speak them easily. Efforts are also made to minimize repetitions of syllables in this transcript.. Table 2.1 The proposed transcript that contains 115 classes of Mandarin syllables. Number. Sentence. Used syllable classes. 1. 好朋友自遠方來. 35、63、84、2、108、51、23. 2. 熟能生巧. 39、62、59、81. 3. 細水長流. 66、103、46、86. 4. 竊賊們否認行兇. 76、27、57、44、53、97、115. 5. 歐洲平快車出發了. 38、39、99、102、15、69、9、18. 6. 難測風雲禍福. 49、16、64、109、101、71. 7. 春花三月分飛. 105、100、47、107、58、31. 8. 秋香百里撲鼻. 85、89、24、67、70、68. 9. 開滿森林更漂亮. 22、50、54、94、61、83、90. 10. 刁傲丫頭惡劣荒謬. 82、32、72、42、14、77、104、87. 11. 民宅內一片黑暗. 95、20、29、65、91、28、45. 12.

(25) Table 2.1 The proposed transcript that contains 115 classes of Mandarin syllables. (Continue) Number. Sentence. Used syllable classes. 12. 老翁和阿婆喝茶. 36、106、48、3、12、17、4. 13. 別在崖下紮營唷. 78、21、79、73、5、96、111. 14. 墾丁野馬愛吃嫩草. 55、98、75、8、19、1、56、34. 15. 信用卡被某人勾走. 93、115、6、30、43、53、41、40. 16. 誰要找陰陽佛塔. 26、80、33、92、88、13、7. 17. 貓兒曾去報恩喔. 37、110、60、69、37、52、10. 2.2.3 Recording Process After the environment is set up and the transcript is prepared, the recording process can begin. For the convenience of feature learning, some extra works must be done in the recording process. However, these works add only a little workload to system operators and models, which are acceptable. Firstly, the model should keep his/her head straight to the camera, and then the recording process can begin. Since the first frame of the recorded video is used as a reference frame in the feature learning process, a “straight” face with a normal expression is required. Otherwise, poorer information may be learned in the subsequent feature learning process. Secondly, after the recording begins, the system operator should instruct the model to shake his/her head for a predefined period of time while keeping silent. The recorded video of this period of time is used as an assist for learning of audio features and base image sequences, which will be described in the following section. Thirdly, the model is instructed to read aloud the sentences on the transcript one 13.

(26) by one, each followed by a predefined period of silent pause. These pauses are used to help learn audio features. The model should read these sentences loudly, clearly, and slowly, so that syllables can be learned correctly. A flowchart of the video recording process is illustrated in Fig 2.3. A diagram of the content of the recorded video and the corresponding actions taken is shown in Fig 2.4.. Keep head straight. Start recording. Shake head. Read next sentence. Stop recording. Pause. Fig. 2.3 A flowchart of the video recording process.. Actions. Shake head. Read sentence 1. Pause. Read sentence 2. Pause. Read sentence 3. Audios. Images. Fig. 2.4 A diagram showing the audios and images of the recorded video, and the corresponding actions taken.. 2.3 Feature Learning Process After the video recording process is done, features can be learned from the recorded video. Section 2.3.1 lists required features in the proposed system, and Section 2.3.2 illustrates the learning process for these different features.. 14.

(27) 2.3.1 Feature Classification Features required for creation of virtual talking faces can be classified into four types: audio features, base image sequences, facial features, and base regions. Audio features are timing information of spoken syllables in the recorded video. Timing information of the total speech, timing information of each sentence, and timing information of each syllable are examples of audio features. These features are used to help synchronize audios and images. Base image sequences are sequences of facial images, which are used as background images. Mutable facial parts such as mouths can be pasted onto these images to form faces that speak different words. Base image sequences also control ways of shaking heads. Facial features are special parts of faces, which can be used as natural marks. For example, noses, lips, and jaws are facial features adopted in this study. Base regions are special facial features that can be used to orient faces. With the help of base regions, the positions and gradients of faces can be calculated. In this study, noses are adopted as the base regions to locate faces.. 2.3.2 Learning Process Fig 2.5 illustrates a flowchart of the feature learning process. First, the recorded video is split into audio data and image frames. With the help of the transcript, audio features can be learned from the audio data. Facial features can be learned directly from image frames. Learning of base image sequences requires the information of both audio data and image frames. Since these learning processes require dealing with a lot of audio data and image 15.

(28) frames, manual processes are not acceptable. Several methods for learning these features automatically are proposed and explained in Chapters 3 and 4. Recorded Video. Audio Data. Transcript. Image Frames. Learning of Audio Features. Learning of Base Image Sequence. Learning of Facial Features. Audio Features. Base Image Sequence. Facial Features. Feature Database. Fig. 2.5 A flowchart of the feature learning process.. 2.4 Animation Generation Process After features have been collected, animations of virtual faces can be created. In Section 2.4.1, some essential properties for animations are described. The animation generation process is illustrated in Section 2.4.2.. 2.4.1 Properties of Animations To create virtual faces that are capable of improving interfaces between humans and computers, created animations should possess several properties. Firstly, they should have realistic appearances. Interacting with faces that are not realistic is a very 16.

(29) strange and unnatural thing. Secondly, lip movements should be smooth. Since people are familiar with watching others’ lip movements while talking to each other, unnatural movements of lips will be discovered easily. Thirdly, fluent speaking abilities are required. And fourthly, speech and lip movements should be synchronized. Humans are conscious of asynchronous problems between speech and lip movements. In this study, created animations by the proposed system possess all of these properties. Firstly, animations are generated from 2D image frames. With good techniques for integration of facial parts, animations look realistic and natural. Secondly, several methods are proposed to smooth the lip movements. Thirdly, original sound tracks of real people are adopted in final animations, which avoid the problem of unnatural voices. Fourthly, a method is proposed to synchronize speech and lip movements.. 2.4.2 Animation Generation Process The animation generation process requires two inputs: a transcript and its corresponding speech data. First, a person is asked to read a transcript, and the speech is recorded. The process of syllable alignment then extracts the timing information of the syllables in the speech. With the help of timing information of syllables and feature data, proper image frames that are synchronized with speech can be generated. Finally, animations are generated by composition of images frames and speech data. Fig 2.6 illustrates a flowchart of the animation generation process.. 17.

(30) Speech Recording. Transcript. Speech. Syllable Alignment. Syllable Timing Information. Feature Database. Frame Generation. Image Frames. Composition. Animation. Fig. 2.6 A flowchart of the animation generation process.. 18.

(31) Chapter 3 Automatic Learning of Audio Features and Base Image Sequences 3.1 Learning of Audio Features In Section 2.3 in the last chapter, four types of features that must be learned in the feature learning process have been described. In the following sections, concentration is put on the learning of audio features. In Section 3.1.1, the audio features used in this study are described in detail. In Section 3.1.2, a method for segmentation of sentences is proposed. And in Section 3.1.3, the process of syllable alignment is reviewed.. 3.1.1. Descriptions of Audio Features. In the video recording process, a video of the face of a model containing a speech of a pre-designed transcript is recorded. The speech includes the timing information, namely the duration, of every syllable that must be learned. Without the information, the work of assigning syllable labels to image frames cannot be done, and this makes it impossible to know which syllable an image frame belongs to. Since the pre-designed transcript is composed of seventeen sentences designed in this study, the speech of every sentence must be learned first, before the learning of the syllables. It is possible to learn the timing information of the syllables directly from the speech of the entire transcript without segmentation of the sentences. However, the work will take much more time while the length of the input audio. 19.

(32) increases. By segmenting sentences in advance, shorter audio parts are used in the learning process, which accelerates the processing speed. Audio features mentioned above are listed in Table 3.1.. Table 3.1 Descriptions of audio features. Feature Speech of Transcript Speech of Sentence Speech of Syllable. Description. Example. 好朋友自遠方來。熟 A speech that contains the audio data of the 能生巧…貓兒曾去 entire transcript including seventeen sentences. 報恩喔。 A speech that contains the audio data of a single 好朋友自遠方來。 sentence including several syllables. ㄏㄠ、ㄆㄥ、ㄧㄡ、 A speech that contains the audio data of a single ㄗ、ㄩㄢ、ㄈㄤ、ㄌ syllable. ㄞ. 3.1.2 Segmentation of Sentences by Silence Features In the preceding section, the reason for sentence segmentation was explained. In the following sections, a method for sentence segmentation is proposed. A new kind of audio feature called “silence feature” used in the proposed method is introduced first.. 3.1.2.1. Idea of Segmentation. In order to segment speeches of sentences automatically, the video recording process is designed to let the model keep silent for predefined periods of time in two situations as defined in the following: (1) Initial silence: A period of time when the model keeps silent while shaking. 20.

(33) his/her head, such as the red part in Fig 3.1. (2) Intermediate silence: A period of time when the model keeps silent in pauses between sentences, such as the blue parts in Fig 3.1. If the above-mentioned silence features can be learned, periods of silence can be detected, which means that periods of sentences can be detected, too. After that, the segmentation of speeches of sentences will become an easy job. In the following section, a method is proposed to detect the silence features, along with a sentence segmentation algorithm.. Actions. Shake head. Read sentence 1. Pause. Read Read Pause sentence 2 sentence 3. Audios. Fig. 3.1 A diagram that shows the audios, the corresponding actions taken, and the silence periods in a recorded video.. 3.1.2.2. Segmentation Process. Before the segmentation can begin, the silence features must be learned first. To achieve this goal, the problem of the determination of “silence” must be solved. Silence here means audio parts recorded while the model does not speak. However, the volume of these parts usually is not zero due to the noise in the environment, so that they cannot be detected by simply searching zero-volume zones. To decide a volume threshold for distinguishing silent parts from sound ones, the period when the model is shaking his/her head is utilized. Since the model is asked to. 21.

(34) keep silent in this period, the recorded volume originates from the noise in the environment. The maximum volume appeared in this period can be viewed as the threshold value. The duration of this period can be known easily because the system operator controls it. After the threshold value is determined, the silent parts can be found by searching for the ones whose volumes are always smaller than the threshold value. However, short pauses between syllables in a sentence may be viewed as silences. To solve this problem, lengths of audio parts should be put into consideration, that is, the ones that are not long enough should be discarded. The duration of pauses between sentences are designed to be much longer than that of natural ones between syllables to avoid erroneous detections. Finally, the silent audio parts can be found. Then, the sound parts can be found and segmented. The entire process of sentence segmentation is described as follows, and a flowchart of this process is shown in Fig. 3.2.. Algorithm 1. Sentence segmentation by silence features. Input: an audio Atranscript of the entire transcript, a predefined duration Dshake for shaking head, and a predefined duration Dpause for pausing between sentences. Output: several audio parts of sentences Asentence1, Asentence2, etc. Steps: Step 1:. Find the maximum volume V appearing in the audio parts within Dshake.. Step 2:. Find a continuous audio part Asilence whose volume is always smaller than V and lasts longer than Dpause.. Step 3:. Repeat Step 2 until all silent parts are collected.. Step 4:. Find a continuous audio part Asentence that are not occupied by any 22.

(35) Asilence. Step 5:. Repeat Step 4 until all sound parts are collected.. Step 6:. Break Atranscript into audio parts of sentences.. Fig. 3.3 illustrates an example of the experimental results of the proposed segmentation method. The blue and green parts represent odd and even sentences, respectively. It is shown that the sound parts of the audio are learned correctly.. Audio of transcript. Predefined head-shaking duration. Find maximum silence volume. Maximum silence volume. Predefined pausing duration. Find silent parts. Silent parts. Find speaking parts. Speaking parts. Fig. 3.2 Flowchart of the sentence segmentation process.. Fig. 3.3 An example of sentence segmentation results. The time of head shaking is 5 seconds, and the time of pausing between sentences is 1 second.. 3.1.3 Review of Alignments of Mandarin Syllables 23.

(36) After the segmentation of sentences is done, the timing information of each syllable in a sentence can be learned by speech recognition or alignment techniques. The alignment ones are also kinds of speech recognition techniques, however, they need to know the syllables spoken in input speeches. Therefore, they produce recognition results with higher accuracy. In this study, a speech alignment technique using the Hidden Markov Model is utilized to learn the timing information of syllables. The Hidden Markov Model, which can be abbreviated as HMM, is a model for speech recognition and alignment using statistical methods. It is used to characterize the spectral properties of the frames of a speech pattern. In [6], Lin and Tsai adopted a sub-syllable model together with the HMM for recognition of Mandarin syllables. After the sub-syllable model is constructed, the Viterbi search is used to segment the utterance. Finally, the timing information of every syllable in the input speech is produced.. 3.2 Learning of Base Image Sequences As mentioned in Section 3.1, the silence period for the model to shake his/her head in the video recording process is used to help segment sentences. However, this period is designed to have another function, that is, to help learn base image sequences. In Section 3.2.1, the meaning and use of base image sequences is described. And in Section 3.2.2, a process that utilizes the silence period to learn base image sequences is proposed.. 3.2.1 Descriptions. 24.

(37) Base image sequences are sequences of base images, while a base image is a facial image onto which some mutable facial features may be pasted to form new images with different facial expressions. For instance, Fig. 3.4(a) shows an example of a base image. After pasting a new mouth image onto the correct position, a new face is produced, as illustrated by Fig. 3.4(b). In the same way, after pasting several new mouth images onto a sequence of base images, an animation of a talking face is produced.. (a). (b). Fig. 3.4 Example of base images. (a) A base image. (b) A base image with a new mouth pasted on.. As mentioned above, base images provide places for variable facial features to be pasted on. These variable ones normally include eyebrows, eyes, mouths, etc. However, the mouths are the only kinds of features adopted as variable ones in this study. The eyebrows and eyes are not pasted onto base images; instead, the eyebrows and eyes on the base images are retained to produce animations with more natural eye-blinking actions. The motion of a head is another kind of feature controlled by the base images. By inserting several images of a shaking head into the base image sequence, the produced animation can exhibit a speaking person with his/her head shaking. In the 25.

(38) same way, other kinds of head movements such as nodding can be integrated. Base images control more things in the generated animation. For example, the background, the body, and the hand are all controlled by the base images.. 3.2.2 Learning Process To produce base image sequences, the initial silence period in the video recording process is utilized. The model is asked to shake his/her head during this period to simulate natural shaking of heads while speaking, and the image frames recorded during this period are used as base images. Certainly, all image frames of the recorded video can be used as base images. However, there are some drawbacks. Firstly, since the actions of eyes and eyebrows originate from the base images, namely, all the image frames of the recorded video, the model must keep his/her eyes “natural” during the entire recording process, which is a very tiring job. And secondly, since the model is asked to pause awhile between sentences, generated base image sequences will exhibit this behavior, which is somewhat unacceptable. To avoid these drawbacks, only the image frames recorded during the head-shaking period are used as base images in this study. The period is short and no pause exists in it. To generate a sequence of base images, an initial frame is selected first. And then, a traverse direction, either forward or backward, is selected. Starting from the initial frame, the frames met along the traverse direction are added to the sequence. In order to create animations with changeful head motions, the initial frame and the traverse direction is randomly selected for every session of animation. Besides, since desired animations may require more image frames than the number of total base images, the images must be used repeatedly. One way to solve this problem is to reverse the traverse direction when reaching the first or the last base image. Fig. 3.5 illustrates 26.

(39) this situation.. Fig. 3.5 A diagram that shows the generation process of base image sequences.. The entire process of generating base image sequences is described as follows, and a flowchart of this process is shown in Fig. 3.6. Algorithm 2. Learning process of base image sequences. Input: a sequence of image frames I = {I1, I2, …, IM} of the recorded video in the head-shaking period, and the amount of desired base images N. Output: a sequence of base images B = {B1, B2, …, BN}. Steps: Step 1: Randomly select an initial frame Iinitial in I. Step 2: Randomly select an initial direction, either forward or backward. Step 3: Add the current frame to B. Step 4: Stop learning, if the number of frames in B equals to N. Step 5: Reverse the direction if the current frame is I1 or IM. Step 6: Advance to the next frame along the selected direction. Step 7: Repeat Steps 3 through 6.. 3.3 Experimental Results In this section, some experimental results of the proposed methods described in 27.

(40) this chapter are shown. Firstly, Fig. 3.7 shows the entire audio of a transcript, and Fig. 3.8 shows the sentence segmentation result. The 17 speaking parts of the audio, which are represented in blue and green colors, are detected successfully.. Select initial frame. Select initial direction. Base Image Sequence. Add frame to sequence. Enough frames?. Yes. No. No. Advance to next frame. Is first/last frame?. Stop Yes. Reverse direction. Fig. 3.6 Flowchart of the learning process of base image sequences.. Fig. 3.7 An example of entire audio data of a transcript. The duration of head shaking is 5 seconds, and the duration of pausing between sentences is 1 second.. Fig. 3.8 The audio data in Fig. 3.7 is segmented into 17 parts.. 28.

(41) Secondly, Fig. 3.9 shows an audio containing a Mandarin sentence, and Fig. 3.10 shows the result of syllable alignment. Durations of syllables are shown in blue and green colors. In Fig. 3.11 and 3.12, another Mandarin sentence and its corresponding result of syllable alignment are shown.. Fig. 3.9 An audio that contains a Mandarin sentence “好朋友自遠方來”.. Fig. 3.10 The result of syllable alignment of the audio in Fig. 3.9.. Fig. 3.11 An audio that contains a Mandarin sentence “熟能生巧”.. Fig. 3.12 The result of syllable alignment of the audio in Fig. 3.11.. Thirdly, Fig. 3.13 shows a base image sequence produced with the proposed method.. 29.

(42) Fig. 3.13 A base image sequence produced with the proposed method.. 30.

(43) 3.4 Summary and Discussions In this chapter, an automatic method for sentence segmentation is proposed. The method works well in silent environments. The method is also workable in environments with constant noise, such as the noise of fans and cooling systems. The segmentation helps accelerate the subsequent work of syllable alignment. Besides, a method for generating base image sequences by utilizing the period of head shaking is proposed. The sequences generated are different for every session, which helps prepare varied background images for animations.. 31.

(44) Chapter 4 Automatic Learning of Facial Features 4.1 Introduction To create an animation of a speaking person, syllables spoken are collected first, and then visemes corresponding to the syllables must be “pasted” onto the base image sequence. The visemes, namely, the mouth images, should be pasted onto correct positions of faces; otherwise the generated animation will look strange. As shown in Fig. 4.1, pasting on incorrect positions leads to unacceptable results.. (a). (b). (c). Fig. 4.1 Example of base images. (a) A base image. (b) The base image with a new mouth pasted onto the correct position. (c) The base image with a new mouth pasted onto an incorrect position.. In order to decide the correct positions for the mouth images to be pasted on, three types of methods have been tried in this study. The first one is to measure the positions manually. Obviously, the positions obtained may be very precise. However, it is not suitable to perform this work on many frames. The second is to plaster the face with some marks, and then the positions can be detected easily and automatically. 32.

(45) However, this method bears the disadvantage of plastering extra marks on the face. The third method is to measure the positions by face recognition techniques on every frame. This method is fully automatic, however, results of recognition are often not stable enough due to slight variations in lighting. The slight movements of muscles under the skin also may affect the recognition results significantly, though human eyes may not notice them. In this study, a method that integrates the second and the third method mentioned above is proposed. A face recognition technique using a knowledge-based approach is used to learn the positions of facial features for the first frame. The technique is reviewed in Section 4.2. Spatial relations between these features, which keep invariable for an identical face, are noted. Then, a kind of facial feature is used as a sort of mark, and this “natural” mark, which is called the base region in this study, can be detected by image-matching techniques. Finally, the positions of other facial features excluding the mark can be calculated according to the spatial relations. The process is illustrated in Fig. 4.2. One advantage of this method is that the results of matching are more stable while the mark keeps unchanged for every frame. Another advantage is that the image matching techniques can even be applied to rotated faces, which is discussed in Section 4.3.2. To select a proper facial feature to be used as the base region, its invariance is important. Among those facial features listed in Fig. 4.3, the nose is the only one that keeps an invariant shape while the face is speaking. The eyebrows may move slightly due to expressions and the eyes may blink casually. The shapes of the mouth and the jaw change obviously on a speaking face. Therefore, the nose is selected as the base region in this study.. 33.

(46) First frame. Other frames. Feature detection. Spatial relations. Base region. Image matching. Base region position. Combination. Feature positions. Fig. 4.2 Flowchart of the learning process of facial features.. (a). (b). (c). (d). (e). Fig. 4.3 Facial features. (a) The eyebrows. (b) The eyes. (c) The nose. (d) The mouth. (e) The jaw.. 4.2 Review of Knowledge-Based Face Recognition Techniques Knowledge-based face recognition techniques use the common knowledge of 34.

(47) facial features to detect their positions. An example of the knowledge is that eyes on a face have similar shapes. Another example is that eyebrows have similar shapes while they are always above the eyes. In this study, relations and shapes of facial feature are used as the knowledge to learn their positions. First, the skin part of a facial image is found by color thresholding. Facial features are filtered according to the feature properties and relations. Edges of the image are used to find the positions of the facial features more precisely.. 4.3 Learning of Base Regions In this section, the proposed learning process of base regions is described in detail. After the position of the base region of the first frame is determined using the technique described in Section 4.2, the process is performed on other frames to learn the positions of the base regions of them. The positions of facial features can then be determined easily.. 4.3.1. Review of Image Matching Techniques. In Section 4.1, it is mentioned that the base region positions of the frames other than the first one can be determined using image matching techniques. These techniques are used to find the position of a pattern image inside a base image. Fig. 4.4 shows the block diagram of common image matching techniques. By shifting the position of the pattern image (or the base image on the contrary), several measures can be calculated according to a pre-designed formula. At last, the position corresponding to the best measure is adopted.. 35.

(48) Shifted pattern by 1 pixel. Formula. Shifted pattern by 2 pixels. Measurement. Shifted pattern by N pixels. Base image. Best position. Fig. 4.4 Block diagram of common image matching techniques.. It is obvious that the formula affect the results severely. In an environment with controlled lighting, a formula that calculates the “Euclidean distance” of two images is sufficient. For example, Equation (4.1) below is used in this study to calculate the Euclidean distance between the colors of two images:. D = ∑∑ ( R1 ( x, y ) − R2 ( x, y )) + (G1 ( x, y ) − G2 ( x, y )) + ( B1 ( x, y ) − B2 ( x, y )) (4.1) x. y. An example of results of image matching using Equation (4.1) is illustrated in Fig. 4.5. Fig. 4.5(a) shows the first frame of a recorded video, and the blue block on it is the base region detected using the techniques described in Section 4.2. Fig. 4.5(b) shows the 2617th frame of the video, and the base region position of it is calculated using the image matching technique mentioned above.. (a). (b) 36.

(49) Fig. 4.5 Example of image matching results. (a) The first frame of a video. The base region position is (346, 280). (b) The 2617th frame of the video. The base region position is (353, 283).. 4.3.2 Learning by Image Matching with Sub-Pixel Precision The image matching technique used in Section 4.3.1 is proper for finding the base region positions of a face, even if the face is shaking. Table 4.1 shows an example of base region positions of a sequence of images. It is shown that the minimum unit of a base region position is a pixel. However, the face normally does not shake in the way of shifting its position by one pixel for successive frames suddenly, instead, smoothly. Therefore, to find the positions with sub-pixel precision is useful for high-quality animations. Examples of positions with sub-pixel precision are (346.5, 280.5) and (353.3, 283.6). To find a position with sub-pixel precision, a pattern image needs to be shifted by a distance shorter than a pixel, and then the image matching technique can be performed on the shifted pattern image. To accomplish the job of shifting, the continuous properties of facial images are utilized. In [8], Gonzalez and Woods illustrated the process of acquiring digital images from sensors. The image acquired from the sensors is continuous with respect to the x- and y-coordinates, and also in amplitude. The coordinate values and amplitude values are sampled and quantized into digital forms, respectively. The situation is shown in Fig. 4.6. Pink arrows in Fig. 4.6 indicate positions between pixels. If the amplitude values of these positions can be known, the image matching technique can 37.

(50) be performed on these values, just like the image is shifted within a pixel.. Fig. 4.6 A diagram of converting a continuous image into a digitized form.. Since the face images are continuous, it is reasonable to assume that the amplitude values, namely, the color values, between two adjacent pixels approximate the values of these two pixels. In this study, the technique of bilinear interpolation is used to generate these values. Fig. 4.7 illustrates this technique. The color value of P’ is determined in proposition to the color values of the nearest four pixels P1 through P4 using following equations: A1 =∣(x’﹣x1) (y’ ﹣y1)∣, A2 =∣(x’﹣x2) (y’ ﹣y2)∣; A3 =∣(x’﹣x3) (y’ ﹣y3)∣, A4 =∣(x’﹣x4) (y’ ﹣y4)∣;. (4.2). P’ = (A1P4 + A2P3 + A3P2 + A4P1) / (A1 + A2 + A3 + A4).. (4.3). Fig. 4.7 A diagram of the adopted bilinear interpolation technique.. 38.

(51) A method that performs image matching with sub-pixel precision using above-mentioned ideas and techniques is proposed and described as follows. Firstly, the pattern image, namely, the image of the base region, and the base image are enlarged with a predefined ratio using the bilinear interpolation technique. The color values of pixels that have no corresponding pixels in the original image are filled with interpolated values. Secondly, the image matching technique described in Section 4.3.1 is applied on the enlarged pattern and the base image to find the best position of the base region. Finally, the position is shrunk back according to the predefined ratio. The algorithm of the image matching with sub-pixel precision is described as follows.. Algorithm 3. Image matching with Sub-Pixel precision. Input: a pattern image Ipattern, a base image Ibase, and a predefined ratio r. Output: the position P(x, y) of Ipattern in Ibase. Steps:. Step 1: Enlarge Ipattern r times larger to get a new image IpatternL. Step 2: Enlarge Ibase r times larger to get a new image IbaseL. Step 3: Use the image matching technique to find the position P’(x’, y’)of IpatternL in IbaseL.. Step 4: Divide x’ by r to get x. Step 5: Divide y’ by r to get y.. An example of results of the proposed method is shown in Fig. 4.8. The ratio value is 2 in this example.. 4.3.3. Handling Rotated Faces 39.

(52) In the video recording process, a model is asked to shake his/her head for a period of time, so that generated base image sequences can exhibit a speaking face with natural shaking. Besides, the face of the model may not always be straight due to his/her speaking habit. However, the image matching technique cannot be applied effectively on those shaking faces because the base regions are “rotated”. In Section 4.3.3.1, problems caused by rotated faces are described. In Section 4.3.3.2, a modified image matching method that is suitable to be applied to the rotated faces is proposed.. (a). (b). Fig. 4.8 Example of results of image matching with sub-pixel precision. (a) The 2597th frame of a video. The base region position is (354.5, 284.0). (b) The 2598th frame of the video. The base region position is (354.5, 284.5).. 4.3.3.1. Problems of Rotated Faces. The image matching technique described in Section 4.3.1 is effective to find the position of a pattern image in a base image. However, this is true only under the assumption that the pattern part of the base image is very similar to the pattern image. For rotated faces, the pattern parts, namely, the base regions in this study, are rather different from the base region of the first frame. Therefore, results of image matching 40.

(53) are often not quite precise. Another problem arises when the rotated angle of a rotated face is not known even if the position of the base region is detected correctly. Fig. 4.9 shows the problem. As described in Section 4.1, positions of facial features are calculated according to the base region position and spatial relations. For a straight face like Fig. 4.9(a), the positions of facial features can be calculated correctly. However, for a rotated face like Fig. 4.9(c), the positions of facial features cannot be calculated correctly only with the help of the spatial relations even if the base region position is right. To determine the positions of facial features correctly on a rotated face, the rotated angle must be found.. (a). (b). (c). Fig. 4.9 A diagram that shows the problem of rotated faces. (a) A straight face with its mouth position determined correctly by the spatial relation. (b) A rotated face. (c) A rotated face with its mouth position determined incorrectly by the spatial relation.. 4.3.3.2. Image Matching on Rotated Faces. To find the rotated angle of a rotated face, some extra work is added to the 41.

(54) original image matching method. As shown in Fig. 4.10, the base region image is rotated first to generate several rotated versions. All of these rotated images as used as pattern images. And then, the image matching technique is applied. Finally, the best position and rotated angle of the base region is learned. The algorithm of this process is described as follows. Algorithm 3. Image matching on rotated faces. Input: a pattern image Ipattern, and a base image Ibase. Output: the position and rotated angle of Ipattern in Ibase. Steps:. Step 1: Rotate Ipattern with an incremental series of degrees and get a set of new images IpatternR.= {IpatternR1, IpatternR2, …, IpatternRN }. Step 2: Select an image IpatternR’ in IpatternR as the pattern image. Step 3: Perform image matching on IpatternR’ and Ibase and record the measurement value. Step 4: Repeat steps 2 through 3 until all images in IpatternR are used ever. Step 5: Output the position and rotated angle corresponding to the minimum measure value.. Base region. Rotation. 1* rotated base region. Base image. 2* rotated base region. Image Matching. N* rotated base region. Best position and angle. * means degree.. Fig. 4.10 Flowchart of the proposed image matching method on rotated faces.. An example of results of image matching on rotated faces is shown in Fig. 4.11. 42.

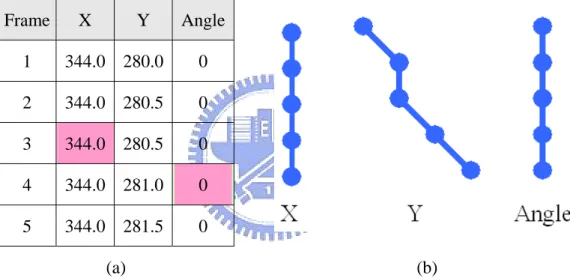

(55) (a). (b). Fig. 4.11 Example of results of image matching on rotated faces. (a) The rotated angle is 6 degrees clockwise. (b) The rotated angle is –1 degree clockwise.. 4.3.4 Learning by Image Matching with Sub-Pixel Precision on Rotated Faces The techniques mentioned in Sections 4.3.2 and 4.3.3 can be combined together to learn the positions and rotated angles on rotated faces with sub-pixel precision. Fig. 4.12 illustrates the combined process, in which green blocks represent the work of matching on rotated faces, and blue blocks represent the work of matching with sub-pixel precision.. 4.3.5. Correcting Erroneous Matching Results. Although the results of the image matching technique are stable, however, some errors still exist due to unavoidable changes in lighting. The variations of shadows on faces also affect the accuracy of the results.. 43.
