Fluorescence assay for protein post-translational tyrosine sulfation

TECHNICAL NOTE

Fluorescence assay for protein post-translational

tyrosine sulfation

Bo-Han Chen&Chen-Chu Wang&Lu-Yi Lu&

Kuo-Sheng Hung&Yuh-Shyong Yang

Received: 17 September 2012 / Revised: 27 October 2012 / Accepted: 31 October 2012 / Published online: 18 November 2012 # Springer-Verlag Berlin Heidelberg 2012

Abstract We developed a fluorescent assay to conveniently determine the kinetics of protein sulfation, which is essential for understanding interface between protein sulfation and protein– protein interactions. Tyrosylprotein sulfotransferase (TPST) catalyzes protein sulfation using 3′-phosphate 5′-phosphosul-fate (PAPS) as sulfuryl group donor. In this report, PAPS was regenerated following sulfuryl group transfer between adeno-sine 3′,5′-diphosphate and 4-methylumbelliferyl sulfate cata-lyzed by phenol sulfotransferase (PST). The TPST and PST coupled enzyme platform continuously generated fluorescent 4-methylumbelliferone (MU) that was used to real-time moni-tor protein sulfation. Using a recombinant N utilization sub-stance protein A fused Drosophila melanogaster tyrosylprotein sulfotransferase, we demonstrated that the activity of TPST determined through MU fluorescence directly correlated with protein sulfation. Kinetic constants obtained with small P-selectin glycoprotein ligand-1 peptide (PSGL-1 peptide, MW 1541) or its large glutathione S-transferase fusion protein (GST-PSGL-1, MW 27833) exhibited significant variation. This as-say can be further developed to a high-throughput method for the characterization of TPSTs and for the identification and screening of their protein substrates.

Keywords Protein sulfation . Tyrosylprotein

sulfotransferase (TPST) . Phenol sulfotransferase (PST) . Fluorescence enzyme assay

Introduction

Protein sulfation is one of the common post-translational modifications. It is catalyzed by tyrosylprotein sulfotrans-ferase (TPST) through the transfer of sulfuryl group (SO3−1) from 3′-phosphoadenosine 5′-phosphosulfate

(PAPS) onto a tyrosyl residue within a target protein. Protein sulfation plays a critical role in protein–protein interactions that modulates virus infection, inflammation, immune responses, and other biological events [1–3]. Protein sulfation is known to increase the probability of viral infection by the surface protein interactions between cells and virus. Protein sulfation changes chemical prop-erties of the protein surface and in turn affects protein folding, protein conformation, protein stability, and pro-tein–protein interactions. Despite that the importance of post-translational protein sulfation is well appreciated, the biological functions of protein sulfation are still largely unknown. To determine the activity of protein sulfation is one of the important issues to understand its catalytic mechanism and biological functions, and an efficient assay for TPST activity is critical for the study of post-translational protein sulfation.

Mass spectra and isotope labeling are current methods used for monitoring the tyrosine sulfation and analyzing TPST properties [4,5]. These methods are end point assays that usually require tedious procedures and expensive instruments. In particular, due to the need for the separation of sulfated products, these two methods are limited to use a small peptide as a substrate of TPST [6]. In vivo protein sulfation usually appears on large proteins and it is

Electronic supplementary material The online version of this article (doi:10.1007/s00216-012-6540-3) contains supplementary material, which is available to authorized users.

B.-H. Chen

:

:

:

Department of Biological Science and Technology, National Chiao Tung University,

75 Po-Ai Street, Hsinchu, 30050, Taiwan e-mail: [email protected] K.-S. Hung

Department of Neurosurgery, Center of Excellence for Clinical Trial and Research, Taipei Medical University-Wan Fang Medical Center,

Taipei 116, Taiwan

important to determine kinetic constants and substrate spe-cificities of TPST using a protein substrate.

This report describes a continuous assay for protein sul-fation, which is not limited by the size of substrates and can be used conveniently for screening protein substrates or peptides. We developed a phenol sulfotransferase –tyrosyl-protein sulfotransferase (PST-TPST) coupled enzyme assay to continuously monitor TPST activity by fluorescence. PST coupled enzyme assay has been successfully developed for the assay of several sulfotransferases including sulfotrans-ferase 1A3 (SULT1A3) and sulfotranssulfotrans-ferase 2A1 (SULT2A1) [7, 8]. Using a peptide and its GST fusion protein as substrates, we demonstrated that the reported fluorescent method can efficiently monitor protein sulfation in real time regardless of the size of substrates. As an optical method, only basic biochemical tools are needed and this method can be to easily develop to a high-throughput ana-lytical technique.

Experimental

Materials

P-selectin glycoprotein ligand-1 peptide (PSGL-1, ATEYEYLDYDFL) was synthesized by Genemed Synthe-sis, Inc. (Texas, USA). Adenosine PAPS, adenosine 3′,5′-diphosphate (PAP), 2-mercaptoethanol, MES hydrate, 4-methylumbelliferone (MU), and 4-methylumbelliferyl sul-fate (MUS) were purchased from Sigma (St. Louis, MO, USA). All other reagents were of the highest grades com-mercially available.

Preparation of recombinant proteins

Recombinant PST (K65ER68G of a rat PST) [9], gluta-thione S-transferase fused P-selectin glycoprotein ligand-1 (GST-PSGL-ligand-1) peptide [10], and N utilization sub-stance protein A fused tyrosylprotein sulfotransferase (NusA-DmTPST) [11] were expressed in Escherichia coli according to published procedures using expression vectors of pET-3c, pGEX-4T1, and pET-43a, respective-ly. All the proteins were purified to homogeneity fol-lowing published procedures (Electronic Supplementary Material Fig. S1).

PST assay

In this study, the function of PST was to catalyze the generation of PAPS from PAP and its assay has been devel-oped previously [7]. PST activity was determined according to variation of MU fluorescence at 450 nm with excitation at 360 nm. The reaction mixture (200μl) comprised 50 mM

MES buffer (pH 6.5), 5 mM 2-mercaptoethanol, 2 mM MUS, 20μM PAP, and 0.3–2 μg K65ER68G PST. The rate of PAPS production is equivalent to that of MU. One unit of PST was defined as 1μmol of PAP converted to PAPS per minute under the PST assay condition. The emission coef-ficient was determined with commercial MU at specific temperature and pH.

TPST assay

A PST-TPST coupled enzyme assay (Scheme I) developed in this report was used to determine TPST activity. The reaction mixture included 50 mM MES buffer (pH 6.5), 5 mM 2-mercaptoethanol, 30 μM PAPS, 2 mM MUS, 120 μM PSGL-1 peptide, and 17 mU (28 μg) K65ER68G PST and NusA-DmTPST (5–25 μg) in a final volume of 200 μl. The mixture was preincubated in 37 °C for 5∼10 min in the absence of TPST. Preincubation was need-ed to assure that all contaminatneed-ed PAP convertneed-ed to PAPS before the beginning of protein sulfation catalyzed by TPST. In the coupled enzyme system, it is essential that PST activity is significantly higher than that of TPST to com-pletely convert the variation of PAP to signal and maintain the concentration of PAPS in TPST assay. Following the completion of the preincubation period, NusA-DmTPST was added last into the reaction mixture to start the protein sulfation. A spectrofluorometer (Hitachi F-7000, Japan) was used to detect the increase of fluorescent molecule (MU, monitored as described for PST assay) and to determine the activity of TPST.

Scheme I Fluorescence assay of protein tyrosine sulfation. Protein sulfation was continuously monitored through a two-enzyme platform. PST catalyzed the transfer of sulfuryl group from MUS to PAP and produced MU (fluorophore) and PAPS (sulfuryl group donor). The PST catalyzed reaction could not proceed continuously unless PAP was regenerated by TPST-catalyzed sulfuryl group transfer from PAPS to a tyrosine in a protein substrate. In this study, a rat PST mutant K65ER68G [9] and a recombinant NusA-DmTPST were used. PST is insensitive to peptide or protein substrates and TPST does not use phenol substrates

Analysis of kinetic data

Initial rate was determined from TPST assay, as described above. The apparent Michaelis–Menten constant (Km),

in-hibition constant (Ki), and turnover number (kcat) were

obtained using nonlinear regression by Sigmaplot V12 and its Enzyme Kinetics Module (SPSS Inc., Chicago, IL). The following equations for non-inhibitory reactions (1), sub-strate inhibition reactions (2), and calculation of kcat (3)

were used:

v¼ Vmax½ = KS ð mþ S½ Þ ð1Þ

v¼ Vmax½ = KS f mþ S½  1 þ Sð ½ =KiÞg ð2Þ

Vmax¼ kcat½ E ð3Þ

These equations described the relationship of enzymatic reactions among the measured reaction rate v, a maximum reaction rate Vmax, and the concentration of a substrate [S].

Result and discussion

Scheme of TPST assay

A fluorescent assay for protein sulfation can be highly sensitive for rapid kinetic determination of TPST and high-throughput screening of its potential protein substrates and inhibitors. Scheme I illustrates that fluorescence produced through MU reflects the protein sulfation catalyzed by PST and TPST coupled enzyme assay. The fluorescence can be continuously observed only when sulfuryl group of PAPS is transferred to a protein substrate catalyzed by TPST. Such scheme has been tested successfully for the determination of the activities of SULT1A3 and SULT2A1 [7, 8]. PAPS is efficiently produced by PST coupled enzyme assay and the sensitivity is comparable to the end point assay by isotope labeling with added advantage to continuously monitors the catalytic reaction [6]. In this study, we demonstrated that this platform was useful not only to monitor the activity of TPST but also to screen for its potential protein substrates without size limitation either for small peptide or the whole protein.

Measurement of TPST activity

The PST-TPST coupled enzyme assay proposed in SchemeI

was validated as shown in Fig.1. Under the assay condi-tions, the change of fluorescence could be observed only when complete reactants (PAPS, PSGL-1 and MUS) and enzymes (PST and TPST) were present. Elimination of any

one of the reactants or enzymes resulted in no continuous c h a n g e o f f l u o r e s c e n c e . A r e d u c i n g r e a g e n t 2 -mercaptoethanol was used to stabilize PST. No significant effect could be observed in the absence of 2-mercaptoethanol since excess amount of PST was used. Data shown in Fig.1

clearly demonstrated that the change of fluorescence observed in the coupled enzyme assay imitated the sulfation of PSGL-1 catalyzed by TPST. Protein sulfation was further confirmed by Western blot by anti-sulfotyrosine antibody and by [35S] autoradiography as shown in Electronic Supplementary Ma-terial Figs. S2 and S3, respectively, and comparable results were obtained.

Analysis of kinetic data

To obtain maximum TPST activity in the coupled enzyme assay, excess amount of PST was used. Our previous study described the optimal conditions (from pH 6.0–9.0) in which PST effectively produces fluorescent signal of MU [7]. In Fig.2a, we demonstrated that the change of fluores-cence was not dependent on the amount of PST added when more than 10 mU of PST was used in the coupled enzyme assay. This result suggested that PST activity over 10 mU gave maximum TPST activity. In this study, 17 mU (28μg) of PST was established as a standard assay condition. With this amount of PST activity, we can ensure that the rate-limiting step and the observed activity of the coupled

Fig. 1 Validation of fluorescence assay for protein sulfation. Complete reaction (filled circles) mixture comprised 50 mM MES buffer (pH 6.5), 5 mM 2-mercaptoethanol, 30μM PAPS, 2 mM, MUS, 120 μM PSGL-1 peptide, 17 mU (28μg) K65ER68G PST, and NusA-DmTPST (10 μg) in a final volume of 200 μl. The reaction mixture was preincubated at 37 °C for 5∼10 min in the absence of TPST. Preincu-bation was to assure sulfation of PAP that may contaminate with commercial PAPS [7,14]. NusA-DmTPST was added last to start the protein sulfation. Reactions each in the absence of one of the following reagents were also performed individually: DmTPST (filled triangles), PST (filled squares), MUS (open triangles), PAPS (filled diamonds), 2-mercaptoethanol (open squares), and PSGL-1 (open circles). These reactions served as controls to ensure that the change of fluorescence was solely followed by the sulfation of protein/peptide substrate

enzyme reaction solely depended on the protein sulfation. As demonstrated in Fig.2b, the activity of the PST-TPST coupled enzyme assay was linearly dependent on the amount of TPST. Figure2a, bestablished the appropriate amount of PST need-ed as well as the linear range of the TPST couplneed-ed enzyme assay. Under the assay condition, the effective (linear) range of TPST assay (Fig.2b) can reach to approximately 1 nmol/ min activity. Kinetics of TPST was determined through initial rate data as shown in Fig.2c, d. Kinetic data of DmTPST were first reported here in Fig.2c, dusing small peptide and its fusion protein, respectively, as substrates. Although it is not unusual for other sulfotransferases, it was first reported that PAPS exhibited substrate inhibition to DmTPST. It is

interesting to note that the size of substrate significantly af-fected the kinetic constant of DmTPST. It appeared that large substrate gave much lower Kmindicating a better affinity to

the enzyme. These results indicated that the size of protein may also be important as substrate of TPST. Both the Kmand

kcatwere comparable to those recently reported for human

TPST using radioactive labeling assay [12]. Much lower TPST activity (kcat00.50±0.03 min−1) was observed by a

mass spectrometric kinetic analysis of human TPST [13].We proposed that the PAPS purity influenced by different supple-mental system may cause the variation of TPST activity reported in the literatures. In this report, PAPS concentration was continuously supplemented through PST catalyzed

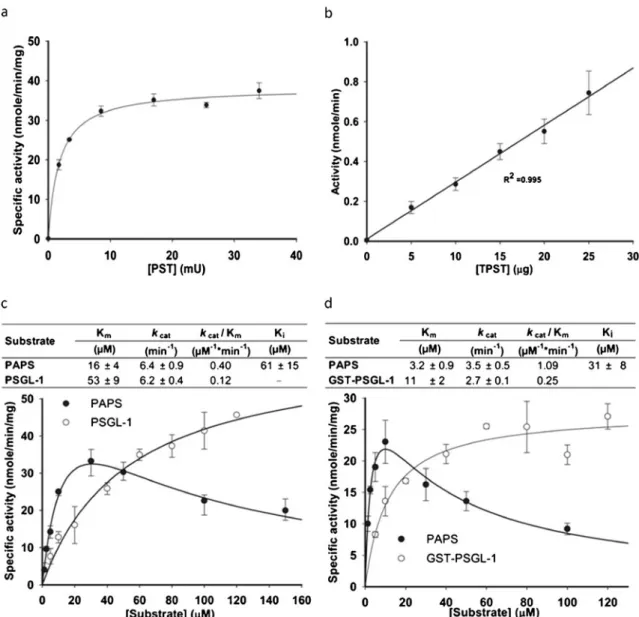

Fig. 2 Activities of DmTPST determined through PST-TPST coupled enzyme assay. a Effect of PST on protein sulfation. Reaction condition is the same as described in“Experimental” section for TPST assay

except that 10 μg NusA-DmTPST and different amounts of K65ER68G rat PST (1.7, 3.4, 8.5, 17, 25.5, and 34 mU) were used. b Effective range for DmTPST assay. Reaction condition is the same as described in“Experimental” section for TPST assay. c Determination

of kinetic constants of DmTPST at varied concentrations of PSGL-1 peptide(open circles) or PAPS (filled circles). d Determination of kinetic constants of DmTPST at varied concentrations of GST-PSGL-1 (open circles) or PAPS (filled circles). All the reaction conditions are the same as described in the“Experimental” section for TPST assay

except those mentioned specifically. Each data were the average of three independent measurements

reaction and maintained at constant level even following the sulfation of PSGL-1 catalyzed by TPST.

Application of fluorescent TPST assay

The advantage of this assay was to continuously monitor the progress of the protein sulfation catalyzed by TPST without complicated procedures or expensive instruments. This meth-od was not limited by the size of substrate and may become a useful tool to further examine specificities of TPST by simply replacing PSGL-1 substrate used in this study with other proteins of interest. In addition, due to the simplicity of the procedure, a high-throughput method can be further devel-oped and applied to screening protein sulfation sites and TPST inhibitors or for the detailed studies of TPST kinetics. It can also be a useful tool for the future study of the physiological responses and development of the medicine to treat the dis-eases that are related to protein sulfation.

Conclusion

Fluorescence assay for TPST-catalyzed protein sulfation was demonstrated. This was a continuous and rapid method and could use peptide or protein substrates without size limitation. We expect that this method would be an easy and convenient tool for the study of post-translational pro-tein sulfation.

Acknowledgments This work was supported by National Science Council (NSC99-2311-B-009-004-MY3) and MOE-ATU Program, Taiwan.

Reference

1. Farzan M, Babcock GJ, Vasilieva N, Wright PL, Kiprilov E, Mirzabekov T, Choe H (2002) The role of post-translational

mod-ifications of the CXCR4 amino terminus in stromal-derived factor 1 alpha association and HIV-1 entry. J Biol Chem 277(33):29484– 29489

2. Kehoe JW, Bertozzi CR (2000) Tyrosine sulfation: a modulator of extracellular protein–protein interactions. Chem Biol 7(3):R57– R61

3. Westmuckett AD, Thacker KM, Moore KL (2011) Tyrosine sulfation of native mouse Psgl-1 is required for optimal leukocyte rolling on P-selectin in vivo. PLoS One 6(5): e20406

4. Danan LM, Yu Z, Ludden PJ, Jia W, Moore KL, Leary JA (2010) Catalytic mechanism of Golgi-resident human tyrosylprotein sulfotransferase-2: a mass spectrometry approach. J Am Soc Mass Spectrom 21(9):1633–1642

5. Kasinathan C, Gandhi N, Ramaprasad P, Sundaram P, Ramasubbu N (2007) Tyrosine sulfation of statherin. Int J Biol Sci 3(4):237– 241

6. Paul P, Suwan J, Liu J, Dordick JS, Linhardt RJ (2012) Recent advances in sulfotransferase enzyme activity assays. Anal Bioanal Chem 403(6):1491–1500

7. Chen WT, Liu MC, Yang YS (2005) Fluorometric assay for alco-hol sulfotransferase. Anal Biochem 339(1):54–60

8. Lu LY, Hsu YC, Yang YS (2010) Spectrofluorometric assay for monoamine-preferring phenol sulfotransferase (SULT1A3). Anal Biochem 404(2):241–243

9. Yang YS, Marshall AD, McPhie P, Guo WX, Xie X, Chen X, Jakoby WB (1996) Two phenol sulfotransferase species from one cDNA: nature of the differences. Protein Expr Purif 8 (4):423–429

10. Mishiro E, Sakakibara Y, Liu MC, Suiko M (2006) Differential enzymatic characteristics and tissue-specific expression of human TPST-1 and TPST-2. J Biochem 140(5):731–737

11. Wang CC (2010) Identification and characterization of the enzyme responsible for protein tyrosine sulfation in Drosophila mela-nogaster. Master’s thesis, NCTU, Taiwan

12. Lu LY, Chen BH, Wu JY, Wang CC, Chen DH, Yang YS (2011) Implantation of post-translational tyrosylprotein sulfation into a prokaryotic expression system. ChemBioChem 12(3):377–379 13. Danan LM, Yu Z, Hoffhines AJ, Moore KL, Leary JA (2008) Mass

spectrometric kinetic analysis of human tyrosylprotein sulfotransferase-1 and -2. J Am Soc Mass Spectrom 19 (10):1459–1466

14. Lin ES, Yang YS (1998) Colorimetric determination of the purity of 3′-phospho adenosine 5′-phosphosulfate and natural abundance of 3′-phospho adenosine 5′-phosphate at picomole quantities. Anal Biochem 264(1):111–117
