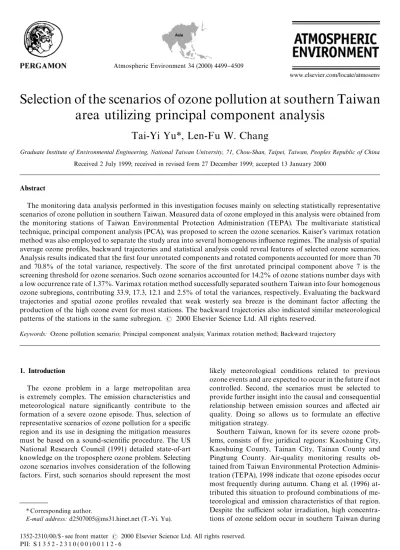

Selection of the scenarios of ozone pollution at southern Taiwan area utilizing principal component analysis

Selection of the scenarios of ozone pollution at southern Taiwan

area utilizing principal component analysis

Tai-Yi Yu*, Len-Fu W. Chang

Graduate Institute of Environmental Engineering, National Taiwan University, 71, Chou-Shan, Taipei, Taiwan, Peoples Republic of China Received 2 July 1999; received in revised form 27 December 1999; accepted 13 January 2000

Abstract

The monitoring data analysis performed in this investigation focuses mainly on selecting statistically representative scenarios of ozone pollution in southern Taiwan. Measured data of ozone employed in this analysis were obtained from the monitoring stations of Taiwan Environmental Protection Administration (TEPA). The multivariate statistical technique, principal component analysis (PCA), was proposed to screen the ozone scenarios. Kaiser's varimax rotation method was also employed to separate the study area into several homogenous in#uence regimes. The analysis of spatial average ozone pro"les, backward trajectories and statistical analysis could reveal features of selected ozone scenarios. Analysis results indicated that the "rst four unrotated components and rotated components accounted for more than 70 and 70.8% of the total variance, respectively. The score of the "rst unrotated principal component above 7 is the screening threshold for ozone scenarios. Such ozone scenarios accounted for 14.2% of ozone stations number days with a low occurrence rate of 1.37%. Varimax rotation method successfully separated southern Taiwan into four homogenous ozone subregions, contributing 33.9, 17.3, 12.1 and 2.5% of total the variances, respectively. Evaluating the backward trajectories and spatial ozone pro"les revealed that weak westerly sea breeze is the dominant factor a!ecting the production of the high ozone event for most stations. The backward trajectories also indicated similar meteorological patterns of the stations in the same subregion.  2000 Elsevier Science Ltd. All rights reserved.

Keywords: Ozone pollution scenario; Principal component analysis; Varimax rotation method; Backward trajectory

1. Introduction

The ozone problem in a large metropolitan area is extremely complex. The emission characteristics and meteorological nature signi"cantly contribute to the formation of a severe ozone episode. Thus, selection of representative scenarios of ozone pollution for a speci"c region and its use in designing the mitigation measures must be based on a sound-scienti"c procedure. The US National Research Council (1991) detailed state-of-art knowledge on the troposphere ozone problem. Selecting ozone scenarios involves consideration of the following factors. First, such scenarios should represent the most

* Corresponding author.

E-mail address: d2507005@ms31.hinet.net (T.-Yi. Yu).

likely meteorological conditions related to previous ozone events and are expected to occur in the future if not controlled. Second, the scenarios must be selected to provide further insight into the causal and consequential relationship between emission sources and a!ected air quality. Doing so allows us to formulate an e!ective mitigation strategy.

Southern Taiwan, known for its severe ozone prob-lems, consists of "ve juridical regions: Kaoshuing City, Kaoshuing County, Tainan City, Tainan County and Pingtung County. Air-quality monitoring results ob-tained from Taiwan Environmental Protection Adminis-tration (TEPA), 1998 indicate that ozone episodes occur most frequently during autumn. Chang et al. (1996) at-tributed this situation to profound combinations of me-teorological and emission characteristics of that region. Despite the su$cient solar irradiation, high concentra-tions of ozone seldom occur in southern Taiwan during

1352-2310/00/$ - see front matter  2000 Elsevier Science Ltd. All rights reserved. PII: S 1 3 5 2 - 2 3 1 0 ( 0 0 ) 0 0 1 1 2 - 6

the summer. The autumn ozone event is typically related to a certain meteorological #ow pattern. When a weather situation favors a weak northerly wind at night and is followed by a weak westerly sea breeze developing during the day in southern Taiwan, high concentrations of ozone are observed at both coastal and inland areas of southern Taiwan. Speci"c wind trajectories are assumed to be responsible for the carrying, accumulation and transformation of precursor matters emitted by densely populated and industrial districts along the coastal region of southern Taiwan, ultimately evolving into a general ozone event.

While attempting to resolve the ozone problem, TEPA (1998) set forth an agenda in its National Environmental Protection Plan, promising to decrease the frequency of violations of air-quality standard to a certain level by di!erent milestone dates. Following the agenda, TEPA also undergoes a procedure to devise an air-quality man-agement plan as a compilation of control measures that can e!ectively reduce the frequency of ozone violations to the promised level. In this study, we present a statist-ical method for screening ozone scenarios using the prin-cipal component analysis (PCA) method (Jolli!e, 1986; Malinowski, 1991). Conventional preferences of episode days emphasized the analysis of weather patterns (US Environmental Protection Agency (US EPA), 1991) or the upper extreme ozone values (Mayer et al., 1997). The former with its factitious bias easily caused di!erent kinds of categories, thereby preventing statistical consist-ency and real-time analysis when using measured air-quality data. The latter was inappropriate for Taiwan owing to the lack of an allowable extreme probability in the law. In Taiwan, the air-quality goals of criteria pollu-tants were presented as the total stations number days. If the daily 1-h maximum ozone concentration of one sta-tion exceeds the legal value, the stasta-tions number days would be noted as 1; two stations violate the aforemen-tioned rule in the same day, the stations number days would be noted as 2. Herein, the selection of ozone scenarios should illustrate the statistically dominant pat-terns of stations number days. PCA method provides an e!ective means of achieving this goal and real-time ana-lysis. The application of PCA to data sets not only produced statistically independent linear combinations of original variables, but also explained for most of the total variation with reduced dimensions. This method has been successfully applied to identify the dominant multivariate relationships presented in measured data. These relationships are also compared with these found in the model predictions. Ashbaugh et al. (1984) utilized PCA method to obtain spatial patterns of the inter-site correlation of sulfur concentrations for 40 sites, in which the "rst two components accounted for 33.1% of the total variation. Three principal components accounted for 50% of the variance for the annual mean values of 17 pollutants in Los Angeles and New York (Henry and

Hidy, 1979). Smeyers-Verbeke et al. (1984) also used three principal components to illustrate 61, 70, 64 and 54% of the variation in a data of 26 air pollutants at four places in the Netherlands, respectively. Poissant et al. (1996) applied PCA, rank and partial correlation analyses to show the relationships of 14 air pollutants and meteoro-logical variables. In related investigations, Cohn and Dennis (1994) and Li et al. (1994) used PCA method to compare the model predictions and measured data by regional acid deposition model and the Eulerian acid deposition oxidant model.

Furthermore, analysis of hourly ozone contours, back-ward trajectories and statistical analysis provides further insight into the selected ozone scenarios and those char-acteristics from di!erent aspects. To illustrate the speci"c geographical features of backward trajectories and hourly ozone contours, this study divided southern Taiwan into several classi"ed in#uence regimes. Based on spatial ozone data, Rotated Principal Component Analysis (RPCA) can also provide useful spatial varia-bility to separate southern Taiwan into several sub-regions. Eder (1989) and Eder et al. (1993) utilized the RPCA technique to analyze the SO\

 concentrations in precipitation and daily 1-h maximum ozone concentra-tions over non-urban areas over the eastern US; the station numbers were 40 and 77. The application led to delineation of seven and six subregions for the former and later research, accounting for 74.2 and 64.02% of variance, respectively. As expected, the ozone scenarios selected by PCA procedure can reveal a clear meteoro-logical e!ect on the impacted air quality, providing a basis for devising the mitigation strategy in southern Taiwan.

2. Method and analysis procedure

TEPA established the second-generation air-quality monitoring network in 1993. This network continuously monitors the air quality of Taiwan with a total of 71 stations. The major items of monitoring include the con-centrations of SO, NO, NO, CO, O, PM and NMHC. Some of the stations also provide meteorologi-cal reports, thereby enhancing the density of surface meteorological observational stations. As mentioned earlier, "ve juridical regions comprise the southern Taiwan area, with 17 stations monitoring the air quality. Fig. 1 illustrates the locations and the geographical coverage. The absorption of ultraviolet light was the measured technique for ozone. In this study, the histori-cal data of hourly ozone concentrations are compiled into a database, with a time range of 1 July 1993}30 June 1998. This data set can be viewed mathematically as a time series of high-dimensional vectors, with each vector having 17 components (17 stations;1825 days; 24 h) as its designation.

Fig. 1. Locations of the monitoring staions over southern Taiwan (Taiwan, ROC).

Furthermore, this study analyzed the measured hourly data of 1 and 2 PM during primary ozone days be-cause these 2 h have the highest frequency to overcast the hourly legal value for ozone (120 ppb). Primary ozone days were de"ned as days in which at least three stations or more in southern Taiwan area reported an excess of 120 ppb ozone hourly standards. We set the mean ozone concentrations to replace the missing values for 1 and 2 PM, respectively. The hourly data of 1 and 2 PM during primary ozone days were utilized for PCA and RPCA analysis. Seasonal distinctive variations could provide further insight into the features of primary ozone days. Correspondingly, the above-mentioned hourly data were classi"ed into four data sets. (Spring: 1 March}31 May, summer: 1 June}31 August, autumn: 1 September}30 November and winter: 1 December}28 February).

PCA is a multivariate statistical tool used for reducing the dimensionality of a data set involving a large number of interrelated variables. Let the normalized value be given as

ZGI"CGI!kG_SG , (1)

where ZGI denotes the standardized value of the kth observation on the ith stations, CGI represents the kth ozone concentration of the ith station, kG is the mean value of the ith station, and SG denotes the standard deviation of the ith station. The use of a correlation matrix is much more suitable than a covariance matrix for resolving spatial oscillations. (Overland and Preisen-dorfer, 1982) Besides, the use of a correlation matrix presents the isopoleths of component loadings, which can be regarded as the correlation coe$cients between the component and individual stations. The unrotated prin-cipal component model is

ZGI" L H¸GHPHI,

(2)

where ¸GH denotes the loading of the ith station on the jth unrotated principal component, and PHI represents the score of the kth variable for the jth unrotated principal component. Unrotated principal component can be de-rived by the inversion of (2)

PHI" L

G(¸GH/jH)ZGI,

Table 1

Statistics for the "rst four unrotated principal components

Spring PC1 PC2 PC3 PC4 Eigenvalue 7.3 3.4 1.7 1.1 Variation explained (%) 42.7 20.2 9.7 6.3 Cumulative variances (%) 42.7 62.9 72.6 78.9 Summer Eigenvalue 5.6 3.1 2.9 1.5 Variation explained (%) 32.9 18.0 17.1 8.7 Cumulative variances (%) 32.9 50.9 68.0 76.7 Autumn Eigenvalue 5.5 2.8 2.1 1.6 Variation explained (%) 32.2 16.6 12.5 9.3 Cumulative variances (%) 32.2 48.8 61.2 70.6 Winter Eigenvalue 4.7 4.2 1.8 1.6 Variation explained (%) 27.9 24.5 10.8 9.3 Cumulative variances (%) 27.9 52.4 63.2 72.5

Pci: the ith unrotated principal component.

where jH denotes the eigenvalue of the jth unrotated principal component. The original data are transformed into a new set of orthogonal variables, the unrotated principal components, which are arranged with a de-creasing order of explained variances. The unrotated principal components account for the maximum amount of variances with least number of factors in the data. The "rst unrotated principal component represents the max-imum contribution of total variance. Horel (1981) in-dicated that the unrotated principal component solution depends on the domain of analysis. Without the rotation method, the highly dimensional components may have di$culty in underlining the physical meanings of un-rotated components. The varimax rotation method, de-veloped by Kaiser (1958), is a widely used orthogonal tool to separate subregions of homogenous ozone con-centrations. In sum, the varimax method attempts to attain the maximum Q value, as described in

Q"n H L G





RHI denotes the score of the kth variable for the jth

rotated principal component. The procedure of the varimax technique aims to maximize the variances of the squared correlation coe$cients between each rotated principal component and the time-series data. To further elucidate the interactions between stations' backward trajectories and possible subregions, this study employed the varimax rotation technique on hourly data of 1 and 2 PM during primary ozone days for all seasons. All statistical computations were employed with SPSS (ver-sion 7.0) software.

3. Results

The unrotated principal components were extracted while the eigenvalues are over 1. Four and "ve principal components for spring and other seasons matched the aforementioned criterion. Table 1 displays the seasonal eigenvalues, explained variances, and cumulative vari-ances for the "rst four unrotated principal components. In sum, the "rst component accounted for 28}43%, the second for 17}25%, the third for 10}17% and the fourth for 6}9% of the total variation of the data. The "rst four unrotated components account for 70% of variances for all seasons. The "rst unrotated component represents the

maximum variation of a data set. The higher the loading of a variable implies a larger contribution to the vari-ation, accounting for the unrotated principal component. Table 2 reveals that the "rst four rotated principal com-ponents allow us to separate southern Taiwan area into four subregions. The varimax rotation method was used to assess the relative contribution of separated sub-regions. Each rotated principal component identi"ed an in#uence regime that distinguished homogeneous ozone concentration subareas. Instead of drawing four maps, the combined map was obtained by plotting the highest loading of the four rotated principal components for each station. Herein, the unique subregions were divided by the 0.45 component loading isopleth. The "rst four in#u-ence regimes, which exhibit unique ozone concentration characteristics, accounted for 70.8% of total variance. Fig. 2 summarizes those results. Regions I, II, III and IV account for 33.9, 17.3, 12.1 and 7.5% of the variation in data set, respectively. According to Table 3, the loadings of the "rst unrotated component of monitoring stations in areas I and II (the number of measured stations is 11) are positive for four seasons, except for station 48. The positive loading of the component implies that the con-centration of the measured station is above its mean value. This situation also re#ects the positive correlation between the concentrations of these 11 stations and the score of "rst unrotated principal component. The higher the scores of the "rst unrotated principal component imply higher concentrations for most stations. The load-ing with value above 50% is the criterion to decide whether a rotated or unrotated principal component is signi"cant for any station. Compared the rotated and unrotated principal components in Tables 2 and 3, every

Table 2

The loadings of the "rst four rotated principal components

Area Station PC1 PC2 PC3 PC4 55 0.83 0.37 0.00 0.00 56 0.78 0.32 !0.47 0.05 54 0.89 !0.12 0.04 0.07 I 53 0.81 0.16 0.24 0.14 50 0.62 0.57 !0.14 0.03 58 0.54 0.59 !0.53 0.08 49 0.85 !_{0.03 0.13} !_0.23 48 0.65 0.06 0.37 !_0.47 51 0.13 0.85 0.01 !_0.07 II 52 0.13 0.80 0.01 0.12 60 !_{0.02 0.80 0.10 0.12} 43 0.14 0.17 0.79 0.08 III 44 0.00 !_{0.03 0.80 0.10} 45 0.00 0.00 0.88 !_0.06 46 0.19 !0.06 0.83 !0.47 IV 47 !0.01 !0.02 0.09 0.82 59 0.12 0.17 !0.40 0.77 Eigenvalue 5.76 2.93 2.06 1.27 Variation explained (%) 33.9 17.3 12.1 7.5 Cumulative variances (%) 33.9 51.2 63.3 70.8

Pci : the loading of the ith rotated principal component.

Fig. 2. Four homogenous ozone subregions.

station in di!erent separated areas is signi"cant for unique rotated principal component, except for stations 50 and 58. Station 50 is more signi"cant to PC1 than PC2 in rotated principal components, because the load-ing is 0.62 in PC1 and 0.57 in PC2. Due to the loadload-ing is 0.54 in PC1 and 0.59 in PC2, station 58 is the major reason for existing a little overlaps between regions I and II. Station 58 was categorized to region I by selecting the gridding method, the inverse distance to a second power. Table 3 shows that the loadings of station 55, 56, 50 and 58 in di!erent seasons are signi"cant to the "rst un-rotated principal component. The loadings of other sta-tions in di!erent seasons are not signi"cant to speci"c unrotated principal components, so the homogenous ozone areas could not be easily delineated by PCA method.

For primary ozone days, Fig. 3 plots the relationships between average stations number hours and the score of the "rst unrotated principal component. Similarly, if the hourly ozone concentration of one station exceeds the legal value, the stations number hours would be noted as 1; two stations violate the front rule in the same hour, the stations number hours would be denoted as 2. The score of the "rst unrotated principal and then the seasonal average stations number hours for each interval was calculated. This graph revealed that the higher the score of the "rst unrotated principal component implies a

larger average stations number hours. As the score of the "rst unrotated principal component is greater than 1, autumn has the maximum average stations number hours for all intervals. While the score of the "rst un-rotated principal component is greater than 7, average stations number hours are greater than 4.5 for all sea-sons. Besides, the higher the scores of the "rst unrotated principal component indicated that 11 stations existed higher values above the mean concentrations of these stations. Therefore, the screening rule for ozone scenarios is de"ned as that in which the score of the "rst unrotated principal component is above 7.

3.1. Typical ozone concentration proxles

Typical ozone concentration pro"les and backward trajectories were analyzed to learn the characteristics of ozone scenarios. As mentioned earlier, the proceeding analysis revealed that autumn is the most ozone-polluted season in southern Taiwan. Therefore, the average ozone concentrations of autumn's ozone scenarios during 12 to 3 PM were shown in Fig. 4. At 12 PM, high ozone values exceeding 120 ppb appear around seaside stations of area I. Then, all the stations of area I were covered with high

Ta b le 3 S eas on a l lo adin g s of the " rst fo u r u n ro tat ed pri n ci pal compo nen ts Area St a ti o n S pri n g S umm er A ut u m n W in te r Pc 1 P c2 Pc 3 P c4 Pc 1 P c2 Pc 3 P c4 Pc 1 P c2 Pc 3 P c4 Pc 1 P c2 Pc 3 P c4 55 0 .94 0 .01 0 .07 ! 0.1 0 0.9 2 ! 0.1 4 ! 0.0 3 0.1 0 0.8 4 ! 0. 27 ! 0. 08 ! 0. 02 0. 66 0. 52 ! 0. 16 0. 13 56 0 .89 0 .04 0 .15 ! 0.1 0 0.8 2 ! 0.1 3 ! 0.2 4 ! 0.1 5 0.7 7 ! 0. 28 ! 0. 14 0. 07 0. 53 0. 64 ! 0. 39 0. 16 54 0 .86 0 .10 0 .26 ! 0.2 9 0.7 6 ! 0.2 5 0.5 1 0.0 9 0.6 6 0. 00 ! 0. 54 0. 17 0. 11 0. 71 ! 0. 43 ! 0. 25 I 5 3 0 .8 5 0 .2 5 0 .1 8 ! 0.1 6 0.7 1 0.0 4 0.6 2 0.2 0 0.8 0 ! 0. 12 ! 0. 07 0. 06 0. 00 0. 83 0. 20 ! 0. 30 50 0 .85 ! 0.2 9 ! 0.0 1 0.1 7 0.7 5 ! 0.0 3 ! 0.5 3 0.2 0 0.7 3 ! 0. 47 0. 07 0. 03 0. 65 0. 22 0. 11 0. 21 58 0 .82 ! 0.1 9 ! 0.0 2 0.2 8 0.7 3 0.1 7 ! 0.4 6 0.1 4 0.6 7 ! 0. 31 0. 10 0. 12 0. 71 0. 32 0. 22 ! 0. 10 49 0 .80 0 .31 0 .17 ! 0.1 1 0.5 3 ! 0.2 7 0.5 1 0.4 7 0.7 5 ! 0. 21 ! 0. 36 ! 0. 05 0. 06 0. 77 ! 0. 45 0. 04 48 0 .80 0 .38 0 .12 ! 0.2 5 0.4 0 0.2 3 0.6 2 ! 0.3 4 0.6 2 0. 15 ! 0. 13 ! 0. 41 ! 0. 18 0. 83 0. 25 ! 0. 29 51 0 .70 ! 0.3 4 ! 0.3 9 0.2 5 0.4 0 0.6 6 ! 0.4 2 ! 0.0 8 0.3 5 ! 0. 26 0. 67 ! 0. 27 0. 67 0. 10 0. 54 0. 00 II 52 0 .72 ! 0.3 7 ! 0.3 7 0.1 0 0.2 9 0.5 6 ! 0.4 2 0.3 7 0.3 5 ! 0. 24 0. 68 0. 12 0. 69 ! 0. 22 0. 33 ! 0. 02 60 0 .56 ! 0.4 6 ! 0.4 7 0.0 9 0.1 6 0.8 1 ! 0.1 7 ! 0.3 6 0.2 1 ! 0. 07 0. 77 ! 0. 17 0. 46 0. 22 0. 55 ! 0. 07 43 0 .28 0 .73 ! 0.0 5 0.2 6 ! 0.0 6 0.7 5 0.3 2 0.0 8 0.4 5 0. 72 0. 16 ! 0. 18 ! 0. 57 0. 48 0. 41 0. 08 II I 4 4 ! 0.1 0 0.8 1 ! 0.1 1 0.0 3 ! 0.6 4 0.1 9 ! 0.1 7 0.3 7 0.4 0 0. 76 0. 15 0. 30 ! 0. 58 0. 38 ! 0. 04 0. 58 45 0 .07 0 .78 ! 0.3 1 0.4 1 ! 0.8 2 0.1 3 0.1 7 0.3 0 0.4 6 0. 72 0. 11 0. 00 ! 0. 83 0. 28 0. 35 ! 0. 05 46 0 .17 0 .79 ! 0.1 5 0.1 5 ! 0.2 0 0.4 8 0.4 0 0.5 3 0.5 5 0. 71 ! 0. 01 ! 0. 08 ! 0. 68 0. 50 0. 15 0. 04 IV 47 0 .02 ! 0.0 2 0.7 6 0.3 3 ! 0.0 3 0.3 2 0.5 2 ! 0.4 5 0.0 4 0. 12 0. 23 0. 78 ! 0. 02 0. 21 0. 28 0. 77 59 0 .10 ! 0.3 3 0.5 1 0.5 5 0.2 5 0.6 7 0.2 9 0.0 7 0.0 8 ! 0. 07 0. 07 0. 72 0. 31 0. 08 ! 0. 07 0. 56 Pci : th e lo a d in g of th e ith un ro ta te d p rin cip al co mp o n en t.

Fig. 3. Plot of stations number hours vs. the scores (S) of the "rst unrotated principal component.

ozone concentration at 1 PM. Due to the westerly sea breeze e!ects, the high-ozone district spreads over the whole region of areas I and II at 2 PM. At 3 PM, station 59 of area IV is the only one where high ozone value exists.

3.2. Backward trajectories

Backward trajectories provide a better diagram of the cause and consequence between the emission sources and the target station. Herein, the assimilation method, which incorporated Barnes objective method (Barnes, 1973) for interpolating spatial values and the variation-kinemati-cal model (Chang et al., 1983), was adopted for correcting the e!ects of complex terrain, to produce the hourly wind "elds data by using 70 surface stations over southern Taiwan. During ozone scenarios in autumn, the mea-sured wind "eld data employed herein were from surface meteorological stations, two of the stations were from the Taiwan Central Weather Bureau (TCWB), and others were from TEPA. By utilizing the generated hourly wind "elds at 200 m high over surface, backward trajectories were simulated from all monitoring stations. The trajec-tories were constructed using the horizontal wind com-ponents only. The trajectories have a segment resolution of 1 min and the interpolation was linear in time and space. The initial time of the backward trajectories for each station was set as the hour that the maximum average ozone concentration occurred.

Tsaur and Chang (1998) indicated that southern Taiwan was a NOV-limited region with the trajectory photochemical model. Therefore, in this study, the NOV emission inventory of this area was plotted as a contras-tive tool. As Fig. 5 indicates, the high NOV emission inventory areas are along the coastal district of southern Taiwan. The backward trajectories of regions I, II and IV stations were categorized as three types and plotted in Fig. 5. In region I, the stations have the maximum

average concentrations at 1 PM, region II at 2 PM (except for station 51), region IV at 3 PM. As for the coastal stations of area I, the wind direction transfers to southwesterly at 11 AM and the trajectories gradually travel to eastern side because of the weak westerly sea breeze e!ects. The trajectories of stations in region I are along with the coastal side of southern Taiwan, i.e. the dense NOV polluted areas. The backward trajectories of region II stations have similar patterns.

The wind direction shifts to land at 10 AM, and the trajectories then travel to the inland area. In area IV, the air parcels travel long distances from the north side of southern Taiwan. With the weak sea wind, the polluted air parcels have su$cient time to stagnate at a high emission inventory area and form high ozone concentra-tions. In addition, the stations' trajectories of regions I and IV show the intercounty transport e!ects. Conse-quently, the weak westerly sea breeze is the prerequisite for forming these serious ozone events.

3.3. Ozone station number days

The aim of air quality was presented as the ratios of total stations number days in TEPA. To achieve the statistically dominant principal, Table 4 displays the sea-sonal ozone station number days for ozone scenarios; the ozone station number days is de"ned as the days whose PSI values are greater than 100 and the priority pollutants are ozone. Without any screening criteria, the average ozone station number days for autumn, spring, summer, winter and year are 1.42, 0.82, 0.46, 0.39 and 0.77, respectively. At ozone scenarios, the average value of ozone station number days for autumn, spring, sum-mer, winter and year are 9.3, 7.0, 6.0, 5.0 and 7.96, respectively. Area I has the maximum average ozone station number days during ozone scenarios. This phe-nomenon illustrates the dominant signi"cance of area I, which contributes to the maximum variance in the data set. Although the low occurrence rate of ozone scenarios is 1.37% for 5 yr, this event covers 14.2% of ozone station number days.

4. Conclusions

This study has demonstrated that PCA can screen the statistically dominant ozone scenarios over southern Taiwan. PCA method is employed to analyze the charac-teristics of primary ozone days, in which at least three stations or more in southern Taiwan area exceed 120 ppb ozone hourly standards. Data were collected from 1 July 1993 to 30 June 1998. The score of the "rst unrotated principal component above 7 was the screening rule for the ozone scenarios. When ozone scenarios occurred, the hourly ozone values for most monitoring stations ex-ceeded 120 ppb. Other primary ozone days, which did

Fig. 5. Backward trajectories of the monitoring stations for di!erent subareas (the numbers below the backward trajectories present the time).

Table 4

Statistics for the ozone station number days

Area Station Spring Summer Autumn Winter Summation

Severe
General Severe
General Severe
General Severe
General Severe
General Ratio

55 8 21 2 17 11 51 0 10 21 99 21.2 56 5 12 2 7 9 33 0 3 16 55 29.1 54 6 19 2 14 10 56 0 11 18 100 18.0 I 53 6 18 0 8 11 29 0 8 17 63 27.0 50 4 13 1 16 8 31 1 6 14 66 21.2 58 7 19 0 13 8 37 1 6 16 75 21.3 49 4 9 2 6 6 17 0 4 12 36 33.3 48 7 20 1 22 11 57 0 15 19 114 16.7 51 5 31 0 16 8 59 1 13 14 119 11.8 II 52 2 19 0 28 5 49 1 14 8 110 7.3 60 6 67 1 12 6 76 1 46 14 201 7.0 43 3 18 0 7 2 12 0 0 5 37 13.5 III 44 0 7 0 3 1 20 0 3 1 33 3.0 45 2 13 0 3 2 10 0 4 4 30 13.3 46 0 12 0 3 2 11 0 3 2 29 6.9 IV 47 1 30 1 12 4 22 0 7 6 71 8.5 59 4 47 0 24 8 74 0 22 12 167 7.2 Total 70 375 12 211 112 644 5 175 199 1405 14.2 Days 10 460 2 460 12 455 1 451 25 1826 1.37 Average 7.0 0.82 6.0 0.46 9.3 1.42 5.0 0.39 7.96 0.77

Ozone station number days is de"ned as the days those PSI values are greater than 100 and the priority pollutants are ozone.
The score of the"rst unrotated principal component is above 7.

Without any screening criteria.

The ratio of severe
over general in summation, unit: %.

The summation of ozone station number days for all stations, unit:&days. Counted days, unit: days.

Average days of ozone station number days,"total/days.

not match the criteria of ozone scenarios, had scattered stations in which hourly ozone concentrations surpassed 120 ppb. The hourly ozone pro"les, backward trajecto-ries and statistical analysis revealed the characteristics of ozone scenarios. Based on hourly ozone pro"les, the stations of regions I and II contained high ozone concen-trations in which pollution was the signi"cant attribute of ozone scenarios. The weak westerly sea breeze played an important role in producing high ozone concentra-tions for most staconcentra-tions by the analyses of backward trajectories. The backward trajectories of regions I and IVs' stations show the intercounty e!ects. As for the subregions separated by RPCA technique, backward trajectories of stations displayed the same meteorol-ogical #ow patterns in the same subarea. The "rst four rotated components divided southern Taiwan into four areas and accounted for 33.9, 17.3, 12.1 and 2.5% of total variances, respectively. The average value of ozone station number days is 7.96 for selected ozone scenarios, successfully accounting for 14.2% of overall ozone station number days with the low occurrence fraction of 1.37%.

As mentioned earlier, selection of presenting scenarios of ozone pollution is the "rst task before completely evaluating ozone abated measures. Morereliable and statistical data are necessary for further investigation. Furthermore, more e$cient use of airshed or trajectory photochemical models is necessary to assess the ozone reductions for alternative abatement strategies.

References

Ashbaugh, L.L., Myrup, L.O., Flocchini, R.G., 1984. A principal component analysis of sulfur concentrations in the western United States. Atmospheric Environment 18, 783}791. Barnes, S.L., 1973. Mesoscale objective map analysis using

weighted time series observations. NOAA Technical Memo. ERL NSSL-62, 60pp.

Chang, L.F.W., Hwang, R.R., Lin, S.C., 1983. A variation-kin-ematic model for #ow over complex terrain. Annual Report of Institute of Physics. Academy Sinica 13, 89}102. Chang, L.F.W., Lin, C.H., Jean, Y.B., Yu, T.Y., 1996. The

charac-teristics of ozone pollution in the urban areas of northern and southern Taiwan. The Proceeding of the 13th Air

Pollution Control Technologies Conference, Taipei, Taiwan, pp.1}12.

Cohn, R.D., Dennis, R.L., 1994. The evaluation of acid depo-sition models using principal component spaces. Atmo-spheric Environment 28, 2531}2543.

Eder, B.K., 1989. A principal component analysis of SO\  precipitation concentrations over the eastern United States. Atmospheric Environment 23, 2739}2750.

Eder, B.K., Davis, J.M., Bloom"eld, P., 1993. A characterization of the spatiotemporal variability of non-urban ozone con-centrations over the eastern United States. Atmospheric Environment 27A, 2645}2668.

Henry, R.C., Hidy, G.M., 1979. Multivariate analysis of partic-ulate sulfate and other air quality variables by principal components } part I annual data from Los Angeles and New York. Atmospheric Environment 13, 1581}1596.

Horel, J.D., 1981. A rotated principal component analysis of the interannual variability of the northern hemisphere 500 mb height "eld. Monthly Weather Review 109, 2080}2092. Jolli!e, I.T., 1986. Principal Component Analysis. Springer,

New York.

Kaiser, H.F., 1958. The varimax criterion for analytic rotation in factor analysis. Psychometrika 23, 187}201.

Li, S., Anlauf, K.G., Wiebe, H.A., Bottenheim, J.W., Puckett, K.J., 1994. Evaluation of a comprehensive Eulerian air qual-ity models with multiple chemical species measurements using principal component analysis. Atmospheric Environ-ment 28, 3449}3461.

Malinowski, E.R., 1991. Factor Analysis in Chemistry, 2nd Edition. Wiley, New York.

Mayer, E.L., Baldridge, K.W., Chu, S., Cox, W.M., 1997. Choice of episodes to model: considering e!ects of control strategies on ranked severity of prospective episodes days. Air and Waste Management Association's 90th Annual Meeting Exhibition 97-MP112.01.

National Research Council, 1991. Rethinking the Ozone Problem in Urban and Regional Air Pollution. National Academy Press, Washington DC.

Overland, J.E., Preisendorfer, R.W., 1982. A signi"cance test for principal components applied to a cyclone climatology. Monthly Weather Review 119, 1}4.

Poissant, L., Bottenheim, J.W., Roussel, P., Reid, N.W., Niki, H., 1996. Multivariate analysis of a 1992 Sontos data subset. Atmospheric Environment 30, 2133}2144.

Smeyers-Verbeke, J., Hartog, J.C.D., Dekker, W.H., Coomans, D., Buydens, L., Massart, D.L., 1984. The use of principal component analysis for the investigation of an organic air pollutants data sets. Atmospheric Environment 18, 2471}2478.

Taiwan Environmental Protection Administration (TEPA), 1998. National Environmental Protection Plan. http:// www.epa.gov.tw/.

Tsaur, C.H., Chang, L.F.W., 1998. Evaluation on the abated e!ectiveness of ozone precursor emissions in MIR scales by trajectory photochemical model. The Proceedings of 15th Air Pollution Control Technologies Conference, Taipei, Taiwan, pp. 1}14.

US Environmental Protection Agency (US EPA), 1991. Guide-line for Regulatory Application of Urban Airshed Models, EPA-450/4-91-013.
