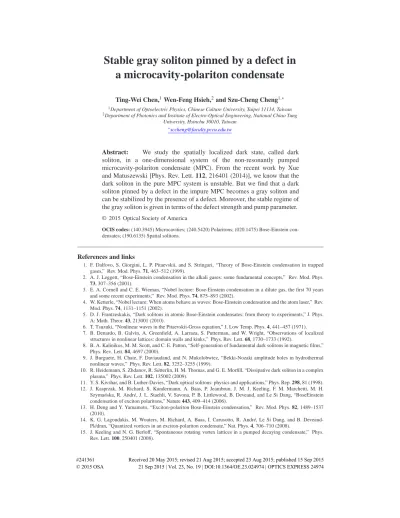

Stable gray soliton pinned by a defect in
a microcavity-polariton condensate
Ting-Wei Chen,1Wen-Feng Hsieh,2and Szu-Cheng Cheng1,∗ 1Department of Optoelectric Physics, Chinese Culture University, Taipei 11114, Taiwan 2Department of Photonics and Institute of Electro-Optical Engineering, National Chiao Tung
University, Hsinchu 30010, Taiwan
Abstract: We study the spatially localized dark state, called dark soliton, in a one-dimensional system of the non-resonantly pumped microcavity-polariton condensate (MPC). From the recent work by Xue and Matuszewski [Phys. Rev. Lett. 112, 216401 (2014)], we know that the dark soliton in the pure MPC system is unstable. But we find that a dark soliton pinned by a defect in the impure MPC becomes a gray soliton and can be stabilized by the presence of a defect. Moreover, the stable regime of the gray soliton is given in terms of the defect strength and pump parameter. © 2015 Optical Society of America
OCIS codes: (140.3945) Microcavities; (240.5420) Polaritons; (020.1475) Bose-Einstein con-densates; (190.6135) Spatial solitons.
References and links
1. F. Dalfovo, S. Giorgini, L. P. Pitaevskii, and S. Stringari, “Theory of Bose-Einstein condensation in trapped gases,” Rev. Mod. Phys. 71, 463–512 (1999).
2. A. J. Leggett, “Bose-Einstein condensation in the alkali gases: some fundamental concepts,” Rev. Mod. Phys. 73, 307–356 (2001).
3. E. A. Cornell and C. E. Wieman, “Nobel lecture: Bose-Einstein condensation in a dilute gas, the first 70 years and some recent experiments,” Rev. Mod. Phys. 74, 875–893 (2002).
4. W. Ketterle, “Nobel lecture: When atoms behave as waves: Bose-Einstein condensation and the atom laser,” Rev. Mod. Phys. 74, 1131–1151 (2002).
5. D. J. Frantzeskakis, “Dark solitons in atomic Bose-Einstein condensates: from theory to experiments,” J. Phys. A: Math. Theor. 43, 213001 (2010).
6. T. Tsuzuki, “Nonlinear waves in the Pitaevskii-Gross equation,” J. Low Temp. Phys. 4, 441–457 (1971). 7. B. Denardo, B. Galvin, A. Greenfield, A. Larraza, S. Putterman, and W. Wright, “Observations of localized
structures in nonlinear lattices: domain walls and kinks,” Phys. Rev. Lett. 68, 1730–1733 (1992).
8. B. A. Kalinikos, M. M. Scott, and C. E. Patton, “Self-generation of fundamental dark solitons in magnetic films,” Phys. Rev. Lett. 84, 4697 (2000).
9. J. Burguete, H. Chate, F. Daviaudand, and N. Mukolobwiez, “Bekki-Nozaki amplitude holes in hydrothermal nonlinear waves,” Phys. Rev. Lett. 82, 3252–3255 (1999).
10. R. Heidemann, S. Zhdanov, R. S ¨utterlin, H. M. Thomas, and G. E. Morfill, “Dissipative dark soliton in a complex plasma,” Phys. Rev. Lett. 102, 135002 (2009).
11. Y. S. Kivshar, and B. Luther-Davies, “Dark optical solitons: physics and applications,” Phys. Rep. 298, 81 (1998). 12. J. Kasprzak, M. Richard, S. Kundermann, A. Baas, P. Jeambrun, J. M. J. Keeling, F. M. Marchetti, M. H. Szyma ´nska, R. Andr ´e, J. L. Staehli, V. Savona, P. B. Littlewood, B. Deveaud, and Le Si Dang, “BoseEinstein condensation of exciton polaritons,” Nature 443, 409–414 (2006).
13. H. Deng and Y. Yamamoto, “Exciton-polariton Bose-Einstein condensation,” Rev. Mod. Phys. 82, 1489–1537 (2010).
14. K. G. Lagoudakis, M. Wouters, M. Richard, A. Baas, I. Carusotto, R. Andr ´e, Le Si Dang, and B. Deveaud-Pl ´edran, “Quantized vortices in an exciton-polariton condensate,” Nat. Phys. 4, 706–710 (2008).
15. J. Keeling and N. G. Berloff, “Spontaneous rotating vortex lattices in a pumped decaying condensate,” Phys. Rev. Lett. 100, 250401 (2008).
16. T. W. Chen, Y. L. Chiang, S. C. Cheng, and W. F. Hsieh, “Stability and excitations of spontaneous vortices in polariton condensates,” Solid State Commun. 165, 6–10 (2013).
17. G. Grosso, G. Nardin, F. Morier-Genoud, Y. L ´eger, and B. Deveaud-Pl ´edran, “Soliton instabilities and vortex street formation in a polariton quantum fluid,” Phys. Rev. Lett. 107, 245301 (2011).
18. A. Amo, S. Pigeon, D. Sanvitto, V. G. Sala, R. Hivet, I. Carusotto, F. Pisanello, G. Lem ´enager, R. Houdr ´e, E. Giacobino, C. Ciuti, and A. Bramati, “Polariton superfluids reveal quantum hydrodynamic solitons,” Science 332, 1167–1170 (2011).
19. R. Hivet, H. Flayac, D. D. Solnyshkov, D. Tanese, T. Boulier, D. Andreoli, E. Giacobino, J. Bloch, A. Bramati, G. Malpuech, and A. Amo, “Half-solitons in a polariton quantum fluid behave like magnetic monopoles,” Nat. Phys. 8, 724–728 (2012).
20. Y. Xue and M. Matuszewski, “Creation and abrupt decay of a quasistationary dark soliton in a polariton conden-sate,” Phys. Rev. Lett. 112, 216401 (2014).
21. T. Isoshima and K. Machida, “Vortex stabilization in Bose-Einstein condensate of alkali-metal atom gas,” Phys. Rev. A 59, 2203–2212 (1999).
22. M. Wouters and I. Carusotto, “Excitations in a nonequilibrium Bose-Einstein condensate of exciton polaritons,” Phys. Rev. Lett. 99, 140402 (2007).
23. A. Amo, S. Pigeon, C. Adrados, R. Houdr ´e, E. Giacobino, C. Ciuti, and A. Bramati, “Light engineering of the polariton landscape in semiconductor microcavities,” Phys. Rev. B 82, 081301(R) (2010).
24. G. Tosi, G. Christmann, N. G. Berloff, P. Tsotsis, T. Gao, Z. Hatzopoulos, P. G. Savvidis, and J. J. Baumberg, “Sculpting oscillators with light within a nonlinear quantum fluid,” Nat. Phys. 8, 190–194 (2012).
1. Introduction
In the past two decades, the rapid experimental and theoretical developments in the field of Bose-Einstein condensates (BECs) [1–4] have led to a surge of interest in the study of the nonlinear matter waves. The creation of solitary waves in BECs is achievable due to the com-pensation between dispersion and nonlinearity from particle interactions [5]. The dark soliton (DS) characterized by a density dip and an associated phase gradient can occur in BECs with repulsive interactions. They have been studied [6] and observed in a variety of systems such as discrete mechanical systems [7], magnetic films [8], fluids [9], and plasmas [10]. They have also attracted a great deal of interest in the field of nonlinear optics [11]. DSs occurring in one-dimensional systems are like quantized vortices in two-one-dimensional systems to show a clear evidence of the occurrence of macroscopic quantum coherence.
In recent years, microcavity-polariton condensates (MPCs) created in semiconductor micro-cavities [12] have received a great attention. Microcavity-polaritons are bosonic quasi-particles arising from the strong coupling between excitons and photons in semiconductor microcavi-ties. Because of their small effective mass and strong nonlinearity, microcavity-polaritons can condense into a MPC even at the room temperature [13]. Owing to its pump-dissipative char-acter, the MPC is a non-equilibrium system pumped by a laser continuously. The MPC then becomes a good candidate to investigate physical phenomena of the non-equilibrium quantum fluid. By virtue of its non-equilibrium process, the MPC can form quantized vortices [14] or even a vortex lattice spontaneously [15]. There are many experiments and theories on studying the properties of spontaneously formed vortices. The stability of spontaneously formed vor-tices were studied previously [16]. For a wide range of pump powers, the vorvor-tices can exist in a homogeneous MPC without rotation.
Although the properties of spontaneously formed vortices were studied thoroughly, the for-mation and behavior of DSs in non-equilibrium MPCs is much less understood [17–20]. In [20], Y. Xue et. al have shown the abrupt decay of a DS in the clean MPC, where no defects exist. Such a disappearance of DSs indicates that there is no stable DS in clean MPCs. There is a similar behavior occurring in atomic condensates. The vortex is unstable in atomic BECs if no rotation and defects exist in atomic BECs. However a vortex pinned by defects becomes stable even without a rotation acting on atomic BECs [21]. Based on vortices being stabilized by de-fects, we introduce defects into the one-dimensional MPC and try to find the solution of a DS pinned by a defect. The solution is obtained by solving the complex Gross-Pitaevskii equation
(cGPE) with a defect. This mean-field model for non-equilibrium MPCs is a generic model of considering effects from pumping, dissipation, potential trap, relaxation and interactions. In this paper, we find that DSs pinned by defects can exist stably and become gray solitons in one-dimensional MPCs.
The present paper is organized as follows. In Sec. 2, we study the dynamics of incoherently pumped MPCs with defects. The steady state of the system, which is subject to a uniform pump power is analyzed. We consider and analyze the steady state of the well-known hyper-bolic tangent solution (DS) in the absence of a defect. The DS is proved to be unstable from calculating the Bogoliubov-excitation spectra. In Sec. 3, we introduce a point-like defect into the system, and find the stationary gray solitons pinned by point defects. The stability of gray solitons pinned by point defects is shown in the Bogoliubov-excitation spectra. In. Sec. 4, to check the results from Sec. 3, we change point defects into defects with a finite size. The nu-merical solutions of gray solitons pinned by finite-size defects are discussed. The stability and Bogoliubov-excitation spectra of gray solitons pinned by finite-size defects are also investi-gated. Finally, conclusions are given in Sec. 5.
2. The dynamics of microcavity-polariton condensates
In order to study non-equilibrium MPCs, we treat the polaritons at high momenta as a reservoir whose state is determined by the reservoir density, nR(r,T). Then we employ the generalized cGPE [15, 22], governing the condensate polaritons that couple to the reservoir polaritons, to describe the dynamics of the condensate. The wave functionΨ(r,T) of the condensate and the reservoir density nR(r,T) satisfy the coupled differential equations written as
i¯h∂Ψ ∂T = − ¯h2 2m d2Ψ dX2+ i 2¯h[R(nR) −γ]Ψ+ ˜V(X)Ψ+ g|Ψ| 2Ψ+ 2 ˜gnRΨ, (1) ∂nR ∂T = P −γRnR− R(nR)|Ψ| 2, (2)
where X and T are the coordinates for length and time, respectively;γRandγ are the decay
rates of reservoir and condensate polaritons; g and ˜g are the strength of polariton-polariton
interactions and the coupling constant between the condensate and reservoir. ˜V(X) represents
the external potential, and R(nR) is the amplification rate that describes the replenishment of the condensate state from the reservoir state by stimulated scattering. The system is uniformly pumped with a pump power P, which will contribute to the reservoir density.
In the steady state, the reservoir density is nR(X,T) = n0
R and the wave function can be
described byΨ(X,T) =Ψ0(X)e−iμT/¯hwith chemical potentialμand Planck’s constant ¯h. For P< Pth(below condensate threshold), there is no condensate density (Ψ0= 0) and the reservoir density is proportional to the pumping power, i.e., n0R= P/γR. At the threshold, the reservoir
density nthR = Pth/γR is fixed by the balance between the amplification rate R(nR(X,T)) and
decay rateγof the condensate, i.e., R(nthR) =γ. When P> Pth, the condensate appears and the
density away from the defect region grows as nc= (Pth/γ)α, whereα= (P/Pth) − 1 is called
the pump parameter being the relative pumping intensity above the condensate threshold. In the mean time, the stationary reservoir density, which is determined by the net gain being zero, is equal to the reservoir density at the threshold pump power, n0
R= nthR. Then, the chemical
potential of the system isμ= gnc+ 2 ˜gn0
R. Throughout the simulation in this paper, we take
˜
g= 2g under the Hartree-Fock approximation [22]. We also choose the length, time and energy
scales in units ofη, 1/ω0and ¯hω0, respectively, whereη=
¯h2γσ/2mgPth, ¯hω0= ¯h2/2mη2, m is the polariton mass andσ = 1/(1 − (4γ/γR)). Thus X = xη, T = t/ω0. Rescaling the wave functionΨ(X,T) → √ncψ(x,t) and reservoir density nR(X,T) → nthRn(x,t), the cGPE of
Fig. 1. The density profiles of DSs in a MPC. The black and red-dashed lines are pump parametersα= 1 and 3, respectively.
ψ(x,t) and the rate equation of n(x,t) are given as i∂ψ ∂t = − d2ψ dx2 + i 2[ ˜R(n) − ˜γ]ψ+V(x)ψ+ασ|ψ| 2ψ+ (σ− 1)nψ, (3) ∂n ∂t = ˜γR(α+ 1 − n) − 4 ˜R(n) ασ σ− 1|ψ|2, (4)
where ˜R(n) = R(nR)/ω0, ˜γ=γ/ω0, ˜γR=γR/ω0and V(x) = ˜V(x)/¯hω0. The steady state of the system under a uniform pumping can be obtained by substitutingψ(x,t) =ψ0(x)e−i ˜μt/¯h and n(x,t) = n0into Eq. (3) and Eq. (4), where ˜μ=μ/¯hω0is the dimensionless chemical potential of the system. Using ˜R(n) = ˜γfor the stationary condition, we then have the stationary reservoir density n0= (α+1−α|ψ0|2) from Eq. (4). Therefore, the densities of reservoir polaritons and the condensate are locked together determined by the following time-independent nonlinear equation: ˜ μψ0= − d2ψ 0 dx2 +V(x)ψ0+α|ψ0| 2ψ 0+ (σ− 1)(α+ 1)ψ0. (5) In the region far away from the center of dark state (x→ ±∞), the density of the system is uniform withψ0→ 1 and n0→ 1. We then find the chemical potential of the system, ˜μ= ασ+ (σ− 1), from Eq. (5). Substituting ˜μback to Eq. (5), we obtain
d2ψ0
dx2 +α(1 − |ψ0| 2)ψ
0= V(x)ψ0. (6)
In the simplest case, i.e., V(x) = 0, one of the solutions of Eq. (6) is a hyperbolic tangent functionψ0= tanh(Bx), where B =
α/2. The density distribution of a DS is given by |Ψ0|2= (Pth/γ)α(tanh(Bx))2and is shown in Fig. 1. We see the density notch goes narrower and deeper when the pump power is stronger. The stability of a MPC with or without a defect potential is addressed here by considering linear stability in the framework of the Bogoliubov-de Gennes analysis [22]. We consider small fluctuationsδψ andδn acting on the steady stateψ0and n0 of the system.
δψ= uq(x)eiqxe−iΩt+ v∗
δn= wq(x)eiqxe−iΩt+ w∗q(x)e−iqxe−iΩt, (8) where uq,vq,wqare the amplitudes of the excitation quasi-particles, and q andΩare the index labelling the excitation momentum and frequency of the system. For each pump scheme, we get excitation frequencyΩas a function of q. The decay (Im(Ω) < 0) or growth (Im(Ω) > 0) behavior of the excitation mode indicates the steady state of the system is stable or unstable, respectively. If the system has one eigenvalue with a positive imaginary part, the corresponding mode will grow exponentially in time identified as a dynamically unstable mode. At the specific
q= 0, the excitation spectra of DSs without defects is plotted in Figs. 2(a) and 2(b). Moreover,
the excitation spectra (the lowest eigenvalues) for all qs are shown in Figs. 2(c) and 2(d). We
consider the situation as [20] has described. A DS in a MPC without defects can be created in a flat pump profile over a large area. There are some modes whose imaginary part of excitation frequencies become positive. This result indicates that DSs without defects in MPCs are unsta-ble. Because there is no particle and repulsive force inside the hole of the DS, excitations can easily redistribute and refill the hole with the MPC density. As time evolved, a sudden collapse of a DS will occur inevitably, which results from the instability of the soliton. This unstable phenomenon is consistent with the conclusion from [20].
3. The stability of a dark soliton pinned by a point defect
In this section, we consider the stationary state of a DS pinned by a point defect at x= 0, i.e.,
V(x) = V0δ(x). We take V0> 0 for a repulsive defect. Such a potential models an impurity which deforms the constant background on a length scale much less than the size of the con-densate (or healing length). We can find the analytic solutions of hyperbolic-tangent functions with a localized change in the density around the defect and no oscillations at x→ ±∞.
The tanh-mode solutionψ0(x) = tanh(B(|x| − x0)) may exist in Eq. (6), where the transla-tional offset, x0, is determined by the pump parameterα and potential strength V0. The dip value of(ψ0(x))2is determined by(tanh(x0))2, and the density far from the dip is approaching to unity. Integrating Eq. (6) in the vicinity of x= 0 results in the following equation
x=0+ x=0− d2ψ0(x) dx2 dx= x=0+ x=0− V0δ(x)ψ0(x)dx. (9)
This equation can be further simplified into
dψ0 dx |x=0+−
dψ0
dx |x=0−= V0ψ0(0), (10)
indicating that the derivative of the wave function experiences a discontinuity at the point de-fect. After some manipulations, we obtain
x0= 1 2Bsinh −1(−4B V0 ). (11) The x0here is negative or positive for the repulsive (V0> 0) or attractive (V0< 0) point-defect, respectively. The solution ofψ0(x) is a dark mode with an envelop having one dip for V0> 0 while in the case V0< 0 the envelope has two dips. In this paper we only consider the case V0> 0 for a repulsive defect and a dark mode with an envelop having one dip. Under the pump parameterα= 1 and the potential strength V0= 1, the wave function as well as the modulus squared one are shown in Fig. 3. The wave function of a DS pinned by a point defect is changing sharply around the pinning site The tanh-modes can support a notch density distribution. The dip value of the density distribution is non-zero and given by(tanh(x0))2. The DS pinned by a point defect becomes a gray soliton.
Fig. 2. The Bogoliubov-excitation spectra of the dark soliton in the absence of a defect. (a) α= 1 at q = 0, (b)α= 3 at q = 0, (c)α= 1 for all qs, (d)α= 3 for all qs. The solid and empty circles represent the real and imaginary part of the lowest eigenvalues, respectively. The other parameter:σ= 5.
Fig. 3. The wave functionψ0(x) and its squared modulus (ψ0(x))2 of the dark soliton pinned by a point defect. This is the case forα= 1, V0= 1.
Fig. 4. The Bogoliubov excitation spectrum of the the dark soliton pinned by a point de-fect. The solid and empty circles represent the real and imaginary part of the eigenvalues, respectively. This is the case forσ= 5,α= 1 and V0= 1.
After we obtain the analytic wave function of the DS pinned by a point defect, we can check the stability of the gray soliton by perturbing the state. The excitation spectra of the gray soliton are shown in Fig. 4. The excitation energy is increasing with the momentum increasing. The gray soliton is stable as the imaginary parts of excitation spectra are negative. Unlike the DS, a gray soliton has a character that some particles exist in a dip and create repulsive forces to prevent extra particles refilling the dip. In a dip, it is difficult to redistribute the MPC density from excitations. Therefore, the soliton is stabilized by a point defect.
4. The stability of a dark soliton pinned by a finite-sized defect
To check the results shown in Sec. 3, we will study the DS pinned by a defect with a finite size. In the real case, the defect has a finite size. The finite-size effect on pinning and stabilizing
Fig. 5. The wave functionψ0(x) and its squared modulus (ψ0(x))2of the numerical solu-tions for the repulsive Gaussian-defect using tanh-mode as initial iterative solution. This is the case forα= 1, a = 0.5 and V0= 1.
the DS is also very interesting. We take a Gaussian distribution with a width a to mimic the finite-size effect of a defect, i.e.,
V(x) =√V0
2πae
−x2
2a2, (12)
where V0is the potential strength. There is no analytic solution for Eq. (6) with a Gaussian de-fect of Eq.(12). We can only integrate Eq. (6) numerically. From the Newton-Raphson method with the initial wave function obtained from the analytical solution in Sec. 3, We then obtain the numerical solution of the DS pinned by a Gaussian defect. The numerical wave function and density distribution of a DS pinned by a Gaussian defect are shown in Fig. 5. Unlike the wave function of a DS pinned by a point defect, the wave function of a DS pinned by a Gaus-sian defect is changing smoothly around the pinning site. Nevertheless, there is also a notch density distribution. The dip value of the density distribution is also non-zero. The DS pinned by a Gaussian defect becomes a gray soliton, which confirms the results discussed in Sec. 3.
After we obtain the numerical wave function of the DS pinned by a Gaussian defect, we can check the stability of the soliton by perturbing the state. The excitation spectra of the soliton are shown in Fig. 6. The excitation energy is increasing with the momentum increasing. The soliton is stable as the imaginary parts of excitation spectra are negative. The soliton is stabilized by a Gaussian defect. As the potential strength of a Gaussian defect is increasing, we find that the soliton is no long stable. The stable regime of the soliton for the potential strength versus the pump parameter is shown in Fig. 7. The DS pinned by a Gaussian defect can be stable for a wide range of pump parameters as long as the defect potential has a medium strength. The stable regime becomes narrower as the pump power is increasing. There is a maximum strength of the defect potential for the stability of a DS in a fixed pump power. We believe that the nonlinearity is too small to balance the dispersion effect as the pump power is weak. Therefore, a stable DS does not exist even with a defect existing in the system. A formation of the DS becomes possible as the pump power is increasing. But a stable DS has to be pinned by a defect and becomes a gray soliton to prevent excitations from refilling particles in the dip. As the strength of the defect potential is higher, the density of the MPC in a dip of the soliton becomes less. It is easier for excitations redistributing the MPC density in the dip. The stable
Fig. 6. The Bogoliubov excitation spectrum of the the dark soliton pinned by a Gaussian defect. The solid and empty circles represent the real and imaginary part of the eigenvalues, respectively. This is the case forσ= 5,α= 1, a = 0.5 and V0= 1.
Fig. 7. The maximum Gaussian defect strength (V0max) in terms of the pump parameter. The widths of the Gaussian potential are a= 0.1,0.5.
regime of a DS pinned by a defect is limited by the potential strength of a defect.
We are considering the typical pumping spots, which are much larger than the condensate size or healing length (∼ 10μm). If we don’t shape or focus the laser beam to a smaller size
(< 100μm), then a typical laser emits a beam on the order of 1mm in diameter, which can
be considered as a homogeneous pumping profile over the condensate. Extra optical confine-ment achieved by sculpting the pumping profile will create a blue-shift-induced trap from the polariton-polariton interactions in a high-density polariton population [23,24]. Then the bound-ary condition at x→ ±∞in this work is not valid. The polaritons created at lower densities strongly feel this induced potential trap and show strong scattering. In such a spatially modu-lated pumping scheme [20], the polariton flux exists and the DSs can be spontaneously created through the breakdown of superfluidity. Subsequently, they decay or evolve into other phases due to various instabilities. On the contrary, in this article, we demonstrate that in a nonreso-nantly pumped homogeneous exciton-polariton condensate, the long living DSs are possible to exist by implementing a localized defect.
5. Conclusion
In summary, the stabilization of a DS is addressed by introducing a defect in a non-resonantly pumped MPC. We present an analytical model for a DS pinned by a point defect. A DS pinned by a point defect becomes a gray soliton. From Bogoliubov excitations of the gray soliton, we conclude that the original unstable DS, developed in a spatially homogeneous MPC, becomes stable if there exist a point defect in the system. These results are also computationally demon-strated for a Gaussian defect with a width. We show that the stable regime of a DS pinned by a defect is limited by the potential strength of a defect. There is a maximum strength of the defect potential for the stability of a DS in a fixed pump power.
Acknowledgments
We acknowledge the financial support from the Ministry of Science and Technology of the Republic of China under Contract No. 034-001-MY3 and NSC102-2112-M-009-016-MY3.
