Supersaturation and crystal growth in gas anti-solvent crystallization

(1)

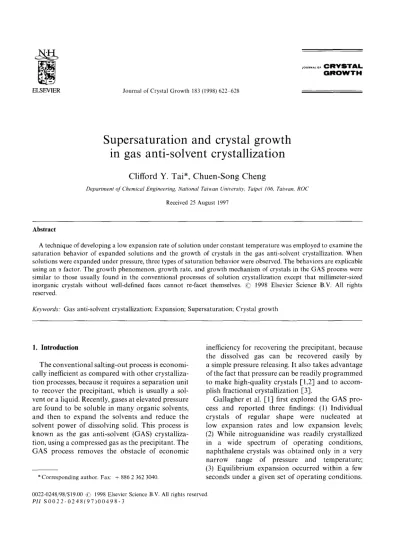

ELSEVIER Journal of Crystal Growth 183 (1998) 622 628

j . . . C R Y S T A L G R O W T H

Supersaturation and crystal growth

in gas anti-solvent crystallization

Clifford Y. Tai*,

Chuen-Song Cheng

Department of Chemical Engineering, National Taiwan University, Taipei 106, Taiwan, ROC

Received 25 August 1997

A b s t r a c t

A technique of developing a low expansion rate of solution under constant temperature was employed to examine the saturation behavior of expanded solutions and the growth of crystals in the gas anti-solvent crystallization. When solutions were expanded under pressure, three types of saturation behavior were observed. The behaviors are explicable using an ~ factor. The growth phenomenon, growth rate, and growth mechanism of crystals in the GAS process were similar to those usually found in the conventional processes of solution crystallization except that millimeter-sized inorganic crystals without well-defined faces cannot re-facet themselves. © 1998 Elsevier Science B.V. All rights reserved.

Keywords." Gas anti-solvent crystallization; Expansion; Supersaturation; Crystal growth

1. Introduction

The conventional salting-out process is economi- cally inefficient as compared with other crystallization processes, because it requires a separation unit to recover the precipitant, which is usually a solvent or a liquid. Recently, gases at elevated pressure are found to be soluble in many organic solvents, and then to expand the solvents and reduce the solvent power of dissolving solid. This process is known as the gas anti-solvent (GAS) crystallization, using a compressed gas as the precipitant. The GAS process removes the obstacle of economic

* Corresponding author. Fax: + 886 2 362 3040.

inefficiency for recovering the precipitant, because the dissolved gas can be recovered easily by a simple pressure releasing. It also takes advantage of the fact that pressure can be readily programmed to make high-quality crystals [1,2] and to accom- plish fractional crystallization [3].

Gallagher et al. [1] first explored the GAS process and reported three findings: (1) Individual crystals of regular shape were nucleated at low expansion rates and low expansion levels; (2) While nitroguanidine was readily crystallized in a wide spectrum of operating conditions, naphthalene crystals was obtained only in a very narrow range of pressure and temperature; (3) Equilibrium expansion occurred within a few seconds under a given set of operating conditions.

(2)

C ~ Tai, C-S. Cheng / Journal of Crystal Growth 183 (1998) 622 628 623

After the publication of the pioneer work, invest- igations on various aspects of the GAS process have been conducted. A few authors measured and modeled the solute solubilities of the crystallization system [3-5]. Others demonstrated the applicabil- ity of the process to separate mixed solutes [6-9] and to control crystal size distribution [-2,10]. Re- cently, Tai and Cheng [11] studied the pressure effects of carbon dioxide on the expansion level and saturation behavior of various solutions saturated at atmospheric pressure. However, fundamental work on crystal growth is lacking.

This study is a continuous work of Tai and Cheng [11] to investigate the saturation behavior of solutes, and the growth of crystals in the GAS process. Carbon dioxide was used to expand a number of solutions with a technique of low expansion rates, i.e. CO2 was introduced above the liquid and let it diffuse into the saturated solution. Higher rates of expansion, either by stirring the liquid or by bubbling CO2 through the solution, which caused a rapid rise in temperature, were excluded from this report. The distinct types of solute saturation behavior caused by solution expansion were explained, and the growth phenomena of nucleated crystals and introduced seeds were interpreted with existing growth theories in the literature. Also, growth rates were measured, and compared with those frona aqueous solutions.

2. Experimental procedure

In this experiment, various solutes and solvents were selected to prepare the solutions, including organic, metal-organic, and inorganic compounds for solutes, and acetone, ethanol, and ethanol- water mixtures for the solvent. The use of methanol-water mixture allows the investigation of many solids that are only sparingly soluble in pure organic solvents.

The apparatus is schematically shown in Fig. 1, which is essentially the same as that used by Tai and Cheng [-11]. It was designed for observing the solution expansion and solute saturation behaviors, and for measuring the expansion level and crystal growth rates during the expansion courses.

22) 5 3 4 F1

±1

i

V5

-Q

I

? N Vl V2

Fig. 1. Experimental apparatus. (1) Carbon dioxide cylinder; (2) Overflow cell; (3) Crystallization cell; (4) Seed-fixing needle; (5) Microscope; P: Pressure indicator, T: Temperature indicator, TC: Temperature controller, V~: Needle valve, V2: Ball valves, V3: Ball valves.

The procedure of conducting an experimental run began by loading the cell with a saturated solution of 120 or 100 ml, depending on the expansion ratio, and inserting a seed crystal into it. The saturated solution was prepared at room temperature and atmospheric pressure, with the solubilities determined by the gravimetric method. The seed, either a single crystal of 0.5 to 1.0 mm or a compressed powder, came directly from the purchased chemicals without recrystallization. After loading the solution and inserting the seed, carbon dioxide (99% pure) was introduced into the cell above the top of the saturated solution to elevate the system pressure to a desired level, while the crystallization cell was kept at room temperature. Then, the solution was allowed to expand gradually by absorbing carbon dioxide. By this way, the solution temperature would be able to remain constant and the saturation behavior of solution due to expansion alone can be identified. During the expansion course, the volume of the solution was recorded with time to study the expansion profile and the seed was photographed to examine its change when it became immersed in the expanded solution. An experimental run was normally stopped after the expansion process reached equilibrium, or the seed crystal dissolved entirely, depending on the solubility behavior of the system. The chemicals used in this study were purchased

(3)

624 C K Tai, C-S. Cheng / Journal o f Crystal Growth 183 (1998) 622-628

from various sources, with all of them being reagent grade.

3. Results and discussion

The expansion levels and saturation behaviors of a saturated solution caused by the compressed carbon dioxide have been reported by Tai and Cheng [11]. A solution saturated at atmospheric pressure may become highly, moderately, or negatively supersaturated when it is expanded to various levels at a slow rate, depending on the types of solvent and solute. As a result, solutes may precipitate by catastrophic nucleation from bulk solutions or by heterogeneous nucleation on container-walls, or they may not even precipitate at all. Generally, most inorganic solutes precipitate by the heterogeneous nucleation and a few by the catastrophic nucleation; metal-organic solutes may precipitate either by the heterogeneous nucleation or by the catastrophic nucleation; and organic solutes may precipitate by the heterogeneous nucleation or may not precipitate at all. F o r example, the N a C H 3 C O O / e t h a n o l and LiC1/acetone systems belong to the catastrophic nucleation system; the acetominophen/ethanol, fructose/ethanol, NH4C1/ ethanol, and NaSCN/ethanol systems belong to the heterogeneous nucleation or growth system; the adipic acid/ethanol and naphthalene/toluene systems belong to the undersaturation system. The classification of more solution systems is shown elsewhere [11]. Most of the expansion levels are between 10 and 30% of the original volume, under the carbon dioxide pressure below 61 bar.

The diversity of supersaturation levels caused by CO2 expansion can be explained by considering the supersaturation of a solution originally saturated at atmospheric pressure. The supersaturation can be expressed as

A C = Co - C~

=Co-lC~o-t-f~'"(OCe/OCg)T,pdCg],

(1) where Co is the solute solubility at atmospheric pressure, Ceo the solute solubility at an elevated pressure but with zero concentration of dissolved

carbon dioxide, Ce the solute solubility in the expansion course. Co, Ce0, and Ce are on a carbon dioxide free basis. Cg is the concentration of dissolved carbon dioxide on a solute-free basis. As- suming that Ce0 departs little from Co at moderate pressures, Eq. (1) becomes

A C = - ( ~ C e / ~ C g ) T , p dCg = dCg, do

(2) where :~ is defined as -

(~Ce/~Cg)T,p.

Eq. (2) shows

that the supersaturation is controlled by the c~ factor. The nucleation, growth, and undersaturation systems must have a large, moderate, and negative c~ values, so that they were accompanied by a high, moderate, and negative supersaturation respectively when they were expanded.

The diversity of ~ values among the three groups of systems can be understood qualitatively by speculating on the complex thermodynamic inter- action among the solvent, solute, and carbon dioxide of an expanded solution. Because the c~ factor physically means the change of solute concentration with the dissolution of carbon dioxide for the solution to maintain equilibrium, its value is affec- ted in two ways. One is that the dissolved carbon dioxide reduces some of solvent dissolving power by decreasing the partial molar volume of the solvent [4]. The other is that the dissolved carbon dioxide itself becomes condensed and acts as an additional solvent for the solute. If the solute is insoluble in carbon dioxide, the solution will have a positive c~. This gives the nucleation and growth system. In contrast, if the solute is soluble in carbon dioxide, the solution will have a negative c~ when the increasing amount of carbon dioxide dissolving power surpasses the reduced amount of solvent dissolving power. This case is of undersaturation system. The nucleation systems have large :~ values probably because their solutes are insoluble in condensed carbon dioxdide and the sensitivity of solvent-solute dissolving power to the concentration of dissolved carbon dioxide in the systems is high. The growth systems have moderate ~ values perhaps for the same reasons as is given for the nucleation systems except that now the sensitivity is moderate. These conclusions are supported by

(4)

C E Tai, C-S. Cheng / Journal o f Crystal Growth 183 (1998) 622 628 625 the solubility data of condensed carbon dioxide in

the literature. F o r example, lithium chloride, which is a solute of the nucleation systems, and urea, which is a solute of the growth systems, are insoluble in the condensed carbon dioxide, whereas naphthalene, which is a solute of the undersaturation systems, is soluble in the condensed carbon dioxide [12].

The growth phenomena of several single-crystal seeds have been studied. The organic seeds exhib- ited the same growth phenomena as those usually found in the crystal growth from liquid solutions. The acetaminophen seed without well-defined faces, for example, finally developed into a 2 mm polyhedron that is bounded by light-reflecting faces in ethanol solution as shown in Fig. 2. The sucrose seed in a mixed-solution of methanol and water has the same growth phenomena as acetaminophen. In contrast, the inorganic seeds showed abnormal growth phenomena which are seldom found in conventional solution growth. F o r example, instead of growing into larger single crystals bounded by well-defined faces the sodium chloride and potassium nitrate seeds without well-defined faces, produced some small polyhedrons and needles, as shown in Fig. 3 for potassium nitrate. It seems that organic crystals of millimeter-size can re-facet in the GAS process, but inorganics cannot.

The habit, face structure, average size, and growth rate of a number of crystals developed from the nuclei precipitated in the expansion course and/or from the compressed-powder seeds are sum- marized in Table 1. The habits of the crystals in- cluded polyhedrons, plates, needles, whiskers, and dendrites. Each of the organic and metal-organic crystals were of unique habit, e.g., polyhedrons for the sucrose, plates for the anthracene, needles for the urea, whiskers for the pentaerythritol, and dendrites for the monosodium glutamate crystals. In contrast, several of the inorganic crystals were of multiple habits although some others were found only polyhedrons. F o r example, sodium chlorate crystals and ammonium perchlorate crystals (shown in Fig. 4) produced polyhedrons, plates, needles, and whiskers. These results suggest that tiny crystals in the GAS process may develop into larger ones with a variety of habits, just as in the conventional processes of solution crystallization.

Fig. 2. Polyhedron developed from a single-crystal seed of acetaminophen in ethanol/CO2 solution.

Fig. 3. Abnormal growth of single crystal of potassium nitrate from solution expanded with carbon dioxide.

In spite of the diverse habits, most of the produced crystals were bounded by well-defined faces. F o r example, organic acetaminophen and sucrose polyhedrons of 0.3 mm developed normally. Also, inorganic sodium chloride, ammonium chloride, and magnesium sulfate polyhedrons of 0.4, 0.2, and 0.3 mm, respectively, were grown without exhibi- ting abnormal growth despite their rather large sizes. These results indicate that crystals generally undergo facet-growth in the GAS process, just as crystals usually do in conventional processes of solution crystallization.

(5)

626 C.E Tai, C.-S. Cheng/ Journal of Crystal Growth 183 (1998) 622 628

Table 1

Habits, face structures, average sizes, and growth rates of crystals developed from nuclei and/or powder-crystal seeds in the GAS process

Solute Solvent Habit Face struct, b Ave. size Growth rate

(mm) (10- 8 m/s) Acetaminophen Ethanol Fructose Ethanol Sucrose Meth80 a Anthracene Ethanol Urea Ethanol Pentaerythritol Meth60 Monosodium glutamate Meth70

NHzOH' HCI Ethanol

NHeC1 Ethanol NaCI Meth80 MgSO4- 7H20 Meth70 NaSCN Ethanol NaClO3 Ethanol NH4CIO4 Ethanol Polyhedron W 0.3 1.4 Polyhedron W, M 0.3 0.4 Polyhedron W 0.3 0.3 Plate W 0.6 0.9 Needle - ! 6.2 Whisker 0.1 0.3 Dendrite - 1 1.7 Polyhedron W, M 0.2 0.2 Polyhedron W 0.2 0.2 Polyhedron W, H 0.4 3.8 Polyhedron W 0.3 1.4 Polyhedron W, M 0.5 1.3 Plate W 1 3.3 Polyhedron W 0.1 0.2 Plate W 0.3 0.3 Needle W 0.3 0.4 Whisker 0.4 0.5 Polyhedron W 0.2 1.1 Plate W 0.5 7.8 Needle W 1 10 Whisker 1 12

"Meth X means methanol-water mixture of X wt% methanol. b w: well defined; M: parallel straight macrosteps; H: hopper faces.

Fig. 4. Various crystal habits of ammonium perchlorate growing on a single seed from ethanol/CO2 solution.

A l t h o u g h m o s t of the well-defined faces were flat, two p a r t i c u l a r structures were o c c a s i o n a l l y found. First, h o p p e r faces were observed o n a few s o d i u m chloride crystals. Second, parallel a n d straight

m a c r o s t e p s were seen o n the fructose, h y d r o - x y l a m i n e h y d r o c h l o r i d e , a n d s o d i u m t h i o c y a n a t e (Fig. 5) seed crystals. These structures i m p l y the crystal g r o w t h m e c h a n i s m in the G A S process, which will be discussed later.

T h e g r o w t h rates of the v a r i o u s crystals in T a b l e 1 r a n g e d from 0.2 to 1.2 x 1 0 - 7 m/s. N o t a b l e is that the g r o w t h rates are of the same order of m a g n i t u d e as those from a q u e o u s s o l u t i o n s [13]. Also w o r t h a t t e n t i o n is t h a t the p o l y h e d r a l crystals generally grew m o r e slowly t h a n the crystals with o t h e r habits; e.g., the p o l y h e d r a l a m m o n i u m perchlorate crystals grew only o n e t e n t h as fast as the needle ones. This fact is also indicative of the mech- a n i s m s of crystal g r o w t h in the G A S process, which is to be discussed in the following sections.

T h e c o n t r o l l i n g m e c h a n i s m s of crystal g r o w t h in the G A S process c a n be d e d u c e d from the g r o w t h rates a n d g r o w t h p h e n o m e n a by a p p l y i n g the two- step m o d e l of crystal g r o w t h [14 16]. A c c o r d i n g to

(6)

C.Y. Tai, C.-S. Cheng / Journal of Crystal Growth 183 (1998) 622-628 627

Fig. 5. Cross macrosteps on a grown NaSCN seed from ethanol/ CO2 solution.

Fig. 6. Dendritic growth of monosodium glutamate crystal on the glass wall of growth cell.

this model, the crystal-growth process is composed of a surface-integration step connected in series with a bulk-diffusion step. In stagnant solutions, different crystallographic faces of crystals show various growth rates because they encounter similar bulk-diffusion but different surface-integration barriers. Crystal faces under integration-control condition will grow much more slowly than those with minor surface-integration barriers, i.e., in the diffusion-control condition. Therefore, the fact that the polyhedral ammonium perchlorate crystals grew only one tenth as fast as the needle ones suggests that the polyhedrons were grown in the integration-control condition. In addition, the dendritic habit of monosodium glutamate crystals, shown in Fig. 6, implies that the crystals were grown in the diffusion-control condition because only in such condition can crystals be found dendritic [17]. In summary, crystal growth in the GAS process may be controlled either by the surface- integration step or by the bulk-diffusion step, just like crystal growth in liquid solution.

In addition to distinguish the controlling step, several surface-integration mechanisms can be in- ferred from the growth phenomena by the existing crystal-growth theories in the literature. First, the multiple habits of ammonium perchlorate and sodium chlorate crystals indicate the spiral mechanism according to Strickland-Constable [18] and Lewis [19]. Second, the hopper growth of sodium chloride crystals implies the mechanism of two- dimensional nucleation near the corners of crystal

faces in light of the stability theory of crystal growth from solutions [-20]. Last, the parallel and straight macrosteps on the faces of fructose, sodium thiocyanate, and hydroxylamine hydrochloride crystals suggest the mechanism of two-dimensional nucleation near the edge of crystal faces [21]. Therefore, crystal faces exposed in the environment of a GAS process may integrate by the spiral mechanism or by the two-dimensional nucleation mechanism, similar to the conventional processes of solution crystallization.

4. Conclusions

The experimental technique employed in this re- search provides a convenient means for finding the expansion profile of solutions, for investigating the saturation behavior of solutes, and for studying the crystal growth in the GAS process.

Solutions saturated atmospherically may become highly, moderately, or negatively supersaturated when they are expanded to low levels at low rates. As a result, solutes may precipitate by catastrophic nucleation from bulk solutions or by heterogeneous nucleation on container-walls, or they may even not precipitate at all. The diversity of the supersaturation levels can be explained by using an ~ factor.

Crystals show a variety in habit and undergo facet-growth in the GAS process. Their growth rates are mostly around 10 -8 m/s. Their growth

(7)

628 C. }q Tai, C.-S. Cheng / Journal o f Crystal Growth 183 (1998) 622-628

process may be controlled either by the surface- integration step or by the bulk-diffusion step, and the crystal faces may be integrated by the spiral mechanism or two-dimensional nucleation mecha- nism. All of these experimental results are similar to what have been observed in conventional processes of solution crystallization. However, inorganic crystals of millimeter-size cannot re-facet themsel- ves in the GAS process if the seeds are not bounded by well-defined faces.

Notation

Ce solubility of solute in solutions expanded

with carbon dioxide (on a carbon dioxide free basis), g solute/100 g solvent

Ceo solubility of solute at an elevated pressure in

solutions free of carbon dioxide, g sol- ute/100 g solvent

Cg concentration of dissolved carbon dioxide

(on a solute-free basis), g carbon dioxide/ 100 g solvent

Co solubility of solute at atmospheric pressure,

g solute/100 g solvent

AC supersaturation of solute, g solute/100 g sol-

vent

P pressure, bar

t time of expansion, h

T temperature, °C

V0 volume of original solution, m 3

a factor defined in Eq. (3)

~0 relative mean square error, %

AV volume increment, m 3

References

[1] P.M. Gallagher, M.P. Coffey, V.J. Krukonis, N. Klasutis,

ACS Symp. Ser. 406 (1989) 334.

[2] E.M. Berends, O.S.L. Bruinsma, J. de Graauw, G.M. van

Rosmalen, in: Proc. 3rd Int. Symp. on Supercritical Fluids

(Tome 3), 1994, p. 223.

[3] D.J. Dixon, K.P. Johnston, AIChE J. 1441 (1991) 37. [4] C.J. Chang, A.D. Randolph, AIChE J. 36 (1990) 939. [5] A. Kordikowski, C.J. Peters, J. de Swaan Arons, in: Proc.

3rd Int. Syrup. on Supercritical Fluids (Tome 3), 1994, p. 217.

[6] C.J. Chang, A.D. Randolph, N.E. Craft, Biotechnol. Progr. 7 0991) 275.

[7] P.M. Gallagher, V.J. Krukonis, G.D. Botsaris, AIChE Symp. Ser. 87 (1991) 96.

[8] A. Shishikura, H. Takahashi, S. Hirohama, K. Arai, in:

Proc. 2nd Int. Symp. on Supercritical Fluids, 1991, p. 299. [9] Y. Liou, C.J. Chang, Sep. Sci. Technol. 27 (1992) 1277. [10] P.M. Gallagher, V.J. Krukonis, L.J. Vandekieft, in: Proc.

2nd Int, Syrup. on Supercritical Fluids, 1991, p. 45. [11] C.Y. Tai, Chuen-Song Cheng, AIChE J,, submitted.

[12] A.W. Francis, J. Phys. Chem. 58 (1954) 1099.

[13] J. Nyvlt, O. Sohnel, M. Matuchova, M. Broul, The Kinet-

ics of Industrial Crystallization, Elsevier, New York, 1985,

p. 206.

[14] J. Garside, Chem. Eng. Sci. 1425 (1971) 26.

[15] C.Y. Tai, C. Cheng, Y. Huang, J. Crystal Growth 123 (1992) 236.

[16] C.Y. Tai, C. Lin, J. Crystal Growth 82 (1987) 377. [17] R.D. Doherty, in: B.R. Pamplin (Ed.), Crystal Growth, 2nd

ed., Pergamon Press, New York, 1980, p. 485.

[18] R.F. Strickland-Constable, Kinetics and Mechanism of

Crystallization, Academic Press, New York, 1968, p. 278.

[19] B. Lewis, in: B.R. Pamplin (Ed.), Crystal Growth, 2nd ed., Pergamon Press, New York, 1980, p. 23.

[20] A.A. Chernov, Modern Crystallography II1, Springer,

Berlin, 1984, p. 234.

[21] W.J.P.V. Enckevort, Progr. Crystal Growth Characteriza- tion 9 (1984) 1.

Acknowledgements

The authors gratefully acknowledge the financial support of the National Science Council of the Republic of China.
