GDQ METHOD FOR NATURAL CONVECTION IN
A SQUARE CAVITY USING VELOCITY–VORTICITY
FORMULATION
D. C. Lo, D. L. Young, and K. Murugesan
Department of Civil Engineering and Hydrotech Research Institute, National Taiwan University, Taipei, Taiwan, Republic of China
This article describes a compact numerical algorithm based on the generalized differential quadrature (GDQ) method for the numerical analysis of natural convection in a differen-tially heated square cavity. The velocity–vorticity form of the Navier–Stokes equations and energy equation are used to represent the mass, momentum, and energy conservations of the fluid medium in the cavity. The GDQ form of the governing equations and the vorticity defi-nition at the boundaries are solved by a coupled solution algorithm using a global matrix scheme for all the field variables. The vorticity values at the boundary are correctly imposed using the GDQ method, which approximates a given space derivative with higher-order accuracy compared to the existing schemes based on Taylor’s series expansion. This has assured a divergence-free solution for the flow field by satisfying the continuity constraint, though the pressure term is not used directly in the present formulation. The proposed algorithm is validated for a lid-driven cavity flow for Reynolds number Re¼ 100, 400, and 1,000, and the predicted velocity profiles are in excellent agreement with the benchmark solutions. The algorithm is then used to compute the average Nusselt number and flow para-meters for natural convection in a square cavity for Rayleigh number Ra¼ 103
, 104, 105, and 106. These results are in better agreement with the benchmark solutions than the results
obtained by other numerical schemes, which used much finer grids compared to the present scheme.
1. INTRODUCTION
In the governing equations used to represent natural-convection problems, the fluid momentum conservation equations are coupled to the energy equation through the buoyancy term. In order to compute the temperature field correctly, the fluid momentum conservation equations have to be satisfied exactly, because it is the moving parcel of the fluid which carries the energy from one region to another region. Generally, the Navier–Stokes equations in velocity–pressure form are employed to represent the flow field. Gresho and Sani [1] pointed out that the pressure appearing in the incompressible Navier–Stokes equations is not a
Received 21 November 2003; accepted 2 July 2004.
We acknowledge financial support from the National Science Council, Taiwan, and it is greatly appreciated.
Address correspondence to D. L. Young, Department of Civil Engineering and Hydrotech Research Institute, National Taiwan University, Taipei, Taiwan, Republic of China. E-mail: dlyoung@ hy.ntu.edu.tw
321 Copyright # Taylor & Francis Inc.
ISSN: 1040-7790 print=1521-0626 online DOI: 10.1080/10407790590901585
thermodynamic variable, but it has to be handled in such a way that the continuity constraint is satisfied because the pressure is not an explicit variable in the conti-nuity equation. Without using the pressure term, the fluid momentum conservation equations can be expressed either in vorticity–stream function form or in velocity– vorticity form. Though there is no need to specify the pressure boundary conditions in the above two formulations, the continuity constraint can be satisfied only when the vorticity definition are properly imposed on the boundary. Napolitano et al. [2] presented a review of various methods for computing the vorticity boundary con-ditions in the vorticity–stream function formulation. Though this formulation is free from the pressure term and requires less computational effort, it is very difficult to extend this approach for solving three-dimensional Navier–Stokes equations.
The velocity–vorticity form of the Navier–Stokes equations pioneered by Fasel [3] has been found to be an effective alternative formulation to represent the Navier–Stokes equations for the solution of both two- and three-dimensional flow pro-blems [4, 5] without involving the pressure term. An impressive property of this formu-lation is that its numerical formuformu-lation is independent of whether or not the reference frame is inertial. Since the vorticity is one of the field variables, this formulation can be used to study vortex-dominated flows. The main disadvantage of this formulation is that the number of field variables increases to six for the case of three-dimensional Navier–Stokes equations. Numerical solution of the velocity–vorticity equations have been attempted using the finite-difference method with a staggered grid [4] and also by the finite-element method [6, 7]. Guevremont et al. [7] employed quadratic elements for the velocity components and linear elements for the vorticity to solve three-dimensional velocity–vorticity equations using the finite-element method by a coupled numerical algorithm. Though a coupled solution scheme was employed, they used the Newton method to linearize the governing equations. Lo and Young [8] esta-blished a time-accurate computational fluid dynamics (CFD) finite-element algorithm for two-dimensional incompressible Navier–Stokes equations by velocity–vorticity formulation and obtained numerical results for Reynolds number Re¼ 100 to 20,000 for a lid-driven cavity flow. They extended their work to study two-dimensional free surface flows at higher Reynolds numbers [9].
NOMENCLATURE
g acceleration due to gravityL length of square cavity
Nu0 Nusselt number on the vertical boundary
at x¼ 0
Nu0 average Nusselt number throughout the
cavity Pr Prandtl number Ra Rayleigh number Re Reynolds number T dimensionless temperature DT temperature difference
u; v dimensionless velocities in the x and y directions
umax maximum horizontal velocity
vmax maximum vertical velocity
x; y dimensionless Cartesian coordinates a thermal diffusivity
b thermal expansion coefficient C boundary of the computational
domain
m dynamic viscosity n kinematic viscosity q mass density
x dimensionless vorticity in the z direction
In the velocity–vorticity formulation the incompressibility constraint has to be satisfied by enforcing the definition of vorticity aptly at the boundaries of a compu-tational domain. This demands the accurate computation of vorticity values at the boundaries in order to obtain a divergence-free flow field. Generally, the vorticity boundary values are computed externally and enforced at the boundaries before the solution of the vorticity transport equations. Wong and Baker [10] used a second-order-accurate Taylor’s series expansion scheme to compute the vorticity boundary values in their study on three-dimensional flow problems using the finite-element method. Based on our previous work [8, 9] on the velocity–vorticity formulation, we found the generalized differential quadrature (GDQ) method to be an efficient scheme to enforce the vorticity definition suitably at the boundaries, because the GDQ method uses higher-order polynomials with weighting functions to approximate the partial space derivatives of a function. Since the vorticity is defined in terms of velocity gradients, the GDQ method can be used to compute the vorticity values at the boundary more accurately compared to other schemes. The differential quadrature (DQ) method developed by Bellman et al. [11, 12] has been improved [13] and well established. Shu and co-workers [14–16] applied the GDQ method to simu-late two- and three-dimensional incompressible viscous flows using vorticity–stream function and primitive-variable forms of the Navier–Stokes equations.
In the present work, we propose a new numerical algorithm based on the GDQ method for solving two-dimensional Navier–Stokes equations in velocity–vorticity form for the study of natural convection in a square cavity. The use of the GDQ method assures the accurate computation of the vorticity boundary values, so a divergence-free solution is guaranteed. The governing equations in the form of a vorticity transport equation, velocity Poisson equations, and an energy equation are approximated using the GDQ method. The resulting coefficient matrices and the load vectors of all the field variables are combined to form a global matrix scheme, resulting in a coupled solution algorithm. The vorticity definition expressed in terms of velocity gradients is approximated by the GDQ method to evaluate the vorticity values at the boundaries. The resulting coefficient matrices of velocities for the vorticity definition are incorporated into the global matrix at the boundary points. This procedure results in an implicit way of computing the vorticity bound-ary values and hence there is no need to specify the vorticity boundbound-ary values exter-nally. The present method is also easy to implement from the discretization point of view, since it does not require a staggered grid as required by the finite-difference methods. The proposed algorithm is validated by solving a lid-driven square cavity problem at Re¼ 100, 400, and 1,000. The efficiency of the present scheme to solve coupled problems is demonstrated by solving a differentially heated square cavity problem for Rayleigh number Ra¼ 103, 104, 105, and 106. The application of the algor-ithm to flow and natural-convection problems is discussed in the following sections. 2. GENERALIZED DIFFERENTIAL QUADRATURE METHOD
The GDQ method replaces a given partial space derivative of a function fðxÞ by a linear weighted sum of the function values at the discrete sample points considered along the coordinate direction. As a result, the given partial differential equation reduces to a set of algebraic equations. Hence the GDQ method can be
used to obtain numerical solution of partial differential equations. Details about this method can be obtained elsewhere [13]. For a function of two variables fðx; yÞ, the lth-order derivatives with respect to x and the mth-order derivatives with respect to y can be obtained as [13] fxðlÞðxi; yjÞ ¼ XL k¼1 AðlÞi;kfðxk; yjÞ l¼ 1; 2; . . . ; L 1 ð1aÞ fyðmÞðxi; yjÞ ¼ XM k¼1 BðmÞj;kfðxi; ykÞ m¼ 1; 2; . . . ; M 1 ð1bÞ for i¼ 1; 2; . . . ; L; j ¼ 1; 2; . . . ; M
where L, M are the number of grid points in the x; y directions, respectively, and AðlÞi;k; BðmÞj;k are the respective weighting coefficients. For the first-order derivatives, the weighting coefficients AðlÞi;k; BðmÞj;k can be determined as follows:
Að1Þi;j ¼ L ð1Þðx iÞ ðxi xjÞLð1ÞðxjÞ i; j¼ 1; 2; . . . ; L; but j6¼ i ð2aÞ Bð1Þi;j ¼ M ð1Þðy iÞ ðyi yjÞMð1ÞðyjÞ i; j¼ 1; 2; . . . ; M; but j6¼ i ð2bÞ in which Lð1ÞðxiÞ ¼ YL j¼1; j6¼i ðxi xjÞ Mð1ÞðyiÞ ¼ YM j¼1; j6¼i ðyi yjÞ ð3Þ
Similarly, the weighting coefficients for the second- and higher-order derivatives can be obtained as AðlÞi;j ¼ l Aðl1Þi;i A ð1Þ i;j Aðl1Þi;j xi xj ! for i; j¼ 1; 2; . . . ; L; but j6¼ i; l¼ 2; 3; . . . ; L 1 ð4aÞ
BðmÞi;j ¼ m Bðm1Þi;i Bð1Þi;j B ðm1Þ i;j yi yj ! for i; j¼ 1; 2; . . . ; M; but j6¼ i; m¼ 2; 3; . . . ; M 1 ð4bÞ When j¼ i, the weighting coefficients are written as
AðlÞi;i ¼ X L
j¼1;j6¼i
BðmÞi;i ¼ X M
j¼1;j6¼i
BðmÞi;j i¼ 1; 2; . . . ; M; m ¼ 1; 2; . . . ; M 1 ð5bÞ
It should be noted from the above equations that the weighting coefficients for the second- and higher-order derivatives can be computed from the first-order deriva-tives themselves. The main advantage of the GDQ method is that the lth-order and mth-order derivatives of a function can be approximated withðL lÞth-order and ðM mÞth-order accuracy when L and M are the number of grid points considered in the x and y coordinate directions, respectively.
2.1. Incompressible Viscous Flow Problem
Governing equations and boundary conditions. For a steady, two-dimensional, and incompressible viscous flow, the Navier–Stokes equations in velocity–vorticity form are written as
Velocity Poisson equations
r2u¼ qx
qy ð6Þ
r2v¼qx
qx ð7Þ
Vorticity transport equation uqx qxþ v qx qy¼ 1 Rer 2x ð8Þ
In Eqs. (6)–(8), u and v are the velocity components in the x and y directions, respec-tively, and x is the vorticity defined for a 2-D incompressible flow in a solution domain X surrounded by a boundary C. We seek a solution in the domain X, which satisfies the Dirichlet boundary conditions of velocity given as
u ¼ ub ð9Þ
and the corresponding vorticity values on the boundary can be obtained using the definition given as
x¼qv qx
qu
qy ð10Þ
Numerical solution of the momentum equations using the GDQ. The spatial derivatives of the velocity Poisson equations (6) and (7) and the vorticity trans-port equation (8) can be numerically approximated by the GDQ method using Eqs. (1)– (5). For a given set of grid points considered in the coordinate directions, the GDQ approximation of the governing equations results in the following algebraic equations:
XL k¼1 Að2Þi;kuk;jþ XM k¼1 Bð2Þj;kui;kþ XM k¼1 Bð1Þj;kxi;k ¼ 0 ð11Þ
XL k¼1 Að2Þi;kvk;jþ XM k¼1 Bð2Þj;kvi;k XL k¼1 Að1Þi;kxk;j ¼ 0 ð12Þ ui;j XL k¼1 Að1Þi;kxk;jþ vi;j XM k¼1 Bð1Þj;kxi;k 1 Re XL k¼1 Að2Þi;kxk;jþ XM k¼1 Bð2Þj;kxi;k ! ¼ 0 ð13Þ
The velocity boundary conditions can be computed as
u1;j¼ 0 uL;j¼ 0 ui;1¼ 0 ui;M ¼ 1 v1;j¼ 0 vL;j¼ 0 vi;1¼ 0 vi;M ¼ 0
ð14Þ
for i¼ 1; . . . ; L and j ¼ 1; . . . ; M
The vorticity boundary conditions expressed in terms of velocity gradients by Eq. (10) can also be approximated by the GDQ method as follows:
xi;j XL k¼1 Að1Þi;kvk;jþ XM k¼1 Bð1Þj;kui;k ¼ 0 ð15Þ for i¼ 1; . . . ; L; and j ¼ 1 or j ¼ M for j¼ 2; . . . ; M 1; and i ¼ 1 or i ¼ L
The GDQ approximation of the governing equations expressed by the algebraic equations (11)–(13) are coupled and nonlinear equations. By combining the respective coefficient matrices of the flow variables, Eqs. (11)–(13) can be expressed as a global matrix scheme as follows:
A1; 0 A2 0 B1; B2 0 0 C1 2 4 3 5 uv x 8 < : 9 = ;¼ fu fv fx 8 < : 9 = ; ð16Þ where ½A1 ¼ XL k¼1 Að2Þi;k þX M k¼1 Bð2Þj;k ½A2 ¼ XM k¼1 Bð1Þj;k ½B1 ¼ XL k¼1 Að2Þi;k þX M k¼1 Bð2Þj;k ½B2 ¼ XL k¼1 Að1Þi;k ½C1 ¼ ui;j XL k¼1 Að1Þi;k þ vi;j XM k¼1 Bð1Þj;k 1 Re XL k¼1 Að2Þi;kþX M k¼1 Bð2Þj;k !
The specification of velocity boundary conditions using Eq. (14) is straightfor-ward. However, the vorticity boundary conditions represented by Eq. (15) can be specified either explicitly as adopted by Napolitano et al. [2] and Wong and Baker [10] or implicitly. Since the vorticity as well as the velocities, the gradients of which are used in the vorticity definition, are the field variables to be computed, an implicit computation of vorticity boundary values makes the computational
algorithm simple. In order to achieve an implicit computation of the vorticity boundary values, the vorticity definition expressed by Eq. (15) is used to modify the coefficients of velocities and vorticity in Eq. (16) at the solid boundaries. This results in a coupled solution algorithm, in which the vorticity boundary values will be computed implicitly. Further, the use of the GDQ method allows the compu-tation of the vorticity boundary values with higher-order accuracy, which is essential to satisfy the incompressibility constraint. In the above global coefficient matrix, only the nonzero entries of the coefficient matrices of the velocities and vorticity are evaluated and stored in a compressed column-vector storage form. A biconjugate gradient iterative scheme [17] is used to solve the final equations.
2.2. Natural Convection in a Square Cavity
Governing equations and boundary conditions. In the case of natural-convection problems, the momentum transport equation includes the buoyancy force generated as a result of difference in density of the fluid caused by the temperature difference. The buoyancy term is computed based on the Boussinesq approximation. By taking the curl of the primitive variable form of the governing equations for natural convection and making use of the vorticity definition, the velocity–vorticity form of the natural-convection equations can be obtained as follows:
Vorticity transport equation uqx qxþ v qx qy¼ Prr 2xþ Ra PrqT qx ð17Þ Energy equation uqT qxþ v qT qy ¼ r 2T ð18Þ
in which L, a=L, a=L2, L2=a, and T ¼ ðh h
cÞ=ðhh hcÞ are used as scale factors for length, velocity, vorticity, time, and temperature in the above nondimensional form of governing equations. The other nondimensional parameters are defined as Ra¼ gbDTL3=an and Pr¼ n=a. The velocity Poisson equations (6) and (7) remain unaffected, as they represent the kinematic condition of the flow field. Equations (17) and (18) with x as vorticity and T as the scalar temperature field are the final form of the governing equations to be solved along with the velocity Poisson equa-tions (6) and (7) in the domain X with the specified boundary condiequa-tions for velocity, vorticity, and temperature on the solid boundary C. The boundary conditions for velocity and vorticity have already been defined by the expressions given by Eqs. (9) and (10).
The Dirichlet and Neumann boundary conditions for temperature are as follows:
T¼ Tb ð19aÞ
qT
Numerical solution of the governing equations for natural convection by the GDQ method. Following the steps as discussed in Section 2.1 for the flow equations, the GDQ approximation of the velocity Poisson equations (6) and (7), the vorticity transport equation (17), and the energy equation (18) are expressed as
XL k¼1 Að2Þi;kuk;jþ XM k¼1 Bð2Þj;kui;kþ XM k¼1 Bð1Þj;kxi;k ¼ 0 ð20Þ XL k¼1 Að2Þi;kvk;jþ XM k¼1 Bð2Þj;kvi;k XL k¼1 Að1Þi;kxk;j ¼ 0 ð21Þ ui;j XL k¼1 Að1Þi;kxk;jþ vi;j XM k¼1 Bð1Þj;kxi;k Pr XL k¼1 Að2Þi;kxk;jþ XM k¼1 Bð2Þj;kxi;k ! Ra PrX L k¼1 Að1Þi;kTk;j ¼ 0 ð22Þ ui;j XL k¼1 Að1Þi;kTk;jþ vi;j XM k¼1 Bð1Þj;kTi;k XL k¼1 Að2Þi;kTk;jþ XM k¼1 Bð2Þj;kTi;k ! ¼ 0 ð23Þ The algebraic equations (20)–(23) are the GDQ form of the governing equa-tions for the velocities, vorticity, and temperature. By combining the coefficient matrices of all the field variables, the following global matrix form is obtained for the coupled solution algorithm:
D1; 0 D2 0 0 E1; E2 0 0 0 F1 F2 0 0 0 G1 2 6 6 4 3 7 7 5 u v x T 8 > > < > > : 9 > > = > > ; ¼ fu fv fx fT 8 > > < > > : 9 > > = > > ; ð24Þ where ½D1 ¼ XL k¼1 Að2Þi;k þX M k¼1 Bð2Þj;k ½D2 ¼ XM k¼1 Bð1Þj;k ½E1 ¼ XL k¼1 Að2Þi;k þX M k¼1 Bð2Þj;k ½E2 ¼ XL k¼1 Að1Þi;k ½F1 ¼ ui;j XL k¼1 Að1Þi;k þ vi;j XM k¼1 Bð1Þj;k Pr X L k¼1 Að2Þi;k þX M k¼1 Bð2Þj;k ! ½F2 ¼ Ra Pr XL k¼1 Að1Þi;k ½G1 ¼ ui;j XL k¼1 Að1Þi;kþ vi;j XM k¼1 Bð1Þj;k X L k¼1 Að2Þi;k þX M k¼1 Bð2Þj;k !
The expressions (14) and (15) for the velocity and the vorticity boundary conditions that have already been derived in the previous section remain the same. The vorticity values at the boundaries are evaluated implicitly by the procedure discussed in Section 2.1. The Dirichlet temperature boundary conditions at the left and the right walls of the square cavity can be represented as
T1;j ¼ 1 TL;j¼ 0 ð25Þ The adiabatic boundary conditions on the top and the bottom sides of the square cavity can be expressed in the GDQ form as
Ti;1¼ 1 Bð1Þ1;1Bð1ÞM;M Bð1ÞM;1Bð1Þ1;M X M1 k¼2 ðBð1Þ1;MBð1ÞM;k Bð1ÞM;MBð1Þ1;kÞTi;k " # ð26aÞ Ti;M ¼ 1 Bð1Þ1;MBð1ÞM;1 Bð1ÞM;MBð1Þ1;1 X M1 k¼2 ðBð1ÞM;kBð1Þ1;1 Bð1Þ1;kBð1ÞM;1ÞTi;k " # ð26bÞ for i¼ 2; . . . ; L 1; j ¼ 1; 2; . . . ; M 3. RESULTS AND DISCUSSION
The present numerical algorithm based on the velocity–vorticity formulation and the GDQ method is validated for a lid-driven cavity flow at Re¼ 100, 400, and 1,000. Later the algorithm is applied to solve a natural-convection problem in a differentially heated square cavity, in which the momentum equation is coupled to the energy equation through the buoyancy term. Numerical results for natural-convection at Ra¼ 103–106 are obtained and compared with the benchmark solutions. The present algorithm allows the prediction of temperature field without using the pressure term. We used the following expression to compute the mesh-point distributions in both x and y directions in the GDQ numerical procedure:
xi¼
cos½p=ð2NÞ cos½ð2i 1Þp=ð2NÞ
cos½p=ð2NÞ cos½ð2N 1Þp=ð2NÞ i¼ 1; 2; . . . ; N ð27Þ where N is the number of grid points considered in a given coordinate direction.
3.1. Validation Results for Lid-Driven Cavity Flow
A program in FORTRAN has been developed to validate the code for the solution of two-dimensional incompressible Navier–Stokes equations in velocity– vorticity form for a lid-driven square cavity as shown in Figure 1a. The top lid of the cavity is assumed to move with a unit velocity in the x direction. Figure 2a shows the comparison of the present results for u–y and x–v plots obtained using different grids with those of Ghia et al. [18] obtained with a grid of size 129129 for Re¼ 100. As can be seen from the above figure, even with a coarser grid of size 1515, the present predictions are in close agreement with the results of Ghia et al.
[18], who used a grid of size 129129. The comparison of the present results obtained using two different grids for Re¼ 400 with the results of Ghia et al. [18] are shown in Figure 2b. It is noted that the present results obtained with a finer grid of size 2121 are in excellent agreement with the predictions of Ghia et al. [18]. As the Reynolds number increases, a finer mesh has to be used in order to capture the thin boundary layers developed along the wall boundaries. Hence, for the case of Re¼ 1,000 we used a 3131 grid size to get the flow solutions. Figure 2c depicts the comparisons of the present results with those of Ghia et al. [18] obtained with a grid of size 129 129 for Re ¼ 1,000. The present numerical results predicted using a mesh of size 31 31 are in close agreement with the results of Ghia et al. [18]. It can be observed from the above figures that the present results obtained even with a coarse mesh show excellent agreement with the benchmark solutions for Re in the
Figure 1. (a) Cavity flow problem with boundary conditions. (b) Natural-convection problem with boundary conditions.

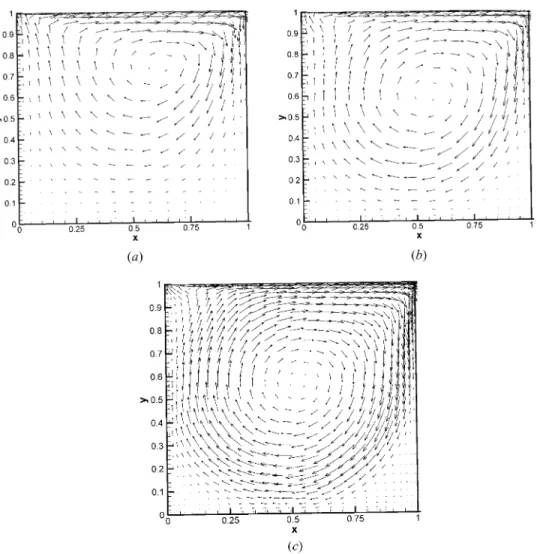

range 100–1,000. The changes in the velocity vector distribution with increase in Reynolds number are shown in Figures 3a, 3b, and 3c for Re¼ 100, 400, and 1,000, respectively. The expected flow behavior depicted in the above figures demonstrates the efficiency of the present coupled numerical algorithm to solve the Navier–Stokes equations in velocity–vorticity form.
3.2. Mesh Dependence Study
The GDQ method approximates a given partial space derivative with an or-der equal toðL lÞ, where L is the number of grid points in the given coordinate direction and l is the order of derivative. This indicates that the GDQ method requires only a coarser mesh compared to the finite-element and the finite-differ-ence methods to achieve a given numerical accuracy. In order to demonstrate this
property of the GDQ method and verify the consistency in the numerical accuracy with refinement of mesh, a mesh dependence study is carried out using the square cavity problem at Re¼ 100, 400, and 1,000. The minimum u velocity, and the minimum and maximum v- velocities, are considered as the comparison para-meters. The present numerical predictions of these parameters are compared with the results of Ghia et al. [18] and two commercial codes: (1) the FIDAP with the finite-element method (FEM) [19], (2) the TASC flow using the finite-volume method (FVM) [19] as found in [20], and (3) the BDIM [20]. Tables 1, 2, and 3 show the comparisons of the present results with those of the benchmark solutions for Re¼ 100, 400, and 1,000, respectively. Observing the values in Table 1, it is easily understood that the present scheme based on the GDQ method can predict the benchmark solutions for Re¼ 100 using a much coarser grid, 15 15, com-pared to other numerical schemes, which required a finer mesh. Similarly, for
Re¼ 400, Table 2 indicates that the GDQ method requires only a 21 21 grid, whereas other numerical schemes have used finer meshes of the order of 41 41 and higher, in order to get the same results. It can be observed that even with such finer meshes, the FEM [19] and the FVM [19] could not predict results as close to the benchmark solutions as are predicted by the present numerical scheme. The above observations hold good for all three comparison parameters shown in the above tables. Comparison of results for Re¼ 1,000, shown in Table 3, indicates that the present results obtained using a grid of size 31 31 are in excellent agree-ment with those of the benchmark solutions, which had used much finer meshes ð129 129Þ than the present method. The tabular values indicate that the present coupled numerical scheme based on the velocity–vorticity equations and the GDQ method is capable of predicting the benchmark solutions for a cavity flow with less than 3% error using meshes much coarser than other numerical schemes.
Table 1. Numerical results of lid-driven square cavity for Re¼ 100 Velocity mesh size Bench. [18] ð129129Þ GDQðv xÞ ð1515Þ FEM [19] ð2121Þ FVM [19] ð2121Þ BDIM [20] ð2121Þ ðuÞmin 0.211 0.211 0.178 0.191 0.213 Error (%) 0.47 15.64 10.47 1.42 ðvÞmin 0.245 0.243 0.217 0.233 0.259 Error (%) 0.82 11.3 4.9 5.71 ðvÞmax 0.175 0.172 0.152 0.16 0.177 Error (%) 1.71 13.14 8.57 1.14
Table 2. Numerical results of lid-driven square cavity for Re¼ 400 Velocity mesh size Bench. [18] ð129 129Þ GDQðv xÞ ð21 21Þ FEM [19] ð41 41Þ FVM [19] ð41 41Þ BDIM [20] ð41 41Þ ðuÞmin 0.327 0.329 0.309 0.237 0.327 Error (%) 0.61 5.5 27.5 0 ðvÞmin 0.450 0.455 0.430 0.387 0.458 Error (%) 1.11 4.44 14 1.78 ðvÞmax 0.302 0.306 0.284 0.230 0.306 Error (%) 1.32 5.96 23.84 1.32

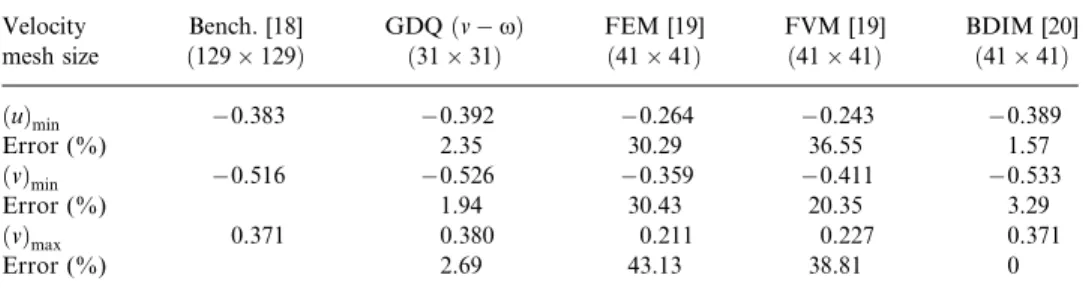

Table 3. Numerical results of lid-driven square cavity for Re¼ 1,000 Velocity mesh size Bench. [18] ð129 129Þ GDQðv xÞ ð31 31Þ FEM [19] ð41 41Þ FVM [19] ð41 41Þ BDIM [20] ð41 41Þ ðuÞmin 0.383 0.392 0.264 0.243 0.389 Error (%) 2.35 30.29 36.55 1.57 ðvÞmin 0.516 0.526 0.359 0.411 0.533 Error (%) 1.94 30.43 20.35 3.29 ðvÞmax 0.371 0.380 0.211 0.227 0.371 Error (%) 2.69 43.13 38.81 0
3.3. Natural Convection in a Square Cavity
After successfully validating the present algorithm for a lid-driven cavity problem, natural convection in a differentially heated square cavity is analyzed. The velocities at all the boundaries are assumed to be equal to zero. Temperatures equal to 1 and 0 are assumed at the left and the right walls, respectively. Adiabatic conditions are assumed on the top and bottom sides of the cavity. In order to verify the ability of the present numerical algorithm to satisfy the momentum conservation and the continuity constraint along with heat transfer, results on flow and tempera-ture fields are obtained for Ra¼ 103, 104, 105, and 106.
Figures 4a–4d show the velocity vector distributions on the x–y plane for Ra¼ 103, 104, 105, and 106, respectively. Since the left wall is at a higher tempera-ture than the right wall, the density of fluid near the left wall decreases compared to
Figure 4. Velocity distribution at different Ra number for: (a) Ra¼ 103; (b) Ra¼ 104; (c) Ra¼ 105;
the density of the fluid adjacent to the right wall, resulting in a clockwise rotation of the fluid inside the cavity as seen from the above figures. At low values of Ray-leigh numbers, that is, at 103and 104, the convective effect is too small and hence the inertial forces do not make significant contribution to the heat transport between the end walls. As the Rayleigh number increases, the buoyancy force increases, resulting in a strong circulation of the fluid inside the cavity and thus increasing convective heat transport as observed in Figures 4c and 4d. Vorticity distributions inside the cavity for different values of Rayleigh number display the effect of buoyancy force on the vorticity field generated as a result of convection inside the cavity.
Figures 5a–5d show the vorticity distributions on the x–y plane for Ra¼ 103, 104, 105, and 106, respectively. For Ra¼ 103, a somewhat concentric vorticity distri-butions about the center of the cavity is observed in Figure 5a, because the heat

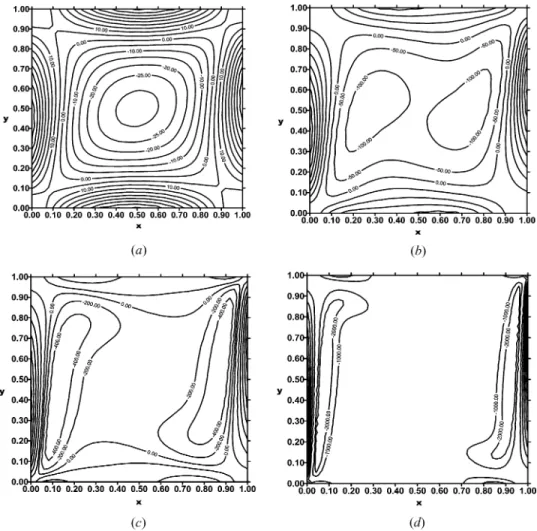

Figure 5. Vorticity distribution at different Ra number for: (a) Ra¼ 103; (b) Ra¼ 104; (c) Ra¼ 105;
penetration across the fluid has not yet set the complete convection process. The vorticity values are also small compared to those at high Rayleigh numbers. As the Rayleigh number increases, the onset of convection separates the two zones of the fluid circulating near the hot and the cold walls, as observed in Figures 5b–5d. This trend is enhanced at Ra¼ 106
, as seen in Figure 5d. It is to be noted from Fig-ures 5a–5d that the strength of vorticity increases with increase in the Rayleigh num-ber, as expected. Since the vorticity is a function of velocity gradient and also it is generated at the boundary of the cavity, the GDQ method could predict the vortici-ties very accurately, and these are demonstrated in the above figures.
Figures 6a–6d represent the temperature distributions inside the cavity for Ra¼ 103, 104, 105, and 106, respectively. As can be seen from these figures, the present numerical scheme can accurately predict the changes in the temperature of the fluid, varying from 1.0 at the left wall to 0.0 at the right wall. At low Rayleigh number value, the heat transfer is purely by means of diffusion because the buoyancy force generated is not strong enough to initiate fluid convection, as noted in Figure 6a for Ra¼ 103
. As the Rayleigh number increases, the convection inside the cavity also increases, and this results in diminishing thermal boundary layers at the hot and the cold walls as observed in Figures 6c and 6d. Higher temperature gradients observed near the end walls reveal the strength of convective heat transfer at high Rayleigh number flows. The expected trends of temperature distribution could be obtained because the fluid momentum conservation and the continuity constraint have been correctly satisfied on the computational domain by the present algorithm.
3.4. Comparison of umax, vmax, and Nusselt Number for
Natural Convection
The numerical accuracy of the present algorithm to predict the flow and heat transport parameters is tested by comparing the following parameters with bench-mark solutions of de Vahl Davis [21] and others [15, 22, 23]:
1. Maximum horizontal velocityðuÞmax on the vertical midplane and its location 2. Maximum vertical velocityðvÞmax on the horizontal midplane and its location 3. The Nusselt number on the vertical boundary at x¼ 0, evaluated as
Nu0¼ Z 1 0 uTqT qx dy ð28Þ
4. The average Nusselt number throughout the cavity, evaluated as
Nu0¼ Z 1
0
Nu0 dx ð29Þ
Numerical results of de Vahl Davis [21], the GDQ method applied to the primi-tive-variable form of the momentum equations [15], the finite-difference method [22], and the finite-volume method [23] are considered for the purpose of comparison.
Tables 4–7 show the comparisons of the present results with the above references for Ra¼ 103, 104
, 105, and 106, respectively. The expected trend of increase in the values of umax, vmax, and average Nusselet number with increase in Rayleigh number has
been correctly predicted by the present algorithm. From the tabulated results it can be observed that the present GDQ method produced the benchmark solutions with a much coarser mesh compared to the mesh used in the benchmark solutions for all four values of Rayleigh number. Further, the present coupled numerical scheme using the velocity–vorticity equations predicts flow and heat transfer parameters much closer to the benchmark solutions, compared to the results of Shu and Wee [15], who used the GDQ method to solve the primitive form of the momentum equations, though we used the same grid size as used in [15]. For all four values of Rayleigh number considered here, the present numerical scheme predicts flow and heat transfer parameters much closer to the values of the benchmark
Figure 6. Temperature distribution at different Ra number for: (a) Ra¼ 103; (b) Ra¼ 104; (c) Ra¼ 105;
solutions compared to the results obtained by the finite-difference method [22] and the finite-volume method [23], which used finer meshes than the present scheme. This demonstrates that the present GDQ method is a very powerful numerical scheme to solve flow and heat transfer problems when the momentum equations in velocity– vorticity form are solved as a fully coupled system of equations. As an extension of the present study, simulation of natural convection in a cubical cavity is being carried out, and the results will be communicated as a separate article.
4. CONCLUSIONS
A numerical scheme based on the GDQ method has been developed for solving the velocity–vorticity form of two-dimensional Navier–Stokes equations for flow and heat transfer in a square cavity. The vorticity boundary conditions are computed directly from the vorticity definition from the global matrix obtained as a result of

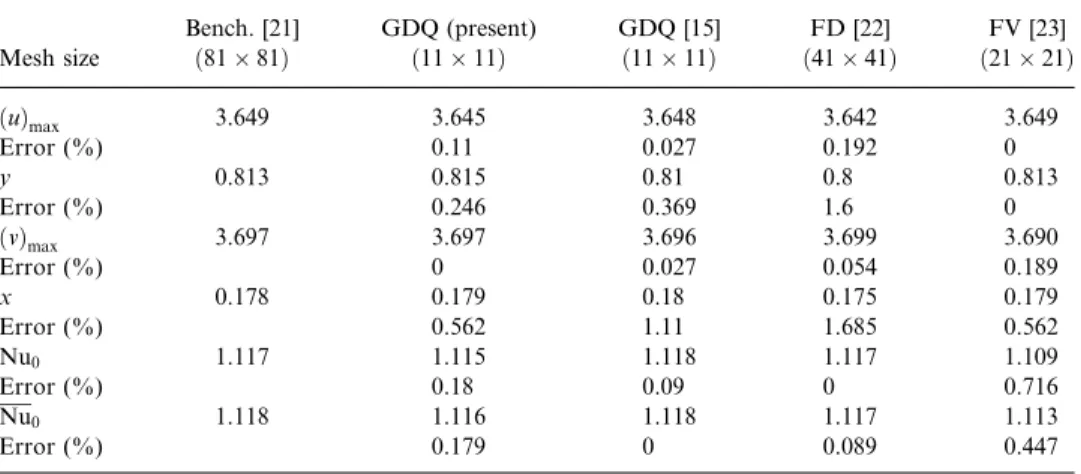

Table 4. Numerical results of natural convection in a square cavity for Ra¼ 103
Mesh size Bench. [21] ð81 81Þ GDQ (present) ð11 11Þ GDQ [15] ð11 11Þ FD [22] ð41 41Þ FV [23] ð21 21Þ ðuÞmax 3.649 3.645 3.648 3.642 3.649 Error (%) 0.11 0.027 0.192 0 y 0.813 0.815 0.81 0.8 0.813 Error (%) 0.246 0.369 1.6 0 ðvÞmax 3.697 3.697 3.696 3.699 3.690 Error (%) 0 0.027 0.054 0.189 x 0.178 0.179 0.18 0.175 0.179 Error (%) 0.562 1.11 1.685 0.562 Nu0 1.117 1.115 1.118 1.117 1.109 Error (%) 0.18 0.09 0 0.716 Nu0 1.118 1.116 1.118 1.117 1.113 Error (%) 0.179 0 0.089 0.447
Table 5. Numerical results of natural convection in a square cavity for Ra¼ 104
Mesh size Bench. [21] ð81 81Þ GDQ (present) ð19 19Þ GDQ [15] ð19 19Þ FD [22] ð41 41Þ FV [23] ð21 21Þ ðuÞmax 16.178 16.180 16.182 16.265 16.189 Error (%) 0.012 0.025 0.538 0.068 y 0.823 0.821 0.82 0.825 0.822 Error (%) 0.243 0.365 0.243 0.122 ðvÞmax 19.617 19.612 19.628 19.662 19.606 Error (%) 0.025 0.056 0.229 0.056 x 0.119 0.118 0.12 0.125 0.12 Error (%) 0.840 0.840 5.042 0.840 Nu0 2.238 2.235 2.244 2.239 2.310 Error (%) 0.134 0.268 0.045 3.217 Nu0 2.243 2.239 2.244 2.245 2.248 Error (%) 0.178 0.045 0.089 0.223
coupling the vorticity definition through the velocities with the velocity Poisson equations, the vorticity transport equation, and the energy equation. Further, the vorticity boundary conditions are computed with much higher-order accuracy by the GDQ method compared to the schemes based on the Taylor’s series expansion, which is generally employed to compute the vorticity boundary conditions. Numerical results obtained for Re¼ 100, 400, and 1,000 for a lid-driven cavity flow show good agreement with the benchmark solutions. The higher-order-accurate GDQ method is capable of achieving the benchmark solutions with a maximum error less than 3% using a coarser mesh compared to other numerical schemes.
Natural convection in a differentially heated square cavity was also studied by the coupled solution algorithm. Velocity, vorticity, and temperature distributions computed for Ra¼ 103, 104, 105, and 106show the expected flow and heat transfer behaviors. The present coupled numerical scheme predicted average Nusselt
Table 6. Numerical results of natural convection in a square cavity for Ra¼ 105
Mesh size Bench. [21] ð81 81Þ GDQ (present) ð25 25Þ GDQ [15] ð25 25Þ FD [22] ð41 41Þ) FV [23] ð40 40Þ ðuÞmax 34.722 34.698 34.721 35.156 34.632 Error (%) 0.069 0.003 1.25 0.259 y 0.855 0.854 0.85 0.85 0.851 Error (%) 0.0117 0.585 0.585 0.468 ðvÞmax 68.590 68.215 68.462 68.138 68.090 Error (%) 0.547 0.187 0.659 0.729 x 0.066 0.067 0.07 0.075 0.073 Error (%) 1.515 6.06 13.64 10.606 Nu0 4.509 4.512 4.518 4.479 N=A Error (%) 0.067 0.2 0.665 N=A Nu0 4.519 4.515 4.519 4.522 4.537 Error (%) 0.089 0 0.066 0.398

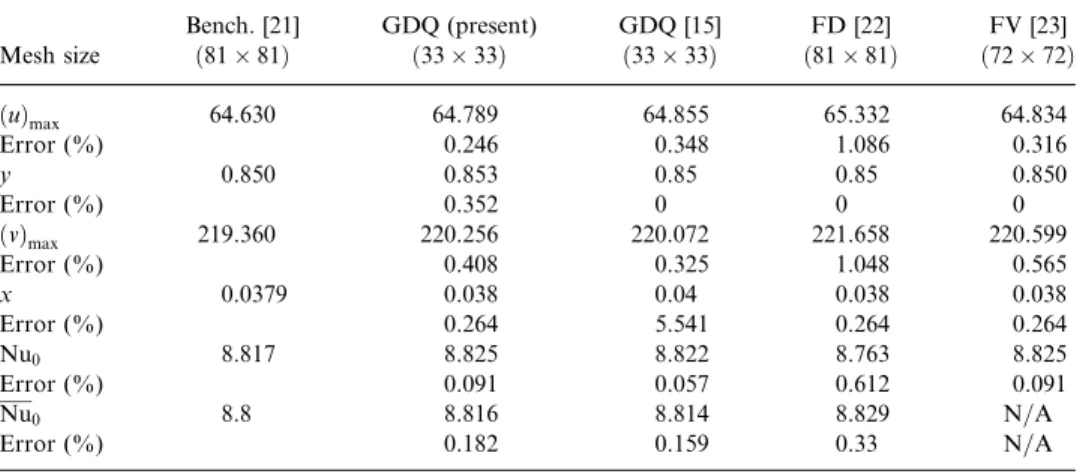

Table 7. Numerical results of natural convection in a square cavity for Ra¼ 106
Mesh size Bench. [21] ð81 81Þ GDQ (present) ð33 33Þ GDQ [15] ð33 33Þ FD [22] ð81 81Þ FV [23] ð72 72Þ ðuÞmax 64.630 64.789 64.855 65.332 64.834 Error (%) 0.246 0.348 1.086 0.316 y 0.850 0.853 0.85 0.85 0.850 Error (%) 0.352 0 0 0 ðvÞmax 219.360 220.256 220.072 221.658 220.599 Error (%) 0.408 0.325 1.048 0.565 x 0.0379 0.038 0.04 0.038 0.038 Error (%) 0.264 5.541 0.264 0.264 Nu0 8.817 8.825 8.822 8.763 8.825 Error (%) 0.091 0.057 0.612 0.091 Nu0 8.8 8.816 8.814 8.829 N=A Error (%) 0.182 0.159 0.33 N=A
numbers closer to the benchmark solutions with less than 2% error using a grid much coarser than those used by other numerical schemes. Numerical results obtained by the present method for flow as well as heat transfer problems suggest that the higher-order-accurate GDQ method can be well exploited when the Navier–Stokes equations in velocity–vorticity form are used and solved as coupled equations.
