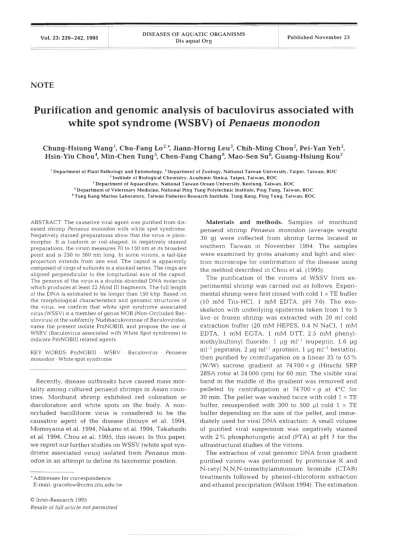

Purification and genomic analysis of baculovirus associated with white spot syndrome (WSBV) of Penaeus monodon

(1)

DISEASES OF AQUATIC ORGANISMS

Dis aqua1 Org Published November 23

NOTE

Purification and genomic analysis of baculovirus associated with

white spot syndrome (WSBV) of

Penaeus monodon

Chung-Hsiung

~ a n g ' ,

Chu-Fang Lo2,',

Jiann-Horng

Leu3,

Chih-Ming

chou2,

Pei-Yan

Yeh2,

Hsin-Yiu Chou4,

Min-Chen

Tung5,

Chen-Fang

Chang6,

Mao-Sen Su6,

Guang-Hsiung

Kou2

'

Department of Plant Pathology and Entomology. Department of Zoology. National Taiwan University. Taipei, Taiwan. ROC Institute of Biological Chemistry, Academic Sinica. Taipei. Taiwan, ROC

'Department of Aquaculture. National Taiwan Ocean University. Keelung, Taiwan. ROC 'Department of Veterinary Medicine. National Ping Tung Polytechnic Institute, Ping Tung, Taiwan. ROC 'Tung Kang Marine Laboratory, Taiwan Fisheries Research Institute. Tung Kang, Ping Tung. Taiwan. ROC

ABSTRACT. The causative viral agent was purified from diseased shrimp Penaeus monodon with white spot syndrome. Negatively stained preparations show that the virus is pleio- morphic. It is fusiform or rod-shaped. In negatively stained preparations, the virion measures 70 to 150 nm at its broadest point and is 250 to 380 nm long. In some virions, a tail-like projection extends from one end. The capsid is apparently composed of rings of subunits in a stacked series. The rings are aligned perpendicular to the longitudinal axis of the capsid. The genome of the virus is a double-stranded DNA molecule which produces at least 22 Hind 111 fragments. The full length of the DNA is estimated to be longer than 150 kbp. Based on the morphological characteristics and genomic structures of the virus, we confirm that white spot syndrome associated virus (MJSSV) is a member of genus NOB (Non-Occluded Bac- ulovirus) of the subfamily Nudibaculovirinae of Baculoviridae, name the present isolate PmNOBIII, and propose the use of WSBV (Baculovirus associated with White Spot syndrome) to indicate PmNOBIII related agents.

KEY WORDS: PmNOBIII . WSBV . Baculovirus . Penaeus monodon . White spot syndrome

Recently, disease outbreaks have caused mass mor- tality among cultured penaeid shrimps in Asian coun- tries. Moribund shrimp exhibited red coloration or discoloration and white spots on the body. A non- occluded bacilliform virus is considered to be the causative agent of the disease (Inouye et al. 1994, Momoyama et al. 1994, Nakano et al. 1994, Takahashi et al. 1994, Chou et al. 1995, this issue). In this paper, w e report our further studies on WSSV (white spot syndrome associated virus) isolated from Penaeus mon- odon in an attempt to define its taxonomic position.

'Addressee for correspondence. E-mail: [email protected]

Materials and methods. Samples of moribund penaeid shrimp Penaeus monodon (average weight 30 g ) were collected from shrimp farms located in southern Taiwan in November 1994. The samples were examined by gross anatomy and light and electron microscope for confirmation of the disease using the method described in Chou et al. (1995).

The purification of the virions of WSSV from ex- perimental shrimp was carried out as follows. Experi- mental shrimp were first rinsed with cold 1 X TE buffer (10 mM Tris-HC1, 1 mM EDTA, pH 7.6). The exoskeleton with underlying epidermis taken from 1 to 5

live or frozen shrimp was extracted with 20 m1 cold extraction buffer (20 mM HEPES, 0.4 N NaCl, 1 mM EDTA, 1 mM EGTA, 1 mM Dl'T, 2.5 mM phenyl- methylsulfonyl fluoride, 1 pg ml-' leupeptin, 1.6 pg ml-' pepstatin, 2 pg ml-' aprotinin, 1 pg ml-' bestatin), then purified by centrifugation on a linear 35 to 65 %

(W/W) sucrose gradient a t 74700 X g (Hitachi SRP

28SA rotor at 24 000 rpm) for 60 min. The visible viral band in the middle of the gradient was removed a n d pelleted by centrifugation at 74700 X g at 4'C for 30 min. The pellet was washed twice with cold 1 X TE

buffer, resuspended with 300 to 500 p1 cold 1 X TE buffer depending on the size of the pellet, and imme- diately used for viral DNA extraction. A small volume of purified viral suspension was negatively stained with 2 % phosphotungstic acid (PTA) at pH 7 for the ultrastructural studies of the virions.

The extraction of viral genomic DNA from gradient purified virions was performed by proteinase K and

N-cetyl N,N,N-trimethylammonium bromide (CTAB) treatments followed by phenol-chlorofornl extraction and ethanol precipitation (Wilson 1994). The estimation O Inter-Research 1995

(2)

240 Dis aquat Org 23: 239-242, 1995

Flgs. 1 to 7. Penaeus monodon ~ v l t h whlte spot syndrome. F i g A Photograph of carapace removed from P monodon showing white spots ranging from barely visible to 3 mm in diameter. Scale bar = 1 cm. Llght micrograph of cuticular epidermis under the cephalothorax exoskeleton (C) showlng basophilic ~nclusions in hypertrophied nuclei of degenerated cells (arrows). Scale bar =

10 pm. Fig. 3. Transmission electron micrograph of ultrathin section of infected tlssue from beneath the cephalothoracic exoskeletal cuticle (C) showing viral particles in the necrotic area and in a hypertrophied nucleus (arrow). Scale bar = 0.5 pm. Fig& Transmission electron micrograph of negatively stained purified vir~ons s h o w ~ n g a tall-like projection (P) extending from one end of the virus. Scale bar = 0.1 pm. Fig.Transmission electron micrograph of negatively stained non-enveloped nucleocapsid sho~vlng the cross- striations on the capsld formed by the ring subunits (arrows). The rings are allgned perpendicular to the longitudinal axls of the capsid. Scale bar = 0.1 pm. Fig. 6. Ethid~um _-- bromide-sta~ned agarose gel of PniNOBIII DNA extracted from purified vlrions. A single molecule of DNA is observed In the gel. Lane l : h phage DNA Hind 111 fragment marker. Lanes 2 to 4: extracted PmNOBIII DNA from each of 3 respective preparations. Fiql 7. Ethidium bromide-stained agarose gel of PmNOBIII DNA digested with Hind I11 restriction endonuclease. At least 22 DNA fragments (arrows) can be identified in this gel. Lane 1: h phaye DNA Hind I11

(3)

Mlang et al.: White spol syndrome associated baculovlrus 24 1

of the viral genome size was done by restriction endonuclease analysis. Viral D N A was dlgested with Hind 111 restriction endonuclease (Boehringer Mannheim Company, Mannheim, Germany). Restriction fragments were separated by electrophoresis in 0.8 % agarose gel (9 X 12 cm), with Tris-acetate buffer (0.04 M Tris-acetate, 0.1 mM EDTA, pH 8.0) containing 0.5 1-19 m l ' ethidium bromide. The 1 kilobase (kb) DNA ladder and lambda phage Hjnd 111 fragment marker (Life Technologies, Inc.) were used as the DNA size standard on the gel.

Results and discussion. The main clinical signs of the disease in Penaeus monodon were the white spots on the exoskeleton (Fig. 1). The white spots were particu- larly obvious on carapaces removed from diseased shrimp, and were readily observed even on carapaces from lightly infected specimens. Histopathological study demonstrated that the epidermis of the diseased shrimp was attacked by a viral agent as was evidenced by the presence in this tissue of degenerated cells characterized by hypertrophied nuclei with inclusions (Fig. 2 ) . Ultrathin sections of the underlying epidermis of the cuticle from shrimp with white spot syndrome viewed under the electron microscope revealed numerous non-occluded baculo-like viral particles in the necrotic areas. Hypertrophied nuclei filled with virions were also readily seen (Fig. 3). The virion was fusiform or rod-shaped with bluntly rounded ends. In negatively stained preparations, the virion was 70 to 150 nm at its broadest point, and was 250 to 380 nm long, 10% larger than is usually seen in ultrathin sections. In some virions, a tail-like projection extending from one end was observed (Fig. 4). The non- enveloped nucleocapsids were normally 58 to 67 nm in diameter and 330 to 350 nm long. The capsid com- ponents formed parallel cross-striations (Fig. 5). Thus, the capsid seemed to be con~posed of rings of sub'units in a stacked series. The thickness of the rings was very constant, usually being 20 nm. The rings were perpendicular to the longitudinal axis of the capsid. In terms of virus morphology, WSSV resembles SEMBV (systemic ectodermal and mesodermal baculovirus) and differs from BMN (baculoviral mid-gut gland necrosis virus) and PmSNPV ( P monodon single nucleocapsid nuclear polyhedrosis virus = MBV) (Sano e t al. 1984, M a n e t al. 1993, Wongteerasupaya e t al. 1995). How- ever, the main clinical sign of white spot caused by WSSV was not described in the SEMBV infected shrimp. To date, it is difficult to guess the relation between WSSV and SEMBV.

A single DNA molecule was extracted from purified virions of WSSV (Fig. 6). The genomic DNA of WSSV digested with Hind 111 restriction endonuclease pro- duced at least 22 fragments in agarose gel (Fig. 7) with the approximate sizes 19.4, 16.9, 14.9, 12.5, 10.0, 9.6, 8.4, 8.0, 7.3, 6.1, 5.5, 4.8, 4.3, 3.9, 3.6, 3.3, 3.0, 2.5, 2.0,

1.6, 1.4, and 1 . 1 kbp. If they existed, any fragments smaller than 1 kbp would have run over the gel. The length of WSSV D N A was estimated to be longer than 150 kbp, which falls within the size range of 90 to 230 kbp found in insect baculoviruses (Francki e t al. 1991).

Based on its morphological characteristics and genomic structure, WSSV is classified as the genus Non-Occluded Baculovirus (NOB) of the subfamily Nudibaculovirinae of Baculoviridae (Francki et al. 1991), and the isolate was named PmNOBlII as the third non-occluded baculovirus reported for Penaeus monodon (Lightner 1993, Wongteerasupaya et al. 1995). We also propose that WSBV (baculovirus associated with white spot syndrome) be used to indicate Pm- NOBIII related agents.

Acknou~ledgen~ents. This work was supported by the Council of Agriculture under Grant No. 83 AST-1.1-FAD-61(65-2) and the National Science Council under Grant No. NSC 84-2321- B-002-095B04, ROC.

LITERATURE CITED

Chou HY, Huang CY, Wang CH, Chiang HC, Lo CF (1995) Pathogencity of a baculovirus infection causing white spot syndrome in cultured penaeid shrimp in Taiwan. Dis aquat Org 23:165-173

Francki RIB, Fauquet CM, Knudson DL, Brown F (1991) Classification and nomenclature of viruses. Arch Virol. suppl 2: 1-450

Inouye K, Miwa S, Oseko N , Nakano H, Kimura T (1994) Mass mortalities of cultured kuruma shrimp, Penaeusjaponicus, in Japan in 1993: electron microscopic evidence of the causative virus. Fish Pathol 29:149-158 (in Japanese) Lightner DV (1993) Diseases of cultured penaeid shrimp. In:

McVey JP (ed) CRC handbook of mariculture, 2nd edn, Vol 1, Crustacean aquaculture. CRC Press. Boca Raton, p 393-486

Mar1 J , Bonami JR, Paulos B, Lightner D (1993) Preliminary characterization and partial cloning of the genome of a baculovirus from Penaeus lnonodon (PmSNPV = MBV). Dis aquat Org 16:207-215

Momoyama K, Hiraoka M, Nakano H, Koube H, lnouye K, Oseka N (1994) Mass mortalities of cultured kuruma shrimp, Penaeus japonicus, in Japan in 1993: histopathological study. Fish Pathol 29:141-148 (in Japanese) Nakano H, Koube H, Umezaea S, Momoyama K, Hiraoka M ,

Inouye K, Oseko N (1994) Mass mortahties of cultured kuruma shrimp, Penaeus japonicus, in Japan In 1993: epi- zootiological survey and infection trials. Fish Pathol 29: 135-139 (in Japanese)

Sano T, Nishimura T. Fukuda HR, Hayashida T. Monoyama K (1984) Baculoviral mid-gut gland necrosis (BMN) of kurulna shrimp (Penaeus japonicus) larvae in Japanese intensive culture systems. Helgolander Meeresunters 37: 255-264

Takahashi Y, ltami T, Kondo M, Maeda M, Fujii R, Tomonaga S. Supamattaya K, Boonyaratpalin S (1994) Electron microscopic evidence of bacilliform virus infection in Kuruma shrimp (Penaeus japonicus). Fish Pathol 29(2):121-125 Wilson K (1994) Preparation of genomic DNA from bacteria.

(4)

242 Dis aquat Org 23: 239-242, 1995

Miniprep of bacterial genomic DNA. In: Ausubel FM,

Brent R, Kingston RE, Moore DD, Seidman J G , Smith J A , Struhl K (eds) Current protocols in molecular biology, Vol. 1. Greene Publishing Associates, Inc. and John Wiley & Sons, Inc., New York, p 2.4.1-2.4.5

Wongteerasupaya C, Vickers JE, Sriurairatana S, Nash CL,

Responsible Sublect Editor: J. E. Stewart, Dartmouth, Nova Scotia, Canada

Akarajamorn A, Boonsaeng V. Panyim S, Tassanakajon A. Withyachumnarnkul B, Flegel TW (1995) A non- occluded, systemic baculovirus that occurs in cells of ectodermal and mesodermal origin and causes high mor- tality in the black tiger prawn Penaeus monodon. Dis aquat Org 21:69-77

Manuscript first received. March 13, 1995 Revised version accepted: J u n e 28, 1995
