HIDING IMAGES USING MODIFIED SEARCH-ORDER CODING AND MODULUS FUNCTION

(1)

Vol. 22, No. 6 (2008) 1215–1240 c

World Scientiﬁc Publishing Company

HIDING IMAGES USING MODIFIED SEARCH-ORDER

CODING AND MODULUS FUNCTION

YU-JIE CHANG∗,‡, RAN-ZAN WANG† and JA-CHEN LIN∗

∗_{Department of Computer Science}

National Chiao Tung University, Hsinchu, 300, Taiwan, R.O.C.

†_{Department of Computer Science and Engineering}

Yuan Ze University, Chung-Li, 320, Taiwan, R.O.C.

‡_{[email protected]}

This paper proposes a method for hiding an important image in a cover image whose size is limited. In this method, in order to save space, a modiﬁed search-order coding (MSOC) technique ﬁrst transforms the important image, then, a randomization proce-dure permutes the transformed image to further increase the security. Finally, a modulus function embeds the permuted code in a cover image; notably, in the modules function, the modulus base used for a pixel is determined according to the variance of its neighbor-ing pixels. Experimental results show that the images are of high quality. Comparisons with reported methods are provided.

Keywords: Data hiding; modulus function; search-order coding; steganography.

1. Introduction

With the rapid development of the Internet and WWW technologies, digital media,

such as text, image, audio and video are transmitted via a network. Since

Inter-net is public, the transmitted material is exposed. As a result, how to protect

important or private message during a transmission becomes an interesting and

important research issue. One of the possible solutions for protecting important

data against illegal access is using encryption techniques.

4

An encryption scheme

encodes an important image in such a way that it is nearly impossible for any

person who does not possess the secret key to decode the cipher-image. The

cipher-image might appear noisy, and so assure the content of the important

image is not readable before decoding. However, looking noisy might thus attract

the attention of attackers during the transmission activity; and hence increases

the risk of facing attacks. Steganography is an art of concealed communication

which aims to send the important image silently under the cover of some carrier

signals,

10

and thus compensates the aforementioned drawback of encryption

tech-nique. Unlike encryption techniques which make the content of the important image

1215

Int. J. Patt. Recogn. Artif. Intell. 2008.22:1215-1240. Downloaded from www.worldscientific.com

(2)

unreadable, steganography tries to cheat the hackers by concealing the existence

of the content. (After hiding the important image in a cover image, they become a

so-called stego-image, which still looks like the cover image, although the important

image can be extracted from the stego-image.) Usually, if encryption is combined

with a steganography scheme, the protection becomes more powerful.

In the literature, many image steganography methods have been proposed. A

very simple approach is the least-signiﬁcant-bits (LSB) substitution scheme.

1,14

This kind of method replaces directly certain bits of the cover image’s pixels with

the pixels’ bits of the important image; and a random permutation process to the

important data is often conducted to enhance the security level of the method.

11

In 2001, Wang

et al.

14

used a genetic algorithm to approximate a

theoretically-optimal solution of the simple LSB substitution method; however, due to the nature

of genetic algorithms, the computation time is quite huge. Chan and Cheng

1

used

another pixel adjustment process to enhance the quality of the stego-image obtained

by the simple LSB substitution method, and its extra computational cost is

rela-tively small compared with Ref. 14. Chang

et al.

2

also used another algorithm to

search for optimal substitution for the simple LSB substitution method. Although

their PSNR performance is similar to Wang

et al.’s method

14

(to hide a 256

× 256

important image Jet, the PSNR of the 512

× 512 Lena stego-images in Refs. 14 and

2 are, respectively, 44.172 and 44.169 dB); their embedding takes only about 1/7 of

the time needed by Wang

et al.’s method.

14

To explore more steganography techniques, other studies based on vector

quan-tization (VQ) have also been introduced.

3,6

In Ref. 3, Chung

et al. proposed to hide

an image using singular value decomposition (SVD) and VQ techniques. By using

partial SVD procedure on both the important image and cover image, they hid

some quantized singular values of a diagonal matrix corresponding to the

impor-tant image in the less signiﬁcant SVD components of the cover image. They can

hide an important image whose size is as large as that of the cover image, but the

degradation of the extracted important image is not very small.

In Ref. 6, before the embedding process, Hu and Lin ﬁrst encoded the

impor-tant image according to a given codebook. Then, the obtained indices and related

parameters are encrypted by a cipher scheme such as the Data Encryption

Stan-dard (DES).

4

Finally, the encrypted data is embedded in the cover image using

the LSB substitution. The hiding capacity of their scheme can be large, and the

scheme can even embed multiple important images by using a codebook of smaller

size and increasing the number of LSBs used in each pixel of the cover image.

How-ever, the quality of the extracted important images usually degraded. To reveal the

important image without any loss, Wu and Tsai

15

utilized the diﬀerence among two

adjacent pixels in the cover image to hide the important data. However, the hiding

capacities of their so-called PVD steganographic scheme depend on the nature of

the cover image (smooth or noisy), and are usually smaller comparing with the

aforementioned VQ-based method. In order to improve the hiding capacity, Wu

et al.

16

_{utilized the simple LSB substitution method in smooth area of the cover}

(3)

image, and still used the PVD method

15

in edge area. Compared with the PVD

method,

15

this mixed version

16

obtains not only larger hiding capacity, but also

better stego-image quality.

In this paper, a steganographic method based on the modiﬁed search-order

coding (MSOC) and a variance-based modulus function is proposed. The MSOC

scheme utilizes the feature of high correlation among adjacency pixels (i.e. many

neighboring pixels are with similar gray-values) to encode the important image.

An adjustable threshold T is used in the MSOC; and this T directly controls the

quality of the extracted image. Finally, to embed the MSOC output code in a

cover image, at each pixel of the cover image, its

{Northwest, North, West}

three-neighbor variance is evaluated to estimate the hiding capacity of the pixel, and

the MSOC output code is embedded in the cover image using two sets of modulus

function. Notably, in order to have the ability of extracting the important image in

the future, the evaluation of the aforementioned variance uses the stego-pixel-values

(rather than the original cover-pixel-values) of the three neighbors. This is because

the

{Northwest, North, West} three-neighboring-pixels are already modiﬁed to hide

data in them, and we do not keep the cover image after embedding; therefore, in

the future decoding-phase, the evaluation of the variance can only use stego-image

neighbors, not the original cover-image neighbors.

The rest of the paper is organized as follows. Section 2 takes a brief review of

the SOC and the modulus embedding function. The details of the proposed method

are described in Sec. 3. Experimental results are shown in Sec. 4. The discussions

are in Sec. 5, and the summary is in Sec. 6.

2. Related Works

In this section, the related works are brieﬂy reviewed to provide some necessary

background knowledge. To begin with, the search-order coding (SOC)

5

is brieﬂy

reviewed in Sec. 2.1. Then, the embedding methods using modulus function

12,13

are

brieﬂy discussed in Sec. 2.2.

2.1. Review of the search-order coding (SOC) tool

Vector quantization (VQ) is a simple technique to compress images. According to a

given codebook, an index ﬁle is generated as the compression result for each given

image. To reduce the size of the index ﬁle further, Hsieh and Tsai

5

proposed the use

of the search-order coding (SOC). The SOC algorithm in Ref. 5 encodes traditional

VQ indices with fewer bits by utilizing the fact that there exists high correlation

among adjacent indices, i.e. there exist many blocks whose VQ indices also appear

in their neighborhood blocks. Recall that in traditional VQ, each block of the given

image is represented by an index. So, the whole image is represented by an index ﬁle

in which the number of indices (counting repetition) equals the number of blocks.

The SOC algorithm encodes the index ﬁle of an image in an index by index manner

(or equivalently, block by block). All of the indices that appear in a predeﬁned search

(4)

path, which just cover a small area of the neighborhood blocks, are called search

points (SP), and the nonsearch points are just those indices whose block location

are beyond the range covered by the predeﬁned search path. To encode the current

not-yet-processed index, people begin a search along a predeﬁned path. The search

is in order to ﬁnd whether a nearby block also has the same VQ index used by

the current block. If a match is found in nearby area, then the original index value

(OIV) of the current block is replaced by a search-order code (SOC) that indicates

the position of the matched block in the search path; the SOC uses fewer bits than

the OIV. On the other hand, if no match can be found in nearby area, then Ref. 5

still uses the OIV of the current block. In general, a SOC is deﬁned as an order in

which the indices of the already-processed neighborhood blocks are compared with

the index of the current block. Of course, to let the decoder distinguish between the

SOC and OIV, an extra indicator bit (the ﬂag) is added in front of the resulting

compression code for each index.

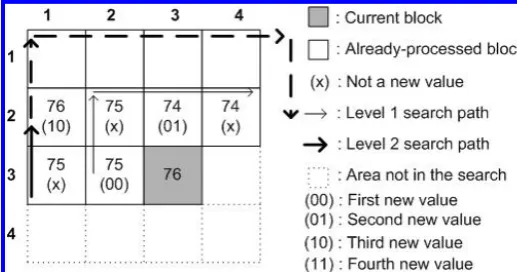

An example of the SOC is shown in Fig. 1. The current block is at location (3, 3),

and the index value for the current block is 76. A predeﬁned search path is shown

with arrows. In this example, assume the starting search point is the neighboring

block (3, 2), and a search-order code of N = 2 bits is used, where N is the number

of bits used to record the order of the matched position in the SOC searching.

Since 2

N

= 2

2

= 4, there are at most four SPs used for comparison excluding the

repetition points. The path 75-75-74-74 is the level 1 search. Since there is no value

that matches 76, we begin the level 2 search 75-76-. . . in the outer loop; and stop

at the ﬁrst matched value 76 located at (2, 1). Since the position of block (2, 1)

is “10” (the third kind of value) in the search code, the block (3, 3) is encoded as

the search-order code “10”. Of course, a ﬂag bit is also needed. Therefore, block

(3, 3) is coded using 1 + n = 1 + 2 = 3 bits, which is more economic than, for

example, the 8-bits index needed in traditional VQ if there are 256 = 2

8

distinct

code-blocks in the codebook. (In traditional VQ, each block of the given image is

represented by a code-block found in this VQ codebook, and only the code-block’s

Fig. 1. An example of the SOC algorithm.

(5)

index (rather than the code-block itself) is transmitted. So, 8-bits for an index if

there are 256 = 2

8

distinct code-blocks.)

2.2. Review of the modulus embedding function

In 2003, Thien and Lin

12

applied a modulus function to embed data in still images;

their scheme can hide data eﬃciently and the base value is not necessarily in

{2, 4, 8, 16, . . . }. Their scheme is simple and fast, and their experimental results

show that the qualities of the obtained stego-images are much better than that of

the simple LSB substitution method. In 2005, Wang

13

observed that the quality

of the stego-image in Ref. 12 may degrade too much if a large number of bits are

embedded in a pixel of the cover image whose pixel value is small. Therefore, Wang

extended further the modulus embedding method to a more ﬂexible extent. In his

method, the pixels of the cover image are classiﬁed into two groups: one group is

G

U

which contains the pixels whose values are greater than a predetermined V , and

the other group G

L

which contains the pixels whose value are at most V . Then,

a modulus function with a large modulus base M

U

is applied to embed data in

G

U

, and another modulus function with a small modulus base M

L

is preformed to

embed data in G

L

. This indicates that more data bits are embedded in the pixels

of G

U

, and fewer data bits are embedded in the pixels of G

L

.

The modulus embedding procedure

13

are reviewed below. We ﬁrst start with

a system using a single modulus base. Let the integer parameter M

O

denote a

modulus base. To embed a numerical data x (0 ≤ x < M

O

) in a pixel value y

ij

(0

≤ y

_ij

≤ 255) at position (i, j) of the cover image, we show below how to

construct the new value ˆ

_y

_ij

_{which can be utilized to extract x. First, calculate the}

plain diﬀerence value

d

ij

= x − (y

ij

mod M

O

).

(1)

Then, evaluate the modiﬁed diﬀerence value d

_ij

by the rule

d

ij

=











d

ij

if

−

M

O

− 1

2 ≤ d

ij

≤

M

O

− 1

2 ;

d

ij

+ M

O

if (

−M

_O

+ 1)

≤ d

_ij

_<

−

M

O

− 1

2 ;

d

ij

− M

O

if

M

O

− 1

2 < d

ij

< M

O

.

(2)

Then, replace the old pixel value y

ij

by the new value

ˆ

y

ij

= d

ij

+ y

ij

.

(3)

Of course, a boundary checking procedure is needed to ensure that the gray value ˆ

_y

_ij

falls in a valid range between V

b

and V

t

. Do the following adjustment if necessary:

ˆ

y

ij

=

ˆ

y

ij

+ M

O

if ˆ

_y

_ij

_{< V}

_b

;

ˆ

y

ij

− M

O

if ˆ

_y

_ij

_{> V}

_t

_.

(4)

(6)

Note that in this method in Ref. 13, the pixel values y

ij

of the cover image are

classiﬁed into two groups G

U

and G

L

, and each group has its own modulus base

values: M

U

for G

U

, and M

L

for G

L

. If a pixel value y

ij

of the cover image belongs

to G

L

, then the value of V

b

is set to 0 and the value of V

t

is set to V . On the other

hand, if y

ij

belongs to G

U

, then the value of V

b

is V and the value of V

t

is 255.

3. The Proposed Method

In this section, we introduce our image hiding method. The ﬂowchart of the

pro-posed method is depicted in Fig. 2. First, the MSOC is used to encode the

impor-tant image, and the output code is then permuted using a pseudo-random method.

Finally, the randomized code is embedded in the cover image by using the modulus

embedding function. Therefore, there are three major parts in our scheme: (a) the

MSOC scheme, (b) the pseudo-random permutation process, and (c) the modulus

embedding process. The details of these three parts are described in Secs. 3.1–3.3,

respectively. The extraction procedure to unveil the embedded important image

from stego-image is presented in Sec. 3.4.

3.1. The modified search-order coding (MSOC)

Instead of processing the vector-quantization (VQ) indices of an image as the

tra-ditional SOC scheme

5

did, our MSOC scheme processes the pixel data directly.

(a) (b)

Fig. 2. Two ﬂowcharts showing our proposed method. (a) The encoding procedure, and (b) the decoding procedure.

(7)

Also, due to the fact that adjacent pixels of an image often have similar gray

val-ues, we modify the match condition used in traditional SOC method,

5

and use a

predetermined threshold T to encode the important image. The purpose of these

modiﬁcations is that, when a set of numbers is compressed, the MSOC can yield

more compact codes than SOC does, and hence produce a better-quality

stego-image in the embedding stage later. The notation and details of MSOC are stated

below:

Notation

N : The length of the code for MSOC position, i.e. the number of bits used to

record a matched position in the searching path.

T : A threshold indicating the tolerance level in the MSOC matching equations

(5) and (6) (Set T = 1 will make the extracted important image free of error.)

SP : The pixels that appear in the predeﬁned search path.

P

c

: The currently-processed pixel (of the important image).

S

c

: The set of candidate

SPs for P

c

[see Eq. (5)], in which the gray values of all

candidates must not diﬀer too much from the gray value of P

c

.

V

cut

: The threshold to decide which modulus base is to be used in the embedding

phase (Sec. 3.3).

The MSOC Encoding Algorithm

Input: The important image, and two positive integers N and T . (Set T to 1 if

the extracted important image is required to be error-free.)

Output: The MSOC code of the important image.

Step 1: According to raster scan order, take the next not-yet-processed “pixel” Pc

from the important image. Note that P

c

is a pixel in MSOC algorithm,

rather than a block.

Step 2: Without the loss of generality, assume that the left adjacent pixel of Pc

is

the starting search point. Generate 2

N

SPs from a predeﬁned search path.

Note that a pixel whose value equals to a value that has already appeared

in some previous

SPs (of P

_c

) of the current search path shall be skipped,

and no SP value will be assigned to a skipped pixel. From the set of

SPs,

we will be only interested in the

SPs whose values are similar to the value

of P

c

(up to a threshold T ), i.e.

S

c

=

{SP

_j

:

|value(SP

_j

)

− value(P

_c

)

| < T, 0 ≤ j ≤ 2

N

− 1}.

(5)

Step 3: If Sc

is not empty, then the original pixel value of P

c

is replaced by

MSOC(P

c

), which is deﬁned as the element in S

c

whose value is most

similar to the value of P

c

, i.e.

MSOC(P

c

) = arg

j SP

min

j∈Sc

{|value(SP

j

)

− value(P

_c

)

|},

(6)

(8)

where the arg(

·) operator returns the position-code (a N-bits binary string

since the predeﬁned search path in Step 2 has 2

N

SPs) of the point SP

∗_j

in S

c

satisfying

|value(SP

_j∗

)

− value(P

_c

)

| = min

_SP_j_∈S_c

{|value(SP

_j

)

−

value(P

c

)

|}. However, if S

c

is empty, then the original pixel value (OPV)

of P

c

is used as the output. As in traditional SOC scheme, we also add an

extra indication bit (the ﬂag) in order to distinguish between an MSOC

and an OPV.

Step 4: Repeat Steps 1 to 3 until all pixels of the important image is processed.

Below we use Fig. 1 again to explain MSOC. Note that every cell in Fig. 1 should

now be explained as a pixel, rather than an image block or a VQ-index. Assume

the threshold T is set to 2, and the value of the pixel (1, 1) is 77. Let P

c

= (3, 3)

be the current pixel. By Step 2 of the MSOC algorithm mentioned above, the gray

values in the candidate set S

c

of pixel (3, 3) is

{75 (00), 76 (10)}. Since the value

76 is the closest (in fact, identical) to the value of the current pixel (3, 3), the value

of (3, 3) will be encoded using the code “(010)

₂

” by Step 3 above. The underlined

bit 0 is the indicator bit, and the following two bits “10” indicate the pixel value

can be found using a previous pixel at position (10)

₂

in the search-path.

In the other example, assume that the values of the pixels (2, 2), (3, 1), and

(3, 2) are all 78 rather than 75, and the value of the pixel (2, 1) is 79 rather than

76. Then, since none of the values

{78, 79, 74} is so close to value(P

_c

) = 76 that

the diﬀerence is less than the threshold T = 2; Step 2 of the MSOC algorithm

implies that the candidate set S

c

of the pixel (3, 3) is an empty set. In other words,

no tolerable match of the pixel (3, 3) can be found. Therefore, the pixel (3, 3) is

encoded as “(101001100)

₂

” where 1 is the ﬂag bit, and (01001100)

₂

= (76)

₁₀

is the

original pixel value (OPV) of the pixel (3, 3).

3.2. The pseudo-random permutation of location

Before embedding the produced MSOC code in cover image, to increase the level

of security, we will permute the MSOC code by using a pseudo-random process.

Reference 4 had adopted a mono-alphabetic substitution cipher algorithm

11

to

ran-domize their important image before doing their LSB-related embedding process.

However, we do not intend to use the mono-alphabetic substitution cipher

algo-rithm in the current approach, for the reason stated below. Figure 3(b) shows the

result of applying the mono-alphabetic substitution cipher algorithm to the image

shown in Fig. 3(a), and it is obvious that there are still some regular patterns in

Fig. 3(b). In other words, the result is not quite random. Therefore, we design here

another pseudo-random permutation method based on the Mersenne Twister (MT)

pseudo-random number generator.

9

Assume that the output code of the MSOC is treated as a binary string, and the

bit locations in the binary string are numbered sequentially from 0 to S–1, where

S is the size of the binary string. Our pseudo-random permutation is to transform

each bit location i of the binary string to a new location f (i).

(9)

The pseudo-random permutation algorithm

Input: A binary stream which is the MSOC output code of an important image.

Parameter settings: Randomly choose a 32-bit integer greater than 0. This is the

so-called “seed” for the MT pseudo-random number

gener-ator. With this seed, a series of pseudo-random real

num-bers R

j

(j = 0, 1, 2, K, 2

19937

− 1), which are uniformly

dis-tributed on [0, 1]-interval, can be generated by the Mersenne

Twister (MT) pseudo-random number generator.

9

Output: The randomized form of the MSOC output code.

Step 0: Initially, set i = −1.

Step 1: Increase i by 1. The ith bit of the MSOC binary string will be permuted

to a new location f (i), as computed by Steps 2–4 below.

Step 2: Get next not-yet-taken fraction-number Rj

from the MT series.

Step 3: The new location f (i) is computed by

f (i) = int(R

j

× (S − 1))

(7)

where the int(

·) operator means getting the integer part of a real number.

Step 4: If the new location f (i) is a repetition, return to Step 2 to get the

next R

j

.

Step 5: Repeat Steps 1 to 4 until the entire binary strings are processed (i = S−1).

By the above pseudo-random permutation algorithm, the output code of the

MSOC procedure mentioned in Sec. 3.1 is permuted into a pseudo-random code to

enhance the security property of our scheme. The seed used in the MT algorithm

can be regarded as a secret key; and only the authorized extractor who owns the

same secret key can obtain the same sequence of pseudo-random real numbers to

recovery the MSOC code in the decoding phase.

Of course, the above pseudo-random permutation algorithm can also be used

to permute pixels of any image. Just replace the term “bit location” by “pixel

location”, and treat the whole input image as a sequence of S pixels. When we use

this “pixel” version to randomize the Pepper image in Fig. 3(a), the result is in

Fig. 3(c). Compare Figs. 3(b) and 3(c), it is quite clear that our pseudo-random

permutation algorithm has better randomness. In this example, the seed of the

MT algorithm is set to 4357, and S = 512 × 512 = 262,144, because Fig. 3(a)

has 512

× 512 pixels. When the seed is 4357, the MT generator creates a series of

fraction numbers whose ﬁrst ﬁve numbers R

0

–R

4

are

{0.817330, 0.999061, 0.510354,

0.131533, 0.035416

}. Hence, by Step 3 of the above pseudo-random permutation

algorithm, the new locations f (0) − f (4) are {214,257, 261,896, 133,785, 34,480,

9284

}. It means that the location 0 is transformed to the new location 214,257,

location 1 is transformed to the new location 261,896, and so forth.

(10)

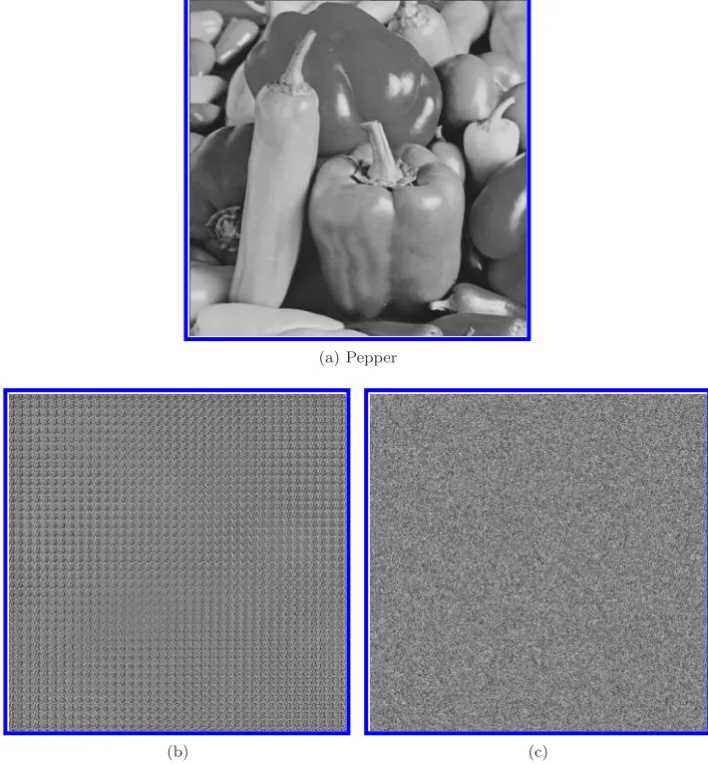

(a) Pepper

(b) (c)

Fig. 3. The results of randomization of the image in (a). Here, the mono-alphabetic substitution cipher algorithm11(b) is used and (c) using our process described in Sec. 3.2.

3.3. The modulus embedding phase on partitioned pixels

After the aforementioned pseudo-random permutation phase, the randomized code,

which is a binary string, is ready to be embedded in a cover image. To obtain high

hiding-capacity and yet still keep good image quality of the stego-image, we need

to estimate the hiding capacity pixel-by-pixel in the cover image. We will use a

phenomenon found in human visual system (HVS), namely, hiding more data in

the area where the gray values change much.

As deﬁned in Sec. 2.2, the symbol y

ij

denotes the gray value of the pixel at

position (i, j) in the cover image. Apparently, 0 ≤ y

ij

≤ 255, and the cover image

(11)

is

{y

_ij

: 0

≤ i ≤ h − 1, and 0 ≤ j ≤ w − 1} if the size of the cover image is

h-by-w. Analogously, let ˆ

y

ij

denote the gray value of the pixel at position (i, j) in the

stego-image. Then, for each position (i, j), to create pixel (i, j) of the stego-image,

the variance

var

_ij

is deﬁned according to the values of the three already-obtained

adjacent “stego” pixels (i, j − 1), (i − 1, j − 1), and (i − 1, j), with lead pixel

(i, j) when the image is transformed from cover to stego. Without the loss of

generality, we may just deﬁne

var

ij

=







∞

if i = 0 or j = 0;

(ˆ

_y

_ij−1

− ¯y)

2

+ (ˆ

_y

_i−1j−1

− ¯y)

2

+ (ˆ

_y

_i−1j

− ¯y)

2

3 otherwise,

(8)

where ¯

_{y denotes the mean of ˆ}

_y

_ij−1

, ˆ

_y

_i−1j−1

, and ˆ

_y

_i−1j

. Note that, for simplicity,

the

var

_ij

value of the pixels which are either in the ﬁrst row or in the ﬁrst column

of the cover image are set to inﬁnity. After calculating the

var

_ij

of each pixel in

the cover image, the pixels of the cover image are classiﬁed into two groups: one is

the edge group G

E

which contains those pixels whose

var

ij

values are larger than a

predetermined threshold V

cut

, and the other group is the smooth group G

S

which

contains pixels whose

var

_ij

_{values are not more than V}

_cut

. Apparently, according

to Human Visual System, we can hide more bits in the pixels in edge group than in

the smooth group. Therefore, a modulus function with a large modulus base M

E

will be applied to embed data in G

E

, and another modulus function with a small

modulus base M

S

is utilized to embed data in G

S

.

The embedding procedure using variance-based modulus function is as follows.

According to the raster scan-order, we sequentially take a pixel (i, j) from the cover

image, and call its pixel value y

ij

(0

≤ y

ij

≤ 255). Then, if the var

ij

value of this

pixel is greater than V

cut

, we set the modulus base M

O

to M

E

; else set M

O

to M

S

.

Now, sequentially grab next

log

₂

_{M o not-yet-embedded bits from the randomized}

code to form a short length data x (0 ≤ x < M

O

). Then we embed x in pixel (i, j)

by replacing its gray value from y

ij

to the resulting pixel value ˆ

_y

_ij

. The embedding

equation is

ˆ

y

ij

= x + M

O

× rounding

y

ij

− x

M

O

(9)

where the rounding(

·) operator means rounding its content to the nearest integer.

Of course, we need to check whether ˆ

_y

_ij

falls in the valid range 0

≤ ˆy

_ij

≤ 255. If it

is out of the range, then ˆ

_y

_ij

should be adjusted by

ˆ

y

ij

=

ˆ

y

ij

+ M

O

if ˆ

y

ij

< 0;

ˆ

y

ij

− M

O

if ˆ

y

ij

> 255.

(10)

By sequentially processing each pixel (i, j) of the cover image using the above

proposed embedding procedure introduced here, the randomized code produced

from Sec. 3.2 can be embedded in the pixels of the cover image.

Notably, in the above, about whether M

E

or M

S

should be used, the

deci-sion rule is according to the variance rather than the pixel value itself. Below we

(12)

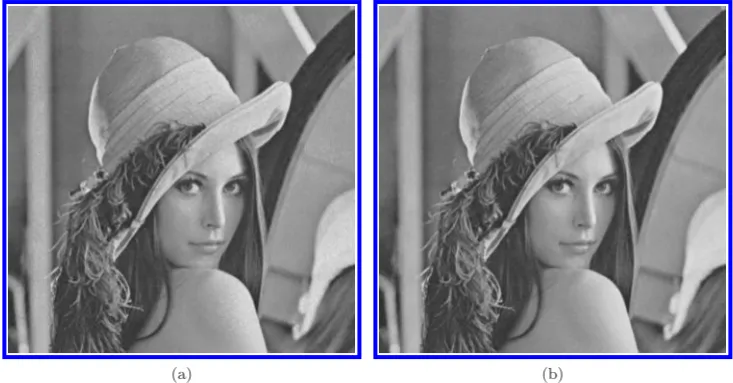

(a) (b)

Fig. 4. The stego-images obtained by embedding a 256× 512 important image Jet [Fig. 6(a)] in a 512× 512 Lena (Fig. 5). (a) The stego-image obtained by the pixel-based method13(PSNR = 31.05 dB); (b) the stego-image by using our variance-based method (PSNR = 34.76 dB).

explain why. Figure 4 is the stego-image obtained when our embedding process is

replaced by the embedding method introduced in Ref. 13, which are quite similar

to ours, except that they used pixel value directly (rather than using variance) in

the decision rule. To obtain Fig. 4(a), the 256

× 512 important image “Jet” shown

in Fig. 6(a) is embedded in Fig. 5(a). The threshold V (see Sec. 2.2) is set to 160,

and two modulus bases are set to M

U

= 32 and M

L

= 16, the same as suggested in

Ref. 13. In other words, when the gray value of a cover image pixel is larger than

160, ﬁve bits of the hidden data are embedded in this pixel. On the other hand,

when the gray value is not more than 160, then only four bits of the hidden data are

embedded in this pixel. Obviously, there are some pockmarks on the shoulder and

face of Lena in Fig. 4. Artiﬁcial distortion appears on the shoulder and forehead

of Lena where pixel values vary smoothly and yet the gray values are often larger

than 160. Hence, the pixel value might not be a suitable criterion to estimate the

hiding capacity of a pixel in the cover image.

3.4. The extraction procedure for the decoding

The extraction steps for revealing the important image are as follows.

(a) For a given stego-image, we ﬁrst use Eq. (8) to compute the

var

_ij

value of each

pixel (i, j) of the stego-image, and then the modulus base M

O

of each pixel

can be determined by comparing

var

_ij

_{with the threshold V}

_cut

.

(b) Extract the randomized MSOC code (a binary stream) from the stego-image.

This is achieved by sequentially processing each pixel of the stego-image, with

(13)

the raster scan order, and the extraction equation

x = ˆ

y

ij

(mod M

O

)

(11)

to obtain the hidden data x from pixel (i, j). Of course, convert each x (0 ≤ x <

M

O

) to its binary equivalent before processing the next pixel of the stego-image.

(c) Obtain the same series of pseudo-random fraction numbers, which are used in

the random permutation phase (Sec. 3.2), by running the MT

pseudo-random number generator

9

with the same seed. Then, do inverse permutation

to obtain the nonrandomized MSOC code stream.

(d) Fetch a bit sequentially from the (remaining) MSOC code stream; it is an

indicator bit in our MSOC scheme.

(e) If the indicator bit obtained in step (d) is 0, fetch N bits from the remaining

MSOC code stream. Then, according to these N bits and our MSOC

pre-determined search path, locate the corresponding search position in the

par-tially reconstructed important image. Use the pixel value at the pointed pixel

position to paint the gray value of the current pixel position in the reconstructed

image.

(f) If the ﬂag bit obtained in step (d) is 1, fetch eight bits from the remaining

MSOC code stream, and directly assign these eight bits to the pixel value of

the current position in the reconstructed image.

(g) Repeat steps (d) through (f) until all of the data in the MSOC code stream are

processed.

(h) The generated image is the revealed important image.

4. Experimental Results

All images in the experiments are eight-bit gray-scaled. In each experiment, one of

the important images is embedded in the cover image. As suggested in Ref. 5, we

set N = 2, i.e. we also use two-bit string to record each MSOC position. As for the

value of our threshold V

cut

and the values of the two modulus bases M

E

and M

S

,

they are all dynamic according to the total size of MSOC code. (Notably, the total

size of MSOC code is aﬀected by the threshold value T in turn.)

In the MSOC encoding algorithm, set T to 1 if the extracted important image

is required to be error-free. On the other hand, use a larger value of T if the cover

image is not much bigger than the important image; for example, when both images

are of 512

× 512.

In the ﬁrst experiment we hide an important image in a cover image of the

same size. Figure 5 shows an example of the hiding result in this experiment, where

Fig. 5(a) is the cover image “Lena” of size 512

×512, and Fig. 5(b) is the important

image “Jet” of size 512

× 512. The obtained stego-images using thresholds T = 7

and 9 are as shown in Figs. 5(c) and 5(d), respectively. The corresponding lossy

version of the important images extracted from Figs. 5(c) and 5(d) are shown

in Figs. 5(e) and 5(f), respectively. Finally, the settings of the experimental

(14)

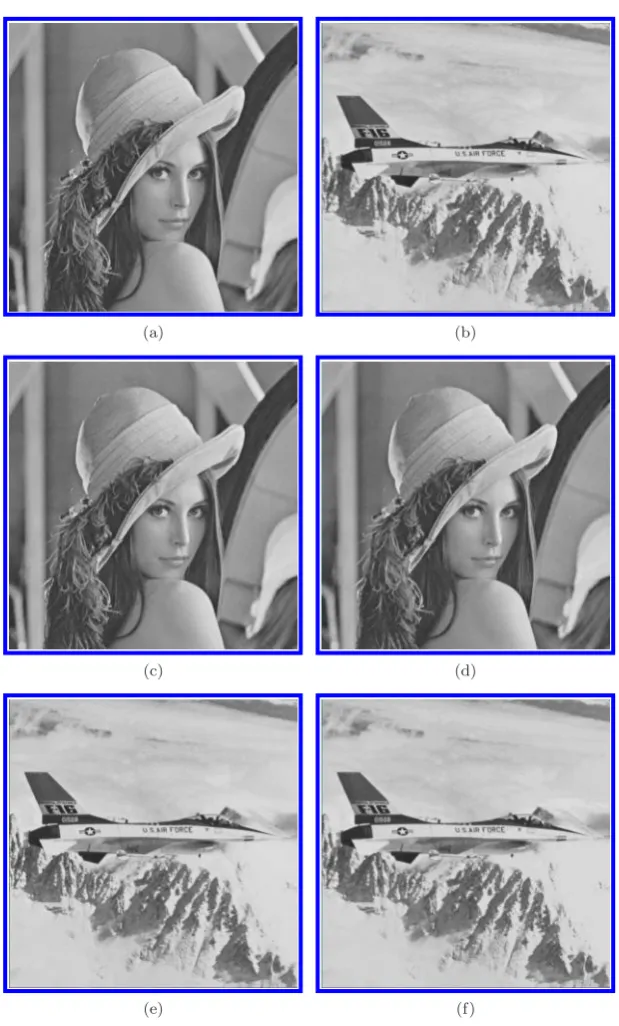

(a) (b)

(c) (d)

(e) (f)

Fig. 5. The ﬁrst experiment. (a) The cover image “Lena” with 512×512 pixels; (b) the important image “Jet” with 512× 512 pixels; (c) and (d) the stego-images obtained by embedding Fig. 5(b) in Fig. 5(a) with threshold valuesT = 7 and 9, respectively; (e) and (f) the extracted important images from Figs. 5(c) and 5(d), respectively.

(15)

Table 1. The parameters used in our experiments to embed an important image of size 512×512. The PSNR values (marked as “stego”) are between the stego-image and cover image, and the PSNR values (marked as “extracted”) are between the extracted important image and original important image.

Cover Important Parameters and (ME = 16,MS = 8)

Image Image PSNR T = 7 T = 8 T = 9 T = 10 T = 11

Lena Jet Threshold (Vcut) 14 16 20 24 32

(512× 512) _{PSNR (stego)} _37.12 _37.56 _38.05 _38.31 _38.70

PSNR (extracted) 41.77 40.55 39.50 38.77 37.87

Tiﬀany Threshold (Vcut) 29 42 55 70 98

(512× 512) _{PSNR (stego)} _38.62 _38.96 _39.40 _39.63 _39.83

PSNR (extracted) 41.43 40.15 39.36 38.66 37.66

parameters, and the PSNR values of the stego-images and the extracted versions of

the important image, are summarized in Table 1. From Table 1, we can see that the

qualities of the stego-images are acceptable (the PSNRs between the stego-images

and the original cover image are all greater than 36.0 dB). It is also hard to

distin-guish between Fig. 5(b) and those in Figs. 5(e) and 5(f) using naked eyes, and the

PSNRs between the extracted lossy versions and the original version of the

impor-tant image are all greater than 37.0 dB. Note that the extraction is lossy because

we try to embed a 512

× 512 image in another 512 × 512 image of the same size,

which is just impossible for us to set T = 1.

In the second experiment we hide an important image whose size is half of the

cover image. Figure 6 shows some examples of the hiding result in this experiment.

The settings of the experimental parameters, and the PSNRs of the stego-images

and the extracted important images, are listed in Table 2. From the PSNRs in

Table 2, we can see that the qualities of the stego-images are good, for the PSNRs

between the stego-images and the original cover image are all between 40.0 dB and

46.8 dB. The qualities of the extracted important images are also high, for the

PSNRs between the extracted important images and the original important image

are between lossless (

∞) and 44.4 dB. Notably, the recovered important image is

error-free when we use the most strict value T = 1. As a remark, when T = 3, the

M

E

and M

S

computed by Step (3) of Sec 5.1 are (M

E

= 8, M

S

= 4) for image

Jet, diﬀerent from the (M

E

= 4, M

S

= 2) for image Tiﬀany; this should be of no

surprise because the total number of bits in the produced MSOC codes are diﬀerent

for these two images.

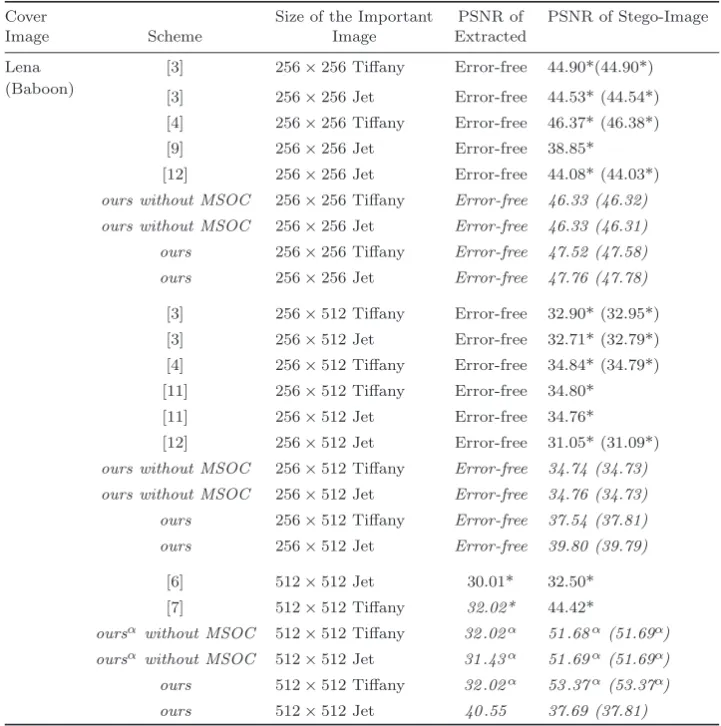

To know the performance of our scheme, the PSNRs of the stego-image obtained

in our scheme are compared in Table 3 with those elegant methods reported in

lit-erature. Note that in Ref. 6, the important image is ﬁrst compressed using the VQ

technique, and then the VQ indices and the encoded codebook are embedded in a

cover image by the LSB substitution method. Therefore, in the comparison with

Ref. 6, we also use the VQ technique to compress the important image before

(16)

(a) (b)

(c) (d)

(e) (f)

Fig. 6. The second experiment about hiding the middle-size (256× 512 pixels) important image. (a) The important image “Jet”; (b) the important image “Tiﬀany”; (c) and (d) the stego-images obtained by embedding Figs. 6(a) and 6(b) in Fig. 5(a) with threshold values T = 1 and 3, respectively; (e) and (f) the extracted important images from Figs. 5(c) and 5(d), respectively. Note that (e) is identical to Fig. 6(a) without any loss.

hiding, and then encode the VQ index ﬁle using the MSOC algorithm with

the threshold T = 1 before using the pseudo-random permutation or the

modulus embedding procedure. Of course, both the MSOC output code and

the encoded codebook are randomized and embedded in the cover image. In

Table 3, the symbol α means that the experiment used this special VQ approach.

(17)

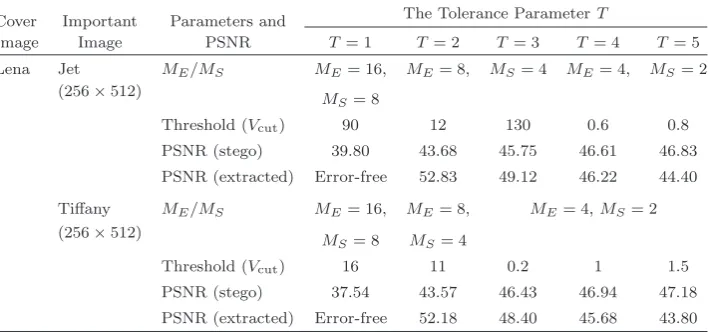

Table 2. The parameters used in our experiments to embed the important image of size 256×512. The PSNR values (marked as “stego”) are between the stego-image and cover image, and the PSNR values (marked as “extracted”) are between the extracted important image and original important image.

Cover Important Parameters and The Tolerance ParameterT

Image Image PSNR T = 1 T = 2 T = 3 T = 4 T = 5 Lena Jet M_E/M_S M_E= 16, M_E= 8, M_S= 4 M_E= 4, M_S= 2 (256× 512) _M S= 8 Threshold (Vcut) 90 12 130 0.6 0.8 PSNR (stego) 39.80 43.68 45.75 46.61 46.83 PSNR (extracted) Error-free 52.83 49.12 46.22 44.40 Tiﬀany M_E/M_S M_E= 16, M_E= 8, M_E= 4,M_S= 2 (256× 512) _M S= 8 MS= 4 Threshold (Vcut) 16 11 0.2 1 1.5 PSNR (stego) 37.54 43.57 46.43 46.94 47.18 PSNR (extracted) Error-free 52.18 48.40 45.68 43.80

Notably, Refs. 1, 12–14, 16 did not process any important image of size as big as

the 512

× 512 cover image, so we only list in Table 3 the experimental data copied

from Refs. 3 and 6 when the important image is 512

× 512.

In order to make a fair comparison, we show the results of our two versions

in Table 3. One version is without MSOC compression, the other version is with

MSOC compression. The MSOC version has a PSNR much better than the PSNRs

of all other listed methods; and this should be of no surprise because MSOC reduces

the size of the important image. Below we focus on the without-MSOC version.

Since Ref. 1 outperformed the remaining reported methods listed in Table 3, we

compare our without-MSOC version with Ref. 1, as follows. When the bpp (bits

per pixel, here interpreted as the number of bits in the important image over the

number of pixels in the cover image) is an integer, then the PSNR of the stego-image

in our without-MSOC version is less than, but very close to, that of Ref. 1. The

phenomenon can be seen in Table 3. For instance, when we embed the 256

× 256

Tiﬀany (or 256

×512 Tiﬀany) in a 512×512 Lena, the bpp 256×256×8/512×512 = 2

(or 256

× 512 × 8/512 × 512 = 4) is an integer; then the stego-image’s PSNR is

46.33 dB (or 34.74 dB) in our method, and 46.37 dB (or 34.84 dB) in Ref. 1. [The

diﬀerence is only 0.04 dB (0.1 dB).]

However, when the bpp is not an integer, then our stego-image’s PSNR (the

without-MSOC version) is higher than that of Ref. 1. To show this, we embed

the important image Jet of various sizes into the 512

× 512 cover image Lena

[Fig. 5(a)], without using MSOC. The experimental results are shown in Fig. 7(a).

One such example is to embed a 320

×320 Jet into the 512×512 Lena, which means

the bpp is 320

× 320 × 8/(512 × 512) = 3.125; and it is found that our 39.32 dB

stego-image is better than the 35.90 dB stego-image of Ref. 1. Figure 7(b) is the

(18)

Table 3. A comparison between some published methods and our scheme.

Cover Size of the Important PSNR of PSNR of Stego-Image

Image Scheme Image Extracted

Lena [3] 256× 256 Tiﬀany Error-free 44.90*(44.90*)

(Baboon) _[3] ₂₅₆_{× 256 Jet} _Error-free _{44.53* (44.54*)}

[4] 256× 256 Tiﬀany Error-free 46.37* (46.38*)

[9] 256× 256 Jet Error-free 38.85*

[12] 256× 256 Jet Error-free 44.08* (44.03*)

ours without MSOC 256× 256 Tiﬀany Error-free 46.33 (46.32)

ours without MSOC 256× 256 Jet Error-free 46.33 (46.31)

ours 256× 256 Tiﬀany Error-free 47.52 (47.58)

ours 256× 256 Jet Error-free 47.76 (47.78)

[3] 256× 512 Tiffany Error-free 32.90* (32.95*) [3] 256× 512 Jet Error-free 32.71* (32.79*) [4] 256× 512 Tiffany Error-free 34.84* (34.79*) [11] 256× 512 Tiffany Error-free 34.80* [11] 256× 512 Jet Error-free 34.76* [12] 256× 512 Jet Error-free 31.05* (31.09*)

ours without MSOC 256× 512 Tiﬀany Error-free 34.74 (34.73)

ours without MSOC 256× 512 Jet Error-free 34.76 (34.73)

ours 256× 512 Tiﬀany Error-free 37.54 (37.81)

ours 256× 512 Jet Error-free 39.80 (39.79)

[6] 512× 512 Jet 30.01* 32.50*

[7] 512× 512 Tiﬀany 32.02* 44.42*

oursαwithout MSOC 512× 512 Tiﬀany 32.02α 51.68α(51.69α)

oursαwithout MSOC 512× 512 Jet 31.43α 51.69α(51.69α)

ours 512× 512 Tiﬀany 32.02α 53.37α(53.37α)

ours 512× 512 Jet 40.55 37.69 (37.81)

(“*” means “quoted from the reported papers”, and “α” means “the input of the MSOC is the VQ index ﬁle of the important image, rather than the important image itself”)

average of 30 tests (30 tests for each bpp value), in which each test uses one the

30 important images

{Lena, Jet, Tiﬀany, Baboon, Barbara, Boat, Bridge, Couple,

Elaine, Family, Gold, House, Milk, Painting, Pepper, Scene, Tank, Toys, Woman,

Zelda, Girl, Cameraman, Beach, Car, Iran, Logo, Map, Mickey, Satellite image,

X-ray image

} of a speciﬁed size. In general, as shown in Fig. 7, if the bpp is not

an integer, then our stego-images’ PSNR are better than the stego-images’ PSNR

of Ref. 1. This is because Ref. 1 was originally designed to use t-bits LSB in a

ﬁner manner, and their t were integers; as a result, when the number of bits in the

important image was, for example, 3.125 times larger than the number of pixels in

the cover image, then they could not use t = 3 bits LSB; instead, they needed to

(19)

Stego-image: Lena 20 25 30 35 40 45 50 2 2.22 2.39 2.57 2.75 3 3.13 3.32 3.53 3.74 3.96 4 Bits per pixel (bpp)

PS N R ( d B ) Ours Ref. 1 (a) Stego-image: Lena 20 25 30 35 40 45 50 2 2.22 2.39 2.57 2.75 3 3.13 3.32 3.53 3.74 3.96 4 Bits per pixels (bpp)

A v er ag e P S N R ( d B ) (A ve ra ge of 30 t e st s a t e ac h bpp va lu e) Ours Ref. 1 (b)

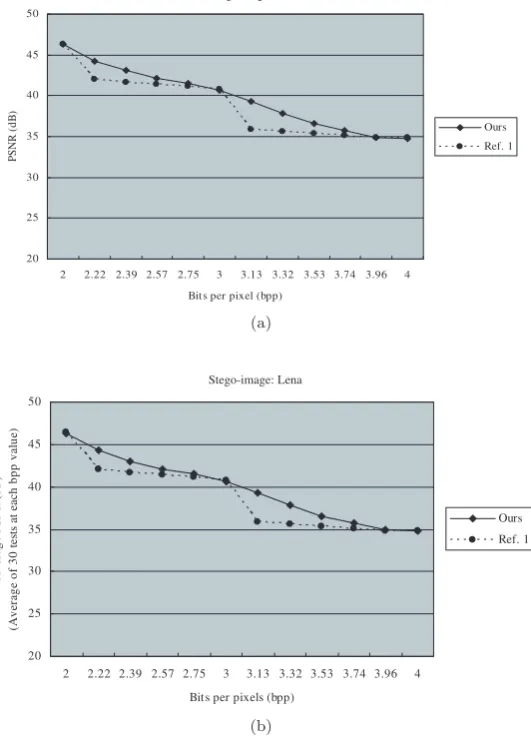

Fig. 7. The comparison of stego-image’s quality between Ref. 1 and our no-MSOC version, when the cover (stego) image is Lena. (a) Jet is used as the important image; (b) the average of testing 30 important images (so, 30 tests for each bpp value).

use t = 4. Therefore, their distortion curve has a sudden jump (while our PSNR

curve has no such jump).

In conclusion, as shown in Fig. 7, when the number of “bits” in the important

image is an integer multiple of the number of “pixels” in the cover image, i.e. when

the bpp is an integer, then use Ref. 1, for their PSNR is better than ours (they lead

us by an amount between 0.04 dB and 0.1 dB in Table 3). However, when the bpp

is not an integer, then use ours.

As for the experiment done by Wu and Tsai,

15

they used a Word-format ﬁle,

rather than an image, as the hidden important data. To compare with Ref. 15, we

(20)

try to embed a Word-format ﬁle with 50,960 bytes in an extra experiment. If the

cover image is the 512

× 512 Lena, the PSNR of the stego-image Lena obtained

by Ref. 15 is 41.79 dB. On the other hand, our stego-image’s PSNR is 47.65 dB

even if we do not use the MSOC compression (the PSNR would have been better

than 47.65 dB if MSOC had been used). Analogously, when trying to embed a

Word-format ﬁle of 25,940 bytes, their PSNR is 48.43 dB and ours is 51.89 dB when

MSOC is not used. In summary, our method can also compete with Ref. 15.

About the (net) embedding rate of our scheme, the MSOC reduced the 256

×

256 Jet (and 256

× 256 Tiﬀany) from 256 × 256 = 65,536 bytes to 51,817 bytes

(and 53,467 bytes) with threshold T = 1 before embedding. Similarly, the MSOC

reduced the 256

× 512 Jet and 256 × 512 Tiﬀany from 256 × 512 = 131,072 bytes

to 100,989 bytes (and 109,054 bytes) with threshold T = 1 before embedding. So,

the (pure) embedding rate for the 512

× 512 cover image Lena mentioned in the

experiments and Table 3 is 51,817

× 8/(512 × 512) = 1.58 bits per pixel (bpp) for

the compressed code of 256

× 256 Jet (and 53,467 × 8/(512 × 512) = 1.63 bpp for

256 ×256 Tiﬀany), and 100,989×8/(512×512) = 3.08 bpp for the compressed code

of 256

× 512 Jet (and 109,054 × 8/(512 × 512) = 3.33 bpp for 256 × 512 Tiﬀany).

In summary, to hide Jet’s MSOC code, according to Table 3, we obtained

47.76 dB stego-image Lena when the (net) hiding rate is 1.58 bits per pixel; and

obtained 39.80 dB stego-image Lena when the (net) hiding rate is 3.08 bits per

pixel. Analogously, to hide the source data of image Jet directly without using

compression, we obtained 46.33 dB stego-image Lena when the hiding rate is

256 × 256 × 8/(512 × 512) = 2 bits per pixel; and obtained 34.76 dB stego-image

Lena when the hiding rate is 256

× 512 × 8/(512 × 512) = 4 bits per pixel.

To ensure that the proposed method can work well for most of the images,

we test 30 important images

{Lena, Jet, Tiﬀany, Baboon, Barbara, Boat, Bridge,

Couple, Elaine, Family, Gold, House, Milk, Painting, Pepper, Scene, Tank, Toys,

Woman, Zelda, Girl, Cameraman, Beach, Car, Iran, Logo, Map, Mickey, Satellite

image, X-ray image

}. Each image has three kinds of size: 256 × 256, 256 × 512,

and 512

× 512. So there are in fact 30 × 3 = 90 images. Each time one of these 90

important images is hidden in the 512

× 512 cover image Lena shown in Fig. 5(a).

The results are shown in Table 4, from where we can see that, to hide a 256

× 512

important image using the threshold T = 3, the PSNR of the extracted image is

about 48.89 dB and the PSNR of the stego-image is about 43.97 dB. So both the

qualities of the extracted and stego-image are acceptable. Analogously, when we

use T = 8 to hide one of the 30 important images whose sizes are all as large as

the 512

× 512 cover image, the PSNR of the extracted image is about 39.88 dB in

average, and the PSNR of the stego-image is about 37.24 dB in average. Therefore,

the proposed method can still work for most of the large images.

We also try another 30 tests; and the cover image in each test is one of the thirty

512 × 512 images {Lena, Jet, Tiﬀany, Baboon,. . . , Mickey, Satellite image, X-ray


} mentioned above. Table 5 summarizes these 30 tests. From Table 5, we can

(21)

Table 4. The results of testing 30 important images.

Size of each 30 Extracted Images 30 Stego-Images

Important PSNR SNR PSNR PSNR

Image Versions (Range) (Average) (Range) (Average)

No MSOC Error-free Error-free 46.31–46.35 46.335

256× 256

T = 1 in MSOC Error-free Error-free 46.08–51.40 47.480

256× 512 T = 3 in MSOC 47.75–52.29 48.886 38.16–47.84 43.968

512× 512 T = 8 in MSOC 38.64–43.66 39.881 30.60–40.56 37.242

Table 5. The results of testing 30 cover images.

Cover Size of the Important PSNR PSNR

Images Scheme Image (extracted) (stego)

30 tests ours without MSOC 256× 256 Tiﬀany Error-free 46.28–46.34 using ours without MSOC 256× 256 Jet Error-free 46.27–46.35

30 ours 256× 256 Tiﬀany Error-free 47.51–47.61

cover ours 256× 256 Jet Error-free 47.62–47.81

images

ours without MSOC 256× 512 Tiﬀany Error-free 34.71–34.78

ours without MSOC 256× 512 Jet Error-free 34.70–34.79

ours 256× 512 Tiﬀany Error-free 37.50–37.86

ours 256× 512 Jet Error-free 39.76–39.83

oursαwithout MSOC 512× 512 Tiﬀany 32.02α 51.65α–51.72α

oursαwithout MSOC 512× 512 Jet 31.43α 51.66α–51.72α

oursα 512× 512 Tiﬀany 32.02α 53.32α–53.44α

oursα 512× 512 Jet 31.43α 53.45α–53.58α

ours 512× 512 Tiﬀany 40.15 38.74–39.21

ours 512× 512 Jet 40.55 37.36–37.83

“α” means “the input of the MSOC is the VQ index ﬁle of the important image, rather

than the important image itself”.

see that the proposed method is stable (has a narrow range) for using diﬀerent

images as the cover image.

As for the processing time, the average encoding/decoding time of our method

are shown in Tables 6 and 7. From Tables 6 and 7, we can see that the larger the size

of the important image, the higher is the encoding/decoding time. Note that, all

programs in the current paper were implemented by using the Borland C++ Builder

Table 6. The encoding time of the separate procedure in our method (unit: second).

Size of Important Image MSOC Permutation Embedding Total

256× 256 0.203 0.406 0.078 0.687

256× 512 0.375 0.483 0.085 0.943

512× 512 0.723 0.667 0.093 1.483

(22)

Table 7. The decoding time of our method (unit: second).

Size of Important Image Decoding

256× 256 0.599

256× 512 0.734

512× 512 1.197

6.0, and ran on a notebook with Intel Pentium Processor M-740 (1.73 GHz) and

512 MB RAM under the operation system of Microsoft Windows XP Professional.

5. Discussions

5.1. Parameter setting

Because the extracted image is the compression result of the important image with

the threshold T , the quality of the extracted image is determined by the threshold

T . (The larger the threshold T , the higher is the compression ratio; i.e. the larger

the threshold T , the lower is the quality of the extracted “important image”.)

On the other hand, once the MSOC code (the compression result) is generated,

the MSOC code is ﬁxed (so the quality of the important image recovered in the

future is also fixed). To hide this fixed MSOC file, we determine the suitable V

cut

value so that we can avoid causing too much distortion to the cover image (as long

as the “whole” MSOC code ﬁle can be hidden in the cover image completely). So,

the V

cut

value determines the quality of the “stego-image”. In general, the larger

the V

cut

value, the better is the quality of the stego-image. However, the V

cut

value

cannot be too large; otherwise, there will not be enough space in the cover image

to hide the whole MSOC code ﬁle.

Therefore, about parameters setting, we proceed as follows

(1) We ﬁrst determine a value of T according to the size of the important image.

(For example, Table 1 uses a larger T (between 7–11) because its important

image size 512

×512 is larger than the important image size 256×512 in Table 2,

which uses a smaller T (between 1–5).

(2) Then get the MSOC code corresponding to this T .

(3) Since we want to hide the MSOC code in the cover image, the bits per pixel

(bpp) used to measure the (net) embedding rate is

bpp =

The total number of bits in the MSOC code

The total pixels of the cover image

.

(12)

Then, let M

S

= 2

bpp

and M

E

= 2

bpp

, where

· and · are the ceiling

and ﬂoor functions to get two closest integers of bpp.

(4) Then, to avoid damaging the cover image too much, we start from a large value

of V

cut

.

(23)

(5) If the MSOC code cannot be embedded completely in the cover image using this

V

cut

value, then try to hide again using a smaller V

cut

value. Repeat reducing

the V

cut

value if necessary.

As a ﬁnal remark of this Sec. 5.1, note that in our method, since the

input to the embedding algorithm (Sec 3.3), is in fact the MSOC code, and

the MSOC code can be embedded in cover image and extracted from cover

image without any error; therefore, BER = 0 always holds (BER stands for

bit-error-rate). The fact that BER is always 0 has nothing to do with parameter

setting.

5.2. Using pseudo-random process to increase security level

As in other image-hiding techniques, our stego-images are utilized to reduce the

attention of hackers. However, because the parameters V

cut

, M

S

, and M

E

are not

necessarily constant, we transmit the values of these parameters along with the

stego-image to the receiver. If a hacker happens to monitor the transmission of a

stego-image, and if he also knows the number of bits (N ) used to record MSOC,

then the MSOC code of the important image might be extracted completely, and the

important image is then exposed. (For example, if the hacker has got a MSOC code

(101110110000101111001)

₂

, he can decode the code according to the MSOC

algo-rithm described in Sec. 3.1 to obtain that the three pixels are [OPV(118), MSOC(0),

OPV(121)], and then know the three pixel values are [118, 118, 121].) Therefore,

the pseudo-random process is needed to prevent the important image from being

revealed. The protection is through randomizing the MSOC code before embedding.

To randomize a binary string of length S, there are C(S, K) =

_(S−K)!K!S!

possible

combinations where K is the number of 1 in the binary string. The possibility of

guessing the right solution is only

_C(S,K)1

. In the above example, the possibility is

1

C(21,12)

=

293,9301

. In our experiment, which embeds 256

× 256 Jet into 512 × 512

Lena with threshold T = 3, the size of the MSOC code is 285,762, and K is 106,090,

so the possibility is 1/C(285,762, 106,090). Obviously, there is a very small chance

for the hacker to guess the right combination to obtain the important image. Hence,

the pseudo-random process is utilized to prevent the important image from being

divulged. Note that the seed of the pseudo-random number generator

9

can be a

private key known to the sender and the receiver. The hacker can hardly know the

important image without the private key, even if he monitors the whole process

of transmission, and picks the right stego-images from a bunch of coy images sent

along with these stego-images.

6. Summary

In this paper, a steganography scheme is proposed. The scheme contains three

parts: (1) MSOC encoding; (2) pseudo-random permutation; and (3) an embedding

process using variance-based modulus function. The MSOC method makes the

(24)

important image more compact and hence more suitable for the embedding

pro-cedure later. A user-speciﬁed non-negative integer threshold T is introduced to

control the length of the MSOC code, which in turn aﬀects later the quality of the

extracted important image. If the size of the important image is not small, then

we might need to use a larger value of T to handle the case. However, if the size

of the important image is small, then the readers may just use T = 1 so that the

extracted important image is error-free. Therefore, the use of T provides more

ﬂex-ibility for practical applications. To increase the security level, a pseudo-random

permutation algorithm has been utilized by applying the MT pseudo-random

num-ber generator.

9

In the embedding part, we use a variance-based criterion to estimate

the hiding capacity of a pixel in the cover image. The criterion is based on human

visual system (HVS): more bits can be hidden in a pixel of busy area. From the

experimental results, it can be seen that the variance-based estimation is more

suitable than its counterpart in Ref. 13 which uses the pixel value to estimate the

hiding capacity of a pixel.

Experimental results show that the quality of both the stego-images and

extracted important images are competitive to those obtained in many existing

steganograpy methods reported recently. From Table 3, it can be seen that the

pro-posed method can create low-proﬁle stego-images to protect the important image

(because stego-images are with competitive qualities), and yet preserve the ﬁdelity

of the important image. The cover images are not necessarily bigger than the

impor-tant images in our approach. In the future, we might try other related topics, such

as digital watermarking

7,8

or corresponding applications.

Acknowledgments

This work was supported by National Science Council, Republic of China, under

grant NSC962221-E-009-039. The authors would like to thank the editor and the

three reviewers for their valuable suggestions.

References

1. C. K. Chan and L. M. Cheng, Hiding data in images by simple LSB substitution, Patt. Recogn.37(3) (2004) 469–474.

2. C. C. Chang, M. H. Lin and Y. C. Hu, A fast and secure image hiding scheme based

on LSB substitution, Int. J. Patt. Recogn. Artif. Intell.16(4) (2002) 399–416.

3. K. L. Chung, C. H. Shen and L. C. Chang, A novel SVD- and VQ-based image hiding

scheme, Patt. Recogn. Lett.22 (2001) 1051–1058.

4. R. M. Davis, The data encryption standard in perspective, Computer Security and the Data Encryption Standard, National Bureau of Standards Special Publication (February, 1978).

5. C. H. Hsieh and J. C. Tsai, Lossless compression of VQ index with search-order

coding, IEEE Trans. Imag. Process.5(11) (1996) 1579–1582.

6. Y. C. Hu and M. H. Lin, Secure image hiding scheme based upon vector quantization, Int. J. Patt. Recogn. Artif. Intell.18(6) (2004) 1111–1130.
