dbPTM 3.0: an informative resource for investigating substrate site specificity and functional association of protein post-translational modifications

(1)

dbPTM 3.0: an informative resource for investigating

substrate site specificity and functional association

of protein post-translational modifications

Cheng-Tsung Lu

1

, Kai-Yao Huang

1

, Min-Gang Su

1

, Tzong-Yi Lee

1,2,

*,

Neil Arvin Bretan˜a

1

, Wen-Chi Chang

3

, Yi-Ju Chen

4

, Yu-Ju Chen

4

and

Hsien-Da Huang

5,6,

*

1

Department of Computer Science and Engineering, Yuan Ze University, 2Gradulate Program in Biomedical Informatics, Yuan Ze University, Chung-Li 320, 3Institute of Tropical Plant Sciences, National Cheng Kung University, Tainan 701, 4Institute of Chemistry, Academia Sinica, Taipei 115, 5Institute of Bioinformatics and Systems Biology and6Department of Biological Science and Technology, National Chiao Tung University, Hsin-Chu 300, Taiwan

Received September 18, 2012; Revised October 26, 2012; Accepted October 31, 2012

ABSTRACT

Protein modification is an extremely important post-translational regulation that adjusts the physical and chemical properties, conformation, stability and activity of a protein; thus altering protein function. Due to the high throughput of mass spectrometry (MS)-based methods in identify-ing site-specific post-translational modifications (PTMs), dbPTM (http://dbPTM.mbc.nctu.edu.tw/) is updated to integrate experimental PTMs obtained from public resources as well as manually curated MS/MS peptides associated with PTMs from research articles. Version 3.0 of dbPTM aims to be an informative resource for investigating the sub-strate specificity of PTM sites and functional asso-ciation of PTMs between substrates and their interacting proteins. In order to investigate the sub-strate specificity for modification sites, a newly de-veloped statistical method has been applied to identify the significant substrate motifs for each type of PTMs containing sufficient experimental data. According to the data statistics in dbPTM, >60% of PTM sites are located in the functional domains of proteins. It is known that most PTMs can create binding sites for specific protein-interaction domains that work together for cellular function. Thus, this update integrates protein– protein interaction and domain–domain interaction to determine the functional association of PTM sites

located in protein-interacting domains. Additionally, the information of structural topologies on trans-membrane (TM) proteins is integrated in dbPTM in order to delineate the structural correlation between the reported PTM sites and TM topologies. To facili-tate the investigation of PTMs on TM proteins, the PTM substrate sites and the structural topology are graphically represented. Also, literature information related to PTMs, orthologous conservations and substrate motifs of PTMs are also provided in the resource. Finally, this version features an improved web interface to facilitate convenient access to the resource.

INTRODUCTION

Protein post-translational modiﬁcation (PTM) plays an essential role in various cellular processes that adjusts the physical and chemical properties, folding, conform-ation, stability and activity of proteins; thus altering protein function (1). More than 200 different types of PTMs have been identiﬁed by mass spectrometry (MS)-based proteomics (2). The biological functions of this ubiquitous regulatory mechanisms include phosphoryl-ation for signal transduction, attachment of fatty acids for membrane anchoring and association, glycosylation for changing protein half-life, targeting substrates, promo-tion of cell–cell and cell–matrix interacpromo-tions, acetylapromo-tion and methylation of histone for gene regulation and ubiquitylation for protein degradation (3). With the

*To whom correspondence should be addressed. Tel: +886 3 4638800 (ext. 3007); Fax: +886 3 4638850; Email: [email protected] Correspondence may also be addressed to Hsien-Da Huang. Tel: +886 3 5712121 (ext. 56952); Fax: +886 3 5739320; Email:[email protected] The authors wish it to be known that, in their opinion, the ﬁrst three authors should be regarded as joint First Authors.

ß The Author(s) 2012. Published by Oxford University Press.

This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by-nc/3.0/), which permits non-commercial reuse, distribution, and reproduction in any medium, provided the original work is properly cited. For commercial re-use, please contact [email protected].

at National Chiao Tung University Library on April 27, 2014

http://nar.oxfordjournals.org/

(2)

high-throughput MS or MS/MS-based methods in prote-omics, several databases associated with a specific modifi-cation type have been established. Phospho.ELM (4), Phosphorylation Site Database (5), PhosphoSitePlus (6), PHOSIDA (7) and PhosPhAt (8) were developed for accumulating experimentally verified phosphorylation sites. NetworKIN (9) and RegPhos (10) designed an inte-grative method to identify the kinase-substrate phosphor-ylation networks. O-GLYCBASE (11) and dbOGAP (12) are the databases of glycoproteins, most of which include experimentally verified O-linked glycosylation sites. UbiProt (13) stores experimental ubiquitylated proteins and ubiquitylation sites, which are implicated in protein degradation through an intracellular ATP-dependent pro-teolytic system. PupDB (14) is a prokaryotic ubiquitin-like protein (Pup) database which stores a collection of experi-mentally identified pupylated proteins and pupylation sites from published articles. It also integrates the infor-mation of pupylated proteins with corresponding struc-tures and functional annotations. An increasing number of proteomic studies have suggested that protein S-nitrosylation plays important role in the nitric oxide (NO)-related redox pathway. With this, a new database named dbSNO (15) was established by manually curating S-nitrosylation peptides from research articles.

With regard to public resources of multiple PTM types currently available, UniProtKB/Swiss-Prot (2,16) includes as much information of PTMs as is available with func-tional and structural annotations. SysPTM (17) has designed a systematic platform for multi-type PTM research and data mining. Additionally, Human Protein Reference Database (HPRD) (18) contains a wealth of information relevant to the function of human proteins in health and disease, as well as the annotation of PTMs. With the importance of protein modifications in biological processes, we have previously proposed dbPTM (19) which integrates published databases in order to obtain experimentally validated protein modifications, as well as putative PTM substrate sites predicted by a series of accurate computational tools (20–22). Version 2.0 of dbPTM was extended to a knowledge base comprising the modified sites, solvent accessibility of substrate, protein secondary and tertiary structures, protein domains and protein variations (23).

Due to the high throughput of MS/MS-based methods in identifying site-specific PTMs, this version (dbPTM 3.0) not only integrates experimental PTMs from public re-sources but also manually curates MS/MS peptides associated with PTMs from research articles using a text mining approach. The dbPTM 3.0 aims to be an inform-ative resource for investigating the substrate specificity of PTM sites and functional association of PTMs between substrates and their interacting proteins. In order to inves-tigate the substrate specificity for modification sites, a newly developed method, MDDLogo (24), has been applied to identify the significant substrate motifs for each type of PTMs. According to the data statistics in dbPTM, >60% of PTM sites are located in protein func-tional domains. Many PTMs can create binding sites for specific protein-interaction domains that work together for cellular function and read the state of proteome to

cellular organization (25). Thus, this update integrates both protein–protein interaction (PPI) and domain– domain interaction information to determine the functional association of PTM sites located in protein-interacting domains. Additionally, in order to delineate the structural correlation between the reported PTM sites and transmembrane (TM) topologies, the informa-tion of structural topologies on TM proteins is integrated in dbPTM 3.0. To facilitate the investigation of PTMs on TM proteins, PTM sites as well as the structural topology of TM proteins are graphically represented. Furthermore, the web interface is enhanced to facilitate access to the resource and is now freely accessible at http://dbPTM. mbc.nctu.edu.tw/.

IMPROVEMENTS

The highlighted improvements and advances in dbPTM 3.0 are presented in Figure 1 including data integration from public PTM resources and research articles, investi-gation of PTM substrate site speciﬁcity, investiinvesti-gation of PTM-associated protein interactions, as well as the inves-tigation of the effects of PTM on TM proteins. To facili-tate the study of PTMs and their functions, the web interface is redesigned and enhanced. Published literature information related to PTMs, orthologous conservations and substrate motifs of PTM sites are also provided in this online resource. The details of each improved process are depicted as follows.

Data integration from public PTM resources and research articles

Supplementary Figure S1 shows the detailed system flow of the construction of dbPTM 3.0. Due to the inaccess-ibility of database contents in several online PTM resources, a total 11 biological databases related to PTMs are integrated in dbPTM, including UniProtKB/ Swiss-Prot (2), version 9.0 of Phospho.ELM (4), PhosphoSitePlus (6), PHOSIDA (26), version 6.0 of O-GLYCBASE (11), dbOGAP (12), dbSNO (15), version 1.0 of UbiProt (13), PupDB (14), version 1.1 of SysPTM (17) and release 9.0 of HPRD (27). A brief de-scription and the data statistics of the integrated databases are given in Supplementary Table S1. To solve the hetero-geneity among the data collected from different sources, the reported modification sites are mapped to the UniProtKB protein entries using sequence comparison. With the high throughput of MS-based methods in post-translational proteomics, this update also includes manually curated MS/MS-identified peptides associated with PTMs from research articles through a literature survey. First, a table list of PTM-related keywords is con-structed by referring to the UniProtKB/SwissProt PTM list (http://www.uniprot.org/docs/ptmlist.txt) and the an-notations of RESID (28). Then, all fields in the PubMed database are searched based on the keywords of the con-structed table list. This is then followed by downloading the full text of the research articles. For the various experiments of proteomic identification, a text-mining system is developed to survey full-text literature that

(3)

potentially describes the site-specific identification of modified sites. Approximately 800 original and review articles associated with MS/MS proteomics and protein modifications are retrieved from PubMed (July 2012). Next, the full-length articles are manually reviewed for precisely extracting the MS/MS peptides along with the modified sites. Furthermore, in order to determine the lo-cations of PTMs on a full-length protein sequence, the experimentally verified MS/MS peptides are then mapped to UniProtKB protein entries based on its database identifier (ID) and sequence identity. In the process of data mapping, MS/MS peptides that cannot align exactly to a protein sequence are discarded. Finally, each mapped PTM site is attributed with a cor-responding literature (PubMed ID).

Detection of PTM substrate site speciﬁcities

Due to the difficulty of detecting the conserved motifs for a specific PTM with a large data size, MDDLogo (24) was used to identify the substrate motifs for each type of PTMs containing >500 modified peptides. MDDLogo exploits maximal dependence decomposition (MDD) in order to discover conserved motifs from a group of aligned signal sequences. MDD groups a set of aligned signal sequences into subgroups that capture the most sig-nificant dependencies between positions. MDD adopts

Chi-squared test 2_ðA

i,AjÞto evaluate the dependence of

amino acid occurrence between two positions Ai and Aj

that surround the PTM substrate sites. MDDLogo has demonstrated its effectiveness in identifying substrate motifs of plant and virus phosphorylation (29,30), as well as the mouse S-nitrosylation (31). In order to extract the motifs that have conserved biochemical property of amino acids when doing MDD, it categorizes the 20 types of amino acids into ﬁve groups such as aliphatic, polar and uncharged, acid, basic and aromatic groups, as shown in Supplementary Figure S2. An example of MDD clustering on S-nitrosylation data shows that position 7 has the maximal depend-ence with the occurrdepend-ence of basic amino acids, including lysine (k), arginine (r) and histidine (H). Subsequently, all data can be divided into two subgroups: one has the occurrence of basic amino acids in position 7 and the other does not have the occurrence of basic amino acids in position 7. The MDD clustering is a re-cursive process to divide the data sets into tree-like subgroups.

Integration of protein domains, domain–domain interactions and PPIs

Protein-interaction domains usually recognize short peptide motifs of a target protein but do not bind stably

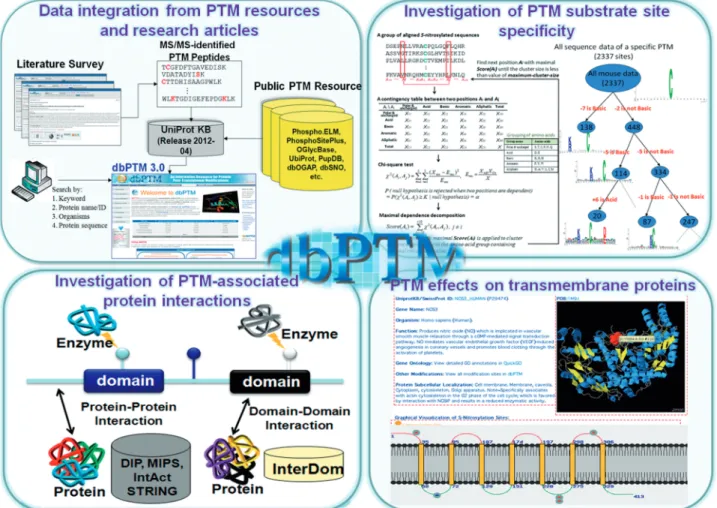

Figure 1. The highlighted improvements and advances in dbPTM 3.0.

(4)

until the peptides have the appropriate PTMs; this can create binding sites for specific protein-interaction domains that work together for cellular function and read the state of proteome to cellular organization (25). For instance, the SH2 domain can bind to phospho-tyrosine (pTyr)-associated peptides in a manner that depends on ligand phosphorylation and the motif of the flanking amino acids (32,33). Thus, this update integrates the information of protein functional domains and PPIs to infer the PTM-dependent protein interactions. To investi-gate the preference of functional domains for PTM, this study refers to the domain annotations in InterPro (34). InterPro is an integrated resource, which was developed initially as a means of rationalizing the complementary efforts of the PROSITE (35), PRINTS (36), Pfam (37) and ProDom (38) databases, for providing protein ‘signa-tures’ such as protein families, domains and functional sites. For the information of experimentally verified PPIs, five databases including DIP (39), MINT (40), IntAct (41), HPRD (18) and STRING (42) are integrated in dbPTM (see Supplementary Table S2). Additionally, the domain–domain interactions of InterDom (43) are also integrated to determine the functional association for the PTM sites which locate in protein-interacting domains.

Integration of TM proteins with structural topology TM proteins play crucial roles in various cellular processes (44). A genome-wide study has discovered that 20–30% of the proteins encoded by a typical genome are TM proteins (45). However, due to the experimental difficulties in obtaining high-quality structures, TM proteins are notably under-represented in Protein Data Bank (46). The biological roles of PTMs playing on TM proteins include phosphorylation for signal transduction and ion transport, acetylation for structure stability, at-tachment of fatty acids for membrane anchoring and as-sociation, as well as the glycosylation for receptors targeting, cell–cell interactions and virus infection (44,47). With the importance of PTMs functioning on TM proteins, the experimentally curated information of membrane topologies is collected from TMPad (48), TOPDB (49), PDB_TM (50) and OPM (51). In order to provide a comprehensive investigation of TM proteins, a potential set of TM proteins is extracted from UniProtKB (52) by choosing protein entries which contain the keyword ‘TRANSMEM’ in feature (‘FT’) line, the local-ization of ‘membrane’ and the information of TM topology. The potential TM proteins are further filtered using a TM prediction program MEMSAT (53) to deter-mine its membrane topologies. As shown in Supplementary Table S3, the filtering process resulted in 2216 experimental and 43 142 potential TM proteins with membrane topologies. To facilitate the investigation of PTMs on TM proteins, the structural topology of TM proteins is graphically represented using PHP GD library, as well as the PTM substrate sites. Moreover, the tertiary structures of TM proteins and PTM sites are visualized using the Jmol program (54).

Integration of external biological databases

For a given protein, the basic biological functions can be obtained from the annotations of UniProtKB. To provide more information about protein functional and structural annotations relevant to the modiﬁed proteins and the PTM substrate sites, the data contents of Gene Ontology (GO) (55), Protein Data Bank (PDB) (46) and Clusters of Orthologous Groups (COGs) (56) have been integrated in dbPTM. In this study, the information re-garding the molecular function, cellular components and biological process for a modiﬁed protein can be accessed by a crosslink that refers to the corresponding entry from QuickGO (57) via a UniProtKB accession number. In order to facilitate the investigation of structural character-istics surrounding the PTM substrate sites, protein tertiary structure obtained from PDB was graphically presented by Jmol program. For proteins with tertiary structures (5% of UniProtKB/Swiss-Prot proteins), the protein structural properties, such as solvent accessibility and sec-ondary structure of residues, were calculated by DSSP (58). With respect to the previous studies investigating the structural characteristics of PTMs (59–61) in proteins without known tertiary structures, two effective tools, RVP-net (62) and PSIPRED (63), are used to predict the solvent accessibility and secondary structure, respectively. In order to observe whether a PTM sites located in the conserved regions among orthologous protein sequences, the COGs of proteins were integrated and the ClustalW (64) program was adopted to implement the alignment of multiple protein sequences in each COG cluster.

DATA CONTENT AND UTILITY

Data statistics of the integrated PTM sites

In order to provide the most comprehensive data of PTMs, this update not only integrates experimental PTMs from 11 external PTM-related resources but also manually curates MS/MS peptides associated with PTMs from 800 research articles. After removing the redun-dancy data among these heterogeneous resources, there are totally 208 521 experimental PTM sites in dbPTM 3.0. All the experimental PTM sites are further categorized by PTM types and the number of non-redundant PTM sites is calculated. As the data statistics of representative PTM types shown in Table 1, protein phosphorylation contains the most abundant data of experimentally verified substrate sites. Due to the high throughput of Ms/MS-based proteomics in the site-specific identification of modified peptides, several PTMs have a significantly increasing number of experimental data, including protein ubiquitylation, acetylation, methylation, N-linked and O-linked glycosylation, as well as the emerging S-nitrosylation. In addition to the experimental PTM sites, UniProtKB/Swiss-Prot provides putative PTM sites by using sequence similarity or evolutionary poten-tial, which are annotated as ‘by similarity’, ‘potential’ or ‘probable’ in the ‘MOD_RES’ fields. A total of 226 122 putative sites for all PTM types are integrated in dbPTM.

(5)

Moreover, a KinasePhos-like method (19–22) has been adopted to construct the profile hidden Markov models (HMMs) for 18 types of PTM. Especially in protein phos-phorylation, >70 kinase-specific prediction models are constructed and used to identify the putative phosphoryl-ation sites with their kinases. These models were applied to search the potential PTM sites against UniProtKB/ Swiss-Prot protein sequences. As given in Table 1, totally 2 509 267 putative sites for all PTM types are detected by HMMs with 90% predictive specificity. All the experimental PTM sites and putative PTM sites are available and downloadable in the web interface.

Enhanced web interface

To facilitate the use of the dbPTM resource, the web inter-face has been redesigned and enhanced to allow efﬁcient access to the protein of interest. Supplementary Figure S3 shows the content of a typical dbPTM query: (i) quick search by IDs and keywords, (ii) basic information, (iii) graphical visualization of PTM sites with structural characteristics and functional domains, (iv) table of experimental PTM sites with reported literature, (v) orthologous conservation of PTM substrate sites, (vi) PPIs and domain–domain interactions and (vii) litera-ture related to PTMs. The combined visualization of PTM sites and function domains for a protein sequence can help users to understand the functional associations of PTM

substrate sites. According to the multiple sequence align-ment result of orthologous proteins, users can investigate whether a PTM site located in evolutionary conserved regions, which indicates that the orthologous sites in other species could be involved in the same modiﬁcation. Additionally, this update incorporates the protein func-tional domains and domain–domain interactions to infer the PTM-dependent protein interactions. Moreover, the literatures associated with PTMs are categorized by the modiﬁcation type.

In addition to the database query by the protein name, gene name, UniProtKB ID or accession, the protein sequence is allowed for homology search against UniProtKB protein sequence database using Blast (65) program. For browse function of dbPTM web site, a summary table of PTM types and their modified residues is provided for users to efficiently access the number of data in a specific modified amino acid of a PTM type. The annotations of PTM types are referred to the UniProtKB/Swiss-Prot PTM list (http://www. uniprot.org/docs/ptmlist.txt). As depicted in Supplemen-tary Figure S4, the acetylation of lysine (K) is chosen to obtain more detailed information such as the location of the modification in protein sequence, the modified chemical formula, the mass difference and the substrate site specificity, which is the preference of amino acids surrounding the modification sites. The structural

Table 1. Data statistics of experimental and putative PTM sites in dbPTM

PTM types Number of experimental

substrate sites

Number of putative substrate sites from UniProtKB/Swiss-Prot Number of HMM-predicted sites Phoshorylation 142 446 74 174 1 414 879 Ubiquitylation 23 647 1702 8865 N-linked glycosylation 15 242 87 529 418 253 Acetylation 9683 19 981 1156 O-linked glycosylation 3508 3695 373 758 Amidation 2533 1445 114 034 Hydroxylation 1629 1274 9743 Methylation 1585 5479 22 332

Pyrrolidone carboxylic acid 829 742 12 322

Sumoylation 725 800 13 042 Gamma-carboxyglutamic acid 448 814 1942 Palmitoylation 312 5252 33 830 Sulfation 207 800 70 005 Myristoylation 178 1275 988 C-linked glycosylation 156 99 3923 Prenylation 130 1327 6741 Nitration 80 93 1432 Deamidation 52 165 2022 S-nitrosylation 3096 170 – Oxidation 333 180 – ADP-ribosylation 140 164 – N6-succinyllysine 88 69 – Formylation 56 125 – GPI anchoring 34 849 – Bromination 33 56 – N6-malonyllysine 33 167 – Citrullination 32 110 – N6-carboxylysine 30 1566 – Glutathionylation 19 32 – FAD 19 163 – Others 1218 15 825 – Total 208 521 226 122 2 509 267

(6)

characteristics, such as solvent accessibility and secondary structure surrounding the PTM substrate sites, are also provided. Additionally, the substrate site specificity of the acetylated lysines is investigated in detail with refer-ence to the subcellular localizations of acetylated proteins. Previous work has demonstrated that the co-localization of acetyltransferases and substrate proteins could be a promising method to investigate the substrate site specificities and could be adopted to improve the compu-tational identification of protein acetylation sites (66). Investigation of PTM substrate site specificities

Given a window length, n, the fragment of 2n+1 residues centering on PTM site (position 0) is extracted and the positional frequencies of amino acids are calculated and presented as sequence logos by WebLogo (67). Supplementary Figure S5 shows the substrate motif and structural characteristics of experimental phosphorylation sites. According to the kinase classiﬁcation extracted from KinBase (http://kinase.com/) and RegPhos (10), the sub-strate site speciﬁcity of protein phosphorylation could be

further categorized into >200 kinase groups. As given in Supplementary Figure S5, most of the kinase-specific sub-strate motifs have conserved amino acids surrounding the phosphorylation sites. For the PTMs other than phos-phorylation, there are no annotations of catalytic enzymes or transferases due to the experimental difficulty in identifying the catalytic enzymes for a specific PTM. Based on the basic concept of sequence conservation, a sequence logo could display the substrate motif for each PTM type with a group of aligned sequences. However, it is difficult to explore conserved motifs for large-scale sequence data; for instance, a sequence logo for all phos-phorylation data involved with various catalytic kinases fails to obviously present the kinase-specific substrate spe-cificity. Thus, for the PTM containing sufficient data of experimental substrate sites, MDDLogo was performed to cluster a group of aligned substrate sequences into sub-groups containing statistically significant motifs. As the example of protein S-nitrosylation presented in Figure 2, 10 sequence logos, which were identified from 3095 S-nitrosylated peptides with a 13-mer window length,

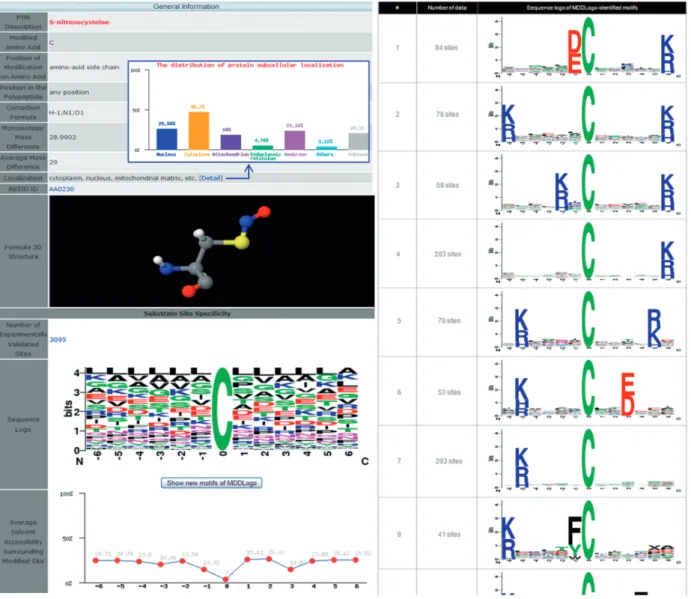

Figure 2. The MDDLogo-identiﬁed substrate motifs of protein S-nitrosylation sites.

(7)

contain a conserved motif of positively charged amino acids (K, R and H) surrounding the S-nitrosocysteine. Interestingly, the first and sixth groups contain the conserved motifs of negatively charged amino acids (D and E) accompanied by positively charged amino acids at two specific positions. Consistent with previous studies (68–73), the S-nitrosylated cysteines may be located within an acid-base motif flanked by acidic and basic amino acids.

Investigation of PTM-associated domains and protein interactions

According to the data statistics in dbPTM, >60% of ex-perimentally veriﬁed PTM sites locate in the functional domains of proteins. Such statistics could be analyzed in detail for each type of PTMs. For instance of protein S-nitrosylation, which is an emerging PTM playing crucial role in the regulation of NO-related cellular processes, the statistics shows that 70% of the reported S-nitrosylation sites locate within the functional domains. Furthermore, the detailed distribution of functional domains covering S-nitrosylation sites is given in Supplementary Table S4. It is observed that the most preferred functional domain is the ‘nucleotide-binding alpha–beta plait’ with InterPro ID: IPR012677 which

covers 47 S-nitrosylation sites. Another preferred func-tional domain is the ‘RNA recognition motif, RNP-1’ domain with InterPro ID: IPR000504 which covers 46 S-nitrosylation sites. This investigation indicates that these S-nitrosylation sites may play important roles in the domains of proteins involving in DNA or RNA binding (74). In addition, Supplementary Table S5 shows the distribution of functional domains covering substrate sites for several representative PTMs, including acetylation, methylation, hydroxylation, N-linked and O-linked glycosylation, phosphorylation and ubiquitylation.

Many PTMs provide binding sites for specific protein-interaction domains, which often contain a conserved structure for the modified site and a more flexible surface for the flanking amino acids, synergize to regulate cellular processes (75–78). In order to investigate the PTM-associated protein interactions, the information of domain–domain interactions collected from InterDom is adopted in this study. As the case study of ‘Histone H3’ (UniProtKB ID: H31_HUMAN) presented in Figure 3, ‘Heterochromatin protein 1 homolog alpha’ (‘HP1’, UniProtKB ID: CBX5_HUMAN) and ‘WD repeat-containing protein 5’ (‘WDR5’, UniProtKB ID: WDR5_HUMAN) interact with ‘Histone H3’. When

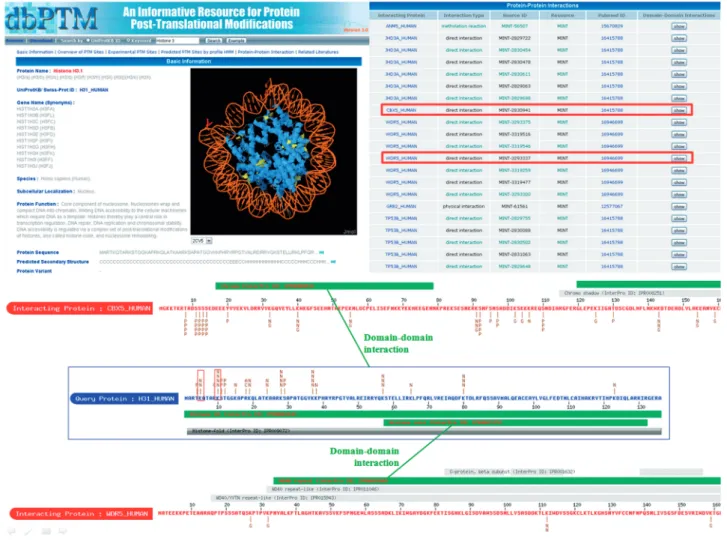

Figure 3. A case study of domain–domain interactions and PTM-associated protein interactions on Histone H3 (UniProtKB ID: H31_HUMAN).

(8)

investigating the protein interaction between ‘HP1’ and ‘Histone H3’ in detail, there is a domain–domain inter-action between ‘Chromodomain’ (InterPro ID: IPR000953) and ‘Histone H3’ (InterPro ID: IPR000164). Among the PTMs located in the domain of ‘Histone H3’, a previous study has demonstrated that the ‘HP1 chromodomain’ can bind to the ‘Histone H3’ methylated at lysine 10 (79). Another protein interaction shows that there is a domain–domain interaction between the ‘WD40 Repeat’ (InterPro ID: IPR001680) and ‘Histone Core’ (InterPro ID: IPR007125). It has been proposed that the structural motif for the speciﬁc recognition of methylated ‘Histone H3’ lysine 5 by ‘WD40 Repeat’ of ‘WDR5’ is essential to vertebrate development (80,81). This investi-gation indicates that the other PTM sites could be the potential binding sites for protein-interaction domains.

Investigation of PTM sites on TM proteins

According to the data statistics of PTM sites and TM proteins in dbPTM, a total of 9644 and 68 775 PTM sub-strate sites locate on the 2088 experimental and 33 747 potential TM proteins, respectively. In order to investigate the structural distribution of PTM sites on TM proteins, the structural topologies of a TM protein are mainly

categorized into four types: extracellular, cytoplasmic, TM and unknown regions. Supplementary Table S6 pro-vides the structural distribution of PTMs containing >10 substrate sites on experimental TM proteins. Interestingly, without the consideration of substrate sites located in unknown region, all of the N-linked (GlcNAc . . .) glycosy-lation sites are located in the extracellular region, as well as the O-linked and C-linked glycosylation sites. This in-vestigation is reasonable to understand the biological effect of glycosylation functioning on TM proteins for receptor targeting and cell–cell interactions (47). Otherwise, the phosphorylation sites are mainly located in cytoplasmic regions, which induce signal transduction and ion transport. The structural distribution of PTM sites could be the means to infer the potential roles of PTMs functioning on TM proteins. Actually, a previous work has demonstrated that the incorporation of membrane topology could improve the performance of predicting O-linked glycosylation sites on TM proteins (82). Supplementary Figure S6 shows a graphical visualization of the PTMs and membrane topology on human Beta-2 adrenergic receptor (ADRB2). Further-more, two modiﬁcation sites Tyr141 (pTyr) and Cys341 (S-palmitoyl cysteine) are further highlighted in red on the tertiary structure (PDB ID: 2R4R) using Jmol viewer,

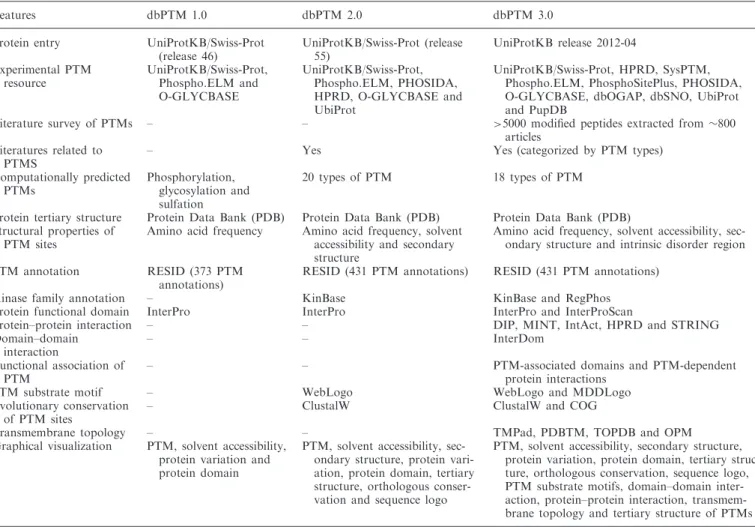

Table 2. Advances and improvements in this update (dbPTM 3.0)

Features dbPTM 1.0 dbPTM 2.0 dbPTM 3.0

Protein entry UniProtKB/Swiss-Prot

(release 46) UniProtKB/Swiss-Prot (release 55) UniProtKB release 2012-04 Experimental PTM resource UniProtKB/Swiss-Prot, Phospho.ELM and O-GLYCBASE UniProtKB/Swiss-Prot, Phospho.ELM, PHOSIDA, HPRD, O-GLYCBASE and UbiProt UniProtKB/Swiss-Prot, HPRD, SysPTM, Phospho.ELM, PhosphoSitePlus, PHOSIDA, O-GLYCBASE, dbOGAP, dbSNO, UbiProt and PupDB

Literature survey of PTMs – – >5000 modiﬁed peptides extracted from 800

articles Literatures related to

PTMS

– Yes Yes (categorized by PTM types)

Computationally predicted PTMs Phosphorylation, glycosylation and sulfation 20 types of PTM 18 types of PTM

Protein tertiary structure Protein Data Bank (PDB) Protein Data Bank (PDB) Protein Data Bank (PDB)

Structural properties of PTM sites

Amino acid frequency Amino acid frequency, solvent

accessibility and secondary structure

Amino acid frequency, solvent accessibility, sec-ondary structure and intrinsic disorder region

PTM annotation RESID (373 PTM

annotations)

RESID (431 PTM annotations) RESID (431 PTM annotations)

Kinase family annotation – KinBase KinBase and RegPhos

Protein functional domain InterPro InterPro InterPro and InterProScan

Protein–protein interaction – – DIP, MINT, IntAct, HPRD and STRING

Domain–domain interaction

– – InterDom

Functional association of PTM

– – PTM-associated domains and PTM-dependent

protein interactions

PTM substrate motif – WebLogo WebLogo and MDDLogo

Evolutionary conservation of PTM sites

– ClustalW ClustalW and COG

Transmembrane topology – – TMPad, PDBTM, TOPDB and OPM

Graphical visualization PTM, solvent accessibility,

protein variation and protein domain

PTM, solvent accessibility, sec-ondary structure, protein vari-ation, protein domain, tertiary structure, orthologous conser-vation and sequence logo

PTM, solvent accessibility, secondary structure, protein variation, protein domain, tertiary struc-ture, orthologous conservation, sequence logo, PTM substrate motifs, domain–domain inter-action, protein–protein interinter-action, transmem-brane topology and tertiary structure of PTMs

(9)

which indicates the solvent accessibility and distance between them.

CONCLUSION

The expansion of the dbPTM database increases its use-fulness for researchers investigating the impact of PTMs on protein function and cellular processes. Additionally, the enhanced web interface enables both wet-lab biologists and bioinformatics researchers to efficiently explore the further information about protein PTMs. Table 2 sum-marizes the advancements and new features supported in dbPTM 3.0. In the future, we expect dbPTM to continue to grow with the increasing availability of data in re-sources such as Phospho.ELM, PhosphoSitePlus and UniProtKB. One area that we can envision dbPTM im-proving greatly in prospective works is implementing a more accurate method for the discovery of PTM substrate motifs. Also, enhancements on the text mining algorithm will enable the system to select MS/MS peptides from research articles associated with protein modifications with a higher confidence rate. In order to provide more adequate information for PTM function, the descriptions associated with the biological function of PTMs will be extracted from research articles using an information re-trieval system. Moreover, the thermodynamic parameters for proteins (83), PPIs (84) and protein–nucleic acid inter-actions (85) could be integrated for the investigation of PTM-associated protein stability.

AVAILABILITY

The data content of dbPTM will be regularly maintained and semiannually updated. The resource is now available at http://dbPTM.mbc.nctu.edu.tw/.

SUPPLEMENTARY DATA

Supplementary Data are available at NAR Online: Sup-plementary Tables 1–6 and SupSup-plementary Figures 1–6.

FUNDING

National Science Council of the Republic of China ﬁnan-cial support, [contract no. 101-2628-E-155-002-MY2, NSC 101-2311-B-009-003-MY3, NSC 100-2627-B-009-002, NSC 101-2911-I-009-101 and NSC 101-2319-B-400-001]. Funding for open access charge: National Science Council of Taiwan.

Conﬂict of interest statement.None declared.
