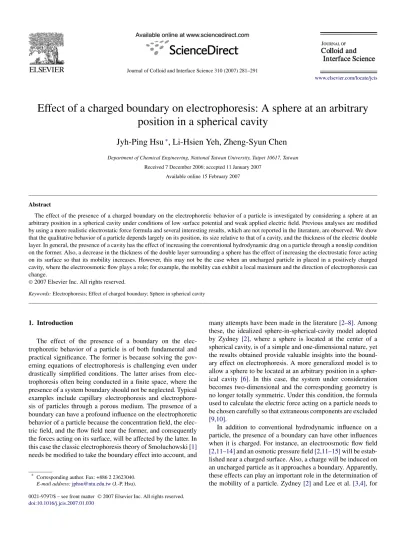

Effect of a charged boundary on electrophoresis: A sphere at an arbitrary position in a spherical cavity

Effect of a charged boundary on electrophoresis: A sphere at an arbitrary

position in a spherical cavity

Jyh-Ping Hsu

, Li-Hsien Yeh, Zheng-Syun Chen

Department of Chemical Engineering, National Taiwan University, Taipei 10617, Taiwan Received 7 December 2006; accepted 11 January 2007

Available online 15 February 2007

Abstract

The effect of the presence of a charged boundary on the electrophoretic behavior of a particle is investigated by considering a sphere at an arbitrary position in a spherical cavity under conditions of low surface potential and weak applied electric field. Previous analyses are modified by using a more realistic electrostatic force formula and several interesting results, which are not reported in the literature, are observed. We show that the qualitative behavior of a particle depends largely on its position, its size relative to that of a cavity, and the thickness of the electric double layer. In general, the presence of a cavity has the effect of increasing the conventional hydrodynamic drag on a particle through a nonslip condition on the former. Also, a decrease in the thickness of the double layer surrounding a sphere has the effect of increasing the electrostatic force acting on its surface so that its mobility increases. However, this may not be the case when an uncharged particle in placed in a positively charged cavity, where the electroosmotic flow plays a role; for example, the mobility can exhibit a local maximum and the direction of electrophoresis can change.

©2007 Elsevier Inc. All rights reserved.

Keywords: Electrophoresis; Effect of charged boundary; Sphere in spherical cavity

1. Introduction

The effect of the presence of a boundary on the elec-trophoretic behavior of a particle is of both fundamental and practical significance. The former is because solving the gov-erning equations of electrophoresis is challenging even under drastically simplified conditions. The latter arises from elec-trophoresis often being conducted in a finite space, where the presence of a system boundary should not be neglected. Typical examples include capillary electrophoresis and electrophore-sis of particles through a porous medium. The presence of a boundary can have a profound influence on the electrophoretic behavior of a particle because the concentration field, the elec-tric field, and the flow field near the former, and consequently the forces acting on its surface, will be affected by the latter. In this case the classic electrophoresis theory of Smoluchowski[1]

needs be modified to take the boundary effect into account, and

* _{Corresponding author. Fax: +886 2 23623040.}

E-mail address:jphsu@ntu.edu.tw(J.-P. Hsu).

many attempts have been made in the literature[2–8]. Among these, the idealized sphere-in-spherical-cavity model adopted by Zydney [2], where a sphere is located at the center of a spherical cavity, is of a simple and one-dimensional nature, yet the results obtained provide valuable insights into the bound-ary effect on electrophoresis. A more generalized model is to allow a sphere to be located at an arbitrary position in a spher-ical cavity [6]. In this case, the system under consideration becomes two-dimensional and the corresponding geometry is no longer totally symmetric. Under this condition, the formula used to calculate the electric force acting on a particle needs to be chosen carefully so that extraneous components are excluded

[9,10].

In addition to conventional hydrodynamic influence on a particle, the presence of a boundary can have other influences when it is charged. For instance, an electroosmotic flow field

[2,11–14]and an osmotic pressure field[2,11–15]will be estab-lished near a charged surface. Also, a charge will be induced on an uncharged particle as it approaches a boundary. Apparently, these effects can play an important role in the determination of the mobility of a particle. Zydney[2] and Lee et al.[3,4], for 0021-9797/$ – see front matter © 2007 Elsevier Inc. All rights reserved.

instance, found that a charged cavity may alter the direction of the electrophoresis of a particle. Several other analyses of the influence of a charged boundary include, for example, a sphere moving along the axis of a cylindrical pore[11–13]and normal to a plane[12,15]and a finite cylinder moving along the axis of a cylindrical pore[14].

In this study, the effect of the presence of a charged bound-ary on the electrophoretic behavior of a particle is investigated by considering a spherical particle at an arbitrary position in a spherical cavity under conditions of low surface potential and weak applied electric field. A new formula, which is more re-alistic than those used in the literature, is adopted to evaluate the electrostatic force acting on a particle. The influence of the key parameters, including the position of a particle, its relative size, and the thickness of the electric double layer, on the elec-trophoretic behavior of a particle is investigated.

2. Theory

Referring to Fig. 1, we consider the electrophoresis of a rigid, nonconductive, spherical particle of radius a at an arbi-trary position in a spherical, nonconductive cavity of radius b. The cylindrical coordinates (r, θ, z) are chosen with their ori-gin placed at the center of the cavity; the center of the particle is at z= m. A uniform electric field E0of strength E0 in the z-direction is applied. Since the problem under consideration is θ-symmetric, only the (r, z) domain need be considered. We assume that E0 is relatively weak compared to the field es-tablished by a particle and/or by a boundary, and the surface potential is sufficiently low. The former is usually satisfied for conditions of practical significance and the latter is appropri-ate if the surface potential is lower than about 25 mV. Based on

Fig. 1. The problem considered where a spherical particle of radius a is placed at an arbitrary position in a spherical cavity of radius b. A uniform electric field E0parallel to the z-direction is applied. The centers of the particle and the

cavity are at z= m and z = 0, respectively, and θ is the solid angle.

those assumptions, it can be shown that the electric potential of the present system, Ψ , can be described by[16]

(1) ∇2_Ψ 1= κ2Ψ1, (2) ∇2_Ψ 2= 0,

where Ψ = Ψ1+ Ψ2, Ψ1 is the electrical potential in the ab-sence of E0, and Ψ2 is the electrical potential outside the particle arising from E0. ∇2 _{is the Laplace operator, κ =} [jn0j(ezj)2/εkBT]1/2is the reciprocal Debye length, n

0 j and zjbeing respectively the bulk number concentration and the va-lence of ionic species j , and ε, e, kB, and T being respectively the permittivity of the liquid phase, the elementary charge, the Boltzmann constant, and the absolute temperature. The follow-ing boundary conditions are assumed,

(3) Ψ1= ζa on particle surface,

(4) Ψ1= ζb on cavity surface,

(5)

n· ∇Ψ2= 0 on particle surface,

(6)

n· ∇Ψ2= −E0cos θ on cavity surface,

where n is the unit normal vector directed into the liquid phase. Equations(3) and (4)imply that the particle and the cavity are held at constant surface potentials ζaand ζb, respectively. Equa-tion(5) arises from the particle surface being nonconductive, and Eq.(6) implies that the local electric field on the cavity wall arises from the applied electric field[2].

If the liquid phase is an incompressible Newtonian fluid, then the flow field at steady state can be described by

(7) ∇ · u = 0,

(8) η∇2u− ∇p = −ρeE0,

where E0= −∇Ψ2, u, η, and p are respectively the velocity, the viscosity, and the pressure of the liquid phase,−ρeE0= ρe∇Ψ2 is the electric body force acting on the fluid[9–12,17], and ρe=

jzjen0_jexp[−zjeΨ/kBT] is the space charge density. Let U be the magnitude of the particle velocity in the z-direction and let ez be the unit vector in the z-direction. Suppose that both the surface of a particle and that of the cavity are nonslip. Then the boundary conditions associated with Eqs.(7) and (8)

are

(9)

u= Uez on particle surface,

(10)

u= 0 on cavity surface.

In the present case only the z-components of the forces act-ing on a particle need be considered. These include the electro-static force and the hydrodynamic force. Applying our recent result[9,10]to the present case, the z-component of the former, FE, can be calculated by[11,12,14,15,17] (11) FE=  S σpEzdS,

where S denotes the particle surface, σp= −εn · ∇Ψ1 is the charge density on S, and Ez= −∂Ψ2/∂z is the strength of the local external electric field in the z-direction. The hydro-dynamic force acting on a particle in the z-direction, FD,

com-prises the viscous force and the pressure. The former can be evaluated by[18] (12) FD=  S η∂(u· t) ∂n tzdS+  S −pnzdS,

where t is the unit tangential vector on S, n is the magnitude of

n, and tzand nzare respectively the z-component of t and that of n. At steady state, we have

(13) FE+ FD= 0.

This expression can be used to evaluate the electrophoretic mobility of a particle. Directly solving an electrophoresis prob-lem involves the calculation of U through a trial-and-error procedure based on Eq. (13). This tedious procedure can be avoided by partitioning the present problem into two subprob-lems[19]. In the first subproblem a sphere moves with speed U in the absence of E0, and in the second subproblem, E0is applied, but the sphere is kept fixed. In the former, a conven-tional hydrodynamic force FD,1= −UD acts on the sphere, where the drag coefficient D is positive and depends upon its geometry and the boundary effect. In the latter, both an elec-trostatic force FE and a hydrodynamic force FD,2 act on the sphere. FD,2 arises from the motion of the mobile ions in the electrical double layer when an external electric field is ap-plied. In the present case FD,2can be either a drag force or a driving force. Note that both FEand FD,2are functions of κa, λ (= a/b), and the relative position of a sphere in a cavity; FD,1 (or D) is a function of λ and the relative position of a sphere in a cavity, but is independent of κa. Substituting the relations FD= FD,1+ FD,2and FD,1= −UD into Eq.(13), we obtain

(14) U=FE+ FD,2

D .

Applying the procedure used previously[10,14], U can be obtained. For convenience, the scaled electrophoretic mobil-ity, U∗ = U/Uref, is used in subsequent discussions, where Uref= εζrefE/η is the electrophoretic velocity of an isolated particle having a constant surface potential ζref= kBT /e. Two representative cases are considered: a positively charged sphere with a scaled constant surface potential ζa∗= eζa/kBT = 1 in an uncharged cavity, and an uncharged sphere in an posi-tively charged cavity with a scaled constant surface potential ζ_b∗= eζb/kBT = 1. Note that the linear nature of the present problem implies that the result for the case when both the sphere and the cavity are charged can be obtained by a linear combina-tion of the results obtained from these two cases. According to Eq.(14), if we let F_E∗= FE/6π ηaUref, F_D,2∗ = FD,2/6π ηaUref, and D∗= D/6πηa, then

(15) U∗=F

∗ E+ FD,2∗

D∗ .

The numerator and the denominator on the right-hand side of this expression can be interpreted respectively as the net driving force per unit applied electrical field and the drag force per unit velocity of the sphere when E0is absent.

Often, the total electric potential Ψ is used in Eqs. (8) and (11)in the literature. For example, the electric body force in

Eq.(8)is expressed as−ρeE0= ρe∇Ψ and Eq.(11)becomes

[3,6–8,20] (16) FE=  S σpEzdS=  S ε  ∂Ψ ∂n  ∂Ψ ∂z  dS.

It should be pointed out that if the geometry of a prob-lem is totally symmetric, these formulas are applicable to var-ious types of charged conditions[9,10]. If this is not the case, then Eqs. (8) and (11)should be used. This is because if the geometry of a problem is not of totally symmetric nature, an extraneous electric body force ρe∇Ψ1and an extraneous elec-trostatic force arising from the equilibrium electric potential

Sε(∂Ψ1/∂n)(∂Ψ1/∂z) dSwill be considered, thereby leading to incorrect results[9,10].

3. Results and discussion

FlexPDE [21], a differential equation solver based on a finite-element method, is adopted for the resolution of the gov-erning equations and the associated boundary conditions. The applicability of the numerical procedure adopted is justified by

Fig. 2, where the result for the case of an uncharged sphere at the center of a charged spherical cavity is presented [2]. This figure reveals that the performance of the software used in this study is satisfactory for the ranges of λ and κa consid-ered.

3.1. Particle positively charged, cavity uncharged

Let us consider first the case when a positively charged spherical particle is in an uncharged spherical cavity. Fig. 3

shows the variations of the scaled drag force coefficient D∗and the scaled electrophoretic mobility U∗as functions of P at vari-ous λ when a is fixed, that is, the radius of a sphere is fixed. The corresponding variations in the scaled electrostatic force F_E∗, the scaled excess hydrodynamic force F_D,2∗ , and the scaled net driving force (F_E∗+ F_D,2∗ ) acting on a sphere are illustrated in

Fig. 4. For comparison, the result of Hsu et al.[6], in which the formula used to evaluate F_E∗ is different from that used in this study, is also presented inFig. 3b. Here, P= 100m/(b − a)% is a position parameter, which measures the relative position of a sphere. Note that P = 0 and 100% represent respectively the case when a sphere is at the center of a cavity and that when the sphere touches the cavity. According toFig. 3a, for a fixed λ, D∗increases with the increase in P , which is expected since the larger the value of P , the closer a sphere to a cavity, and the more important the influence of the latter on the movement of the former. This figure also reveals that if P is fixed, D∗ in-creases with the increase in λ, that is, the more significant the boundary effect the greater the hydrodynamic drag on an un-charged particle, which is expected.Fig. 3b indicates that, for a fixed λ, U∗decreases monotonically with the increase in P , and U∗→ 0 as P → 100%, that is, as the particle touches the cavity. This is expected because, as P increases, the effect of the viscous retardation force due to the presence of the cavity becomes significant, and the rate of increase of D∗ is always

Fig. 2. Variation of scaled electrophoretic mobility U∗ (a) as a function of λ (= a/b) at κa = 1 and (b) as a function of κa at λ = 0.4 for the case where an uncharged sphere is placed at the center of a positively charged spherical cavity. Solid curve, present result; discrete symbols, result of Zydney[2]. Key: ζa∗= 0, ζb∗= 1.

higher than that of (F_E∗+ F_D,2∗ ) shown in Fig. 4a.Fig. 3b re-veals that the results of the present study at P = 0% and of that of Hsu et al.[6] are consistent. However, as P becomes large, they are different both qualitatively and quantitatively, especially if λ is large. In particular, if λ is sufficiently large, the results of Hsu et al.[6]suggest that U∗may increase with the increase of P . This is because for P > 0%, an extra electric body force, ρe∇Ψ1, and an extra electrostatic force arising from the equilibrium electric potential, _Sε(∂Ψ1/∂n)(∂Ψ1/∂z) dS, are included in the analysis[9,10], and therefore, U∗is overesti-mated. As can be seen inFig. 4a, F_E∗increases with the increase in P and/or λ. The former is expected because when a charged particle approaches a neutral surface the contours of electrical potential (or double layer) surrounding the former will be dis-torted, and its surface charge density increases accordingly. The latter is a consequence of the combined effect of the squeeze of the applied electric field between the sphere and the cavity, and the increase in surface charge density as λ increases[14]. Equa-tion(12)can be rewritten in a scaled form as

Fig. 3. Variation of (a) scaled hydrodynamic force coefficient D∗and (b) scaled electrophoretic mobility U∗as a function of P at various values of λ for the case of a positively charged sphere in an uncharged spherical cavity at ζa∗= 1,

ζ_b∗= 0, and κa = 1. Solid curves, present result; discrete symbols, results of Hsu et al.[6].

(17) F_D,2∗ = F_D,2(v)∗ + F_D,2(p)∗ ,

where F_D,2(v)∗ =_Sη[∂(u · t)/∂n]tzdS/6π ηaUrefand F_D,2(p)∗ =S−pnzdS/6π ηaUref are respectively the scaled viscous term and the scaled pressure term of the scaled excess hydrody-namic force. According to Eq.(17), F_D,2∗ comprises a viscous term and a pressure term.Fig. 4a shows that F_D,2∗ is a retar-dation force when the boundary effect is unimportant, but it becomes a driving force when the boundary effect is significant. The latter arises from that the pressure term on the right-hand side of Eq.(17), F_D,2(p)∗ , dominates[14].Fig. 4b indicates that (F_E∗+ F_D,2∗ ) increases monotonically with an increase in P and/or λ. This behavior of (F_E∗+ F_D,2∗ ) is similar to that of F_E∗shown inFig. 4a, implying that F_E∗is the main driving force.

Fig. 5 shows the influence of κa and P on the behavior of U∗. This figure reveals that, for a fixed P , U∗ increases monotonically with κa, which can be explained by the quali-tative behavior of (F_E∗+ F_D,2∗ ) when D∗= D∗(P , λ)is fixed. For the present case, both F_E∗and F_D,2∗ are strongly dependent upon the thickness of the double layer and the scaled net driving

Fig. 4. Variation of (a) scaled electrostatic force F_E∗and scaled excess hydro-dynamic force F_D,2∗ and (b) scaled net driving force (F_E∗+ F_D,2∗ ) as functions of P at various values of λ for the case ofFig. 3.

force (F_E∗+ F_D,2∗ ), which is dominated by F_E∗, increases with the increase in κa. This is because the thinner the double layer surrounding a particle, the greater the absolute value of the gra-dient of the electrical potential on particle surface, the higher the surface charge density, and therefore, the greater the elec-trical driving force.Fig. 5b suggests that if the double layer is thicker than the width of the gap between the sphere and the cavity when P= 0%, κ(b − a) < 1 or κa < λ(1 − λ), U∗is in-sensitive to the variation in κa. This is because if κ(b− a) < 1, the double layer surrounding a particle is deformed by the cav-ity wall, and F_E∗, which is much greater than F_D,2∗ , depends weakly on κa[14]. Note that, for a fixed value of λ, the value of κa at which U∗begins to increase rapidly increases with the increase in P . This is expected, since the larger the value of P , the closer a sphere to a cavity, and the more important the influ-ence of the deformation of the double layer.

Fig. 6shows the variations of D∗and U∗ as a function of λ at various values of P when κa= 1. Fig. 6a suggests that D∗ increases monotonically with the increase in λ and/or P , which is consistent with the results of Fig. 3a. Note that as λ→ 0, D∗→ 1, as is predicted be Stokes’ law, which is based on a spherical particle in an unbounded fluid. As can be seen in Fig. 6b, for a fixed value of P , U∗ declines with the in-crease in λ, which is expected because the larger the value of λ

Fig. 5. Variation of (a) scaled electrophoretic mobility U∗as a function of P at various values of κa and (b) as a function of κa at various values of P . Key: ζa∗= 1, ζb∗= 0, and λ = 0.4.

the more significant the presence of the boundary (cavity wall), which has the effect of retarding the movement of a particle. 3.2. Particle uncharged, cavity positively charged

If an uncharged sphere is placed in a positively charged cav-ity, an electroosmotic flow is generated due to the presence of the latter [2], and the former experiences an excess hydrody-namic force. The competition of this force with the electrostatic force makes the electrophoretic behavior of a sphere more com-plicated than for the case when a positively charged sphere is placed in an uncharged cavity. Also, a negative charge is in-duced on the surface of the sphere, and the corresponding elec-trostatic force acting on the particle is in the−z-direction.Fig. 7

shows the influence of P and λ on the behavior of U∗. It is in-teresting to note that the qualitative behavior of U∗ depends upon the level of λ (or κa). For example, if λ is sufficiently large,|U∗| declines wit the increase in P . If λ takes a medium value (= 0.4), |U∗_{| has a local maximum as P varies. If λ is} sufficiently small, U∗may change its sign from positive to neg-ative as P increases, and|U∗| may have a local maximum if P

Fig. 6. Variation of (a) scaled hydrodynamic force coefficient D∗and (b) scaled electrophoretic mobility U∗ as functions of λ at various values of P . Key: ζa∗= 1, ζb∗= 0, and κa = 1.

Fig. 7. Variation of scaled electrophoretic mobility U∗as a function of P at various values of λ. Key: ζ_a∗= 0, ζ_b∗= 1, and κa = 1.

Fig. 8. Variation of (a) scaled electrostatic force F_E∗and scaled excess hydro-dynamic force F_D,2∗ and (b) scaled net driving force (F_E∗+ F_D,2∗ ) as a function of P at various values of λ for the case ofFig. 7.

is sufficiently large (>72%). Furthermore, U∗is always nega-tive except when λ is sufficiently small (<0.4). As is justified by Fig. 8, the occurrence of these phenomena is the net re-sult of two competing driving forces, F_E∗ and F_D,2∗ , as P and λ vary, and the sign of U∗ depends upon which of the two forces dominates. If λ is sufficiently large, the induced nega-tive scaled electrostatic force−F_E∗dominates and the effect of the viscous retardation force due to the presence of the cav-ity becomes significant; that is, the rate of increase of D∗ as P varies is higher than that of (F_E∗+ F_D,2∗ ). This is similar to what is observed for the case when a positively charged sphere is in an uncharged cavity, except that U∗ is negative for the ranges of the parameters considered. For a medium value of λ (= 0.4), −F_E∗also dominates and the rate of increase of D∗is smaller than that of (F_E∗+ F_D,2∗ ) when P is small, but the re-verse is true when P is large. If the boundary effect is relatively unimportant (λ= 0.2) and P is small, the positive scaled ex-cess hydrodynamic force F_D,2∗ becomes the dominant force and the increase in D∗ as P increases leads to an decrease in U∗. On the other hand, if P is sufficiently large (>72%),−F_E∗ in-creases rapidly with the increase in P and can exceed F_D,2∗ , and U∗becomes negative. The occurrence of the local maximum in |U∗_{| as P increases from 72% arises from the rate of increase} of D∗always being slower than that of the scaled net driving

force (F_E∗+ F_D,2∗ ). However, if P is sufficiently large, D∗ in-creases rapidly with the increase in P and can further retard the motion of a sphere. Even if the boundary effect is relatively unimportant (λ is small), some unique electrophoretic behav-iors are observed that have not been reported at other types of charged boundaries[11–15]. Note that if P is sufficiently large, that is, a sphere is sufficiently close to a cavity,|U∗| is close to zero, which is similar to the result shown inFig. 3b where a positively charged sphere is in an uncharged cavity, except that the sphere moves in the opposite direction. This behavior is reasonable because a nonslip boundary condition is assumed and the mobility of a particle should vanish when P= 100% regardless of the value of λ. All of the above observations are directly related to the results of F_E∗, F_D,2∗ , and (F_E∗+ F_D,2∗ ) pre-sented inFig. 8. As can be seen inFig. 8a,|F_E∗| increases with the increase in P and/or λ. This can be explained by the same reasoning as that employed in the discussion ofFig. 4a. Note that F_E∗inFig. 8a is negative; this is because a negative charge is induced on the sphere surface due to the presence of the pos-itively charged pore. However, if both λ and P are sufficiently small, the amount of the induced charge decreases rapidly, and it vanishes as λ→ 0 and P → 0. On the other hand, under the conditions assumed, F_D,2∗ is always positive and its qualitative behavior as P varies depends upon the value of λ, as is illus-trated inFig. 8a. The former can be explained by that since the net volumetric flow rate of the fluid in the gap between a sphere and a cavity must vanish, an electroosmotic flow is present in that gap. For the present case, a clockwise (counter-clockwise) vortex is generated on the right (left)-hand side of a sphere, and a negative pressure gradient in the z-direction (i.e., dp/dz <0) is necessary to derive this flow. Therefore, refer-ring to Eq.(17), both the viscous term F_D,2(v)∗ and the pressure term F_D,2(p)∗ involved in F_D,2∗ are positive, and so is F_D,2∗ . This is different from the case when a positively charged sphere is in an uncharged cavity, where F_D,2∗ changes from negative to positive if the boundary effect is significant. The qualitative be-havior of F_D,2∗ as P varies depends upon the value of λ as a consequence of the competition between F_D,2(v)∗ and F_D,2(p)∗ . For example, if λ is large (boundary effect is important), F_D,2∗ is dominated by F_D,2(p)∗ and increases with the increase in P . The former is because the electroosmotic flow is hindered by the cavity wall, and so is F_D,2(v)∗ . The latter is because if P is large, both the sphere and the fluid are subjected to a large in-crease in the negative pressure gradient mentioned previously. It is interesting to note that if the boundary effect is relatively unimportant (λ= 0.2), F_D,2∗ declines with the increase in P when κa= 1, but the reverse is true if P is sufficiently large. This is because as P increases, F_D,2∗ is mainly dominated by the decrease of F_D,2(v)∗ , since the larger the value of P the closer a sphere to a cavity, and the more important the influence of the latter on the movement of the former. However, the reverse is true due to a rapid increase in F_D,2(p)∗ when P is sufficiently large. Fig. 8b shows that if the boundary effect is significant (λ and/or P is large), (F_E∗+ F_D,2∗ ) is negative and its magnitude increases monotonically with an increase in P . On the other hand, if the boundary effect is unimportant, (F_E∗+ F_D,2∗ ) is pos-itive and decreases with the increase in P . These observations

are different from those for the case when ζa∗= 1 and ζb∗= 0 shown inFig. 4b, where the increase of (F_E∗+ F_D,2∗ ) with an in-crease in P arises from the inin-crease of F_E∗, implying that F_D,2∗ is the dominating force.

Some typical flow fields for the case ofFig. 7are illustrated inFig. 9. InFig. 9a, where P= 70% and λ = 0.2, a clockwise (counterclockwise) vortex is generated on the right (left)-hand side of a sphere. However, if P is further increased to 95%, in addition to a clockwise vortex, a counterclockwise vortex is also generated near the particle in the north pole of the cavity, as shown inFig. 9b. The former arises because if the boundary effect is relatively unimportant and P is not too large, the recir-culation electroosmotic flow, which is generated due to the pres-ence of the charged cavity, dominates the movement of a parti-cle and leads to a positive mobility. The latter is because if P is sufficiently large, the double layer near the cavity is distorted by the sphere and a negative charge is induced on the sphere surface, which leads to a negative scaled electric force −F_E∗ acting on the sphere. Since this force dominates, the mobility of the sphere becomes negative.Figs. 9c and 9dreveal that if the boundary effect is important (λ= 0.7), a counterclockwise (clockwise) vortex is generated on the right (left)-hand side of a sphere. Again, this arises from the negative charge induced on the sphere surface, which leads to a negative mobility.

Fig. 10shows the variations of U∗, F_E∗, and F_D,2∗ as a func-tion of P at various values of κa for the case of a medium value of λ. As in the case of λ= 0.4, Fig. 10a also indicates that the qualitative behavior of U∗ depends upon the level of κa. For example, if κa is sufficiently small (= 0.1 or 0.5), |U∗_| decreases with the increase in P . For a medium value of κa (= 1), |U∗_{| has a local maximum as P varies, and if κa is large} (= 2), U∗_{may change its sign from positive to negative as P} increases and|U∗| may have a local maximum when P is suf-ficiently large (>83%). If κa is sufsuf-ficiently large (= 5), U∗is always positive and declines with the increase in P . Also, U∗is always negative, except when κa is sufficiently large. As in the case of λ= 0.4, these behaviors arise from the competition be-tween F_E∗ and F_D,2∗ , and the sign of U∗ depends upon which of these two forces dominates, as is justified byFig. 10b. Note that the qualitative behavior of U∗is similar to that observed inFig. 7a, except when κa is sufficiently large. For example, if κa= 5, U∗is always positive and decreases monotonically with the increase in P . This is because if the double layer is sufficiently thin, the magnitude of the negative induced electro-static force is small and always smaller than that of the positive scaled excess hydrodynamic force; that is, |F_E∗| < F_D,2∗ , im-plying that (F_E∗+ F_D,2∗ ) is dominated by F_D,2∗ and the rate of increase of D∗is faster than that of (F_E∗+ F_D,2∗ ).Fig. 10b re-veals that, for a smaller κa, the approach of a neutral sphere yields a more serious distortion of the double layer near a cav-ity, leading to a greater electrostatic force acting on the former.

Fig. 10b also indicates that the larger the κa the greater the F_D,2∗ , and if κa is sufficiently large, F_D,2∗ increases with the in-crease in P . The former is because if the double layer is thin, the electroosmotic recirculation flow surrounding a sphere is ap-preciable, and so are the drag acting on its surface and F_D,2(v)∗ . The later is because that charge is induced on the surface of a

Fig. 9. Some typical flow fields for the case ofFig. 7. (a) P= 70% and λ = 0.2; (b) P = 95% and λ = 0.2; (c) P = 70% and λ = 0.7; (d) P = 95% and λ = 0.7. sphere, and a pressure field is established, leading to a sudden

rise in F_D,2(p)∗ . On the other hand, if κa is sufficiently small, F_D,2∗ becomes small and insensitive to the variation in P . This is because if the electric double layer of a cavity is sufficiently thick, about the same amount of negative charge is induced on the surface of a sphere, regardless of its position. Consequently, F_D,2∗ is insensitive to the variation in P , since it is dominated by F_D,2(v)∗ , which is mainly related to the electroosmotic flow. If a sphere is very close to the cavity surface, F_D,2(v)∗ declines due to a relatively large amount of negative charge being induced on its surface and a decrease in the electroosmotic flow. However,

since F_D,2(p)∗ increases at the same time, F_D,2∗ remains roughly constant as P varies.

The variation of U∗, F_E∗, and F_D,2∗ as a function of κa at various values of P when λ= 0.4 is illustrated inFig. 11. Ac-cording to Fig. 11a, U∗ may change its sign from negative to positive. This arises from the competition between F_E∗ and F_D,2∗ ;|F_E∗| decreases but F_D,2∗ increases with the increase in κa, as is shown inFig. 11b. The value of κa at which U∗changes its sign increases with the increase in P . This is because as P increases, F_D,2∗ increases rapidly due to the presence of the cav-ity; that is, the rate of increase of F_D,2(p)∗ is always much higher

Fig. 9. (continued) than that of the decrease of F_D,2(v)∗ . On the other hand, the rate

of decrease of|F_E∗| as P varies is not that obvious.Fig. 11a also suggests that if κa is sufficiently large or it is sufficiently small, |U∗_{| decreases with the increase in P . However, if κa takes} a medium value,|U∗| may have a local maximum or U∗ may changes its sign from positive to negative as P increases. This is consistent with the results shown inFig. 10a. The specific be-havior of U∗for a medium level of κa has not been reported in the literature for other types of geometry.

The variations of U∗, F_E∗, and F_D,2∗ as a function of λ at var-ious values of P when κa= 1 are presented inFig. 12.Fig. 12a

indicates that if P is sufficiently large, U∗ is always negative and|U∗| has a local maximum as λ varies. The former is be-cause (F_E∗+F_D,2∗ ), which is mainly dominated by F_E∗, increases with the increase in λ, as is justified inFig. 12b. The latter can be explained by the fact that as λ increases, the rate of increase of (F_E∗+ F_D,2∗ ) is always higher than that of D∗if λ is small, but the reverse is true if λ is large. Fig. 12a also reveals that if P is not too large, U∗ may change its sign from positive to negative as λ increases and |U∗| may have a local maximum. These behaviors are consistent with the results shown inFig. 7

Fig. 10. Variation of (a) scaled electrophoretic mobility U∗and (b) scaled elec-trostatic force F_E∗and scaled excess hydrodynamic force F_D,2∗ as functions of Pat various values of κa. Key: ζa∗= 0, ζb∗= 1, and λ = 0.4.

the local maximum in |U∗| can also be explained by the fact that as λ increases, the rate of increase of (F_E∗+ F_D,2∗ ) is al-ways higher than that of D∗ if λ is small, but the reverse is true if λ is large. Note that the value of λ at which |U∗| has a maximum increases with the decrease in P . This is because as λ decreases,−F_E∗declines more rapidly if P is larger, as is shown inFig. 12b.Fig. 12a indicates that U∗→ 0 as λ → 1, which is expected because if λ= 1, the electroosmotic recircu-lation flow must vanish. Fig. 12b suggests that, regardless of the level of P ,−F_E∗increases monotonically with the increase in λ. However, the corresponding behavior of F_D,2∗ , which de-pends on the net result of the competition between F_D,2(v)∗ and F_D,2(p)∗ , is more complicated. The behavior of F_D,2∗ can be explained by the same reasoning as that employed in the dis-cussion ofFig. 8a. Note that as λ→ 0, Smoluchowski’s result must be recovered; that is, we should have F_D,2∗ → 1, D∗→ 1, and U∗→ 1.

4. Conclusions

The boundary effect on electrophoresis is analyzed by con-sidering the electrophoresis of a spherical particle at an

arbi-Fig. 11. Variation of (a) scaled electrophoretic mobility U∗and (b) scaled elec-trostatic force F_E∗and scaled excess hydrodynamic force F_D,2∗ as functions of κaat various values of P . Key: same as inFig. 10.

trary position in a spherical cavity under conditions of low surface potential and weak applied electric field. For the case of a positively charged sphere in an uncharged cavity, the re-sults obtained are consistent with those reported in the literature if a sphere is at the center of a cavity. However, if a sphere is close to the wall of a cavity, using the method in the lit-erature for the calculation of the electrostatic force acting on a sphere will overestimate its mobility and lead to unrealistic qualitative behavior. For the case of an uncharged sphere in a positively charged cavity we conclude the following: (i) Due to the presence of an electroosmotic flow, the electrophoretic be-havior of a sphere is more complicated than for the case when a positively charged sphere is placed in an uncharged cavity. (ii) The qualitative behavior of the mobility of a sphere depends upon the thickness of the double layer and how significant the boundary effect is. (iii) Even if the boundary effect is rela-tively unimportant, some unique electrophoretic behavior are observed that has not been reported for other types of charged boundaries.

Acknowledgment

This work is supported by the National Science Council of the Republic of China.

Fig. 12. Variation of (a) scaled electrophoretic mobility U∗and (b) scaled electrostatic force F_E∗and scaled excess hydrodynamic force F_D,2∗ as functions of λ at various values of P . Key: Same as inFig. 7.
