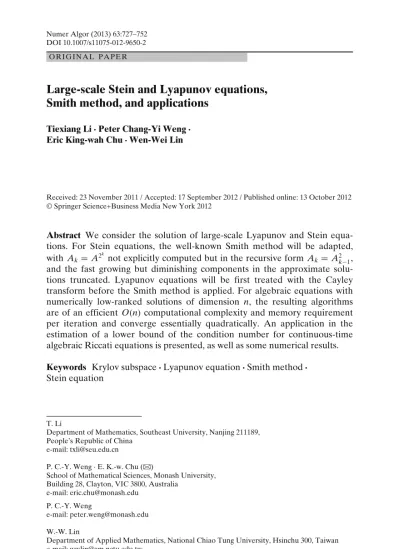

DOI 10.1007/s11075-012-9650-2 O R I G I N A L P A P E R
Large-scale Stein and Lyapunov equations,
Smith method, and applications
Tiexiang Li· Peter Chang-Yi Weng · Eric King-wah Chu· Wen-Wei Lin
Received: 23 November 2011 / Accepted: 17 September 2012 / Published online: 13 October 2012 © Springer Science+Business Media New York 2012
Abstract We consider the solution of large-scale Lyapunov and Stein equa-tions. For Stein equations, the well-known Smith method will be adapted, with Ak= A2
k
not explicitly computed but in the recursive form Ak= A2k−1,
and the fast growing but diminishing components in the approximate solu-tions truncated. Lyapunov equasolu-tions will be first treated with the Cayley transform before the Smith method is applied. For algebraic equations with numerically low-ranked solutions of dimension n, the resulting algorithms are of an efficient O(n) computational complexity and memory requirement per iteration and converge essentially quadratically. An application in the estimation of a lower bound of the condition number for continuous-time algebraic Riccati equations is presented, as well as some numerical results. Keywords Krylov subspace· Lyapunov equation · Smith method ·
Stein equation
T. Li
Department of Mathematics, Southeast University, Nanjing 211189, People’s Republic of China
e-mail: [email protected]
P. C.-Y. Weng· E. K.-w. Chu (
B
)School of Mathematical Sciences, Monash University, Building 28, Clayton, VIC 3800, Australia
e-mail: [email protected] P. C.-Y. Weng
e-mail: [email protected] W.-W. Lin
Department of Applied Mathematics, National Chiao Tung University, Hsinchu 300, Taiwan e-mail: [email protected]
Mathematics Subject Classifications (2010) 15A24· 65F50 · 93C05
1 Introduction
Consider the large-scale Stein equation
S(X) ≡ −X + AX A+ H = 0, H = CT−1C, (1)
where A∈Rn×nis d-stable (with eigenvalues inside the unit circle), C∈Rn×l and the symmetric T−1∈Rl×l. We assume that l n and A is large and sparse(-like) or banded, requiring csamn flops to form the products AZ or AZ , where Z ∈Rn×mand csais independent of n.
Similarly, consider the large-scale Lyapunov equation
L(X) ≡ AX+ X A + H = 0, H = CT−1C, (2)
where A∈Rn×n is c-stable (with eigenvalues on the left half-plane). Again,
we assume that l n and A is large and sparse(-like) or banded, requiring
cl
amn flops to evaluate A−1Z or A−Z , where Z ∈Rn×mand clais a constant
independent of n.
We are looking for efficient algorithms for the symmetric solutions X to (1) and (2), with O(n) computational complexity and memory requirement per iteration. Without utilizing the properties of A and H, the state-of-the art algorithms for these equations [12] are based on techniques for dense matrices, requiring O(n3) flops and O(n2) memory storage. They will not be feasible for
large systems.
A variety of applications in systems and control theory, such as stability analysis, balanced truncation model order reduction, solution of algebraic Riccati equations (by Newton’s method) in optimal control, H∞ control, system identification, game theory, filtering and image restoration, involve the Stein and Lyapunov equations. Large systems [1–3] arise from the (boundary) control problems modelled by partial differential equations, as in the cooling of steel profiles, circuit design, VLSI computer-aided design and large mechanical space structures.
We are motivated by the pioneering work by Benner, Fassbender and Saak in model order reduction and the solution of large-scale algebraic Riccati equa-tions (AREs), as well as the work by others in large-scale AREs and algebraic matrix equations [4, 6,7,26, 27,30]. For large-scale AREs, the application of Newton’s method leads to large-scale Stein/Lyapunov equations, on which Galerkin projection or Krylov subspace based methods were applied.
In this paper, we shall apply the well-known Smith method (SM) [29], with modifications for efficiency, in the same spirit as the low-rank squared Smith method in [13,25]. For equations with numerically low-ranked solutions, which we shall define later, we attain O(n) computational complexity and memory requirement for the resulting algorithms. Some interesting new insights into the link of Krylov subspaces and the SM reveal the fast convergence and
efficiency of our SM. An application in the estimation of condition of algebraic Riccati equations will also be discussed.
Our methods look very much like the low-rank Smith methods in [13,25] but are substantially different. We have not applied their ADI approach in rewriting Lyapunov equations into Stein equations, with the associated difficulty in estimating the shift parameters. The corresponding accelerated convergence is evidently not as fast as the original SM, as shown in the numerical results from our algorithms. Also, we shall construct our Krylov subspaces implicitly through our iterations, contrasting the explicit Arnoldi process in [25].
In the paper, · denotes the 2-norm and ρ(·) is the spectral radius. 1.1 Main contributions
The main contributions of this paper are as follows. We shall formalize the discussion on the numerical rank of the solution X to Stein and Lyapunov equations, showing constructively when X is numerically low-ranked. Then we shall show that we can adapt the well-known Smith method efficiently for large-scale Stein and Lyapunov equations. Finally, we shall apply our tech-niques to the estimation of lower bounds of condition numbers for continuous-time algebraic Riccati equations.
2 Large-scale Stein equations
The original SM [29] considered the (continuous-time) Sylvester equa-tion X A+ BX = C, transforming by Cayley transform to the discrete-time Sylvester equation X− U XV = W. We shall adapt the method for (1). See also the convergence analysis and the posteriori error bound in [29, Sections 3 and 4].
2.1 Smith method For the Stein equation
X= f(X) ≡ AX A+ H, (3)
consider the functional iteration
Xk+1 = f(Xk) = f2(Xk−1) = · · · = fk+1(X0).
Alternatively, substitute X= f(X) into the right-hand-side of (3), we obtain
Next substituting the expression for X in (4) into the right-hand-side of itself, we obtain X= f22(X) ≡ (A22)X A22+ 22−1 i=0 (Ai)H Ai.
Repeating the process and substitute the most up-to-date expression X=
f2k
(X) back into the right-hand-side of itself, we have X= (A2k+1)X A2k+1+
2k+1−1
i=0
(Ai)H Ai. (5)
With A being d-stable, we have A2k
→ 0 quadratically as k → ∞, and X= lim k→∞Hk, Hk≡ 2k−1 i=0 (Ai)H Ai. (6)
From (5) and (6), one resulting algorithm will be (for k≥ 0)
Ak+1 = A2k, Hk+1 = Hk+ AkHkAk, (7)
with A0= A and H0= H. Similar to the more general case in [29, Section 2],
we have Ak= A2k−1= A2
k
(k≥ 1), and Hk→ X as k → ∞.
For the large-scale Stein equation (1), we can organize the iterations as follows: Hk+1 = Hk+ AkHkAk= Ck+1Tk+1Ck+1, (8) with Ck+1 =Ck, AkCk , Tk+1 = Tk⊕ Tk (9)
and the initial values
A0= A, C0= C, T0= T−1. (10)
A simple error analysis is quoted from [29, Section 2]. As A is d-stable, there exist constants M andλ such that ρ(A)2= λ < 1 and
Ak · (A)k ≤ Mλk. (11)
Consequently, we have
Hk− X ≤ MH · λ 2k
1− λ, (k ≥ 0). (12)
From the above convergence result, we next define the numerical rank of the solution X:
Definition 2.1 For a given tolerance τ > 0, the numerical rank of X with respect to τ, rankτX, is defined as the rank of Hk where k is the smallest
integer such that
Hk− X ≤ τ.
From (6), we have
rankτX= rankHk≤ rankCk≤ 2kl, (13)
where the equalities hold generically. Note that the right-hand-side in (13) is the number of columns in Ck. Orthogonalization of Ck eliminates linear
dependence in its columns, also suggesting to the possibility of compressing
Ckfurther by truncating small but fast growing components, as in Section2.2
later.
We then define the concept of numerically low rank:
Definition 2.2 The solution X∈Rn×nto the large-scale Stein equation (1) is
said to be numerically low-ranked with respect to the numerical rank tolerance
τ > 0 if rankτX≤ cτ for a constant cτindependent of n. In other words, for a
givenτ > 0 and relative to n, we have rankτX= O(1).
We then have he following result for the SM applied on the large-scale Stein equation (1):
Theorem 2.1 Assume the Smith method converges after k iterations, according
to some criterion. For a given tolerance τ > 0, the solution X is numerically low-ranked if, relative to n,
2k= O(1). (14)
Generically, the suf f icient condition (14) is also necessary.
Proof From Definitions 2.1 and 2.2 as well as (13), it is easily seen that the
statement in the Theorem holds.
Remark 2.1 The result in Theorem 2.1 seems so obvious, almost a trick of
syntax. However, previous work mostly neglect to define “numerical rank” or the meaning of being “numerically low-ranked”. Many have their methods built on the basis of a plot of singular values of X for some given examples. This obscures the associated discussion and theoretical development for large-scale problems. Also, under our new framework of numerical rank, it is easy but important to recognize that if the SM fails to achieve a high enough accuracy within reasonable number of iterations, the solution X is obviously not numerically low-ranked. In such circumstances, we have to lower our expectation on accuracy, accepting whatever approximate solution we can compute within our computing means, in terms of CPU time or memory resources. Equivalently, we see from (7) that the SM for Stein equations is a competition between the quadratic convergence of Ak= A2
k
towards zero and the exponential growth in the width of Ck. The latter may be controlled, as
suggested in Section2.2later. Another vital consequence is that the growth in
Ckis a limiting factor on the accuracy of X. If the convergence of Akis slow, we
may have to restrict the width of Ck, thus limiting the size of the corresponding
Krylov subspace for the approximate solution Hk(see Sections2.4and2.5),
lowering its accuracy.
2.2 Compression and truncation of Ck
The truncation and compression process described in this section is un-necessary in most circumstances. It is described for the situation when the convergence of the SM is slow in comparison with the exponential growth in the dimensions of the iterates Hk. In this situation, the numerical rank
of X will be high and we obviously cannot achieve high accuracy in the approximation Hk of X by any method. We then have to compromise its
accuracy for the sake of less memory and CPU-time consumption. We should then either choose a larger tolerance for the truncation and compression process (τ below), to control the growth in the iterates and adjust it until the accuracy of the approximate solution is acceptable, or simply abandon the truncation and compression process and accept whatever approximate solution obtained within reasonable time.
Obviously from (9) and the fact that Ak= A2
k
with the d-stable A, as the SM converges, increasingly smaller low-ranked components are added to Ck.
Apparently, the growth in the sizes and ranks of these iterates is potentially exponential.
To reduce the dimensions of Ck, necessary not just when dependencies arise
or to control the associated round-off errors, we shall compress their columns by orthogonalization. Consider the QR decomposition with column pivoting:
Ck= QkMk+ QkMk, Mk ≤ τ,
where[Qk, Qk] is unitary and [Mk, Mk]is upper triangular. Hereτ is some
small tolerance controlling the compression and truncation process, nk is the
number of columns in Ck bounded from above by some corresponding lmax,
and
rank Ck≤ nk≤ lmax n.
We have Qk∈Rn×rk with orthogonal columns and Mk∈Rrk×nk being
full-ranked and upper triangular. Consequently, we have
CkTkCk = Qk
MkTkMk
Qk + O(τ), (15)
and we should replace Ck and Tk by the lower-ranked Qk and MkTkMk,
respectively. As a result, we ignore the O(τ) term, control the growth of Ck
while sacrificing a hopefully negligible bit of accuracy. Equivalently, we may also control the width of Ck, now relabelled lk= rkafter the compression and
2.3 Residuals and convergence control
Consider the difference of successive iterates, with
dHk≡ Hk+1− Hk= AkCkTkCkAk= Ck+1Tk+1Ck+1, (16)
and
Ck+1≡ AkCk, Tk+1≡ Tk.
For the residual rk≡ S(Hk) of the Stein equation, the corresponding
relative residual, commonly used for convergence control, equals rk≡ rk Hk + ˘Mk + H , M˘k≡ AHkA. We then have S(Hk) = −Hk+ AHkA+ H = CkTkCk, with Ck≡ Ck, ACk, C , Tk≡ (−Tk) ⊕ Tk⊕ T−1.
For relative error estimates and residuals, we also need the norms of
Hk= CkTkCk, H = CT−1C, M˘k= ACk˘TkCkA,
with a different notation ˘Tk= Tk in ˘Mk. Note that Tk in Hk and ˘Tk in ˘Mk
will be different after the subsequent orthogonalization of Ck and ACk,
respectively, analogous to (15). All the calculations in this subsection involve the norms of similar low-rank symmetric matrices. For example for Hk, we
can proceed as in (15), where we orthogonalize Ckand transform Tk. With the
orthogonal Ck, Ck, Ck, C and ACk, and the transformed Tk, Tk, Tk, T−1and
˘Tkrespectively, we have the efficient formulae, for the 2- and F-norms,
dHk = Tk+1, rk= Tk,
Hk = Tk, H = T−1, ˘Mk = ˘Tk. (17)
Equations (5) and (7), the corresponding initial conditions (10) and the compression and truncation in (15), with the recursion Ak= A2k−1= A2
k and the quantities in (17), constitute our SM for Stein equations. We summarize the algorithm for large-scale Stein equations in Algorithm 1 below.
We would like to emphasize that care has to be exercised in Algorithm 1, where the multiplications by Akand Ak are carried out recursively. Otherwise,
the computation cannot be realized in O(n) complexity. Similar care has to be taken in the computation of residuals (used in Algorithm 1) or differences of iterates (as an alternative convergence control), as discussed in this subsection. Note that the recursive multiplication by Ak (or its inverse for Lyapunov
equations later) is just one way to produce the operation counts in Section6. Alternatively, we may be able to achieve similar efficiency by using cheap memory wisely. For example if A is banded, we may be able to compute and
store Ak. Assuming that the band-width in Ak doubles in every iteration, a
similar operation count can be obtained. This will be cheaper for really large problems, when the communication costs of recursive multiplications by Ak
and Ak dominate.
Algorithm 1 SM for large-scale Stein equations
Input: A∈Rn×n, C∈Rn×l, T−1= T− ∈Rl×l, positive tolerancesτ and ,
and lmax;
Output: C∈Rn×l and T= T∈Rl×l, with CTC approximating the
solution X;
Set k= 0,r0= 2; A0 = A, C0= C and T0= T−1;
Compute h= H = CT−1C;
Do until convergence:
If the relative residual˜rk= |dk/(hk+ mk+ h)| < ,
Set C= Ckand T= Tk;
Exit End If
Compute Ck+1 = [Ck, AkCk], Tk+1 = Tk⊕ Tk, with Ak+1= A2k;
Compress Ck+1, using the toleranceτ, and modify Tk+1as in (15);
Compute k←k+1, dk=S(Hk), hk=Hk and mk=AkHkAk,
as in Section2.3; End Do
2.4 SM and Krylov subspaces
There is an interesting relationship between the SM and Krylov subspaces. Define, unorthodoxly, the Krylov subspaces
Kk(A, B) ≡ span{B} (k = 0), span{B, AB, A2B, · · · , A2k−1 B} (k > 0). From (9), we have Ck⊆Kk(A, C). (18)
(We have abused notations, with V⊆Kk(A, B) meaning span{V} ⊆
Kk(A, B).) In other words, the SM is closely related to approximating the
solutions X using Krylov subspaces, with additional components vanishing quadratically. However, for problems of moderate size n, Ck becomes
full-ranked after a few iterations.
The link between the SM and the Krylov subspaces defined above is important in explaining the fast convergence of the SM. We used to believe the convergence of the SM came solely from the following inequalities from (8):
dHk ≤ Ak · Hk · Ak, dHk≡ Hk+1− Hk,
and the fact thatAk ≤ A2
k
→ 0 quadratically as k → ∞. However, we un-derstand now the power of approximation of the Krylov subspaces contributes
in (8) as well, creating cancellations and diminishing components in dHkitself
in (16). This is consistent with numerical results from examples associated with A which is barely stable, where the corresponding Ak→ 0 slowly but
the overall convergence for Hkis much faster.
2.5 Error of SM
We may limit the rank of the approximation to X, trading off the accuracy in the approximate solution for higher efficiency from the SM. Assume that the compression and truncation in (15) create errors of O(τ) in Hk. It is easy
to see from (7)–(9) that errors of the same magnitude will propagate through to Hk+1.
LetδHkandδ Akare the errors in Hkand Ak, created from the compression
and truncation of Ck(as described in Section2.2) or round-off errors
respec-tively. From (7), we have
δHk+1 = δHk+ δ AkHkAk+ AkδHkAk+ AkHkδ Ak+ O(τ2), δ Ak+1 = δ AkAk+ Akδ Ak+ δ A2k.
Letδk≡ max{δHk, δ Ak}, ak≡ Ak and αk≡ Hk, we have
δHk+1 ≤ δk 1+ 2αkak+ a2k + O(τ2), δ Ak+1 ≤ 2Akδ Ak + δ Ak2, or δk+1≤ max {1 + ak(2αk+ ak), 2ak} · δk+ O(τ2),
assuming that the round-off errors inδ Akis much smaller in comparison with τ. Recall that Ak→ 0 and Hk converges to X. Eventually, ak converges to
zero,αk converges to a constant and the errors δ Ak andδHk then pass into δ Ak+1 and δHk+1 respectively, creating errors of the same order. From our
numerical experience, the trade-off between the rank of Hkand the accuracy
of the approximate solution to X contributes towards the success of our computation. If the rank grows out of control, unnecessary and insignificant small additions to the iterates overwhelm the computation in terms of flop counts and memory requirement. Limiting the rank will obviously reduce the accuracy of the approximate solution. We found we do not need to experiment much with the tolerances for the compression/truncation and convergence while trying to achieve a balance between accuracy and the feasibility or efficiency of the SM.
We shall also write down the simple error analysis for the truncated SM, in the context of Galerkin methods as in [15–17] and Section2.4. (See also the Galerkin method in [28], where Krylov subspaces are generated by A as well as A−1, similar to that in (21) later, without the shift γ .) However, there is a hidden difference flowing from the fact that the SM generates automatically the Krylov subspaces in (18), to which Ck, or the approximate solutions Hk, are
have to be generated explicitly by some Arnoldi processes. Both approaches yield small residuals for the matrix equations in different forms. However, the Arnoldi process may not benefit from the diminishing Akas in the SM.
First, let us consider the following Galerkin method for Stein equations. Let the column spaces of the orthogonal Z ∈Rn×Nbe some Krylov subspaces
associated with the solution of our equation and assume that the approximate solution has the low-rank form X≡ Z Z, with ∈RN×N. Assume that X
approximates the solution X to the Stein equation in the sense that the residual
S( X) is small, of order O(). As mentioned before, the Krylov subspace
spanned by the columns of Z may be the result of an Arnoldi process [14–17] or the SM.
Substituting X in place of X in (1), we have
−Z Z+ AZ ZA+ H = O(),
which leads to the projected or reduced Stein equation in of size N:
S( ) ≡ − + AZ ZA+ H = O() (19) with A≡ ZAZ and H≡ ZH Z . We next extend Z to the orthogonal
matrix[Z, Z] ∈Rn×n. We then have
[Z, Z]S( X)[Z, Z] = S( ) O() O() O()
= O().
In the SM, a particular is produced such that S( ) = O(). If the associated Krylov subspaces are known or have been generated from an Arnoldi process, a solution to the small projected Stein equation
S( ) = 0 (20)
can be computed, generating an approximate Galerkin solution X≡ Z Z
to the Stein equation in (1). Consequently, X and X are approximately
equal, as they solve two equations differed by at most O(). Note that the solvability of (20) (or the stability of A) is inherited from that of (1). Also, the Galerkin method summarized in (20) will be inferior to the SM if the Krylov subspaces are selected inappropriately. Note that many others selected the Krylov subspaces generated arbitrarily by A, its inverse and transpose, by the Arnoldi process. These approaches resulting in subspaces very different from those in (21) by the SM, which also benefits from the diminishing magnitudes of Ak.
3 Large-scale Lyapunov equations
For the Lyapunov equation (2), with A being c-stable, a Cayley transform to the corresponding Stein equation will be required, before the SM in Section2
can be applied. Consequently, for the Lyapunov equations, we have
Ck⊆Kk
Note that the Krylov subspacesKk(A±1, C) andKk(A±, C) have been used in the solution of continuous-time algebraic Riccati equations (CARE) and Lyapunov equations in [11,14–23]. From (21), we can see clearly the appropri-ate choice for Lyapunov equations, as compared to (18) for Stein equations.
We summarize the algorithm for large-scale Lyapunov equations in Algorithm 2 below, modified from Algorithm 1 with different initial A0, C0
and T0. Note that the repeated multiplication by A−1γ and it transpose can be
achieved efficiently through the LU factors of Aγ, computed at the beginning of the algorithm below. In our numerical experiments, sparse matrix inversions (or the solution of corresponding linear systems) were implemented using LU factors from the MATLAB command lu. The interesting possibility of inexact inversion will be left for future work.
Algorithm 2 SM for large-scale Lyapunov equations
Input: A∈Rn×n, C∈Rn×l, T−1= T− ∈Rl×l, shiftγ > 0, positive
tolerancesτ and , and lmax;
Output: C∈Rn×l and T= T∈Rl×l, with CTC approximating
the solution X to the large-scale Lyapunov equation (2); Compute Aγ = A − γ I, and its LU factors;
Set k= 0,r0= 2; C0= A−γ C, T0 = 2γ T−1, A0= In+ 2γ A−1γ ;
Compute h= H = C0T0C0;
Do until convergence:
If the relative residual˜rk= |dk/(hk+ mk+ h)| < ,
Set C= Ckand T= Tk;
Exit End If
Compute Ck+1 = [Ck, AkCk], Tk+1 = Tk⊕ Tk, with Ak+1= A2k;
Compress Ck+1, using the toleranceτ, and modify Tk+1as in (15);
Compute k←k+1, dk=S(Hk), hk=Hk and mk=AkHkAk,
as in Section2.3(for an equivalent Stein operatorS); End Do
4 Other low-rank Smith methods
In [13], a modified low-rank Smith method for large-scale Lyapunov equations was proposed. The method looks similar to our SM but is actually very different. The Lyapunov equation (2) was first rewritten into a Stein equation, using the ADI approach. Essentially, we can consider that to be a complicated version of our Cayley transform, with its associated difficulty in estimating the shift parameters. The rank of the low-ranked approximation to X seems to be predetermined in [13], contrasting our truncation and compression process in Section2.2, which is dynamically determined by the diminishing magnitudes of updates dHkin (16). The supposedly faster convergence is not evident from
the numerical simulation in [13]. From our experience, the SM converges to machine accuracy in less than twenty iterations, because of the stability of
A or Aγ.
In [25], Sadkane proposed a low-rank Krylov squared Smith method. Apart from the ADI approach in rewriting (2), a block Arnoldi process was employed to construct the Krylov subspaces, contrasting again the implicit dynamic approach in the SM. Note that we restrict the size of the Krylov subspaces, but new components are added in each iteration before the compression and truncation process. Restarts were also employed in [25] when the sizes of the approximating Krylov subspaces were considered to be too large. We believe restarts are unnecessary and wasteful, as indicated in our examples in Section7. In the SM, the iterates converge faster thanλ2k
and restarts give up this advantage, and reset some large k to 0. We have applied the SM to the examples in [25], with much faster convergence to higher accuracies, as summarized in the examples in Section7.1below.
5 Estimation of condition numbers for CAREs
Apart from the solution to algebraic Riccati equations using Newton’s method, there are many other obvious applications which require the solution of Stein and Riccati equations. In this section, we shall consider the problem of estimating the condition number of a large-scale continuous-time algebraic Riccati equation (CARE).
In [20], the sensitivity of algebraic and differential Riccati equations was considered. In particular, a condition numberκCARE(denoted originally as K) for CAREs
AX+ X A − XGX + H = 0
were investigated. For the estimation ofκCARE, sharp bounds are obtained:
KL≤ κCARE≤ KU with KU = H · Z0 + 2A √ Z0 · Z2 + G · Z2 X , KL= H · Z0 + 2A · Z1 + G · Z2 3X ,
(where KLabsorbs the factor 3 in the denominator, different from [20]) and Ziobtained from the Lyapunov equations
(A − GX)Z
i+ Zi(A − GX) = −Xi, (i = 0, 1, 2). (22)
We shall attempt to modify the SM for the solution of (22).
For large-scale systems, we have A being large, sparse(-like) or banded, and the low-ranked G= BR−1B. We then need to solve the Lyapunov equations (22) efficiently, preferably in O(n) computational complexity. Substituting an
accurate low-ranked approximate solution H= CT−1C into X in (22), for
i= 1, 2, we have the large-scale Lyapunov equations
(A − G H)Zi+ Zi(A − G H) = −H = − Hi (23)
with the low-ranked right-hand-sides involving
H = CT−1C=CT−1Ci, (i = 1, 2).
This implies that
C= C, T−1= T−1(i = 1), or T−1 = T−1CCT−1(i = 2).
The matrix operator in (23), instead of A in (2), will be
Ac≡ A − G H = A − GCT−1C.
Note that Acis in a sparse-plus-low-rank (splr) form. For (23), the replacement
of A by Acin Algorithm 2 only modifies it slightly and does not affect its O(n)
computational complexity. Note that the Cayley transform (to an equivalent Stein equation for doubling to be applicable) requires, with the help of the Sherman–Morrison–Woodbury formula (SMWF), (Ac− γ I)−1= Aγ − GCT−1C−1 = A−1 γ + A−1γ GC· T−1Il− CA−1γ GCT−1 −1 · CA−1γ , (24)
again in a similar form to Ac. Withv ∈Rn, note that A−γ v and A−1γ v, thus (Ac− γ I)−1v and (Ac− γ I)−v, can be computed efficiently in O(n) flops.
For initial values, we have
C0= (Ac− γ I)−C= A−γ C+ D(2)0 S−10 D(1)0 C, T0−1= 2γ T−1, A0= I + 2γ (Ac− γ I)−1= I+ 2γ A−1γ + 2γ D(1)0 S−10 D(2)0 , with D(1)0 ≡ A−1γ GC, D(2)0 ≡ A−γ C, S−10 ≡ T−1Il− CA−1γ GCT−1 −1
and Aγ in Algorithm 2 replaced with Ac− γ I in (24).
For i= 0 in (22), notice that the algorithm in (7) has the form
Ak+1= A2k, Hk+1= Hk+ AkHkAk. With H0= I, we have H1= I + A0A0= I + I+ 2γ (Ac− γ I)− I+ 2γ (Ac− γ I)−1 .
It is not hard to deduce, in general, that the corresponding Hk= I +
k−1
convergence, the estimation ofZ0 ≈ Hk will still be computationally
ex-pensive, of O(n2) computational complexity. Consequently, the estimation of Z0may then be vastly more expensive than the solution of the corresponding
large-scale CAREs. This makes the estimation of Z0 for large-scale CAREs
nonsensical in practice, until better methods can be found.
Alternatively, Z0 in (22) can be bounded in terms ofZ1 and Z2, as
in [20]: Z0 · Z2 κ(X) ≤ Z12≤ Z0 · Z2, giving rise to Z12 Z2 ≤ Z 0 ≤ κ(X) · Z 12 Z2 ,
and the less sharp bounds KL≤ κCARE≤ KU with KU = κ(X)H · Z1 2+ 2√κ(X)A · Z1 · Z 2 + G · Z22 X · Z2 , KL= H · Z1 2+ 2A · Z 1 · Z2 + G · Z22 3X · Z2 .
A large value for one of the norms of Z0, Z1 or Z2 will indicate ill-condition
of the CARE.
Unfortunately, we still cannot produce a sharp upper bound in KUfor
large-scale problems. As X is numerically low-ranked,X−1 in κ(X) is large, thus producing a large and pessimistic, thus useless, upper bound KU. Worse still, X is approximated by the low-ranked H, which contains no information of
X−1. Anyhow, in most applications for large-scale problems, we are usually
interested in detecting ill-condition, thus the lower bound KL.
It will be interesting to generalize the approach in [20] and this section for large-scale discrete-time algebraic Riccati equations.
6 Operation and memory counts
The operation and memory counts of Algorithms 1 and 2 for the kth iteration are summarized in Table1below. In the second column, we assume that l n and A is large and sparse(-like) or banded, requiring cs
amn flops to form the
products AZ or AZ , where Z ∈Rn×mand cs
a is a constant independent of n. Similarly, we assume that cl
amn flops are required to evaluate A−1Z or A−Z , where cl
a is a constant independent of n. (Note that there may be a
sharper upper bound, as the LU factors of Aγ need to be computed only once at the start of Algorithm 2.) To simplify notation, we use ca for csa and
Table 1 Operation/memory
counts, kth iteration, Algorithms 1 and 2
Computation Flops Memory
Ck+1 2kc alkn Nk+1n Tk+1 − Ol2 k Compress Ck+1 4l2 kn − Modify Tk+1 Ol3 k − ˜rk+1 4(2lk+ l)2+ 2l2 k n − Total 2kcalk+ 4lk2+ Nk+1n 4(2lk+ l)2+ 8l2 k n cl
a when considering the Stein and Lyapunov equations, respectively. In the
third column, the memory requirement in terms of the number of variables is recorded. Only O(n) operations or memory requirement are included. Note that most of the work is done in the computation of Ck+1, for which AkCk has to be calculated recursively, as Ak is not available explicitly. In
Table 1, we shall use the notation Nk≡ kj=1lj. The operation count for
the QR decomposition with column pivoting of an n× r matrix is 4nr2 flops
[12, p. 250].
With lk controlled by the compression and truncation in Section2.2, the
operation count will be dominated by the calculation of Ck+1. In our numerical
examples in Section7, the flop count near the end of Algorithm 1 dominates, with the work involved in one iteration approximately doubled that of the pre-vious one. This corresponds to the 2kfactor in the total flop count. However, the last iteration is virtually free because there is no need to prepare Ck+1for
the next iteration. In other words, for the true total CPU time up to a certain iteration, the total CPU time up to the previous iteration should be considered. In addition, for large-scale Stein equations, there will be a start up cost of 4l2n flops in the orthogonalization of C and the modification of T−1, in the
calculation of h= H = T−1. For large-scale Lyapunov equations, a start up cost ofclal+ 4l2+ 1n flops for the SM is made up of the following:
(1) setting up Aγ, requiring n flops; (2) setting up C0, requiring claln flops; and
(3) the orthogonalization of C0 and the modification of T0−1, in the
calcula-tion of h= H0 = T0−1, requiring 4l2n flops.
We have ignored the one off LU factorization of Aγ at the beginning of Algorithm 2.
From Theorem 2.1 and the operation count in Table1, we have the following result for the SM:
Corollary 6.1 Assume the Smith method converges after k iterations to an
ap-proximate solution Hkwith rankHk≤ 2kl= O(1), according to some accuracy criterion. Then the Smith method has an O(n) computational complexity and memory requirement.
7 Numerical examples
Most of the numerical results were computed using MATLAB [24] Version R2010a, on a MacBook Pro with a 2.66 GHz Intel Core 2 Duo processor and 4 GB RAM, with machine accuracy eps= 2.22 × 10−16. However, the Lyapunov equation in Examples S1c and B4 overwhelmed the memory of the MacBook Pro and were solved on a Dell PowerEdge R910 computer.
Various parameters were put into the SM, with = 0.5 × 10−15controlling the convergence in terms of the relative residualrk, andτ the compression and
truncation of Ck in (15). We also set the upper bound lmax for lk, the ranks
of Ck. The sub-total CPU time is tk= ki=1δti, with δti being the CPU time
required for the ith iteration.
Typically, we start with a small lmaxand a very smallτ, with the SM achieving
certain accuracy in terms of residuals. The appropriateτ, usually ranging from 10−16to 10−10, can then be chosen to achieve the accuracy we desire (around 10−16to 10−15in the numerical examples in this section). Too small aτ or too large an lmaxwill be ineffective.
7.1 Examples from [26]
In this section, we apply our SM to the examples in [25]. In the Stein equations in Examples S1a–S1c, we have the parameterα = 0.45, 0.49, 0.499, giving the increasingly difficult spectral radii σ(A) = 0.9, 0.98, 0.998, respectively. We have tried only the most difficult examples with n= 50, 000. Eight to thirteen iterations were required for the SM for approximate solutions to the large-scale Lyapunov equations to (near-)machine accuracy. Even with σ(A) = 0.998, Example S1c was easy for the SM.
The Lyapunov equation in the small Example S2 is not a challenge for the SM, even withσ(A) = 0.9999. Again, a near-machine accuracy was achieved quickly in twelve iterations. In [25], dozens to hundreds of restarts (with many more iterations) were required for worse accuracies. The example shows that the power and accuracy of the SM come from the convergence of Ak= A2
k as well as the approximate Krylov subspaces. The error in the SM turns out to be better than expected, withλ2k
≈ [σ(A)]213
= 0.4408 (after k = 12 iterations) being moderately large in the right-hand-side of (12). This combines with a large approximate Krylov subspace of dimension lmax= 500 and yields the
near machine accuracy of O(10−15). We have tried smaller subspaces but less accurate results were obtained.
In all the examples in this subsection, we choose a smallτ = 10−30, essen-tially surrendering the control of the compression and truncation process in the SM to lmax, the upper limit of the size of the approximating Krylov subspaces.
The actual CPU time was not as informative as the number of iterations required. Note also that we work with A in Example S1, as compare to A2
in [25, p. 18]. Recall that for the total CPU time up to the kth iteration, tk−1
Table 2 Example S1a (n= 50, 000, l = 2, α = 0.45, σ (A) = 0.9; τ = 10−30, lk≤ 50) k dHk dHk/Hk rk rk lk δtk tk 1 4.0500e−01 3.2610e−01 2.0503e−01 7.5132e−02 3 1.6e−02 1.6e−02 2 2.4655e−01 1.7524e−01 7.0624e−02 2.3371e−02 5 7.8e−02 9.4e−02 3 1.1966e−01 8.0626e−02 1.3747e−02 4.3498e−03 9 1.4e−01 2.3e−01 4 3.0961e−02 2.0679e−02 1.0365e−03 3.2528e−04 17 7.5e−01 9.8e−01 5 2.8277e−03 1.8878e−03 1.3571e−05 4.2572e−06 33 2.5e+00 3.5e+00 6 4.1215e−05 2.7515e−05 5.8842e−09 1.8458e−09 50 7.3e+00 1.1e+01 7 1.9024e−08 1.2701e−08 3.2093e−15 1.0067e−15 50 1.4e+01 2.5e+01 8 9.8856e−15 6.5997e−15 3.0942e−15 9.7063e−16 50
Remark 7.1 The numerical examples in Tables2,3,4and5reveal an inter-esting phenomenon. The convergence result in (12) relies solely on the fact that 0< λ < 1. With λ ≈ 1, the predicted numbers of iteration required for convergence are higher than what are actually required. This faster conver-gence came from the power of approximation of the Krylov subspaces in (21). This creates cancellations in the increment dHk≡ AkHkAk in (7), thus the
subsequent faster convergence. 7.2 Examples from [10]
In this subsection, we have tested the SM on selected numerical examples from [9]. The suite of benchmark problems involves Lyapunov equations from the continuous-time systems originated from the boundary control problem modelling the cooling of rail sections. The PDE model was semi-discretized using 2D finite elements to a continuous-time linear system with n variables, where n= 1357, 5177, 20209, 79841. For Stein equations, we transformed these continuous-time systems (with t = 0.01) to discrete-time models, as in [8] (i.e., the path indicated by the dashed arrows in Fig.1).
Lyapunov equations are first transformed to equivalent Stein equations a là Cayley (i.e., the path represented by the solid arrows in Fig1). Of course, the final Stein equations from the two different paths are not the same, with parametersδt and γ playing their parts. Somehow, for the examples from [9],

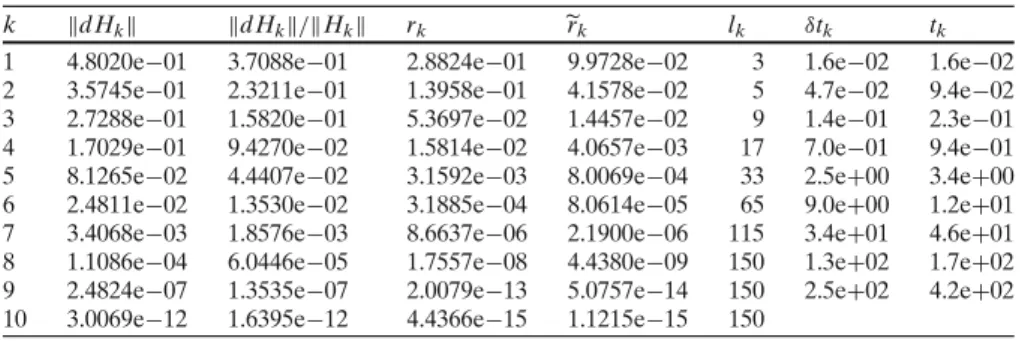

Table 3 Example S1b (n= 50, 000, l = 2, α = 0.49, σ (A) = 0.98; τ = 10−30, lk≤ 150) k dHk dHk/Hk rk rk lk δtk tk 1 4.8020e−01 3.7088e−01 2.8824e−01 9.9728e−02 3 1.6e−02 1.6e−02 2 3.5745e−01 2.3211e−01 1.3958e−01 4.1578e−02 5 4.7e−02 9.4e−02 3 2.7288e−01 1.5820e−01 5.3697e−02 1.4457e−02 9 1.4e−01 2.3e−01 4 1.7029e−01 9.4270e−02 1.5814e−02 4.0657e−03 17 7.0e−01 9.4e−01 5 8.1265e−02 4.4407e−02 3.1592e−03 8.0069e−04 33 2.5e+00 3.4e+00 6 2.4811e−02 1.3530e−02 3.1885e−04 8.0614e−05 65 9.0e+00 1.2e+01 7 3.4068e−03 1.8576e−03 8.6637e−06 2.1900e−06 115 3.4e+01 4.6e+01 8 1.1086e−04 6.0446e−05 1.7557e−08 4.4380e−09 150 1.3e+02 1.7e+02 9 2.4824e−07 1.3535e−07 2.0079e−13 5.0757e−14 150 2.5e+02 4.2e+02 10 3.0069e−12 1.6395e−12 4.4366e−15 1.1215e−15 150
Table 4 Example S1c (n= 50, 000, l = 2, α = 0.499, σ (A) = 0.998; τ = 10−30, lk≤ 300) k dHk dHk/Hk rk rk lk δtk tk 1 4.9800e−01 3.8086e−01 3.1001e−01 1.0582e−01 3 3.0e−02 3.0e−02 2 3.8720e−01 2.4588e−01 1.6146e−01 4.6852e−02 5 4.0e−02 7.0e−02 3 3.2677e−01 1.8161e−01 7.1849e−02 1.8487e−02 9 4.2e−01 4.9e−01 4 2.4943e−01 1.2963e−01 2.8312e−02 6.8075e−03 17 8.6e−01 1.4e+00 5 1.7730e−01 8.9477e−02 1.0126e−02 2.3565e−03 33 1.7e+00 3.1e+00 6 1.1752e−01 5.8659e−02 3.2761e−03 7.5229e−04 65 6.9e+00 1.0e+01 7 7.0360e−02 3.5003e−02 9.1463e−04 2.0911e−04 117 2.70e+01 3.7e+01 8 3.5132e−02 1.7464e−02 1.9567e−04 4.4687e−05 192 9.9e+01 1.4e+02 9 1.2454e−02 6.1903e−03 2.4948e−05 5.6966e−06 300 3.1e+02 4.5e+02 10 2.3237e−03 1.1550e−03 1.1383e−06 2.5993e−07 300 6.4e+02 1.1e+03 11 1.3407e−04 6.6639e−05 6.6778e−09 1.5248e−09 300 1.2e+03 2.3e+03 12 8.9421e−07 4.4445e−07 6.4879e−13 1.4814e−13 300 2.4e+03 4.7e+03 13 9.3417e−11 4.6431e−11 1.2753e−14 2.9120e−15 300
the first path (via the Lyapunov equation from the original continuous-time system, represented by the solid arrows in Fig.1) yields slightly easier Stein equations to solve, as indicated by the numerical examples in this section. We have chosenγ = 0.1, 0.5 or 100 (for the largest Lyapunov equation with n = 79841) after a few tests, yielding good accuracy and efficiency, without any exhaustive attempt for optimality. From our experience in the numerical tests here and [10], the choice ofγ is neither sensitive nor critical.
7.2.1 Example B1 (n= 1357, l = 6)
Although the smallest in the suite of examples on the cooling of steel profiles [9], Example B1 is not the easiest in any sense. Somehow for Stein equations, the SM converges faster (in terms of number of iterations) for the larger examples. The phenomenon can be quantified through the decreasing spectral radii of A0for increasing values of n.
From Tables 6 and 7, the machine accuracy of O(10−16) is achieved for the relative residual within 15 iterations and 12 s for the Stein equation, and

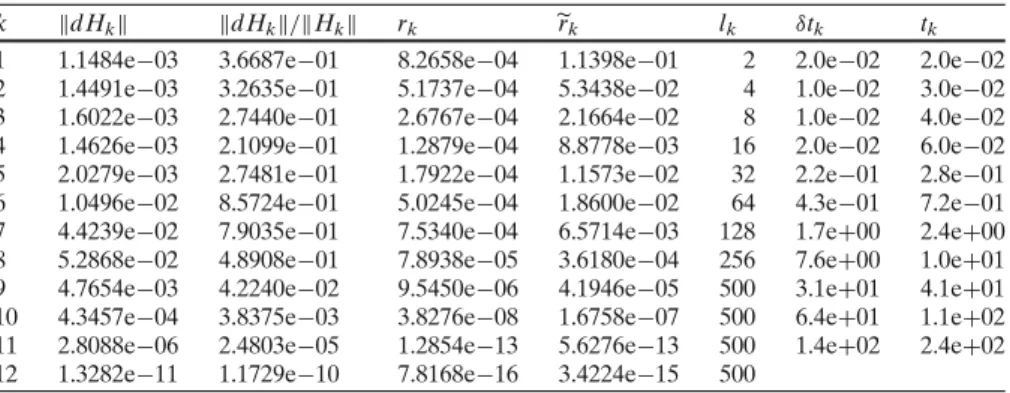

Table 5 Example S2 (n= 1, 000, σ (A) = 0.9999, l = 2, γ = 300; τ = 10−30, lk≤ 500) k dHk dHk/Hk rk rk lk δtk tk 1 1.1484e−03 3.6687e−01 8.2658e−04 1.1398e−01 2 2.0e−02 2.0e−02 2 1.4491e−03 3.2635e−01 5.1737e−04 5.3438e−02 4 1.0e−02 3.0e−02 3 1.6022e−03 2.7440e−01 2.6767e−04 2.1664e−02 8 1.0e−02 4.0e−02 4 1.4626e−03 2.1099e−01 1.2879e−04 8.8778e−03 16 2.0e−02 6.0e−02 5 2.0279e−03 2.7481e−01 1.7922e−04 1.1573e−02 32 2.2e−01 2.8e−01 6 1.0496e−02 8.5724e−01 5.0245e−04 1.8600e−02 64 4.3e−01 7.2e−01 7 4.4239e−02 7.9035e−01 7.5340e−04 6.5714e−03 128 1.7e+00 2.4e+00 8 5.2868e−02 4.8908e−01 7.8938e−05 3.6180e−04 256 7.6e+00 1.0e+01 9 4.7654e−03 4.2240e−02 9.5450e−06 4.1946e−05 500 3.1e+01 4.1e+01 10 4.3457e−04 3.8375e−03 3.8276e−08 1.6758e−07 500 6.4e+01 1.1e+02 11 2.8088e−06 2.4803e−05 1.2854e−13 5.6276e−13 500 1.4e+02 2.4e+02 12 1.3282e−11 1.1729e−10 7.8168e−16 3.4224e−15 500
Fig. 1 Paths from continuous-time system to Stein equation
5 iterations and less than 0.13 s for the Lyapunov equation. Somehow, the Lyapunov equations are faster to solve than the analogous Stein equation, in terms of number of iterations. Note that the last iteration is virtually free because there is no need to prepare for the next iteration.
Recall that the Stein and Lyapunov equations in Tables 6 and 7 origi-nate from the same system in [9], with the latter coming from the original continuous-time system (then transformed a là Cayley) and the former from the approximating discrete-time system (see Fig.1). The difference in the total CPU time required is misleading. There is very little difference when the total CPU time is compared after the same number of iterations are completed,

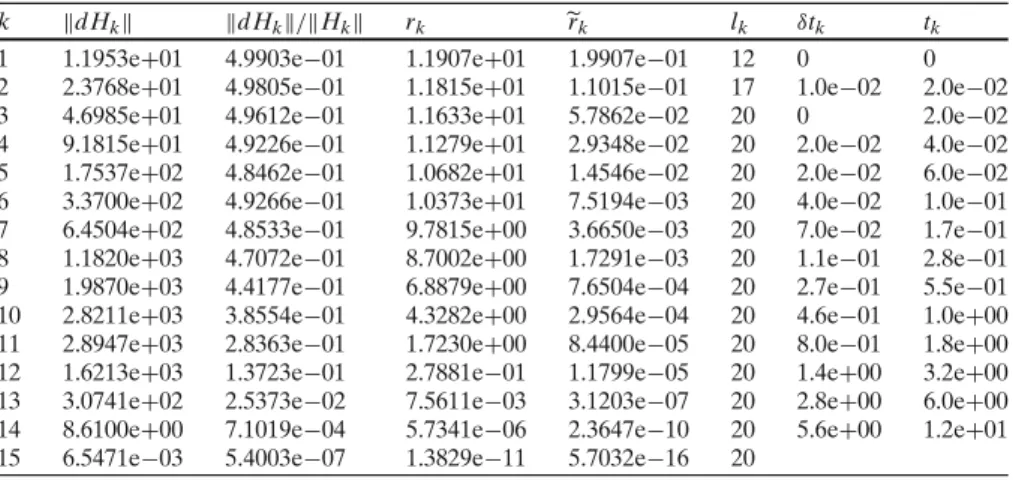

Table 6 Example B1 (Stein equation, with n= 1357, l = 6; τ = 10−12, lk≤ 20)
k dHk dHk/Hk rk rk lk δtk tk 1 1.1953e+01 4.9903e−01 1.1907e+01 1.9907e−01 12 0 0 2 2.3768e+01 4.9805e−01 1.1815e+01 1.1015e−01 17 1.0e−02 2.0e−02 3 4.6985e+01 4.9612e−01 1.1633e+01 5.7862e−02 20 0 2.0e−02 4 9.1815e+01 4.9226e−01 1.1279e+01 2.9348e−02 20 2.0e−02 4.0e−02 5 1.7537e+02 4.8462e−01 1.0682e+01 1.4546e−02 20 2.0e−02 6.0e−02 6 3.3700e+02 4.9266e−01 1.0373e+01 7.5194e−03 20 4.0e−02 1.0e−01 7 6.4504e+02 4.8533e−01 9.7815e+00 3.6650e−03 20 7.0e−02 1.7e−01 8 1.1820e+03 4.7072e−01 8.7002e+00 1.7291e−03 20 1.1e−01 2.8e−01 9 1.9870e+03 4.4177e−01 6.8879e+00 7.6504e−04 20 2.7e−01 5.5e−01 10 2.8211e+03 3.8554e−01 4.3282e+00 2.9564e−04 20 4.6e−01 1.0e+00 11 2.8947e+03 2.8363e−01 1.7230e+00 8.4400e−05 20 8.0e−01 1.8e+00 12 1.6213e+03 1.3723e−01 2.7881e−01 1.1799e−05 20 1.4e+00 3.2e+00 13 3.0741e+02 2.5373e−02 7.5611e−03 3.1203e−07 20 2.8e+00 6.0e+00 14 8.6100e+00 7.1019e−04 5.7341e−06 2.3647e−10 20 5.6e+00 1.2e+01 15 6.5471e−03 5.4003e−07 1.3829e−11 5.7032e−16 20
Table 7 Example B1 (Lyapunov equation, with n= 1357, l = 6; γ = 0.1, τ = 10−15, lk≤ 20) k dHk dHk/Hk rk rk lk δtk tk 1 1.4975e+01 1.2626e−01 2.2429e+00 9.3598e−03 6 3.0e−02 5.0e−02 2 2.5823e+00 2.1325e−02 5.1696e−02 2.1317e−04 12 2.0e−02 8.0e−02 3 6.0953e−02 5.0311e−04 3.3931e−04 1.3987e−06 18 2.0e−02 1.0e−01 4 5.3255e−04 4.3956e−06 1.1995e−07 4.9448e−10 19 3.0e−02 1.3e−01 5 1.9190e−07 1.5840e−09 5.1290e−14 2.1143e−16 20
indicating that the Lyapunov equation is slightly more difficult to solve than the Stein equation, most likely because of the inversion of A involved. As each iteration roughly requires twice the amount of work or memory as the previous one, the number of iterations required for convergence dictates the final amount of CPU time consumed. Note that the speed of convergence of the SM is influenced by the minimum distance between σ(A) and the unit circle. Somehow, indicated by the faster convergence for the Lyapunov equation in Table7, this distance for the Stein equation (from the discrete-time system approximating the original continuous-discrete-time system; dashed arrows in Fig.1) is greater than that for the analogous Lyapunov equation (from the original continuous-time system, and then transformed to an equivalent Stein equation; solid arrows in Fig.1).
7.2.2 Example B2 (n= 5177, l = 6)
From Tables8and9, the machine accuracy of O(10−16) is achieved within 14 iterations and 25 s for the Stein equation, and five iterations and less than 0.23 s for the Lyapunov equation.

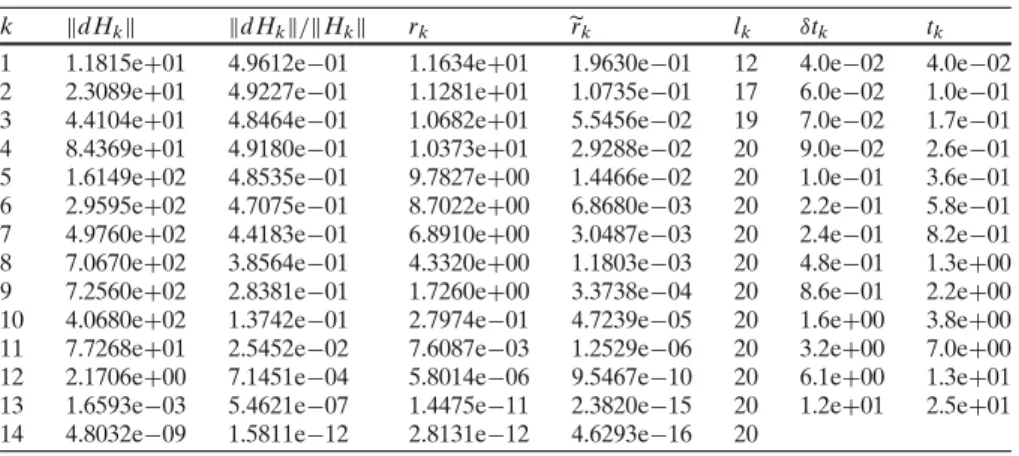

Table 8 Example B2 (Stein equation, with n= 5177, l = 6; τ = 10−10, lk≤ 20)
k dHk dHk/Hk rk rk lk δtk tk 1 1.1815e+01 4.9612e−01 1.1634e+01 1.9630e−01 12 4.0e−02 4.0e−02 2 2.3089e+01 4.9227e−01 1.1281e+01 1.0735e−01 17 6.0e−02 1.0e−01 3 4.4104e+01 4.8464e−01 1.0682e+01 5.5456e−02 19 7.0e−02 1.7e−01 4 8.4369e+01 4.9180e−01 1.0373e+01 2.9288e−02 20 9.0e−02 2.6e−01 5 1.6149e+02 4.8535e−01 9.7827e+00 1.4466e−02 20 1.0e−01 3.6e−01 6 2.9595e+02 4.7075e−01 8.7022e+00 6.8680e−03 20 2.2e−01 5.8e−01 7 4.9760e+02 4.4183e−01 6.8910e+00 3.0487e−03 20 2.4e−01 8.2e−01 8 7.0670e+02 3.8564e−01 4.3320e+00 1.1803e−03 20 4.8e−01 1.3e+00 9 7.2560e+02 2.8381e−01 1.7260e+00 3.3738e−04 20 8.6e−01 2.2e+00 10 4.0680e+02 1.3742e−01 2.7974e−01 4.7239e−05 20 1.6e+00 3.8e+00 11 7.7268e+01 2.5452e−02 7.6087e−03 1.2529e−06 20 3.2e+00 7.0e+00 12 2.1706e+00 7.1451e−04 5.8014e−06 9.5467e−10 20 6.1e+00 1.3e+01 13 1.6593e−03 5.4621e−07 1.4475e−11 2.3820e−15 20 1.2e+01 2.5e+01 14 4.8032e−09 1.5811e−12 2.8131e−12 4.6293e−16 20

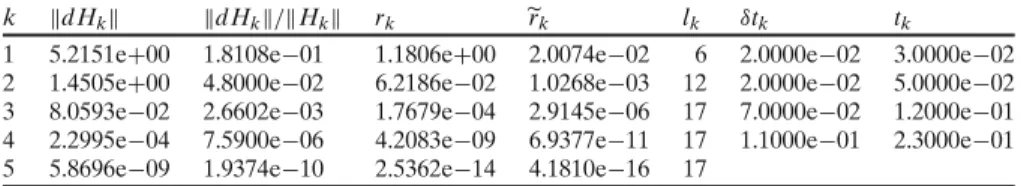

Table 9 Example B2 (Lyapunov equation, with n= 5177, l = 6; γ = 0.5, τ = 10−8, lk≤ 20) k dHk dHk/Hk rk rk lk δtk tk
1 5.2151e+00 1.8108e−01 1.1806e+00 2.0074e−02 6 2.0000e−02 3.0000e−02 2 1.4505e+00 4.8000e−02 6.2186e−02 1.0268e−03 12 2.0000e−02 5.0000e−02 3 8.0593e−02 2.6602e−03 1.7679e−04 2.9145e−06 17 7.0000e−02 1.2000e−01 4 2.2995e−04 7.5900e−06 4.2083e−09 6.9377e−11 17 1.1000e−01 2.3000e−01 5 5.8696e−09 1.9374e−10 2.5362e−14 4.1810e−16 17
7.2.3 Example B3 (n= 20209, l = 6)
From Tables10and11, the machine accuracy of O(10−16) is achieved within 12 iterations and 41 s for the Stein equation, and seven iterations and less than 3.3 s for the Lyapunov equation.
7.2.4 Example B4 (n= 79841, l = 6)
From Table12 for the Stein equation, the machine accuracy of O(10−16) is achieved within ten iterations and 47 s for the Stein equation.
For the Lyapunov equation, the 4 GB RAM of our MacBook Pro could not cope with the memory requirement. A Dell PowerEdge R910 computer, with 4× 8-core Intel Xeon 2.26 GHz CPUs and 1024 GB RAM, was used instead for the equation. From Table13, the machine accuracy of O(10−16) is achieved within five iterations and 12.3 s for the Lyapunov equation. As in the previous examples, the cost for the final iteration is negligible, as no preparation is required for the next iteration. The results in Table13confirm the afore-mentioned comments that the Lyapunov equation is easier than the analogous Stein equation, and the larger Stein equations are easier in the sense that less iterations are required, possibly because of the fixed value of l relative to the varying n.
Table 10 Example B3 (Stein equation, with n= 20209, l = 6; τ = 10−12, lk≤ 20) k dHk dHk/Hk rk rk lk δtk tk 1 1.1290e+01 4.8477e−01 1.0683e+01 1.8674e−01 12 2.0e−02 2.0e−02 2 2.1211e+01 4.8291e−01 1.0375e+01 1.0549e−01 17 1.2e−01 1.5e−01 3 4.0605e+01 4.8539e−01 9.7860e+00 5.4947e−02 20 2.5e−01 4.0e−01 4 7.4431e+01 4.7083e−01 8.7081e+00 2.6722e−02 20 3.1e−01 7.3e−01 5 1.2520e+02 4.4199e−01 6.9003e+00 1.2012e−02 20 3.9e−01 1.1e+00 6 1.7798e+02 3.8594e−01 4.3435e+00 4.6822e−03 20 8.3e−01 1.9e+00 7 1.8305e+02 2.8432e−01 1.7349e+00 1.3445e−03 20 1.3e+00 3.2e+00 8 1.0295e+02 1.3801e−01 2.8256e−01 1.8922e−04 20 2.6e+00 5.9e+00 9 1.9662e+01 2.5695e−02 7.7597e−03 5.0667e−06 20 5.1e+00 1.1e+01 10 5.5780e−01 7.2843e−04 6.0303e−06 3.9348e−09 20 1.0e+01 2.1e+01 11 4.3460e−04 5.6755e−07 1.6740e−11 1.0923e−14 20 2.0e+01 4.1e+01 12 1.3854e−09 1.8092e−12 2.1117e−13 1.3779e−16 20
Table 11 Example B3 (Lyapunov equation, with n= 20209, l = 6; γ = 0.5, τ = 10−12, lk≤ 20) k dHk dHk/Hk rk rk lk δtk tk 1 5.9351e−02 8.6069e−02 2.0645e−02 1.4435e−02 6 8.0e−02 9.0e−02 2 2.9967e−02 4.3408e−02 4.3733e−03 3.0386e−03 12 1.8e−01 2.7e−01 3 8.0773e−03 1.1700e−02 3.3262e−04 2.3054e−04 17 3.8e−01 6.5e−01 4 8.5182e−04 1.2339e−03 1.2312e−05 8.5326e−06 18 5.5e−01 1.2e+00 5 4.2250e−05 6.1199e−05 6.7101e−08 4.6501e−08 19 7.3e−01 1.9e+00 6 2.5289e−07 3.6631e−07 4.1645e−12 2.8860e−12 20 1.4e+00 3.3e+00 7 1.6079e−11 2.3291e−11 4.8006e−16 3.3268e−16 20
7.3 Example from [29]
Lastly, we apply our SM to the Lyapunov equations from a 3D example in [28, Example 5.2]. The matrices B∈Rn×l were generated randomly, with n= 10648 and l = 1, 2, 4, 7. We controlled the truncation and compression
process solely with lmaxand chooseτ = 10−30, thus putting it out of play. We
experimented on the choice of γ using the easiest l = 1 case and settle on an acceptableγ = 8 after a few trials. The examples turn out to be amongst the easiest we have tried, producing much more accurate results (in terms of relative residuals) in less CPU times and using smaller Krylov subspaces, when compared to [28, Table 5.1]. Note a similar computer to that in [28] has been used for the numerical experiments. Still, it will unwise to place too much importance in the comparison of CPU times from difference computers.
7.3.1 Example M1
From Table14, we achieve the near-machine accuracy of O(10−15) within five iterations and 42 s. Comparing with the similar results in [28, Table 5.1], we achieve an accuracy of O(10−9) in 19 s with rankHk= 16, against an accuracy
of 10−8in 39 s with rankHk= 68. It is difficult to compare the CPU times from
different computers but the differences in the accuracy and rankHk indicate
that the SM is competitive against the Krylov subspaces method in [28]. Similar comments can be made from Examples M2, M4 and M7 in the rest of this subsection.
Table 12 Example B4 (Stein equation, with n= 79841, l = 6; τ = 10−10, lk≤ 20) k dHk dHk/Hk rk rk lk δtk tk 1 1.0382e+01 4.8212e−01 9.7986e+00 1.8242e−01 12 1.0e−01 1.0e−01 2 1.9047e+01 4.7114e−01 8.7305e+00 9.6376e−02 17 3.5e−01 4.5e−01 3 3.2098e+01 4.4259e−01 6.9354e+00 4.5336e−02 17 5.7e−01 1.0e+00 4 4.5787e+01 3.8709e−01 4.3871e+00 1.8132e−02 17 8.7e−01 1.9e+00 5 4.7401e+01 2.8625e−01 1.7691e+00 5.2974e−03 17 1.7e+00 3.6e+00 6 2.6978e+01 1.4024e−01 2.9350e−01 7.6025e−04 17 3.0e+00 6.6e+00 7 5.2605e+00 2.6633e−02 8.3604e−03 2.1108e−05 17 5.9e+00 1.3e+01 8 1.5495e−01 7.8390e−04 6.9933e−06 1.7643e−08 17 1.2e+01 2.5e+01 9 1.2996e−04 6.5745e−07 2.1694e−11 5.4732e−14 17 2.3e+01 4.7e+01 10 4.6240e−10 2.3393e−12 1.2494e−13 3.1522e−16 17

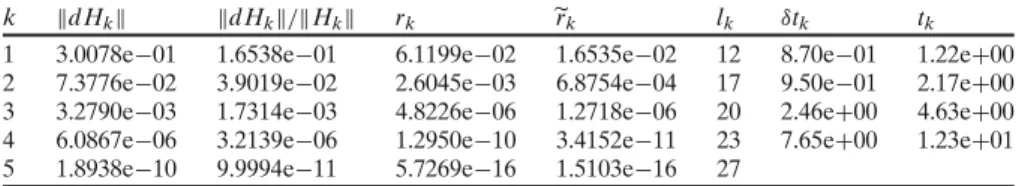

Table 13 Example B4 (Lyapunov equation, with n= 79841, l = 6; γ = 7.5, τ = 10−16, lk≤ 30) k dHk dHk/Hk rk rk lk δtk tk 1 3.0078e−01 1.6538e−01 6.1199e−02 1.6535e−02 12 8.70e−01 1.22e+00 2 7.3776e−02 3.9019e−02 2.6045e−03 6.8754e−04 17 9.50e−01 2.17e+00 3 3.2790e−03 1.7314e−03 4.8226e−06 1.2718e−06 20 2.46e+00 4.63e+00 4 6.0867e−06 3.2139e−06 1.2950e−10 3.4152e−11 23 7.65e+00 1.23e+01 5 1.8938e−10 9.9994e−11 5.7269e−16 1.5103e−16 27
Table 14 Example M1 (l= 1; γ = 8, τ = 10−30, lk≤ 30)
k dHk dHk/Hk rk rk lk δtk tk 1 1.5176e+02 2.3356e−01 5.7489e+01 3.9665e−02 2 2.4e+00 3.7e+00 2 6.5779e+01 1.0097e−01 9.5881e+00 6.5956e−03 4 4.9e+00 8.6e+00 3 1.2199e+01 1.8725e−02 1.4969e−01 1.0297e−04 8 1.0e+01 1.9e+01 4 1.8102e−01 2.7786e−04 3.9757e−06 2.7348e−09 16 2.4e+01 4.2e+01 5 5.7914e−06 8.8897e−09 3.2807e−36 2.2568e−15 30
Table 15 Example M2 (l= 2; γ = 8, τ = 10−30, lk≤ 55)
k dHk dHk/Hk rk rk lk δtk tk 1 1.5275e+02 2.3344e−01 5.7522e+01 3.9405e−02 4 2.6e+00 3.9e+00 2 6.5923e+01 1.0049e−01 1.0604e+01 7.2431e−03 8 5.5e+00 9.4e+00 3 1.3551e+01 2.0656e−02 1.5176e−01 1.0365e−04 16 1.3e+01 2.2e+01 4 1.8326e−01 2.7934e−04 3.9889e−06 2.7245e−09 32 2.9e+01 5.1e+01 5 5.8074e−06 8.8521e−09 5.2529e−12 3.5879e−15 55
Table 16 Example M4 (l= 4; γ = 8, τ = 10−30, lk≤ 110)
k dHk dHk/Hk rk rk lk δtk tk 1 1.6237e+02 2.3602e−01 5.8122e+01 3.7884e−02 8 2.8e+00 4.1e+00 2 6.6759e+01 9.6784e−02 1.0791e+01 7.0125e−03 16 5.7e+00 9.8e+00 3 1.3867e+01 2.0103e−02 1.9250e−01 1.2508e−04 32 1.3e+01 2.3e+01 4 2.3801e−01 3.4504e−04 4.1615e−06 2.7040e−09 64 3.6e+01 5.9e+01 5 5.9636e−06 8.6453e−09 8.9324e−12 5.8041e−15 110

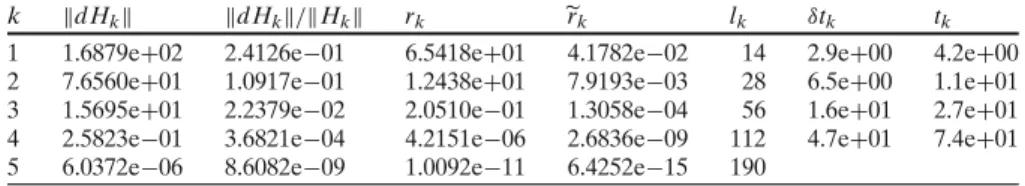

Table 17 Example M7 (l= 7; γ = 8, τ = 10−30, lk≤ 190)
k dHk dHk/Hk rk rk lk δtk tk 1 1.6879e+02 2.4126e−01 6.5418e+01 4.1782e−02 14 2.9e+00 4.2e+00 2 7.6560e+01 1.0917e−01 1.2438e+01 7.9193e−03 28 6.5e+00 1.1e+01 3 1.5695e+01 2.2379e−02 2.0510e−01 1.3058e−04 56 1.6e+01 2.7e+01 4 2.5823e−01 3.6821e−04 4.2151e−06 2.6836e−09 112 4.7e+01 7.4e+01 5 6.0372e−06 8.6082e−09 1.0092e−11 6.4252e−15 190
7.3.2 Example M2
From Table15, we achieve the near-machine accuracy of O(10−15) within five iterations and 51 s. Comparing with the similar results in [28, Table 5.1], we achieve an accuracy of O(10−9) in 22 s with rankHk= 32, against an accuracy
of 10−8in 51 s with rankHk= 132. 7.3.3 Example M4
From Table16, we achieve the near-machine accuracy of O(10−15) within five iterations and 59 s. Comparing with the similar results in [28, Table 5.1], we achieve an accuracy of O(10−9) in 23 s with rankHk= 64, against an accuracy
of 10−8in 91 s with rankHk= 264. 7.3.4 Example M7
From Table17, we achieve the near-machine accuracy of O(10−15) within five iterations and 74 s. Comparing with the similar results in [28, Table 5.1], we achieve an accuracy of O(10−9) in 27 s with rankHk= 112, against an accuracy
of 10−8 in 205 s with rankHk= 448. From Tables 14–17, there seems to be
only a minor increase in difficulty from the increasing values of l. From the numerical results, the (rational) Krylov subspaces in our SM seem to be more effective than those in [28].
8 Conclusions
We have adapted or modified the Smith method for the large-scale Stein equa-tion (1), with A being large and sparse(-like), and C being low-ranked. Similar Lyapunov equations (2) can be treated after Cayley transforms. One possibility is not to form Ak= A2
k
0 explicitly, and compress and truncate Ckto control
its growth in rank. For well-behaved Stein (or Lyapunov) equations, with the eigenvalues of the stable A not on the unit circle (or the imaginary axis), low-ranked approximations to the solutions X can be obtained efficiently. (For examples with eigenvalues almost touching the unit circle or imaginary axis, see Section7.1.) The convergence of the SM is quadratic (ignoring the compression and truncation of Ck), as shown in [29]. The computational
complexity and memory requirement are both O(n) per iteration, provided that the growth of Ckis not fast or controlled.
In comparison to the techniques proposed previously, e.g. the ADI-type methods in [5, 23], there is no need to estimate parameters to accelerate convergence. Our parametersτ and lmax are comparatively straight-forward to set. The Krylov subspaces generated by the SM seem to be more effective than those in [28], producing more accurate numerical approximations using smaller Krylov subspaces. Note that the SM also benefits from the diminishing
Akin (16), in addition to the power of approximation of the Krylov subspaces.
Acknowledgements The first author was supported by the Major Scientific Research
Foun-dation of Southeast University (No.3207011102), the NSFC (No.11101080) and the SRFDP (No.20110092120023). The second author has been supported by a Monash Graduate Scholarship and a Monash International Postgraduate Research Scholarship. Parts of this project were completed while the first author visited Monash University and when the third author visited the CMMSC and the NCTS at the National Chiao Tung University, and we would like to acknowledge the support from these Universities. The fourth author would like to acknowledge the support from the National Science Council and the National Centre for Theoretical Sciences in Taiwan. He also like to thank the CMMSC and the ST Yau Centre at the National Chiao Tung University for their support.
We would like to thank Professor Peter Benner for pointing us to the “Cooling of Steel Profiles” examples in [9], which we adapted in Section 7.2. Professor Valeria Simoncini has also kindly sent us information on the numerical examples in [28], one of which we adapted in Section7.3.
We would also like to thank the referees for their valuable comments.
References
1. Antoulas, A.: Approximation of Large-Scale Dynamical Systems. SIAM Publications, Philadelphia, PA (2005)
2. Benner, P.: Solving large-scale control problems. IEEE Control Syst. Mag. 14, 44–59 (2004) 3. Benner, P.: Editorial of special issue on “Large-Scale Matrix Equations of Special Type”.
Numer. Linear Algebra Appl. 15, 747–754 (2008)
4. Benner, P., Ezzatti, P., Kressner, D., Quintana-Orti, E.S., Remón, A.: A mixed-precision algorithm for the solution of Lyapunov equations on hybrid CPU–GPU platforms. Parallel Comput. 37, 439–450 (2011). doi:10.1016/j.parco.2010.12.002
5. Benner, P., Li, J.-R., Penzl, T.: Numerical solution of large Lyapunov equations, Riccati equations and linear-quadratic control problems. Numer. Linear Algebra Appl. 15, 755–777 (2008)
6. Benner, P., Li, R.-C., Truhar, N.: On the ADI method for Sylvester equations. J. Comput. Appl. Math. 233, 1035–1045 (2009)
7. Benner, P., Mehrmann, V., Sorensen, D. (eds.): Dimension Reduction of Large-Scale Systems. Lecture Notes in Computational Science and Engineering, vol. 45. Springer, Berlin/Heidelberg (2005)
8. Benner, P., Fassbender, H.: On the numerical solution of large-scale sparse discrete-time Riccati equations. Adv. Comput. Math. 35, 119–147 (2011)
9. Benner, P., Saak, J.: A semi-discretized heat transfer model for optimal cooling of steel profiles. In: Benner, P., Mehrmann, V., Sorensen, D.C. (eds.) Dimension Reduction of Large-Scale Systems. Lecture Notes in Computational Science and Engineering, vol. 45, pp. 353–356. Springer, Berlin/Heidelberg (2005)
10. Chu, E.K.-W., Fan, H.-Y., Lin, W.-W.: A structure-preserving doubling algorithm for continuous-time algebraic Riccati equations. Linear Algebra Appl. 396, 55–80 (2005)
11. Damm, T.: Direct methods and ADI-pre-conditioned Krylov subspace methods for general-ized Lyapunov equations. Numer. Linear Algebra Appl. 15, 853–871 (2008)
12. Golub, G.H., Van Loan, C.F.: Matrix Computations, 2nd edn. Johns Hopkins University Press, Baltimore, MD (1989)
13. Gugercin, S., Sorensen, D.C., Antoulas, A.C.: A modified low-rank Smith method for large-scale Lyapunov equations. Numer. Algor. 32 27–55 (2003)
14. Jaimoukha, I.M., Kasenally, E.M.: Krylov subspace methods for solving large Lyapunov equa-tions. SIAM J. Numer. Anal. 31, 227–251 (1994)
15. Jbilou, K.: Block Krylov subspace methods for large continuous-time algebraic Riccati equa-tions. Numer. Algor. 34, 339–353 (2003)
16. Jbilou, K.: An Arnoldi based algorithm for large algebraic Riccati equations. Appl. Math. Lett.
19, 437–444 (2006)
17. Jbilou, K.: Low rank approximate solutions to large Sylvester matrix equations. Appl. Math. Comput. 177, 365–376 (2006)
18. Jbilou, K.: ADI preconditioned Krylov methods for large Lyapunov matrix equations. Linear Algebra Appl. 432, 2473–2485 (2010)
19. Jbilou, K., Riquet, A.: Projection methods for large Lyapunov matrix equations. Linear Algebra Appl. 415, 344–358 (2006)
20. Kenney, C., Hewer, G.: The sensitivity of the algebraic and differential Riccati equations. SIAM J. Control Optim. 28, 50–69 (1990)
21. Kressner, D.: Memory-efficient Krylov subspace techniques for solving large-scale Lyapunov equations. In: IEEE Int. Symp. Computer-Aided Control Systems Design, San Antonio, pp. 613–618 (2008)
22. Lasiecka, I., Triggiani, R.: Control Theory for Partial Differential Equations: Continuous and Approximation Theories; I. Abstract Parabolic Systems. Cambridge University Press, Cambridge (2000)
23. Li, J.-R., White, J.: Low-rank solution of Lyapunov equations. SIAM Rev. 46, 693–713 (2004) 24. mathworks: MATLAB User’s Guide (2010)
25. Sadkane, M.: A low-rank Krylov squared Smith method for large-scale discrete-time Lyapunov equations. Linear Algebra Appl. (2011). doi:10.1016/j.laa.2011.07.021
26. Saak, J.: Efficient numerical solution of large scale algebraic matrix equations in PDE control and model order reduction. Dr. rer. nat. Dissertation, Chemnitz University of Technology, Germany (2009)
27. Saak, J., Mena, H., Benner, P.: Matrix Equation Sparse Solvers (MESS): A Matlab Toolbox for the Solution of Sparse Large-Scale Matrix Equations. Chemnitz University of Technology, Germany (2010)
28. Simoncini, V.: A new iterative method for solving large-scale Lyapunov matrix equations. SIAM J. Sci. Comput. 29, 1268–1288 (2007)
29. Smith, R.A.: Matrix equation X A+ BX = C. SIAM J. Appl. Math. 16, 198–201 (1968) 30. Truhar, N., Li, R.-C.: On ADI method for Sylvester equations. Technical Report 2008-02,
