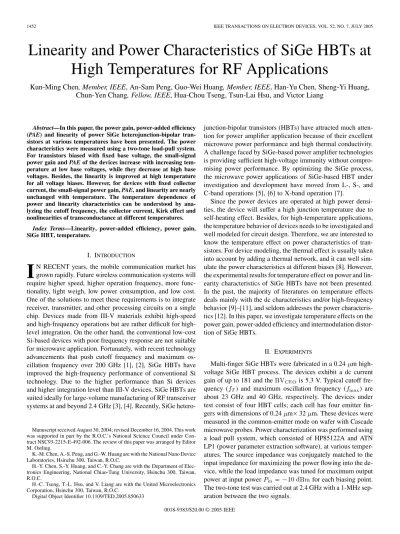

Linearity and Power Characteristics of SiGe HBTs at

High Temperatures for RF Applications

Kun-Ming Chen, Member, IEEE, An-Sam Peng, Guo-Wei Huang, Member, IEEE, Han-Yu Chen, Sheng-Yi Huang,

Chun-Yen Chang, Fellow, IEEE, Hua-Chou Tseng, Tsun-Lai Hsu, and Victor Liang

Abstract—In this paper, the power gain, power-added efficiency (PAE) and linearity of power SiGe heterojunction-bipolar tran-sistors at various temperatures have been presented. The power characteristics were measured using a two-tone load-pull system. For transistors biased with fixed base voltage, the small-signal power gain and PAE of the devices increase with increasing tem-perature at low base voltages, while they decrease at high base voltages. Besides, the linearity is improved at high temperature for all voltage biases. However, for devices with fixed collector current, the small-signal power gain, PAE, and linearity are nearly unchanged with temperature. The temperature dependence of power and linearity characteristics can be understood by ana-lyzing the cutoff frequency, the collector current, Kirk effect and nonlinearities of transconductance at different temperatures.

Index Terms—Linearity, power-added efficiency, power gain, SiGe HBT, temperature.

I. INTRODUCTION

I

N RECENT years, the mobile communication market has grown rapidly. Future wireless communication systems will require higher speed, higher operation frequency, more func-tionality, light weigh, low power consumption, and low cost. One of the solutions to meet these requirements is to integrate receiver, transmitter, and other processing circuits on a single chip. Devices made from III-V materials exhibit high-speed and frequency operations but are rather difficult for high-level integration. On the other hand, the conventional low-cost Si-based devices with poor frequency response are not suitable for microwave application. Fortunately, with recent technology advancements that push cutoff frequency and maximum os-cillation frequency over 200 GHz [1], [2], SiGe HBTs have improved the high-frequency performance of conventional Si technology. Due to the higher performance than Si devices and higher integration level than III-V devices, SiGe HBTs are suited ideally for large-volume manufacturing of RF transceiver systems at and beyond 2.4 GHz [3], [4]. Recently, SiGe

hetero-Manuscript received August 30, 2004; revised December 16, 2004. This work was supported in part by the R.O.C.’s National Science Council under Con-tract NSC93-2215-E-492-006. The review of this paper was arranged by Editor M. Ostling.

K.-M. Chen, A.-S. Peng, and G.-W. Huang are with the National Nano Device Laboratories, Hsinchu 300, Taiwan, R.O.C.

H.-Y. Chen, S.-Y. Huang, and C.-Y. Chang are with the Department of Elec-tronics Engineering, National Chiao-Tung University, Hsinchu 300, Taiwan, R.O.C.

H.-C. Tseng, T.-L. Hsu, and V. Liang are with the United Microelectronics Corporation, Hsinchu 300, Taiwan, R.O.C.

Digital Object Identifier 10.1109/TED.2005.850633

junction-bipolar transistors (HBTs) have attracted much atten-tion for power amplifier applicaatten-tion because of their excellent microwave power performance and high thermal conductivity. A challenge faced by SiGe-based power amplifier technologies is providing sufficient high-voltage immunity without compro-mising power performance. By optimizing the SiGe process, the microwave power applications of SiGe-based HBT under investigation and development have moved from L-, S-, and C-band operations [5], [6] to X-band operation [7].

Since the power devices are operated at high power densi-ties, the device will suffer a high junction temperature due to self-heating effect. Besides, for high-temperature applications, the temperature behavior of devices needs to be investigated and well modeled for circuit design. Therefore, we are interested to know the temperature effect on power characteristics of tran-sistors. For device modeling, the thermal effect is usually taken into account by adding a thermal network, and it can well sim-ulate the power characteristics at different biases [8]. However, the experimental results for temperature effect on power and lin-earity characteristics of SiGe HBTs have not been presented. In the past, the majority of literatures on temperature effects deals mainly with the dc characteristics and/or high-frequency behavior [9]–[11], and seldom addresses the power characteris-tics [12]. In this paper, we investigate temperature effects on the power gain, power-added efficiency and intermodulation distor-tion of SiGe HBTs.

II. EXPERIMENTS

Multi-finger SiGe HBTs were fabricated in a 0.24 m high-voltage SiGe HBT process. The devices exhibit a dc current gain of up to 181 and the is 5.3 V. Typical cutoff fre-quency ( ) and maximum oscillation frequency ( ) are about 23 GHz and 40 GHz, respectively. The devices under test consist of four HBT cells; each cell has four emitter fin-gers with dimensions of 0.24 m 32 m. These devices were measured in the common-emitter mode on wafer with Cascade microwave probes. Power characterization was performed using a load pull system, which consisted of HP85122A and ATN LP1 (power parameter extraction software), at various temper-atures. The source impedance was conjugately matched to the input impedance for maximizing the power flowing into the de-vice, while the load impedance was tuned for maximum output power at input power for each biasing point. The two-tone test was carried out at 2.4 GHz with a 1-MHz sep-aration between the two signals.

(2)

Fig. 1. Power gain and power-added efficiency versus input power for a SiGe HBT at (a)V = 0:73 V and (b) V = 0:84 V with different temperatures.

III. RESULTS ANDDISCUSSION

A. Power Gain

Fig. 1 shows the power gain and power-added efficiency (PAE) of a SiGe HBT at different biases and temperatures. At base voltage , the power gain increases gradually with increasing input power level before gain compression. This phenomenon (i.e., gain expansion) is due to the exponential relation between the applied base voltage and collector current, and it takes place as device operates near cutoff region. When temperature rises, the power gain at small signal increases and the gain expansion will be suppressed and nearly disappear at 75 C. It was observed and discussed in [12]. At , the small-signal power gain ( ) decreases with increasing temperature, which is opposite to that at . It indicates the temperature-dependent power characteristics will change with different bias conditions. Of course, the optimized source and load impedances have changed with temperature, however, the observation is similar to that with fixed imped-ances. For class-A operation, the small-signal power gain of amplifiers can be expressed as [13]

(1) where is the emitter resistance, is the base resistance, is the emitter lead inductance, is the base-collector ca-pacitance, and is the operating frequency. In the above

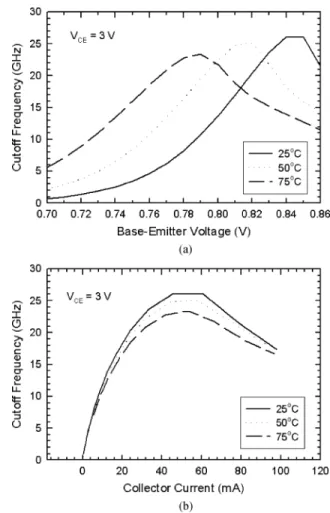

equa-Fig. 2. Cutoff frequency (a) versus base-emitter voltage and (b) versus collector current at different temperatures.

tion, the cutoff frequency ( ) is the most temperature-sensitive parameters than the others. Hence we measured the cutoff fre-quency at different temperatures and the measured results are shown in Fig. 2. We found that the cutoff frequency increases with increasing temperature at low base voltage or low injection, while it decreases with increasing temperature at high injection. This observation can explain the temperature-dependent results in Fig. 1 by way of (1).

When we keep the base voltage with a constant, the increased temperature will increase the collector current and the base current due to the increase of intrinsic carrier concentration, as shown in Fig. 3. Because the depletion capacitance charging time is proportional to the inverse of the collector current, the increase of collector current with temperature will reduce the depletion capacitance charging time and thus increase the cutoff frequency in the low injection region. Hence, the small-signal power gain will increase with increasing tem-perature at [see Fig. 1(a)]. When the device operates in the high injection region, the Kirk effect will take place, in which the base region effectively extends into the collector. The extended base width leads to the fall-off of the cutoff frequency. As shown in Fig. 2(b), the critical current for the onset of Kirk effect is changed slightly with temperature, and the cutoff frequency decreases significantly with increasing current in high current region. Because the collector current will increase with increasing temperature at fixed , the

(3)

Fig. 3. Gummel plots of a SiGe HBT at different temperatures.

cutoff frequency will decrease with increasing temperature in high base voltage region. At , Kirk effect has occurred below 50 C, hence the power gain decreases with increasing temperature [see Fig. 1(b)].

When the input signal increases to very large values, the power gain may be compressed. The power devices will pro-duce more apparent nonlinear output waveform when input power beyond the gain compression. These mechanisms will limit the maximum acceptable input and output power of power amplifiers. When the dynamic load line exceeds the border of output – curve, the output waveform will be clipped. These clipping effects are the main reasons causing gain compression [14]. In our experiment, we found that the average collector current is unchanged with input power in low input power region, while the average current will increase in higher input power region. The increasing in average collector current means the negative duty cycle of output – waveform is suffering cutoff clipping effect. When the temperature increases, the collector current will increase at fixed base voltage, making the dc bias point keep more away from the cutoff region. It allows a lager magnitude of output waveform. As a result, the power gain after compression point will shift to higher values as the temperature increases (see Fig. 1). Especially, for devices operate near cutoff region, the increase of power gain will be more obvious than that at high voltage biases.

Fig. 4 shows the small-signal power gain as a function of col-lector current ( ) with different temperatures. For power am-plifier circuits, it is necessary to tune the source and load im-pedances to optimized condition at ambient temperature. Hence, we changed the optimized source and load impedances with dif-ferent temperatures to compare the power characteristics of tran-sistors in room temperature and high-temperature applications. It was observed that the is changed slightly with temperature when the measurements were carried out by keeping a constant collector current. This is due to the fact that the change of cutoff frequency with temperature at fixed collector current is not so significant as compared to that at fixed base voltage. Besides, from Fig. 4(a), the power gain decreases slightly with increasing temperature due to the reduction of maximum cutoff frequency (see Fig. 2), which is attributed to the mobility degradation. The result of Fig. 4(a) is important, since it suggests that the will not be degraded for high-temperature application when the power amplifier is biased at a constant collector current.

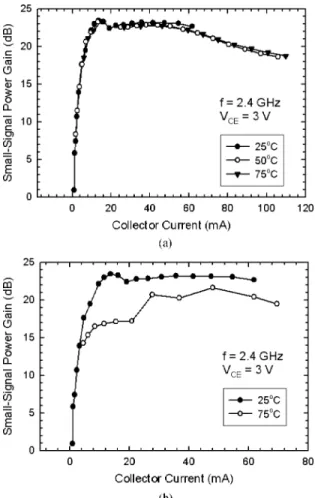

Fig. 4. Small-signal power gain versus collector current for a SiGe HBT at different temperatures. (a) Optimized source and load impedance were tuned for each temperature. (b) Optimized source and load impedances were tuned for 25 C.

When discussing the thermal stability of an amplifier circuit, the source and load impedances may be better to be kept at con-stant values for different temperatures due to the less change of impedances within small temperature range. The temperature dependence of power gain with fixed source and load imped-ances tuned at 25 C is shown in Fig. 4(b). The power gain de-creases with increasing temperature due to the mismatch of im-pedances at higher temperatures. Although the power gain has been reduced at higher temperatures, its deviation with temper-ature is still smaller than that with constant base voltage bias. It indicates that the of devices biased at constant collector current has higher immunity for temperature variation than that at constant base voltage.

B. Power-Added Efficiency

For power amplifiers used in mobile communication systems, high PAE is desirable. The power-added efficiency is defined as (2) where is the collector efficiency and equals to . , , and are the dc power supply, ac output power, and ac input power, respectively. The temperature dependence of PAE and collector efficiency is illustrated in Fig. 5. Because

(4)

Fig. 5. Power-added efficiency and collector efficiency versus temperature at V = 0:84 V and I = 50 mA.

Fig. 6. Output power and third-order intermodulation power versus input power for a SiGe HBT atI = 50 mA with different temperatures.

of the high power gain in our devices, the collector efficiency is close to the PAE. In other words, the change of power gain due to temperature has little effect on the PAE, and only the change of and will affect the PAE significantly.

At fixed base voltage ( ), the collector current increases with temperature, and thus the will increase. In addition, the output power is less dependent on temperature at . Therefore, the PAE has large amount of degrada-tion at a high temperature. If the transistor is biased at constant collector current, i.e., constant dc power supply, as discussed in Section III-A, the power gain and output power is nearly un-changed with temperature. Therefore, the PAE will be slightly dependent on temperature as the collector current is kept to a constant.

C. Linearity

To study the temperature effects on the linearity of a SiGe HBT, the two-tone load-pull measurement was carried out. The most frequently used linearity figure-of-merit of a nonlinear microwave circuit is the third-order intercept point (IP3), at which the output power and third-order intermodulation (IM3) are equal, as shown in Fig. 6. For low distortion operation, the third-order intercept point should be as high as possible.

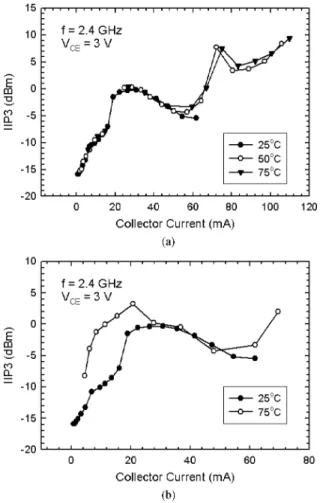

Fig. 7. IIP3 versus collector current for a SiGe HBT at different temperatures.

(a) Optimized source and load impedances were tuned for each temperature. (b) Optimized source and load impedances were tuned for 25 C.

The major nonlinear elements in a bipolar transistor are the collector current, base current, base-emitter charge, and base-collector charge. These nonlinear elements are dependent on temperature. Hence, the variation of temperature will change the device linearity. Fig. 7(a) shows the input IP3 (IIP3) as a function of collector current, where the optimized source and load impedances have been changed with temperature. It was observed that the IIP3 is nearly independent on the temperature and is only a function of collector current. The current depen-dence of IP3 for bipolar transistors has been widely discussed and analyzed by using Volterra series approach [16], [17] or large-signal compact model [18], [19]. As shown in Fig. 7(a), there are significant peaks and troughs in the IP3 behavior. Since the first trough of IIP3 curve roughly corresponds to the peak of cutoff frequency, as depicted in Figs. 7(a) and 2(b), the collector currents, which exceed the value at the trough, should suffer the Kirk effect. It is believed that in low current region, the distortion is dominated by the nonlinear contribu-tions from transconductance . As the current is increased, nonlinearities are decreased due to the increase of and the feedback effect of emitter and base resistances, and even-tually, distortion from base-collector capacitance nonlinearities dominates. When the current increases to the vicinity of the first IP3 trough, distortion due to the Kirk effect begins to domi-nate. At the onset of the Kirk effect, the electron transit time, which is related to the diffusion charge, increases due to the

(5)

Fig. 8. IIP versus temperature for a SiGe HBT at fixed base voltages.

increase of the effective base width. In addition, the electrical field at the base-collector junction collapses and the width of the depletion region decreases, leading to an increased with a current dependence [18]. Therefore, the IP3 increases with current, and then levels off at highest currents [18]. Fi-nally, the results in Fig. 7(a) also suggest that the linearity is less sensitive to temperature as the transistors are biased at constant collector currents.

The IIP3 as a function of collector current with different temperatures, where the optimized source and load imped-ances were tuned at 25 C and kept at constant values for higher temperatures, is shown in Fig. 7(b). The IIP3 increases with increasing temperature at low current region, while it remains the same values at high current region. Although the load impedance has been mismatched from the maximum output power condition for higher temperatures, the IIP3 is still improved. It indicates the optimized load impedances for maximum output power and IP3 are not the same values.

Fig. 8 shows the temperature dependence of IIP3 for devices biased at fixed base voltages. The optimized source and load impedances were changed with temperature. At fixed , the linearity will be improved at higher temperature for all biases. The observation is different from that in field-effect transistors [15], where the linearity degraded with temperature, indicating that SiGe HBTs will be a suitable alternative in high-tempera-ture application if the linearity is the main demand. Because the IP3 is a strong function of collector current, the change of lin-earity with temperature at fixed base voltage can be explained simply by the change of collector current. At , the collector currents are 1.92, 4.68, and 11.7 mA, respectively, for temperature C, 50 C, and 75 C. These currents cover the range before the first peak of IIP3 curve, as shown in Fig. 7(a), so the distortion is dominated by the nonlinearity and improves as current is increased. Hence, the linearity will be improved with temperature at low base voltage. When the base voltage increases to 0.84 V, the collector currents are 47.5, 88.3, and 146 mA, respectively, for C, 50 C, and 75 C. The distortion is dominated by the nonlinearity from Kirk effect. The IP3 is also increased with collector current. Consequently, the linearity will also be improved with increasing temperature for high bias conditions.

IV. CONCLUSION

Linearity and power characteristics of SiGe HBTs at various operation temperatures have been analyzed. The small-signal power gain and PAE of SiGe HBTs increase with temperature at low base voltages, when we keep the base voltage with a con-stant value. Because the collector current increases with temper-ature, the cutoff frequency will increase, leading to the increase of power gain. However, the small-signal power gain and PAE decrease with temperature at high base voltages, due to the de-crease of the cutoff frequency. Moreover, we found that the lin-earity at fixed base voltage increases with temperature for all biases. It is attributed to the temperature variation of collector current, which affects the nonlinearities of transconductance, electron transit time and base-collector capacitance. In addition, when we keep the collector current with a constant, the power gain, PAE, and linearity are nearly independent on the tempera-ture. It is therefore suggested that the Si/SiGe amplifier perfor-mance can be made more stable to the change of temperature by biasing the HBT at a constant current. On the other hand, for high-temperature applications, the amplifier can be biased at lower base voltages to obtain higher power gain and linearity, as well as lower dc power consumption.

ACKNOWLEDGMENT

The authors would like to thank the staff of the United Micro-electronics Corporation for their helpful comments and the staff of Radio Frequency Technology Center in NDL for measure-ment support.
